USER MANUAL CRUZER4 BRAUN

cruZer 4 body& face uZe

Type 5730 www.braun.com/register 5730420_Cruzer2838_S1.indd 1

20.09.2006 13:47:42 Uhr

852-25249377 (Audio Supplies Company Ltd.) 5-730-420/00/IX-06/M D/GB/F/P/I/NL/DK/N/S/FIN/TR/GR Printed in Germany 5730420_Cruzer2838_S2.indd 1

20.09.2006 13:49:12 Uhr

c ru Z er 4 Body & F ac

5730420_Cruzer2838_S3.indd 1

20.09.2006 13:50:02 Uhr

5730420_Cruzer2838_S4.indd 1 180°

20.09.2006 13:50:51 Uhr

5730420_Cruzer2838_S5.indd 1 oil

20.09.2006 13:51:39 Uhr

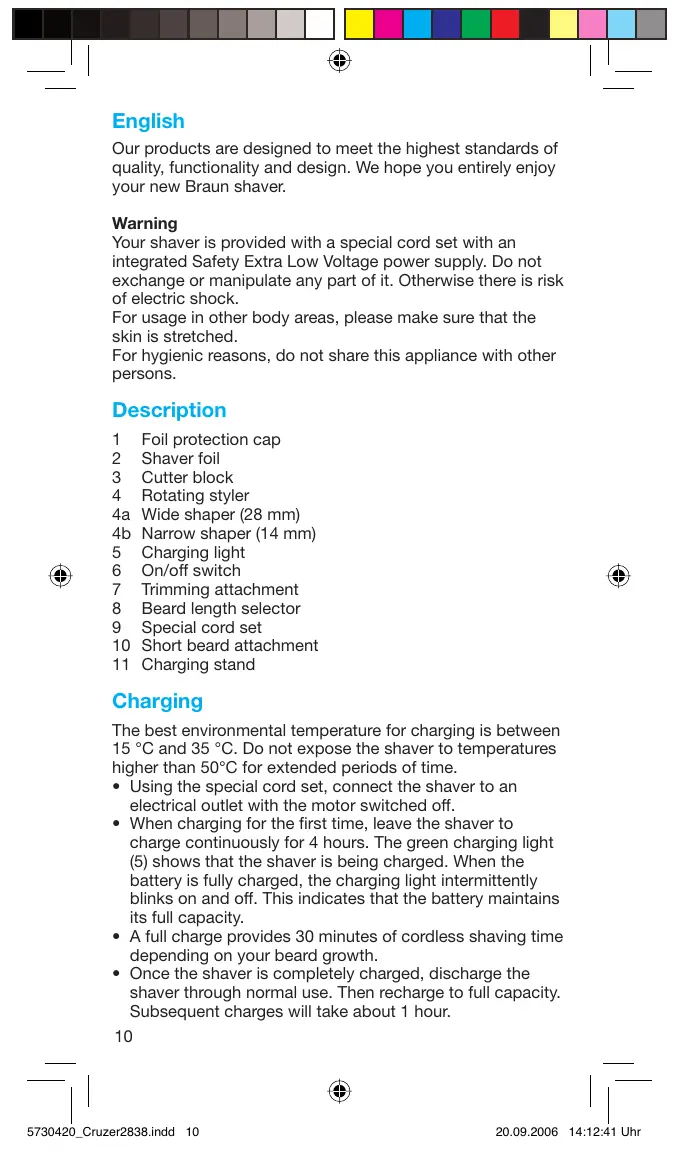

English Our products are designed to meet the highest standards of quality, functionality and design. We hope you entirely enjoy your new Braun shaver. Warning Your shaver is provided with a special cord set with an integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is risk of electric shock. For usage in other body areas, please make sure that the skin is stretched. For hygienic reasons, do not share this appliance with other persons. Description

Foil protection cap Shaver foil Cutter block Rotating styler Wide shaper (28 mm) Narrow shaper (14 mm) Charging light On/off switch Trimming attachment Beard length selector Special cord set Short beard attachment Charging stand Charging The best environmental temperature for charging is between 15 °C and 35 °C. Do not expose the shaver to temperatures higher than 50°C for extended periods of time.

• Using the special cord set, connect the shaver to an electrical outlet with the motor switched off.
• When charging for the first time, leave the shaver to charge continuously for 4 hours. The green charging light (5) shows that the shaver is being charged. When the battery is fully charged, the charging light intermittently blinks on and off. This indicates that the battery maintains its full capacity.
• A full charge provides 30 minutes of cordless shaving time depending on your beard growth.
• Once the shaver is completely charged, discharge the shaver through normal use. Then recharge to full capacity. Subsequent charges will take about 1 hour.

5730420_Cruzer2838.indd 10

20.09.2006 14:12:41 Uhr

• Maximum battery capacity will only be reached after several charging/discharging cycles.
• 5-minute quick charge is sufficient for a shave. Shaving First, remove the trimming attachment (7): Using your thumbs, press against the side clips of the trimming attachment so that they swing off in the direction of the arrows (a). Activate the on/off switch (6). The floating foil frame automatically adapts to your skin surface for a close, smooth shave. For best results:
• Always shave before washing your face.
• At all times, hold the shaver at right angles (90°) to the skin (b).
• Stretch the skin and shave against the direction of beard growth.
• For pre-shaving after a few days of not having shaved, use the wide shaper (4a) to pre-cut long hairs. For a close, smooth shave, finish with the foil.
• To maintain 100% shaving performance, replace your foil and cutter block at least every 18 months or when worn. This appliance is suitable for use in a bath or shower. When using it in the shower, we recommend applying shaving foam or gel. Using the rotating styler The wide shaper (4a) evenly cuts and trims large areas (c). It is ideal for shaping sideburns, moustaches and partial short beards. The wide shaper is provided with safety rips and a gliding strip for less irritation and easy gliding. Press the blue stripes to push up the rotating styler (4). While stretching the skin, guide the wide shaper against the direction of hair growth. The narrow shaper (4b) precisely defines lines and edges (d), being ideal for precise contouring. To use the narrow shaper, push up the styler and turn it 180°. Frequent use of the styler will reduce the battery capacity. Using the trimming attachments (7) and (10)
• The trimming attachment (7) is ideal for beard trimming and keeping it at a constant length.

5730420_Cruzer2838.indd 11

20.09.2006 14:12:41 Uhr

• Place the trimming attachment onto the shaver foil (2) and press it against the shaver housing until it snaps into place with a click.
• Press the beard length selector (8) (e) and slide it up in order to set the desired beard length (length settings from top to bottom 1.2 mm, 2.8 mm, 4.4 mm, 6 mm). Push up the styler (4).
• Activate the on/off switch and trim against hair growth by guiding the transparent comb part over the skin.
• The short beard attachment (10) is perfectly suited for creating a stubble look and maintaining it. Attach the short beard attachment the same way as the trimming attachment (7). Push up the styler and use the appliance as shown in illustration (f). The short beard attachment ensures an optimum usage angle. Cleaning Regular cleaning ensures better shaving performance. Rinsing the shaving head after each shave under running water is an easy and fast way to keep it clean:
• Switch the shaver on (cordless) and rinse the shaving head under hot running water (g). A natural based soap may also be used provided it contains no particles or abrasive substances. Rinse off all foam and let the shaver run for a few more seconds.
• Next, switch off the shaver, remove the shaver foil and the cutter block. Then leave the disassembled shaving parts to dry.
• If you regularly clean the shaver under water, then once a week apply a drop of light machine oil onto the long hair trimmer and shaver foil (i). Alternatively, you may clean the shaver using the brush provided (h):
• Switch off the shaver. Remove the shaver foil.
• Using the brush, clean the cutter block and the inner area of the shaver head. However, do not clean the shaver foil with the brush as this may damage the foil. Keeping your shaver in top shape Replacing the shaving parts To maintain 100% shaving performance, replace your foil and cutter block at least every 18 months or when worn. Change both parts at the same time for a closer shave with less skin irritation. (Shaver foil and cutter block: 2000 series)

5730420_Cruzer2838.indd 12

20.09.2006 14:12:41 Uhr

Preserving the batteries In order to maintain the optimum capacity of the rechargeable batteries, the shaver has to be fully discharged (by shaving) every 6 months approximately. Then recharge the shaver to full capacity. Environmental notice This product contains rechargeable batteries. In the interest of protecting the environment, please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country. Subject to change without notice. This product conforms to the European Directives EMC 89/336/EEC and Low Voltage 73/23/EEC. For electric specifications, see printing on the special cord set.

5730420_Cruzer2838.indd 13

20.09.2006 14:12:42 Uhr

English Guarantee We grant 2 years guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate, free of charge, any defects in the appliance resulting from faults in materials or workmanship, either by repairing or replacing the complete appliance as we may choose. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor. This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. shaver foil or cutter block) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

5730420_Cruzer2838.indd 58

20.09.2006 14:12:52 Uhr

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre. For UK only: This guarantee in no way affects your rights under statutory law.
