Woody - Water dispenser My Soda - Free user manual and instructions

Product type	Sparkling water dispenser / Soda maker
Brand	My Soda
Model	Woody
Bottle capacity	1 liter
Bottle material	BPA-free Tritan
Carbonation system	Manual with CO2 cartridge
Compatible CO2 cartridge	My Soda 60L or standard 8g
Dimensions (L x D x H)	200 x 200 x 420 mm
Weight	1.5 kg
Power supply	None (manual)
Main functions	Water carbonation, sparkling water dispensing
Safety	Pressure relief valve, safety lock
Maintenance	Manual cleaning of bottle and nozzle
Cleaning	Hand wash, do not put in dishwasher
Spare parts	Bottles, CO2 cartridges, seals
Repairability	Replaceable parts available (valve, seals)
Package contents	1 Woody unit, 1 bottle, 1 test CO2 cartridge
Warranty	2 years

Frequently Asked Questions - Woody My Soda

How to use My Soda Woody?

Fill the bottle with cold water up to the fill line, screw it onto the unit, insert a CO2 cartridge into the compartment, then press the carbonation button 1 to 2 times. Wait a few seconds, unscrew the bottle and enjoy.

Which CO2 cartridge to use?

Use exclusively compatible My Soda cartridges, usually 60L or 8g. Do not use cartridges from other brands.

How to clean the bottle?

Wash the bottle by hand with warm water and dish soap. Rinse thoroughly. Do not put it in the dishwasher or in boiling water.

Does sparkling water have a taste?

No, the carbonation system does not alter the taste of the water. You can add flavored syrups after carbonation.

Can I use hot water?

No, only use cold or room temperature water. Hot water could damage the bottle and reduce carbonation.

How to know when the cartridge is empty?

The cartridge is empty when carbonation becomes weak or the discharge sound is no longer audible. You can also weigh the cartridge: a full cartridge weighs about 60g more than an empty one.

Is the unit warranted?

Yes, the My Soda Woody is warranted for 2 years against any manufacturing defects. Keep your receipt.

Can I buy additional bottles?

Yes, replacement bottles are available in stores or on the My Soda website. They are compatible with all Woody models.

How to replace the sealing gasket?

Unscrew the bottle cap, remove the old gasket and place a new silicone gasket. Make sure it is properly seated to avoid leaks.

Is the unit safe for health?

Yes, all parts in contact with water are BPA-free and comply with food standards. Always use original cartridges to ensure safety.

USER MANUAL Woody My Soda

Sparkling water maker

EN

FR

DE

NL

IT

FI

SE

DK

NO

Instruction Manual

English 4
Français 12
Deutsch 20
Nederlands 28
Italia 36
Suomi 44
Svenska 52
Dansk 60
Norsk 68

CONGRATULATIONS.

You're about to enjoy sparkling water that's better for both you and the planet.

Your new sparkling water maker looks, feels and smells like wood. Because it's made of wood.

Each Woody sparkling water maker we produce is a unique piece just like a tree in a forest.

How a tree transforms into a sparkling water maker

We hope you enjoy this sustainably made sparkling water maker for many years. Material for this device is provided by UPM - The Biofore Company. Read more about our sustainability efforts on: mysoda.eu/sustainability

UPM Formi EcoAce

IMPORTANT SAFEGUARDS

Read the instructions in this manual carefully before using the sparkling water maker. Always follow the instructions and safety precautions. Using the device against the instructions and precautions may result in damage to the device and personal injury.

Keep this manual for yourself and other users of the device.

The following warnings apply to the use of the sparkling water maker, the water bottles and the carbon dioxide [CO2] cylinders used within it.

WARNINGS FOR THE DEVICE AND THE USE OF IT

1. This product is not designed or intended for use by children under 12 years of age. Adult supervision is necessary when the device is used by children.

2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.

3. WARNING ⚠️ Do not use the appliance if you notice or suspect a defect or damage. Contact your dealer, importer or manufacturer.

4. Do not make any modifications or repairs to the device and accessories. Repairs may be made only by our authorized service personnel.

5. Never remove the water bottle during carbonation. Do not discharge a CO2 cylinder unless a Mysoda water bottle is attached to your sparkling water maker.

6. Only carbonate drinking water. Add flavours after carbonation.

7. Always place the device on a level, stable, and water-resistant surface.

8. The device must always be in an upright position when used.

9. Do not immerse the device in water and do not clean it during use.

10. Only use the device when a filled bottle is inserted

11. Never attempt to carbonate an empty bottle with CO2.

12. Before each use, inspect that the CO2 cylinder is firmly attached to the device

13. Never transport the device with a full water bottle attached to it.

14. Never transport the device with the CO2 cylinder attached to it.

15. Use only Mysoda water bottles with this device.

16. Never use sharp tools, abrasives or chemical cleaners to clean the device. For cleaning, we recommend a mild hand dishwashing detergent and a soft damp cloth.

17. The device warranty is only valid for non-commercial use.

WARNINGS FOR THE WATER BOTTLE

1. Do not store water bottles in a freezer.

2. Do not store water bottles in a dishwasher or in hot water.

3. Do not store water bottles close to any heat source, such as an oven or stove or inside a hot car.

4. Check the expiration time on the water bottle before using it. The expiry date is indicated in the form of month / year. Do not use an expired bottle after the last month of use.

5. Do not use the bottle if deformed, scratched, or discoloured, or if the expiration date has passed.

6. In the above cases, replace the water bottle with a new one.

7. Never place a bottle in a dishwasher. Never use brushes, abrasives, or chemical cleaners. Hand wash bottle with mild detergent and warm water. If necessary, use a soft bottle brush.

WARNINGS FOR CARBON DIOXIDE [CO2] CYLINDER

1. Inspect the CO2 cylinder before use. If the cylinder or the valve attached to it is damaged, do not use it, but contact your dealer, importer or manufacturer.

2. Do not attempt to modify, puncture or incinerate the cylinder.

3. Do not throw the cylinder or cause it to fall.

4. Do not store the CO2 cylinder in a freezer.

5. If the CO2 cylinder is colder or warmer than room temperature, it must be gradually brought to room temperature. Do not place it in the freezer or on a heat source to speed up the process.

6. WARNING Food Safety Hazard:

- Use only food / beverage grade carbon dioxide cylinders purchased from an authorized dealer.

- Never use a carbon dioxide cylinder intended for non-food use.

- Never use any adapter that permits use of non-beverage grade CO2 or non-beverage CO2 cylinders.

1. WARNING CO2 cylinder contents are under pressure.

2. WARNING ⚠ Explosion Hazard. Always store CO2 cylinders in a cool, dry place, away from any type of heat exposure. Exposing to heat can cause cylinder pressure to build and release CO2 gas unexpectedly.

3. WARNING ⚠ Do not touch the cylinder if CO2 is being released; wait until all the CO2 is discharged and the cylinder has come to room temperature. In the event of a leak, ventilate the house or apartment well. If you feel unwell, contact your doctor.

4. WARNING ⚠ Frostbite injury risk. Rapid depletion of CO2 gas can cause skin to freeze.

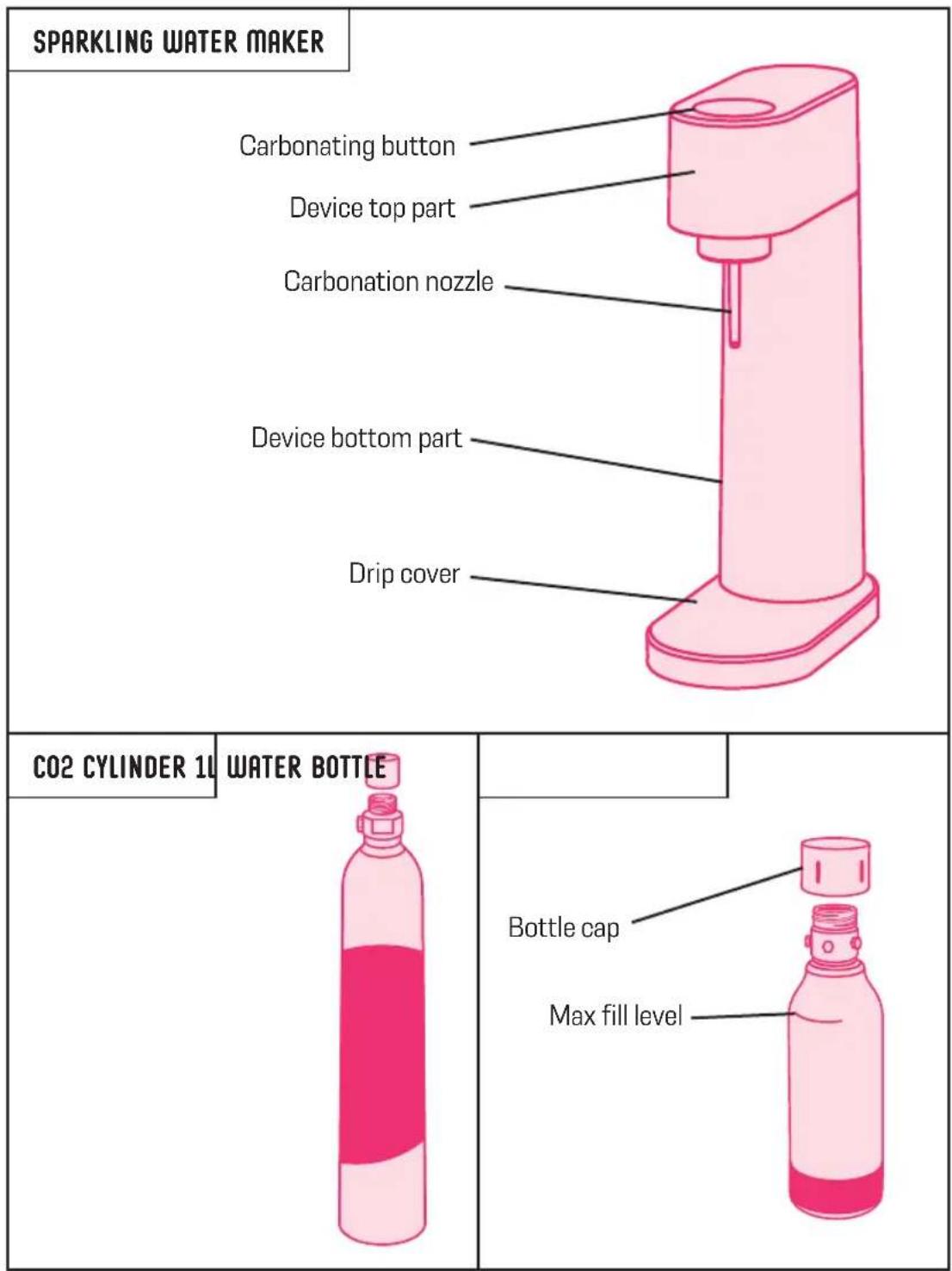

PARTS AND FEATURES

BEFORE THE FIRST USE: Hand-wash the water bottle with warm water and hand dishwashing detergent. Rinse well and wipe outside with a soft cloth to dry. WARNING: Never wash water bottles in a dishwasher or in hot water. Harsh chemicals will damage the water bottle.

INSTALLING THE CO2 CYLINDER

1. Remove the water bottle by pulling the bottle and carbonation nozzle towards yourself, and then unscrew it (one quarter clockwise).
2. Uninstall the top part of the device body by turning it anti-clockwise.
3. Unscrew the black thread protective cap on the top part of the device body.

1. Remove the seal and cap from the CO2 cylinder.
2. Install the CO2 cylinder by screwing it clockwise. Attach the cylinder firmly enough, but do not tighten too much.
3. Carefully insert the CO2 cylinder and top part together to the bottom part. Turn the top part clockwise until it clicks into place.

CHANGING THE CO2 CYLINDER

After the CO2 cylinder is empty, replace the CO2 cylinder in the same way as the first time you installed the cylinder.

	Usage tip: A used CO2 cylinder can be refilled by your Mysoda dealer. Return the empty cylinder so that you only pay for the gas refill.
	Usage tip: Buy another CO2 cylinder in your home so that you can replace it as soon as you run out of gas. Extra cylinders are available from Mysoda dealers.

HOW TO MAKE SPARKLING WATER

1. Fill the water bottle with cold water up to the fill line.

1. To insert the water bottle, make sure that the device is in a fully upright position and the bottle quick-lock is angled forward. Then insert the bottle in quick-lock and turn one quarter anti-clockwise to lock. Push the bottle towards the device to a vertical position.

1. Push the carbonation button 2–3 times, stop when you hear a hissing sound.

1. Pull the bottle towards yourself to release pressure inside the bottle.

1. Release the bottle by turning it by one quarter clockwise.

1. Enjoy your carbonated water or add desired flavour.

NOTE: Only use compatible CO2 cylinders and Mysoda water bottles. Never carbonate if the bottle is empty, not fully inserted with water or if water is above the fill line.

CARE AND CLEANING OF YOUR DEVICE

SPARKLING WATER MAKER:

To clean your sparkling water maker, wipe with a damp cloth. Do not immerse the device in water. Do not use any solvents or abrasive cleaners, since this could damage the surface.

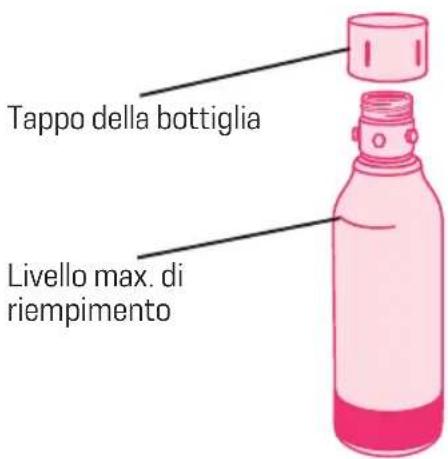

WATER BOTTLE:

Rinse the water bottle with clean water after each use. Wash the bottle by hand with warm water and hand dishwashing detergent. Rinse well. Wipe the outside with a soft cloth to dry.

CO2 CYLINDER:

A used CO2 cylinder can be refilled by your Mysoda dealer. Return the empty cylinder so that you only pay for the gas refill.

Useful tips:

Use as cold water as possible. You can cool down the water in a refrigerator before adding bubbles.

Buy a couple of extra water bottles for your home so that you can provide sparkling water and other fresh beverages for even a larger party.

Buy another CO2 cylinder in your home so that you can replace it as soon as you run out of gas. Extra cylinders are available from Mysoda dealers.

Check out Mysoda flavor concentrate selection. Our Range includes naturally sweetened and sugar-free options for many tastes.

By using well-flowing Mysoda flavors you can mix your drink directly in the glass. This keeps your water bottles clean and fresh longer.

By adjusting the amount of flavour concentrate, you can prepare a drink that tastes just right for you.

TECHNICAL SPECIFICATIONS

Max. operating pressure: 10 bar/145 Psi Max. operating temperature: 40°C/104°F Bottle capacity: 1.0 L (33.8 oz.) Max. filling volume of the bottle: 0.85L (28,7 oz) Requires no electricity

Mysoda is a registered trademark of Mysoda Oy.

WARRANTY

We want to make sure that you enjoy your Mysoda sparkling water maker for a long time. To ensure a complete user experience for you, our equipment has a twenty-four (24) month warranty from the date of purchase. Our warranty is valid for household use.

The warranty does NOT cover the following:

• Defects caused by carbonating other liquid than water.
- Wear and tear under normal consumer use (e.g. discoloration).
- Defects and damage resulting from the use of a water bottle after expiration time.
- Defects and damage caused by a CO2 Cylinder used past its expiration date.
- Defects due to damage during transport and any abnormal household use.
- Defects due to the use of CO2 cylinders sold by non-authorized dealers.
- Defects due to improper use, modification or commercial use of the sparkling water maker.

If your Mysoda device needs servicing, contact your local Mysoda retailer or contact Mysoda directly by emailing us at [e-mail] or visiting our website: www.mysoda.eu.

mysoda.eu

TROUBLESHOOTING

ISSUE
PROBABLE CAUSE SOLUTION

Water bottle can't be attached to the quick lock	Quick lock is in wrong position	Pull the quick lock and nozzle towards yourself. Attach the bottle by turning one quarter anti-clockwise
Water bottle can't be released from the quick lock	Water bottle is in wrong position Gently	pull the water bottle towards yourself until it reaches its fully forward tilt position. Release the bottle by turning one quarter clockwise.
Water bottle overflows during the carbonation	Bottle is overfilled	Fill the bottle with water up to the fill line indicating the maximum level
	Carbonating button is pressed too long	Do not press the carbonating button for longer than 1-2 seconds at a time
Water is not well carbonated/bubbly enough	CO2 cylinder is running low	Replace the used CO2 cylinder with a new one
	Water is too warm	Make sure the water used is as cold as possible as CO2 dissolves better in cold water
	CO2 cylinder is not screwed in tight enough	Screw the CO2 cylinder tightly into the device
CO2 cylinder leaks after installation	CO2 cylinder is not screwed in tight	Remove the CO2 cylinder and reattach it securely. Do it by hand, do not use tools. Do not overtight.
Small, white ice particles form around the nozzle during the carbonation	This is normal, especially when the water is cold
Device makes a whistling noise during the carbonation	This is normal and ends once the carbonation is completed

EN

FÉLICITATIONS.

Höchstfüllstand

Flaschenverschluss

WAARSCHUWINGEN VOOR DE WATERFLES

Dop van de fles

Max. vulniveau

1. Træk flasken mod dig selv for at frigive trykket inden i flasken.

1. Ta ut flasken ved å vri den en kvart omdreining med klokken.

RENGJ∅RING OG VEDLIKEHOLD AV APPARATET
