Product Type	Bi-Color LED Panel Light
Brand	Kino Flo
Model	FreeStyle 31 LED
Dimensions (with Yoke)	12.5 x 12.5 x 4.5 in (31.8 x 31.8 x 11.4 cm)
Weight (with Yoke)	10.5 lbs (4.8 kg)
Power Consumption	200W
Input Voltage	100-240V AC, 50/60 Hz
Color Temperature Range	2700K - 6500K (adjustable)
Dimming Range	0 - 100% (continuous)
DMX Control	5-pin DMX512 In/Out
Wireless Control	Compatible with optional CRMX transceiver
Battery Operation	Accepts V-Mount or Gold Mount batteries (not included)
Fan Noise	Silent (passive cooling) or variable speed fan
Accessories Included	Yoke, Gel Frame, Power Cord
Maintenance	Clean with dry cloth; avoid solvents
Safety	CE, RoHS compliant; use with grounded outlet
Repairability	LED modules and power supply replaceable by authorized service
Spare Parts Available	Contact Kino Flo for replacement LED panels and drivers

Frequently Asked Questions - FreeStyle 31 LED Kino Flo

What is the color temperature range of the Kino Flo FreeStyle 31 LED?

The FreeStyle 31 LED offers a variable color temperature range from 2700K (warm) to 6500K (daylight), adjustable via the control panel or DMX.

Can the FreeStyle 31 LED be powered by batteries?

Yes, it accepts standard V-Mount or Gold Mount batteries (sold separately) for on-location operation without AC power.

How do I control the light via DMX?

Connect a DMX controller to the 5-pin DMX512 input. The fixture uses standard DMX protocols for dimming and color temperature control.

Is the fan noisy?

The fan operates silently in most conditions. A variable speed fan automatically adjusts to temperature, but the passive cooling mode is virtually silent.

What accessories are included with the FreeStyle 31 LED?

The package includes a mounting yoke, a gel frame for filters, and a power cord. Optional light control accessories like softboxes and barn doors are sold separately.

Can I use the FreeStyle 31 LED with wireless DMX?

Yes, an optional CRMX transceiver can be installed to enable wireless control via compatible transmitters.

What is the maximum power consumption?

The fixture draws a maximum of 200W from AC power. When using batteries, runtime depends on the battery capacity.

How do I clean the LED panel?

Use a soft, dry cloth to gently wipe the surface. Avoid harsh chemicals or abrasive materials that may damage the LEDs or lens.

Is the light flicker-free?

Yes, the FreeStyle 31 LED is designed to be flicker-free at all frame rates and shutter angles, making it suitable for video and film production.

What is the weight of the fixture?

The fixture with yoke weighs approximately 10.5 lbs (4.8 kg), making it portable for studio or location work.

USER MANUAL FreeStyle 31 LED Kino Flo

Close-up of a hand holding a black metal clamp device with a small inset showing a gold-colored device (no text or symbols visible)

Logo of a black and yellow circular emblem with stylized white and yellow elements (no text or symbols)

KINO FLO

Lighting Systems

FreeStyle Systems

Diagram of a server rack with attached cable and connector (no text or symbols visible)

SYS-F41U FreeStyle 41 LED DMX System, Univ

SYS-F41TU FreeStyle/GT 41 LED DMX System, Univ

Laboratory setup with a monitor, tower, and cable (no visible text or symbols)

SYS-F31U FreeStyle 31 LED DMX System, Univ

SYS-F31TU FreeStyle/GT 31 LED DMX System, Univ

Experimental setup with monitor, tower, and equipment (no visible text or symbols)

SYS-F21U FreeStyle 21 LED DMX System, Univ

SYS-F21TU FreeStyle/GT 21 LED DMX System, Univ

Each FreeStyle LED System consists of:

1 FreeStyle LED Fixture or 1 x FreeStyle/GT LED Fixture
1 Mounting Plate
1 Extension Cable
1 LED Controller

FreeStyle System Components

Black metal optical or reflector device with a flat screen and stand (no visible text or symbols)

CFX-F41 FreeStyle 41 LED Fixture

CFX-F31 FreeStyle 31 LED Fixture

CFX-F21 FreeStyle 21 LED Fixture

Simple line drawing of a mechanical frame or support structure (no text or symbols)

CFX-F41T FreeStyle/GT 41 LED Fixture

CFX-F31T FreeStyle/GT 31 LED Fixture

CFX-F21T FreeStyle/GT 21 LED Fixture

Close-up of a black adjustable optical device with a handle and central display (no text or symbols visible)

MTP-BG41 KinoGrip 41K Mount w/

Baby Receiver (16mm)

Coiled black and yellow hose with two connectors (no text or symbols visible)

X12-25 FreeStyle Extension, 25ft

Black FreeStyle electronic device with display and control buttons (no readable text or symbols beyond branding)

LED-152X-120U

FreeStyle 152 LED DMX Controller, Univ 120U

LED-152X-230U

FreeStyle 152 LED DMX Controller, Univ 230U

Included w/ all FreeStyle & GT Fixtures

Abstract geometric pattern with a grid-like texture and two black rectangular cutouts (no text or symbols)

LVR-SL290-P FreeStyle 21 Louver/HP, 90°

LVR-SL390-P FreeStyle 31 Louver/HP, 90°

LVR-SL490-P FreeStyle 41 Louver/HP, 90°

FreeStyle 41 LED DMX Kits

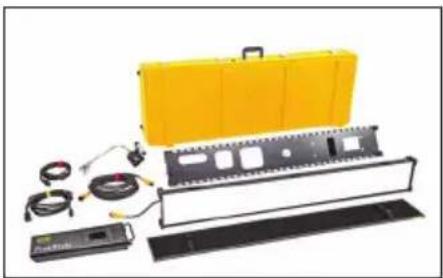

Exterior view of a yellow portable electronic device with attached black panel and wiring (no text or symbols visible)

FreeStyle 41 LED DMX Kit w/ Travel Case

KIT-F41U

FreeStyle 41 LED DMX Kit w/ Travel Case, Univ

Kit Contents:

1 FreeStyle 41 LED Fixture

1 FreeStyle 152 LED DMX Controller

1 MTP-BG41 Mount w/ Baby Receiver (16mm)

1 Extension, 25ft

1 Travel Case

Dimensions:

Weight:

54.5 × 9 × 21"

49 lb

(138.5 × 23 × 53.5cm)

(22.5kg)

Exterior view of a yellow portable electronic device with attached circuit board and control panel (no text or symbols visible)

FreeStyle/GT 41 LED DMX Kit w/ Travel Case

KIT-F41TU

FreeStyle/GT 41 LED DMX Kit w/ Travel Case, Univ

Kit Contents:

1 FreeStyle/GT 41 LED Fixture

1 FreeStyle 152 LED DMX Controller

1 MTP-BG41 Mount w/ Baby Receiver (16mm)

1 Extension, 25ft

1 Travel Case

Dimensions:

Weight:

54.5 × 9 × 21"

46 lb

(138.5 × 23 × 53.5cm)

(21kg)

FreeStyle 31 LED DMX Kits

Exterior view of a portable electronic device with attached case, cables, and display panel (no visible text or symbols)

FreeStyle 31 LED DMX Kit w/ Soft Case

KIT-F31BU

FreeStyle 31 LED DMX Kit w/ Soft Case, Univ

Kit Contents:

1 FreeStyle 31 LED Fixture

1 FreeStyle 152 LED DMX Controller

1 MTP-BG41 Mount w/ Baby Receiver (16mm)

1 Extension, 25ft

1 Soft Case

Dimensions:

42.5 × 7.5 × 16.5"

(108 × 19 × 42cm)

Weight:

29 lb

(13kg)

Collection of electronic equipment including a yellow case, black modules, and a control panel (no visible text or symbols)

FreeStyle 31 LED DMX Kit w/ Flight Case

KIT-F31U

FreeStyle 31 LED DMX Kit w/ Flight Case, Univ

Kit Contents:

1 FreeStyle 31 LED Fixture

1 FreeStyle 152 LED DMX Controller

1 MTP-BG41 Mount w/ Baby Receiver (16mm)

1 Extension, 25ft

1 Flight Case

Dimensions:

46×11×16.5"

(117 × 28 × 42cm)

Weight:

49.5 lb

(22kg)

Disassembled electronic device with circuit boards, capacitors, and wiring (no visible text or labels)

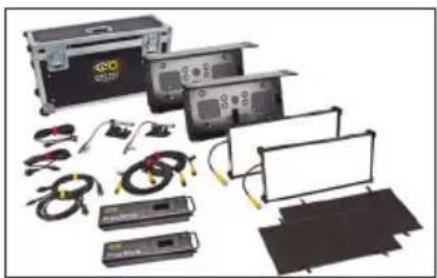

Gaffer/FS 31 LED DMX Kit (2-Unit)

KIT-F32U

Gaffer/FS 31 LED DMX Kit, Univ (2-Unit)

Kit Contents:

2 FreeStyle 31 LED Fixture

2 FreeStyle 152 LED DMX Controller

2 MTP-BG41 Mount w/ Baby Receiver (16mm)

2 Extension, 25ft

1 Ship Case

Dimensions:

43.5 × 13 × 18.5"

(110.5 × 33 × 47cm)

Weight:

75 lb

(34kg)

Collection of electronic equipment including a yellow case, black modules, and cables (no visible text or symbols)

FreeStyle/GT 31 LED DMX Kit w/ Travel Case

KIT-F31TU

FreeStyle/GT 31 LED DMX Kit w/ Travel Case, Univ

Kit Contents:

1 FreeStyle/GT 31 LED Fixture

1 FreeStyle 152 LED DMX Controller

1 MTP-BG41 Mount w/ Baby Receiver (16mm)

1 Travel Case

Dimensions:

45.5 × 9 × 16.5"

(116 × 23 × 42cm)

Weight:

39 lb

(18kg)

FreeStyle 21 LED DMX Kits

Collection of electronic equipment including a box, cables, and display panels (no visible text or symbols)

FreeStyle 21 LED DMX Kit w/ Soft Case

KIT-F21BU

FreeStyle 21 LED DMX Kit w/ Soft Case, Univ

Kit Contents:

1 FreeStyle 21 LED Fixture

1 FreeStyle 152 LED DMX Controller

1 MTP-BG41 Mount w/ Baby Receiver (16mm)

1 Extension, 25ft

1 Soft Case

Dimensions:

31 × 7.5 × 18"

(79 × 19 × 46cm)

Weight:

24.5 lb

(11kg)

Collection of electronic testing equipment including a yellow case, display panel, and control panel (no visible text or symbols)

FreeStyle 21 LED DMX Kit w/ Flight Case

KIT-F21U

FreeStyle 21 LED DMX Kit w/ Flight Case, Univ

Kit Contents:

1 FreeStyle 21 LED Fixture

1 FreeStyle 152 LED DMX Controller

1 MTP-BG41 Mount w/ Baby Receiver (16mm)

1 Extension, 25ft

1 Flight Case

Dimensions:

30 × 10.5 × 21"

(76 × 27 × 53cm)

Weight:

39.5 lb

(18kg)

Collection of electronic testing equipment including control boxes, cables, and display screens (no visible text or labels)

Interview/FS 21 LED DMX Kit (2-Unit)

KIT-F22U

Interview/FS 21 LED DMX Kit, Univ (2-Unit)

Kit Contents:

2 FreeStyle 21 LED Fixture
2 FreeStyle 152 LED DMX Controller
2 MTP-BG41 Mount w/ Baby Receiver (16mm)
2 Extension, 25ft
1 Ship Case

Dimensions:

36 × 13 × 20.5"

(91.5 × 33 × 52cm)

Weight:

66.5 lb

(30kg)

Collection of electronic testing equipment including a yellow case, black modules, and cables (no visible text or labels)

FreeStyle/GT 21 LED DMX Kit w/ Travel Case

KIT-F21TU

FreeStyle/GT 21 LED DMX Kit w/ Travel Case, Univ

Kit Contents:

1 FreeStyle/GT 21 LED Fixture
1 FreeStyle 152 LED DMX Controller
1 MTP-BG41 Mount w/ Baby Receiver (16mm)
1 Extension, 25ft
1 Travel Case

Dimensions:

28.5 × 8.5 × 16"

(72.5 × 22 × 41cm)

Weight:

27.5 lb

(12.5kg)

Power

Front view of a black industrial electrical device with yellow and black buttons, ports, and a digital display (no visible text or symbols)

AC Input

The FreeStyle 152 LED DMX Controller is powered AC and includes an IEC connection. It also includes a 12ft power cord with a locking IEC connector.

The FreeStyle 152 LED DMX has a built-in power supply with universal input from 100-240VAC.

Ambient Operating Temperature

The FreeStyle 152 LED DMX is designed to operate at temperatures from 14°F to 104°F (-10°C to 40°C).

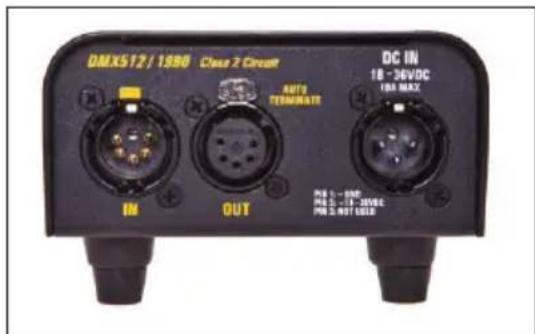

DC Input

The FreeStyle 152 LED DMX can also be operated on 24VDC (input range 18-36VDC) through a 3-Pin XLR. The pin polarity is:

Pin # 1 - Ground Pin # 2 + 18-36VDC Pin # 3 not used

Note:

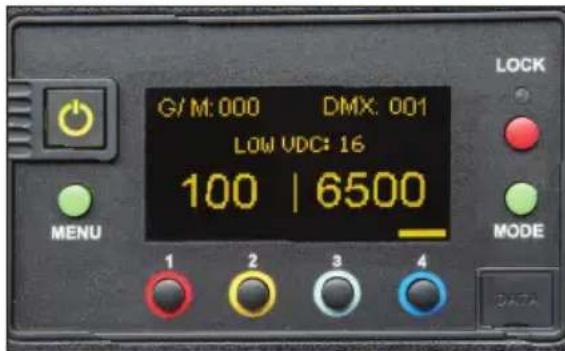

A low voltage warning will display if input DC voltage is under 18VDC. Photo example: LOW VDC: 16

FreeStyle Fixture Assembly

Graduation cap with tassel, partially open showing a white rectangular object (no text or symbols visible)

The FreeStyle LED Fixture is comprised of a removable Fixture Shell, LED panel and Louver. The Louver is held in place with Velcro fasteners.

Black rectangular electronic device with mounting holes and a small inset panel (no visible text or symbols)

The FreeStyle/GT includes Gaffer Tray in place of Plastic Shell.

Close-up of a black electronic device showing a port and cable with directional arrows (no text or symbols visible)

To remove the LED panel from the fixture housing, press the locking pin and turn thumbscrew to release LED panel.

Close-up of a black electronic device with a mesh panel and mounting bracket (no visible text or symbols)

Lift LED panel from metal tray.

Close-up of a black electronic device with attached cable and connector (no visible text or symbols)

Slide LED panel from fixed pins.

To replace, reverse the procedure.

Removable Mount

Close-up of a hand using a mechanical tool to apply black holes onto a metal base (no text or symbols visible)

Align the center pin of the mounting plate to the center hole on the mating plate.

Close-up of a hand adjusting a black mechanical component with a yellow accent (no visible text or symbols)

Rotate plate clockwise until the four shoulder rivets drop into the receptacle. A locking pin will snap into place when the plate is properly seated.

The yellow wire loop provides an attachment point for a safety chain.

Close-up of a hand adjusting a mechanical component with wires, no visible text or symbols

To remove the plate, pull up on the locking pin and reverse the mounting procedure.

Close-up of a hand using a tool to adjust or mark a metal plate with black holes (no text or symbols visible)

Hand using a tool to adjust or install a metal bracket with mounting holes (no text or symbols visible)

The FreeStyle/GT Gaffer Tray & LED panel also have a mating plate to accept the twist-on mount plate.

Mounting the Controller

The controller can operate the fixture remotely with an extension cable or can be attached to the back of the FreeStyle 21/31 fixture. It can also be mounted to the FreeStyle 21/31/41 Gaffer Tray.

Insert the 4 rubber feet of the controller into the 4 holes in the fixture/Gaffer Tray.

Secure the controller to the fixture/Gaffer Tray with the Velcro fastening strap.

Connect the harness to the controller. Align the key ways on the harness connector with the circular receptacle on the ballast. Rotate the silver locking ring until it clicks into the lock position.

Extension Cable

Close-up of a black handheld electric shock absorber with yellow and black components, no visible text or symbols

The FreeStyle LED fixture can operate remotely from the controller with extension cable up to 50ft (2 x 25ft). Remote operation of the controller provides more rigging options.

Mount Options

Mechanical device with three circular components and a handle (no visible text or symbols)

The Controller can be mounted to a stand with a ballast mount accessory, MTP-BAL1 and mafer clamp.

MTP-BAL1

Baby Offset Arm

Metal kitchen tool with handle and knob (no text or symbols visible)

MTP-B41F

Kino Offset w/ Baby Receiver (16mm)

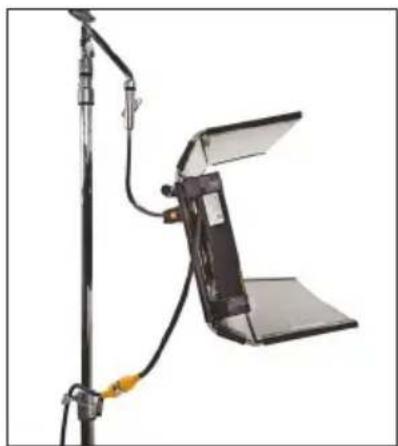

Photograph of a studio lighting setup with a mounted device and cable (no visible text or symbols)

Photography setup with a flat-screen lamp and stand, no visible text or symbols

The Baby Offset Arm (MTP-B41F) allows fixtures to mount on the center of a stand or it can also be under slung from a baby stand to use as an up light.

Applying Louver

Close-up of hands installing or adjusting a black rectangular panel mounted on a stand (no visible text or symbols)

The Louver is fastened to the fixture with 4 Velcro straps.

Close-up of a hand inserting a cable into a black battery pack (no visible text or symbols)

SnapBag & SnapGrid

Exterior view of a black rectangular light bulb device with transparent glass cover (no text or symbols visible)

Black rectangular light bulb device with a flat screen, isolated on white background (no text or symbols)

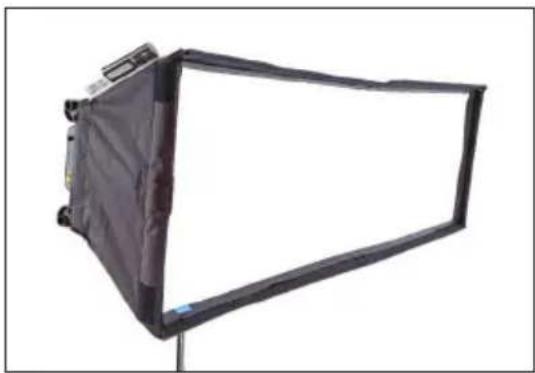

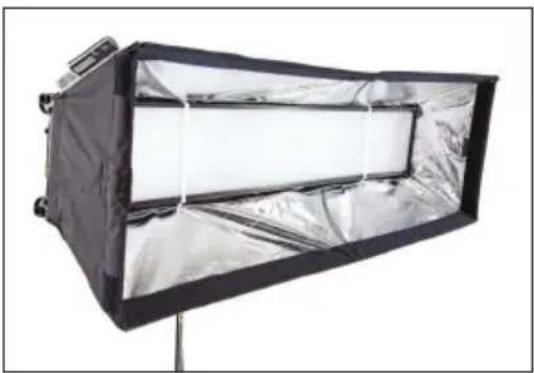

The SnapBag accessory is a lightweight fabric tailor-made for the FreeStyle LED. It slips over the fixture and is attached with straps. The reflective material intensifies the soft light. The removable grid cloth attaches to the inside with Velcro.

DFS-FS41-S FreeStyle 41 SnapBag w/ 2 x Diffusion DFS-FS31-S FreeStyle 31 SnapBag w/ 2 x Diffusion DFS-FS21-S FreeStyle 21 SnapBag w/ 2 x Diffusion

Hand holding a black plastic tray with grid pattern (no text or symbols visible)

Exterior view of a black rectangular metal frame with grid pattern (no text or symbols)

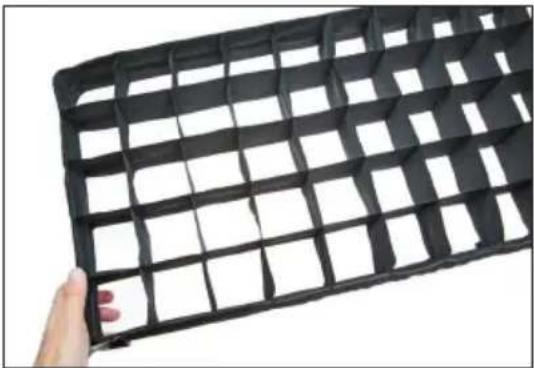

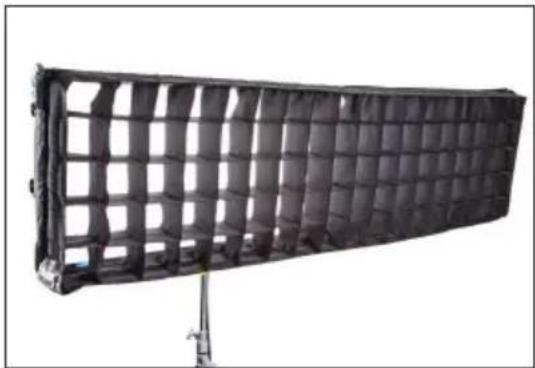

The SnapGrid accessory is constructed of pre-stretched fireproof fabric with a built-in stainless steel frame. It unfolds and snaps into place. This model requires the use with the corresponding SnapBag; it is not designed to be used by itself.

LVR-FS440-S FreeStyle 41 SnapGrid 40° LVR-FS340-S FreeStyle 31 SnapGrid 40° LVR-FS240-S FreeStyle 21 SnapGrid 40°

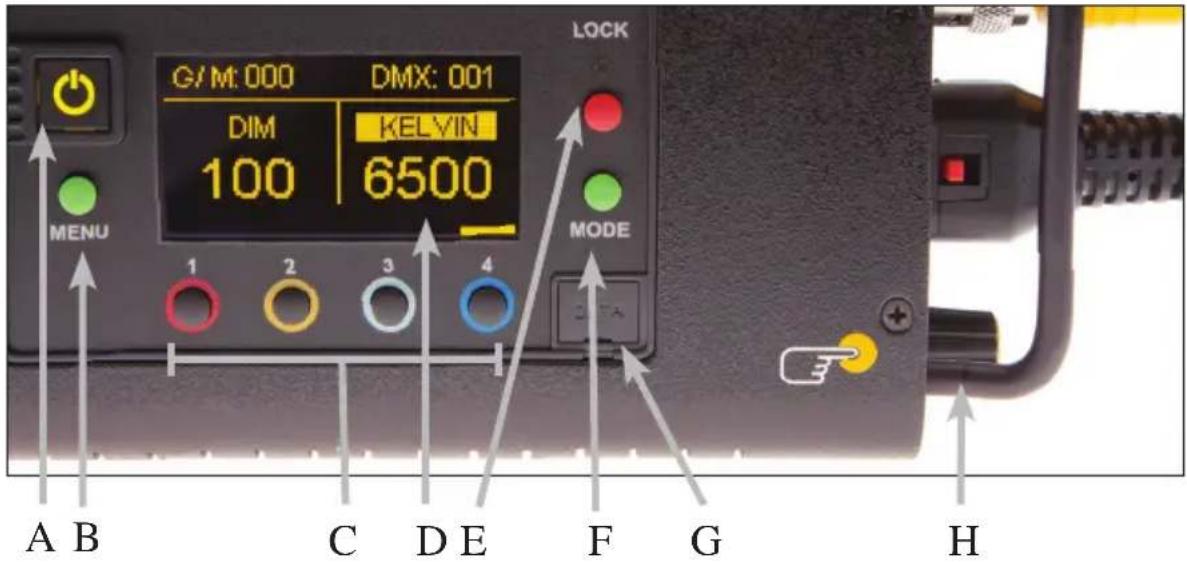

Control Panel - White Mode

A) On /Off: On = Green light displayed. Off = Red light displayed. The display and all menu settings can be operated while the power button is in the Off position, as long as power is applied to the controller. The On /Off button only controls the light source.

B) Menu: Provides access to menu options such as General settings, Reset, DMX and DMX Wireless settings. Shortcut: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels & Hue, RGB, FX).

C) Preset Buttons: Factory defaults left to right are: 2700K, 3200K, 5000K and 6500K. G/M default value is 000. User can also use these preset buttons to store custom Kelvin and G/M settings.

D) Display: Provides access to Dim, Kelvin, G/M, and DMX channel. Factory reset will show: Dim = 10%, Kelvin = 2700K, G/M = 000, DMX = 001.

E) Lock: Press the Lock button to disable all buttons and Control knob. Press for 3 seconds to restore displayed presets to default factory settings.

F) Mode: Press to navigate from Dim to Kelvin and G/M settings. When in sub-menus, pressing Mode always returns you to main display. When DMX is applied, use Mode to access DMX channel on main display. Shortcut: Long press will bring you back one step.

G) Data Port: Mini B USB for firmware updates.

H) Control Knob: Manually adjusts Dim, Kelvin, G/M levels and DMX address. Press the Control knob to toggle between Fine and Coarse increments or when selecting options within menus.

DMX Note: Each LED Fixture has an "AUTO TERMINATE" feature. The last fixture that does not have an XLR cable attached to the DMX "Out" port will automatically terminate.

Control Panel - Gels/Hue Mode

ADCB

Gels/Hue Mode

A) Menu:

Provides access to menu options such as General settings (Gels/Hue Mode), Reset, DMX and DMX Wireless settings. Shortcut: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels & Hue, RGB, FX).

B) Preset Buttons:

Factory defaults left to right are: 2700K, 3200K, 5000K and 6500K. G/M default value is 000. User can also use these preset buttons to store custom Kelvin between 2500K and 9900K and custom G/M, Gel, Hue and Saturation settings.

C) Display:

Provides access to Dim, Kelvin, G/M, Gel, Hue/Saturation and DMX channel. Factory reset will show: Dim = 10%, Kelvin = 2700K, G/M = 000, DMX = 001.

D) Mode:

Press to navigate from Dim to Kelvin, G/M, Gel, Hue and Saturation settings. When on the Gel function, pushing the Control knob in/out will apply the gel or remove the gel. When in sub-menus, pressing Mode always returns you to main display. When DMX is applied, use Mode to access DMX channel on main display. Shortcut Tip: Long press will bring you back one step.

Control Panel - RGB Mode

ADCB

RGB Mode

A) Menu:

Provides access to menu options such as General settings (RGB Mode), Reset, DMX and DMX Wireless settings. Shortcut: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels & Hue, RGB, FX).

B) Preset Buttons:

Factory defaults left to right are: 2700K, 3200K, 5000K and 6500K. G/M default value is 000. User can also use these preset buttons to store custom Kelvin between 2500K and 9900K and custom G/M, and RGB settings.

C) Display:

Provides access to Dim, Kelvin, G/M, RGB and DMX channel. Factory reset will show: Dim = 10%, Kelvin = 2700K, G/M = 000, DMX = 001.

D) Mode:

Press to navigate from Dim to Kelvin, G/M, RGB settings. When in sub-menus, pressing Mode always returns you to main display. When DMX is applied, use Mode to access DMX channel on main display. Shortcut: Long press will bring you back one step.

Control Panel - FX (Effects)

FX (Effects) Mode

FX mode provides access to effects including Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse and Scroll. Candle mode used as an example:

A) FX Option:

Choose the desired FX Mode by rotating the control knob. When on the desired effect, there will be several pre-programmed effects as well as control parameters that can be altered.

B) Preset Buttons:

In FX Mode, Kelvin custom settings and any control functions displayed such as Rate and Amplitude (Ampl) can be saved as a preset. Chosen values can be assigned to any preset button by holding down the desired button for 3 seconds. The Kelvin display will flash once the setting is registered.

To restore presets to default factory settings, choose Reset under General settings and Clear Presets. This method will reset all buttons in all Modes. Shortcut: If only want to clear presets for Candle Mode, hold Lock button for 3 seconds while Candle mode is displayed.

C) Mode:

Press to navigate from Dim to Kelvin and FX settings. Shortcut: Long press will bring you back one step.

Accessories

Product photo of electronic devices including a power adapter, cable, and two labeled boxes (no visible text or symbols)

SYS-BK12 Block/KF21 Single Battery System, 140Whr, 28.8V (2 x Battery)

White rectangular light bulb mounted on a stand, no visible text or symbols

DFS-SL20-H FreeStyle 21 Flozier, Half

DFS-SL30-H FreeStyle 31 Flozier, Half

DFS-FS40-H FreeStyle 41 Flozier, Half

Exterior view of a black electronic device casing with internal compartments and mounting holes (no text or symbols visible)

FIX-F21 FreeStyle 21 Fixture Shell Only

FIX-F31 FreeStyle 31 Fixture Shell Only

FIX-F41 FreeStyle 41 Fixture Shell Only

Exterior view of a black film strip with multiple slots and mounting holes (no text or symbols visible)

FIX-F21T FreeStyle/GT 21 Gaffer Tray

FIX-F31T FreeStyle/GT 31 Gaffer Tray

FIX-F41T FreeStyle/GT 41 Gaffer Tray

Simple line drawing of a rectangular object with a curved top and a small yellow mark at the bottom (no text or symbols)

PAN-F21 FreeStyle 21 LED Panel Only

PAN-F31 FreeStyle 31 LED Panel Only

PAN-F41 FreeStyle 41 LED Panel Only

Close-up of a textured surface with two black rectangular cutouts (no text or symbols)

LVR-SL260-P FreeStyle 21 Louver/HP, 60°

LVR-SL360-P FreeStyle 31 Louver/HP, 60°

LVR-SL460-P FreeStyle 41 Louver/HP, 60°

Exterior view of a modern office building (no signage)

DFS-FS21-S FreeStyle 21 SnapBag w/ 2 x Diffusion

DFS-FS31-S FreeStyle 31 SnapBag w/ 2 x Diffusion

DFS-FS41-S FreeStyle 41 SnapBag w/ 2 x Diffusion

Black rectangular object with grid pattern mounted on a stand (no visible text or symbols)

LVR-FS240-S FreeStyle 21 Louver/HP, 40°

LVR-FS340-S FreeStyle 31 Louver/HP, 40°

LVR-FS440-S FreeStyle 41 Louver/HP, 40°

Cases

BAG-SL20

FreeStyle 20 Soft Case

BAG-SL30

FreeStyle 30 Soft Case

Yellow plastic electronic device casing with black buttons (no visible text or symbols)

KAS-DL20

FreeStyle 20 Flight Case

KAS-DL30

FreeStyle 30 Flight Case

KAS-DL21-C

FreeStyle/GT 21 Travel Case

KAS-DL31-C

FreeStyle/GT 31 Travel Case

KAS-FS41-C

FreeStyle/GT 41 Travel Case

Exterior view of a black and silver automotive hard case with visible branding (no text or symbols on the casing itself)

KAS-FS22

Interview/FS 21 Ship Case (2-Unit)

KAS-FS32

Gaffer/FS 31 Ship Case (2-Unit)

KAS-SL23

FreeStyle 21 Fixture (3) Ship Case

KAS-SL33

FreeStyle 31 Fixture (3) Ship Case

KAS-FS43

FreeStyle 41 Fixture (3) Ship Case

KAS-KFC

Ballast and Cable Crate w/ Lid

Close-up of a mechanical clamp or tool with a yellow component and metal handle (no visible text or symbols)

MTP-KG41 KinoGrip 41K Mount w/ 3/8" Pin (10mm)

Close-up of a black mechanical clamp or bracket with a yellow accent, no visible text or symbols

MTP-BG41S KinoGrip 41K Mount w/ Baby Receiver Short (16mm)

Metal kitchen tool with a handle and handle plate (no text or symbols visible)

MTP-B41F Kino Offset w/ Baby Receiver (16mm)

Mechanical device with lever and handle (no visible text or symbols)

MTP-BAL1 Kino Bal/Led Controller Mount (16mm)

Metal pipe fitting with flanged ends and a central shaft (no text or symbols visible)

MTP-BRA Baby Right Angle Offset (5/8" Pin)

Coiled black cable with two connectors and a yellow tag (no text or symbols visible)

XLR-310 3-Pin Xlr DC Power Cable, 10ft

Simple line drawing of two tall poles with connecting lines, no text or symbols present

STD-M30 Medium Duty, 3-Rise 30"

Simple line drawing of a tripod with a vertical pole and tripod base (no text or symbols)

STD-M36 Medium Duty, 3-Rise 36"

STD-D1 Reverse Stand

LED Fixture Specifications

Metal structural component with two flanged sections and a stand (no visible text or symbols)

FreeStyle LED

CFX-F41 FreeStyle 41 LED Fixture

Weight: 16 lb (7kg)

Dimensions: 52.5 x 4 x 9" w/ 6" barndoors (133 x 10 x 23cm w/ 15cm barndoors)

CFX-F31 FreeStyle 31 LED Fixture

Weight: 15 lb (7kg)

Dimensions: 40.5 x 3.5 x 11" w/ 6.5" barndoors (103 x 9 x 28cm w/ 16.5cm barndoors)

CFX-F21 FreeStyle 21 LED Fixture

Weight: 11.5 lb (5kg)

Dimensions: 26.5 x 3.5 x 13" w/ 6" barndoors (67 x 9 x 33cm w/ 15cm barndoors)

Pure mechanical lever assembly diagram without any text, numbers, or symbols

FreeStyle/GT LED

CFX-F41T FreeStyle/GT 41 LED Fixture

Weight: 12.5 lb (6kg)

Dimensions: 50 x 2.5 x 8"

(127 × 6.5 × 20cm)

CFX-F31T FreeStyle/GT 31 LED Fixture

Weight: 11.5 lb (5kg)

Dimensions: 37.5 × 2.5 × 9.5"

(95 × 6.5 × 24cm)

CFX-F21T FreeStyle/GT 21 LED Fixture

Weight: 9 lb (4kg)

Dimensions: 23.5 x 2.5 x 11.5"

(60 × 6.5 × 29cm)

Simple line drawing of a megaphone with attached cable and stand (no text or symbols)

FreeStyle LED Panel Only

PAN-F41 FreeStyle 41 Panel Only

Weight: 10 lb (4.5kg)

Dimensions: 49.5 × 2.5 × 7.5"

(126 × 6.5 × 19cm)

PAN-F31 FreeStyle 31 Panel Only

Weight: 9 lb (4kg)

Dimensions: 37.5 × 2.5 × 9.5"

(95 × 6.5 × 24cm)

PAN-F21 FreeStyle 21 Panel Only

Weight: 7 lb (3kg)

Dimensions: 23.5 × 2.5 × 11.5"

(60 × 6.5 × 29cm)

LED Controller Specifications

Exterior view of a FreeStyle electronic device (no visible text or symbols on body)

FreeStyle 152 LED DMX Controller

LED-152X FreeStyle 152 LED DMX Controller

AC Input Voltage: 100\~240VAC 50/60Hz, 150W

Amperage VAC: 1.25A at 120VAC, 0.65A at 230VAC

DC Input Voltage: 18\~36VDC, 150W

Amperage VDC: 6.25A at 24VDC

Kelvin Range: 2700K\~6500K (White Mode)

Kelvin Range: 2500K\~9900K (Color Mode)

Dimming Range: 100%\~1%

Weight: 4 lb (2kg)

Dimensions: 15 x 4.5 x 3"

(38 × 11 × 8cm)

FCC Part 15 Verification:

This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference.

FCC Part 15 Declaration of Conformity:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

KINO FLO, INC

FreeStyle & GT 41, 31 & 21 LED

ID: XRSCRMXTIMO101

IC: 8879A-CRMXT101

For latest Warranty information and Certifications, see Kino Flo website at www.kinoflo.com.

Environmental: Disposal of Old Electrical & Electronic Equipment.

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. This product is made of recyclable materials and should be disposed of in accordance with governmental regulations.
