WMN14BW - Microwave WHIRLPOOL - Free user manual and instructions

Brand	Whirlpool
Model	WMN14BW
Product type	Microwave oven
Dimensions (L x H x D)	Approx. 45 x 26 x 36 cm
Net weight	Approx. 12 kg
Interior volume	25 L
Power supply	230 V ~ 50 Hz
Microwave power	900 W
Grill power	1000 W
Main functions	Microwave, Grill, Combi, Defrost, Auto cooking
Controls	Mechanical buttons and digital display
Timer	Up to 95 minutes
Clock	Integrated
Child safety	Key lock
Automatic shut-off	At end of cooking and in case of overheating
Maintenance and cleaning	Clean with a damp cloth, avoid abrasive products
Spare parts	Available via Whirlpool after-sales service
Repairability index	7.7 / 10 (indicative data)
Color	White
Turntable	Diameter 28 cm, removable
Interior lighting	LED lamp
Noise level	Approx. 52 dB(A)

Frequently Asked Questions - WMN14BW WHIRLPOOL

How to set the clock on the Whirlpool WMN14BW microwave?

Press the 'Clock' button until the display flashes, then use the '+' and '-' buttons to set the hours and minutes. Confirm again with 'Clock'.

What to do if the microwave stops heating?

First check that the door is properly closed, the fuse has not blown, and the cooking mode is correct. If the problem persists, contact after-sales service.

Can I use metal containers in the microwave?

No, metal containers can cause sparks and damage the appliance. Use microwave-safe dishes (glass, ceramic, specific plastic).

How to clean the interior of the microwave oven?

Clean the interior with a damp cloth and mild dish soap. For stubborn stains, heat a bowl of water with lemon for 30 seconds to loosen residue.

How to use the defrost function?

Place the frozen food in a suitable dish, select the 'Defrost' function, then enter the weight of the food. The microwave automatically adjusts the time and power.

The microwave makes noise during operation, is this normal?

Yes, a slight hum is normal (fan, magnetron, turntable rotation). If the noise becomes abnormal, check that the turntable rotates freely.

How to activate the child lock?

Press the '+' and '-' buttons simultaneously for 3 seconds until the lock icon appears. To deactivate, repeat the operation.

What is the maximum power of the microwave?

The maximum microwave power is 900 W. You can reduce it by selecting a lower level (e.g., 600 W for delicate dishes).

How to change the interior bulb?

Unplug the appliance, remove the bulb cover (often located at the back), unscrew the old bulb and replace it with a bulb of the same type (usually 25 W, 230 V).

The microwave displays an error code, what to do?

Consult the manual for the meaning of the code. In general, a code like 'F1' indicates a sensor problem. Try unplugging the appliance for 30 seconds and then plugging it back in. If the code persists, contact after-sales service.

USER MANUAL WMN14BW WHIRLPOOL

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT In order to receive a more complete assistance, please register your product on www.register10.eu

Before using the appliance carefully read the Safety Instruction.

PLEASE SCAN THE QR CODE ON YOUR APPLIANCE IN ORDER TO REACH MORE INFORMATION

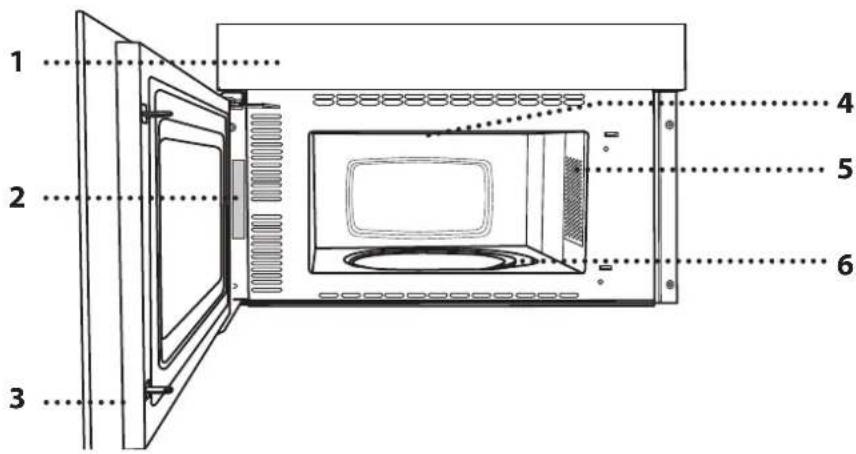

PRODUCT DESCRIPTION

1. Control panel
2. Identification plate (do not remove)
3. Door
4. Grill
5. Light
6. Turntable

CONTROL PANEL DESCRIPTION

1. STOP

For stopping a function or an audible signal, cancelling the settings and switching off the oven.

2. MICROWAVE FUNCTION/POWER

For selecting the microwave function and setting the required power level.

3. GRILL FUNCTION

4. CRISP FUNCTION

5. DISPLAY

6. + / - BUTTONS

For adjusting the settings of a function (e.g. length, weight).

7. JET DEFROST FUNCTION

8. START

For starting a function.

1. DOOR OPENING BUTTON

ACCESSORIES

TURNTABLE

Placed on its support, the glass turntable can be used with all cooking methods.

The turntable must always be used

as a base for other containers or accessories.

TURNTABLE SUPPORT

Only use the support for the glass turntable.

Do not rest other accessories on the support.

The number and type of accessories may vary depending on the model purchased.

There are a number of accessories available on the market. Before you buy, ensure they are suitable for microwave use and resistant to oven temperatures.

Metallic containers for food or drink should never be used during microwave cooking.

FUNCTIONS

MICROWAVE

For quickly cooking and reheating food or drinks.

750 W	Quickly reheating drinks or other foods with a high water content or meat and vegetables.
500 W	Cooking fish, meaty sauces, or sauces containing cheese or egg. Finishing off meat pies or pasta bakes.
350 W	Slow, gently cooking. Perfect for melting butter or chocolate.
160 W	Defrosting frozen food or softening butter and cheese.

0 W When using the minute minder only.

GRILL

For browning, grilling and gratins when used alone. We recommend turning the food during cooking. For best results, preheat the grill for 3-5 minutes. For quickly cooking and gratinating dishes, combines with microwaves.

- GRILL + MW

For quickly cooking entrées (even au gratin) using both microwaves and the grill. It is useful for cooking food like lasagne, fish and potato gratins.

Only for use with the designated functions.

The Crisp plate must always be placed in the centre of the glass turntable and can be pre-heated

when empty, using the special function for this purpose only. Place the food directly on the Crisp plate.

HANDLE FOR CRISP PLATE

Useful for removing the hot Crisp plate from the oven.

Other accessories that are not supplied can be purchased separately from the After-sales Service.

Always ensure that foods and accessories do not come into contact with the inside walls of the oven.

Always ensure that the turntable is able to turn freely before starting the oven. Take care not to unseat the turntable whilst inserting or removing other accessories.

JET DEFROST

For quickly defrosting various different types of food simply by specifying their weight. Food should be placed directly onto the glass turntable. Turn the food when prompted. A standing time after defrosting always improves the result.

CRISP

For perfectly browning a dish, both on the top and bottom of the food. This function must only be used with the special crisp plate. This function must only be used with the special Crisp-plate provided, which must be placed at the centre of the glass turntable. It is recommended to preheat the plate for 2-3 minutes before cooking any food items that do not require long cooking times, like pizza or desserts.

DURATION (min) RECOMMENDED FOR

3 - 4	Cookies (8- 10 pieces)
7 - 8	Frozen pizza (350 g)
7 - 9	Sponge cake (500 g)
8 - 10	Fish fingers (8 pieces)
9 - 10	Pizza (350 g)
10 - 14	French fries (200 - 300g)
13 - 15	Quiche Lorraine (500 g)

DAILY USE

. SELECT A FUNCTION

Simply press the button for the function you require to select it.

. SET THE LENGTH

After selecting the function you require, use △ or to set the length for it to run.

The time can be changed during cooking by pressing △ or ▽, or by increasing the length for 30 seconds each time by pressing ▶.

Press as many times as required to select the power level for the microwave.

To use the microwave in combination with the grill, select the "Grill" function by pressing and then use to set the microwave power.

Please note: You can also change this setting during cooking by pressing ☐.

JET DEFROST

Press then use or to set the weight of the food. During defrosting, the function will pause briefly to allow

you to turn the food. Once the operation is complete, close the door and press ▶.

ACTIVATE THE FUNCTION

Once you have applied the settings you require, press ▶ to activate the function.

Every time the ▶ button is pressed again, the cooking time will be increased by a further 30 seconds.

You can press at any time to stop the function that is currently active.

JET START

When the oven is switched off, press to activate cooking with the microwave function set at full power (750 W) for 30 seconds.

PAUSE

To pause an active function, for example to stir or turn the food, simply open the door.

The setting will be maintained for 10 minutes.

To start it up again, close the door and press ▶.

A beep will signal once or twice a minute for 10 minutes when the cooking is finished. Press the STOP button or open the door to cancel the signal.

Please note: The oven will only hold the setting for 60 seconds if the door is opened and then closed after the cooking is finished.

COOLING DOWN

When a function is finished, the oven may carry out a cooling procedure; the oven switches off automatically.

SAFETY LOCK

This function is automatically activated to prevent the oven from being switched on accidentally. Open and

close the door, then press ▶ to start the function.

SET THE TIME OF THE DAY

Press until the two digits for the hour (on the left) start flashing.

Use △ or ▽ to set the correct hour and

press ▶ to confirm: The minutes will flash on the display. Use △ or ▽ to set the minutes and press to confirm.

Please note: You may need to set the time again following lengthy power outages.

. MINUTE MINDER

The display can be used as a timer. To activate the function and set the length of time you require, use △ or ▽. Press to set the power to 0 W, then press ▶ to activate the countdown.

Please note: The timer does not activate any of the cooking cycles. To stop the timer at any time, press □.

CLEANING

Make sure that the appliance has cooled down before carrying out any maintenance or cleaning.

Never use steam cleaning equipment.

Do not use wire wool, abrasive scourers or abrasive/corrosive cleaning agents, as these could damage the surfaces of the appliance.

INTERIOR AND EXTERIOR SURFACES

• Clean the surfaces with a damp microfibre cloth. If they are very dirty, add a few drops of pH-neutral detergent. Finish off with a dry cloth.
• Clean the glass in the door with a suitable liquid detergent.
• At regular intervals, or in case of spills, remove the turntable and its support to clean the bottom of the oven, removing all food residue.
• The grill does not need to be cleaned as the intense heat burns away any dirt. Use this function on a regular basis.

ACCESSORIES

All accessories are dishwasher safe.

The crisp plate should be cleaned using water and a mild detergent. For stubborn dirt, rub gently with a cloth. Always leave the crisp plate to cool down before cleaning.

TROUBLESHOOTING

Problem Possible cause Solution
The oven is not working.	Power cut.Disconnection from the mains.	Check for the presence of mains electrical power and whether the oven is connected to the electricity supply.Turn off the oven and restart it to see if the fault persists.
The display is showing "Err". Software fault.		Contact the Call Center and state the number following the letter "F"
The display shows unclear text and appears to be broken.	Another language set. Contact the Call Center.

Policies, standard documentation and additional product information can be found by:

• Using the QR code in your appliance - Visiting our website docs.whirlpool.eu/docs • Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

®/TM/© 2025 Whirlpool. Produced under license.
