Product type	Rechargeable electric shaver
Brand	Braun
Model	Series 9 Pro 9417cc
Category	Shaver
Dimensions (L x W x H)	17 x 6 x 4 cm
Weight (shaver only)	Approximately 200 g
Power supply	100-240 V, 50/60 Hz
Battery type	Lithium-ion
Battery life	Approximately 60 minutes
Charging time	1 hour for a full charge
Fast charge	5 minutes for a shave
Usage	Dry or in the shower
Waterproof	IPX7 (submersible up to 1 meter)
Shaving system	4 shaving elements (2 foils, 1 trimmer, 1 SkinGuard)
Flexible head	Yes, pivoting in 10 directions
Motor	Linear, 40,000 cuts per minute

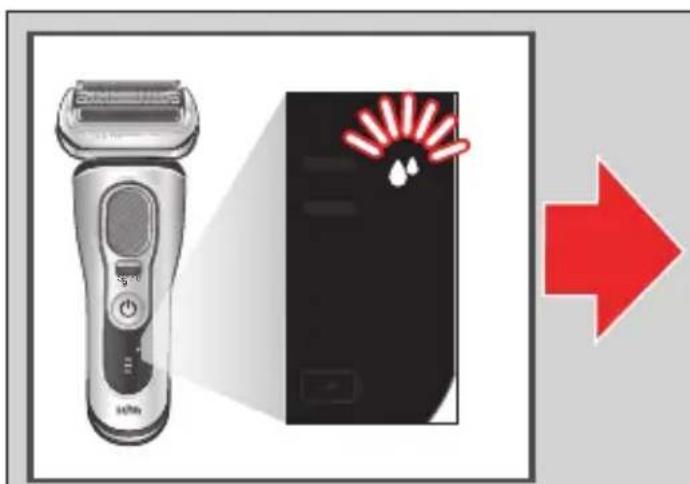

Display	LED display with battery and cleaning indicator
Shaving type	Wet and dry

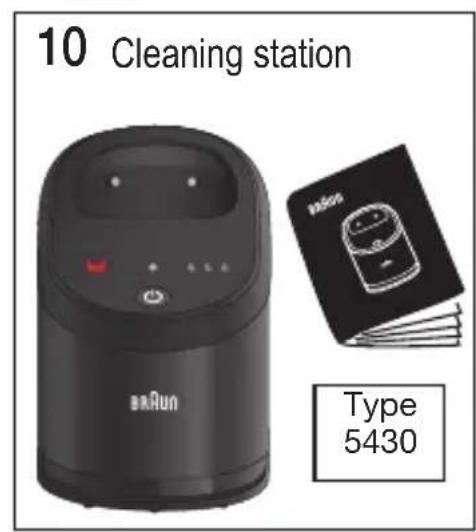

Cleaning station	Included (Clean & Charge)
Maintenance	Rinse under running water or automatic station
Spare parts	Replacement blades and foils (model 92M)

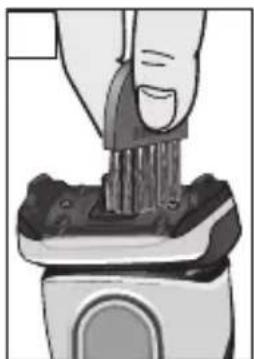

Included accessories	Cleaning station, travel case, cleaning brush, USB cable
Safety	Travel lock, automatic shut-off after 5 min

Frequently Asked Questions - Series 9 Pro 9417cc BRAUN

How to clean the Braun Series 9 Pro 9417cc shaver?

You can clean the shaver under running water by removing the shaving head. Also use the included automatic cleaning station for deep cleaning. Make sure the device is turned off and dry before storing.

What is the battery life of the Series 9 Pro?

Battery life is approximately 60 minutes of shaving after a full charge. A 5-minute fast charge provides a complete shave.

Can I use the shaver in the shower?

Yes, the shaver is waterproof IPX7 and can be used in the shower for wet shaving with foam or gel.

How to replace the blades and foils?

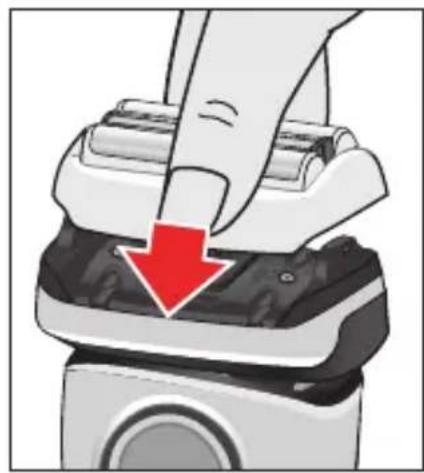

The blades and foils should be replaced approximately every 18 months. Use the Braun 92M model. To do this, remove the old shaving head and snap on the new one.

What to do if the shaver does not charge?

Check that the USB cable is properly plugged in and that the station or shaver is correctly connected. Try another outlet. If the problem persists, contact Braun customer service.

How to lock the shaver for travel?

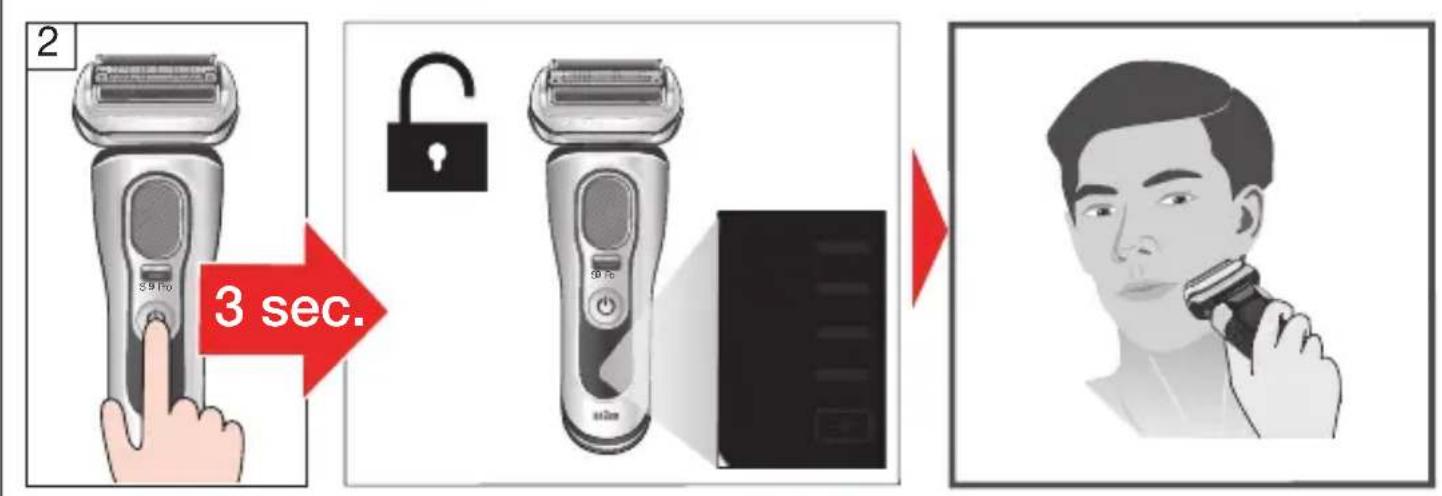

Press and hold the on/off button for 3 seconds. A lock icon appears on the display. To unlock, repeat the operation.

What is the difference between the Series 9 and Series 9 Pro?

The Series 9 Pro has a more powerful motor (40,000 cuts/min vs 30,000), a longer-lasting battery, and an improved flexible head for even more precise shaving.

Can I use the shaver with a few days' beard?

Yes, the central trimmer allows cutting longer hairs. The shaver is suitable for beards of 1 to 3 days.

How to know if the cleaning station is working?

When you place the shaver in the station, it starts automatically. A light indicates the ongoing cycle. Make sure the cleaning cartridge is properly inserted.

Where can I find the full user manual?

You can download the manual in PDF format from notice-facile.com or from the official Braun website.

USER MANUAL Series 9 Pro 9417cc BRAUN

Thank you for purchasing a Braun product.

We hope you are completely satisfied with your new Braun shaver.

If you have any questions, please visit

www.service.braun.com or call:

US residents 1-800-BRAUN-11

1-800-272-8611

Canadian residents 1-800-387-6657

Note: Content may vary based on the model purchased

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

Read all instructions before using this appliance.

When disconnected, the hand-held part of this shaver may be used in a bath or shower. For safety reasons, this shaver can only be operated cordless.

DANGER

To reduce the risk of electric shock:

1. The charger unit is not for immersion in water or for use in the shower.
2. Do not reach for a charger that has fallen into water. Unplug immediately.
3. Do not place, store, or charge the appliance where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.
4. Except when charging, always unplug this appliance from the electrical outlet immediately after using.
5. This appliance is provided with a special cord set with an integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it.
6. Do not use an extension cord with this appliance.
7. Unplug this appliance before cleaning.

WARNING

To reduce the risk of burns, fire, electric shock, or injury to persons:

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
2. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
3. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or if the power supply has been dropped into water. Return the appliance to a service center for examination and repair.
4. Keep the cord away from heated surfaces.
5. Never drop or insert any object into any opening of the appliance.
6. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
7. Do not use this appliance with a damaged or broken foil, as serious skin injuries may occur.
8. Always attach plug to appliance first, then to outlet.
9. When plugging to an electrical outlet outside North America, use a plug adapter to match the outlet's pin configuration.
10. Caution: The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not disassemble, heat above 100 °C (212 °F), or incinerate.
11. To recharge the battery, only use the detachable power supply provided with this appliance. If the appliance is marked D-492-C, only use Braun power supplies coded 492-XXXX.

SAVE THESE INSTRUCTIONS

This appliance is designed for household use only.

Important

Keep power supply, charging stand, PowerCase and cleaning station dry.

Do not open the appliance! The built-in rechargeable batteries can only be replaced by an authorized Braun Service center. Only at the end of the product's useful life, disassemble the rechargeable battery for disposal reasons: Disassemble the housing as shown in the battery removal pictures, remove the rechargeable battery and recycle or dispose of properly, according to local guidelines.

Caution: Disassembling the appliance will destroy it and invalidate the warranty.

Recommended ambient temperature for charging is 41 °F to 95 °F / 5 °C to 35 °C, for storage and shaving it is 60 °F to 95 °F / 15 °C to 35 °C. Do not expose the appliance to temperatures higher than 122 °F / 50 °C for extended periods of time.

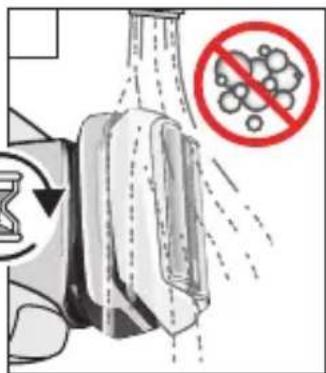

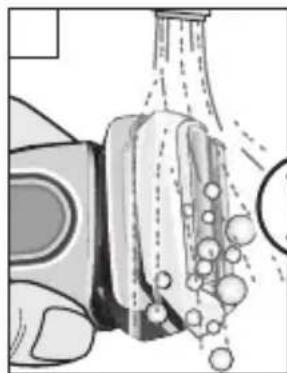

The shaver head needs cleaning under hot running water after each foam or gel usage! Switch the shaver on and rinse until all residues have been removed.

For hygienic reasons, do not share this appliance with other persons.

Product contains recyclable electric waste. For environment protection, do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country.

Subject to change without notice

Description

1 Foil & cutter cassette 94M 2 Cassette release buttons 3 Multi head lock to lock the shaver head for a precise shave 4 On/off button 5 Display - Foil replacement indicator - Travel lock indicator - Cleaning station indicator - Low charge / cordless use indicator - Battery indicator with status bars and minutes left (9 minutes and below) 6 Long hair trimmer 7 Contacts for cleaning station / PowerCase usage 8 Release button to lift up long hair trimmer 9 Power socket 10 Cleaning station (see separate use instructions) 11 Charging stand 12 PowerCase (see separate instructions) 13 Power supply

Note: Content may vary by model

IMPORTANT SAFETY INSTRUCTIONS

EN Battery removal for disposal only

How to obtain service in the USA

Should your Braun product require service, please call 1-800-BRAUN 11 (272-8611) to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com.

To obtain service:

A. Carry the product in to the Authorized Braun Service Center of your choice or,

B. Ship the product to the Authorized Braun Service Center of your choice.

Pack the product well.

Ship the product prepaid and insured (recommended).

Include a copy of your proof of purchase to verify warranty coverage, if applicable.

To obtain original Braun replacement parts and accessories:

Contact a Braun Authorized Service Center.

Please call 1-800-BRAUN 11 (272-8611) to be referred to the Authorized

Braun Service Center closest to you or visit www.service.braun.com.

To speak to a Braun Consumer Service Representative:

Please call 1-800-BRAUN 11 (272-8611).

How to obtain service in Canada

Should your Braun product require service, please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com.

To obtain service:

A. Carry the product in to the Authorized Braun Service Center of your choice or, B. Ship the product to the Authorized Braun Service Center of your choice. Pack the product well. Ship the product prepaid and insured (recommended). Include a copy of your proof of purchase to verify warranty coverage, if applicable.

To obtain original Braun replacement parts & accessories:

Contact a Braun Authorized Service Center.

Please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com.

To speak to a Braun Service Representative:

Please call 1-800-387-6657.

60 day money back satisfaction guarantee for men's grooming products

Braun Shavers

Braun Beard Trimmers

Once you have tried your new Braun shaver or beard trimmer, we are confident you will appreciate its performance. We suggest using the product regularly for 2 to 3 weeks. If you are not satisfied with the product, please call 1-800-211-6661 for instructions on how to return the product. Return the unit and all parts within 60 days of purchase. Retain original cash receipt, product and all product parts, including the box. Do not return to the retailer for guarantee fulfillment.

Please note: No refunds will be made for any product damaged by accident, neglect or unreasonable use.

Your product must be shipped in its original packaging, with your original sales slip indicating the date of purchase.

Please include the following information when you return your product:

Name

Street

City

State

Zip code

Telephone number

Please allow 6-8 weeks for handling.

FOR USA ONLY

2 year limited warranty

(foil and cutter block excluded)

Braun warrants this Braun shaver (except foil and cutter block) to be free of defects in material and workmanship for a period of two years from the date of original purchase.

If the shaver exhibits such a defect, Braun will, at its option, either repair or replace it for the consumer without charge.

Please call 1-800-Braun 11 (800-272-8611) to be referred to the authorized Braun Service Center closest to you or visit www.service.braun.com.

This warranty does not cover foil and cutter cassette or damage resulting from accident, misuse, abuse, dirt, water, tampering, unreasonable use, normal wear, servicing performed or attempted by unauthorized service agencies or failure to provide reasonable and necessary maintenance, including recharging.

ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO 2 YEARS FROM DATE OF ORIGINAL PURCHASE. IN NO EVENT WILL BRAUN BE RESPONSIBLE FOR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state.

FOR CANADA ONLY

2 year limited warranty

(foil and cutter block excluded)

In the event a Braun Shaver fails to function within 2 years from date of purchase, because of defects in material or workmanship, and the consumer returns the unit to an authorized service center, Braun Canada, will, at its option, either repair or replace the unit without additional charge to the consumer.

This guarantee does not cover any product, which has been damaged by dropping, tampering, wrong current, servicing performed or attempted by unauthorized service agencies, misuse or abuse, kinks in the shaver foil as well as the normal wear of the shearing parts.

Exclusion of Warranties: The foregoing warranty is the sole warranty offered by Braun Canada. Braun Canada hereby disclaims any implied warranty or merchantability or fitness for any particular purpose. In no event will Braun Canada be responsible for consequential damages resulting from the use of this product.

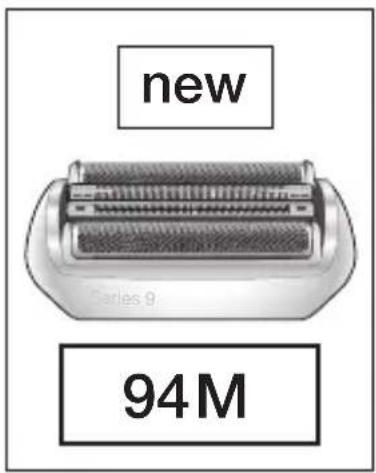

Please note down the suggested replacement date (in 18 months from now) below replacement part reference number.

94M
