Product Type	Canister Vacuum Cleaner
Dimensions (LxWxH)	16.5 x 11.0 x 9.8 in (42 x 28 x 25 cm)
Weight	10.6 lb (4.8 kg)
Power Consumption	1200 W
Power Cord Length	16 ft (5 m)
Dust Capacity	2.1 L (dust bag)
Filtration System	HEPA filter (washable)
Noise Level	72 dB(A)
Suction Control	Yes, adjustable on handle
Attachments Included	Crevice tool, upholstery brush, dusting brush
Maintenance	Empty dust bag when full; clean HEPA filter monthly
Safety Features	Thermal overload protection, automatic shut-off
Spare Parts Available	Dust bags, HEPA filters, brush roll, belts
Warranty	2 years (limited)
Manual Included	Yes, user manual in English

Frequently Asked Questions - AFV30 Airflo

How do I change the dust bag in the Airflo AFV30?

Open the dust compartment lid, remove the full bag by pulling the cardboard tab, and insert a new bag until it clicks into place. Ensure the bag is properly seated before closing the lid.

How often should I clean the HEPA filter?

We recommend cleaning the washable HEPA filter every month. Rinse it under cold water, let it dry completely for 24 hours before reinstalling. Do not use the vacuum without a dry filter.

What attachments come with the AFV30?

The AFV30 includes a crevice tool for tight spaces, an upholstery brush for furniture, and a dusting brush for delicate surfaces. All attach to the wand or hose.

Why is my vacuum losing suction?

Loss of suction can be caused by a full dust bag, clogged filter, or blockage in the hose. Check and empty/replace the bag, clean the filter, and inspect the hose for obstructions.

How do I adjust the suction power?

The suction power can be adjusted by sliding the control on the handle. Slide forward for higher suction on carpets, backward for lower suction on delicate rugs.

Is the AFV30 suitable for pet hair?

Yes, the AFV30 can handle pet hair effectively. Use the upholstery brush for furniture and the main head for carpets. Clean the brush roll regularly to prevent hair tangles.

How do I replace the brush roll?

Turn off and unplug the vacuum. Remove the bottom plate of the floor head, lift out the old brush roll, and insert a new one. Ensure the belt is properly aligned, then replace the plate.

What should I do if the vacuum overheats?

If the vacuum automatically shuts off due to overheating, unplug it and let it cool for at least 30 minutes. Check for blockages and ensure the filter is clean before restarting.

Can I use the AFV30 on hardwood floors?

Yes, but switch the suction to a lower setting and use the hard floor setting on the floor head (if available) to avoid scratching. Alternatively, turn off the brush roll if your model has a switch.

Where can I purchase spare bags and filters?

Spare dust bags and HEPA filters are available online through Airflo's official website or authorized retailers. Use part numbers AFV30-BAG and AFV30-FILTER.

USER MANUAL AFV30 Airflo

Exterior view of a vacuum cleaner with green and black casing (no text or symbols visible)

Wet & Dry Vacuum Cleaner

AFV30

Parts


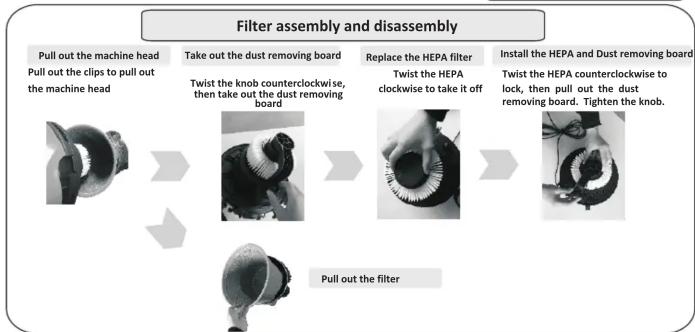


Troubleshooting

Problem	Reasons	Solutions
Vacuum is not working	1. The plug is not inserted tightly and correctly.2. The socket is switched off.	1. Insert the plug into the socket tightly2. Ensure that the socket is switched on
Suction is weak	1. The hose or tube is blocked2. The filter is blocked3. The machine is not fastened tightly4. The air-out filter is blocked5. The adjust window in the hose is open	1. Clean up all the obstructions in the hose or tube or filter2. Clean or replace the filter3. Make sure that the adjust window is closed
Abnormally loud noise	1. The filters are blocked2. The hose, rod or accessories are blocked	1. Clean and maintain the filter2. Get rid of all obstructions

If you still can not solve the problem, take it to a service center, not repair by yourself.

IMPORTANT REMINDERS

To avoid damages or injuries, do not move vacuum when the clips are unlocked.

Use wire and plug correctly Pull out the plug when not in use

This is to avoid possible electric shock or fire, etc.

Avoid incorrect operation

- Do not put metal into the connector of this machine (To avoid electric shock)

- Do not pull the plug by the wire

- Do not pull or move the machine by pulling the hose

- Please use the handle to move or pull it

Keep the vacuum at a safe distance from fire/heat source or sunlight

Operation

To prolong your vacuum's life

- Do not collect the following as it may cause vacuum's breakdown:

● Construction rubbish / powder
- Ash or any flammable material
● Glass/tins/needles/toothpicks
- Ropes/stockings or the like

■ Use the hose carefully to avoid damage

■ To avoid the motor overheating, do not use it continuously for more than half an hour. Also, it's time to service the vacuum when:

● The tank is full of dust / dirt
● The suction mouth is blocked
● The hose, rod or nozzle is blocked

• Do not use the hose or the rod to collect dust directly to avoid wear
  ■ Always use the floor brush or crevice nozzle etc. to pick up dirt / water
  Do not block the air-outlet
  If the suction mouth is blocked, unblock it first before using the vacuum
  ■ Please check whether the cloth or HEPA filter is installed before operating

Cleaning and Maintenance

1. Turn off the switch "o" for OFF "-" for ON

1. Pull out the plug and put the wire in order

1. Take off the hose and floor brush

1. Pull out the filter, wash and dry it for next use

1. Clean the tank and dry with a soft cloth

1. Pull out the head as shown in the picture

Protective Device

Special instructions for the protective device

• When the tank is full of water, this Protective Device will rise up. Suction power will stop but an abnormal noise may indicate that the motor is running at a high speed. If this happens, cut off the power immediately and pour out the water from the tank.
• When vacuum cleaner overturns or shakes excessively, the Protective Device may not work correctly. What you should do is to switch off the machine and turn it upright before continuing to use the vacuum.
• When the tank is full of water, the Protective Device will rise up, suction power will cut off. Pour out all the water from the tank before resuming operation.

Tips on cleaning filters

BEFORE CLEANING:

• Turn off the power and pull out the plug.
  ● Use brush to clean the dust off the filter
• Use tap to wash the filter from inside to outside for better clean.
  ● Put the filter in a well-ventilated place to air-dry it.
• Store it properly for your next use.

AFTER CLEANING:

• Be sure to thoroughly dry the filter (to avoid bad smell or blockage)
• Do not use an air blower to dry the filter to avoid getting it out of shape and making it unsuitable to use.
• Do not use detergent/bleach/thinner/alcohol etc. (to avoid causing cracks and fading its color)

More Safety Reminders

Please observe the following to avoid personal injury or property loss

Do not collect cigarette/gasoline/printing ink/thinner or other flammable material

Do not use when the plug or cable is damaged. (To avoid causing fire because of overheating)

Do not collect plaster dust as it will cause damage to the vacuum.

• Do not wash by water (besides washable parts)
• Do not use in bathroom, damp environment.
• Do not disassembly, repair or transform it by yourself (to avoid fire or electronic shock)
  The appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Make sure that the plug is tightly inserted into the socket to avoid electric shock or fire.

Use an AC socket separately.

Pull out the plug before you clean your machine.

Clean the machine regularly to avoid causing bad insulation or damage.

Ensure that the filter is installed when in operation to avoid the motor burning

Do not pull out the plug with wet hands to avoid electric shock.

Immediately cut off the power and remove the plug when the following happens:

• The appliance does not work after you switch it on.
• The machine is out of shape or hot to the touch.
• Stops working all of a sudden.
• Cuts off and on.

*** Have the vacuum checked by a designated service center.
