Product Type	Wet & Dry Vacuum Cleaner
Brand	Airflo
Model	AFV20
Power	1200 W
Tank Capacity	15 L
Max Airflow	60 L/s
Dimensions (L x W x H)	40 x 40 x 60 cm
Weight	5.5 kg
Cable Length	5 m
Noise Level	75 dB
Filtration	Washable foam filter
Functions	Wet vacuum, dry vacuum, blowing
Accessories Included	Crevice tool, floor brush, wet nozzle
Tank Material	Stainless steel
Safety Features	Overload protection, float valve for wet pickup
Maintenance	Clean filter regularly, rinse tank after wet use
Spare Parts Available	Filter, hose, nozzles
Repairability	Replaceable filter and hose; motor accessible
Warranty	2 years

Frequently Asked Questions - Wet & Dry AFV20 Airflo

How do I switch between wet and dry vacuuming?

Ensure the tank is empty and clean. For dry vacuuming, attach the filter correctly. For wet vacuuming, remove the filter and use the wet nozzle. Flip the switch to 'Wet' mode.

Can I use the Airflo AFV20 for blowing leaves?

Yes, the AFV20 has a blowing function. Connect the hose to the blower port (refer to manual) and use it for outdoor debris.

How often should I clean the filter?

Clean the foam filter after every full tank of dust or when suction drops. Wash with water and dry completely before reuse.

What should I do if the vacuum loses suction?

Check for clogs in the hose or nozzle. Also, ensure the filter is clean and dry. The tank may be full, empty it.

Can I vacuum large amounts of water?

Yes, the AFV20 is designed for wet pickup. Never exceed the max fill line (about 10L of water). Empty immediately after use.

What accessories are included with the AFV20?

The package includes a crevice tool, floor brush, and wet nozzle. Additional accessories can be purchased separately.

Is the filter reusable?

Yes, the foam filter is washable and reusable. Replace it if it becomes torn or excessively worn.

Can I vacuum hazardous materials (e.g., ashes, chemicals)?

No, the AFV20 is not designed for hazardous materials. Avoid vacuuming hot ashes, toxic chemicals, or flammable liquids.

How do I maintain the vacuum for longevity?

After each use, empty and rinse the tank. Dry the tank and filter thoroughly. Store in a dry place. Check the hose for cracks periodically.

Where can I purchase spare parts?

Spare parts such as filters, hoses, and nozzles can be ordered from the Airflo website or authorized dealers. Use the model number AFV20 for correct parts.

USER MANUAL Wet & Dry AFV20 Airflo

Green and silver air-flo cleaner with black hose, no visible text or symbols on body

Wet & Dry Vacuum Cleaner AFV20

PARTS

Black plastic mechanical component with textured grip and mounting bracket (no visible text or symbols)

2-in-1 Crevice / Dusting brush

IMPORTANT SAFETY REMINDERS

(1) Before using, check if the local power supply is the same as the specification on the rating label.

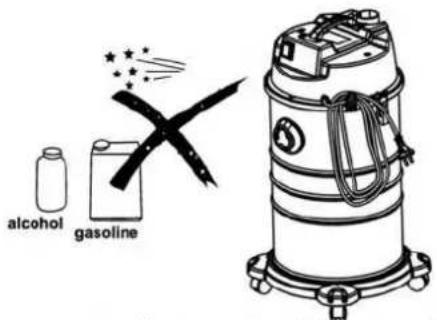

(2) Do not use machine in a combustible place in case the motor spark causes fire.

alcohol gasoline

(3) Do not jam the air inlet mouth, in case temperature rises and damages the motor.

Illustration of a cylindrical device with attached cables and a hand holding a bag, accompanied by a crossed-out black cross symbol (no text or labels)

(4) Do not collect flammable objects such as glowing cigarette, gasoline, etc.

Illustration of a crossed pencil hitting a rolled document (no text or symbols)

(5) Do not collect sharp objects.

Abstract line drawing of mechanical tools and components (no text or symbols)

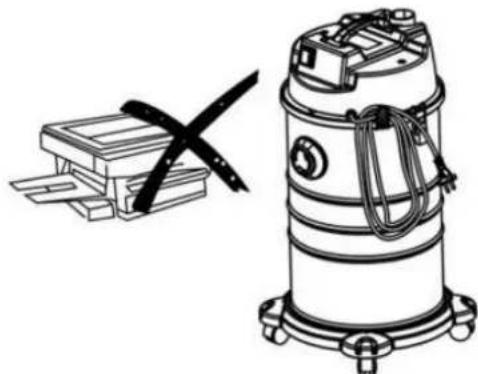

(6) Do not collect objects which can easily attach to the filter such as chalk or powder as it will block the ventilation and will damage the motor.

Illustration of a vacuum cleaner with a cross mark symbol, next to a stack of mechanical components (no text or labels present)

(5) Do not overturn the machine in case water goes into the motor and damages it.

Illustration of a cylindrical device emitting wires with an upward arrow and three stars below (no text or symbols)

(6) Warning: If water comes out from air outlet mouth, do not overturn the machine when being repaired in case water goes into the motor and causes damage. Do not use this machine as pump in case it damages the motor.

(7) Switch off the machine and remove the plug after every use or when being repaired.

(8) Keep machine away from strong sunlight and high temperature place in case plastic gets distorted.

Illustration of a vacuum cleaner emitting exhaust heat from a chimney, with sun and smoke nearby (no text or symbols)

(9) Do not twist or haul hose.

(10) Do not immerse the barrel cap into water or wash with water in case water goes into the electronic parts and causes injury.

(11) Do not use power cord if damaged.

OPERATION

(1) Connection

Insert the hose connector into the air inlet mouth, as shown in the picture; make sure the connector is tightly fastened.

Press the connector button as shown in the picture, and pull the connector out when you want to pull out the hose connector from the machine.

Insert hose connector into the blowing mouth when you want to use its blowing function.

As shown in the picture, connect all the accessories for wet & dry cleaning.

optional accessories

(2) Operation

1. Insert the plug into the supply socket.
2. Press switch button. The machine will start to work.
3. You can adjust the airflow by pushing the sliding block up and down

"F" stands for turn on. "O" stands for turn off

Stronger Wecker

Protective device

(1) When the tank is full of water, this Protective Device will rise up. Suction power will stop but an abnormal noise may indicate that the motor is running at a high speed. If this happens, cut off the power immediately and pour out the water from the tank. The machine will begin to work normally afterwards.
(2) When the machine overturns or shakes excessively, the Protective Device may not work correctly. What you should do is to switch off the machine and turn it upright before continuing to use the vacuum.
(3) When the tank is full of water, the Protective Device will rise up, suction power will cut off. Pour out all the water from the tank before resuming operation.

MAINTENANCE

(1) Barrel Cleaning

* After working or when the barrel is full of dust which causes suction to decrease considerably, you should cut off the electricity and clean the dust away from the barrel.

1) Unfasten the locking knob, lift up the top cover.
2) Take off the filter bag, throw out the dust / dirt from the dust barrel.
3) Install the filter bag back and place the top cover.

(2) Filter bag cleaning

* Filter bag should be washed with clean and warm water when it is covered with dust.

1) Take off the filter
2) Wash
3) Dry

Simple line drawing of a sun and a bucket with a stick (no text or symbols)

Product Details

Model	Power	Voltage	Frequency
AFV20	1200W	220V-240V	50/60HZ
