Product Type	Home Theater System
Brand	Samsung
Model	HT-TKX500
Dimensions (Main Unit)	430 x 66 x 308 mm
Weight (Main Unit)	3.5 kg
Power Consumption	90 W (Operating), <1 W (Standby)
Amplifier Output (Total RMS)	500 W
Speaker Configuration	5.1 Channel (Front x2, Center x1, Surround x2, Subwoofer x1)
Disc Playback	DVD, DVD±R/RW, CD, CD-R/RW, MP3 Disc, JPEG Disc
Audio Decoders	Dolby Digital, DTS, Dolby Pro Logic II
Video Outputs	Composite, Component, HDMI
Audio Inputs	2x Analog Audio (RCA), 1x Optical Digital
Other Features	USB Host, FM Tuner, Anynet+ (HDMI-CEC)
Remote Control	Included (with batteries)
Safety Features	Auto Power Off, Thermal Protection, Overload Protection
Maintenance	Clean with soft, dry cloth; avoid liquids
Spare Parts & Repairability	Contact Samsung authorized service center for genuine parts
General Information	User manual available for download in PDF format

Frequently Asked Questions - HT-TKX500 SAMSUNG

How do I connect the HT-TKX500 to my TV?

Use an HDMI cable for best quality. Connect one end to the HDMI OUT on the system and the other to an HDMI input on your TV. Alternatively, use component or composite video cables for standard definition.

Can I play USB files on this system?

Yes, the HT-TKX500 has a USB port. Connect a USB drive with MP3, JPEG, or DivX files. Navigate using the remote control and press PLAY to start.

What disc formats are supported?

The system supports DVD, DVD±R/RW, CD, CD-R/RW, and discs with MP3 or JPEG files. It does not support Blu-ray discs.

How do I set up the surround sound speakers?

Place front speakers left and right of the TV, center speaker above or below the TV, surround speakers behind the listening area, and subwoofer in a corner. Connect each speaker to the corresponding terminal on the back of the main unit using the provided speaker wires.

Why is there no sound from the subwoofer?

Check that the subwoofer is properly connected and powered on. In the audio settings, ensure that the subwoofer output is enabled. Also, verify that the source material contains low-frequency effects.

How do I program the remote to control my TV?

Press and hold the TV POWER button on the remote until the LED flashes. Enter the code for your TV brand from the manual. If successful, the TV will turn off. If not, try the next code.

Can I connect external devices like a game console?

Yes, use the available audio/video inputs. Connect the console's audio output to the AUX IN (RCA) or OPTICAL IN. For video, connect directly to the TV and use the system for sound.

How do I reset the system to factory settings?

Press and hold the STOP button on the front panel for about 5 seconds until 'INIT' appears on the display. The system will reset and restart.

What is the maximum power output?

The total RMS output is 500W (100W per front and center, 100W per surround, and 100W for the subwoofer). Peak power may be higher.

Where can I download the user manual?

The manual is available for free download on notice-facile.com in PDF format. Search for 'Samsung HT-TKX500' and select your language.

USER MANUAL HT-TKX500 SAMSUNG

Safety Warnings

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE REAR COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1

This symbol indicates that dangerous voltage which can cause electric shock is present inside this unit.

This symbol alerts you to important operating and maintenance instructions accompanying the unit.

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1 LASER product.

Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

CAUTION- INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• This apparatus shall always be connected to a AC outlet with a protective grounding connection.
• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

CAUTION

• Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
• The Mains plug is used as a disconnect device and shall stay readily operable at any time.

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract.

This product should not be mixed with other commercial wastes for disposal.

Precautions

ENG

Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player or subwoofer. Install your player or subwoofer horizontally, on a suitable base (furniture), with enough space around it for ventilation (7.5\~10cm). Make sure the ventilation slots are not covered. Do not stack anything on top of the player or subwoofer. Do not place the player or subwoofer on amplifiers or other equipment which may become hot. Before moving the player, ensure the disc insert hole is empty. This player is designed for continuous use. Switching off the DVD player to the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power supply, remove the main plug from the wall outlet, especially when left unused for a long period of time.

During thunderstorms, disconnect AC main plug from the wall outlet. Voltage peaks due to lightning could damage the unit.

Do not expose the unit to direct sunlight or other heat sources.

This could lead to overheating and malfunction of the unit.

Protect the player from moisture (i.e. vases), and excess heat (e.g.fireplace) or equipment creating strong magnetic or electric fields (i.e.speakers...). Disconnect the power cable from the AC supply if the player malfunctions. Your player is not intended for industrial use. Use of this product is for personal use only. Condensation may occur if your player or disc has been stored in cold temperatures. If transporting the player during the winter, wait approximately 2 hours until the unit has reached room temperature before using.

The batteries used with this product contain chemicals that are harmful to the environment. Do not dispose of batteries in the general household trash.

Features

Multi-Disc Playback & FM Tuner

The HT-TKX500 combines the convenience of multi-disc playback capability, including DVD-VIDEO, CD, MP3-CD, WMA-CD, DivX, CD-R/RW, and DVD-R/RW, with a sophisticated FM tuner, all in a single player.

USB HOST Function support

You can connect and play files from external USB storage devices such as MP3 players, USB flash memory, etc. using the Home Theater's USB HOST function.

Dolby Pro Logic II

Dolby Pro Logic II is a form of multi-channel audio signal decoding technology that improves upon existing Dolby Pro Logic.

DTS (Digital Theater Systems)

DTS is an audio compression format developed by Digital Theater Systems Inc. It delivers full-frequency 5.1 channel sound.

TV Screen Saver Function

If the main unit remains in stop mode for 3 minutes, Samsung logo appears on TV screen.

The HT-TKX500 automatically switches itself into the power saving mode after 20 minutes in the Screen Saver mode.

Power Saving Function

The HT-TKX500 automatically shuts itself off after 20 minutes in Stop mode.

HDMI

HDMI transmits DVD video and audio signals simultaneously, and provides a clearer picture. The 1080p(Full HD) resolution provides even clearer pictures.

Anynet+ (HDMI-CEC) Function

Anynet+ is a function that can be used to operate the main unit using a Samsung TV remote control, by connecting the Home Theater to a SAMSUNG TV using an HDMI Cable. (This is only available with SAMSUNG TVs that support Anynet+.)

Simple Touch Button

The touch button on this player has equipped with a sensor activated by a physical contact, which allows you to operate the button with simple touch.

PREPARATION

Safety Warnings 2

Precautions....3

Features 4

Notes on Discs 6

Description....8

CONNECTIONS

Speaker Installation ....12

Installing the DVD player ....14

Connecting the Speakers ....16

Connecting the Wireless Receiving Amplifier ....19

Connecting the Video Out to your TV 21

HDMI Function 22

Connecting Audio from External Components ..23

Connecting the FM Antenna 26

OPERATION

Before Reading the User's Manual .....27

Before Using Your Home Theater ....28

Disc Playback 29

MP3/WMA-CD Playback 30

JPEG File Playback ....31

DivX Playback 32

Using the Playback Function ....34

Displaying Disc Information ....34

Fast Playback 35

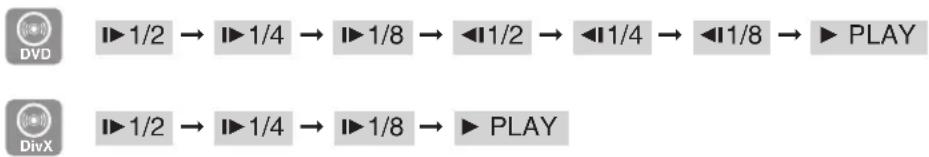

Slow Playback 35

Skipping Scenes/Songs 36

Repeat Playback ....37

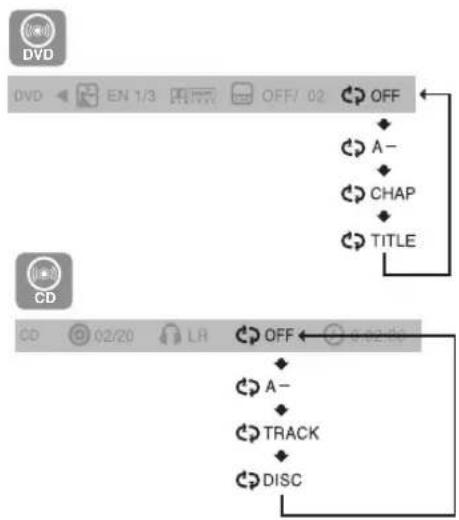

To Select a Repeat Playback Mode in the

Disc Information Screen 38

A-B Repeat Playback 39

Step Function 39

Angle Function 40

Zoom (Screen Enlarge) Function .....40

Audio Language Selection Function .....41

Subtitle Language Selection Function .....41

Moving Directly to a Scene/Song 42

Using the Disc Menu 43

Using the Title Menu 43

Playing Media Files using the USB

Host Feature 44

SETUP

Settings....46

Setting the Language 46

Setting TV Screen type....47

Setting Parental Controls (Rating Level) .....48

Setting the Password....48

Setting the Wallpaper 49

To Select One of the 3 Wallpaper Settings you've made ....49

DivX (R) registration 50

Setting the Speaker Mode ....50

Setting the Delay Time ....51

Setting the Test Tone ....52

Setting the Audio ....53

Setting the DRC

(Dynamic Range Compression) 54

Setting the AV SYNC....54

Setting the HDMI Audio 55

Sound Field (DSP)/EQ Function....56

Dolby Pro Logic II Mode ....57

Dolby Pro Logic II Effect 57

KARAOKE

Karaoke 58

Playing DVD-OK Discs 58

Wireless Microphone Operation ....58

Reserving Accompaniment Music ....60

Priority Playing Accompaniment Music .....60

DVD-OK Repeat Play 61

Favorite Song Function 61

Search Song Function 63

Key Control 65

Tempo Control 65

Male-Female Key Control 66

Setting the Chorus 66

Setting the Fanfare 67

Setting the Average Score....67

Setting the Shadow 67

MISCELLANEOUS

Listening to Radio 68

About RDS broadcasting .....70

Convenient Functions 72

Operating a TV with the Remote Control....73

Troubleshooting 75

Cautions on Handling and Storing Discs .....77

Language Code List ....78

USB Host Feature Supported Products....79

Specifications 80

Notes on Discs

DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital surround sound and MPEG-2 video compression technology. Now you can enjoy these realistic effects in the home, as if you were in a movie theater or concert hall.

DVD players and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this player is given on the rear panel of the player. (Your DVD player will only play DVDs that are labeled with identical region codes.)

playable Discs

Disc Type	Mark (Logo)	Recorded Signals	Disc Size Max.	Playing Time
DVD-VIDEO		Audio + Video	12cm	Approx. 240 min. (single-sided)
				Approx. 480 min. (double-sided)
			8cm	Approx. 80 min. (single-sided)
				Approx. 160 min. (double-sided)
AUDIO-CD		Audio	12cm	74 min.
			8cm	20 min.
Divx		Audio + Video	12cm	74 min.
			8cm	20 min.

Do not use the following types of disc!

• LD, CD-G, CD-I, CD-ROM and DVD-ROM discs cannot be played on this player. If such discs are played, a message appears on the TV screen.
• DVD discs purchased abroad may not play on this player. If such discs are played, a message appears on the TV screen.

Copy Protection

• Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.
• This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Disc Recording Format

This product does not support Secure (DRM) Media files.

CD-R Discs

• Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the condition of the disc.
  • Use a 650MB/74 minute CD-R disc.
  Do not use CD-R discs over 700MB/80 minute as they may not be played back.
• Some CD-RW (Rewritable) media, may not be playable.
• Only CD-Rs that are properly can be fully played. If the session is closed but the disc is left open, you may not be able to fully play the disc.

CD-R MP3 Discs

• Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.
• MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
• Use discs recorded with a compression/decompression data rate greater than 128Kbps.
• Only files with the and extensions can be played.
• Only a consecutively written multisession disc can be played. If there is a blank segment in the Multisession disc, the disc can be played only up to the blank segment.
• If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.
• For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate (e.g., 32Kbps \~ 320Kbps), the sound may skip during playback.
• A maximum of 500 tracks can be played per CD.
• A maximum of 300 folders can be played per CD.

CD-R JPEG Discs

• Only files with the extensions can be played.
• If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
• Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
• JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
• Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc, the disc can be played only up to the blank segment.
• A maximum of 9,999 images can be stored on a single CD.
• When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.
  • Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.

DVD-B/RW, CD-R/RW DivX Discs

• Since this product only provides encoding formats authorized by DivX Networks, Inc., a DivX file created by the user might not play.
• Software updates for incompatible formats are not supported.
  (Example: QPEL, GMC, resolution higher than 800 x 600 pixels, etc.)
• Sections with a high frame rate might not be played while playing a DivX file.
• For more information about the formats authorized by DivX Networks, Inc., please visit .

Description

Front Panel

1. Power (⏻) button
   (Press and hold for more than 1 second)
2. Function button
3. Tuning Down & Skip ( «) button
4. Stop ( □ ) button

5. Play/Pause ( >) button

6. Tuning Up & Skip ( » ) button

7. Volume Control button
8. Eject button

(Press and hold for more than 1 second)

1. Disc Insert Hole
2. Display

Rear Panel

1. FM 75Ω COAXIAL Jack
2. HDMI OUT Jack.
3. Component Video Output Jacks Connect a TV with Component video inputs to these jacks.
4. Video Output Jack Connect your TV's Video Input jack (VIDEO IN) to the VIDEO OUT Jack on this unit.
5. AUX IN 2 Jacks (L/R)
6. Audio Output Jack
7. WIRELESS MIC ANT Jack
8. External Digital Optical Input Jack 1 Use this to connect external equipment capable of digital output.
9. External Digital Optical Input Jack 2 Use this to connect external equipment capable of digital output.
10. Stand Fix Hole
11. Cooling Fan

Side Panel

1. AUX IN 1 Jack
2. USB Port
3. MIC Channel Select Switch
4. TX Card Connection(WIRELESS)

Accessories

Remote Control

Video Cable

HDMI Cable

FM Antenna

User's Manual

System Cable

Screw(Large) : 3EA
Screw(Small) : 4EA

Core
(Toroidal Ferrite Core)

1 Remove the battery cover in the direction of the arrow.
2 Insert two 1.5V AAA batteries, paying attention to the correct polarities (+ and -).
3 Replace the battery cover.

Follow these precautions to avoid leaking or cracking cells:

• Place batteries in the remote control so they match the polarity: (+) to (+) and (−) to (−).
• Use the correct type of batteries. Batteries that look similar may differ in voltage.
  • Always replace both batteries at the same time.
• Do not expose the batteries to heat or a flame.

Operation Range of the Remote Control

The remote control can be used up to approximately 7 meters(23 feet) in a straight line. It can also be operated at a horizontal angle of up to 30° from the remote control sensor.

Speaker Installation

How to Install the Speaker and the Stand

1

1 Turn the stand upside down and mount it on the stand base.

2

2 Tighten 4(Black) screws on the bottom side of the stand base.

3

3 Place the stand on the floor and tighten 2(Silver) on the back of the stand.

Speaker Packages

Please confirm that all the following contents are included in the package.

Front/Rear Speaker

SPEAKER (4EA)

STAND (4EA)

STAND BASE (4EA)

[Non-Text]

SCREW (16EA): BLACK SCREW (16EA): SILVER

Center Speaker

Subwoofer Speaker Speaker Cable (5EA)

* Front speakers and rear speakers are packaged separately as shown in the diagram.

4

4 Mount the speaker on the stand.

5

5 Tighten 2(Silver) screws on the back of the speaker.

6

6 This is the successfully assembled speaker.

!

• Make sure that the speaker is installed on a flat and stable area. Otherwise it may be easily knocked over.

Installing the DVD player

1

1 Mount the stand on the stand base and tighten 4 screws on the bottom side of the stand base.

2

2 Secure the main unit by aligning 2 protruding points on the back of the main unit with the fixing holes on the stand.

3

3 Tighten 3 screws in the middle of the stand.

4

4 Push the cable into the cable fixing hole in the stand.

5 Open the holder cover of the round board on the bottom of the stand and pass the cables through the holder.

6 Squeeze the cables into the groove on the holder of the round board.

7

7 Close the holder cover.

8

8 Open a Toroidal Ferrite Core by pulling it upward. Wrap it around of the system connection cable so it will be next to the DVD Player. Close it back by pressing it all the way down until you hear a clicking sound.

• For the stand packages, refer to page 9.
- The Toroidal Ferrite Core is designed to reduce electromagnetic waves that may cause interference.

Connecting the Speakers

Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

Position of the DVD PlayerL R

- Place it on a stand or cabinet shelf, or under the TV stand.

Front Speakers ©

- Place these speakers in front of your listening position, facing inwards (about 45°) toward you.

- Place the speakers so that their tweeters will be at the same height as your ear.

- Align the front face of the front speakers with the front face of the center speaker or place them slightly in front of the center speakers.

Center Speaker

- It is best to install it at the same height as the front speakers.

- You can also install it directly over or under the TV.

Selecting the Listening Position

- The listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV. Example :

For 32" TVs 2\~2.4m (6\~8feet)

For 55" TVs 3.5\~4m (11\~13feet)

Rear Speakers SL SR

- Place these speakers behind your listening position.

- If there isn't enough room, place these speakers so they face each other.

- Place them about 60 to 90cm (2 to 3feet) above your ear, facing slightly downward.

* Unlike the front and center speakers, the rear speakers are used to handle mainly sound effects and sound will not come from them all the time.

Subwoofer SW

- The position of the subwoofer is not so critical. Place it anywhere you like.

Connecting the Speakers

1

2

1 Press down the terminal tab on the back of the speaker.
2 Insert the black wire into the black terminal (−) and the red wire into the red (+) terminal, and then release the tab.
3 Connect the connecting plugs to the back of the Subwoofer.

■ Make sure the colors of the speaker terminals match the colors of the connecting plugs.

!

• Do not let children play with or near the speakers. They could get hurt if a speaker falls.
• When connecting the speaker wires to the speakers, make sure that the polarity (+/-) is correct.
• Keep the speaker out of reach of children so as to prevent children from inserting their hands or alien substances into the duct (hole) of the subwoofer speaker.
• Do not hang the subwoofer on the wall through the duck(hole)

#

- If you place a speaker near your TV set, screen color may be distorted because of the magnetic field generated by the speaker. If this occurs, place the speaker away from your TV set.

Connecting the Speakers (Con't)

Connecting the Main Unit and Subwoofer

Rear of Subwoofer Rear of Main unit

Use the system cable to connect the AUDIO OUT port of the main unit to the AUDIO IN port of the subwoofer.

subwoofer functions

Subwoofer: With the built-in, dedicated 165W amplifier, the subwoofer generates rich bass sounds.

Crossover: The Crossover sets the cutoff frequency for the subwoofer. Set the Crossover control for the best bass response in your room.

1 Power button
2 External Audio Input Connector
3 Crossover Controller
4 Speaker Output Terminals

Connecting the Wireless Receiving Amplifier

ENG

To connect the rear speakers wirelessly, you have to purchase the wireless receiving module and TX card from your Samsung retailer.

When you have Purchased the Wireless Receiving Module (SWA-3000)

1 Connect the Front and Center speakers to the Subwoofer, referring to pages 16\~18.
2 With the DVD Player turned off, insert the TX card into the TX Card Connection(WIRELESS) on the side of the main unit.

■ Hold the TX card so that the slanted side faces upward and insert the card into the port.
■ The TX card enables communication between the main unit and the wireless receiver.

3 Connect the left and right rear speakers to the wireless receiving module.
4 Plug the power cord of the wireless receiving module in the wall outlet and switch the power switch 'ON'.

• Do not insert a card other than the TX card dedicated for the product. The product might be damaged or the card may not be removed easily.
• Do not insert the TX card upside down or in the reverse direction.
• Insert the TX card when the DVD Player is turned off. Inserting the card when it is turned on may cause a problem.
• If the TX Card is inserted, sound is not output from the Rear Speaker connectors on the main unit.

Connecting the Wireless Receiving Amplifier (Con't)

Resetting the Wireless Receiving Module

Reset the system if a communication failure occurs, or if the Link indicator (blue LED) on the wireless receiver does not light up and the "REAR CHECK" message blinks on the main unit's display.

Reset the system while the main unit and the wireless receiver module (SWA-3000) are in Power Standby mode.

1 With the main unit turned off, press and hold the remote control's RESERVE button for 5 seconds.

■ The STANDBY LED on the front panel of the wireless receiver module blinks.

2 With the wireless receiver module turned on, use a ball point pen or a toothpick to press the RESET button on the back of the unit.

- The STANDBY LED on the front panel of the wireless receiver module blinks 2 Times.

3 Press and hold the Power button on the home theater system for more than 1 second to turn it on.

- The LINK LED of the wireless receiver module is lit and the Reset is complete.

■ If Power Standby mode continues, repeat Steps 1 to 3 above.

• When the wireless receiving module setting is complete, no audio signal is output from the Rear Speaker Output Connector on the back of the main unit.
• The wireless receiving antenna is built into the wireless receiver module. Keep the unit away from water and moisture.
• For optimal listening performance, make sure that the area around the wireless receiver module location is clear of any obstructions.
  • Sound will be heard from the wireless rear speakers in DVD 5.1-CH or Dolby Pro Logic II mode only.
• In 2-CH mode, no sound will be heard from the wireless rear speakers.

• Place the wireless receiver module at the rear of the listening position. If the wireless receiver module is too close to the main unit, some sound interruption may be heard due to interference.
• If you use a device such as a microwave oven, wireless LAN Card, Bluetooth equipment, or any other device that uses the same frequency (2.4GHz) near the system, some sound interruption may be heard due to interference.
• The transmission distance of radio wave is about 10m, but may vary depending on your operating environment. If a steel-concrete wall or metallic wall is between the main unit and the wireless receiver module, the system may not operate at all, because the radio wave cannot penetrate metal.

Connecting the Video Out to your TV

Choose one of the three methods for connecting to a TV.

METHOD 1 : HDMI ...... (Best Quality)

Connect the HDMI cable from the HDMI OUT jack on the back of the main unit to the HDMI IN jack on your TV.

METHOD 2 : Component Video .... (Better Quality)

If your television is equipped with Component Video inputs, connect a component video cable (not supplied) from the Pr, Pb and Y jacks on the back panel of the main unit to the corresponding jacks on your television.

METHOD 3 : Composite Video ..... (Good Quality)

Connect the supplied video cable from the VIDEO OUT jack on the back of the main unit to the VIDEO IN jack on your TV.

• This product operates in Interlace scan mode (576i) for component output.
• After making the video connection, set the Video input source on your TV to match the corresponding Video output (HDMI, Component or Composite) on your Home theater.
  See your TV owner's manual for more information on how to select the TV's Video Input source.
• If you use an HDMI cable to connect a Samsung TV to the main unit, you can operate the Home Theater using the TV's remote control. This is only available with SAMSUNG TVs that support Anynet+(HDMI-CEC).
• Please check the A_Anynet^* logo. If your TV has an logo, then it supports Anynet+ function.

Resolution Selection

This function allows the user to select the screen resolution for HDMI output.

What is HDMI (High Definition Multimedia Interface)?

This device transmits a DVD video signal digitally without the process of converting to analog. You will get sharper digital pictures when using an HDMI connection.

In Stop mode, press and hold the SD/HD (Standard Definition/High Definition) button on the remote control.

■ Resolutions available for the HDMI output are 576p, 720p, 1080i and 1080p.
- SD(Standard Definition) resolution is 576p(480p) and HD(High Definition) resolution is 720p/1080i/1080p.

• If the TV does not support the configured resolution, you will not be able to see the picture properly.
• When a HDMI TV is connected, composite and component video signals are not output.
• See your TV owner's manual for more information on how to select the TV's Video Input source.
• The Home Theatre is designed for qualitative playback DVD discs recorded in PAL system. While using NTSC discs in HD mode in some cases it's possible picture size distortion which is not a defect

Using Anynet+(HDMI-CEC)

Anynet+ is a function that enables you to control other Samsung Devices with your Samsung TV's remote control, Anynet + can be used by connecting this Home Theater to a SAMSUNG TV using an HDMI Cable. This is only available with SAMSUNG TVs that support Anynet+.

With Anynet+

You can operate this unit, power on your TV, or watch a movie by pressing the Play button on your Samsung TV's remote control.

1 Connect the main unit of the Home Theater to a Samsung TV with an HDMI cable. (See page 21)
2 Set the Anynet+ function on your TV. (See the TV instruction manual for more information.)

- You can operate the Home Theater by using the TV remote control. (Available TV buttons: ◀, ■, ▶, ▶, ▲, ▼ and ▶, ◀ buttons, 0 \~ 9 button)

If you select the TV

Set the Anynet+(HDMI-CEC) to on your TV.

• : You can listen to audio through the Home Theater.
• : You can listen to audio through the TV.

If you select the THEATER

Select and set the option of each items below.

• : If Anynet+(HDMI-CEC) set to on and you select View TV, the Home Theater will automatically switched to DIGITAL IN.
• : You can access the Home Theater menu.
• : The Home Theater disc playback information will be displayed.
• : You can listen to audio through the Home Theater.
• : You can listen to audio through the TV.

• If you want to listen to TV sound through the home theater system, connect the optical cable to the OPTICAL 1 port of the system.
• If Anynet+ (HDMI-CEC) is on and you turn off the main unit, your TV will also turn off.
• Anynet+ (HDMI-CEC) will only work while in the DVD mode.

Connecting Audio from External Components

ENG

AUX1 : Side Panel

AUX1 : Connecting an External Component/MP3 player

Components such as an MP3 Player

1 Connect AUX IN 1 (Audio) on the Home Theater to the Audio Out of the external component/MP3 player.
2 Press the AUX button on the remote control to select input.

- You can also use the FUNCTION button on the main unit.

The mode switches as follows: DVD → D.IN 1 → D.IN 2 → AUX1 → AUX2 → USB → FM

Connecting Audio from External Components (Con't)

AUX2 : Rear Panel

AUX2 : Connecting an External Analog Component

Analog signal components such as a VCR.

1 Connect AUX IN 2 (Audio) on the Home Theater to Audio Out on the external analog component.

- Be sure to match connector colors.

2 Press the AUX button on the remote control to select input.

- You can also use the FUNCTION button on the main unit.

The mode switches as follows: DVD → D.IN 1 → D.IN 2 → AUX1 → AUX2 → USB → FM

- You can connect the Video Output jack on your VCR to the TV, and connect the Audio Output jacks on the VCR to this product.

OPTICAL : Rear Panel

OPTICAL : Connecting an External Digital Component

Digital signal components such as a Set-Top Box.

1 Connect the Digital Input (OPTICAL 1 or 2) on the Home Theater to the Digital Output of the external digital component.
2 Press the AUX button on the remote control to select ,

- You can also use the FUNCTION button on the main unit.

The mode switches as follows : DVD → D.IN 1 → D.IN 2 → AUX 1 → AUX 2 → USB → FM

Connecting the FM Antenna

1 Connect the FM antenna supplied to the FM 75Ω COAXIAL Jack.
2 Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a wall or other rigid surface.

• This unit does not receive AM broadcasts.

Cooling Fan

The cooling fan supplies cool air to the unit to prevent overheating.

Please observe the following cautions for your safety.

■ Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit may rise and may damage it.
- Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered with a newspaper or cloth, heat may build up inside the unit and fire may result.)

Before Reading the User's Manual

ENG

Make sure to check the following terms before reading the user manual.

Icons that will be used in manual

Icon Term Definition
	DVD	This involves a function available on DVD or DVD-R/DVD-RW discs that have been recorded and finslized in Video Mode.
	CD This involves a function available on a data CD (CD-R or CD-RW).
	MP3 This involves a function available on CD-R/-RW discs.
	JPEG This involves a function available on CD-R/-RW discs.
	DivX	This involves a function available on MPEG4 discs. (DVD-R/RW, CD-R or CD-RW)
	Caution	This involves a case where a function does not operate or settings may be cancelled.
	Note This involves tips or instructions on the page that help each function operate.

- In this manual, the instructions marked with are applicable to DVD-VIDEO, and DVD-R/-RW discs that have been recorded in Video Mode and then finalized.

Where a particular DVD type is mentioned, it is indicated separately.

- If a DVD-R/-RW discs has not been recorded properly in DVD Video format, it will not be playable.

Before Using Your Home Theater

To Operate your Samsung TV and the Home Theater with the HT-TKX500 Remote Control

The DVD Home Theater's remote can be used to control Samsung TVs.

1 Plug the main unit's power cord into the AC power supply.
- Before plugging your system into a main socket, you must check the voltage setting (OPTIONAL). If the voltage of the socket does not correspond to the setting on the rear of the unit, you may seriously damage your system.
2 Press the TV button to set the remote to TV mode.
3 Press the POWER button to turn on your Samsung TV with this remote.
4 Press the TV/VIDEO button to select VIDEO mode on your TV.

5 Press the DVD RECEIVER button to switch to DVD RECEIVER mode to operate the DVD Home Theater

6 Press the FUNCTION button on the main unit or DVD button on the remote to enable DVD/CD playback.

- If you want to turn on or off the main unit, press and hold the Power button on the remote control or on the main unit for more than 1 second.

1 Load a disc vertically into the Disc Insert Hole.

• Insert a disc so that the label side faces forward.
  ■ Playback starts automatically.

2 Press the EJECT button on the remote control or press and hold the EJECT button for more than 1 second on the main unit.

- The disc will be ejected from the disc tray of the main unit.

To stop playback, press the STOP button during playback.

• If pressed once, is displayed and the stop position will be stored in memory. If the PLAY/PAUSE ( ▶II ) button or ENTER button is pressed, playback resumes from the stop position. (This function works only with DVDs.)
• If pressed twice, is displayed, and if the PLAY/PAUSE ( ▶II ) button is pressed, playback starts from the beginning.

➢ To temporarily pause playback, press the PLAY/PAUSE (▶II) button during playback.

■ To resume playback, press the PLAY/PAUSE (▶ button again.

• Depending on the content of the disc, the initial screen may appear different.
• Pirated discs will not run in this player because it violates the CSS (Content Scrambling System: a copy protection system) recommendations.

MP3/WMA-CD Playback

Data CDs (CD-R, CD-RW) encoded in MP3/WMA format can be played.

1 Load the MP3 disc.

■ The MP3/WMA menu screen will appear and playback will start.
- The appearance of the menu depends on the MP3/WMA disc.
■ WMA-DRM files cannot be played.

2 In Stop mode, use the Cursor▲,▼,◀,▶ button to select the album, and then press the ENTER button.

■ Use ▲,▼ to select the track.

3 To change the album, use the Cursor▲,▼,◀,▶ button to select another album in Stop mode, and then press the ENTER button.

■ To select another album and track, repeat Steps 2 and 3 above.

4 Press the STOP(■) button to stop playback.

• Depending on the recording mode, some MP3/WMA-CDs may not play.
• Table of contents of a MP3/WMA-CD varies depending on the MP3/WMA track format recorded on the disc.
  • Russian filenames are not supported.

To play a file icon in the screen,

- Press the Cursor ▲,▼,◀,▶ button when it is in Stop mode and select a desired icon from the top part of the menu.

Music File Icon : To play music files only, select the icon.

Image File Icon : To view image files only, select the 📄son.

Movie File Icon : To view movie files only, select the icon.

All File Icon : To select all files select the icon.

JPEG File Playback

ENG

Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back with this Home Theater.

Load the JPEG disc.

■ Playback starts automatically. Each image is displayed for 5 seconds and then the next image is displayed.

➢ Press the ◀◀,▶◀ button to skip to the next slide.

■ Each time the button is pressed, the slide moves backward or forward.

Rotate/Flip Function

Press the Cursor ▲,▼,◀,► button during playback.

Original Image

◀ button: Rotate 90° Counterclockwise

▲ button: Flip Vertically

▼ button: Flip Horizontally

▶ button: Rotate 90° Clockwise

• The maximum resolutions supported by this product are 5120 x 3480 (or 19.0 MPixel) for standard JPEG files and 2048 x 1536 (or 3.0 MPixel) for progressive image files.
  • Russian filenames are not supported.
• In some cases, depending on JPEG files record conditions, those files may be displayed not the full screen size or low quality.

DivX Playback

The functions on this page apply to DivX disc playback.

Skip Forward/Back

During playback, press the ◀◀,▶▶I button.

• Goes to the next file whenever you press the ▶▶ button, if there are over 2 files in the disk.
• Goes to the previous file whenever you press the ◀◀ button, if there are over 2 files in the disk.

Fast Playback

To play back the disc at a faster speed, press the ◀◀ or ▶▶ button during playback.

- Each time you press the either button, the playback speed will change as follows: 2x → 4x → 8x → 32x → Normal.

5 Minute Skip function

During playback, press the Cursor ◀, ► button.

■ Playback skips 5 minutes forward whenever you press the Cursor ▶ button.
■ Playback skips 5 minutes back whenever you press the Cursor ◀ button.

Audio Display

Press the AUDIO button.

• If there are multiple audio tracks on a disc, you can toggle between them.
• Each time you press the button, your selection will toggle between

- 📋 is displayed when there is one supported language in the disc.

Subtitle Display

Press the SUBTITLE button.

• Each time you press the button, your selection will toggle between and .
  ■ If the disc has only one subtitle file, it will be played automatically.
• See number 2 (Caption Function) below for more details concerning Subtitle usage with DivX discs.

If the disc has more than one subtitle file

If the disc has more than one subtitle file, the default subtitle may not match the movie and you will have to select your subtitle language as follows:

1 In Stop mode, press the Cursor ▲, ▼ button, select the desired subtitle (☐) from the TV screen, and then press the ENTER button.
2 When you select the desired DivX file from the TV screen, the movie will be played normally.

DivX(Digital internet video eXpress)

DivX is a video file format developed by Microsoft and is based on MPEG4 compression technology to provide audio and video data over the Internet in real-time.

MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie at near DVD-quality video and audio.

1. Supported Formats

This product only supports the following media formats. If both video and audio formats are not supported, the user may experience problems such as broken images or no sound.

Supported Video Formats

Format	AVI	WMV
Supported Versions	DivX3.11~DivX5.1, XviD	V1/V2/V3/V7

Supported Audio Formats

Format	MP3	WMA	AC3	DTS
Bit Rate 80~384kbps	56~128kbps	128~384kbps	1.5 Mbps
Sampling Frequency	44.1khz		44.1/48khz	44.1khz

• DivX files, including audio and video files, created in the DTS format can only support up to 6Mbps.
• Aspect Ratio: Although default DivX resolution is 640x480 pixels (4:3), this product supports up to 800x600 pixels (16:9). TV screen resolutions higher than 800 will not be supported.
• When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may experience shaking on the screen during playback.

2. Caption Function

• You must have some experience with video extraction and editing in order to use this feature properly.
• To use the caption function, save the caption file (*.smi) in the same file name as that of the DivX media file (*.avi) within the same folder.
  Example. Root Samsung_007CD1.avi
  Samsung_007CD1.smi
• Up to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean and Chinese) for the file name.
• Russian/Ukrainian characters of File's name are not supported.

Using the Playback Function

Displaying Disc Information

You can view disc playback information on the TV screen.

Press the INFO button.

Each time the button is pressed, the display changes as follows:

• Depending on the disc, the disc information display may appear different.
• Depending on the disc, you can also select DTS, DOLBY DIGITAL, or PRO LOGIC.

appears on the TV screen!

If this symbol appears on the TV screen when pressing a button, that operation is not possible with the disc currently being played.

Screen Display

TITLE display

CHAPTER display

TRACK (FILE) display

SUBTITLE display

ELAPSED TIME display

REPEAT PLAYBACK display

AUDIO LANGUAGE display

DVD Display

LR

STEREO (L/R) display

DOLBY DIGITAL display

ANGLE display

CD Display

Fast Playback

Press the ◀◀,▶▶ button.

■ Each time the button is pressed during playback, the playback speed changes as follows:

- During fast playback of a CD or MP3-CD, sound is heard only at 2x speed, and not at 4x, 8x, and 32x speeds.

Slow Playback

Press the SLOW button.

■ Each time the button is pressed during playback, the playback speed changes as follows:

- No sound is heard during slow playback. - Reverse slow playback does not work with DivX.

Using the Playback Function (Con't)

Skipping Scenes/Songs

Press the ◀◀,▶▶I button.

• Each time the button is pressed during playback, the previous or next chapter, track or directory (file) will be played.
  ■ You cannot skip chapters consecutively.

Repeat Playback

Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file).

Press the REPEAT button.

- Each time the button is pressed during playback, the repeat playback mode changes as follows:

REPEAT : CHAPTER → REPEAT : TLTLE → REPEAT : OFF

REPEAT : TRACK → REPEAT : DISC → REPEAT : OFF

REPEAT:RANDOM → REPEAT:TRACK → REPEAT:DIR →

REPEAT:DISC → REPEAT:OFF

Repeat Playback Options

CHAPTER : Repeatedly plays the selected chapter.

TITLE : Repeatedly plays the selected title.

RANDOM : Plays tracks in random order.

(A track that has already been played may be played again.)

TRACK : Repeatedly plays the selected track.

DIR : Repeatedly plays all tracks in the selected folder.

DISC : Repeatedly plays the entire disc.

OFF : Cancels Repeat Playback.

Using the Playback Function (Con't)

To Select a Repeat Playback Mode in the Disc Information Screen

1 Press the INFO button twice.
2 Press the Cursor ▶ button to move to REPEAT PLAYBACK (CP) display.
3 Press the Cursor ▼ button to select the desired Repeat Playback mode. ■ To select another album and track, repeat Steps 2 and 3 above.
4 Press the ENTER button.

• For DivX, MP3 and JPEG discs, you cannot select Repeat Play from the information display screen.
• Point B cannot be set until 5 seconds of playback has elapsed from point A.

A-B Repeat Playback

You can repeatedly play back a designated section of a DVD.

1 Press the INFO button twice.
2 Press the Cursor▶ button to move to REPEAT PLAYBACK ( ) display.
3 Press the Cursor▲,▼ button to select and then press ENTER button at the beginning of the desired segment.
- When the ENTER button is pressed, the selected position will be stored in memory.
4 Press the ENTER button at the end of the desired segment.
■ The specified segment will be played repeatedly.

REPEAT : A-B

To return to normal playback, press the Cursor ▲,▼ button to selectOFF.

• The A-B Repeat function does not operate with DivX, MP3 or JPEG discs.
• Point B cannot be set until 5 seconds of playback has elapsed from point A.

Step Function

Press the STEP button.

■ The picture moves forward one frame each time the button is pressed during playback.

- No sound is heard during step motion playback.

Using the Playback Function (Con't)

Angle Function

This function allows you to view the same scene in different angles.

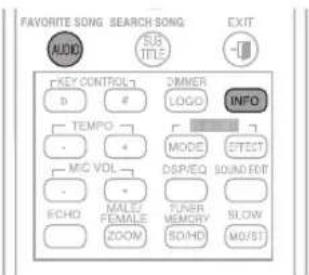

1 Press the INFO button.
2 Press the Cursor▶ button to move to ANGLE ( &display.
3 Press the Cursor ▲,▼ button or numeric buttons to select the desired angle. ■ Each time the button is pressed, the angle changes as follows:

- The Angle function works only with discs on which multiple angles have been recorded.

Zoom (Screen Enlarge) Function

This function allows you to enlarge a particular area of the displayed image.

1 Press the ZOOM button.

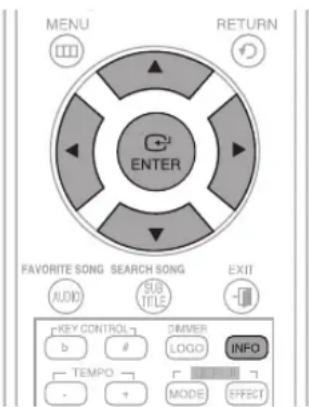

2 Press the Cursor ▲,▼,◀,▶ button to move to the area you want to enlarge.
3 Press the ENTER button.
■ Each time the button is pressed, the zoom level changes as follows:

ZOOM X 1.5 → ZOOM X 2 → ZOOM X 3 → ZOOM OFF

• This feature is not supported for DivX discs.

Audio Language Selection Function

1 Press the INFO button twice.
2 Press the Cursor ▲,▼ button or numeric buttons to select the desired audio language.
- Depending on the number of languages on a DVD disc, a different audio language (ENGLISH, SPANISH, FRENCH, etc.) is selected each time the button is pressed.

Subtitle Language Selection Function

1 Press the INFO button twice.
2 Press the Cursor▶ button to move to SUBTITLE (☐) display.
3 Press the Cursor ◀ button or numeric buttons to select the desired subtitle.

• To operate this function, you can also press the AUDIO or SUBTITLE buttons on the remote control.
• Depending on the disc, the Subtitle and Audio Language functions may not be available.

Using the Playback Function (Con't)

Moving Directly to a Scene/Song

1 Press the INFO button.
2 Press the Cursor▲,▼ button or numeric buttons to select the desired title/track ( ) and then press the ENTER button.
3 Press the Cursor ◀,▶ button to move to Chapter ( ✉) display.
4 Press the Cursor ▲, ▼ button or numeric buttons to select the desired chapter and then press the ENTER button.
5 Press the Cursor ◀,▶ button to move to time ( ▼display.
6 Press the numeric buttons to select the desired time and then press the ENTER button.

Press the numeric button.

■ The selected file will be played.
- When playing an MP3 or JPEG disc, you cannot use the Cursor ▲,▼ button to move to a folder.
To move a folder, press the STOP (■) button and then press the Cursor ▲,▼ button.

• You can press the ◀◀,▶▶I button on the remote control to move directly to the desired title, chapter, or track.
• Depending on the disc, you may not be able to move to the selected title or time.

Using the Disc Menu

You can use the menus for the audio language, subtitle language, profile, etc.

DVD menu contents differ from disc to disc.

1 In Stop mode, press the MENU button.
2 Press the Cursor ▲, ▼ button to move to and then press the ENTER button.
- When you select Disc Menu and it is not supported by the disc, the message appears on the screen.
3 Press the Cursor▲,▼,◀,▶ button to select the desired item.
4 Press the ENTER button.
➢ Press the EXIT button to exit the setup screen.

- The Disc menu display may be different depending on the disc.

Using the Title Menu

For DVDs containing multiple titles, you can view the title of each movie. Depending on the disc, the availability of this feature may vary.

1 In Stop mode, press the MENU button.
2 Press the Cursor▲,▼ button to move to
