Product type	Integrated refrigerator-freezer
Brand	Hisense
Model	RB3K330SAIC
Total capacity	330 liters
Refrigerator capacity	240 liters
Freezer capacity	90 liters
Dimensions (H x W x D)	186 x 60 x 65 cm
Net weight	68 kg
Energy class	A+
Annual energy consumption	280 kWh
Defrost type	Automatic (No Frost) for both compartments
Refrigerant	R600a
Noise level	42 dB
Power supply	220-240 V, 50 Hz
Main functions	Refrigeration, freezing, preservation, multi-flow cold air distribution
Maintenance and cleaning	Clean the interior regularly with a damp cloth and baking soda; automatic defrost; empty drainage holes
Safety	Child lock, open door alarm, rapid cooling system
Spare parts and repairability	Available from Hisense customer service; repairability index: 7.5/10
Accessories included	Door shelves, glass shelves, vegetable drawer, ice cube tray
Warranty	2 years (parts and labor)

Frequently Asked Questions - RB3K330SAIC HISENSE

What is the ideal temperature for the refrigerator and freezer?

The ideal temperature for the refrigerator is 4 °C and for the freezer -18 °C. Use the adjustment buttons inside to adjust.

How to clean the interior of the refrigerator?

Unplug the appliance, remove shelves and bins. Clean with a soft cloth soaked in warm water and baking soda. Rinse and dry before restarting.

Can I reverse the door opening direction?

Yes, the door is reversible. Refer to the manual for disassembly and reassembly instructions for the hinges. It is recommended to call a technician.

What to do if the refrigerator makes noise?

A slight hum is normal. Check that the appliance is level and not touching walls. If the noise is excessive, contact after-sales service.

How to adjust the temperature?

Use the control panel on the front. For the refrigerator, set between 2 and 8 °C; for the freezer between -16 and -24 °C. Wait 24 hours for stabilization.

The alarm light comes on, what to do?

The alarm may indicate an open door or a malfunction. Check that the door is properly closed. If the problem persists, unplug and plug back in after 5 minutes.

Can I eat food after a power cut?

If the cut is less than 4 hours, food is generally safe as long as you do not open the door. Check the temperature before consumption.

How to change the interior light bulb?

Unplug the appliance. Remove the bulb cover (often clipped). Replace with a bulb of the same type (E14, 15 W max). Replace the cover and plug back in.

Where to find spare parts?

Spare parts are available from Hisense customer service or on the official website. Use the model number RB3K330SAIC to order.

How to maintain the door gasket?

Clean the gasket regularly with a damp cloth. Check that it is not torn. If the gasket is damaged, contact after-sales service to replace it.

USER MANUAL RB3K330SAIC HISENSE

NOTE

NOTE

NOTE

Flexible wine rack

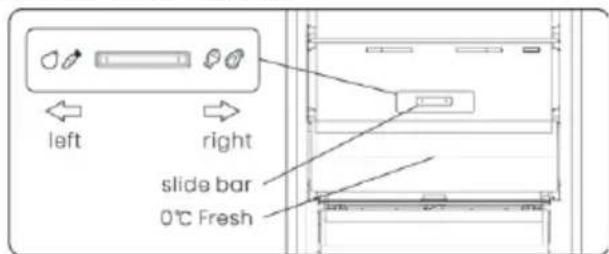

0°C fresh compartment

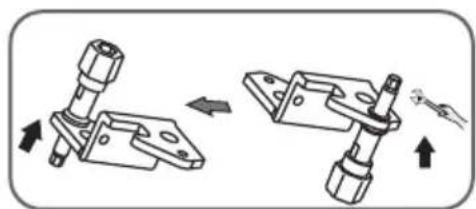

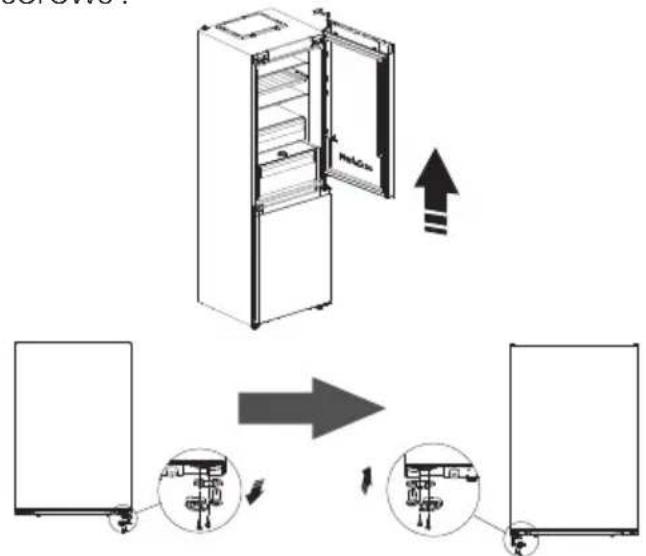

Reversing the door

Reversing the door

Warning

NOTE

NOTE

NOTE

Flexible wine rack

0°C fresh compartment

Cleaning and care

Warning

Cleaning and care

Before operating this unit, please read this manual thoroughly, and retain for future reference

EN

English

Contents

Thank you for choosing Hisense. We are sure you will find your new refrigerator a pleasure to use. However, before you use the appliance, we recommend that you carefully read the instructions, which provide details about installing and using the product. Please keep this manual for future reference.

Safety and warning information 01

Installing your new appliance....13

Description of the appliance....16

Display controls.... 17

Using your appliance.... 22

Reverse the door 24

Cleaning and care.... 28

Helpful hints and tips.... 30

Troubleshooting.... 32

Disposal of the appliance....35

Safety and warning information

For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and be sure that they remain with the appliance if it is moved or sold, so that anyone using it throughout its life will be properly informed on its usage and safety notices. For the safety of life and property, keep the precautions of these user's instructions, as the manufacturer is not responsible for damages caused by omission.

Safety for children and others who are vulnerable people

According to EN standard

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Safety for children and others who are vulnerable people

According to IEC standard

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Keep all packaging away from children as there is risk of suffocation.

If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent children playing from suffering an electric shock or from closing themselves inside it.

If this appliance, featuring a magnetic door seals, is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make the spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

Safety and warning information

General safety

- WARNING

This appliance is intended to be used in household and similar applications such as: 1. staff kitchen areas in shops, offices and other working environments; 2. farm houses and by clients in hotels, motels and other residential type environments;

1. bed and breakfast type environments;
2. catering and similar non-retail applications.

- WARNING

Fill with potable water only.

- WARNING

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- WARNING

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- WARNING

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

Safety and warning information

General safety

- WARNING

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- WARNING

Do not damage the refrigerant circuit.

- WARNING

Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- WARNING

The refrigerant and insulation blowing gas are flammable. When disposing of the appliance, do so only at an authorized waste disposal centre. Do not expose to flame.

- WARNING

When positioning the appliance, ensure the supply cord is not trapped or damaged.

Safety and warning information

General safety

- WARNING

Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Replacing the illuminating lamps

- WARNING

The illuminating lamps must not be replaced by the user! If the illuminating lamps is damaged, contact the customer helpline for assistance. This warning is only for refrigerators that contain illuminating lamps.

Refrigerant

The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is flammable.

Safety and warning information

Refrigerant

- WARNING

Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

WARNING

Risk of fire / flammable materials

If the refrigerant circuit should be damaged:

1. Avoid opening flames and sources of ignition.
2. Thoroughly ventilate the room in which the appliance is situated.

It is dangerous to alter the specifications or modify this product in any way.

Any damage to the cord may cause a short circuit, fire, and/or electric shock.

Safety and warning information

Electrical safety

1. The power cord must not be lengthened.
2. Make sure that the power plug is not crushed or damaged. A crushed or damaged power plug may overheat and cause a fire.
3. Make sure that you can access the main plug of the appliance.
4. Do not pull the main cable.
5. If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
6. You must not operate the appliance without the interior lighting lamp cover.
7. The fridge is only applied with power supply of single phase alternating current of 220~240V/50Hz. If fluctuation of voltage in the district of user is so large that the voltage exceeds the above scope, for safety sake, be sure to apply A.C. Automatic voltage regulator of more than 350W to the fridge. The fridge must employ a special power socket instead of common one with other electric appliances. Its plug must match the socket with ground wire.

Safety and warning information

Daily use

• Do not store flammable gas or liquids in the appliance. There is a risk of an explosion.
• Do not operate any electrical appliances in the appliance (e.g. electric ice cream makers, mixers etc.).
• When unplugging always pull the plug from the mains socket, do not pull on the cable.
• Do not place hot items near the plastic components of this appliance.
• This refrigerating appliance is not intended to be used as a built-in appliance.
• Do not place food products directly against the air outlet on the rear wall.
• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.
• The appliance manufacturer's storage recommendations should be strictly adhered to. Refer to relevant instructions for storage.
• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.

Safety and warning information

• Frozen food can cause frost burns if consumed straight from the freezer compartment.
• Do not place the appliance in direct sunlight.
• Keep burning candles, lamps and other items with naked flames away from the appliance so that they do not set the appliance on fire.
• The appliance is intended for keeping foodstuff and/or beverages in normal household as explained in this instruction booklet. The appliance is heavy. Care should be taken when moving it.
• Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
• Never use the base, drawers, doors etc. to stand on or as supports.

Safety and warning information

• Frozen food must not be refrozen once it has been thawed out.
• Do not consume ice popsicles or ice cubes straight from the freezer as this can cause freezer burn to the mouth and lips.
• To avoid items falling and causing injury or damage to the appliance, do not overload the door racks or put too much food in the crisper drawers.
• In order to sense the temperature near the appliance and make the appliance run better, add a temperature sensor outside the box of the appliance.
• The WiFi module is installed in the control box at the top of the appliance. To avoid interference and weak signal, it is recommended to remove large metal objects or containers of water from around the top of the box.
• Opening the door for long periods can cause a significant increase in the temperature inside the appliance compartments.
• Clean regularly surfaces that can come into contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that they do not come into contact with or drip onto other food.
• If the refrigerating appliance is left empty for long periods, switch it off, defrost, clean, dry, and leave the door open to prevent mould from developing inside the appliance.

Safety and warning information

Caution! Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects, steam cleaners, essential oils, organic solvents, or abrasive cleansers. Do not use sharp objects to remove frost from the appliance.
• Use a plastic scraper.

Installation Important

• For electrical connection, carefully follow the instructions given in this manual. Unpack the appliance and check for any damage.
• Do not connect the appliance if it is damaged. Report any possible damage immediately to the place of purchase. In this case, retain the packaging.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back into the compressor.
• Adequate air circulation should be maintained around the appliance; lacking this can lead to overheating. To achieve sufficient ventilation, follow the installation instructions.
• Wherever possible, the back of the product should not be too close to a wall to avoid touching or catching warm parts (compressor, condenser). To prevent the risk of fire, follow the installation instructions.
• The appliance must not be located close to radiators or cookers.

Safety and warning information

• Make sure that the mains plug is accessible after the installation of the appliance.
• Transmitting frequency band(s) and maximum allowed transmitting power in the operating frequency band(s): 2400-2483.5 MHz, less than or equal to 20 dBm.
• This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body.

Service

• Any electrical work required for servicing the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.
• If the appliance is Frost Free.
• If the appliance contains a freezer compartment.

Note

Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. (This clause applies only to the EU region.)

Installing your new appliance

Before using the appliance for the first time, you should be aware of the following tips.

Ventilation of appliance

In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat. For this reason, sufficient clear space should be available around the refrigerator.

Suggest:

It is advisable for there to be 50-70mm of space from the back to the wall, at least 100 mm from its top, at least 100mm from its side to the wall and a clear space upfront to allow the freezer door to open 105°

In the non-built-in status

Relevant information (mm)

W	W1	D	D1
595	142.5	600	1156

Reserve a gap of more than 5mm on the top side

Product size(mm) : 595*600*1856 The appliance can also be placed next to or between furniture elements or against a wall. In such a case, the appliance will operate flawlessly, but noise and electricity consumption may increase.

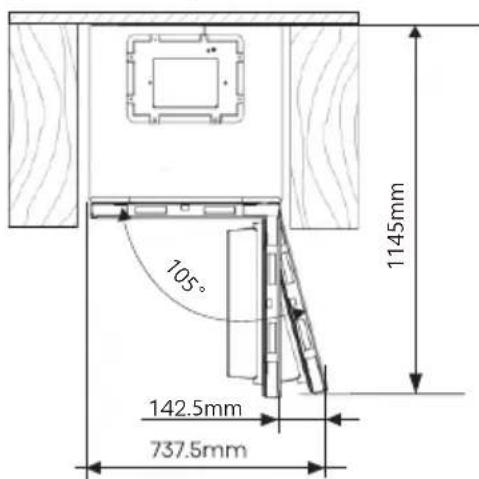

Door closing status for refrigerator in the built-in status

The total space required for the refrigerator to fully open the door in the built-in status.

Installing your new appliance

Note

This appliance performs well in the climate class from SN to ST. It may not work properly if it is left at a temperature above or below the indicated range for a long period.

Climate class	Ambient temperature
SN	+10°C to +32°C
N	+16°C to +32°C
ST	+16°C to +38°C
T	+16°C to +43°C

Place your appliance in a dry area to avoid damage from high moisture. Keep the appliance away from direct sunlight, rain, or frost. Position the appliance away from heat sources such as stoves, fires, or heaters.

Leveling the appliance

- To ensure proper leveling and air circulation in the lower rear section of the appliance, you may need to adjust the bottom feet. Use a suitable spanner.

- To allow the doors to self-close, tilt the top backwards by about 15mm or 0.5° by turning the adjustable feet.

- Whenever you want to move the appliance, remember to turn the feet back up so that the appliance can roll freely. Reinstall the appliance when relocating.

Installing your new appliance

Warning

• For proper installation, this refrigerator must be placed on a level surface of hard material that is the same height as the rest of the flooring. This surface should be strong enough to support a fully loaded refrigerator.
• The rollers, which are not castors, should only be used for forward or backward movement. Moving the refrigerator sideways may damage your floor and the rollers.

Description of the appliance

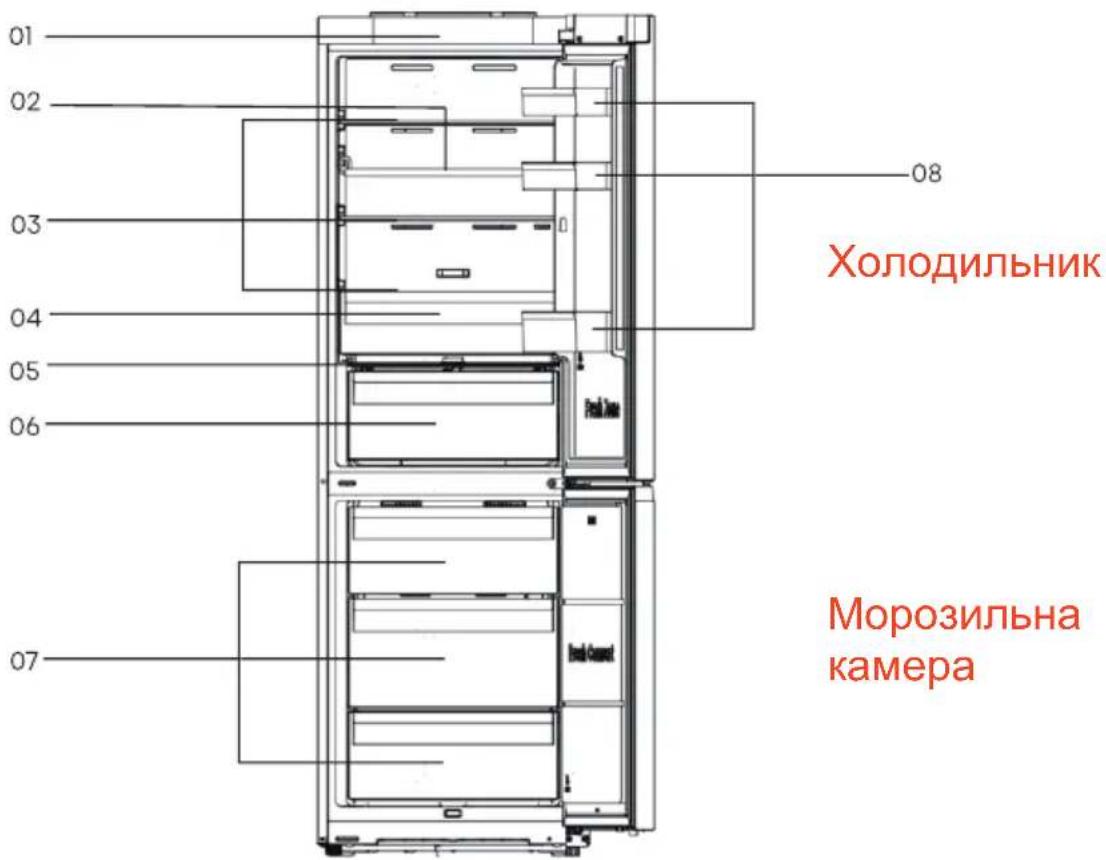

View of the appliance

① Electronic control ② Flexible wine rack ③ Storage shelves ④ 0°C Fresh Box ⑤ Vegetable drawer cover ⑥ Vegetable drawer ⑦ Freezer drawers ⑧ Door rack

Note

Due to constant development of our products, your refrigerator may be slightly different from this instruction manual, but its functions and usage remain the same.

To get the best energy efficiency of this product, please place all shelves and drawers in their original position as shown in the illustration above.

Display controls

All functions and controls of the unit are accessible from a control panel conveniently located on the roof of the cabinet. A display circuit board allows easy configuration of features and settings in a simple and intuitive manner.

Display Controls

Use your appliance according to the following control regulations. Your appliance has the corresponding functions and models as the display panels shown in the pictures below. When the appliance is powered on for the first time, the backlighting of the icons on the display panel starts working. If no button has been pressed and the doors are closed, the backlighting will turn off after one minute.

Electronic Control (located at the top of appliance)

1. Power

Power 3 sec

If you want to stop using it, you can turn the appliance off by pressing the "Power" button for 3 seconds.

Press and hold the "Power" button for 3 seconds to turn the standby function on or off.

When the standby function is on, the display panel will show "--".

Important!

Do not store any food in the fridge during this time. If you will not use the refrigerator for a long time, please pull the plug.

Note

When the standby function is on, the refrigerator stops cooling and the light is off.

2. Eco

Eco

Press the "Eco" button to turn on the energy saving function, the "icon will be illuminated.

When the Eco function is on, the temperature of fridge is automatically switched to 6° C and the temperature of freezer is automatically switched to -17° C.

When Eco function is on, you can switch it by pressing the "Temp" or "Eco" button and the refrigerator temperature setting will revert back to the previous setting.

3. Super Cool

Super Cool

The Super Cool feature helps to keep food stored in the refrigerator at the setting temperature during periods of high usage, large grocery

Display controls

loads, or temporarily warm room temperatures. The Super Cool feature lowers the temperature in the fridge compartment.

1. Press the "Super Cool" button to activate this function. The "icon will be illuminated the fridge temperature indicator will display 2°C.
2. Super cool will automatically turn off after 6 hours.
3. When super cool function is on, you can turn it off by pressing the "Super Cool" button or left "Temp" button. To manually turn off the Super Cool function, the fridge temperature setting will revert back to the previous setting.

4. Fridge Compartment Temperature

Press the left "Temp" button repeatedly to cycle through the available temperature settings from 8°C to 2°C.

Note

Each press of the button decreases the setting by one degree.

5. Freezer Compartment Temperature

Press the right "Temp" button repeatedly to cycle through the available temperature settings from -14°C to -24°C.

Note

Each press of the button decreases the setting by one degree.

Setting Compartment Temperatures

When you set a temperature, you are setting an average temperature for the entire compartment. The actual compartment temperatures may vary from the temperatures displayed depending on the amount and placement of stored food, and the surrounding room temperature.

Setting Compartment Temperatures

Fridge Compartment: 4°C Freezer Compartment: -18°C

6. Super Freeze

Super Freeze will quickly lower the temperature within the freezer so food will freeze faster than usual.

This feature also helps to keep vitamins and nutrition of fresh food fresh for longer period.

1. Press the "super Freeze" button to activate this function. The "💡" icon will be illuminated and the temperature for the freezer is set to -28°C.
2. Super freezer will automatically turn off after 52 hours.
3. When Super Freeze function is on, you can turn it off by pressing the "Super Freeze" button or pressing the right "Temp" button.

To manually turn off the Super freezer function, the freezer temperature setting will revert back to the previous setting.

Display controls

Note

When you select the Super Freeze function, ensure there are no bottled or canned drinks (especially carbonated drinks) in the freezer compartment. Bottles and cans may explode.

7. Alarm

Alarm

High temperature alarm

If the temperature inside the appliance is too high, an alarm will sound to alert you and the “⚠️” icon will illuminate.

In non-standby function, the temperature inside the box is detected after 24 hours of powering on. If the temperature remains too high for 4 hours, the high temperature alarm will be triggered.

Switching off the alarm

If you want to switch off the acoustic alarm, briefly press the "Alarm" button.

The “⚠️” icon will remain illuminated until the actual temperature in the appliance drops below the alarm level.

When the appliance reaches an adequate temperature, the “🔒” icon will extinguish, and the high temperature alarm will be cleared. If you have not cancelled the high temperature alarm, the “🔒” icon will remain illuminated, and the buzzer will sound three times per minute. After more than 10 minutes, the alarm will stop.

8. Door Open Alarm

If a door is open for longer than 1 minute, an alarm will sound to alert you. The alarm will sound 5 times every minute in the first and second minutes. Starting from the third minute, the alarm will sound once per second. If the alarm beeps for a long time, the buzzer will stop after 10 minutes of opening the door. Press any button to cancel the door alarm, which makes the buzzer sound stop. Also, the door alarm can be stopped by closing the door. When the door has been closed, opening the door again will restart the timer of the door open alarm.

9. Demo Mode

Demo mode is for store display, and it prevents the refrigerator from generating cool air. In this Cooling Off Mode, the refrigerator may seem like it is working but it will not make cool air. To switch on demo mode, press and hold "Power" and "Wi-Fi" buttons at the same time for three seconds and the buzzer beeps 3 times. The display panel will show "OF" when the demo mode has been turned on.

If there is no button operation for 10 seconds, it will keep displaying "OF", otherwise it will display the set temperature.

To switch off demo mode, press and hold "Power" and "Wi-Fi" buttons at the same time for three seconds and the buzzer beeps 3 times.

Display Controls

10. Wi-Fi

Connecting Your Refrigerator to Wi-Fi

ConnectLife App

ConnectLife is a smart home app that allows you to communicate with your smart appliances using a smartphone or tablet.

Installation

1. Open the Apple App Store (iOS) or Google Play Store (Android) on your smartphone.
2. Search for the "ConnectLife" app. You will see an app with the following icon:

1. Download and install the ConnectLife app provided by ConnectLife, LLC.

Alternatively, you can scan the following QR code with your smartphone or tablet to find the ConnectLife app:

Note

• The distance between your appliance and the Wi-Fi router can impact performance. If they are too far apart, pairing your appliance might fail or take longer.
• The appliance supports 2.4 GHz Wi-Fi networks only. The Wi-Fi network SSID must be visible.
• The surrounding wireless environment (other connected devices) can affect the performance of your network.
• Your appliance Wi-Fi connection may experience interruptions due to external factors such as your home network environment or Internet service provider.

APP Version

Current Android & iOS Version: V2.3.0. The version of the App is constantly being changed and upgraded. Please refer to the version that is actually downloaded from the App Store, AppGallery, or Google Play store.

Display controls

Connecting your refrigerator

After installing the ConnectLife app, sign in or create an account and follow these steps:

1. Ensure the appliance is powered on and the display panel is active. You'll know it's ready when the panel lights up.

1. Press and hold the Wi-Fi button for 3 seconds until you hear a beep and see the "■" light flashing after it constantly on for a few seconds.

1. Ensure Bluetooth is enabled on your phone and open the ConnectLife app. Look for the pop-up indicating that a new appliance has been found. Tap the button on the pop-up and follow the instructions to proceed.
2. If a pop-up doesn't appear, tap the button called "Add appliance" or "+" in the app.
3. Locate "Refrigerator" in the device list and select it.
4. Follow the instructions in the app to connect your refrigerator. Once the setup is complete, your refrigerator will appear on your home screen.

Note

• The appliance will remain in pairing mode for a maximum of 5 minutes. • To factory reset your network settings, press and hold the Wi-Fi button for 6 seconds. You will hear two beeps once the appliance is reset. • After resetting, the appliance will automatically go into pairing mode. • A solid Wi-Fi light indicates the appliance is successfully connected to the home network.

Using your appliance

Your appliance has the accessories as shown in the "Description of the appliance" section. With this part of the instructions, you can learn the correct way to use them. We recommend that you read them carefully before using the appliance.

Door rack

It is suitable for the storage of eggs, canned liquids, bottled drinks, and packed food, etc. Do not place too many heavy items on the racks. The door racks can be adjusted to different heights according to your requirements. Please remove food from the shelf before lifting it vertically to reposition.

All the door racks are completely removable for cleaning.

Storage shelves

The storage shelves can be taken out for cleaning.

Flexible wine rack

It is for storing bottled wine or drinks, and it can be taken out for cleaning.

Note: Do not place bottled wine or drinks directly in front of the air outlet on the air channel, as this may cause them to freeze.

0°C Fresh Box

In this drawer, you can achieve a lower temperature to temporarily store fish, meat, and other perishable food. You can move the slide bar to set the temperature of this drawer. When the slide bar is moved to the far left, the drawer will be at the same temperature as the rest of the fresh compartment. When the slide bar is moved to the far right, the drawer will be about 1~4°C lower than the rest of the fresh compartment. There are some recommendations in the table below that you can consult.

Fridge temp. set	Slide bar	Food	Storage period
2°C	Leftmost	Fruits	< 2 weeks
2°C	Rightmost	Fish & meat	< 3 days
5°C	Leftmost	Vegetables	< 5 days
5°C	Rightmost	Fish & meat	< 3 days
8°C	Leftmost	Vegetables	< 5 days
8°C	Rightmost	Fruits	< 2 weeks

Note: Due to the ambient temperature and the set temperature both influencing the temperature of the 0°C box (drawer), the actual temperature may vary within a certain range. The temperature of this drawer may drop below zero, so it is normal for liquids in this drawer to freeze.

Using your appliance

Vegetable drawer

The vegetable drawer is suitable for storing vegetables and fruit, etc.

Crisper and humidity control

Before using it, you need to tear off its protective tape, as shown in the position below.

You can rotate the knob on the crisper cover to keep different humidity in the crisper. Push the knob to the left, you will keep a higher humidity which can store vegetable and fruit long and fresh, to the right will be lower humidity. It is for controlling the temperature of the crisper and avoiding the vegetable losing moisture.

Freezer drawer

It is used to store food which need to be frozen, including meat, fish and ice cream, etc.

To remove the freezer drawer, tilt up the front of the drawer and pull forward, then tilt the drawer downwards, and remove it forward with both hands.

Reverse the door

The side in which the door opens can be changed from the right side (as supplied) to the left side, if the installation site allows for it.

WARNING

When reversing the door, the appliance must not be connected to the mains. Ensure that the plug is removed from the mains socket.

The tools you will need (not provided):

Not provided
8mm socket driver	Thin-blade screwdriver
Cross-shaped screwdriver	Adjustable Wrench
Putty knife

The parts you will need (provided):

Provided
Case Corner Cover(left)		Case Corner Cover(right)
1		1
Door Corner Cover(right)		Door Corner Cover(left)
1		1
left upper hinge part		4mm Allen Wrench
1		1

Note

You should rest the appliance on soft foam packaging or similar material to avoid damage. If required you may lay the refrigerator on its back in order to gain access to the base.

1. Stand the refrigerator upright, open the door, use a thin-blade screwdriver to pry off the Door Corner cover (right), the Door Corner cover (left), the Case cover (right) and the Case cover (left), and then put the corner covers in the accessory bag for backup.

NOTE: you should need to pad the pry area with cloth towel to avoid scratching the top of the refrigerator.

Reverse the door

1. Using the 4mm Allen wrench, remove the two screws on the right side that hold the right upper hinge part in place, and the screw on the left side. (Please support the door while doing this.)

1. Remove the door and place it on a smooth surface with its panel facing upwards. Loosen 2 self-tapping screws, detach the stopper, the door backstop, and the shaft sleeve, then install the stopper, the door backstop, and the shaft sleeve on the left side with 2 self-tapping screws.

Reverse the door.

1. Loosen the screws used to fix the middle hinge and remove the middle hinge part. Then remove the lower door.

1. Place the lower door on a smooth surface with its panel facing upwards. Loosen 2 self-tapping screws, detach the stopper, the door backstop, and the shaft sleeve, then install the stopper, the door backstop, and the shaft sleeve on the left side with 2 self-tapping screws.

1. Change the screw hole covers on the middle cover plate from left to right (as shown in the figure below).

1. Lay the refrigerator on soft foam packaging or similar material. Remove the adjustable bottom feet parts, then remove the lower hinge part by unscrewing the screws.

Install the screw hole cover (provided in the accessory bag) into the right hole of the lower cover plate.

Finally, unscrew the bottom hinge axis and move it to the hole on the other side, then screw it in.

Reverse the door.

1. Replace the lower hinge part on the left side and fix it with the special flange screws. Replace the adjustable bottom feet part on the other side and fix it.

1. Move the lower door and adjust its position to align the lower hole site with the lower hinge axis. Turn the middle hinge by 180°, adjust the middle hinge to the appropriate position, and then install it.

1. Transfer the upper door to the appropriate position. Align the lower hole of the upper door with the upper hinge shaft of the middle hinge, then align the upper hole of the upper door with the hinge shaft of the left upper hinge. Finally, adjust the left upper hinge to the appropriate position and then install it with 2 screws.

1. Reinstall the door corner cover (right), the door corner cover (left), the case corner cover (right), and the case corner cover (left) which are taken from the accessory bag.

Cleaning and care

- For hygienic reasons, the appliance (including exterior and interior accessories) should be cleaned regularly (at least every two months).

Warning

- The appliance must not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning, switch the appliance off and remove the plug from the mains socket.

Exterior cleaning

To maintain the good appearance of your appliance, you should clean it regularly.

• Wipe the digital panel and display panel with a clean, soft cloth.
• Spray water onto the cleaning cloth instead of spraying directly on the surface of the appliance. This helps ensure an even distribution of moisture to the surface.
• Clean the doors, handles, and cabinet surfaces with a mild detergent, and then wipe them dry with a soft cloth.

Warning

• Do not use sharp objects, as they are likely to scratch the surface.
• Do not use thinner, car detergent, Clorox, ethereal oil, abrasive cleansers, or organic solvents such as benzene for cleaning. They may damage the surface of the appliance and may cause fire.

Interior cleaning

• You should clean the appliance interior regularly. It will be easier to remove the drawers and shelves for a more thorough clean.
• Wipe the inside of the freezer with a weak solution of bicarbonate of soda, and then rinse with a warm cloth. Wipe completely dry before replacing the shelves and baskets.
• Thoroughly dry all surfaces and removable parts before putting them back into place.

Cleaning and care

• Although this appliance automatically defrosts, a layer of frost may occur on the freezer compartment's interior walls if the freezer door is opened frequently or kept open too long.
• If the frost is too thick, choose a time when the freezer is nearly empty and proceed as follows:
• Remove existing food and accessories baskets, unplug the appliance from the mains power and leave the doors open.

Ventilate the room thoroughly to accelerate the process.

1. When defrosting is completed, clean your freezer as described above.

Warning

• Do not use sharp objects to remove frost from the freezer compartment.
• Only after the interior is completely dry should the appliance be switched back on and plugged back into the mains socket.

Defrosting

Freezer compartment

This compartment defrosts automatically

Door seals cleaning

• Take care to keep door seals clean. Sticky food and drinks can cause seals to stick to the cabinet and tear when you open the door. Wash the seals with a mild detergent and warm water. Rinse and dry them thoroughly after cleaning. - This product contains a light source of energy efficiency class G on the top of the refrigerating chamber.

Warning

The LED light must not be replaced by the user! If damaged, contact the customer helpline for assistance.

Helpful hints and tips

Energy saving tips

We recommend that you follow the tips to save energy.

• Try to avoid keeping the door open for long periods in order to conserve energy.
• Ensure the appliance is away from any sources of heat (Direct sunlight, electric oven or cooker etc.)
• Don't set the temperature colder than necessary.
• Don't store warm food or evaporating liquid in the appliance.
• Place the appliance in a well ventilated, humidity free room. Please refer to the installing your new appliance chapter.
• The description of appliance diagram shows the correct combination for the drawers, crisper and shelves, do not adjust the combination as this is designed to be the most energy efficient configuration.

Hints for fresh food refrigeration

• Do not place hot food directly into the refrigerator or freezer, the internal temperature will increase resulting in the compressor having to work harder and will consume more energy.
• Do cover or wrap the food, particularly if it has a strong flavor.
• Place food properly so that air can circulate freely around it.

Hints for refrigeration

• Meat (all types): Wrap in polythene food wrap and place on the glass shelf above the vegetable drawer. Always follow food storage times and use-by dates suggested by manufacturers.
• Cooked food, cold dishes, etc.: They should be covered and may be placed on any shelf.
• Fruit and vegetables: They should be stored in the special drawer provided.
• Butter and cheese: Should be wrapped in airtight foil or plastic film wrap.
• Milk bottles: Should have a lid and be stored in the door racks.

Hints for freezing

• When first starting up or after a period out of use, let the appliance run at least 2 hours on the higher settings before putting food in the compartment.
• Prepare food in small portions to enable it to be rapidly and completely frozen and make it possible to subsequently thaw only the quantity required.
• Wrap up the food in aluminum foil or polyethylene food wraps which are airtight.
• Do not allow fresh, unfrozen food to touch the food which is already frozen to avoid partial defrosting.

Helpful hints and tips

- It is recommended to label and date each frozen package in order to keep track of the storage time.

Hints for fresh food refrigeration

• Ensure that frozen food has been stored correctly by the food retailer.
• Once defrosted, food will deteriorate rapidly and should not be re-frozen.
• Do not exceed the storage period indicated by the food manufacturer.

Switching off your appliance

• If the appliance needs to be switched off for an extended period, the following steps should be taken to prevent mould on the appliance.
• Remove all food.
• Remove the power plug from the mains socket.
• Clean and dry the interior thoroughly.
• Ensure that all the doors are wedged open slightly to allow air to circulate.

Troubleshooting

If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below. You can carry out some easy checks according to this section before calling for service.

Warning

Don't try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the shop where you purchased the product.

Problem	Possible cause & Solution
Appliance is not working correctly	Check whether the power cord is plugged into the power outlet properly.
	Check the fuse or circuit of your power supply, replace if necessary.

Troubleshooting

Problem	Possible cause & Solution
Appliance is not working correctly	The ambient temperature is too low. Try setting the chamber temperature to a colder level to solve this problem.
	It is normal that the refrigerator is not operating during the automatic defrost cycle, or for a short time after the appliance is switched on to protect the compressor.
Odours from the compartments	The interior may need to be cleaned.
	Some food, containers or wrapping cause odours.
Noise from the appliance	The sounds below are quite normal:Compressor running noises.Air movement noise from the small fan motor in the freezer compartment or other compartments.Gurgling sound similar to water boiling. Popping noise during automatic defrosting.Clicking noise before the compressor starts.
	Other unusual noises are due to the reasons below and may need you to check and take action:The cabinet is not level.The back of appliance touches the wall.Bottles or containers knocking against each other.
The motor runs continuously	It is normal to frequently hear the sound of the motor, it will need to run more when in following circumstances:Temperature setting is set colder than necessary.Large quantity of warm food has recently been stored within the appliance.The temperature outside the appliance is too high.Doors are kept open too long or too often.After your installing the appliance or it has been switched off for a long time.

Troubleshooting

Problem	Possible cause & Solution
A layer of frost occurs in the compartment	Check that the air outlets are not blocked by food and ensure food is placed within the appliance to allow sufficient ventilation.• Ensure the door can be fully closed. To remove the frost, please refer to the cleaning and care chapter.
Temperature inside is too warm	You may have left the doors open too long or too frequently;• Or the doors are kept open by some obstacle;• Or the appliance is located with insufficient clearance at the sides, back and top.
Temperature inside is too cold	Increase the temperature by following the “Display controls” chapter.
Doors can’t be closed easily	Check whether the top of the refrigerator is tilted back by 10-15mm to allow the doors to self close, or if something inside is preventing the doors from closing.
Water drips on the floor	The water pan (located at the rear bottom of the cabinet) may not be properly leveled, or the draining spout underneath the top of the compressor depot may not be properly positioned to direct water into this pan, or the water spout is blocked, or the water is not fully inserted into the connector.• You may need to pull the refrigerator away from the wall to check the pan and spout and connector.• Check if the refrigerator is power-off for a long time, this may cause the ice in the bucket to melt into water, and flow to the floor.
The light is not working	• the LED light may be damaged. Refer to replace LED lights in cleaning and care chapter.• the control system has disabled the lights due to the door being kept open too long, close and reopen the door to reactivate the lights.

Troubleshooting

Problem	Possible cause & Solution
Ice is not dispensing	Did you wait for 10 hours after installation of the water supply line before making ice? if it is not sufficiently cool, it may take longer to make ice, such as when first installed.Is the water line connected and the water valve open?Did you manually stop the ice making function? Make sure you have set the Cubed or Crushed mode on.Is there any ice blocked within the ice maker bucket or ice chute?Is the freezer temperature too warm? Try setting the freezer temperature lower.
Water dispenser is not functioning	Is the water storage box installed accurately? Make surethere is enough water in the water storage box.Is water line broke or bent? Make sure the water line is unblocked and clear of any obstruction.Is the water storage box frozen for the refrigerator temperature is too low? Try selecting a warmer setting on the display panel.Is the water pump working?
You can hear water bubbling in the refrigerator	This is normal. The bubbling comes from the refrigerant coolant liquid circulating through the refrigerator.
Unable to connect appliance to WiFi network	The password for home Wi-Fi network was entered incorrectly. Make sure the password is correct and connect again.The home Wi-Fi router frequency is not 2.4GHz.The appliance only supports 2.4GHz radio frequency. Set up a dedicated 2.4GHz Wi-Fi SSID and connect the appliance to it.The router and appliance kept far apart causing the poor network. Consider either moving the router closer to the appliance or purchasing Wi-Fi range extender and installing it.

Disposal of the appliance

It is prohibited to dispose of this appliance as household waste.

Packaging materials

Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it.

Before disposal of the appliance

1. Pull out the mains plug from the mains socket.
2. Cut off the power cord and discard with the mains plug

Warning

Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

Correct Disposal of this product

This marking indicates that this product should no be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Disposal of the appliance

To avoid contamination of food, please respect the following instructions

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.

Order	Torgapstragets type	temp.[°C]	Appropriate food
1	Fridge	+2~+8	Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods which are not suitable for freezing.
2	(***)*-Freezer	≤-18	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months ,the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
3	***-Freezer	≤-18	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition),are not suitable for frozen fresh food.
4 Wine	+5~+20		Red wine, white wine, sparkling wine etc.

Disposal of the appliance

Order	Target storage type	temp.[°C]	Appropriate foodCompartme
5	**-Freezer	≤-12	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 2 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
6	*-Freezer	≤-6	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 1 month, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
70-star -6~0			Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Recommended to eat within the same day, preferably not later than 3 days). Partially packed/wrapped up encapsulated processed foods (non-freezable foods).
8	chill	-2~+3	Fresh/frozen pork, beef, chicken, freshwater aquatic products, etc.(7 days below 0 °C and above 0 °C is recommended for consumption within that day, preferably no more than 2 days). Seafood (less than 0°C for 15 days, it is not recommended to store above 0°C).
9	Fresh Food	0~+4	Fresh pork, beef, fish, chicken, cooked food, etc. (Recommended to eat within the same day, preferably no more than 3 days).

Disposal of the appliance

Note

Please store different foods according to the compartments or target storage temperature of your purchased products.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Water dispenser cleaning (special for water dispenser products):

- Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.

Warning

Food needs to be packed in bags before putting into the refrigerator, and liquids need to be packed in bottles or capped containers to avoid the problem that the product design structure is not easy to clean.

Hisense

life reimagined

Hisense

life reimagined

USER MANUAL

NOTE

NOTE

NOTE

0 °C fresh drawer

WARNING

Reversing the door

Warning

NOTE

NOTE

NOTE

Flexible bottle holder

0°C Fresh drawer

Required parts (supplied):

Cleaning and care

Warning

Cleaning and care

Product dimensions (mm): 595*600*1856

NOTE

NOTE

Refrigerator compartment: 4°C

Freezer compartment: -18°C

6. Super Freeze

NOTE

Flexible wine rack

0°C Fresh zone compartment

Warning

NOTE

NOTE

NOTE

Fresh food compartment at 0°C

Freezer drawer

Reversing the door

Cleaning and care

Warning

Cleaning and care

Description of the appliance

Appliance overview

CAUTION

CAUTION

CAUTION

Freezer drawer

WARNING

Reversing the door

Reversing the door

Warning

Product size (mm): 595*600*1856

Device description

Device overview

NOTE

NOTE

NOTE

Flexible wine rack

0°C fresh box

WARNING

Warning

Product size (mm): 595*600*1856

Device description

Device overview

NOTE

Warning

Door reversal

Warning

Product dimensions (mm): 595*600*1856

Device description

NOTE

NOTE

NOTE

0°C fresh food box

Door reversal

Door reversal

Cleaning and maintenance

Warning

Cleaning and care

Description of the device

Overview of the device

NOTES

NOTES

NOTES

Warning

NOTE

Each press of the button reduces the setting by one degree.

5. Temperature in the freezer

NOTE

Each press of the button reduces the setting by one degree.

NOTE

Flexible wine rack

0°C fresh zone

Close the door

Cleaning and care

Warning

Cleaning and care

WARNING Fire risk/flammable materials

If the refrigerant circuit is damaged:

Product dimensions (mm): 595*600*1856

NOTE

NOTE

NOTE

Flexible wine holder

0°C fresh drawer

Freezer drawer

Warning

Adjustable feet

Warning

Note

Note

Note

Flexible wine rack

0°C zone drawer

Freezer drawer

Reversible door

1. Move the lower hinge to the left side and secure it with the special flange screws. Move the adjustable foot to the other side and secure it.

Cleaning and care

Warning

Cleaning and care

Appliance description

Note

Note

NOTE

0°C fresh box

Freezer box

Reversing the door

Reversing the door

Cleaning and care

Warning

Cleaning and care

Appliance description

Appliance overview

Note

Note

Note

WARNING

Reversing the door

Door reversal

Cleaning and care

Warning

Cleaning and care

Proper disposal
