Product Type	Freestanding Fridge-Freezer
Brand	GRAM
Model	KS 581865 FN X
Total Net Capacity	350 L
Fridge Net Capacity	250 L
Freezer Net Capacity	100 L
Energy Class	E (EU 2021)
Annual Energy Consumption	250 kWh
Noise Level	38 dB(A)
Climate Class	N-ST
Dimensions (H x W x D)	1850 x 600 x 650 mm
Weight	65 kg
Power Supply	220-240 V, 50 Hz
Current	1.2 A
Refrigerant Type	R600a
Freezing Capacity	8 kg/24h
Storage Time during Power Failure	12 h
Defrost System	Fridge: Auto, Freezer: Manual
Temperature Controls	Mechanical dial
Interior Lighting	LED
Shelves Material	Glass
Door Alarm	Yes
Reversible Doors	Yes
Cleaning Recommendations	Clean with mild detergent and soft cloth; avoid abrasive cleaners
Safety Features	Overheating protection, child lock on freezer door
Spare Parts Availability	Available from authorized service centers for up to 7 years

Frequently Asked Questions - KS 581865 FN X GRAM

How do I adjust the temperature in my Gram KS 581865 FN X fridge?

The temperature is controlled by a mechanical dial inside the fridge section. Turn the dial to a higher number for colder temperature and lower number for warmer. Typically, setting 3-4 is recommended for normal use.

What should I do if the fridge is not cooling properly?

First check if the power cord is plugged in and the thermostat is not set to '0'. Ensure the vents are not blocked and the door closes properly. Also, check if the condenser coils at the back are clean. If issue persists, contact an authorized service.

How often should I defrost the freezer?

This model has a manual defrost freezer. Defrost when the ice build-up exceeds 5 mm (approximately every 3-6 months depending on usage). Remove all food, turn off the appliance, and leave the door open. Do not use sharp tools to scrape ice.

Can I reverse the door opening direction?

Yes, the doors are reversible. Refer to the installation instructions in the manual. It involves removing the door hinges and moving them to the opposite side. If you are not confident, hire a qualified technician.

What does the door alarm indicate?

The door alarm sounds when the fridge or freezer door has been left open for more than 60 seconds. Close the door to stop the alarm and prevent energy waste.

How do I clean the interior of my fridge?

Unplug the appliance first. Remove all shelves and drawers wash them with warm soapy water. Wipe the interior with a mixture of water and vinegar (1:3 ratio). Dry thoroughly before reloading. Never use abrasive cleaners.

Why is my fridge making unusual noises?

Normal operating sounds include a humming from the compressor, gurgling as refrigerant circulates, and clicking when thermostat switches. If you hear loud knocking or rattling, check if the fridge is level and if items on top are stable. Contact service if noise persists.

How long does it take for the fridge to reach the correct temperature after first use?

It may take up to 24 hours for the fridge and freezer to reach the optimal temperature after plugging in. Avoid placing large amounts of food immediately to allow air circulation.

What is the recommended temperature for storing food?

Fridge compartment should be between 2°C and 5°C. Freezer compartment should be at -18°C or lower. Use a thermometer to verify.

Where can I find spare parts for my Gram fridge?

Spare parts are available through Gram authorized service centers. You can find the nearest service center on the Gram website or by contacting customer support. Have your model number ready.

USER MANUAL KS 581865 FN X GRAM

-bed & breakfast-like environments;

-catering and similar applications outside of retail.

1.2 Installation warnings

3.5.2 The storage box

Note: When

Thank you for choosing this product.

This user manual contains important safety information and instructions intended to assist you in the operation and maintenance of your appliance.

Please take the time to read this user manual before using your appliance and keep this book for future reference.

Icon Type Meaning
	WARNING Serious injury or death risk
	RISK OF ELECTRIC SHOCK Dangerous voltage risk
	FIRE Warning; Risk of fire / flammable materials
	CAUTION Injury or property damage risk
	IMPORTANT Operating the system correctly

CONTENTS

1 SAFETY INSTRUCTIONS ...... 24

1.1 General Safety Warnings ....24 1.2 Installation warnings....28 1.3 During Usage....28

2 DESCRIPTION OF THE APPLIANCE....30

2.1 Dimensions....31

3 USING THE APPLIANCE 32

3.1 Information on No-Frost technology 32 3.2 Display and Control Panel 32 3.3 Operating your Fridge....32 3.3.1 Super Cool Mode....32 3.3.2 Economy Mode....32 3.3.3 Screen Saver Mode....33 3.3.4 The Child Lock Function....33 3.3.5 Door Open Alarm Function....33 3.3.6 Cooler Temperature Settings....33 3.3.7 Door Open Alarm Function 34 3.4 Temperature Settings Warnings ...... 34 3.5 Accessories 34 3.5.1 The Bottle Holder (In some models)....34 3.5.2 The Storage Box....35 3.5.3 The Fresh Dial (In some models) 35 3.5.4 Adjustable Door Shelf (In some models) 35 3.5.5 Adjustable Glass Shelf (In some models)....36

4 FOOD STORAGE 36

5 CLEANING AND MAINTENANCE....37

6 SHIPMENT AND REPOSITIONING....38

7 BEFORE CALLING AFTER-SALES SERVICE 39

4.1 Refrigerator Compartment....36 5.1 Defrosting 37 6.1 Transportation and Changing Positioning 38 6.2 Repositioning the Door 38 8 TIPS FOR SAVING ENERGY....41 9 TECHNICAL DATA....41 10 INFORMATION FOR TEST INSTITUTES 41 11 CUSTOMER CARE AND SERVICE 42

1 SAFETY INSTRUCTIONS

1.1 General Safety Warnings

Read this user manual carefully.

⚠ WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. ⚠ WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. ⚠ WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. ⚠ WARNING: Do not damage the refrigerant circuit. ⚠ WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged. ⚠ WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. ⚠ WARNING: In order to avoid any hazards resulting from the instability of the appliance, it must be fixed in accordance with the instructions. ⚠️ If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and

natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

• While carrying and positioning the fridge, do not damage the cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This appliance is intended to be used in household and domestic applications such as:

-staff kitchen areas in shops, offices and other working environments.

-farm houses and by clients in hotels, motels and other residential type environments.

- bed and breakfast type environments;

- catering and similar non-retail applications.

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent, or similarly qualified persons in order to avoid a hazard.
• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of at least 16 amperes. If there is no such socket in your house, please have one installed by an authorized electrician.

- This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance. Very young children (0-3 years old) are not expected to use appliances. Young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given. Older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.

- If the supply cord is damaged, it must be replaced by the manufacturer, an authorized service agent, or similarly qualified persons in order to avoid a hazard.

- This appliance is not intended for use at altitudes exceeding 2000 m.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream, and making ice cubes.
• One-, two-, and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mold developing within the appliance.

1.2 Installation warnings

Before using your fridge for the first time, please pay attention to the following points:

• The operating voltage for your fridge is 220-240 V at 50Hz.
• The plug must be accessible after installation.
• Your fridge may have an odour when it is operated for the first time. This is normal and the odour will fade when your fridge starts to cool.
• Before connecting your fridge, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualified electrician.
• Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we recommend you consult a qualified electrician for assistance.
• The appliance must be connected with a properly installed fused socket. The power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (the name plate is located on the inside left of the appliance).
• We do not accept responsibility for any damages that occur due to ungrounded usage.
• Place your fridge where it will not be exposed to direct sunlight.
• Your fridge must never be used outdoors or exposed to rain.
• Your appliance must be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.
• If your fridge is placed next to a deep freezer, there must be at least 2 cm between them to prevent humidity forming on the outer surface.
• Do not cover the body or top of fridge with lace. This will affect the performance of your fridge.
• Clearance of at least 100 mm is required

at the top of your appliance. Do not place anything on top of your appliance.

• Do not place heavy items on the appliance.
• Clean the appliance thoroughly before use (see Cleaning and Maintenance).
• Before using your fridge, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to the fridge after cleaning.
• Use the adjustable front legs to make sure your appliance is level and stable. You can adjust the legs by turning them in either direction. This must be done before placing food in the appliance.

Install the plastic distance guide(s) on the

condenser (black vanes at the rear of the appliance) by turning it 90° (as shown in the figure) to prevent the condenser from touching the wall.

The distance between the appliance and back wall must be a maximum of 75 mm.

1.3 During Usage

• Do not connect your fridge to the mains electricity supply using an extension lead.
• Do not use damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• Do not use plug adapter.
• This appliance is designed for use by adults. Do not allow children to play with the appliance or hang off the door.
• Never touch the power cord/plug with wet hands. This may cause a short circuit or electric shock.
• Do not place explosive or flammable material in your fridge. Place drinks with high alcohol content vertically in the fridge compartment and make sure their tops are tightly closed.

When the door of the fridge is closed, a vacuum seal will form. Wait for 1 minute before reopening it.

This application is optional for easy opening of the door. With this application, a little condensation may occur around this area and you may remove it.

Old and Out-of-order Fridges

• If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

CE Declaration of conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

Disposal of your old appliance

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Packaging and the Environment

Packaging materials protect your machine from damage that may occur during transportation. The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for any losses incurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for any losses incurred by inappropriate usage of the appliance.

2 DESCRIPTION OF THE APPLIANCE

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

1) Turbo fan * 2) Wine rack (Bottle shelf) * 3) Refrigerator shelves 4) Ioniser * 5) Adjustable glass shelf * 6) Chiller shelf * 7) Crisper cover 8) Crisper 9) Levelling feet 10) Bottle shelf 11) Adjustable Door Shelf * 12) Door shelves 13) Egg holder

* In some models

General notes:

Fresh Food Compartment (Fridge): Most efficient use of energy is ensured in the configuration with the drawers in the bottom part of the appliance, and shelves evenly distributed, position of door bins does not affect energy consumption.

Freezer Compartment (Freezer): Most Efficient use of energy is ensured in the configuration with the drawers and bins are on stock position.

2.1 Dimensions

Overall dimensions1

H1 mm 1860

W1 mm 595

D1 mm 650

1 the height, width and depth of the appliance without the handle.

Space required in use2

H2 mm 1960

W2 mm 600

D2 mm 650

2 the height, width and depth of the appliance including the handle, plus the space necessary for free circulation of the cooling air.

Overall space required in use3
W3 mm	710,6
D3 mm 1243,5
3the height, width and depth of the appliance including the handle, plus the space necessary for free circulation of the cooling air, plus the space necessary to allow door opening to the minimum angle permitting removal of all internal equipment.

3 USING THE APPLIANCE

3.1 Information on No-Frost technology

No-frost refrigerators differ from other static refrigerators in their operating principle. In normal refrigerators the humidity entering the refrigerators due to opening the door and the humidity inherent in the food causes freezing in the backside of air duct. To defrost the frost and ice in the backside of air duct, you are periodically required to turn off the refrigerator, place the food that needs to be kept cooled in a separately cooled. The situation is completely different in no-frost refrigerators. Dry and cold air is blown into the refrigerator compartment homogeneously and evenly from several points via a blower fan. Cold air dispersed homogeneously and evenly between the shelves cools all of your food equally and uniformly, thus preventing humidity and freezing. Therefore your no-frost refrigerators allows you ease of use, in addition to its huge capacity and stylish appearance.

3.2 Display and Control Panel

Using the Control Panel

1. Fridge temperature setting
2. Super Cooling mode indicator
3. Eco mode indicator
4. Alarm indicator
5. Child Lock mode indicator
6. Mode Selector
7. Decrease value
8. Increase value
9. Child Lock Selector

This presentation is only for information about the display. Icons may vary according to the appliance model.

3.3 Operating your Fridge

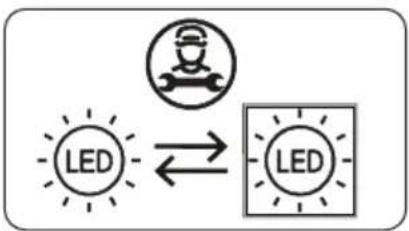

Lighting (If available)

When the product is plugged in for the first time, the interior lights may turn on 1 minute late due to opening tests.

3.3.1 Super Cool Mode

Purpose

• To cool and store a large quantity of food in the fridge compartment. • To quickly cool drinks.

How to use

• Press the decreasing button (#7 on control panel diagram), repeatedly until the 'Super Cool logo appears' (#2)
• Once the Super Cool mode has been set, the machine will beep to confirm the mode has been switched on. • After the beep the last temperature of the fridge will appear on screen.

During this mode:

• Economy mode cannot be selected whilst Super Cool is active.
• You can press the temperature setting increasing button (#8) to deactivate super cooling mode.

NOTE: Depending on the ambient temperature, super cooling mode will automatically be cancelled when the fridge has reached the required temperature.

3.3.2 Economy Mode

Purpose

Energy savings. During periods of less frequent use (door opening) or absence from home, such as a holiday, Eco program can provide optimum temperature whilst

saving power.

How to Use

• Push mode select button (#6 on control panel diagram) until the 'Eco Mode' icon appears (#3).
• If no button is pressed for 1 second, mode will be set. Economy symbol will blink 3 times.
• After the beep, the fridge temperature setting (#1) will display an 'E'.
• The Economy mode symbol and E will light until the mode finishes.

During this mode:

• The fridge temperature may be adjusted; however, the adjustment will not be made until Eco Mode is cancelled. When economy mode is cancelled, the selected setting value will be activated and the temperature will be adjusted.
• Super Cool mode can be selected, however by selecting this mode, Eco Mode is cancelled immediately.
• Eco Mode can be cancelled by pressing the button (#6).

3.3.3 Screen Saver Mode

Purpose

This mode saves energy by switching off all control panel lighting when the panel is left inactive.

How to Use

• Screen saver mode will be activated automatically after 30 seconds.
• If you press any key while the lighting

of the control panel is off, the current machine settings will reappear on the display to let you make any change you wish.

- If you do not cancel the screen saving mode or press any key for 30 seconds, the control panel will remain off.

To deactivate the screen saving mode,

• To cancel the screen saving mode, first press any key to activate the keys, then press and hold the Mode select button (#6) for 3 seconds. To activate the screen saving mode, press and hold the Mode button for 3 seconds.
• To reactivate screen saving mode, press and hold the Mode select button (#6) for 3 seconds.

3.3.4 The Child Lock Function

Purpose

Child lock can be activated to prevent any accidental or unintentional changes being made to the appliance settings.

Activating Child Lock

Press and hold the child lock select button (#9) for 5 seconds. After the mode has been selected, the lock symbol (#5) will appear on the display.

Cancelling Child Lock

Press and hold the child lock select button (#9) for 5 seconds.

3.3.5 Door Open Alarm Function

If the fridge door is left open for more than 2 minutes, the appliance will beep.

3.3.6 Cooler Temperature Settings

• Once the fridge temperature setting is selected, the temperature will flash (#1).
• Users can then use the decreasing or increasing button (#7 / #8) to set the temperature (8, 6, 5, 4, 2 °C and Super Cool Mode).
• If Super cooling mode or Eco mode is activated, the temperature will not change until the mode is cancelled.

Recommended Temperature Values for Cooler

When to adjust	Inner Temperature (°C)
For cooling the fridge at minimum capacity	8
In normal usage 4, 5, 6
For cooling the fridge at maximum capacity	2

3.3.7 Door Open Alarm Function

If the fridge door is opened for more than 2 minutes, the appliance sounds 'beep beep'.

3.4 Temperature Settings Warnings

• Your appliance is designed to operate in the ambient temperature ranges stated in the standards, according to the climate class stated on the information label. It is not recommended that your fridge be operated in environments outside of the stated temperature ranges. This will reduce the cooling efficiency of the appliance.
• Temperature adjustments should be made according to the frequency of door openings, the quantity of food kept inside the appliance, and the ambient temperature in the location of your appliance.
• When the appliance is first switched on, allow it to run for 24 hours in order to

reach operating temperature. During this time, do not open the door and do not keep a large quantity of food inside.

- A max 50 minute delaying function is applied to prevent damage to the compressor of your appliance, when you take the plug off and then plug it on again to operate it or when an energy breakdown occurs. Your appliance will start to operate normally after max 50 minutes.

Larders (coolers) have no freezer compartment but can cool up to ° C.

Climate class and meaning:

T (tropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C.

ST (subtropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C.

N (temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C.

SN (extended temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C.

The Turbo Fan (if available)

Do not block the air inlet and outlet openings when storing food, otherwise air circulation provided by the turbo fan will be impaired.

3.5 Accessories

Visual and text descriptions in the accessories section may vary according to the model of your appliance.

3.5.1 The Bottle Holder (In some models)

Use the bottle holder to prevent bottles from slipping or falling over.

3.5.2 The Storage Box

You can adjust and use this department for 2 different functions.

Your fridge is delivered to you with the cover shown in the open position.

Declared energy consumption and volume are defined according to the Chiller option of the product.

To use for 0 °C department:

If you want to use this compartment as a 0 °C box, you must take the sliding cover (indicated in the picture) from the closed position to the open position.

To use for Crisper department:

If you want to use this compartment as a Crisper, you must take the sliding cover (indicated in the picture) from the open position to the closed position.

While this department is used as a 0°C department, keeping food in the

The Chiller compartment, instead of the freezer or refrigerator compartments, allows food to retain freshness and flavor for longer, while preserving its fresh appearance. When the Chiller tray becomes dirty, remove it and wash with water. Water freezes at 0°C, but food containing salt or sugar freezes at temperatures lower than this. The Chiller compartment can be used for storing foods such as raw fish, lightly pickled food, rice, and so on.

Pull the chiller shelf out towards you. The cover will open automatically.

Do not put food you want to freeze or ice trays (to make ice) in this compartment.

3.5.3 The Fresh Dial (In some models)

or

If the crisper is full, the fresh dial located in front of the crisper should be opened. This allows the air in the crisper and the humidity rate to be controlled, to increase the life of food within.

The dial, located behind the shelf, must be opened if any condensation is seen on the glass shelf.

Note: Do not load any foodstuff on the fresh dial.

3.5.4 Adjustable Door Shelf (In some models)

Six different height adjustments can be made to provide storage areas that you need by adjustable door shelf.

To change the position of adjustable door shelf ;

Hold the bottom of the shelf and pull the

buttons on the side of the door shelf direction of arrow. (Fig.1)

Position door shelf the height you need by moving up and down. After you get the position that you want the door shelf, release the buttons on the side of the door shelf (Fig.2) Before releasing the door shelf, move up down and make sure the door shelf is fixed.

Note: Before moving door shelf is loaded, you must hold the shelf by supporting the bottom. Otherwise, door shelf could fall off the rails due to the weight. So damage may occur on the door shelf or rails.

3.5.5 Adjustable Glass Shelf (In some models)

The adjustable glass shelf mechanism provides higher storage spaces with a simple movement. To cover the glass shelf, push it.

You can load your food as you want in the resulting extra space. To bring the shelf to its original position, pull it toward you.

4 FOOD STORAGE

4.1 Refrigerator Compartment

For normal operating conditions, set the temperature of the cooler compartment to +4 or +6 °C.

- To reduce humidity and avoid the consequent formation of frost, always store liquids in sealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporating liquid and, in time, your appliance will require more frequent defrosting.

- Cooked dishes must remain covered when they are kept in the fridge. Do not place warm foods in the fridge. Place them when they are cool, otherwise the temperature/humidity inside the fridge will increase, reducing the fridge's efficiency.

- Make sure no items are in direct contact with the rear wall of the appliance as frost will develop and packaging will stick to it. Do not open the refrigerator door frequently.

- We recommend that meat and clean fish are loosely wrapped and stored on the glass shelf just above the vegetable bin where the air is cooler, as this provides the best storage conditions.

- Store loose fruit and vegetable items in the crisper containers.

- Storing fruit and vegetables separately helps prevent ethylene-sensitive vegetables (green leaves, broccoli, carrot, etc.) from being affected by ethylene-releaser fruits (banana, peach, apricot, fig, etc.).

- Do not put wet vegetables into the refrigerator.

- Storage time for all food products depends on the initial quality of the food and an uninterrupted refrigeration cycle before refrigerator storage.

- Water leaking from meat may contaminate other products in the refrigerator. You should package meat products and clean any leakages on the shelves.

- Do not put food in front of the air flow passage.

- Consume packaged foods before the recommended expiry date.

Do not allow food to come into contact with the temperature sensor, which is located in the refrigerator compartment, in order to keep the refrigerator compartment at optimum temperature.

• For normal working conditions, it will be sufficient to adjust the temperature setting of your refrigerator to +4 °C.
• The temperature of the fridge compartment should be in the range of 0-8 °C, fresh foods below 0 °C are iced and rotted, bacterial load increases above 8 °C, and spoils.

- Do not put hot food in the refrigerator immediately, wait for the temperature to pass outside. Hot foods increase the degree of your refrigerator and cause food poisoning and unnecessary spoiling of the food.

- Meat, fish, etc. should be stored in the chiller compartment of the food, and the vegetable compartment is preferred for vegetables. (if available)

- To prevent cross contamination, meat products and fruit vegetables are not stored together.

- Foods should be placed in the refrigerator in closed containers or covered to prevent moisture and odors.

The table below is a quick guide to show you the most efficient way to store the major food groups in your refrigerator compartment.

Food	Maximum storage time	How and where to store
Vegetables and fruits	1 week Vegetable bin
Meat and fish	2 - 3 days	Wrap in plastic foil, bags, or in a meat container and store on the glass shelf
Fresh cheese	3 - 4 days	On the designated door shelf
Butter and margarine	1 week	On the designated door shelf

Food	Maximum storage time	How and where to store
Bottled products e.g. milk and yoghurt	Until the expiry date recommended by the producer	On the designated door shelf
Eggs 1 month		On the designated egg shelf
Cooked food	2 days All shelves

NOTE:

Potatoes, onions and garlic should not be stored in the refrigerator.

5 CLEANING AND MAINTENANCE

Disconnect the unit from the power supply before cleaning.

Do not wash your appliance by pouring water on it.

Do not use abrasive products, detergents, or soaps for cleaning the surface. After washing, rinse with clean water or dry carefully. When cleaning is needed, reconnect the plug to the supply with dry hands.

• Make sure that no water enters the lamp housing and other electrical components.
• The appliance should be cleaned regularly using a solution of bicarbonate of soda and lukewarm water.
• Clean the accessories separately by hand with soap and water. Do not wash accessories in a dishwasher.
• Clean the condenser with a brush at least twice a year. This will help you save on energy costs and increase productivity.

The power supply must be disconnected during cleaning.

5.1 Defrosting

• Your appliance performs automatic defrosting. The water formed as a result of defrosting passes through the water collection spout, flows into the water tray behind your appliance, and evaporates there. • Make sure you have disconnected the plug of your appliance before cleaning the water tray.
• Remove the water tray from its position by removing the screws (if it has screws). Clean it with soapy water at specific time intervals. This will prevent odours from forming.

Replacing LED Lighting

To replace any of the LEDs, please contact the nearest Authorised Service Centre.

Note: The numbers and location of the LED strips may change according to the model.

If product equipped with LED lamp

This product contains a light source of energy efficiency class .

If product equipped with LED Strip(s) or LED card(s)

This product contains a light source of energy efficiency class .

6 SHIPMENT AND REPOSITIONING

6.1 Transportation and Changing Positioning

• The original packaging and foam may be kept for re-transportation (optional). - Fasten your appliance with thick packaging, bands or strong cords and follow the instructions for transportation on the packaging. - Remove all movable parts or fix them into the appliance against shocks using bands when re-positioning or transporting.

Always carry your appliance in the upright position.

6.2 Repositioning the Door

• It is not possible to change the opening direction of your appliance door if door handles are installed on the front surface of the appliance door.
• It is possible to change the opening direction of the door on models with handle on the side of the door or without handles.
• If the door-opening direction of your appliance can be changed, contact the nearest Authorised Service Centre to change the opening direction.

7 BEFORE CALLING AFTER-SALES SERVICE

Errors

If you are experiencing problems with your refrigerator, please check the following before contacting the after-sales service.

ERROR TYPE MEANING WHY WHAT TO DO
E01 Sensor warning			Call Service for assistance as soon as possible.
E02 Sensor warning			Call Service for assistance as soon as possible.
E03 Sensor warning			Call Service for assistance as soon as possible.
E06 Sensor warning			Call Service for assistance as soon as possible.
E07 Sensor warning			Call Service for assistance as soon as possible.
E08 Low Voltage Warning		Power supply to the device has dropped to below 170 V.	- This is not a device failure, this error helps to prevent damages to the compressor.- The voltage needs to be increased back to required levelsIf this warning continues an authorised technician needs to be contacted.
E10	Fridge compartment is not cold enough	Likely to occur after:- Long term power failure.- Hot food has been left in the fridge.	1. Set the fridge temperature to a colder value or set Super Cool. This should remove the error code once the required temperature has been reached. Keep doors closed to improve time taken to reach the correct temperature.2. Please empty the location at the front area of air duct channel holes and avoid putting food close to the sensor.If this warning continues an authorised technician needs to be contacted.
E11	Fridge compartment is too cold	Various	1. Check is Super Cool mode is activated2. Reduce the fridge compartment temperature3. Check to see if vents are clear and not cloggedIf this warning continues an authorised technician needs to be contacted.

If you are experiencing a problem with your appliance, please check the following before contacting the after-sales service.

Your appliance is not operating

Check if:

• There is power
• The plug is correctly placed in the socket
• The plug fuse or the mains fuse has blown

- The socket is defective. To check this, plug another working appliance into the same socket.

The appliance performs poorly. Check if:

• The appliance is overloaded • The appliance door is closed properly - There is any dust on the condenser - There is enough space near the rear and side walls.

Your appliance is operating noisily

Normal noises

Cracking noise occurs:

• During automatic defrosting - When the appliance is cooled or warmed (due to expansion of appliance material).

Short cracking noise occurs: When the thermostat switches the compressor on/off.

Motor noise: Indicates the compressor is operating normally. The compressor may cause more noise for a short time when it is first activated.

Bubbling noise and splash occurs:

Due to the flow of the refrigerant in the tubes of the system.

Water flowing noise occurs: Due to water flowing to the evaporation container. This noise is normal during defrosting.

Air blowing noise occurs: In some models, this is normal during operation of the system due to the circulation of air.

The edges of the appliance in contact with the door joint are warm.

Especially during summer (warm seasons), the surfaces in contact with the door joint may become warmer during the operation of the compressor. This is normal.

There is a build-up of humidity inside the appliance.

Check if:

• All food is packed properly. Containers must be dry before being placed in the appliance.
• The appliance door is opened frequently.

Humidity of the room enters the appliance when the doors are opened. Humidity increases faster when the doors are opened more frequently, especially if the humidity of the room is high.

The door does not open or close properly.

Check if:

• There is food or packaging preventing the door from closing. The door joints are broken or torn.
• Your appliance is on a level surface.
• The compressor can run loudly or the noise of the compressor/refrigerator may increase in some models during operating in some conditions such as when the product is plugged in for the first time, depending on change in the ambient temperature or change of usage. That is normal; when the refrigerator reaches the required temperature, the noise decreases automatically.

Recommendations

• If the appliance is switched off or unplugged, wait at least 5 minutes before plugging the appliance in or restarting it in order to prevent damage to the compressor.
• If you will not use your appliance for a long time (e.g. in summer holidays) unplug it. Clean your appliance according to chapter cleaning and leave the door open to prevent humidity and smell.
• If a problem persists after you have followed all the above instructions, please consult the nearest authorised service centre.
• The appliance you have purchased is designed for domestic use only. It is not suitable for commercial or common use. If the consumer uses the appliance in a way that does not comply with this, we emphasise that the manufacturer and the dealer will not be responsible for any repair and failure within the guarantee period.

8 TIPS FOR SAVING ENERGY

1. Install the appliance in a cool, well-ventilated room, but not in direct sunlight and not near a heat source (such as a radiator or oven) otherwise an insulating plate should be used.
2. Allow warm food and drinks to cool before placing them inside the appliance.
3. Place thawing food in the refrigerator compartment if available. The low temperature of the frozen food will help cool the refrigerator compartment while the food is thawing. This will save energy. Frozen food left to thaw outside of the appliance will result in a waste of energy.
4. Drinks or other liquids should be covered when inside the appliance. If left uncovered, the humidity inside the appliance will increase, therefore the appliance uses more energy. Keeping drinks and other liquids covered helps preserve their smell and taste.
5. Avoid keeping the doors open for long periods and opening the doors too frequently as warm air will enter the appliance and cause the compressor to switch on unnecessarily often.
6. Keep the covers of the different temperature compartments (such as the crisper and chiller if available) closed.
7. The door gasket must be clean and pliable. In case of wear, replace the gasket.

9 TECHNICAL DATA

The technical information is situated in the rating plate on the internal side of the appliance and on the energy label.

The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database.

Keep the energy label for reference together with the user manual and all other documents provided with this appliance.

It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate, the appliance.

See the link www.theenergylabel.eu for detailed information about the energy label.

10 INFORMATION FOR TEST INSTITUTES

Appliance for any EcoDesign verification shall be compliant with EN 62552.

Ventilation requirements, recess dimensions and minimum rear clearances shall be as stated in this User Manual at Chapter 2. Please contact the manufacturer for any other further information, including loading plans.

11 CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, Serial Number and Service Index.

The information can be found on the rating plate. You can find the rating label inside the fridge zone on the left lower side.

The original spare parts for some specific components are available for a minimum of 7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model.

Visit our website to:

www.gram.dk

www.gram.se

www.gram.no

www.gram.fi

7 BEFORE CALLING AFTER-SALES SERVICE 60

8 TIPS FOR SAVING ENERGY....62

9 TECHNICAL DATA 62

10 INFORMATION FOR TEST INSTITUTES 62

11 CUSTOMER CARE AND SERVICE 62

1 SAFETY INSTRUCTIONS

-bed and breakfast accommodations

7 BEFORE CALLING AFTER-SALES SERVICE

Error

5 CLEANING AND MAINTENANCE 78

5.1 Defrosting 78

6 TRANSPORT AND MOVING....79

1.2 Installation warnings

• Press the mode selector button (no. 6 in the control panel diagram) until the economy mode icon 📋 appears (no. 3).

3.5.2 Storage box

Note: Before you

3.5.5 Adjustable glass shelf (on some models)

5 CLEANING AND MAINTENANCE
