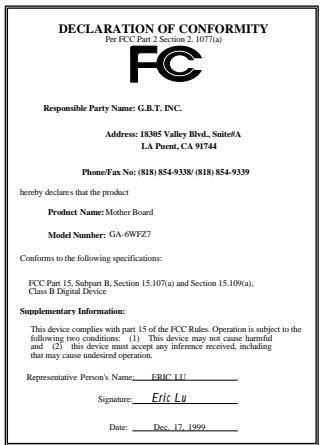

FCC Compliance Statement:

This equipment has been tested and found to comply with limits for a Class B digital device , pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television equipment reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna -Move the equipment away from the receiver

-Plug the equipment into an outlet on a circuit different from that to which the receiver is connected

-Consult the dealer or an experienced radio/television technician for additional suggestions

You are cautioned that any change or modifications to the equipment not expressly approve by the party responsible for compliance could void Your authority to operate such equipment.

This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions 1) this device may not cause harmful interference and 2) this device must accept any interference received, including interference that may cause undesired operation.

Declaration of Conformity We, Manufacturermporter (full address)

G.8.T. Technology Tréding GMbH Ausschiager Weg 41, 1F, 20537 Hamburg, Germany

declare thatthe product {description of the apparatus, system, installation to which it refers)

Mother Board GA-GWFZ7

is in conformity with {reference to the specification under which conformity is declared) in accordance with 89/336 EEC-EMC Directive

Limis and methods of measurement EN 6100032 Distuances in suppl systems caused of radio distutbance characteristics of EN60555-2 by househalä applances and similar industial, scietie and mechcal (SM electncal equipment "Harmonies”

high frequency equipment

Limis and methods of measurement EN61000-3-3* Distuances in suppl systems caused of radio distutbance charactrises of EN60555-3 by househalä applances and similar broadcast receivers and associated electrical equipment “Voltage fluctuations” equipment

Limis and methods of measurement of radio istutbance characteristics of househol electrical applances, portable tools and similar electrical apparus

Generic emission standard Par 1. Residual, commercial and light industry

Generic immunit standard Part 1 Residual, commercial and light industry

Limis and methods of measurement Generic emission standard Part 2. of radio distutbance characteristics of Industrial environment fluorescent lamps and luminaries

Immunit from radio interference of Generic immunit standard Part 2

broadcast receivers and associated Industrial environment equipment

Limits and methods of measurement Ê env 55104 Immunity requirements for household of radio istutbance characteristics of applances tpois and similar apparatus information technology equipment

Cabled distribution systems: Equipment [] EN 50091-2 EMC requirements for uninterruptible fer recewing andlor distribution rom power systems (UPS)

sound and television signals

‘The manufacturer also declares the conformity of above mentioned product

th the actual required safety standards in accordance with LVD 73/23 EEC Safety requirements for mains operated [] EN 60950 Safety for information technology equipment electronic and related apparatus for including elecical business equipment household and simiar general use

Safety of household and similar © en 500911 General and Safety requirements for electrical applances uninteruptble power systems (UPS)

Manufacturermporter Signature . Rex Lin (same Date : Dec. 17, 1989 Name 2 RexLin

6WFZ7 Series Intell 810 Socket 370 Motherboard

USER'S MANUAL INTEL 810 Socket 370 Processor MAINBOARD REV. 2.0 First Edition R-20-01-091214

How This Manual ls Organized

This manual is divided into the following sections:

1) Revision List Manual revision information

2) Item Checklist Product item list

4) Hardware Setup Instructions on setting up the motherboard

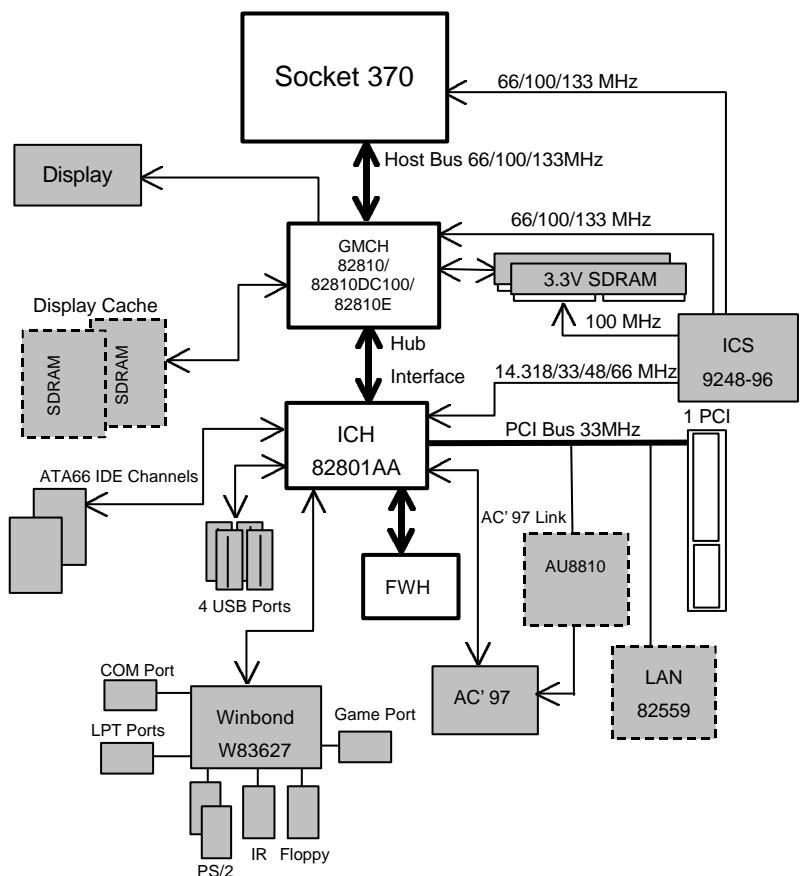

5) Performance & Block Diagram | Product performance & block diagram

6) Suspend to RAM Instructions STR installation 7) BIOS Setup Instructions on setting up the BIOS software

Page Index for CPU Speed Setup /Connectors / Panel and} umper Definition | P.6

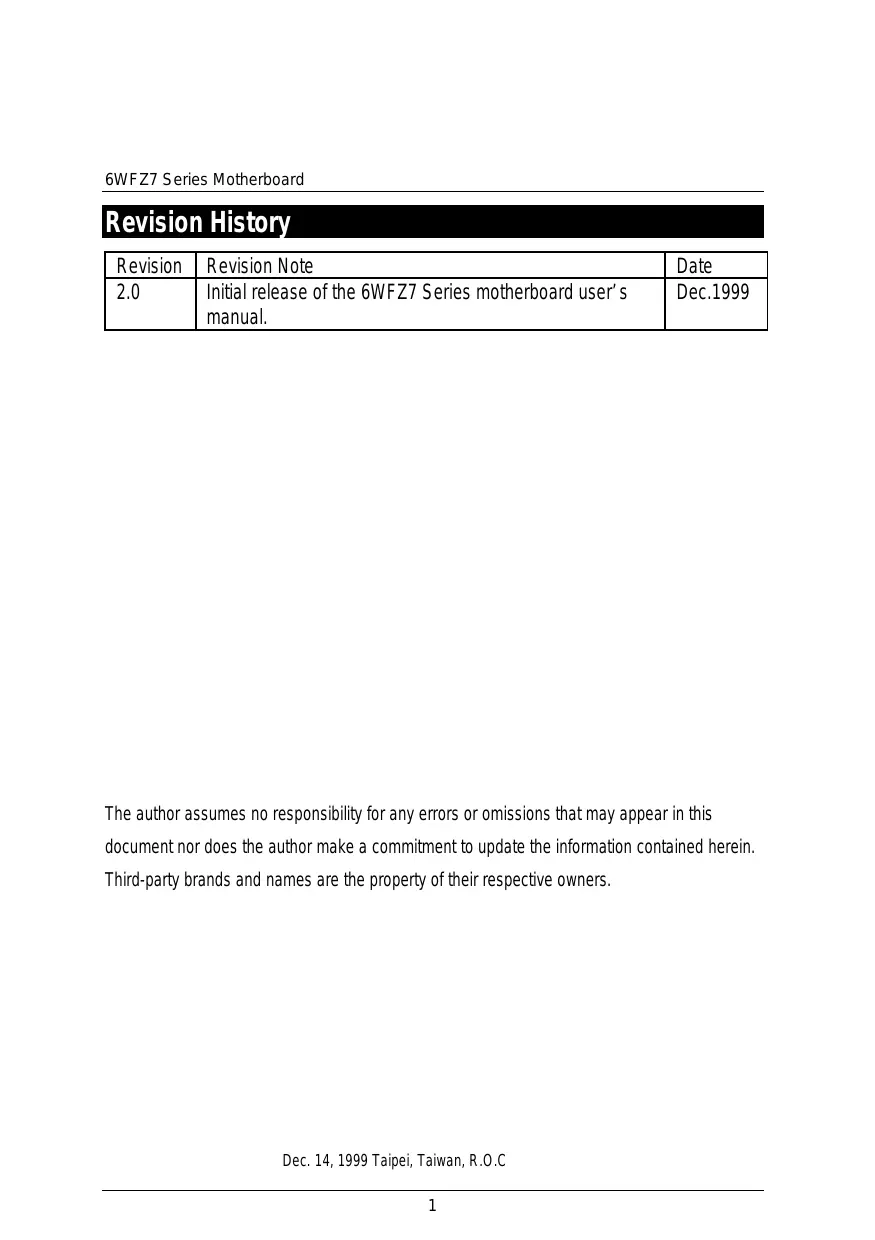

Revision Histo Revision | Revision Note Date 2.0 Initial release of the 6WFZ7 Series motherboard user's Dec.1999

The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a commitment to update the information contained herein. Third-party brands and names are the property of their respective owners.

Dec. 14, 1999 Taipei, Taiwan, R.O.C

HiCable for IDE / Floppy device

BDiskettes or CD (IUCD) for motherboard driver & utilities Olinternal COMB Cable (Optional)

Ointernal USB Cable (Optional)

[Cable for SCSI device

B6WFZ7 Series User's Manual

Olinternal DFP and TV-Out Cable (Optional)

6WFZ7 Series Motherboard

Form factor +___22.8 cm x 19.1 cm FlexATX Size form factor, 4 layers PCB Motherboard +___6WFZ7 series includes 6WFZ7, 6WFZ7-M, 6WFZ7-E CPU + Socket 370 Processor

+ 82810/82810-DC100/82810E Graphics and memory Controller Hub(GMCH) -___82801AA 1/0 Controller Hub(ICH)

+ Supports PC-100 SDRAM 16MB-512MB(Max)

On-Board IDE + AnIDE controller on the Intel! 82801AA PCI chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA33/ATA 66 operation modes

-___ Can connect up to four IDE devices

On-Board < 1 Floppy port supports 2 FDD with 360K, 720K,1.2M,

Peripherals 1.44M and 2.88M bytes

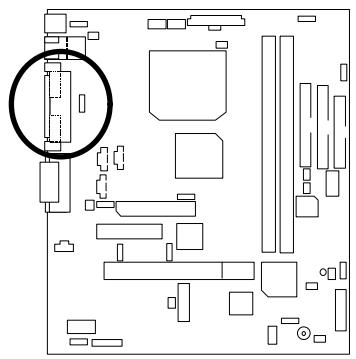

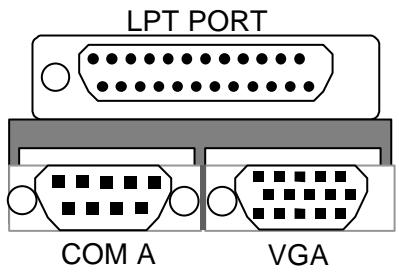

+ 1 Parallel ports supports SPP/EPP/ECP mode 1 Serial Ports (COMA)

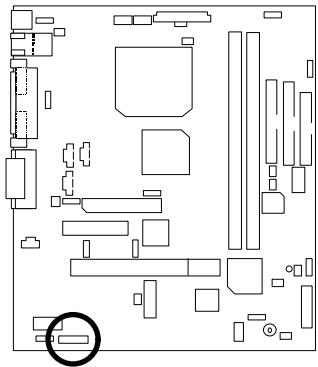

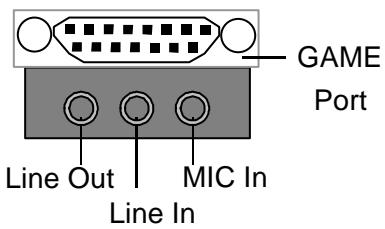

4USB ports +1 DA connector for IR On-Board Sound -__ Aureal AU8810(Optional) (Optional) + Linein/Line Out/Micin/AUX In/CDIn/TEL/SPDIF 1Game Port BIOS -__ Licensed AWARD BIOS, 4M bit FLASH ROM On-Board LAN -__IntelD 82559(Optional) PS/2 Connector -+__ PS/2Ù Keyboard interface and PS/2Ù Mouse interface

CPU Overheat Warning

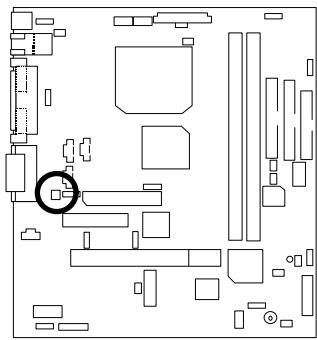

Internal/E xternal Modem Wake up Keyboard Password Wake up LAN Wake up

System after AC back

Support STR Function

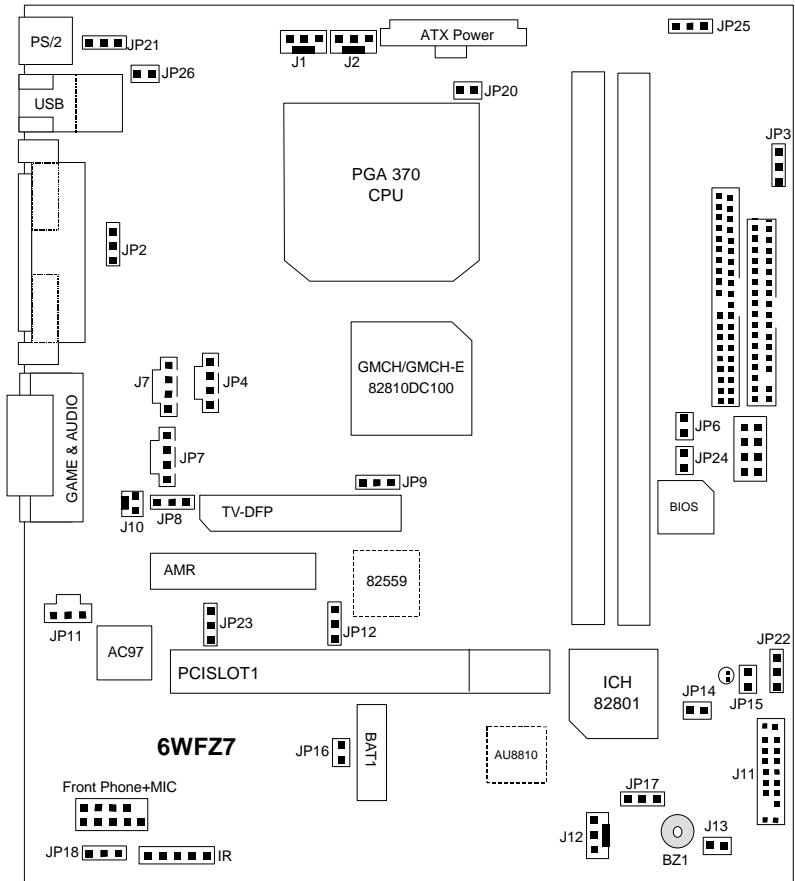

6WFZ7 Series Motherboard

Page Index for CPU Speed Setup / Connectors / Panel and | umper Definition Page CPU Speed Setup P.8

The system bus frequency can be switched at 66MHz, 100MHz, 133MHz and Auto by adjusting JP3/ P25 (See Figure-1). The CPU Frequency is control by BIOS.

© The CPU speed must match with the frequency RATIO. It will cause system hanging up if the frequency RATIO is higher than that of CPU,

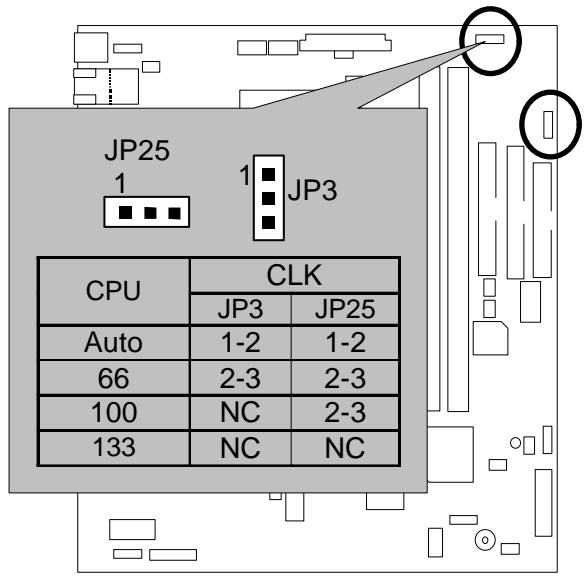

JP3/]P25 : CPU Speed Setup

* Note: Please set the CPU host frequency in accordance with your processor's specifications. We don't recommend you to set the system bus frequency over the CPU's specification because these specific bus frequencies are notthe Standard specifications for CPU, chipset and most of the peripherals. Whether your system can run under these specific bus frequencies properly will depend on your hardware configurations, including CPU, Chipsets, SDRAM, Cards….etc.

x Note: J P25 is only available when the motherboard use 82810E chipset.

x Note: 133MHz only 82810E support.

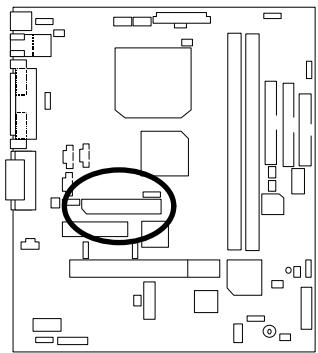

TV/DFP : TV-Out/ Digital Flat Panel Daughter card connector.

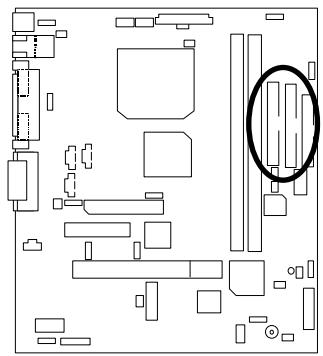

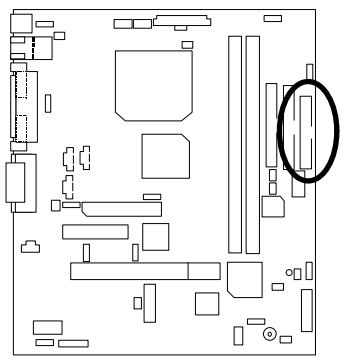

IDE (Primary), IDE2 (Secondary) Port

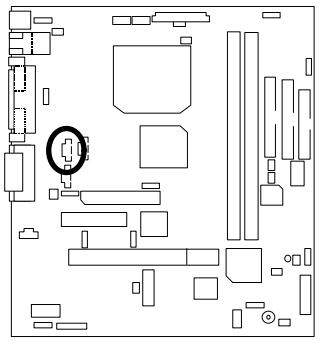

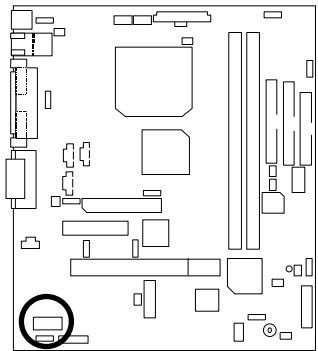

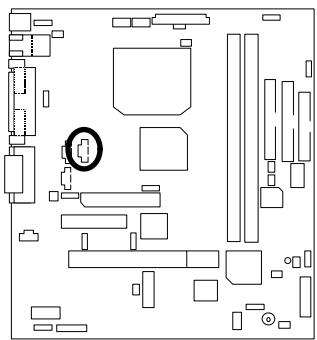

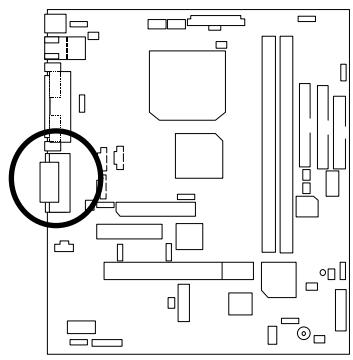

Front Phone+MIC FH Pin No.

Pin No. | Definition

JP11:SPDIF(The SPDIF output is capable of providing digital audio to external speakers or compressed AC3 data to an external Dobly digital

6WFZ7 Series Motherboard

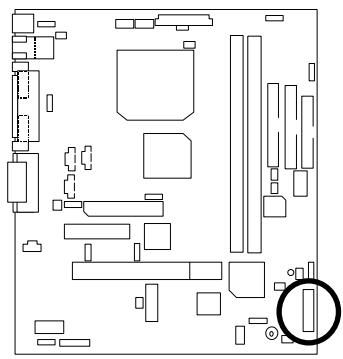

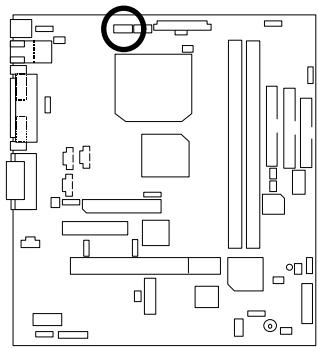

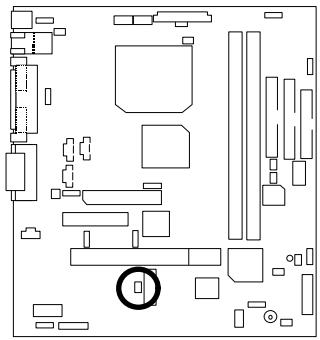

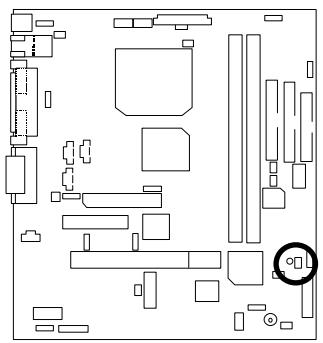

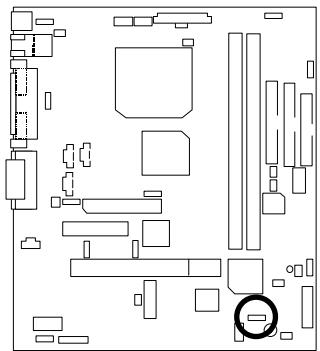

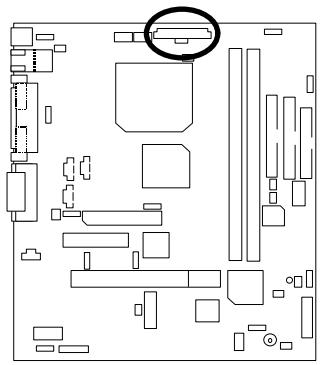

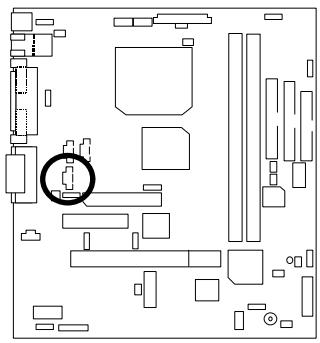

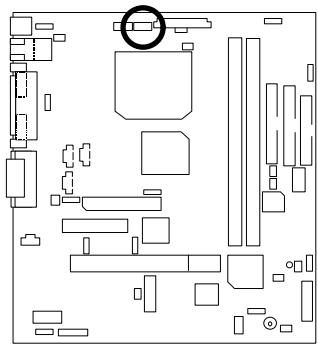

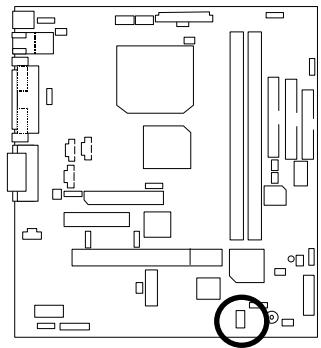

Panel and } umper Definition

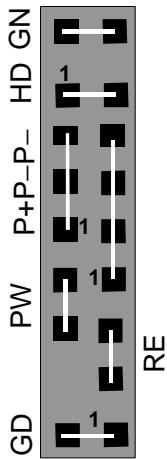

J11:For2X11 Pins ] umper

PW RE GN (Green Switch)

Pin 1: LED anode(+) Pin 2: LED cathode(— Pin 3: LED cathode(-

PW (Soft Power Connector)

Open: Normal Operation Close: Power On/Off

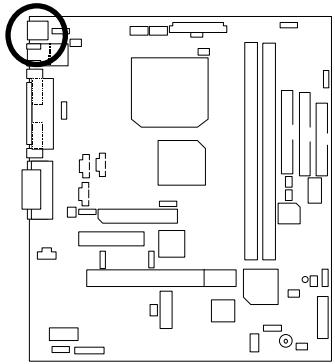

Panel and Jumper Definition

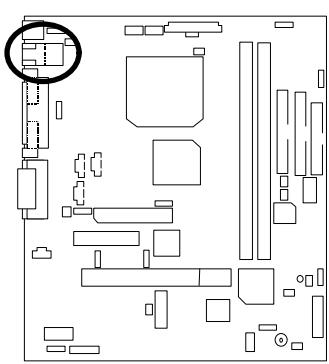

JP21: Rear USB Device Wake up Selection

{USB Connector > CN?) 1 Pin No. Definition 1-2 close Enabled Rear USB Device Wake up 2-3 close Disabled Rear USB Device Wake up(Default)

{If you want to use "USB KB/Mouse Wake from 53” CN2 | | function, you have to setthe BIOS setting USB KB/Mouse Wake

from S3"enabled, and the jumper “y P21"enabled). #Power on the computer and as soon as memory counting starts, press <Del>. You will enter BIOS Setup. Select the item ‘POWER MANAGEMENT SETUP" then select “USB KB/Mouse Wake from 53" Remember to save

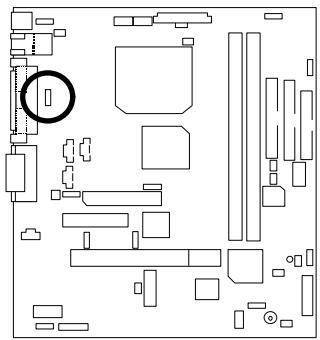

the setting by pressing "ESC" and choose the SAVE & EXIT JP2:PS/2 Keyboard Power On

PS/2 Keyboard Power on Enabled

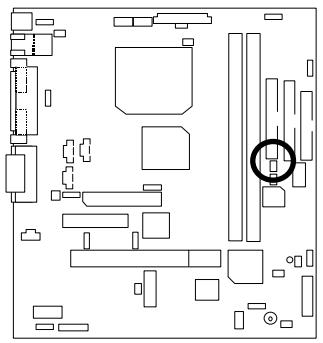

Open |Top Block Lock

Close [Top Block Unlock

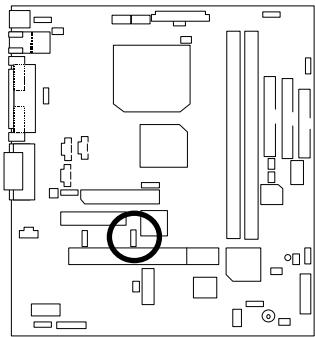

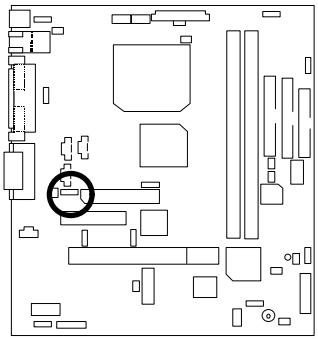

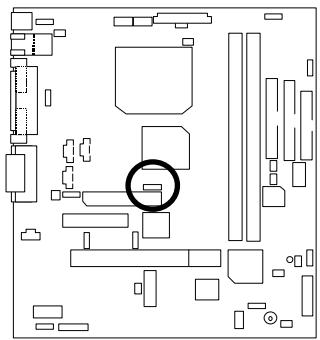

(Default) JP9 : Onboard Sound Function Selection (0 ptional) 1 es] Pin No. Definition

1-2 close |Onboard Sound Enable(Default) 2-3 close |Onboard Sound Disable

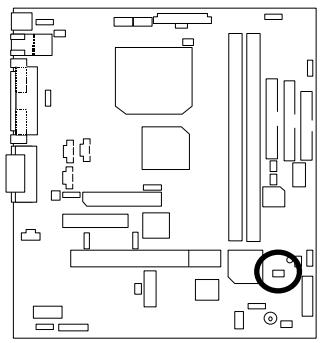

Panel and Jumper Definition

Panel and Jumper Definition

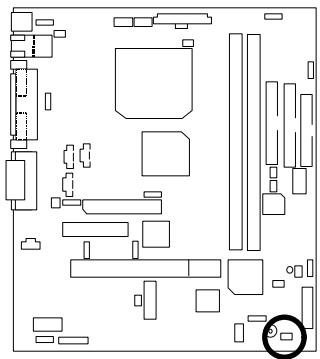

Internal Buzzer Enabled (Default)

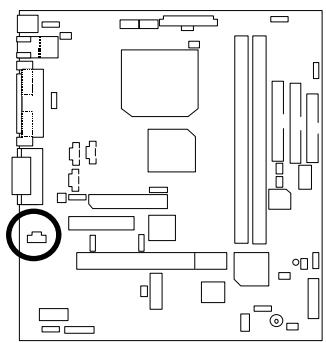

Panel and Jumper Definition

JP26 : LAN LED(Optional)

Pin No. Definition 1 VCC 2 Single

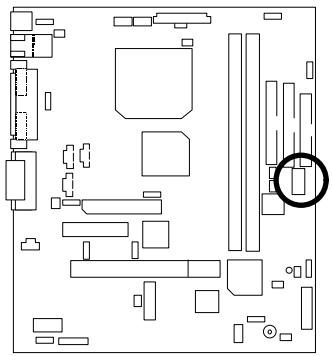

‘fl Pin No. Definition

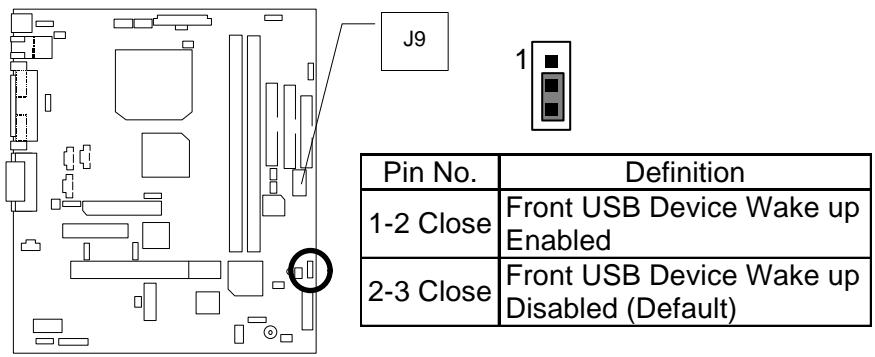

Front USB Device Wake up Enabled

Front USB Device Wake up Disabled (Default)

{If you want to use ‘USB KB/Mouse Wake from 53”

function, you have to setthe BIOS setting USB KB/Mouse Wake from S3"enabled, and the jumper “y P22"enabled).

#Power on the computer and as soon as memory counting starts, press <Del>. You will enter BIOS Setup. Select the

item ‘POWER MANAGEMENT SETUP" then select "USB KB/Mouse Wake from 3’ Remember to save

the setting by pressing "ESC" and choose the ‘SAVE & EXIT SETUP option.)

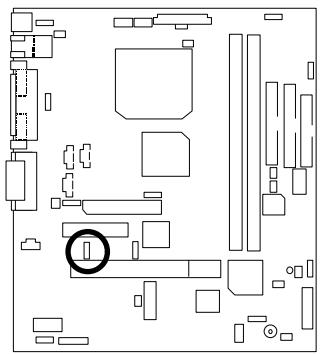

JP23 : Onboard LAN Wake up Function(Optional)

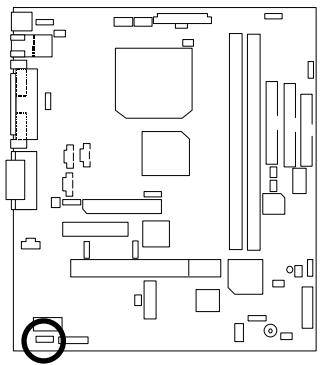

Panel and Jumper Definition

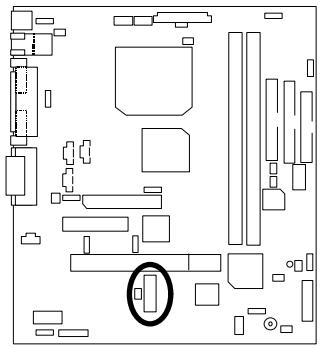

Danger of explosion if battery is incorrectly replaced Replace only with the same or equivalent type recommended by the manufacturer.

Dispose of used batteries according to the manufacturers instructions

6WFZ7 Series Motherboard

The following performance data list is the testing results of some popular benchmark testing

These data are just referred by users, and there is no responsibility for different testing data values gotten by users. (The different Hardware & Software configuration will result in different

* CPU Intel Celeron!” 533MHz Socket 370 processor

+ CACHE SIZE 128 KB included in CPU

Host Bus 66/100/133MHz

Hub ics Interface 14.318/33/48/66 MHz]. 9545.96

Suspend-to-RAM (STR) is a Windows 98 ACPI sleep mode function. When recovering from STR (53) sleep mode, the system is able, in just a few seconds, to retrieve the last “state” of the system before it went to sleep and recover to that state. The “state” is stored in memory (RAM) before the system goes to sleep. During STR sleep mode, your system uses only enough energy to maintain critical information and system functions, primarily the system state and the ability to recognize various “wake up" triggers or signals, respectively.

A2 STR function Installation

Please use the following steps to complete the STR function installation. Step-By-Step Setup

To utilize the STR function, the system must be in Windows 98 ACPI mode.

Putting Windows 98 into ACPI mode is fairly easy. Setup with Windows 98 CD:

A Insert the Windows 98 CD into your CD-ROM drive, select Start, and then Run.

B Type (without quotes) “D:\setup /p j” in the window provided. Hit the enter key or click OK.

C. After setup completes, remove the CD, and reboot your system (This manual assumes that your CD-ROM device drive letter is D:)

Suspend to RAM Installation

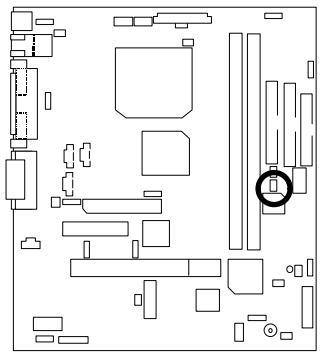

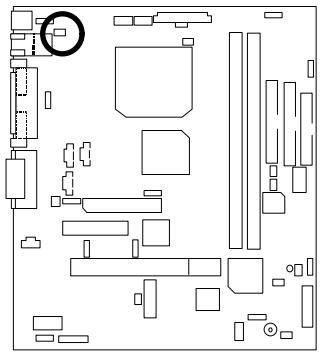

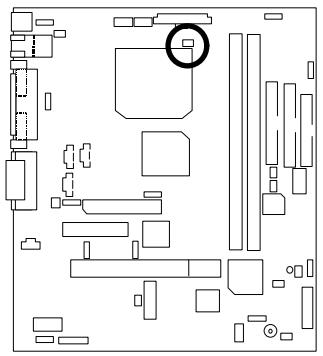

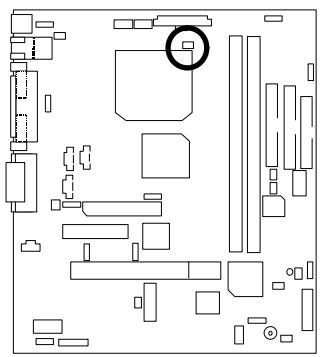

Step 2: {If you want to use STR Function, please set jumper J P20 Closed.)

1[e) Pin No. Definition

Open J]STR Disabled(Default) Close [STR Enabled

Step 3: Power on the computer and as soon as memory counting starts, press <Del>. You will enter BIOS Setup. Selectthe item “POWER MANAGEMENT SETUP”, then select “ACPI Suspend Type: S3 (Suspend to RAM)”. Remember to save the settings by pressing "ESC" and choose the “SAVE & EXIT SETUP” option

Congratulation! You have completed the installation and now can use the STR function.

6WFZ7 Series Motherboard

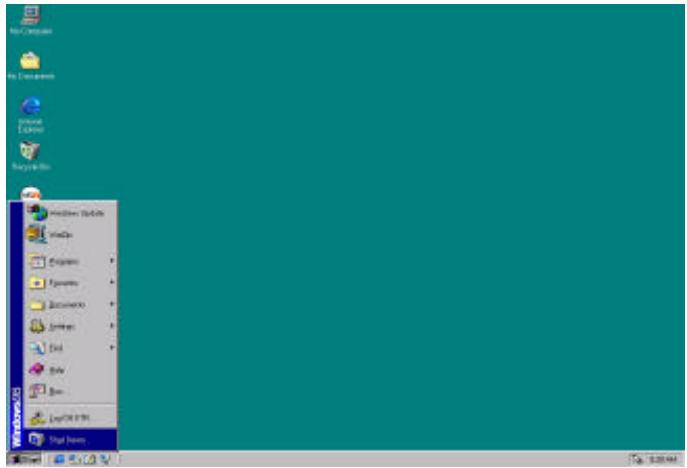

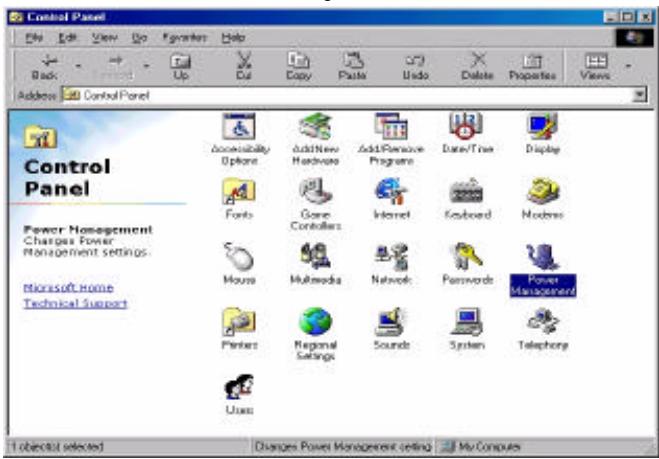

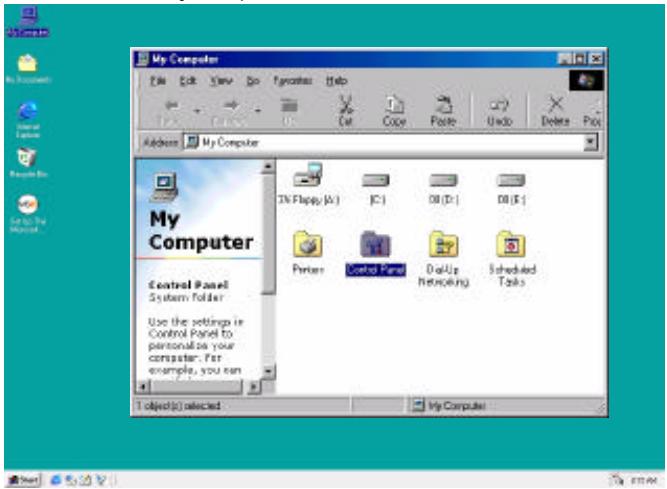

A3 How to put your system into STR mode?

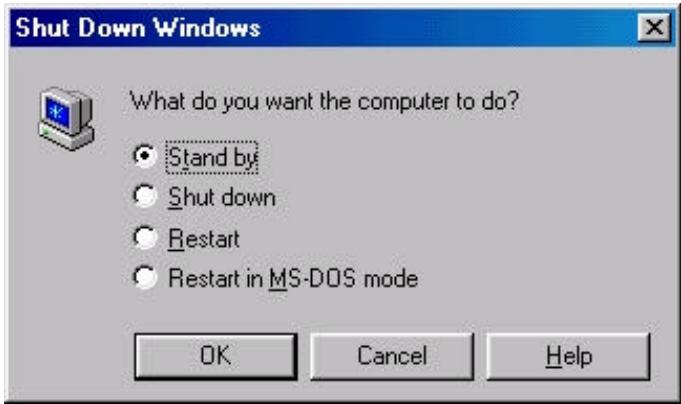

There are two ways to accomplish this 1. Choose the “Stand by” item in the “Shut Down Windows” area. À. Press the “Start” button and then select “Shut Down”

NET B. Choose the “Stand by” item and press "OK" Shut Down Windows [x]

‘What do vou want the computer to do?

Suspend to RAM Installation

2. Define the system "power on” button to initiate STR sleep mode: A. Double click "My Computer” and then “Control Panel”

6WFZ7 Series Motherboard

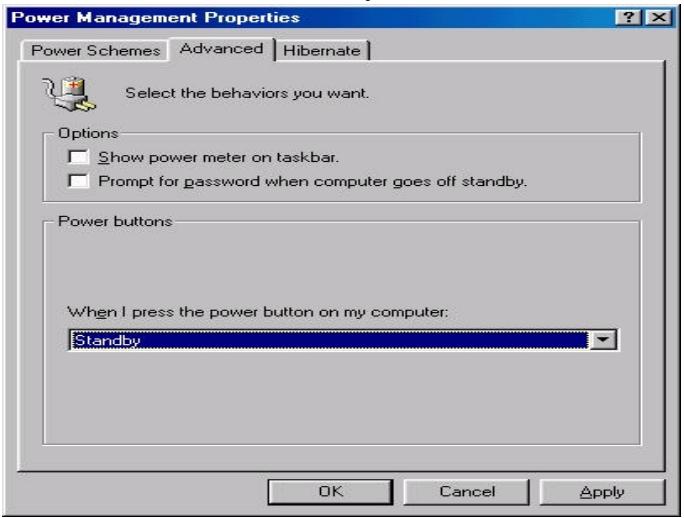

C. Select the “Advanced” tab and “Standby" mode in Power Buttons.

Power Management Properties:

Step 4: Restart your computer to complete setup.

Now when you want to enter STR sleep mode, just momentarily press the “Power on” button.

A4 How to recover from the STR sleep mode? There are seven ways to “wake up” the system:

. Press the “Power On” button.

. Use the “Keyboard Power On” function.

. Use the “Resume by Alarm” function. Use the “Modem Ring On” function.

Suspend to RAM Installation

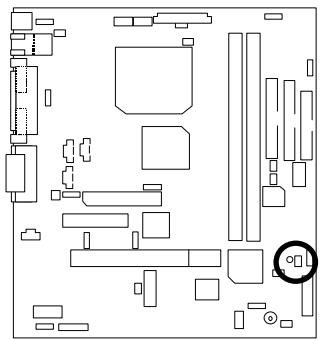

A.5 Notices : In order for STR to function properly, several hardware and software requirements must be satisfied:

A. Your ATX power supply must comply with the ATX 2.01 specification (provide more than 720 mA 5V Stand-By current).

B. Your SDRAM must be PC-100 compliant.

2. Connector]P15 is provided to connect to the STR LED in your system chassis. [Your chassis may not provide this feature.] The STR LED will be illuminated when your system is in STR sleep mode.

STR LED Connector External

The motherboard has 2 dual inline memory module (DIMM) sockets. The BIOS will automatically detects memory type and size. To install the memory module, just push it vertically into the DIMM Slot.The DIMM module can only fit in one direction due to the two notch. Memory size can vary between sockets.

Install memory in any combination table:

DIMM 168-pin SDRAM DIMM Modules DIMM1__ | Supports 16 / 32 / 64 / 128 / 256 MB X1pcs DIMM2 | Supports 16 / 32 / 64 / 128 / 256 MB X1pcs

BIOS Setup is an overview ofthe BIOS Setup Program. The program that allows users to modify the basic system configuration. This type of information is stored in battery-backed CMOS RAM so that it retains the Setup information when the power is tumed off.

ENTERING SETUP Power ON the computer and press <Del> immediately will allow you to enter Setup. If the message disappears before you respond and you still wish to enter Setup, restartthe system to try again by turning it OFF then ON or pressing the "RESET" bottom on the system case. You may also restart by simultaneously press <Ctl> —<Alt>—<Del> keys.

<> Move to previous item

<b Move to next item

<> Move to the item in the left hand

<> Move to the item in the right hand

<Æsc> Main Menu - Quit and not save changes into CMOS Status Page Setup Menu and Option Page Setup Menu - Exit current page and retum to Main Menu

<#PqgUp> | Increase the numeric value or make changes <JPgDn> Decrease the numeric value or make changes

<5> Restore the previous CMOS value from CMOS, only for Option Page Setup Menu

<6> Load the default CMOS value from BIOS default table, only for Option Page Setup Menu

<F17> Load the Optimized Defaults.

GETTING HELP Main Menu The on-line description of the highlighted setup function is displayed at the bottom ofthe screen. Status Page Setup Menu / Option Page Setup Menu

Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window press Æsc>.

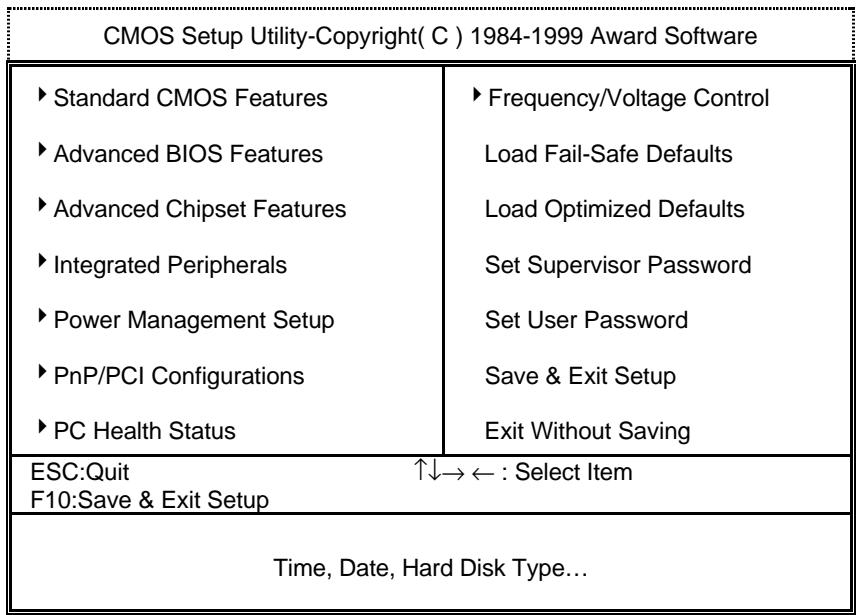

The Main Menu Once you enter Award BIOS CMOS Setup Utility, the Main Menu (Figure 2) will appear on the

screen. The Main Menu allows you to select from nine setup functions and two exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the sub-menu

CMOS Setup Utility-Copyright( C ) 1984-1999 Award Software » Standard CMOS Features » Frequency/Voltage Control » Advanced BIOS Features Load Fail-Safe Defaults » Advanced Chipset Features Load Optimized Defaults » Integrated Peripherals Set Supervisor Password » Power Management Setup Set User Password » PnP/PCI Configurations Save & Exit Setup » PC Health Status Exit Without Saving ESC:Quit . Ti + : Select item F10:Save & Exit Setup

Standard CMOS Features This setup page includes all the items in standard compatible BIOS.

Advanced BIOS Features

This setup page includes all the items of Award special enhanced features

Advanced Chipset Features

This setup page includes all the items of chipset special features. Integrated Peripherals

This setup page includes all onboard peripherals

Power Management Setup

This setup page includes all the items of Green function features.

PnP/PCI Configurations

This setup page includes all the configurations of PCI & PnP ISA resources. PC Health Status

This setup page is the System auto detect Temperature, voltage , fan, speed. Frequency/Voltage Control

This setup page is control CPU's clock and frequency ratio.

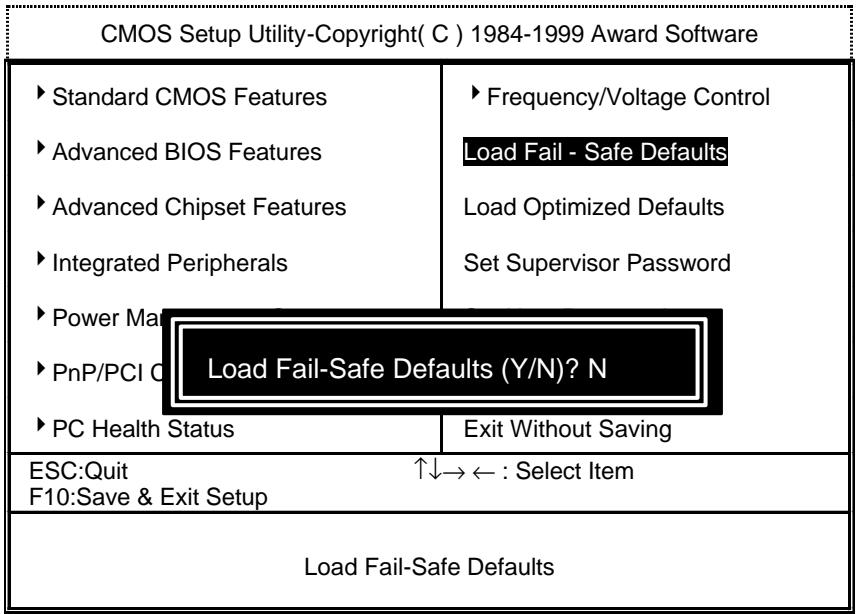

Load Fail-Safe Defaults

Fail-Safe Defaults indicates the value of the system parameters which the system would be in safe configuration.

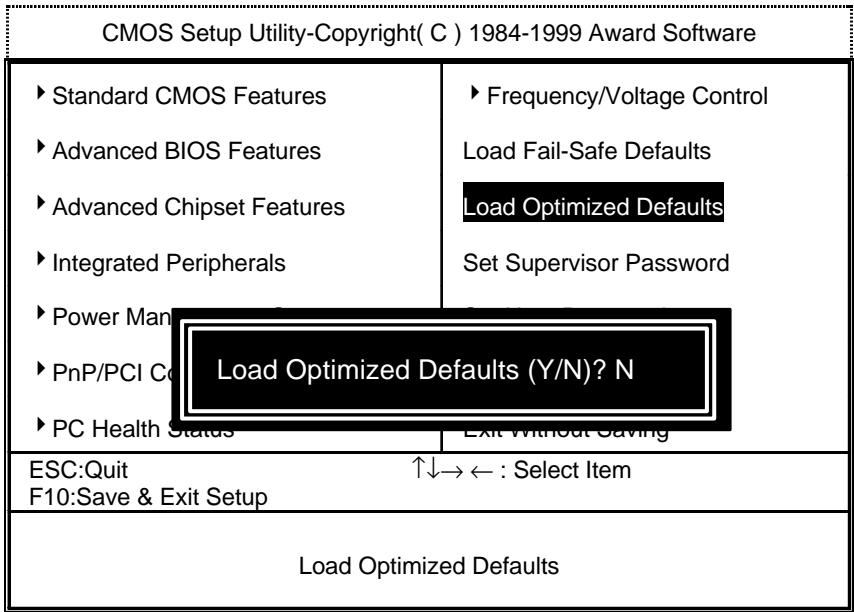

Load Optimized Defaults

Optimized Defaults indicates the value ofthe system parameters which the system would be in best performance configuration.

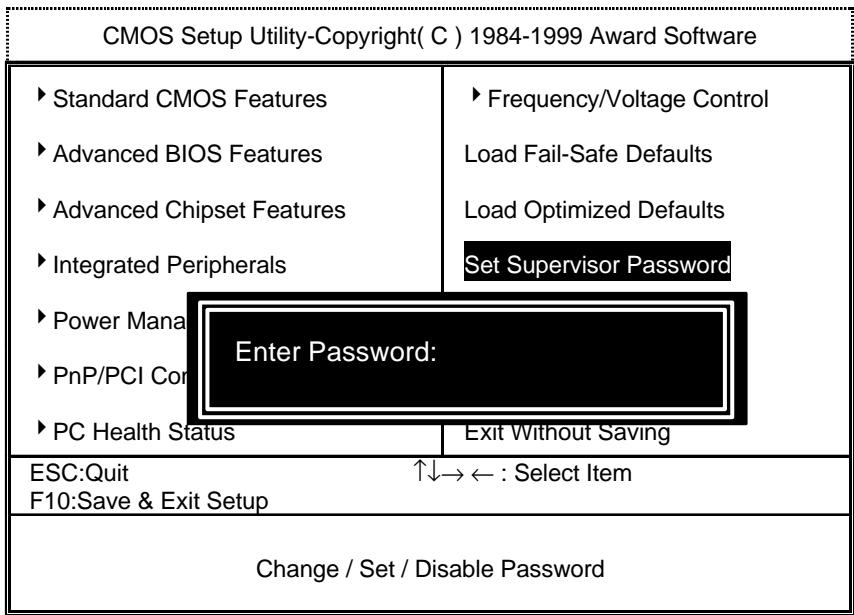

Set Supervisor password

Change, set, or disable password. It allows you to limit access to the system and Setup, or just to Setup.

Change, set, or disable password. It allows you to limit access to the system.

Save & Exit Setup Save CMOS value settings to CMOS and exit setup. Exit Without Saving

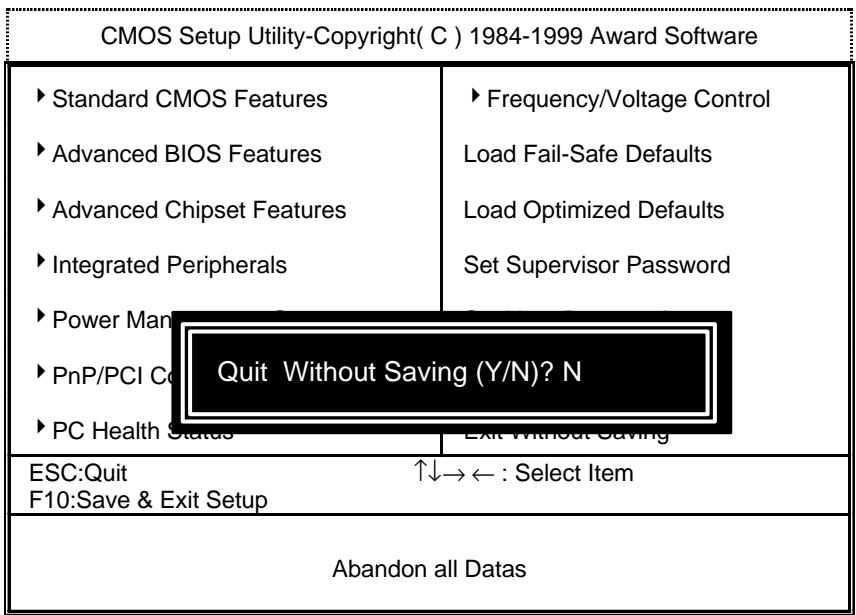

Abandon all CMOS value changes and exit setup.

6WFZ7 Series Motherboard

Standard CMOS Features

The items in Standard CMOS Setup Menu (Figure 3) are divided into 9 categories. Each category includes no, one or more than one setup items. Use the arrows to highlight the item and then use

the <PgUp> or P gDn> keys to select the value you want in each item.

CMOS Setup Utility-Copyright( C ) 1984-1999 Award Software Standard CMOS Features

Date (mm:dd:yy) Time (hh:mmiss)

* IDE Primary Master

* IDE Secondary Master IDE Secondary Slave

Press Enter None Press Enter None Press Enter None Press Enter None

Drive A 1.44M, 3.5 in. Drive B None

Video EGA /VGA HaltOn All, But Keyboard

Change the Day, month, Year and century

The date format is <week>, <month> <day> <year>.

week The week, from Sun to Sat, determined by the BIOS and is display-only

month The month, Jan. Through Dec

day The day, from 1 to 31 (orthe maximum allowed in the month)

year The year, from 1994 through 2079

The times format in <hour> <minute> <second>. The time is calculated base on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00.

IDE Primary Master, Slave / Secondary Master, Slave

The category identifies the types of hard disk from drive C to F that has been installed inthe computer. There are two types: auto type, and manual type. Manual type is user-definable; Auto type which will automatically detect HDD type.

Note that the specifications of your drive must match with the drive table. The hard disk will not work properly if you enter improper information for this category.

If you select User Type, related information will be asked to enter to the following items. Enter the information directly from the keyboard and press <Enter>. Such information should be provided in the documentation form your hard disk vendor or the system manufacturer.

CYLS. Number of cylinders

HEADS number of heads

PRECOMP write precomp

LANDZONE Landing zone

SECTORS number of sectors

If a hard disk has not been installed select NONE and press <Enter>. Drive A type / Drive B type

The category identifies the types of floppy disk drive À or drive B that has been installed in the computer.

None No floppy drive installed

360K, 5.25 in. 5.25 inch PC-type standard drive; 360K byte capacity.

1L2M, 5.25 in 5.25 inch AT-type high-density drive; 1.2M byte capacity (3.5 inch when 3 Mode is Enabled).

720K, 3.5 in 3.5 inch double-sided drive; 720K byte capacity

1.44M, 3.5 in 3.5 inch double-sided drive; 1.44M byte capacity.

2.88M, 3.5 in 3.5 inch double-sided drive; 2.88M byte capacity.

6WFZ7 Series Motherboard

°__ Floppy 3 Mode Support (for J apan Area)

Disabled Normal Floppy Drive.

Drive A Drive À is 3 mode Floppy Drive.

Drive B Drive B is 3 mode Floppy Drive.

Both Drive À & B are 3 mode Floppy Drives. * Video

The category detects the type of adapter used for the primary system monitor that must match your video display card and monitor. Although secondary monitors are supported, you do not have to select the type in setup.

EGANVGA Enhanced Graphics Adapter/Video Graphics Array. For EGA, VGA, SVGA, or PGA monitor adapters

CGA 40 Color Graphics Adapter, power up in 40 column mode

CGA 80 Color Graphics Adapter, power up in 80 column mode

MONO Monochrome adapter, includes high resolution monochrome adapters ° Halton

The category determines whether the computer will stop if an error is detected during power up.

NO Errors The system boot will not stop for any error that may be detected and you will be prompted

All Errors Whenever the BIOS detects a non-fatal error the system will be stopped

All, ButKeyboard | The system boot will not stop for a keyboard error, itwill stop for all other errors ( Default value )

All, But Diskette The system boot will not stop for a disk error, it will stop for all other errors

All, ButDisk/Key | The system boot will not stop for a keyboard or disk error; it will stop for all other errors

Memory The category is display-only which is determined by POST (Power On Self Test) of the BIOS Base Memory The POST of the BIOS will determine the amount of base (or conventional) memory installed in the system.

The value ofthe base memory is typically 512 K for systems with 512 K memory installed on the motherboard, or 640 K for systems with 640 K or more memory installed on the motherboard

Extended Memory The BIOS determines how much extended memory is present during the POST.

This is the amount ofmemory located above 1 MB in the CPU's memory address map.

Ifitis set to enable, the category will flash on the screen when there is any attemptto write to the boot sector or partition table of the hard disk drive. The system will halt and the following error message will appear in the mean time. You can run anti-virus program to locate the problem.

Enabled Activate automatically when the system boots up causing à warning message to appear when anything attempts to access the boot sector or hard disk partition table.

Disabled No warning message to appear when anything attempts to access the boot sector or hard disk partition table. ( Default value }

CPU Cache These two categories speed up memory access. However, it depends on CPU / chipset design

CPU L2 Cache ECC Checking

Processor Number Feature

This item will show up when you install the Pentium Ill processor.

Enabled Pentium Il! Processor Number Feature. ( Default value } Disabled Disable this function

Quick Power On Self Test This category speeds up Power On Self Test (POST) after you power on the computer. Ifit is set to Enable, BIOS will shorten or skip some check items during POST.

Enabled Enable quick POST. ( Default value }

Disabled Normal POST First / Second / Third Boot device

Floppy Select your boot device priority by Floppy. LS/ZIP Select your boot device priority by LS/ZIP HDD-0-3 Select your boot device priority by HDD-0-3 SCSI Select your boot device priority by SCSI. CDROM Select your boot device priority by CDROM Disable Disable this function

LAN Select your boot device priority by LAN Boot other device

Enabled Enabled select your boot device priority function. ( Default value ) Disabled Disabled this function

6WFZ7 Series Motherboard

Swap Floppy Drive Enabled Floppy À & B will be swapped under DOS Disabled Floppy À & B will be normal definition. ( Default value } Boot Up Floppy Seek During POST, BIOS will determine the floppy disk drive installed is 40 or 80 tracks. 360 K type is 40 tracks 720 K, 1.2 M and 1.44 M are all 80 tracks.

Enabled BIOS searches for floppy disk drive to determine it is 40 or 80 tracks. Note that BIOS can not tell from 720 K, 1.2 M or 1.44 M drive type as they are all 80 tracks. ( Default value }

Disabled BIOS will not search for the type of floppy disk drive by track number. Note that there will not be any warning message if the drive installed is 360 K.

Boot Up NumLock Status

On Keypad is number keys. ( Default value }

Off Keypad is arrow keys. Gate A20 Option

Normal Set Gate A20 Option is Normal

Fast Set Gate A20 Option is Fast. ( Default value }

Typematic Rate Setting

Enable Keyboard Typematic rate setting.

Setthe maximum Typematic rate from 6 chars. Per second to 30 characters. Per second. ( Default value : 6)

Typematic Delay (Msec.)

Setthe time delay from first key to repeat the same key in to computer.

This category allows you to limit access to the system and Setup, or just to Setup.

System The system can not boot and can not access to Setup page will be denied ifthe correct password is not entered atthe prompt.

Setup The system will boot, but access to Setup will be denied ifthe correct password is not entered atthe prompt. ( Default value )

*__ OS Select For DRAM>64MB Non-0S2 Using non-OS2 operating system. ( Default value )

0s2 Using OS2 operating system and DRAM >64MB

°° HDDS.M.ART. Capability

Enabled Enabled HDD S.M.A.R.T. Capability.

3 Set SDRAM RAS Precharge is 3.

2 Set SDRAM RAS Precharge is 2. (Default value } SDRAM Buffer Strength

Auto Set SDRAM Buffer Strength is Auto. ( Default Value } Auto+1_| Set SDRAM Buffer Strength is Auto+1

Auto-1 | Set SDRAM Buffer Strength is Auto-1

DRAM Page Closing Policy

Disabled Normal operation. ( Default value )

Enabled For slow speed ISA device in system. On-Chip Video Window Size

32MB Set Graphics Aperture Size to 32MB.

64MB Set Graphics Aperture Size to 64MB. (Default value }

Local Memory Frequency (For 82810E)

6WFZ7 Series Motherboard

°__ On-Chip Primary PCI IDE Enabled Enable onboard 1st channel IDE port. ( Default value }

Disabled Disable onboard 1st channel IDE port.

°__ On-Chip Secondary PCI IDE Enabled Enable onboard 2nd channel IDE port. ( Default value )

Disabled Disable onboard 2nd channel IDE port.

° IDE Primary Master PIO (for onboard IDE 1st channel)

Auto BIOS will automatically detect the IDE HDD Accessing mode. { Default value )

Mode0-4 Manually set the IDE Accessing mode.

+ IDE Primary Slave PIO (for onboard IDE 1st channel)

Auto BIOS will automatically detect the IDE HDD Accessing mode. { Default value )

Mode0-4 Manually set the IDE Accessing mode.

+ IDE Secondary Master PIO (for onboard IDE 2nd channel)

Auto BIOS will automatically detect the IDE HDD Accessing mode. { Default value )

Mode0-4 Manually set the IDE Accessing mode.

+ IDE Secondary Slave PIO (for onboard IDE 2nd channel)

Disabled Disable USB Controller.

USB Keyboard Support

Enabled Enable USB Keyboard Support.

Disabled Disable USB Keyboard Support. ( Default value }

Enabled Enabled AC'97 Audio.

Enabled Enabled AC'97 Modem.

Password Enter from 1 to 5 characters to setthe Keyboard Power On Password.

Mouse Right Double click twice on PS2 right bottom.

key to power on your system. (Default value }

SetIR Transmittion delay Disabled.

278]RQ5 | Enable onboard LPT port and address is 278/IRQ5

Disabled Disable onboard LPT port.

3BC/RQ7_ | Enable onboard LPT port and address is 3BC/IRQ7.

SPP Using Parallel port as Standard Parallel Port. ( Default value } EPP Using Parallel port as Enhanced Parallel Port. ECP Using Parallel port as Extended Capabilities Port.

ECP+EPP | Using Parallel port as ECP & EPP mode.

EPP 1.9 SetEPP Mode Select is EPP 1.9.

EPP 1.7 SetEPP Mode Select is EPP 1.7. (Default value }

1 SetECP Mode Use DMA is 1.

3 SetECP Mode Use DMA is 3. ( Default value } Game Port Address

Disabled Disabled this function.

201 Set onboard game port is 201. ( Default value } 209 Set onboard game port is 209.

Disabled Disabled On Board Midi Port.

300 Set On Board Midi Port is 300.

ACPI Suspend Type SIP owerOnsuspend) Item Help Power Management User Define Video Off Method DPMS Menu Level ? Video Off In Suspend Yes Suspend Type Stop Grant MODEM Use IRQ 4

Suspend Mode Disabled HDD Power Down Disabled Soft-Off by PWR-BTTN Instant-off Power LED in Suspend Blinking

AC BACK Function Memory Wake-Up by PCI card Enabled ModemRingOn/WakeOnLan Enabled FAN OffIn Suspend Enabled USB KB/Mouse Wake From S3 Disabled CPU Thermal-Throttling 50% Resume by Alarm Disabled

* Date(of Month) Alarm 0 *Time(hh:mmi:ss) Alarm 0 0 0 # Reload Global Timer Events *

Primary IDE 0 Disabled Primary IDE 1 Disabled Secondary IDE 0 Disabled Secondary IDE 1 Disabled FDD,COM,LPT Port Enabled PCIPIRQIA-DI# Enabled

Figure 7: Power Management Setup

S3(Suspend to RAM) SetACPI Suspend type is S3.

BIOS will turn off V/H-SYNC when gets into Green mode for Green monitor power saving.

BIOS will only black monitor when gets into Green mode.

Enable HDD Power Down mode between 1 to 15 mins.

Soft-off by PWR-BTTN Instant-off Soft switch ON/OFF for POWER ON/OFF. ( Default value } Delay 4 Sec. | Softswitch ON 4sec. for POWER OFF.

Power LED in Suspend

Blinking SetPower LED in Suspend at Blinking mode. ( Default value ) On SetPower LED in Suspend at On mode.

Off/Dual Set Power LED in Suspend at Off/Dual color mode.

Enabled Enabled wake-up by PCI card. ( Default value ) ModemRingOn / WakeOnLan

Disabled Disable these functions.

Enabled Enable these functions. ( Default value ) FAN Off In Suspend

Disabled Disabled this function. (Default value ) Enabled Enabled USB KB/Mouse Wake From S3 function CPU Thermal-Throttling 87.5% Monitor CPU Temp. will cause system slow down CPU Duty Cycle to 87.5% 75.0% Monitor CPU Temp. will cause system slow down CPU Duty Cycle to 15.0% 62.5% Monitor CPU Temp. will cause system slow down CPU Duty Cycle to 62.5% 50.0% Monitor CPU Temp. will cause system slow down CPU Duty Cycle to 50.0%. (Default value ) 37.5% Monitor CPU Temp. will cause system slow down CPU Duty Cycle to 37.5% 25.0% Monitor CPU Temp. will cause system slow down CPU Duty Cycle to 25.0% 12.5% Monitor CPU Temp. will cause system slow down CPU Duty Cycle to 12.5% Resume by Alarm Disabled Disable this function. ( Default value } Enabled Enable alarm function to POWER ON system Ifthe default value is Enabled.

Enabled Enable monitor Primary IDE 0/1 for Green event. Secondary IDE 0/1

Disabled Disable this function. ( Default value }

Enabled Enable monitor Secondary IDE 0/1 for Green event.

Enabled Enable monitor FDC/COM/LPT for Green event. ( Default value ) + PCIPIRQIA-D]#

Need the BIOS to Configure non- Boot devices

Ti + Move Enter:Select +-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5:Previous Values F6:Fai-Safe Defauits F7:Optimized Defaults

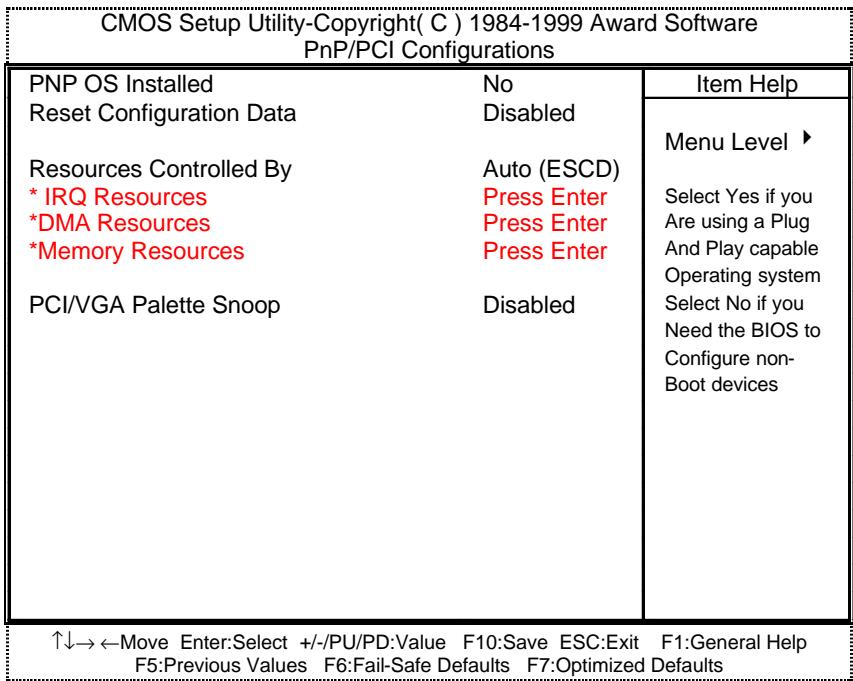

Figure 8: PnP/PCI Configurations

used by legacy ISA DEVICE.

BIOS automatically use these PnP rescuers. ( Default value }

(Legacy ISA or "PCI/ISA PnP )

10,11,12,14,15 ),DMA( 0,1,3,5,6,7 ) assigned to

Legacy ISA The resource is used by Legacy ISA device.

PCIISA PnP The resource is used by PCI/ISA PnP device (PCI or ISA).

Reserved Memory Base

N/A Disable the MEM. block using. ( Default value )

Selectthe MEM. block starting address.

PCI/VGA Palette Snoop

Forhaving Video Card on ISA Bus and VGA Card on PCI Bus.

Figure 9: PC Health Status

° Reset Case Open Status

Ifthe case is closed, “Case Opened” will show “No”

Ifthe case have been opened, "Case Opened” will show “Yes”.

If you want to reset “Case Opened” value, set "Reset Case Open Status” to "Enabled” and save CMOS, your computer will restart.

* Current CPU Temperature (°C / °F)

Detect CPU Temp. automatically.

Detect Fan speed status automatically.

{This function will be effective only for the operating systems that support ACPI Function.)

Fan Fail Alarm Function Enabled.

» Advanced BIOS Features > Advanced Chipset Features » Integrated P eripherals Set Supervisor Password

> PnP/PCI afe Defaults (Y/N)

> PC Health Status [ Exit Without Saving

ESC:Quit F10:Save & Exit Setup

Selecting this field loads the factory defaults for BIOS and Chipset Features which the

When you select this function, the following message will appear at the center of the screen to assist you in creating a password.

CMOS Setup Utility-Copyright( C ) 1984-1999 Award Software

» Standard CMOS Features » Frequency/Voltage Control » Advanced BIOS Features Load Fail-Safe Defaults > Advanced Chipset Features Load Optimized Defaults

> Integrated Peripherals Set Supervisor Password

Figure 13: Password Setting Type the password, up to eight characters, and press <Enter>. The password typed now will clear the previously entered password from CMOS memory. You will be asked to confirm the password Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter à password. To disable password, just press <Enter> when you are prompted to enter password. À message “PASSWORD DISABLED” will appear to confirm the password being disabled. Once the password is disabled, the system will boot and you can enter Setup freely. If you select System at Security Option in BIOS Features Setup Menu, you will be prompted for the password every time the system is rebooted or any time you try to enter Setup Menu. If you select Setup at Security Option in BIOS Features Setup Menu, you will be prompted only when you try to enter Setup.

> Integrated Peripherals Set Supervisor Password

ESC:Quit Ti + : Select item F10:Save & Exit Setup

Save Data to CMOS Figure 14: Save & Exit Setup

Type "Y" will quit the Setup Utility and save the user setup value to RTC CMOS Type "N" will return to Setup Utility.

> Advanced Chipset Features » Integrated P eripherals

> PnP/PCI CA Saving (Y/N)? N

ESC:Quit F10:Save & Exit Setup

Figure 15: Exit Without Saving Type "Y" will quit the Setup Utility without saving to RTC CMOS.

Type "N" will return to Setup Utility.

In this manual, we assume that your CD-ROM Drive letter to be Drive D:) Please reference IUCD CD directory D: \ Manual \ Whitney 810.pdf

After the installation is of Winodws98 is completed, run the “Setup.exe" of INF update utility.

System starts to recognize every new component.

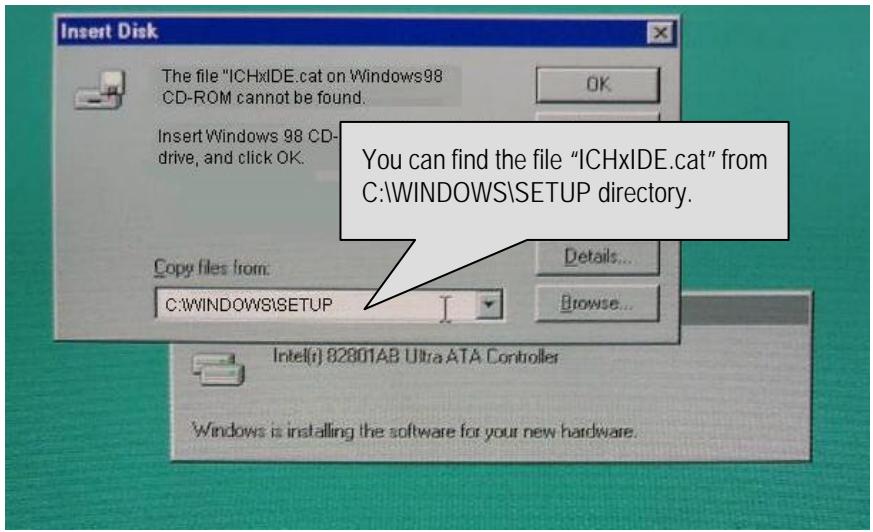

System will stop and prompt users to specify the location of “ICHXIDE.cat” file.

The system will not find the location of ICHxIDE .cat automatically.

You can find the file “ICHXIDE.cat” from C:\WINDOWS\SETUP directory.

6WFZ7 Series Motherboard

Appendix C : AU8810 Driver Installation

A. DRIVER INSTALLATION If you have older drivers in your system, please uninstall them first as described in Section C below.

1. Power on the system, placing the "Intel chipset Series Mainboard Utility CD" in the CD-ROM drive.

2. During the load process, Windows 95/98 should detect the Vortex PCI board and display a message such as "New Hardware Found". If Windows prompts you for the drivers ofthe "PCI Multimedia Audio Device", then select "Driver Disk Provided by Manufacturer Select the Vortex CD-ROM's directory.

Note: Some Windows 95 versions (OSR2) do not show this prompt. Instead, they ask whether to search the diskette and CD-ROM drives for the appropriate drivers.

Installed drivers may include Vortex PCI audio, Vortex wavetable, Vortex mixer, DOS modem port, Vortex gameport interface, Vortex MPU401 interface, and Vortex Sound Blaster emulation.

Depending on the version of Windows 95 and the configuration oftthe system, you may be prompted to provide several file locations. Here are the CD-ROM and directory locations for which you may be prompted:

Vortex Installation & Driver Disk \aureal\win9X Windows 95/98 Installation Disk \aureal\win9X Microsoft DirectX AUtility\direcbdxsetup Vortex Application Setup \aureal\win9X PCI Multifunction Audio Device \aureal\winox

B. UNINSTALLING WINDOWS 95/98 DRIVERS To uninstall the Vortex software, you can use the following procedure:

1. Open to the Windows 95/98 Device Manager (right-click on "My Computer" and select "Properties").

2. Open the "Multifunction Adapters" tree and select "Vortex Multifunction PCI Platform" 3. Press the "Remove" button at the bottom of the Device Manager window pane

4. The drivers are now removed from memory, but are still on the hard disk. To delete the files from the hard disk:

a. Open the Windows 95/98 control panel's "Add/Remove Programs" applet.

b. To remove the drivers, double-click Aureal Vortex". A Vortex uninstaller application starts.

c. To remove the demo applications, double-click "Aureal Vortex Applications". There is no need to reboot the computer.

For Technical Support please contact your board manufacturer.

Aureal. A3D, A3D-I, A3D-Interactive, and the Aureal logo are trademarks and Vortex is à registered trademark of Aureal Semiconductor Inc.

All other trademarks are owned their respective owners.

6WFZ7 Series Motherboard

Appendix D : BIOS Flash Procedure BIOS update procedure:

%__ Please check your BIOS vendor (AMI or AWARD) on the motherboard.

Y_ Itis recommended you copy the AWDFlash.exe or AMIFlash.exe in driver CD {D:\>Utilit\BIOS Flash) and the BIOS binary files into the directory you made in your hard

disk. °_Le:C:\>Utility\ (C\>Utility : denotes the driver and the directory where you putthe flash utilities and BIOS file in.}° j

Y_ Restart your computer into MS-DOS mode or command prompt only for Win95/98, go into the directory where the new BIOS file are located use the utility AWDFlash.exe or

AMIFlash.exe to update the BIOS Y Type the following command once you have enter the directory where all the files are located

C:\tility\ AWDFlash or AMIFlash <flename of the BIOS binary file intended for flashing>

Y_ Once the process is finished, reboot the system

© Note: Please download the newest BIOS from our website (www.gigabyte.com.tw) or contact your local dealer for the file.

ISA Industry standard architecture CRIMM Continuity RIMM
