Product type	Condenser tumble dryer with heat pump
Brand	Candy
Model	ABCDC779XT88
Dimensions (H x W x D)	85 cm x 60 cm x 60 cm
Net weight	45 kg
Electrical supply	230 V, 50 Hz, 16 A
Rated power	2500 W
Loading capacity	9 kg (wet laundry)
Drying programs	15 programs including cotton, synthetics, delicates, wool, refresh
Special functions	Delay start, delay end, anti-crease, quick dry
Sensor type	Electronic humidity sensor
Maintenance and cleaning	Clean the lint filter after each cycle, clean the condenser every month
Safety	Child lock, overheat protection, automatic shutdown in case of failure
Spare parts and repairability	Repairability index of 7.2/10; available parts: filter, belt, heating element, pump
General information	Energy class A++, noise level 65 dB(A)

Frequently Asked Questions - ABCDC779XT88 CANDY

How to install the Candy ABCDC779XT88 tumble dryer?

Place the appliance on a flat and stable surface, near a power outlet. Leave at least 5 cm of space around for ventilation. If you wish to stack it on a washing machine, use the appropriate stacking kit.

What drying programs are available?

The appliance offers 15 programs: cotton (ready to store, very dry), synthetics, delicates, wool, refresh, easy iron, etc. Refer to the manual for full details.

How to clean the lint filter?

Open the door and remove the filter at the bottom of the opening. Remove the lint by hand and rinse the filter with warm water if necessary. Dry it thoroughly before replacing.

Why won't the tumble dryer start?

Check that the appliance is plugged in and the door is properly closed. Make sure a program is selected and the Start button is pressed. If the problem persists, check the fuse or circuit breaker.

How to empty the water tank?

The water tank is located at the bottom right of the appliance. Pull it towards you, empty it into a sink, and replace it properly until it clicks into place.

What to do if the laundry is not dry enough after the program?

Select a more intense program (e.g., Very dry) or add an additional drying cycle. Also check that the filter and condenser are clean.

The tumble dryer is making an abnormal noise, what should I do?

Ensure the appliance is level. Check that the laundry does not contain hard objects (coins, keys). If the noise persists, contact customer service.

How to activate the child lock?

Press and hold the 'Child lock' button for 3 seconds until the symbol appears on the display. To deactivate, repeat the operation.

What is the power consumption of the Candy ABCDC779XT88?

Consumption depends on the program. On average, it consumes about 2.5 kWh per full cycle. The appliance is rated A++ for energy efficiency.

How to clean the condenser?

Unlock the condenser flap at the bottom of the door, remove it, rinse it under running water (without detergent), and let it dry before replacing. Do this at least once a month.

USER MANUAL ABCDC779XT88 CANDY

Unpacking the Product 3

Safety reminders 4

Installation 4

Use 4

The Laundry 5

Environmental Issues 5

GIAS Service 5

Installation....6

Electrical requirements 6

Adjusting the feet 6

Ventilation....7

Preparing the load....8

Clothes preparation 8

Sorting the load. 9

Drying advice 10

Do not tumble dry....10

Energy saving....10

Drying guide 10

Controls and indicators 11

Door and Filter 12

Opening the door 12

Filter....12

Filter care indicator 12

Water container....13

To remove the container 13

Condenser....14

To remove the condenser 14

Selecting the Programme 15

Operation....16

Cancelling and resetting the programme 16

Start Delay Function 16

Cleaning and Routine Maintenance....17

Cleaning the dryer 17

Technical specifications 17

Troubleshooting....18

Customer Service 19

Spares. 19

GIAS Service 19

Introduction

Please read and follow these instructions carefully and operate the machine accordingly. This booklet provides important guidelines for safe use, installation, maintenance and some useful advice for best results when using your machine. Keep all documentation in a safe place for future reference or for any future owners.

Delivery information

Please check that the following items are delivered with the appliance:

• Instruction manual ● Guarantee card Energy label ● Discharge hose kit

Check that no damage has occurred to the machine during transit. If it has, call for service by GIAS.

Failure to comply with the above can compromise the safety of the appliance. You may be charged for a service call if a problem with your machine is caused by misuse.

Unpacking the product

Remove the machine from its packaging close to the final location of the machine.

1. Cut carefully around the base of the packaging and up one corner. 2. Remove the polythene sleeve and lift the dryer off the polystyrene base.

Dispose of the packaging safely. Make sure it is out of the reach of children, it is a potential source of danger.

Safety reminders

Installation

• Check that the product has no visible signs of damage before use. If damaged, do not use and please call GIAS Service.
• Do not use adapters, multiple connectors and/or extensions. This machine should not be installed in a bathroom or shower room. Never install the dryer against curtains and be sure to prevent items from falling or collecting behind the dryer.

Use

WARNING: Misuse of a tumble dryer may create a fire hazard. This machine is solely for domestic use, i.e. to dry household textiles and garments. This machine should only be used for its intended purpose as described in this manual. Ensure that the instructions for installation and use are fully understood before operating the appliance. - Do not touch the appliance when hands or feet are damp or wet. - Do not lean on the door when loading the machine or use the door to lift or move the machine. Do not allow children to play with the machine or its controls. WARNING: Do not use the product if the fluff filter is not in position or is damaged; fluff could be ignited. WARNING: Where the hot surface symbol ⚠ is located, the temperature rise during operation of the tumble dryer may be in excess of 60 degrees C. - Remove the plug from the electricity supply. Always remove the plug before cleaning the appliance. - Do not continue to use this machine if it appears to be faulty. Lint and fluff must not be allowed to collect on the floor around the outside of the machine. The drum inside may be very hot. Always allow the dryer to complete the cool down period before removing the laundry.

The Laundry

WARNING: Do not tumble dry fabrics treated with dry cleaning fluids. WARNING: Foam rubber materials can, under certain circumstances, when heated become ignited by spontaneous combustion. Foam plastic, foam rubber and rubber-like material are not suitable for tumble drying. Articles made from these materials MUST NOT be placed in the dryer.

Always refer to the laundry care labels for directions on suitability for drying.

Clothes should be spin dried or thoroughly wrung before they are put into the tumble dryer. Clothes that are dripping wet should NOT be put into the dryer.

Lighters and matches must not be left in pockets and NEVER use flammable liquids near the machine.

●Glass fibre curtains should NEVER be put in this machine. Skin irritation may occur if other garments are contaminated with the glass fibres.

●Garments treated or contaminated with flammable cleaning sprays or liquids such as petrol, cooking oil or aerosol sprays MUST NOT be put in this machine.

Environmental Issues

●All packaging materials used are environmentally-friendly and recyclable. Please help dispose of the packaging via environmentally-friendly means. Your local council will be able to give you details of current means of disposal. ●To ensure safety when disposing of an old tumble dryer disconnect the mains plug from the socket, cut the mains power cable and destroy this together with the plug. To prevent children shutting themselves in the machine break the door hinges or the door lock.

GIAS Service

●To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised GIAS Service engineer.

If the appliance is not running properly or breaks down, switch it off and disconnect the plug from the socket. Consult GIAS Service for possible repair.

Installation

You may be charged for a service call if a problem with your machine is caused by incorrect installation.

If the mains cord on this appliance is damaged, it must be replaced by a special cord which is ONLY obtainable from the GIAS spares service. It must be installed by a competent person.

Electrical requirements

Tumble dryers are supplied to operate at a voltage of 230V, 50 Hz single phase. Check that the supply circuit is rated to at least 16A.

Electricity can be extremely dangerous.

This appliance must be earthed.

The socket outlet and the plug on the appliance must be of the same type.

Do not use multiple adapters and/or extension leads.

The plug should be accessible for disconnection after the appliance has been installed.

The wires in the mains lead are coloured in accordance with the following codes:

Blue NEUTRAL

Brown LIVE

Green and Yellow EARTH

CE Appliance complies with European Directive 89/336/EEC, 73/23/EEC and subsequent amendments.

Do not plug the machine in and switch it on at the mains until the installation is completed.

For your safety, this dryer must be correctly installed.

If there is any doubt about installation, call GIAS Service for advice.

Adjusting the feet

Once the machine is in place the feet should be adjusted to ensure that the machine is level.

Adjust the four feet to ensure the machine is firm and level.

Ventilation

Adequate ventilation must be provided in the room where the tumble dryer is located to prevent gases from appliances burning other fuels, including open fires, being drawn into the room during operation of the tumble dryer.

●Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels. - Check regularly that the air flowing through the dryer is not restricted. - Check the fluff filter after use, and clean, if necessary. ●The inlet and outlets should be kept free from obstructions. To ensure adequate ventilation the space between the bottom of the machine and the floor must not be obstructed. There should be a gap of at least 12mm between the machine and any obstructions. ●Prevent items from falling or collecting behind the dryer as these may obstruct the air inlet and outlet. ● NEVER install the dryer up against curtains.

Preparing the load

Before using the tumble dryer for the first time:

• Please read this instruction book thoroughly.
• Remove all items packed inside drum. ●Wipe the inside of the drum and door with a damp cloth to remove any dust which may have settled in transit.

Clothes preparation

Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item.

Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled.

Maximum drying weight

●Cottons Max. 7 kg ●Synthetics Max. 3.5 kg

Do not overload the drum, large items when wet can exceed the maximum admissible clothes load (for example: sleeping bags, duvets).

Sort the load as follows:

- By care symbols

These can be found on the collar or inside seam:

Suitable for tumble drying.

Tumble drying at high temperature.

Tumble drying at low temperature only.

Do not tumble dry.

If the item does not have a care label it must be assumed that it is not suitable for tumble drying.

● By amount and thickness

Whenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear).

● By type of fabric

Cottons/linen: Towels, cotton jersey, bed and table linen.

Synthetics: Blouses, shirts, overalls, etc. made of polyester or polyamid, as well as for cotton/synthetic mixes.

● By drying level

Sort into: iron dry, cupboard dry, etc. For delicate articles press the 📋 button to select low drying temperature.

Drying advice

IMPORTANT: Do not dry articles which have been treated with a dry cleaning fluid or rubber clothes (danger of fire or explosion).

During the last 15 minutes the load is always tumbled in cool air.

Do not tumble dry:

Woollens, silk, delicate fabrics, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings, training shoes, bulky items such as sleeping bags, etc.

Energy saving

Only put into the tumble dryer laundry which has been thoroughly wrung or spin-dried. The drier the laundry the shorter the drying time thus saving electricity.

ALWAYS

●Try to dry the maximum weight of laundry, this will save time and electricity. - Check that the filter is clean before every drying cycle.

NEVER

●Exceed the maximum weight, this will waste time and electricity. ●Put dripping wet items into the tumble dryer, this may damage the appliance.

Drying guide

The table shows approximate drying times, depending on the type of fabric and dampness of the clothes.

Fabric	HEAT SETTING	INDICATOR LIGHT	HEAVY LOAD	MEDIUM LOAD	LIGHT LOAD
COTTON 📋	HIGH	OFF	140-160 min	70-80 min	50-65 min
SYNTHETICS 🖱	LOW	ON	-	70-80 min	40-55 min
ACRYLIC 🌒	LOW	ON	-	50-65 min	30-40 min

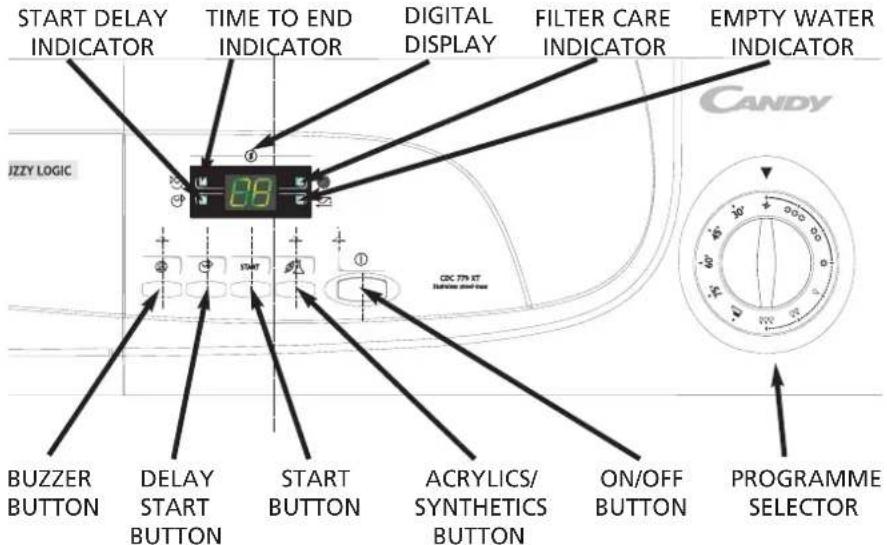

Controls and indicators

Control panel and indicator lights

Programme Selector – Select the required programme

On/Off button and indicator ① – Press to switch on, the indicator will light. The display will show the selected programme (see Programme Guide)

Acrylics/Synthetics button ⚡️ – Press to reduce the heat level for delicate items, the indicator above the button will light up. To change the heat setting the programme must be reset

Low Heat - Indicator light OONM

High Heat - Indicator light OFF

START button – Press START to commence the selected drying programme. Press for 5 seconds to cancel/reset the programme.

Delay Start button ⬇ – Allows the user to delay the start of the drying cycle (see details of Operation on page 16).

Buzzer button Ⓐ – The buzzer is active in normal operation. To cancel the buzzer press the button and the indicator will light up.

Empty Water indicator ≈ - Lights when the water container tray is full.

Filter Care indicator ⚙ – Lights when the filter needs cleaning.

Time to End indicator 📋 – Lights when the program starts.

Start Delay indicator ⬇ – Light flashes when the program starts.

Digital Display – The two digit display indicates the selected programme, the Start Delay and the Time to End of the programme.

Door and Filter

Opening the door

Pull on handle to open the door.

To restart the dryer, close the door and press①.

WARNING!

When the tumble dryer is in use the drum and door may be VERY HOT.

Filter

IMPORTANT: To maintain the efficiency of the dryer, check that the fluff filter is clean before each drying cycle.

1. Pull the filter upwards.
2. Open the filter as shown.
3. Gently remove lint using a soft brush or your fingertips.
4. Snap the filter together and push it back into place.

Filter Care Indicator

lights when the filter needs cleaning.

If the laundry is not drying, check that the filter is not clogged.

Water Container

The water removed from the laundry during the drying cycle is collected in a container at the bottom of the dryer.

When the container is full, the indicator on the control panel will light, and the container MUST be emptied. However, we recommend that the container is emptied after each drying cycle. NOTE: Very little water will collect during the first few cycles of a new machine as an internal reservoir is filled first.

To remove the container

1. Gently pull out the tray until it is completely removed. Support the tray with both hands. When it is full, the water container will weigh about 4kg.

1. Open the lid located on the top of the container and empty the water out. Refit the lid and slide the water container back into position. PUSH FIRMLY INTO PLACE.

NOTE: If you have the option of drainage near the dryer, it is possible to use the discharge kit to provide a permanent drain for the water collected by the dryer. This will remove the need to empty the water tray. All the information for assembly of the kit is contained in the kit envelope.

Condenser

Important: Always switch off and remove the plug from the electricity supply before cleaning the condenser.

To maintain the efficiency of the dryer, regularly check that the condenser is clean.

To remove the condenser

1. Gently pull the bottom of the kickplate so that it unclips from the dryer. The top section can then be unhinged, allowing the kickplate to be completely removed.
2. Turn the two locking levers anti-clockwise and pull out the condenser.
3. Pull out the condenser unit.

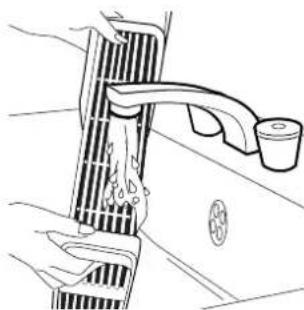

1. Gently remove any dust or fluff with a cloth, then wash the unit by holding it under a running tap, turning it so that water flows between the plates, to remove any dust or fluff.
2. Refit the condenser, ensuring it is in the correct way (as indicated by the arrow) and pushed firmly into place. Lock the two levers by turning them clockwise.
3. Refit the kickplate.

Selecting the Programme

The Sensor Dry machine gives many options for drying the laundry to suit all circumstances.

The table below lists the programmes and the function of each programme.

Programme	Description
Bone Dry ⚙️ ⚙️	Select the degree of dryness that you require.This ranges from Bone Dry for bath towels and bathrobes, through Cupboard Dry for items that will be put away without ironing, to the programmes that leave the laundry suitable for ironing.
Extra Dry ⚙️ ⚙️
Cupboard Dry ⚙️
Iron Dry ⚙️
Medium Dry ⚙️
Damp Dry ⚙️ ⚙️
Fast Iron 📄	The Fast Iron programme provides a conditioning and anticrease function. The dryer will heat the load for 9 minutes followed by a 3 minute cool down period and is especially good for garments which may have been left for some time prior to ironing, in a linen basket for example. Garments may also become stiffened when dried outside on a washing line or inside on radiators. The Fast Iron process relaxes the creases in the fabric making ironing quicker and easier.
75'	75 minutes of drying
60'	60 minutes of drying
45'	45 minutes of drying
30'	30 minutes of drying
Refresh ✕	Tumbling of laundry in cool air

Note: The sensor may not detect a small load of small articles. For small loads and separate items or pre-dried fabrics with low moisture content, use the timed programmes. Set the programme between 30 and 75 minutes depending on the load size and dryness required, and select high or low heat depending upon the fabric type.

If the sensor does not detect the item, the dryer will only operate for 10 minutes before going into cooldown.

If the load is too large or too wet to tumble dry, the dryer will automatically go into cooldown after 180 minutes.

Operation

1. Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door.
2. Gently close the door, pushing it slowly until you hear the door 'click' shut.
3. Press the ① button to switch on the dryer. The indicator will light up and the programme number will be indicated.
4. Turn the Programme Selector dial to select the required drying program (see Programme Guide).
5. If drying synthetics, acrylics or delicate items, press the 📄 button to reduce the heat level. The light above the push button will light up when the machine is in low heat setting. To deselect this status, the machine must be reset.
6. Press the START button. The dryer will start automatically and the indicator will be continuously lit. The time to the end of the program will be shown on the display.
7. The display will show the drying progress in terms of time remaining, and the indicator will remain lit.
8. If the door is opened during the programme to check the laundry, it is necessary to press START to recommence drying after the door has been closed.
9. When the 15' indicator is lit, the machine will enter the cool down phase, and the clothes will be tumbled in cool air allowing the load to cool down.
10. When the programme is complete, the Display will show 0'min. and the buzzer will sound for 10 seconds.

Cancelling and resetting the programme

To cancel a programme, press the START button for 5 seconds. The machine will indicate that it has been reset by the ⏻ indicator flashing. It is possible to change the programme within the first 10 minutes without using the cancel and reset function.

Start Delay Function

The Delay Start function allows the user to delay the start of the drying cycle by up to 23 hours.

When the function is first selected the display will show a delay of 1 hour,

subsequent presses of the button will increase the delay by 1 hour to a maximum of 23 hours.

To commence the programme press START and the display will indicate the hours remaining on the time delay and will complete the drying cycle at the end of this time.

Note: If START is not pressed within 5 seconds the Delay Start will cancel automatically.

WARNING!

The drum, door and load may be very hot.

Cleaning and Routine Maintenance

Cleaning the dryer

●Clean the filter and empty the water container after every drying cycle. ●Regularly clean the condenser. ●After each period of use, wipe the inside of the drum and leave the door open for a while to allow circulation of air to dry it. ●Wipe the outside of the machine and the door with a soft cloth. ● DO NOT use abrasive pads or cleaning agents. ●To prevent the door sticking or the build up of fluff periodically clean the inner door and gasket with a damp cloth.

IMPORTANT

Always switch off and remove the plug from the electricity supply before cleaning this appliance.

Technical specifications

Drum capacity 115 litres

Maximum load 7 kg

Height 85 cm

Width 60 cm

Depth 60 cm

Energy Label Band C

For electrical data refer to the rating label on the front of the dryer cabinet (with the door open).

Troubleshooting

What might be the cause of...

Defects you can remedy yourself

Before calling GIAS Service for technical advice, please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly. If the problem persists after completing the recommended checks, please call GIAS Service; they may be able to assist you over the telephone.

Drying time is too long/clothes are not dry enough...

● Have you selected the correct drying time/programme? - Were the clothes too wet? Were the clothes thoroughly wrung or spin-dried? ● Does the filter need cleaning? - Does the condenser need cleaning? ● Is the dryer overloaded? ● Are the inlets, outlets, and base of the dryer free from obstructions? ● Has the ⚡ option been selected from a previous cycle?

The dryer does not operate...

• Is there a working electricity supply to the dryer? Check using another appliance such as a table lamp. ● Is the plug properly connected to the mains supply? Is there a power failure? ● Has the fuse blown? ● Is the door fully closed? ● Is the dryer switched on, both at the mains supply and at the machine? ● Has the drying time or the programme been selected? ● Has the machine been switched on again after opening the door?
• Has the dryer stopped operating because the water tray is full and needs emptying?

The dryer is noisy...

● Switch off the dryer and contact GIAS Service for advice.

The Filter Care Indicator is on...

● Does the filter need cleaning? - Does the condenser need cleaning?

Empty Water Indicator is on...

- Does the water container need emptying?

Customer Service

Should there still be a problem with your dryer after completing all the recommended checks, please call GIAS Service for advice. They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine:

●Is found to be in working order. ●Has not been installed in accordance with the installation instructions. ●Has been used incorrectly.

Spares

Always use genuine spares, available direct from GIAS Service.

GIAS Service

For service and repairs call your local GIAS Service engineer.

The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.

Introduction 21

Safety reminders

Installation

Electrical requirements

Filter

Condenser

Safety instructions

Installation

Electrical connection

Opening the door

Filter

Lint filter indicator

Condenser

Filter

Condenser

Opening the door

Water container

Condensator

Safety

Installation

Adjusting the feet

Filter

Condensator

Adjusting the feet

Opening the door

Filter

Condensator

Program selection
