CMCH 154 EL88 - Freezer CANDY - Free user manual and instructions

Product type	Upright freezer
Brand	Candy
Model	CMCH 154 EL88
Net capacity	154 L
Climate class	SN-T (10 °C to 43 °C)
Energy class	E (former class A+)
Annual consumption	approximately 221 kWh
Noise level	40 dB
Dimensions (W x H x D)	54 x 144 x 60 cm
Net weight	40 kg
Autonomy in case of power failure	15 h
Freezing capacity	9 kg/24h
Defrost system	Manual
Adjustable thermostat	Yes
Open door alarm	Yes
Temperature alarm	Yes
Door reversibility	Yes
Adjustable feet	Yes
Interior lighting	No
Refrigerant gas type	R600a
Repairability index	8.5/10
Country of manufacture	Italy
Manufacturer warranty	2 years

Frequently Asked Questions - CMCH 154 EL88 CANDY

How do I adjust the temperature of my Candy CMCH 154 EL88 freezer?

Use the thermostat located inside or on the front. Turn it to a medium position (3-4) for optimal preservation. Wait 24 hours for the temperature to stabilize.

What should I do if my freezer is not cooling?

First check the power supply and fuse. Make sure the door is properly closed and the thermostat is not set to '0'. If the problem persists, contact customer service.

How do I manually defrost the Candy CMCH 154 EL88 freezer?

Unplug the appliance, remove the food and place it in a cooler. Leave the door open until the ice melts. Avoid using sharp objects. Dry the interior before plugging it back in.

What is the freezing capacity of this model?

The freezing capacity is 9 kg per 24 hours, allowing large amounts of fresh food to be frozen.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual to disassemble and reposition the door on the other side. Basic tools are required.

What do the audible alerts mean?

An alarm sounds if the door is left open for too long or if the internal temperature exceeds the threshold. Close the door or wait for the temperature to return to normal.

How do I clean the interior of the freezer?

Unplug the appliance and empty it. Use a soft cloth with warm water and a little white vinegar. Rinse and dry thoroughly before restarting.

What is the energy class and consumption?

This freezer is rated E on the European energy label, with an estimated annual consumption of 221 kWh.

How long will food stay frozen during a power outage?

The autonomy is about 15 hours, provided the door is not opened. Place an ice block to extend preservation.

Where can I find spare parts for this model?

You can contact Candy customer service or check specialized appliance parts websites. Use the reference CMCH 154 EL88.

USER MANUAL CMCH 154 EL88 CANDY

Climate class

SAFETY INFORMATION....20

Storing Frozen Food 30

Freezing Fresh Food 31

ENERGY SAVING 31

TAKE CARE....31

Defrosting 31

Cleaning and Care 32

TROUBLE SHOOTING.... 32

Thank you for purchasing this product.

Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as:

• the kitchen area for personnel in shops, offices and other working environments
• on farms, by clientele of hotels, motels and other environments of a residential type
• at bed and breakfasts (B & B)
• for catering services and similar applications not for retail sale.

This appliance must be used only for purposes of storage of food. Any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions. Please, to obtain the best possible performance and trouble-free operation from your appliance, it is very important to carefully read these instructions. Failure to observe these instructions may invalidate your right to free service during the guarantee period.

SAFETY INFORMATION

This guide contains many important safety information.

Please, we suggest you keep these instructions in a safe place for easy reference and a good experience with the appliance.

The refrigerator contains a refrigerant gas (R600a: isobutane) and insulating gas (cyclopentane), with high compatibility with the environment, that are, however, flammable.

Caution: risk of fire

If the refrigerant circuit should be damaged:

- Avoid open flames and sources of ignition.

Thoroughly ventilate the room in which the appliance is situated.

WARNING!

- Care must be taken while cleaning/carrying the appliance to avoid touching the condenser metal wires at the back of the appliance, as you might injure your fingers and hands or damage your product.

- This appliance is not designed for stacking with any other appliance. Do not attempt to sit or stand on top of your appliance as it is not designed for such use. You could injure yourself or damage the appliance.

- Make sure that mains cable is not caught under the appliance during and after carrying/moving the appliance, to avoid the mains cable becoming cut or damaged.

- When positioning your appliance take care not to damage your flooring, pipes, wall coverings etc. Do not move the appliance by pulling by the lid or handle. Do not allow children to play with the appliance or tamper with the controls. Our company declines to accept any liability should the instructions not be followed.

- Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water.

- Do not install the appliance near heaters or flammable materials.

- If there is a power failure, do not open the lid.

Frozen food should not be affected if the failure lasts for less than 20 hours. If the failure is longer, then the food should be checked and eaten immediately or cooked and then refrozen.

- If you find that the lid of the chest freezer is difficult to open just after you have closed it, don't worry. This is due to the pressure difference which will equalize and allow the lid to be opened normally after a few minutes.

- Do not connect the appliance to the electricity supply until all packing and transit protectors have been removed.

- Leave to stand for at least 4 hours before switching on to allow compressor oil to settle if transported horizontally.

- This freezer must only be used for its intended purpose (i.e., storing and freezing of edible foodstuffs).

- Do not store medicine or research materials in the Wine Coolers. When the material that requires a strict control of storage temperatures is to be stored, it is possible that it will deteriorate or an uncontrolled reason may occur that can cause risks.

- Before performing any operation, unplug the power cord from the power socket.

- On delivery, check to make sure that the product is not damaged and that all the parts and accessories are in perfect condition.

- If in the refrigeration system a leak is noted, do not touch the wall outlet and do not use open flames. Open the window and let air into the room. Then call a service center to ask for repair.

- Do not use extension cords or adapters.

- Do not excessively pull or fold the power cord or touch the plug with wet hands.

- Do not damage the plug and/or the power cord; this could cause electrical shocks or fires.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

- Do not place or store flammable and highly volatile materials such as ether, petrol, LPG, propane gas, aerosol spray cans, adhesives, pure alcohol, etc. These materials may cause an explosion.

- Do not use or store flammable sprays, such as spray paint, near the Wine Coolers. It could cause an explosion or fire.

- Do not place objects and/or containers filled with water on the top of the appliance.

- We do not recommend the use of extension leads and multi-way adapters.

- Do not dispose of the appliance on a fire. Take care not to damage the cooling circuit/pipes of the appliance in transportation and in use. In case of damage, do not expose the appliance to fire or potential ignition sources, and immediately

ventilate the room where the appliance is situated.

- The refrigeration system positioned behind and inside the Wine Coolers contains refrigerant. Therefore, avoid damaging the tubes.

- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- Do not damage the refrigerant circuit.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.

- Do not touch internal cooling elements, especially with wet hands, to avoid cracks or injuries.

- Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.

- Do not use pointed or sharp-edged objects such as knives or forks to remove the frost.

- Never use hairdryers, electrical heaters or other such electrical appliances for defrosting.

- Do not scrape with a knife or sharp object to remove frost or ice that occurs. With these, the refrigerant circuit can be damaged, the spill from which can cause a fire or damage your eyes.

• Do not use mechanical devices or other equipment to hasten the defrosting process.
• Absolutely avoid the use of open flame or electrical equipment, such as heaters, steam cleaners, candles, oil lamps and the like in order to speed up the defrosting phase.
• Never use water to wash the compressor position, wipe it with a dry cloth thoroughly after cleaning to prevent rust.
• It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause of fire.
• The product is designed and built for domestic household use only.
• The guarantee will be void if the product is installed or used in commercial or non-residential domestic household premises.
• The product must be correctly installed, located and operated in accordance with the instructions contained in the User Instructions Booklet provided.
• The guarantee is applicable only to new products and is not transferable if the product is resold.
• Our company disclaims any liability for incidental or consequential damages.
• The guarantee does not in any way diminish your statutory or legal rights.
• Do not perform repairs on this Wine Cooler. All

interventions must be performed solely by qualified personnel.

SAFETY CHILDREN!

- If you are discarding an old product with a lock or latch fitted to the door, ensure that it is left in a safe condition to prevent the entrapment of children.

- This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or with a lack of experience and knowledge, provided that they have been given adequate supervision or instruction concerning how to use the appliance in a safe way and understand the hazards involved.

- Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.

CHEST FREEZER CANDY

Climate Class

The appliance is designed to operate at a limited range of ambient temperature, depending on climate zones. Do not use the appliance at temperatures outside the limit. The climate class of your appliance is indicated on the label with technical description inside the fridge compartment.

Climate Class	Amb. T. (°C)	Amb. T. (°F)
SN	From 10 to 32	From 50 to 90
N	From 16 to 32	From 61 to 90
ST	From 16 to 38	From 61 to 100
T	From 16 to 43	From 61 to 110

TRANSPORTATION INSTRUCTIONS

The appliance should be transported only in a vertical upright position. The packing as supplied must be intact during transportation. If during the course of transport the product has been transported horizontally, it must only be laid on its left hand side (when facing the door front) and it must not be operated for at least 4 hours to allow the system to settle after the appliance is brought back to upright position.

1. Failure to comply with the above instructions could result in damage occurring to the appliance. The manufacturer will not be held responsible if these instructions are disregarded.
2. The appliance must be protected against rain, moisture and other atmospheric influences.

3. INSTALLATION INSTRUCTIONS

1. If possible, avoid placing the appliance near cookers, radiators or in direct sunlight as this will cause the compressor to run for long periods. If installed next to a source of heat or refrigerator, maintain the following minimum side clearances:

From Cookers	4" (100 mm)
From Radiators	12" (300 mm)
From Fridges	4" (100 mm)

1. Make sure that sufficient room is provided around the appliance to ensure free air circulation. Ideally, a space of no less than 10cm must be left around the freezer, and ensure you allow gaps as shown in the below diagram.

1. The appliance should be located on a smooth surface.
2. It is forbidden to use the refrigerator outdoors.
3. Protect from moisture. Do not locate the freezer in a moist space to avoid the metal parts rusting. And do not spray water on the freezer, otherwise it will weaken the insulation and cause current leakage.
4. Refer to "Cleaning and Care" section to prepare your appliance for use.
5. If the freezer is installed in unheated areas, garages, etc., in cold weather condensation may form on the outer surfaces. This is quite normal and is not a fault. Remove the condensation by wiping with a dry cloth.

STARTING TO USE

Before you start to use the freezer, please check that:

1. The interior is dry and air can circulate freely at the rear.
2. Clean the interior as recommended under "TAKE CARE" section.
3. Insert the plug into the wall socket, all LED lights, digital display light returned to normal after 2s.; enter to modify status without any operation after 5s, automatically locked
4. Set temperature range -24°C -16°C .
5. You will hear a noise as the compressor starts up. The liquid and gases sealed within the refrigeration system may also give rise to noise, whether the compressor is running or not, which is quite normal.
6. If you are going to store already frozen food, open the freezer lid and check that the freezer has reached the correct temperature. Then you can put in your already frozen food (see "Storing Frozen Food").
7. Do not load the appliance immediately after it is switched on. Wait until the correct storage temperature has been reached. We recommend that you check the temperature with an accurate thermometer (see "Freezer Operation").

FREEZER OPERATION

Unlock Settings

Hold the "+" key and "-" key, both at the same time for more than 1 second to unlock the function, temperature setting, and quick-frozen setting functions.

• Every press of the "Up" key increases the temperature by 1°C; every press of the "Down" key decreases the temperature by 1°C; when the stop button is operated, after 5 seconds the system automatically confirms and exits according to the set temperature, and stops flashing.
• Temperature setting and quick-frozen set the boot parameters of 0.014 downtime parameters.

Quick-Frozen Function

• Press the "Super FRZ" key 24 hours before loading. The temperature is set automatically to -30°C, the digital display flashes slowly -30°C, the light is lit at the same time, and after 5 seconds it stops flashing and enters the frozen function.
• Running time is 26 hours, the quick-frozen function automatically quits, stops the quick-frozen function, its light is turned off, and it restores the previous frozen state.
• In the unlocked state, press the quick-frozen key to stop the quick-frozen function, its light is turned off, and it returns to the previous frozen state.

Temperature Alarm Function

After 3 hours of electrical operation, if the temperature in the freezer cabinet is above -12°C, the alarm light is lit and the buzzer sounds.

Indicator Lights

• When the freezer is running, the power indicator light is on. When the state changes (i.e., the digital display flashes), all the bright display is shown; when the state is modified (i.e., the digital display stops flashing), half the light is slow. When the freezer is powered off, the power indicator light goes out.

After 3 hours of electrical operation, if the temperature in the cabinet is above -12°C, the alarm light is lit and the buzzer sounds.

Suggestion: This product's factory default temperature set point is -18°C. After each set, if there is no key operation within 10 seconds, the parameter setting exits and all parameters set are valid.

Storing Frozen Food

Prepackaged commercially frozen food should be stored in accordance with the frozen food manufacturer's instructions for a +11X freezer compartment.

To ensure that the high quality achieved by the frozen food manufacturer and the food retailer is maintained, the following should be remembered:

1. Put packets in the freezer as quickly as possible after purchase.
2. Do not exceed "Use By" or "Best Before" dates on the packaging.

DO	DON'T
Defrost food from the freezer thoroughly in a fridge or in a microwave oven following defrosting and cooking instructions.	Use pointed sharp-edged objects such as knives, forks to remove the ice.

Wrap all foods in aluminum foil or freezer quality plasc bags and make sure any air is excluded.
Store commercially frozen food in accordance with the instrucons given on the packets that you buy.
Always choose high quality fresh food and be sure it is thoroughly clean before you freeze it.

For more about storing, download the App and visit "Tips & Hints".

Freezing Fresh Food

Place fresh food to be frozen near the side walls to ensure fast freezing and away from already frozen food, if possible.

The freezing capacity of your appliance in a 24-hour period is 5 kg (10 lb).

Never exceed this maximum capacity. Do not freeze too large a quantity at any one time. The quality of the food is best preserved when it is frozen right through to the center as quickly as possible.

Take special care not to mix already frozen food and fresh food.

ENERGY SAVING

For beer energy saving we suggest:

• Installing the appliance away from heat sources and not exposed to direct sunlight and in a well-ventilated room.
• Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuous functioning of the compressor.
• Do not excessively stuff foods so as to ensure proper air circulation. • Defrost the appliance in case there is ice to facilitate the transfer of cold.
• In case of absence of electrical energy, it is advisable to keep the refrigerator door closed.
• Open or keep the doors of the appliance open as little as possible.
• Avoid adjusting the setting to temperatures too cold.
• Remove dust present on the rear of the appliance.

TAKE CARE

Defrosting

Defrost twice a year or when a frost layer of around 7 mm (1/4") has formed.

Alternatively you may switch off the freezer at the socket outlet and pull out the mains plug. Extract the water conduit and put in a water container.

6 hours before the defrosting, please set the thermostat knob at "MAX" position to make sure the food is at the lowest temperature when you get it out. All food should be wrapped in several layers of newspaper and stored in a cool place (e.g. fridge or larder). Remove the freezer basket. Leave the lid open. Containers of warm water may be placed carefully in the freezer to speed up the defrosting.

When defrosting has finished, flow out defrost water which collects at the bottom of the freezer as the below diagram and dry the interior thoroughly. Switch on the Fast Freeze and leave it on for

about three hours.

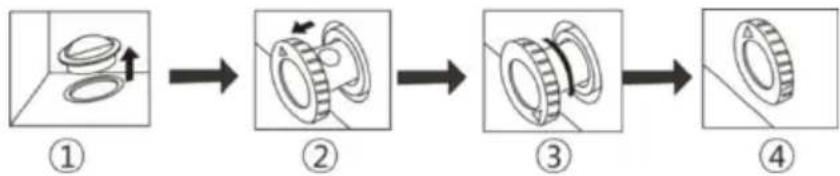

1. There is a water conduit at the bottom of the freezer. When defrosting, extract the rubber cover, defrosted water will drip into the hole and flow out. (NOTES: Please keep the rubber cover well during the defrosting and put it back after defrosting is done).
2. Extract the water conduit by 20-25mm until the water hole can be seen.
3. Twist the water conduit until the arrow points downward.
4. After defrosting is done, make sure there is no more water coming out before putting the water conduit in place and make the arrow point upward.

Cleaning and Care

We recommend that you switch off the freezer at the socket outlet and pull out the mains plug before cleaning.

Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning.

Use lukewarm water to clean the cabinet of the freezer and wipe it dry.

Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.

Excess deposit of ice should be removed on a regular basis using a plastic ice scraper available from your local store. Large accumulation of ice will impair the performance of the freezer.

If the freezer is not going to be used for a long period of time switch it off, remove all food, clean it and leave the lid ajar.

Check lid seals regularly to ensure they are clean and free from food particles.

TROUBLESHOOTING

• If the appliance does not operate when switched on, check:
• The product is designed and built for domestic household use only.
• The plug is inserted properly in the socket and that the power supply is on. (To check the power supply to the socket, plug in another appliance).
• The fuse has blown/circuit breaker has tripped/main distribution switch has been turned off.
• The temperature control has been set correctly.
• If the provided plug has been replaced, make sure the new plug is properly connected. If the appliance is still not operating after the above checks, please contact Customer Service.

SCRAPPING OLD APPLIANCES

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

WEEE should not be treated as household waste.

WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Conformity

By placing the C€ mark on this product, we are confirming compliance with all relevant European safety, health and environmental requirements that are applicable in legislation for this product.

TABLE OF CONTENTS

SAFETY INFORMATION .... 35

CANDY CHEST FREEZER 43

Climate class

ENERGY SAVING....63

CARE....64

Defrosting 64

Climate class

INSTALLATION INSTRUCTIONS....76

START-UP 76

Climate class

Climate class

Climate class

Climate category

Climate class

The appliance is designed to operate within a limited range of ambient temperatures that depends on climate zones. Do not use the appliance at temperatures outside this range. The climate class of your appliance is indicated on the technical data label inside the refrigerator compartment.

Klimatski razred	Okolišna temperatura (°C)	Okolišna temperatura (°F)
SN	Od 10 do 32	Od 50 do 90
N	Od 16 do 32	Od 61 do 90
ST	Od 16 do 38	Od 61 do 100
T	Od 16 do 43	Od 61 do 110

TRANSPORT INSTRUCTIONS

This appliance is marked in accordance with Directive 2012/19/EU on waste electrical and electronic equipment (WEEE).

Climate class

This appliance is designed to operate in an environment with a limited temperature range depending on climate zones. Do not use this appliance at temperatures outside the permitted limits. The climate class of your appliance is indicated on the technical data label, which is located inside the freezer.

Klimatski razred	Sobna temp. (°C)	Sobna temp. (°F)
SN	Od 10 do 32	Od 50 do 90
N	Od 16 do 32	Od 61 do 90
ST	Od 16 do 38	Od 61 do 100
T	Od 16 do 43	Od 61 do 110

TRANSPORT INSTRUCTIONS

This appliance should only be transported in an upright position. The packaging in which the appliance is packed must not be damaged during transport. If the appliance is transported in a horizontal position, it may only be tilted on its left side (viewed from the front) and must not be switched on for at least 4 hours to allow the refrigerant system to settle after the appliance is returned to an upright position.

1. Failure to follow these instructions may result in damage to the appliance. The manufacturer will not be held responsible for any damage caused if the aforementioned instructions are not followed.
2. This appliance must be protected from rain, moisture, and other atmospheric influences.

INSTALLATION INSTRUCTIONS

1. The appliance must be placed on a flat surface.
2. It is forbidden to keep the refrigerator outdoors.
3. Protect the appliance from moisture. Do not keep the freezer in a damp place to prevent corrosion on metal parts. Do not spray the freezer with water, as this may weaken its insulation and lead to refrigerant leakage.
4. When preparing the device for use, see the section "Cleaning and Maintenance".
5. If the freezer is placed in an unheated room, such as a garage, condensation may appear on its exterior. This is a normal occurrence and not a malfunction. Remove the condensation with a dry cloth.

STARTING UP

Before switching on your freezer, please check the following:

1. That the interior is dry and that air can circulate freely at the front.
2. That the interior has been cleaned as described in the "MAINTENANCE" section.
3. Insert the plug into the wall socket and switch on the power supply, after which the RED light will come on. Take care not to accidentally press the switch and thus turn off the device. The green light will come on and the compressor will start.
4. Insert the plug into the wall socket; all LED lights and the digital display light return to normal state after 2 seconds; enter the setting status; if no action is taken within the next 5 seconds, the system will automatically lock.
5. Set the temperature range from -24°C to -16°C.
6. If you want to store already frozen food, open the freezer door and check that it has reached the appropriate temperature. After that, you can put them in.

Climate class

Climate class

Climate class

Climate class

Climate class

Climate class

Climate class

Climate class

EN - preparing: get the handle, screws, handle cover, hole covers.

Step 1: Insert two screws into the upper holes of the handle and fix it into the door shell.

Step 2: Insert two screws into the lower holes of the handle and fix it into the door shell.

Step 3: Take the handle cover and fix it to the front of the handle, pressing the cover from one side to the other.

Step 4: Take the hole cover and press it into the hole of the handle.

Notice:

1. When fixing the handle, keep the handle and the display cover in the same line, as shown by the yellow line in the following picture.

EN - preparing: get the lock, screws, lock cover.

Step 1: Dig the foaming layer to a depth of about 8-10mm.

Step 2: Put the lock core and the supporter into the hole.

Step 3: Fix the lock supporter with two screws.

Step 4: Take the lock cover and press it onto the lock supporter, from one side to the other, as shown in the following picture.

1. When fixing the lock, keep the lock cover and the handle aligned horizontally, as shown by the yellow line in the following picture.
2. The position of the lock supporter can be adjusted by changing the fixing position of the screws.
