USER MANUAL HNT61310BH BEKO

HNT 61311 X

HNT 61311 XH

HNT 61310 BH

HNT 61310 WH

EN - RO - BS - CS - NL - ET - FR - DE - EL - HU

CONTENTS

ENGLISH 03-14

ROMÂNĂ 15-30

BOSANSKI 31-42

ČESKY 43-54

NEDERLANDS 55-67

EESTI 68-78

FRANÇAIS 79-92

DEUTSCH 93-106

ΕΛΛΗΝΙΚΑ 107-120

Please read this user manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this entire user manual and all other accompanying documents carefully before using the appliance and keep it as a reference for future use. If you handover the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in various sections of this user manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

WARNING: Warning for danger of fire.

WARNING: Warning for electric shock.

1 Important safety and environmental instructions

1.1 General safety

Important Safety Instructions Read Carefully And Keep For Future Reference This section contains safety instructions that will help protect from risk of fire, electric shock, exposure to leak microwave energy, personal injury or property damage. Failure to follow these instructions shall void any warranty.

• Beko products comply with the applicable safety standards; therefore, in case of any damage on the appliance or power cable, it should be repaired or replaced by the dealer, service center or a specialist and authorized service alike to avoid any danger. Faulty or unqualified repair work may be dangerous and cause risk to the user.

This appliance is intended to be used in household and similar applications such as:

Staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, and other residential type environments; bed and breakfast type environments.

Operate the appliance for its intended purpose only as described in this manual.

The manufacturer cannot be held liable for damages resulting from improper installation or misuse of the product.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and

1 Important safety and environmental instructions

understand the hazards involved.

Children shall not be allowed to play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of your product must be at least 65 cm.

If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account.

Make sure that your mains power supply complies with the information supplied on the rating plate of the appliance.

Never use the appliance if the power cable or the appliance itself is damaged.

Prevent damage to the power cable by not squeezing,

bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame.

Use the appliance with a grounded outlet only.

WARNING: Do not connect the appliance to the mains until the installation is fully complete.

- Place the appliance in a way so that the plug is always accessible.

- Do not touch the lamps if they have operated for a long time. They can burn your hands since they will be hot.

- Follow the regulations set out by competent authorities on discharge of the exhaust air (this warning is not applicable for use without flue).

- Operate your appliance after putting a pot, pan etc. on the hob. Otherwise, high heat may cause deformation in some parts

1 Important safety and environmental instructions

of your product.

- Turn off the hob before taking the pot, pan etc. from it.

- Do not leave hot oil on the hob. Pans with hot oil may cause self combustion.

- Pay attention to your curtains and covers since oil may catch fire while cooking food such as fries.

- Grease filter must be cleaned at least monthly. Carbon filter must be replaced at least every 3 months.

- Product shall be cleaned accordance with user manual. If cleaning was not carried out in accordance with user manual, there may be fire risk.

- Do not use non-fire-resistant filtering materials instead of the current filter.

- Only use the original parts or parts recommended by the manufacturer.

- Do not operate the prod-

Use the product without the filter and do not remove the filters while the product is running.

If any flame starts, de-energize your product and cooking appliances.

If any flame starts, cover the flame and never use water to extinguish.

Unplug the appliance before each cleaning and when the appliance is not in use.

The negative pressure in the environment should not exceed 4 Pa (4x10 bar) while the hood for electric hob and appliances running on another type of energy but electricity operate simultaneously.

In the environment where the appliance is being used, the exhaust of devices running on fuel oil or gas, such as room heater, must be absolutely isolated or the device must be of hermetic type.

1 Important safety and environmental instructions

When connecting the flue, use pipes with a diameter of 120 or 150 mm. Pipe connection must be as short as possible and have as few elbows as possible.

• When connecting the flue, use pipes with a diameter of 120 or 150 mm. Pipe connection must be as short as possible and have as few elbows as possible.
• Danger of choking! Keep all packaging materials away from children.

CAUTION: Accessible parts may become hot when used with cooking appliances.

• The product outlet must not be connected to air channels that include other smoke.

Objects placed on the product may fall. Do not place any objects on the product.

Objects placed on the product may fall. Do not place any objects on the product.

Objects placed on the product may fall. Do not place any objects on the product.

Do not flambé under your product.

WARNING: Before installing the hood, remove the protective films.

• Never leave high naked flames under the hood when it is in operation.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance.

1 Important safety and environmental instructions

Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations.

Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 General appearance

2.1 Overview

1. Slinder panel
2. Control panel
3. Grease filter
4. Lighting

2.2 Technical data

Model HNT 61311 X	HNT 61311 XHHNT 61310 BHHNT 61310 WH
Supply Voltage and Frequency 220-240V ~ 50 Hz
Lamp Power 2 x 4 W
Motor Power 115 W
Flow rate - 3. Level 300 m3/h
Insulation Class of Motor Class F
Insulation Class Class II

3 Using the appliance

3.1 Controlling the appliance

↓	Activates the 2nd and 3rd speed levels.
I Press	button "I" to operate at 1st speed level.
○	When you turn it to the "○position, the device turns off. At the same time, the device turns off when the slide panel is closed.
II Press	button "II" to operate at 2nd speed level.
III Press	button "III" to operate in 3rd speed level.

3.3 Operating the hood

• Your appliance contains a motor that has various speeds.
• For better performance, we recommend using low speeds under normal conditions and high speeds in cases of strong odours and intense vapour.
• You can start your appliance by pressing on the desired speed setting button. (I, II, III)
• When the slider panel is opened, the lamp lights up, when the slider is closed, the lamp goes out.

3.2 Energy efficient usage

• When using your appliance, adjust the speed settings according to vapour and odour intensity, in order to save energy.
• Use low speeds (I-II) under normal conditions, and high speed (III) for intense odour and vapour.

odour and vapour.

• The lamps on the hood are placed for illuminating the cooking area.
• Using them for environmental lighting shall cause unnecessary energy expenditure and insufficient lighting.
• For your device to consume less energy, run it at a low speed level.

Your device will reduce energy consumption as it will run more efficiently when you provide sufficient air intake to it.

• Set your device to the intense suction power level before the formation of steam, in cases where you know that the dense steam will occur. So, you reduce energy consumption by using your device for a shorter time as it will have a sufficient air intake.
• Keep the lids of the cookware closed to reduce the steam evolving.

3.4 Replacement of lamp

Remove the aluminium cartridge filter. Remove the defective bulb and replace with a new one with the same rating.

3 Using the appliance

Bulb
Bulb Power 4 W
Holder / Socket E14
Bulb Voltage 220 - 240 V
Size 35x100 mm
ILCOS Code DRBB/F-4-220-240-E14-35/100
Luminous flux 400 ml
Correlated colour temperature	3000 K

This product contains a light source of energy efficiency class "F".

• Candle type led lamp is used in this product.
• When changing the lamp, max. 4 W lamp should be used.

• Before replacing the light bulbs, disconnect the power supply of the hood.
• Do not touch the light bulbs when they are hot.
• Be careful not to touch the replaced light bulb directly with your hands.

You may procure lamps from Authorised Service Agents.

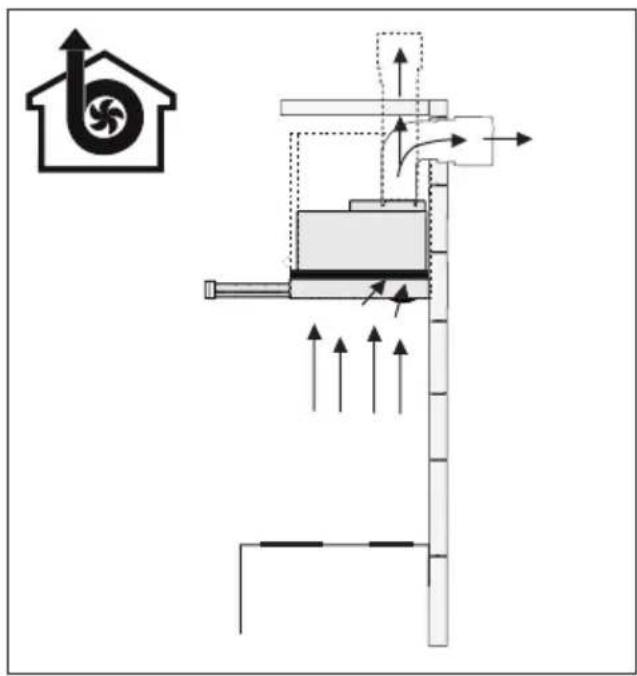

3.5 Operation with chimney connection

extracted through the flue duct, which is fastened to the connection head on the hood.

- The diameter of the flue duct must be

the same as the connection ring. In horizontal settings, the pipe has to have a slight upward slope (around 10° ) so that the air can exit the room easily.

3.6 Operation without chimney connection

red through the carbon filter and recirculated in the room. Carbon filter is used when it is impossible to use a flue in

the house.

• In flueless use, remove the flaps inside the flue adapter.
• Remove the aluminum grease filter. To install the carbon filter, fit the filter to the tabs by centring it on the plastic piece on both sides of the fan body. tighten it by turning right or left.
• Replace aluminum grease filter.

4 Cleaning and maintenance

The device should be cleaned and maintained regularly. Failure to keep the device clean will adversely affect the service life of the device. For cleaning and maintenance, follow the instructions stated in the manual.

Before cleaning and maintenance, unplug the product or turn off the switch.

Non-compliance with the provisions associated with the cleaning of the device and replacement of the filters may result in a risk of fire. Therefore, it is recommended to follow the guidelines stated here. The manufacturer is not responsible for the engine damages or fires originating from the improper use.

Clean using only a cloth dampened with neutral liquid detergent. Do not clean with tools or instruments. Do not use abrasive products. Do not use alcohol.

4.1 Cleaning of grease filter

Grease filter is used to retain the oil particles in the air. Grease filter may change colour after repeated cleaning. This is normal, and you do not have to replace your filters.

1. External grease filter
2. Internal grease filter

- Pull the sliding plate out by holding the front panel. Remove the external grease filter first, and then the internal grease filter.

• Push the grease filter lock forward.
• Then pull it slightly down and pull it out. Otherwise, you may bend the filter. Wash and rinse grease filter with liquid detergent and replace grease filter to their seats by carrying out the steps specified above in reverse order. These grease filter are used to retain the oil particles in the air.

You may also wash the grease filter in the dishwasher.

CAUTION: In case of normal use, clean your grease filter once in a month.

4.2 Replacement of carbon filters

Odour removing filters contain charcoal (active carbon). The grease filter must be installed in the product, regardless of whether or not carbon filters are used.

• Remove the grease filter.
• To remove the carbon filter, remove it from its housing by rotating it counter-clockwise from the tab.

4 Cleaning and maintenance

• Install the new carbon filter. • Install the grease filter.

CAUTION

• The carbon filter shall never be washed.
• Replace carbon filters once every 3 months.
• You can obtain the carbon filter from the authorized services.

5 Installation of appliance

WARNING: Before starting the installation, read the safety information in the user manual.

WARNING: Failure to install with screws and stabilizers in accordance with these instructions may result in electric shock.

Please refer to page 133 for the installation guide.

For the installation of the hood, please contact the nearest Authorized Service.

It is the customer's responsibility to prepare the location and electrical installation of the hood.

5.1 Position of the appliance

• Distance between the cooker and the cooker hood must be considered prior to assembly. This distance should be 65 cm.
• Distance must be measured from the surface of grate for gas cookers, from surface of glass for electric cookers.

5.2 Installation of the hood

CAUTION: Use protective gloves and goggles for drilling and cutting operations.

• Wall must be flat, straight and have the sufficient bearing capacity.
• Depth of drilling holes must comply with the length of bolts.
• The bolts and dowels provided are suitable for brick walls. For other construction material (e.g. drywall, plate, porous concrete), suitable fixing dowels and nuts shall be used.

5 Installation of appliance

5.3 Storage

• If you do not intend to use the appliance for a long time, please store it carefully.
• Please make sure that the appliance is unplugged, cooled down and totally dry.
• Store the appliance in a cool and dry place.
• Keep the appliance out of the reach of children

5.4 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
• Dropping the appliance will render it non-operational or cause permanent damage.

6 Troubleshooting

Troubleshooting Root cause Help
Appliance is not working.	Check your fuses. Fuse may be blown, inspect and restore it.
Appliance is not working.	Check the electrical connection.	Mains voltage shall be between 220 and 240 V.
Appliance is not working.	Check the electrical connection.	Check if other appliance in your kitchen operate.
Illumination light does not operate.	Check the electrical connection.	Mains voltage shall be between 220 and 240 V.
Illumination light does not operate.	Inspect the lamp switch. Lamp switch shall be at “on” position.
Illumination light does not operate.	Inspect the lamps. The lamps of the appliance shall illuminate.
Air inlet of the appliance is inadequate.	Inspect the grease filter. Under normal operating conditions, grease filter shall be cleaned at least once in a month.
Air inlet of the appliance is inadequate.	Check the air discharge chimney.	The air discharge chimney shall be at “on” position.
Air inlet of the appliance is inadequate.	Inspect the carbon filter. The filters of the appliances with carbon filters shall be replaced once in every 3 months under normal conditions.

5.2 Installing the hood

Sijalica
Snaga sijalice	4 W
Držač/utičnica	E14

1. External aluminum grease filter
2. Internal aluminum grease filter
3. Pull out the sliding panel while holding the front panel. First remove the external aluminum grease filter, then the internal aluminum grease filter.
4. Push the lock of the aluminum grease filter forward.
5. Then gently pull it downward and take it out (Figure 5). Otherwise, you may bend the filter. Wash and rinse the aluminum grease filter with liquid detergent and put the aluminum grease filter back in place by performing the above steps in reverse order. This filter collects grease particles from the air.

• Before installation, the distance between the stove and the hood must be taken into account. This distance should be 65 cm.
• The distance must be measured from the surface of the grate for gas stoves, from the glass surface for electric stoves.

5.2 Hood functions

CAUTION: Use protective gloves and goggles for drilling and cutting.

- The wall must be flat, straight, and have sufficient load-bearing capacity.

• The drilling hole depth must be in accordance with the screw length.
• The supplied screws and plugs are suitable for brick walls. For other building materials (e.g., plasterboard, panel, porous concrete), use appropriate fixing plugs and nuts.

5.3 Storage

3

1. External grease filter
2. Internal grease filter

1. External grease filter
2. Internal grease filter

• Remove the grease filter.

2x ∅ 120 mm

2x

∅ 120 mm

Arçelik A.Ş.

Karaağaç Caddesi No: 2-6, 34445,
