Product Type	Built-in Induction Hob
Brand	Beko
Model	HII64401QT
Number of Cooking Zones	4
Hob Type	Induction
Control Type	Touch control
Dimensions (W x D x H)	590 x 520 x 50 mm
Cut-out Dimensions (W x D)	560 x 490 mm
Net Weight	10.5 kg
Power Supply	220-240 V ~ 50/60 Hz
Total Power Rating	7.2 kW
Safety Features	Child lock, residual heat indicator, automatic switch-off
Cleaning	Easy-clean ceramic glass
Installation	Built-in
Energy Efficiency Class	A
Functions	Booster, timer, pause function, hob2hob
Display	Digital display
Included Accessories	Installation kit, user manual
Spare Parts Availability	Yes, via Beko service
Repairability Index	8.5/10

Frequently Asked Questions - HII64401QT BEKO

How do I activate the child lock on my Beko HII64401QT?

To activate the child lock, press and hold the lock icon for 3 seconds until a beep sounds. The lock symbol will appear on the display. To deactivate, repeat the same process.

What should I do if an error code appears on the display?

Common error codes like E0 or E1 indicate a pan detection issue. Ensure cookware is suitable for induction and properly centered. For other codes, reset the hob by turning off the mains power for 30 seconds. If the error persists, consult the manual or contact Beko service.

How do I clean the ceramic glass surface?

Use a damp cloth with mild detergent or a dedicated ceramic hob cleaner. Avoid abrasive pads. Wipe away spills immediately to prevent stubborn stains. For burnt residue, use a ceramic scraper gently.

Can I use any type of cookware on this induction hob?

Only ferromagnetic cookware works, such as cast iron, stainless steel with a magnetic base, or enameled steel. Test with a magnet: if it sticks, it's suitable. Avoid aluminum, copper, or glass.

What are the minimum cut-out dimensions for installation?

The cut-out dimensions required are 560 mm in width and 490 mm in depth. Ensure at least 50 mm clearance below for ventilation.

How do I use the booster function?

Select the cooking zone and press the booster button (usually marked 'P'). The zone will operate at maximum power for a limited time. Activate only with suitable cookware to avoid overheating.

What is the warranty period for this hob?

Beko typically offers a 2-year warranty from the date of purchase. Some regions may have extended warranties. Register your product online to activate coverage.

How do I reset the hob after a power outage?

Simply switch off the mains supply for 10 seconds, then turn it back on. The hob will perform a self-check and return to standby mode.

Can I get spare parts if something breaks?

Yes, Beko provides spare parts through authorized service centers. Common parts like control boards, glass tops, and heating coils are available. Check the Beko website or contact customer support.

Why does the hob not detect my pan?

Ensure the pan has a flat bottom and is made of induction-compatible material. The pan diameter must match the cooking zone. Remove any dirt or rust from the pan base. If the issue continues, try a different zone.

USER MANUAL HII64401QT BEKO

Built-in Hob / User Manual

HII64401SMTX

185262228_1/ EN/ PL/ ET/ HR/ R.AC/ 01/11/23 23:37

7757189256

Welcome!

Dear Customer,

Thank you for choosing the Beko product. We want your product, manufactured with high quality and technology, to offer you the best efficiency. Therefore, carefully read this manual and any other documentation provided before using the product.

Keep in mind all the information and warnings stated in the user's manual. This way, you will protect yourself and your product against the dangers that may occur.

Keep the user's manual. If you give the product to someone else, give the manual with it. The warranty conditions, usage and troubleshooting methods for your product are provided in this manual.

The symbols and their descriptions in the user's manual:

Hazard that may result in death or injury.

Important information or useful usage tips.

Read the user's manual.

Hot surface warning.

NOTICE Hazard that may result in material damage to the product or its environment.

Arçelik A.Ş.

Karaağaç caddesi No:2-6 34445 Sütlüce/Istanbul/TURKEY

Made in TURKEY

Table of Contents

1 Safety Instructions...... 4

1.1 Intended Use.... 4 1.2 Child, Vulnerable Person and Pet Safety 4 1.3 Electrical Safety.... 5 1.4 Transportation Safety 6 1.5 Installation Safety...... 7 1.6 Safety of Use 7 1.7 Temperature Warnings 8 1.8 Cooking Safety 8 1.9 Induction 9 1.10 Maintenance and Cleaning Safety 9

2 Environmental Instructions...... 9

2.1 Waste Directive....9 2.1.1 Compliance with the WEEE Directive and Disposing of the Waste Product 9 2.2 Package Information.... 10 2.3 Recommendations for Energy Saving.... 10

3 Your product 10

3.1 Product introduction ...... 10 3.2 Technical Specifications.... 11

4 First Use.... 12

4.1 Initial Cleaning 12

5 How to use the hob 12

5.1 General information on hob usage.... 12 5.2 Hob control unit.... 14

6 General Information About Baking.... 19

6.1 General warnings about cooking with hob .... 19

7 Maintenance and Cleaning ...... 20

7.1 General Cleaning Information...... 20 7.2 Cleaning the hob.... 22 7.3 Cleaning the Control Panel 22

8 Troubleshooting.... 22

1 Safety Instructions

• This section includes the safety instructions necessary to prevent the risk of personal injury or material damage.
• If the product is handed over to someone else for personal use or second-hand use purposes, the user's manual, product labels and other relevant documents and parts should also be given.
• Our company shall not be held responsible for damages that may occur if these instructions are not observed.
• Failure to follow these instructions shall void any warranty.
• Always have the installation and repair works made by the manufacturer, the authorised service or a person that the importer company shall designate.
• Use original spare parts and accessories only.
• Do not repair or replace any component of the product unless it is clearly specified in the user's manual.
• Do not make technical modifications on the product.

1.1 Intended Use

• This product is designed to be used at home. It is not suitable for commercial use.
• Do not use the product in gardens, balconies, or other outdoor areas. This product is intended for use in households and in staff kitchens of shops, offices, and other working environments.
• CAUTION: This product should be used for cooking purposes only. It should not be used for other purposes, such as heating the room.

1.2 Child, Vulnerable Person, and Pet Safety

• This product can be used by children aged 8 years and above, and by people with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, provided they have been given supervision or instruction concerning safe use and understand the hazards involved.
• Children should not play with the product. Cleaning and user maintenance should not be performed by children unless supervised.

- This product should not be used by people with limited physical, sensory, or mental capacity (including children), unless they are supervised or have received the necessary instructions.

• Children should be supervised to ensure that they do not play with the product.

- Electrical products are dangerous for children and pets. Children and pets must not play with, climb on, or enter the product.

- Do not place objects that children may reach on the product.

- Turn the handles of pots and pans to the side of the counter so that children cannot grab them and get burned.

- CAUTION: During use, the accessible surfaces of the product are hot. Keep children away from the product.

- Keep the packaging materials out of the reach of children. There is a risk of injury and suffocation.

- Before discarding worn-out and useless products:

1. Unplug the power plug and remove it from the socket.
2. Cut off the power cable and disconnect it with the plug from the product.
3. Take precautions to prevent children from entering the product.
4. Do not allow children to play with the product when it is in idle mode.

1.3 Electrical Safety

• Plug the product into a grounded outlet protected by a fuse that matches the current ratings indicated on the type label. Have the grounding installation made by a qualified electrician. Do not use the product without grounding in accordance with local / national regulations.
• The plug or the electrical connection of the appliance shall be in an easily accessible place. If this is not possible, there should be a mechanism (fuse, switch, key switch, etc.) on the electrical installation to which the product is connected, in compliance with the electrical regulations and separating all poles from the network.
• Unplug the product or switch off the fuse before repair, maintenance and cleaning.
• Plug the product into an outlet that meets the voltage and frequency values specified on the type label.
• (If your product does not have a mains cable) only use the connecting cable described in the "Technical specifications" section.
• Do not jam the power cable under and behind the product. Do not put a heavy object on the power cable. The power cable should not be bent, crushed, and come into contact with any heat source.
• Make sure that the power cable is not jammed while putting the product to its place after assembly or cleaning.
• Use original cable only. Do not use cut or damaged cables.
• Do not use an extension cord or multi-plug to operate your product.
• Contact the authorized service centre or importer to use the approved adapter in cases where the use of a converter adapter (for plug type) is necessary.
• Contact the importer or the authorized service centre if the length of the power line is inadequate.
• Portable power sources or multiple plugs may overheat and catch fire. Keep multiple plugs and portable power sources away from the product.

If the power cable is damaged, it must be replaced by the manufacturer, an authorized service or a person to be specified by the importer company in order to prevent possible dangers.

If your product has a power cable and plug:

• Never put the product plug into a broken, loose, or out-of-socket plug. Make sure the plug is fully inserted into the socket. Otherwise the connections may overheat and cause a fire.
• Avoid inserting the device into plugs that are greasy, unclean, or potentially exposed to water (such as those near a worktop where water may escape). Otherwise there is a risk of short circuit and electrocution.
• Never touch the plug with wet hands!
• Pull the plug out of the socket using the plug's body rather than the cord itself.

1.4 Transportation Safety

• Disconnect the product from the mains before transporting the product.
• When you need to transport the product, wrap it with bubble wrap packaging material or thick cardboard and tape it tightly.

Secure the moving parts of the product firmly to prevent damage.

Before the product is installed, check the product for any damage after transport. Contact the importer or the authorized service centre if damaged.

1.5 Installation Safety

• Before beginning the installation, de-energize the power line to which the product will be connected by turning off the fuse. • Always wear protective gloves during transport and installation. Otherwise there is a risk of injury from sharp edges!
• Before the product is installed, check the product for any damage. Do not have it installed if the product is damaged.
• Avoid using any heat-insulating materials to cover the interior of the furniture that will be installed.
• Direct sunlight and heat sources, such as electric or gas heaters, must not be present in the area where the product is installed.
• Keep the surroundings of all ventilation ducts of the product open.
• Do not install the product near a window. There is a risk that the hob flame will ignite curtains and flammable materials around the hob. When you open the window, hot cookware may tip over.
• Do not install the product near a window. When you open the window, hot cookware may tip over.
• If there is a socket behind the place where the product will be installed, it must be ensured that the product does not come into contact with the socket nor with the plug plugged into the socket.
• There should be no gas hose, plastic water pipe and socket on the back or side wall of the place where the product will be installed. Otherwise, they may be deformed by the heat effect when the hob is operated and may create a safety risk.

1.6 Safety of Use

• Ensure that the appliance is switched off after every use.
• If you will not use the product for a long time, unplug it or turn off the power from the fuse box.
• Don't use the product if it breaks down or gets damaged while being used. Disconnect

the product from the electricity. Contact the importer or the authorized service centre.

• CAUTION: If the hob surface is cracked, disconnect the product from the mains to avoid the risk of electric shock.
• CAUTION: If the hob glass surface is broken:

Switch off all gas and (if applicable) electric hotplates. Disconnect the product from the electricity.

• Do not touch the appliance surface.
• Do not use the appliance.
• Do not step on the appliance for any reason.
• Never use the product when your judgement or coordination is impaired by the use of alcohol and/or drugs.
• Flammable objects must not be kept in and around the cooking area. Otherwise, these may lead to fire.
• This product is not suitable for use with a remote control or an external clock.

1.7 Temperature Warnings

• CAUTION: When the product is in use, the product and its accessible parts will be hot. Care should be taken to avoid touching the product and heat-

ing elements. Children under 8 years of age should be kept away from the product unless constantly supervised.

• Do not place flammable / explosive materials near the product, as the surfaces will be hot while it is operating.
• CAUTION: Danger of fire: Do not store items on the cooking surfaces.

1.8 Cooking Safety

• CAUTION: The cooking process must be observed. Short-term cooking processes must be constantly observed.
• CAUTION: In solid or liquid oil cooking, it is dangerous to leave the hob unattended, which may cause a fire. NEVER try to extinguish the fire with water; disconnect the product from the mains, and then cover the flames with a cover or fire cloth (etc.).
• Be careful when using alcoholic drinks in your dishes. Alcohol evaporates at high temperatures and may cause fire since it can ignite when it comes into contact with hot surfaces.

1.9 Induction

- The electrically operated zones of your hob are equipped with advanced "Induction" technology. On the induction hob zones, which save time and energy, cookware suitable for induction cooking must be used; otherwise the hob zone will not work. For detailed information, see the section "Pot selection".

• Since the induction hob creates a magnetic field, it can have harmful effects for people who use devices such as pacemakers or insulin pumps.
• Close the zone from its control panel after use, do not rely on the pot sensor.
• Metal objects such as knives, forks, spoons and lids should not be placed on the hob surface as they will get hot.

2 Environmental Instructions

2.1 Waste Directive

2.1.1 Compliance with the WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

- Do not store metal objects in drawers under the hob. During long and intensive use, the materials here may overheat. - Do not place electronic products such as mobile phones, tablets, computers on the induction hob. Your appliance may be damaged.

1.10 Maintenance and Cleaning Safety

• Wait for the product to cool before cleaning the product. Hot surfaces may cause burns!
• Never wash the product by spraying or pouring water on it! There is the risk of electric shock!
• Do not use steam cleaners to clean the product as this may cause an electric shock.

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. You can ask your local administration about these collection points. Disposing of the appliance properly helps prevent negative consequences for the environment and human health.

Compliance with RoHS Directive:

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

2.2 Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging waste with the household or other wastes, take it to the packaging material collection points designated by the local authorities.

2.3 Recommendations for Energy Saving

According to EU 66/2014, information on energy efficiency can be found on the product receipt supplied with the product. The following suggestions will help you use your product in an ecological and energy-efficient way:

• Defrost frozen food before baking.

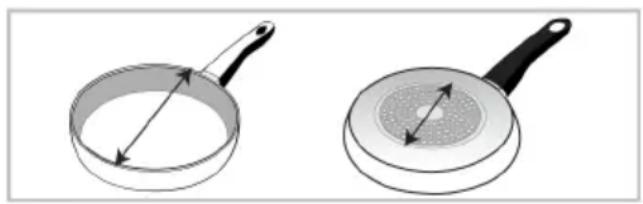

• Use pots / pans with a size and lid suitable for the hob zone. Always choose the right size pot for your meals. More than necessary energy is needed for containers of the wrong size.
• Keep hob baking areas and pot bases clean. Dirt reduces the heat transfer between the baking area and the pot base.

3 Your product

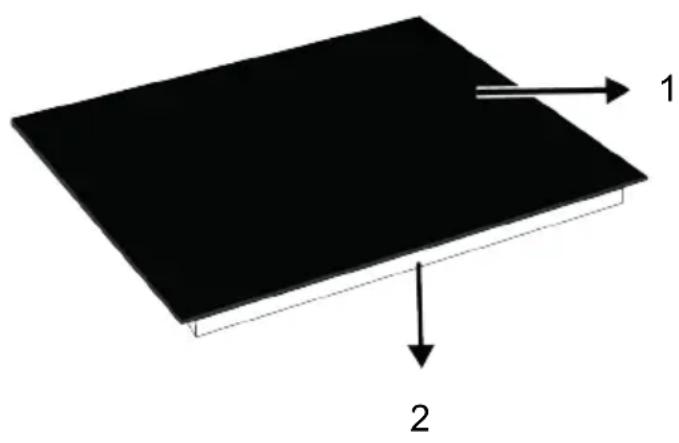

3.1 Product introduction

1 Glass cooking surface 2 Lower housing 3 Induction cooking zone 4 Induction cooking zone 5 Induction cooking zone 6 Induction cooking zone

3.2 Technical Specifications

EN

Hob General Specifications
Product external dimensions (height/width/depth) (mm) 5	2 /590 /520 *
Hob installation dimensions (width / depth) (mm) 560 (+2)	/490 (+2)
Voltage/Frequency 1N~220-240 V /2N~380-415 V; 50 Hz
Cable type and section used/suitable for use in the product	min. H05V2V2-F 5 x 2,5 mm2
Total power consumption (kW) max. 7,2 kW

Cooking zones

Front left Induction cooking zone
Dimension 180 mm
Power 2000 W / Booster 2300 W

Front right Induction cooking zone
Dimension 145 mm
Power 1600 W / Booster 1800 W

Rear left Induction cooking zone
Dimension 180 mm
Power 2000 W / Booster 2300 W

Rear right Induction cooking zone
Dimension 210 mm
Power 2000 W / Booster 2300 W

* The height of the hob specified in the technical table is the base cover height of the product.

Technical specifications may be changed without prior notice to improve the quality of the product.

Figures in this manual are schematic and may not exactly match your product.

Values stated on the product labels or in the documentation accompanying it are obtained in laboratory conditions in accordance with relevant standards. Depending on operational and environmental conditions of the product, these values may vary.

4 First Use

Before you start using your product, it is recommended to do the following stated in the following sections respectively.

4.1 Initial Cleaning

1. Remove all packaging materials.
2. Wipe the surfaces of the product with a wet cloth or sponge and dry with a cloth.

5 How to use the hob

5.1 General information on hob usage

General warnings

• Do not let any objects fall on the hob. Even small objects such as saltshakers may damage the hob. Do not use cracked hobs. Water may seep through these cracks and cause a short circuit. If the surface is damaged in any way (e.g., visible cracks), turn off the fuse first, then call the authorized service to unplug the product to reduce the risk of electric shock.
• Do not use unbalanced and easily tilting pots/pans on the hob.
• Do not heat empty pots/pans. The pots and the appliance may be damaged.
• Always turn off the hob's burners after each use.
• You shall damage the appliance if you operate the hobs without any pot or pots/pans. Always turn off the hobs after each operation. After each use the cooking surface will be hot, so do not put plastic pots/pans on the cooking surface. Clean such material on the surface immediately.
• Sudden temperature changes on the glass cooking surface may cause damage, be careful not to spill cold liquids during cooking.
• Put a sufficient amount of food in pots and pans. Thus, you can prevent food from pouring forth out of the pots/pans and will not need to clean unnecessarily.

NOTICE: Some detergents or cleaning agents may cause damage to the surface. Do not use abrasive detergents, cleaning powders, cleaning creams or sharp objects during cleaning.

NOTICE: During the first use, smoke and odour may come up for several hours. This is normal and you just need good ventilation to remove it. Avoid directly inhaling the smoke and odours that form.

• Do not place the covers of pots and pans on burners/zones.
• Place the pots by centering them on the burners/zones. If you wish to place a pot on a different burner/zone, do not slide it towards the desired burner; rather, lift it first and then put it on the other burner.

Operating principle of the induction hob

An induction hob is like an open circuit. The circuit completes when cooking pots or pans suitable for induction cooking are placed on it, and an electronic system below the glass surface generates a magnetic field. The metal base of the pots or pans is heated by taking energy from this magnetic field. Thus, the heat is not generated on the surface of the hob, but directly on the pots or pans above it. The glass surface is heated with the heat of the cooking pots or pans.

Advantages of cooking with induction

Induction hobs offer some advantages as the heat is transferred directly to the cooking pots or pans.

• Foods that overflow during cooking do not burn rapidly as the glass cooking surface is not heated directly. It is cleaned more easily.
• Cooking shall be faster as the heat is generated directly on the cooking pots or pans. Thus, it saves time and energy with respect to other hob types.
• As the heat is given directly to the cooking pots or pans, there is no heat loss, and it provides more efficient cooking.

The fact that the heat transfer stops and the cooking surface is not heated directly when the cooking pots or pans are removed from the cooking surface provides safer use against possible accidents while cooking.

For safe operation:

• Do not select high heating levels when using non-sticking cooking pots or pans coated with little amount of oil or used without oil (Teflon type).
• Do not use the glass cooking surface as a surface where you can place something on it or as a cutting surface.
• Do not place metal objects such as cutlery or pot lids on your hob as they may get hot.
• Never use aluminium foil for cooking. Never place food wrapped in aluminium foil on the induction zone.
• Keep magnetic objects such as credit cards or tapes away from the hob while it is operating.
• If there is an oven under your hob and it is being operated, the sensors on the hob may reduce the cooking level or turn off the hob.
• Your hob has an automatic shut-off system. Detailed information about this system is provided in the following sections. However, if you use thin-based pots for your cooking, these pots shall heat up very quickly and the bottom of the pan may melt and damage the cooking surface and the appliance before the automatic shut-off system is activated.

Cooking pots/pans

You shall use ferromagnetic, quality cooking pots/pans which bear a label or warning that it is compatible for induction cooking only with your induction hob. Generally, the higher the iron content, the better the cooking pots/pans shall perform. The base diameter of the cooking pots/pans shall match the induction zone. Suggested dimensions are listed below.

Suitable pots/pans:

• Cast iron pots/pans
• Enamelled steel pots/pans

- Steel and stainless steel pots/pans (with label or warning indicating that it is induction compatible)

Unsuitable pots/pans:

• Aluminium pots/pans • Copper pots/pans
• Brass pots/pans
• Glass pots/pans
• Pottery • Ceramic and porcelain

Recommendations:

- Use flat bottomed cooking pots/pans only. Do not use pots/pans with convex or concave bases.

- Use cooking pots/pans with thick, processed bases only. If you use thin based pots, these pots shall heat up very quickly and the bottom of the pan may melt and damage the cooking surface and the appliance before the automatic shut-off system is activated. Sharp edges may cause scratches on the surface.

- The bases of some cooking pots/pans have a smaller ferromagnetic field than its true diameter. Only this area is heated by the hob. Therefore, the heat is not evenly distributed and the cooking performance is decreased. Moreover, such cooking pots/pans may not be detected by large induction hobs. Thus, the cooking hob shall be selected according to the size of the ferromagnetic field.

Some cooking pots/pans have a base that contains non-ferromagnetic materials such as aluminium. These types of cooking pots/pans may not heat adequately or may not be detected by the induction hob at all. In some cases, a bad pots/pans warning may appear.

Equal distribution of the cookware on the right and left and center hobs for the selection of hobs affects the cooking performance positively while cooking multiple meals on the induction hobs.

Cooking pots/pans test

Test whether your pot is compatible with cooking with an induction hob using the methods below.

1. It is compatible if the base of your pot holds a magnet.
2. It is compatible if it does not flash when you place your pot on the induction hob and turn on the hob.

Recommended cooking pots/pans sizes

Cooking zone diameter - mm Pot diameter - mm
145 min. 100 - max. 145
180 min. 100 - max. 180
210 min. 140 - max. 210
240 min. 140 - max. 240
280 min. 125 - max. 280
320 min. 125 - max. 320
Cooking zone with wide (flexi) surface width 230 - length 390

The detection of cooking pots/pans by the induction hobs depends on the diameter and material of the ferromagnetic in the base of the pots/pans. To ensure detection of the cooking pots/pans and achieve efficient cooking, the cooking pots/pans shall be selected as per the size of your hob. The cooking pots/pans sizes recommended for hob sizes are given above.

5.2 Hob control unit

Keys:

On/Off key

Boiling behavior may vary depending on the pot types, size of the pot and size of the cooking zone. For a more homogenous boiling behavior, a one step larger cooking zone might be used. To use a larger cooking zone does not cause wasting of energy at induction hobs, because the heat is only created in the relevant pot area.

Timer key ⊕ Increase key - Decrease key

Symbols:

Key lock symbol

Cooking zone selection keys:

Rear left cooking zone selection key Front left cooking zone selection key

Front right cooking zone selection key Rear right cooking zone selection key

General warnings for the control panel

• Graphics and figures are for informational purposes only. Actual displays and functions may vary according to the model of your hob.
• This product is controlled with a touch control panel. Each operation you make on your touch control panel will be confirmed by an audible signal. Always keep the control panel clean and dry. Having a damp and soiled surface may cause problems in the functions.

Turning on the hob

1. Touch the key on the control panel.

The "0" icon appears on all cooking zone displays.

If no operation is performed within 20 seconds, the hob will automatically return to Standby mode.

Turning off the hob

1. Touch the key on the control panel.

The hob will turn off and return to Standby mode.

The "H" or "h" symbol that appears on the cooking zone display indicates that the cooking zone is still hot. Do not touch cooking zones.

Residual heat indicator

The “H” symbol that appears on the cooking zone display indicates that the hob is still hot and may be used to keep a small amount of food warm. This symbol will soon turn to “h” symbol meaning less hot.

When power is cut off, residual heat indicator will not light up and does not warn the user against hot cooking zones.

Turning on the cooking zones

1. Touch ⑨ key to turn on the hob.
2. Touch the selection key of the cooking zone you want to turn on.

→ “0” symbol appears on the cooking zone display and the related display illuminates more brightly.

If no operation is performed within 20 seconds, the hob will automatically return to Standby mode.

Setting the temperature level

Touch for keys to set the temperature level between "1" and "9" or "9" and "1".

The product might start-stop when it is operating on levels from 1 to 7, especially with cookware with a small diameter and when water-oil is little. This is not a fault.

The outer section of the 280 mm induction hob cooking zone (if your product is equipped with a 280 mm induction hob cooking zone) is activated only when a saucepan large enough to cover the cooking zone is placed on the cooking zone and the temperature is set to a level higher than 8.

Turning off the cooking zones:

A cooking zone can be turned off in 3 different ways:

1. By dropping the temperature level to "0": You can turn the cooking zone off by dropping the temperature adjustment to "0" level.
2. By touching the relevant cooking zone symbol for a certain time: Turn on the cooking zone by pressing the relevant symbol for a certain time to drop the temperature value to "0".
3. By using the turn-off on the timer option for the desired cooking zone: When the time is over, the timer will turn off the cooking zone assigned to it. "0" or "00" will appear on the related display. When the time is over, an audible alarm will sound. Touch any key on the control panel to silence the audible alarm.

High Power (Booster) It varies depending on the product model. It may not be available on your product.

For rapid heating, you can use the booster function "P". However, this function is not recommended for cooking for a long time. The booster function may not be available in all cooking zones.

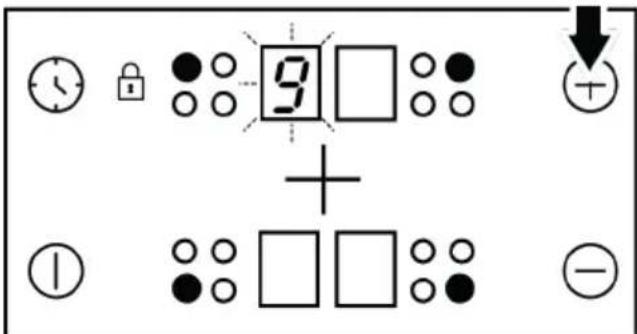

Turning on High Power (Booster):

1. Touch the key to turn on the hob.
2. Select the desired cooking zone by touching the cooking zone selection keys.
3. Touch the ☑ key firstly to reach level "9".

1. When the cooking zone is at level "9", touch the ⏻ key once to set the cooking zone temperature to "P".

Turning off High Power (Booster):

• To disable the Booster function, touch and set the temperature to level "9". The cooking zone goes out of booster and continues to operate at level "9".
• You can decrease the temperature level by touching ☐ or you can switch off the cooking zone completely by decreasing the temperature level to "0".

Keylock

You can activate the keylock to avoid changing the functions by mistake when the hob is operating.

Activating the keylock

1. Touch the key to turn on the hob.
2. Touch and hold the keys simultaneously to activate the keylock.

The keylock will be activated and the dot on the symbol will light up.

If you turn the hob off when the keys are locked, the keylock will be activated next time you turn the hob on again. The keylock must be deactivated in order to operate the hob.

Deactivating the keylock

1. When the keylock is active, touch and hold the keys simultaneously.

The keylock will be deactivated and the dot on the symbol will disappear.

Childlock: This feature varies depending on the product model. It may not be available on your product.

You can protect the hob against being operated unintentionally to prevent children from turning on the cooking zones. The childlock can only be activated and deactivated in Standby mode.

The childlock will be cancelled in case of a power failure.

Activating the childlock

1. Touch the key to turn on the hob.
2. Touch and hold the keys simultaneously. After the "beep" signal, touch to activate the childlock.

The childlock will be activated and the "L" symbol will appear on all cooking zone displays.

Deactivating the childlock

1. When the keylock is active, touch the key to turn on the hob.
2. Touch and keys simultaneously. After the "beep" signal, touch to deactivate the childlock. → Childlock will be deactivated and the "L" symbol disappears on all cooking zone displays.

Timer function

This function facilitates cooking for you. It will not be necessary to attend the oven for the whole cooking period. The cooking zone will be turned off automatically at the end of the time you have selected.

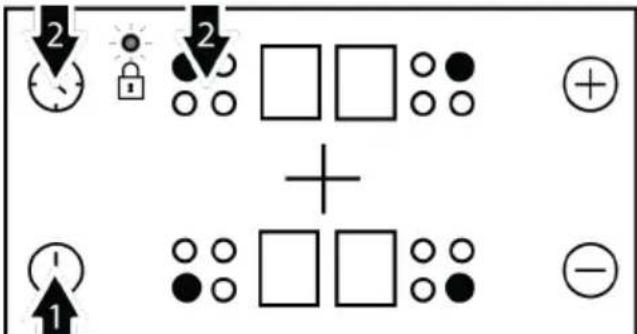

Activating the timer

1. Touch the key to turn on the hob.
2. Select the desired cooking zone by touching the cooking zone selection keys.

1. Touch or keys to set the desired temperature level.
2. Touch the key to turn the timer on.

⇒ The "00" symbol will illuminate on the timer display and a decimal point will appear on the selected cooking zone display.

Right rear and left rear cooking zone displays serve as timer display when the timer is active.

1. Touch the ☑ keys to set the desired time.

The timer can only be set for the cooking zones already in use.

Repeat the above procedures for the other cooking zones for which you wish to set the timer.

Timer cannot be adjusted unless the cooking zone and the temperature value for the cooking zone are selected.

When the cooking zone for which a timer was set is selected, you can see the remaining time by touching the ⓚ key again.

Deactivating the timer

Once the set time is over, the hob will automatically turn off and give an audible warning. Press any key to silence the audio warning.

Turning off the timers earlier

√ If you turn off the timer earlier, the hob will carry on operating at the set temperature until it is turned off.

1. Select the cooking zone you want to turn off.
2. Touch key to turn the timer on.
3. Until "00" appears on the timer screen, touch ⓣ to set the value to "00". → Dot shaped light on the relevant cooking zone display itself turns off completely after having flashed for a certain period of time and the timer is cancelled.

Using induction cooking zones safely and efficiently

Operating principles: Induction hob heats directly the cooking vessel as a feature of its operating principles. Therefore, it has various advantages when compared to other hob types. It operates more efficiently and the hob surface does not heat up. Induction hob is equipped with superior safety systems that will provide you maximum usage safety.

Your hob can be equipped with induction cooking zones with a diameter of 145, 180, 210-280 mm depending on the model. With induction feature, each cooking zone detects each vessel placed on them. Energy builds up only where the vessel contacts with the cooking zone and thus, minimum energy consumption is achieved.

Automatic turning off system

The hob control has an automatic turn off system. If one or more hob zone(s) are left on, the hob zone turns off automatically after a while (See Table-1). In case of a timer assigned to the hob, the timer screen is turned off then, too. The time limit for automatic turn off depends on the selected temperature level. Maximum operating period is applied for this temperature level. The hob zone may be operated by the user again after it is turned off automatically as described above.

Temperature level Automatic turning off periods - hours
0	0
1	6
2	6
3	5
4	5
5	4
6 1,5
7 1,5
8 1,5
9 20-30 minute
P (Booster) 5-10 minute*
(*) The hob will drop to level 9 after 5 minutes

Table 1: Automatic turning off periods

Overheating protection

Your hob is equipped with sensors that provide protection against overheating. The following may be observed in case of overheating:

• The active cooking zone may be turned off. - The selected power level may drop. However, this condition cannot be seen on the indicator.

Overflow safety system

Your hob is equipped with an overflow safety system. If any liquid overflows onto the control panel, the system will immediately cut the power connection and turn off your hob. The "F" warning appears on the display during this period.

Precise power setting

As a feature of its operating principles, the induction hob reacts to commands immediately. It changes power settings very quickly. Thus, you can prevent a cooking pot (containing water, milk, etc.) from overflowing even if it was just about to overflow.

If the surface of the touch control panel is exposed to intense vapor, the entire control system may become deactivated and give an error signal.

Keep the surface of the touch control panel clean. Erroneous operation may be observed.

6 General Information About Cooking

In this section, you will find tips on preparing and cooking your food.

6.1 General warnings about cooking with the hob

General warnings about cooking with the hob

- Never fill the pan with oil more than one third full. Do not leave the hob unattended when heating oil. Overheated oils pose a fire risk. Never attempt to extinguish a possible fire with water! If oil catches fire, cover it with a fire blanket or a damp cloth. Turn off the hob if it is safe to do so and call the fire department.

• Before frying foods, always remove excess water and put them into the heated oil slowly. Make sure that frozen foods are defrosted before frying.
• When heating oil, make sure that the pot you use is dry and keep its lid open.
• For recommendations on cooking with power saving, refer to the "Environmental Instructions" section.
• The cooking temperature and time values given for foods may vary depending on the recipe and amount. For this reason, these values are given as ranges.

Cooking table

Food Temperature level Baking time (min) (approx.)
Melting
Chocolate melting (e.g..Dr.Oetker brand, bitter chocolate 55-60% cocoa,150 g)		1 20 ... 30
Butter (200 g) 6 5 ... 6
Boiling, Heating, Keeping Warm
Water 1 L (Boiling) P 3 ... 5
Water 3 L (Boiling) P 8 ... 10
Milk 1 L (Boiling) 6 4 ... 6
Milk 1 L (Keeping warm) 1-2 18 ... 22
Vegetable oil (Heating) (Sunflower seed oil 0,5 L) 8		3 ... 5
Boiling
Unshelled potato coarsely minced (2 Piece big size)		9 12 ... 14
Salmon fillet 8 10 ... 15
Sausage 9 2 .. 4
Pasta (150 g) 8 8 ... 12
Cooking, Sauteing
Rice dish (200 g rice) 6 8 ... 14
Paella * 9 15 ... 20
Noah's pudding **
	Bean-Chickpea boiling Boiling - for noah's pudding	9 5 ... 6
	Bean-Chickpea boiling cooking - for noah's pudding	3 10 ... 30
	Wheat Boiling - for noah's pudding 9 2 ... 5
	Wheat cooking - for noah's pudding 3 10 ... 30
	Noah's pudding -All ingredients 8 20 ... 25
Shanks with vegetable **
	Vegetable sauteing 9 3 ... 8
	Baking 4-5 120 ... 150
Soups (E.g. Lentil soup)		6-7 17 ... 20
Shallow fry
Sea bass fillet		8 3 ... 7
Sirloin Steak ** (3-5 cm)		8 5 ... 9
Sausage 8 2 ... 5
Fried egg		7 4 ... 8
French fry
Boortsog		8 13 ... 16
Schnitzel		8 5 ... 7
Nugget		8 4 ... 6
* Wok pan is recommended. ** Cast pan/pot is recommended.

7 Maintenance and Cleaning

7.1 General Cleaning Information

General warnings

• Wait for the product to cool before cleaning the product. Hot surfaces may cause burns!
• Do not apply the detergents directly on the hot surfaces. This may cause permanent stains.

- The product should be thoroughly cleaned and dried after each operation. Thus, food residues shall be easily cleaned and these residues shall be prevented from burning when the product is used again later. Thus, the service life of the appliance extends and frequently faced problems are decreased.

• Do not use steam cleaning products for cleaning.
• Some detergents or cleaning agents cause damage to the surface. Unsuitable cleaning agents are: bleach, cleaning products containing ammonia, acid or chloride, steam cleaning products, de-scaling agents, stain and rust removers, abrasive cleaning products (cream cleaners, scouring powder, scouring cream, abrasive and scratching scrubber, wire, sponges, cleaning cloths containing dirt and detergent residues).
• No special cleaning material is needed in the cleaning made after each use. Clean the appliance using dishwashing detergent, warm water and a soft cloth or sponge and dry it with a dry cloth.
• Be sure to completely wipe off any remaining liquid after cleaning and immediately clean any food splashing around during cooking.
• Do not wash any component of your appliance in a dishwasher unless otherwise stated in the user's manual.

For the hobs:

- Acidic dirt such as milk, tomato paste and oil may cause permanent stains on the hobs and components of the hob zones. Clean any overflown fluids immediately after the hob has cooled down by turning it off.

Inox - stainless surfaces

• Do not use acid or chlorine-containing cleaning agents to clean stainless-inox surfaces and handles.
• Stainless-inox surfaces may change colour over time. This is normal. After each operation, clean with a detergent suitable for the stainless or inox surface.
• Clean with a soft soapy cloth and liquid (non-scratching) detergent suitable for inox surfaces, taking care to wipe in one direction.
• Remove lime, oil, starch, milk and protein stains on the glass and inox surfaces immediately without waiting. Stains may rust under long periods of time.

- Cleaners sprayed/applied to the surface should be cleaned immediately. Abrasive cleaners left on the surface cause the surface to turn white.

Glass surfaces

• When cleaning glass surfaces, do not use hard metal scrapers and abrasive cleaning materials. They can damage the glass surface.
• Clean the appliance using dishwashing detergent, warm water and a microfiber cloth specific for glass surfaces and dry it with a dry microfiber cloth.
• If there is residual detergent after cleaning, wipe it with cold water and dry with a clean and dry microfiber cloth. Residual detergent may damage the glass surface next time.
• Under no circumstances should the dried-up residue on the glass surface be cleaned off with serrated knives, wire wool or similar scratching tools.
• You can remove the calcium stains (yellow stains) on the glass surface with a commercially available descaling agent, such as vinegar or lemon juice.
• If the surface is heavily soiled, apply the cleaning agent on the stain with a sponge and wait a long time for it to work properly. Then clean the glass surface with a wet cloth. • Discolorations and stains on the glass surface are normal and not defects.

Plastic parts and painted surfaces

• Clean plastic parts and painted surfaces using dishwashing detergent, warm water and a soft cloth or sponge and dry them with a dry cloth.
• Do not use hard metal scrapers and abrasive cleaners. They may damage the surfaces.
• Ensure that the joints of the components of the product are not left damp and with detergent. Otherwise, corrosion may occur on these joints.

7.2 Cleaning the hob

Glass cooking surface

Follow the cleaning steps described for the glass surfaces in the “General cleaning information” section for the cleaning of glass cooking surface. You may complete your cleaning as per the information below for special cases.

• Sugar-based foods such as dark cream, starch and syrup should be cleaned immediately, without waiting for the surface to cool. Otherwise, the glass cooking surface may be permanently damaged.
• Do not use cleaning agents for cleaning operations you perform while the hob is hot, otherwise permanent stains may occur.

8 Troubleshooting

If the problem persists after following the instructions in this section, contact your vendor or an Authorized Service. Never try to repair your product yourself.

The product does not work.

• Fuse may be faulty or blown. >>> Check the fuses in the fuse box. Change them if necessary or reactivate them.
• The appliance may not be plugged to the (grounded) outlet. >>> Check if the appliance is plugged in to the outlet.
• (If there is timer on your appliance) Keys on the control panel do not work. >>> If your product has a key lock, the key lock may be enabled, disable the key lock.
• If the hob does not turn on when the on/off key is pushed >>> Unplug it and wait at least 20 seconds before plugging it in.
• It has overheat protection. >>> Wait for your hob to cool down.
• Appropriate pots may not be used. >>> Check your pots.

L icon is always lit on the hob zone display.

- Pots may not be placed on the operating hob. >>> Check if there is a pot on the hob zone.

7.3 Cleaning the Control Panel

• When cleaning the panels with knob-control, wipe the panel and knobs with a damp soft cloth and dry with a dry cloth. Do not remove the knobs and gaskets underneath to clean the panel. The control panel and knobs may be damaged.
• While cleaning the inox panels with knob control, do not use inox cleaning agents around the knob. The indicators around the knob can be erased.
• Clean the touch control panels with a damp soft cloth and dry with a dry cloth. If your product has a key lock feature, set the key lock before performing control panel cleaning. Otherwise, incorrect detection may occur on the keys.
• Your pot may not be induction suitable. >>> Check if your cooker is suitable for the induction hob.
• The pot may not be centred correctly on the hob zone or the bottom surface of the pan may not be wide enough for the selected hob zone. >>> Center the hob zone by choosing a pot that is wide enough for the hob zone.
• The pot or hob zone may be too hot. >>> Wait for them to cool down.

The selected hob zone suddenly turns off while it is operating.

• The cooking time of the selected compartment may have expired. >>> You can set a new cooking time or finish cooking.
• It has overheat protection. >>> Wait for your hob to cool down.
• An object may have covered the touch control panel. >>> Remove the object on the panel.

Although the hob zone is turned on, the pot does not heat up.

• The pot may not be suitable with the Induction hob. >>> Check if your cooker is suitable for the induction hob.
• The pot may not be centred correctly on the hob zone or the bottom surface of the pan may not be wide enough for the

selected hob zone. >>> Center the hob zone by choosing a pot that is wide enough for the hob zone.

The cooling fan continues to run even though the hob is turned off.

- This is not an error. The cooling fan continues to operate until the electronic equipment in the hob falls to the appropriate temperature.

Noise from the hob during cooking

- Some sounds may be heard from the hob while cooking. These sounds are due to the composition of the cooking vessel. These sounds are normal, they are not a malfunction and they are a part of induction technology.

Possible noises and reasons

- Fan noise: The cooker is equipped with a fan that activates automatically according to the temperature of the appliance.

Error codes/reasons and possible solutions

The fan has various operating levels and operates at different levels as per the temperature.

• Lower buzz like the operating noise of a transformer: This is due to the nature of the induction technology. As the heat is transmitted directly to the base of the cooking vessel, such buzz sounds may be heard as per the material of the cooking vessel. Thus, different noises may be heard with different cookware.
• Cracking noise: The reason of this is the structure and material of the base of the cooking vessel. A cracking sound may be heard if the cooking vessel is made of various layers with different materials.
• Whining noise: A whining sound may be heard when two cooking zones on the same side of the cooker are used to cook with different cooking levels.

Error codes Error reasons Possible solutions
E 2	Communication error between Display and Knob Interface board	Turn the induction hob off and operate again after 30 seconds. Contact the authorized dealership if the issue is resumed
E 22E 26	Induction hob is overheated.	Turn the induction cooker off and wait until it is cooled down. The error shall be resolved when temperature of the hob comes down below the limits.
E 46	One or more keys are kept pressed for more than 10 seconds.An object is left on the control panel or the control is exposed to vapour.	The problem shall be resolved when you remove your hand from the hob.The problem shall be resolved when the control panel is cleaned.
E 47	A pot suitable for induction heating is not used.	The error shall be resolved when a pot suitable for induction heating is used.
E 1 - E 15	Communication error on induction hob.	Turn the induction hob off and operate again after 30 seconds. Contact the authorized dealership if the issue is resumed.
E 16 - E 21	Temperature sensor error on induction hob.	Turn the induction hob off and operate again after 30 seconds. Contact the authorized dealership if the issue is resumed.
E 23E 24	Software error on induction hob.	Turn the induction hob off and operate again after 30 seconds. Contact the authorized dealership if the issue is resumed.
Error codes Error reasons Possible solutions
E 25 Fan operation error on induction hob.		Turn the induction hob off and operate again after 30 seconds. Contact the authorized dealership if the issue is resumed.
E 31 – E 45	Electronic board hardware error on induction hob.	Turn the induction hob off and operate again after 30 seconds. Contact the authorized dealership if the issue is resumed.
E 48E 49E 51	Sensor error on induction hob.	Sensor equipment shall be rendered compatible for the operating conditions. Contact the authorized dealership if the issue is resumed.
E 52 – E 57	High temperature error on induction hob.	Turn the induction hob off and wait until it is cooled down. The error shall be resolved when temperature of the sensor comes down below the limits. Contact the authorized dealership if the issue is resumed.

Welcome!

Dear customer,

Buttons:

Keypad:

① Power button

Timer key

Increase key

- Decrease key

Symbols:

1 Glass cooking surface 2 Lower housing 3 Induction cooking zone 4 Induction cooking zone 5 Induction cooking zone 6 Induction cooking zone

3.2 Technical specifications

Ploča za kuhanje – opće specifikacije
Vanjske dimenzije proizvoda (visina/širina/dubina) (mm)	$2 /590 /520 *
Ploča za kuhanje – dimenzije za instalaciju (širina/dubina)	560 (+2) /490 (+2)
Napon/Frekvencija 1N~220-240 V /2N~380-415 V; 50 Hz
Vrsta kabela i korišten presjek/presjek prikladan za upotrebu na proizvodu	min. H05V2V2-F 5 x 2,5 mm2
Ukupna potrošnja energije (kW) maks. 7,2 kW

Cooking zones

Prednji lijevi Zona indukcijskog kuhanja
Dimenzija 180 mm
Snaga 2000 Š / Pojačivač 2300 Š

Prednji desni Zona indukcijskog kuhanja
Dimenzija 145 mm
Snaga 1600 Š / Pojačivač 1800 Š

Stražnji lijevi Zona indukcijskog kuhanja
Dimenzija 180 mm
Snaga 2000 Š / Pojačivač 2300 Š

Stražnji desni Zona indukcijskog kuhanja
Dimenzija 210 mm
Snaga 2000 Š / Pojačivač 2300 Š

* The height of the hob specified in the technical table is the height of the lower housing of the product.

- Some pots/pans have a base containing non-ferromagnetic materials such as aluminum. Such pots/pans may not heat up sufficiently or may not be recognized by the induction hob at all. In some cases, a warning about unsuitable pots may appear.

Recommended pot/pan sizes

Promjer zone za kuhanje - mm Promjer lonca - mm
145 min. 100 - maks. 145
180 min. 100 - maks. 180
210 min. 140 - maks. 210
240 min. 140 - maks. 240
280 min. 125 - maks. 280
320 min. 125 - maks. 320
Zona kuhanja sa širokom (fleksibilnom) površinom širina	230 - duljina 390

Whether the induction hob recognizes pots/pans depends on the diameter and the ferromagnetic material in the base of the pot/pan. To ensure recognition of pots/pans and efficient cooking, pots/pans should be selected according to the size of the cooking zone. The recommended pot/pan size is indicated above.

Keys:

① On/Off key, Timer key ⊕, Increase key -, Decrease key

Symbols:

Key lock symbol

Cooking zone selection keys:

If no operation is performed within 20 seconds, the hob will automatically return to standby mode.

Switching off the hob

⇒ Child lock will be activated, and the symbol “L” appears on all cooking zone displays.

1. Touch the keys ① to set the desired temperature levels.
2. Touch the button to turn on the timer.
