Product type	Horizontal electric log splitter
Brand	Güde
Model	GHS 1000/10 TE-A
Power supply	230 V / 50 Hz
Motor power	1000 W
Maximum splitting force	10 tons
Max log length	1000 mm
Max log diameter	250 mm
Cylinder stroke	500 mm
Cycle time	10 seconds (forward/return)
Dimensions (L x W x H)	1200 x 500 x 600 mm
Net weight	55 kg
Noise level	85 dB(A)
Protection	Safety switch with key
Emergency stop	Red push button
Routine maintenance	Lubrication of cylinder and moving parts every 10 hours of use
Cleaning	Clean with a damp cloth after use, avoid solvents
Spare parts available	Cylinder, knife, seals, switch, bearings
Repairability	Repairability score of 8/10, parts available on request
Warranty	2 years, parts and labor

Frequently Asked Questions - GHS 1000/10 TE-A GUDE

What is the required electrical power for the GHS 1000/10 TE-A log splitter?

The device operates on a standard household outlet of 230 V / 50 Hz and a power of 1000 W. Use a 30 mA residual current circuit breaker.

What is the maximum splitting force of this model?

The splitting force reaches 10 tons, sufficient for hard logs up to 250 mm in diameter.

Can I split logs longer than 1000 mm?

No, the maximum log length is 1000 mm. Beyond that, the device could be damaged or safety compromised.

How to maintain the cylinder of the splitter?

Lubricate the cylinder with suitable grease every 10 hours of use or after each season. Check for oil leaks.

What to do if the splitter does not start?

Check the power supply, cable condition, and make sure the safety switch with key is pressed. If the problem persists, contact customer service.

What type of hydraulic oil to use?

Use hydraulic oil ISO 32 or 46. See the manual for exact reservoir capacity (approx. 3 liters).

Is the splitter safe for domestic use?

Yes, it is equipped with an emergency stop and a key switch. Never place hands near the cylinder during operation.

How to clean the splitter after use?

Clean chips and dirt with a damp cloth. Do not use harsh chemicals. Dry metal parts to prevent rust.

Where to find spare parts for the GHS 1000/10 TE-A model?

Spare parts (cylinder, knife, seals) are available from Güde authorized dealers or on the official website. Use the exact model number.

What is the warranty of this device?

The warranty is 2 years parts and labor. Keep the invoice and manual for any claims.

USER MANUAL GHS 1000/10 TE-A GUDE

GHS 1000/10TE-A

02059

GHS 1000/14TE-A

02061

GHS 1000/14TZ-A

02062

GHS 1000/14TEZ-A

02063

GHS 1000/20TEZ-A

02066

GÜDE GmbH & Co. KG

Birkichstrasse 6

74549 Wolpertshausen

Germany

ENGLISH Please read the instructions carefully before starting the machine.

GHS 1000/10TE-A GHS 1000/14TE-A

GHS 1000/14TEZ-A GHS 1000/20TEZ-A

GHS 1000/10TE-A GHS 1000/14TE-A GHS 1000/14TZ-A

GHS 1000/14TEZ-A GHS 1000/20TEZ-A

DE Assembly

GB Assembly FR Assembly IT Assembly NL Assembly CZ Assembly SK Assembly HU Assembly

1

6-11

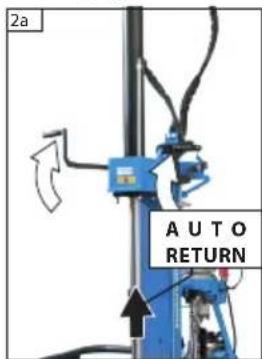

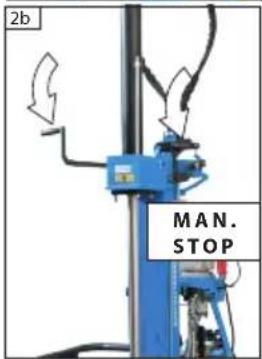

DE Commissioning

GB Starting-up the machine FR Commissioning IT Commissioning NL Commissioning CZ Commissioning SK Commissioning HU Commissioning

2

12

DE Operation

GB Operation FR Operation IT Operation NL Operation CZ Operation SK Operation HU Operation

3

13-20

DE Assembly

GB Assembly

FR Assembly

IT Assembly

NL Assembly

CZ Assembly

SK Assembly

HU Assembly

1	DE	Montage
	GB	Assembly
	FR	Montage
	IT	Montaggio
	NL	Montage
	CZ	Montáž
	SK	Montáž
	HU	Szerelés

DE Assembly GB Assembly FR Assembly IT Assembly NL Assembly CZ Assembly SK Assembly HU Assembly

1	DE	Montage
	GB	Assembly
	FR	Montage
	IT	Montaggio
	NL	Montage
	CZ	Montáž
	SK	Montáž
	HU	Szerelés

DE Assembly GB Assembly FR Assembly IT Assembly NL Assembly CZ Assembly SK Assembly HU Assembly

12

13 14

GHS 1000/10TE-A 8L

GHS 1000/14TE-A 10L

GHS 1000/14TZ-A 10L

GHS 1000/14TEZ-A 10L

GHS 1000/20TEZ-A 13 L

DE Betrieb GB Operation FR Fonctionnement IT Esercizio NL Gebruik CZ Provoz SK Prevádzka HU Üzemeltetés

3

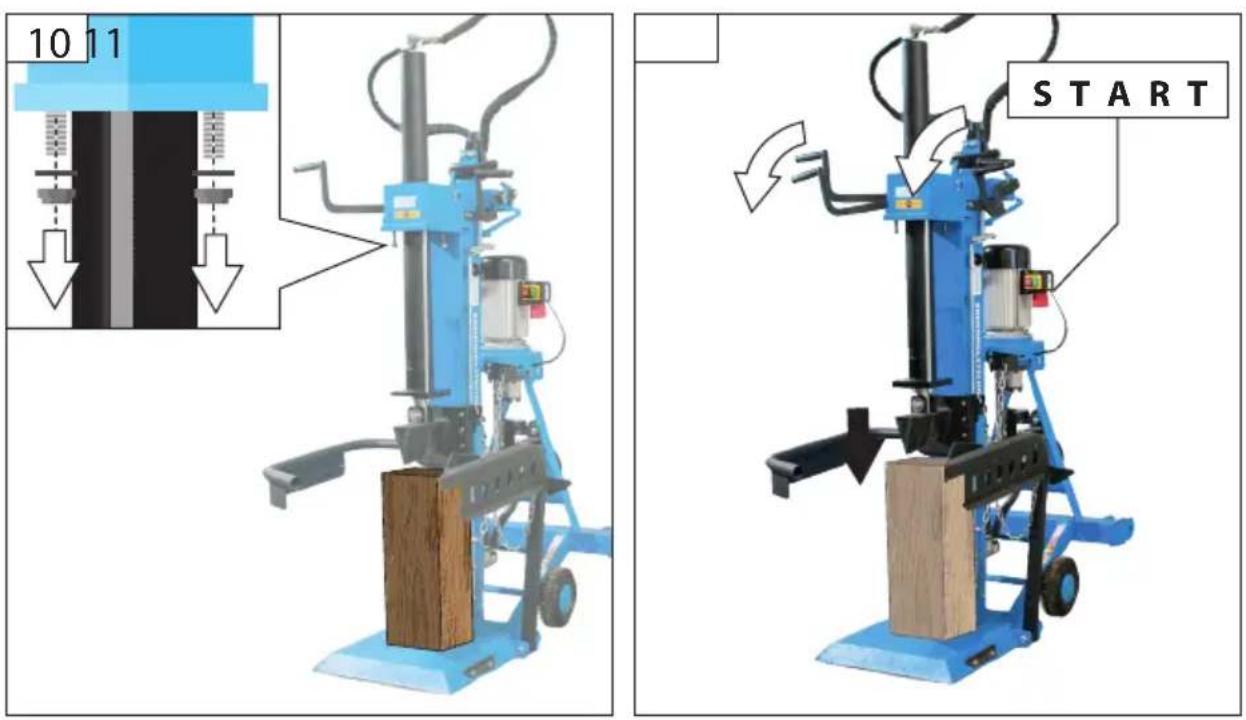

DE Betrieb - START GB Operation - START FR Fonctionnement - START IT Esercizio - START NL Gebruik - START CZ Provoz - START SK Prevádzka - START HU Üzemeltetés - START

GHS 1000/10TE-A GHS 1000/14TE-A GHS 1000/14TEZ-A GHS 1000/20TEZ-A

START

STOP

GHS 1000/14TEZ-A / GHS1000/20TEZ-A

DE Betrieb - START GB Operation - START FR Fonctionnement - START IT Esercizio - START NL Gebruik - START CZ Provoz - START SK Prevádzka - START HU Üzemeltetés - START

GHS 1000/10TE-A GHS 1000/14TE-A

GHS 1000/14TEZ-A GHS 1000/20TEZ-A

START

3

DE Operation - START

GB Operation - START

DE Operation

GB Operation

FR Operation

IT Operation

NL Operation

CZ Operation

SK Operation

HU Operation

GHS 1000/10TE-A GHS 1000/14TE-A

GHS 1000/14TEZ-A GHS 1000/20TEZ-A

3

DE Operation GB Operation FR Operation IT Operation NL Operation CZ Operation SK Operation HU Operation

4

6

DE Betrieb

GB Operation

FR Fonctionnement

IT Esercizio

NL Gebruik

CZ Provoz

SK Prevádzka

HU Üzemeltetés

3

DE Betrieb GB Operation FR Fonctionnement IT Esercizio NL Gebruik CZ Provoz SK Prevádzka HU Üzemeltetés

DE Reinigung / Wartung GB Cleaning / Maintenance FR Nettoyage / Entretien IT Pulizia / Manutenzione NL Schoonmaken / Onderhoud CZ Čištění / Údržba SK Čistenie / Údrzba HU Tisztítás / Karbantartás

4

5

DE Transport / Lagerung GB Transport / Storage FR Transport / Stockage IT Trasporto / Stoccaggio NL Transport / Bewaring CZ Přeprava / Uložení SK Transport / Uloženie HU Szállítás / Tárolás

Technical Data

Holzspalter	GHS 1000/10TE-A GHS 1000/14TE-A GHS 1000/14TZ-A GHS 1000/14TEZ-A GHS 1000/20TEZ-A
Artikel-Nr. 02059 02061	02062 02063 02066
Anschluss 400 V / 50 Hz	400 V / 50 Hz - 400 V / 50 Hz
Schutzklasse F F - F	F
Schutzart	IP 54		IP 54		-		IP 54		IP 54
Nennleistung	3,7 kW, S6/40%*		4,3 kW, S6 40%*		-		4,3 kW, S6/40%*		5,5 kW, S6/40%*
Leerlaufdrehzahl	1420 min-1		1420 min-1				1420 min-1		1420 min-1
Zapfwellendrehzahl	-		-		540 min-1		540 min-1		540 min-1
Hydrauliktank (HLP 46)	8,0 l		10 l		10 l		10 l		13 l
max. Hydralikdruck	230 bar		245 bar		245 bar		250 bar		270 bar
max. Spalthub	960 mm		960 mm		960 mm		960 mm		960 mm
max. Spaltdruck	10 t		14 t		14 t		14 t		20t
Werkstücklänge	330 mm - 1000 mm		330 mm - 1000 mm		330 mm - 1000 mm		330 mm - 1000 mm		330 mm - 1000 mm
Werkstück-Durchmesser	150 mm - 400 mm		150 mm - 430 mm		150 mm - 430 mm		150 mm - 430 mm		150 mm - 450 mm
Vorlauf-Geschwindigkeit	0,037 m/s	0,18 m/s	0,038 m/s	0,20m/s	0,057 m/s	0,30m/s	0,038 m/s	0,20m/s	0,052m/s
Rücklauf-Geschwindigkeit	0,047 m/s		0,047 m/s		0,07 m/s		0,047 m/s		0,069 m/s
LxBxH in mm	1100x1150x2500		1580x1320x2000		1580x1320x2500		1580x1320x2500		1600x1400x2500
Gewicht	186 kg		207 kg		200 kg		232 kg		330 kg
Schallleistungspegel LWA	97 dB(A)		97 dB(A)		-97 dB(A) 97 dB(A)

The values stated are emission values and as such do not necessarily constitute values which are safe for the workplace. Although there is a correlation between emission levels and environmental impact levels, whether further precautions are necessary cannot be derived from this. Factors influencing the actually present environmental impact level in the workplace include the characteristics of the work area and other noise sources, i.e. the number of machines and other neighbouring work processes. The permitted workplace values can likewise vary from country to country. This information is intended to assist the user in estimating hazards and risks.

* The S6-40% indicates a load profile of 4 min load and 6 min idle time

Read and understand the operating instructions before using the appliance. Familiarise with the

control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

In case of any doubts about connection and operation refer please to our customer center

The operating personnel must be adequately trained in the use, adjustment and operation of the device.

Specified Conditions Of Use

The wood splitter has only been designed to split wood in the fibre direction. Respecting technical data and safety precautions.

When splitting, it is essential to make sure the split wood only contacts the checkered sheet of the bottom plate or the checkered sheet of the splitting desk.

It is essential to follow instructions for installation, operation, repairs, etc. to prevent hazards and damage.

The machine may only be used if it is fully assembled.

Operation of a machine that is not fully assembled is strictly prohibited.

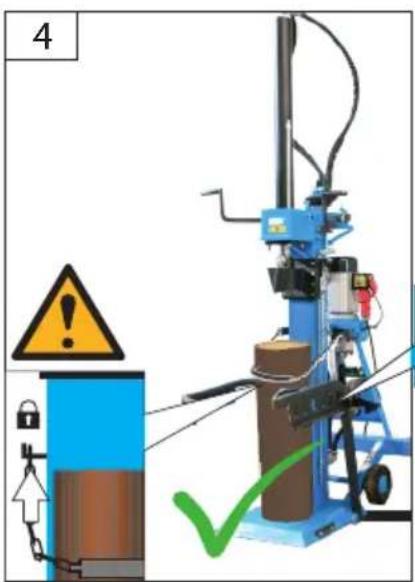

Usage of the log fixing device (chain and spring) is required at every splitting process.

As soon as the splitting knife enters the log (3-5 cm), release the log fixing device and continue with the splitting process.

Please do not forget that this machine, as designed, is not intended for industrial use.

Make sure there are no persons in the working area during operation or make sure such persons keep a sufficient safety distance.

This appliance is not intended for use by children.

The wood splitter has been designed to be operated by 1 person. The machine must never be operated by two or more

Wood splitter being operated by two persons, with one holding a piece of wood and the other controlling the clamps is strictly prohibited.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

Residual risks

Dry and dried-up wood may jump up when being split and injure the face of the operator. Adequate protective clothes to be worn!

⚠ Wooden pieces produced during splitting may fall down and injure legs of the operator.

When splitting wood, parts of body may be crushed or separated due to hydraulic knife lowering.

There is a risk of branchy wood getting stuck when being split. Please be advised that wood being separated is under heavy pressure and your fingers may get squeezed in the gap.

Caution! Pieces of wood cut at the right angle to be split only! Diagonally cut pieces of wood may slip when cutting!

General Power Tool Safety Warnings

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Safety in the place of work

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Safety of persons

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves

away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Use and treatment of electric tools

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety Instructions

Using the wood splitter may lead to some hazards. Therefore, the machine may only be handled by instructed and experienced persons.

Wear suitable protective clothing such as sturdy shoes with non-slip sole, robust long trousers, gloves, safety glasses and hearing protection! Do not wear loose clothing or jewels. Hair, clothing and gloves must be out of reach of moving parts as they could get caught by the rotating parts. Do not use the appliance when barefooted or in open sandals.

In the event of a blockage, switch off the machine immediately. Disconnect the power plug and remove the jammed piece of wood.

Mains Connection

WARNING! Electric shock! There is a risk of an injury caused by electric shock!

Operation is only allowed with a safety switch against stray current (RCD max. stray current of 30mA).

Check the voltage. Technical data given on the type label must correspond with electric network voltage.

Insert the plug of the electrical cable in a socket of suitable shape, voltage and frequency complying with current regulations.

Only for 400 volt machines: It is essential to respect the engine rotation direction (see the arrow on the engine) as operation in wrong direction would damage the oil pump. Warranty claims cannot apply in such a case. Change the rotation direction by turning the connector polarity if necessary.

Pursuant to the provisions of "CE" professional associations, etc., all splitters are fitted with an undervoltage release in the switch. This will prevent accidental repeated starting in case of current interruption due to power failure, accidental unplugging, defective fuse, etc. The machine must necessarily be turned on again by repeated pressing of the green switch.

Wilful holding or blocking of the switch, unless being a neutral, will automatically lead to switch failure.

The warranty will not apply in such a case, which must naturally be checked.

Work preparation

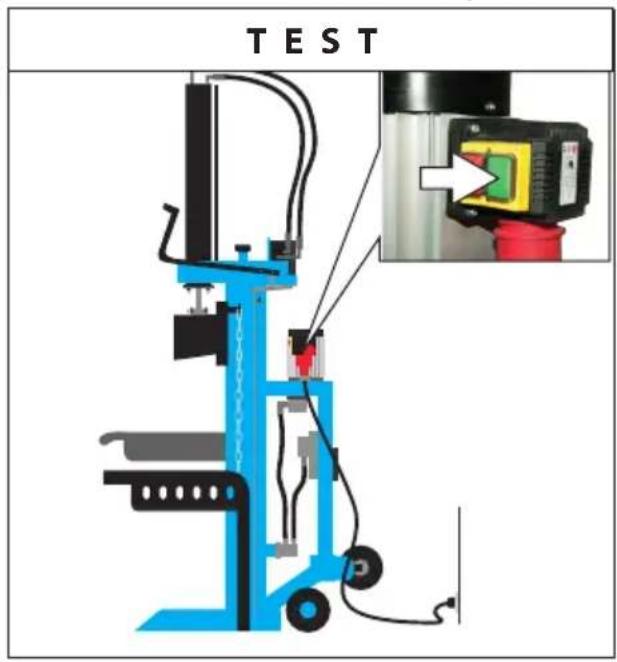

Before putting the machine into operation, the functioning of the safety guards (in particular, the two-lever operation system) must be checked.

- Put both control levers down and the splitter knife down, approximately 5 cm above the desk.

- One control lever must be released at all times, with the splitter knife remaining in the selected position.

Carry out a visual inspection before switching the appliance on.

- Proper function of the on and off button, including the emergency switch.

- Before starting work, check hydraulic lines and hoses for leaks.

- Check especially the safety equipment, electrical control elements, power lines, and screw couplings for any damage and ensure they are tightened appropriately.

The appliance must not be used if damaged or if safety equipment is defective. Replace any worn-out and damaged parts.

CAUTION! Whenever the machine is to be put into operation, make sure the splitter desk is firmly and safely fitted to the machine.

Working area

For safe wood splitting, it is essential that the working area is flat and slip-resistant and that sufficient space for movement is provided. To take the wood splitter to your home, it is necessary that there are no obstacles in the way, i.e., no risk of tripping. Adequate lighting of the working area needs to be provided.

When being operated, the machine must stand on a horizontal and flat surface, and the floor around the machine must be flat, well-maintained, and free of waste, such as sawdust and cuttings.

The machine must be secured to the ground with suitable fasteners (e.g., ground nails).

The machine may only be used if it is fully assembled. Operation of a machine that is not fully assembled is strictly prohibited.

The machine may only be operated with a PTO shaft if it is safely connected to a three-point linkage.

Operation

Always use the log fixing device.

When splitting intergrown wood, trunk sections of irregular shape, etc., there may be risks of parts being thrown out, blocked or crushed.

Never reach into the gap area.

Power supply must be interrupted by pressing the red button on the switch and unplugging the machine for any repair or servicing work or when leaving the wood splitter. Turning to the Off position is not enough to interrupt the power supply.

Handling equipment to be used only when handling the machine. Make sure the device cannot roll away, fall over or tip over with suitable fastening devices.

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help, state the following pieces of information: 1.

Accident site, 2. Accident type, 3. Number of injured persons, 4. Injury type(s)

Maintenance

Unplug the machine before any work on it.

Switch off the apparatus, disconnect it from mains by unplugging and allow it to cool down before setting up, retrofitting, cleaning, performing maintenance, storing or transporting the apparatus.

The hydraulic hoses and connections must be checked if tight enough after app. 4 hours of operation and tightened if necessary.

If the device is defective, the repair has to be made exclusively by the customer service.

Use only original accessories and original spare parts. If necessary, a list of spare parts can be found at www.guede.com.

Never clean the machine and its components with solvents, flammable or toxic liquids. Use only a damp cloth.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

Disposal

Any damaged or disposed devices must be delivered to appropriate collection centres.

The device contains hydraulic fluid. Hydraulic fluids pose a hazard to groundwater. Uncontrolled drainage or improper disposal is punishable by law.

Symbols

CAUTION! WARNING

WARNING! Read the Operating Instructions

Caution! Unplug the machine before any servicing or repair!

Switch off the engine or the output shaft.

Wear eye protective goggles! Wear ear protectors!

Safety gloves to be used!

Wear safety shoes with steel reinforcement!

Use of crane

Caution! Moving parts of the machine! Danger! Keep away from moving machine parts!

To be operated by 1 person only!

Do not touch in the splitting area!

Protect against humidity. Never expose tool to rain.

Dangerous voltage

Warning against hand injuries

Warning against thrown-off items Keep distance of persons Observe to keep out of dangerous zone

Rotation direction

2 people are needed for implementation.

Any damaged or disposed devices must be delivered to appropriate collection centres.

Remove all undesirable items, e.g. nails and wire, before working

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

Warranty applies exclusively to failures due to defective material or workmanship. An original sale slip with indication of date of sale must be presented in case of claiming for the warranty rights.

Warranty does not cover unprofessional use such as device overload, violent use, damage caused by third party or foreign materials, failure to comply with operations and assembly manual, and normal wear and tear.

Important information for the customer

Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label.

Tel.: [phone] / 700-360

Fax: [phone]

E-Mail: [e-mail]

Failure removal

Failures Causes Removal
Engine does not start No power in the socket Check the fuse
	Defective electric extension cable Pull the plug out, check it, replace it
	Wrong connecting cable 5-wire connection at 2.5 mm2 cross section
	Defective condenser switch Have the machine checked by a professional electrician
Wrong engine rotation direction Wrong connection Use a screwdriver to turn the phase-changing switch in the power supply
Splitting knife is not moving Adjust the two-hand control and starting levers		Defective control valve - to be replaced in a service centre only
Splitter has no power	Wrong rotation direction Have the rotation direction changed by a professional
	Few hydraulic oil Hydraulic oil to be added
	Trigger is bent; hydraulic piston on the valve is not fully seated	Check all screws on the triggerAdjust the trigger so that the hydraulic piston on the valve is fully seated
	Wood has many knobs and the splitting knife is getting stuck	Lubricate the splitting knife
	Control arm is bent Put the control arm back to the starting position
The green supply button does not hold after being pressed	Defective fuse, etc. Check the cable
	2-phase running
Hydraulic pump is whistling, splitting knife running jerkily	Oil loss, bottom contamination Tighten the screws hose Replace the hose
	Few hydraulic oil Hydraulic oil to be added

OPGELET! WAARSCHUWING

Translation of the EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.
