Product Type	Upright Freezer
Brand	Vivax
Model	MFR-32
Total Gross Capacity	320 Liters
Net Freezer Capacity	280 Liters
Dimensions (H x W x D)	1850 x 600 x 650 mm
Weight	62 kg
Energy Source	230 V / 50 Hz
Power Consumption	0.8 kWh/24h
Energy Efficiency Class	E
Climate Class	SN-T (10°C to 43°C)
Noise Level	40 dB(A)
Freezing Capacity	16 kg/24h
Temperature Range	-18°C to -24°C
Key Functions	Fast Freeze, Temperature Control, Frost Free (No Frost)
Maintenance & Cleaning	Defrost automatically; clean interior with mild detergent; avoid abrasive cleaners
Safety Features	Child Lock, Overheating Protection, Door Open Alarm
Spare Parts & Repairability	Spare parts available for 10 years; user-replaceable door gasket and shelves
General Information	Built-in LED lighting; reversible door; adjustable feet

Frequently Asked Questions - MFR-32 Vivax

How do I set the temperature on my Vivax MFR-32 freezer?

Use the control panel located inside the freezer. Press the temperature setting button to cycle through available temperatures. The recommended setting is -18°C for proper food preservation.

What does the 'Fast Freeze' function do and how do I activate it?

The Fast Freeze function lowers the temperature rapidly to freeze fresh food quickly, preserving nutrients. Activate it by pressing the dedicated button on the control panel; it automatically turns off after 24 hours.

How often should I defrost my freezer?

The MFR-32 is a frost-free model, so manual defrosting is not required. However, if frost build-up occurs due to frequent door openings, you can perform a manual defrost by unplugging the appliance and leaving the door open.

Why is my freezer making a loud noise?

Normal operation sounds include a humming from the compressor and occasional gurgling from the refrigerant. If the noise is excessive, check that the freezer is level and not touching the wall. If persists, contact support.

How do I change the door opening direction?

The door is reversible. Refer to the manual for detailed steps: remove the hinge covers, unscrew hinges, then reattach them on the opposite side. Ensure the door is properly aligned before tightening.

What should I do if the freezer is not cooling enough?

Check if the temperature setting is correct. Ensure the door is closing properly and the door gasket is clean. Also, avoid overloading and allow air circulation around the unit. If problem continues, call service.

Can I store ice cream and long-term frozen food?

Yes, the MFR-32 maintains a safe temperature below -18°C, ideal for ice cream and long-term storage. For best quality, consume frozen food within recommended periods and avoid temperature fluctuations.

How do I clean the condenser coils?

The condenser coils are located at the back. Unplug the freezer and use a vacuum cleaner with a brush attachment to remove dust. Clean them every 6 months to maintain efficiency.

What do the alarms mean?

A door open alarm sounds if the door is left ajar for more than 60 seconds. A temperature alarm indicates the internal temperature has risen above safe levels. Press any button to silence the alarm.

Where can I find spare parts for my Vivax MFR-32?

Spare parts such as shelves, door gaskets, and LED bulbs are available through authorized Vivax service centers. Check the warranty card for contact details or visit the official website.

USER MANUAL MFR-32 Vivax

a grounded outlet with a current rating of 10A. If your home does not have such an outlet, please consult a qualified electrician or your electricity distributor. Have the replacement done by a qualified electrician. Do not share the outlet with other electrical appliances.

• Do not use extension cords or external timers.
• The plug and power cord must be firmly inserted into the outlet to prevent the possibility of sparking and causing a fire.
• Do not crush, pull, or twist the power cord.
• The refrigerator is intended for connection to a power supply of 220-240V, 50Hz. Voltage fluctuations beyond the limits of 220-240 ± 10%V can cause malfunction or damage to the appliance. If you have an unstable power source, ensure a power stabilizer with a minimum power of 750W.

- Do not place heavy objects or multiple items on the appliance. When opening the door, items may fall off the appliance and cause damage or injury.

- Be sure to disconnect the power plug in case of a power outage in the grid or during cleaning and maintenance of the appliance.

- Do not connect the appliance to the power supply within five minutes after disconnecting, to prevent damage to the compressor due to consecutive starts.

Warnings regarding food storage

- Do not use the appliance for storing explosive substances such as aerosol cans or containers containing flammable agents, as this may cause damage to the appliance or fire. Bottles containing a high percentage of alcohol must be placed vertically.

• Do not place glass bottles or any other rigid-walled containers filled with liquid in the freezer compartment, as they may burst.
• Do not eat ice that you have removed from the freezer.
• Do not touch frozen food with wet hands. Do not eat frozen food immediately.

WARNINGS

Keep the appliance packaging away from the reach of small children. Ensure that children do not play with the packaging, as this can cause choking and life-threatening injuries.

Keep the device in well-ventilated places, away from heat, dust, and do not expose it to direct sunlight.

IMPORTANT: The device must stand firmly on the surface and be level with the floor (turn the leveling feet until the device is stable).

• For cleaning, use a soft cloth or sponge moistened with water and a non-corrosive neutral detergent.
• Remove all shelves and drawers from the refrigerator. To remove the fruit and vegetable crisper, first remove the bottom glass shelf. Wipe the interior of the device with a mild baking soda solution, then wipe the interior with a soft cloth or sponge. Finally, dry the interior with a dry cloth. Wash and dry the shelves and drawers in the same way.
• Use a damp cloth to clean the exterior surfaces. You can use standard furniture cleaners. Be careful that cleaning chemicals do not come into contact with the rubber door gasket. ◆ Clean the door gasket with a damp, soft cloth. ◆ You can vacuum the condenser grille on the back of the device using a soft brush attachment.

Cleaning tips

MFR-32E

SR BiH CG

User manual

Table of contents

rain so as not to cause damage to the electrical installation and insulation. Do not expose the device to direct sunlight and heat.

The refrigerator should be placed in a ventilated room, must stand firmly on a flat surface and be level with the base (floor).

This refrigerator-freezer is a freestanding appliance and is not intended to be used as a built-in!

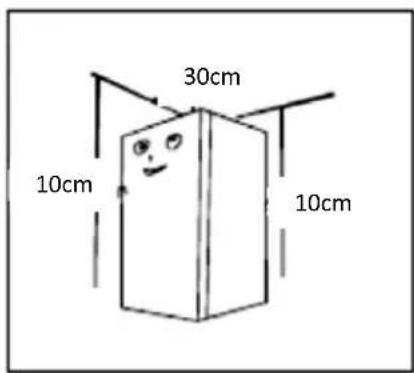

The free space above the device must be greater than 30 cm, and the distance of the side and rear sides must be greater than 10 cm, to facilitate opening and closing the doors and heat dissipation.

1. Wire shelf *
2. Door shelves
3. Magnetic door gasket
4. Door
5. Adjustable leveling feet
6. Thermostat
7. Shallow tray for collecting defrost water

The position and arrangement of drawers, food boxes, shelves, etc. shown in the figure above ensure the best energy efficiency.

Refrigerator or freezer equipment

The appliance as part of the equipment has various shelves and plastic compartments, which are included in the equipment - different models have different combinations.

To adjust the height of the shelves, pull the shelf outward until it can be tilted and moved to the desired position.

To make optimal use of the space inside the freezer, it is allowed to remove the freezer shelves or drawers, depending on daily needs.

Refrigerator and freezer cooling space (if applicable)

The cooling space in the refrigerator is suitable for cooling food such as fruits, vegetables, drinks, and other food that is consumed in a short time. The recommended storage time is 3 to 5 days

Hot food should not be placed in the refrigerator until it has cooled to room temperature.

It is recommended that food is well sealed (in a container or bag) before placing it in the refrigerator. The shelves can be adjusted to different heights within the refrigerator to optimally organize the space. The freezer (if present on your model) is for longer storage of food (up to 6 months).

For more information on the possible storage duration, check the packaging of the product or food you are freezing.

DO NOT lay the appliance completely flat as this may damage the coolant system.

Rm. 1503A, 15/F, Shun Kwong Commercial Bldg., No.8 Des Voeux Road West, Sheung Wan, Hong Kong

member of M SAN Grupa

Pakom Kompani dooel Skopje, Jadranska Magistrala no. 12, P.

Rm. 1503A, 15/F, Shun Kwong Commercial Bldg., No.8 Des Voeux Road West, Sheung Wan, Hong Kong

Subject of declaration:

Product: REFRIGERATOR-COUNTER

PAKOM KOMPANI member of M SAN Grupa

Pakom Kompani dooel Skopje, Jadranska Magistrala no. 12,

P.Fah 829, 1000 Skopje, R. of North Macedonia

VAT: MK4030992148501, NLB Bank AD 210-0453086101-55

Phn.: [phone] Fax: [phone]

http://www.pakom.com.mk E-mail: [e-mail]

MFR-32E

AL

PARALAJMËRIME

Para se ta lidhni

MFR-32E

SLO

Navodila za uporabo

Vsebina

■ Varnostna opozorila

POMEMBNO: Aparat mora stati trdno na podlagi in biti raven s tlemi.

Obračajte nogo za izravnavo, dokler aparat ni stabilen.

1. Shelf
2. Thermostat
3. Upper hinges
4. Icebox
5. Magnetic seal
6. Low container
7. Door
8. Leveling feet

◆ Check that the power supply indicated on the product label matches the power supply of your electrical network. The power plug must be connected to a 220-240 V ~ 50 Hz power supply.

MFR-32E

CZ

Instruction manual

Contents

MFR-32E

SK

Instruction manual

Contents

electrician. Do not share the socket with other electrical appliances.

especially do not touch them with wet hands, as you could injure yourself or get frostbite.

1. Shelf
2. Hinge
3. Magnetic seal
4. Door
5. Adjustable feet
6. Thermostat
7. Lower shallow shelf

MFR-32E

PL

User manual

Table of contents

MFR-32E

HU

User manual

Table of contents

MFR-32E

WARNINGS

- ATTENTION

EN

Instruction manual

Contents

■ Safety warnings

Meaning of safety warning symbols Electricity related warnings Related warnings for Use Warnings related with Placement items Warnings related to Disposal Servicing and Transport Warnings

Use

Names of components Interior Accessories Operation The first Start

Maintenance

Cleaning Defrost Switch off for long periods of time

Frequently Asked Questions

Door Reversing

Tips for Energy Savings

Disposal, EU Declaration of Conformity

DEAR CUSTOMER:

Thank you for buying this freezer. To ensure that you get the best results from your new freezer, please take time to read through the simple instructions in this booklet.

Please ensure that the packing material is disposed of in accordance with the current environmental requirements.

When disposing of any freezer equipment, please contact your local waste disposal department for advice on safe disposal.

This appliance must only be used for its intended purpose.

Please read these instructions carefully before installing and powering the refrigerator. The manufacturer is not responsible for improper device usage.

Follow the instructions for use. Keep these instructions in a known and safe place for future reference.

Safety Warnings

Meaning of Safety Warning Symbols

The symbols indicate prohibited matters, and those behaviors are forbidden. Non-compliance with the instructions may result in product damage or endanger the personal safety of users.

The symbols indicate matters that must be followed, and those behaviors must be strictly executed in line with the operation requirements. Non-compliance with the instructions may result in product damage or endanger the personal safety of users.

The symbols indicate matters to pay attention to, and these behaviors shall be specially noted. Due precautions are needed or minor or moderate injuries or damages of the product will be caused.

CAUTION:

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• Cleaning and user maintenance shall not be made by children without supervision.

- This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- by clients in hotels, motels and other residential type environments, farm houses;

- bed and breakfast type environments.

Electricity related warnings

- Do not pull the power cord when disconnecting the power plug from the wall socket. Please firmly grasp the plug and pull it out from the socket directly.

- Never plug in/out the power plug with damp or wet hands in order to avoid the danger of electrical shock.

- Do not damage the power cord under any condition so as to ensure safe use. Do not use when the power cord is damaged or the plug is worn.

- Worn or damaged power cords must be replaced at manufacturer-authorized service centers.

- Use a dedicated grounded power outlet rated at 10A or more, and do not share the outlet with other appliances.

- Do not use extension cords or external timers.

- Ensure the power cord is firmly connected to the outlet; otherwise, it may cause a fire. Do not pull or bend the power cord.

• Ensure that the grounding electrode of the power outlet is connected to a reliable grounding line.
• This refrigerator-freezer operates on 220-240V/50Hz AC power. Voltage fluctuations beyond the range of 220-240V ±10% may cause malfunction or damage. Therefore, a 750W automatic voltage regulator must be installed in conjunction with the AC power supply.

Related warnings for use

CAUTION Risk of fire!

- The refrigerator contains refrigerant R600a gas and cyclopentane insulation. The gas type is indicated on the label inside the refrigerator. The gas is environmentally friendly; R600a is a natural gas and completely harmless, but it is flammable. When transporting and installing the appliance, ensure that no parts (components) of the refrigerator or freezer are damaged. In case of damage, avoid open flames or exposing the device to heat sources, and immediately ventilate the room where the device is located. Do not unplug the refrigerator or other electrical appliances, as sparks may cause a fire.

- For safety, it is not recommended to place voltage regulators, rice cookers, microwave ovens, or other appliances on top of the refrigerator, except those recommended by the manufacturer. Do not use electrical appliances inside the food storage compartment.

- Unauthorized disassembly or modification of the refrigerator-freezer is prohibited. It is forbidden to damage the refrigerant lines, and repair and maintenance must be carried out by professionals.

• A damaged power cord must be replaced by the manufacturer, its service department, or qualified professionals to avoid hazards.
• The surroundings of the appliance or the built-in structure must not be obstructed, and good ventilation must be maintained.
• The gaps between the refrigerator-freezer doors and between the doors and the refrigerator body are small. Be careful not to put your hands in these areas to avoid pinching your fingers. When opening or closing the doors, do so gently to prevent items from falling.
• Do not pick up food or containers from the freezer compartment while the refrigerator-freezer is running, especially metal containers, to avoid frostbite.
• Do not allow children to enter or climb the refrigerator-freezer to prevent them from being sealed inside, and to avoid injury from the appliance falling on them.
• Do not spray or wash the appliance.
• Do not place the appliance in moist areas where it may be splashed with water, as this could affect the electrical insulation properties of the refrigerator-freezer.
• Do not place heavy objects on top of the refrigerator-freezer, as they may fall when

opening the door, potentially causing accidental injuries.

Pull out the plug in case of power failure or when cleaning.

Do not connect the refrigerator-freezer to the power supply within five minutes to prevent damage to the compressor due to successive starts.

Warnings related to placing items

Do not put flammable, explosive, volatile, or highly corrosive items in the refrigerator to prevent damage to the product or fire accidents.

Do not place flammable items near the refrigerator-freezer to avoid fires.

This product is a household refrigerator and shall only be used for storing food. According to national standards, household refrigerators shall not be used for other purposes, such as storing blood, drugs, or biological products.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Do not place items such as glass bottles or sealed containers of fluid, such as bottled beers and beverages, in the freezer to prevent bursting and other losses.

Do not eat ice that has been removed from the freezer.

Do not touch frozen food with wet hands. Do not immediately eat frozen food.

WARNINGS

• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Please abandon the refrigerator-freezer according to local regulations, for it uses flammable blowing gas and refrigerant.
• Please follow local regulations regarding disposal of the appliance for its flammable refrigerant and blowing gas. Before you scrap the appliance, please take off the doors to prevent children from being trapped.
• WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
• WARNING: Do not locate multiple portable socket outlets or portable power supplies at the rear of the appliance.
• Do not use extension cords or ungrounded (two prong) adapters.

Placement

Before using the refrigerator-freezer, remove all packaging materials including bottom cushions and foam pads and tapes inside the refrigerator, tear off the protective film on the door and the refrigerator body (if present).

Keep all packaging away from small children. Do not allow children to play with packaging.

Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.

The refrigerator-freezer is placed in a well-ventilated indoor place; the ground shall be flat and sturdy (rotate left or right to adjust the wheel for leveling if unstable).

For freestanding appliances, this refrigerating appliance is not intended to be used as a built-in appliance.

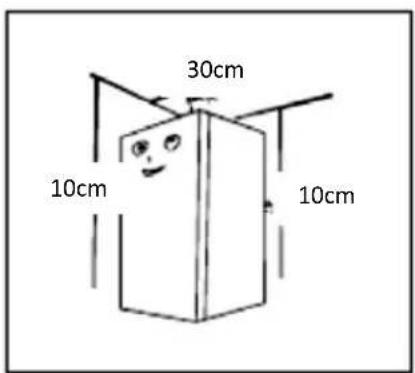

The top space of the refrigerator shall be greater than 30 cm, and the distances from both sides and backside shall be more than 10 cm to facilitate the opening and closing and heat dissipation.

IMPORTANT: The refrigerator or freezer must be placed so that all feet firmly lie on the ground.

Adjust leveling feet to adjust the proper position of the appliance. The device must stand upright and stable!

Please leave enough space to ensure feasible opening and drawer removal.

W x D ≥ 500 x 900 mm

Dimensions shown are for reference only.

Warnings related to Disposal

The refrigerator's R600a refrigerant and cyclopentane foam materials are combustible materials, and discarded refrigerators should be isolated from fire sources and cannot be burned.

Please transfer the freezer to qualified professional recycling companies for processing to avoid damage to the environment or other hazards.

DANGER: RISK OF CHILD ENTRAPMENT

Please remove the door of the refrigerator and shelves, which shall be properly placed to avoid accidents of children entering and playing in the refrigerator.

If this appliance replaces an old refrigerator with a lock, remove the lock for safety reasons to protect children while playing from your own lock.

Servicing

The unit should be serviced by an authorized engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

Do not block the air outlet and return air inlet of the refrigerator.

Do not keep foods of higher temperature close to the temperature sensor.

Take out the drawer of the freezing chamber of the refrigerator and put foods directly on the glass partition.

Transport

The appliance should be transported in its original box and partitions or as wrapped with a soft cloth.

Incorrect packaging may cause damage to the outer surface of the appliance.

Before moving the refrigerator, please remove all items in the refrigerator and fasten the glass partitions, fruit and vegetable boxes, and freezer drawers with taps lest the door opens during displacement.

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

Do not turn upside down, place horizontally, or vibrate the refrigerator.

The carrying angle cannot be greater than 45 degrees.

NOTE:

ANY MALFUNCTION OR DAMAGE CAUSED DURING LOADING, UNLOADING OR TRANSPORT AFTER THE DELIVERY OF PRODUCT TO THE CUSTOMER IS NOT COVERED BY THE WARRANTY.

Freezer use

Names of components

1. Wiring shelf
2. Door hinge
3. Door gasket
4. Door
5. Adjustable leg
6. Thermostat
7. Bottom tray

Drawers, food boxes, shelves, etc. placed according to the position in the picture above are the most energy efficient.

Interior accessories:

Various glass or plastic storage shelves are included with your appliance - different models have different combinations.

You should always slide one of the full-size glass storage shelves into the lowest set of guides, above the fruit and vegetable containers, and keep it in this position. To do this, pull the storage shelf forward until it can be swiveled upwards or downwards and removed.

Please do the same in reverse to insert the shelf at a different height.

To make the most of the volume of the fresh food storage compartment and frozen-food storage compartment, the user can remove one or more shelves or drawers from the appliance, according to their daily use.

Refrigerator compartment and Freezer (if present)

The cooling compartment in the refrigerator is suitable for cooling foods such as fruits, vegetables, beverages, and other foods that are consumed in the short term. The suggested storage time is 3 to 5 days.

Warm food must not be placed in the refrigerator until it has cooled to room temperature.

It is recommended that foods be tightly closed (in a container or plastic bag) before placing them in the refrigerator.

Shelves can be moved according to the amount of space inside the refrigerator in order to optimally organize space.

The freezer (if present) is used for long-term storage of food (up to 6 months).

For additional information about possible storage duration, check the packaging of the product or food.

Never refreeze already thawed food.

Tips for Keeping Food in the Unit

◆ Store raw meat and fish in suitable containers in the refrigerator, so that they do not come into contact with or drip onto other food. Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf. Leave space around your food to allow air to circulate inside the unit. Ensure all parts of the unit are kept cool. ◆ To prevent transfer of flavors and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped. ◆ Always let pre-cooked food cool down before you put it in the unit. This will help to maintain the internal temperature of the unit. ◆ To avoid contamination of the food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase in the temperature of the compartments of the appliance.

- Clean regularly surfaces that can come into contact with food and accessible drainage systems.

- Clean water tanks if they have not been used for 48 hours; flush the water system connected to a water supply if water has not been drawn for 5 days.

- To prevent cold air from escaping the unit, try to limit the number of times you open the door. We recommend that you only open the door when you need to put food in or take food out.

If your device has a freezing compartment with 4 stars, this refrigerating appliance is suitable for freezing foodstuffs.

If your device has a freezing compartment with 1, 2, or 3 stars, this refrigerating appliance is NOT suitable for freezing foodstuffs.

• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream, and making ice cubes.
• One-, two-, and three-star compartments are not suitable for freezing fresh food.
• If the refrigerating appliance is left empty for long periods, switch it off, defrost, clean, dry, and leave the door open to prevent mould from developing inside the appliance.

First Start

Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a wrung-out sponge or cloth. Wash the shelves and salad bin in warm soapy water and dry completely before replacing them in the unit.

Clean the exterior of the unit with a damp cloth.

If you require more information, refer to the Cleaning section.

Before Plugging In

You must check that you have a socket compatible with the plug supplied with the unit.

Before Turning On!

Do not turn on until one hour after moving the unit.

The refrigerator should run for 2 to 3 hours before loading fresh or frozen foods; in summer, it should run for more than 4 hours in advance, considering that the ambient temperature is high.

Operation

Switching On Your Unit

◆ The temperature selector knob is located inside the refrigerator compartment.

When the thermostat knob is turned to the end position, below the "Min" position, the refrigerator will stop cooling (OFF).

Setting "MIN" (1-2): Less cool temperature.

Setting "NOR" (3-4): Normal operation (adequate for most situations).

Setting "MAX" (5-6): Coolest temperature.

During high ambient temperatures, e.g., on hot summer days, it may be necessary to set the thermostat to the coolest setting (position "MAX", turn knob clockwise). This may cause the compressor to run continuously in order to maintain a low temperature in the cabinet.

◆ For the first time you install your refrigerator, set the thermostat knob at "NOR" (middle position). Give your freezer time to cool down completely before adding food. It is best to wait 24 hours before adding food. The thermostat knob controls the temperature. When the thermostat knob is turned to the end position, below the "Min" position, the refrigerator will stop cooling.

WARNING: In the lowest thermostat position, although the fridge is not cooling, it does not mean that the device is disconnected from the power supply. For cleaning and maintenance, to disconnect the power supply, pull the power plug out of the socket!

Noise Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC-free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

Change the Light Bulb (if exists)

The LED lamp must be replaced by authorized service. Please contact authorized service or manufacturer.

Maintenance

Cleaning

Please unplug the freezer for defrosting and cleaning.

Dust behind the freezer and on the ground should be cleaned promptly to improve cooling efficiency and save energy.

The interior of the freezer should be cleaned regularly to avoid odors. Soft towels or sponges dipped in water and non-corrosive neutral detergents are recommended for cleaning. The freezer should be finally cleaned with clean water and a dry cloth. Open the door to allow natural drying before turning the power back on.

◆ Remove all shelves. ◆ Wipe the inside of the unit with a weak solution of bicarbonate soda, then rinse with warm water using a wrung-out sponge or cloth. Wipe completely dry before replacing the shelves and salad bin.

Use a damp cloth to clean the exterior, then wipe with a standard furniture polish. Make sure the door is closed to avoid polish getting on the magnetic door seal or inside the unit.

◆ The condenser grille at the back of the unit and adjacent components can be vacuumed using a soft brush attachment.

Cleaning Tips

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem persists, contact a qualified technician for assistance.

Do not use hard brushes, steel wool, wire brushes, abrasives such as toothpaste, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, or acidic or alkaline items to clean the refrigerator, as this may damage the fridge surface and interior.

Do not rinse with water to avoid affecting electrical insulation properties. Use a dry cloth when cleaning lighting lamps, the temperature control knob, and electrical components.

Defrost

Defrost the freezing compartment whenever the layer of frost on the surface of the evaporator reaches 3 or 4 mm.

1. Set the thermostat to the "OFF" position and disconnect the refrigerator from the main power supply.
2. Store frozen food in a cold place.
3. Place the drip tray under the evaporator to collect melted water. To speed up melting, you can put a bowl of hot water inside the compartment.
4. After the frost has melted, discard the melted water and clean the interior.
5. Dry the interior of the refrigerator.
6. Put the shelf or drawer back into the compartment and return the frozen food.
7. Plug the refrigerator-freezer into the mains supply and set the thermostat to the desired setting.

It is recommended that you use frozen food as soon as possible.

Do not use metal utensils or electric heaters for defrosting, as this could damage the appliance.

Before defrosting, remove the food and place it in a cool place, and remove drawers and other accessories.

Switching Off for Long Periods of Time

Foods can be preserved for a couple of hours even in summer in case of power failure; it is recommended to reduce the frequency of opening the door and do not put fresh foods into the freezer.

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food, and clean the appliance. Keep the door open to avoid bad odors.

Continuous operation is recommended when the freezer is started.

Please do not move the freezer under normal circumstances, so as not to affect the refrigerator's service life.

Frequently Asked Questions

The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not settled.

Unit is not work	Whether the freezer is plugged and connected to power; Low voltage;Failure power or tripping circuit
Odor	Odorous foods should closely wrapped; Whether foods are rotten;Whether the interior shall be cleaned
Foods in the refrigerating chamber are frozen	Whether the thermostat is over adjusted; Whether foods containing water is put in inside the glass partition.
Long-term operation of compressor	It is normal that refrigerator operates for longer time in summer when the ambient temperature is higher; Do not put too much food in the freezer at one time; Do not put foods until they are cooled;Frequent opening of refrigerator door.Thick frost layer (defrost is needed)
The refrigerator door cannot be properly closed.	The freezer door is stuck by food packages; Too much food; Tilt refrigerator.
Loud noises	Whether the food is leveled, whether the refrigerator is balanced;Whether the refrigerator parts are properly placed.

Warm tips:

◆ The freezer enclosure may emit heat during operation especially in summer, this is caused by the radiation of the condenser, and it is a normal phenomenon. ◆ Condensation: condensation phenomenon will be detected on the exterior surface and door seals of the freezer when the ambient humidity is large, this is a normal phenomenon, and the condensation can be wiped away with a dry towel. ◆ Airflow sound: Refrigerants circulating in the refrigerant lines will produce eruption of sound and grunts which is normal does not affect the cooling effect. ◆ Buzz: Buzz will be generated by running compressor specially when starting up or shutting down. ◆ Clatter: The solenoid valve or electric switch valve will clatter which is a normal phenomenon and does not affect the operation. - The refrigerating chamber will periodically frost and defrost (water drops will be generated on the backside of the refrigerating chamber when defrosting) which are normal.

Reversing the Door

Caution: To avoid injury to yourself and/or property we recommend someone assist you during the door reversal process.

Ensure the appliance is unplugged and empty.

We recommend you have someone to assist you.

Tools required: Cross-bladed screw driver

NOTE: To take the door off it is necessary to tilt the appliance backward.

You should rest the appliance on something solid, e.g. a chair just below the top panel so you can access the bottom of the refrigerator.

DO NOT lay the appliance completely flat as this may damage the coolant system.

1. Remove upper hinge
2. Remove the door and put them on secure and soft surface.
3. Remove bottom adjustable legs and remove bottom hinge.
4. Translate bottom hinge on another cabinet side
5. Put the door on the bottom hinge, close the door, and fix the upper hinge.
6. Adjust legs

Tips for Energy Savings

Try not to open the door too often, especially when the weather is wet and hot. Once you open the door, close it as soon as possible.

Every now and then, check if the appliance is sufficiently ventilated (adequate air circulation behind the appliance).

In normal temperature conditions, arrange the thermostat at the middle setting.

Before loading the appliance with packages of fresh food, make sure they are cooled to ambient temperature.

Ice and frost layer increase energy consumption, so clean the appliance as soon as the layer is 3-5 mm thick.

If it is the outer condenser, the rear wall should be always clean, free of dust or any impurities.

◆ The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of direct sunlight.

◆ Let hot foods cool to room temperature before placing them in the appliance.

◆ Overloading the appliance forces the compressor to run longer.

◆ Foods that freeze too slowly may lose quality or spoil.

- Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.

◆ Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.

◆ Organize and label food to reduce door openings and extended searches.

◆ Remove as many items as needed at one time, and close the door as soon as possible.

Spare parts

The ordered parts in the following table can be acquired from channel:

Ordered Part Provided by		Minimum Time Required for Provision
Thermostat	Professional maintenance personnel	At least 7 years after the last model is launched on the market
Temperature sensors	Professional maintenance personnel	At least 7 years after the last model is launched on the market
Printed circuit boards	Professional maintenance personnel	At least 7 years after the last model is launched on the market
Light sources	Professional maintenance personnel	At least 7 years after the last model is launched on the market
Door handles	Professional maintenance personnel and end-users	At least 7 years after the last model is launched on the market
Door hinges	Professional maintenance personnel and end-users	At least 7 years after the last model is launched on the market
Trays	Professional maintenance personnel and end-users	At least 7 years after the last model is launched on the market
Basket	Professional maintenance personnel and end-users	At least 7 years after the last model is launched on the market
Door baskets	Professional maintenance personnel and end-users	At least 7 years after the last model is launched on the market

Climate classes

For the climate class of your device, please refer to the rating label on your device.

Class Symbol Ambient average temperature (°C)
Extended temperate SN + 10 to + 32
Temperate N + 16 to + 32
Suptropical ST + 16 to + 38
Tropical T + 16 to + 43

◆ Extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10°C to 32°C; ◆ Temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 32°C; ◆ Subtropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 43°C; ◆ Tropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 43°C.

Disposal, EU Declaration of Conformity

DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT

To protect our environment and to recycle the raw materials used as completely as possible, the consumer is asked to return unserviceable equipment to the public collection system for electrical and electronic equipment. The symbol of the crossed-out wheeled bin indicates that this product must be returned to the collection point for electronic waste to be recycled as much as possible.

By ensuring this product you will prevent possible negative effects on the environment and human health, which could otherwise be caused due to improper disposal of that product. The recycling of materials from this product will help to preserve a healthy environment and natural resources.

For detailed information about the collection of EE products, contact M SAN Grupa d.d. or the dealer where you purchased the product.

EU DECLARATION OF CONFORMITY

This device is manufactured in accordance with the applicable European standards and in accordance with all applicable Directives and Regulations.

The EU declaration of conformity can be downloaded from the following link: www.msan.hr/dokumentacijaartikala

EPREL Product information sheet

Product Information sheet data entered into the EPREL database. For more info and Product Information sheet, please scan QR code or visit Vivax website: www.vivax.com

WARRANTY CERTIFICATE HR

VIVAX

DEVICE MODEL

SERIAL NUMBER

DATE OF SALE

SELLER'S INVOICE NUMBER

SELLER'S SIGNATURE AND STAMP

1. With this warranty, M SAN Grupa, as the warranty provider in the Republic of Croatia, guarantees free repair of the product in accordance with applicable regulations and the conditions described in this warranty certificate. With this warranty, we guarantee that the subject of this warranty will operate without errors caused by possible poor workmanship or poor materials. All defects that may occur will be repaired free of charge at an authorized service center within the warranty period.
2. WARRANTY CONDITIONS: The warranty period begins from the date of purchase of the product and lasts:

60 MJESECI (5 godina)	HLADNJACI,VERTIKALNE I HORIZONTALNE LEDENICE
36 MJESECI (3 godine)	SAMOSTOJEĆI ŠTEDNJACI, PERILICE I SUŠILICERUBLJA, PERILICE SUĐA, KUHINJSKE NAPEUGRADBENE PEĆNICE I PLOČE, KUHINJSKE NAPEGRIJALICE VODE

1. In the event of a defect in the product covered by this warranty, we undertake to repair it as soon as possible, but no later than within 45 days. If the product cannot be repaired or is not repaired within 45 days, it will be replaced with a new one. The warranty will be extended for the duration of the repair.
2. The warranty is only recognized with the purchase receipt and this warranty card, which must be properly filled out, i.e., it must contain the date of sale, the stamp, and the seller's signature.
3. THE WARRANTY DOES NOT COVER

SELLER'S SIGNATURE AND STAMP

WARRANTY DECLARATION

1. With this warranty, the manufacturer of the product, through KIM TEC d.o.o., as the importer and warranty provider in Bosnia and Herzegovina, guarantees free repair of the product in accordance with applicable regulations and the conditions described in this warranty card. With this warranty, we guarantee that the subject of this warranty will operate without defects caused by possible poor workmanship or poor materials. Any defects that may occur will be repaired free of charge at an authorized service center within the warranty period.
2. WARRANTY CONDITIONS: The warranty period begins from the date of purchase of the product and lasts:

60 MJESECI (5 godina)	HLADNJACI,VERTIKALNE I HORIZONTALNE ŠKRINJE
36 MJESECI (3 godine)	ŠTEDNJACI, PERILICE I SUŠILICE RUBLJA, PERILICESUĐA, KUHINJSKE NAPE, UGRADBENE PEĆNICE IPLOČE, GRIJALICE VODE

1. In the event of a defect in the product that is the subject of this warranty, we undertake to repair it as soon as possible, but no later than within 30 days. If the product cannot be repaired or is not repaired within 30 days, it will be replaced with a new one.
2. The warranty is only recognized with the purchase receipt and this warranty card, which must be properly filled out, i.e., it must contain the date of sale, the stamp, and the seller's signature.
3. The warranty provider ensures service and spare parts for 7 years from the date of purchase.

THE WARRANTY DOES NOT COVER:

WARRANTY CERTIFICATE HU

VIVAX

PRODUCT NAME:

TYPE:

SERIAL NUMBER:

DATE OF PURCHASE:

CONSUMER PRICE OF THE PRODUCT

RETAILER'S STAMP:

DEAR CUSTOMER!

A.T.L snc of Andrea Latella&C

Piazza Umberto 1, 88900 Crotone KR-- Italy

[e-mail]

Tel [phone]
