Product Type	Internal Hard Drive for Printer
Brand	OKI
Model	C7200-REALESTATE
Capacity	5 GB
Form Factor	3.5 inches
Interface	Dedicated connector on control board
Compatibility	OKI C7000 and C9000 printer series
Power	Powered by printer via connector
Weight	Approximately 200 g
Main Functions	Data storage for complex file printing, print job management
Installation	Install on printer control board, requires opening cover
Maintenance and Cleaning	Clean with a soft, dry cloth; avoid any liquid
Safety	Unplug printer before any manipulation; ESD precautions
Spare Parts and Reparability	Non-user-serviceable part; contact OKI after-sales service
Warranty	1 year limited, parts and labor
Package Contents	Hard drive, installation manual
Country of Origin	Not specified

Frequently Asked Questions - C7200-REALESTATE OKI

How to install the OKI C7200-REALESTATE hard drive on my printer?

Turn off the printer and unplug the power cord. Remove the screws from the control board, then take out the board. Insert the hard drive onto the designated connector, lower the lever to lock it. Replace the board and tighten the screws. Reconnect the printer and turn it on.

Is this hard drive compatible with my OKI printer?

The C7200-REALESTATE model is compatible with OKI C7000 and C9000 printer series. Check your printer's exact model in the documentation.

How to verify that the hard drive is properly installed?

On the printer control panel, press MENU until INFORMATION MENU is displayed, then SELECT. Select PRINT MENU MAP. The Menu Map should show HDD:5.00 GB at the top and a DISK MAINTENANCE section in the right column.

Which drivers should I configure to use the hard drive?

For Windows PCL: go to Printer Properties, Paper tab, Device Options, check Printer Hard Disk. For PostScript: Device Settings tab, Installable Options, select Hard Disk Installed. For Mac: Chooser, LaserWriter 8, Configure, set Hard Disk to Installed.

What to do if the Menu Map does not show the hard drive?

Remove the control board, lift the hard drive lever and check that it is fully seated in the connector. Replace the board and reprint the Menu Map. If the problem persists, contact technical support.

Is the hard drive under warranty?

Yes, the limited warranty is one year from the date of purchase for the original purchaser. It covers defects in material and workmanship. Keep your sales receipt.

Can I use this hard drive in a computer?

No, this hard drive is designed exclusively for OKI C7000 and C9000 series printers. It uses a specific connector on the control board.

How to clean the hard drive?

Do not clean the hard drive directly. Wipe the exterior of the printer with a soft, dry cloth. Avoid any contact with liquids. The interior does not require regular cleaning.

What are the technical specifications of the hard drive?

Capacity: 5 GB. Form Factor: 3.5 inches. Interface: dedicated connector. Power: via printer. Weight: approximately 200 g.

Where can I get the full installation manual?

The installation manual is available for free download on notice-facile.com or on the OKI Data website. You can also request it by email.

USER MANUAL C7200-REALESTATE OKI

OKI 70037301 Hard Disk Drive Installation Instructions

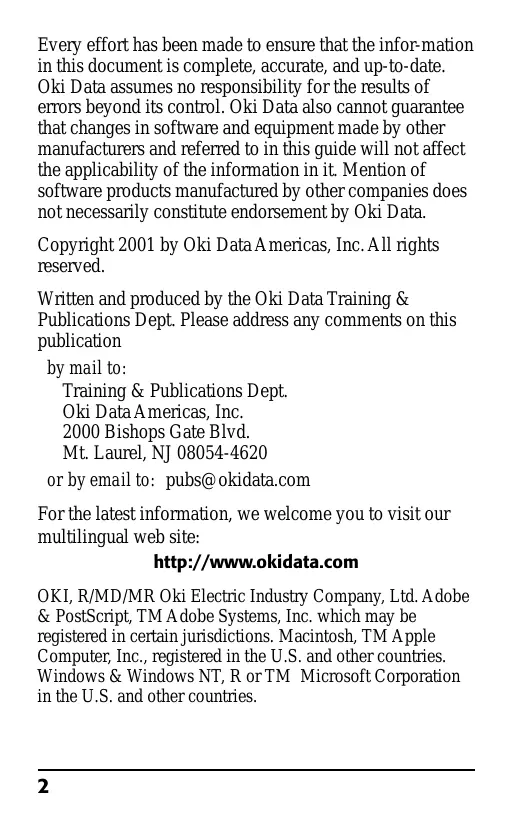

Every effort has been made to ensure that the information in this document is complete, accurate, and up-to-date. Oki Data assumes no responsibility for the results of errors beyond its control. Oki Data also cannot guarantee that changes in software and equipment made by other manufacturers and referred to in this guide will not affect the applicability of the information in it. Mention of software products manufactured by other companies does not necessarily constitute endorsement by Oki Data.

Copyright 2001 by Oki Data Americas, Inc. All rights reserved.

Written and produced by the Oki Data Training & Publications Dept. Please address any comments on this publication

by mail to:

Training & Publications Dept.

Oki Data Americas, Inc.

2000 Bishops Gate Blvd.

or by email to: [e-mail]

For the latest information, we welcome you to visit our multilingual web site:

http://www.okidata.com

OKI, R/MD/MR Oki Electric Industry Company, Ltd. Adobe & PostScript, TM Adobe Systems, Inc. which may be registered in certain jurisdictions. Macintosh, TM Apple Computer, Inc., registered in the U.S. and other countries. Windows & Windows NT, R or TM Microsoft Corporation in the U.S. and other countries.

Prepare The Printer

1 Turn the printer off and unplug the power cord.
2 Detach the interface cable from the back of the printer.

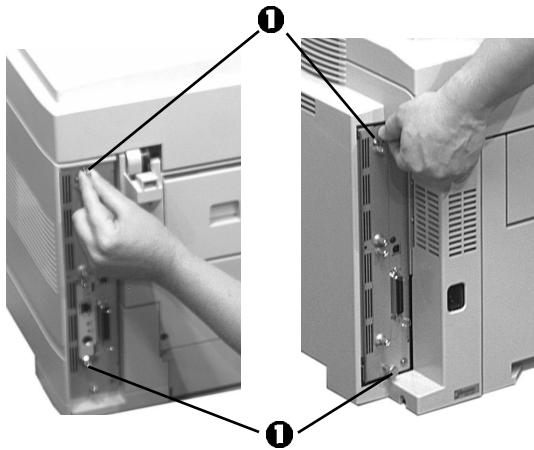

3 Remove and save the thumbscrews (1) at the top and bottom which hold the control board in place.

C7000 Series

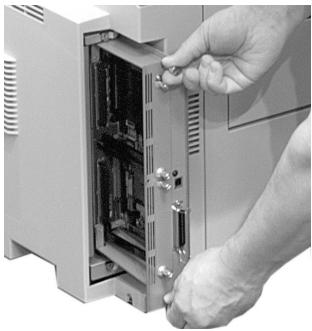

C9000 Series

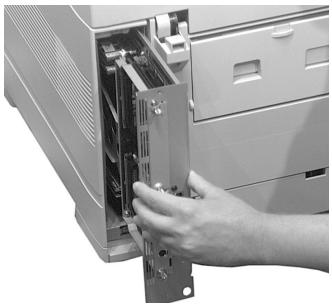

4 Grasp the control board and loosen it by wiggling it back and forth, then slide it out of the printer.

C7000 Series

C9000 Series

Install the Hard Disk Drive (HDD)

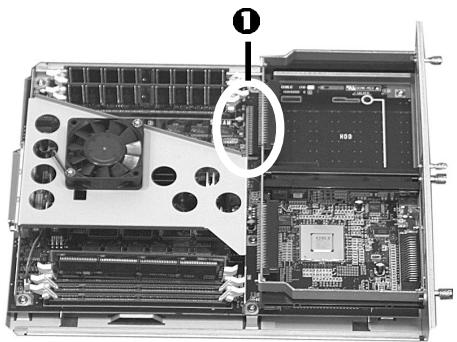

1 Locate the drive connector (1) on the control board:

2 Remove the HDD from its shipping package.

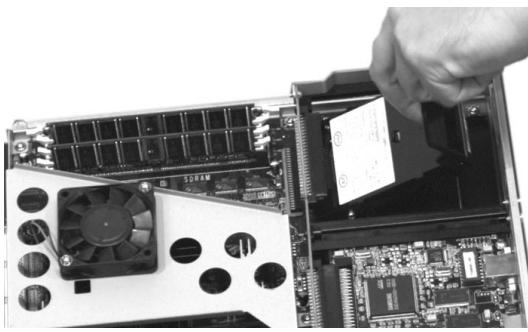

3 Lift the handle on the HDD and lower it onto the control board.

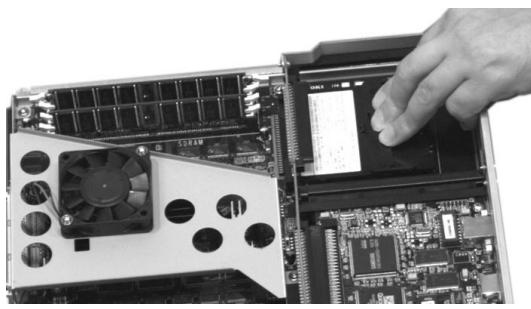

4 Insert the board firmly into the connector and press down on the handle to lock it in place.

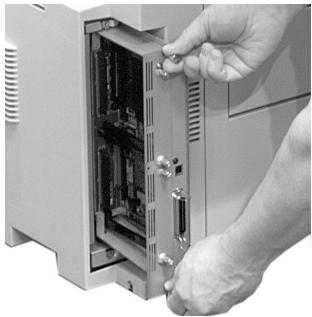

Complete the Installation

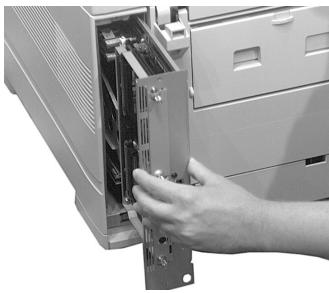

1 Align the bottom of the control board with the track in the printer and slide it back into place.

C7000 Series

C9000 Series

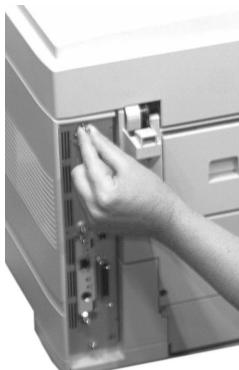

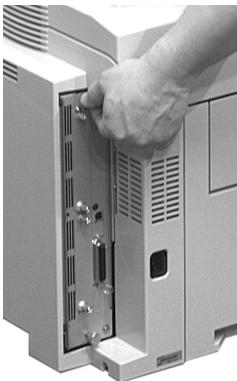

2 Reinstall the screws at the top and bottom of the board.

C7000 Series

C9000 Series

3 Reattach the interface cable, then plug the power cord into the power outlet and turn the printer on.

Check for Proper Installation

1 On the printer control panel, press MENU once or twice until INFORMATION MENU appears on the display.
2 Press SELECT. PRINT MENU MAP appears on the display.
3 Press SELECT. The MenuMap prints.
4 Check the MenuMap printout:

• At the top of the printout you should see "HDD:5.00 GB"
• In the right column you should see a new menu section entitled DISK MAINTENANCE

5 If you do not see these, remove the control board, lift the hard drive handle and check to be sure that the hard drive is firmly inserted in the connector. Then reinstall the control board and print the MenuMap again.

Activate the Hard Disk in the Driver

Windows® PCL Driver

1 Click Start Settings Printers. The Printers dialog box opens.
2 Right click the OKI PCL driver icon, then click Printing Preferences, Properties or Document Defaults, depending on the Windows system.
3 In the Paper tab, click Device options.
4 Click Printer hard disk to select it, then click OK.
5 Click OK, then close the Printers dialog box.

Windows Adobe® PostScript® Driver

1 Click Start Settings Printers. The Printers dialog box opens.
2 Right click the OKI PostScript driver icon, then click Properties.

3 Change the setting:

Windows 2000 and NT 4.0:

a Click the Device Settings tab.
b Scroll down to Installable Options and click Hard Disk.
c Under Change 'Hard Disk' Setting, click Installed.

Windows Me, 98 and 95:

a Click the Device Options tab.
b Click Hard Disk.
c Under Change setting for: Hard Disk, click Installed.

4 Click OK, then close the Printers dialog box.

Macintosh® Driver

1 Activate Chooser from the Apple menu.
2 Select LaserWriter 8.
3 Click Printer Setup.
4 Click Configure.
5 Change the Hard Disk setting to Installed.
6 Click OK twice, then close Chooser.

Limited Warranty: United States

Oki Data Americas, Inc. (Oki Data) warrants this OPTION to be free from defect in material and workmanship and will remedy any such defect according to the terms of this Limited Warranty.

Oki Data will repair (or at its option, replace) at no charge, any defective part(s) of the OPTION for one (1) year from the date of purchase. This Limited Warranty extends to the original purchaser only.

To make request or claim for service under this Limited Warranty the original purchaser must return the Oki Data product, shipping prepaid, in the original shipping container or equivalent, to Oki Data or an authorized Oki Data service center and assume the risk of loss or damage in transit. A written receipt for the product, showing the date of purchase, dealer's name, and item purchased must accompany any request or claim for work to be performed under this Limited Warranty.

This Limited Warranty shall not apply if the product has been damaged due to abuse, misuse, misapplication, accident, or as a result of service or modification by any other than an authorized Oki Data service center.

THERE ARE NO EXPRESS WARRANTY OTHER THAN THOSE ON THE FACE HEREOF AND DESCRIBED ABOVE. NO WARRANTY WHEHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL EXTEND BEYOND THE RESPECTIVE WARRANTY PERIOD DESCRIBED ABOVE OF ONE (1) YEAR. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

OKI DATA SHALL NOT BE RESPONSIBLE OR LIABLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSS ARISING FROM THE USE OF THIS PRODUCT.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion may not apply to you.

Additional information on obtaining service under this Limited Warranty is available by contacting the Oki Data dealer from whom the product was purchased, by contacting Oki Data directly at 1-800-OKI-DATA (U.S. and Canada), or by contacting one of the service depots listed on the next page.

This Limited Warranty applies to this Oki Data Option. However, the procedure for obtaining service may vary outside the continental United States. Contact your Oki Data dealer for such warranty service information.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

For the most comprehensive, up-to-date listing of Oki Data authorized Service Centers, go to http://www.okidata.com and click on Dealer Locator or call 1-800-OKI-DATA (1-800-654-3282).
