Product type	Built-in or freestanding cooker
Brand	Iberna
Model	IHW74WX
Dimensions (W x H x D)	60 x 85 x 60 cm
Weight	50 kg
Power supply	230 V / 50 Hz
Power consumption	Approximately 6000 W
Cooking type	Mixed gas + electric or all electric hob
Number of cooking zones	4 cooking zones (2 gas + 2 electric or 4 electric)
Oven capacity	Approximately 60 L
Oven functions	Fan-assisted, grill, defrost
Cleaning type	Manual cleaning with non-abrasive products
Hob material	Ceramic glass or stainless steel
Child safety	Control lock available
Automatic shut-off	Yes, programmable timer
Residual heat indicator	Yes, for electric cooking zones
Ignition	Automatic ignition for gas burners
Oven door	Double glazing, removable for cleaning
Oven light	Yes, 25 W bulb
Spare parts available	Yes, through Iberna after-sales service
Repairability index	7.1 / 10 (according to manufacturer data)
Warranty	2 years (parts and labor)
User manual available	Yes, free download in PDF format

Frequently Asked Questions - IHW74WX IBERNA

How to turn on the oven of the Iberna IHW74WX cooker?

Turn the oven selector to the desired function (fan-assisted, grill, etc.) and set the temperature with the thermostat knob. The oven turns on automatically.

How to clean the ceramic glass hob?

Use a special ceramic glass cleaner and a soft cloth. Avoid abrasive sponges that could scratch the surface. Clean after cooling.

What to do if the gas does not ignite on the burners?

Check that the gas supply is open and that the burners are properly seated. If the automatic ignition does not work, clean the electrodes with a toothpick. If the problem persists, contact after-sales service.

How to lock the controls for child safety?

Press the lock keys (usually symbolized by a padlock) simultaneously for 3 seconds until a beep sounds. To unlock, repeat the operation.

Why does the oven heat unevenly?

Ensure the oven door is tightly closed and that the racks do not block air circulation. Use the fan-assisted function for even heat distribution.

How to change the oven light bulb?

Unplug the appliance, unscrew the bulb cover, replace the defective bulb with an identical one (25 W, heat-resistant to 300°C), then screw the cover back on.

What is the maximum load capacity of the hob?

The hob supports a maximum load of 50 kg evenly distributed. Avoid placing excessively heavy dishes on a single cooking zone.

How to set the cooking timer?

Press the timer button, set the desired time with the +/- arrows or the rotary knob, then confirm. Cooking stops automatically at the end of the set time.

Where to find spare parts for this model?

Contact Iberna after-sales service or visit the official website. Recommended parts are available with a delivery time of 2 to 5 business days.

How to start an automatic cleaning cycle?

This model does not have automatic cleaning (pyrolysis). To clean the oven, use a damp cloth and mild detergent. Remove racks and side panels if necessary.

USER MANUAL IHW74WX IBERNA

MATERIALS IN COMPLIANCE WITH REQUIREMENTS OF EU DIRECTIVE 2002/95/CE + AMENDMENTS. ALL RIGHTS RESERVED. THE REPRODUCTION OF ANY PART WITHOUT OUR WRITTEN CONSENT IS FORBIDDEN.

						RELEASE LEVEL
						PRODUCTION RELEASED
	E
	D
	C
	B
	A
CL N° REV. DATE			MODIFY DESCRIPTION						MODIFIED BY
SPECIFICATION			DATE SIGNATURE			PROPERTY OF CANDY·HOOVER GROUP
GENERAL TOLERANCEISO 2768 - m			DRAWN16.02.2021 Y.GÜLTÜRK
			CHECKED16.02.2021 K.SARIBAŞAK			NAMEUSER MANUAL IBERNA 14 LANG UHOB
BASE CODE			FORHOB			(LOCAL LANGUAGE)KULLANMA KILAVUZU IBERNA 14 İL UHOBD
-
			WEIGHT SCALE		PART CODE				SHEET
TREATMENT			Kg.	1:1	4 2 8 3 8 1 9 2				1/1
Printing ColorGrey Scala
MATERIAL			SIZE		REPLACE No ORIGIN CL No Class Specification
White Paper52 gr/m - 70 gr/m			A4			----	62478	SC 000-000

iberna

HOBS

USER INSTRUCTIONS GB 02

TABLES DE CUISSON

NOTICE D'EMPLOI FR 06

VARNÉ DESKY

NÁVOD POUŽITÍ CZ 10

- IHW74WX

SAFETY INSTRUCTIONS

We recommend you keep the instructions for installation and use for later reference, and before installing the hob, note its serial number in case you need to get help from the after-sales service. WARNING: the appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children under 8 years of age must be kept away from the appliance unless they are continuously supervised.

WARNING: use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable, or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

WARNING: unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

WARNING: danger of fire: do not store items on the cooking surfaces.

WARNING: if the surface is cracked, do not touch the glass and switch off the appliance to avoid the possibility of electric shock.

This appliance can be used by children aged from 8 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

CAUTION: the cooking process must be supervised. A short term cooking process has to be supervised continuously.

It is strongly recommended to keep children away from the cooking zones while they are in operation or when they are switched off, so long as the residual heat indicator is on, in order to prevent the risks of serious burns.

This appliance is not intended to be operated by means of an external timer or separate remote control system.

If present, do not stare into halogen lamp hob elements.

Connect a plug to the supply cable that is able to bear the voltage, current and load indicated on the tag and having the earth contact. The socket must be suitable for the load indicated on the tag and must be having the earth contact connected and in operation. The earth conductor is yellow-green in color. This operation should be carried out by a suitably qualified professional. In case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must be conformed to the current norms of the installation country.

Connection to the power source can also be made by placing an omnipolar breaker between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation.

The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed.

The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules.

If the supply cord is damaged, it must be replaced by Manufacturer, its service agent or similarly qualified people in order to avoid a hazard. The earth conductor (yellow-green) must be longer than 10 mm on the terminal block side. The internal conductors section should be appropriate to the power absorbed by the hob (indicated on the tag). The type of power cable must be HO5V2V2-F.

Do not put metallic objects such as knives, forks, spoons or lids on the hob. They could heat up. Aluminum foil and plastic pans must not be placed on heating zones.

After every use, some cleaning of the hob is necessary to prevent the build-up of dirt and grease. If left, this is recooked when the hob is used and burns giving off smoke and unpleasant smells, not to mention the risks of fire propagation.

Never use a steam or high pressure spray to clean the appliance.

Do not touch the heat zones during operation or for a while after use.

Never cook food directly on the glass ceramic hob.

Always use the appropriate cookware. Always place the pan in the center of the unit that you are cooking on.

Do not place anything on control panel.

Do not use the hob as a working surface.

Do not use the surface as a cutting board.

Do not store heavy items above the hob. If they drop onto the hob, they may cause damage.

Do not use the hob for storage of any items.

Do not slide cookware across the hob.

No additional operation/setting is required in order to operate the appliance at the rated frequencies

1. INSTRUCTIONS FOR THE INSTALLER

INSTALLING A DOMESTIC APPLIANCE CAN BE A COMPLICATED OPERATION WHICH IF NOT CARRIED OUT CORRECTLY, CAN SERIOUSLY AFFECT CONSUMER SAFETY. IT IS FOR THIS REASON THAT THE TASK SHOULD BE UNDERTAKEN BY A PROFESSIONALLY QUALIFIED PERSON WHO WILL CARRY IT OUT IN ACCORDANCE WITH THE TECHNICAL REGULATIONS IN FORCE. IN THE EVENT THAT THIS ADVICE IS IGNORED AND THE INSTALLATION IS CARRIED OUT BY AN UNQUALIFIED PERSON, THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR ANY TECHNICAL FAILURE OF THE PRODUCT WHETHER OR NOT IT RESULTS IN DAMAGE TO GOODS OR INJURY TO INDIVIDUALS.

1.1 BUILDING IN

The hob may be installed in any worktop which is heat resistant to a temperature of 100°C, and has a thickness of 25-45 mm. The dimensions of the insert to be cut out of the worktop are shown in Figure 2.

When there is an accessible space between the built-in hob and the cavity below, a dividing wall made of insulating material should be inserted (wood or a similar material) (Figure 3).

If the hob is fitted next to a cabinet on either side, the distance between the cut out and the cabinet must be at least 15 cm; while the distance between the cut out and the rear wall must be at least 7 cm.

The distance between the hob and any other unit or appliance above it (e.g. an extractor hood) must be no less than 70 cm (Figure 4).

Metal objects in the drawer may reach high temperatures due to air recirculation. It is therefore recommended to use an intermediate wood panel.

Important - The diagram in Figure 1 shows how the sealant should be applied.

The hob unit is fitted by attaching the fixing clamps supplied, using the holes at the base of the unit.

If a hob of 60 cm is fitted above an oven which is not equipped with fan cooling system, it is recommended that openings are created within the built-in furniture to ensure correct air circulation.

The size of these openings must be at least 300 cm² and placed as shown in Figure 5.

When a 60 cm hob or a 75 cm hob is fitted over a built-in oven, the latter must be fan cooled.

1.2. SUITABLE LOCATION

This appliance must be installed in accordance with the regulations in force and only used in a well-ventilated space. Read the instructions before installing or using this appliance.

A gas-powered cooking appliance produces heat and humidity in the area in which it is installed. For this reason you should ensure good ventilation either by keeping all natural air passages open or by installing an extractor hood with an exhaust flue. Intensive and prolonged use of the appliance may require extra ventilation, such as the opening of a window or an increase in speed of the electric fan, if you have one.

If a hood cannot be installed, an electric fan should be fitted to an outside wall or window to ensure that there is adequate ventilation. The electric fan should be able to carry out a complete change of air in the kitchen 3-5 times every hour. The installer should follow the relevant national standards.

2. ELECTRICAL CONNECTION (FOR U.K. ONLY)

Warning - this appliance must be earthed

This appliance is designed for domestic use only. Connection to the main supply must be made by a competent electrician, ensuring that all current regulations concerning such installations are observed.

The appliance must only be connected to a suitably rated spur point, a 3 pin 13 amp plug/socket is not suitable. A double pole switch must be provided and the circuit must have appropriate fuse protection.

Further details of the power requirement of the individual product will be found in the users' instruction and on the appliance rating plate. In the case of built-in product you are advised, should you wish to use a longer cable than the one supplied, that a suitably rated heat resistant type must be used.

The wiring must be connected to the mains supply as follows: CONNECT TO SPUR TERMINAL

Green & Yellow Wire

Blue Wire

Brown Wire

Earth Connection

Neutral Connection

Live Connection

Note: We do not advocate the use of earth leakage devices with electric cooking appliances installed to spur points because of the «nuisance tripping» which may occur. You are again reminded that the appliance must be correctly earthed, the manufacturer declines any responsibility for any event occurring as a result of incorrect electrical installation.

2.1. ELECTRICAL CONNECTION

Check the data on the rating plate, located on the outside of the unit, to ensure that the supply and input voltage are suitable.

Before connection, check the earthing system.

By law, this appliance must be earthed. If this regulation is not complied with, the manufacturer will not be responsible for any damage caused to persons or property. If a plug is not already attached, fit a plug appropriate to the load indicated on the rating plate. The earth wire is colored yellow/green. The plug should always be accessible.

appropriate to the load indicated on the rating plate. The earth wire is coloured yellow/green. The plug should always be accessible.

Where the hob is connected directly to the electricity supply, a circuit breaker must be fitted.

If the power supply cord is damaged, it must be replaced by a qualified engineer to prevent any potential risk.

The earth wire (green and yellow colored) must be at least 10 mm longer than the live and neutral wires.

The section of the cable used must be of the correct size in relation to the absorbed power of the hob.

Please check the rating plate for the power details and ensure that the power supply cord is of the type 3x0.75 mm² H05 V2V2-F.

Mains Supply	LIVE	L	Brown Wire
	EARTH		Green/Yellow Wire
	NEUTRAL	N	Blue Wire

If an appliance is not fitted with a supply cord and a plug, or with other means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under overvoltage category III conditions, the instructions shall state that means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

These instructions are for qualified personnel. Installation of equipment must be in line with the relevant national standards. (For U.K. only: by law, the gas installation/commissioning must be carried out by a "Gas Safe" installer.)

These instructions are for qualified personnel, installation of equipment must be in line with the relevant national standard. (For U.K. only: by law the gas installation/commissioning must be carried out by a "Gas Safe" installer)

All work must be carried out with the electricity supply disconnected. The rating plate on the hob shows the type of gas with which it is designed to be used. Connection to the mains gas supply or gas cylinder should be carried out after having checked that it is regulated for the type of gas with which it will be supplied. If it is not correctly regulated, see the instructions in the following paragraphs to change the gas setting.

Use only pipes, washers, and sealing washers that comply with the relevant national standards.

Use only pipes, washers, and sealing washers that comply with the relevant national standards.

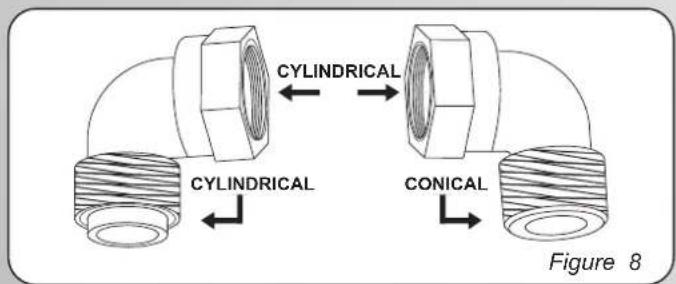

For some models, a conical link is supplied to comply with installation requirements in countries where this type of link is mandatory. Figure 8 shows how to distinguish between the different types of links (CY = cylindrical, CO = conical). In all cases, the cylindrical part of the link must be connected to the hob.

When connecting the hob to the gas supply using flexible hoses, please ensure that the maximum distance covered by the hose does not exceed 2 metres.

The flexible tube shall be fitted in such a way that it cannot come into contact with a moveable part of the housing unit (e.g. a drawer) and does not pass through any space where it may become crushed, kinked, or damaged in any way.

To prevent any potential damage to the hob, please carry out the installation following this sequence (picture 6):

1) As illustrated, assemble parts in sequence:

A: 1/2 Male Adaptor Cylindrical

B: 1/2 Seal

C: 1/2 Female Gas Adaptor Conical-Cylindrical or Cylindrical-Cylindrical

2) Tighten the joints with the spanner, remembering to twist the pipes into position.

3) Attach fitting C to mains gas supply using rigid copper pipe or flexible steel pipe.

IMPORTANT: carry out a final check for leaks on the pipe connections using a soapy solution. NEVER USE A FLAME. Also, make sure that the flexible pipe cannot come into contact with a moving part of the cabinet (e.g. a drawer) and that it is not situated where it could be damaged.

Warning: If gas can be smelt in the vicinity of this appliance, turn off the gas supply to the appliance and call the engineer directly. Do not search for a leak with a naked flame.

2.3. ADAPTING THE HOB TO DIFFERENT TYPES OF GAS

To adapt the hob for use with different types of gas, carry out the following instructions:

• Remove the grids and burners.
• Insert a hexagonal spanner (7 mm) into the burner support (Figure 7).
• Unscrew the injector and replace it with one suitable for the gas to be used (see gas type table).

2.4. REGULATING THE MINIMUM FLAME

After lighting the burners, turn the control knob to the minimum setting and then remove the knob (this can easily be removed by applying gentle pressure).

Using a small "Terminal" type screwdriver, the regulating screw can be adjusted as in Figure 9. Turning the screw clockwise reduces the gas flow, whilst turning it anticlockwise increases the flow – Use this adjustment to obtain a flame of approximately 3 to 4 mm in length and then replace the control knob.

When the gas supply available is LPG, the screw to set the idle flame must be turned (clockwise) to the end stop.

When you have carried out the new gas regulation, replace the old gas rating plate on your appliance with one (supplied with hob) suitable for the type of gas for which it has been regulated.

3. USE OF HOB - USER INSTRUCTIONS

This appliance must only be used for the purpose for which it is intended, domestic cooking, and any other use will be considered improper and could therefore be dangerous. The Manufacturer will not be responsible for any damage or loss resulting from improper use.

Before using burner, be sure that grid perimeters center the burner as shown in the figure below.

If you are using Cast Iron Grids, underneath the grid, its position is stated. Be sure that the exact grid is used in the correct position.

To ignite the burners, place a lighted taper close to the burner, press in and turn the control knob anticlockwise.

If the burners have not been used for a couple of days, wait for a few seconds before lighting the burner, this will allow any air present in the pipes to escape.

For appliances fitted with electronic ignition, carry out the following:

- Push in and turn the knob anticlockwise to the ignition symbol.

- Ignite the burner by pressing the sparker button.

For hobs fitted with automatic ignition, simply push in and turn the knob to the ignition symbol.

The ignition system will continue to generate sparks as long as the control knob is being pressed.

If the burner has not ignited within 5 seconds, turn the knob to the 0 position and repeat the operation.

For models fitted with a safety tap (which cuts off the flow of gas if the flame is accidentally extinguished), the burners are ignited as described above, but care must be taken.

Prior to switching on the gas hob, ensure that the burners and burner caps are correctly placed within their positions.

Warning: If there is no electricity on the appliance, a lighter should be used to ignite the burner.

• Push in and turn the knob anti-clockwise to the ignition symbol.
• While pushing in the button, ignite the burner by using a lighter and keep the button pushed in for 5 seconds after ignition.

GENERAL ADVICE

For best results, use cooking vessels with a flat surface. The size of the surface should match the gas burner side as follows: Table A.

Burner Type	∅ pan/pot (cm)	Power (kW)	G20/20 mbar (methane)	G30/28-30 mbar (LPG)
AUX Auxiliary	10 - 18	1,00	95 l/h	73 g/h
SR Semi Rapid	12 - 22	1,75	167 l/h	127 g/h
R Rapid	16 - 26	2,70	257 l/h	196 g/h
UR Ultrarapid	16 - 26	3,50	334 l/h	255 g/h
DC 4 kW MONO	16 - 26	4,00	381 l/h	291 g/h

Table A

For smaller containers, the gas burner should be regulated so that the flame does not overlap the base of the pan. Vessels with a concave or convex base should not be used.

WARNING: If a flame is accidentally extinguished, turn the knob to the off position and do not attempt to re-ignite for at least 1 minute.

If over the years the gas taps become stiff to turn, it is necessary to lubricate them.

Such operation must be carried out only by qualified Service Engineers.

4. MAINTENANCE AND CLEANING

Before cleaning the hob, ensure the appliance has cooled down. Remove the plug from the socket or (if connected directly) switch off the electricity supply.

Cleaning and user maintenance shall not be made by children without supervision.

Never use abrasives, corrosive detergents, bleaching agents or acids. Avoid any acid or alkaline substances (lemon, juice, vinegar etc.) on the enamelled, varnished or stainless steel sections.

When cleaning the enamelled, varnished or chrome sections, use warm soapy water or a non-caustic detergent. For stainless steel use an appropriate cleaning solution.

The burners can be cleaned with soapy water. To restore their original shine, use a household stainless steel cleaner. After cleaning, dry the burners and replace.

It is important the burners are replaced correctly.

Chromed grids and burners

Chromed grids and burners have a tendency to discolour with use. This does not jeopardize the functionality of the hob.

Our After Sales Service Centre can provide spare parts if required.

5. AFTERCARE

Before calling out a Service Engineer please check the following:

• that the plug is correctly inserted and fused; • that the gas supply is not faulty.

If the fault cannot be detected:

Switch off the appliance and call the After Sales Service Centre. DO NOT TAMPER WITH THE APPLIANCE.

6. PROTECTION OF THE ENVIRONMENT

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

• WEEE shall not be treated as household waste.
• WEEE shall be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.
• When you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Declaration of compliance: This equipment, in the parts intended to come into contact with food, complies with the regulations laid down in EEC directives 89/109.

The appliance complies with European Directive 2009/142/EC (GAD) and starting from 21/04/2018 with Gas Appliances Regulation 2016/426 (GAR).

By placing the mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

The Manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of consumption, without prejudice to the characteristics relating to safety or function.

Table 1

Burner Plate	4 Gas	4 Gas	5 Gas	5 Gas	5 Gas	3 Gas
Burner	Aux/SR/R/DC 4 Mono	Aux/2SR/R	UR/2R/SR/AUX	DC/2R/SR/AUX	DC/R/2SR/AUX	Aux/R/DC 4 Mono
Type	UH60MF	UH60MF	UH75MF	UH75MF	UH75MF	UH60MF
FFD	YES	YES	YES	YES	YES	YES
Aux 1kW	1	1	1	1	1	1
Sr 1,75 kW	1	2	1	1	2	-
R 2,7 kW	1	1	2	2	1	1
UR 3,5 kW	-	-	1	-	-	-
Dc 4 kW Mono	1	-	-	1	1	1
Nominal Heat Input	9,45 kW	7,2 kW	11,65 kW	12,15 kW	11,2 kW	7,7 kW
G20/20 mbar	900 l/h	686 l/h	1110 l/h	1158 l/h	1067 l/h	734 l/h
G30/28-30 mbar	688 g/h	524 g/h	848 g/h	884 g/h	815 g/h	560 g/h
Installation Class	3	3	3	3	3	3
Voltage V/Frequency Hz	220-240 V/ 50-60 Hz	220-240 V/ 50-60 Hz	220-240 V/ 50-60 Hz	220-240 V/ 50-60 Hz	220-240 V/ 50-60 Hz	220-240 V/ 50-60 Hz
Electrical Input Power	1	1	1	1	1	1
Electric Ignition	YES	YES	YES	YES	YES	YES
Product Dimension	595x510	595x510	745x510	745x510	745x510	595x510

This appliance has been designed for non-professional, i.e. domestic, use.

SAFETY INSTRUCTIONS

3.1. USE OF THE GAS BURNER

3.1. USE OF GAS BURNERS

www.candy-group.com

CANDY

WARRANTY CERTIFICATE

BUILT-IN HOB

3.1. USING THE BURNERS

To light a burner, hold a match or lighter near the burner, press the knob for the selected burner, and turn it to the left.

3.1. HOW TO USE THE GAS BURNER

3.1. USING THE GAS BURNER

2. ELECTRICAL CONNECTION (ONLY FOR G.B.)

3.1 USING THE BURNERS

Figure 2 Figure 1

GAS TYPE HOBS

	Gas Type			G20	G20	G25.1	G25.3	G30	G30	G30
	Gas Pressure			20 mbar	25 mbar	25 mbar	25 mbar	29 mbar	37 mbar	50 mbar
Burners		Max (kW)	Min (kW)	Injector NG	Injector NG	Injector NG	Injector NG	Injector LPG	Injector LPG	Injector LPG
				Max - Min Max - Min Max - Min			Max - Min Max - Min Max - Min
Aux		1	0,3	72X(1Kw-0,3Kw)	70X(1Kw-0,3Kw)	74F1(1Kw-0,3Kw)	72F1(1Kw-0,3Kw)	50(1Kw-0,3Kw)	46(1Kw-0,34Kw)	43H2(1Kw-0,39Kw)
Sr		1,75	0,44	97Z(1.75Kw-0.44Kw)	91Z(1.75Kw-0.44Kw)	98Y(1.75Kw-0.44Kw)	102F3(1.75Kw-0.44Kw)	65(1.75Kw-0.44Kw)	61(1.75Kw-0.51Kw)	58M(1.75Kw-0.58Kw)
R		2,7	0,75	109Y(2.7Kw-0.75Kw)	110F3(2.7Kw-0.75Kw)	120F2(2.7Kw-0.75Kw)	115F2(2.7Kw-0.75Kw)	80(2.7Kw-0.75Kw)	78(2.7Kw-0.83Kw)	73S(2.7Kw-0.96Kw)
UR		3,5 1,00		140T2P(3.5Kw-1Kw)	130(3.5Kw-1Kw)	141T2(3.5Kw-1Kw)	143T2(3.5Kw-1Kw)	93(3.5Kw-1Kw)	93(3.5Kw-1.4Kw)	83(3.5Kw-1.2Kw)
Dc 4 kW Mono		4	1,8	151H3(4Kw-1.8Kw)	145H3(4Kw-1.8Kw)	150F3(4Kw-1.8Kw)	146F3(4Kw-1.8Kw)	100(4Kw-1.8Kw)	94(4Kw-2.2Kw)	78F4(4Kw-2.1Kw)

Gas Categories	II2E+3+	II2HS3B/P	II2H3B/P
	G20 20 mbar	G20 20 mbar	G20 20 mbar
	G30/31 28-30/37 mbar	G30 28-30mbar	G30/31 30/30 mbar
		G31 37 mbar
Countries	BE,FR	CY,CZ,GB,GR,IE,IT,PT,SI, ES,TR,CH	BG, HR,DK,EE,FI,LV,LT,NO,RO,SK,SE,CZ,SI,TR

Gas Categories	II2H3B/P	II2EKSB/P	II2EKB/P	II2E3B/P	II2E3B/P
	G20 20 mbar	G25.3 25 mbar	G20 25mbar	G20 20 mbar	G20 20 mbar
	G30/31 50/50 mbar	G20 20 mbar	G2.1 25mbar	G30/31 37/37 mbar	G30/31 50 mbar
		G30/31 30/30 mbar	G30/31 30/30 mbar
Countries	AT,CH,DE	NL	HU	PL	DE

Efficiency Declaration 2016/426

UH60MF 4kW DIAMOND (L1)

UH60MF - BIG REAR (L3, L5)

UH60MF - BIG FRONT (L2)

UH60MF - 3 GAS (L4)

SINGLE BURNER EFFICENCY

SINGLE BURNER EFFICENCY

SINGLE BURNER EFFICENCY

SINGLE BURNER EFFICENCY

AUX

SR

R

DC

AUX

SR

R

DC

AUX

SR

R

DC

AUX

R

DC

-

57,9%

54,3%

57,6%

-

60%

55,9%

54,3%

-

60%

55,9%

54,3%

-

57,6%

55,9%

MEDIUM %56,6

MEDIUM %56,7

MEDIUM %56,7

MEDIUM %56,8

UH75MF UR - CENTRAL (L6)

UH75MF 4kW - CENTRAL (L7)

UH75MF 4kW - LATERAL (L8)

SINGLE BURNER EFFICENCY

SINGLE BURNER EFFICENCY

SINGLE BURNER EFFICENCY

AUX

SR

R

R

UR

AUX

SR

R

R

DC

AUX

SR

SR

R

DC

-

57,1%

59,4%

57,6%

57,6%

-

60%

59,4%

59,4%

55,7%

-

60%

60%

59,4%

57,6%

MEDIUM %57,9

MEDIUM %58,7

MEDIUM %59,3

GB - IE

The manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of consumption, without prejudice to the characteristics relating to safety or function.

FR
