Product Type	Microwave Oven
Brand	Candy
Model	CA38FLMW7NB
Capacity	38 liters
Dimensions (W x D x H)	595 x 400 x 385 mm
Net Weight	19.5 kg
Power Supply	230 V / 50 Hz
Microwave Power	900 W
Grill Power	1000 W
Convection Power	2000 W
Functions	Microwave, Grill, Convection, Combined Cooking, Defrost
Control Type	Touch Control + Dial
Display	LED Display
Number of Power Levels	10
Turntable Diameter	315 mm
Interior Light	Yes
Child Lock	Yes
Cleaning	Stainless steel interior, easy-clean enamel
Safety Features	Automatic shut-off, door interlock
Spare Parts Availability	Turntable, roller ring, glass tray available
General Information	Flush-fit installation, stainless steel finish

Frequently Asked Questions - CA38FLMW7NB CANDY

How do I clean the microwave interior?

Use a damp cloth with mild detergent. Avoid abrasive cleaners. For tough stains, heat a bowl of water with lemon juice for 2 minutes to loosen residue.

Can I use metal containers in the microwave?

No, metal can cause sparks. Use microwave-safe glass, ceramic, or plastic containers. Avoid aluminum foil unless specified in manual.

What is the maximum cooking time?

The microwave can be set up to 90 minutes (1 hour 30 minutes) in microwave mode, depending on the power level selected.

How do I set the child lock?

Press and hold the 'Stop' button for 3 seconds until the lock icon appears on the display. To unlock, press and hold again.

Why is my microwave not heating?

Check if the door is fully closed and the timer is set. If still not heating, ensure the power cord is plugged in and the circuit breaker hasn't tripped.

Can I use the microwave without the turntable?

No, the turntable is essential for even cooking. If the turntable is broken, replace it before using the microwave.

What does the 'Add 30 Sec' button do?

Each press adds 30 seconds of cooking time at full microwave power. Useful for quick reheating.

How do I defrost food?

Select the defrost function by pressing 'Defrost', enter the weight of the food in grams, and the microwave will automatically set time and power.

What is the warranty period?

Candy typically offers a 2-year warranty for parts and labor. Register your product online to extend coverage.

Can I use the grill and microwave together?

Yes, select 'Combi' mode to combine microwave and grill. Suitable for browning and cooking casseroles.

USER MANUAL CA38FLMW7NB CANDY

Read these instructions carefully before using your microwave oven, and keep them in a safe place.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	CA38FLMW7NB
Rated Voltage:	230V ~50Hz
Rated Input Power(Microwave):	1450W
Rated Output Power(Microwave):	900W
Rated Input Power(Grill):	1100W

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Children less than 8 years of age shall be kept away unless continuously supervised.
3. Keep the appliance and its cord out of reach of children less than 8 years.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. (For appliances with type Y attachment)
5. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

1. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
2. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
3. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
4. Only use utensils that are suitable for use in microwave ovens.
5. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
6. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
7. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
8. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
9. The oven should be cleaned regularly and any food deposits removed.
10. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

EN

1. Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)
2. The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)
3. This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-by clients in hotels, motels and other residential type environments;

-farm houses;

-bed and breakfast type environments.

1. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
2. Metallic containers for food and beverages are not allowed during microwave cooking.
3. The appliance shall not be cleaned with a steam cleaner.
4. Care should be taken not to displace the turntable when removing containers from the appliance. (For fixed appliances and built-in appliances being used equal or higher than 900mm above the floor and having detachable turntables. But this is not applicable for appliances with horizontal bottom hinged door.)

1. The microwave oven is intended to be used built-in.
2. Steam cleaner is not to be used.
3. Surface of a storage drawer can get hot.
4. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
5. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
6. WARNING: Accessible parts may become hot during use. Young children should be kept away.
7. The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.)
8. WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.
9. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used: 1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance. 2) The extension cord must be a grounding-type 3-wire cord. 3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils	Remarks
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray	1
Turntable ring assembly	1
Instruction Manual	1

Grill Rack (cannot be used in microwave function and must be placed on the glass tray)

A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window F) Door assembly G) Safety interlock system

Turntable Installation

a. Never place the glass tray upside down. The glass tray should never be restricted. b. Both glass tray and turntable ring assembly must always be used during cooking. c. All food and containers of food are always placed on the glass tray for cooking. d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Installation and connection

1. This appliance is only intended for domestic use.
2. This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.
3. Please observe the special installation instructions.
4. The appliance can be installed in a 60cm wide wall-mounted cupboard.
5. The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
6. The mains voltage must correspond to the voltage specified on the rating plate.
7. The socket must be installed and the connecting cable must only be replaced by a qualified electrician. If the plug is no longer accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at least 3mm.
8. Adapters, multi-way strips and extension leads must not be used. Overloading can result in a risk of fire.

The accessible surface may be hot during operation.

Installation Instructions

Please Read the Manual Carefully Before Installation

Please note

Electrical connection

The oven is fitted with a plug and must only be connected to a properly installed earthed socket. The socket must only be installed and the connecting cable must only be replaced by a qualified electrician, and in accordance with the appropriate regulations. If the plug is no longer accessible following installation, an all-pole isolating switch must be present on the installation side with a contact gap of at least 3 mm.

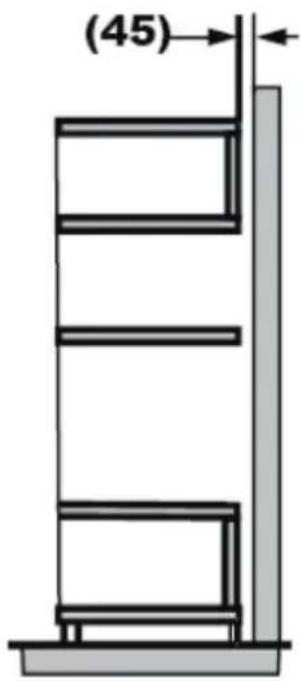

The fitted cabinet must not have a back wall behind the appliance.

A gap must be maintained between the wall and the base of the unit above. Specific gap size could be referenced by the diagrams.

Minimum installation height: 85 cm.

Do not cover ventilation slots and suction holes.

Note:

Do not trap or bend the power cable.

Screw

Mounting Plate

Trim-kit plastic cover

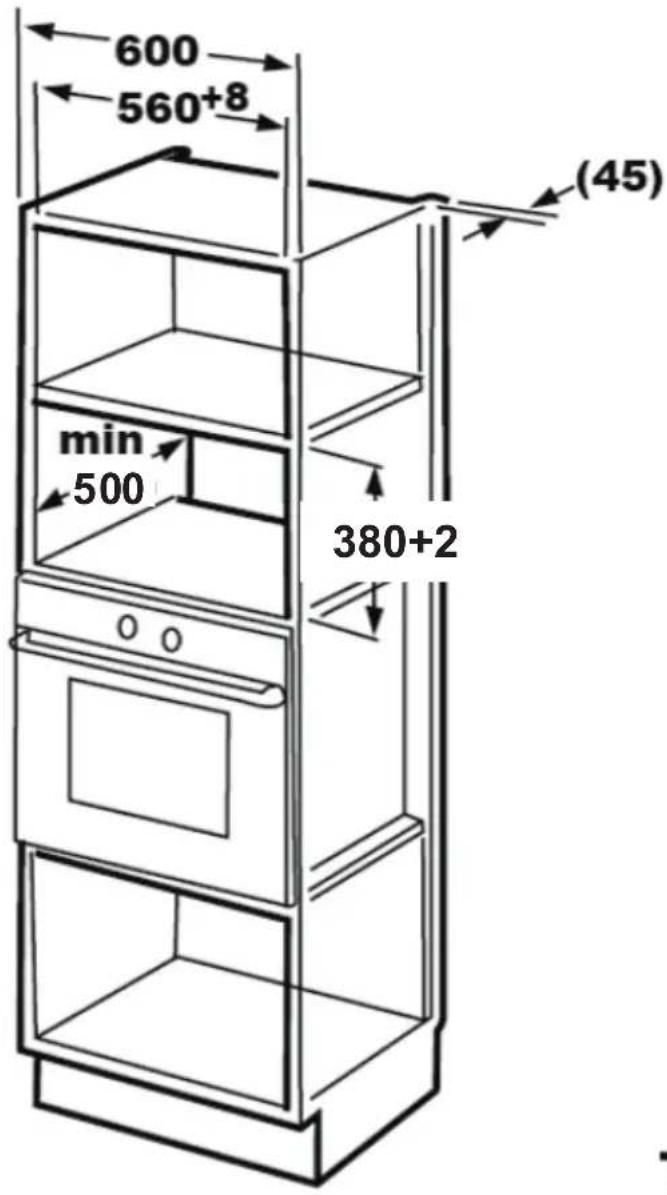

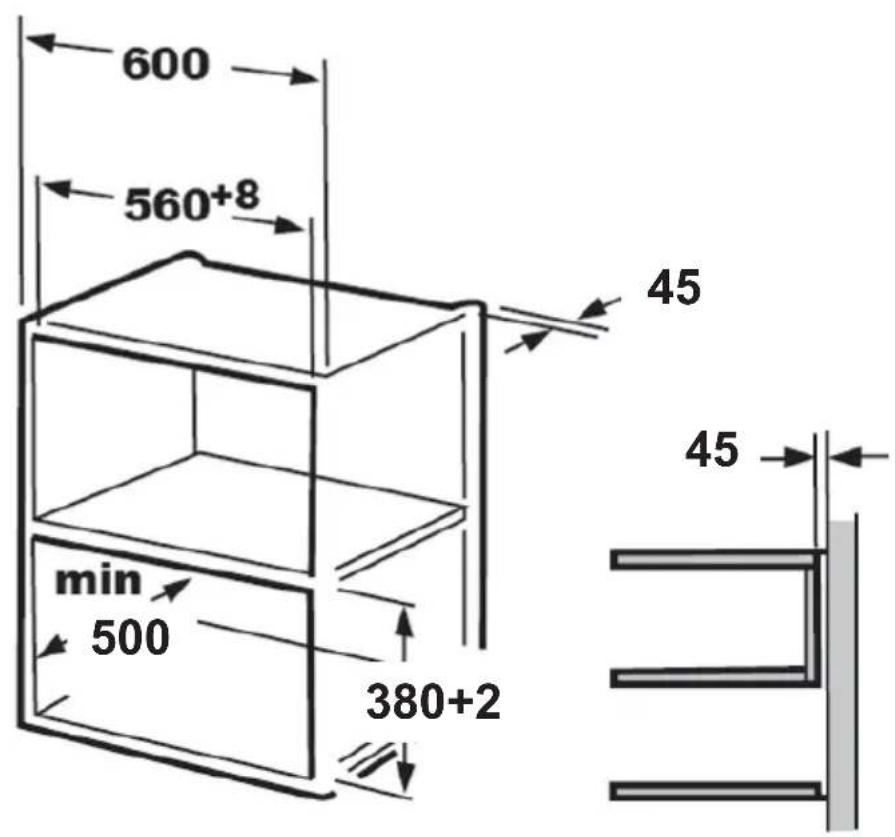

A. Built-in furniture

1.

1.

Note:

The random top plate net template is needed when installing in both installations.

B. Prepare the cabinet

1. Read the instructions on the BOTTOM CABINET TEMPLATE, put the template on the bottom plane of the cabinet.

1. Make marks on the bottom plane of the cabinet according to marks "a" of the template.

1. Remove the bottom cabinet template and fix the mounting plate with screws.

EN

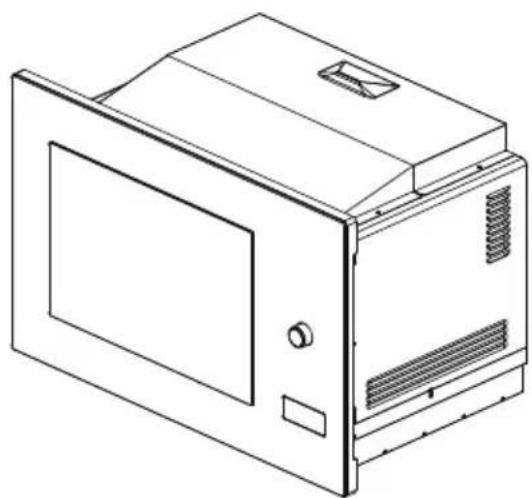

C. Install the oven

1. Install the oven to the cabinet.
2. Make sure the back of the oven is locked by the mounting plate.
3. Do not trap or kink the power cord.

1. Open the door, fix the oven to the cabinet with Screw, at the installation hole. Then fix the Trim-kit plastic cover to the installation hole.

OPERATION

1. Setting the Clock

After connecting the appliance to the power, "00:00" shows on the display. Buzzer sounds once.

(1) Press "Kitchen Timer/ Clock" twice, and the hour figure will flash. (2) Press “ + ” or “ - ” to set the hour figures. The time should be within 0-23. (3) Press "Kitchen Timer/ Clock" to confirm, and then the minute figure will flash. (4) Press “+” or “-” to set the minute figures. The time should be within 0-59. (5) Press "Kitchen Timer/ Clock" to confirm. The clock is set.

Note: (1) If the clock is not set, the clock would not function when powered. (2) In the process of clock setting, if the "STOP/Clear" button is pressed or if there is no operation within 1 minute, the oven will return to the former setting.

2. Microwave Cooking

(1) Press "Micro./Grill/Combi.", and then "00:00" will display. (2) Press “Micro./Grill/Combi.” for times or press “+” or “-” to adjust the power level from 100% to 10%. “P100”, “P80”, “P50”, “P30”, “P10” will display in order. (3) Press "START/+30Sec./Confirm" to confirm. (4) Press “ + ” or “ - ” to set cooking time. The maximum time value is 95 minutes.

Note: the step quantities for the adjustment time of the coding switch are as follow:

Microwave Power Chart

Microwave Power	100%	80%	50%	30%	10%
Display	P100	P80	P50	P30	P10

3. Grill Cooking

(1) Press "Micro./Grill/Combi." until "G" displays. (2) Press "START/+30Sec./Confirm" to confirm. (3) Press “ + ” or “ - ” to set cooking time. The maximum time value is 95 minutes. (4) Press "START/+30Sec./Confirm" to start cooking.

Note: If half the grill time passes, the oven sounds twice. In order to have a better effect of grilling food, you can turn the food over, and close the door. Then press "START/+30Sec./Confirm" to continue cooking. If no operation, the oven will continue working.

4. Combi. Cooking

(1) Press "Micro./Grill/Combi." or press "+" or "-" to select "C-1" or "C-2". (2) Press "START/+30Sec./Confirm" to confirm. (3) Press "+" or "-" to set cooking time. The maximum time value is 95 minutes. (4) Press "START/+30Sec./Confirm" to start cooking.

Combination Power Instructions:

Program	Display	Microwave Power	Grill Power
Combi.1	C-1	55%	45%
Combi.2	C-2	36%	64%

5. Defrost By Weight

(1) Press "Weigh/Time Defrost" once and "dEF1" displays. (2) Press "+" or "-" to set the weight of food. The range of weight is 100-2000g. (3) Press "START/+30Sec./Confirm" to start defrosting.

6. Defrost By Time

(1) Press "Weigh/Time Defrost" once and "dEF2" displays. (2) Press "+" or "-" to set time. The maximum time value is 95 minutes. (3) Press "START/+30Sec./Confirm" to start defrosting.

7. Multi-Stage Cooking

Two stages can be maximally set. If one stage is defrosting, it should be put in the first stage. The buzzer will ring once after each stage and the next stage will begin.

Note: Auto menu cannot be set as one of the multi-stage.

Example: If you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes, you can follow these steps.

(1) Press "Weight/Time Defrost" twice, and the LED displays "dEF2". (2) Press "+" or "-" to adjust the defrosting time of 5 minutes. (3) Press "Micro./Grill/Combi." once, and LED will display "P100". (4) Press "+" or "-" to choose microwave power till "P80" displays. (5) Press "START/+30Sec./Confirm" to confirm, and LED will display "P80". (6) Press "+" or "-" to adjust the cooking time of 7 minutes. (7) Press "START/+30Sec./Confirm" to start cooking.

8. Setting the Kitchen Timer

(1) Press "Kitchen Timer/ Clock" once, and "00:00" displays. (2) Press "+" or "-" to set the time. The time should be within 0:05-95:00. (3) Press "START/+30Sec./Confirm" to confirm. (4) Once the set time has elapsed, the buzzer will sound five times.

Note: (1) During the Kitchen Timer running, the microwave oven does not start.

(2) In the state of opening the door, the Kitchen Timer does not pause.

9. Auto Menu

(1) In waiting state, press “+” to choose the menu from “A1” to “A8”. (2) Press "START/+30Sec./Confirm" to confirm. (3) Press “+” or “-” to set the weight of food. (4) Press "START/+30Sec./Confirm" to start cooking. (5) Once the set time has elapsed, the buzzer will sound five times.

The menu chart:

Menu	Weight	Display
A1	200 g	200
Pizza	400 g	400
A2	250 g	250
Meat	350 g	350
	450 g	450
A3	200 g	200
Vegetable	300 g	300
	400 g	400
A4	50g(with 450 g cold water)	50
Pasta	100g(with 800 g cold water)	100
A5	200 g	200
Potato	400 g	400
	600 g	600
A6	250 g	250
Fish	350 g	350
	450 g	450
A7	1 cup(120 ml)	1
Beverage	2 cups(240 ml)	2
	3 cups(360ml)	3
A8	50 g	50
Popcorn	100 g	100

10. Speedy Cooking

(1) In waiting state, press "START/+30Sec./Confirm" to cook with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes. (2) During the microwave, grill, combination cooking and the defrost by time process, press "START/+30Sec./Confirm" to increase the cooking time. Note: Under the states of auto menu and defrost by weight, cooking time cannot be increased by pressing "START/+30Sec./Confirm".

11. Lock Function for Children

Lock: In waiting state, press "STOP/Clear" for 3 seconds. There will be a long beep denoting the entering into the children-lock state.

Lock quitting: In locked state, press "STOP/Clear" for 3 seconds. There will be a long "beep" denoting that lock is released.

12. Inquiring Function

(1) In cooking state, if you have set clock, press "Kitchen Timer/Clock" to check the current time, and it will display for 2-3 seconds. (2) In cooking state of microwave, grill and combination, press "Micro./Grill/Combi." to inquire power level, and it will display for 2-3 seconds.

13. Specification

(1) If you open the furnace door in the cooking process, you must press the "START/+30Sec./Confirm" again to continue cooking. (2) Once the cooking state is set and "START/+30Sec./Confirm" is not pressed within 5 minutes, the setting will be invalid.

Press "☐" button, the oven door will be opened. If the button does not work, please open the door by the sucker. Refer to the following figures.

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan.It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside.It is very dangerous.

Trouble Possible Cause Remedy
Oven cannot be started.	(1) Power cord is not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door is not closed well.	Close door well.

According to the Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in the future you need to dispose of this product, please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

CANDY

Microwave oven USER MANUAL

Model: CA38FLMW7NB

Installation instructions

Troubleshooting

Center line

Troubleshooting
