Product Type	Built-in Microwave Oven
Brand	Beko
Model	BBVM17400B
Color	Black
Capacity	17 L
Microwave Power	800 W
Grill Power	1000 W
Display Type	LED
Control Type	Touch Control
Dimensions (H x W x D)	39 x 59.5 x 40 cm
Niche Dimensions (H x W x D)	38.2 x 56 x 55 cm
Net Weight	22 kg
Energy Source	Electricity
Voltage	230 V
Frequency	50 Hz
Functions	Microwave, Grill, Combination, Defrost, Auto Cook
Interior Light	Yes
Turntable	Yes, 24.5 cm
Child Lock	Yes
Cleaning	Easy-clean enamel interior
Safety Features	Child lock, automatic shut-off, overheating protection
Warranty	2 years

Frequently Asked Questions - BBVM17400B BEKO

How do I install the Beko BBVM17400B built-in microwave?

Ensure the niche dimensions are correct (382x560x550 mm). The microwave should be installed by a qualified electrician. Connect to a dedicated 230V circuit. Refer to the user manual for detailed installation steps.

What is the capacity of the microwave?

The Beko BBVM17400B has a 17-liter capacity, suitable for medium-sized dishes.

Can I use metal containers in this microwave?

No, metal containers can cause arcing and damage the microwave. Use microwave-safe glass, ceramic, or plastic containers. Except for the grill function where some metal may be allowed if specified.

How do I clean the interior?

Wipe with a damp cloth and mild detergent. Avoid abrasive cleaners. The easy-clean enamel surface helps remove food residues. For stubborn stains, use a microwave-safe bowl of water with lemon juice and heat for 5 minutes.

Why is my microwave not heating?

Check if the door is closed properly. Ensure the child lock is not activated. If still not heating, it may be a fuse or magnetron issue. Contact Beko service.

How do I use the grill function?

Press the Grill button to select power level. Use the metal rack provided (if available) and place food on it. Do not use metal containers directly on the turntable. Refer to manual for recommended times.

What does the child lock do?

The child lock prevents accidental operation. To activate, press and hold the Lock button for 3 seconds until the lock icon appears. To deactivate, repeat.

Can I adjust the time while cooking?

Yes, you can adjust the cooking time by pressing the + or - buttons during operation. Press Stop/Clear to cancel.

Where can I find spare parts?

Contact Beko authorized service centers or visit the official Beko website. Common spare parts include turntable, glass plate, and filters.

How do I reset the microwave?

Unplug the microwave from the power outlet, wait 1 minute, then plug it back in. This will reset the control board. If the issue persists, seek professional help.

USER MANUAL BBVM17400B BEKO

BBVM17400B

385443953/ EN/ PL/ R.AA/ 19/10/23 08:48

7768287834

Welcome!

Dear Customer,

Thank you for choosing the Beko product. We want your product, manufactured with high quality and technology, to offer you the best efficiency. Therefore, carefully read this manual and any other documentation provided before using the product.

Keep in mind all the information and warnings stated in the user's manual. This way, you will protect yourself and your product against the dangers that may occur.

Keep the user's manual. If you give the product to someone else, give the manual with it. The warranty conditions, usage and troubleshooting methods for your product are provided in this manual.

The symbols and their descriptions in the user's manual:

Hazard that may result in death or injury.

Important information or useful usage tips.

Read the user's manual.

Hot surface warning.

NOTICE Hazard that may result in material damage to the product or its environment.

Arçelik A.Ş.

Karaağaç Caddesi No:2-6 34445 Sütlüce/Istanbul/TURKEY

Made in TURKEY

Table of Contents

1 Safety Instructions...... 4

1.1 Intended Use...... 4 1.2 Child, Vulnerable Person and Pet Safety 4 1.3 Electrical Safety.... 5 1.4 Transportation Safety 7 1.5 Installation Safety...... 7 1.6 Safety of Use 8 1.7 Temperature Warnings 8 1.8 Accessory Use.... 9 1.9 Cooking Safety 9 1.10 Maintenance and Cleaning Safety 10

2 Environmental Instructions...... 11

2.1 Waste Directive.... 11 2.1.1 Compliance with the WEEE Directive and Disposing of the Waste Product .... 11 2.2 Package Information...... 11 2.3 Recommendations for Energy Saving.... 11

3 Your product 12

3.1 Product Introduction ...... 12 3.2 Product Control Panel Introduction and Usage...... 12 3.2.1 Control Panel.... 13 3.3 Oven operating functions...... 13 3.4 Product Accessories.... 16 3.5 Use of Product Accessories ...... 17 3.6 Technical Specifications...... 19

4 First Use.... 20

4.1 First Timer Setting.... 20 4.2 Initial Cleaning 20

5 Using the Oven.... 22

5.1 General Information on Using the 22 Oven .... 5.2 Operation of the Oven Control 22 Unit .... 5.3 Settings 28

6 General Information About Baking....30

6.1 General Warnings About Baking 30 in the Oven .... 6.1.1 Pastries and oven food 30 6.1.2 Meat, Fish and Poultry...... 34

6.1.3 Grill 35 6.1.4 Test foods.... 36 7.1 General Cleaning Information..... 38 7.2 Cleaning Accessories.... 39 7.3 Cleaning the Control Panel...... 39 7.4 Cleaning the inside of the oven (cooking area).... 39 7.5 Easy Steam Cleaning.... 40 7.6 Cleaning the Oven Door...... 40 7.7 Removing the Inner Glass of the Oven Door.... 41 7.8 Cleaning the Oven Lamp 42

7 Maintenance and Cleaning...... 38

8 Troubleshooting 43

1 Safety Instructions

EN

• This section includes the safety instructions necessary to prevent the risk of personal injury or material damage. - If the product is handed over to someone else for personal use or second-hand use purposes, the user's manual, product labels and other relevant documents and parts should also be given. - Our company shall not be held responsible for damages that may occur if these instructions are not observed. - Failure to follow these instructions shall void any warranty. • Always have the installation and repair works made by the manufacturer, the authorised service or a person that the importer company shall designate. - Use original spare parts and accessories only. - Do not repair or replace any component of the product unless it is clearly specified in the user's manual. - Do not make technical modifications on the product.

1.1 Intended Use

• This product is designed to be used at home. It is not suitable for commercial use. - Do not use the product in gardens, balconies or other outdoors. This product is intended to be used in households and in the staff kitchens of shops, offices and other working environments. - CAUTION: This product should be used for cooking purposes only. It should not be used for different purposes, such as heating the room. • The oven can be used to defrost, bake, fry and grill food. • This product should not be used for plate heating, drying by hanging towels or clothes on the handle.

1.2 Child, Vulnerable Person and Pet Safety

- This product can be used by children 8 years of age and older, and people who are underdeveloped in physical, sensory or mental skills, or who have lack of experience and knowledge, as long as they are supervised or trained about the safe use and hazards of the product.

• Children should not play with the product. Cleaning and user maintenance should not be performed by children unless supervised. - This product should not be used by people with limited physical, sensory, or mental capacity (including children), unless they are supervised or receive the necessary instructions. • Children should be supervised to ensure that they do not play with the product. - Electrical products are dangerous for children and pets. Children and pets must not play with, climb on, or enter the product. - Do not place objects that children may reach on the product. - CAUTION: During use, the accessible surfaces of the product are hot. Keep children away from the product. - Keep the packaging materials out of the reach of children. There is a hazard of injury and suffocation. - When the door is open, do not place any heavy objects on it or allow children to sit on it. You may cause the oven to tip over or damage the door hinges.

- Before discarding worn out and useless products:

1. Unplug the power plug and remove it from the socket.
2. Cut off the power cable and disconnect it with the plug from the product.
3. Take precautions to prevent children from entering the product.
4. Do not allow children to play with the product when it is in idle mode.

1.3 Electrical Safety

- Plug the product into a grounded outlet protected by a fuse that matches the current ratings indicated on the type label. Have the grounding installation made by a qualified electrician. Do not use the product without grounding in accordance with local/national regulations.

- The plug or the electrical connection of the appliance shall be in an easily accessible place. If this is not possible, there should be a mechanism (fuse, switch, key switch, etc.) on the electrical installation to which the product is connected, in compliance with the electrical regulations and separating all poles from the network.

• Unplug the product or switch off the fuse before repair, maintenance, and cleaning.
• Plug the product into an outlet that meets the voltage and frequency values specified on the type label.
• (If your product does not have a mains cable) only use the connecting cable described in the "Technical specifications" section.
• Do not jam the power cable under and behind the product. Do not put a heavy object on the power cable. The power cable should not be bent, crushed, and come into contact with any heat source.
• Make sure that the power cable is not jammed while putting the product to its place after assembly or cleaning.
• The rear surface of the oven gets hot when it is in use. The power cables must not touch the rear surface of the product. Otherwise it might get damaged.
• Do not jam the electric cables into the oven door and do not pass them over hot surfaces. Otherwise, cable insulation may melt and cause fire as a result of short circuit.
• Use original cable only. Do not use cut or damaged cables.
• Do not use an extension cord or multi-plug to operate your product.
• Contact the authorized service centre or importer to use the approved adapter in cases where the use of a converter adapter (for plug type) is necessary.
• Contact the importer or the authorized service centre if the length of the power line is inadequate.
• Portable power sources or multiple plugs may overheat and catch fire. Keep multiple plugs and portable power sources away from the product.
• If the power cable is damaged, it must be replaced by the manufacturer, an authorized service or a person to be specified by the importer company in order to prevent possible dangers.
• CAUTION: Before replacing the oven lamp, be sure to disconnect the product from the mains supply to avoid the risk of electric shock. Unplug the product or turn off the fuse from the fuse box. If your product has a power cable and plug:
• Never insert the product plug into a broken, loose, or damaged socket. Make sure the plug is fully inserted into the socket. Otherwise, the connections may overheat and cause a fire.
• Avoid inserting the device into plugs that are greasy, unclean, or potentially exposed to water (such as those near a worktop where water may escape). Otherwise, there is a risk of short circuit and electrocution.
• Never touch the plug with wet hands!
• Pull the plug out of the socket using the plug's body rather than the cord itself.

1.4 Transportation Safety

• Disconnect the product from the mains before transporting the product.
• The product is heavy; carry the product with at least two people.
• Do not use the door and/or handle to transport or move the product.
• Do not place items on the appliance. Carry the appliance vertically.
• When you need to transport the product, wrap it with bubble wrap packaging material or thick cardboard and tape it tightly.

Secure the moving parts of the product firmly to prevent damage.

Before the product is installed, check the product for any damage after transport. Contact the importer or the authorized service centre if damaged.

1.5 Installation Safety

• Before beginning the installation, de-energize the power line to which the product will be connected by turning off the fuse. Always wear protective gloves during transport and installation. Otherwise, there is a risk of injury from sharp edges!
• Before the product is installed, check the product for any damage. Do not have it installed if the product is damaged.
• Avoid using any heat-insulating materials to cover the interior of the furniture that will be installed.
• Direct sunlight and heat sources, such as electric or gas heaters, must not be present in the area where the product is installed.
• Keep the surroundings of all ventilation ducts of the product open.
• To avoid overheating, product installation should not be carried out behind decorative covers.
• In cases where a gas hose/pipe or plastic water pipe is situated behind the designated installation area for the product, it is imperative to guarantee that there is no contact between the product and these utility lines. Otherwise the hose/pipe may be crushed.
• If there is a socket behind the place where the product will be installed, it must be ensured that the product does not come into contact with the socket nor with the plug plugged into the socket.

1.6 Safety of Use

• Ensure that the appliance is switched off after every use.
• If you will not use the product for a long time, unplug it or turn off the power from the fuse box.
• Don't use the product if it breaks down or gets damaged while being used. Disconnect the product from the electricity. Contact the importer or the authorized service centre.

- Do not use the product if the front door glass is removed or cracked. Otherwise there is a risk of injury and environmental damage.

- Do not step on the appliance for any reason.

- Never use the product when your judgment or coordination is impaired by the use of alcohol and/or drugs.

- Flammable objects must not be kept in and around the cooking area. Otherwise, these may lead to fire.

- The oven handle is not a towel dryer. When using the product, do not hang towels, gloves or similar textiles on the handle.

- The hinges of the product door move when opening and closing the door and might jam. When opening / closing the door, do not hold the part with the hinges.

1.7 Temperature Warnings

- CAUTION: When the product is in use, the product and its accessible parts will be hot. Care should be taken to avoid touching the product and heating elements. Children under 8 years of age should be kept away from the product unless constantly supervised.

• Do not place flammable / explosive materials near the product, as the surfaces will be hot while it is operating.
• Keep your distance when opening the oven door during or at the end of cooking. The steam may burn your hand, face and/or eyes.
• During operation the product is hot. Care should be taken to avoid touching hot parts, inside of the oven and heating elements. • Always wear heat-resistant oven gloves when handling the product.

1.8 Accessory Use

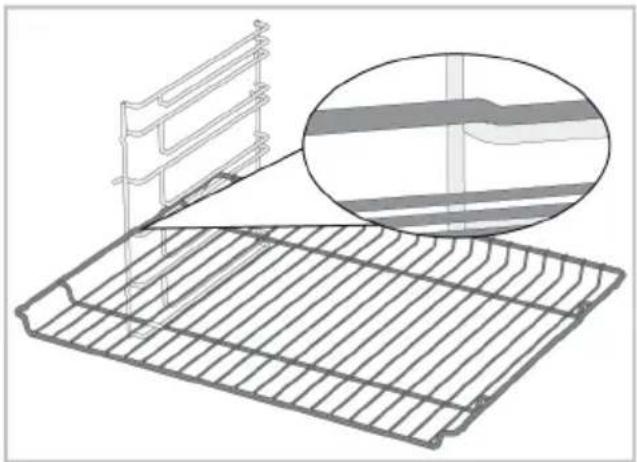

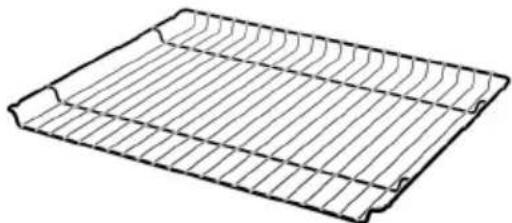

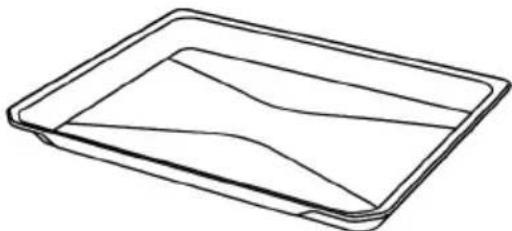

- It is important that the wire grill and tray are placed properly on the wire shelves. For detailed information, refer to the section "Usage of accessories".

- Close the oven door after pushing the accessories completely into the cooking space, otherwise they may hit the door glass and damage it.

1.9 Cooking Safety

- Be careful when using alcoholic drinks in your dishes. Alcohol evaporates at high temperatures and may cause fire

since it can ignite when it comes into contact with hot surfaces.

- Food residues in the cooking area, such as oil, can ignite. Clean these residues before cooking.

- Food Poisoning Hazard: Do not let food sit in the oven for more than 1 hour before or after cooking. Otherwise, it may cause food poisoning or diseases.

- Do not heat closed tins and glass jars in the oven. The pressure that would build up in the tin/jar may cause it to burst.

- Do not place baking trays, dishes, or aluminum foil directly onto the bottom of the oven. The accumulated heat might damage the bottom of the oven.

Be mindful of the following precautions when using greasy parchment paper or similar materials:

• Place the greaseproof paper in a cookware or on the oven accessory (tray, wire grill, etc.) with food and place it in the preheated oven. To prevent the risk of touching the oven heating elements and obstructing the flow of hot air, remove any excess parts of

greaseproof paper that hang from accessories or containers. Do not use greaseproof paper at oven temperatures higher than the maximum usage temperature specified by the manufacturer. Never place greaseproof paper on the oven base.

• Do not place it on top of accessories during preheating. Always press down with a plate or similar object to prevent the material from flying around due to the air circulation inside the oven.
• Only cover the necessary surface inside the tray. After each use, the tray should be cleaned, and any greaseproof paper or similar materials used in the tray should be replaced. Otherwise, liquids dripping onto the tray can cause smoking or even ignite flames.
• An air flow is generated when the product lid is opened. Greaseproof paper can come into contact with heating elements and ignite.
• When using a grilling rack for frying, a tray should be placed on the lower rack. Otherwise,

the food oil and other components that drip onto the oven bottom can create heavy smoke and lead to flames.

• Close the oven door during grilling. Hot surfaces may cause burns!
• Food not suitable for grilling carries a fire hazard. Grill only food that is suitable for heavy grill fire. Do not place the food too far in the back of the grill. This is the hottest area and fatty foods may catch fire.

1.10 Maintenance and Cleaning Safety

• Wait for the product to cool before cleaning it. Hot surfaces may cause burns!
• Never wash the product by spraying or pouring water on it! There is a risk of electric shock!
• Do not use steam cleaners to clean the product as this may cause an electric shock.
• Do not use harsh abrasive cleaners, metal scrapers, wire wool, or bleach materials to clean the oven front door glass. These materials can cause glass surfaces to be scratched and broken.

2.1 Waste Directive

2.1.1 Compliance with the WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. You can ask your local administration about these collection points. Disposing of the appliance properly helps prevent negative consequences for the environment and human health.

Compliance with RoHS Directive:

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

2.2 Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging waste with the household or other wastes, take it to the packaging material collection points designated by the local authorities.

2.3 Recommendations for Energy Saving

According to EU 66/2014, information on energy efficiency can be found on the product receipt supplied with the product. The following suggestions will help you use your product in an ecological and energy-efficient way:

• Defrost frozen food before baking.
• In the oven, use dark or enamelled containers that transmit heat better.
• If specified in the recipe or user's manual, always preheat. Do not open the oven door frequently during baking.
• Turn off the product 5 to 10 minutes before the end time of baking in prolonged bakings. You can save up to 20% electricity by using residual heat.
• Try to cook more than one dish at a time in the oven. You may cook at the same time by placing two cookers on the wire rack. In addition, if you cook your meals one after the other, it will save energy because the oven will not lose its heat.
• Do not open the oven door when baking in the “Eco fan heating” operating function. If the door is not opened, the internal temperature is optimized to save energy in the “Eco fan heating” operating function, and this temperature may differ from what is shown on the display.

3.1 Product Introduction

1 Control panel 2 Lamp

3 Wire shelves 4 Cross-partition sheet

5 Door 6 Handle

7 Lower heater (under the steel plate) 8 Lower fan motor (behind the sheet)

9 Shelf positions 10 Upper fan motor (behind the sheet)

11 Upper heater 12 Ventilation holes

* Varies depending on the model. Your product may not be equipped with a lamp, or the type and location of the lamp may differ from the illustration.

3.2 Product Control Panel Introduction and Usage

In this section, you can find the overview and basic uses of the product's control panel. There may be differences in images and some features depending on the type of product.

3.2.1 Control Panel

EN

1 Function selection knob 2 Control unit 3 Temperature knob

If there are knob(s) controlling your product, in some models this/these knob(s) may be so that they come out when pushed (buried knobs). For settings to be made with these knobs, first push the relevant knob in and pull out the knob. After making your adjustment, push it in again and replace the knob.

Function selection knob

You can select the oven operating functions with the function selection knob. To select, first touch the key and turn on the oven. Then, rotate the function selection knob to the right/left.

Temperature knob

You can select the temperature you want to cook with the temperature knob. To select, first touch the key and turn on the oven. Then, rotate the temperature knob to the right/left.

Oven inner temperature indicator

You can understand the oven inner temperature from the inner temperature symbol on the display. When the cooking starts, the symbol is seen on the display and when the oven inner temperature reaches the set temperature, each level of the symbol illuminates.

3.3 Oven operating functions

On the function table, the operating functions you can use in your oven and the highest and lowest temperatures that can be set for these functions are shown. The order of the operating modes shown here may differ from the arrangement on your product.

If the cross-partition sheet is placed in the product, the maximum temperatures of 280 °C decrease to 250 °C.

Lower-Upper and Single Large section

Function symbol			Function description	Temperature range (°C)	Description and use
Single large section	Lower Section	Upper section
			Operating with fan -		The oven is not heated. Only the fan (on the back wall) operates. Frozen food with granules is slowly defrosted at room temperature, cooked food is cooled. The time required to defrost a whole piece of meat is longer than for foods with grains.
	-	-	Top and bottom heating	40-280	Food is heated from above and below at the same time. Suitable for cakes, pastries or cakes and stews in baking moulds. Cooking is done with a single tray.
		-Bottom heating 40-220			Only lower heating is on. It is suitable for foods that need browning on the bottom.
	-	-	Fan assisted bottom/top heating	40-280	The hot air heated by the upper and lower heaters is distributed equally and rapidly throughout the oven with the fan. Cooking is done with a single tray.
			Fan Heating 40-280		The hot air heated by the fan heater is distributed equally and rapidly throughout the oven with the fan. It is suitable for multi-tray cooking of your food at different shelf levels.
			Eco fan heating 160-220		In order to save energy, you can use this function instead of using “Turbo cooking” in the range of 160-220°C. But; baking time will be slightly longer. When this function is selected, “ECO” is seen on the screen for 2 seconds. After 2 seconds, suggested temperature value is shown.
		-Pizza function 40-280			The lower heater and fan heating work. It is suitable for cooking pizza.
			40-280		Upper heater and fan heater on the back wall operate. Hot air is better distributed via the fan compared to just via upper heater.
			280		Upper heating, lower heating and fan heating functions operate. Each side of the product to be cooked is cooked equally and quickly. Cooking is done with a single tray.
					The small grill on the oven ceiling works. It is suitable for grilling smaller amounts.
					The large grill on the oven ceiling works. It is suitable for grilling in large amounts.
	- Fan as		fill 40-280		The hot air heated by the large grill is quickly distributed into the oven with the fan. It is suitable for grilling in large amounts.
	-- Keep	warm 40-100			It is used to keep the food at a temperat-ure ready for service for a long time.
	-- Easy	steam cleaning -			It varies depending on the product model. It may not be available on your product. This function allows the dirt inside the oven (which has not been staying for a long time) to be softened and easily cleaned. See the cleaning section for easy steam cleaning.

Upper-Lower section interworking function combinations

Function symbol	Function description		Function symbol	Function description		Function symbol	Function description
	Fan Heating + Fan Heating			Fan Heating + Bottom heating			Full grill + Fan Heating
	Fan Heating + Pizza function			Low grill + Fan Heating			Operating with fan + Operating with fan

Upper-Lower section interoperability temperature setting intervals

Temperature of one section is impacted by the temperature setting of the other section in the double section cooking processes. For this reason, there are restrictions according to the temperatures adjusted for the sections. The temperature intervals that you can set for other section are given in the following tables based on the temperature you have set for one section.

Temperature set for upper section (°C)	Temperature that can be set for lower section			Temperature set for lower section (°C)	Temperature that can be set for upper section
	Minimum (°C)	Maximum (°C) Minimum		Maximum (°C) Maximum (°C)
40 40 45 40	40 45
60 50 75 60	50 75
80 65	105	80 65		105
100	80	135		100	80	135
120	90	160		120	90	160
140	105	190		140	105	190
160	120	225		160	120	225
180	135	250		180	135	250
200	145	250		200	145	250
220	160	250		220	160	250
250	170	250		250	170	250

Oven cooking sections

You can cook in 4 different ways in different sections using the cross-partition sheet in your oven or by exiting the product.

Upper Section

You can only cook in the upper section. Suitable for grilling and small size cooking. When the upper section is active, the screen displays the function of the top section, temperature indicator, and time/duration indicator screens. This section is active only if there is a symbol next to the upper section function screen.

Lower Section

You can only cook in the lower section. Suitable for medium size cooking. When the lower section is active, the screen displays the function of the lower section, temperature indicator, and time/duration indicator screens. This section is active only if there is a symbol next to the lower section function screen.

Lower-Upper Section

You can cook in the upper and lower compartments at the same time. It is suitable for cooking two different foods. When the upper and lower sections are active, the function, temperature indicator and time/duration indicator screens specific to these sections appear separately on the screen. If both sections have > symbols next to their function screens, both sections are active.

Single Large Section

You can cook in the single large section. Suitable for large size and multiple cooking. When the single large compartment is active,

the function screen for both sections is customized to a single section. The temperature indicator and time/duration indicator screens for the lower compartment appear.

3.4 Product Accessories

There are various accessories in your product. In this section, the description of the accessories and the descriptions of the correct usage are available. Depending on the product model, the supplied accessory varies. All accessories described in the user's manual may not be available in your product.

The trays inside your appliance may be deformed with the effect of the heat. This has no effect on the functionality. Deformation disappears when the tray is cooled.

Standard tray

It is used for pastries, frozen foods and frying large pieces.

Wire grill

It is used for frying or placing the food to be baked, fried and stewed on the desired shelf.

On models with wire shelves :

On models without wire shelves :

Cross-partition sheet

It is used to divide the cooking section into two separate sections.

3.5 Use of Product Accessories

Cooking shelves

There are 5 levels of shelf position in the cooking area. You can also see the order of the shelves in the numbers on the front frame of the oven.

Placement of the cross-partition sheet

In order to cook only in the upper, lower or together in the lower and upper sections in your oven, place the cross-partition sheet as shown in the following figure on the 3. rack position.

Before placing the cross-partition sheet 3, seat it on the end of the rack evenly and then place it into the oven firmly. If you place it at an angled position, cross-partition sheet shall be damaged.

Placing the Wire Grill on the Cooking Shelves

It is crucial to place the wire grill on the wire side shelves properly. While placing the wire grill on the desired shelf, the open section must be on the front. For better cooking, the wire grill must be secured on the wire shelf's stopping point. It must not pass over the stopping point to contact with the rear wall of the oven.

Placing the Tray on the Cooking Shelves

It is also crucial to place the trays on the wire side shelves properly. While placing the tray on the desired shelf, its side designed for holding must be on the front. For better cooking, the tray must be secured on the stopping socket on the wire shelf. It must not pass over the stopping socket to contact with the rear wall of the oven.

Stopping Function of the Wire Grill

There is a stopping function to prevent the wire grill from tipping out of the wire shelf. With this function, you can easily and safely take out your food. While removing the wire grill, you can pull it forward until it reaches the stopping point. You must pass over this point to remove it completely.

Tray Stopping Function

There is also a stopping function to prevent the tray from tipping out of the wire shelf. While removing the tray, release it from the rear stopping socket and pull it towards yourself until it reaches the front side. You must pass over this stopping socket to remove it completely.

Proper Placement of the Wire Grill and Tray on the Telescopic Rails - On Models with Wire Shelves and Telescopic Models

Thanks to telescopic rails, trays or the wire grill can be easily installed and removed. When using trays and wire grills with the telescopic rail, care should be taken that the pins on the front and back of the telescopic rails rest against the edges of the grill and the tray (as shown in the figure).

3.6 Technical Specifications

General specifications
Product external dimensions (height/width/depth) (mm)	595 /594 /567
Oven installation dimensions (height / width / depth) (mm)	590-600 /560 /min. 550
Voltage/Frequency 220-240 V ~; 50 Hz
Cable type and section used/suitable for use in the product	min. H05VV-FG 3 x 1,5 mm2
Total power consumption (kW) 2,8
Oven type Multifunction oven

Basics: Information on the energy label of home type electrical ovens is given in accordance with the EN 60350-1 / IEC 60350-1 standard. The values are determined in Top and bottom heating or (if present) Fan assisted bottom/top heating functions with the standard load.

Energy efficiency class is determined in accordance with the following prioritization depending on whether the relevant functions exist on the product or not. 1-Eco fan heating, 2-Fan Heating, 3-Fan assisted low grill, 4-Top and bottom heating.

Technical specifications may be changed without prior notice to improve the quality of the product.

Figures in this manual are schematic and may not exactly match your product.

Values stated on the product labels or in the documentation accompanying it are obtained in laboratory conditions in accordance with relevant standards. Depending on operational and environmental conditions of the product, these values may vary.

4 First Use

Before you start using your product, it is recommended to do the following stated in the following sections respectively.

4.1 First Timer Setting

Always set the time of day before using your oven. If you do not set it, you cannot cook in some oven models.

1. When oven is started for the first time the time of day set on the oven is shown on the display.
2. With the oven turned off (when the time of day is shown on the display), touch the ⓣ key for about 3 seconds to activate the settings menu.

A countdown of 3-2-1 appears on the display. After the countdown is over, the settings menu is activated.

1. Touch the keys until the symbol appears on the display.
2. Touch the key to activate the timer field.

The timer field and the symbol flash on the display.

1. Set the time of day by touching the ⏻ keys and activate the minutes field by touching the ⏻ key again.

The minutes field and the symbol flash on the display.

1. Touch the ⏻ keys to set the minute. Confirm the setting by touching the ⏻ key.

The time of day is set and the symbol illuminates continuously.

If the first timer setting is not performed, the time of day starts from 12:00. You can change the time of day setting later as described in the "Settings" section.

In the event of a long power outage, the time of day setting is cancelled. It should be set again.

4.2 Initial Cleaning

1. Remove all packaging materials.
2. Remove all accessories from the oven provided with the product.

Leave the cross-partition sheet in the oven.

1. Operate the product for 30 minutes and then, turn it off. This way, residues and layers that may have remained in the oven during production are burned and cleaned.
2. When operating the product, select the highest temperature and the operating function that all the heaters in your

product operate. See "Oven operating functions". You can learn how to operate the oven in the following section.

1. Wait for the oven to cool.
2. Wipe the surfaces of the product with a wet cloth or sponge and dry with a cloth.

Before using the accessories:

Clean the accessories you remove from the oven with detergent water and a soft cleaning sponge.

NOTICE: Some detergents or cleaning agents may cause damage to the surface. Do not use abrasive detergents, cleaning powders, cleaning creams or sharp objects during cleaning.

NOTICE: During the first use, smoke and odour may come up for several hours. This is normal and you just need good ventilation to remove it. Avoid directly inhaling the smoke and odours that form.

5.1 General Information on Using the Oven

Cooling fan (It varies depending on the product model. It may not be available on your product.)

Your product has a cooling fan. The cooling fan is activated automatically when necessary and cools both the front of the product and the furniture. It is automatically deactivated when the cooling process is finished. Hot air comes out over the oven door. Do not cover these ventilation openings with anything. Otherwise, the oven may overheat. The cooling fan continues to operate during oven operation or after the oven is turned off (approximately 20-30 minutes). If you cook by programming the oven timer, at the end of the baking time, the cooling fan turns off with all functions. The cooling fan running time cannot be determined by the user. It turns on and off automatically. This is not an error.

Oven lighting

The oven lighting is turned on when the oven starts baking. In some models, the lighting is on during baking, while in some models it turns off after a certain time. In some baking functions the lamp never turns on to save energy.

If the product door is opened while the oven is operating or in the closed position, the oven lighting turns on automatically.

If there is a key on the control panel: In cases where the oven lamp is automatically switched on or off, you can turn the lamp on and off at any time by touching the key.

5.2 Operation of the Oven Control Unit

General warnings for the oven control unit

• The maximum time that can be set for the baking process is 5:59 hours. In the keep warm function, this time is 23:59 hours. In case of a power outage, the pre-set baking and baking duration are cancelled.
• While making any adjustments, the relevant symbols flash on the display. It is necessary to save the settings made, either by touching the relevant key in the description or by waiting for a short time.
• If baking time is set when baking starts, the remaining time is shown on the display.
• If the quick preheating setting is active on the control unit, the ^ symbol appears on the display when you start baking and the oven reaches the temperature you set for baking quickly. For quick preheating setting, see the "Settings" section.

Control unit

Keys:

1: On/off key 2: Cooking section selection key 3: Alarm key 4: Decrease and advance key 5: Increase and advance key 6: Time and settings key 7: Lamp key 8: Baking start/stop key

Indicator areas:

9: Temperature indicator area 10: Timer/duration indicator area 11: Function display

Display symbols:

: Baking time symbol : Alarm symbol : Baking symbol ↓ : In-oven temperature symbol : Quick heating (booster) symbol : Settings symbol : Key lock symbol : Volume level symbol ① : Brightness symbol : Defrosting symbol : Keep warm symbol : Symbol of baking with eco fan : Single large cooking section symbol : Lower cooking section symbol : Upper cooking section symbol : Double cooking section symbol : Remove control symbol : Wifi symbol * : Self-cleaning symbol * : Door lock symbol * : Meat probe symbol *

* It varies depending on the product model. It may not be available on your product.

Turning on the oven

Turn on the oven by touching the ⓚ key. If the cross-partition sheet is not installed after the oven is opened, the first operating function of the single large section appears on the screen. If the cross-partition sheet is inserted, the first working function for the lower section is displayed. The operating function, temperature and baking time can be adjusted when the display is in this status.

If no setting is made on this display, the oven turns off in approximately 3 minutes and the time of day is shown on the display.

Turning off the oven

Turn off the oven by touching the ① key. The time of day is shown on the display.

Cooking in one large section, only in the lower section, or only in the upper section

The following steps describe cooking in the single large section, only the lower section, or only the upper section, respectively.

To cook in one large section, remove the cross-partition sheet from the product.

1. To cook in one large section, remove the cross-partition sheet from the product. If you only want to cook in the lower or only upper section, install the intermediate compartment sheet.
2. Turn on the oven by touching the key. If the cross-partition sheet is not installed after the oven is opened, the first operating function of the single large section appears on the screen. If the cross-partition sheet is inserted, the first working function for the lower section is displayed.

Illustration 1: If the cross-partition sheet is inserted:

Illustration 2: If the cross-partition sheet is not inserted:

1. When the cross-partition sheet is inserted, the lower section cooking area screen is activated. Just tap the ☐ key to select the upper section.

The symbol appears next to the function screen belonging to the upper section.

1. When the cooking section you want to cook is active, select the function you want to cook with the function selection button.
2. The pre-set temperature for the operating function you selected appears on the display. Set the temperature you want to cook with the temperature knob if you would like to change this temperature.

If you change the operating function after you change the pre-set temperature of the operating function, the last temperature set is shown on the display. However, if the selected temperature is not within the temperature range of the selected operating function, the highest temperature for that operating function is displayed.

1. If you want to cook without setting the cooking time, tap the key to start cooking.

If the cooking is started without adjusting the cooking time, the oven does not automatically turn itself off at the end of cooking. The user must end the cooking.

Your oven starts operating immediately at the selected function and temperature, and the time passed appears on the display. On the display, the ▶ and symbols are shown. As the oven inner temperature reaches the set temperature, each stage of the ↓ symbol will light up. The time passed after cooking is started appears on the Duration/hour screen.

1. If you want to cook by setting the cooking time, tap the key once.

⇒ The symbol appears on the display.

Illustration 3: For single large section:

Illustration 4: Only for lower section:

Illustration 5: Only for upper section:

To quickly set the baking time, you can touch the ⏻ key to set the baking time to 30 minutes after setting the operating function and temperature, then use the ⏻ keys to change the time.

1. Set the cooking time with the ⊕ keys.

The baking time increases by 1 minute in the first 15 minutes and by 5 minutes after 15 minutes.

1. After setting up the operating function, the temperature, and the baking time, touch the ▶ key to start baking.

→ Your oven will start operating immediately at the selected operating function and temperature. The baking time set on the display counts down. On the display, the ▶ and symbols are shown. As the oven inner temperature reaches the set temperature, each stage of the symbol will light up.

1. If you cooked without setting the cooking time, the oven does not turn off automatically. You have to control baking and turn it off yourself. When the baking is completed, touch the ▶ key to end the baking or touch the Ⓛ key to turn off the oven completely.
2. If you cooked by setting the cooking time, after the set cooking time is completed, "End" text appears on the screen, an audible warning is heard, and cooking stops.

The warning sounds for two minutes. While the audible warning is given and "End" text appears on the display, if you touch the ▶ key, the oven continues operating indefinitely. The oven is turned off if the Ⓛ key is touched. If any key is touched except for these, the audible warning stops.

Cooking together in the lower section and upper section

√ The following steps describe how to cook different dishes together in the lower section and upper section. Before cooking starts, determine the upper and lower section functions that are suitable for your meals. See "Oven operating functions" for combinations of upper-lower section functions.

1. Insert the cross-partition sheet and place your meals on the corresponding shelves of the oven sections where you will cook.
2. Turn on the oven by touching the ① key. ⇒ After the oven is turned on, the first operating function of the lower section is displayed on the screen.

1. In the lower section, adjust the desired working function and temperature with the function and temperature selection buttons.

⇒ The > symbol appears next to the function screen belonging to the upper section.

1. If you want to cook without setting the cooking time, tap the key to start cooking.

If the cooking is started without adjusting the cooking time, the oven does not automatically turn itself off at the end of cooking. The user must end the cooking.

The lower section of your oven starts operating immediately at the selected function and temperature and the time passed appears on the screen. On the display, the ▶ and ▶ symbols are shown. As the oven inner temperature reaches the set temperature, each stage of the ▶ symbol will light up. The time passed after cooking is started appears on the Duration/hour screen.

1. If you want to cook by setting the cooking time, tap the key once.

→ The symbol appears on the time/duration screen of the lower section.

To quickly set the baking time, you can touch the + key to set the baking time to 30 minutes after setting the operating function and temperature, then use the + keys to change the time.

1. Set the cooking time with the Ⓕ and ⊖ keys.

The baking time increases by 1 minute in the first 15 minutes and by 5 minutes after 15 minutes.

1. After setting the operating function, temperature, and baking time, touch the key to start baking.

The lower section of your oven will start operating immediately at the selected function and temperature. The baking time set on the display counts down. On the display, the ▶ and ↓ symbols are shown. As the oven inner temperature reaches the set temperature, each stage of the ↓ symbol will light up.

1. Tap the key to activate the upper section.

1. In the upper section, adjust the desired working function and temperature with the function and temperature selection buttons.

The symbol appears next to the function screen belonging to the upper section.

1. If you want to cook without setting the cooking time, tap the ▶ key to start cooking.

If the cooking is started without adjusting the cooking time, the oven does not automatically turn itself off at the end of cooking. The user must end the cooking.

The upper section of your oven starts operating immediately at the selected function and temperature and the time passed appears on the screen. On the display, the ▶ and ▶ symbols are shown. As the oven inner temperature reaches the set temperature, each stage of the ▶ symbol will light up. The time passed after cooking is started appears on the Duration/hour screen.

1. If you want to cook by setting the cooking time, tap the ⓣ key once.

→ The symbol appears on the time/duration screen of the upper section.

To quickly set the baking time, you can touch the ⏻ key to set the baking time to 30 minutes after setting the operating function and temperature, then use the ⏻ keys to change the time.

1. Set the cooking time with the ⏻ keys.

The baking time increases by 1 minute in the first 15 minutes and by 5 minutes after 15 minutes.

1. After setting up the operating function, the temperature, and the baking time, touch the key to start baking.

The upper section of your oven will start operating immediately at the selected function and temperature. The baking time set on the display counts down. On the display, the ▶ and ↓ symbols are shown. As the oven inner temperature reaches the set temperature, each stage of the ↓ symbol will light up.

1. If you have cooked without setting the cooking time, the oven will not automatically turn off for both of the sections. You have to control baking and turn it off yourself. End cooking by tapping the ▶ key, while the section, where your cooking has been completed, is active. When the cooking of the other section is finished, first activate the other section with the ▶ key and tap the ▶ key to end the cooking. If you want to close both sections, tap the ① key to turn off the oven completely.
2. If you cooked by setting the cooking time, "End" text appears on the temperature indicator screen of the section where the cooking time has been completed, the audible warning is heard and that section stops cooking. The other section continues to work until the cooking time is over. When the cooking time is completed in the other section, "End" text appears on the temperature indicator screen of that section, an audible warning is heard and that section stops cooking.

⇒ Within each section, the warning sounds for two minutes at the end of the alarm period. While the audible

warning is given and "End" text appears on the display, if you touch the ▶|| key, the oven continues operating indefinitely. The oven is turned off if the ① key is touched. If any key is touched except for these, the audible warning stops.

5.3 Settings

The 3-2-1 countdown is shown on the display in the menus or settings that should be activated by pressing for a long period. When the countdown expires, the relevant menu or setting is activated.

Activating the key lock

By using the key lock feature, you can safeguard the interference of the control unit.

1. Touch the + keys simultaneously until the symbol appears on the display.

The symbol appears on the display and the key lock is activated. When any key is touched after the key lock is set, an audible signal is heard and the symbol flashes.

While the key lock is activated, the keys of the control unit cannot be used. The key lock will not be cancelled in case of power failure.

Deactivating the key lock

1. Touch the + keys simultaneously until the symbol disappears from the display.

The 🔒 symbol disappears from the display and the key lock is disabled.

Setting the alarm

You can also use the control unit of the product for any warning or reminder other than baking.

The alarm clock has no effect on the oven operating functions. It is used for warning purposes. For example, you can use the alarm clock when you want to turn the food in the oven at a certain time. As soon as the time you set has expired, the timer gives you an audible warning.

The maximum alarm time may be 23 hours 59 minutes.

1. Touch the key to set the alarm period.

The symbol starts to flash on the display.

1. Set the alarm time with the 4 keys. Touch the key again to confirm the setting.

The symbol illuminates continuously and the alarm time starts to count down on the display. If the alarm time and baking time are set at the same time, the shorter time is shown on the display.

1. After the alarm time is completed, the symbol starts flashing and gives you an audible warning.

Turning off the alarm

1. At the end of the alarm period, the warning sounds for two minutes. Touch any key to stop the audible warning.

→ The audible warning is stopped.

If you want to cancel the alarm:

1. Touch the key to reset the alarm period. Touch the key until the "00:00" symbol appears on the display.
2. You can also cancel the alarm by pressing the 🔊 key for a long time.

Setting the volume

You may set the volume of your control unit. Your oven should be turned off to perform this setting.

1. With the oven turned off (when the time of day is shown on the display), touch the ⏻ key for about 3 seconds to activate the settings menu.
2. Touch the /+ keys until the appears on the display.
3. Activate the volume setting by touching the ⓣ key again. (b-1, b-2)
4. Set the desired tone with the /+ keys. The selected volume setting is confirmed immediately. Touch the ⓚ key to return to the settings menu.

Setting the display brightness

You may set the brightness of the control unit display. Your oven should be turned off to perform this setting.

1. With the oven turned off (when the time of day is shown on the display), touch the ⓣ key for about 3 seconds to activate the settings menu.
2. Touch the /+ keys until the symbol appears on the display.
3. Activate the brightness setting by touching the ⓚ key again.
4. Set the desired brightness with the + keys. (d-1, d-2, d-3)

The selected brightness setting is confirmed immediately. Touch the ⓚ key to return to the settings menu.

Setting the quick preheating (Booster) function

You may operate the baking on your product automatically with the quick preheating function. For this purpose, you should activate the quick preheating setting. Your oven should be turned off to perform this setting.

1. With the oven turned off (when the time of day is shown on the display), touch the ⓣ key for about 3 seconds to activate the settings menu.
2. Touch the + keys until the symbol appears on the display.
3. Activate the quick preheating setting (booster) by touching the Ⓤ key again.
4. With the ④ keys, turn the "OFF" setting to "ON" on the display.

The selected quick preheating setting is confirmed immediately. Touch the key to return to the settings menu.

You may turn off the quick preheating setting with the same procedure. By turning the setting "OFF" you may cancel the automatic quick preheating setting.

Changing the time of day

To change the time of day that you have previously set,

1. With the oven turned off (when the time of day is shown on the display), touch the Ⓤ key for about 3 seconds to activate the settings menu.
2. Touch the + keys until the symbol appears on the display.
3. Touch the ⓚ key to activate the timer field.

⇒ The timer field and the symbol flash on the display.

1. Set the time of day by touching the Ⓧ keys and activate the minutes field by touching the Ⓧ key again.

6 General Information About Baking

You can find tips on preparing and cooking your food in this section.

Plus, this section describes some of the foods tested as producers and the most appropriate settings for these foods. Appropriate oven settings and accessories for these foods are also indicated.

6.1 General Warnings About Baking in the Oven

• While opening the oven door during or after baking, hot-burning steam may emerge. The steam may burn your hand, face and/or eyes. When opening the oven door, stay away.
• Intense steam generated during baking may form condensed water drops on the interior and exterior of the oven and on the upper parts of the furniture due to the temperature difference. This is a normal and physical occurrence.
• The cooking temperature and time values given for foods may vary depending on the recipe and amount. For this reason, these values are given as ranges. • Always remove unused accessories from the oven before you start cooking. Accessories that will remain in the oven may prevent your food from being cooked at the correct values.

⇒ The minutes field and the symbol flash on the display.

1. Touch the Ⓐ keys to set the minute. Confirm the setting by touching the ⏱ key.

⇒ Adjusted time of the day is confirmed immediately. Touch the ⓣ key to return to the settings menu.

• For foods that you will cook according to your own recipe, you can reference similar foods given in the cooking tables.
• Using the supplied accessories ensures you get the best cooking performance. Always observe the warnings and information provided by the manufacturer for the external cookware you will use.
• Cut the greaseproof paper you will use in your cooking in suitable sizes to the container you will cook. Greaseproof papers that are overflowing from the container can create a risk of burns and affect the quality of your baking. Use the greaseproof paper you will use in the temperature range specified.
• For good baking performance, place your food on the recommended correct shelf. Do not change the shelf position during baking.

6.1.1 Pastries and oven food

• We recommend using the accessories of the product for a good cooking performance. If you will use an external cookware, prefer dark, non-sticking and heat resistant ware. - If preheating is recommended in the cooking table, be sure to put your food in the oven after preheating.

• If you will cook by using cookware on the wire grill, place it in the middle of the wire grill, not near the back wall.
• All materials used in making pastry should be fresh and at room temperature.
• The cooking status of the foods may vary depending on the amount of food and the size of the cookware.
• Metal, ceramic and glass moulds extend the cooking time and the bottom surfaces of pastry foods do not brown evenly.
• If you are using baking paper, a small browning can be observed on the bottom surface of the food. In this situation, you may have to extend your cooking period by approximately 10 minutes.
• The values specified in the cooking tables are determined as a result of the tests carried out in our laboratories. Values suitable for you may differ from these values.
• Place your food on the appropriate shelf recommended in the cooking table. Refer to the bottom shelf of the oven as shelf 1.

Tips for baking cakes

• If the cake is too dry, increase the temperature by 10°C and shorten the baking time.
• If the cake is moist, use a small amount of liquid or reduce the temperature by 10°C.
• If the top of the cake is burnt, put it on the lower shelf, lower the temperature and increase the baking time.
• If the inside of the cake is cooked well, but outside is sticky, use less liquid, decrease the temperature and increase the cooking time.

Hints for pastry

• If the pastry is too dry, increase the temperature by 10°C and shorten the cooking time. Wet the dough sheets with a sauce consisting of milk, oil, egg and yoghurt mixture.
• If the pastry is getting cooked slowly, make sure that the thickness of the pastry you have prepared does not overflow the tray.
• If the pastry is browned on the surface but the bottom is not cooked, make sure that the amount of sauce you will use for the pastry is not too much at the bottom of the pastry. For an even browning, try to spread the sauce evenly between the dough sheets and the pastry.
• Bake your pastry in the position and temperature appropriate to the cooking table. If the bottom is still not browned enough, place it on a bottom shelf for the next cooking.

Cooking table for pastries and oven foods in single large section

Suggestions for baking with a single tray

Food Accessories to be used Operating function			Shelf position Temperature (°C)	Baking time (min) (approx.)
Cake on the tray Standard tray *		Top and bottom heating	3 180 30 ... 40
Cake in the mould	Cake mould on wire grill** **	Fan Heating 3	90 40 ... 50
Small cakes	Standard tray *	Top and bottom heating	3 160 25 ... 35
	Standard tray * Fan	Heating 2 160 35 ... 45
Sponge cake	Round springform pan, 26 cm in diameter on wire grill** **	Top and bottom heating	3 160 30 ... 40
	Round springform pan, 26 cm in diameter on wire grill** **	Fan Heating 3	60 35 ... 45

Food Accessories to be used Operating function			Shelf position	Temperature (°C)	Baking time (min) (approx.)
Cookie	Pastry tray *	Top and bottom heating	3 170 25	35
	Pastry tray * Fan Heating 3 170 30 ... 40
Pastry Standard tray *		Top and bottom heating	2 200 30	40
Bun	Standard tray *	Top and bottom heating	2 200 25	35
	Standard tray * Fan Heating 3 180 30 ... 40
Whole bread	Standard tray *	Top and bottom heating	3 200 35	45
	Standard tray * Fan Heating 3 200 35 ... 45
Lasagne	Glass / metal rectangular container on wire grill **	Top and bottom heating	2 or 3 200 30	40
Apple pie	Round black metal mould, 20 cm in diameter on wire grill **	Top and bottom heating	2 180 60	75
	Round black metal mould, 20 cm in diameter on wire grill **	Fan Heating 3 170 60 ... 80
Pizza	Standard tray *	Top and bottom heating	3 250 ... 280 8 ... 15
	Standard tray * Pizza function 3 250 ... 280 6 ... 12
Preheating is recommended for all food.* These accessories may not be included with your product.** These accessories are not included with your product. They are commercially available accessories.

Suggestions for cooking with two trays

Food Accessory to be used Operating function		Shelf position	Temperature (°C)	Baking time (min) (approx.)
Small cakes	1 - Standard tray *4 - Pastry tray *	Fan Heating 1 - 4 160	35 ... 45
Cookie	2 - Standard tray *4 - Pastry tray *	Fan Heating 2 - 4 170	30 ... 40
Bun	2 - Standard tray *4 - Pastry tray *	Fan Heating 2 - 4 180	30 ... 40
Preheating is recommended for all food.* These accessories may not be included with your product.** These accessories are not included with your product. They are commercially available accessories.

Cooking table for pastries and oven foods in upper section

Suggestions for baking with a single tray

Food Accessory to be used	Operating function	Shelf position	Temperature (°C)	Baking time (min) (approx.)
Cake in the mould	Cake mould on wire grill** **	Fan Heating 4 190 45 ... 55
Small cakes Standard tray * Fan Heating 4 160 40 ... 50
Cookie Pastry tray * Fan Heating 4 170 30 ... 40
Bun Standard tray * Fan Heating 4 180 35 ... 45
Preheating is recommended for all food.* These accessories may not be included with your product.** These accessories are not included with your product. They are commercially available accessories.

Cooking table for pastries and oven foods in lower section

Suggestions for baking with a single tray

Food Accessory to be used	Operating function	Shelf position	Temperature (°C)	Baking time (min) (approx.)
Cake in the mould	Cake mould on wire grill** **	Fan Heating 1	90 45 ... 55
Sponge cake	Round springform pan, 26 cm in diameter on wire grill** **	Fan Heating 1	60 40 ... 50
Pizza Standard tray * Pizza function 2 250 ... 280 10		... 15
Preheating is recommended for all food.* These accessories may not be included with your product.** These accessories are not included with your product. They are commercially available accessories.

"Eco fan heating" operating function

• Do not change the temperature setting after starting cooking in the "Eco fan heating" operating function.
• Do not open the oven door when cooking in the "Eco fan heating" operating function. If the door does not open, the internal temperature is optimized to save energy, and this temperature may differ from what is shown on the display.

Do not preheat in the "Eco fan heating" operating function.

Cooking table for "Eco fan heating" operating function in single large section

Suggestions for baking with a single tray

Food Accessory to be used	Shelf position	Temperature (°C)	Baking time (min)(approx.)
Small cakes	Standard tray *	2	160
Cookie	Standard tray *	3	200
Bun	Standard tray *	2	200
* These accessories may not be included with your product.

Cooking table for "Eco fan heating" operating function in upper large section. Suggestions for baking with a single tray.

Food Accessory to be used	Shelf position Temperature (°C) Baking	time (min)(approx.)
Small cakes Standard tray * 4 180 35 ... 50
Cookie Standard tray * 4 200 45 ... 55
Bun Standard tray * 4 220 35 ... 50
* These accessories may not be included with your product.

6.1.2 Meat, Fish and Poultry

The key points on grilling

• Seasoning whole chicken, turkey, and large pieces of meat with lemon juice and pepper before cooking will increase cooking performance.
• It takes 15 to 30 minutes more to cook boned meat than fillet by frying.
• You should calculate about 4 to 5 minutes of cooking time per centimetre of the meat thickness.

• After the cooking time is expired, keep the meat in the oven for approximately 10 minutes. The juice of the meat is better distributed to the fried meat and does not come out when the meat is cut. - Fish should be placed on the medium or low level shelf in a heat resistant plate. - Cook the recommended dishes in the cooking table with a single tray.

Cooking table for meat, fish and poultry in a single large section

Food Accessory to be used	Operating function	Shelf position	Temperature (°C)	Baking time (min) (approx.)
Steak (whole) / Roast (1 kg)	Standard tray *	Fan assisted bottom/top heating	3	15 mins. 250/ max, after 180 ... 190
Lamb's shank (1,5-2 kg)	Standard tray *	Fan assisted bottom/top heating	3 170 85 ... 110
Fried chicken (1,8-2 kg)	Wire grill *Place one tray on a lower shelf	Fan assisted bottom/top heating	2	15 mins. 250/ max, after 210
	Wire grill *Place one tray on a lower shelf	"3D" function	2	15 mins. 250/ max, after 210
Turkey (5.5 kg)	Standard tray *	Fan assisted bottom/top heating	1	25 mins. 250/ max, after 180 ... 190
	Standard tray *	"3D" function	1	25 mins. 250/ max, after 180 ... 190
Fish	Wire grill *Place one tray on a lower shelf	Fan assisted bottom/top heating	3 200	20 ... 30
	Wire grill *Place one tray on a lower shelf	"3D" function	3 200	20 ... 30
Preheating is recommended for all food.*These accessories may not be included with your product.**These accessories are not included with your product. They are commercially available accessories.

Cooking table for meat, fish and poultry in upper section EN

Food Accessory to be used	Operating function	Shelf position	Temperature (°C)	Baking time (min) (approx.)
Fried chicken (1,8-2 kg)	Standard tray * Fan Heating 4		15 mins. 250/ max, after 210	80 ... 105
Fish Standard tray * Fan Heating 4 200 20 ... 30
Preheating is recommended for all food.*These accessories may not be included with your product.**These accessories are not included with your product. They are commercially available accessories.

Cooking table for meat, fish and poultry in lower section

Food Accessory to be used	Operating function	Shelf position	Temperature (°C)	Baking time (min) (approx.)
Fried chicken (1,8-2 kg)	Standard tray * Fan Heating 1		15 mins. 250/ max, after 210	70 ... 95
Fish Standard tray * Fan Heating 1 200 20 ... 30
Preheating is recommended for all food.*These accessories may not be included with your product.**These accessories are not included with your product. They are commercially available accessories.

6.1.3 Grill

Red meat, fish and poultry meat will quickly turn brown when grilled, hold a beautiful crust and do not dry out. Fillet meats, skewer meats, sausages as well as juicy vegetables (tomatoes, onions, etc.) are particularly suitable for grilling.

General warnings

• Food not suitable for grilling carries a fire hazard. Grill only food that is suitable for heavy grill fire. Also, do not place the food too far in the back of the grill. This is the hottest area and fatty foods may catch fire.
• Close the oven door during grilling. Never grill with the oven door open. Hot surfaces may cause burns!

The key points of the grill

• Prepare foods of similar thickness and weight as much as possible for the grill.
• Place the pieces to be grilled on the wire grill or wire grill tray by distributing them without exceeding the dimensions of the heater.
• Depending on the thickness of the pieces to be grilled, the cooking times given in the table may vary.
• Slide the wire grill or the wire grill tray to the desired level in the oven. If you are cooking on the wire grill, slide the oven tray to the lower shelf to collect the oils. The oven tray you are going to slide should be sized to cover the entire grill area. This tray may not be included with the product. Put some water into the oven tray for easy cleaning.

Grill table for single large section

Food Accessory to be used	Shelf position Temperature (°C) Baking	time (min)(approx.)
Fish Wire grill4 - 5 250 20 ... 25
Chicken piecesWire grill 4 - 5 250 25 ... 35
Meatball (veal) - 12 amountWire grill4	250 20 ... 30
Lamb chopWire grill 4 - 5 250 20 ... 25
Steak - (meat cubes)Wire grill 4 - 5 250 25 ... 30
Veal chop Wire grill 4 - 5 250 25 ... 30
Vegetable gratin Wire grill 4 - 5 220 20 ... 30
Toast bread Wire grill 4 250 2 ... 4
It is recommended to preheat for 5 minutes for all grilled food.Turn pieces of food after 1/2 of the total grilling time.

Grill table for upper section

Food Accessory to be used	Shelf position Temperature (°C) Baking time (min)(approx.)
Meatball (veal) - 12 amount	Wire grill 4 250	20 ... 30
Toast bread Wire	grill 4 250 2 ... 4
It is recommended to preheat for 5 minutes for all grilled food.Turn pieces of food after 1/2 of the total grilling time.

6.1.4 Test foods

Foods in this cooking table are prepared according to the EN 60350-1 standard to facilitate testing of the product for control institutes.

Cooking table for test dishes single large section

Suggestions for baking with a single tray

Food Accessory to be used		Operating function	Shelf position	Temperature (°C)	Baking time (min) (approx.)
Shortbread (sweet cookie)	Standard tray *	Top and bottom heating	3 140	20 ... 30
	Standard tray *	Fan Heating	3	140	15 ... 25
Small cakes	Standard tray *	Top and bottom heating	3 160	25 ... 35
	Standard tray *	Fan Heating	2	160	35 ... 45
Sponge cake	Round springform pan, 26 cm in diameter on wire grill** **	Top and bottom heating	3 160	30 ... 40
	Round springform pan, 26 cm in diameter on wire grill** **	Fan Heating	3 160	35 ... 45
Apple pie	Round black metal mould, 20 cm in diameter on wire grill **	Top and bottom heating	2 180	60 ... 75
	Round black metal mould, 20 cm in diameter on wire grill **	Fan Heating	3 170	60 ... 80
Preheating is recommended for all food.* These accessories may not be included with your product.** These accessories are not included with your product. They are commercially available accessories.

Suggestions for cooking with two trays

Food Accessory to be used Operating function		Shelf position	Temperature (°C)	Baking time (min) (approx.)
Shortbread (sweet cookie)	2 - Standard tray *4 - Pastry tray *	Fan Heating 2 - 4 140 15 ... 25
Small cakes	1 - Standard tray *4 - Pastry tray *	Fan Heating 1 - 4 160 35 ... 45
Preheating is recommended for all food.* These accessories may not be included with your product.** These accessories are not included with your product. They are commercially available accessories.

Grill table for single large section

Food Accessory to be used	Shelf position Temperature (°C) Baking time (min)(approx.)
Meatball (veal) - 12 amount	Wire grill 4 250	20 ... 30
Toast bread Wire	grill 4 250 2 ... 4
It is recommended to preheat for 5 minutes for all grilled food.Turn pieces of food after 1/2 of the total grilling time.

The table of cooking together in the lower-upper sections

Cooking sec-tion	Food Accessory to be used		Operating function	Shelf position	Temperature (°C)	Baking time (min) (approx.)
Upper Small cakes Standard tray * Fan Heating 2				150	35 ... 50
Lower	Small cakes	Standard tray *	Fan Heating	2	150	35 ... 50
Upper	Whole chicken	Standard tray *	Fan Heating 4		15 mins. 250/ max, after 190	80 ... 100
Lower	Cake in the mould	Cake mould on wire grill** **	Fan Heating 1	180	45 ...	55
Upper	Cake in the mould	Cake mould on wire grill** **	Fan Heating 4	180	45 ...	55
Lower	Fish	Standard tray *	Fan Heating	1	200	20 ... 30
Upper	Fish	Standard tray *	Fan Heating	4	200	20 ... 30
Lower	Bun	Standard tray *	Fan Heating	1	180	35 ... 50
Upper	Bun	Standard tray *	Fan Heating	4	180	30 ... 45
Lower	Pizza	Standard tray *	Pizza	2	250	10 ... 17
Preheating is recommended for all food.* These accessories may not be included with your product.** These accessories are not included with your product. They are commercially available accessories.

7.1 General Cleaning Information

General warnings

• Wait for the product to cool before cleaning the product. Hot surfaces may cause burns!
• Do not apply the detergents directly on the hot surfaces. This may cause permanent stains.
• The product should be thoroughly cleaned and dried after each operation. Thus, food residues shall be easily cleaned and these residues shall be prevented from burning when the product is used again later. Thus, the service life of the appliance extends and frequently faced problems are decreased.
• Do not use steam cleaning products for cleaning.
• Some detergents or cleaning agents cause damage to the surface. Unsuitable cleaning agents are: bleach, cleaning products containing ammonia, acid or chloride, steam cleaning products, de-scaling agents, stain and rust removers, abrasive cleaning products (cream cleaners, scouring powder, scouring cream, abrasive and scratching scrubber, wire, sponges, cleaning cloths containing dirt and detergent residues).
• No special cleaning material is needed for cleaning after each use. Clean the appliance using dishwashing detergent, warm water and a soft cloth or sponge, and dry it with a dry cloth.
• Be sure to completely wipe off any remaining liquid after cleaning and immediately clean any food splashing around during cooking.
• Do not wash any component of your appliance in a dishwasher unless otherwise stated in the user's manual.

Inox - stainless surfaces

- Do not use acid or chlorine-containing cleaning agents to clean stainless-inox surfaces and handles.

• Stainless-inox surface may change colour in time. This is normal. After each operation, clean with a detergent suitable for the stainless or inox surface.
• Clean with a soft soapy cloth and liquid (non-scratching) detergent suitable for inox surfaces, taking care to wipe in one direction.
• Remove lime, oil, starch, milk and protein stains on the glass and inox surfaces immediately without waiting. Stains may rust under long periods of time.
• Cleaners sprayed/applied to the surface should be cleaned immediately. Abrasive cleaners left on the surface cause the surface to turn white.

Enamelled surfaces

• After each use, clean the enamel surfaces using dishwashing detergent, warm water and a soft cloth or sponge, and dry them with a dry cloth. - If your product has an easy steam cleaning function, you can make easy steam cleaning for light non-permanent dirt. (See "Easy Steam Cleaning [▶ 40]".) - For difficult stains, an oven and grill cleaner recommended on the website of your product brand and a non-scratching scouring pad can be used. Do not use an external oven cleaner. - The oven must cool down before cleaning the cooking area. Cleaning on hot surfaces shall create both fire hazard and damage the enamel surface.

Catalytic surfaces

• The side walls in the cooking area can only be covered with enamel or catalytic walls. It varies by model.
• The catalytic walls have a light matte and porous surface. The catalytic walls of the oven should not be cleaned.
• Catalytic surfaces absorb oil thanks to their porous structure and start to shine when the surface is saturated with oil; in this case, it is recommended to replace the parts.

Glass surfaces

• When cleaning glass surfaces, do not use hard metal scrapers or abrasive cleaning materials. They can damage the glass surface.
• Clean the appliance using dishwashing detergent, warm water, and a microfiber cloth specific for glass surfaces, and dry it with a dry microfiber cloth.
• If there is residual detergent after cleaning, wipe it with cold water and dry with a clean, dry microfiber cloth. Residual detergent may damage the glass surface next time.
• Under no circumstances should the dried-up residue on the glass surface be cleaned off with serrated knives, wire wool, or similar scratching tools.
• You can remove the calcium stains (yellow stains) on the glass surface with a commercially available descaling agent, such as vinegar or lemon juice.
• If the surface is heavily soiled, apply the cleaning agent on the stain with a sponge and wait a long time for it to work properly. Then clean the glass surface with a wet cloth. Discolorations and stains on the glass surface are normal and not defects.

Plastic parts and painted surfaces

• Clean plastic parts and painted surfaces using dishwashing detergent, warm water, and a soft cloth or sponge, and dry them with a dry cloth.
• Do not use hard metal scrapers or abrasive cleaners. They may damage the surfaces.
• Ensure that the joints of the components of the product are not left damp and with detergent. Otherwise, corrosion may occur on these joints.

7.2 Cleaning Accessories

Do not put the product accessories in a dishwasher unless otherwise stated in the user's manual.

7.3 Cleaning the Control Panel

• When cleaning the panels with knob-control, wipe the panel and knobs with a damp soft cloth and dry with a dry cloth. Do not remove the knobs and gaskets underneath to clean the panel. The control panel and knobs may be damaged.
• While cleaning the inox panels with knob control, do not use inox cleaning agents around the knob. The indicators around the knob can be erased.
• Clean the touch control panels with a damp soft cloth and dry with a dry cloth. If your product has a key lock feature, set the key lock before performing control panel cleaning. Otherwise, incorrect detection may occur on the keys.

7.4 Cleaning the inside of the oven (cooking area)

Follow the cleaning steps described in the "General Cleaning Information" section according to the surface types in your oven.

Cleaning the side walls of the oven

The side walls in the cooking area can only be covered with enamel or catalytic walls. It varies by model. If there is a catalytic wall, refer to the "Catalytic surfaces" section for information.

If your product is a wire shelf model, remove the wire shelves before cleaning the side walls. Then complete the cleaning as described in the "General Cleaning Information" section according to the side wall surface type.

To remove the side wire shelves:

1. Remove the front of the wire shelf by pulling it on the side wall in the opposite direction.
2. Pull the wire shelf towards you to remove it completely.

1. To reattach the shelves, the procedures applied when removing them must be repeated from the end to the beginning, respectively.

7.5 Easy Steam Cleaning

This allows cleaning of the dirt (not remaining for a long time) that is softened by the steam inside the oven and by the water droplets condensed in the internal surfaces of the oven easily.

1. Remove all accessories inside the oven.
2. Add 500 ml water into the tray and place it on the 2nd shelf of the oven.

1. Select the easy steam cleaning function. The cleaning time appears on the display and this duration cannot be changed.

Open the door and wipe the oven interiors with a wet sponge or cloth.

For stubborn dirt, clean the product using dishwashing detergent, warm water and a soft cloth or sponge and dry it with a dry cloth.

In the easy steam cleaning function, it is expected that the added water evaporates and condenses on the inside of the oven and the oven door in order to soften the light dirt formed in your oven. Condensation formed on the oven door may drip around when the oven door is opened. As soon as you open the oven door, wipe off the condensation.

(It varies depending on the product model. It may not be available on your product.) After the condensation inside the oven, puddle or moisture may occur in the pool channel under the oven. Wipe this pool channel with a damp cloth after use and dry it.

7.6 Cleaning the Oven Door

You can remove your oven door and door glasses to clean them. How to remove the doors and windows is explained in the sections "Removing the oven door" and "Removing the inner glasses of the door".

After removing the door inner glasses, clean them using a dishwashing detergent, warm water and a soft cloth or sponge and dry them with a dry cloth. For lime residue that may form on the oven glass, wipe the glass with vinegar and rinse.

Do not use harsh abrasive cleaners, metal scrapers, wire wool or bleach materials to clean the oven door and glass.

Removing the oven door

1. Open the oven door.
2. Open the clips in the front door hinge socket on the right and left by pushing them downwards as shown in the figure.
3. Hinge types vary as (A), (B), (C) types according to the product model. The following figures show how to open each type of hinge.
4. (A) type hinge is available in normal door types.

1. (B) type hinge is available in soft closing door types.

1. (C) type hinge is available in soft opening/closing door types.

1. Get the oven door to a half-open position.

1. Pull the removed door upwards to release it from the right and left hinges and remove it.

To reattach the door, the procedures applied when removing it must be repeated from the end to the beginning, respectively. When installing the door, be sure to close the clips on the hinge socket.

7.7 Removing the Inner Glass of The Oven Door

Inner glass of the product's front door may be removed for cleaning.

1. Open the oven door.
2. Pull the plastic component, attached on the upper section of the front door, towards yourself by simultaneously pushing on the pressure points on both sides of the component and remove it.

1. As shown in the figure, gently lift the innermost glass (1) towards "A" and then, remove it by pulling towards "B".

1 Innermost glass 2* Inner glass (it may not be available for your product)

1. If your product has an inner glass (2), repeat the same process to detach it (2).
2. The first step of regrouping the door is to reassemble the inner glass (2). Place the bevelled edge of the glass to meet the bevelled edge of the plastic slot. (If your product has an inner glass). Inner glass (2) must be attached to the plastic slot closest to the innermost glass (1).
3. While reassembling the innermost glass (1), pay attention to place the printed side of the glass on the inner glass. It is crucial to place the lower corners of the innermost glass (1) to meet the lower plastic slots.
4. Push the plastic component towards the frame until a "click" sound is heard.

7.8 Cleaning the Oven Lamp

In the event that the glass door of the oven lamp in the cooking area becomes dirty; clean using dishwashing detergent, warm water and a soft cloth or sponge and dry with a dry cloth. In case of oven lamp failure, you can replace the oven lamp by following the sections that follow.

Replacing the oven lamp

General Warnings

• To avoid the risk of electric shock before replacing the oven lamp, disconnect the product and wait for the oven to cool. Hot surfaces may cause burns! - This oven is powered by an incandescent lamp with less than 40 W, less than 60 mm in height, less than 30 mm in diameter, or a halogen lamp with G9 sockets with less than 60 W power. Lamps are suitable for operation at temperatures above 300 °C. Oven lamps are available from Authorised Services or licensed technicians. This product contains a G energy class lamp. - The position of the lamp may differ from that is shown in the figure. - The lamp used in this product is not suitable for use in the lighting of home rooms. The purpose of this lamp is to help the user see food products. - The lamps used in this product must withstand extreme physical conditions such as temperatures above 50 °C.

If your oven has a round lamp,

1. Disconnect the product from the electricity.
2. Remove the glass cover by turning it counter clockwise.

1. If your oven lamp is type (A) shown in the figure below, rotate the oven lamp as shown in the figure and replace it

with a new one. If it is type (B) model, pull it out as shown in the figure and replace it with a new one.

1. Refit the glass cover.

If your oven has a square lamp,

1. Disconnect the product from the electricity.
2. Remove the wire shelves according to the description.

1. Lift the lamp's protective glass cover with a screwdriver. Remove the screw first, if there is a screw on the square lamp in your product.
2. If your oven lamp is type (A) shown in the figure below, rotate the oven lamp as shown in the figure and replace it with a new one. If it is type (B) model, pull it out as shown in the figure and replace it with a new one.

1. Refit the glass cover and wire shelves.

8 Troubleshooting

If the problem persists after following the instructions in this section, contact your vendor or an Authorized Service. Never try to repair your product yourself.

Steam is emanated while the oven is working.

- It is normal to see vapour during operation. >>> This is not an error.

Water droplets appear while cooking

- The steam generated during cooking condenses when it comes into contact with cold surfaces outside the product and may form water droplets. >>> This is not an error.

Metal sounds are heard while the product is warming and cooling.

- Metal parts may expand and make sounds when heated. >>> This is not an error.

The product does not work.

• Fuse may be faulty or blown. >>> Check the fuses in the fuse box. Change them if necessary or reactivate them.
• The appliance may not be plugged to the (grounded) outlet. >>> Check if the appliance is plugged in to the outlet.
• (If there is timer on your appliance) Keys on the control panel do not work. >>> If your product has a key lock, the key lock may be enabled, disable the key lock.

Oven light is not on.

• Oven lamp may be faulty. >>> Replace oven's lamp.
• No electricity. >>> Ensure the mains is operational and check the fuses in the fuse box. Change the fuses if necessary or reactivate them.

Oven is not heating.

• The oven may not be set to a specific cooking function and/or temperature. >>> Set the oven to a specific cooking function and/or temperature.
• The oven door may be open. >>> Make sure the oven door is closed. If the oven door remains open for more than 5 minutes, the time setting made for cooking is cancelled and heaters do not work.
• For the models with timer, the time is not set. >>> Set the time.
• No electricity. >>> Ensure the mains is operational and check the fuses in the fuse box. Change the fuses if necessary or reactivate them.

(For models with timer) The timer display flashes or the timer symbol is left open.

- There has been a power outage before. >>> Set the time / Turn off the product function knobs and again switch it to the desired position.

After cooking starts ▶ symbol flashes on the display and there is an audible warning.

- The oven door may be open. >>> Make sure the oven door is completely closed. Contact the authorized service if the fault continues.

Welcome!

Dear customer,

Grill grate

Divider

A

B

C
