| Product Type | Digital Oscilloscope |
| Brand | Rigol |
| Model | DHO804 |
| Bandwidth | 70 MHz |
| Sample Rate | 1 GSa/s |
| Number of Channels | 4 |
| Display Type | 8-inch TFT LCD with capacitive touch |
| Display Resolution | 1280 x 800 pixels |
| Vertical Resolution | 12 bits |
| Memory Depth | 100 Mpts per channel |
| Waveform Capture Rate | 1,500,000 wfm/s |
| Trigger Types | Edge, Slope, Pulse, Video, Pattern, etc. |
| Dimensions (W x H x D) | 370 x 200 x 130 mm |
| Weight | 2.5 kg (approx.) |
| Power Supply | 100-240 VAC, 50/60 Hz |
| Power Consumption | 60 W typical |
| Connectivity | USB 2.0 Host/Device, LAN, HDMI out |
| Built-in Functions | FFT, Math, Serial Decode, Mask Test |
| Cleaning and Maintenance | Clean with a soft, dry cloth; avoid solvents |
| Safety Certifications | CE, UL listed |
Frequently Asked Questions - DHO804 Rigol
User questions about DHO804 Rigol
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Measuring equipment in PDF format for free! Find your manual DHO804 - Rigol and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DHO804 by Rigol.
USER MANUAL DHO804 Rigol
Guaranty and Declaration
Copyright
© 2024 RIGOL TECHNOLOGIES CO., LTD. All Rights Reserved.
Trademark Information
RIGOL® is the trademark of RIGOL TECHNOLOGIES CO., LTD.
Notices
- RIGOL products are covered by P.R.C. and foreign patents, issued and pending.
- RIGOL reserves the right to modify or change parts of or all the specifications and pricing policies at the company's sole decision. Information in this publication replaces all previously released materials. Information in this publication is subject to change without notice.
- RIGOL shall not be liable for either incidental or consequential losses in connection with the furnishing, use, or performance of this manual, as well as any information contained.
- Any part of this document is forbidden to be copied, photocopied, or rearranged without prior written approval of RIGOL.
Product Certification
RIGOL guarantees that this product conforms to the national and industrial standards in China as well as the ISO9001:2015 standard and the ISO14001:2015 standard. Other international standard conformance certifications are in progress.
Contact Us
If you have any problem or requirement when using our products or this manual, please contact RIGOL.
E-mail: service@rigol.com
Website: http://www.rigol.com
Section Description Page
List of Figures......VII
List of Tables.....XII
1 Safety Requirement .... 1
1.1 General Safety Summary ...... 1 1.2 Safety Notices and Symbols 3 1.3 Measurement Category 3 1.4 Ventilation Requirement 4 1.5 Working Environment 4 1.6 Care and Cleaning 6 1.7 Environmental Considerations 6
2 Product Features 8
3 Document Overview 9
4 Quick Start 11
4.1 General Inspection 11 4.2 Appearance and Dimensions 11 4.3 To Prepare for Use 12
4.3.1 To Adjust the Supporting Legs 12 4.3.2 To Connect to Power 13 4.3.3 Turn-on Checkout 13 4.3.4 To Set the System Language 14 4.3.5 To Connect the Probe 14 4.3.6 Function Inspection 15 4.3.7 Probe Compensation 16
4.4 Product Overview 17
4.4.1 Front Panel Overview 18 4.4.2 Rear Panel Overview 24 4.4.3 User Interface Overview 25
4.5 Touch Screen Gestures 27
4.5.1 Tap 28 4.5.2 Drag 28 4.5.3 Pinch&Stretch 29
4.6 Parameter Setting Method 30
4.7 To Use the Security Lock 35
4.8 To Use the Built-in Help System 36
5 Vertical System 37
5.1 To Enable or Disable the Analog Channel 37 5.2 To Adjust the Vertical Scale 38 5.3 To Adjust the Vertical Offset 40 5.4 To Specify Channel Coupling 41 5.5 To Specify Bandwidth Limit 41 5.6 To Specify Input Impedance 42 5.7 To Invert a Waveform 42 5.8 To Set Probe 43 5.9 To Specify the Amplitude Unit 45
5.10 To Adjust Bias 45 5.11 To Specify the Skew 46 5.12 To Turn the Channel Label Display On/Off 46
6 Horizontal System 48
6.1 To Adjust the Horizontal Time Base 48 6.2 To Adjust the Horizontal Position 49 6.3 Zoom Mode (Delayed Sweep) 50
7 Acquisition System 52
7.1 Acquisition Mode 52 7.2 Sampling Mode 54 7.3 Sample Rate 55 7.4 Memory Depth 56 7.5 Horizontal Expansion Reference 57 7.6 Roll Mode 58 7.7 XY Mode 58
8 Triggering the Oscilloscope 62
8.1 Trigger Source 62 8.2 Trigger Level 63 8.3 Trigger Mode 63 8.4 Trigger Coupling 65 8.5 Trigger Holdoff 65 8.6 Noise Rejection 66 8.7 Trigger Type 66
8.7.1 Edge Trigger 67 8.7.2 Pulse Width Trigger 68 8.7.3 Slope Trigger 71
8.7.4 Video Trigger 74
8.7.5 Pattern Trigger 76
8.7.6 Duration Trigger 79
8.7.7 Timeout Trigger 82
8.7.8 Runt Trigger 84
8.7.9 Window Trigger 86
8.7.10 Delay Trigger 88
8.7.11 Setup/Hold Trigger 91
8.7.12 Nth Edge Trigger 93
8.7.13 RS232 Trigger 96
8.7.14 I2C Trigger 98
8.7.15 SPI Trigger 102
8.7.16 CAN Trigger 105
8.8 Trigger Output Connector 108
9 Math Operation 110
9.1 Arithmetic Operation 111
9.2 Function Operation 114
9.3 FFT Operation 118
9.4 Logic Operation 123
9.5 Digital Filter 126
10 Measurements 131
10.1 Auto Scale 131
10.2 Auto Measurements 132
10.2.1 Measurement Parameter 132
10.2.1.1 Time Parameters 132
10.2.1.2 Count Values 133
10.2.1.3 Delay and Phase Parameters 135
10.2.1.4 Voltage Parameters 137
10.2.1.5 Other Parameters 138
10.2.2 Select the Measurement Item 139
10.2.3 Measurement Settings 141
10.2.4 Remove the Measurement Results 144
10.3 Cursor Measurements 145
10.3.1 Manual Mode 147
10.3.2 Track Mode 149
10.3.3 XY Mode 152
11 Digital Voltmeter (DVM) and Frequency Counter 154
11.1 Digital Voltmeter (DVM) 154
11.1.1 Measurement Settings 154 11.1.2 Remove the Measurement 156
11.2 Frequency Counter 156
11.2.1 Measurement Settings 157 11.2.2 Reset Statistics 158 11.2.3 Remove the Measurement 158
12 Histogram Analysis 159
12.1 To Enable or Disable the Histogram Function 159 12.2 To Select the Histogram Type 160 12.3 To Select the Histogram Source 160 12.4 To Set the Histogram Height 160 12.5 To Set the Histogram Range 161 12.6 Histogram Analysis Results 161 12.7 To Remove Results 163 12.8 To Clear Statistics 163
13 Reference Waveform 164
13.1 To Enable Ref Function 164 13.2 To Set the Reference Waveform 164 13.3 To Set the Ref Waveform Display 165 13.4 Export and Import Operation 166
14 Pass/Fail Test 168
14.1 To Enable or Disable the Pass/Fail Test Function 169 14.2 To Select the Source 169 14.3 To Create a Mask 169 14.4 To Set the Output Form of the Test Results 170 14.5 To Start or Stop the Pass/Fail Test Operation 171 14.6 To Display the Statistics of the Test Results 171
15 Protocol Decoding 173
15.1 Parallel Decoding 173
15.1.1 Clock Setting (CLK) 174 15.1.2 Bus Setting 175 15.1.3 Display-related Settings 176 15.1.4 Event Table 176
15.2 RS232 Decoding 177
15.2.1 Source Setting 179 15.2.2 To Set Data Package 180
15.2.3 Display-related Settings 180 15.2.4 Event Table 181
15.3 I2C Decoding 182
15.3.1 Source Setting 183 15.3.2 Display-related Settings 183 15.3.3 Event Table 184
15.4 SPI Decoding 185
15.4.1 To Set the Source 186 15.4.2 To Set Mode and Data 187 15.4.3 Display-related Settings 188 15.4.4 Event Table 188
15.5 CAN Decoding 189
15.5.1 Signal Configuration 190 15.5.2 Display-related Settings 191 15.5.3 Event Table 192
16 Multi-pane Windowing 194 17 Waveform Recording and Playing 196
17.1 Common Settings 196 17.2 Record Options 197 17.3 Play Options 198
18 Search and Navigation 201
18.1 Search 201 18.2 Navigation 203
19 Display Control 207
19.1 Display Type 207 19.2 Persistence Time 207 19.3 Waveform Intensity 208 19.4 To Set the Screen Grid 208 19.5 Display Settings 208 19.6 Show Scale 209 19.7 Color Grade 209 19.8 Waveform Freeze 209
20 Store and Load 210
20.1 To Enter the Storage Menu 210 20.2 To Save a File 210
20.2.1 To Save Image 210 20.2.2 To Save Wave 212
20.2.3 To Save Setup 214 20.2.4 Binary Data Format (.bin) 215
20.3 To Load a File 218 20.4 Firmware Upgrade 219 20.5 Disk Management 220 20.6 SMB Configuration 222
21 System Utility Function Setting 227
21.1 I/O Setting 227 21.2 Basic Settings 229 21.3 About this Oscilloscope 231 21.4 Other Settings 232 21.5 Auto Config 232 21.6 SelfCal 233 21.7 Option List 233 21.8 Quick Action Settings 233 21.9 Self-check 236
22 Remote Control 237
22.1 Remote Control via USB 238 22.2 Remote Control via LAN 238
23 Troubleshooting 240 24 Appendix 241
24.1 Appendix A: Options and Accessories 241 24.2 Appendix B: Warranty 241 24.3 Appendix C: Factory Settings 242
List of Figures
Figure 4.1 Front View ......11
Figure 4.2 Side View ......12
Figure 4.3 Adjusting the Supporting Legs 12
Figure 4.4 To Connect to Power ....13
Figure 4.5 Connecting the Passive Probe ....15
Figure 4.6 Using the Compensation Signal ...... 16
Figure 4.7 Square Waveform Signal 16
Figure 4.8 Probe Compensation ....17
Figure 4.9 Front Panel (2-channel Model) ......18
Figure 4.10 Front Panel (4-channel Model) 18
Figure 4.11 Rear Panel 24
Figure 4.12 User Interface ......25
Figure 4.13 Tap Gesture ......28
Figure 4.14 Drag Gesture ...... 29
Figure 4.15 Pinch&Stretch Gesture ......29
Figure 4.16 English Input Interface ....30
Figure 4.17 Chinese Input Interface 32
Figure 4.18 String Keypad ....33
Figure 4.19 Numeric Keypad ....34
Figure 4.20 To Use the Security Lock 35
Figure 5.1 Vertical Menu .... 37
Figure 5.2 Waveform Invert On/Off 43
Figure 5.3 Probe Setting Menu ....43
Figure 5.4 Zero Offset 46
Figure 6.1 Horizontal Menu ....48
Figure 6.2 Zoom Mode ....51
Figure 7.1 Horizontal Menu ....52
Figure 7.2 Display Modes ....54
Figure 7.3 Memory Depth ....56
Figure 7.4 XY Menu ....59
Figure 7.5 Measurement Schematic Diagram of Phase Deviation 60
Figure 8.1 Schematic Diagram of the Acquisition Memory ....64
Figure 8.2 Trigger Holdoff ....66
Figure 8.3 Edge Trigger Setting Menu ....67

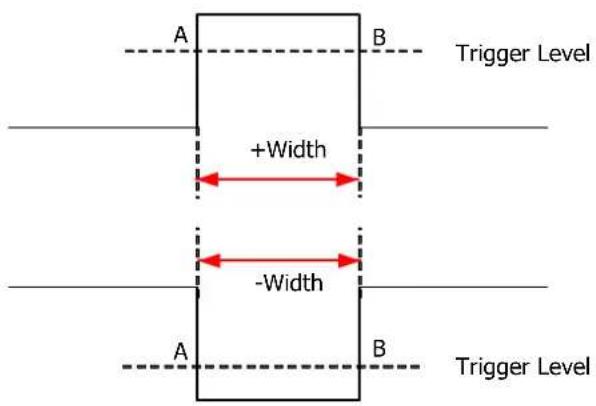

Figure 8.4 Positive/Negative Pulse Width 69
Figure 8.5 Pulse Width Trigger Setting Menu ....69
Figure 8.6 Positive Slope Time/Negative Slope Time ....71
Figure 8.7 Slope Trigger Setting Menu 72
Figure 8.8 Video Trigger Setting Menu ....74
Figure 8.9 Pattern Trigger ....77
Figure 8.10 Pattern Trigger Setting Menu ....77
Figure 8.11 Duration Trigger ....79
Figure 8.12 Duration Trigger Setting Menu ....80
Figure 8.13 Timeout Trigger ....82
Figure 8.14 Timeout Trigger Menu ....82
Figure 8.15 Runt Trigger 84
Figure 8.16 Runt Trigger Setting Menu ....84
Figure 8.17 Window Trigger Setting Menu ....86
Figure 8.18 Delay Trigger 88
Figure 8.19 Delay Trigger Setting Menu ....89
Figure 8.20 Setup/Hold Trigger 91
Figure 8.21 Setup/Hold Trigger Setting Menu 92
Figure 8.22 Nth Edge Trigger ......94
Figure 8.23 Nth Edge Trigger Setting Menu 94
Figure 8.24 Schematic Diagram of RS232 Protocol ......96
Figure 8.25 RS232 Trigger Setting Menu ....96
Figure 8.26 Sequence Diagram of I2C Protocol 99
Figure 8.27 I2C Trigger Setting Menu ....99
Figure 8.28 Binary Format Setting ......101
Figure 8.29 Hexadecimal Format Setting ......101
Figure 8.30 Sequential Chart of SPI Bus 102
Figure 8.31 SPI Trigger Setting Menu .... 103
Figure 8.32 Data Frame Format of the CAN Bus 105
Figure 8.33 CAN Trigger Setting Menu ....106
Figure 8.34 Sample Position 107
Figure 9.1 Math Menu .... 110
Figure 9.2 Waveform Display Window of the Operation Results .....111
Figure 9.3 Arithmetic Operation Menu ....112
Figure 9.4 Operation Result Display Window ......112
Figure 9.5 Function Operation Menu ....115
Figure 9.6 Operation Result Display Window ......116
Figure 9.7 FFT Operation Menu 119
Figure 9.8 FFT Operation Window ...... 119
Figure 9.9 Peak Search ....122
Figure 9.10 Logic Operation Menu .... 123
Figure 9.11 Operation Result Display Window 125
Figure 9.12 Digital Filter Menu .... 127
Figure 9.13 Operation Result Display Window 128
Figure 10.1 Time Parameters ...... 132
Figure 10.2 Delay and Phase Parameters ....135
Figure 10.3 Voltage Parameters ...... 137
Figure 10.4 Vertical Measurement Items ...... 139
Figure 10.5 Horizontal Measurement Items 140
Figure 10.6 Other Measurement Items ......140
Figure 10.7 Measurement Settings Menu .... 141
Figure 10.8 Cursors .... 145
Figure 10.9 Manual Mode Setting Menu .... 147
Figure 10.10 Manual Cursor Measurement Example ....149
Figure 10.11 Track Mode Setting Menu .... 150
Figure 10.12 Track Measurement (before Horizontal Expansion) 151
Figure 10.13 Track Measurement (after Horizontal Expansion) .....152
Figure 10.14 XY Mode Setting Menu .... 152
Figure 11.1 DVM Setting Menu ....155
Figure 11.2 Frequency Counter Setting Menu .... 157
Figure 12.1 Histogram Menu .... 159
Figure 12.2 Histogram Analysis Interface ...... 160
Figure 12.3 Histogram Analysis Results ......162
Figure 13.1 Reference Waveform Menu .... 164
Figure 14.1 PassFail Menu .... 168
Figure 14.2 PassFail Menu-Simplified 168
Figure 14.3 Pass/Fail Test Interface .... 171
Figure 15.1 Schematic Diagram of Parallel Decoding .... 173
Figure 15.2 Parallel Decoding Menu .... 174
Figure 15.3 Parallel Decoding Event Table ....177
Figure 15.4 Schematic Diagram of RS232 Serial Bus 178
Figure 15.5 RS232 Decoding Menu .... 178
Figure 15.6 RS232 Decoding Event Table .... 181
Figure 15.7 I2C Serial Bus .... 182
Figure 15.8 I2C Decoding Menu .... 182
Figure 15.9 I2C Decoding Event Table .... 184
Figure 15.10 SPI Serial Bus ....185
Figure 15.11 SPI Decoding Menu .... 186
Figure 15.12 SPI Decoding Event Table .... 189
Figure 15.13 CAN Decoding Menu .... 190
Figure 15.14 Sample Position ....191
Figure 15.15 CAN Decoding Event Table 192
Figure 16.1 "Add Window" Menu ....194
Figure 17.1 "Record" Menu ....196
Figure 17.2 Minimized "Play" Menu 199
Figure 18.1 Search Menu ....201
Figure 18.2 MarkTable Display ....203
Figure 18.3 Navigation Menu 204
Figure 18.4 Simplified Navigation Menu 204
Figure 18.5 "Search Event" Navigation Setting Menu ....205
Figure 18.6 "Frame Segment" Navigation Setting Menu ....205
Figure 19.1 Display Setting Menu 207
Figure 20.1 Image Saving Setting Menu 211
Figure 20.2 Waveform Saving Setting Menu 213
Figure 20.3 Setup Saving Setting Menu ....214
Figure 20.4 Load Setting Menu 219
Figure 20.5 Upgrade Menu 220
Figure 20.6 Disk Management Interface ...... 221
Figure 20.7 SMB Setting Menu ......223
Figure 21.1 Self-calibration Menu 233
Figure 21.2 Quick Menu ....234
List of Tables
Table 4.1 Power Adaptor Specifications ....13
Table 5.1 Probe Ratio ....44
Table 8.1 Video Standard 75
Table 9.1 Window Function ....121
Table 9.2 Logic Operation ...... 124
Table 15.1 Bus Setting ....175
Table 20.1 BIN File Format ...... 215
Table 20.2 File Header ......216
Table 20.3 Waveform Header ...... 216
Table 20.4 Waveform Data Header ...... 218
Table 24.2 Factory Settings 242
1 Safety Requirement
1.1 General Safety Summary
Please review the following safety precautions carefully before putting the instrument into operation so as to avoid any personal injury or damage to the instrument and any product connected to it. To prevent potential hazards, please follow the instructions specified in this manual to use the instrument properly.
- Use Proper Power Cord.
Only the exclusive power cord designed for the instrument and authorized for use within the destination country could be used.
• Ground the Product Properly.
The instrument uses the Type-C power interface. The instrument is not grounded via the power cord. To avoid electric shock, use the ground cable provided in accessories to connect the instrument to the earth ground before connecting any input or output terminals.
• Make Measurements Properly.
This product is a non-isolated oscilloscope. The ground (GND) for each input and output interface is not isolated from the metal chassis or the digital interface grounds (such as USB and HDMI). Do not perform floating measurements without using isolated probes, nor connect any port's GND to a port with a voltage difference relative to earth ground. Otherwise, it may cause damage to this product or other devices (such as the DUT or a computer display) connected to the product and can even cause serious personal injury.
- Connect the Probe Properly.
If a probe is used, the probe ground lead must be connected to earth ground. Do not connect the ground lead to high voltage. Improper way of connection could result in dangerous voltages being present on the connectors, controls or other surfaces of the oscilloscope and probes, which will cause potential hazards for operators.
- Observe All Terminal Ratings.
To avoid fire or shock hazard, observe all ratings and markers on the instrument and check your manual for more information about ratings before connecting the instrument.
- Use Proper Overvoltage Protection.
Ensure that no overvoltage (such as that caused by a bolt of lightning) can reach the product. Otherwise, the operator might be exposed to the danger of an electric shock.
- Do Not Operate Without Covers.
Do not operate the instrument with covers or panels removed.
- Do Not Insert Objects into the Air Outlet.
Do not insert objects into the air outlet, as doing so may cause damage to the instrument.
- Avoid Circuit or Wire Exposure.
Do not touch exposed junctions and components when the instrument is powered on.
- Do Not Operate With Suspected Failures.
If you suspect that any damage may occur to the instrument, have it inspected by RIGOL authorized personnel before further operations. Any maintenance, adjustment or replacement especially to circuits or accessories must be performed by RIGOL authorized personnel.
- Provide Adequate Ventilation.
Inadequate ventilation may cause an increase of temperature in the instrument, which would cause damage to the instrument. So please keep the instrument well ventilated and inspect the air outlet and the fan regularly.
- Do Not Operate in Wet Conditions.
To avoid short circuit inside the instrument or electric shock, never operate the instrument in a humid environment.
- Do Not Operate in an Explosive Atmosphere.
To avoid personal injuries or damage to the instrument, never operate the instrument in an explosive atmosphere.
- Keep Instrument Surfaces Clean and Dry.
To avoid dust or moisture from affecting the performance of the instrument, keep the surfaces of the instrument clean and dry.
- Prevent Electrostatic Impact.
Operate the instrument in an electrostatic discharge protective environment to avoid damage induced by static discharges. Always ground both the internal and external conductors of cables to release static before making connections.
- Use the Battery Properly.
Do not expose the battery (if available) to high temperature or fire. Keep it out of the reach of children. Improper change of a battery (lithium battery) may cause an explosion. Use the RIGOL specified battery only.
- Handle with Caution.
Please handle with care during transportation to avoid damage to keys, knobs, interfaces, and other parts on the panels.
WARNING
Equipment meeting Class A requirements may not offer adequate protection to broadcast services within residential environment.
1.2 Safety Notices and Symbols
Safety Notices in this Manual:
WARNING
Indicates a potentially hazardous situation or practice which, if not avoided, will result in serious injury or death.
CAUTION
Indicates a potentially hazardous situation or practice which, if not avoided, could result in damage to the product or loss of important data.
Safety Notices on the Product:
• DANGER
It calls attention to an operation, if not correctly performed, could result in injury or hazard immediately.
- WARNING
It calls attention to an operation, if not correctly performed, could result in potential injury or hazard.
- CAUTION
It calls attention to an operation, if not correctly performed, could result in damage to the product or other devices connected to the product.
Safety Symbols on the Product:
Hazardous Voltage
Safety Warning Protective Earth
Terminal
Chassis Ground Test Ground
1.3 Measurement Category
Measurement Category
This instrument can make measurements in Measurement Category I.
WARNING
This instrument can only be used for measurements within its specified measurement categories.
Measurement Category Definitions
- Measurement category I is for measurements performed on circuits not directly connected to MAINS. Examples are measurements on circuits not derived from MAINS, and specially protected (internal) MAINS derived circuits. In the latter case, transient stresses are variable. Thus, you must know the transient withstand capability of the equipment.
- Measurement category II is for measurements performed on circuits directly connected to low voltage installation. Examples are measurements on household appliances, portable tools and similar equipment.
- Measurement category III is for measurements performed in the building installation. Examples are measurements on distribution boards, circuit-breakers, wiring (including cables, bus-bars, junction boxes, switches and socket-outlets) in the fixed installation, and equipment for industrial use and some other equipment. For example, stationary motors with permanent connection to a fixed installation.
- Measurement category IV is for measurements performed at the source of a low-voltage installation. Examples are electricity meters and measurements on primary overcurrent protection devices and ripple control units.
1.4 Ventilation Requirement
This instrument uses a fan to force cooling. Please make sure that the air inlet and outlet areas are free from obstructions and have free air. When using the instrument in a bench-top or rack setting, provide at least 10 cm clearance beside, above and behind the instrument for adequate ventilation.
CAUTION
Inadequate ventilation may cause an increase of temperature in the instrument, which would cause damage to the instrument. So please keep the instrument well ventilated and inspect the air outlet and the fan regularly.
1.5 Working Environment
Temperature
Operating: 0°C to +50°C
Non-operating: -30°C to +60°C
Humidity
- Operating:
Below +30°C: ≤90% RH (without condensation) +30°C to +40°C: ≤75% RH (without condensation) +40°C to +50°C: ≤45% RH (without condensation)
• Non-operating:
Below +60 °C: ≤90 %RH (without condensation)
WARNING
To avoid short circuit inside the instrument or electric shock, never operate the instrument in a humid environment.
Altitude
- Operating: below 3 km • Non-operating: below 15 km
Protection Level Against Electric Shock
ESD ±8kV
Installation (Overvoltage) Category
This product is powered by mains conforming to installation (overvoltage) category II.
WARNING
Ensure that no overvoltage (such as that caused by a bolt of lightning) can reach the product. Otherwise, the operator might be exposed to the danger of an electric shock.
Installation (Overvoltage) Category Definitions
Installation (overvoltage) category I refers to signal level which is applicable to equipment measurement terminals connected to the source circuit. Among these terminals, precautions are done to limit the transient voltage to a low level.
Installation (overvoltage) category II refers to the local power distribution level which is applicable to equipment connected to the AC line (AC power).
Pollution Degree
Pollution Degree 2
Pollution Degree Definition
- Pollution Degree 1: No pollution or only dry, nonconductive pollution occurs. The pollution has no effect. For example, a clean room or air-conditioned office environment.
- Pollution Degree 2: Normally only nonconductive pollution occurs. Temporary conductivity caused by condensation is to be expected. For example, indoor environment.
- Pollution Degree 3: Conductive pollution or dry nonconductive pollution that becomes conductive due to condensation occurs. To be found in industrial environment or construction sites (harsh environments). For example, sheltered outdoor environment.
- Pollution Degree 4: The pollution generates persistent conductivity caused by conductive dust, rain, or snow. For example, outdoor areas.
Safety Class
Class 2
1.6 Care and Cleaning
Care
Do not store or leave the instrument where it may be exposed to direct sunlight for long periods of time.
Cleaning
Clean the instrument regularly according to its operating conditions.
- Disconnect the instrument from all power sources.
- Clean the external surfaces of the instrument with a soft cloth dampened with mild detergent or water. Avoid having any water or other objects into the chassis via the heat dissipation hole. When cleaning the LCD, take care to avoid scarifying it.
CAUTION
To avoid damage to the instrument, do not expose it to caustic liquids.
WARNING
To avoid short-circuit resulting from moisture or personal injuries, ensure that the instrument is completely dry before connecting it to the power supply.
1.7 Environmental Considerations
The following symbol indicates that this product complies with the WEEE Directive 2012/19/EU.
The equipment may contain substances that could be harmful to the environment or human health. To avoid the release of such substances into the environment and avoid harm to human health, we recommend you to recycle this product appropriately to ensure that most materials are reused or recycled properly. Please contact your local authorities for disposal or recycling information.
You can click on the following link https://int.rigol.com/services/services/declaration to download the latest version of the RoHS&WEEE certification file.
2 Product Features
Product Features
- Ultra-low noise floor, purer signal, never miss the small signals
- Up to 12 bits resolution for all the models of this series
- Max. analog bandwidth of 100 MHz, 4 analog channels, external trigger output (std.) available for the dual-channel model • Max. real-time sample rate of 1.25 GSa/s • Max. memory depth of 25 Mpts • Vertical sensitivity range: 500 μV/div to 10 V/div
- Max. capture rate of 1,000,000 wfms/s (in UltraAcquire mode) • Digital phosphor display with real-time 256-level intensity grading
- Waveform search and navigation function allows you to debug the signal anomalies faster
- 7" (1024x600) capacitive multi-touch screen
- Brand new Flex Knob brings user-friendly experience
- USB Device & Host, LAN, and HDMI interfaces (std.) for all the models of this series
- Novel and delicate industrial design, easy to operate
- Unique online upgrade
The DHO800 series is RIGOL's new launched high-performance economical digital oscilloscope. Though compact in design, it has superior performance. It features a capture rate up to 1,000,000 wfms/s (in UltraAcquire Mode), 25 Mpts memory depth, 12 bit resolution, and low noise.
The DHO800 series is a brand new economical digital oscilloscope designed for the vast mainstream digital oscilloscope market to meet their design, debugging, and test demands.
3
Document Overview
This manual gives you a quick overview of the front and rear panel, user interface as well as basic operation methods of DHO800 series.
TIP
For the latest version of this manual, download it from RIGOL official website (http://www.rigol.com).
Publication Number
UGA36105-1110
Software Version
00.01.03
Software upgrade might change or add product features. Please acquire the latest version of the manual from RIGOL website or contact RIGOL to upgrade the software.
Format Conventions in this Manual
1. Key
The front panel key is denoted by the menu key icon. For example, indicates the "Default" key.
2. Menu
The menu item is denoted by the format of "Menu Name (Bold) + Character Shading" in the manual. For example, Setup indicates the "Setup" sub-menu under the "Utility" function menu. You can click or tap Setup to access the "Setup" menu.
3. Operation Procedures
The next step of the operation is denoted by ">" in the manual. For example,
Storage indicates first clicking or tapping and then clicking or tapping Storage.
4. Connector
The front/rear panel connector is denoted by "Brackets + Connector Name (Bold)", for example, [AUX OUT].
5. Knob
| Label Knob Label Knob | |||
Horizontal POSITION  | Horizontal Position Knob |  | Multipurpose Knob 1 |
Horizontal  _LE_ | Horizontal Scale Knob |  _ | Multipurpose Knob 2 |
 _ | Vertical Position Knob |  _ | Trigger Level Knob |
 | Vertical Scale Knob | - | - |
Content Conventions in this Manual
DHO800 series digital oscilloscope includes the following models. Four-channel models and two-channel models share the same operation method. Unless otherwise specified, this manual takes the four-channel model DHO814 as an example to illustrate the operation methods of DHO800 series oscilloscope.
| Model Max. Analog Bandwidth No. of Analog Channels | |
| DHO802 70 MHz 2+EXT | |
| DHO804 70 MHz 4 | |
| DHO812 100 MHz 2+EXT | |
| DHO814 100 MHz 4 | |
4 Quick Start
4.1 General Inspection
1. Inspect the packaging
If the packaging has been damaged, do not dispose of the damaged packaging or cushioning materials until the shipment has been checked for completeness and has passed both electrical and mechanical tests.
The consignor or carrier shall be liable for the damage to the instrument resulting from shipment. RIGOL would not be responsible for free maintenance/rework or replacement of the instrument.
2. Inspect the instrument
In case of any mechanical damage, missing parts, or failure in passing the electrical and mechanical tests, contact your RIGOL sales representative.
3. Check the accessories
Please check the accessories according to the packing lists. If the accessories are damaged or incomplete, please contact your RIGOL sales representative.
Recommended Calibration Interval
RIGOL suggests that the instrument should be calibrated every 18 months.
4.2 Appearance and Dimensions
Figure 4.1 Front View
Figure 4.2 Side View
4.3 To Prepare for Use
4.3.1 To Adjust the Supporting Legs
Adjust the supporting legs properly to use them as stands to tilt the oscilloscope upwards for stable placement of the oscilloscope as well as better operation and observation. You can also fold the supporting legs when the instrument is not in use for easier storage or shipment, as shown in the figure below.
(a) Unfold the supporting legs
(b) Fold the supporting legs Figure 4.3 Adjusting the Supporting Legs
4.3.2 To Connect to Power
The power requirements of the oscilloscope are DC, 15 V, 3 A. Please use the power adaptor provided in the accessories to connect the oscilloscope to the AC power source (100 V to 240 V, 50 Hz to 60 Hz), as shown in the figure below.
Figure 4.4 To Connect to Power
Table 4.1 Power Adaptor Specifications
| Item Description |
| Input 100 V to 240 V, 50 Hz to 60 Hz, 1.2 A Max |
| Output DC, 15 V, 3 A, 45 W |
CAUTION
The power adaptor provided in accessories can only be used to power RIGOL instruments. Do not use it for mobile phone and other devices.
WARNING
To avoid electric shock, use the ground cable provided in the accessories to ground the instrument properly.
4.3.3 Turn-on Checkout
After the instrument is connected to the power source, press the power key at the lower-left corner of the front panel to power on the instrument. During the start-up
process, the instrument performs a series of self-tests. After the self-test, the splash screen is displayed.
- Restart: Click or tap 🎨 > Power > Restart to restart the instrument.
- Shutdown:
- Click or tap > Power > Shutdown to shut down the instrument.
- Press 0 and then click or tap Shutdown in the displayed "Power" menu to shut down the instrument.
- Press twice to shut down the instrument.
- Press for three seconds to shut down the instrument.
- Sleep: Click or tap 🎨 > Power > Sleep to enter sleep mode. In sleep mode, not all processes are closed, resulting in slightly higher power consumption compared to shutdown mode. However, the instrument can start up more quickly and resume its previous state before sleep. When in sleep mode, press 🎨 to start the instrument.
TIP
You can also click or tap > Utility > Setup and set the "Power status" to "Switch On". The instrument powers on once connected to power.
4.3.4 To Set the System Language
This oscilloscope supports multiple languages. You can click or tap > Utility > Setup > Language to select the system language.
4.3.5 To Connect the Probe
RIGOL provides passive probes for DHO800 series. For specific probe models, refer to DHO800 Data Sheet. For detailed technical information of the probes, please refer to the corresponding Probe User Guide.
Connect the Passive Probe
- Connect the BNC terminal of the probe to an analog channel input terminal of the oscilloscope on the front panel as shown in the figure below.
- Connect the ground alligator clip or spring of the probe to the circuit ground terminal, and then connect the probe tip to the circuit point to be tested.
Figure 4.5 Connecting the Passive Probe
After you connect the passive probe, check the probe function and probe compensation adjustment before making measurements. For details, please refer to Function Inspection and Probe Compensation.
4.3.6 Function Inspection
- Press the front-panel and a prompt message "Restore default settings?" is displayed. Click or tap OK to restore the instrument to its factory default settings.
- Connect the ground alligator clip of the probe to the "Ground Terminal" as shown in Figure 4.6.
- Use the probe to connect the input terminal of CH1 and the "Compensation Signal Output Terminal" of the probe, as shown in Figure 4.6.
Figure 4.6 Using the Compensation Signal
- Set the probe ratio based on the attenuation of the probe, and then click or tap
- Observe the waveform on the display. In normal condition, you should see a square waveform similar to the waveform shown in the figure below.
Figure 4.7 Square Waveform Signal
- Test the other channels in the same way. If you see the waveform, but the square wave is not shaped correctly as shown above, perform the procedure described in Probe Compensation. If you do not see the waveform, perform those steps again.
WARNING
To avoid electric shock when using the probe, please make sure that the insulated wire of the probe is in good condition. Do not touch the metallic part of the probe when the probe is connected to high voltage source.
4.3.7 Probe Compensation
When used for the first time, the oscilloscope probe must be compensated to match the input characteristics of the oscilloscope channel to which it is connected. The
non-compensated or poorly compensated probe may cause measurement errors. The compensation procedure is as follows:
- Perform Step 1, 2, 3 and 4 in Function Inspection.
- Check the displayed waveforms and compare them with the waveforms shown in
Figure 4.8.
Over compensated Under compensated Perfectly compensated Figure 4.8 Probe Compensation
- Use the probe compensation adjustment tool provided in the accessories to adjust the low-frequency compensation adjustment hole on the probe until the displayed waveform is consistent with the "Perfectly compensated" waveform shown in the above figure.
4.4 Product Overview
Unless otherwise specified, this chapter takes the four-channel model DHO814 as an example to introduce the appearance and dimensions, front and rear panels, and user interface of the DHO800 series oscilloscope.
4.4.1 Front Panel Overview
Figure 4.9 Front Panel (2-channel Model)
Figure 4.10 Front Panel (4-channel Model)
1. 7" Capacitive Touch Screen
Displays the waveforms, menu labels, and parameter settings, system state, prompt messages, and other information.
2. Multipurpose Knobs
- Non-menu operation:
When not operating on the menu, you can rotate the knob 1 to adjust the waveform brightness. When a cursor, decoding, Math waveform, or reference waveform is added on the screen, you can rotate the multipurpose knob to move the cursor (knob 1 and 2), adjust the decode threshold (knob 1) and decode result display position (knob 2), adjust the vertical scale (knob 1) and vertical offset (knob 2) of the math/reference waveform. You can click or tap Flex Knob on the Toolbar at the upper-right of the screen to set priority.
- Automatic: Cursor > Math/Ref/Decode > Intensity (default priority).
- Manual: all non-menu operation items are listed at the lower part of the Flex Knob menu. You can select one of them as the current item for multipurpose knob to adjust.
- Menu operation:
When operating on the menu, you can rotate the multipurpose knob 1/2 to adjust the value in the menu. When you click or tap an input field and then the
1 / 2 con is displayed in the input field, it indicates that you can use multipurpose knob 1/2 to set the value. The LED indicator of the corresponding knob is illuminated. At this point, you can rotate the knob to adjust the value or press the knob to restore the parameter to the default value.
When using the virtual numeric keypad or drop-down list, you can rotate the knob to navigate through the keypad or drop-down list and press the knob to select an item.
3. Analyse Key
Press to access the Analyse menu. In this menu, you can access analysis features including digital voltmeter (DVM), counter, power analysis, waveform recording, and pass/fail.
4. Measure Key
Press to access the Measure menu. You can select the waveform parameters in the menu. For details, refer to Select the Measurement Item.
5. Cursor Key
Press Cursor to enable cursor measurements. The results are displayed in the right-side "Result" bar. Three cursor modes are available: Manual, Track, and XY; wherein, the XY mode is available only when the XY function is enabled.
6. Common Tools Keys
- is the auto scale key. Press this key to enable the auto scale function. The oscilloscope is automatically configured to best display the input signals by adjusting the vertical scale, horizontal timebase, and trigger mode. To set up the key, please refer to Auto Config.
- is the RUN/STOP key. Press the key to set the oscilloscope's run state to "RUN" or "STOP". In "RUN" state, this key is illuminated in green; in "STOP" state, this key is illuminated in red.
- is the key for a single acquisition. Press this key to set the oscilloscope's trigger mode to "Single".
- is the default setup key. Press this key twice to directly restore the oscilloscope's default settings. You can also press the key and a dialog box is displayed. Click or tap OK in the dialog to restore the oscilloscope's default settings.
- CLEAR is the clear key. Press this key to clear all waveforms on the display. If the oscilloscope is in "RUN" mode, it continues to display new waveforms.
7. Touch Lock Key
Touch Lock is the touch lock key. Press this key once to disable the touch screen function; press it again to enable the touch screen.
8. Quick Action Key
Press Quick to perform the selected quick action: print screen, save wave, save setup, measure all, statistics reset, waveform record, or save group. To set up the key, please refer to Quick Action Settings.
9. Trigger Controls
- is the trigger setup key. Press this key to access the Trigger menu. For details, please refer to Triggering the Oscilloscope.
- is the trigger slope setup key. Press this key to select the edge type (rising edge, falling edge, or either edge). This key is not active when the trigger type is not set to "Edge".
- Force is the force trigger key. Press this key to force a trigger.
- LEVEL is the trigger level/digital threshold knob. Turn the knob clockwise to increase the trigger level or turn the knob counterclockwise to decrease the level. Pressing the knob can quickly set the trigger level to the waveform's 50% peak-to-peak value.
10. Horizontal Controls
- Horizontal POSITION is the horizontal position knob. Turn the knob to change the horizontal position (trigger position) to move the waveforms horizontally. Press the knob to reset the horizontal position to default.
- Horizontal SCALE is the horizontal scale knob. Turn the knob to change the horizontal time/div setting to compress or expand waveforms of all channels horizontally. Press this knob to toggle between fine and coarse adjustment for horizontal time base or enable/disable the Zoom mode (related to Fine/Zoom).
- is the horizontal menu key. Press this key to access the Horizontal menu in which you can set the horizontal system and acquisition system.
- is the Navigate key. Press this key to access the Navigation menu. You can navigate time, search events, or segments. For details, please refer to Navigation.
- are the navigation keys. You can use the keys to navigate time, search events, or segments. You can also use the keys to play recorded waveforms.
11. Vertical Controls
- is the Math key. Press this key to access the Math menu. Math operations include A+B, A-B, A×B, A/B, FFT, etc. You can also set the Math label. - Ref is the reference key. Press this key to access the Ref menu, in which you can add reference waveforms in waveform view and compare them with measured waveforms to identify circuit faults.
- Vertical POSITION is the vertical position knob. Turn this knob to change the selected waveform's vertical position to move the waveform up or down on the display. Press this knob to reset the vertical position to zero.
- Vertical SCALE is the vertical scale knob. Rotate this knob to modify the value of vertical divisions of the graticule in volts/div to increase or decrease the display amplitude of the waveform. Press this knob to toggle between fine and coarse adjustment of the vertical scale.
- 1 / / is the channel key. Depending on the actual situation, press the key to enable (display), select, or disable the corresponding channel, as described below:
- If the channel is not displayed, you can press the channel key to open the channel in the waveform view window.
- If the channel is displayed but not selected, you can press the channel key to select the channel.
- If the channel is both displayed and selected, you can press the channel key to close its display in the waveform view.
NOTE
As DHO802/DHO812 is a two-channel model, it only provides two channel keys ( 1 and 2 )
12. Probe Compensation Signal Output Terminal/Ground Terminal
This terminal outputs the probe compensation signal which helps you match a probe's input capacitance to the oscilloscope channel to which it is connected.
13. External Trigger Input Terminal (for DHO812 and DHO802 only)
BNC connector to input external trigger signal.
14. Analog Channel Input Terminals
BNC connectors. Attach probes to these connectors for analog signal inputs.
NOTE
As DHO802/DHO812 is a two-channel model, it only provides two analog input terminals.
15. USB HOST Port
This series supports USB storage device of FAT32/NTFS format and mouse.
- USB storage device: imports or exports data (software update, waveform, setup, or captured image).
- Mouse: connects a mouse to control the instrument.
16. Power Key
Powers on/off the oscilloscope.
4.4.2 Rear Panel Overview
Figure 4.11 Rear Panel
1. AUX OUT
- Trigger output:
After the AUX output is set to "TrigOut", the oscilloscope generates a trigger and outputs a signal that can reflect the current capture rate of the oscilloscope via this interface. Connect the signal to a waveform display device and measure the frequency of the signal. The measurement result is the same as the current capture rate.
- Pass/Fail:
After the AUX output is set to "PassFail", in the pass/fail test, the instrument will output a pulse via the [AUX OUT] connector when a passed or failed waveform is detected during the pass/fail test.
2. LAN
Connect the instrument to network via this interface. The instrument conforms to the standards specified in LXI Device Specification 2011. Its test system can be built quickly. Then you can control the instrument through using Web Control to send the SCPI commands. When update is available, you can perform online upgrading for the system software of the instrument via the LAN interface.
3. USB DEVICE
Connect the instrument to the PC via this interface. Then you can use the PC software to send the SCPI commands or use the user-defined programming to control the instrument.
4. HDMI
You can connect the instrument to an external display that has the HDMI interface (e.g. monitor or projector) via this interface to better observe the waveform display clearly. At this time, you can also view the waveforms on the LCD of the instrument.
5. USB Type-C Power Connector
The power requirements of the oscilloscope are DC, 15 V, 3 A. Please use the power adaptor provided in the accessories to connect the oscilloscope to the AC power source (100 V to 240 V, 50 Hz to 60 Hz).
6. Security Lock Hole
Use a standard PC/laptop lock cable to secure the oscilloscope to a work bench or other location.
7. Ground Terminal
Connect the instrument chassis to the ground using the lead.
8. Mounting Screws
Interval of screw holes: 100 mm x 100 mm. Use screws to secure the oscilloscope to the bracket with the same screw hole interval.
4.4.3 User Interface Overview
Figure 4.12 User Interface
1. Waveform View
Displays the measurement waveform window for CH1-CH4. Click or tap at the upper-right corner of the window to close the window; click or tap to enter the configuration menu of the specified function.
2. Run State Label
Displays the operating status of the instrument. Possible states include RUN, STOP, T'D, WAIT, and AUTO.
3. Horizontal Timebase Label
Displays the current horizontal time base. Click or tap this label to enter the horizontal setting menu.
4. Sample Rate & Memory Depth Label
Displays the current sample rate and memory depth. Click or tap this label to enter the horizontal setting menu.
5. Horizontal Position Label
Displays the current horizontal position. Click or tap this label to enter the horizontal setting menu.
6. Trigger Label
- Displays the trigger information of the system, including the trigger type, trigger level, trigger mode, and etc.
- Click or tap the trigger label, then the trigger setting window is displayed. You can set the parameters for the trigger.
7. Function Toolbar
Provides STOP/RUN, Default, Measure, Flex Knob, Windows, Cursors, Math, XY, Storage, Counter, DVM, Decode, Record, and Navigate keys.
8. Result Sidebar
Displays the measurement results and statistics of various functions. Click or tap at the lower-right corner of the screen to open or close the "Result" sidebar.
9. Split-screen Display
If you enable multiple functions, multiple windows can be displayed on the screen at one time.
10. Notification Area
Displays USB icon, LAN icon, sound icon, and remote control icon. You can click or tap this area to open the "Utility" menu.
- USB storage device icon: When a USB storage device is detected, 📋 I be displayed.
- LAN icon: When the LAN interface is successfully connected, LXI is displayed.
- Sound icon: In the "Utility" menu, click or tap Setup > Beeper to enable or disable the sound. When on, it will be displayed; when off, it will not be displayed. You can simply click or tap the icon to enable or disable the sound.
- Remote control icon: When you use Web Control to control the instrument remotely, Rmt will be displayed.
11. Math Labels
- Displays the on/off states of Math1-Math4.
- Click or tap M1-M4 labels to display the on/off state, operation type, and vertical scale for Math1-Math4.
12. Channel Labels
- Display the channel on/off status.
- Display the channel coupling mode.
- Display the vertical scale.
- Display the vertical offset.
- Click or tap the label to enable/disable the corresponding channel or open the Vertical menu.
NOTE
As DHO802/DHO812 is a two-channel model, it only provides two channel labels.
13. Function Navigation Icon
Click or tap the icon to open the function navigation menu in which you can access the specified function menu by clicking or tapping the corresponding function key.
4.5 Touch Screen Gestures
The instrument provides a super large capacitive touch screen, which is convenient for users to operate and make configurations. It has strong waveform display capacity and excellent user experience. It features great convenience, high flexibility, and great
sensitivity. The actions supported by the touch screen controls include tapping, pinching&stretching, and dragging.
4.5.1 Tap
Use one finger to tap the symbol or characters on the screen slightly, as shown in Figure 4.13. With the Tap gesture, you can perform the following operations:
- Tap the menu displayed on the screen to operate on the menu.
- Tap the function navigation icon at the lower-left corner of the touch screen to enable the function navigation.
- Tap the displayed numeric keypad to set the parameters.
- Tap the virtual keypad to set the label name and the filename.
- Tap the close button at the upper-right corner of the message box to close the prompt window.
- Tap other windows on the touch screen and operate on the windows.
Figure 4.13 Tap Gesture
4.5.2 Drag
Use one finger to select the object, and then drag the object to a destination place, as shown in the figure below. With the drag gesture, you can perform the following operation:
- Drag the waveform to change its position or scale.
- Drag the window controls to change the position of the window (e.g., numeric keypad).
- Drag the cursor to move the cursor.
- Drag the trigger cursor to change the trigger level.
- In multi-window display, drag one of the displayed windows to change its position on the display.
Figure 4.14 Drag Gesture
4.5.3 Pinch & Stretch
Pinch or stretch two points on the screen with two fingers to zoom in or out the waveform. To zoom in the waveform, first pinch the two fingers and then stretch the fingers; to zoom out the waveform, first stretch the two fingers, and then pinch the fingers together, as shown in the figure below. With the pinch & stretch gesture, you can perform the following operations:
- Pinching & stretching in the horizontal direction can adjust the horizontal time base of the waveform.
- Pinching & stretching in the vertical direction can adjust the vertical scale of the waveform.
Figure 4.15 Pinch & Stretch Gesture
4.6 Parameter Setting Method
For this instrument, you can use the knob and touch screen to set parameters. The common parameter setting methods are as follows:
- Method 1: Some parameters can be adjusted by rotating the knob on the front panel.
- Method 2: Click or tap the input field of a specified parameter, then a virtual keypad is displayed. Complete the parameter setting with the keypad.
Input Chinese and English Characters
When naming a label, this instrument supports Chinese/English input method. The following part introduces how to input Chinese and English characters with the Chinese/English input method.
- Input English Characters
Figure 4.16 English Input Interface
1. Select English input method
First check the input method type. If it shows "En/中", then go to Step 2; if it shows "中/En", click or tap the input method switchover key to switch to "En/中" (English input method).
2. Clear the name input area
If there is no character in the "Name Input Area", please go to the next step. If there are characters in the "Name Input Area", click or tap the Backspace key to delete all the characters from the "Name Input Area" in order.
3. Input the upper-case letter
If you want to input an upper-case letter, first use the Caps key to switch between the upper-case and lower-case mode. If the Caps key is selected, input the upper-case letter with the virtual keypad. If not, first click or tap the Caps key to ensure it is selected, then input the upper-case letter. All the input letters will be displayed in the "Name Input Area".
4. Input the lower-case letter
Refer to the operation specified in the previous step. If the Caps key is not selected, directly input the lower-case letter.
5. Input numbers or symbols
If the letter keypad is displayed, you need to click or tap the numeric switchover key to switch to the numeric keypad, and input numbers or symbols with the numeric keypad. All the input letters will be displayed in the "Name Input Area".
6. Modify or delete the unwanted characters that have been input
During the name input process, you can modify or delete the unwanted character if necessary. To delete the characters that have been input, click or tap the Backspace key in the virtual keypad to delete the characters. To modify the characters that have been input, delete the unwanted characters first and then input the new characters.
You can directly move the cursor to the character to be modified or deleted, delete the desired character, or input new characters after deleting the unwanted character.
7. Confirm the input
After completing the input operation, click or tap "OK".
- Input Chinese Characters
Figure 4.17 Chinese Input Interface
- Select Chinese input method
First check the input method type. If it shows "中/En", then go to Step 2; if it shows "En/中", click or tap the input method switchover key to switch to "中/En" (Chinese input method).
- Clear the name input area
If there is no character in the "Name Input Area", please go to the next step. If there are characters in the "Name Input Area", click or tap the Backspace key to delete all the characters from the "Name Input Area" in order.
If there are characters in the "Pinyin Input Area", when you delete characters from the name input area, the characters in the Pinyin input area will be deleted first.
- Input Chinese characters
Click or tap the characters in the virtual keypad to input Pinyin into the input area, then the characters to be selected will be displayed in the Chinese character selection area. Slide to view more Chinese characters for you to choose. Select the desired Chinese character, and then the selected character will be displayed in the input area.
- Modify or delete the unwanted characters that have been input
During the name input process, you can modify or delete the unwanted character if necessary. To delete the characters that have been input, click or tap the Backspace key in the virtual keypad to delete the characters. To modify the characters that have been input, delete the unwanted characters first and then input the new characters.
- Confirm the input
After completing the input operation, click or tap "OK".
Input a String
When naming a file or folder, you need to input a string using the string keypad.
Confirm Input Space Key Switch to N
Figure 4.18 String Keypad
- Clear the name input area
If there is no character in the "Name Input Area", proceed to the next step. If there are characters in the "Name Input Area", click or tap the Backspace key to delete all characters from the "Name Input Area" in order.
- Input the upper-case letter
To input an upper-case letter, first use the Caps key to switch between upper-case and lower-case modes. If the Caps key is selected, input the upper-case letter using the virtual keypad. If not, first click or tap the Caps key to ensure it is selected, then input the upper-case letter. All input letters will be displayed in the "Name Input Area".
- Input the lower-case letter
Refer to the operation specified in the previous step. If the Caps key is not selected, directly input the lower-case letter.
- Input numbers or symbols
If the letter keypad is displayed, click or tap the numeric switchover key to switch to the numeric keypad, and input numbers or symbols using the numeric keypad. All input letters will be displayed in the "Name Input Area".
- Modify or delete unwanted characters that have been input
During the name input process, you can modify or delete unwanted characters if necessary. To delete characters that have been input, click or tap the Backspace key on the virtual keypad. To modify characters that have been input, delete the unwanted characters first and then input the new characters.
You can directly move the cursor to the character to be modified or deleted, delete the desired character, or input new characters after deleting the unwanted character.
- Confirm the input
After completing the input operation, click or tap "OK".
Input a Value
When setting or modifying a parameter, input an appropriate value with the numeric keypad.
- Click or tap the value or unit in the numeric keypad to complete the input.
- Rotate the multipurpose knob (1/2) to move the cursor to select the desired value and unit. Press the knob to confirm the input.
Figure 4.19 Numeric Keypad
After you input all the values and select the desired units, the numeric keypad is turned off automatically. This indicates that you have completed parameter setting. Besides, after you have input the values, you can also click or tap "OK" directly to close the numeric keypad. At this time, the unit of the parameter is the default unit. In the numeric keypad, you can perform the following operations:
- Modify the parameter value that has been input;
- Set the parameter value to a maximum or minimum value;
- Set the parameter to a default value;
- Clear the parameter input field.
4.7 To Use the Security Lock
If necessary, you can lock the instrument to a fixed location by using the security lock (please purchase it by yourself), as shown in the figure below.
The method is as follows: align the lock with the lock hole and plug it into the lock hole vertically, turn the key clockwise to lock the oscilloscope, and then pull the key out.
Figure 4.20 To Use the Security Lock
CAUTION
Please do not insert other objects into the security lock hole to avoid damaging the instrument.
4.8 To Use the Built-in Help System
The built-in help file provides information about the functions and menu
introductions of the instrument. Click or tap > Help to enter the help system.
In the help system, you can get its help information by clicking on or tapping the link for the specified chapter.
5 Vertical System
This series oscilloscope provides 2 analog input channels (CH1-CH2) for DHO802 and DHO812 and 4 analog input channels (CH1-CH4) for DHO804 and DHO814, and each channel is equipped with an independent vertical control system. The setting methods for their vertical systems are the same. This chapter takes CH1 of the four-channel model as an example to introduce the setting method for the vertical system.
When a channel is selected, click or tap the channel status label at the bottom of the screen. Then the menu as shown in the figure below is displayed.
Figure 5.1 Vertical Menu
5.1 To Enable or Disable the Analog Channel
Enable the Analog Channel
When a signal is connected to CH1, you can enable the channel in the following ways.
- Click or tap the channel status label at the bottom of the screen to enable the channel.
- Press the front-panel key is illuminated. 1 key to enable the channel, and the backlight of this
- In Figure 5.1, select the CH1 tab. Click or tap the Display on/off switch to turn CH1 on or off.
When CH1 is activated, its status label at the bottom of the screen is as shown in the figure below.
The information displayed in the channel status label is related to the current channel setting (irrelevant with the on/off status of the channel). After the channel is turned on, modify the parameters such as the vertical scale, horizontal time base, trigger mode, and trigger level according to the input signal for easy observation and measurement of the waveform.
When CH1 is enabled but not activated, its status label is as shown in the following figure.
Click or tap the channel status label at the bottom of the screen or press the front-panel 1 key to activate CH1. You can also select the CH1 tab in Vertical menu to activate it.
Disable the Analog Channel
You can disable the analog channel in the following ways.
- If CH1 has been enabled and activated, you can press the front-panel key to disable it directly. You can also click or tap the channel status label at the bottom of the screen to open the Vertical menu and then click or tap the label again to disable the channel.
- If CH1 has been enabled but not activated, first activate the channel. Then press the front-panel 1 key or use the channel status label to disable CH1.
• In Figure 5.1, set Display to OFF to disable CH1.
- In addition, you can slide down the channel label to disable the channel.
If CH1 is disabled, its status label is as shown in the figure below.
5.2 To Adjust the Vertical Scale
Vertical scale indicates the voltage value per grid in the vertical axis of the screen. It is often expressed in V/div. Adjusting the vertical scale increases or decreases the
display amplitude of the waveform. The scale information of the channel status label at the bottom of the screen would change accordingly.
Vertical Scale
The adjustable range of the vertical scale is related to the current probe ratio. By default, the probe ratio is 1X. In this case, the adjustable range of the vertical scale is from 500 μV/div to 10 V/div.
When CH1 is turned on and activated, you can adjust the vertical scale in the following ways.
- Rotate the Vertical SCALE knob to adjust the vertical scale (clockwise to reduce the scale and counterclockwise to increase).
- Enable the touch screen function, and then adjust the vertical scale with the pinch & stretch gesture on the touch screen. For details, refer to descriptions in Pinch&Stretch.
- In the Vertical menu, click or tap the icon at the right side of the input field of Scale to increase or decrease the scale value or use the corresponding multipurpose knob on the front panel to set the value. You can also click or tap the input field to input a specific value with the displayed numeric keypad.
In the Vertical menu, click or tap the Fine on/off switch to toggle between ON (fine adjustment) and OFF (coarse adjustment). The default setting is OFF. You can also
press the Vertical SCALE knob to toggle between "coarse adjustment" and "fine adjustment".
- Fine adjustment: Use the icons at the right side of Scale or rotate the knob to further adjust the vertical scale within a relatively smaller range to improve vertical resolution. If the amplitude of the input waveform is a little bit greater than the full scale under the current scale and the amplitude would be a little bit
lower if the next scale is used, fine adjustment can be used to improve the amplitude of waveform display to view signal details.
- Coarse adjustment: Use the icons at the right side of Scale or rotate the knob to adjust the vertical scale in a 1-2-5 step sequence, i.e. 500 μV/div, 1 mV/div, 2 mV/div, 5 mV/div, 10 mV/div...10 V/div.
5.3 To Adjust the Vertical Offset
Vertical offset indicates the offset of the signal ground level position of the waveform from the vertical center of the display. Its unit is consistent with the currently selected amplitude unit (refer to To Specify the Amplitude Unit). Adjusting the vertical offset moves the corresponding channel's waveform up and down. The vertical offset information (as shown in the following figure) in the channel status label at the bottom of the screen will change accordingly.
The adjustable range of the vertical offset is related to the current probe ratio and vertical scale.
When CH1 is turned on and activated, you can adjust the vertical offset in the following ways.
- Rotate the Vertical POSITION knob at the right section of the front panel to adjust the vertical offset within the adjustable range. Rotate this knob clockwise to increase the vertical offset, and rotate it counterclockwise to reduce the vertical offset. Pressing down the knob can quickly reset the vertical offset (set the vertical offset to 0).
- Enable the touch screen function, and then adjust the vertical offset with the drag gesture. For details, refer to Drag.
- In the Vertical menu, click or tap the Up/Down arrow icon at the right side of the input field of Offset to increase or decrease the offset value or use the corresponding multipurpose knob to set the value. You can also click or tap the input field to input a specific value with the pop-up numeric keypad.
5.4 To Specify Channel Coupling
You can remove unwanted signals by setting the coupling mode. For example, the signal under test is a square waveform with DC offset.
Click or tap the channel status label at the bottom of the screen, and then the Vertical menu is displayed. Click or tap the Coupling drop-down button to select the coupling mode.
- When the coupling mode is "DC", both the DC and AC components of the signal under test can pass the channel.
- When the coupling mode is "AC", the DC components of the signal under test are blocked.
- When the coupling mode is "GND", the DC and AC components of the signal under test are blocked.
After a coupling mode is selected, it is indicated in the channel status label at the bottom of the screen, as shown in the figure below.
5.5 To Specify Bandwidth Limit
This oscilloscope supports the bandwidth limit function. Setting the bandwidth limit can reduce the noises in the displayed waveforms. For example, the signal under test is a pulse with high frequency oscillation.
- When the bandwidth limit is turned off, the high frequency components of the signal under test can pass the channel.
- When the bandwidth limit is turned on, the high frequency components found in the signal under test that are greater than the limit are attenuated. This series supports 20 MHz bandwidth limit.
Click or tap the channel status label at the bottom of the screen, and then the Vertical menu is displayed. Click or tap the BW Limit drop-down button to select the specified bandwidth. When the bandwidth limit is enabled, the specific bandwidth
limit value will be displayed in the channel status label at the bottom of the screen, as shown in the figure below.
TIP
Bandwidth limit can not only reduce the noise, but also can attenuate or eliminate the high frequency components of the signal.
5.6 To Specify Input Impedance
This series oscilloscope provides 1 MΩ input impedance mode. In this mode, the input impedance of the oscilloscope is very high, and the current flowed from the circuit under test can be ignored.
5.7 To Invert a Waveform
Click or tap the channel status label at the bottom of the screen, and then the Vertical menu is displayed. Then click or tap the Invert on/off switch to enable or disable the waveform invert function.
When "ON" is selected, the channel label is as shown in the figure below.
When the Invert function is disabled, the waveform is displayed normally; when enabled, the voltage values of the displayed waveform are inverted, as shown in the figure below. Inverting a waveform also changes the result of math function, waveform measurement, etc.
"Invert" Off
"Invert" On Figure 5.2 Waveform Invert On/Off
TIP
When the Invert function is turned on, the trigger (e.g. Edge trigger, Pulse trigger, or Slope trigger) edge or polarity will be changed.
5.8 To Set Probe
The analog channel of this oscilloscope supports passive probes. For detailed technical information about the probes, please refer to the corresponding Probe User Guide.
Click or tap the channel status label at the bottom of the screen. Then the Vertical menu is displayed. Then click or tap Probe to enter the Probe setting menu, as shown in the figure below.
Figure 5.3 Probe Setting Menu
Probe Ratio
The oscilloscope allows you to set the probe attenuation manually. To obtain accurate measurement results, you must set the probe ratio properly. By default, the probe ratio is 1X.
The available probe ratio values are shown in the following table.
Table 5.1 Probe Ratio
| Menu | Attenuation(display amplitude of the signal: actual amplitude of the signal) |
| 0.001X | 0.001:1 |
| 0.002X | 0.002:1 |
| 0.005X | 0.005:1 |
| 0.01X | 0.01:1 |
| 0.02X | 0.02:1 |
| 0.05X | 0.05:1 |
| 0.1X | 0.1:1 |
| 0.2X | 0.2:1 |
| 0.5X | 0.5:1 |
| 1X (default) | 1:1 |
| 2X | 2:1 |
| 5X | 5:1 |
| 10X | 10:1 |
| 15X | 15:1 |
| 20X | 20:1 |
| 50X | 50:1 |
| 100X | 100:1 |
| 150X | 150:1 |
| 200X | 200:1 |
| 500X | 500:1 |
| 1000X | 1000:1 |
| 1500X | 1500:1 |
| 2000X | 2000:1 |
| 5000X | 5000:1 |
| 10000X | 10000:1 |
| 15000X | 15000:1 |
| 20000X | 20000:1 |
| 50000X 50000:1 |
Go Back to the Vertical Menu
In the Probe setting menu, click or tap Vertical to go back to the Vertical menu.
5.9 To Specify the Amplitude Unit
Click or tap the channel status label at the bottom of the screen, and then the Vertical menu is displayed. Click or tap the Unit drop-down button to select W, A, V, or U. The default unit is V.
Changing the amplitude unit also changes the units of the functions related to the channel accordingly.
5.10 To Adjust Bias
When you use an oscilloscope to make actual measurements, a small offset that arises from the temperature drift of the component or external environment disturbance may occur on the zero-cross voltage of the channel, which will affect the measurement results of the vertical parameters. This series oscilloscope allows you to set an offset calibration voltage for calibrating the zero point of the corresponding channel so as to improve the accuracy of the measurement results.
In the "Vertical" menu, click or tap the Up/Down arrow icon at the right side of the Bias input field to increase or decrease the bias value. You can also click or tap the input field to set the value using the pop-up numeric keypad, or use the corresponding multipurpose knob to set the value.
The range of bias is related to the vertical scale.
TIP
If the zero-cross voltage of the channel has a larger amplitude offset that exceeds the adjustable range, please perform self-calibration for the instrument to ensure measurement accuracy. For details, refer to SelfCal.
5.11 To Specify the Skew
When using an oscilloscope for actual measurement, the transmission delay of the probe cable may bring relatively greater errors (zero offset). This series oscilloscope allows you to set a delay time to calibrate the zero offset of the corresponding channel. Zero offset is defined as the offset of the crossing point of the waveform and trigger level line relative to the trigger position, as shown in the figure below.
Figure 5.4 Zero Offset
In the "Vertical" menu, click or tap the Ch-Ch Skew input field to set the channel-to-channel skew time. The available range is from -100 ns to 100 ns, and the default is 0.00 s.
5.12 To Turn the Channel Label Display On/Off
The instrument uses the channel number to mark the corresponding channel by default. For ease of use, you can also set a label for each channel. For example,
CH1
Click or tap the channel status label at the bottom of the screen. Then the Vertical menu is displayed. Click or tap the Label on/off switch to turn the label display on or off. You can also click or tap the label input field to input a specific name for the channel label using the pop-up keypad.
For how to use the keypad, refer to descriptions in Parameter Setting Method.
6 Horizontal System
You can access the Horizontal menu in the following ways.
- Click or tap the channel status label at the bottom of the screen, and then the Vertical menu is displayed. Click or tap the Acquisition button to enter the Horizontal menu.
- Click or tap the horizontal time base label ("H" icon), acquisition label ("A" icon), or horizontal position label ("D" icon) at the top of the screen to enter the Horizontal menu.
- Press the front-panel key to enter the Horizontal menu.
Figure 6.1 Horizontal Menu
6.1 To Adjust the Horizontal Time Base
Horizontal time base, also called the horizontal scale, refers to the time of each grid in the horizontal direction of the screen. It is usually expressed in s/div. The range of the horizontal time base is from 5.00 ns/div to 500 s/div.
While you change the horizontal time base, the displayed waveforms of all channels are expanded or compressed horizontally relative to the selected time reference (Horizontal Expansion Reference). The horizontal time base in the horizontal time base label ("H" icon) will change accordingly, as shown in the figure below.
You can adjust the horizontal time base in the following ways.
- Rotate the front-panel Horizontal SCALE knob to adjust the horizontal time base (clockwise to decrease the scale and counterclockwise to increase).
- Enable the touch screen function, and then adjust the horizontal time base with the Pinch&Stretch gesture. For details, refer to Pinch&Stretch.
- In the Horizontal menu, click or tap the icon at the right side of the input field of Scale to increase or decrease the horizontal time base or use the corresponding multipurpose knob to set the value. You can also click or tap the input field to input a specific value with the pop-up numeric keypad.
In the Horizontal menu, click or tap the Vernier on/off switch to toggle between ON (fine adjustment) and OFF (coarse adjustment). You can also press the front-panel
Horizontal SCALE knob to toggle between "coarse adjustment" and "fine adjustment".
- Coarse adjustment: Click or tap the icons at the right side of the input field of Scale to adjust the horizontal time base of the waveforms of all channels in a 1-2-5 step sequence within the adjustable range.
- Fine adjustment: Click or tap the icon at the right side of the input field of Scale to adjust the horizontal time base of the waveforms of all channels at a smaller step within the adjustable range.
6.2 To Adjust the Horizontal Position
Horizontal position, also called trigger position, refers to the trigger point position of the waveforms of all channels in the horizontal direction relative to the center of the display. When the waveform trigger point is at the left (right) side of the center, the horizontal position is a positive (negative) value.
Changing the horizontal position moves the waveform trigger points and the displayed waveforms of all channels horizontally. The horizontal position displayed in the horizontal position label ("D" icon) changes accordingly, as shown in the figure below.
You can adjust the horizontal position in the following ways.
- Rotate the Horizontal to adjust the horizontal position within the adjustable range. Rotate this knob clockwise to reduce the horizontal position or counterclockwise to increase the horizontal position. Pressing the knob can quickly reset the horizontal position (set the horizontal position to 0).
- Enable the touch screen function, and then adjust the horizontal position with the drag gesture. For details, refer to Drag.
- In the "Horizontal" menu, use the corresponding multipurpose knob to set the horizontal position or use the icons at the right side of the input field of Position to increase or decrease the value, as shown in the figure below. You can also click or tap the Position input field to input a specific value with the pop-up numeric keypad.
6.3 Zoom Mode (Delayed Sweep)
Zoom (delayed sweep mode) can be used to horizontally expand a length of waveform to view waveform details. In the Horizontal menu, click or tap the Zoom on/off switch to enable or disable the delayed sweep function. When it is enabled, you can set the scale and position in Zoom mode.
- Zoomed Scale: Rotate the corresponding multipurpose knob or use the icons at the right side of the Scale input field to increase or decrease the time base for the Zoom window. You can also click or tap the input field to input the specific value directly via the pop-up numeric keypad.
- Zoomed Position: Rotate the corresponding multipurpose knob or use the icons at the right side of the Position input field to increase or decrease the position
for the Zoom window. You can also click or tap the input field to input the specific value directly via the pop-up numeric keypad.
When the Zoom mode is enabled, the display divides in half, as shown in the figure below.
Figure 6.2 Zoom Mode
• Waveform before expansion:
The upper portion of the display that is not covered by subtransparent gray shows the normal display of the waveform. Its horizontal time base (called the main time base) is indicated in the label at the upper-left corner of the display. You can move the area left and right by adjusting the horizontal position and increase or decrease the size of the area by adjusting the horizontal scale.
• Waveform after expansion:
The lower portion shows the horizontally expanded version of the normal waveform display. Its horizontal time base (called the zoomed time base) is displayed in the middle. Compared with the main time base, the zoomed time base has higher resolution.
TIP
The zoomed time base should be smaller than or equal to the main time base.
7 Acquisition System
The "Horizontal" menu allows you to configure the instrument's acquisition system.
Figure 7.1 Horizontal Menu
7.1 Acquisition Mode
The acquisition mode is used to determine how the waveform points are calculated from the sample points. In the Horizontal menu, click or tap the desired acquisition mode for the Acquisition item. This oscilloscope provides four acquisition modes: Normal (default), Average, Peak, and UltraAcquire. The selected acquisition mode is indicated in the acquisition label ("A" icon) at the top of the screen
Normal
In Normal acquisition mode, the oscilloscope samples the signal at a fixed time interval to rebuild the waveform. This mode produces the best display for most waveforms.
Average
In this mode, the oscilloscope averages the waveforms from multiple acquisitions to reduce the random noise of the input signal and increase the vertical resolution. A greater number of averages lowers the noise and increases the vertical resolution. On the other hand, the higher the number of averages, the slower the response of the displayed waveform to waveform changes.
When you select "Average" mode, click or tap the Averages input field to set the number of averages with the pop-up numeric keypad or use the corresponding multipurpose knob to set the value. Its range is from 2 to 65536, and the default is 2.
NOTE
The number of averages must be the Nth power of 2. When it is not in N power-of-2 increments, a prompt message "Truncation average error" is displayed. At this time, a value that is smaller than the one you input and the closest to N power-of-2 increments will be input automatically.
Peak
In this mode, the oscilloscope acquires the maximum and minimum values of the signal within the acquisition interval to get the signal envelope or capture narrow pulses that might be lost. This mode prevents signal aliasing at the expense of exaggerating the noise.
In this mode, the minimum pulse width detected is the sample period.
UltraAcquire
UltraAcquire mode is one of the fast acquisition modes. It divides the oscilloscope's memory into segments and fills a memory segment for each individual trigger event. It provides a much higher waveform capture rate and helps minimize the dead time between trigger events.
When you select "UltraAcquire" mode, click or tap the Display Frame input field to set the number of frames and the Timeout input field to set the timeout. When the number of the frames reaches the maximum or the sampling time reaches the timeout, the oscilloscope stops sampling and plots the waveform. Click or tap the Display mode drop-down button to select the display mode of the acquired data.
- Adjacent: Waveform segments are shown in an adjacent way with each segment shown next to the previous segment in time order. A maximum of 100 frames can be displayed on the screen at a time in this mode.
- Overlay: All the captured waveform segments are overwritten to display as one single segment of the waveform. A maximum of 100 frames can be displayed on the screen at a time in this mode.
- Waterfall: It displays the captured waveform segments in a cascaded display order. A maximum of 100 frames can be displayed on the screen at a time in this mode.
- Perspective: The waveform segments are displayed in the ladder-like form, with each segment being arranged above another with a certain perspective (angle), moving up like a rising slope. A maximum of 100 frames can be displayed on the screen at a time in this mode.
- Mosaic: The whole waveform view is divided into several blocks, and each waveform segment is displayed in each block in sequence. A maximum of 80 frames can be displayed on the screen at a time in this mode.
a.Adjacent
b.Overlay
c. Waterfall
d. Perspective
e. Mosaic Figure 7.2 Display Modes
TIP
- The UltraAcquire mode is not available when any of the following functions is enabled: cursors, decoding, Search, Zoom, Pass/Fail test, waveform recording, reference waveform, roll mode, slow sweep mode, and XY mode. To switch to the UltraAcquire mode, please ensure that all of those functions are disabled.
- In UltraAcquire mode, the functions mentioned above (except for roll mode and slow sweep mode) are disabled. When roll mode or slow sweep mode is enabled, the acquisition mode is automatically switched to "Normal".
7.2 Sampling Mode
This oscilloscope only supports the real-time sampling mode. In this mode, the oscilloscope produces the waveform display from samples collected during one trigger event. The maximum real-time sample rate of this series is 1.25 GSa/s. The current sample rate is displayed in the acquisition label at the top of the screen.
By default, the operating status label at the left top of the screen is illuminated in green, indicating that the instrument is in real-time sampling, and the STOP/RUN button on the toolbar is in green. Click or tap the STOP/RUN button or press the
front-panel key to stop sampling. At this time, the operating status label shows "STOP" in red, and the STOP/RUN button turns red. Also, the backlight of the front-
panel key turns red. The oscilloscope will maintain its last captured graph. You can still pan or zoom the waveforms by using the horizontal/vertical controls.
7.3 Sample Rate
Sampling is the process of converting an analog signal into digital data at a specified time interval and then storing them sequentially in acquisition memory. The sample rate is the reciprocal of the time interval.
In Horizontal menu, the "SaRate" item shows the current sample rate. The current sample rate is also indicated in the acquisition label ("A" icon) at the top of the screen, as shown in the figure below.
Sample Rate
The sample rate of the analog channel is related to the instrument model and current channel mode. For two-channel models (DHO802 and DHO812), the oscilloscope provides up to 1.25 GSa/s real-time sample rate in single channel mode and 625 MSa/s real-time sample rate in all channels mode. For four-channel models (DHO814 and DHO804), the oscilloscope provides up to 1.25 GSa/s real-time sample rate in single channel mode, 625 MSa/s real-time sample rate in half channels mode, and 312.5 MSa/s real-time sample rate in all channels mode.
- Single channel mode: If any one of the channels is enabled, it is called single channel mode.
- Half channels mode: For four-channel models, if two of the channels are enabled, it is called half channels mode.
- All channels mode: For two-channel models, if all two channels are enabled, it is called all channels mode; for four-channel models, if any three channels or all four channels are enabled, it is called all channels mode.
A sample rate that is too low might have the following effects on the waveform:
- Waveform Distortion: When the sample rate is too low, some waveform details are lost, and the sample waveform displayed is rather different from the actual waveform of the signal.
- Waveform Aliasing: Aliasing occurs when the sample rate is twice lower than the actual signal frequency (Nyquist Frequency). The frequency of the waveform reconstructed from the sample data is smaller than the actual signal frequency.
- Waveform Leakage: If the sample rate is too low, the waveform reconstructed from the sample data does not represent the original signal correctly.
7.4 Memory Depth
Memory depth refers to the number of points that the oscilloscope can store in a single trigger acquisition. It reflects the storage capability of the acquisition memory. This series oscilloscope provides up to 25 Mpts memory depth (standard).
Figure 7.3 Memory Depth
The following formula shows the relations among memory depth, sample rate, and horizontal time base:
MDepth ≥ SRate x TSCale x HDivs
• MDepth indicates the memory depth. The unit is pts. • SRate indicates the sample rate. The unit is Sa/s. • TSCale indicates the horizontal time base. The unit is s/div.
- HDivs indicates the number of grids in the horizontal direction. The unit is div.
Therefore, with the same horizontal time base, a higher memory depth can ensure a higher sample rate.
In the Horizontal menu, click or tap the Mem Depth drop-down button to select the memory depth. The default setting is "10k". The selected memory depth value is displayed in the acquisition label ("A" icon) at the top of the screen.
- When only one of the channels is enabled, the memory depths available include Auto, 1 kpts, 10 kpts, 100 kpts, 1 Mpts, 5 Mpts, 10 Mpts, and 25 Mpts.
- When two of the channels are enabled, the memory depths available include Auto, 1 kpts, 10 kpts, 100 kpts, 1 Mpts, 5 Mpts, and 10 Mpts.
- When three channels or all four channels are enabled (only available for four-channel models), the memory depths available include Auto, 1 kpts, 10 kpts, 100 kpts, 1 Mpts, and 5 Mpts.
TIP
- In "Auto" mode, the oscilloscope selects the memory depth automatically according to the current sample rate.
- When Acquisition Mode is set to "Average", the maximum memory depth available is 10 Mpts in single channel mode and 1 Mpts in half channels mode/all channels mode.
7.5 Horizontal Expansion Reference
This function allows you to set the position that the waveform on the display is referenced to when it is horizontally expanded or compressed when the horizontal time base is adjusted. In the Horizontal menu, click or tap the Expand drop-down button to select the reference position. Available options include Center (default), Left, Right, Trigger, and User.
- Center: when the horizontal time base is modified, the waveform will be expanded or compressed horizontally relative to the center of the display.
- Left: when the horizontal time base is modified, the waveform will be expanded or compressed horizontally relative to the leftmost position of the display.
- Right: when the horizontal time base is modified, the waveform will be expanded or compressed horizontally relative to the rightmost position of the display.
- Trigger: when the horizontal time base is modified, the waveform will be expanded or compressed horizontally relative to the trigger point.
- User: when the horizontal time base is modified, the waveform will be expanded or compressed horizontally relative to the user-defined reference position.
When you select "User", click or tap the User Expansion input field and set the value with the displayed numeric keypad. Its range is from -500 to 500, and the default is 0.
7.6 Roll Mode
The roll mode causes the waveform to move across the screen from right to left. It allows you to view the acquired data without waiting for a complete acquisition. In the Horizontal menu, select "Auto" or "OFF" in Roll.
- Auto: the Roll mode is enabled. It is automatically enabled when the horizontal scale is 50 ms/div or slower.
- OFF: the Roll mode is disabled. The oscilloscope operates at slow sweep speeds when the horizontal scale is 200 ms/div or slower. In slow sweep mode, the oscilloscope acquires the data to the left of the trigger point and then waits for the trigger. After the trigger occurs, it continues to acquire the data to the right of the trigger point. When you use this mode to observe low-frequency signals, it is recommended to set the channel coupling mode (To Specify Channel Coupling) to "DC".
TIP
- If the Zoom mode is currently turned on, enabling the roll mode automatically turns off the Zoom mode.
- The following functions are not available when the roll mode is enabled:
To Adjust the Horizontal Position (available when the oscilloscope run state is STOP), Zoom Mode (Delayed Sweep), Triggering the Oscilloscope, Protocol Decoding, Pass/Fail Test, Waveform Recording and Playing, Persistence Time, UltraAcquire, Average, XY Mode, Search.
7.7 XY Mode
By default, this series oscilloscope uses the YT mode for the waveform display window. In YT mode, the Y-axis indicates the voltage and the X-axis indicates the time. Besides, it also
supports the XY display in which both the X-axis and Y-axis indicate voltage. The XY mode converts the oscilloscope from a "Voltage-Time" display to a "Voltage-Voltage" display using two input channels.
Enable the XY Mode
You can enable the XY display mode in the following ways.
- Click or tap the Windows button in the function navigation menu or on the toolbar to enter the Add Window menu. In the "Diagram" item, click or tap XY > Add to enable the XY display mode.
- Click or tap the XY button in the function navigation menu or on the toolbar to enable the XY display mode.
- In the "Horizontal" menu, tick XY to enable the XY mode.
Configure the XY Mode
Click or tap ☐ at the upper-right corner of the XY display window to enter the XY configuration menu.
Figure 7.4 XY Menu
- Source: Click or tap the drop-down button of "Source X" to select the source channel of the X-axis in the XY window. Click or tap the drop-down button of "Source Y" to select the source channel of the Y-axis in the XY window.
In the Add Window menu, you can also configure Source Z. Source Z, as the Z-axis input in the XY display mode, is used to control whether to display the X-Y waveforms in the XY display mode. This function is called "blanking".
- When "None" is selected for "Source Z", the blanking function is disabled, and you can only see the X-Y waveforms.
- When you select "CH1-CH4" for "Source Z", the blanking function is enabled. The Z-axis input from the external connector determines whether to display the X-Y waveforms. When Z is high (the input level is greater than 0 V), the X-Y waveforms are displayed; when Z is low (the input level is smaller than 0 V), the waveforms are hidden.
• Grid: Please refer to To Set the Screen Grid
NOTE
Advanced settings are not available for now. The current settings can produce the best display.
Phase Deviation Measurement
In this mode, you can use the Lissajous method to measure the phase deviation of the two input signals whose frequencies are the same. The following figure shows the measurement schematic diagram of phase deviation.
Figure 7.5 Measurement Schematic Diagram of Phase Deviation
According to =A/B or C/D, is the phase deviation angle between the two channels. The definitions of A, B, C, and D are shown in the figure above. The phase deviation angle is obtained, that is:
=±(A/B) or ±(C/D)
If the principal axis of the ellipse is within Quadrant I and III, the phase deviation angle obtained should be within Quadrant I and IV, namely within (0 to π/2) or (3π/2 to 2π). If the principal axis of the ellipse is within Quadrant II and IV, the phase deviation angle obtained should be within Quadrant II and III, namely within (π/2 to π) or (π to 3π/2).
The XY mode can be used to measure the phase deviation occurred when the signal under test passes through a circuit network. Connect the oscilloscope to the circuit to monitor the input and output signals of the circuit.
8 Triggering the Oscilloscope
The trigger system allows you to set specific trigger conditions as required. The oscilloscope captures a waveform as well as its neighboring part and displays them on the screen once a particular trigger condition is met. For a digital oscilloscope, it samples waveform continuously no matter whether it is stably triggered. Rather, only stable triggering can produce stable display. The trigger module ensures that every time base sweep or acquisition starts from the user-defined trigger condition, namely every sweep is synchronous with the acquisition and the waveforms acquired are overlapped so as to display the stable waveforms.
You should set the triggers based on the features of the input signal. To quickly capture your desired waveforms, you need to understand the signal under test. This oscilloscope provides a variety of trigger types that help you focus on the desired waveform details.
You can enter the Trigger menu in the following ways.
- Press the front-panel key to enter the trigger menu. • In Figure 5.1, click or tap the Trigger button to enter the trigger menu.
- Click or tap the trigger label (as shown in the figure below) at the top of the screen to enter the trigger menu.
8.1 Trigger Source
In the "Trigger" menu, click or tap the drop-down button of Source to select the desired source. Available sources include analog channels CH1-CH4 and EXT.
Analog Channel Input
Signals input from analog channels CH1-CH4 can all be used as trigger sources. No matter whether the channel selected is enabled, the channel can work normally.
External Trigger Input (for DHO812 and DHO802 only)
The external trigger source can be used to trigger on the third channel while both channels are acquiring data. The trigger signal (e.g., external clock or signal from the circuit under test) is connected to the EXT trigger source via the external trigger input terminal [EXT TRIG] connector. You can set the trigger conditions within the range of the trigger level (from -5 V to +5 V).
8.2 Trigger Level
The adjustment of the trigger level/threshold level is related to the type of the trigger source.
- When the trigger source is CH1-CH4, rotate the front-panel LEVEL knob or use the corresponding multipurpose knob (when the trigger menu is opened) to adjust the trigger level. You can also click or tap the Level input field to set the value with the pop-up numeric keypad. During the adjustment, a trigger level line (the color of the trigger level line is the same as that of the channel) and a trigger icon "T" are displayed on the screen, and they move up and down with the variation of the trigger level. When you stop modifying the trigger level, the trigger level line disappears in about 2 s. The current trigger level is displayed in the trigger information label at the top of the screen.
In Runt Trigger, Slope Trigger, and Window trigger, you need to set the upper and lower limits of the trigger level. Two trigger level icons T1 and T2 are displayed at the right section of the screen.
- When the trigger source is EXT, rotate the front-panel LEVEL knob or use the corresponding multipurpose knob (when the trigger menu is opened) to adjust the trigger level. You can also click or tap the Level input field to set the value with the pop-up numeric keypad. The current trigger level is displayed in the trigger information label at the top of the screen.
For this trigger source, only the variation of the trigger level value is displayed on the screen during the adjustment of the trigger level, without displaying the trigger level lines on the screen.
To better trigger the waveforms, for a trigger with a single level, you can directly click or tap 50% in the menu or press the trigger level knob to make the level move to the middle of the waveform. However, for a trigger with two levels (e.g., Slope trigger, Runt trigger, Window trigger), you need to click or tap 90% for Level A and 10% for Level B to make the level move within the range of the waveform amplitude.
8.3 Trigger Mode
The following is the schematic diagram of the acquisition memory. To better understand the trigger event, you can think of the trigger event as dividing acquisition memory into a pre-trigger and post-trigger buffer.
Figure 8.1 Schematic Diagram of the Acquisition Memory
After the oscilloscope starts running, it first fills the pre-trigger buffer. Then, after the pre-trigger buffer is filled, the oscilloscope starts searching for a trigger. While searching for the trigger, the data sampled will still be transmitted to the pre-trigger buffer (the new data will continuously overwrite the previous data). When a trigger is found, the pre-trigger buffer contains the events that occurred just before the trigger. Then, the oscilloscope will fill the post-trigger buffer and display the data in the acquisition memory. If the acquisition is initiated via the front-panel key, the process repeats; if the acquisition is initiated via the single key, it stops after finishing a single acquisition (you can pan and zoom the currently displayed waveform).
This series provides Auto (default), Normal, and Single trigger modes.
Click or tap the trigger information label (as shown in the figure below) at the top of the screen or press the front-panel Trigger key to open the "Trigger" menu. In the Sweep item, you can quickly switch the current trigger mode. The selected trigger mode is displayed in the trigger information label at the top of the screen: A (Auto), N (Normal), or S (Single).
- Auto: In this trigger mode, if the specified trigger conditions are not found, triggers are forced and acquisitions are made so that signal activity is displayed on the oscilloscope. This trigger mode can be used when the signal levels are unknown, when the DC signals should be displayed, or when trigger conditions occur often enough that forced triggers are unnecessary.
- Normal: In this trigger mode, triggers and acquisitions only occur when the specified trigger conditions are found. This trigger mode can be used when the signal is at a low repetition rate, when you only want to acquire specific events specified by the trigger settings, or when you try to stabilize the display by preventing the oscilloscope from auto-triggering.
- Single: In this trigger mode, a single trigger and acquisition only occur when the specified trigger conditions are found, and then the oscilloscope stops. This
trigger mode can be used when you need to make a single acquisition of the specified event and analyze the acquisition result. You can pan and zoom the currently displayed waveform without subsequent waveform data overwriting the current waveform. After a single trigger is initiated, the oscilloscope is in "STOP" state.
In Normal and Single trigger modes, you can click or tap the Force button in the trigger menu or press the front-panel key to force a trigger event.
8.4 Trigger Coupling
Trigger coupling determines what part of the signal is passed to the trigger circuit. Please distinguish it from channel coupling (To Specify Channel Coupling). This function is available only when the trigger type is Edge and the trigger source is an analog channel.
In the "Trigger" menu, click or tap the Coupling drop-down button to select the desired coupling mode (by default, it is DC).
- DC: allows DC and AC components to pass the trigger circuitry.
• AC: blocks the DC components and attenuates the signals.
- LFR: blocks the DC components and rejects the low-frequency components.
• HFR: rejects the high frequency components.
TIP
When "AC" or "LFR" is selected as the coupling mode, no trigger level lines and trigger icons are displayed. When you adjust the trigger level, you can only see the changes of the trigger level values in the trigger information label at the top of the screen.
8.5 Trigger Holdoff
Trigger holdoff can help stabilize triggering on complex repetitive waveforms that have multiple edges or other events between waveform repetitions (such as pulse series). Holdoff time is specified as the amount of time that the oscilloscope waits for re-arming the trigger circuitry after generating a correct trigger. The oscilloscope will not trigger even if the trigger condition is met during the holdoff time and will only re-arm the trigger circuitry after the holdoff time expires.
For example, to get a stable trigger on the repetitive pulse burst as shown in the figure below, set the holdoff time to be greater than t1 but less than t2.
Figure 8.2 Trigger Holdoff
Click or tap the trigger information label (as shown in the figure below) at the top of the screen or press the front-panel Trigger key to open the "Trigger" menu. Click or tap the input field of Holdoff to set the holdoff time (the holdoff to this time when the waveforms are stably triggered) with the pop-up numeric keypad. You can also use the corresponding multipurpose knob to set the value. The adjustable range of the holdoff time is from 8 ns (default) to 10 s.
8.6 Noise Rejection
Noise rejection can reject the high frequency noise in the signal and reduce the possibility of triggering the oscilloscope by mistake.
Click or tap the trigger information label (as shown in the figure below) or press the front-panel key to open the "Trigger" menu. Click or tap the Noise Reject on/off switch to enable or disable the noise rejection function.
8.7 Trigger Type
This series oscilloscope provides the following trigger types.
8.7.1 Edge Trigger
Edge trigger identifies a trigger on the trigger level of the specified edge on the input signal.
Trigger Type
Click or tap the Type drop-down button to select "Edge".
Figure 8.3 Edge Trigger Setting Menu
After a trigger type is selected, the current trigger setting information (including the trigger type, source, and level) is displayed in the trigger information label at the top of the screen, as shown in the figure below. The information will change based on the trigger settings.
Source Selection
Click or tap the Source drop-down button to select CH1-CH4 or EXT (for two-channel models only). For details, refer to Trigger Source. The selected trigger source is indicated in the trigger information label at the top of the screen.
Only when you select the channel that has signal inputs as the trigger source, can you obtain a stable trigger.
Edge Type
In the Slope item, select which edge of the input signal will trigger the oscilloscope. The selected slope will be indicated in the trigger information label.
- Rising: triggers on the rising edge of the input signal when the voltage level meets the specified trigger level.
- Falling: triggers on the falling edge of the input signal when the voltage level meets the specified trigger level.
- Either: triggers on the rising or falling edge of the input signal when the voltage level meets the preset trigger level.
TIP
When edge trigger is selected, you can also press the front-panel key to switch the edge type.
Trigger Mode
In Sweep, select Auto, Normal, or Single as the trigger mode. For details, refer to descriptions in Trigger Mode.
Trigger Parameter Setting
You can refer to Trigger Coupling, Trigger Holdoff, and Noise Rejection to set the coupling, trigger holdoff, and noise rejection under this trigger type.
Trigger Level
Click or tap the Level input field to set the trigger level with the pop-up numeric keypad. You can also use the front-panel trigger level knob or the corresponding multipurpose knob to set the trigger level. For details, refer to descriptions in Trigger Level. The current trigger level is displayed in the trigger information label at the top of the screen.
8.7.2 Pulse Width Trigger
Pulse width triggering sets the oscilloscope to trigger on the positive or negative pulse of a specified width. In this mode, the oscilloscope will trigger when the pulse width of the input signal satisfies the specified pulse width condition.
In this oscilloscope, positive pulse width is defined as the time difference between the two crossing points of the trigger level and positive pulse; negative pulse width is defined as the time difference between the two crossing points of the trigger level and negative pulse, as shown in the figure below.
Figure 8.4 Positive/Negative Pulse Width
Trigger Type
Click or tap the Type drop-down button to select "Pulse".
Figure 8.5 Pulse Width Trigger Setting Menu
After a trigger type is selected, the current trigger setting information (including the trigger type, source, and level) is displayed in the trigger information label at the top of the screen, as shown in the figure below. The information will change based on the trigger settings.
Source Selection
Click or tap the Source drop-down button to select CH1-CH4. For details, refer to Trigger Source. The selected trigger source is indicated in the trigger information label at the top of the screen.
Only when you select the channel that has signal inputs as the trigger source, can you obtain a stable trigger.
Polarity
In the Polarity item, select the desired polarity: positive polarity (N) or negative polarity (U).
Trigger Condition
Set the trigger condition in the When item.
- When you select "Positive" for polarity, ">" for trigger condition, the oscilloscope triggers when the positive pulse width of the input signal is greater than the specified pulse width.
- When you select "Positive" for polarity, "<" for trigger condition, the oscilloscope triggers when the positive pulse width of the input signal is smaller than the specified pulse width.
- When you select "Positive" for polarity, "<>" for trigger condition, the oscilloscope triggers when the positive pulse width of the input signal is greater than the specified lower limit of pulse width and smaller than the specified upper limit of pulse width.
- When you select "Negative" for polarity, ">" for trigger condition, the oscilloscope triggers when the negative pulse width of the input signal is greater than the specified pulse width.
- When you select "Negative" for polarity, "<" for trigger condition, the oscilloscope triggers when the negative pulse width of the input signal is smaller than the specified pulse width.
- When you select "Negative" for polarity, "<>" for trigger condition, the oscilloscope triggers when the negative pulse width of the input signal is greater than the specified lower limit of pulse width and smaller than the specified upper limit of pulse width.
Pulse Width Setting
- In the When menu, when ">" or "<" is selected, click or tap the input field of Upper or lower to set the upper limit value or the lower limit value with the pop-up numeric keypad. You can also use the corresponding multipurpose knob to set the value. The pulse width available is from 1 ns to 10 s.
- In the When menu, when "< >" is selected, click or tap the input field of Upper and Lower respectively to set the upper limit value and the lower limit value with the pop-up numeric keypad. You can also use the corresponding multipurpose knob to set the values. The lower limit of the pulse width must be smaller than the upper limit.
Trigger Mode
In Sweep, select Auto, Normal, or Single as the trigger mode. For details, refer to descriptions in Trigger Mode.
Trigger Parameter Setting
You can refer to Trigger Holdoff and Noise Rejection to set the trigger holdoff and noise rejection under this trigger type.
Trigger Level
Click or tap the Level input field to set the trigger level with the pop-up numeric keypad. You can also use the front-panel trigger level knob or the corresponding multipurpose knob to set the trigger level. For details, refer to descriptions in Trigger Level. The current trigger level is displayed in the trigger information label at the top of the screen.
8.7.3 Slope Trigger
Slope triggering sets the oscilloscope to trigger on the positive or negative slope of the specified time. This trigger mode is applicable to ramp and triangle waveforms.
In this oscilloscope, positive slope time is defined as the time difference between the two crossing points of trigger level line A and B with the rising edge; negative slope time is defined as the time difference between the two crossing points of trigger level line A and B with the falling edge. See the figure below.
Figure 8.6 Positive Slope Time/Negative Slope Time
Trigger Type
Click or tap the Type drop-down button to select "Slope".
Figure 8.7 Slope Trigger Setting Menu
After a trigger type is selected, the current trigger setting information (including trigger type, trigger source, and trigger level) is displayed in the trigger information label at the top of the screen, as shown in the figure below. The information will change based on the trigger settings.
Source Selection
Click or tap the Source drop-down button to select CH1-CH4. For details, refer to Trigger Source. The selected trigger source is indicated in the trigger information label at the top of the screen.
Only when you select the channel that has signal inputs as the trigger source, can you obtain a stable trigger.
Edge Type
Select the input signal edge (in the Slope item) on which the oscilloscope triggers.
- Rising: triggers on the rising edge of the input signal.
- Falling: triggers on the falling edge of the input signal.
Trigger Condition
Set the trigger condition in the When item.
- When you select "Rising" for the edge type, "> " for trigger condition, the oscilloscope triggers when the positive slope time of the input signal is greater than the specified time.
- When you select "Rising" for the edge type, "<" for trigger condition, the oscilloscope triggers when the positive slope time of the input signal is smaller than the specified time.
- When you select "Rising" for the edge type, "< >" for trigger condition, the oscilloscope triggers when the positive slope time of the input signal is greater than the specified lower limit time and smaller than the specified upper limit time.
- When you select "Falling" for the edge type, "> " for trigger condition, the oscilloscope triggers when the negative slope time of the input signal is greater than the specified time.
- When you select "Falling" for the edge type, "<" for trigger condition, the oscilloscope triggers when the negative slope time of the input signal is smaller than the specified time.
- When you select "Falling" for the edge type, "< >" for trigger condition, the oscilloscope triggers when the negative slope time of the input signal is greater than the specified lower limit time and smaller than the specified upper limit time.
Slope Time Setting
- In the When item, when "> " or "<" is set to trigger conditions, click or tap the input field of Lower or Upper to set the lower limit value or the upper limit value with the pop-up numeric keypad. You can also use the corresponding knob to set the value. The slope time available is from 1 ns to 10 s.
- In the When item, when "< >" is set to trigger conditions, click or tap the input field of Upper and Lower respectively to set the upper limit value and the lower limit value with the pop-up numeric keypad. You can also use the corresponding knob to set the values. The lower slope time limit must be smaller than the upper slope time limit.
Trigger Mode
In Sweep, select Auto, Normal, or Single as the trigger mode. For details, refer to descriptions in Trigger Mode
Trigger Parameter Setting
You can refer to Trigger Holdoff and Noise Rejection to set the trigger holdoff and noise rejection under this trigger type.
Level Selection and Setting
After the trigger condition setting is completed, you need to adjust the trigger level to correctly trigger the signal and obtain a stable waveform.
Click or tap the Level A/Level B input field to set the level A/level B with the pop-up numeric keypad. You can also use the trigger level knob or use the corresponding multipurpose knob to adjust level A/level B. When Linkage is ticked, the upper limit and lower limit values change at the same time. The difference between upper and lower limit remains unchanged. For details, refer to descriptions in Trigger Level. The current trigger level is displayed in the trigger information label at the top of the screen.
TIP
Press the trigger level knob to switch between three modes: "only adjust Level A", "only adjust Level B", and "adjust Level A and Level B at the same time".
8.7.4 Video Trigger
The video signal can include image information and timing information, which adopts different standards and formats. This series can trigger on the standard video signal field or line of NTSC (National Television Standards Committee), PAL (Phase Alternating Line), or SECAM (Sequential Couleur A Memoire).
Trigger Type
Click or tap the Type drop-down button to select "Video".
Figure 8.8 Video Trigger Setting Menu
After a trigger type is selected, the current trigger setting information (including trigger type, trigger source, and trigger level) is displayed in the trigger information label at the top of the screen, as shown in the figure below. The information will change based on the trigger settings.
label at the top of the screen, as shown in the figure below. The information will change based on the trigger settings.
Click or tap the Source drop-down button to select CH1-CH4. For details, refer to Trigger Source. The selected trigger source is indicated in the trigger information label at the top of the screen.
Click or tap the Source drop-down button to select CH1-CH4. For details, refer to Trigger Source. The selected trigger source is indicated in the trigger information label at the top of the screen.
Only when you select the channel that has signal inputs as the trigger source, can you obtain a stable trigger.
In the Polarity item, select the desired polarity: positive polarity (☐) or negative polarity (☐).
In the Polarity item, select the desired polarity: positive polarity (☐) or negative polarity (☐).
Click or tap the drop-down button of Standard to select the desired video standard.
Click or tap the drop-down button of Standard to select the desired video standard.
Sync
| Video Standard | Frame Frequency (Frame) | Scan Type TV Scan Line |
| NTSC 30 Interlaced Scan 525 | ||
| PAL/SECAM 25 Interlaced Scan 625 | ||
| 480p/60Hz 60 Progressive Scan 525 | ||
| 576p/50Hz 50 Progressive Scan 625 | ||
| 720p/60Hz 60 Progressive Scan 750 | ||
| 720p/50Hz 50 Progressive Scan 750 | ||
| 720p/30Hz 30 Progressive Scan 750 | ||
| 720p/25Hz 25 Progressive Scan 750 | ||
| 720p/24Hz 24 Progressive Scan 750 | ||
| 1080p/60Hz 60 Progressive Scan 1125 | ||
| 1080p/50Hz 50 Progressive Scan 1125 | ||
| 1080p/30Hz 30 Progressive Scan 1125 | ||
| 1080p/25Hz 25 Progressive Scan 1125 | ||
| 1080p/24Hz 24 Progressive Scan 1125 | ||
| 1080i/60Hz 60 Interlaced Scan 1125 | ||
| 1080i/50Hz 50 Interlaced Scan 1125 | ||
In the Sync item, select the desired sync type.
In the Sync item, select the desired sync type.
• All Lines: triggers on the first line found.
• Line: triggers on the specified line.
When this sync type is selected, you can specify a line number. Click or tap the input field of Line to set the line number by using the pop-up numeric keypad. You can also use the corresponding multipurpose knob to set the value. The range of the line number is related to the currently selected video standards. The range is from 1 to 525 (NTSC), 1 to 625 (PAL/SECAM), 1 to 525 (480p), 1 to 625 (576p), 1 to 750 (720p), or 1 to 1125 (1080p/1080i).
- Odd: triggers on the rising edge of the first ramp pulse in the odd field. It is only available when the video standard is set to "NTSC" or "PAL/SECAM".
- Even: triggers on the rising edge of the first ramp pulse in the even field. It is only available when the video standard is set to "NTSC" or "PAL/SECAM".
Trigger Mode
In Sweep, select Auto, Normal, or Single as the trigger mode. For details, refer to descriptions in Trigger Mode.
Trigger Parameter Setting
You can refer to Noise Rejection to set the noise rejection under this trigger type.
Trigger Level
Click or tap the Level input field to set the trigger level with the pop-up numeric keypad. You can also use the front-panel trigger level knob or the corresponding multipurpose knob to set the trigger level. For details, refer to descriptions in Trigger Level. The current trigger level is displayed in the trigger information label at the top of the screen.
TIP
• To better observe the waveform details in the video signal, you can set a larger memory depth first.
- In the trigger debugging process of video signals, the frequency in different part of the signal can be reflected by a different brightness, as RIGOL's digital oscilloscope provides the intensity graded color display function. Experienced users can quickly judge the signal quality and discover abnormalities during the debugging process.
8.7.5 Pattern Trigger
The pattern trigger identifies a trigger condition by looking for a specified pattern. This pattern is a logical "AND" combination of channels. Each channel can be set to H (high), L (low), or X (don't care). A rising or falling edge (you can only specify a single
edge) can be specified for one channel included in the pattern. When an edge is specified, the oscilloscope will trigger at the edge specified if the pattern set for the other channels are true (namely the actual pattern of the channel is the same as the preset pattern). If no edge is specified, the oscilloscope will trigger on the last edge that makes the pattern true. If all the channels in the pattern are set to "X", the oscilloscope will not trigger.
Figure 8.9 Pattern Trigger
Trigger Type
Click or tap the Type drop-down button to select "Pattern".
Figure 8.10 Pattern Trigger Setting Menu
After a trigger type is selected, the current trigger setting information (including the trigger type, source, and level) is displayed in the trigger information label at the top of the screen, as shown in the figure below. The information will change based on the trigger settings.
Source Selection
Click or tap the Source drop-down button to select CH1-CH4. For details, refer to Trigger Source. The selected trigger source is indicated in the trigger information label at the top of the screen.
Only when you select the channel that has signal inputs as the trigger source, can you obtain a stable trigger.
Pattern Setting
The following five patterns are available:
- 1: sets the pattern of the channel selected to "1", i.e. the voltage level is higher than the trigger level of the channel.
- 0: sets the pattern of the channel selected to "0", i.e. the voltage level is lower than the trigger level of the channel.
- X: sets the pattern of the channel selected to "X", i.e. this channel is not used as a part of the pattern. When all channels in the pattern are set to "X", the oscilloscope will not trigger.
• Sets the pattern to the rising edge of the selected channel. • Sets the pattern to the falling edge of the selected channel.
The Left/Right arrow key indicates moving left/right to switch the channel pattern. "All" indicates all bits. Select a pattern for a channel and then click or tap All. The patterns of all the other channels will be set to the currently selected pattern.
Only one edge (rising or falling edge) can be specified in the pattern. If one edge item is currently defined and then another edge item is defined in another channel in the pattern, then a prompt message "Invalid input" is displayed.
Trigger Mode
In Sweep, select Auto, Normal, or Single as the trigger mode. For details, refer to descriptions in Trigger Mode.
Trigger Parameter Setting
You can refer to Trigger Holdoff and Noise Rejection to set the trigger holdoff and noise rejection under this trigger type.
Trigger Level
Click or tap the Level input field to set the trigger level with the pop-up numeric keypad. You can also use the front-panel trigger level knob or the corresponding multipurpose knob to set the trigger level. For details, refer to descriptions in Trigger Level. The current trigger level is displayed in the trigger information label at the top of the screen.
8.7.6 Duration Trigger
In duration trigger, the oscilloscope identifies a trigger condition by searching for the duration of a specified pattern. This pattern is a logical "AND" combination of the channels. Each channel can be set to 1 (high), 0 (low), or X (don't care). The instrument triggers when the duration (ΔT) of this pattern meets the preset time, as shown in the figure below.
Figure 8.11 Duration Trigger
Trigger Type
Click or tap the drop-down button of Type to select "Duration".
Figure 8.12 Duration Trigger Setting Menu
After a trigger type is selected, the current trigger setting information (including the trigger type, source, and level) is displayed in the trigger information label at the top of the screen, as shown in the figure below. The information will change based on the trigger settings.
Source Selection
Click or tap the Source drop-down button to select CH1-CH4. For details, refer to Trigger Source. The selected trigger source is indicated in the trigger information label at the top of the screen.
Only when you select the channel that has signal inputs as the trigger source, can you obtain a stable trigger.
Pattern Setting
The following three patterns are available:
- 1: sets the pattern of the channel selected to "1", i.e. the voltage level is higher than the trigger level of the channel.
- 0: sets the pattern of the channel selected to "0", i.e. the voltage level is lower than the trigger level of the channel.
- X: sets the pattern of the channel selected to "X", i.e. this channel is not used as a part of the pattern. When all channels in the pattern are set to "X", the oscilloscope will not trigger.
The Left/Right arrow key indicates moving left/right to switch the channel pattern. "All" indicates all bits. Select a pattern for a channel and then click or tap All. The patterns of all the other channels will be set to the currently selected pattern.
Trigger Condition
Set the trigger condition in the When item.
- : triggers when the duration of the pattern is greater the preset time. Click or tap the input field of Lower to set the lower limit of the duration of the pattern with the pop-up numeric keypad. You can also use the corresponding multipurpose knob to set the value. The available range is from 1 ns to 10 s.
- <: triggers when the duration of the pattern is smaller than the preset time. Click or tap the input field of Upper to set the upper limit of the duration of the pattern. You can also use the corresponding multipurpose knob to set the value. The available range is from 1 ns to 10 s.
- <>: triggers when the duration of the pattern is smaller than the upper limit of the preset time and greater than the lower limit of the preset time. Click or tap the input field of Upper to set the upper limit of the duration of the pattern, and the range is from 1.01 ns to 10 s. Click or tap the input field of Lower to set the lower limit of the duration of the pattern, and the range is from 1 ns to 9.9 s. You can also use the corresponding multipurpose knob to set the upper/lower limit. The lower time limit must be smaller than the upper time limit.
- <: triggers when the duration of the pattern is greater than the upper limit of the preset time or smaller than the lower limit of the preset time. Click or tap the input field of Upper to set the upper limit of the duration of the pattern, and the range is from 1.01 ns to 10 s. Click or tap the input field of Lower to set the lower limit of the duration of the pattern, and the range is from 1 ns to 9.9 s. You can also use the corresponding multipurpose knob to set the upper/lower limit. The lower time limit must be smaller than the upper time limit.
Trigger Mode
In Sweep, select Auto, Normal, or Single as the trigger mode. For details, refer to descriptions in Trigger Mode
Trigger Parameter Setting
You can refer to Trigger Holdoff and Noise Rejection to set the trigger holdoff and noise rejection under this trigger type.
Trigger Level
Click or tap the Level input field to set the trigger level with the pop-up numeric keypad. You can also use the front-panel trigger level knob or the corresponding multipurpose knob to set the trigger level. For details, refer to descriptions in Trigger Level. The current trigger level is displayed in the trigger information label at the top of the screen.
8.7.7 Timeout Trigger
In Timeout trigger, the oscilloscope triggers when the time interval ( ΔT ) (the time from when the rising edge (or falling edge) of the input signal passes through the trigger level to the time from when the neighboring falling edge (or rising edge) passes through the trigger level) is greater than the preset timeout value, as shown in Figure 8.13.
Figure 8.13 Timeout Trigger
Trigger Type
Click or tap the Type drop-down button to select "Timeout".
Figure 8.14 Timeout Trigger Menu
After a trigger type is selected, the current trigger setting information (including the trigger type, source, and level) is displayed in the trigger information label at the top of the screen, as shown in the figure below. The information will change based on the trigger settings.
Source Selection
Click or tap the Source drop-down button to select CH1-CH4. For details, refer to Trigger Source. The selected trigger source is indicated in the trigger information label at the top of the screen.
Only when you select the channel that has signal inputs as the trigger source, can you obtain a stable trigger.
Edge Type
In Slope item, select the edge type from which the input signal passes through the trigger level.
- Rising: starts timing when the rising edge of the input signal passes through the trigger level.
- Falling: starts timing when the falling edge of the input signal passes through the trigger level.
- Either: starts timing when either edge of the input signal passes through the trigger level.
Timeout Value
Timeout value represents the maximum time that the signal remains idle before the signal passes through the trigger level. Click or tap the input field of Timeout, and then use the pop-up numeric keypad to set the timeout value of Timeout trigger. You can also use the corresponding multipurpose knob to set the value.
Trigger Mode
In Sweep, select Auto, Normal, or Single as the trigger mode. For details, refer to descriptions in Trigger Mode
Trigger Parameter Setting
You can refer to Noise Rejection to set the noise rejection under this trigger type.
Trigger Level
Click or tap the Level input field to set the trigger level with the pop-up numeric keypad. You can also use the front-panel trigger level knob or the corresponding multipurpose knob to set the trigger level. For details, refer to descriptions in Trigger Level. The current trigger level is displayed in the trigger information label at the top of the screen.
8.7.8 Runt Trigger
The runt trigger sets the oscilloscope to trigger pulses that cross one trigger level but not another, as shown in the figure below.
Figure 8.15 Runt Trigger
Trigger Type
Click or tap the drop-down button of Type to select "Runt".
Figure 8.16 Runt Trigger Setting Menu
After a trigger type is selected, the current trigger setting information (including the trigger type, source, and level) is displayed in the trigger information label at the top of the screen, as shown in the figure below. The information will change based on the trigger settings.
Source Selection
Click or tap the Source drop-down button to select CH1-CH4. For details, refer to Trigger Source. The selected trigger source is indicated in the trigger information label at the top of the screen.
Only when you select the channel that has signal inputs as the trigger source, can you obtain a stable trigger.
Polarity
Select the pulse polarity of Runt trigger under the Polarity item.
- Positive: indicates that the instrument triggers on the positive runt pulse.
- Negative triggers on the negative runt pulse.
Trigger Condition
Set the Runt trigger condition in the When item.
- None: indicates not setting the trigger condition of Runt trigger.
- >: triggers when the runt pulse width is greater than the Lower limit of pulse width. Click or tap the input field of Lower to set the minimum pulse width of Runt trigger with the pop-up numeric keypad. You can also use the corresponding multipurpose knob to modify the value.
- <: triggers when the runt pulse width is smaller than the upper limit of pulse width. Click or tap the input field of Upper to set the maximum pulse width of Runt trigger with the pop-up numeric keypad. You can also use the corresponding multipurpose knob to modify the value.
- <>: triggers when the runt pulse width is greater than the lower limit and smaller than the upper limit of pulse width. Click or tap the input field of Upper to set the maximum pulse width of Runt trigger with the pop-up numeric keypad. Click or tap the input field of Lower to set the minimum pulse width of Runt trigger with the pop-up numeric keypad. You can also use the corresponding multipurpose knob to modify the maximum and minimum pulse width. The lower limit of the pulse width must be smaller than the upper limit.
Trigger Mode
In Sweep, select Auto, Normal, or Single as the trigger mode. For details, refer to descriptions in Trigger Mode.
Trigger Parameter Setting
You can refer to Trigger Holdoff and Noise Rejection to set the trigger holdoff and noise rejection under this trigger type.
Level Selection and Setting
After the trigger condition setting is completed, you need to adjust the trigger level to correctly trigger the signal and obtain a stable waveform.
Click or tap the Level A/Level B input field to set the level A/level B with the pop-up numeric keypad. You can also use the trigger level knob or use the corresponding multipurpose knob to adjust level A/level B. When Linkage is ticked, the upper limit and lower limit values change at the same time. The difference between upper and lower limit remains unchanged. For details, refer to descriptions in Trigger Level. The current trigger level is displayed in the trigger information label at the top of the screen.
TIP
Press the trigger level knob to switch between three modes: "only adjust Level A", "only adjust Level B", and "adjust Level A and Level B at the same time".
8.7.9 Window Trigger
Window trigger provides a high trigger level and a low trigger level. The instrument triggers when the input signal passes through the high trigger level or the low trigger level.
Trigger Type
Click or tap the Type drop-down button to select "Over".
Figure 8.17 Window Trigger Setting Menu
After a trigger type is selected, the current trigger setting information (including trigger type, trigger source, and trigger level) is displayed in the trigger information label at the top of the screen, as shown in the figure below. The information will change based on the trigger settings.
label at the top of the screen, as shown in the figure below. The information will change based on the trigger settings.
Click or tap the Source drop-down button to select CH1-CH4. For details, refer to Trigger Source. The selected trigger source is indicated in the trigger information label at the top of the screen.
Click or tap the Source drop-down button to select CH1-CH4. For details, refer to Trigger Source. The selected trigger source is indicated in the trigger information label at the top of the screen.
Only when you select the channel that has signal inputs as the trigger source, can you obtain a stable trigger.
Select the input signal edge (in the Slope item) on which the oscilloscope triggers.
Select the input signal edge (in the Slope item) on which the oscilloscope triggers.
- Falling: triggers on the falling edge of the input signal when Position condition is met.
- Falling: triggers on the falling edge of the input signal when the condition is met.
- Either: triggers on the rising or falling edge of the input signal when the Position condition is met.
Trigger Position
After selecting the window type, specify the time point of the trigger by selecting the trigger position (in the Position item).
- Enter: triggers when the input signal enters the specified trigger level range.
- Exit: triggers when the input signal exits the specified trigger level range.
- Time: triggers when the accumulated hold time since the input signal entered the specified trigger level range equals the window time. After selecting this type, click or tap the Time input field to set it using the pop-up numeric keypad. The available range is from 1 ns to 10 s.
Trigger Mode
In Sweep, select Auto, Normal, or Single as the trigger mode. For details, refer to the descriptions in Trigger Mode.
Trigger Parameter Setting
You can refer to Trigger Holdoff and Noise Rejection to set the trigger holdoff and noise rejection under this trigger type.
Level Selection and Setting
After completing the trigger condition setting, you need to adjust the trigger level to correctly trigger the signal and obtain a stable waveform.
Click or tap the Level A/Level B input field to set level A/level B using the pop-up numeric keypad. You can also use the trigger level knob or the corresponding multipurpose knob to adjust level A/level B. When Linkage is ticked, the upper and lower limit values change simultaneously. The difference between the upper and lower limits remains unchanged. For details, refer to the descriptions in Trigger Level. The current trigger level is displayed in the trigger information label at the top of the screen.
TIP
Press the trigger level knob to switch between three modes: "only adjust Level A", "only adjust Level B", and "adjust Level A and Level B at the same time".
8.7.10 Delay Trigger
In Delay trigger, you need to set Source A and Source B. The oscilloscope triggers when the time difference (ΔT) between the specified edges (Edge A and Edge B) of Source A and Source B meets the preset time limit, as shown in the figure below. Edge A and Edge B must be two neighboring edges.
Figure 8.18 Delay Trigger
Trigger Type
Click or tap the Type drop-down button to select "Delay".
Figure 8.19 Delay Trigger Setting Menu
After a trigger type is selected, the current trigger setting information (including trigger type, trigger source, and trigger level) is displayed in the trigger information label at the top of the screen, as shown in the figure below. The information will change based on the trigger settings.
Source Setting
- Source A
Click or tap the drop-down button of SourceA to select CH1-CH4. For details, refer to Trigger Source. The selected trigger source is indicated in the trigger information label at the top of the screen.
Only when you select the channel that has signal inputs as the trigger source, can you obtain a stable trigger.
- Edge A
Select the trigger edge type ("Rising" or "Falling") of Source A in Delay trigger in the EdgeA item.
- Source B
Click or tap the drop-down button of SourceB to select CH1-CH4. For details, refer to Trigger Source. The selected trigger source is indicated in the trigger information label at the top of the screen.
Only when you select the channel that has signal inputs as the trigger source, can you obtain a stable trigger.
- Edge B
Select the trigger edge type ("Rising" or "Falling") of Source B in Delay trigger in the EdgeB item.
Set the Trigger Condition
Set the time limit condition of Delay trigger in the when item.
- >: triggers when the time difference (ΔT) between the specified edges of Source A and Source B is greater than the preset time lower limit. Click or tap the input field of Lower to set the delay time lower limit in Delay trigger with the pop-up numeric keypad. You can also use the corresponding multipurpose knob to set the value.
- <: triggers when the time difference (ΔT) between the specified edges of Source A and Source B is smaller than the preset time upper limit. Click or tap the input field of Upper to set the delay time upper limit in Delay trigger with the pop-up numeric keypad. You can also use the corresponding multipurpose knob to set the value.
- <>: triggers when the time difference (ΔT) between the specified edges of Source A and Source B is greater than the lower limit of the preset time and smaller than the upper limit of the preset time. Click or tap the input field of Upper to set the delay time upper limit in Delay trigger with the pop-up numeric keypad. Click or tap the input field of Lower to set the delay time lower limit in Delay trigger with the pop-up numeric keypad. You can also use the corresponding multipurpose knob to set the upper and lower limit. The lower time limit must be smaller than the upper time limit.
- > <: triggers when the time difference (ΔT) between the specified edges of Source A and Source B is smaller than the lower limit of the preset time or greater than the upper limit of the preset time. Click or tap the input field of Upper to set the delay time upper limit in Delay trigger with the pop-up numeric keypad. Click or tap the input field of Lower to set the delay time lower limit in Delay trigger with the pop-up numeric keypad. You can also use the corresponding multipurpose knob to set the upper and lower limit. The lower time limit must be smaller than the upper time limit.
Trigger Mode
In Sweep, select Auto, Normal, or Single as the trigger mode. For details, refer to descriptions in Trigger Mode.
Trigger Parameter Setting
You can refer to Trigger Holdoff and Noise Rejection to set the trigger holdoff and noise rejection under this trigger type.
Level Selection and Setting
After the trigger condition setting is completed, you need to adjust the trigger level to correctly trigger the signal and obtain a stable waveform.
Click or tap the Level A/Level B input field to set the level A/level B with the pop-up numeric keypad. You can also use the corresponding multipurpose knob to adjust level A/level B or use the trigger level knob to adjust the level (the focus of the trigger level knob is the last modified level). For details, refer to descriptions in Trigger Level. The current trigger level is displayed in the trigger information label at the top of the screen.
8.7.11 Setup/Hold Trigger
In setup&hold trigger, you need to set the clock source and data source. The setup time starts when the data signal passes the trigger level and ends at the coming of the specified clock edge; the hold time starts at the coming of the specified clock edge and ends when the data signal crosses the trigger level again, as shown in the figure below. The oscilloscope triggers when the setup time or hold time is smaller than the preset time.
Figure 8.20 Setup/Hold Trigger
Trigger Type
Click or tap the drop-down button of Type to select "Setup/Hold".
Figure 8.21 Setup/Hold Trigger Setting Menu
After a trigger type is selected, the current trigger setting information (including the trigger type, source, and level) is displayed in the trigger information label at the top of the screen, as shown in the figure below. The information will change based on the trigger settings.
Clock Source
Click or tap the drop-down button of SCL to select CH1-CH4. For details, refer to Trigger Source. The selected trigger source is indicated in the trigger information label at the top of the screen.
Only when you select the channel that has signal inputs as the trigger source, can you obtain a stable trigger.
Edge Type
Select the desired clock edge type in the Slope item, and it can be set to "Rising" or "Falling".
Data Source
Click or tap the drop-down button of SDA to select CH1-CH4. For details, refer to Trigger Source. The selected trigger source is indicated in the trigger information label at the top of the screen.
Only when you select the channel that has signal inputs as the trigger source, can you obtain a stable trigger.
Data Type
Select the effective pattern of the data signal in the Data Type item. It can be set to H (high level) or L (low level).
Trigger Condition
Set the Setup/Hold trigger condition in the When item.
- Setup: the oscilloscope triggers when the setup time is smaller than the specified setup time. After selecting this type, click or tap the input field of Setup to set the setup time with the pop-up numeric keypad. You can also use the corresponding multipurpose knob to set the value.
- Hold: the oscilloscope triggers when the hold time is smaller than the specified hold time. After selecting this type, click or tap the input field of Hold to set the hold time with the pop-up numeric keypad. You can also use the corresponding multipurpose knob to set the value.
- Setup/Hold: the oscilloscope triggers when the setup time or hold time is smaller than the specified time value. After selecting this type, click or tap the input field of Setup and Hold respectively to set the setup and hold time with the pop-up numeric keypad. You can also use the corresponding multipurpose knob to set the values.
Trigger Mode
In Sweep, select Auto, Normal, or Single as the trigger mode. For details, refer to descriptions in Trigger Mode.
Trigger Parameter Setting
You can refer to Trigger Holdoff and Noise Rejection to set the trigger holdoff and noise rejection under this trigger type.
Level Selection and Setting
After the trigger condition setting is completed, you need to adjust the trigger level to correctly trigger the signal and obtain a stable waveform.
Click or tap the Level A/Level B input field to set the level A/level B with the pop-up numeric keypad. You can also use the corresponding multipurpose knob to adjust level A/level B or use the trigger level knob to adjust the level (the focus of the trigger level knob is the last modified level). For details, refer to descriptions in Trigger Level. The current trigger level is displayed in the trigger information label at the top of the screen.
The Nth edge trigger lets you trigger on the Nth edge that occurs after a specified idle time. For example, in the waveform shown in the figure below, the instrument should trigger on the second rising edge after the specified idle time (the time
between two neighboring rising edges), and the idle time should be within the range between P and M (P < Idle Time < M). Wherein, M is the time between the first rising edge and its previous rising edge; P is the maximum time between the rising edges that participate in counting.
Source Selection
Click or tap the Source drop-down button to select CH1-CH4. For details, refer to Trigger Source. The selected trigger source is indicated in the trigger information label at the top of the screen. Only when you select the channel that has signal inputs as the trigger source, can you obtain a stable trigger.Edge Type
Select the input signal edge (in the Slope item) on which the oscilloscope triggers. - Rising: triggers on the rising edge of the input signal when the voltage level meets the specified trigger level. - Falling: triggers on the falling edge of the input signal when the voltage level meets the specified trigger level.Idle Time
Click or tap the input field of Idle Time, and then use the pop-up numeric keypad to set the idle time before the edge counting in Nth edge trigger. You can also use the corresponding multipurpose knob to set the value.Edge Count
Click or tap the input field of Edges, then use the pop-up numeric keypad to set the value of "N" in Nth edge trigger. You can also use the corresponding multipurpose knob to set the value. The available range is from 1 to 65,535.Trigger Mode
In Sweep, select Auto, Normal, or Single as the trigger mode. For details, refer to descriptions in Trigger Mode.Trigger Parameter Setting
You can refer to Noise Rejection to set the noise rejection under this trigger type.Trigger Level
Click or tap the Level input field to set the trigger level with the pop-up numeric keypad. You can also use the front-panel trigger level knob or the corresponding multipurpose knob to set the trigger level. For details, refer to descriptions in Trigger Level. The current trigger level is displayed in the trigger information label at the top of the screen.8.7.13 RS232 Trigger
RS232 bus is a serial communication mode used in data transmission between PCs or between a PC and a terminal. In RS232 serial protocol, a character is transmitted as a frame of data. The frame consists of 1 start bit, 5-8 data bits, 1 check bit, and 1-2 stop bits. Its format is as shown in the figure below. This series oscilloscope triggers when detecting the start frame, error frame, check error, or the specified data of the RS232 signal.  Stop BitCheck BitData BitStart B Figure 8.24 Schematic Diagram of RS232 ProtocolTrigger Type
Click or tap the drop-down button of Type to select "RS232".  Figure 8.25 RS232 Trigger Setting Menu After a trigger type is selected, the current trigger setting information (including the trigger type, source, and level) is displayed in the trigger information label at the top of the screen, as shown in the figure below. The information will change based on the trigger settings. Source Selection
Click or tap the Source drop-down button to select CH1-CH4. For details, refer to Trigger Source. The selected trigger source is indicated in the trigger information label at the top of the screen. Only when you select the channel that has signal inputs as the trigger source, can you obtain a stable trigger.Polarity
Select the polarity of data transmission in the Polarity item. It can be set to "Positive" Trigger Condition
Set the desired trigger condition in the When item. - Start: triggers on the start frame position. - Error: triggers when an error frame is detected. - Check Error: triggers when a check error is detected. - Data: triggers on the last bit of the preset data bits. Click or tap the input field of Data, and then use the pop-up numeric keypad to set the data of RS232 trigger. You can also use the corresponding multipurpose knob to set the value.Baud Rate
You can select the baud rate of data transmission (i.e. specifies a clock frequency). Click or tap the drop-down button of Baud Rate, then select the preset baud rate. The available baud rates include 50 bps, 75 bps, 110 bps, 134 bps, 150 bps, 300 bps, and etc. You can also self-define the baud rate.Data Bits
Indicates the number of bits per frame. Click or tap the drop-down button of Data Bits to select the desired data bits. The available data bits include "5 Bits", "6 Bits", "7 Bits", and "8 Bits".Stop Bit
Indicates when to stop outputting data. Select the desired stop bit in the Stop Bit item. The available data bits include 1 Bit, 1.5 Bits, and 2 Bits.Parity
Used to check whether the data are properly transmitted. Select None, Even, or Odd in the Parity item. \- None: indicates that no check bit appears during the transmission. \- Even: indicates that the total number of "1" in the data bit and check bit is an even number. For example, when 0x55 (01010101) is sent, "0" should be added to the check bit. \- Odd: indicates that the total number of "1" in the data bit and check bit is an odd number. For example, when 0x55 (01010101) is sent, "1" should be added to the check bit.Trigger Mode
In Sweep, select Auto, Normal, or Single as the trigger mode. For details, refer to descriptions in Trigger Mode.Trigger Parameter Setting
You can refer to Noise Rejection to set the noise rejection under this trigger type.Trigger Level
Click or tap the Level input field to set the trigger level with the pop-up numeric keypad. You can also use the front-panel trigger level knob or the corresponding multipurpose knob to set the trigger level. For details, refer to descriptions in Trigger Level. The current trigger level is displayed in the trigger information label at the top of the screen.8.7.14 I2C Trigger
I2C is a 2-wire serial bus used to connect the microcontroller and its peripheral device. It is a bus standard widely used in the microelectronic communication control field. The I2C serial bus consists of SCL and SDA. Its transmission rate is determined by SCL, and its transmission data is determined by SDA, as shown in the figure below. The instrument triggers on the start condition, restart, stop, missing acknowledgment, specific device address, or data value. Besides, it can also trigger on the specific device address and data values at the same time.  Figure 8.26 Sequence Diagram of I2C ProtocolTrigger Type
Click or tap the drop-down button of Type to select "I2C".  Figure 8.27 I2C Trigger Setting Menu After a trigger type is selected, the current trigger setting information (including the trigger type, source, and level) is displayed in the trigger information label at the top of the screen, as shown in the figure below. The information will change based on the trigger settings. Source Selection
Click or tap the drop-down buttons of SCL and SDA to select CH1-CH4 to specify the sources of SCL and SDA respectively. For details, refer to descriptions in Trigger Source. The selected trigger source is indicated in the trigger information label at the top of the screen. Only when you select the channel that has signal inputs as the trigger source, can you obtain a stable trigger.Trigger Condition
Set the desired trigger condition in the When item. - Start: triggers when SDA data transitions from high level to low level while SCL is high level. - Stop: triggers when SDA data transitions from low level to high level while SCL is high level. \- Restart: triggers when another start condition occurs before a stop condition. \- MissedAck: triggers when ACK is 1. \- Address: the trigger searches for the specified address value. When this event occurs, the oscilloscope will trigger on the read/write bit. After this trigger condition is selected: \- Click or tap the drop-down button of Direction to select "Write", "Read", or "R/W". This setting is not available when AddrBits is set to "8 Bits". \- Click or tap the drop-down button of AddrBits to select the desired address bits. The available address bits are "7 Bits", "8 Bits", and "10 Bits". \- Click or tap the input field of Address, and then use the pop-up numeric keypad to set the address of I2C trigger. You can also use the corresponding multipurpose knob to set the value. \- Data: the trigger searches for the specified data value on the data line (SDA). When this event occurs, the oscilloscope will trigger on the clock line (SCL) transition edge of the last bit of data. After this trigger condition is selected, you can set the following parameters. \- Click or tap the drop-down button of AddrBits to select the desired address bits. The available address bits are "7 Bits", "8 Bits", and "10 Bits". \- Click or tap the input field of Bytes, and then use the pop-up numeric keypad to set the length of the data. You can also use the corresponding multipurpose knob to set the value. Its range is from 1 to 5. \- Click or tap the input field of Data, and then the "Format" interface is will displayed. You can select "Bin" or "Hex" data format.  Figure 8.28 Binary Format Setting  Figure 8.29 Hexadecimal Format Setting \- A&D: the oscilloscope searches for the specified address and data at the same time, then triggers when both the address and data meet the conditions. After this condition is selected, you need to set the sub Data-menu items such as Direction, Bytes, AddrBits, Address, and Data. For the setting methods, refer to descriptions in "Address" and "Data" conditions.Trigger Mode
In Sweep, select Auto, Normal, or Single as the trigger mode. For details, refer to descriptions in Trigger Mode.Trigger Parameter Setting
You can refer to Noise Rejection to set the noise rejection under this trigger type.Level Selection and Setting
After the trigger condition setting is completed, you need to adjust the trigger level to correctly trigger the signal and obtain a stable waveform.- Level A
Click or tap the input field of Level A to input the level of SCL with the pop-up numeric keypad. You can also use the corresponding multipurpose knob to set the value. When the level A information is displayed in the trigger label, you can also use the trigger level knob to adjust the level of SCL. For details, refer to descriptions in Trigger Level- Level B
Click or tap the input field of Level B to input the level of SDA with the pop-up numeric keypad. You can also use the corresponding multipurpose knob to set the value. When the level B information is displayed in the trigger label, you can also use the trigger level knob to adjust the level of SDA. For details, refer to descriptions in Trigger Level!8.7.15 SPI Trigger
In SPI trigger, after the CS or timeout condition is satisfied, the oscilloscope triggers when the specified data is found. When using SPI trigger, you need to specify the CLK clock sources and MISO data sources. The figure below shows the sequential chart of SPI bus.  Figure 8.30 Sequential Chart of SPI BusTrigger Type
Click or tap the drop-down button of Type to select "SPI".  Figure 8.31 SPI Trigger Setting Menu After a trigger type is selected, the current trigger setting information (including trigger type, trigger source, and trigger level) is displayed in the trigger information label at the top of the screen, as shown in the figure below. The information will change based on the trigger settings. Source Selection
Click or tap the drop-down buttons of CLK and MISO to select CH1-CH4 to specify the sources of CLK and MISO respectively. For details, refer to descriptions in Trigger Source. The selected trigger source is indicated in the trigger information label at the top of the screen. Only when you select the channel that has signal inputs as the trigger source, can you obtain a stable trigger.Edge Type
Select the desired clock edge type in Slope. - Rising: samples the MISO data on the rising edge of the clock. - Falling: samples the MISO data on the falling edge of the clock.Trigger Condition
Select the desired trigger condition in When. \- With CS: if the CS signal is valid, the oscilloscope will trigger when the data (SDA) satisfying the trigger conditions is found. - Click or tap the drop-down button of CS to select CH1-CH4 as the CS signal line. - After selecting this condition, you can click or tap "Positive" (high level is valid) or "Negative" (low level is valid) in CS Mode. \- Timeout: the oscilloscope starts to search for the data (MISO) on which to trigger after the clock signal (CLK) stays in the idle state for a specified period of time. After selecting this condition, you can click or tap the Timeout input field, then use the numeric keypad to set the idle time. You can also use the corresponding multipurpose knob to set the value. The range is from 8 ns to 10 s. NOTE
As DHO812/DHO802 only has two channels, the "With CS" is not available.Data
Click or tap the of field of Data, and then the "Format" interface is displayed. You can set the data bit that needs to be triggered. For details, refer to descriptions in 12C Trigger.Data Bits
Click or tap the input field of DataBits, and then use the pop-up numeric keypad to set the number of bits in the serial data string. You can also use the corresponding multipurpose knob to set the value. The number of bits in the string can be set to any integer ranging from 4 to 32.Trigger Mode
In Sweep, select Auto, Normal, or Single as the trigger mode. For details, refer to descriptions in Trigger Mode.Trigger Parameter Setting
You can refer to Noise Rejection to set the noise rejection under this trigger type.Level Selection and Setting
After the trigger condition setting is completed, you need to adjust the trigger level to correctly trigger the signal and obtain a stable waveform.- Level A
Click or tap the input field of Level A to input the level of CLK with the pop-up numeric keypad. You can also use the corresponding multipurpose knob or the trigger level knob to adjust the level of CLK. When the level A information is displayed in the trigger label, you can also use the trigger level knob to adjust the level of CLK. For details, refer to descriptions in Trigger Level. The current trigger level is displayed in the trigger information label at the top of the screen.- Level B
Click or tap the input field of Level B to input the level of MISO with the pop-up numeric keypad. You can also use the corresponding multipurpose knob to adjust the level of MISO. When the level B information is displayed in the trigger label, you can also use the trigger level knob to adjust the level of MISO. For details, refer to descriptions in Trigger Level. The current trigger level is displayed in the trigger information label at the top of the screen.- Level C
Click or tap the input field of Level C to input the level of CS with the pop-up numeric keypad. You can also use the corresponding multipurpose knob to adjust the level of CS. When the level C information is displayed in the trigger label, you can also use the trigger level knob to adjust the level of CS. For details, refer to descriptions in Trigger Level. The current trigger level is displayed in the trigger information label at the top of the screen.8.7.16 CAN Trigger
This series oscilloscope can trigger on the start of a frame, end of a frame, frame of the specified type (e.g. Remote, Overload, Data), or error frame of the specified type (e.g. Answer Error, Check Error, Format Error) of the CAN signal. The data frame format of the CAN bus is as shown in the figure below.  Figure 8.32 Data Frame Format of the CAN BusTrigger Type
Click or tap the drop-down button of Type to select "CAN".  Figure 8.33 CAN Trigger Setting Menu After a trigger type is selected, the current trigger setting information (including trigger type, trigger source, and trigger level) is displayed in the trigger information label at the top of the screen, as shown in the figure below. The information will change based on the trigger settings. Source Selection
Click or tap the drop-down button of Source to select CH1-CH4. For details, refer to descriptions in Trigger Source. The selected trigger source is indicated in the trigger information label at the top of the screen. Only when you select the channel that has signal inputs as the trigger source, can you obtain a stable trigger.Signal Type
Click or tap the drop-down button of Signal Type to select the desired signal type. - CAN_H: indicates the actual CAN_H bus signal. - CAN_L: indicates the actual CAN_L bus signal. - TX/RX: indicates the Transmit signal and Receive signal from the CAN bus transceiver. - DIFF: indicates the CAN differential bus signals connected to an analog channel by using a differential probe. Connect the probe's positive lead to the CAN_H bus signal and connect the negative lead to the CAN_L bus signal.Baud Rate
Click or tap the drop-down button of Baud to select the preset baud rate. The available baud rates include 10 kbps, 20 kbps, 33.3 kbps, 50 kbps, 62.5 kbps, 83.3 kbps, and etc. You can also self-define the baud rate.Sample Position
Sample position is a point within a bit's time. The oscilloscope samples the bit level at this point. The sample position is represented by the proportion of "the time from the start of the bit to the sample position" to the "bit time", as shown in the figure below.  Figure 8.34 Sample Position Click or tap the input field of Sample Position to set it by using the pop-up numeric keypad. You can also use the corresponding multipurpose knob to set the value. The settable range is from 10% to 90%.Trigger Condition
Click or tap the drop-down button of When to select the desired trigger condition. - SOF: triggers at the start of a frame. - EOF: triggers at the end of a frame. \- Remote ID: triggers on the specified ID of Remote frame. When you select Remote ID, you need to set the following parameters. - Click or tap the Extended ID on/off switch to enable or disable the extended ID. - Click or tap the input field of ID, and then the "Format" interface is displayed. You can set the ID that needs to be operated on. For details, refer to descriptions in I2C Trigger. • Overload: triggers on the overload frames. \- Frame ID: triggers on the data frames with the specified ID. After you select Frame ID, you can refer to the "Remote ID" mentioned above to set the Extended ID and ID. \- Frame Data: triggers on the data frames with the specified Data. When you select Frame Data, you need to set the following parameters. \- Click or tap the input field of Data, and then the "Format" interface is displayed. You can set the data bit that needs to be operated on. For details, refer to descriptions in I2C Trigger. \- Click or tap the input field of Bytes, and then use the pop-up numeric keypad to set the length of the data. You can also use the corresponding multipurpose knob to set the value. Its range is from 1 to 8. \- Data&ID: triggers on the data frames with the specified ID and data. When you select Data&ID, you need to set the ID, Extended ID, Data, and Bytes. • Frame Error: triggers on the error frame. \- Bit Fill: triggers on the error frame with the bit fill. \- Answer Error: triggers on the answer error frame. \- Check Error: triggers on the check error frame. \- Format Error: triggers on the format error frame. \- Random Error: triggers on the random error frame, such as the format error frame, answer error frame, etc.Trigger Mode
In Sweep, select Auto, Normal, or Single as the trigger mode. For details, refer to descriptions in Trigger Mode.Trigger Parameter Setting
You can refer to Noise Rejection to set the noise rejection under this trigger type.Trigger Level
Click or tap the Level input field to set the trigger level with the pop-up numeric keypad. You can also use the front-panel trigger level knob or the corresponding multipurpose knob to set the trigger level. For details, refer to descriptions in Trigger Level. The current trigger level is displayed in the trigger information label at the top of the screen.8.8 Trigger Output Connector
The rear-panel trigger output connector ([AUX OUT]) of this series can output trigger signals determined by the current setting (hardware trigger). Click or tap > Utility. Click or tap Setup, and then select "TrigOut" in Aux Out. A signal which reflects the current oscilloscope capture rate can be output from [AUX OUT] connector each time a trigger is generated by the oscilloscope. If this signal is connected to a waveform display device to measure the frequency, the measurement result is the same as the current capture rate. If "PassFail" is selected in Aux Out, the instrument can output a pulse from the [AUX OUT] connector when a pass/failed event is detected during the pass/fail test.9 Math Operation
This series oscilloscopes can realize multiple math operations between waveforms of different channels, including arithmetic operation, spectrum operation, logic operation, function operation, and digital filter. You can access the Math menu in the following ways. \- Click or tap the function navigation icon at the lower-left corner of the screen, and then select Math to enter the "Math" menu. \- Click or tap the Math button on the toolbar at the upper-right corner of the screen to enter the "Math" menu. \- Click or tap M1-M4 in the Math label at the bottom of the screen to open the "Math" window. You can also click or tap the Math label and then select a label from M1-M4 to enter the corresponding Math window. Then click or tap the M1-M4 label again, or the 📄 icon at the upper-right corner of the window to enter the "Math" menu. The Math label is as shown in the figure below.  \- Press the front-panel key to enter the "Math" menu.  Figure 9.1 Math Menu This oscilloscope provides four math operations: Math1, Math2, Math3, and Math4. In the Math menu, you can select the desired math operation type by clicking or tapping the Math1-Math4 label or by sliding the menu left and right. This manual takes Math1 as an example to introduce math operation. In the Math menu, click or tap the Operation on/off switch to show or hide the waveform display window of the operation results. By default, it is OFF. When "ON" is selected for Math1-Math4, the menu as shown in the figure below is displayed on the screen.  Figure 9.2 Waveform Display Window of the Operation Results You can drag the title bar of the display window to change the position of the window. You can also click or tap ✗ at the upper-right corner of the window to close it.9.1 Arithmetic Operation
In the Math menu, click or tap the Operator drop-down button to select the desired math operation. The arithmetic operations supported by this oscilloscope include A + B, A - B, A × B, and A ÷ B. - A+B adds the waveform voltage values of signal source A and B point by point and displays the results. • A-B subtracts the waveform voltage values of signal source B from that of source A point by point and displays the results. - A×B multiplies the waveform voltage values of signal source A and B point by point and displays the results. - A÷B divides the waveform voltage values of signal source A by that of source B point by point and displays the results. It can be used to analyze the Multiple relation of the two channels waveforms. TIP
When the voltage of signal source B is 0 V, the division result is treated as 0.  Figure 9.3 Arithmetic Operation MenuOperation Result Display Window
Click or tap the Operation on/off switch to enable the display of the arithmetic operation result window. The source and the vertical scale parameters are displayed at the top of the window, as shown in the figure below.  Figure 9.4 Operation Result Display WindowSource
Click or tap the drop-down button of SourceA or SourceB to select CH1-CH4 or Ref1-Ref10. When a source channel is selected, the selected channel automatically switches to the ON state. TIP
Besides CH1-CH4 and Ref1-Ref10, the Math2 source can be set to Math1; the Math3 source can be set to Math1 or Math2; the Math4 source can be set to Math1, Math2, or Math3. Selecting a Math automatically enables its window display and sets its Operation on/off switch to ON.Scale
Scale is used to set the vertical scale of the operation result. You can set the vertical scale in the following ways. - In Math menu, rotate the corresponding multipurpose knob on the front panel or click or tap the icon at the right side of the input field of Scale to increase or decrease the scale value. You can also click or tap the input field to input a specific value with the displayed numeric keypad. - Close the menu and then adjust the vertical scale with the pinch&stretch gesture on the touch screen. You can also rotate the multipurpose knob 1 on the front panel to adjust the vertical scale. Please refer to Front Panel Overview to configure the front-panel multipurpose knobs.Offset
Offset is used to set the vertical offset of the operation result. You can set the vertical offset in the following ways. - In Math menu, rotate the corresponding multipurpose knob on the front panel or click or tap the icon at the right side of the input field of Offset to increase or decrease the scale value. You can also click or tap the input field to input a specific value with the displayed numeric keypad. - Close the menu and then adjust the vertical offset with the drag gesture on the touch screen. You can also rotate the multipurpose knob 2 on the front panel to adjust the vertical offset. Please refer to Front Panel Overview to configure the front-panel multipurpose knobs.Invert
Invert is used to enable or disable the inverted display of the waveform. When the Invert function is disabled, the waveform is displayed normally; when enabled, the voltage values of the displayed waveform are inverted.Waveform
This oscilloscope provides Main and Zoom for the measurement range. \- Main indicates that the measurement range is within the main time base region. \- Zoom indicates that the measurement range is within the zoomed time base region. To use "Zoom", first enable the Zoom Mode (Delayed Sweep) in the Horizontal System menu.Expand
The oscilloscope supports two vertical expansion modes: GND (default) and Center. \- GND: When the vertical scale is changed, the math operation waveform will expand or compress about the ground level of the signal. \- Center: When the vertical scale is changed, the math operation waveform will expand or compress about the center of the display.Auto Set
Click or tap AutoSetting to adjust the vertical scale and the offset of the operation results to the optimal value according to the current configuration for you to better observe.Label
It is used to set the label for the math operation results. For setting methods, refer to descriptions in To Turn the Channel Label Display On/OffGrid
For setting methods, refer to the descriptions in To Set the Screen Grid.9.2 Function Operation
In the Math menu, click or tap the Operator drop-down button to select the desired function operation. The available function operation types of this oscilloscope include Intg, Diff, Sqrt, Lg (Base 10 Exponential), Ln, Exp, Abs, and AX+B. - Intg: calculates the integral of the selected source. For example, you can use integral to measure the area under a waveform or the pulse energy. - Diff: calculates the discrete time derivative of the selected source. For example, you can use differentiate to measure the instantaneous slope of a waveform. - Sqrt: calculates the square roots of the selected source point by point and displays the results. - Lg (Base 10 Exponential): calculates the base 10 exponential of the selected source point by point and displays the results. \- Ln: calculates the natural logarithm (Ln) of the selected source point by point and displays the results. \- Exp: calculates the exponential of the selected source point by point and displays the results. \- Abs: calculates the absolute value of the selected source and displays the results. \- AX+B: applies a linear function to the selected source, and displays the results.  Figure 9.5 Function Operation MenuOperation Result Display Window
Click or tap the Operation on/off switch to enable or disable the display of the operation result window. The source and the vertical scale parameters are displayed at the top of the window, as shown in the figure below.  Figure 9.6 Operation Result Display WindowSource
Click or tap the Source drop-down button to select the source from CH1-CH4 or Ref1-Ref10. When a source channel is selected, the selected channel automatically switches to the ON state.TIP
Besides CH1-CH4 and Ref1-Ref10, the Math2 source can be set to Math1; the Math3 source can be set to Math1 or Math2; the Math4 source can be set to Math1, Math2, or Math3. Selecting a Math automatically enables its window display and sets its Operation on/off switch to ON.Auto Set
Click or tap AutoSetting to adjust the vertical scale and the offset of the operation results to the optimal value according to the current configuration for you to better observe.Scale
Scale is used to set the vertical scale of the operation result. You can set the vertical scale in the following ways. - In Math menu, rotate the corresponding multipurpose knob on the front panel or click or tap the icon at the right side of the input field of Scale to increase or decrease the scale value. You can also click or tap the input field to input a specific value with the displayed numeric keypad. - Close the menu and then adjust the vertical scale with the pinch&stretch gesture on the touch screen. You can also rotate the multipurpose knob 1 on the front panel to adjust the vertical scale. Please refer to Front Panel Overview to configure the front-panel multipurpose knobs.Offset
Offset is used to set the vertical offset of the operation result. You can set the vertical offset in the following ways. - In Math menu, rotate the corresponding multipurpose knob on the front panel or click or tap the icon at the right side of the input field of Offset to increase or decrease the scale value. You can also click or tap the input field to input a specific value with the displayed numeric keypad. - Close the menu and then adjust the vertical offset with the drag gesture on the touch screen. You can also rotate the multipurpose knob 2 on the front panel to adjust the vertical offset. Please refer to Front Panel Overview to configure the front-panel multipurpose knobs.Invert
Invert is used to enable or disable the inverted display of the waveform. When the Invert function is disabled, the waveform is displayed normally; when enabled, the voltage values of the displayed waveform are inverted.Waveform
This oscilloscope provides Main and Zoom for the measurement range. - Main indicates that the measurement range is within the main time base region. - Zoom indicates that the measurement range is within the zoomed time base region. To use "Zoom", first enable the Zoom Mode (Delayed Sweep) in the Horizontal System menu.Label
It is used to set the label for the math operation results. For setting methods, refer to descriptions in To Turn the Channel Label Display On/OffExpand
The oscilloscope supports two vertical expansion modes: GND (default) and Center. - GND: When the vertical scale is changed, the math operation waveform will expand or compress about the ground level of the signal. - Center: When the vertical scale is changed, the math operation waveform will expand or compress about the center of the display.Grid
For setting methods, refer to the descriptions in To Set the Screen Grid.Parameter Setting
- When the operator is "Intg", click or tap the Offset input field and use the pop-up numeric keypad to set the DC offset calibration factor of the input signal. You can also use the corresponding multipurpose knob to set the value. - When the operator is "Diff", click or tap Smooth input field and use the pop-up numeric keypad to set the number of smooth times for the differential operation. You can also use the corresponding multipurpose knob to set the value. - When the operator is "AX+B", click or tap A/B input field and use the pop-up numeric keypad to set the A/B value. You can also use the corresponding multipurpose knob to set the value.9.3 FFT Operation
FFT (Fast Fourier Transform) is used to transform time-domain signals to frequency-domain components (frequency spectrum). This oscilloscope provides FFT operation function which enables you to observe the time-domain waveform and spectrum of the signal at the same time. FFT operation can facilitate the following works: • Measure harmonic components and distortion in the system; - Display the characteristics of the noise in DC power; - Analyze vibration. In the Math menu, click or tap the Operator drop-down button to select FFT to access the menu as shown in Figure 9.7.  Figure 9.7 FFT Operation MenuOperation On/Off
Click or tap the Operation on/off switch to enable the FFT operation result window. The parameters such as center frequency, frequency range, and resolution are displayed at the top of the window, as shown in the figure below. FFT resolution is the quotient of the sample rate and the number of FFT points. If the number of FFT points is a fixed value, then the higher the sample rate, the higher the resolution. NOTE
The number of FFT analysis points can be 1 Mpts in maximum.  Figure 9.8 FFT Operation WindowSource
Click or tap the Source drop-down button to select CH1, CH2, CH3, or CH4 as the source. When a source channel is selected, the selected channel automatically switches to the ON state.Auto Set
Click or tap AutoSetting to adjust the vertical scale and the offset of the operation results to the optimal value according to the current configuration for you to better observe.Frequency Range
In X, select "Span-Center" or "Start-End" mode and then configure the frequency range setting. \- Span-Center (frequency span to center frequency): Span specifies the frequency range represented by the width from the frequency at the left side of the window to the frequency at the right side of the window. Divide the frequency span by 10 to obtain the frequency per division. Click or tap the Center input field to set the frequency of the frequency-domain waveform relative to the horizontal center of the screen. You can also use the corresponding multipurpose knob to set the value. Its range is from 5 Hz to 625 MHz. Click or tap the Span input field to set the frequency span with the pop-up numeric keypad. You can also use the corresponding multipurpose knob to set the value. Its range is from 10 Hz to 625 MHz. \- Start-End (start frequency to stop frequency): Start frequency specifies the frequency at the left side of the window. Click or tap the Start input field to set the start frequency with the pop-up numeric keypad or use the corresponding multipurpose knob to set the value. Its range is from 0 Hz to (stop frequency-10 Hz). Stop frequency specifies the frequency at the right side of the window. Click or tap the End input field to set the stop frequency with the pop-up numeric keypad or use the corresponding multipurpose knob to set the value. Its range is from (start frequency + 10 Hz) to 625 MHz. By default, it is 10 MHz.Vertical Scale/Offset
In Unit item, you can select dBm/dBV or Vrms as the unit for Scale and Offset. For how to set the Scale, refer to the descriptions in Scale of "Arithmetic Operation". For how to set the Offset, refer to the descriptions in Offset of "Arithmetic Operation".Window Function
Spectral leakage can be considerably minimized when a window function is used. The oscilloscope provides 6 FFT window functions which have different characteristics and are applicable to measure different waveforms, as shown in the table below. You need to select the window function according to the characteristics of the waveform to be measured. Click or tap the Window drop-down button to select the desired window function. Table 9.1 Window Function| Window Function | Characteristics | Waveforms Applicable to the Window Function |
| Rectangular | Best frequency resolutionPoorest amplitude resolutionSimilar to the situation when no window is applied | Transient or short pulse, the signal levels before and after the multiplication are basically the sameSine waveforms with the same amplitudes and rather similar frequenciesWide band random noise with relatively slow change of waveform spectrum |
| Blackman-Harris | Best amplitude resolutionPoorest frequency resolution | Single frequency signal, searching for higher order harmonics |
| Hanning | Better frequency resolution and poorer amplitude resolution compared with Rectangular | Sine, periodic, and narrow band random noise |
| Hamming | A little bit better frequency resolution than Hanning | Transient or short pulse, the signal levels before and after the multiplication are rather different |
| Flattop Measure the signals accurately | Measure the signal that has no accurate reference and requires an accurate measurement | |
| Triangle Better frequency resolution | Measure the narrow band signal and that has strong noise interference | |
Color Grade
Click or tap the Color Grade on/off switch to enable/disable the color grade display of FFT operation results. When it is enabled, different colors are displayed on the screen to indicate the times of data acquisition or acquisition probability. Click or tap the Reset button for the Color Grade menu to clear the color grade display and display the color grade again.Label
It is used to set the label for the math operation results. For setting methods, refer to descriptions in To Turn the Channel Label Display On/OffGrid
For setting methods, refer to the descriptions in To Set the Screen Grid.Peak Search
Click or tap the icon ▲ at the right side of Peak Search to enter the peak search menu, as shown in the figure below.  Figure 9.9 Peak Search \- Peak Search ON/OFF: click or tap the Peak Search on/off switch to enable or disable the display of the peak search window. By default, it is OFF. \- Peak Number: click or tap the input field for the Peak Number menu item and use the pop-up numeric keypad to set the number of peaks. You can also use the corresponding multipurpose knob to set the value. Its range is from 1 to 15. Its default value is 5. \- Threshold: click or tap the input field for the Threshold menu item to set the threshold of the peak with the pop-up numeric keypad. You can also use the corresponding multipurpose knob to set the value. The range of the threshold is related to the current FFT scale and offset. \- Excursion: click or tap the Excursion input field to set the excursion of the peak or use the corresponding multipurpose knob to set the value. The minimum value of Excursion is 0 and its unit is consistent with that of FFT. \- Table Order: in Table Order, select Amp Order or Freq Order as the sorting mode. By default, it is "Amp Order". Click or tap Export, then the save setting interface is displayed. You can export the peak search results to the internal memory or the external USB storage device in CSV format. In the menu, click or tap File Name input field to set the file name; click or tap File Path input field and the disk management menu (Disk Management) is displayed. Select the desired location to save the file and then click or tap Save to save the peak search results. Clicking or tapping the icon 🖼️ at the right side of Peak Search can close the peak search menu.9.4 Logic Operation
In the Math menu, click or tap the Operator drop-down button to select the desired math operation. The logic operations supported by this oscilloscope include A&&B, A||B, A^B, and !A. After selecting the desired logic operation in the drop-down button of Operator, you can configure its settings for the selected logic operation type.  Figure 9.10 Logic Operation Menu \- A&&B: Performs logic "AND" operation on the waveform voltage values of the specified sources point by point and displays the results. In operation, when the voltage value of the source channel is greater than the threshold of the corresponding channel, it is regarded as logic "1"; otherwise it is logic "0". The results of logic AND operation of two binary bits are shown in Table 9.2 Logic Operation. \- A||B: Performs logic "OR" operation on the waveform voltage values of the specified sources point by point and displays the results. In operation, when the voltage value of the source channel is greater than the threshold of the corresponding channel, it is regarded as logic "1"; otherwise it is logic "0". The results of logic OR operation of two binary bits are shown in Table 9.2 Logic Operation. \- A^B: Performs logic "XOR" operation on the waveform voltage values of the specified sources point by point and displays the results. In operation, when the voltage value of the source channel is greater than the threshold of the corresponding channel, it is regarded as logic "1"; otherwise it is logic "0". The results of logic XOR operation of two binary bits are shown in Table 9.2 Logic Operation. \- !A: Performs logic "NOT" operation on the waveform voltage values of the specified sources point by point and displays the results. In operation, when the voltage value of the source channel is greater than the threshold of the corresponding channel, it is regarded as logic "1"; otherwise it is logic "0". The results of logic "NOT" operation of one binary bit are shown in Table 9.2 Logic Operation. Table 9.2 Logic Operation| A B A&&B A||B A^B !A | ||||
| 0 0 0 0 0 1 | ||||
| 0 1 0 1 1 1 | ||||
| 1 0 0 1 1 0 | ||||
| 1 1 1 1 0 0 |
Operation Result Display Window
Click or tap the Operation on/off switch to enable the display of the operation result window. The source and the waveform sizes parameters are displayed at the top of the window, as shown in the figure below.  Figure 9.11 Operation Result Display WindowSource
Click or tap the drop-down button of SourceA or SourceB to select CH1, CH2, CH3, or CH4. When a source channel is selected, the selected channel automatically switches to the ON state.Waveform Size
You can select "Small", "Medium", or "Large" as the waveform display mode. Offset
Offset is used to set the vertical offset of the operation result. You can set the vertical offset in the following ways. \- In Math menu, rotate the corresponding multipurpose knob on the front panel or click or tap the icon at the right side of the input field of Offset to increase or decrease the scale value. You can also click or tap the input field to input a specific value with the displayed numeric keypad. \- Close the menu and then adjust the vertical offset with the drag gesture on the touch screen. You can also rotate the multipurpose knob 2 on the front panel to adjust the vertical offset. Please refer to Front Panel Overview to configure the front-panel multipurpose knobs.Sensitivity
Sets the sensitivity of the digital signal converted from the analog signal on the source. Click or tap the Sensitivity input field to set the sensitivity with the pop-up numeric keypad or use the corresponding multipurpose knob to set the value. For details, refer to Parameter Setting Method.Waveform
This oscilloscope provides Main and Zoom for the measurement range. - Main indicates that the measurement range is within the main time base region. - Zoom indicates that the measurement range is within the zoomed time base region. To use "Zoom", first enable the Zoom Mode (Delayed Sweep) in the Horizontal System menu.Threshold
Click or tap the threshold input field of the specified channel and use the pop-up numeric keypad to set the threshold or use the corresponding multipurpose knob to set the value. Label
It is used to set the label for the math operation results. For setting methods, refer to descriptions in To Turn the Channel Label Display On/OffGrid
For setting methods, refer to the descriptions in To Set the Screen Grid.9.5 Digital Filter
In the Math menu, click or tap the Operator drop-down button to select the desired math operation. The digital filters supported by this oscilloscope include: low-pass filter, high-pass filter, band-pass filter, and band-stop filter. \- LowPass only allows the signals whose frequencies are lower than the current upper limit frequency to pass. \- HighPass only allows the signals whose frequencies are higher than the current lower limit frequency to pass. \- BandPass only allows the signals whose frequencies are higher than the current lower limit frequency and lower than the current upper limit frequency to pass. \- BandStop only allows the signals whose frequencies are lower than the current lower limit frequency or higher than the current upper limit frequency to pass.  Figure 9.12 Digital Filter MenuOperation Result Display Window
Click or tap the Operation on/off switch to enable the display of the operation result window. The source and the vertical scale parameters are displayed at the top of the window as shown in the figure below.  Figure 9.13 Operation Result Display WindowSource
Click or tap the Source drop-down button to select from CH1-CH4 or Ref1-Ref10. When a source channel is selected, the selected channel automatically switches to the ON state.TIP
Besides CH1-CH4 and Ref1-Ref10, the Math2 source can be set to Math1; the Math3 source can be set to Math1 or Math2; the Math4 source can be set to Math1, Math2, or Math3. Selecting a Math automatically enables its window display and sets its Operation on/off switch to ON.Auto Set
Click or tap AutoSetting to adjust the vertical scale and the offset of the operation results to the optimal value according to the current configuration for you to better observe.Scale
Scale is used to set the vertical scale of the operation result. You can set the vertical scale in the following ways. - In Math menu, rotate the corresponding multipurpose knob on the front panel or click or tap the icon at the right side of the input field of Scale to increase or decrease the scale value. You can also click or tap the input field to input a specific value with the displayed numeric keypad. - Close the menu and then adjust the vertical scale with the pinch&stretch gesture on the touch screen. You can also rotate the multipurpose knob 1 on the front panel to adjust the vertical scale. Please refer to Front Panel Overview to configure the front-panel multipurpose knobs.Offset
Offset is used to set the vertical offset of the operation result. You can set the vertical offset in the following ways. - In Math menu, rotate the corresponding multipurpose knob on the front panel or click or tap the icon at the right side of the input field of Offset to increase or decrease the scale value. You can also click or tap the input field to input a specific value with the displayed numeric keypad. - Close the menu and then adjust the vertical offset with the drag gesture on the touch screen. You can also rotate the multipurpose knob 2 on the front panel to adjust the vertical offset. Please refer to Front Panel Overview to configure the front-panel multipurpose knobs.Invert
Invert is used to enable or disable the inverted display of the waveform. When the Invert function is disabled, the waveform is displayed normally; when enabled, the voltage values of the displayed waveform are inverted.Waveform
This oscilloscope provides Main and Zoom for the measurement range. - Main indicates that the measurement range is within the main time base region. - Zoom indicates that the measurement range is within the zoomed time base region. To use "Zoom", first enable the Zoom Mode (Delayed Sweep) in the Horizontal System menu.Frequency Limit
- LowPass: click or tap the ωc input field and use the pop-up numeric keypad to set the upper limit frequency or use the corresponding multipurpose knob to set the value. - HighPass: click or tap the ωc input field and use the pop-up numeric keypad to set the lower limit frequency or use the corresponding multipurpose knob to set the value. - BandPass: click or tap the ωc1 input field and use the pop-up numeric keypad to set the lower limit frequency. Click or tap the ωc2 input field and use the pop-up numeric keypad to set the upper limit frequency. You can also use the corresponding multipurpose knob to set the lower/upper limit frequency. \- BandStop: click or tap the wc1 input field and use the pop-up numeric keypad to set the lower limit frequency. Click or tap the wc2 input field and use the pop-up numeric keypad to set the upper limit frequency. You can also use the corresponding multipurpose knob to set the lower/upper limit frequency. The settable ranges of the upper and lower limit frequencies are related to the Math sample rate (displayed at the bottom of the screen when the Math function is enabled). The sample rate of the analog channel or the changes of the memory depth can affect the Math sample rate.Label
It is used to set the label for the math operation results. For setting methods, refer to descriptions in To Turn the Channel Label Display On/OffExpand
The oscilloscope supports two vertical expansion modes: GND (default) and Center. \- GND: When the vertical scale is changed, the math operation waveform will expand or compress about the ground level of the signal. \- Center: When the vertical scale is changed, the math operation waveform will expand or compress about the center of the display.Grid
For setting methods, refer to the descriptions in To Set the Screen Grid.10 Measurements
This series oscilloscope provides the quick measurements after "Auto" is selected, auto measurements for 41 waveform parameters, as well as the cursor measurement function.10.1 Auto Scale
When the oscilloscope is correctly connected and has detected a valid input signal, click or tap the function navigation icon > Auto or press the front-panel key to enable the waveform auto setting function and open the auto setting function menu.  - Click or tap the first icon, and then two periods of the signal are automatically displayed on the screen. Meanwhile, the system will make measurements for the "period" and "frequency" of the currently displayed waveform. The measurement results are displayed in the "Result" bar at the right side of the screen. - Click or tap the second icon, and then multiple periods of the signal are automatically displayed on the screen. Meanwhile, the system will make measurements for the "period" and "frequency" of the currently displayed waveforms in multiple periods. The measurement results are displayed in the "Result" bar at the right side of the screen. - Click or tap the third icon to enable the "rise time" measurement item. The measurement results are displayed in the "Result" bar at the right side of the screen. By default, it is intended for the fast edge signal. - Click or tap the fourth icon to enable the "fall time" measurement item. The measurement results are displayed in the "Result" bar at the right side of the screen. By default, it is intended for the fast edge signal. - Click or tap the fifth icon to cancel the auto setting and recovers to the parameter settings prior to clicking or tapping Auto. - Click or tap the sixth icon to enter the Auto Config sub-menu under the Utility menu. For details, please refer to Auto Config. TIP
The waveform auto setting function requires that the frequency of the signal should be greater than or equal to 35 Hz, and the amplitude greater than or equal to 10 mV. If those conditions are not met, the waveform auto setting function may be invalid.10.2 Auto Measurements
You can enter the Measure menu in the following ways. \- Click or tap the function navigation icon at the lower-left corner of the screen, and then select Measure to enter the "Measure" menu. \- Press the front-panel Measure key to enter the "Measure" menu. \- Click or tap the Measure button on the toolbar to enter the "Measure" menu. \- In Vertical System menu, click or tap the Measure button to enter the "Measure" menu.10.2.1 Measurement Parameter
This oscilloscope allows you to set the measurement source, enable or disable the all measurement function, the statistical function, and etc. You can make quick measurements for many waveform parameters. The measurement results will be displayed in the Result sidebar at the right section of the screen. TIP
If there is no signal input for the current source or the measurement result is not within the valid range (too large or too small), then the measurement results are invalid, and "*****" is displayed on the screen. Please re-input the signal or set the signal.10.2.1.1 Time Parameters
 Figure 10.1 Time Parameters - Period: defined as the time between the middle threshold points of two consecutive, like-polarity edges. • Frequency: defined as the reciprocal of period. - Rise Time: indicates the time for the signal amplitude to rise from the threshold lower limit to the threshold upper limit. - Fall Time: indicates the time for the signal amplitude to rise from the threshold upper limit to the threshold lower limit. - +Width: indicates the time between the threshold middle value of a rising edge to the threshold middle value of the next falling edge. - -Width: indicates the time between the threshold middle value of a falling edge to the threshold middle value of the next rising edge. - +Duty: indicates the ratio of the positive pulse width to the period. - -Duty: indicates the ratio of the negative pulse width to the period. - Tvmax: indicates the time that corresponds to the maximum value of the waveform (Vmax). - Tvmin: indicates the time that corresponds to the minimum value of the waveform (Vmin). The default values for threshold upper limit, threshold middle value, and threshold lower limit are 90%, 50%, and 10%, respectively.10.2.1.2 Count Values
The default values for threshold upper limit and threshold lower limit are 90% and 10%, respectively.Positive Pulse Count
It is specified as the number of positive pulses that rise from under the threshold lower limit to above the threshold upper limit. Positive Pulse Count = n Negative Pulse Count
It is specified as the number of negative pulses that fall from above the threshold upper limit to below the threshold lower limit. Negative Pulse Count = n Rising Edge Count
It is specified as the number of rising edges that rise from under the threshold lower limit to above the threshold upper limit. Rising Edge Count = n Falling Edge Count
It is specified as the number of falling edges that fall from above the threshold upper limit to below the threshold lower limit. Falling Edge Count = n 10.2.1.3 Delay and Phase Parameters
 Figure 10.2 Delay and Phase Parameters 1. Delay(r-r): indicates the time difference between the threshold middle values of the rising edge of Source A and that of Source B. Negative delay indicates that the rising edge of Source A occurred after that of Source B. 2. Delay(f-f): indicates the time difference between the threshold middle values of the falling edge of Source A and that of Source B. Negative delay indicates that the falling edge of Source A occurred after that of Source B. 3. Delay(r-f): indicates the time difference between the threshold middle values of the rising edge of Source A and the falling edge of Source B. Negative delay indicates that the rising edge of Source A occurred after the falling edge of Source B. 4. Delay(f-r): indicates the time difference between the threshold middle values of the falling edge of Source A and the rising edge of Source B. Negative delay indicates that the falling edge of Source A occurred after the rising edge of Source B. 5. Phase(r-r): indicates the phase deviation between the threshold middle values of the rising edge of Source A and that of Source B. The phase formula is as follows: _ R B _ R Phase A _ R B _ R Delay A Period _ source A Wherein, PhaseARBR represents Phase(r-r), DelayARBR represents Delay(r-r), and PeriodsourceA represents the period of Source A. 6. Phase(f-f): indicates the phase deviation between the threshold middle values of the falling edge of Source A and that of Source B. The phase formula is as follows: _ F B _ F PhaseA _ F B _ F DelayAPeriod _ sourceA Wherein, PhaseAFBF represents Phase(f-f), DelayAFBF represents Delay(f-f), and PeriodsourceA represents the period of Source A. 7. Phase(r-f): indicates the phase deviation between the threshold middle values of the rising edge of Source A and the falling edge of Source B. The phase formula is as follows: _ R BPhaseA _ R BDelayA Period _ sourceA Wherein, PhaseARBF represents Phase(r-f), DelayARBF represents Delay(r-f), and PeriodsourceA represents the period of Source A. 8. Phase(f-r): indicates the phase deviation between the threshold middle values of the falling edge of Source A and the rising edge of Source B. The phase formula is as follows: _ F BPhaseA _ F BDelayA Period _ sourceA Wherein, PhaseAFBR represents Phase(f-r), DelayAFBR represents Delay(f-r), and PeriodsourceA represents the period of Source A. TIP
\- Source A and Source B can be any channel among CH1-CH4 and Math1-Math4. • The default threshold middle value is 50%.10.2.1.4 Voltage Parameters
 Figure 10.3 Voltage Parameters 1. Vmax: indicates the voltage value from the highest point of the waveform to the GND. 2. Vmin: indicates the voltage value from the lowest point of the waveform to the GND. 3. Vpp: indicates the voltage value from the highest point to the lowest point of the waveform. 4. Vtop: indicates the voltage value from the flat top of the waveform to the GND. 5. Vbase: indicates the voltage value from the flat base of the waveform to the GND. 6. Vamp: indicates the voltage value from the top of the waveform to the base of the waveform. 7. Vupper: indicates the actual voltage value that corresponds to the threshold maximum value. 8. Vmid: indicates the actual voltage value that corresponds to the threshold middle value. 9. Vlower: indicates the actual voltage value that corresponds to the threshold minimum value. 10. Vavg: indicates the arithmetic average value on the whole waveform or in the gating area. The formula is shown as follows: Average = _ i = 1 ^ n x _ in Wherein, xi is the ith point, and n is the number of points being measured. 11. VRMS: indicates the root mean square value on the whole waveform or in the gating area. The formula is as follows: RMS = √ _ i = 1 ^ n x _ i ^ 2n Wherein, xi is the measurement result of the ith point, and n is the number of points being measured. 12. Per.VRMS: indicates the root mean square value within a period. The formula is as shown above. 13. Overshoot: indicates the ratio of the difference between the maximum value and the top value of the waveform to the amplitude value. 14. Preshoot: indicates the ratio of the difference between the minimum value and the base value of the waveform to the amplitude value. 15. AC RMS: indicates the root-mean-square value of the waveforms, with the DC component removed. The formula is shown as follows: Std.Dev = √ _ i = 1 ^ n ( _ i - Averagex) ^ 2 .n Wherein, xi is the amplitude of the ith point, Average is the waveform average value, and n is the number of points being measured.10.2.1.5 Other Parameters
\- Positive Slew Rate: On the rising edge, first calculate the difference between the high value and the low value, then use the difference to divide the corresponding time value to obtain the positive slew rate. \- Negative Slew Rate: On the falling edge, first calculate the difference between the low value and the high value, then use the difference to divide the corresponding time value to obtain the negative slew rate. \- Area: indicates the area of the whole waveform within the screen. The unit is V*s. The area of the waveform above the zero reference (namely the vertical offset) is positive, and the area of the waveform below the zero reference is negative. The area measured is the algebraic sum of the area of the whole waveform within the screen. \- Period Area: indicates the area of the first period of waveform on the screen. The unit is V*s. The area of the waveform above the zero reference (namely the vertical offset) is positive, and the area of the waveform below the zero reference is negative. The area measured is the algebraic sum of the whole period area.10.2.2 Select the Measurement Item
In the Measure menu, click or tap Horizontal, Vertical, or Other to go to the desired menu. You can also slide to select the measurement item to enter the corresponding interface, as shown in Figure 10.4, Figure 10.5, and Figure 10.6. Click or tap any of the measurement items to enable the measurements. This series allows you to enable measurements of up to 14 items at the same time. TIP
You can also refer to Multi-pane Windowing to enable all measurements. • Vertical: Vmax, Vmin, Vpp, Vtop, Vbase, Vamp, Vupper, Vmid, Vlower, Vavg, VRMS, Per. VRMS, Overshoot, Preshoot, Area, Per.Area, and AC.RMS.  Figure 10.4 Vertical Measurement Items • Horizontal: Period, Frequency, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Positive Pulse Count, Negative Pulse Count, Rising Edge Count, Falling Edge Count, Tvmax, Tvmin, +Slew Rate, and -Slew Rate.  Figure 10.5 Horizontal Measurement Items \- Other: Delay(r-r), Delay(r-f), Delay(f-r), Delay(f-f), Phase(r-r), Phase(r-f), Phase(f-r), and Phase(f-f).  Figure 10.6 Other Measurement Items10.2.3 Measurement Settings
In the Measure menu, click or tap the Setting button to enter the measurement setting menu.  Figure 10.7 Measurement Settings MenuHistogram
Click or tap the Histogram on/off switch to enable or disable the histogram function. After the histogram function is enabled, the Measure Histogram view is displayed on the screen, as shown in the figure below. The histogram analysis result label is displayed in the Result sidebar (refer to Histogram Analysis Results). NOTE
Add at least one measurement item (Select the Measurement Item) before enabling the Measure Histogram function.  After the Measure Histogram function is enabled, please refer to Select the Measurement Item to add new measurement parameter. The new parameter will be used as the measurement item. In the "Result" sidebar, you can also click or tap the label of the added measurement parameter (e.g. "Vpp" and "Vmin") to change the measurement item.Indicator
Click or tap the Indicator on/off switch to enable or disable the indicator. If enabled, one or more cursors will be displayed on the screen. Before enabling the indicator, you need to enable at least one auto measurement parameter and the number of cursors will change with the measurement parameter enabled.TIP
When no measurement parameter is selected or there is no source input, the indicator is not available. The indicator changes when the waveform is expanded or compressed horizontally.Measurement Threshold
\- First, select % or Abs as the display type. \- Click or tap the drop-down button of Source to select the desired channel. You can select from CH1-CH4 or Math1-Math4. \- Click or tap the input field of Upper and use the pop-up numeric keypad to set the upper limit of the measurement or use the corresponding multipurpose knob to set the value. When the upper limit is set to be smaller than or equal to the current middle value, a prompt message "Set at lower limit" is displayed. Then, the oscilloscope will automatically adjust the upper limit and make it greater than the middle value. By default, it is 90% . The default absolute value varies with the vertical setting of the channel. \- Click or tap the input field of Mid and use the pop-up numeric keypad to set the middle value of the measurement or use the corresponding multipurpose knob to set the value. The middle value is limited by the settings of the upper limit and lower limit. By default, it is 50%. The default absolute value varies with the vertical setting of the channel. \- Click or tap the input field of Lower and use the pop-up numeric keypad to set the lower limit of the measurement or use the corresponding multipurpose knob to set the value. When the lower limit is set to be greater than or equal to the current middle value, a prompt message "Set at upper limit" is displayed. Then, the oscilloscope will automatically adjust the lower limit and make it smaller than the middle value. By default, it is 10% . The default absolute value varies with the vertical setting of the channel. \- Click or tap values. Default to return the upper, middle, and lower limits to their default   Click or tap the Threshold on/off switch to enable or disable the threshold settings.TIP
Modifying the threshold will affect the measurement results of time, delay, and phase parameters.Measurement Range
Click or tap the drop-down button of the Region to select "Main" or "Zoom". - Main: indicates that the measurement range is within the main time base region. - Zoom: indicates that the measurement range is within the zoomed time base region. TIP
To use "Zoom", you need to enable the Zoom Mode (Delayed Sweep) first.Amplitude Measurement Method
Click or tap Auto or Manual as the amplitude measurement method, which affects the measurement method for the top and base values  If you select "Manual", set the following parameters: - Click or tap the Top toggle button to select Histogram or Max-Min as the top value measurement method. - Click or tap the Base toggle button to select Histogram or Max-Min as the base value measurement method. TIP
If you select "Manual" for the amplitude method, the measurement results of other parameters may be affected. "Histogram" and "Max-Min" are the internal measurement algorithm for the oscilloscope. The "Histogram" method mentioned above is different from the Histogram function of the oscilloscope.Remove the Measurement Results
Refer to Remove the Measurement Results.Statistics
Click or tap the Statistic on/off switch to enable or disable the statistical result display. You can also click or tap at the lower-right of the measurement item in the "Result" sidebar to expand the label to display all the statistical items. Click or tap  to collapse the label. The figure below shows the displayed results after the Statistic of period measurement is enabled.  \- Click or tap any measurement item in the "Result" sidebar at the right side of the screen and a window is displayed. Click or tap Reset Stat. to clear the history statistics data and makes statistics again. You can also click or tap Reset Stat. in the measurement setting menu. \- Click or tap the input field of Count and use the pop-up numeric keypad to set the count value. You can also use the corresponding multipurpose knob to set the value. Its range is from 2 to 100000. Its default value is 1000.10.2.4 Remove the Measurement Results
This oscilloscope allows you to delete the measurement results of the parameters. \- In Measure setting menu, click or tap Remove to delete the currently selected measurement item that you've added; click or tap Remove All to delete all the displayed measurement items. \- Click or tap any measurement item in the "Result" sidebar at the right side of the screen and a window is displayed. Click or tap Remove to delete the currently selected measurement item that you've added; click or tap Remove All to delete all the displayed measurement items. \- In the "Result" sidebar, select a measurement item and drag it to the right to delete it quickly10.3 Cursor Measurements
Cursor measurement can measure the X axis values (e.g. Time) and Y axis values (e.g. Voltage) of the selected waveform. Before making cursor measurements, connect the signal to the oscilloscope to acquire stable display. The cursor measurement function provides the following two cursors.  Figure 10.8 Cursors• X Cursor
X cursor is a vertical solid/dotted line that is used to make horizontal adjustments. It can be used to measure time (s) and frequency (Hz). - Cursor A is a vertical solid line (AX is displayed at the bottom of the screen), and Cursor B is a vertical dotted line (BX displayed at the bottom of the screen). - In the XY cursor mode, X cursor is used to measure the waveform amplitude of Source X.- Y Cursor
Y cursor is a horizontal solid/dotted line that is used to make vertical adjustments. It can be used to measure amplitude (the unit is the same as that of the source channel amplitude). \- Cursor A is a horizontal solid line (is played at the right section of the screen), and Cursor B is a horizontal dotted line (is displayed at the right section of the screen). \- In XY cursor mode, Y cursor is used to measure the waveform amplitude of Source Y. You can enable cursor measurements in the following ways. \- Click or tap the function navigation icon measurements.  > Cursors to enable cursor \- Click or tap the Cursors button on the toolbar to enable cursor measurements. \- Press the front-panel  key to enable cursor measurements. The measurement results are displayed in the "Result" bar at the right side of the screen.  - AX: indicates the X value at Cursor A. - AY: indicates the Y value at Cursor A. - BX: indicates the X value at Cursor B. • BY: indicates the Y value at Cursor B. \- ΔX : indicates the horizontal spacing between Cursor A and Cursor B. \- ΔY : indicates the vertical spacing between Cursor A and Cursor B. \- 1 / ΔX : indicates the reciprocal of the horizontal spacing between Cursor A and Cursor B. Click or tap the result bar and then select Remove or Setting in the pop-up window. - Click or tap Remove. Then the current cursor measurement results will be cleared. - Click or tap Setting. Then the "Cursors" menu is displayed. You can select the cursor mode: Manual, Track, and XY.10.3.1 Manual Mode
In the manual cursor mode, you can adjust the cursor manually to measure the value of the waveforms of the specified source at the current cursor. If the settings for the parameter such as the cursor type and measurement source are different, the measurement results will be different for cursor measurement. In the Cursors menu, click or tap Manual for the Mode item to enable the Manual cursor measurement function. The measurement results are displayed in the "Result" bar at the right side of the screen. When you change the cursor position, the measurement results will be changed accordingly.  Figure 10.9 Manual Mode Setting MenuSelect the Measurement Source
Click or tap the drop-down button of Source to select the desired channel (None, CH1-CH4, or Math1-Math4). When a specified channel is selected as the source, it will be automatically turned on.Select Cursor Type
Click or tap the Select toggle button to select "X" or "Y". \- X: It is a pair of vertical solid (Cursor A)/dotted (Cursor B) lines, used for measuring time parameters. The measurement results include AX, BX, ΔX, and 1/ΔX. \- Y: It is a pair of horizontal solid (Cursor A)/dotted (Cursor B) lines, used for measuring voltage parameters. The measurement results include AY, BY, and Δ Y.Adjust Cursor Position
1. When "X" is selected, you can adjust the position of X cursor. \- Click or tap the input field of AX and use the pop-up numeric keypad to set the horizontal position of Cursor A (X cursors). The horizontal axis indicates time, and the unit of its setting value is the same as that of the horizontal unit. Its adjustable range is limited within the screen. \- Click or tap the input field of BX and use the pop-up numeric keypad to set the horizontal position of Cursor B (X cursors). The horizontal axis indicates time, and the unit of its setting value is the same as that of the horizontal unit. Its adjustable range is limited within the screen. \- Click or tap the AX BX on/off switch to turn on/off adjusting the horizontal position of Cursor A and Cursor B (X cursors) simultaneously. The horizontal spacing between Cursor A and Cursor B (X cursors) remains unchanged. 2. When "Y" is selected, you can adjust the position of Y cursor. \- Click or tap the input field of AY, and then use the pop-up numeric keypad to set the vertical position of Cursor A (Y cursors). The vertical axis indicates voltage, and the unit of its setting value is the same as that of the vertical unit. \- Click or tap the input field of BY and use the pop-up numeric keypad to set the vertical position of Cursor B (Y cursor). The vertical axis indicates voltage, and the unit of its setting value is the same as that of the vertical unit. \- Click or tap the AY BY on/off switch to turn on/off adjusting the vertical position of Cursor A and Cursor B (Y cursors) simultaneously. The vertical spacing between Cursor A and Cursor B (Y cursors) remains unchanged. You can also use the front-panel multipurpose knob to adjust the cursor position. To configure the multipurpose knobs, please refer to Front Panel Overview.Measurement Example
Measure the period of a sine wave by using the manual cursor measurement and auto measurement respectively. The measurement results are both 200 ns.  Figure 10.10 Manual Cursor Measurement ExampleDisable the Cursor Measurement Function
When cursor measurement is enabled, you can disable it in the following ways: - In the Cursors menu, click or tap the Remove button to disable cursor measurements. - In the "Result" bar at the right side of the screen, click or tap the "Cursors" label and then click or tap Remove in the pop-up window. - In the "Result" bar at the right side of the screen, drag the "Cursors" label to the right to simply disable cursor measurements. \- Press the front-panel Cursor key to disable cursor measurements.10.3.2 Track Mode
In the Track mode, you can adjust the two pairs of cursors (Cursor A and Cursor B) to measure the X and Y values on two different sources respectively. When the cursors are moved horizontally/vertically, the markers will position on the waveform automatically. When the waveform is expanded or compressed horizontally/vertically, the markers will track the points being marked at the last adjustment of the cursors. In the Cursors menu, click or tap Track for the Mode item to enable the Track cursor measurement function. The measurement results are displayed in the "Result" bar at the right section of the screen.  Figure 10.11 Track Mode Setting MenuSelect the Measurement Source
- Click or tap the drop-down button of AX Source to select the desired channel (None, CH1-CH4, or Math1-Math4). - Click or tap the drop-down button of BX Source to select the desired channel (None, CH1-CH4, or Math1-Math4). When a specified channel is selected as the source, it will be automatically turned on.Select the Track Mode
Click or tap the Track toggle button to select "X" or "Y" as the current track axis. By default, it is "X". - X: When the X cursor position is adjusted, Y cursor will automatically track the intersection point between X cursor and source signal - Y: When the Y cursor position is adjusted, X cursor will automatically track the intersection point between Y cursor and source signal.Adjust Cursor Position
\- When "X" is selected, you can adjust the position of X cursor. - Click or tap the input field of AX and use the pop-up numeric keypad to set the horizontal position of Cursor A (X cursors). Its adjustable range is limited within the screen. - Click or tap the input field of BX and use the pop-up numeric keypad to set the horizontal position of Cursor B (X cursors). Its adjustable range is limited within the screen. \- Click or tap the AX BX on/off switch to turn on/off adjusting the horizontal position of Cursor A and Cursor B (X cursors) simultaneously. The horizontal spacing between Cursor A and Cursor B (X cursors) remains unchanged. \- When "Y" is selected, you can adjust the position of Y cursor. \- Click or tap the input field of AY, and then use the pop-up numeric keypad to set the vertical position of Cursor A (Y cursors). \- Click or tap the input field of BY and use the pop-up numeric keypad to set the vertical position of Cursor B (Y cursor). \- Click or tap the AY BY on/off switch to turn on/off adjusting the vertical position of Cursor A and Cursor B (Y cursors) simultaneously. The vertical spacing between Cursor A and Cursor B (Y cursors) remains unchanged. You can also use the front-panel multipurpose knob to adjust the cursor position. To configure the multipurpose knobs, please refer to Front Panel Overview.Measurement Example
Set the AX Source to CH1, BX Source to CH2, and Track to "X". When the AX cursor position is adjusted, AY cursor will automatically track the intersection point between AX cursor and source signal (CH1); When the BX cursor position is adjusted, BY cursor will automatically track the intersection point between BX cursor and source signal (CH2). The measurement results are displayed in the "Result" bar, as shown in Figure 10.12. Then, expand the waveforms horizontally, and you will find that the cursor will track the point that has been marked, as shown in Figure 10.13.  Figure 10.12 Track Measurement (before Horizontal Expansion)  Figure 10.13 Track Measurement (after Horizontal Expansion)Disable the Cursor Measurement Function
When cursor measurement is enabled, you can disable it in the following ways: - In the Cursors menu, click or tap the Remove button to disable cursor measurements. - In the "Result" bar at the right side of the screen, click or tap the "Cursors" label and then click or tap Remove in the pop-up window. - In the "Result" bar at the right side of the screen, drag the "Cursors" label to the right to simply disable cursor measurements. \- Press the front-panel Cursor key to disable cursor measurements.10.3.3 XY Mode
In the Cursors menu, click or tap XY for the Mode item to enable the XY cursor measurement function. The measurement results are displayed in the "Result" bar at the right section of the screen.  Figure 10.14 XY Mode Setting Menu TIP
By default, XY mode is unavailable. It is available only when the horizontal time base mode is "XY". To enable the XY mode, please refer to Enable the XY Mode.Adjust Cursor Position
\- Click or tap to select the "X" tab under the Select menu item to set the X value for the specified cursor. - Click or tap the input field of AX and use the pop-up numeric keypad to set the X value at Cursor A. - Click or tap the input field of BX and use the pop-up numeric keypad to set the X value at Cursor B. - Click or tap the AX BX on/off switch to turn on/off adjusting the X value at Cursor A and the X value at Cursor B simultaneously. \- Click or tap to select "Y" under the Select item to set the Y value for the specified cursor. - Click or tap the input field of the Y value at Cursor A. - Click or tap the input field of BY and use the pop-up numeric keypad to set the Y value at Cursor B. - Click or tap to the AY BY on/off switch to turn on/off adjusting the Y value at Cursor A and the Y value at Cursor B simultaneously. You can also use the front-panel multipurpose knob to adjust the cursor position. To configure the multipurpose knobs, please refer to Front Panel Overview. During the adjustment, the measurement results will change accordingly. The adjustable range is limited within the screen.Disable the Cursor Measurement Function
When cursor measurement is enabled, you can disable it in the following ways: \- In the Cursors menu, click or tap the Remove button to disable cursor measurements. \- In the "Result" bar at the right side of the screen, click or tap the "Cursors" label and then click or tap Remove in the pop-up window. \- In the "Result" bar at the right side of the screen, drag the "Cursors" label to the right to simply disable cursor measurements. \- Press the front-panel  key to disable cursor measurements.11 Digital Voltmeter (DVM) and Frequency Counter
This series oscilloscope provides a built-in digital voltmeter (DVM) and frequency counter, which enable you to perform more accurate measurements, improving user experience in counter and frequency measurement.11.1 Digital Voltmeter (DVM)
The built-in DVM of this oscilloscope provides 4-digit voltage measurements on any analog channel. DVM measurements are asynchronous from the oscilloscope's acquisition system and are always acquiring. You can enable the DVM measurements in the following ways. - Click or tap the function navigation icon > DVM to enable DVM measurements. - Click or tap the DVM button on the toolbar to enable DVM measurements. - Press the front-panel Analyse key and then select DVM in the displayed "Analyse" menu to enable the DVM measurements. After the DVM measurements are enabled, the "DVM" label appears in the "Result" bar at the right section of the screen, as shown in the figure below.  The voltage value in the label shows the measurement extrema over the last 3 seconds. Click or tap the "DVM" label and then a window is displayed. Click or tap Setting to enter the DVM setting menu as shown in Figure 11.1. You can click or tap Remove to disable DVM measurements.11.1.1 Measurement Settings
After the DVM is enabled, click or tap the "DVM" label in the "Result" bar at the right section of the screen and a window is displayed. Click or tap Setting in the window to enter the DVM setting menu, as shown in the figure below.  Figure 11.1 DVM Setting MenuSelect the Measurement Source
Click or tap the Source drop-down button to select the desired source. The analog channel (CH1-CH4) can be selected to be the measurement source. Even if the analog channel (CH1-CH4) is not enabled, you can still perform the DVM measurements.Select the Measurement Mode
In the Mode item, you can select the DVM mode. The DVM measurement modes include AC RMS, DC, and AC+DC RMS. - AC RMS: displays the root-mean-square value of the acquired data, with the DC component removed. • DC: displays the average value of the acquired data. - AC+DC RMS: displays the root-mean-square value of the acquired data.Set the Limits
Click or tap the Beeper on/off switch to turn on or off the beeper. When the beeper is turned on, you can enable the beeper to sound an alarm when the voltage value is inside or outside the limited range. \- Limits Condition Setting Click or tap the When toggle button to select "In Limits" or "Out Limits". \- In Limits: when the voltage value is inside the limited range, you can enable or disable the beeper to sound an alarm. \- Out Limits: when the voltage value is outside the limited range, you can enable or disable the beeper to sound an alarm. • Upper/Lower Limit Setting Click or tap the input field of Upper, then use the pop-up numeric keypad to set the upper limit of the voltage or use the corresponding multipurpose knob to set the value. Click or tap the input field of Lower, and then use the pop-up numeric keypad to set the lower limit of the voltage or use the corresponding multipurpose knob to set the value.11.1.2 Remove the Measurement
Click or tap the "DVM" label in the "Result" bar and a window is displayed. Click or tap Remove to disable DVM measurements and clear the measurement results. You can also click or tap Remove in the DVM setting menu to disable the function.11.2 Frequency Counter
The frequency counter analysis function provides frequency, period, or edge event counter measurements on any analog channel. You can enable the counter in the following ways: - Click or tap > Counter to enable the counter. - Click or tap the Counter button on the toolbar to enable the counter. - Press the front-panel key and then select Counter in the displayed "Analyse" menu to enable the counter. After the counter is enabled, the "Counter" label displaying the counter measurement results appears in the "Result" bar at the right section of the screen, as shown in the figure below. You can set the Statistic switch to "ON" in "Counter" menu to enable the statistical results. You can refer to Statistics Results.  You can click or tap the "Counter" label in the "Result" bar and select Reset Stat., Setting, or Remove in the displayed window.11.2.1 Measurement Settings
After the frequency counter is enabled, click or tap the "Counter" label in the "Result" bar at the right section of the screen and a window is displayed. Click or tap Setting in the window to enter the counter setting menu, as shown in the figure below.  Figure 11.2 Frequency Counter Setting MenuSelect the Measurement Source
Click or tap the drop-down button of Source to select the desired source. Analog channels (CH1-CH4) and EXT (for two-channel models only) can be selected as the source of the frequency counter.Set Resolution
For Period and Frequency measurements, you need to set the readout resolution. Click or tap the input field of Resolution to set the resolution by using the pop-up numeric keypad. You can also use the corresponding multipurpose knob to set the value. The range of resolution is from 3 bits to 6 bits. By default, it is 4 bits. The greater the resolution, the longer the gate time. In this way, the measurement time will be longer.Select the Measurement Item
In the Measure item, you can select the desired measurement item. Available options include Frequency, Period, and Totalize. Wherein, Totalize indicates the count of edge events on the signal.Clear Count
When "Totalize" is selected as the measurement item, the oscilloscope measures the count of edge events on the signal. At this time, click or tap Clear Count to clear the measurement results and start the measurements again.Statistics Results
When "Frequency" or "Period" is selected, click or tap the Statistic on/off switch to turn on/off displaying all statistical items. When enabled, all the statistical results will be displayed in the "Counter" label in the "Result" bar.11.2.2 Reset Statistics
Click or tap the "Counter" label in the "Result" bar at the right section of the screen and a window is displayed. Click or tap Reset Stat. in the window to reset the statistics.11.2.3 Remove the Measurement
Click or tap the "Counter" label in the "Result" bar at the right section of the screen and a window is displayed. Click or tap Remove to clear the measurement results. The "Counter" label disappears from the "Result" bar accordingly. You can also click or tap Remove in the counter setting menu to disable the function.12 Histogram Analysis
The histogram analysis function can provide the statistic view for waveform and measurement results, enabling you to judge the trend of waveforms, and quickly locate the potential problems of the signal. This series oscilloscope supports histogram types including Horizontal, Vertical, and Measure. For the Measure Histogram function, refer to Histogram of the "Measurements" chapter. This chapter only introduces the Horizontal and Vertical histogram. Click or tap the function navigation icon 🎨 and select Histogram to enter the Histogram menu.  Figure 12.1 Histogram Menu12.1 To Enable or Disable the Histogram Function
In Histogram menu, click or tap the Enable on/off switch to enable or disable the histogram analysis. After the histogram function is enabled, with the on-going acquisition and measurement of the waveforms, the height of the bar graph will change within the set range of the histogram window to indicate the number of times for data statistics. Take horizontal histogram as an example. After the histogram function is enabled, the histogram analysis view as shown in the figure below is displayed on the screen. Also, the "Histogram" label appears on the Result bar at the right side of the screen.  Figure 12.2 Histogram Analysis Interface When the histogram function is enabled, you can click or tap the "Histogram" label > Setting to open the histogram setting menu. You can also click or tap the histogram plot area to quickly open the histogram setting menu. TIP
For definitions of the measurement items in the "Histogram" label, refer to Histogram Analysis Results.12.2 To Select the Histogram Type
In the Histogram menu, click or tap the Type drop-down button to select the histogram type. • Horizontal: displays the number of times for statistics making in the forms of columns in the histogram bar graph at the bottom of the graticule. - Vertical: displays the number of times for statistics making in the forms of rows in the histogram bar graph at the left of the graticule.12.3 To Select the Histogram Source
In the Histogram menu, Click or tap the Source drop-down button to select the desired source. The analog channels (CH1-CH4) can be selected to be the histogram source.12.4 To Set the Histogram Height
The histogram height indicates the number of grids the histogram bar graph should use on the screen. In Histogram menu, click or tap the input field of Height, and then use the pop-up numeric keypad to set the height. It ranges from 1 div to 4 div, and the default is 2 div.12.5 To Set the Histogram Range
You need to set the histogram window range. Adjust the size and position of the histogram window by setting the "Left Limit", "Right Limit", "Top Limit", and "Bottom Limit" respectively. - Click or tap the Left Limit input field and use the pop-up numeric keypad to set the value. You can also use the corresponding multipurpose knob to set the value. - Click or tap the Right Limit input field and use the pop-up numeric keypad to set the value. You can also use the corresponding multipurpose knob to set the value. - Click or tap the Top Limit input field and use the pop-up numeric keypad to set the value. You can also use the corresponding multipurpose knob to set the value. - Click or tap the Bottom Limit input field and use the pop-up numeric keypad to set the value. You can also use the corresponding multipurpose knob to set the value. NOTE
Adjusting the horizontal time base or vertical scale will not affect the histogram limit range, but only shows variation with the scale. TIP
You can also drag the histogram window in white to adjust the window's size and position.12.6 Histogram Analysis Results
After the histogram analysis function is enabled, the "Histogram" label will be displayed in the Result sidebar, as shown in the figure below. Note that when the histogram type is set to Histogram, the statistical data results also include the parameter XScale.  Figure 12.3 Histogram Analysis Results - Sum: indicates the sum of all bins (buckets) in the histogram. • Peaks: indicates the maximum number of hits in any single bin. • Max: indicates the maximum value. - Min: indicates the minimum value. - Pk_Pk: indicates the Delta (Max-Min) between the max. value and the min. value. • Mean: indicates the average value of the histogram. • Median: indicates the median value of the histogram. - Mode: indicates the mode value of the histogram. - Bin width: indicates the width of each bin (bucket) in the histogram. • Sigma: indicates the standard deviation of the histogram. - XScale: indicates the horizontal scale of the histogram. It is 100 times the value of Bin width.12.7 To Remove Results
- Click or tap the "Histogram" label in the Result sidebar and a window is displayed. Click or tap Remove in the window to remove measurement results and disable the histogram function. - In the "Result" bar at the right side of the screen, drag the "Histogram" label to the right to quickly remove results and disable the histogram function.12.8 To Clear Statistics
Click or tap the "Histogram" label in the Result sidebar and a window is displayed. Click or tap Clear in the window to clear all statistical data and restart to make statistics.13 Reference Waveform
This series oscilloscope provides 10 reference waveform positions (Ref1-Ref10). In the actual test process, you can compare the signal waveform with the reference waveform to locate the failure.13.1 To Enable Ref Function
You can access the Ref menu in the following ways. \- Click or tap the function navigation icon at the lower-left corner of the screen, and then select Ref to enter the reference waveform function menu. \- Press the front-panel Ref key to enter the reference waveform function menu.  Figure 13.1 Reference Waveform Menu When the Ref function is enabled, you can select different colors for reference waveforms, set the source of each reference channel, adjust the vertical scale and offset of the reference waveform, save the reference waveform to the internal or external memory, and recall it when necessary.13.2 To Set the Reference Waveform
In the Ref menu, you can specify a channel to serve as the reference channel. You can save or clear the reference channel.Select the Reference Channel
Click or tap the drop-down button of Current to select the reference waveform channel (Ref1-Ref10). By default, Ref1 is enabled.Select the Ref Source
Click or tap the drop-down button of Source to select the desired reference waveform source (CH1-CH4 or Math1-Math4).Save the Reference Waveform to Internal Memory
Click or tap SaveToRef to save the displayed waveform for the specified source to the internal memory as the reference waveform. CAUTION
This operation only saves the reference waveform to the volatile memory, and the waveform will be cleared at power-off or restored to the default settings. If you want to store reference waveforms that can be recalled when necessary, please export the waveform to internal or external memory (Export to Internal or External Memory)Clear the Specified Reference Waveform
Click or tap Clear to clear the specified reference waveform for the "current channel". You can also click or tap the Clear button in the function navigation menu or press the front-panel key to clear the reference waveforms of all the reference channels.13.3 To Set the Ref Waveform Display
After clicking or tapping SaveToRef, you can adjust the vertical scale and offset of the reference waveform specified in Current.Modify the Vertical Scale
Click or tap the input field of VScale, and then use the pop-up numeric keypad to set the vertical scale of the reference waveform. You can directly click or tap the icons  at the right side of the input field of VScale to increase or decrease the vertical scale value. You can also use the corresponding multipurpose knob to adjust the scale. Modify the Vertical Offset
Click or tap the input field of VOffset, and then use the pop-up numeric keypad to set the vertical offset of the reference waveform. You can directly click or tap the Up and Down arrow icons ▲ at the right side of the input field of VOffset to increase or decrease the vertical offset value. You can also use the corresponding multipurpose knob to adjust the offset. Restore the Reference Waveform
If you have adjusted the vertical scale and offset for the specified reference waveform of the current channel, to reset the reference waveform to the position where the source channel stays prior to the SaveToRef operation, click or tap Reset.Set the Reference Waveform Color
This series oscilloscope provides five colors (gray, green, light blue, red, and orange) to mark the reference waveforms of different channels in order to distinguish them. Click or tap the drop-down button of Color to select the color of the reference waveform of the channel.Set the Reference Waveform Label
Click or tap the Label on/off switch to enable or disable the label display of the specified reference waveform. Click or tap the input field of Label to set the label of the specified reference channel with the pop-up numeric keypad.13.4 Export and Import Operation
Export to Internal or External Memory
You can save the current reference waveform to the internal memory or external USB storage device. The file format of the reference waveform is "*.ref", "*.bin", or "*.csv". Click or tap Export to enter the reference waveform file saving interface.- Set the Format
In the file saving interface, click or tap the drop-down button of Format to select "*.ref", "*.bin", or "*.csv" as the saving format.- Set the Filename
Click or tap the input field of File Name to set the filename with the pop-up virtual keypad. For how to use the keypad, refer to descriptions in Parameter Setting Method.- Set the Save Path
Click or tap the File Path input field, then the disk management menu is displayed. Through the disk management menu, you can save the current reference waveform to the internal memory or external USB storage device. Then click or tap Save to complete the save operation. For details about the disk management operation, refer to the Disk Management section in Store and Load. TIP
- Only when the reference waveform is saved, can this export function be valid. - For the ".bin" format file, refer to Binary Data Format (.bin).Import from Internal or External Memory
You can import the stored reference waveform file from the internal memory or external USB storage device to the instrument and display the file on the screen. Click or tap Import to enter the reference waveform file loading interface.- Set the Format
The file format of the reference waveform is specified as "*.ref" which is displayed in Format.- Set the Load Path
Click or tap the input field of File Path, then the disk management interface is displayed. Through the disk management menu, you can load the current reference waveform to the waveform view of the oscilloscope. Then click or tap Load to complete the load operation. For details about the disk management operation, refer to the Disk Management section in Store and Load.14 Pass/Fail Test
During the product design and manufacturing process, you usually need to monitor the variations of the signal or judge whether the product is up to standard. This series oscilloscope can accomplish this task perfectly with its standard pass/fail test function. You can use this function to define the mask based on "standard" waveforms. It compares the signal under test with the mask and displays the test results. When the pass/fail status is detected, you can choose to stop monitoring, sound an alarm with the beeper, or save the current screen image. Click or tap the function navigation icon 🎨 at the lower-left corner of the screen to open the function navigation. Then click or tap the Pass/Fail button to enter the "PassFail" setting menu. You can also press the front-panel Analyse key and select Pass/Fail to enter the "PassFail" setting menu. The menu is as shown in the figure below.  Figure 14.1 PassFail Menu Click or tap to minimize the "PassFail" menu to simplify the display, as shown in the figure below.  Figure 14.2 PassFail Menu-Simplified14.1 To Enable or Disable the Pass/Fail Test Function
In the "Pass/Fail" setting menu, click or tap the Enable on/off switch to enable or disable the pass/fail test function. You can select the source, create mask, and set test result output only after the pass/fail test function is enabled.14.2 To Select the Source
Click or tap the drop-down button of Source to select the desired source. The available output channels include CH1-CH4. TIP
When a disabled channel is selected as the source, it will be automatically turned on.14.3 To Create a Mask
In the Pass/Fail menu, you can self-define the mask of the pass/fail test. The mask can be imported or exported.Create a Mask
Click or tap X Mask and Y Mask input fields respectively to set the horizontal tolerance range and vertical tolerance range with the pop-up numeric keypad. You can also use the icons at the right side of the input fields or use the corresponding multipurpose knob to set the values. Then click or tap Create to apply the currently created mask (the region not covered by blue within the screen).Save the Mask
When the pass/fail test function is enabled, you can save the current test mask range to the internal memory or an external USB storage device (when detected) in "*.pf" format. Click or tap Save to enter the file saving interface. Click or tap the input field of File Name and File Path to input the filename and select the desired file path to save the test mask file to the internal or external memory. For details, refer to the Disk Management section in Store and Load.Load a Mask
When the pass/fail test function is enabled, you can load the test mask files from the internal memory or an external USB storage device (when detected) and apply them to the current pass/fail test function. Click or tap Load to enter the file loading interface. Click or tap the input field of File Path to load the specified test mask files (in *.pf format) and apply them to the current pass/fail test function. For details, refer to the Disk Management section in Store and Load.14.4 To Set the Output Form of the Test Results
In Option, you can set what the oscilloscope will execute when test results are detected according to your needs.Set the output event and Aux output
- Click or tap the Aux Output on/off switch to enable or disable the Aux output. When enabled, in the Utility menu, the sub-menu AUX Out of Setup is automatically set to "PassFail". When a successful or failed event is detected, a pulse will be output from the rear-panel [AUX OUT] connector. When disabled, the sub-menu AUX Out of Setup in the Utility menu is automatically set to "TrigOut", and the output of the [AUX OUT] connector is irrelevant with the pass/fail test. - Select "Pass" or "Fail" in Output Event. When a "pass" or "fail" event is detected, a pulse will be output from the rear-panel [AUX OUT] connector.Set the output polarity and output pulse width
Select "Positive" or "Negative" in Polarity, then click or tap the input field of Pulse to set the pulse width with the pop-up numeric keypad. You can also use the corresponding multipurpose knob to set the value. Its range is from 100 ns to 10 ms. By default, it is 1 µ s.Set the error action
In Err Action, select one operation that the oscilloscope will execute once a pass/fail test is detected. - Stop: stop sampling when a failed event is found. - Beeper: the beeper sounds an alarm when a failed event is found (irrelevant with the on/off status of the beeper). - Screenshot: perform the screenshot operation when a failed event is found. If an external storage device is detected, the screenshot will be saved to the external storage device directly. Otherwise, it will be saved to the local disk. If "Screenshot" is selected, "Stop" action will be executed forcibly. The sampling stops automatically. After the screenshot operation is completed, the sampling will continue.14.5 To Start or Stop the Pass/Fail Test Operation
After the Pass/Fail test function is enabled, click or tap the Operate button to start the test operation or to stop the operation. During the test process, the oscilloscope will test the waveforms, display the test information, and output the test information based on the current settings. The "Pass/Fail" result will be displayed in the "Result" bar at the right side of the screen, as shown in the figure below.  Figure 14.3 Pass/Fail Test Interface TIP
- Only when the pass/fail test function is enabled, can you start or stop the pass/fail test operation, save and load the mask range. • After starting the test operation, you can neither modify the source channel nor adjust the test mask.14.6 To Display the Statistics of the Test Results
After the "Pass/Fail" function is enabled, the test results will be displayed in the "Result" bar at the right side of the screen. You can click or tap the icon ▶ the lower-right corner of the screen to hide the "Result" sidebar. The test results statistics include the number of failed frames, the number of successful frames, and total number of frames, as shown in the figure below.  Click or tap the "Pass/Fail" label and a window is displayed for you to perform the following operations. - Click or tap Reset Stat., and then the statistics in the "Pass/Fail" label will be reset to 0. - Click or tap Setting, and then the PassFail setting menu is displayed. - Click or tap Remove, and then the pass/fail function is disabled.15 Protocol Decoding
