TR702G84G - Tumble drier AEG - Free user manual and instructions
Find the device manual for free TR702G84G AEG in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Tumble Dryer |
| Brand | AEG |
| Model | TR702G84G |
| Installation Type | Freestanding |
| Loading Type | Front Load |
| Drying System | Heat Pump |
| Capacity | 7 kg |
| Energy Efficiency Class | A++ |
| Annual Energy Consumption | 235 kWh |
| Dimensions (H x W x D) | 85 cm x 60 cm x 60 cm |
| Weight | 42 kg |
| Power Supply | 220-240 V, 50 Hz |
| Rated Power | 800 W |
| Noise Level | 65 dB |
| Number of Programs | 15 |
| Key Programs | Cotton, Synthetics, Delicates, Wool, Mixed, Quick 30min, Sports, Bed Linen, Shirts, Jeans |
| Special Features | ProSense Technology, FragranceDose, Timed Drying, Anti-Crease, Delay Start |
| Lint Filter Type | Micron filter |
| Condenser Self-Cleaning | Yes (AutoClean) |
| Safety Features | Child Lock, Overheat Protection, Anti-Vibration |
| Reparability Index | 7.5/10 |
| Spare Parts Availability | 7 years minimum |
| EAN / GTIN | 7332543651234 |
Frequently Asked Questions - TR702G84G AEG
How do I properly install the AEG TR702G84G tumble dryer?
Ensure the dryer is placed on a solid, level floor. Leave at least 5 cm clearance around the sides and rear for ventilation. Connect the power cord to a properly grounded outlet. If using a drain hose, secure it to a drain pipe or sink outlet. After installation, run a short program to check for any issues.

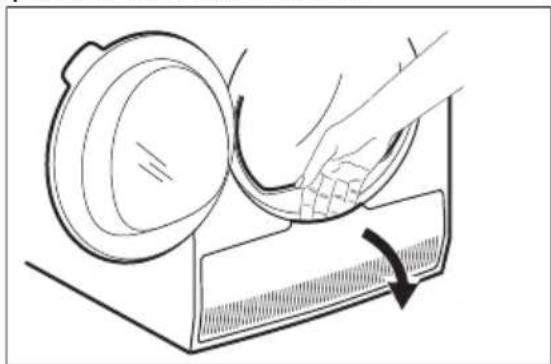

What is the best way to clean the lint filter?
After each drying cycle, open the door and remove the lint filter. Use your hand to wipe off the lint, or rinse it under running water. Allow the filter to dry completely before reinserting. For thorough cleaning, you can use a soft brush.
How do I use the ProSense technology?
ProSense automatically adjusts the cycle time and energy consumption based on the load size and moisture level. Simply select the desired drying program and load the drum. The dryer will sense the load and optimize the cycle for efficient drying without over-drying.
What does the FragranceDose feature do?
The FragranceDose system automatically adds fabric fragrance during the drying cycle. You can fill the dispenser with a compatible AEG fragrance capsule or liquid. It provides a long-lasting fresh scent to your laundry.
Why is my laundry not drying completely?
Check if the lint filter is clogged, the condenser needs cleaning, or the load is too large for the selected program. Also ensure there is adequate ventilation around the dryer. Try using the Cotton Extra Dry program for more thorough drying.

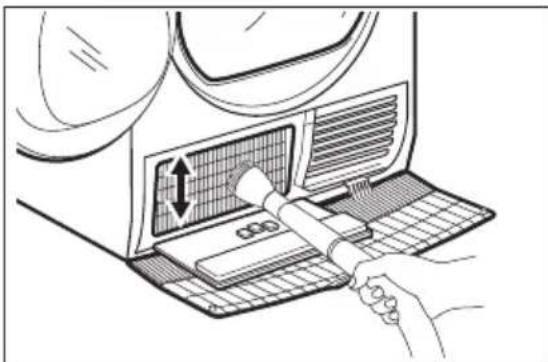

How often should I clean the condenser?
The AEG TR702G84G has a self-cleaning condenser (AutoClean). However, we recommend manually cleaning the condenser unit every 6 months or if you notice reduced performance. Follow the manual instructions to access and rinse the condenser with water.
Can I dry delicate items like silk or wool?
Yes, the dryer has specialized programs for delicates and wool. Use the Delicates program for low-heat drying of synthetics and delicate fabrics, and the Wool program for wool items. Always check garment labels for care instructions.
How do I set a delayed start?
Press the Delay Start button to set a time delay from 1 to 24 hours. Use the + or - buttons to adjust the time, then press Start. The dryer will begin at the set time. This is useful for finishing drying exactly when you need it.
What should I do if the dryer stops mid-cycle?
First, check if the door is properly closed. Then check the lint filter and condenser for blockages. Ensure the power supply is stable. If the issue persists, a safety feature may have been triggered (e.g., overheat). Reset the dryer by unplugging it for 1 minute, then restart. Contact AEG service if the problem continues.
How can I reduce energy consumption with this dryer?
Use the ProSense feature to avoid over-drying. Spin clothes at high speed in the washing machine before drying. Select the Quick 30min program for small loads. Keep the lint filter and condenser clean. Dry full loads but do not overload the drum.
