WP60S3 - Tumble dryer GORENJE - Free user manual and instructions

Product Type	Tumble Dryer
Brand	Gorenje
Model	WP60S3
Installation Type	Freestanding
Energy Efficiency Class	B
Capacity	6 kg
Drying System	Vented
Drum Material	Stainless Steel
Noise Level	65 dB(A)
Dimensions (H x W x D)	85 x 59.5 x 54 cm
Weight	37 kg
Power Consumption	2000 W
Voltage	220-240 V
Frequency	50 Hz
Drying Programs	Cotton, Synthetics, Mix, Delicates, Quick 30', Time Dry
Control Type	Electronic with LED Display
Safety Features	Child Lock, Overheat Protection, Door Lock
Lint Filter	Removable, Clean after each cycle
Warranty	2 Years
Included Accessories	Vent Hose, User Manual

Frequently Asked Questions - WP60S3 GORENJE

How do I clean the lint filter on my Gorenje WP60S3?

Open the door, pull the lint filter out from the bottom of the door opening. Remove lint by hand or with a soft brush. Rinse under running water if necessary, dry thoroughly, and reinsert. Clean after every cycle.

What should I do if the dryer doesn't start?

Check if the door is fully closed and locked. Ensure the power cord is plugged in and the circuit breaker is on. Verify the child lock is not activated. If still not starting, consult the manual.

Why is my Gorenje WP60S3 not heating?

Possible causes: clogged lint filter, blocked vent hose, or faulty heating element. First clean the lint filter and check the vent for obstructions. If problem persists, a technician may need to replace the heating element.

How do I activate the child lock on this dryer?

Press and hold the Start/Pause button for 3-5 seconds until a lock symbol appears on the display. To deactivate, repeat the process. The child lock prevents accidental changes during a cycle.

What is the maximum load capacity for the cotton program?

The maximum capacity is 6 kg for cotton items. Overloading can reduce drying efficiency and cause wear. Always fill loosely for best results.

Can I dry delicates in this dryer?

Yes, select the Delicates program which uses lower heat and gentle drum movement. Always check garment labels and use a drying rack if needed.

How often should I clean the moisture sensor?

Clean the moisture sensors inside the drum every month with a soft cloth to remove limescale or residues. This ensures accurate drying time detection.

What does the error code 'F01' mean?

Error code F01 typically indicates a problem with the door lock system. Ensure the door is closed properly. If it persists, the lock mechanism may need replacement.

Why is the dryer very noisy?

Noise may be due to loose items in pockets, unbalanced load, or hard objects hitting the drum. Stop the cycle, check for foreign objects, and redistribute the laundry. If noise continues, check for worn drum bearings.

How do I install the vent hose for vented drying?

Attach one end of the vent hose to the dryer's rear outlet and the other to a permanent ventilation opening or a window adapter. Ensure the hose is not kinked and is at least 1 meter long. Secure with clamps.

USER MANUAL WP60S3 GORENJE

Life is complicated today. Let's make laundry care simple! Your new WaveActive washing machine uses innovative technology and the latest achievements in laundry care to help you simplify your daily household chores. WaveActive technology offers the gentlest care for any garment, with minimum creasing. At the same time, your washing machine will be easy on the environment, owing to its highly efficient use of power, water, and detergent.

This washing machine is intended solely for household use. Please do not use it for any laundry labeled as not suitable for machine washing.

The following symbols are used throughout the manual and they have the following meanings:

Information, advice, tip, or recommendation

Warning – general danger

Warning – danger of electric shock

Warning – danger of hot surface

Warning – danger of fire

It is important that you carefully read the instructions.

CONTENTS

4 SAFETY PRECAUTIONS	INTRODUCTION
10 WASHING MACHINE DESCRIPTION
11 Technical specifications
12 Control unit
14 INSTALLATION AND CONNECTION	PREPARINGTHE WASHINGMACHINEBEFORE FIRSTUSE
14 Removing the blocking rods
15 Moving and transport after installation
16 Selecting the room
16 Adjusting the washing machine feet
17 Washing machine placement
19 Connecting to water supply
20 Aqua - stop
20 Total aqua - stop
21 Connecting and securing the water discharge hose
23 Connecting the appliance to the power mains
24 BEFORE USING THE APPLIANCE FOR THE FIRST TIME
25 WASHING PROCESS, STEP BY STEP (1-7)	STEPS OFTHE WASHINGPROCESS
25 Step 1: Heed the labels on the laundry

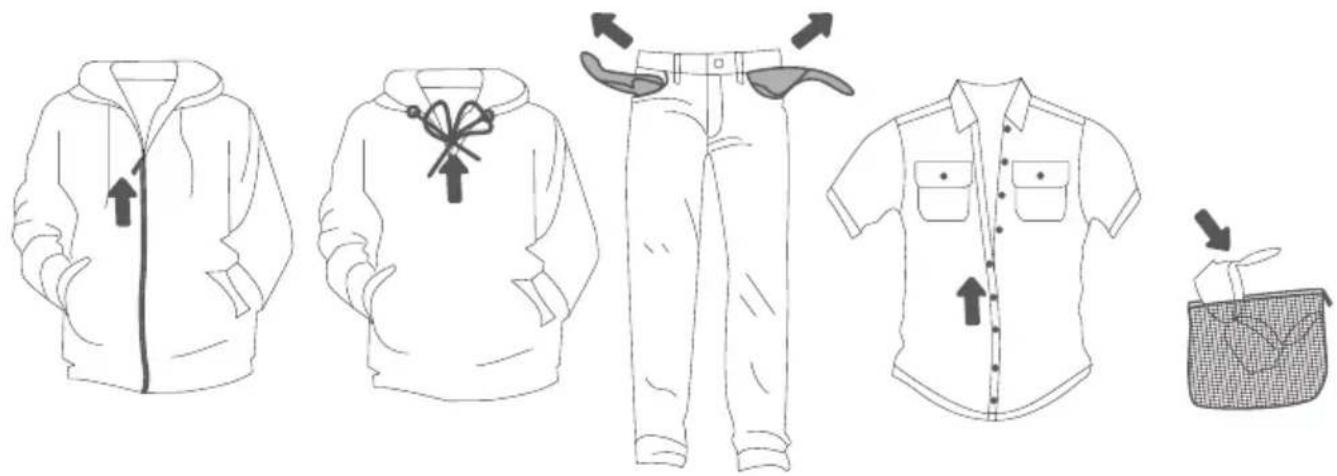

26 Step 2: Preparing the washing process
28 Step 3: Choosing the washing programme
32 Step 4: Choosing the settings
35 Step 5: Selecting additional functions
37 Step 6: Starting the washing programme
38 Step 7: Change of washing programme or manual (physical) cancellation
39 Step 8: End of the washing programme
40 INTERRUPTIONS AND CHANGING THE PROGRAMME
43 MAINTENANCE & CLEANING	WASHINGMACHINECLEANING ANDMAINTENANCE

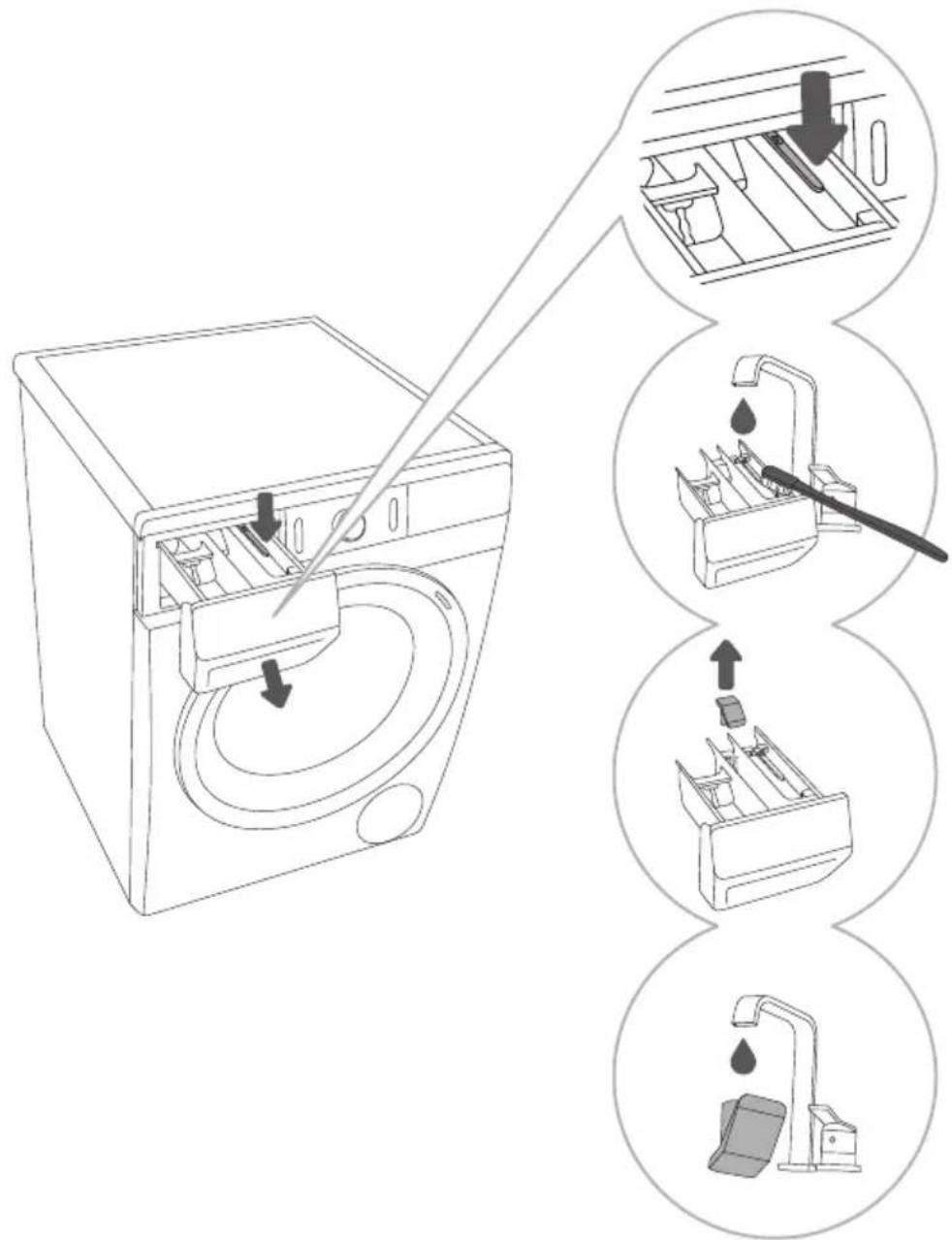

43 Cleaning the dispenser tray
44 Cleaning the water supply hose, detergent dispenser housing, and rubberdoor gasket

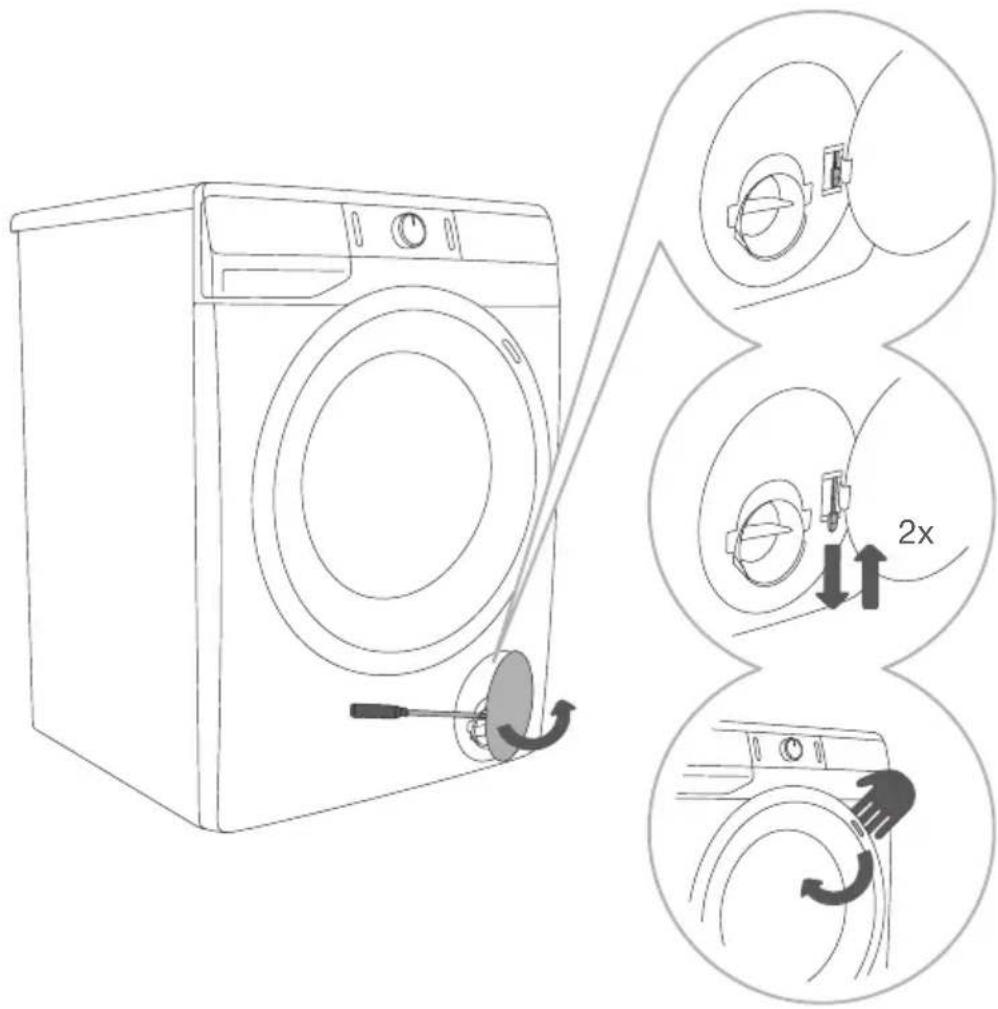

45 Cleaning the pump filter
46 Cleaning the washing machine exterior
47 TROUBLESHOOTING	TROUBLE-SHOOTING
47 What to do ...?
48 Troubleshooting and error table
51 Servicing
52 RECOMMENDATIONS FOR WASHING AND ECONOMIC USE YOURWASHING MACHINE	MISCELLANE-OUS
56 Stain removal tips
58 DISPOSAL
59 PROGRAM DURATION AND SPINNING RATE TABLE

SAFETY PRECAUTIONS

Carefully read the instructions for use before using the washing machine.

Please, do not use the washing machine without reading and understanding these instructions or use first.

These instructions for use of a washing machine are supplied with different types or models of washing machines. Therefore, they may include descriptions of settings or equipment that are not available in your washing machine.

Failure to observe the instructions for use or inappropriate use of the washing machine may result in damage to the laundry or the appliance, or injury to the user. Keep the instruction manual handy, near the washing machine.

Instructions for use are available on our website at www.gorenje.com.

Your washing machine is intended solely for household use. If the washing machine is used for professional, for-profit purpose or purpose exceeding normal use in a household, or if the washing machine is used by a person who is not a consumer, the warranty period shall be equal to the shortest warranty period required by relevant legislation.

Follow the instructions for correct installation of the Gorenje washing machine and connection to the water and power mains (see chapter »INSTALLATION AND CONNECTION«).

Connection to water and power supply has to be executed by an adequately trained technician or expert.

Any repair and maintenance pertaining to safety or performance should be done by trained experts.

To avoid danger, a damaged power cord may only be replaced by the manufacturer, a service technician, or an authorized person.

Before connecting the washing machine to the power mains, wait for at least 2 hours until it reaches room temperature.

In case of a defect, only use approved spare parts by authorized manufacturers.

In case of incorrect washing machine connection, incorrect use, or servicing by an unauthorized person, the user shall bear the cost of any damage as such damage shall not be covered by warranty.

The washing machine may not be connected to the power mains using an extension cord.

Do not connect the washing machine to power mains using an external switching device such as a programme timer, or connect it to power mains that is regularly switched on and off by the power supply provider.

Do not connect the washing machine to an electrical outlet intended for an electric shaver or hair dryer.

Do not install the washing machine in a room where the temperature can drop to below 5°C, as washing machine parts may be damaged in case of water freezing.

Place the washing machine on a level and stable solid (concrete) base.

If the washing machine is placed on an elevated stable base, the washing machine has to be additionally secured against tipping.

Before the first use of the washing machine, remove the blocking rods, as switching on a blocked washing machine can result in serious damage (see chapter "INSTALLATION AND CONNECTION/Removing the blocking rods"). Warranty shall be void in cases of such damage.

To connect the washing machine to the water supply, make sure to use the supplied water supply hose and gaskets. Water pressure has to be between 0.05 and 0.8 MPa (0.5 – 8 bar).

Always use a new water supply hose to connect the washing machine to the water supply; do not reuse an old water supply hose.

The end of the water discharge hose should reach into a water drain line.

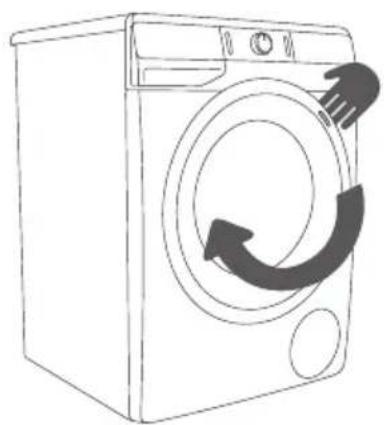

Before the start of the washing cycle, press the door on the indicated spot until it locks into place. The door cannot be opened during washing machine operation.

We recommend removing any impurities from the washing machine drum before the first wash using the Cotton 90°C programme (see PROGRAMME TABLE).

After the washing cycle, close the water tap and pull out the washing machine plug from the power socket.

Clean the filter whenever the symbol 📋 appears on the display unit.

Only use the washing machine for washing laundry, as described in the instruction manual. The machine is not intended for dry cleaning.

Only use agents for machine washing and care of laundry. We shall not be responsible for any damages or discolouration of gaskets and plastic parts resulting from incorrect use of bleaching or colouring agents.

When descaling, only use descaling agents with added anti-corrosion protection. (Only use non-corrosive descaling agents.) Follow the manufacturer's instructions. Finish the descaling process with several rinse cycles or by running the Steril tub (Self-cleaning programme) in order to remove any residual acid (e.g. vinegar etc.).

Do not use detergents that contain solvents as this could lead to release of poisonous gases, damage to the washing machine, and risk of fire and explosion.

No silver ions are released during the washing programme.

The washing machine is not intended for use by persons (including children) with physical or mental impairments, or persons with lacking experience and knowledge. These persons should be instructed about the use of the washing machine by a person responsible for their safety.

The warranty does not cover consumables, minor deviations in colour, increased noise that results from appliance age and which does not affect the functionality of the appliance, and aesthetic defects on components, which do not affect the functionality and safety of the appliance.

CHILD SAFETY

Before closing the washing machine door and running the programme, make sure there is nothing except laundry in the drum (e.g. if a child climbed into the washing machine drum and closed the door from the inside).

Keep the detergent and conditioner out of reach of children.

Activate the child lock. See chapter »CHOOSING THE SETTINGS/Child lock«.

Do not let children younger than three years come near the appliance, unless they are under constant supervision.

The washing machine is made in compliance with all relevant safety standards.

This washing machine may be used by children aged 8 years and above and by persons with reduced physical,

sensory or mental capabilities or lack of experience and knowledge, but only if they are supervised during the use of the washing machine, if they have been provided relevant instructions regarding safe use of the washing machine, and if they understand the hazards of inappropriate use. Make sure children do not play with the appliance. Children may not clean the washing machine or perform any maintenance tasks without supervision.

DANGER OF HOT SURFACE

At higher washing temperatures, the door glass will heat up. Be careful to avoid burns. Make sure children do not play near the door glass.

WATER OVERFLOW PROTECTION (WITH WASHING MACHINE SWITCHED ON) ⚠️

If the water level in the appliance rises above normal level, then the excess water level protection will be activated. It will shut off the water supply and start pumping out the water. The program is interrupted and an error is reported (see TROUBLESHOOTING TABLE).

TRANSPORT/TRANSPORT AFTER INSTALLATION

If you intend to move the washing machine after it has been installed, then it should be blocked by inserting at least one blocking rod (see chapter »INSTALLATION AND CONNECTION/Moving and transport«). Before inserting the blocking rods, disconnect the washing machine from the power mains!

WASHING MACHINE DESCRIPTION

1 Control unit 2 Start/pause button 3 Programme selector knob 4 On/off/reset button 5 Dispenser tray 6 Door 7 Rating plate 8 Pump filter

1 Water supply hose 2 Power cord 3 Water discharge hose 4 Adjustable feet

TECHNICAL SPECIFICATIONS

(DEPENDING ON THE MODEL)

Rating plate with basic information about the washing machine is fitted on the front wall of the washing machine door opening (see chapter »WASHING MACHINE DESCRIPTION«).

Maximum load See rating plate
Width 600 mm 600 mm 600 mm
Height 850 mm 850 mm 850 mm
Washing machine depth (a) 430 mm 465 mm 545 mm
Depth with door closed 462 mm 495 mm 577 mm
Depth with door open (b) 947 mm 980 mm 1062 mm
Washing machine weight X kg (depending on the model)
Rated Voltage See rating plate
Nominal power See rating plate
Connection See rating plate
Water pressure See rating plate
Current See rating plate
Frequency	See rating plate

Rating plate

TYPE: PS15/XXXXX MODEL: XXXXXX.X

Art.No.: XXXXXX Ser.No.: XXXXXXXX IPX4

220-240 V \~ XX Hz ☐ XX A Pmax.: XXXX W

XXXX W XXXX/min X kg 0,05-0,8 MPa

MADE IN SLOVENIA

CONTROL UNIT

1 ON/OFF/RESET BUTTON

Use this button to turn the washing machine on and off, and to reset the washing programme.

2 PROGRAMME SELECTOR KNOB

3 START/PAUSE BUTTON Use this button to start or pause a programme.

Upon start-up or during pause, the button backlight will flash; when the programme is started and in progress, it will be lit continuously.

4 MODE (WASHING MODE)

4a TIMECARE

4b POWERCARE

5 SPIN @SPINNING RATE 1400/DRAIN @PUMP

STOP

Option to set the spinning rate

6 CLEAN THE PUMP FILTER symbol lighting

7 CHILD LOCK symbol =0 lighting

Press the positions 4+8 and hold them for 3 seconds.

8 EXTRAS (ADDITIONAL FUNCTIONS)

8a PREWASH

8b WATER+ (HIGH WATER LEVEL)

INSTALLATION AND CONNECTION

Remove all packaging. When removing the packaging, make sure not to damage the appliance with a sharp object.

REMOVING THE BLOCKING RODS

⚠️ Before the first use of the appliance, transport rods must be removed. A blocked washing machine may be damaged when it is switched on for the first time. Warranty shall be void in cases of such damage!

1 Move the hoses and undo the screws on the back of the washing machine. Remove the two angular pieces.

2 Slide the angular pieces onto the groove in the blocking rod; before doing so, rotate the right angular piece to the opposite side.

3 Use the angular pieces to rotate the blocking rods by 90° and pull them out.

4 Cover the two holes through which the blocking rods were inserted with plastic plugs, and redo the screws that you undid in step 1. The plastic plugs are supplied in the bag with the washing machine instruction manual.

MOVING AND TRANSPORT AFTER INSTALLATION

If you wish to move the washing machine after it has been installed, the angular pieces and at least one blocking rod have to be re-installed to prevent vibration damage to the washing machine during transport (see chapter »INSTALLATION AND CONNECTION/Removing the blocking rods«). If you lost the angular pieces and the blocking rods, they can be ordered from the manufacturer. After transport, the washing machine should be left to stand still for at least two hours before it is connected to the power mains, so that it can reach room temperature. The appliance should be installed and connected by a trained technician. ⚠️ Carefully read the instructions for use before connecting the washing machine. Repair or any warranty claim resulting from incorrect connection or use of the washing machine shall not be covered by the warranty.

SELECTING THE ROOM

Floor on which the washing machine is placed must have a concrete base. It should be clean and dry; otherwise, the washing machine may slide. Also, clean the bottom surface of adjustable feet.

The washing machine must stand level and stable on a solid base.

ADJUSTING THE WASHING MACHINE FEET

Use a water scale and spanner No. 32 (for feet) and 17 (for the nut).

1. Level the washing machine in longitudinal and transverse direction by rotating the adjustable feet.

2. After adjusting the height of the feet, firmly tighten the jam nuts (counter nuts) using a spanner No. 17, by turning them towards the bottom of the washing machine ↑ (see figure).

Incorrect levelling of the washing machine with the adjustable legs may cause vibration, appliance sliding across the room, and loud operation. Incorrect levelling of the washing machine is not subject to warranty.

Sometimes, unusual or louder noise may appear during appliance operation; these are mostly the result of improper installation.

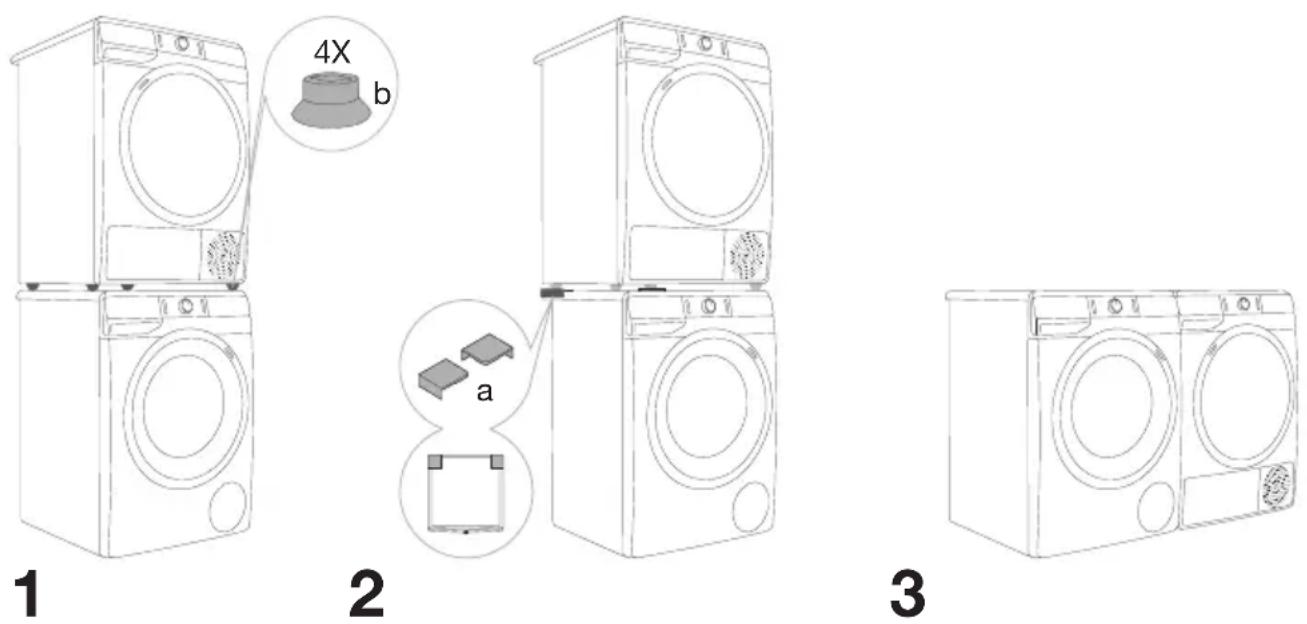

WASHING MACHINE PLACEMENT

If you also have a Gorenje dryer of corresponding (same) dimensions, it can be placed on top of the Gorenje washing machine (in this case, vacuum feet must be used) or next to it (figures 1 and 3). If your Gorenje washing machine is smaller (minimum depth 545 mm) than your Gorenje dryer, then the dryer support has to be purchased (figure 2). It is essential to use the vacuum feet! Additional equipment (dryer support (a) and vacuum feet (b)) are available for purchase at service units. The surface on which the appliance is placed should be clean and level.

The Gorenje washing machine onto which you intend to place the Gorenje dryer should hold the weight of the Gorenje dryer (see chapter »WASHING MACHINE DESCRIPTION/Technical information«).

Washing machine installation clearances

The washing machine may not be in contact with a wall or adjacent furniture. For optimum washing machine operation, we recommend observing the clearances from the walls as indicated in the figure.

In case of failure to observe the minimum required clearances, safe and correct washing machine operation cannot be ensured. Moreover, overheating can also occur (figures 1 and 2).

Installing the washing machine under a countertop is not recommended.

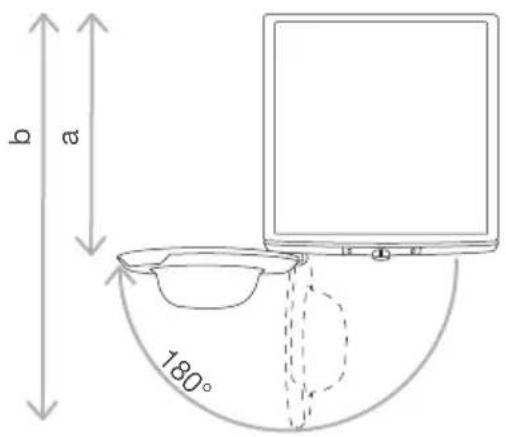

Opening the washing machine door (bird's-eye view)

See chapter »WASHING MACHINE DESCRIPTION/Technical information«).

a = Washing machine depth b = Depth with door open

Before connecting the washing machine to the power mains, wait for at least 2 hours until it reaches room temperature.

CONNECTING TO WATER SUPPLY

Attach the hose to the water tap by screwing it onto the thread.

For normal washing machine operation, the pressure in the water mains should be between 0.05 and 0.8 MPa (0.5 - 8 bar). Minimum dynamic water pressure can be determined by measuring the water flow. In 15 seconds, 3 litres of water should flow from a fully open tap.

If your model has connections for both hot and cold water, then connect one hose to the cold water supply (blue wing nut or blue mark on the hose) and the other one to the hot water supply (red wing nut or red mark on the hose), as indicated on the back of the washing machine. Connections are labelled with letters C and H (C = cold, H = hot).

Warm water (mixture of hot and cold water) is only added for programmes at 40 °C or higher.

Tighten the water supply hose by hand, firmly enough for the hose to have a good seal (max. 2 Nm). After connecting the hose, the seal must be checked for any leaks. Do not use pliers or similar tools when connecting the hose as this could damage the nut thread.

Only use the water supply hose supplied with the appliance. Do not use any used or other hoses.

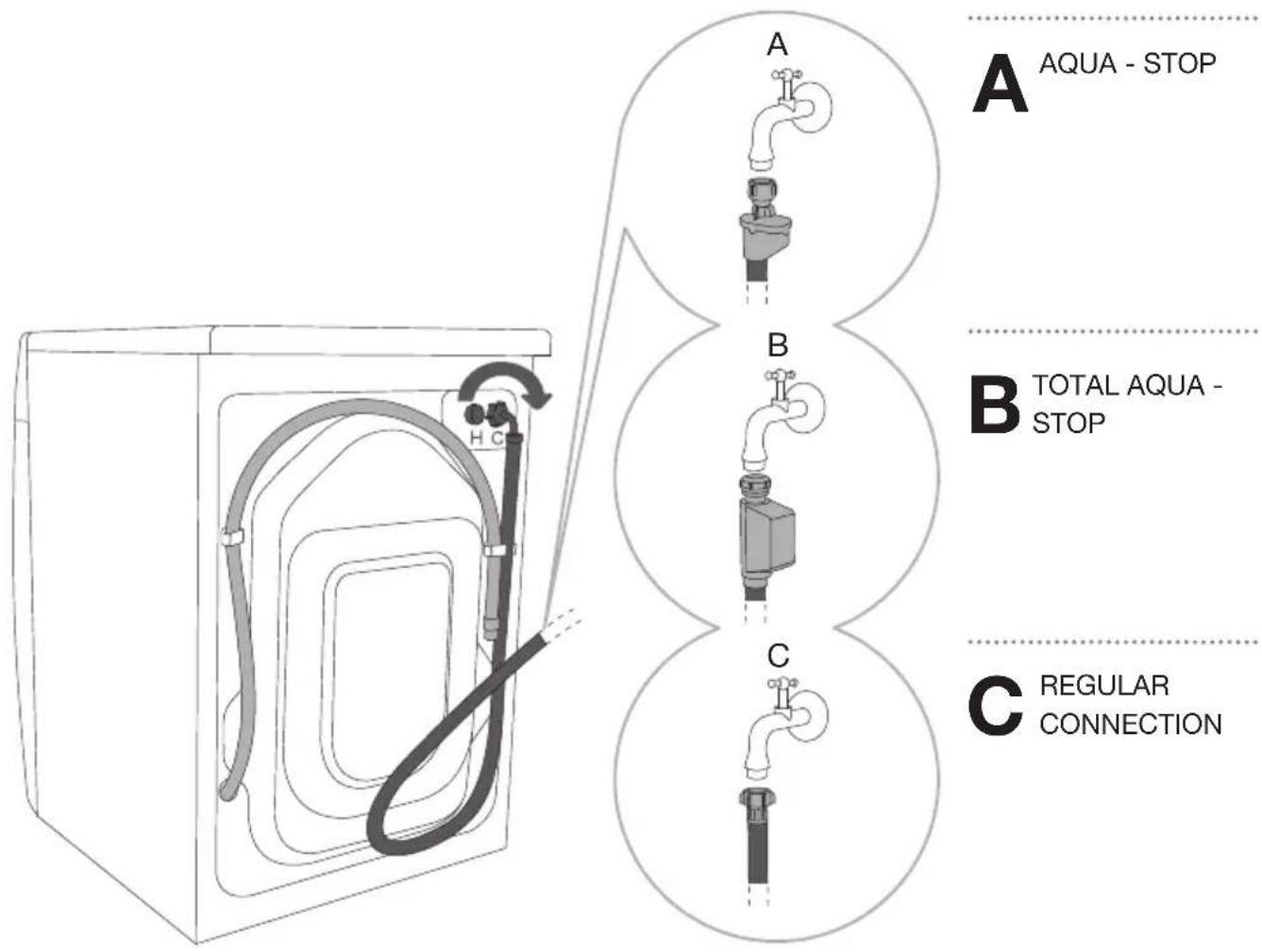

AQUA - STOP (ONLY WITH SOME MODELS)

If an internal tube or hose is damaged, a shut-off system is activated that cuts the water supply to the washing machine. In such case, the control glass (a) will turn red. Replace the water supply hose.

TOTAL AQUA - STOP (ONLY WITH SOME MODELS)

If an internal tube or hose is damaged and if water is present on the bottom of the washing machine, a shut-off system is activated that cuts the water supply to the washing machine. In this case, the washing process will be stopped, water supply will be cut off, and the washing machine will switch on the pump and signal an error.

Do not dip the water supply hose with the Aqua stop system in water as it contains an electric valve. When connecting the water supply hose, make sure to connect it in a way that allows adequate and unobstructed water supply.

CONNECTING AND SECURING THE WATER DISCHARGE HOSE

Feed the water discharge hose into a washbasin or a bathtub, or connect it directly to a drain (discharge hose minimum diameter 4 cm). The vertical distance from the floor to the end of the discharge hose may be no more than 100 cm and no less than 60 cm. It can be attached in three ways (A, B, C).

A Discharge hose end may be placed over a washbasin or a bathtub. B Use a string fed through the opening in the elbow support to attach the hose and prevent it from slipping to the floor.

B Discharge hose may also be attached directly to the washbasin drain.

C Discharge hose can also be attached to a wall drain with a trap; such trap should be properly installed to allow cleaning.

D The discharge hose has to be attached and affixed to the pin on the back of the washing machine, as shown in the figure.

If the discharge hose is not correctly attached, safe and correct washing machine operation cannot be ensured.

CONNECTING THE APPLIANCE TO THE POWER MAINS

Before connecting the washing machine to the power mains, wait for at least 2 hours until it reaches room temperature.

Connect the washing machine to a grounded power outlet. After installation, the wall outlet should be freely accessible. The outlet should be fitted with an earth contact (in compliance with the relevant regulations).

Information on your washing machine is indicated on the rating plate (see chapter »WASHING MACHINE DESCRIPTION/Technical information«).

⚠️ We recommend using over-voltage protection to protect the appliance in case of a lightning strike.

The washing machine may not be connected to the power mains using an extension cord.

Do not connect the washing machine to an electrical outlet intended for an electric shaver or hair dryer. Any repair and maintenance pertaining to safety or performance should be done by trained experts. A damaged power cord may only be replaced by a person authorized by the manufacturer.

BEFORE USING THE APPLIANCE FOR THE FIRST TIME

Make sure the washing machine is disconnected from the power mains; then, open the door towards you (figures 1 and 2).

Before first use, clean the washing machine drum with a soft moist cotton cloth and water, or use the Cotton 90°C programme. There should be no laundry in the washing machine drum; the drum should be empty (figures 3 and 4).

Do not use any solvents or cleaning agents that could damage the washing machine (please observe the recommendations and warnings provided by the cleaning agent manufacturers).

WASHING PROCESS, STEP BY STEP (1–7)

STEP 1: HEED THE LABELS ON THE LAUNDRY

Normal wash;Sensitive laundry	Max.washing temp.95°C	Max.washing temp.60°C	Max.washing temp.40°C	Max.washing temp.30°C	Hand wash only	Do not wash
Bleaching Bleaching in cool water				Bleaching not allowed
Dry cleaning Dry cleaning with all agents		Petroleum solvent R11,R113		Dry cleaning in kerosene, pure alcohol, and R113		Dry cleaning not allowed
Ironing Hot ironing,max.200°C		Hot ironing,max.150°C		Hot ironing, max.110°C		Ironing not allowed
Drying Dry flat (place on a flat surface)		Drip dryLine dry		High temperatureLow temperature		Do not tumble dry

STEP 2: PREPARING THE WASHING PROCESS

1. Sort the laundry by type of fabric, colour, soiling, and allowed washing temperature (see PROGRAMME TABLE).
2. Wash the laundry that sheds a lot of fibre or lint separately from other laundry.
3. Close the buttons and zippers, tie any ribbons, and turn the pockets inside out; remove any metal clips that could damage the laundry and washing machine interior, or clog the drain.
4. Place very sensitive clothes and small items in a special-purpose laundry washing bag. (The special purpose laundry bag is available as an optional accessory.)

SWITCHING ON THE WASHING MACHINE

Use the power cord to connect the washing machine to power mains, and connect the washing machine to water supply.

Press the (1) ON/OFF/RESET button to switch on the washing machine (figures 1 and 2).

LOADING THE WASHING MACHINE

Open the washing machine door by pulling the handle towards you (figure 1).

Insert the laundry into the drum (after making sure the drum is empty) (figure 2).

Make sure that no garment is stuck between the door and the rubber gasket. Close the washing machine door (figure 3).

1

2

3

Do not overload the drum! See PROGRAMME TABLE and observe your nominal load as indicated on the rating plate.

If the washing machine drum is too full, the laundry will not be washed as thoroughly.

STEP 3: CHOOSING THE WASHING PROGRAMME

Choose the programme by rotating the programme selector knob (2) to the left or to the right (depending on the type of laundry and how heavily soiled it is). See PROGRAMME TABLE.

During operation, the programme selector knob (2) will not rotate automatically. Washing programmes are comprehensive programmes that include all washing stages, including softening and spinning (this does not apply to Partial programmes). Partial programmes are independent programmes. Use them when you feel you do not need the entire washing programme.

PROGRAMME TABLE

Programme (depending on the model)		Max. load	Recommended amount	Programme description
[2560]	Cotton 20°C - 90°C	* MAX	[10000]	Washing programme for normally or heavily soiled laundry, white or coloured. The temperature can be set separately; therefore, observe the instructions indicated on the clothing. Choose 40°C if the laundry is only lightly dirty. Spinning speed can be set to your preference. Programme duration and amount of water will be adjusted to the amount of laundry.
[A260]	Mix (Mixed laundry/ Synthetics) 30°C - 40°C	3,5 kg	[ADKT]	Washing programme for delicate clothing made of synthetic and mixed fibres or viscose, and for simple care of cotton. Observe the instructions indicated on the clothing. Most garments made of synthetic fibres are washed at 40°C.
	Steril tub (Self-cleaning programme)	0 kg	Washing programme is used to clean the drum and to remove detergent residues and bacteria. To select the programme, rotate the programme selector knob to the left or to the right to the Steril tub (Self-cleaning programme) position. Other extra functions cannot be selected. The drum has to be empty. You can add some distilled (spirit) vinegar (approx. 2 dl) or sodium bicarbonate (1 tablespoon, or 15 g). We recommend running the programme at least once a month.
[164X]	Softening (Partial programme)	/ For softening, starching, or impregnating the washed laundry. It can also be used as a rinse programme, but without added softener. It is completed with an additional rinse. You can also choose WATER+ (HIGH WATER LEVEL) by selecting the extra function.
[8DWS]	Rinse (Partial programme)	/ Programme includes one cold rinse and a short spinning cycle. The programme is suitable for laundry that only needs rinsing, and for cleaning cloths or mops. You can also choose WATER+ (HIGH WATER LEVEL) by selecting the extra function.

* Maximum load (MAX) ** Half load (1/2) / Any load (0 kg - MAX kg)

Programme (depending on the model)		Max. load	Recommended amount	Programme description
1400	Spin/Drain (Spinning rate/Drain) (Partial programme)	/ Use the programme when you only wish to spin the laundry.If you only wish to pump out the water from the washing machine, press the SPIN (5) button to select (drain)
	Eco 40-60 * MAX Washing cycle, which is able to clean normally soiled cotton laundry declared to be washable at 40°C or 60°C.
	Wool 30°C	2 kg	Woolen garments and woollen mixtures (sweaters, scarves, headscarves etc.), labelled for machine washing.
	Handwash 30°C	2 kg	Delicate laundry made of linen, silk, wool, or viscose, labelled for hand wash only (dresses, skirts, blouses etc.) and curtains. Very gentle washing programme that preserves the fabric of your clothes.
	Allergy care 60°C	** (1/2)	Washing programme is used to wash normal to heavily soiled clothes that require special care, such as clothes for people with highly sensitive skin or skin allergies. We recommend turning the garments inside out, as this will also thoroughly wash out the skin and other residues. You can also select the option to wash at maximum temperature and maximum spinning speed.
	Speed 20' 30°C	2,5 kg		Quick washing programme for laundry that only needs refreshing.

* Maximum load (MAX) ** Half load (1/2) / Any load (0 kg - MAX kg)

	Maximum dosing (70 ml/g)
	Half dosing (40 ml/g)
	Low dosing (20 ml/g)

Add powder or liquid detergents according to the manufacturer's instructions, considering the washing temperature, washing program, how soiled the laundry is, and water hardness. Maximum amount of laundry in kg (for the cotton programme) is indicated on the rating plate fitted under the washing machine door (see chapter »WASHING MACHINE DESCRIPTION/Technical information«). Maximum or nominal load applies to laundry prepared pursuant to the IEC 60456 standard. For better washing effect, we recommend loading the drum to 2/3 when using the cotton programmes.

STEP 4: CHOOSING THE SETTINGS

Most programmes feature basic settings, but these settings can be changed.

Adjust the settings by pressing the relevant function button (before pressing the (3) START/PAUSE button).

Functions that cannot be changed with the selected washing programme are partly lit (dimmed). Certain settings cannot be selected with some programmes. Such settings will not be lit, and the button will flash when pressed (see FUNCTION TABLE).

Description of lighting of functions for the selected programme:

• Lit (Basic/preset setting);
• Dimmed (Functions that can be adjusted) and
• Unlit (Functions that cannot be selected).

MODE: (WASHING MODE)

NORMALCARE (Basic/default setting)

TIMECARE (4a) (This mode will save time as programme duration will be shorter, but it will use more water.)

We recommend a half-load for the Cotton programme.

POWERCARE (4b) (This mode will save energy; washing time will be longer, and water consumption will be lower.)

Light on the button for the selected washing mode is lit.

5

SPIN (SPINNING RATE/DRAIN/PUMP STOP)

For changing the spinning rate, only draining, and stop pump (5). With preset or selected spinning rate, (5a) will be lit on the display unit. If you select draining without spinning, the symbol ⏻ (5b) will appear on the display unit. If you select the »Pump stop« option, the symbol ⏻ (5c) will appear on the display unit.

Select the »Pump stop« 🚙 (5c) option when you want the laundry to stay soaked in the water from the last rinse cycle in order to prevent it from creasing when you are unable to take it from the washing machine immediately after the washing programme is complete. You may set the desired spinning rate. To continue the program, press the (3) START/ PAUSE button that is lit. Water will be drained (pumped out) and the final spin cycle will be run.

In some models, spinning rate 800+ can be selected (+ indicates that the spinning time is extended by 1 minute).

CHILD LOCK

A safety feature. To activate the child lock, simultaneously press the (4) MODE ≡ (WASHING MODE) and (8) EXTRAS + (ADDITIONAL

FUNCTIONS) positions and hold them for at least three seconds. The signal light (symbol =0 (7)) will light up to confirm the selection. Follow the same procedure to deactivate the child lock. As long as the child lock is activated, programme, settings, or additional functions cannot be changed.

Child lock remains active even after the washing machine is switched off. For safety reasons, the child lock does not prevent switching off the washing machine with the (1) ON/OFF/RESET button. To select a new programme, the child lock must first be deactivated.

Activate/deactivate the functions by pressing the (8) EXTRAS + (ADDITIONAL FUNCTIONS) position (before pressing the (3) START/PAUSE button).

Activate/deactivate the functions by pressing the (8) EXTRAS + (ADDITIONAL FUNCTIONS) position (before pressing the (3) START/PAUSE button).

Some settings cannot be selected with certain programmes. With such settings, the light on the button will not be lit or it will flash when pressed (see FUNCTION TABLE).

Washing heavily soiled laundry, particularly with stubborn superficial stains.

Washing heavily soiled laundry, particularly with stubborn superficial stains.

If you select PREWASH, add the detergent into the prewash compartment ☉.

Use this function to wash with a larger amount of water, and with two additional rinse cycles on some programmes.

Use this function to wash with a larger amount of water, and with two additional rinse cycles on some programmes.

When the washing machine is switched off, all extra functions return to their basic or custom settings.

FUNCTION TABLE

Programmes (depending on the model)		Temp. [°C]	NORMALCARE (basic/default setting)	POWERCARE	TIMECARE	WATER+ (HIGH WATER LEVEL)	PREWASH	PUMP STOP	SPIN Ⓞ (SETTING THE SPINNING RATE)
	Cotton 90 • • • • • • •
		60 • • • • • • •
		40 • • • • • • •
		30 • • • • • • •
		20 • • • • • •
	Mix (Mixed laundry/Synthetics)	40 • • • • • • •
		30 • • • • • • •
	Steril tub (Self-cleaning programme)	-	•
	Softening (Partial programme)	-	•			•		•	•
	Rinse (Partial programme)	-	•			•		•	•
1400	Spin/Drain (Spinning rate/Drain) (Partial programme)	-	•						•
	Eco 40-60	-	•			•	•
	Wool	30 • • • • •
	Hand wash	30 • • • • •
	Allergy care	60 •					• •
	Speed 20'	30 •					• •

• Additional functions can be used □ Standard programme

STEP 6: STARTING THE WASHING PROGRAMME

Press the (3) START/PAUSE button.

Symbols for the selected functions will be lit.

After pressing the (3) START/PAUSE button, the spinning rate can be adjusted (except in the case of the Steril tub (Self-cleaning programme) and SPIN @SPINNING RATE/DRAIN/PUMP STOP)) and child lock can be activated or deactivated, while other settings cannot be changed.

If anything is flashing on the display unit, the washing machine door is open or not closed correctly. Close the washing machine door and press the (3) button START/PAUSE again to resume the washing programme.

STEP 7: CHANGE OF WASHING PROGRAMME OR MANUAL (PHYSICAL) CANCELLATION

1 To stop and cancel a washing programme, press the (1) ON/OFF/RESET button and hold it for more than 3 seconds.

2 The washing programme is temporarily paused when the spinning rate settings symbols alternate between on and off on the display unit. At the same time, the washing machine pumps the water out of the washing machine drum. When the water is pumped out, washing machine door will be unlocked. If the water in the washing machine is hot, the washing machine will automatically cool it and pump/drain it out.

STEP 8: END OF THE WASHING PROGRAMME

Lights on additional functions will flash until the washing machine is switched to low standby mode or until it is switched off. After 5 minutes, the lights on additional functions will be switched off.

1. Open the washing machine door.
2. Take the laundry from the drum.
3. Wipe the rubber door gasket and the door glass.
4. Close the door!
5. Shut off the water supply tap.
6. Switch off the washing machine (press the (1) ON/OFF/RESET button).
7. Unplug the power cord from the outlet.

INTERRUPTIONS AND CHANGING THE PROGRAMME

MANUAL INTERRUPTION

To stop and cancel a washing programme, press the (1) ON/OFF/RESET button and hold it for more than 3 seconds. Signal lights will flash on the display. At the same time, the washing machine pumps the water out of the washing machine drum. When the water is pumped out, the washing machine door will be unlocked. If the water in the washing machine is hot, the washing machine will automatically cool it and pump/drain it out.

PERSONAL SETTINGS

Basic or default settings for each washing programme can also be changed. When you select the programme and additional functions, you may store such combination by pressing the (3) START/PAUSE button and holding it for five seconds. Additionally selected functions will periodically flash (3x) on the display unit.

When the washing programme is stored, the (3) button START/PAUSE will be lit for 2 seconds. The programme will remain stored until it is changed using the same procedure.

Personal settings can also be reset to factory settings in the user menu.

PERSONAL SETTINGS MENU

Switch on the washing machine by pressing the (1) ON/OFF/RESET button. Simultaneously press the (5) SPIN Ⓤ (SPINNING RATE/DRAIN/PUMP STOP) and (8) EXTRAS +(ADDITIONAL FUNCTIONS) positions. Signal lights for □ /POWERCARE, TIMECARE, WATER+ (HIGH WATER LEVEL) and PREWASH will light up on the display unit. In the Personal settings menu, all personal programme settings may be reset to factory defaults by pressing the (5) SPIN Ⓤ (SPINNING RATE/DRAIN/PUMP STOP) position, to return by step, press the (4) □ MODE = (WASHING MODE) position. If the desired settings are not selected in 20 seconds, the washing machine will automatically return to main menu.

PAUSE BUTTON

The washing programme can always be stopped by pressing the (3) START/PAUSE button. The washing programme is temporarily paused when the spinning rate settings symbols alternate between on and off on the display unit. If there is no water in the drum and water temperature is not too high, then the door will unlock after a certain period of time, and they can be opened. To resume the washing program, first close the door and then press the (3) START/PAUSE button.

ADDING/REMOVING LAUNDRY DURING WASHING MACHINE OPERATION

After a certain period of time, the washing machine door can be opened if the water level and temperature are below a predefined threshold.

If the conditions below are met, then the electronic door lock is released and the washing machine door can be opened:

• The water temperature in the drum must be suitable. • The water level in the drum must be below a certain value.

To add or remove laundry from the washing machine during programme operation, proceed as follows:

1. Press the (3) START/PAUSE button.
2. If all conditions for release of the electronic door lock are met, you can open the washing machine door and add or remove laundry from the drum.
3. Close the washing machine door!
4. Press the (3) START/PAUSE button.

The washing programme will resume.

If you add a considerable amount of laundry during the wash, the laundry could be washed less effectively, since the washing machine initially sensed a lower weight of the load and added a smaller amount of water. An insufficient amount of water relative to the amount of laundry could also cause damage to the laundry (rubbing of dry laundry), and washing time can be longer.

The washing programme will resume from the point at which it was interrupted.

ERRORS

In case of an error or fault, the programme will be interrupted. This is indicated by flashing signal lights (see ERROR TABLE).

POWER SUPPLY FAILURE

In case of a power supply failure, the washing programme is interrupted. When power supply resumes, POWERCARE, TIMECARE, WATER+ (HIGH WATER LEVEL), and PREWASH flash on the display unit, and the (3) START/PAUSE button flashes. To resume the washing programme, press the (3) START/PAUSE button.

Washing programme will resume from the point at which it was interrupted.

OPENING THE DOOR MANUALLY IN CASE OF A POWER OUTAGE - IN CASE OF A PROGRAM PAUSE (ONLY WITH SOME MODELS)

1. When the program is paused or interrupted, open the filter cap using a suitable tool (flat screwdriver or a similar tool).

2. The washing machine door can only be opened by simultaneously pulling the special lever (located at the filter) and the door handle.

3. Open the washing machine door manually by pulling the handle towards you.

OPENING THE DOOR (PAUSE/CANCEL - CHANGE PROGRAMME)

The washing machine door can be opened if the water level in the machine is low enough and if the water temperature is not excessively high. Otherwise, use manual (physical) interruption (see chapter »INTERRUPTIONS AND CHANGING THE PROGRAMME/Manual (physical) interruption«).

If there is still water in the washing machine after a power outage, make sure not to open the door before you manually drain the water from the washing machine via the pump filter (see chapter »CLEANING AND MAINTENANCE/Cleaning the pump filter«).

MAINTENANCE & CLEANING

Before cleaning, unplug the washing machine from the power mains.

Children should not clean the washing machine or perform maintenance tasks without proper supervision!

CLEANING THE DISPENSER TRAY

The dispenser tray should be cleaned at least twice per month.

1. To remove the dispenser tray from the housing, press the small tab.

2. Clean the dispenser tray under running water using a brush, and dry it. Also, remove any detergent residue from the bottom of the housing.

3 If required, remove and clean the plug cap.

4 Clean the plug cap under running water and replace it.

Do not wash the dispenser tray in a dishwasher.

CLEANING THE WATER SUPPLY HOSE, DETERGENT DISPENSER HOUSING, AND RUBBER DOOR GASKET

1 Clean the net filter often under running water.

2 Use a brush to clean the entire washing machine rinsing section, especially the nozzles on the upper side of the rinsing chamber.

3 After every wash, wipe the rubber door seal to extend its useful life.

CLEANING THE PUMP FILTER

During cleaning, some water may be spilled. It is therefore recommended to place an absorbent cloth on the floor.

1 Open the pump filter cap using a suitable tool (flat screwdriver or a similar tool).

2 Pull out the water outlet funnel before cleaning the pump filter. Rotate the pump filter slowly in the counterclockwise direction. Pull out and remove the pump filter to allow the water to slowly drain.

3 Clean the pump filter thoroughly under running water.

4,5 Remove all and any objects and impurities from the filter housing and the pump propeller. Replace the pump filter as shown in the figure and fasten it by rotating in the clockwise direction. For a good seal, the filter gasket surface should be clean.

⚠ Clean the pump filter and the in-wall water trap whenever the symbol Ⓔ(6) appears on the display unit.

The pump filter must be occasionally cleaned, especially after washing very fleecy, woolly, or very old laundry.

CLEANING THE WASHING MACHINE EXTERIOR

Always disconnect the washing machine from the power mains before cleaning.

Clean the washing machine exterior and display unit using a soft damp cotton cloth and water.

Do not use any solvents or cleaning agents that could damage the washing machine (please observe the recommendations and warnings provided by the cleaning agent manufacturers).

Do not clean the washing machine with a jet of water!

TROUBLESHOOTING

WHAT TO DO ...?

The washing machine will automatically control the operation of particular functions during the washing cycle. In case of error, the error is indicated by signal lights constantly lit or flashing in a particular rhythm on the display unit. The washing machine will report the error until it is switched off. Disturbances from the environment (e.g. the power grid) may result in various error reports (see TROUBLESHOOTING TABLE). In such case:

• Switch off the washing machine and wait for a few seconds.
• Switch on the washing machine and repeat the washing programme.
• Most errors during operation can be resolved by the user (see TROUBLESHOOTING TABLE).
• If the error persists, call an authorized service unit. • Repairs may only be carried out by an adequately trained person.
• Repair or any warranty claim resulting from incorrect connection or use of the washing machine shall not be covered by the warranty. In such cases, the costs of repair shall be charged to the user.

The warranty does not cover the errors or failures resulting from disturbances from the environment (lightning strike, power grid failures, natural disasters etc.).

TROUBLESHOOTING AND ERROR TABLE

Problem/ error	Indication on the display unit and problem description	What to do?
E0 Incorrect settingsThe spinning rate settings symbols on the display unit are lit.		Restart the programme. If the error reoccurs, call a service technician.
E1 Temperature sensor errorSpinning rate settings symbols on the display unit flash in even intervals 1x.		Inlet water too cold. Repeat the washing programme.If the washing machine reports this error again, call a service technician.
E2 Door lock errorSpinning rate settings symbols on the display unit flash in even intervals 2x.		Make sure the washing machine door is closed.Unplug the power cord from the outlet; then, plug the power cord back into the outlet and switch on the washing machine.If the error reoccurs, call a service technician.
E3 Water filling errorSpinning rate settings symbols on the display unit flash in even intervals 3x.		Check the following:is the water inlet valve open,is the filter on the water supply hose clean,is the water supply hose deformed (clipped, clogged etc.),is the pressure in the water mains between 0.05 and 0.8 MPa (0,5-8 bar).Then, press the (3) START/PAUSE button to resume the programme. If the error reoccurs, call a service technician.
E4 Motor errorSpinning rate settings symbols on the display unit flash in even intervals 4x.		Restart the programme. If the error reoccurs, call a service technician.
E5 Motor errorSpinning rate settings symbols on the display unit flash in even intervals 5x.		Restart the programme. If the error reoccurs, call a service technician.
E6 Water heating errorSpinning rate settings symbols on the display unit flash in even intervals 6x.		Restart the programme. If the error reoccurs, call a service technician.
E7 Water draining errorSpinning rate settings symbols on the display unit flash in even intervals 7x.		Check the following:is the pump filter clean,is the discharge hose clogged,is the drain clogged,if the discharge hose placed is placed below the maximum and above the minimum height (see chapter »INSTALLATION AND CONNECTION/ Connecting and securing the water discharge hose«);then, press the (3) START/PAUSE button again. If the error reoccurs, call a service technician.
E9 Water detected at the bottom of the washing machine (Total Aqua Stop system)		Turn off the appliance and turn it back on. If the error reoccurs, call a service technician.
E10 Water level sensor error The spinning rate settings symbols and the POWERCARE indicator on the display unit are constantly lit.		Unplug the power cord from the outlet; then, plug the power cord back into the outlet and switch on the washing machine. If the error reoccurs, call a service technician.
E11 Water overflow On the display unit, the spinning rate settings symbols flash in even intervals 1x, and the POWERCARE indicator is constantly lit.		If there is water in the drum that exceeds a certain level, and an error is reported on the display unit, the washing program will be interrupted and water will be pumped out of the washing machine. Restart the programme. If the error reoccurs, call a service technician. If there is water in the drum that exceeds a certain level, and an error is reported on the display unit, while the washing machine continues to add water, close the water tap and call a service technician.
E22 Error while locking the door On the display unit, the spinning rate settings symbols flash in even intervals 2x, and the TIMECARE indicator is constantly lit.		Door is closed, but it cannot be locked. Switch off the washing machine. Switch it back on and restart the washing program. If the error reoccurs, call a service technician.
E23 Error while unlocking the door On the display unit, the spinning rate settings symbols flash in even intervals 3x, and the TIMECARE indicator is constantly lit.		Door is closed, but it cannot be unlocked. Turn off the washing machine, then turn it back on. If the error reoccurs, call a service technician. To open the door, see chapter »INTERRUPTIONS AND CHANGING THE PROGRAMME/Opening the door manually«.
	Water drain system alert Symbol will appear.	Alert about reduced water flow in the pumping stage. Check the following: is the pump filter clean, is the discharge hose clogged, is the drain clogged, if the discharge hose placed is placed below the maximum and above the minimum height (see chapter »INSTALLATION AND CONNECTION/Connecting and securing the water discharge hose«).
	Unevenly distributed laundry When the washing programme is complete, the symbol will remain lit on the display unit.	Manually distribute the laundry and run the spinning programme. See additional description under TROUBLESHOOTING TABLE.
	Power supply failure warning See chapter »INTERRUPTIONS AND CHANGING THE PROGRAMME/ Power supply failure«.	Washing process was interrupted due to power supply failure. To restart, press the (3) START/PAUSE button.
	Unresponsive display unit and all buttons	Manually (physically) stop the programme by pressing the button (1) ON/OFF/RESETand hold it for more than 3 seconds.Unplug the power cord from the outlet; then, plug the power cord back into the outlet and switch on the washing machine.If the error reoccurs, call a service technician.
	Washing machine standing by, ready to resume the washing programmeThe spinning rate settings symbols on the display unit are alternately lit and off.	To resume the washing program, press the button (3) START/PAUSE, or manually (physically) stop the programme and press the button (1) ON/OFF/RESETand hold it for more than 3 seconds.
	Preparation for unlocking the doorThe signal lights □ POWERCARE,TIMECARE, WATER+ (HIGH WATER LEVEL), and PREWASH will flash on the display unit.	Wait until the process is completed. If no error is indicated after the process, then a new programme can be started.Water has to be drained. Wait for the door to unlock.
	Noise and vibration	Make sure the appliance is levelled using the adjustable legs and that the jam nuts are securely tightened.

Unevenly distributed laundry or lumps of laundry in the washing machine drum can cause problems such as vibration and noisy operation. The washing machine detects such problems and the UKS* (*stability control system) will be activated.

Smaller loads (e.g. one towel, one sweater, one bathrobe etc.) or clothes made of materials with special geometrical properties are virtually impossible to distribute evenly across the washing machine drum (slippers, large items etc.). This results in several attempts to redistribute the laundry, which in turn leads to longer programme duration. In extreme cases of unfavourable conditions, the programme can be completed without the spinning cycle.

The UKS* (*stability control system) allows stable operation and a longer washing machine useful life.

If the problems persist despite observing the advice above, call an authorized service technician. Repair or any warranty claim resulting from incorrect connection or use of the washing machine shall not be covered by the warranty. In this case, the user will cover the cost of repair.

SERVICING

Before calling a service technician

When you contact a service centre, please state your washing machine's type (1), code/ID (2), model number (3), and serial number (4).

Type, code/ID, model, and serial number are indicated on the rating (type) plate located on the front side of the washing machine door opening.

⚠ In case of a defect, only use approved spare parts by authorized manufacturers. ⚠️ Repair or any warranty claim resulting from incorrect connection or use of the washing machine shall not be covered by the warranty. In such cases, the costs of repair shall be charged to the user.

Additional equipment and accessories for maintenance can be viewed on our website at: www.gorenje.com

RECOMMENDATIONS FOR WASHING AND ECONOMIC USE YOUR WASHING MACHINE

Wash new coloured garments separately the first time.

Wash heavily soiled laundry in smaller amounts, with more powder detergent or with a pre-wash cycle.

Apply a special stain remover on stubborn stains before the wash. We recommend referring to STAIN REMOVAL TIPS.

With slightly soiled laundry, we recommend a programme without a pre-wash cycle, use of shorter programmes (e.g. TIMECARE) and a lower washing temperature.

If you often wash laundry at low temperatures and with liquid detergents, bacteria may spawn which can cause odour in the washing machine. To prevent such odour, we recommend occasionally running the Steril tub (Self-cleaning programme) (see PROGRAMME TABLE).

We recommend avoiding washing very small amounts of laundry as this will lead to excessive use of energy and poorer washing machine performance.

Loosen any folded laundry before putting it into the drum. Only use detergents for machine washing.

In case of excessive foaming in the washing machine or leak of foam through the detergent dispenser tray, the washed laundry must be rinsed thoroughly with a large amount of water. Choose a washing program, but do not add any detergent.

Add powder or liquid detergents according to the manufacturer's instructions, considering the washing temperature, washing program, how soiled the laundry is, and water hardness.

If water hardness exceeds 14° dH, water softener should be used. Heater damage resulting from incorrect use of water softeners shall not be covered by the warranty. Check the information on water hardness with your local water supply company or authority.

Use of chlorine-based bleaches is not recommended as they can damage the heater.

Do not add hardened lumps of powder detergent into the detergent dispenser as this may clog the piping in the washing machine.

When using thick liquid laundry care products, we recommend diluting them with water to prevent clogging the dispenser tray drain.

Liquid detergents are intended for washing programmes without a prewash cycle.

At higher spinning rates, there will be less residual moisture in the laundry. As a result, drying in a tumble dryer will be more economical and faster.

Water hardness	Hardness levels
	°dH (°N) m mol/l °fH(°F) p.p.m.
1 - soft < 8,4 < 1,5 < 15 < 150
2 - normal 8,4 - 14 1,5 - 2,5 15 - 25 150 - 250
3 - hard > 14 > 2,5 > 25 > 250

Check the information on water hardness with your local water supply company or authority.

1 A separator/divider tab is supplied with the washing machine, which allows adding liquid detergent to the main wash compartment (left compartment).

2 When using powder detergent, the separator/divider tab should be lifted.

3 When using liquid detergent, the separator/divider tab should be lowered.

Symbols of detergent dispenser compartments
💡	prewash
💡	main wash
💡	softening

We recommend adding powder detergent immediately before the washing cycle. If you add it sooner, make sure the detergent compartment in the dispenser tray is completely dry before adding the powder detergent: otherwise, the powder detergent may cake before the start of the washing process. Pour the conditioner into the dispenser tray, into the compartment with the symbol ☀. Observe the recommendation on the conditioner packaging. Do not fill the conditioner compartment over the max. indication (maximum indicated level). Otherwise, the conditioner will be added to the laundry too soon, leading to poorer washing effect.

STAIN REMOVAL TIPS

Before using special-purpose stain removers, try using the natural methods that do not harm the environment on less stubborn stains.

However, prompt action is required! Soak the stain with an absorbent sponge or a paper towel; then, rinse with cold (lukewarm) water – but never with hot water!

Stains Stain removal
Mud When the stain is dry, first scrape it off the garment before washing it in the washing machine. If the stain is stubborn, soak it with an enzyme-based stain remover before the wash. If the stain is not stubborn, wash the laundry with liquid detergent or powder detergent and water before the wash.
Antiperspirant Before washing in the washing machine, apply liquid detergent onto the laundry. Apply stain removers on any stubborn stains. Alternatively, use oxygen-based bleach for the wash.
Tea Soak or rinse the laundry in cold water and add stain remover if necessary.
Chocolate Soak or rinse the laundry with lukewarm soapy water. Then, apply lemon juice and rinse.
Ink Before washing in the washing machine, apply stain removers on the stain. You may also use denatured alcohol. Turn the garment inside out and place a paper towel under the stain. Use the alcohol on the back side of the stain. At the end of the pro-cess, thoroughly rinse the garment.
Felt tip pens Dilute some starch in water and apply it to the stain. When it dries, scrape it off with a brush; then, wash the garment in the washing machine.
Baby food (urine, mud, food stains)	Before washing in the washing machine, soak the stains in lukewarm water for at least half an hour. For easier stain re-moval, add an enzyme-based stain remover.
Grass Before washing in the washing machine, soak the laundry in an enzyme-based stain remover. Grass stains can also be re-moved by soaking (for approx. 1 hour) in diluted lemon juice or distilled vinegar.
Eggs Soak the garment in an enzyme-based stain remover. Soak in cold water for at least 30 minutes or a few hours if the stains are stubborn. Then, wash in the washing machine.
Coffee Soak the garment in salt water. If the stain is not fresh, soak it with a mixture of glycerine, ammonia and alcohol.
Shoe polish Apply cooking oil to the stain and rinse.
Blood Fresh stain – rinse the garment with cool water and wash it in the washing machine. Dried stain – soak the garment in an enzyme-based stain remover. Then, wash in the washing machine. If the stain does not vanish, try to remove it with a bleach suitable for your garment.
Glue, chewing gum Place the garment in a bag and put it in the freezer until the stain hardens. Then, remove it with a blunt knife. Then, dilute the stain with a prewash stain remover and rinse thoroughly. Then, wash the laundry as usual.
Makeup Use a stain remover for the prewash; then, wash in the washing machine.
Butter Before washing in the washing machine, apply stain remover to the stain. Then, rinse with hot water (as hot as the fabric will al-low).
Milk Soak the garment in an enzyme-based stain remover. Soak for at least 30 minutes or a few hours if the stains are stubborn. Then, wash in the washing machine.
Fruit juice Apply a mixture of salt and water on the stain. Leave to take effect for a while, then rinse. You can apply sodium bicarbonate, distilled vinegar or lemon juice on the stain before washing in the washing machine. For old stains, use glycerine. After 20 minutes, rinse with cold water, then wash the laundry in the washing machine.
Wine Soak the laundry in cold water for at least 30 minutes. Also, use a stain remover. Then, wash in the washing machine.
Wax Put the garment into the freezer until the wax hardens. Then, scrape it off. Remove the remaining wax by placing a paper towel onto the stain, and then heat it with an iron until the paper absorbs the wax.
Sweat Before washing in the washing machine, rub liquid detergent thoroughly into the stain.
Chewing gum Put the garment into the freezer until the chewing gum hardens. Then, scrape it off. Then, wash in the washing machine.

DISPOSAL

Packaging is made of environmentally friendly materials that can be recycled, disposed of, or destroyed without any hazard to the environment. To this end, packaging materials are labelled appropriately.

The symbol on the product or its packaging indicates that the product should not be treated as normal household waste. Take the product to an authorized collection centre for waste electric and electronic equipment processing.

When disposing of the washing machine at the end of its useful life, remove all power cords, and destroy the door latch and switch to prevent the door from locking or latching (child safety).

Correct disposal of the product will help prevent any negative effects on the environment and health of people, which could occur in case of incorrect product removal. For detailed information on removal and processing of the product, please contact the relevant municipal body in charge of waste management, your waste disposal service, or the store where you bought the product.

PROGRAM DURATION AND SPINNING RATE TABLE

Programmes (depending on the model)		Temp. [°C]	NORMALCARE (basic/default setting)	SPIN (SPINNING RATE)
			Washing time [minutes]	[rpm]
	Cotton 90 218			* 1200
		60 182
		40 192
		30 106
		20 97
	Mix (Mixed laundry/Synthetics)	40 117		** 1000
		30 114
	Steril tub (Self-cleaning programme)	- 112 -
	Softening (Partial programme)	- 20 * 1200
	Rinse (Partial programme)	- 32 * 1200
1400	Spin/Drain (Spinning rate/Drain) (Partial programme)	- 17 * 1200
	Eco 40-60	- 175 * 1200
	Wool	30 49 ** 800
	Handwash	30 62 ** 1200
	Allergy care	60 118 * 800
	Speed 20'	30 20 ** 1000

* Spinning rate can be changed, and the newly set rate can be up to the maximum rate ** Depending on the model Standard programme

Low water temperature, low mains voltage and small washing load may affect the washing time.

Due to deviations in terms of type and amount of laundry, spinning, power supply oscillation, and environment temperature and humidity, the programme duration and power consumption values measured at the end user may differ from the ones stated in the table.

LOW STANDBY MODE

If you do not run any program or choose any settings after switching on the washing machine (ON/OFF/RESET button (1)), the display unit will be switched off after 5 minutes and switched to standby mode in order to save energy.

The display unit will be reactivated if you rotate the programme selector knob (2) or press the (1) ON/OFF/RESET button. If you do not do anything for 5 minutes after the end of a programme, the display unit will be switched off to save power.

P o = weighted power when off [W] < 0,5

P I = weighted power when in standby [W] < 0,5

T I = standby time [min] 5,00

We reserve the right to any changes and errors in the instructions for use.

PRODUCT INFORMATION SHEET According to EU-Regulation No. 2019/2014

(depending on the model)

Supplier's name or trade mark:
Supplier's adress (¢):
Model identifier:
General product parameters:
Parameter Value Parameter	Value
Rated capacity (a) (kg) x,x Dimensions in cm				Height x
				Width x
				Depth x
EEIW(a) x,x Energy efficiency class ( )			a) [A/B/C/D/E/F/G] ( )
Washing efficiency index (a) x,xx Rinsing effectiveness (g/kg) (a)				x,x
Energy consumption in kWh per cycle, based on the »eco 40-60« programme. Actual energy consumption will depend on how the appli ance is used.	x,xxx		Water consumption in litre per cycle, based on the »eco 40-60« programme. Actual water con sumption will depend on how the appliance is used and on the hardness of the water.	x
Maximum temperature inside the treated textile (a) (°C)	Rated capacity	x	Remaining moisture content (a) (%)	Rated capacity	x
	Half x Half x
	Quarter x Quarter
Spin speed (a) (rpm)	Rated capacity	x	Spin-drying efficiency class (¢)	[A/B/C/D/E/F/G] (¢)
	Half x
	Quarter x
Programme duration (a) (h:min)	Rated capacity	x:xx	Type	[built-in/ free standing]
	Half	x:xx
	Quarter	x:xx
Airborne acoustical noise emissions in the spinning phase (¢) (dB(A) re 1 pW)	x		Airborne acoustical noise emissions class (a) (spinning phase)	[A/B/C/D] (¢)
Off-mode (W)	x,xx Standby mode (W)			x,xx
Delay start (W) (if applicable)	x,xx		Networked standby (W) (if applicable)	x,xx
Minimum duration of the guarantee offered by the supplier (¢):
This product has been designed to release silver ions during the washing cycle			[YES/NO]

Additional information:

Weblink to the supplier's website, where the information from point 9 Anex II to Commition Regulation (EU) 2019/2023 (a) (b) is found:

(a) for the »eco 40-60« programme. (b) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369. (c) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.
