KC24WH - Sink CDA - Free user manual and instructions

Product Type	Kitchen Sink
Brand	CDA
Model	KC24WH
Material	Stainless Steel
Finish	Brushed
Bowl Configuration	Single Bowl
Overall Dimensions (W x D)	600 mm x 500 mm
Bowl Dimensions (W x D x H)	450 mm x 350 mm x 180 mm
Cut-Out Dimensions (W x D)	580 mm x 480 mm
Weight	5 kg
Drainer	Integrated Drainboard
Number of Tap Holes	1
Installation Type	Top-Mount / Drop-In
Included Accessories	Fixing Kit, Basket Strainer
Cleaning Instructions	Wipe with mild detergent and soft cloth. Avoid abrasive cleaners.
Warranty	2 years
Standards	CE, UKCA

Frequently Asked Questions - KC24WH CDA

What are the dimensions of the CDA KC24WH sink?

The overall dimensions are 600 mm width x 500 mm depth. The bowl measures 450 mm x 350 mm x 180 mm.

How do I install the KC24WH sink?

The sink is designed for top-mount installation. Cut a hole of 580 mm x 480 mm, apply silicone sealant, and secure with the included fixing kit.

What material is the sink made of?

It is made of brushed stainless steel, providing durability and a modern look.

How do I clean and maintain the sink?

Clean with mild detergent and a soft cloth. Avoid using abrasive pads or harsh chemicals that may scratch the surface.

Does the sink come with a drainer?

Yes, it has an integrated drainboard for drying dishes.

How many tap holes does it have?

It has one pre-drilled tap hole. For additional holes, you may need to drill yourself or use a separate tap deck.

What warranty is offered?

The sink comes with a 2-year warranty covering manufacturing defects.

Can I use a waste disposal unit with this sink?

Yes, the sink is compatible with standard waste disposal units. Ensure the basket strainer is removed before installation.

Is the sink suitable for undermount installation?

No, the KC24WH is designed for top-mount installation only.

Where can I find replacement parts?

Replacement parts such as basket strainers and fixing clips are available from CDA authorized dealers or online spare parts retailers.

USER MANUAL KC24WH CDA

Offer up the sink to the worktop and/or the cabinets to confirm that the external dimensions of the bowl are compatible with the cabinets themselves.

Confirm that with the sink in position:

• There is adequate space to install any taps or other required accessories.
• There is adequate space to install the waste pipework and that any necessary modification to internal shelves to accommodate the waste (and trap) is acceptable.
• Access to any water stop-cock or other services will still be adequate after the installation.

Cutting the tap hole

Only cut/punch the tap hole from the top face of the sink.

• Select the tap hole position based on whether left hand or right hand drainer is required.
• Locate the centre of the required tap hole by transferring measurements from the cast in features on the underside. Cover the top of the tap hole cut-out area with masking tape.

- Caution: Ensure that the sink is supported under the hole to be cut out.

- Using a centre punch and hammer, make an initial cut in the glaze at the centre of the required hole.

- Still using the punch and hammer enlarge the cut to the full hole size required for the tap by carefully chipping away.

Installation

• Refer to the cut-out sizes on the back of this manual and use them to mark out where the worktop needs to be cut. Double-check the dimensions before cutting the worktop aperture.
• After cutting out the worktop aperture, we recommend you seal the cut edges with silicone (or similar) sealant to help prevent ingress of water.
• It is often easier to mount the taps, waste-fitting and overflow onto the sink prior to fitting the sink to the worktop.
• Position the sink on the worktop, bedding it into a bed of silicone sealant.
• After positioning the sink, leave it untouched for 24 hours to allow the sealant to cure before any water is run into it.
• The taps, waste-fitting and overflow can now be mounted onto the sink (if not already done) and fully connected to their respective services.
• To check the waste for leaks, close the plug/basket of the waste fitting, open the tap and fill the sink to the level of the overflow; turn off the tap and wait several minutes to verify that the water doesn’t drain away.
  • Empty the sink.

After fitting, ensure that the enclosed “Ceramic Sinks Use and Maintenance” guide is retained for the customer and/or user of the sink.

E & O E. All instructions, dimensions and illustrations are provided for guidance only. CDA reserve the right to change specifications without prior notice.

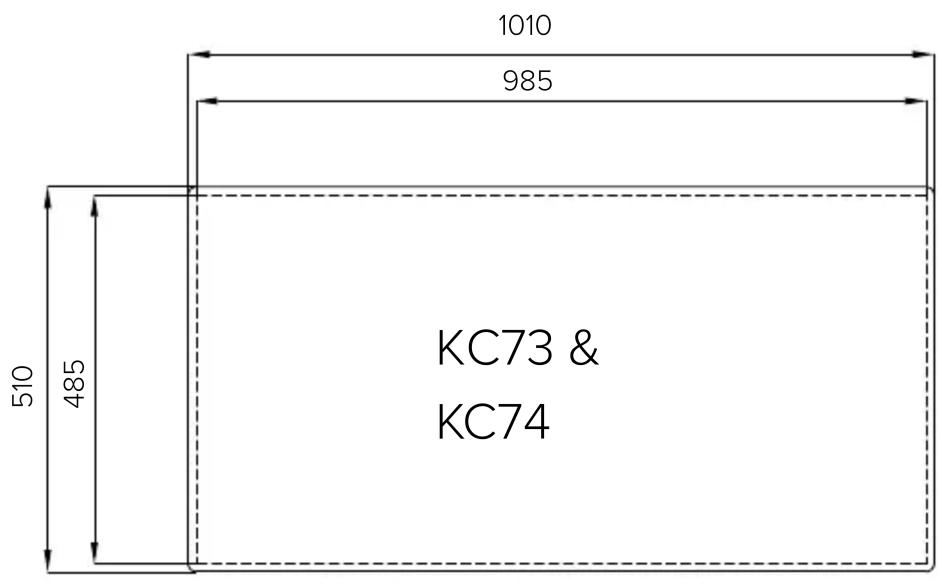

Cut-Out Dimensions
