Product Type	Kitchen Sink
Model	AS1CM
Brand	CDA
Material	Stainless Steel
Finish	Brushed
Number of Bowls	1
Drainer	Integrated
Installation Type	Top Mount or Undermount
Overall Dimensions (WxDxH)	860 x 500 x 200 mm
Bowl Dimensions (WxDxH)	400 x 400 x 180 mm
Cutout Dimensions	840 x 480 mm
Weight	10 kg
Drain Hole Diameter	90 mm
Supplied Accessories	Basket Strainer, Fixing Clips, Template
Cleaning Instructions	Wipe with mild detergent and soft cloth. Avoid abrasive pads.
Maintenance	Rinse after use, dry to prevent water spots.
Safety Warnings	Do not sit or stand on sink. Avoid dropping heavy objects.
Spare Parts Availability	Replacement strainers and clips available from CDA

Frequently Asked Questions - AS1CM CDA

What are the overall dimensions of the CDA AS1CM sink?

The overall dimensions are approximately 860 mm width, 500 mm depth, and 200 mm height. Always verify with the product template for exact measurements.

Is the sink suitable for undermount installation?

Yes, the CDA AS1CM can be installed as either top mount or undermount. Ensure your worktop cutout matches the specified dimensions.

How do I clean stainless steel sink?

Use a mild detergent and a soft cloth or sponge. Rinse thoroughly and dry to avoid water spots. Do not use abrasive cleaners or steel wool.

What accessories are included with the sink?

The sink comes with a basket strainer, fixing clips, and a cutout template. Additional accessories may be purchased separately.

Can I install a garbage disposal unit?

The sink has a standard 90 mm drain hole, which is compatible with most garbage disposal units. However, check the disposal's installation requirements.

What warranty does CDA offer on this sink?

CDA typically provides a 5-year warranty against manufacturing defects. Register your product on the CDA website to activate warranty.

How do I prevent scratches on the sink surface?

Avoid dragging metal pots or utensils across the surface. Use a protective grid or mat at the bottom of the bowl.

What if the sink gets a dent?

Small dents in stainless steel can sometimes be repaired using a dent removal kit. For significant damage, contact CDA for replacement options.

Is the sink compatible with a 3-hole faucet?

The sink does not come with pre-drilled holes. You can drill holes in the worktop or purchase a deck-mount faucet. The sink is designed for wall-mounted or worktop-mounted faucets.

Where can I find replacement parts?

Contact CDA customer service or visit their website to order spare parts like strainers, fixing clips, or rubber gaskets.

USER MANUAL AS1CM CDA

Installation, Use and Maintenance

CE Declaration of Conformity:

Having regard to the Council Directive 89/109/EEC of 21st December 1988 on the approximation of the laws of the Member States relating to materials and articles intended to come into contact with foodstuffs, we declare that the materials composing the sink meet the above-mentioned directives, in particular the EU Food Contact Regulation (90/128/EEC and 89/109/EEC along with amendments 92/39/ EEC and 93/9/EEC).

Taking Care of Your Sink

Your CDA sink is manufactured using material developed specifically to withstand the rigours of everyday kitchen use. However, we advise you to follow these precautions to keep the sink in pristine condition:

• Do not use a plastic washing-up bowl in the sink as grit and other particles may become embedded in the bowl and scratch or erode the sink surface. CDA specifically recommend the use of wire sink-baskets and drainer-racks to help protect your sink. Take care to not cut the plastic coating on these accessories with sharp cutlery or the edges of pans, etc.
• Do not use neat bleach or other harsh cleaning agents on the metal sink waste as this may cause tarnishing. This is especially important if the waste is either solid brass or brass plated.
• Avoid dropping heavy or sharp objects into the sink as they may scratch or damage the surface.
• The surface of the sink can be affected by certain chemicals e.g. neat bleach, nail polish remover, paint stripper, solvents, brush cleaner and insecticides. If any of these substances come into contact with the

sink, wipe off immediately with a dry cloth, wash with mild detergent and rinse with water.

• Do not use abrasive liquids, powders or steel pads to clean the sink as they will damage the sink surface and make it more susceptible to staining. The sink may be cleaned with a dilute bleach solution.
• Do not place very hot objects directly on the sink, place them on a special surface (board) made from wood or heat-proof plastic, etc.
• If the sink comes into contact with acidic materials, rinse immediately with plenty of water and wipe with a soft dry cloth.
• In hard-water areas, a limescale deposit may build up on the sink. The limescale may become stained by coloured foods such as coffee or red wine. If this occurs, we recommend use of a mild limescale remover.
• Particularly stubborn organic stains can be removed effectively by soaking the sink in a biological washing-powder solution, dishwasher powder solution or diluted bleach.
• Do not leave rusty objects in contact with the sink. Rust can cause staining, cracking or even permanent damage to the sink surface.
• To avoid staining of the surface do not leave food or other materials with corrosive properties such as juices, salt, vinegar, mustard etc. on the sink for a long time.
• After using the sink, rinse it clean with warm soapy water and rinse with clean water before wiping dry.
• During installation, protect from scratches, scuffs and other damage.
• Do not overtighten or strain plumbing fittings.
• The moulding and edges of the sink must be absolutely level so water flows off the drainer.

Installation

Before Installation

Offer up the sink to the worktop and/or the cabinets to confirm that the external dimensions of the bowl are compatible with the cabinets themselves.

Confirm that with the sink in position:

• There is adequate space to install any taps or other required accessories.
• There is adequate space to install the waste pipework and that any necessary modification to internal shelves to accommodate the waste (and trap) is acceptable.
• Access to any water stop-cock or other services will still be adequate after the installation.

Cutting the tap hole

Only cut the tap hole from the underside of the sink.

• Select the tap hole position based on whether left hand or right hand drainer is required.
• Locate the centre of the required tap hole and cut it out using a suitable 35mm diameter hole cutter (available from most plumbers merchants or DIY stores).
• Caution: Ensure that the sink is safely supported around the hole to be cut out.

Installation

• Place the sink upside-down on the worktop where it will be mounted.
• Draw the perimeter of the sink on the worktop with a pencil.
• Remove the sink and draw a dotted line, 1cm inside the perimeter.
• Double check the marking out and positioning before starting to cut the worktop.
  • Make the cutout with suitable tools along the dotted line.
• After cutting out the worktop aperture, we recommend you seal the cut edges with silicone (or similar) sealant to help prevent ingress of water.
• It is often easier to mount the taps, waste-fitting and overflow onto the sink prior to fitting the sink to the worktop (see next page for assembly of supplied waste system).
• Position the sink on the worktop, bedding it onto the supplied seal strip (Fig. 1).
• The taps, waste-fitting and overflow can now be mounted onto

the sink (if not already done) and fully connected to their respective services.

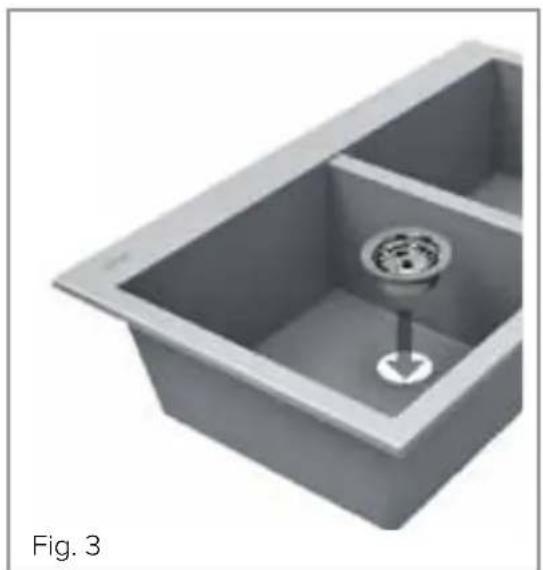

- Assemble the supplied waste and overflow fittings as shown (Fig. 2) and insert into the sink from above (Fig. 3). NOTE: do not use silicone sealant.

1 2 4 3

1: Seal
2: Sink
3: Worktop
4: Fitting bracket supplied (suitable for 30mm or 40mm worktop)

Fig. 1

1 - Basket 2 - Screw 3 - Strainer 4 - Seal 5 - Drain 6 - Drain pipe 7 - Overflow pipe 8 - Seal 9 - Screw Fig. 2

3D rendering of a square sink with a circular drain and central hole, labeled 'Fig. 3' (no text or symbols on the diagram itself)

• To check the waste for leaks, close the plug/basket of the waste fitting, open the tap and fill the sink to the level of the overflow; turn off the tap and wait several minutes to verify that the water doesn't drain away.
  • Empty the sink.

If a washing machine or dishwasher is going to be installed beneath the sink top:

• Before installing the washing machine or dishwasher, make sure that all of the fastening brackets for the sink top have been fastened securely.
• To prevent overheating, which may result in the deformation and consequent detachment of the sink from the top, adjust the feet on the washing machine/dishwasher so that there is sufficient ventilation between the top of the appliance and the sink. To aid the circulation and cooling of the air, it is recommended that ventilation slots be made in the cabinet base.

The Guarantee is Valid Providing That

• The product has been installed by a suitably qualified person.
• Installation has been carried out in accordance with instructions and current legislation.
  • Proof of purchase can be produced.
• The product has been used for domestic purposes only.
• The product has not been tampered with or repair attempted or modified by any unauthorised person.
• All products have been installed in accordance with WRAS regulations and local water bye-laws

The Guarantee Does Not Cover

• Damage by misuse, neglect or transit.
  • Use of parts not used or recommended by CDA.
• Routine maintenance, general wear & tear and installation faults.
• Products used for commercial or professional purposes.

Your sink is guaranteed against defects in materials and/or workmanship for 5 years. At the discretion of CDA, should a fault arise the sink may be repaired or replaced and agreed refitting may be reimbursed on receipt on a faulty sink/part, once they have been inspected and deemed faulty.

E & O E. All instructions, dimensions and illustrations are provided for guidance only. CDA reserve the right to change specifications without prior notice.

Please contact our Customer Care Department for Service on the details below
