DWC5500BL - Dishwasher SALORA - Free user manual and instructions

Product Type	Built-in Dishwasher
Brand	Salora
Model	DWC5500BL
Color	Black
Width	598 mm
Height	850 mm
Depth	600 mm
Net Weight	47 kg
Power Supply	220-240 V ~ 50 Hz
Power Consumption	2000 W
Energy Efficiency Class	A++
Capacity	12 place settings
Noise Level	44 dB(A)
Number of Programs	6
Programs	Eco, Auto, Intensive, Normal, Quick, Glass
Drying System	Condensation drying
Water Consumption per Cycle	9.5 L (Eco)
Cycle Time (Eco)	210 min
Delay Start	Up to 24 hours
Child Lock	Yes
Water Protection System	AquaStop
Display	LED
Interior Material	Stainless steel
Adjustable Upper Basket	Yes
Maintenance	Clean filter monthly; descale every 3 months
Spare Parts Availability	Filters, spray arms, baskets, heating element

Frequently Asked Questions - DWC5500BL SALORA

What is the energy efficiency class of the Salora DWC5500BL?

The Salora DWC5500BL dishwasher has an energy efficiency class of A++, indicating very low energy consumption.

How many place settings does the DWC5500BL hold?

The dishwasher has a capacity of 12 place settings, suitable for a standard household.

What is the noise level of this dishwasher?

The noise level is 44 dB(A), which is quiet and allows for comfortable use even in open-plan kitchens.

Does the DWC5500BL have a child lock?

Yes, it is equipped with a child lock feature to prevent accidental operation by children.

What should I do if the dishwasher does not start?

First, check that the door is properly closed and latched. Ensure the water supply is turned on and the power cord is plugged in. If the problem persists, consult the error codes in the manual.

How do I clean the filter of the Salora DWC5500BL?

Clean the filter at least once a month. Remove the bottom basket, twist and lift out the filter assembly, rinse under running water, and reassemble. Avoid using abrasive cleaners.

What programs are available on the DWC5500BL?

The dishwasher offers 6 programs: Eco, Auto, Intensive, Normal, Quick, and Glass, giving flexibility for different load types and soil levels.

Can I use a delayed start?

Yes, the delay start function allows you to set the cycle to begin up to 24 hours in advance.

What is the water consumption per cycle?

On the Eco program, the water consumption is approximately 9.5 liters per cycle, making it an efficient choice.

How do I descale the dishwasher?

Use a commercial dishwasher descaling product or a mixture of vinegar and water. Run a full cycle with an empty load to remove limescale buildup. Refer to the manual for recommended frequency (every 3 months).

USER MANUAL DWC5500BL SALORA

Simple line drawing of a 3D printer or scanner device inside a circular frame, no text or symbols present.

Vaatwasser

Handleiding

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

PRODUCTOVERZICHT

① BELANGRIJK:

Illustration of hands using a tool to clean or spray a pipe in a kitchen (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with an inset close-up of the component (no text or symbols)

Illustration of a hand using a tool to press or install a mechanical component on a flat surface (no text or symbols)

Illustration of a hand using a spray gun to clean or spray a small object on a surface (no text or symbols)

Symbolic illustration of a hand with a lightning bolt and smoke, representing electrical hazard (no text or labels)

Line drawing of a hand holding a faucet with a screwdriver inserted (no text or symbols)

Technical line drawing of a mechanical assembly with a magnified inset showing a tool interacting with a threaded component (no text or symbols present)

TIPS VOOR PROBLEEMOPLOSSING

with the cup rackwithout the cup rack

Simple line drawing of a 3D printer or scanner inside a circular frame, no text or symbols present.

Vaatwasser

Handleiding

DEEL II: Speciale versie

Pure diagram of a mechanical or electrical system with no text, numbers, or symbols

1 De vaatwasser

Simple line drawing of a fish and a droplet on a surface (no text or symbols)

Illustration of a hand pouring liquid into a digital kitchen appliance with a tool (no text or symbols)

Simple line drawing of a box with motion lines indicating sound or vibration (no text or symbols)

Line drawing of a shopping basket filled with documents and a person (no text or symbols)

De bestekmand laden

Illustration of a battery pack with cutlery and a round object on top (no text or symbols)

WAARSCHUWING

Illustration of a hand using a circular tool to interact with a device (no text or symbols visible)

Illustration of a hand pressing down on a device panel with icons for lighting and adjustment (no text or symbols)

Illustration of a hand pressing down on a kitchen control panel with directional arrows (no text or symbols)

WAARSCHUWING

Simple line drawing of a bucket with a lid and handle (no text or symbols)

Simple line drawing of a 3D printer or scanner device inside a circular frame (no text or symbols)

Dishwasher Instruction Manual

PART I : Generic Version

DWC5500WH/DWC5500BL

CONTENTS

01	3	SAFETY INFORMATION
02	8	PRODUCT OVERVIEW
03	9	MAINTENANCE AND CLEANING
	9	External Care
	9	Internal Care
	11	Caring For The Dishwasher
04	13	INSTALLATION INSTRUCTION
	13	About Power Connection
	14	Water Supply And Drain
	15	Connection Of Drain Hoses
	16	Position The Appliance
05	17	TROUBLESHOOTING TIPS

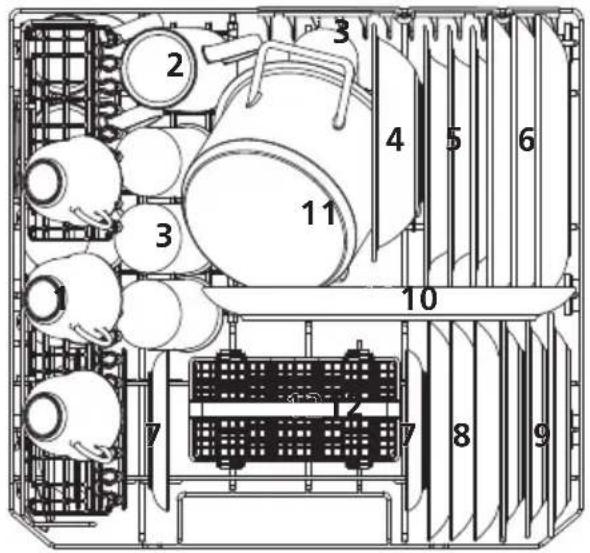

06	20	LOADING THE BASKETS ACCORDING TO EN60436

NOTE:

• Reviewing the section on troubleshooting Tips will help you solve some common problems by yourself.
• If you cannot solve the problems by yourself, please ask for help from a professional technician.
• The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.
• If lost or out-of-date, you can receive a new user manual from the manufacturer or responsible vendor.

SAFETY INFORMATION

WARNING

When using your dishwasher, follow the precautions listed below:

• Installation and repair can only be carried out by a qualified technician
• This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-farm houses;

-by clients in hotels, motels and other residential type environments;

- -bed and breakfast type environments.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe

• way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision. (For EN60335-1)

This appliance is not intended for use by persons

mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. (For IEC60335-1)

• Packaging material could be dangerous for children!
• This appliance is for indoor household use only.
  To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
• Please unplug before cleaning and performing maintenance on the appliance.
• Use a soft cloth moistened with mild soap, and then use a dry cloth to wipe it again.

Earthing Instructions

• This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with an earthing conductor plug.
• The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local codes and ordinances.
• Improper connection of the equipment-earthing conductor can result in the risk of an electric shock.

• Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.

• Do not modify the plug provided with the appliance; If it does not fit the outlet.

• Have a proper outlet installed by a qualified electrician.
• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
• Do not operate your dishwasher unless all enclosure panels are properly in place.
• Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
• Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward.

- When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the door seal;
2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points facing down or placed in a horizontal position.

- Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children away from the dishwasher when the door is open.

- Check that the detergent powder is empty after completion of the wash cycle.

• Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent.
• For unmarked plastic items not so marked, check the manufacturer's recommendations.
• Use only detergent and rinse agents recommended for use in an automatic dishwasher.
• Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
• The door should not be left open, since this could increase the risk of tripping.
  If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• During installation, the power supply must not be excessively or dangerously bent or flattened.
• Do not tamper with controls.
• The appliance needs to be connected to the main water valve using new hose sets. Old sets should not be reused.
• To save energy, in stand by mode, the appliance will switch off automatically while there is no any operation in 30 minutes.
  The maximum number of place settings to be washed is 6.
  The maximum permissible inlet water pressure is 1MPa.
  The minimum permissible inlet water pressure is 0.04MPa.

Disposal

- For disposing of package and the appliance please go to a recycling center. Therefore cut off the power supply cable and make the door closing device unusable.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

• Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.
• By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
• For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service.
• DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

PRODUCT OVERVIEW

IMPORTANT:

To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

NOTE:

Pictures are only for reference, different models may be different.

Please prevail in kind.

MAINTENANCE AND CLEANING

External Care

The door and the door seal

Clean the door seals regularly with a soft damp cloth to remove food deposits. When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. Any deposits should be wiped off before the door is closed.

The control panel

If cleaning is required, the control panel should be wiped with a soft damp cloth only.

WARNING

• To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.
• Never use abrasive cleaners or scouring pads on the outer surfaces because they may scratch the finish. Some paper towels may also scratch or leave marks on the surface.

Internal Care

Filtering system

The filtering system in the base of the wash cabinet retains coarse debris from the washing cycle. The collected coarse debris may cause the filters to clog. Check the condition of the filters regularly and clean them if necessary under running water. Follow the steps below to clean the filters in the wash cabinet.

NOTE:

Pictures are only for reference, different models of the filtering system and spray arms may be different. Please prevail in kind.

1 Hold the coarse filter and rotate it anticlockwise to unlock the filter. Lift the filter upwards and out of the dishwasher.

2 Lift fine filter up from main filter.

Illustration of a hand washing a cup with a tool, no text or symbols present

3 Larger food remnants can be cleaned by rinsing the filter under running water. For a more thorough clean, use a soft cleaning brush.

Illustration of a hand turning a mechanical component with arrows indicating motion (no text or symbols)

4 Reassemble the filters in the reverse order of the disassembly, replace the filter insert, and rotate clockwise to the close arrow.

WARNING

• Do not over tighten the filters. Put the filters back in sequence securely, otherwise coarse debris could get into the system and cause a blockage.
• Never use the dishwasher without filters in place. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

Spray arms

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings.

To clean the spray arms, follow the instructions below:

Illustration of a hand using a tool to cut a cylindrical object on a flat surface, with an arrow indicating the process (no text or symbols present)

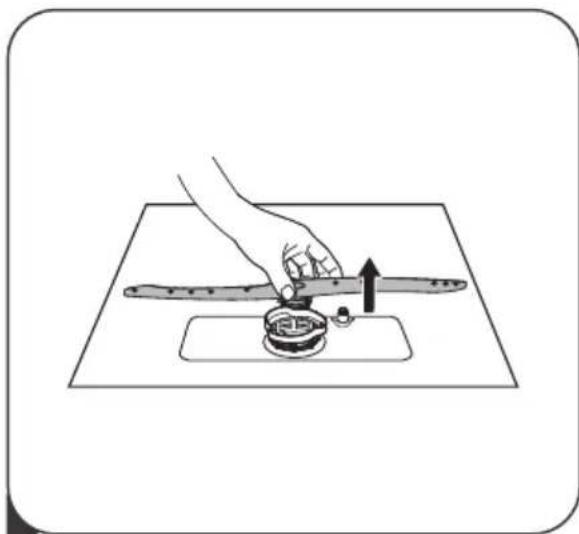

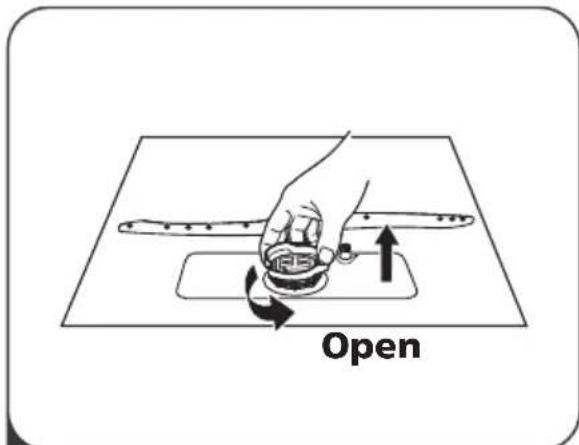

1 To remove the lower spray arm, pull out the spray arm upward.

Illustration of hands using a spray gun to clean or wash air on a kitchen sink (no text or symbols)

2 Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

Caring For The Dishwasher

Frost precaution

please take frost protection measures on the dishwasher in winter. Every after washing cycles, please operate as follows:

1. Cut off the electrical power to the dishwasher at the supply source.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

After every wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odors are not trapped inside.

Remove the plug

Before cleaning or performing maintenance, always remove the plug from the socket.

No solvents or abrasive cleaning

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water.

To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.

When not in use for a longtime

It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odors from forming within the appliance.

Moving the appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

INSTALLATION INSTRUCTION

WARNING

Symbolic illustration of a hand with a lightning bolt and serrated line, representing electrical hazard or electrical hazard (no text present)

Electrical Shock Hazard

Disconnect electrical power before installing dishwasher.

Failure to do so could result in death or electrical shock.

Attention

The installation of the pipes and electrical equipments should be done by professionals.

• About Power Connection

WARNING

For personal safety:

• Do not use an extension cord or an adapter plug with this appliance.
• Do not, under any circumstances, cut or remove the earthing connection from the power cord.

Electrical requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10A/13A/16A, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

Electrical connection

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

⚠ Ensure that proper earthing exists before use

Water Supply And Drain

Cold water connection

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place.

If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance.

Illustration of hands holding a pipe fitting with a handle (no text or symbols)

ordinary supply hose

WARNING

A hose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged.

How to connect the supply hose

1. Pull The supply hoses completely out from storage compartment located at rear of dishwasher.
2. Tighter the screws of the supply hose to the faucet with thread 3/4inch.
3. Turn water fully on before starting the dishwasher.

How to disconnect the supply hose

1. Turn off the water.
2. Unscrew the supply hose from the faucet.

Connection Of Drain Hoses

Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 600mm. The free end of the hose must not be immersed in water to avoid the back flow of it.

Please securely fix the drain hose in either position A or position B

Technical line drawing of a screwdriver inserted into a pipe in a storage cabinet (no text or symbols)

How to drain excess water from hoses

If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

Water outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.

Extension hose

If you need a drain hose extension, make sure to use a similar drain hose.

It must be no longer than 4 meters; otherwise the cleaning effect of the dishwasher could be reduced.

Syphon connection

The waste connection must be at a height less than 100 cm (maximum) from the bottom of the dish. The water drain hose should be fixed.

Position The Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

TROUBLESHOOTING TIPS

Before Calling For Service

Reviewing the charts on the following pages may save you from calling for service.

Problem Possible causes Solution
Dishwasher doesn't start	Fuse blown, or the circuit breaker tripped.	Replace fuse or reset circuit breaker.Remove any other appliances sharing the same circuit with the dishwasher.
	Power supply is not turned on.	Make sure the dishwasher is turned on and the door is closed securely.Make sure the power cord is properly plugged into the wall socket.
	Door of dishwasher not properly closed.	Make sure to close the door property and latch it.
Water not pumped from dishwasher	Kink in drain hose	Check drain hose.
	Filter clogged.	Check the coarse filter.(see section titled "Internal Care")
	Kitchen sink clogged.	Check the kitchen sink to make sure it is draining well. If the problem is the kitchen sink that is not draining, you may need a plumber rather than a serviceman for dishwashers.
Suds in the tub	Improper detergent	Use only the special dishwasher detergent to avoid suds. If this occurred, open the dishwasher and let suds evaporate.Add 1 gallon of cold water to the tub.Close and latch the dishwasher, then Start any wash cycle to drain out the water. Repeat if necessary.
	Spilled rinse-aid. Always wipe up rinse-aid spills immediately.
Stained tub interior	Detergent with colourant may have been used.	Make sure that the detergent has no colourant.
White film on inside surface	Hard water minerals. To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent for the risk of foaming or suds.
Problem Possible Causes What To Do
There are rust stains on cutlery	The affected items are not corrosion resistant.	Avoid washing items that are not corrosion resistant in the dishwasher.
Knocking noise in the wash cabinet	The spray arm is knocking against an item in a basket.	Interrupt the program, and rearrange the items which are obstructing the spray arm.
Rattling noise in the wash cabinet	Item of crockery are loose in the wash cabinet.	Interrupt the program, and rearrange the items of crockery.
Knocking noise in the water pipes	This may be caused by on-site installation or the cross-section of the piping.	This has no influence on the dishwasher function. If in doubt, contact a qualified plumber.
The dishes are not clean	The dishes were not loaded correctly.	See PART II “Preparing And Loading Dishes”.
	The programme was not powerful enough.	Select a more intensive programme.
	Not enough detergent was dispensed.	Use more detergent, or change your detergent.
	Item are blocking the path of spray arms.	Rearrange the items so that the spray can rotate freely.
	The filter combination in the base of wash cabinet is not clean or is not correctly fitted. This may cause the spray arm jets to get blocked.	Clean and/or fit the filter correctly. Clean the spray arm jets.
Cloudiness on glassware.	Combination of soft water and too much detergent.	Use less detergent if you have soft water and select a shorter cycle to wash the glassware and to get them clean.
Black or grey marks on dishes	Aluminium utensils have rubbed against dishes	Use a mild abrasive cleaner to eliminate those marks.
Detergent left in dispenser cups	Dishes block detergent dispenser cups	Re-loading the dishes properly.
The dishes are not drying	Improper loading Load the dishwasher as suggested in the directions.
	Dishes are removed too soon	Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can escape. Begin unloading the dishwasher only once the dishes are barely warm to the touch. Empty the low basket first. This prevents water form dropping off dishes in the upper basket.
	Wrong program has been selected.	In short programs the washing temperature is lower. This also lowers cleaning performance. Choose a program with a long washing time.
	Use of cutlery with a low-quality coating.	Water drainage is more difficult with these items. Cutlery or dishes of this type are not suitable for washing in the dishwasher.

LOADING THE BASKETS ACCORDING TO EN60436:

1.Basket:

with the cup rack without the cup rack

Number	Item
1	Cups
2	Mugs
3	Glasses
4	Melamine bowl
5	Soup plates
6	Dinner plates
7	Saucers

Number	Item
8	Dessert dishes
9	Melamine dessert plates
10	Oval platter
11	Small pot
12	Cutlery basket
13	Dessert bowls
14	Serving spoon

2.Cutlery basket:

Information for comparability tests in accordance with EN60436

• Capacity: 6 place settings
- Program: ECO
- Rinse aid setting: Max
- Softener setting: H4

Number	Item
1	Forks
2	Soup spoons
3	Dessert spoons
4	Teaspoons
5	Knives
6	Serving spoons
7	Gravy ladles
8	Serving forks

Simple line drawing of a 3D printer or scanner device inside a circular frame (no text or symbols)

Dishwasher Instruction Manual

PART II: Special Version

Please read this manual carefully before using the dishwasher. Keep this manual for future reference.

CONTENTS

01

4 USING YOUR DISHWASHER
4 Control Panel
6 Preparing And Loading Dishes
9 Function Of The Rinse Aid And Detergent
10 Filling The Rinse Aid Reservoir
11 Filling The Detergent Dispenser

02

12 PROGRAMMING THE DISHWASHER

12 Wash Cycle Table

13 Starting A Cycle Wash

13 Changing The Program Mid-cycle

14 Forget To Add A Dish?

03

15 ERROR CODES

04

16 TECHNICAL INFORMATION

NOTE:

• If you cannot solve the problems by yourself, please ask for help from a professional technician.
• The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.
• If lost or out-of-date, you can receive a new user manual from the manufacturer or responsible vendor.

QUICK USER GUIDE

Please read the corresponding content on the instruction manual for detailed operating method.

Pure diagram of a ceiling structure with pipes and a box, no text or symbols present

1 Install the dishwasher

(Please check the section 5 "INSTALLATION INSTRUCTION")

of PART I : Generic Version.)

Simple line drawing of a mechanical setup with a hammer, screw, and disc (no text or symbols)

2 Removing the larger residue on the cutlery

3 Loading the baskets

Line drawing of a hand using a power tool to clean or spray liquid from a digital kitchen appliance (no text or symbols)

4 Filling the dispenser Selecting a program a

Simple line drawing of a box with sound waves above it (no text or symbols)

5 running the dishwasher

USING YOUR DISHWASHER

Control Panel

Operation (Button)

1 Power	Press this button to turn on your dishwasher.
2 Program	Press this button to select the appropriate washing program, corresponding indicator will be lit.
3 Delay	Press the button to set the delay time..
4 Start / Pause	Press the button to start the selected washing program or pause the working program.

Display

5 Program indicator	IntensiveFor heaviest soiled crockery, and normally soiled pots, pans, dishes etc. With dried-on food.
	UniversalFor normally soiled loads, such as pots, plates, glasses and lightly soiled pans.
5 Program indicator	ECO ECOThis is standard program, it is suitable to clean normally soiled tableware and it is the most efficient program in terms of its combined energy and water consumption for that type of tableware.[2STC] GlassFor lightly soiled crockery and glass. RapidA shorter wash for lightly soiled loads that do not need drying.
6 Warning indicator	[HT6S] Rinse AidIf the “※” indicator is lit, it means the dishwasher is low on dishwasher rinse aid and requires a refill. SaltIf the “≦” indicator is lit, it means the dishwasher is low on dishwasher salt and needs to be refilled.
7 Delay time	To show the delay time.(2h/4h/6h/8h),6h is indicated by 2h and 4h simultaneously.

Preparing And Loading Dishes

• Consider buying utensils which are identified as dishwasher-proof.
• For particular items, select a program with the lowest possible temperature.
• To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended.

For washing the following cutlery/dishes

Are not suitable

• Cutlery with wooden, horn china or mother-of-pearl handles
• Plastic items that are not heat resistant
- Older cutlery with glued parts that are not temperature resistant
• Bonded cutlery items or dishes
- Pewter or cooper items
- Crystal glass
• Steel items subject to rusting
- Wooden platters
- Items made from synthetic fibres

Are of limited suitability

• Some types of glasses can become dull after a large number of washes
• Silver and aluminum parts have a tendency to discolour during washing
- Glazed patterns may fade if machine washed frequently

Recommendations for loading the dishwasher

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water.

For best performance of the dishwasher, follow these loading guidelines.

(Features and appearance of baskets and cutlery baskets may vary from your model.)

Place objects in the dishwasher in following way:

• Items such as cups, glasses, pots/pans, etc. are faced downwards.
• Curved items, or ones with recesses, should be loaded aslant so that water can run off.
• All utensils are stacked securely and can not tip over.
• All utensils are placed in the way that the spray arms can rotate freely during washing.
• Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base.
• Dishes and items of cutlery must not lie inside one another, or cover each other.
  • To avoid damage, glasses should not touch one another.
• The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups.
• Long bladed knives stored in an upright position are a potential hazard!
• Long and / or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
• Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

NOTE:

Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

Removing the dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first, followed by the upper basket.

WARNING

Items will be hot! To prevent damage, do not take glass and cutlery out of the dishwasher for around 15 minutes after the program has ended.

Loading the basket

All tableware can't be placed face up, in order to improve the cleaning area and washing performance, it is recommended to place the dirty side towards the spray arm.

Please don't let tableware out of basket bottom to make sure not block the moving of the spray arm. The maximum diameter advised for plates in front of the detergent dispenser is of 19 cm, this not to hamper the opening of it.

Line drawing of a basket filled with books and documents, no text or symbols present

Loading the cutlery basket

For personal safety and a top quality cleaning, place the silverware in the basket making sure that:

• They do not nest together.
• Silverware is placed with the handles-down.
- But place knives and other potentially dangerous utensils are placed handles-up.

Illustration of a basket containing cutlery and food items (no text or symbols)

WARNING

Circular diagram with grid lines and a crossed X symbol (no text or labels)

Do not let any item extend through the bottom.

Always load sharp utensils with the sharp point down!

For the best washing effect, please load the baskets refer to standard loading options on last section of PART I: Generic Version

Function Of The Rinse Aid And Detergent

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids.

WARNING

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to refill the rinse aid dispenser

Unless the rinse-aid warning light ( ※ ) on the control panel is on, you can always estimate the amount from the color of the optical level indicator located next to the cap. When the rinse-aid container is full, the indicator will be fully dark. The size of the dark dot decreases as the rinse-aid diminishes. You should never let the rinse aid level be less than 1/4 full.

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

Full

3/4 full 1/2 full 1/4 full

○ Empty

Function of detergent

The chemical ingredients that compose the detergent are necessary to remove, crush and dispense all dirt out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

WARNING

• Proper Use of Detergent
Use only detergent specifically made for dishwashers use. Keep your detergent fresh and dry.
Don't put powdered detergent into the dispenser until you are ready to wash dishes.

Dishwasher detergent is corrosive! Keep dishwasher detergent out of the reach of children.

Filling The Rinse Aid Reservoir

1 To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.

Illustration of a hand pressing down on a device with buttons and a knob (no text or symbols)

2 Carefully pour in the rinse-aid into its dispenser, whilst avoiding it to overflow.

Illustration of a hand pressing down on a device panel with icons and arrows (no text or symbols)

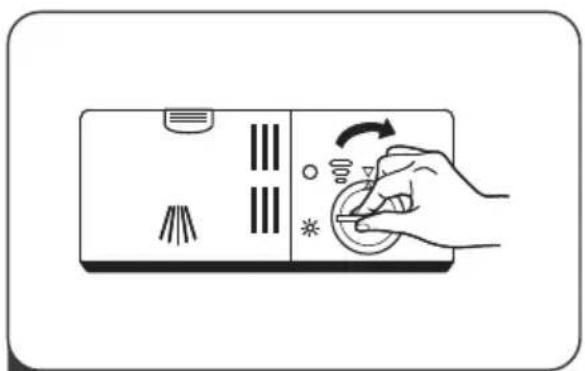

3 Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

NOTE:

Clean up any spilled rinse aid with an absorbent cloth to avoid excessive foaming during the next wash.

Adjusting the rinse aid reservoir

The rinse aid reservoir has six settings. Both the recommended setting and the factory setting is "4". If the dishes are not drying properly or are spotted, adjust the dial to the next higher number until your dishes are spot-free. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades.

Filling The Detergent Dispenser

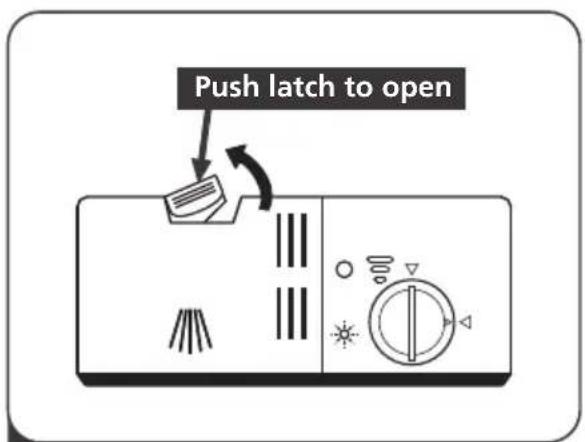

1 Press the release catch on the detergent dispenser to open the cover.

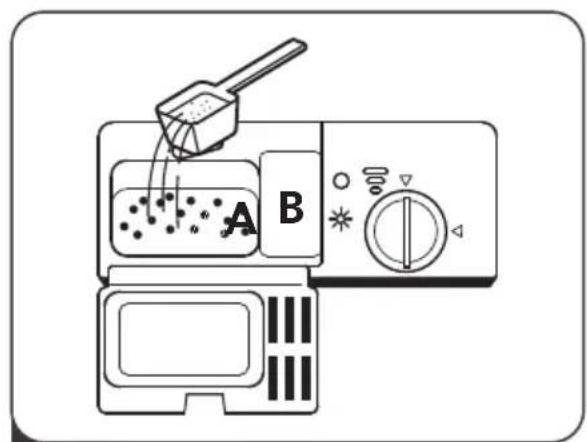

2 Add detergent into the larger cavity (A) for the main wash cycle. For more heavily soiled wash loads, also add some detergent into the smaller cavity (B) for the pre-wash cycle.

Illustration of a hand pressing down on a kitchen control panel with directional arrows (no text or symbols)

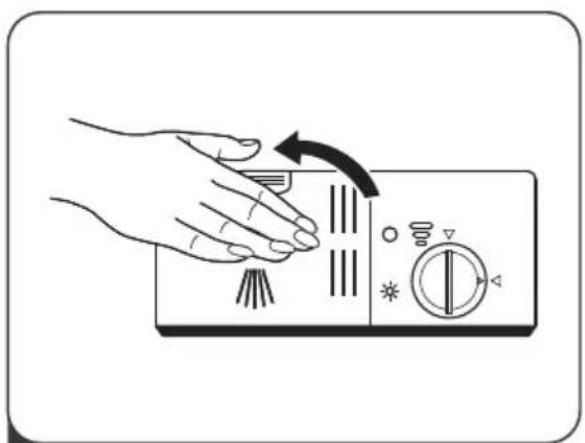

3 Close the cover and press on it until it locks into place.

NOTE:

• Be aware that depending on the soiling of water, setting may be different.
• Please observe the manufacturer's recommendations on the detergent packaging.

Wash Cycle Table

The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs.

(●) Means: need to fill rinse into the Rinse-Aid Dispenser.

Program	Description Of Cycle	Detergent Pre/Main	Running Time(min)	Energy (Kwh)	Water (L)	Rinse Aid
Intensive	Pre-wash(50°C)Wash(70°C)
	Rinse	3/15g	140	0.894	9.6	●
	RinseRinse(70°C)Drying	1 piece
Universal	Pre-washWash(60°C)
	Rinse	3/15g	120	0.667	7.7	●
	Rinse(70°C)Drying	1 piece
ECO(*En60436)	Pre-washWash(45°C)Rinse(65°C)Drying	18g	230	0.609	6.5	●
		1 piece
Glass	Wash(45°C)
	Rinse	18g	75	0.590	5.8	●
	Rinse(60°C)Drying	1 piece
Rapid	Wash(40°C)
	Rinse	15g	30 0.244		5.8	○
	Rinse	1 piece

NOTE:

ECO : This program is the test cycle. The information for comparability test in (*EN60436) accordance with EN60436.

Starting A Cycle Wash

1. Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one.
2. Pour in the detergent.
3. Insert the plug into the socket. The power supply refer to last page "Product fiche". Make sure that the water supply is turned on to full pressure.
4. Close the door, press the Power button, to switch on the machine.
5. Choose a program, the response light will turn on. Then press the Start/Pause button, the dishwasher will start its cycle.

Changing The Program Mid-cycle

A wash cycle can only be changed if it has been running for a short time otherwise, the detergent may have already been released and the dishwasher may have already drained the wash water. If this is the case, the dishwasher needs to be reset and the detergent dispenser must be refilled. To reset the dishwasher, follow the instructions below:

1. Press the Start/Pause button to pause the washing.
2. Press Program button for more than 3 seconds - the program will cancel.
3. Press the Program button to select the desired program.
4. Press the Start/Pause button, after 10 seconds, the dishwasher will start.

Forget To Add A Dish?

A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below:

1. Press the Start/Pause button to pause the washing.
2. Wait 5 seconds then open the door.
3. Add the forgotten dishes.
4. Close the door.
5. Press the Start/Pause button after 10 seconds, the dishwasher will start.

WARNING

Simple line drawing of a box with a lid and handle, no text or symbols present

It is dangerous to open the door mid-cycle, as hot steam may scald you.

ERROR CODES

If there is a malfunction, the dishwasher will display error codes to identify these:

Codes	Meanings	Possible Causes
The Rapid indicator flickers fleetly	Longer inlet time.	Faucets is not opened, or water intake is restricted, or water pressure is too low.
The Rapid and Glass flickers fleetly	Not reaching required temperature.	Malfunction of heating element.
The ECO indicator flickers fleetly	Overflow.	Some element of dishwasher leaks.
The Universal, ECO and Rapid indicator flickers fleetly	Failure of communication between main PCB with display pcb.	Open circuit or break wiring for the communication.

WARNING

• If overflow occurs, turn off the main water supply before calling a service.
• If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

TECHNICAL INFORMATION

Height (H)	438mm
Width (W)	550mm
Depth (D1)	500mm (with the door closed)
Depth (D2)	812mm (with the door opened 90° )

Product information sheet(EN 60436)

Supplier's name or trade mark: Salora

Supplier's address (b): Vareseweg 44, 3047AV Rotterdam

Model identifier: DWC5500WH/BL

General product parameters:

Parameter Value		Parameter Value
Rated capacity (a) (ps)	6	Dimensions in cm	Height	43,8
			Width	55,0
			Depth	50,0
EEI (a)	61,9	Energy efficiency class (a)	F (c)
Cleaning performance index (a)	1,13	Drying performance index (a)	1,07
Energy consumption in kWh [per cycle], based on the eco programme using cold water fill. Actual energy consumption will depend on how the appliance is used.	0 613,	Water consumption in litres [per cycle], based on the eco program. Actual water consumption will depend on how the appliance is used and on the hardness of the water.	6,5
Program duration (a) (h:min)	3:50	Type	Free standing
Airborne acoustical noise emissions (a) (dB(A) re 1 pW)	49	Airborne acoustical noise emission class (a)	C (c)
Off-mode (W)	0,49	Standby mode (W)	N/A
Delay start (W) (if applicable)	1,00	Networked standby (W) (if applicable)	N/A

Minimum duration of the guarantee offered by the supplier (b):

Additional information:

Weblink to the supplier's website, where the information in point 6 of Annex II to Commission Regulation (EU) 2019/2022 (1) (b) is found:

(a) for the eco program.
(b) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.
(c) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

(1) Commission Regulation (EU) 2019/2022 of 1 October 2019 laying down eco design requirements for household dishwashers pursuant to Directive 2009/125/EC of the European Parliament and of the Council amending Commission Regulation (EC) No 1275/2008 and repealing Commission Regulation (EU) No 1016/2010 (see page 267 of this Official Journal).

SALORA
