USER MANUAL 99-5835G Metra

Front view of a car dashboard with air vent and monitor (no visible text or symbols)

Ford Transit 2015-2019\*

*For non-navigation model

Visit NetraOnline.com for more detailed information about the product and up-to-date vehicle specific applications

KIT FEATURES

• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Radio trim panel is painted gray

KIT COMPONENTS

• A) Radio trim panel • B) Dash panel • C) Radio brackets • D) Pocket • E) Airbag light • F) (4) #8 x 3/8" Phillips truss head screws
• G) (2) #8 x 3/8" Phillips pan head screws • H) (3) Metal "U" panel clips • I) (5) Metal "D" panel clips • J) (4) Small metal "D" panel clips • K) (4) Plastic panel clips

Technical line drawing of a car interior frame (no text or symbols)

•

•

D

E

■

G

H

•

•

•

TABLE OF CONTENTS

Dash Disassembly 2

Kit Preparation 2

Kit Assembly

-ISO DIN radio provision with pocket ....3

-ISO DDIN radio provision ....3

Final Assembly 3

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: 70-5524

Antenna Adapter: 40-EU10

Visit MetraOnline.com for audio/video and steering wheel control interface options.

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver
• Socket wrench • T-20 Torx driver

Attention: With the key out of the ignition, disconnect the negative battery terminal before installing this product. Ensure that all installation connections are secure before cycling the ignition to test this product.

DASH DISASSEMBLY KIT PREPA

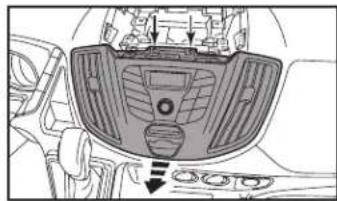

1. Unclip the dash panel above the radio. (Figure A)
2. Remove (2) T-20 Torx screws securing the factory radio/trim panel. (Figure B)
3. Unclip the factory radio/trim panel from the dash, unplug and remove. (Figure B)
4. Remove (1) T-20 Torx screw per vent then unclip and remove the vents from the factory radio/trim panel. (Figure C)
5. Unclip and remove the hazard switch assembly from the factory radio/trim panel. (Figure D)

Continue to Kit Preparation

Top-down view of a car dashboard with airflow arrows indicating direction (no text or symbols)

(Figure A) (Figure D)

Top-down view of a car dashboard with air vent and control buttons (no text or symbols visible)

(Figure B)

Diagram of a vehicle's rear view showing two seats and a central engine compartment (no text or labels)

(Figure C)

Line drawing of a car intake manifold with no text or symbols

TION

1. Secure the factory vents to the radio trim panel using the (2) #8 x 3/8" Phillips pan head screws provided. (Figure A)
2. Snap the factory hazard button into the radio trim panel. An airbag light blank has been included for models without a passenger airbag indicator. (Figure A)

Technical line drawing of a car interior frame with handle and seat components (no text or symbols)

(Figure A)

(Figure B)

1. Attach the (4) plastic panel clips provided to the radio trim panel. (Figure B)
2. Attach the (12) metal panel clips provided to the dash panel. (Figure C)

Continue to Kit Assembly

(Figure C)

KIT ASSEMBLY FINAL ASSEMI

ISO DIN radio provision with pocket

1. Attach the pocket to the radio brackets using the (4) supplied #8 x 3/8" Phillips truss head screws. (Figure A)
2. Remove the metal DIN sleeve and trim ring from the aftermarket radio.
3. Slide the radio into the completed assembly and then secure it using the screws supplied with the radio. (Figure B)

Continue to Final Assembly

ISO DDIN radio provision

1. Attach the radio brackets to the radio using screws supplied with the radio. (Figure C)

Continue to Final Assembly

Technical line drawing of a mechanical assembly with labeled components (no text or symbols)

(Figure A)

Technical line drawing of a mechanical device with mounting brackets and a control panel (no text or symbols)

(Figure B)

Technical line drawing of an electronic device with mounting holes and internal components (no text or symbols)

(Figure C)

1. Cut the shaded portion from the sub-dash of the vehicle to allow the radio to fit. (Figure A)
2. Locate the factory wiring harness and antenna connector in the dash and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or AXXESS. Test the radio for proper operation.

(Figure A)

Having difficulties? We're here to help.

our Tech Support line at:

386-257-1187

mail at:

[e-mail]

Tech Support Hours (Eastern Standard Time)

Monday - Friday: 9:00 AM - 7:00 PM

Saturday: 10:00 AM - 7:00 PM

Sunday: 10:00 AM - 4:00 PM

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by supplying in the most recognized and supported

mobile electronics school in our industry.

Log onto www.installennstitute.com or call

800-354-6782 for more information and take steps toward a better tomorrow.

Metra recommends MECP certified technicians

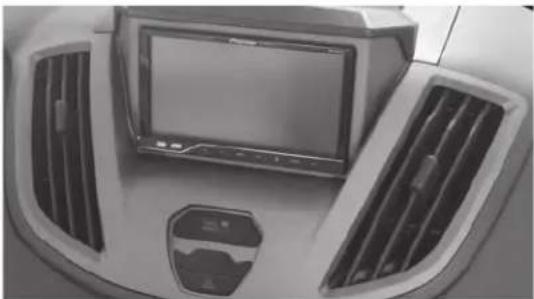

Front view of a car dashboard with air grilles and a central touchscreen display (no visible text or symbols)

Ford Transit 2015-2019\*

The image is too blurry to recognize any text content.

•

D

E

•

A
G

H

•

•

•
