Brand	Hiboy
Model	P6
Product Type	Electric Bike
Motor	350W brushless hub motor
Battery	36V 10Ah removable lithium-ion
Range	Up to 40 miles (64 km) on pedal assist
Top Speed	20 mph (32 km/h)
Frame Material	Aluminum alloy
Brakes	Front and rear disc brakes
Gears	6-speed Shimano derailleur
Tires	26-inch x 1.95-inch puncture-resistant
Foldable	Yes, folding frame
Dim. (unfolded)	68 x 24 x 42 inches
Dim. (folded)	38 x 24 x 28 inches
Weight	45 lbs (20.4 kg)
Max Load	265 lbs (120 kg)
Charging Time	4-6 hours
Display	LCD with speed, distance, battery indicator
Lights	Front LED headlight, rear reflector
Suspension	Front suspension fork
Pedal Assist	5 levels of pedal assist
Throttle	Twist throttle on handlebar
Maintenance	Regular tire pressure check, brake adjustment, chain lubrication; battery recharge after each use; store in dry place
Safety	Helmet recommended; obey traffic laws; reflectors and bell included; brake levers with motor cut-off
Spare Parts	Available from Hiboy or authorized dealers: battery, charger, tires, brake pads, chain, fenders

Frequently Asked Questions - P6 Hiboy

What is the top speed of the Hiboy P6?

The Hiboy P6 has a top speed of 20 mph (32 km/h) when using the throttle or highest pedal assist level.

How far can the Hiboy P6 go on a single charge?

The range is up to 40 miles (64 km) in pedal-assist mode, depending on rider weight, terrain, and assist level. Throttle-only range is shorter.

Is the battery removable?

Yes, the 36V 10Ah lithium-ion battery is removable for convenient charging indoors or at the office.

How long does it take to charge the battery?

Full charging takes approximately 4-6 hours using the included charger.

How much does the Hiboy P6 weigh?

The bike weighs about 45 lbs (20.4 kg), making it relatively easy to carry when folded.

Can the Hiboy P6 be ridden in the rain?

The bike is water-resistant but not waterproof. Avoid heavy rain and puddles; dry the bike after wet rides to prevent corrosion.

What is the maximum weight capacity?

The maximum load is 265 lbs (120 kg) including rider and cargo.

Does the Hiboy P6 have a throttle?

Yes, it features a twist throttle on the right handlebar for power without pedaling.

Are there different levels of pedal assist?

Yes, there are 5 levels of pedal assist (0-5) that you can adjust via the LCD display.

How do I fold the Hiboy P6?

Lower the seat, fold the handlebar stem, then release the frame latch to fold the bike. Detailed steps are in the user manual.

USER MANUAL P6 Hiboy

The manufacturer reserves the right to make changes to the product, and update this manual at any time.

USER MANUAL

Contents

Important! Before Riding, You Should 01

1. Package Contents 02

2. Product Overview 03

3. Installing The Handlebars 05

4. Installing The Front Wheel 06

5. Installing The Pedals 07

6. Installing The Headlight 08

7. Installing The Saddle 09

8. Display Introduction 10

9. How To Use The Display, Headlight & Horn 11

10. How To Take Off The Battery 12

11. How To Charge The Battery 13

12. Notes Of Charging 14

13. Daily Care And Maintenance 15

14. Specifications 16

15. Limited Warranty Statement 17

16. Q&A and Trouble shooting 19

17. Contact Us 22

IMPORTANT! BEFORE RIDING, YOU SHOULD

• Make sure your electric bike is fully charged before the first ride
• Make sure the pedals are tight
- Make sure the front wheel is installed properly and tightly
- Check to be sure the tires are inflated properly
- Learn how to use the display
- Wear a helmet when riding is highly advised

When riding, please

• Always respect pedestrians
- Obey local traffic rules
• Pay attention to other running vehicles around you

After riding

• If there is any abnormality or loosen parts, please check and repair as soon as possible
  • After riding on a rainy day, please clean up the rainwater and sediment immediately.

If you have any trouble with the installation, please contact Hibcy customer service

for support: [e-mail]

1. Package Contents


Please check package contents carefully, if anything is missing or damaged, please contact Hiboy customer service for support: [e-mail]

1. Product Overview


4

1. Installing The Handlebars


1. Shown in figure 1, according to the direction of the arrow, rotate the handle stem towards the front of the bike.
2. Put the handlebar in the handlebar mount and be careful with the wires.
3. Insert the screws and tighten alternating sides with installing tool.
4. Verify and check all items are tight.

5

1. Installing The Front Wheel


②

1. Insert the front wheel in between the front fork on the bike. Be sure the fork is resting on the outside of the axle.

2. Shown in figure 2, align the wheel axle with the disc brake slot, put the brake disc into the disc brake slot. Keep

the skewer and spring on the RIGHT side of electric bike riding direction, and the other spring and the end out on the LEFT

side of electric bike riding direction. Then insert the skewer into the wheel axle, shown in figure 1. BE AWARE TO DISTINGUSH THE LEFT SIDE AND THE RIGHT SIDE

1. Screw the skower with the and nut and tighten.

2. Lock up the lever. Lift the lever up until parallel with the front fork. The front wheel is now installed.

3. Installing The Pedals
   ①


②

1. Identify the Left and Right labels on the pedals. They can only be installed in their own side. INCORRECT INSTALLATION WILL CAUSE DAMAGE. PLEASE BE AWARE TO DISTINGUISH LEFT & RIGHT BEFORE INSTALLATION.
2. L is for the Left pedal of the riding direction; R is for the Right pedal of the riding direction, the chain side. Next, follow the direction of the arrow to tighten the foot pedal.

3. Take the #15 open-and-wrench from the tool kit, and tighten the nuts with the open-end wrench in the direction of the arrow.

4. Installing The Headlight


1. Shown in Figure 1, insert the screw of the headlight into the headlight hole.
2. Tighten the screw with nut by using the installing tool
3. Take the open and wrench and hex key allen wrench from the toal bag, adjust the headlights to the right position and tighten the screws.

1. Installing The Saddle


1. Install the sandle according to the picture.
2. Push the saddle down, pull up or push down to adjust the height.
3. Check to make sure the saddle is fully inserted and adjust it accordingly.
4. Lock the handle.

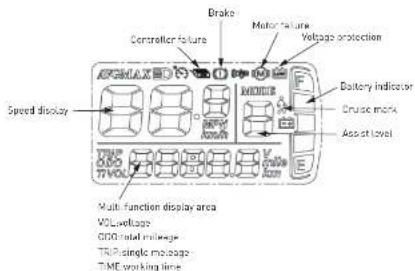

1. Display Introduction


10

1. How To Use The Display, Headlight & Horn


2. Press ⏻ for 3 seconds to turn on the display. Your electric bike will be ON. Press ⏻ again for 3 seconds to turn it off. The display will automatically turn off when there is no operation or riding for 5 minutes.

3. Short press *+* or *-* button to change the assist level from 0 to 5. 0 is without assist. 5 is the max assist level.
4. When the display is on Short press ⏻ to switch the display data in the multi-function area when riding.

5. When the electric bike is on, press and hold the "−" button, and the bike will enter towing mode at 3.7 mph. Release the "−" button and the bike will exit towing mode. In towing mode, you just hold the bike and the bike can walk automatically.

6. Press the light button to turn an/off the headlight

1. Press the horn button for horn control

11

1. How To Take Off The Battery


1. Insert the key and turn 90 degrees clockwise.
2. Take out the battery upwards.

1. How To Charge The Battery


Your electric bike will be fully charged when the LED light on the charger changes from rad (charging) to green (fully charged). After a period of full charge, it will automatically cut off the charging.
Even so, we still don't recommend to charge your electric bike for a long time.
Do not connect the charger if the charging port is wet. Cover the charging port when not use.

12. Notes Of Charging

1. Charging time: 80% full charge in 4 HOURS, full charge in 5-6 hours.

2. The small light on the charger in RED indicates it is in charging; GREEN indicates it is fully charged.

3. Insufficient charging will not influence the battery lifecycle. AVOIDING deep discharge is helpful to protect the battery and extend its lifecycle.

4. Pay attention to check whether the surface temperature of the battery case rises too high during charging. It is FORBIODEN to cover battery while charging.

5. Due to high temperature in summer, it is NOT advised to charge it immediately after riding. In winter, it is FORBIDDEN to charge the battery OUTSIDE where the temperature is below 32-degree F. You are recommended to charge it in room temperature.

6. If the battery will not be used for a long time, take it off from the bike and discharge its capacity to 60%-80% for stock. Disconnect it from the charger and place it in a dry, ventilated place without direct sunlight. In order to maintain a long lifecycle, it is recommended to charge the battery every two months.

13. Daily Care And Maintenance

Cleaning and storage

If you saw soaps on the electric bike hoey, wipe them off with a dump cloth. If the soaps won't scratch off, put on same toothpaste, and brush them with a toothbrush. When wipe them off with a dump cloth. If you see it inches or plastic parks, one transparent or other electricizer mats to police them. Notes: Do not clean the electric bike with alcohol, gasoline, robotics or other corrosive and volatile chemical solvents to prevent dire damage. Do not wish the electric bike with a high-pressure water spray. During cleaning, make sure that the electric bike turned off. The charging cable is unipulated as water leakage may result in electric shock at other major problems.

1. Use original battery packs, use of other models or brands may bring about safety issues;

2. Do not touch the contacts. Do not dismantle or puncture the casing. Keep the contacts away from meta, objects to prevent short circuit which may result in battery

3. The following table provides the information in English:

4. Use original power adapter to avoid potential damage or fire; A. Mishandling of used batteries may be tremendous harm to the environment. To protect natural environment, please follow local regulations to properly dispose used batteries;

5. After every use, fully charge the battery to prolong its lifespan.

Do not place the battery in an environment where the ambient temperature is higher than 104°F or lower than 14°F (e.g., do not leave the electric bike or the battery pack in a car under direct sunlight for an extended limit. Do not throw the battery pack into line as it may load to battery for battery, battery overheating, and clean another new. If the electric bike is expected to be felt idle for more than 30 days, please fully charge the battery and place it in a dry and cool place. Keep in mind to recharge it every 60 days to protect the battery from potential damage which is beyond limited warranty.

Always charge before exhausting the battery to prolong the battery's insopen. The battery pack performs better at normal temperature, and poor when it is below 32°F. For instance, when it is below -4°F, the riding range is only half or less at normal scale. When the temperature rises, the riding range remains. The damage caused by prolonged no charge is irreversible and is beyond limited warranty. Once the damage is done, the battery can not be recharged.

1. Specifications

P&	Items	Items
Dimensions	Package Size	59.6"11.4"32.2 inch [131°29"83 cm]
	Tire	Pneumatic tire [26°4.0 inch]
Weight	Item weight	85 lbs [79.5 kg]
Riding Requirements	Max. load	245 lbs (120 kg)
	Aeg	16-50
Main Parameters	Max Speed	26 MPH [25 km/h]
	Pure Electric Riding Dist./Load 14.3lbs	24 x 31mole [46-50 km]
	Postal Assist Riding Dist./Load 14.3lbs	49.7-62.1mole (60°-100 km)
	Max Angle of Climb	20%
	IP Rating	Ride IP3A, Battery IP3S
	Variable Speed	9 speeds
	Frame Material	Aluminum alloy
Battery pack	Rated voltage	ABV
	Max. input voltage	54.6V
	Rated capacity	124L
	Intelligent battery management system	Growth-welting, short circuit, overcurrent and overcharge protection, etc.
Wheel Motor	Rated power	750W
	Max. power	1000W
Charging adapter	Input Vol.	AC 100 240 V
	Output Vol.	DC 54.5 V 2 A

[1] 80oz. In front the minimum a mottle weight shall be kept within 24h the (121kg, in see and elctric retinald) in any case. Consider as sols weight of the clothes or other accessories with us during the trls and the gravity were good by speed. The electric blue will not support it if this load limit is expected.

[2] MAX (sum of measured when I is on write until 97°F, for electric shock is fully charged to rule, it can reach the space of 78 mp: [55 am/h] with

a total of 220 pounds [99.79 kg]

The real factory life vary with different factors of the load, humidity, wind speed and operation efficiencies...etc.

15. Limited Warranty Statement

SUDAY SAIRIAC EIN OJA BAN TIE HAIN XHIEY

If you are unsatisfied with your purchase, it's a certain policy allows you to trust your undamaged history product purchased on the Author's channel within 30 days coming from the date of receipt of shipment, and request a refund from the Author's channel for any reason. Note: The cost of return shipping will be borne by the customer if the product has no poultry room.

For the return request, utility is not responsible for last package due to the carrier, or products received that cannot be required. Located products that have damage determined to have been caused by the end user may be subject to detail of the return request.

TO QUALIFY FOR A REFUND, ALL THE FOLLOWING CONDITIONS MUST BE RET.

1.6 Eastern Merchandise Authorship [CMG] must be requested from shipping within 20 days from the date of receipt of settlement. In request an CMG, contact-inergy furniture

Team at [e-mail]

1. The third section to shipping will be incoming the customer.

2. For we can, service, choose keep power to place and/or move to validate proof of process.

3. Returned product must be in good physical condition [no physically broken or damaged].

4. All accessories originally included with your purchase must be included with your return.

All you return a partial in liborg, (a) without an iMMA runn (itough) until all parts allotted in the original package. Liborg returns are right to return delivery at 01:00 PM.

LIMITED PRODUCT WARRANTY

Hiboy product basically will be free from defects in materials and workmanship under normal use for a period before mentioned.

Hbox does not warrant the operation of the product will be uninterrupted or error-free.

Hbp is not responsible for damage arising from failure to follow instructions relating to the product's usage.

REMEDIES

If the number of claims, is found and will claim to be carried by many within the Warly Partur, library shall be applied on or the extent permitted by law, either: "It applies the product at no change. Using any such property for sale or not related property contracts, or) If there are the product with a tax or metropolitan product. In the event of a defect, to the permit permitted by law, there are the property shall not be purchased. Passing and retailing charges may apply except otherwise prohibited by applicable law. This is already normally, we shall likely be the jurisdictions where the products are sold by www.theby.com, and is sold to the extent permitted by the applicable laws of such circumstances. Any replacement hardware, product will be required for the remainder of the original commercial power or this 800000000, which includes in longer as an exp additional period of time that may not applicable in your jurisdiction."

HOW TO DETAIN WARRANTY SERVICE

A Warranty Service Order must be requested from Hibay within Warranty Period from the date of receipt of installment. To request a Warranty Service Order, contact Hibay Service Term scanner @Hibay.com. To obtain warranty service, you must deliver the product, in either its original packaging or packaging providing an exact degree of protection, to the address specified by Hibay, in accordance with applicable and Hibay may require the customer to purchase price of purchase dates or additional money with registration requirements before returning warranty services sold on their 101 days, whichever is longer, or for any additional periods of time that may be applicable in your jurisdiction.

LIMITATION OF DAMAGES

Except to the extent prohibited by applicable law: History shall not be liable for any incident, indirect, special, or consequential damages, including but not limited to loss of profits, results or costs, resulting from any in each of express or invalid warranty or voluntary, or under any other legal authority, even when history has been advised of the possibility or such damages. Some, indeed we do not allow the exclusion or limitation of special, indirect, consequential or consequential damages, on the actual limitation or exclusion may fail to apply to him.

16. Question & Answer

1. Is there any necessary information need to be included before contacting with Hibcy Support Team?

A: Yes, if you need any support from Friday, please contact us at support @http.com, and please always include your order number, correct model No. descriptions of the problem, pictures, and videos that can throw details about the issue in the email, thanks.

1. My electric bike can't be turned on, what can I do?

As First please make sure you are not turning on the electric bike during charging, because for safety consideration, we have set the electric bike can't be turned on during charging. Second please make sure the electric bike has been charged for a while in home enough battery in support it can be turned on, otherwise please contact us at [e-mail] for further support.

1. I can't charge my electric bike, what's the problem?

A. Please note if the electric bike is changing, then the led on the charger will show red color, if the electric bike is fully charged, then the led on the charger will show green color. So please help to apply if the charger is active but if plug the charger into the second but not connecting to a white or blue, if the charger has NOT on it, it is NOT green color, then it means the charger is defective. If the charger is not defective, please contact us at [e-mail] for further support.

(Mind + the results take out and missing accuracy at broken part)

As Please take a whole and send to Hiboy Support Team's email, [e-mail], Hiboy Support Team will reply you soon and send correct accessory or part replacement.

1. My electric bike is stolen, can you help me?

A: I'm sorry we can't track on the location at a serial number of the short table, please call the initial bulletin and ask them but help.

1. I have we don't have several emails to suggest "Alloy.com, but no response mentioned, why?

At Our Buy Support - Learn will reply to you within 1 working day, if you don't receive any reply from us, please also kindly check your spend box, and add [e-mail] on your website at make sure our reply to non-blocker. In addition, you can also link us as the platform where you purchased the electric bike for example A mean that our, have messages on buy.com website, either chat but...

1. Why the speed can't reach 25 mph?

Please make sure you have closed the power buttons to set the email letter to mark 5 on the left of the telephone and the speed made to 9 on the right.

After setting the speed mode to 5 and the power mode to 7s and the speed still can't reach 28 mph, then please contact hiboy support team to change the controller. In addition, the battery status, rotor weight and road station will be sufficient the slow speed, with enough battery, within 3200 lbs sought and rule no that road can reach 26 mph speed costs.

1. Why the max distance is lower than advertised max distance?

A. Please note the max distance is measured when it is no wind and at 37°F, the electric bike fully charged to ride at a even speed of 21 mph (185.0 km/h) on a surface with a load of 1.65 pounds [75 kg]. The road battery life only with different factors of the load, humidity, wind speed and operation habits...etc.

? Can I ride the electric bike in the rainy days?

A. Kirally note the electric bike watertract boat is 1984, we don't suggest you to ride it in the rainy days.

1. Is there any caution for storing the electric bike if I need to go out for a long time vacation?

A. Please make sure the electric lines a instant in a dry & rare place, do not put a number for being into, and if the electric lines are expected, I could fill into for more than 30 days, please fully change the battery. keep in mind to recharge it every 60 days to protect the battery from potential damage which is beyond limited warranty.

Trouble Shooting

Error code	Error description Solution
E2 Brake handle error Need to replace the brake handle
E3 Sensor error Need to replace the sensor
E6 Battery low voltage error Need to replace the battery and controller
E7 Motor error Need to replace the motor
E8 Handlebar error Need to replace the handlebar
E9 Controller error Need to replace the controller
E10 Communication error		Plug and unplug the communication cable again,if there is still an error of 10,replace the communication cable
/	Headlight not work/Horn not sound	Need to replace the headlight only

17. Contact Us

Contact us if you experience issues relating to riding, maintenance and safety, or errors/faults with your Ilboy P6 Electric Bike.
