Product Type	Microwave Oven with Grill
Capacity	38 Liters
Dimensions (H x W x D)	31.0 x 59.5 x 48.0 cm
Weight	28.5 kg
Power Supply	230 V ~ 50 Hz
Microwave Power Output	900 W
Grill Power Output	1200 W
Functions	Microwave, Grill, Combination, Defrost, Auto Cook
Control Type	Digital Touch + Knob
Door Type	Drop-down with Handle
Interior Light	LED
Turntable	Yes, 36 cm diameter
Child Lock	Yes
Timer	Up to 99 minutes
Clock	Digital Display
Eco Mode	Yes
Filter Type	Grease filter, washable
Installation	Freestanding
Available Colors	Stainless Steel, Black
Warranty	2 years

Frequently Asked Questions - CA38FMW8NG CANDY

How do I set the clock on my Candy CA38FMW8NG microwave?

Press the Clock button, then use the dial to set hours and minutes. Confirm by pressing the Clock button again.

What does the Grill function do?

The Grill function activates the top heating element for browning and crisping food. Use it alone or in combination with microwave power.

Can I use metal containers in this microwave?

No, do not use metal containers or utensils in microwave mode. Only use microwave-safe glass, ceramic, or plastic containers.

How do I clean the interior?

Wipe the interior with a damp cloth and mild detergent. Do not use abrasive cleaners. For stubborn stains, heat a bowl of water with lemon juice for 2 minutes.

Why is my microwave not heating?

Check that the door is fully closed, the timer is set, and the power cord is plugged in. If the problem persists, the magnetron may need replacement.

How do I use the Defrost function?

Select Defrost using the function button, then enter the food weight. The microwave will automatically set time and power level.

What does the Child Lock do?

The Child Lock disables the control panel to prevent accidental operation. Activate by pressing and holding the Stop button for 3 seconds.

Can I bake a cake in this microwave?

Yes, using the Combination mode (microwave + grill). Preheat the grill for 5 minutes, then bake as directed.

How often should I replace the charcoal filter?

The washable grease filter should be cleaned monthly. The charcoal filter (if installed) should be replaced every 6-12 months.

What is the maximum cooking time?

The timer can be set up to 99 minutes for microwave and combined cooking.

USER MANUAL CA38FMW8NG CANDY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	MIS1730X
Rated Voltage:	230V~ 50Hz
Rated Input Power(Microwave):	1050 W
Rated Output Power(Microwave):	700 W
Oven Capacity:	17L
Turntable Diameter:	245 mm
External Dimensions:	595×320×382 mm
Net Weight:	15 kg

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Children less than 8 years of age shall be kept away unless continuously supervised.
3. Keep the appliance and its cord out of reach of children less than 8 years.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. (For appliance with type Y attachment)
5. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
6. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
7. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. Only use utensils that are suitable for use in microwave ovens.
10. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
11. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
12. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
13. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
14. The oven should be cleaned regularly and any food deposits removed.
15. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could

adversely affect the life of the appliance and possibly result in a hazardous situation.

1. Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)
2. The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)
3. This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-by clients in hotels, motels and other residential type environments;

-farm houses;

-bed and breakfast type environments.

1. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
2. Metallic containers for food and beverages are not allowed during microwave cooking.
3. The appliance shall not be cleaned with a steam cleaner.
4. The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.)
5. The microwave oven is intended to be used built-in.
6. Care should be taken not to displace the turntable when removing containers from the appliance. (For fixed appliances and built-in appliances being used equal or higher than 900mm above the floor and having detachable turntables. But this is not applicable for appliances with horizontal bottom hinged door.)

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used: 1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance. 2) The extension cord must be a grounding-type 3-wire cord. 3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils	Remarks
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray	1
Turntable ring assembly	1
Instruction Manual	1

A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window F) Door assembly G) Safety interlock system

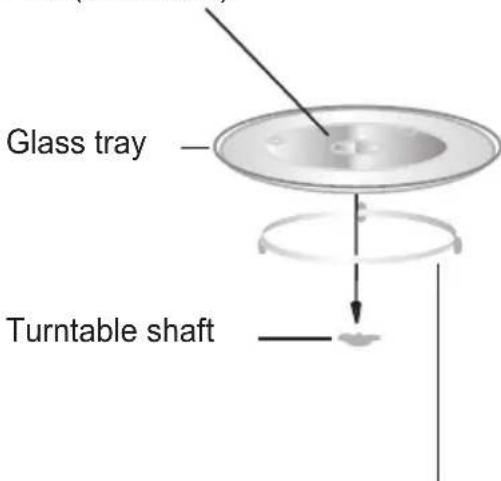

Turntable Installation

Hub (underside)

Turntable ring assembly

a. Never place the glass tray upside down. The glass tray should never be restricted. b. Both glass tray and turntable ring assembly must always be used during cooking. c. All food and containers of food are always placed on the glass tray for cooking. d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Installation and connection

1. This appliance is only intended for domestic use.
2. This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.
3. Please observe the special installation instructions.
4. The appliance can be installed in a 60cm wide wall-mounted cupboard.
5. The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
6. The mains voltage must correspond to the voltage specified on the rating plate.
7. The socket must be installed and the connecting cable must only be replaced by a qualified electrician. If the plug is no longer accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at least 3mm.
8. Adapters, multi-way strips, and extension leads must not be used. Overloading can result in a risk of fire.

The accessible surface may be hot during operation.

Installation Instructions

Please Read the Manual Carefully Before Installation

Please Note

Electrical connection

The oven is fitted with a plug and must be only connected to a properly installed earthed socket. In accordance with the appropriate regulations, the socket must only be installed and the connecting cable must only be replaced by a qualified electrician.

If the plug is no longer accessible following installation, an all-pole isolating switch must be present on the installation side with a contact gap of at least 3mm.

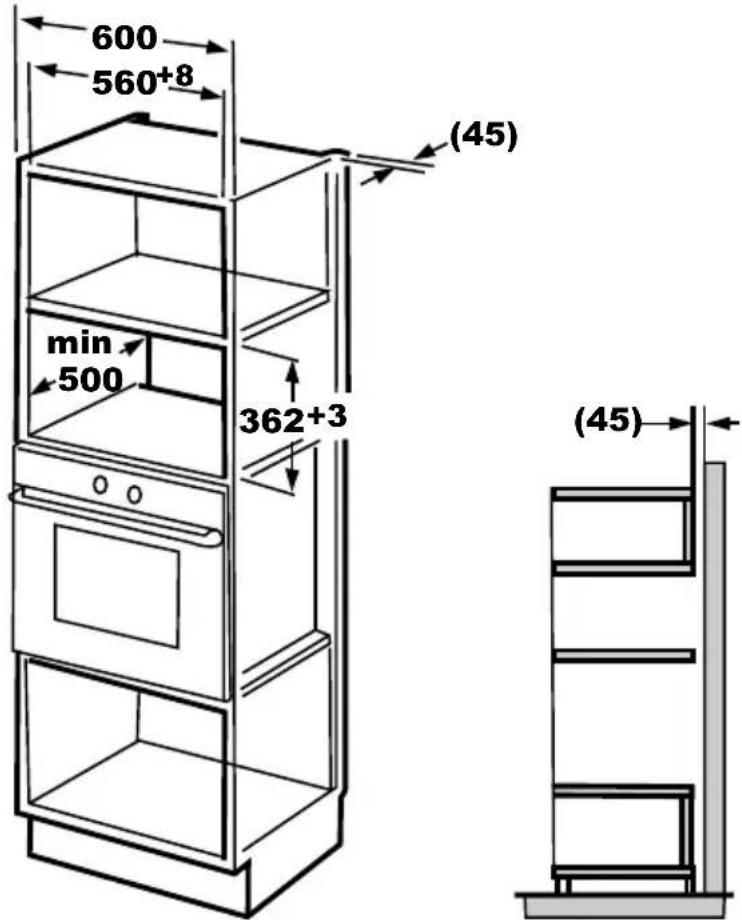

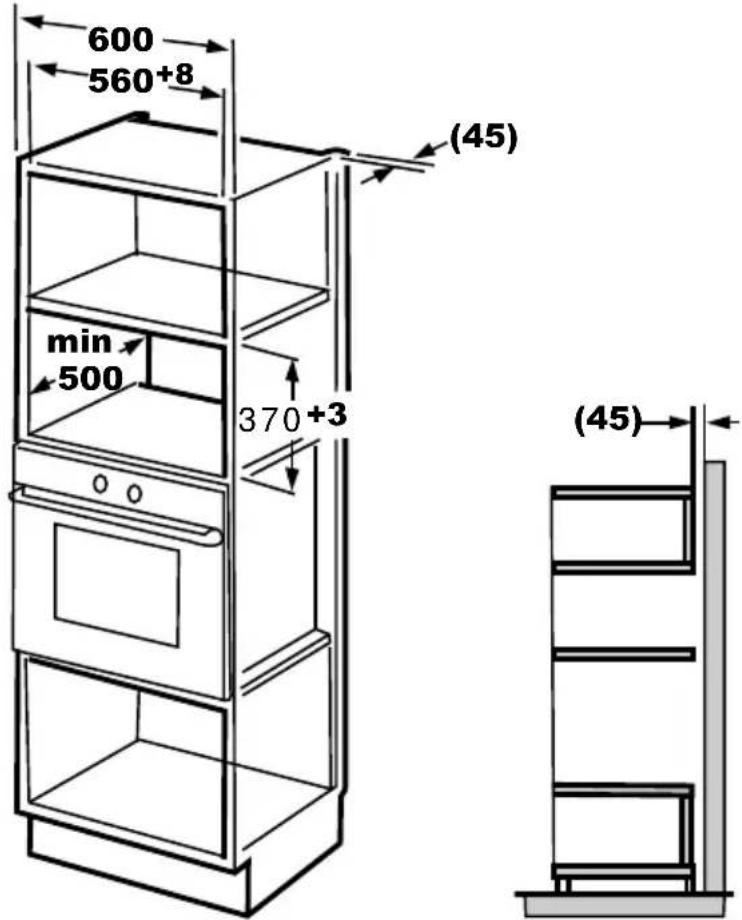

For the cabinet with a height of 32mm

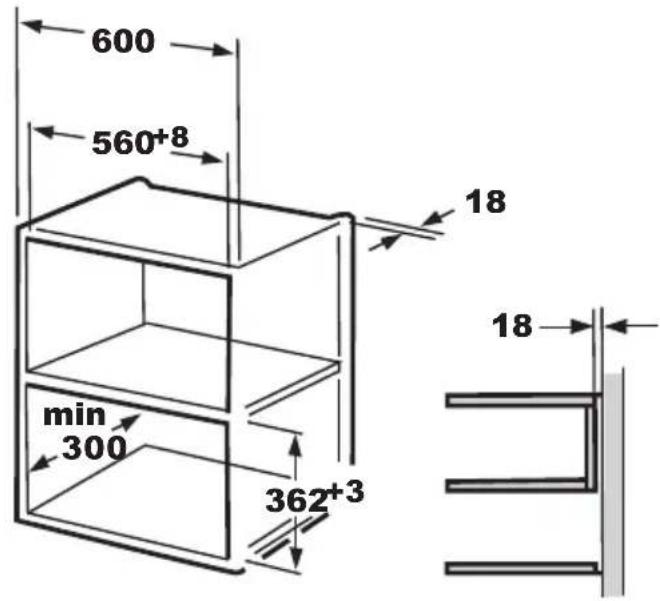

A. Built-in furniture

The built-in cabinet shall not have a rear wall behind the appliance.

Minimum installation height is 85cm.

Do not cover ventilation slots and air intake points.

1.

1.

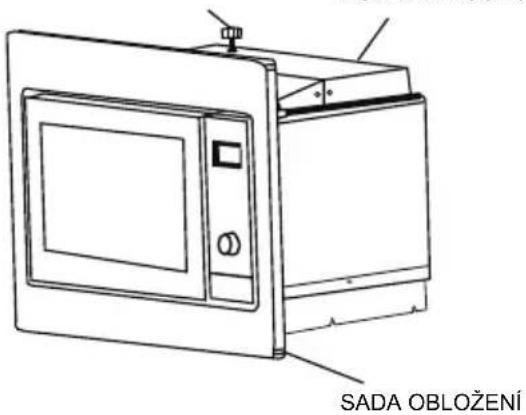

B. Install the Oven

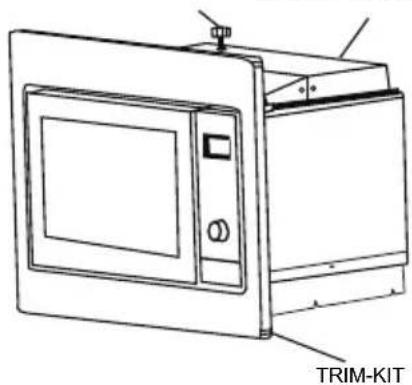

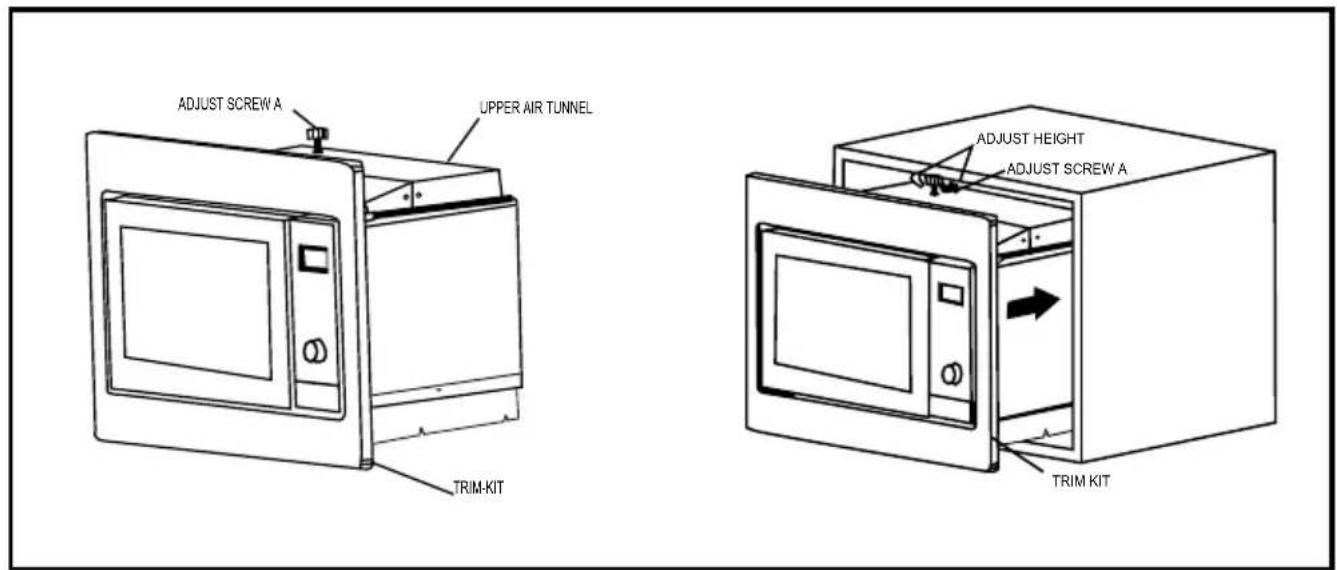

1. Fix ADJUST SCREW A on the UPPER AIR TUNNEL of the oven, and then install the oven into the cabinet.
2. Adjust the height of ADJUST SCREW A to keep a 1mm gap between the ADJUST SCREW A and the top plane of the cabinet.
3. Do not trap or kink the power cord. Make sure that the oven is installed in the center of the cabinet.

1. Open the door; fix the oven to the cabinet with SCREW B at the INSTALLATION HOLE of the TRIM KIT. Then fix the TRIM-KIT PLASTIC COVER to the INSTALLATION HOLE.

For the cabinet with a height of 3 mm

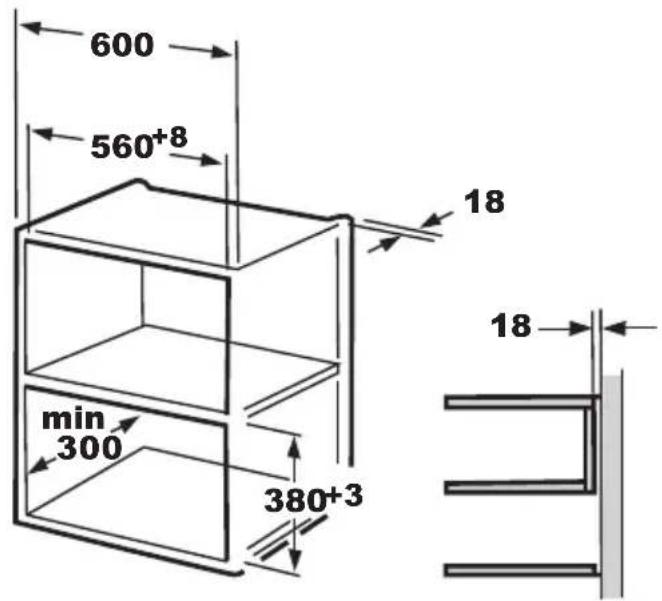

A. Built-in furniture

The built-in cabinet shall not have a rear wall behind the appliance.

Minimum installation height is 85 cm.

Do not cover ventilation slots and air intake points.

1.

1.

B. Install the Oven

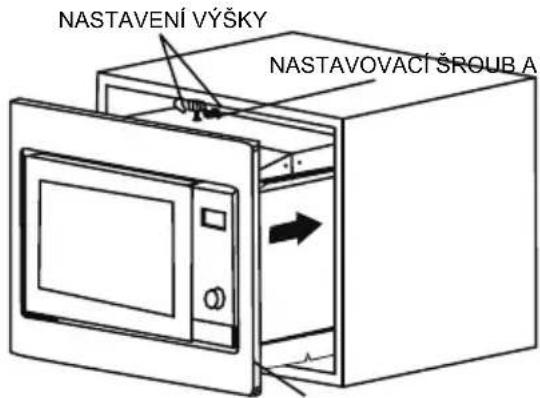

1. Fix ADJUST SCREW A on the UPPER AIR TUNNEL of the oven, and then install the oven into the cabinet.

Adjust the height of ADJUST SCREW A to keep a 1mm gap between the ADJUST SCREW A and the top plane of the cabinet.

Do not trap or kink the power cord.

● Make sure that the oven is installed in the center of the cabinet.

1. Open the door; fix the oven to the cabinet with SCREW B at the INSTALLATION HOLE of TRIM KIT. Then fix the TRIM-KIT PLASTIC COVER to the INSTALLATION HOLE.

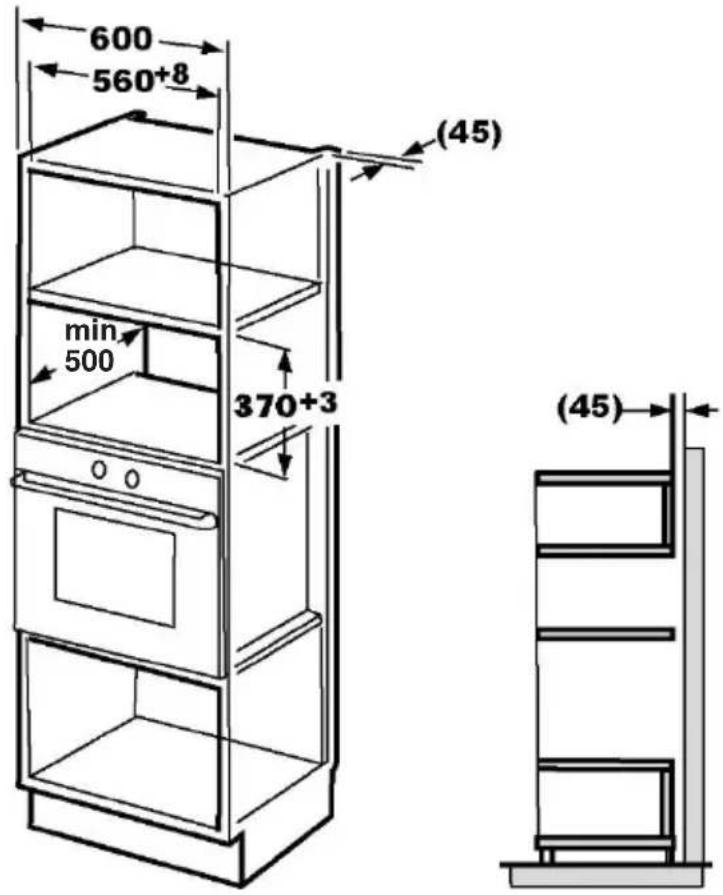

For the cabinet with a height of 38 mm

A. Built-in furniture

The built-in cabinet shall not have a rear wall behind the appliance.

Minimum installation height is 85cm.

Do not cover ventilation slots and air intake points.

1.

1.

B. Install the Oven

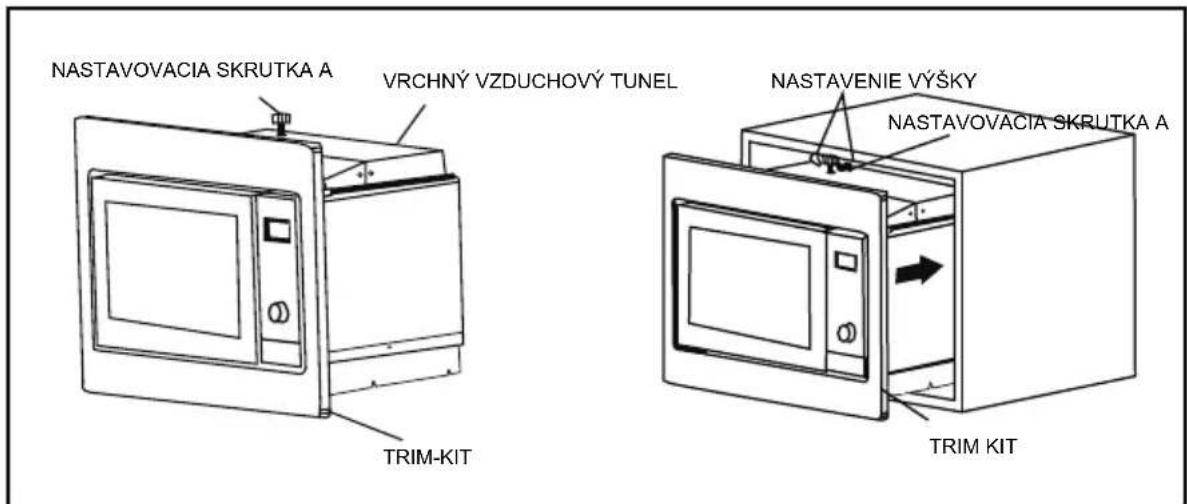

1. Fix ADJUST SCREW A on the UPPER AIR TUNNEL of the oven, and then install the oven into the cabinet.
2. Adjust the height of ADJUST SCREW A to keep 1mm gap between the ADJUST SCREW A and the top plane of cabinet.
3. Do not trap or kink the power cord. ● Make sure that the oven is installed in the center of the cabinet.

1. Open the door; fix the oven to the cabinet with SCREW B at the INSTALLATION HOLE of TRIM KIT. Then fix the TRIM-KIT PLASTIC COVER to the INSTALLATION HOLE.

Operation Instructions

1. Clock Setting

When the microwave oven is electrified, the screen will display "0:00", buzzer will ring once.

1) Press " Kitchen Timer/Clock " twice to select clock function, the hour figures will flash. 2) Turn " 🔍 " to adjust the hour figures, the input time should be within 0--23. 3) Press "Kitchen Timer/Clock", the minute figures will flash. 4) Turn " 🔍 " to adjust the minute figures, the input time should be within 0--59. 5) Press " Kto finish Timeck setting. ":" will flash, and the time will light.

Note: 1) If the clock is not set, it would not function when powered.

2) During the process of clock setting, if you press "Stop/Clear", the oven will go back to the previous status automatically.

2. Microwave Cooking

Press " Microwave " once, the screen will display "P100".Press " Microwave " for times or turn " "to choose the power you want, and "P100", "P80" "P50", "P30" or "P10" will display for each added press. Then press" Start/+30Sec./Confirm " to confirm, and turn " " to set cooking time from 0:05to 95:00. Press " Start/+30Sec./Confirm " again to start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.

1) Press " Microwave " once, the screen display "P100". 2) Press " Microwave " once again or turn" 🔍 " to choose 80% microwave power. 3) Press " Start/+30Sec./Confirm " to confirm, and the screen displays "P 80". 4) Turn " 🔍 " to adjust the cooking time until the oven displays "20:00". 5) Press " Start/+30Sec./Confirm " to start cooking.

Note: the step quantities for the adjustment time of the coding switch are as follow:

" Microwave Order	" Pad instructions Display	Microwave Power
1	P100	100%
2	P80	80%
3	P50	50%
4	P30	30%
5	P10	10%

3. Quick Start

1) In waiting state, Press "Start/+30Sec./Confirm" to start cooking with 100% power, each added press will increase 30 seconds cooking time up to 95 minutes. 2) In microwave cooking or time defrost state, each press of "Start/+30Sec./Confirm" can increase 30 seconds of cooking time. 3) In waiting state, turn " " left to set cooking time with 100% microwave power, then press " Start/+30Sec./Confirm " to start cooking.

4. Defrost By Weight

1) Press "Weight/Time Defrost" once, and the oven will display "dEF1". 2) Turn " 🍴" to select the weight of food from 100 to 2000 g. 3) Press " Start/+30Sec./Confirm " to start defrosting.

5. Defrost By Time

1) Press " Weight/Time Defrost " twice, and the oven will display "dEF2". 2) Turn " 🔍" to select the defrost time. The MAX time is 95 minutes. 3) Press " Start/+30Sec./Confirm " to start defrosting. The defrost power is P30, and it will not be changed.

6. Kitchen Timer

(1) Press "Kitchen Timer/Clock on the screen will display 00:00. (2) Turn " 🔍 " to enter the correct timer. (The maximum cooking time is 95 minutes.)

Start/+30Sec./Confirm

(3) Press " " to confirm the settings.

(4) When the kitchen time is reached, timer indicator will go out. The buzzer will ring 5 times.

If the clock be set (24-hour system), the screen will display the current time.

Note: The kitchen Time is different from 24-hour system, Kitchen Timer is a timer.

7. Auto Menu

1) In the standby state, turn " 🔍" right to choose the menu, and "A-1" to "A-8" will display, which means pizza, meat, vegetable, pasta, potato, fish, beverage and popcorn. 2) Press " Start/+30Sec./Confirm " to confirm. 3) Turn " 🔍 " to choose the default weight as the menu chart. 4) Press " Start/+30Sec./Confirm " to start cooking. Example: If you want to use "Auto Menu" to cook fish for 350g.

1) Turn " " clockwise till "A-6" display.

2) Press " Start/+30Sec./Confirm " to confirm. 3) Turn " " to select the weight of fish till "350" display. 4) Press " Start/+30Sec./Confirm " to start cooking.

The menu chart:

Menu	Weight	Display
A-1	200 g	200
Pizza	400 g	400
A-2	250 g	250
	350 g	350
Meat	450 g	450
A-3	200 g	200
Vegetable	300 g	300
	400 g	400
A-4	50g(with 450 g cold water)	50
Pasta	100g(with 800 g cold water)	100
A-5	200 g	200
Potato	400 g	400
	600 g	600
A-6	250 g	250
Fish	350 g	350
	450 g	450
A-7	1 cup(120 ml)	1
Beverage	2 cups(240 ml)	2
	3 cups(360ml)	3
A-8	50 g	50
Popcorn	100 g	100

8. Multi-section cooking

At most 2 sections can be set for cooking. In multi-section cooking, if one section is defrosting, then defrosting shall be placed in the first section.

Example: If you want to defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes, operate it as the following:

1) Press "Weight/Time Defrost" twice, and the oven will display "dEF2". 2) Turn "🔍" to select the defrost time until "5:00" is displayed. 3) Press "Microwave", the screen displays "P100". 4) Press "Microwave" once again or turn "🔍" to choose 80% microwave power. 5) Press "Start/+30Sec./Confirm" to confirm, and the screen displays "P 80". 6) Turn "🔍" to adjust the cooking time until the oven displays "7:00". 7) Press "Start/+30Sec./Confirm" to start cooking, and the buzzer will sound once for the first section, defrosting time counts down; the buzzer will sound once again when entering the second cooking. When cooking finishes, the buzzer sounds five times.

9. Inquiring Function

(1) In states of microwave cooking, press "Microwave", the current power will be displayed for 3 seconds. After 3 seconds, the oven will turn back to the former state; (2) In cooking state, press "Kitchen Timer" and the time will display for 3 seconds.

10. Lock-out Function for Children

Lock: In waiting state, press "Stop/Clear" for 3 seconds, there will be a long beep denoting entering the children-lock state and the current time will display if the time has been set, otherwise, the screen will display "[::]". And lock indicator lights.

Lock quitting: In locked state, press "Stop/Clear" for 3 seconds, there will be a long "beep" denoting that the lock is released.

11. Specifications

(1) "Start/+30Sec./Confirm" must be pressed to continue cooking if the door is opened during cooking; (2) Once the cooking programme has been set, "Start/+30Sec./Confirm" must be pressed within 1 minute, otherwise the current time will be displayed and the setting will be cancelled. (3) The buzzer sounds once by efficient press, inefficient press will be no response.

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1.

1.

1.

1.

B. Installation of the Oven

1.

B. Installation of the Oven

ADJUSTING SCREW AND TOP AIR TUNNEL

1.

B. Installation of the oven

Assembly instructions

1.

B. Oven installation

1.

B. Oven installation

ADJUSTING SCREW UPPER AIR TUNNEL

LINING KIT

LINING KIT

1.

B. Oven installation

ADJUSTING SCREW A

UPPER AIR TUNNEL
