DS8412GX - Tumble dryer BEKO - Free user manual and instructions

Product Type	Tumble Dryer
Brand	Beko
Model	DS8412GX
Capacity	8 kg
Drying System	Condenser
Energy Class	C
Dimensions (H x W x D)	85 x 60 x 60 cm
Weight	45 kg
Power Supply	230 V, 50 Hz
Drum Material	Stainless Steel
Display	LED
Drying Programs	Cotton, Synthetics, Delicates, Mix, Time Dry
Additional Functions	Anti-Crease, Delayed Start, Quick Dry
Lint Filter	Clean after each cycle
Condenser Cleaning	Periodically clean with brush
Child Lock	Yes
Overheat Protection	Yes
Reversing Drum	Yes
Spare Parts Availability	Yes
Warranty	2 Years

Frequently Asked Questions - DS8412GX BEKO

How do I clean the lint filter on my Beko DS8412GX?

Open the door, pull the filter upward, remove lint with fingers or soft brush, and rinse if needed. Dry completely before reinserting. Clean after every cycle.

How do I empty the water tank?

Pull out the water tank drawer, tip the water into a sink, and push the drawer back in securely. This should be done after each use unless connected to a drain hose.

What is the maximum load capacity?

The maximum dry load is 8 kg. Overloading can cause poor drying results and increased energy consumption.

How do I clean the condenser?

Open the lower flap, remove the condenser unit, rinse it with water from the reverse side, and brush any lint. Reinsert and lock. Do once a month.

What should I do if the dryer won't start?

Check if the door is closed properly, the power cord is plugged in, and the water tank is not full. Also ensure the filter is not clogged. See manual for error codes.

How do I set a delayed start?

Select the drying program, then press the Delay button repeatedly to set desired delay time (up to 9 hours). Press Start; the dryer will start after the delay.

Can I use fabric softener or dryer sheets?

No, fabric softener is for washing machines only. Dryer sheets can be used but may affect the moisture sensor. For best performance, avoid them.

What do the indicator lights mean?

Common lights: Clean Filter, Empty Water Tank, Clean Condenser. If an error code appears (e.g., E1), check the manual or contact service.

How do I reverse the door opening direction?

The Beko DS8412GX does not support reversible door. The hinging is fixed.

Is the dryer ventless?

Yes, it is a condenser dryer; it does not require external venting. Water vapor is collected in the tank.

USER MANUAL DS8412GX BEKO

MDS 8412RX

DS 8412GX

Please read this user manual first!

Dear Customer,

Thank you for preferring a Beko product.

We hope that your product, which has been manufactured with high quality and technology, will give you the best results. We advise you to read through this manual and the other accompanying documentation carefully before using your product and keep it for future reference. If you transfer the product to someone else, give its manual as well. Pay attention to all details and warnings specified in the user manual and follow the instructions given therein.

Use this user manual for the model indicated on the cover page.

- Read the instructions.

Explanation of symbols

Throughout this user manual the following symbols are used:

DANGER!

- Warning against electric shock.

DANGER!

- Warning against fire hazard.

WARNING!

- Warning for hazardous situations with regard to life and property.

WARNING!

- Warning against hot surfaces.

WARNING!

- Warning against scalding hazard.

NOTE

- Important information or useful hints about usage.

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations.

Do not dispose of the packaging wastes with the domestic waste or other wastes, discard them to the dedicated collection points designated by the local authorities.

This product was manufactured using the latest technology in environmentally friendly conditions.

1 Important instructions for safety and environment

NOTE

- This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty.

1.1 General safety

WARNING!

The dryer can be used by children aged 8 and above and by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, provided they are supervised or instructed on the safe use of the product and the risks involved. Children should not play with the product. Cleaning and maintenance should not be performed by children unless supervised. Children under 3 years should be kept away unless continuously supervised.

- Adjustable feet should not be removed. The gap between the dryer and the floor should not be reduced with materials such as carpet, wood, or tape. This will cause problems with the dryer.

WARNING!

Always have installation and repair procedures carried out by the Authorized Service. The manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.

- Never wash the dryer by spraying or pouring water onto it! There is a risk of electric shock!

For products with a steam function:

WARNING!

• Use only distilled water or water condensed in the machine's water tank in steam programs. Do not use mains water or additives. When using condensed water from the water tank, it should be filtered and cleared of fibres.
• Do not open the door when steam programs are running. Hot water may be expelled.
• Before putting laundry in a steam program, stains on it should be removed.
• You may only put laundry that is not dirty or stained but permeated with unpleasant odour in the steam (odour removal) program.
• Do not use any dry cleaning sets or additional materials in a steam program or in any program.

1.1.1 Electrical safety

DANGER!

• Electrical safety instructions should be followed while making the electrical connection during installation.
• The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
• Connect the dryer to a grounded outlet protected by a fuse at the value specified on the type label. Have the grounding installation performed by a qualified electrician. Our company shall not be liable for any damages that will arise when the dryer is used without grounding in accordance with local regulations.
• The voltage and allowed fuse protection are stated on the type label plate.
• The voltage specified on the type label must be equal to your mains voltage.
• Unplug the dryer when it is not in use.
• Unplug the dryer from the mains during installation, maintenance, cleaning, and repair works.
• Do not touch the plug with wet hands! Never unplug by pulling on the cable; always pull out by grabbing the plug.

DANGER!

• Do not use extension cords, multi-plugs, or adaptors to connect the dryer to the power supply in order to decrease the risk of fire and electric shock.
• The power cable plug must be easily accessible after installation.
• A damaged mains cable should be changed by notifying the Authorized Service.
• If the dryer is faulty, it must not be operated unless it is repaired by an authorized service agent! There is the risk of electric shock!

1.1.2 Product safety

DANGER!

• Superheating of the clothes inside the dryer can occur if you cancel the programme or in the event of a power failure whilst the dryer is running. This concentration of heat can cause self-combustion and fire, so always activate the ventilation programme to cool down or quickly remove all laundry from the dryer in order to hang them up and dissipate the heat.

DANGER!

Points to be taken into consideration for fire hazard:

The following laundry or items must not be dried in the dryer due to fire hazard.

• Unwashed laundry items
• Items soiled with oil, acetone, alcohol, fuel oil, kerosene, stain removers, turpentine, paraffin, or paraffin removers must be washed in hot water with plenty of detergent before being dried in the dryer.

For this reason, especially items containing the above specified stains must be washed very well. To do this, use adequate detergent and choose a high washing temperature.

The following laundry or items must not be dried in the dryer due to fire hazard:

- Garments or pillows bolstered with rubber foam (latex foam), shower bonnets, water-resistant textiles, materials with rubber reinforcement, and rubber foam pads.

Clothing cleaned with industrial chemicals.

Items such as lighters, matches, coins, metal parts, needles, etc. may damage the drum set or may lead to functional problems. Therefore, check all the laundry that you will load into your dryer.

Never stop your dryer before the programme completes. If you must do this, remove all laundry quickly and lay them out to dissipate the heat.

DANGER!

• Clothes that are washed inadequately may ignite on their own and even may ignite after drying ends. - You must provide enough ventilation in order to prevent gases exiting from devices operating with other types of fuels, including the naked flame, from accumulating in the room due to the backfire effect.

WARNING!

• Underwear that contains metal reinforcements should not be dried in the dryer. The dryer may be damaged if metal reinforcements come loose and break off during drying.

NOTE

- Use softeners and similar products in accordance with the instructions of their manufacturers.

Always clean the lint filter before or after each loading. Never operate the dryer without the lint filter installed.

WARNING!

• Never attempt to repair the dryer by yourself. Do not perform any repair or replacement procedures on the product even if you know or have the ability to perform the required procedure unless it is clearly suggested in the operating instructions or the published service manual. Otherwise, you will be putting your life and others' lives in danger.
• There must not be a lockable, sliding or hinged door that may block the opening of the loading door in the place where your dryer is to be installed. Install your dryer at places suitable for home use. (Bathroom, closed balcony, garage etc.)
• Make sure that pets do not enter the dryer. Check the inside of the dryer before operating it.
• Do not lean on the loading door of your dryer when it is open, otherwise it may fall over.
• The lint must not be allowed to accumulate around the tumble dryer.
• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
• Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.

1.2 Mounting over a washing machine

• A fixing device should be used between the two machines when installing the dryer above a washing machine. The fitting device must be installed by the authorized service agent.
• Total weight of the washing machine and the dryer -with full load- when they are placed on top of each other reaches to approx. 180 kilograms. Place the products on a solid floor that has sufficient load carrying capacity!

WARNING!

- Washing machine cannot be placed on the dryer. Pay attention to the above warnings during the installation on your washing machine.

Installation Table for Washing Machine and Dryer
Dryer Depth	Washing Machine Depth
	62 cm	60 cm	54 cm	50 cm	49 cm
54 cm Can	be installed
60 cm Can	be installed
Installation Table for Washing Machine and Dryer
Dryer Depth	Washing Machine Depth
	45 cm			40 cm
54 cm Can	be installed				Cannot be installed
60 cm Can	be installed

1.3 Intended use

• Dryer has been designed for domestic use. It is not suitable for commercial use and it must not be used out of its intended use.
• Use the dryer only for drying laundry that are marked accordingly.
• The manufacturer waives any responsibility arisen from incorrect usage or transportation.
• The service life of the dryer that you purchased is 10 years. During this period, original spare parts will be available to operate the dryer properly.

1.4 Child safety

• Packaging materials are dangerous for the children. Keep packaging materials away from children.
• Electrical products are dangerous for the children. Keep children away from the product when it is operating. Do not let them tamper with the dryer. Use the child-proof lock in order to prevent the children to tamper with the dryer.

NOTE

Child-proof lock is on the control panel. (See Child lock)

- Keep loading door closed even when the dryer is not in use.

1.5 Compliance with the WEEE regulation and disposing of the waste product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality

parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.6 Compliance with RoHS Directive:

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.7 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

1.8 Technical Specifications

EN

Height (Min. / Max.)	84,6 cm / 86,6 cm*
Width 59,7 cm
Depth 56,8 cm
Capacity (max.) 8 kg**
Net weight (± 4 kg)	44 kg
Width	See type label***Voltage
Rated power input

* Min. height: Height with adjustable feet are closed. Max. height: Height with adjustable feet are opened maximum. ** Dry laundry weight before washing. *** Type label is located behind the loading door.

NOTE

• Technical specifications of the dryer are subject to specification without notice to improve the quality of the product.
• Figures in this manual are schematic and may not match the product exactly.
• Values stated on markers on the dryer or in the other published documentation accompanying with the dryer are obtained in laboratory in accordance with the relevant standards. Depending on operational and environmental conditions of the dryer, these values may vary.

2 Your Dryer

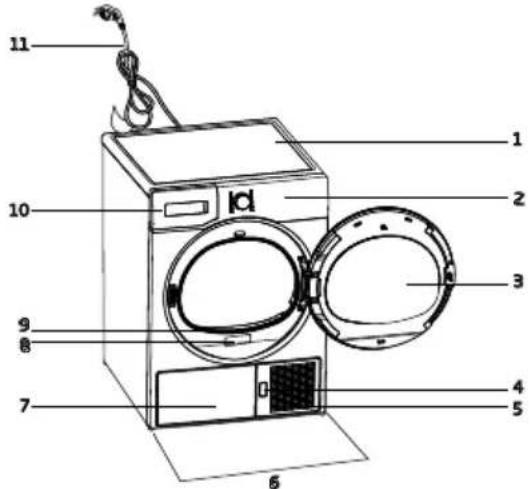

2.1 Overview

1. Top panel
2. Control panel
3. Loading door
4. Kick plate opening button
5. Ventilation grids
6. Adjustable legs
7. In models where the tank is placed below, the water tank is inside the toe board
8. Type label
9. Lint filter
10. Water tank drawer (in models where the tank is placed above)
11. Power cord

2.2 Package Contents

	1. Water drain hose*		5. Drying basket user manual*
	2. Filter drawer spare sponge*		6. Water Filling Container*
	3. User Manual		7. Pure Water*
	4. Drying basket*		8. Fragrance Capsules Group*

*It can be supplied with your machine depending on its model.

3 Installation

Before calling the nearest Authorized Service for the installation of the dryer, ensure that the electrical installation and water drain are appropriate, referring to the user's manual. If they are not suitable, contact a qualified electrician and technician to make necessary arrangements.

NOTE

- Preparation of the dryer's location as well as the electrical and waste water installations is under customer's responsibility.

WARNING!

- Prior to installation, visually check if the dryer has any defects on it. If the dryer is damaged, do not have it installed. Damaged products cause risks for your safety. - Let your dryer wait for 12 hours before starting to use it.

3.1 Appropriate installation location

Install the dryer on a stable and level surface. Dryer is heavy. Do not move it by yourself.

• Operate your dryer in a well ventilated, dust-free environment.
• The gap between the dryer and the surface should not be reduced by the materials such as carpet, wood and tape.
• Do not cover the ventilation grills of the dryer.
• There must not be a lockable, sliding or hinged door that may block the opening of the loading door in the place where your dryer is to be installed.
• Once the dryer is installed, it should stay at the same place where its connections have been made. When installing the dryer, make sure that its rear wall does not touch anywhere (tap, socket, etc.).
• Place the dryer at least 1 cm away from the edges of other furniture.
• Your dryer can be operated at temperatures between +5°C and +35°C. If the operating conditions fall outside of this range, operation of the dryer will

be adversely affected and it can get damaged.

- The rear surface of the tumble dryer shall be placed against a wall.

DANGER!

Do not place the dryer on the power cable.

3.2 Removing the transportation safety assembly

WARNING!

• Remove the transportation safety assembly before using the dryer for the first time.
• If the door swing side of your appliance can be modified, see the reversible door mounting instructions.

3.3 Connecting to the drain

You can directly drain accumulated water through the water drain hose supplied with the product instead of periodically draining the water collected in the water tank.

Connecting the water drain hose

1-2 Pull the hose at the back of the dryer by hand to disconnect it from where it is connected. Do not use any tools to remove the hose.

3 Connect one end of the drain hose supplied with the dryer to the connection point from where you removed the hose of the product in the previous step. 4 Connect the other end of the drain hose directly to the wastewater drain or to the washbasin.

NOTE

• The water drain hose should be attached to a height of maximum 80 cm. - Make sure that the water drain hose is not stepped on and it is not folded between the drain and the machine. - If there is an accessories pack supplied with your product, please see the detailed description.

3.4 Adjusting the feet

- Turn the feet to the left or right until the dryer stands level and firmly.

3.5 Transportation of the dryer

Drain all water that has remained in the dryer. If direct water drain connection is made, then remove the hose connections.

WARNING!

• We recommend carrying the dryer in upright position. If it is not possible to carry the machine in the upright position, we recommend carrying it by tilting towards the right side when looked from the front.

3.6 Warnings about sounds

NOTE

- It is normal to hear a metallic noise from the compressor sometimes during operation.

• Water collected during operation is pumped to water tank. It is normal to hear pumping noise during this process.

3.7 Changing the illumination lamp

In case an illumination lamp is used in your laundry dryer. To change the Bulb/LED used for illumination of your tumble dryer, call your Authorized Service. The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place laundry in the tumble dryer in a comfortable way. The lamps used in this appliance have to withstand extreme physical conditions such as vibrations and temperatures above 50 °C

4 Preparation

4.1 Laundry suitable for drying in the dryer

Always obey the instructions given on the garment tags. Dry only the laundry having a label stating that they are suitable for drying in a dryer and make sure that you select the appropriate programme.

Do not dry with dryer	At high temperature	At medium temperature	At low temperature

4.2 Laundry not suitable for drying in the dryer

NOTE

- Delicate embroidered fabrics, woollen, silk garments, delicate and valuable fabrics, airtight items and tulle curtains are not suitable for machine drying.

4.3 Preparing laundry for drying

• Laundry may be tangled with each other after washing. Separate the laundry items before placing them into the dryer.
• Dry garments having metal accessories such as zippers, inside out.
• Fasten the zippers, hooks and buckles and button sheets.

4.4 Things to be done for energy saving

• Spin your laundry at the highest speed possible when washing them. Thus, the drying time is shortened and energy consumption is reduced.
• Sort out the laundry depending on their type and thickness. Dry the same type of laundry together. For example thin kitchen towels and tablecloths dry earlier than thick bathroom towels.
• Follow the instructions in the user manual for programme selection.
• Do not open the loading door of the machine during drying unless necessary. If you must open the loading door, do not keep it open for a long time.
• Do not add wet laundry while the dryer is in operation
• For models with a condenser unit: clean the condenser once in a month or after every 30 operations regularly.
• Clean the filter periodically when there is visible air collection on it or when the symbol lights up, if there is a filter drawer cleaning warning symbol available.
• For models with flue unit: comply with the flue connection instructions and clean the flue.
• During the drying process, air the room well where your tumble dryer is operating.

4.5 Correct load capacity

Follow the instructions in the “Programme selection and consumption table”. Do not load more than the capacity values stated in the table.

The following weights are given as examples.

Laundry	Approximate weights (g)*	Laundry	Approximate weights (g)*
Cotton quilt covers (double)	1500 Blouses	150
Cotton quilt covers (single)	1000 Cotton shirts	300
Bed sheets (double)	500 Shirts	250
Bed sheets (single)	350	Cotton dresses	500
Large tablecloths	700 Dresses	350
Small tablecloths	250 Jeans	700
Tea napkins	100	Handkerchiefs (10 pieces)	100
Bath towels	700 T-Shirts	125
Hand towels	350

* Dry laundry weight before washing.

5 Operating the product

5.1 Control Panel

1. On/Off/Program selection button
2. Start/Stand-by button
3. End Time button
4. Drying Level Button
5. Buzzer volume/Time programs selection button

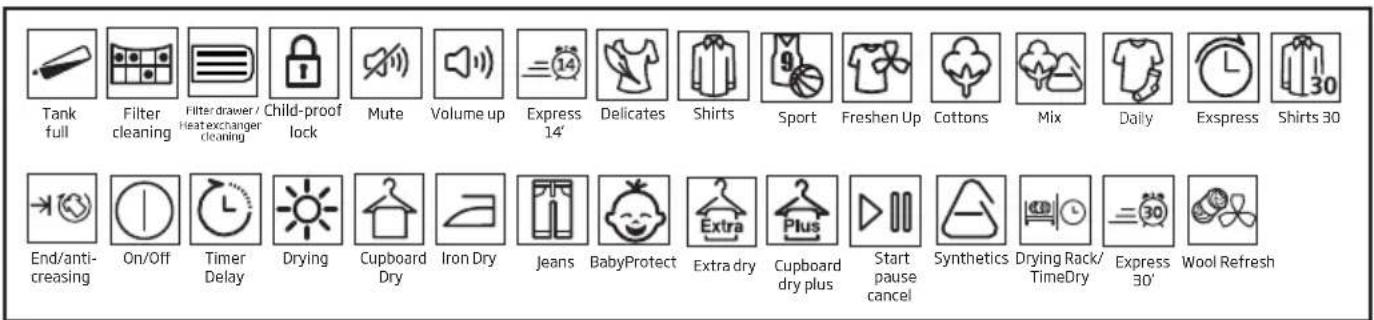

5.2 Symbols

5.3 Preparation of drying machine

• Plug in the drying machine.
• Open the loading door.

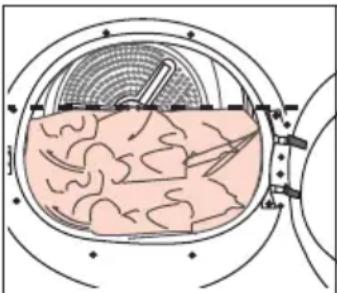

• Place the laundry in the drying machine without jamming them.
• Push and close the loading door.

WARNING!

- Ensure that no laundry is jammed in the loading door.

Select the desired program using the On/Off/Program selection knob; the machine will turn on.

NOTE

- Selecting a program using the On/Off/Program selection button does not mean that the program has started. Press the Start / Stand-by button to start the program.

5.4 Program selection and consumption chart

EN
Programmes Programme	Description	Capacity (kg)	Spin speed in washing machine (rpm)	Drying Time (minutes)
Cottons Iron Dry	You may dry your cotton laundry to be ironed in this program to have them slightly damp for ease of ironing. (Shirt, T-shirt, tablecloth, etc.)	8 1000	145
Cottons Eco	You may dry all your cotton laundry in this program. (T-shirt, pants, pyjamas, baby clothes, underwear, linen, etc.) You can put your laundry in the wardrobe without ironing.	8 1000	197
Cottons Cupboard Dry	You may use this program for extra dryness in thick laundry such as pants, tracksuit. You can put your laundry in the wardrobe without ironing.	8 1000	205
Cottons Extra Dry	You may dry your thick cotton laundry in this program such as towels, bathrobe, etc. You can put your laundry in the wardrobe without ironing.	8 1000	210
Synthetics Iron Dry	You may dry your synthetic laundry to be ironed in this program to have them slightly damp for ease of ironing. (Shirt, T-shirt, tablecloth, etc.)	4 800	60
Synthetics Cupboard Dry	You may dry all your synthetic laundry in this program. (Shirt, T-shirt, underwear, tablecloth, etc.) You can put your laundry in the wardrobe without ironing.	4 800	70
TimeDry	You may select from time programmes between 10 and 160 minutes to achieve the desired drying level at low temperature. In this programme, tumble drier's operation lasts for the set time independently from the dryness of laundry. This product is available to be used with a drying basket as option. For products that are sold without a basket, you can obtain a basket from an authorized service and use the drying programs specified above. For details of use, see the drying basket user guide.	---
Refresh (Wool Refresh)	Ventilates for 10 minutes without blowing hot air. You can ventilate the cotton and linen clothes that have been enclosed for a long time with this program to remove their odour. You can use this program to ventilate and soften wool laundry that can be washed in a washing machine. Do not use for full drying.	-- 10
Gentle Care / Shirts	It dries the shirts in a more sensitive manner, and causes less creasing and easier ironing.	1,5 1200	70
Jeans	You may dry denim pants, skirts, shirts or jackets in this program.	4 1200	150
Outdoor/Sports (Goretex)	Use it to dry your clothes made of synthetics, cotton or mixed fabrics or waterproof products such as functional jacket, raincoat etc. Turn them inside out prior to drying.	2 1000	135
Mix(Daily)	You can dry both cotton and synthetic laundry with this programme.Sports and fitness clothes may be dried with this program.	4 1000	125
Hygiene(BabyProtect+)	This is a long period program that can be used for laundry for people with allergies or required hygiene (infant clothes, towels, undergarments etc. cotton textiles). High level of hygiene is made available with high temperature.((This program is identified and approved by England's “The British Foundation” (Allergy UK.))	5 800	185
Bedding/Feather	You can dry your feather or fibre filled textile that bears can be dried in drier label as a single piece of laundry. You can dry king size quilt, pillow or coats as single piece of laundry. Dry your cloths such as coats and jackets turned inside out.	- 800	165
Express Super Short	Use this program to have 2 shirts ready for ironing.	0,5	1200	30
Energy consumption values
Programmes Capacity (kg)		Spin speed in washing machine (rpm)	Approximate amount of remaining humidity	Energy consumption value kWh
Cottons Eco *	8	1000	60%	1,95
Cottons Iron dry	8	1000	60%	1,5
Synthetics cupboard dry	4	800 40%	0,75
Contains fluorinated greenhouse gases. Hermetically sealed R450a / 0,22 kg - GWP:1430 - 0,133 tCO2e
	"Cottons Eco programme" used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this programme is suitable for drying normal wet Cottons laundry and that it is the most efficient programme in terms of energy consumption for Cottons.

* : Energy Label standard program (EN 61121:2012). All values in the table are determined according to EN 61121:2012 standard. Consumption values may vary from the values in the chart depending on laundry type, wringing speed, ambient conditions, and voltage levels.

Allergy UK is the brand of the British Allergy Association. The Seal of Approval is created to guide people who require a recommendation about a product that the related

product restricts / reduces / eliminates allergens or significantly reduces the allergen content in the ambient where allergy patients exist. It aims to provide assurance that the products are tested scientifically or examined in a way that provides measurable results.

5.5 Auxiliary functions Buzzer / time

The drying machine emits an audible warning when the program is completed. If you do not want the machine to emit an audible warning, press the "Buzzer / Time" button. When you press the Buzzer/Time button, a light will illuminate and no audible warning will be emitted when the program ends.

NOTE

- You can select this function before or after the program starts.

The Buzzer/Time button is used to adjust the program duration while the Rack/Time programs are selected.

Drying Level

The Drying Level button is used to adjust to the desired dryness level. The program duration may change depending on the selection.

NOTE

- You can activate this function only prior to the start of the program.

End time

You can delay the end time of the program by up to 24 hours with the End time function.

1. Open the loading door and place the laundry.
2. Select the drying program.
3. Press the End Time selection button and set the delay time you wish. The End Time LED will illuminate. (When the button is pressed and held, the End Time proceeds non-stop).
4. Press the Start / Stand-by button. The End Time countdown starts. The ":" separator in the middle of the displayed delay time flashes.

NOTE

- You can add or remove laundry within the end time. The displayed time is the sum of the normal drying time and the end time. The End Time LED will turn off at the end of the countdown, drying starts, and the drying LED will illuminate.

Changing the end time

If you want to change the duration during the countdown:

Cancel the program by turning the On/Off/Program selection knob. Select the program you want and repeat the End Time selection process.

Cancelling the end time function If you want to cancel the end time countdown and start the program immediately:

Cancel the program by turning the On/Off/Program selection knob. Select the program you want and press the Start/Stand-by button.

5.6 Warning indicators

NOTE

- Warning indicators may vary depending on the model of your dryer.

Filter cleaning

When the program is completed, the warning indicator for filter cleaning turns on.

Water tank

If the water tank fills up while the program continues, the warning indicator starts flashing and the machine goes into stand-by. In this case, empty the water tank and start the program by pressing the Start / Stand-by button. The warning indicator turns off and the program resumes.

Filter drawer / Heat exchanger cleaning

When the program is finished, the cleaning symbol of the heat exchanger or filter drawer may light up.

5.7 Starting the program

Press the Start/Stand-by button to start the program.

Start/Stand-by and Drying indicators will illuminate to indicate that the program has started.

5.8 Child Lock

The drying machine has a child lock which prevents the program flow from being interrupted when the buttons are pressed during a program. When the child lock is activated, all buttons on the panel except the On/Off/Program selection knob are deactivated.

Press the Drying Level and Buzzer buttons simultaneously for 3 seconds to activate the child lock.

The child lock has to be deactivated to be able to start a new program after the current program is finished or to be able to interfere with the program. To deactivate the child lock, keep the same buttons pressed for 3 seconds.

NOTE

• When the child lock is activated, the child lock warning indicator on the screen turns on.
• Child lock deactivates when the drying machine is turned off and on by the On/Off/Cancel knob.

NOTE

- When the drying machine runs and the child lock is active, it beeps twice when the program selection knob is turned. If the child lock is deactivated without returning the program selection knob to its previous position, the program will terminate due to the change in the program selection knob position.

5.9 Changing the program after it is started

You can change the program you selected to dry your laundry with a different program after the drying machine starts running.

• For instance, select Extra Dry program by turning the On/Off/Program selection knob to select Extra Dry instead of Iron Dry.
• Press the Start/Stand-by button to start the program.

Adding and removing clothes during stand-by

If you want to add or remove clothes to/from the drying machine after the drying program starts:

• Press the Start/Stand-by button to put the drying machine in Stand-by state. The drying operation stops.
• Open the loading door while in Stand-by state, and close the door after you remove or add laundry.
• Press the Start/Stand-by button to start the program.

NOTE

- Adding laundry after the drying operation starts may cause the dried laundry inside the machine to mix with wet laundry and leave the laundry damp at the end of operation.

NOTE

• Adding or removing laundry during drying may be repeated as many times as you wish. But this operation continuously interrupts the drying operation, and thus increases program duration and energy consumption. So, it is recommended to add laundry before the program starts.
• If a new program is selected by turning the program selection knob while the drying machine is in stand-by, the running program terminates.

WARNING!

- Do not touch the inner surface of the drum while adding or removing clothes during a continuing program. The drum surface is hot.

5.10 Cancelling the program

If you want to cancel the program and terminate the drying operation for any reason after the drying machine starts running, turn the On/Off/Cancel knob, the program will be cancelled.

WARNING!

- The inside of the drying machine shall be extremely hot when you cancel the program during machine operation, so run the refresh program to allow it to cool down.

5.11 End of program

When the program ends, the Last/Anti-Wrinkle and Fibre Filter Cleaning Warning LEDs on the program follow up indicator will illuminate. Loading door may be opened and the dryer machine becomes ready for another run. Bring the On/Off/Program selection knob to On/Off position to turn the drying machine off.

NOTE

- If the laundry is not removed after the program is completed, the wrinkle prevention function activates for 2 hours to prevent the laundry inside the machine to get wrinkled. The program tumbles the laundry with 10-minute intervals to prevent them from wrinkling.

6 Maintenance and cleaning

6.1 Loading Door Inner Surface

The hair and fibres that are separated from the laundry during drying process is collected by the Fibre Filter.

NOTE

• Fibres are formed during wearing and washing clothes.
• You can clean the filter slot with a vacuum cleaner.

WARNING!

- After each drying cycle, clean the fibre filter and the inner surface of the loading door.

To clean the fibre filter:

• Open the loading door.

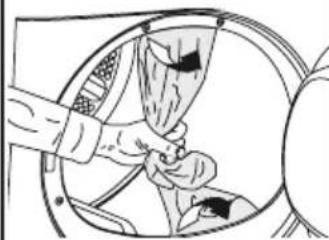

• Hold the first part (inner filter) of the two-part fibre filter and remove it by pulling it upwards.
• Collect the hair, fibres and cotton balls with your hand or with a soft cloth.
• Remove the second part (outer filter) by pulling it upwards.

NOTE

• Ensure that hair, fibre and cotton balls do not fall into the slot where the filters are installed.
• Open both fibre filters (inner and outer filters) and remove the hair, fibre, cotton balls with your damp hand, a vacuum cleaner, or a cloth.

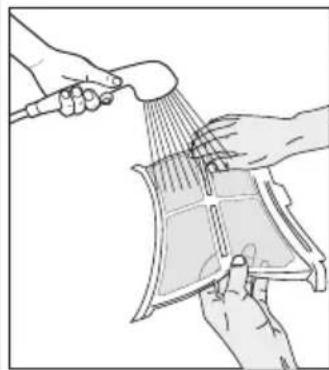

- Clean both filters under running water in the reverse direction of fibre accumulation or with a soft brush. Dry the filter before placing it back.

- Insert the fibre filters one on top of the other and place them back in their place.

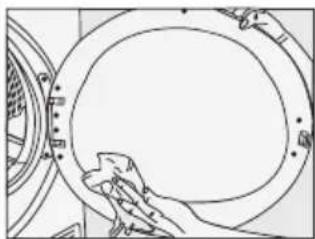

- Clean the loading door interior and its washer with a soft damp cloth.

6.2 Cleaning the sensor

There are dampness sensors in the dryer that detect whether the laundry is dry or not. To clean the sensors:

• Open the loading door of the dryer.
• Allow the machine to cool down if it is still hot due to the drying process.

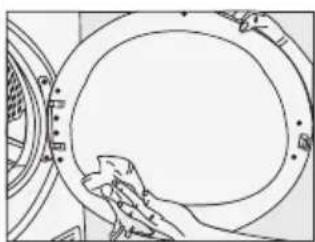

• Wipe the metal surfaces of the sensor with a soft cloth dampened with vinegar and dry them.

NOTE

- Clean metal surfaces of the sensors 4 times a year.

- Do not use metal tools when cleaning metal surfaces of the sensors.

WARNING!

- Never use solvents, cleaning agents or similar substances for cleaning due to the risk of fire and explosion!

6.3 Draining the water tank

Dampness of the laundry is removed and condensed during drying process and the water that arises accumulates in the water tank. Drain the water tank after each drying cycle.

WARNING!

• Condensed water is not drinkable! - Never remove the water tank when the program is running!

If you forget to drain the water tank, the machine will stop during the subsequent drying cycles when the water tank is full and the Water Tank warning symbol will flash. If this is the case, drain the water tank and press Start / Pause button to resume the drying cycle. To drain the water tank:

1. Remove the water tank in the drawer or container carefully.

1. Drain the water in the tank.

• If there is lint accumulation in the funnel of the water tank, clean it under running water.
• Place the water tank into its seat.

NOTE

- If the direct water draining option is used, there is no need to empty the water tank.

6.4 Cleaning the evaporator

Hair and fibers that are not caught by the fiber filter go to the fins of the evaporator behind the toe board and accumulate there. If the evaporator icon is flashing or every 6 months, clean the evaporator.

- Open the toe board by pressing on it.

- To open the air routing door, move the release latch.

- Clean the fibers on the evaporator with a damp cloth or vacuum cleaner with a brush, moving upwards and downwards.

- After the cleaning process is completed, place the air router door back in its place, move the latches to close it, and close the toe board.

WARNING!

• You can clean by hand, provided you wear protective gloves. Do not try to clean with bare hands. Evaporator fins may damage your hands.
• Cleaning with left-to-right movements may damage the evaporator fins. This may lead to drying issues.

7 Troubleshooting

Drying operation takes too long.

Fibre filter (interior and exterior filter) pores may be clogged.>>> Wash the fibre filters with warm water and dry.Evaporator front side may be clogged. >>> Clean the front side of the evaporator.The ventilation grills in front of the machine may be closed.>>> Remove any object in front of the ventilation grills that blocks air.Ventilation may be inadequate because the are the machine is installed in is too small. >>> Open the door or windows to prevent the room temperature from rising very high.A lime layer may have accumulated on the humidity sensor. >>> Clean the humidity sensor.Excessive amount of laundry might be loaded. >>> Do not load the drying machine excessively.Laundry might not have been wrung adequately. >>>Perform a higher speed wringing on the washing machine.

Clothes come out damp after drying.

A program not suitable for the laundry type may have been used.>>> Check the maintenance labels on the clothes and select a program suitable for the clothes' type or use time programs as extra.Fibre filter (interior and exterior filter) pores may be clogged.>>> Wash the filters with warm water and dry.Evaporator front side may be clogged. >>> Clean the front side of the evaporator.Excessive amount of laundry might be loaded. >>> Do not load the drying machine excessively.Laundry might not have been wrung adequately. >>>Perform a higher speed wringing on the washing machine.

Drying machine does not turn on or program cannot be started. Drying machine does not run after it is configured.

Power plug might be unplugged. >>> Make sure the power cord is plugged in.Loading door might be open. >>> Ensure that the loading door is properly closed.A program might not be set or Start / Pause /Cancel button might not be pressed. >>> Check that the program is set and it is not in Pause position..Child lock may be activated. >>> Turn off the child lock.

Program terminated prematurely for no reason.

Loading door might be closed completely. >>> Ensure that the loading door is properly closed.There might be a power outage. >>> Press the Start / Pause / Cancel button to start the program.Water tank may be full. >>> Empty the water tank.

Clothes have shrunk, hardened or spoiled.

A program not suitable with the laundry type might have been used. >>> Check the maintenance labels on the clothes and select a program suitable for the clothes.

Water drips from the loading door.

Fibres might have gathered on the inner sides of the loading door and the loading door gasket. >>> Clean the inner surfaces of the loading door and the loading door gasket surfaces.

Loading door opens by itself.

Loading door might be closed completely. >>> Push the loading door until the closing sound is heard.

Water tank warning symbol is on/flashing.

Water tank may be full. >>> Empty the water tank.Water discharge hose might have collapsed. >>> If the product is connected directly to the water drain check the water discharge hose.

The lighting inside the drying machine does not turn on. (In models with lamp)

The drying machine might not have been turned on using On/Off button. >>> Check that the drying machine is turned on.Lamp might be malfunctioning. >>> Contact Authorized Service to replace the lamp.

Anti-crease icon is lit.

Anti-Crease mode that prevents the laundry in the drier to crease may be activated. >>> Turn the drier off and remove the laundry.

Fibre filter cleaning icon is lit.

Fibre filter (interior and exterior filter) may be unclean. >>> Wash the filters with warm water and dry..A layer may be formed on the fibre filter pores that leads to clogging. >>> Wash the filters with warm water and dry.Fibre filters may not be inserted. >>> Insert the interior and exterior filters to their places.

An audible warning is heard from the machine

Fibre filters may not be inserted. >>> Insert the interior and exterior filters to their places.

Evaporator warning icon is flashing.

Evaporator front side may be clogged with fibres. >>> Clean the front side of the evaporator.Fibre filters may not be inserted. >>> Insert the interior and exterior filters to their places.

The lighting inside the drying machine turns on. (In models with lamp)

If the drying machine is plugged to the power outlet, the On/Off button is pressed and the door is open; the light turns on. >>> Unplug the drying machine or bring the On/Off button to Off position.

WARNING!

- If the problem persists after following the instructions in this section, contact your vendor or an Authorized Service. Never try to repair your product yourself.

NOTE

• If you encounter an issue with any part of your appliance, you can request a replacement by contacting the authorized service with the appliance model number.
• Operating the appliance with non-authentic parts may lead the appliance to malfunction.
• Manufacturer and distributor are not liable for malfunctions resulting from using non-authentic parts.

PRODUCT FICHE
Complying Commission Delegated Regulation (EU) No 392/2012
Supplier name or trademark		BEKO
Model name		MDS8412RX / DS8412GX
Rated capacity (kg)		8
Type of Tumble Dryer	Air Vented	-
	Condenser	•
Energy efficiency class (1)		A++
Annual Energy Consumption (kWh) (2)		235
Type of Control	Automatic	•
	Non-automatic	-
Energy consumption of the standard cotton programme at full load (kWh)		1,95
Energy consumption of the standard cotton programme at partial load (kWh)		1,06
Power consumption of the off-mode for the standart cotton programme at full load, Po (W)		0,5
Power consumption of the left-on mode for the standart cotton programme at full load, PL (W)		1,0
The duration of the left on mode (min)		30
Standard cotton programme (3)
Programme time of the standard cotton programme at full load, Tdry (min)		197
Programme time of the standard cotton programme at partial load, Tdry1/2 (min)		115
Weighted programme time of the standard cotton programme at full and partial load ( Tt )		150
Condensation efficiency class (4)		B
Average condensation efficiency of the standard cotton programme at full load, Cdry		86%
Average condensation efficiency of the standard cotton programme at partial load, Cdry1/2		86%
Weighted condensation efficiency of the standard cotton programme at full load and partial load, Ct		86%
Sound power level for the standard cotton programme at full load (5)		65
Built-in		-

• : Yes - : No

(1) Scale from A+++ (most efficient) to D (least efficient) (2) Energy consumption based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used. (3) "Cotton cupboard dry programme" used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this programme is suitable for drying normal wet cotton laundry and that it is the most efficient programme in terms of energy consumption for cotton (4) Scale from G (least efficient) to A (most efficient) (5) Weighted average value — L_WA expressed in dB(A) re 1 pW

WARNING
