Type de produit	Freezer
Brand	Exquisit
Model	GS280-HE-040D
Energy efficiency class	E (estimated)
Annual energy consumption	Approx. 200 kWh
Net capacity	Approx. 200 L
Dimensions (H x W x D)	Approx. 143 x 55 x 60 cm
Weight	Approx. 45 kg
Noise level	Approx. 40 dB
Climate class	SN-T (subnormal to tropical)
Freezing capacity	Approx. 10 kg/24h
Storage time during power failure	Approx. 12 hours
Defrosting method	Manual
Control type	Mechanical
Temperature adjustable	Yes
Interior light	No
Shelves	3 wire shelves
Door hinge	Reversible
Cooling agent	R600a (isobutane)
Mains voltage	220-240 V ~ 50 Hz
Power consumption	Approx. 100 W

Frequently Asked Questions - GS280-HE-040D Exquisit

What is the ideal temperature for my Exquisit GS280-HE-040D freezer?

The recommended temperature for a freezer is -18°C or lower to keep food frozen and safe.

How do I defrost the freezer?

Unplug the freezer and remove all food. Leave the door open to allow ice to melt. Do not use sharp tools to remove ice. Clean and dry the interior before restarting.

What should I do if the freezer is not cooling properly?

Check that the thermostat is set correctly, ensure the door is closed properly, and verify that the condenser coils are clean. If the problem persists, contact a technician.

How often should I clean the condenser?

Clean the condenser coils at least twice a year to maintain efficiency. Use a vacuum or soft brush to remove dust.

Can I reverse the door opening direction?

Yes, the door hinges are reversible. Follow the instructions in the manual to change the door swing. You may need a screwdriver and assistance.

What is the storage capacity of this freezer?

The approximate net capacity is 200 liters, suitable for a small household.

How long can food last during a power failure?

The freezer can keep food frozen for approximately 12 hours if left unopened. Avoid opening the door during a power outage.

What type of refrigerant does the freezer use?

The freezer uses R600a (isobutane), a hydrocarbon refrigerant that is environmentally friendly.

Is the freezer suitable for use in a garage?

It depends on the ambient temperature. The freezer has a climate class of SN-T, meaning it can operate in temperatures from 10°C to 43°C. In unheated garages, ensure temperatures stay within this range.

How do I adjust the temperature?

The temperature is controlled by a mechanical dial inside the freezer. Turn the dial to a higher number for colder temperature. Start with the middle setting and adjust as needed.

USER MANUAL GS280-HE-040D Exquisit

GS280-HE-040E inoxlook

Simple line drawing of a cabinet with a door and two legs (no text or symbols)

Einleitung

9 For your safety 27

9.1 Intended use....27
9.2 Improper use 28
9.3 Safety for specific groups of people 28
9.4 Residual risks 29
9.5 Hazards due to refrigerant....29

10 Setting up and connecting 30

10.1 Changing the door stop / fitting the door handle....30
10.2 Setting up the appliance....32
10.3 Levelling....33

11 Putting into operation 34

11.1 Switch appliance ON/OFF 34
11.2 Proper storage of food....36
11.3 Overview of storage recommendations for freezer compartment 38
11.4 Saving energy....39

12 Service and maintenance....40

12.1 Cleaning the appliance ....40
12.2 Cleaning/replacing the appliance door seal 41
12.3 Defrosting 41
12.4 Decommissioning the appliance....42

13 Operating noises / troubleshooting 42

14 Spare parts/After Sales Service 43
15 Warranty terms ....44
16 Disposal....45

Technical diagram showing a mechanical component with an inset view of a curved component (no text or symbols)

3 Inbetriebnahme

Two separate containers: one with food items including rice, fish, and meat, the other with a fish (no text or symbols)

Simple line drawing of a cabinet or rack with an arrow indicating compression (no text or symbols)

It is essential to read the instruction manual carefully before operating the appliance. The instruction manual contains important safety information for the operation and maintenance of the appliance. Proper operation makes a major contribution to efficient energy use and minimises the energy consumption of the appliance.

Improper use of the appliance can be dangerous, particularly for children.

Keep the instruction manual for future reference and pass it on to any subsequent owners.

The manufacturer is working constantly on the further development of all types and models. We therefore reserve the right to make changes in form, equipment and technology.

CE Conformity

At the time of its placement on the market, this appliance conforms to the requirements laid down in the Council directives on the approximation of the laws of the Member States relating to electromagnetic compatibility, Directive 2014/30/EU, and relating to the making available on the market of electrical operating equipment designed for use within certain voltage limits, Directive 2014/35/EU.

This appliance bears the CE mark and has a declaration of conformity that can be examined by the responsible market supervisory authorities.

Getting to know your appliance

Scope of supply

1x Appliance

7x Freezer drawers

1x Instruction manual

1x Service card

*) The term appliance is used throughout the text to refer to a freezer.

Designation

1) Temperature control
2) Freezer drawers
3) Adjustable feet

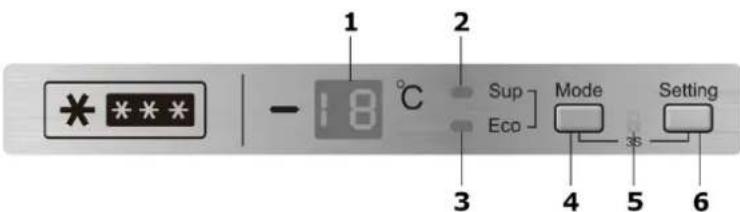

Temperature control

1) Display
2) Sup (Super freeze) function
3) Eco function
4) Mode
5) Key lock
6) Temperature setting

9 For your safety

For safe and proper use of the appliance, read the instruction manual and other documentation accompanying the product and keep in a safe place for future reference. All safety instructions in this instruction manual are marked with a warning symbol. They draw your attention to potential hazards. Be sure to read and observe this information.

Explanation of the safety instructions

DANGER

Indicates a hazardous situation which, if not avoided, will lead to very serious injuries or even death!

WARNING

Indicates a hazardous situation which, if not avoided, can lead to very serious injuries or even death!

CAUTION

Indicates a hazardous situation which, if not avoided, can lead to minor or moderate injuries!

ATTENTION

Indicates a situation which, if not avoided, will lead to material damage.

ELECTRIC SHOCK HAZARD!

RISK OF SCALDING!

FIRE HAZARD!

Information and instructions to be observed.
- Indicates a list
√ Indicates inspection steps in sequence
9. Indicates work steps in sequence
→ Describes the response of the appliance to the work step

9.1 Intended use

The appliance is intended for private/household use. It is suitable for refrigerating/freezing food.

• Do not use the appliance for purposes other than refrigerating/freezing food. The manufacturer accepts no liability for any damage.
• For safety reasons, modifications or alterations to the appliance are not permitted.
  • The appliance is not intended for built-in use.
• Appliances with a mechanical temperature regulator are intended for use up to a maximum altitude of 2000 metres above sea level.
• Any use outside these areas of application is not in accordance with the intended use and is therefore considered improper use.

9.2 Improper use

The following activities are considered improper use and are therefore prohibited:

• Do not store or refrigerate medicines, blood plasma, laboratory preparations or similar substances and products based on the Medical Devices Directive 2007/47/EC in the refrigerator.
• Do not store explosive substances or spray cans with flammable propellants such as butane, propane, pentane etc. in the appliance.
• Do not store carbonated, sparkling drinks in the freezer compartment.
• Do not store bottles in the freezer compartment unless approved by the manufacturer.
• Do not squeeze food into the freezer compartments.
• Do not operate electrical appliances in the food store room that have not been approved by the manufacturer.
• The appliance is not suitable for commercial use.
• Do not set up the appliance outdoors.
• Do not connect the appliance to the mains power supply using multiple socket strips.
• Do not route the mains power cable under voltage.
• Do not kink the mains power cable.
• Set up the appliance so that the mains plug is accessible at all times.
• Do not pull the mains plug out of the plug socket at the mains power cable.

9.3 Safety for specific groups of people

The appliance may be operated by children over 8 years of age and persons whose physical, sensory or mental aptitude are impaired or who lack experience and/or knowledge. However, they must be supervised or instructed in the safe use of the appliance and understand the possible risks.

• Children may only clean and service the appliance under adult supervision.
• Supervise children to ensure that they do not play with the appliance.

DANGER

RISK OF STRANGULATION DUE TO MAINS POWER CABLE!

Keep children under 8 years of age away from the mains power cable of the appliance.

DANGER

DANGER OF SUFFOCATION DUE TO PACKAGING MATERIALS!

Keep children away from the packaging materials.

DANGER

RISK OF SUFFOCATION FROM OLD APPLIANCE!

Children playing can get trapped inside the appliance or get into other life-threatening situations.

• Remove or destroy existing locks and fasteners.
• Do not let children play with the appliance.
  • Always supervise children near the old appliance.

9.4 Residual risks

DANGER

ELECTRIC SHOCK HAZARD!

• Never touch the mains plug on the mains power cable with wet or damp hands when plugging it in or unplugging it.
• Install and connect the appliance only in accordance with the description in the instruction manual.
• In an emergency, pull the mains plug out of the plug socket immediately.
• Remove the mains plug from the plug socket before starting cleaning or service work.
• A damaged mains power cable must be replaced by our After Sales Service without delay.
• If the mains power cable or mains plug is damaged, do not use the appliance any more.
• Do not carry out any work on the appliance other than the cleaning and service work described in this instruction manual.

WARNING

FIRE HAZARD!

• An inadequate circulation of air can cause a build-up of heat that can lead to a fire.
• It is essential to observe the prescribed clearances for the rear, side and top of the appliance (see chapter Minimum Clearances).
• Keep the compressor and condenser (depending on model) free of dust and objects.

9.5 Hazards due to refrigerant

WARNING

HEALTH HAZARD!

If the refrigeration circuit is damaged, R600a isobutane refrigerant will escape. The refrigerant poses a health hazard on contact with the eyes and if inhaled.

WARNING

FLAMMABLE GAS!

EXPLOSION AND FIRE HAZARD!

• The refrigeration circuit of the appliance contains the refrigerant isobutane (R600a), a natural gas with high environmental compatibility; it is flammable.
• Only authorised specialists are allowed to work on the refrigerant system.
• Do not damage the refrigeration circuit, e.g. by puncturing the refrigerant channels with sharp objects, kinking the pipework, etc.
• Do not damage any parts of the refrigeration circuit when transporting, setting up, servicing or disposing of the appliance.
• In order that an explosive gas/air mixture cannot form in the event of a leak in the refrigeration circuit, the room in which the appliance is installed must have a minimum size according to standard EN 378 of 1 m ^3 per 8 g of refrigerant. The quantity of refrigerant in the appliance can be found on the type plate.

What to do if the refrigeration circuit is damaged:

• Avoid naked flames and ignition sources.
• Ventilate the room in which the appliance is installed thoroughly.
• Contact After Sales Service.

10 Setting up and connecting

Before setting up and connecting the appliance, ensure that

• the appliance is disconnected from the mains power supply (see residual risks chapter) and
• the installation conditions are fulfilled (see chapter Minimum Clearances).

Unpacking the appliance

The packaging materials must be undamaged. Inspect the appliance for transport damage. On no account should a damaged appliance be connected to the mains power supply. In case of damage, contact the supplier.

CAUTION

RISK OF INJURY AND APPLIANCE DAMAGE!

• Always carry out transport with a second person.
- Do not cut packaging material with a sharp object, e.g. carpet knife.

Removing transport protection

The appliance and some of the interior parts are secured for transport.

√ Remove all adhesive tape on the right and left side.
√ Remove all adhesive tapes and packaging parts from the interior of the appliance.
√ Remove residues of adhesive with alkaline water.

There may be stickers with warnings on the appliance. These must be observed and not removed from the appliance.

10.1 Changing the door stop / fitting the door handle

The door hinge of the appliance can be shifted from left to right or vice versa.

ATTENTION

APPLIANCE DAMAGE!

Do not tilt the appliance more than 45^ when mounting the door in order not to damage the refrigerating system.

Tools required for changing door hinges:

DESIGNATION	TOOL
Cross-head screwdriver
Flat screwdriver
Fork Wrench (English)

Changing the door hinge

STEP-BY-STEP INSTRUCTIONS	FIGURE
1. Remove the two covers.
2. Remove the two screws and then the upper hinge that holds the door in place.
3. Lift the door and place it on a padded surface to prevent scratching.
4. Remove the screws and the lower hinge.
5. Remove the adjustable feet from both sides.
6. Unscrew the lower hinge pin.
7. Turn the holder upside down and replace the hinge pin.
8. Replace the bracket with the lower hinge pin.
9. Reattach both feet.
10. Remove the appliance door seal and replace it after turning.
11. Replace the door.
12. Make sure that the door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the upper hinge.
13. Screw the 2 screws back in.
14. With the door closed, check that the door is horizontal and vertical and that the seals are closed on all sides before tightening the lower hinge.
15. readjust the feet if necessary.

Setting up and connecting

Door handle assembly

10.2 Setting up the appliance

Place the appliance

• in accordance with the prescribed minimum clearances.
- Set up the appliance in a dry, well-ventilated room whose ambient temperature corresponds to the climate class for which the appliance is designed.

ATTENTION

APPLIANCE DAMAGE!

Leave the appliance to stand for 12 hours after transport to allow the refrigerant to collect in the compressor. Failure to observe this may damage the compressor and cause the appliance to fail. This would void all warranty claims.

The climate class is indicated on the type plate (inside the refrigerator or on the rear of the appliance) and in the product fiche. The ambient temperature has an influence on the electricity consumption and the proper function of the appliance.

CLIMATE CLASS	TEMPERATURE RANGE
(SN) Extended temperature range	+10 °C to +32 °C
(N) Temperature range	+16 °C to +32 °C
(ST) Subtropical temperature range	+16 °C to +38 °C
(T) Tropical temperature range	+16 °C to +43 °C

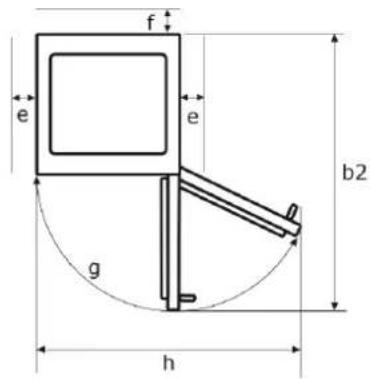

Minimum clearances for ventilation

Air circulation at the rear, side and top of the appliance influences energy consumption and refrigerating (depending on model). It is essential that the minimum clearances for ventilation of the appliance are observed as shown in the following drawing. If the minimum clearances are not observed, the accumulated air cannot escape and the compressor is in continuous operation, which shortens the life of the appliance.

Appliance dimensions in mm and degrees

a	b	b1	b2	c	d	e	f	g	h
600	600	620	1150	1730	100	50	30	120^	910

➢ Failure to observe the minimum distances increases power consumption.
If the accumulated heat cannot dissipate around the appliance, the function of the appliance will be impaired.
To achieve the specified energy class, comply with the above mentioned clearances.

10.3 Levelling

If the surface is slightly uneven, level the appliance with the front feet.

Diagram showing a mechanical component with an inset view of a curved component (no text or symbols)

11 Putting into operation

Clean the appliance and the interior parts thoroughly before putting into operation (see chapter "Service and Maintenance").

• Set the temperature according to the ambient temperature at the installation location if the equipment is changed or if the appliance door is opened and closed frequently.
• With very high summer temperatures, set the temperature regulator to a higher level to maintain the desired cooling temperature.
• For optimum energy consumption, leave the drawers in the appliance as shown (see section 3.2 Proper storage of food).

11.1 Switch appliance ON/OFF

1. Connect the appliance to the mains power supply.
2. Set the desired temperature using the button (6) on the temperature control. The temperature control is located in the centre of the front of the appliance.
3. To switch off the appliance, pull out the mains plug.

ATTENTION

APPLIANCE DAMAGE!

Do not switch on the appliance immediately after a power interruption.

Setting the temperature

The temperature depends on certain factors, such as installation location, ambient temperature, frequency of door opening (opening of the appliance lid) or loading of the appliance.

Adjust the internal temperature of the appliance with the temperature control knob.

1. Press the button (6).
   → The freezing temperature is displayed (1).
2. Each time you press the button (6) again, the value changes step by step from -16 °C to -22 °C.

The display shows the temperature setting, not the internal temperature of the appliance.

Fast freezing (Super Freeze)

The freezing temperature is automatically set to -22^ . Freshly frozen food is frozen through faster.

1. Press the "Mode" button (4).
   → LED "Sup" (2) lights up. "SF" (Super Freezing) appears in the display (1).

Eco function

1. Press the "Mode" key (4).
   → The "Eco" LED (3) lights up. "SE" (Save Energy) appears in the display (1). The temperature is at -16°C.
2. To deactivate manually, press key (4) twice to switch to normal freezing mode.

Key lock

1. Press buttons (4) and (6) simultaneously for 3 seconds.
   → The "key lock" LED (5) lights up.
2. Press buttons (4) and (6) at the same time to unlock the key lock.
   → The "key lock" LED (5) goes out.

Temperature alarm

The temperature alarm is activated three hours after the unit has been put into operation.

If the inside temperature rises to more than -8 °C (e.g. in the event of a power failure), an acoustic signal sounds.

1. The display (1) shows "ht" (high temperature).
2. Press any button to stop the alarm.

Door open alarm

As soon as the appliance door is open for more than 5 minutes, an acoustic signal sounds 3x every 5 seconds, within 5 minutes. The alarm stops for 5 minutes, then the acoustic signal sounds again. When the appliance door is closed, the alarm switches off.

11.2 Proper storage of food

The freezer compartment is suitable for the longer-term storage of frozen goods and for freezing fresh food.

WARNING

HEALTH HAZARD!

If the appliance is switched off or the power has failed, the food is not sufficiently refrigerated. Stored food can thaw or defrost and spoil. There is a risk of food poisoning if the thawed food is consumed.

• After a power failure, check whether the stored food is still fit for consumption.
- Dispose of frozen food that has visibly thawed after a power failure.
- Do not freeze food that has already been thawed or defrosted.

CAUTION

RISK OF INJURY!

Touching frozen goods, ice and metallic parts inside the freezer compartment of the appliance can cause burn-like symptoms on very sensitive skin.

Do not touch frozen goods with damp or wet hands; your hands could freeze to the goods.

Observe the following when storing in a freezer compartment:

• Keep the appliance door closed in the event of a power failure. The food remains frozen for several hours (see "Storage time in the event of faults" product fiche).
  • Use only food that is fit for consumption.
• Do not interrupt the refrigerating chain of frozen products.
• Keep the period between the purchase of the frozen food and its storage in the appliance as short as possible.
• Avoid contamination of food with raw meat and raw fish. Meat juice must not come into contact with other foodstuffs.
• Do not freeze large quantities at once. The quality of the food is best retained if it is quickly frozen through to the core. The maximum amount of food you can freeze within 24 hours is stated on the type plate and in the product fiche.
• Always store the frozen food in direct contact with the drawer bottom. Leave a space between the individual frozen goods so that the cold air can circulate.
• Store high-proof alcoholic beverages only tightly closed and upright. Observe the beverage manufacturer's instructions.
  • Children aged 3 to 8 years may load and unload the appliance.

If the appliance doors are open for a long period of time, this leads to a considerable increase in temperature in the compartments of the appliance. Stored food can therefore spoil faster.
For safety reasons, freezer drawers are fitted with a stop device. However, you can remove them completely by pulling them up and then removing them. They are inserted in the reverse order.

Not suitable for freezing are i.a.

• Leaf salads,
• Radish,
• Sour cream,
• Mayonnaise

• whole eggs in shell,

Description of freezer compartment according to number of stars (*)

COMPARTMENT TYPE	TARGET STORAGE TEMPERATURE	SUITABLE FOR...
"0-star compartment"	-6°C ~ +0°C	Storage of fresh meat and fresh fish for a period of one to a maximum of three days and for storing or making ice cubes. Not suitable for freezing fresh food.
	≤ -6°C	Storage of frozen products for a maximum period of one month. Not suitable for freezing fresh food.
	≤ -12°C	Storage of frozen products for a maximum period of two months and for storing or making ice cream and ice cubes. Not suitable for freezing fresh food.
	≤ -18°C	Storage of frozen products for a maximum period of three months. Not suitable for freezing fresh food.
	≤ -18°C	Storage of frozen products and for freezing fresh food over a longer period of time.

11.3 Overview of storage recommendations for freezer compartment

Before freezing fresh food, set the temperature control to the highest setting / lowest temperature / super with a lead time of 12 hours.
Freezing capacity of the maximum amount of food within 24 hours can be seen on the type plate (inside or on the back of the appliance) and the product fiche.

Making ice cubes

Fill an ice cube tray (not included in the scope of supply) three-quarters full with water and place horizontally on the bottom of the freezer compartment. Loosen a frozen ice cube tray only with a blunt object (e.g. the handle of a spoon). Ready-made ice cubes dissolve more easily if the ice cube tray is held under running water for a short time.

11.4 Saving energy

• Do not install the appliance near cookers, radiators or other heat sources. At higher ambient temperatures, the compressor runs longer and more frequently and results in a higher energy consumption.
• Ensure adequate ventilation space at the base, on the sides and back of the appliance. Never cover ventilation openings. Observe the specified clearances (see chapter "Setting up the appliance").
• The arrangement of the drawers, shelves and compartments as shown in the figure "Getting to know your appliance" offers the most efficient use of energy and should therefore be maintained where possible.
• For more storage space (e.g. for large frozen goods) remove the middle shelves/drawers. Remove the top and bottom shelves/drawers last if necessary.
• A uniformly filled freezing compartment contributes to an optimum use of energy. Avoid empty or half-empty compartments.
• Do not place hot food in the freezer. Let food cool down first.
• Do not set the temperature lower than necessary. This also contributes to an optimum energy utilisation.
• The door seals of the appliance must be absolutely intact so that the doors close correctly and the energy consumption is not unnecessarily increased.
• Open the appliance only when necessary, and then for as short a time as possible. Energy consumption and the temperature inside the appliance can increase if the appliance door is opened frequently or for a long time, or if it is not closed properly.

12 Service and maintenance

For hygiene reasons, regularly clean the appliance inside and out, including the door seal and interior fittings.

Before carrying out any maintenance and servicing work, ensure that the appliance is disconnected from the mains power supply (see safety chapter » Electric Shock).

CAUTION

RISK OF INJURY!

• Do not use electric heaters, naked flames, knives, etc. for defrosting.
• Never clean the appliance with a steam cleaner. Moisture could get into electrical components.

ATTENTION

APPLIANCE DAMAGE!

• Do not use abrasive or aggressive cleaning agents.
• Do not use abrasive sponges.
• Essential oils and organic solvents, e.g. the juice of lemon or orange peel, butyric acid or cleaning agents containing acetic acid can attack plastic parts. Do not allow such substances to come into contact with parts of the appliance.

12.1 Cleaning the appliance

1. Take out the frozen food. Store everything covered and in a cool place.
2. To clean the freezer drawers, lift them slightly upwards and pull them out until they can be pivoted up or down and removed.

3. Clean the appliance, including the door seal and interior parts, using a cloth and luke-warm water with a little household detergent.

4. Rinse with clear water and wipe dry.

5. Insert the cleaned drawers.

6. Make sure that the interior of the appliance is completely dry.

7. Connect the appliance to the mains power supply and switch it on.

Simple line drawing of a cabinet or rack with an arrow indicating compression or lifting (no text or symbols)

12.2 Cleaning/replacing the appliance door seal

Check the airtightness of the door seals

1. Clamp a sufficiently long strip of paper 50 mm wide and 0.08 mm thick at various points on the appliance.
   → If the paper can be pulled through with a slight resistance, the appliance door seal is tight. (The thickness test of the paper used is carried out according to ISO 534)

Tight

Leaky

or

1. Place a torch on a shelf in the appliance, direct the light towards the appliance door seal and close the door. If no direct light shines through, the appliance door seal is tight.
   → If direct light shines through the closed door, the appliance door seal is not tight.

Leaky

Replacing the appliance door seal

1. Remove food from the appliance.
2. Pull the appliance door seals out of the appliance.

3. Clean the appliance door as usual.

4. Insert the new appliance door seal in the gaps.

5. Insert appliance door seal in the corners first and press/stroke it with your thumb.

6. If the appliance door seal is not evenly applied everywhere: carefully heat the relevant areas with a hairdryer and pull out a little with your fingers.

Inspect the appliance door seals regularly for soiling and damage.
- Always clean the appliance door seal with cold water.
➢ Grease and oil make the appliance door seals porous and brittle. If grease or oil gets on door seals: Clean the freezer compartment, including the interior parts, using a cloth and lukewarm water with a little household detergent.

12.3 Defrosting

Automatic defrosting in the freezer compartment - No Frost System

This means that frost does not form on the interior walls or on the food during operation. The constantly circulating cold air prevents frost from forming. An automatic fan control provides the fan drive.

Manual defrosting in the freezer compartment

After prolonged operation, a frost or ice layer may form in the freezer compartment. If this ice layer reaches a thickness of 6 – 8 mm, defrost and clean the freezer compartment. An excessive frost or ice layer increases the energy consumption. Before defrosting, set the temperature regulator to the highest settings; the frozen goods store the cold for a certain length of time.

1. Pull out the mains plug.
2. Empty the appliance and store the goods in a cool room.
3. For faster defrosting, place a vessel with warm water into the freezer compartment.
4. Do not use mechanical objects to remove the ice layer.
5. First remove the large pieces of ice, then the small pieces from the appliance.
6. Clean the freezer compartment, including the interior parts, using a cloth and luke-warm water with a little household detergent.
7. Rinse with clear water and wipe dry.
8. After cleaning, connect the appliance to the mains power supply again and switch on.

12.4 Decommissioning the appliance

To switch off the appliance, remove the mains plug and switch off or unscrew the fuse.

√ Remove the food.
√ Remove the mains plug or switch off or unscrew the fuse.
√ Defrost the appliance and clean thoroughly (see chapter "Service and Maintenance").
√ Leave the appliance doors open to prevent odour and mould formation.

13Operating noises / troubleshooting

Repairs to electrical appliances may only be carried out by After Sales Service (see chapter "Spare parts/After Sales Service"). An incorrectly performed repair can pose dangers for the user.

If the repair is not carried out professionally, the warranty claim is voided.

Operating noises

NOISES	TYPE OF NOISE	CAUSE / REMEDY
Normal noises	Gurgling	Caused by the compressor when in operation.
	Liquid noises	Caused by the circulation of the refrigerant in the appliance.
	Clicking noises	The temperature regulator switches the compressor on or off.
	Vibration of the condenser(only where the condenser is visible on the rear of the appliance)	Check whether the condenser is loose on the rear of the appliance.Secure condenser.

Troubleshooting

FAULT	POSSIBLE CAUSES	MEASURES
The refrigeration system starts too often and runs too long.	The appliance door is opened too often.	Do not open the appliance door unnecessarily.
	The air circulation around the appliance is obstructed.	Keep the area around the appliance free.
Appliance does not freeze properly.	The appliance is switched off or is not connected to the mains power supply.	Check the power supply and fuses. Check whether the mains plug is correctly plugged in to the plug socket.Check that there is voltage at the plug socket.
	The temperature regulator is in position "MIN".	Check the temperature regulator settings.
	Ambient temperature is too low.	(See chapter 2.2)
	Door not closed tightly or door seal is not fully open.	See "Checking and cleaning the appliance door seals" (see chapter 4.2).
Side wall is very warm (models with foamed-in condenser only).	The condenser gives off warm air to the environment. If the ambient temperature is too high, heat accumulation can occur.Once the ambient temperature has dropped, the appliance will refrigerate again normally. Be sure to maintain the prescribed clearances(see chapter 2.2).	No actions necessary.

14 Spare parts/After Sales Service

The following spare parts are available from After Sales Service (depending on the appliance):

(1) Thermostats, temperature sensors, circuit boards and light sources
(2) Door handles, door hinges, shelves and drawers

Spare parts are available 7 years after the last appliance of a model has been placed on the market.

Door seals are available 10 years after the last appliance of a model has been placed on the market.

To access the product database for:

• Repair orders
• Data sheet
• Instruction Manual

Scan the service QR code from the enclosed service card or from the type plate on the appliance.

Service card

Type plate

For more information about service, see enclosed service card

Customer service address:

EGS GmbH

Dieselstraße 1

33397 Rietberg / GERMANY

A visit by an After Sales Service technician is not free of charge even during the warranty period in the event of incorrect operation or one of the faults described above.

15 Warranty terms

As the buyer of an Exquisit appliance, you are entitled to the statutory warranties arising from the purchase contract with your dealer. In addition, we grant you a warranty on the following terms:

Warranty period

The warranty period is 24 months from the date of purchase (proof of purchase must be presented). During the first 6 months, After Sales Service will fix defects in the appliance free of charge, on condition that the appliance is accessible for repairs without any great effort. During the following 18 months, the buyer is obliged to prove that the defect already existed at the time of delivery.

In the case of commercial use (e.g. in hotels, canteens) or joint use by several households, the warranty period is 12 months from the date of purchase (proof of purchase must be presented). During the first 6 months, After Sales Service will fix defects in the appliance free of charge, on condition that the appliance is accessible for repairs without any great effort. During the following 6 months, the buyer is obliged to prove that the defect already existed at the time of delivery.

The claim under warranty does not prolong the warranty period for either the appliance or for newly installed parts.

Scope of the defect remedy

Within the periods indicated, we will remedy all defects in the appliance that are demonstrably attributable to poor workmanship or material flaws. Replaced parts become our property.

The warranty does not cover:

Normal wear and tear, intentional or negligent damage, damage caused by non-compliance with the operating instructions, improper set-up or installation or by connection to incorrect mains voltage, damage due to chemical or electrothermal effects or due to other abnormal environmental conditions, glass, paint or enamel damage and possible colour differences as well as defective bulbs.

Defects in the appliance resulting from transport damage are also not covered. We will also not provide any services if - without our special, written approval - work has been carried out on the Exquisit appliance by unauthorised persons or if parts of foreign origin have been used. This limitation shall not apply to faultless work carried out by a qualified person using our original parts to adapt the appliance to the technical safety regulations of another EU member state.

Scope

Our warranty applies to appliances purchased and in operation in the Federal Republic of Germany or Austria.

In the case of complaints about defective appliances, the sender's and recipient's addresses must be in the Federal Republic of Germany or Austria.

For appliances purchased and operated in other European countries, the warranty conditions of the seller apply.

For repairs outside the warranty period:

• If an appliance is repaired, the repair invoices are payable immediately without deduction.
• If an appliance is inspected or a started repair is not completed, flat-rate travelling expenses and labour costs will be invoiced.
• Advice from our After Sales Service centre is free of charge (see chapter "After Sales Service").

Disposing of packaging materials

Sort packaging materials before disposal. Paper and cardboard with the waste paper and plastic film in the recycled materials bin.

Disposing of old appliances (EN)

Old appliances must not be disposed of with household waste The symbol of the crossed-out wheeled bin on the product or its packaging means that the appliance must not be disposed of with household waste but requires separate disposal. You can return the old appliance free of charge to a suitable municipal collection point for old electrical and electronic equipment, e.g. a recycling centre.

You can obtain the addresses from your city administration or local government.

Alternatively, you can return old electrical appliances with an edge length of up to 25 cm free of charge to retailers with a sales area for electrical and electronic equipment of at least 400 m ^2 or food retailers with a total sales area of at least 800 m ^2 who offer electrical and electronic equipment at least several times a year.

Larger old appliances can be returned free of charge to an appropriate retailer when purchasing a new appliance of the same type that performs essentially the same functions as the new appliance. Please contact your dealer regarding the modalities of returning an old appliance when delivering the new appliance.

Please remove - if possible - all (rechargeable) batteries as well as all lamps that can be removed without destroying them before disposing of the product.

Please note that you are responsible for deleting personal data from the appliance to be disposed of.

Children can often not recognise the hazards associated with household appliances. Ensure the necessary supervision and do not let children play with the appliance.

Disposing of old appliances

The symbol of the crossed-out wheeled bin on the product or its packaging means that the appliance must not be disposed of with household waste but requires separate disposal. You can return the old appliance free of charge to a suitable municipal collection point for old electrical and electronic equipment, e.g. a recycling centre. You can obtain the addresses from your city administration or local government.

Alternatively, you can return old electrical appliances free of charge when you buy a new appliance of the same type and with the same function from an offline retailer. Please contact your dealer regarding the modalities of returning an old appliance when delivering the new appliance.

Please remove - if possible - all (rechargeable) batteries as well as all lamps that can be removed without destroying them before disposing of the product.

Please note that you are responsible for deleting personal data from the appliance to be disposed of.

The appliance may contain substances that can endanger the environment and human health if disposed of incorrectly. Material recycling helps to reduce waste and conserve resources. By collecting old appliances separately and recycling them, you help prevent negative impacts on the environment and human health.

exquisit

GGV HANDELSGES. MBH & CO. KG

AUGUST-THYSSEN-STR. 8

D-41564 KAARST

GERMANY

GS280-HE-040D_BDA_DE-EN_E1-0-2023-03.DOCX
