BRD27613EWW - Refrigerator SAMSUNG - Free user manual and instructions

Product Type	American fridge freezer (Side-by-Side)
Brand	Samsung
Model	BRD27613EWW
Dimensions (H x W x D)	178.0 x 91.2 x 73.4 cm
Net weight	85 kg
Total capacity	703 L
Refrigerator volume	438 L
Freezer volume	265 L
Climate class	SN-T (from 10°C to 43°C)
Power supply	220-240 V ~ 50 Hz
Annual energy consumption	350 kWh/year
Energy class	D (scale A to G)
Main functions	No Frost, water and ice dispenser, interior LED lighting, digital display, electronic temperature control
Noise level	39 dB(A)
Maintenance and cleaning	Clean the interior with a soft cloth and soapy water. Automatic defrost. Clean the condenser every 6 months.
Safety	Child lock, open door alarm, secure cooling system
Spare parts and repairability	Water filter, LED bulb, shelves, bins, door gaskets available. Repairability index: 7.5/10
General information	American fridge freezer with white finish, electronic controls, integrated dispenser. Warranty: 2 years.

Frequently Asked Questions - BRD27613EWW SAMSUNG

How to adjust the temperature of the BRD27613EWW refrigerator?

Use the '+' and '-' buttons on the control panel to adjust the temperature. The recommended temperature is 3°C for the refrigerator and -18°C for the freezer.

What to do if the water dispenser does not work?

Check that the water tank is full and the water filter is not clogged. If the problem persists, consult the manual for the purge procedure.

How to clean the Samsung BRD27613EWW refrigerator?

Unplug the appliance, remove food and shelves. Clean the interior with a mixture of warm water and white vinegar. Wipe with a soft cloth.

How often to change the water filter?

The water filter should be replaced every 6 months or after 3000 liters of use. Consult the manual for the compatible filter model.

Why does the screen display an error code?

Error codes indicate a malfunction. Note the code and consult the 'Troubleshooting' section of the manual. For example, 'E1' may mean a defective sensor.

How to activate vacation mode?

Press the 'Mode' button until 'Vacation' is selected. This mode maintains a minimum temperature while saving energy. Remember to remove perishable foods.

The refrigerator makes an unusual noise, is this normal?

Some noises are normal (gurgling, clicking). If the noise is loud or persistent, check that the appliance is level and that there is no obstruction of the fan.

How to replace the interior bulb?

Unplug the appliance. Remove the bulb cover by unclipping it. Replace with an LED bulb of the same type (consult the manual for the reference).

The ice dispenser does not produce ice, what to do?

Check that the ice bucket is properly in place and the water line is not frozen. Make sure the freezer temperature is cold enough (-18°C).

Where to find the complete user manual?

The manual is available for free download on sites like notice-facile.com or directly on the Samsung website. Search for model BRD27613EWW.

USER MANUAL BRD27613EWW SAMSUNG

User servicing manual

1. You can check where to buy replacement parts at http://samsung.com
2. Visit the part purchase site and enter the model code of your product to check the parts available for purchase. The model code is labelled on the outer side of your product.
3. You can check the model code and version on the barcode label at the bottom left of the product.
4. For replacement parts, make sure the part name matches that of the illustration in this manual.
5. User-serviceable parts are limited to handles (some models only), gaskets, drawers, and hinges.

NOTE

Following the repair by a non-authorised service provider, self-repair or non-professional repair of the product, Samsung is not liable for any damage to the product, any injury or any other product safety issue caused by any attempt to repair the product which does not carefully follow these repair and maintenance instructions. Any damage to the product caused by an attempt to repair the product by any person other than a Samsung certified service provider will not be covered by the warranty.

CAUTION

• The part name listed on the site may differ from that in this manual. Please make sure you choose the right part name.
• Replacing hinges requires extreme caution because it involves detaching the door.
• Be sure to wear safety gloves while making repairs.

English

Refrigerator at a glance

The actual image and provided parts of the refrigerator may differ, depending on the model and the country.

Fridge (with Freezer box)

05 Main panel

06 Shelf

07 Door bin

08 Humidity Fresh+ *

09 Optimal Fresh

10 Barcode label

11 Freezer box

* applicable models only

Larder (without Freezer box)

01 Main panel

02 Shelf

03 Door bin

04 Humidity Fresh+ *

05 Optimal Fresh

06 Barcode label

07 Drawer

* applicable models only

English

Freezer

01 Main panel 02 Shelf 03 Drawer (Normal/Big) 04 Barcode label

English

Gasket replacement

CAUTION

Make sure you firmly attach the gasket. Otherwise, cold air from the refrigerator may leak.

To remove the gasket

Open the door and remove the gasket from the door.

To replace the gasket

Attach a new gasket to the refrigerator door.

Make sure there is no gap between the new gasket and the door.

English

Drawer replacement

CAUTION

Check that the drawer is inserted properly into the rail during assembly.

To remove the drawer

Gently lift up the front of the drawer and slide out.

To reattach the drawers

Reattaching the drawers follows the reverse order of their respective removal steps.

Hinge replacement

To replace the hinges, you must remove the doors first.

WARNING

• Tilting/laying the refrigerator requires a minimum of 2 people.
• Disconnect the power cord before reversing the doors.

CAUTION

• When removing the doors, take extreme caution because the doors are heavy.
• Before replacing the hinges, put a soft pad such as cardboard on the floor to prevent scratches on the door when you place the doors down.
• As the hinges must be handled carefully and replaced by two or more persons, we recommend you to call for professional technical service.
• If you remove the hinge without holding the door, the door may fall and cause injury.
• Ensure that the shaft is firmly tightened on the hinge.
• Check that the hinge is firmly attached to the cabinet.
• Make sure the wire connectors are connected properly.
• Be careful not to damage the wires when fastening the top cover.

Tools required (not provided)

Phillips screwdriver Flat-head screwdriver

Fixed or Soft hinge type

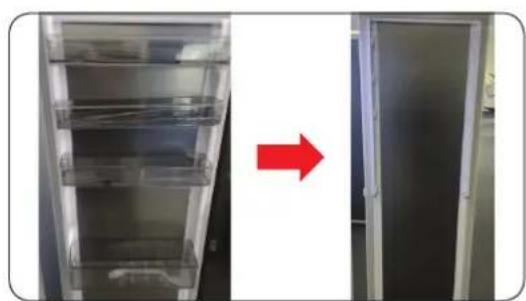

1. Open the refrigerator door and separate the door bin (guard).

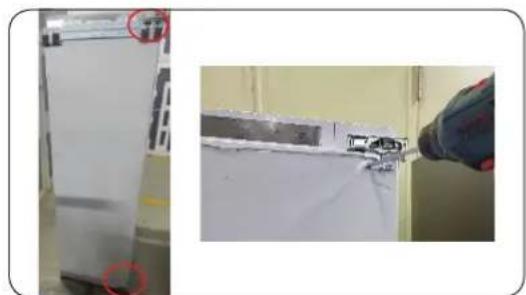

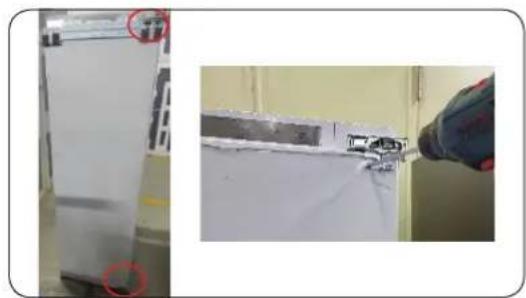

2. Remove the screws. (4 in total)

CAUTION

It is highly recommended to ask somebody to hold the door while removing the hinge.

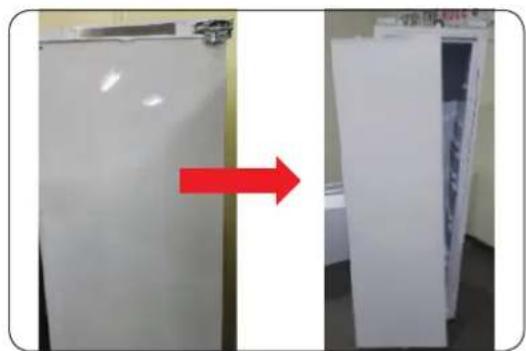

1. Separate the door from the refrigerator.

CAUTION

• Be careful not to scratch. • Make sure the wire connectors are connected properly.
• Be careful not to damage the wires when fastening the top cover.
• Reassemble in the opposite order of disassembly after replacing the Hinge.

English

Sliding hinge type

1. Open the refrigerator door and separate the door bin (guard).

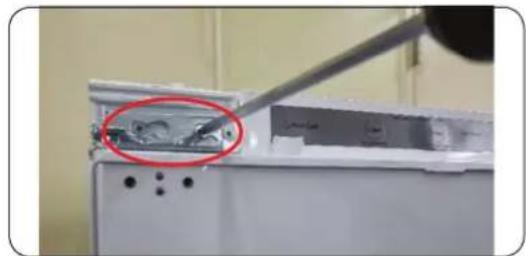

2. Remove the screws and separate the upper hinge.

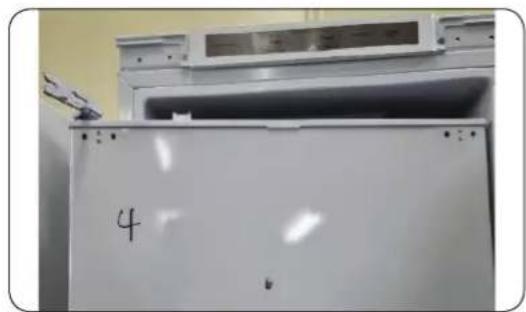

3. Separate the door from the refrigerator.

CAUTION

- It is highly recommended to ask somebody to hold the door while removing the hinge.

• Make sure the wire connectors are connected properly.

- Be careful not to damage the wires when fastening the top cover.

1. Reassemble in the opposite order of disassembly after replacing the Hinge.

English

Repair Guide

Open the door and remove the gasket from it.

Installing the gasket

Attach the new gasket to the refrigerator door.

Carefully grasp the front of the drawer and pull it out.

1. Open the refrigerator door and separate the door bin (cover).
2. Unscrew the screws. (4 in total)

CAUTION

1. Open the refrigerator door and detach the door bin (cover).
2. Unscrew the screws and detach the upper hinge.
3. Detach the door from the refrigerator.

CAUTION

Refrigerator (with freezer compartment)

05 Main panel

06 Shelf

07 Door support

08 Humidity Fresh+ * (Fresh humidity+)

Open the door and remove the sealing gasket from it.

To replace the sealing gasket

Place the new sealing gasket on the refrigerator door.

Make sure there is no gap between the new sealing gasket and the door.

Replacing the drawer

CAUTION

During installation, check that the drawer is properly inserted into the guides.

To remove the drawer

Carefully lift the front of the drawer and pull it out.

To replace the drawers

1. Open the refrigerator door and detach the door shelf (divider).
2. Remove the screws. (4 in total)

! CAUTION

1. Open the refrigerator door and remove the door shelf (compartment).
2. Remove the screws and detach the upper hinge.
3. Detach the door from the refrigerator.

! CAUTION

Open the door and remove the gasket from the door.

To replace the gasket

Carefully lift the front of the drawer and pull it out.

Reinstalling the drawers

1. Open the refrigerator door and remove the door shelf (bracket).
2. Remove the screws. (4 in total)

! CAUTION

1. Open the refrigerator door and remove the shelf in the door (bracket).
2. Remove the screws and detach the upper hinge.
3. Detach the door from the refrigerator.

! CAUTION

Open the door and remove the gasket from the door.

To replace the gasket

Attach the new gasket to the refrigerator door.

Make sure there are no gaps between the new gasket and the door.

Latvian

Replacing the drawers

1. Open the refrigerator door and detach the door shelf (guard).
2. Remove the screws. (4 in total)

⚠️ WARNING!

1. Open the refrigerator door and detach the door shelf (guard).
2. Remove the screws and detach the upper hinge.
3. Detach the door from the refrigerator.

⚠️ WARNING!

- It is recommended to ask someone to hold the door while you remove the hinge.

Open the door and remove the gasket from the door.

Replacing the gasket

Attach the new gasket to the refrigerator door.

Make sure there are no gaps between the new gasket and the door.

Replacing the drawer

CAUTION

Carefully lift the front of the drawer and pull it out.

Reinstalling the drawer

1. Open the refrigerator door and detach the door drawer (guard).
2. Remove the screws. (4 in total)

CAUTION

We strongly recommend that you ask someone to hold the door while you remove the hinge.
