Product Type	Washing Machine
Brand	Beko
Model	WSRE 6512 PRW
Installation Type	Freestanding
Loading Type	Front-load
Capacity	6.5 kg
Spin Speed	1200 rpm
Energy Efficiency Class	A+++
Annual Energy Consumption	190 kWh
Annual Water Consumption	9900 L
Noise Level (Washing)	55 dB(A)
Noise Level (Spinning)	75 dB(A)
Height	840 mm
Width	600 mm
Depth	600 mm
Weight	70 kg
Number of Programs	15
Special Programs	Cotton, Synthetics, Delicates, Quick 30', Wool, Rinse & Spin, Drum Clean
Drum Features	AquaWave drum for gentle washing
Motor Type	ProSmart Inverter Motor
Child Lock	Yes
Delay Timer	Up to 24 hours
Safety Features	Anti-leak system, overflow protection
Maintenance Features	Self-cleaning detergent drawer, drum clean program, filter cleaning
Repairability	Spare parts available; user-accessible filter and drain pump

Frequently Asked Questions - WSRE 6512 PRW BEKO

How do I install the Beko WSRE 6512 PRW washing machine?

Remove all packaging, level the machine using the adjustable feet, connect the water inlet hose to a cold water tap, and attach the drain hose to a suitable drain. Ensure the machine is on a level surface and plug into a grounded outlet. Refer to the installation instructions in the manual.

How do I clean the drum of my Beko washing machine?

Run the Drum Clean program with a drum cleaning agent or a cup of white vinegar. This helps remove detergent residue and bacteria. You can also wipe the door seal and drum interior with a damp cloth.

How do I clean the filter on the WSRE 6512 PRW?

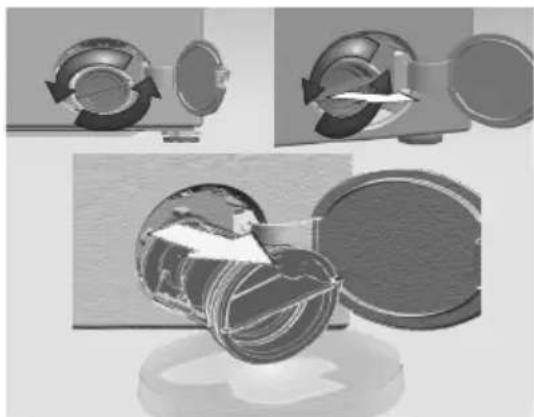

Open the filter cover (bottom right front), place a bowl underneath, turn the filter knob counterclockwise to release water, then remove and clean the filter under running water. Reinsert and tighten. Repeat every 2 months.

What should I do if error codes appear on the display?

Common errors include E01 (door lock issue) and E02 (drain problem). Consult the manual's error code table. For persistent issues, turn off the machine, wait 5 minutes, and restart. If the error remains, contact service.

How do I use the detergent drawer correctly?

The drawer has three compartments: main wash (left, powder or liquid), pre-wash (right, optional), and fabric softener (center). Use the correct amount of detergent for your load. The drawer is self-cleaning; wipe it periodically.

What is the maximum load capacity?

The machine has a 6.5 kg capacity for cotton and a lower capacity for other fabrics (e.g., 3 kg for synthetics). Do not overload to ensure proper cleaning and care.

What spin speeds are available?

You can select spin speeds from 400 to 1200 rpm depending on the program. Higher speeds reduce drying time but may be harsh on delicate fabrics.

How do I activate the child lock?

Press and hold the Child Lock button (if available, usually marked with a lock icon) for 3-5 seconds until the indicator lights. To deactivate, repeat. This prevents children from changing settings during a cycle.

How can I save energy with this washing machine?

Use the Eco program for full loads at 40°C, which reduces energy consumption. Avoid pre-wash for lightly soiled items. Clean the filter regularly and run the machine only when fully loaded.

Why won't my washing machine start?

Check that the door is fully closed, the water supply is turned on, the drain hose is not blocked, and the machine is plugged in. Also ensure a program is selected and the delay timer is not active. If the issue persists, reset the machine by unplugging for 5 minutes.

USER MANUAL WSRE 6512 PRW BEKO

WSRE6512PRS

WSRE6512PRW

RU | EN | UZ

Document Number: 2820670899

1 Important instructions for safety and environment

This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty.

1.1 General safety

• This product can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they are supervised or trained on the safe usage of the product and the risks it brings out. Children must not play with the product. Cleaning and maintenance works should not be performed by children unless they are supervised by someone. Children of less than 3 years should be kept away unless continuously supervised.
• Never place the product on a carpet-covered floor. Otherwise, lack of airflow beneath the machine will cause electrical parts to overheat. This will cause problems with your product.
• If the product has a failure, it should not be operated unless it is repaired by the Authorized Service Agent. There is the risk of electric shock!
• This product is designed to resume operating in the event of powering on after a power interruption. If you wish to cancel the programme, see "Cancelling the programme" section.
• Connect the product to a grounded outlet protected by a 16 A fuse. Do not neglect to have the grounding installation made by a qualified electrician. Our company shall not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations.
• The water supply and draining hoses must be securely fastened and remain undamaged. Otherwise, there is the risk of water leakage.
• Never open the loading door or remove the filter while there is still water in the drum. Otherwise, risk of flooding and injury from hot water will occur.
• Do not force open the locked loading door. The loading door will be ready to open just a few minutes after the washing cycle comes to an end. In case of forcing the loading door to open, the door and the lock mechanism may get damaged.
• Unplug the product when not in use.
• Never wash the product by spreading or pouring water onto it! There is the risk of electric shock!
• Never touch the plug with wet hands! Never unplug by pulling on the cable, always pull out by grabbing the plug.
• Use detergents, softeners and supplements suitable for automatic washing machines only.
• Follow the instructions on the textile tags and on the detergent package.
• The product must be unplugged during installation, maintenance, cleaning and repairing procedures. • Always have the installation and repairing procedures carried out by the Authorized Service Agent. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.
• If the power cable is damaged, it must be replaced by the manufacturer, after sales service or a similarly qualified person (preferably an electrician) or someone designated by the importer in order to avoid possible risks.
• Place the product on a rigid, flat and level surface.
• Do not place it on a long-pile rug or similar surfaces.
• Do not place the product on a high platform or near the edge on a cascaded surface.
• Do not place the product on the power cable.
• Never use sponge or scrub materials. These will damage the painted, chrome plated and plastic surfaces.

1.2 Intended use

• This product has been designed for domestic use. It is not suitable for commercial use and it must not be used out of its intended use.
• The product must only be used for washing and rinsing of laundry that are marked accordingly. • The manufacturer waives any responsibility arisen from incorrect usage or transportation.

1.3 Children's safety

• Packaging materials are dangerous to children. Keep packaging materials in a safe place away from reach of the children.
• Electrical products are dangerous for the children. Keep children away from the product when it is in use. Do not let them to tamper with the product. Use child lock to prevent children from intervening with the product.
• Do not forget to close the loading door when leaving the room where the product is located.
• Store all detergents and additives in a safe place away from the reach of the children by closing the cover of the detergent container or sealing the detergent package.

While washing the laundry at high temperatures, the loading door glass becomes hot. Therefore, keep especially the children away from the loading door of the machine while the washing operation is in progress.

1.4 Package information

- Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

1.5 Disposing of the waste product

- This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose the product with normal domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. Please consult your local authorities to learn the nearest collection point. Help protect the environment and natural resources by recycling used products. For children's safety, cut the power cable and break the locking mechanism of the loading door so that it will be non-functional before disposing of the product.

1.6 Compliance with WEEE Directive

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

Compliance with RoHS Directive:

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

2 Installation

Refer to the nearest Authorised Service Agent for installation of the product. To make the product ready for use, review the information in the user manual and make sure that the electricity, tap water supply and water drainage systems are appropriate before calling the Authorized Service Agent. If they are not, call a qualified technician and plumber to have any necessary arrangements carried out.

Preparation of the location and electrical, tap water and waste water installations at the place of installation is under customer's responsibility.

WARNING: Installation and electrical connections of the product must be carried out by the Authorized Service Agent. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.

WARNING: Prior to installation, visually check if the product has any defects on it. If so, do not have it installed. Damaged products cause risks for your safety.

Make sure that the water inlet and discharge hoses as well as the power cable are not folded, pinched or crushed while pushing the product into its place after installation or cleaning procedures.

2.1 Appropriate installation location

• Place the machine on a rigid floor. Do not place it on a long pile rug or similar surfaces.
• Total weight of the washing machine and the dryer -with full load- when they are placed on top of each other reaches to approx. 180 kilograms. Place the product on a solid and flat floor that has sufficient load carrying capacity!
• Do not place the product on the power cable.
• Do not install the product at places where temperature may fall below 0°C .
• Place the product at least 1 cm away from the edges of other furniture.

2.2 Removing packaging reinforcement

Tilt the machine backwards to remove the packaging reinforcement. Remove the packaging reinforcement by pulling the ribbon.

2.3 Removing the transportation locks

WARNING: Do not remove the transportation locks before taking out the packaging reinforcement.

WARNING: Remove the transportation safety bolts before operating the washing machine! Otherwise, the product will be damaged.

1. Loosen all the bolts with a suitable spanner until they rotate freely (C).
2. Remove transportation safety bolts by turning them gently.
3. Attach the plastic covers supplied in the User Manual bag into the holes on the rear panel. (P)

Keep the transportation safety bolts in a safe place to reuse when the washing machine needs to be moved again in the future.

Never move the product without the transportation safety bolts properly fixed in place!

2.4 Connecting water supply

The water supply pressure required to run the product is between 1 to 10 bars (0.1 – 1 MPa). It is necessary to have 10 – 80 liters of water flowing from the fully open tap in one minute to have your machine run smoothly. Attach a pressure reducing valve if water pressure is higher.

If you are going to use the double water-inlet product as a single (cold) water-inlet unit, you must install the supplied stopper to the hot water valve before operating the product. (Applies for the products supplied with a blind stopper group.)

WARNING: Models with a single water inlet should not be connected to the hot water tap. In such a case the laundry will get damaged or the product will switch to protection mode and will not operate.

WARNING: Do not use old or used water inlet hoses on the new product. It may cause stains on your laundry.

1. Tighten all hose nuts by hand. Never use a tool when tightening the nuts.
2. Open the taps completely after making the hose connection to check for water leaks at the connection points. If any leaks occur, turn off the tap and remove the nut. Retighten the nut carefully after checking the seal. To prevent water leakages and damages caused by them, keep the taps closed when the machine is not in use.

2.5 Connecting to the drain

• The end of the drain hose must be directly connected to the wastewater drain or to the washbasin.

WARNING: Your house will be flooded if the hose comes out of its housing during water discharge. Moreover, there is risk of scalding due to high washing temperatures! To prevent such situations and to ensure smooth water intake and discharge of the machine, fix the end of the discharge hose tightly so that it cannot come out.

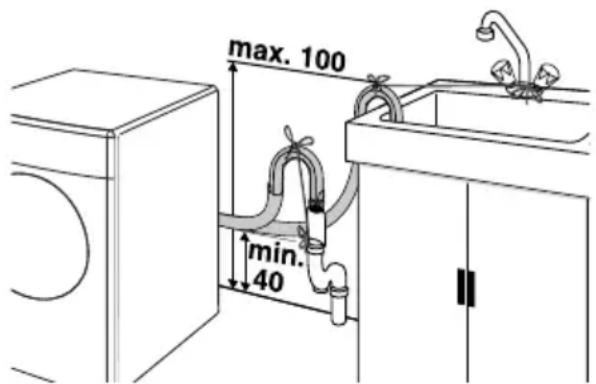

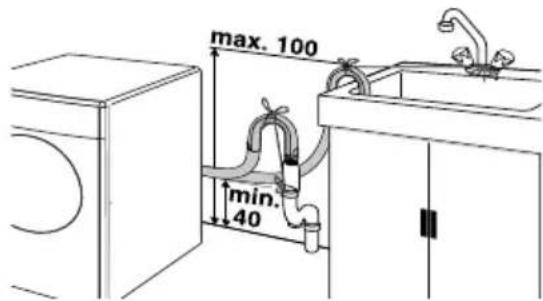

• The hose should be attached to a height of at least 40 cm, and 100 cm at most.
• In case the hose is elevated after laying it on the floor level or close to the ground (less than 40 cm above the ground), water discharge becomes more difficult and the laundry may come out excessively wet. Therefore, follow the heights described in the figure. • To prevent flowing of dirty water back into the machine and to allow for easy discharge, do not immerse the hose end

into the dirty water or do not drive it in the drain more than 15 cm. If it is too long, cut it short.

• The end of the hose should not be bent, it should not be stepped on and the hose must not be pinched between the drain and the machine.
• If the length of the hose is too short, use it by adding an original extension hose. Length of the hose may not be longer than 3.2 m. To avoid water leak failures, the connection between the extension hose and the drain hose of the product must be fitted well with an appropriate clamp as not to come off and leak.

2.6 Adjusting the feet

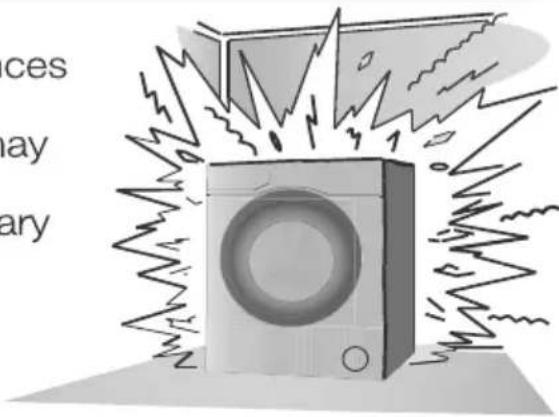

WARNING: In order to ensure that the product operates more silently and vibration-free, it must stand level and balanced on its feet. Balance the machine by adjusting the feet.

Otherwise, the product may move from its place and cause crushing and vibration problems.

1. Loosen the lock nuts on the feet by hand.
2. Adjust the feet until the product stands level and balanced.
3. Tighten all lock nuts again by hand.

WARNING: Do not use any tools to loosen the lock nuts. Otherwise, they will get damaged.

2.7 Electrical connection

Connect the product to a grounded outlet protected by a 16 A fuse. Our company shall not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations.

• Connection must comply with national regulations.
• Power cable plug must be within easy reach after installation.
• If the current value of the fuse or breaker in the house is less than 16 Amps, have a qualified electrician install a 16 Amp fuse.
• The voltage specified in the "Technical specifications" section must be equal to your mains voltage.
• Do not make connections via extension cables or multi-plugs.

WARNING: Damaged power cables must be replaced by the Authorized Service Agents.

Transportation of the product

1. Unplug the product before transporting it.
2. Remove water drain and water supply connections.
3. Drain all water that has remained in the product.
4. Install transportation safety bolts in the reverse order of removal procedure.

Never move the product without the transportation safety bolts properly fixed in place!

WARNING: Packaging materials are dangerous to children. Keep packaging materials in a safe place away from reach of the children.

3 Preparation

3.1 Sorting the laundry

• Sort laundry according to type of fabric, colour, and degree of soiling and allowable water temperature. • Always obey the instructions given on the garment tags.

3.2 Preparing laundry for washing

• Laundry items with metal attachments such as, underwired bras, belt buckles or metal buttons will damage the machine. Remove the metal pieces or wash the clothes by putting them in a laundry bag or pillow case. • Take out all substances in the pockets such as coins, pens and paper clips, and turn pockets inside out and brush. Such objects may damage the product or cause noise problem.
• Put small size clothes such as infant's socks and nylon stockings in a laundry bag or pillow case.
• Place curtains in without compressing them. Remove curtain attachment items.
• Fasten zippers, sew loose buttons and mend rips and tears.
• Wash "machine washable" or "hand washable" labeled products only with an appropriate programme.
• Do not wash colours and whites together. New, dark coloured cottons release a lot of dye. Wash them separately.
• Tough stains must be treated properly before washing. If unsure, check with a dry cleaner.
• Use only dyes/colour changers and limescale removers suitable for machine wash. Always follow the instructions on the package.
• Wash trousers and delicate laundry turned inside out.
• Keep laundry items made of Angora wool in the freezer for a few hours before washing. This will reduce pilling.
• Laundry that is heavily contaminated with materials such as flour, lime dust, milk powder, etc. must be shaken off before placing it into the machine. Such dusts and powders on the laundry may build up on the inner parts of the machine over time and can cause damage.

3.3 Things to be done for energy saving

The following information will help you use the product in an ecological and energy-efficient manner.

• Operate the product at the highest capacity allowed by the programme you have selected, but do not overload; see "Programme and consumption table". Always follow the instructions on the detergent packaging.
• Wash slightly soiled laundry at low temperatures.
• Use faster programmes for small quantities of lightly soiled laundry.
• Do not use prewash and high temperatures for laundry that is not heavily soiled or stained.
• If you plan to dry your laundry in a dryer, select the highest spin speed recommended during the washing process.
• Do not use detergent in excess of the amount recommended on the detergent package.

3.4 Initial use

Before starting to use the product, make sure that all preparations are made in accordance with the instructions in sections "Important safety instructions" and "Installation".

To prepare the product for washing laundry, perform the first operation in the Drum Cleaning programme. If your product is not equipped with the Drum Cleaning programme, perform the Initial Use procedure in accordance with the methods described under "5.2 Cleaning the loading door and the drum" section of the user manual.

Use detergents suitable for washing machines.

Some water might have remained in the product due to quality control processes in production. It is not harmful to the product.

3.5 Correct load capacity

The maximum load capacity depends on the type of laundry, the degree of soiling and the washing programme desired.

The machine automatically adjusts the amount of water according to the weight of the loaded laundry.

WARNING: Follow the information in the "Programme and consumption table". When overloaded, machine's washing performance will drop. Moreover, noise and vibration problems may occur.

3.6 Loading the laundry

1. Open the loading door.
2. Place laundry items loosely into the machine.
3. Push the loading door to close until you hear a locking sound. Ensure that no items are caught in the door.

The loading door is locked while a programme is running. The door can only be opened a while after the programme comes to an end.

WARNING: In case of misplacing the laundry, noise and vibration problems may occur in the machine.

3.7 Using detergent and softener

When using detergent, softener, starch, fabric dye, bleach or limescale remover read the manufacturer's instructions on the package carefully and follow the suggested dosage values. Use measuring cup if available.

Detergent Drawer

The detergent drawer is composed of three compartments:

-(1) for prewash - (2) for main wash - (3) for softener - (*) in addition, there is a siphon piece in the softener compartment.

Detergent, softener and other cleaning agents

• Add detergent and softener before starting the washing programme.
• Never leave the detergent drawer open while the washing programme is running!
• When using a programme without prewash, do not put any detergent into the prewash compartment (compartment nr. "1").
• In a programme with prewash, do not put liquid detergent into the prewash compartment (compartment nr. "1").
• Do not select a programme with prewash if you are using a detergent bag or dispensing ball. Place the detergent bag or the dispensing ball directly among the laundry in the machine.
• If you are using liquid detergent, do not forget to place the liquid detergent cup into the main wash compartment (compartment nr. "2").

Choosing the detergent type

The type of detergent to be used depends on the type and colour of the fabric.

• Use different detergents for coloured and white laundry.
• Wash your delicate clothes only with special detergents (liquid detergent, wool shampoo, etc.) used solely for delicate clothes.
• When washing dark coloured clothes and quilts, it is recommended to use liquid detergent.
• Wash woolens with special detergent made specifically for woolens.

WARNING: Use only detergents manufactured specifically for washing machines.

WARNING: Do not use soap powder.

Adjusting detergent amount

The amount of washing detergent to be used depends on the amount of laundry, the degree of soiling and water hardness.

• Do not use amounts exceeding the dosage quantities recommended on the detergent package to avoid problems of excessive foam, poor rinsing, financial savings and finally, environmental protection.
• Use lesser detergent for small amounts or lightly soiled clothes.

Using softeners

Pour the softener into the softener compartment of the detergent drawer.

- Do not exceed the (>max<) level marking in the softener compartment.

- If the softener has lost its fluidity, dilute it with water before putting it in the detergent drawer.

Using liquid detergents

If the product contains a liquid detergent cup:

• Make sure that you have placed the liquid detergent cup in compartment nr. "2".
• If the liquid detergent has lost its fluidity, dilute it with water before putting in the detergent cup.

When you want to use liquid detergent, pull the apparatus towards yourself. The part that falls down will serve as a barrier for the liquid detergent. If required, clean the apparatus with water when it is in place or by removing it. If you will use powder detergent, the apparatus must be secured at top position.

When you want to use liquid detergent, press on the point shown to rotate the apparatus. The part that falls off will function as a barrier for the liquid detergent. If required, clean the apparatus with water when it is in place or by removing it. If you will use powder detergent, the apparatus must be secured at top position.

		Light colours and whites Colours Dark colours			Delicates/Woollens/Silks
		(Recommended temperature range based on soiling level: 40-90 °C)	(Recommended temperature range based on soiling level: cold -40 °C)	(Recommended temperature range based on soiling level: cold -40 °C)	(Recommended temperature range based on soiling level: cold -30 °C)
Soiling Level	Heavily Soiled (difficult stains such as grass, coffee, fruits and blood.)	It may be necessary to pre-treat the stains or perform prewash. Powder and liquid detergents recommended for whites can be used at dosages recommended for heavily soiled clothes. It is recommended to use powder detergents to clean clay and soil stains and the stains that are sensitive to bleaches.	Powder and liquid detergents recommended for colours can be used at dosages recommended for heavily soiled clothes. It is recommended to use powder detergents to clean clay and soil stains and the stains that are sensitive to bleaches. Use detergents without bleach.	Liquid detergents suitable for colours and dark colours can be used at dosages recommended for heavily soiled clothes.	Prefer liquid detergents produced for delicate clothes. Woollen and silk clothes must be washed with special woollen detergents.
	Normally Soiled (For example, stains caused by body on collars and cuffs)	Powder and liquid detergents recommended for whites can be used at dosages recommended for normally soiled clothes.	Powder and liquid detergents recommended for colours can be used at dosages recommended for normally soiled clothes. Use detergents without bleach.	Liquid detergents suitable for colours and dark colours can be used at dosages recommended for normally soiled clothes.	Prefer liquid detergents produced for delicate clothes. Woollen and silk clothes must be washed with special woollen detergents.
	Lightly Soiled (No visible stains exist.)	Powder and liquid detergents recommended for whites can be used at dosages recommended for lightly soiled clothes.	Powder and liquid detergents recommended for colours can be used at dosages recommended for lightly soiled clothes. Use detergents without bleach.	Liquid detergents suitable for colours and dark colours can be used at dosages recommended for lightly soiled clothes.	Prefer liquid detergents produced for delicate clothes. Woollen and silk clothes must be washed with special woollen detergents.

If the product does not contain a liquid detergent cup:

- Do not use liquid detergent for the prewash in a programme with prewash.

- Liquid detergent stains your clothes when used with Delayed Start function. If you are going to use the Delayed Start function, do not use liquid detergent.

Using gel and tablet detergent

Apply the following instructions when using tablet, gel and similar detergents.

- If the gel detergent thickness is fluidal and your machine does not contain a special liquid detergent cup, put the gel detergent into the main wash detergent compartment during first water intake. If your machine contains a liquid detergent cup, fill the detergent into this cup before starting the programme.

- If the gel detergent thickness is not fluidal or in the shape of capsule liquid tablet, put it directly into the drum before washing.

- Put tablet detergents into the main wash compartment (compartment nr. "2") or directly into the drum before washing.

Tablet detergents may leave residues in the detergent compartment. If you encounter such a case, place the tablet detergent between the laundry, close to the lower part of the drum in future washings.

Use the tablet or gel detergent without selecting the prewash function.

Using starch

- Add liquid starch, powder starch or the fabric dye into the softener compartment.

- Do not use softener and starch together in a washing cycle.

- Wipe the inside of the machine with a damp and clean cloth after using starch.

Using bleaches

- Select a programme with prewash and add the bleaching agent at the beginning of the prewash. Do not put detergent in the prewash compartment. As an alternative application, select a programme with extra rinse and add the bleaching agent while the machine is taking water from the detergent compartment during first rinsing step.

- Do not use bleaching agent and detergent by mixing them.

- Use just a little amount (approx. 50 ml) of bleaching agent and rinse the clothes very well as it causes skin irritation. Do not pour the bleaching agent onto the clothes and do not use it for coloured clothes.

- When using oxygen based bleaches, select a programme that washes at a lower temperature.

- Oxygen based bleaches can be used together with detergents; however, if its thickness is not the same with the detergent, put the detergent first into the compartment nr. "2" in the detergent drawer and wait until the detergent flows while the machine is taking in water. Add the bleaching agent from the same compartment while the machine is still taking in water.

4 Operating the product

4.1 Control panel

1 - Programme Selection knob (Uppermost position On / Off)

2 - Display

3 - Delayed Start Indicator

4 - Programme Follow-up indicator

5 - Start / Pause button

6 - Auxiliary function button 3

7 - Auxiliary function button 2

8 - Auxiliary function button 1

9 - Spin Speed Adjustment button

10 - Temperature Adjustment button

4.2 Preparing the machine

1. Make sure that the hoses are connected tightly.

2. Plug in your machine.

1. Turn the tap on completely.
2. Place the laundry in the machine.

5. Add detergent and fabric softener.

4.3 Programme selection and tips for efficient washing

1. Select the programme suitable for the type, quantity and soiling degree of the laundry in accordance with the "Programme and consumption table" and the temperature table below.
2. Select the desired programme with the Programme Selection knob.

Indicative values for Synthetics programmes (EN)
	Load (kg)	Water Consumption (l)	Energy Consumption (kWh)	Programme Duration (min)*	Remaining Moisture Content (%) **≤ 1000 rpm > 1000	Remaining Moisture Content (%) **
Synthetics 60	2,562	1,15105/14	04540
Synthetics 40	2,560	0,70105/14	04540
* You can see the washing time of the programme you have selected on the display of the machine. It is normal that small differences may occur between the time shown on the display and the real washing time.
** Remaining moisture content values may differ according to the selected spin speed.

4.4 Programme and consumption table

						Auxiliary functions
Programme °C		Maximum load (kg)	Water consumption (l)	Power consumption (kVt/h)	Maximum speed (rpm)	Prewash	Quick Wash	Extra Rinse
Cottons	up to 90	6 80	2.15 1000	...
Cottons	up to 60	6 80	1.65 1000	...
Cottons	up to 40	6 77	1.00 1000	...
Cottons Eco	up to 60**	6 47.5	0.730 1000
Cottons Eco	up to 60**	3 35.0	0.623 1000
Cottons Eco	up to 40**	3 33.7	0.620 1000
Synthetics	up to 60	2.5 62	1.15 1000	...
Synthetics	up to 40	2.5 60	0.70 1000	...
Daily Xpress / Xpress Super Short 14'	up to 90	6 62	1.80 1000	...
Daily Xpress / Xpress Super Short 14'	up to 60	6 62	0.90 1000	...
Daily Xpress / Xpress Super Short 14'	up to 30	6 60	0.20 1000	...
Daily Xpress / Xpress Super Short + Quicl Wash	up to 30	2 40	0.15 1000	•
Mix 40	up to 40	3 65	0.75	800	•
Woollens / Hand Wash	up to 40	1.5 45	0.40 1000			•
Delicate	up to 30	2 48	0.65 1000			•
Down Wear (Steam)	up to 60	1.5 74	1.50 1000			•
Outdoor / Sports	up to 40	2.5 44	0.45 1000	•
Dark Wash / Jeans	up to 40	2 70	0.75 1000	•
Lingerie	up to 30	1	52	0.25	600	•	•
Shirts (Steam)	up to 60	2.5	59	1.50	800	•	•	•
BabyProtect (Steam)	up to 90	6	107	2.60 1000
Drum Clean 3 I	up to 90	-	72	2.30	600

• : Selectable **: Program Cotton 60°C, at maximum spin speed conforms to EN 60456 standard

In order to save energy, the actual washing temperature may be lower than indicated.

Water and power consumption may vary subject to the changes in water pressure, water hardness and temperature, ambient temperature, type and amount of laundry, selection of auxiliary functions and spin speed, and changes in electric voltage.

You can see the washing duration on the display of your machine while selecting a programme. Depending on the amount of laundry you have loaded into your machine, there may be a difference of 1-1.5 hours between the duration shown on the display and the actual duration of the wash cycle. Duration will be automatically updated soon after the washing starts.

The auxiliary functions in the table may vary according to the model of your machine.

4.5 Main programmes

Depending on the type of fabric, use the following main programmes.

• Cottons

You can wash your durable cotton laundry (sheets, bedlinen, towels, bathrobes, underwear etc.) in this programme. When the quick wash function button is pressed, programme duration becomes notably shorter but effective washing performance is ensured with intense washing movements. If the quick wash function is not selected, superior washing and rinsing performance is ensured for your heavily soiled laundry.

- Synthetics

You can wash your laundry (such as shirts, blouses, synthetic/cotton blended fabrics etc.) in this programme. The programme duration gets notable shorter and washing with high performance is ensured. If the quick wash function is not selected, superior washing and rinsing performance is ensured for your heavily soiled laundry.

• Woollens / Hand Wash

Use to wash your woolen/delicate laundry. Select the appropriate temperature complying with the tag of your clothes. Your laundry will be washed with a very gentle washing action in order not to damage the clothes.

4.6 Additional programmes

For special cases, additional programmes are available in the machine.

Additional programmes may differ according to the model of the machine.

• Cottons Eco

Use to wash your normally soiled, durable cotton and linen laundry. Although it washes longer than all other programmes, it provides high energy and water savings. Actual water temperature may be different from the stated wash temperature. When you load the machine with less laundry (e.g. 1/2 capacity or less), periods in programme stages may automatically get shorter. In this case, energy and water consumption will decrease more, providing a more economic wash.

- BabyProtect

This is a long-duration programme that you can use for your laundry requiring a hygienic washing at high temperatures with intensive and long washing cycle. The high level of hygiene is ensured thanks to long heating duration and additional rinsing step.

- Delicate

You can wash your delicate clothes such as cotton/synthetic blended knitwear or hosiery in this programme. It washes with more delicate washing action. Wash your clothes whose colour you want to preserve either at 20 degrees or by selecting the cold wash option.

• Daily Xpress / Xpress Super Short

Use this programme to wash your lightly soiled or unspotted cotton clothes in a short time. The programme duration can be reduced up to 14 minutes when the quick wash function is selected. When the quick wash function is selected, maximum 2 (two) kg of laundry must be washed.

• Dark Care / Jeans

Use this programme to protect the colour of your dark-coloured garments or jeans. It performs high performance washing with special drum movement even if the temperature is low. It is recommended to use liquid detergent or woolen shampoo for dark coloured laundry. Do not wash your delicate clothes containing wool or etc.

- Mix 40

Use to wash your cotton and synthetic clothes together without sorting them.

- Shirts

This programme is used to wash shirts made from cotton, synthetic, and synthetic blended fabrics altogether. It reduces wrinkles. When the quick wash function is selected, the Pre-treatment algorithm is executed.

- Apply the pre-treatment chemical on your garments directly or add it together with detergent when the machine starts to take water from the main washing compartment. Thus, you can obtain the same performance as you obtain with normal washing in a much shorter period of time. Usage life of your shirts increases.

- Outdoor / Sports

You can use this programme to wash sports and outdoors garments that contain cotton/synthetics mix and water repellent covers such as gore-tex etc. It makes sure your garments are washed gently thanks to special rotating movements.

• Lingerie

You can use this programme to wash delicate garments that are suitable for hand wash and delicate women's underwear. Small amount of garments must be washed in a washing net. Hooks, buttons etc. must be done up and zips must be zipped up.

- Down Wear

Use this programme to wash your coats, vest, jackets etc. containing feathers with a "machine-washable" label on them. Thanks to special spinning profiles, it is ensured that the water reaches the air gaps amongst the feathers.

4.7 Special programmes

For specific applications, select any of the following programmes.

- Rinse

Use when you want to rinse or starch separately.

- Spin+Drain

You can use this function to remove the water on the garment or drain the water in the machine.

Before selecting this programme, select the desired spin speed and press the Start/Pause button. First, the machine will drain the water inside it. Then, it will spin the laundry at the set spin speed and drain the water coming out of them.

If you wish to drain only the water without spinning your laundry, select the Pump+Spin programme and then select the No Spin function using the Spin Speed Adjustment button. Press the Start/Pause button.

Use a lower spin speed for delicate laundries.

4.8 Temperature selection

Whenever a new programme is selected, the recommended temperature value for the selected programme appears on the temperature indicator.

To decrease the temperature, press the Temperature Adjustment button. The temperature will decrease gradually. Temperature level lights will not turn on when the cold level is selected.

If the programme has not reached the heating step, you can change the temperature without switching the machine to Pause mode.

4.9 Spin speed selection

Whenever a new programme is selected, the recommended spin speed of the selected programme is displayed on the spin speed indicator.

To decrease the spin speed, press the Spin Speed Adjustment button. The spin speed decreases gradually.

Then, depending on the model of the product, "Rinse Hold" and "No Spin" options appear on the display.

When "No Spin" is selected, the rinse level indicator lights will not turn on.

If the programme has not reached the spinning step, you can change the speed without switching the machine to Pause mode.

4.10 Auxiliary function selection

Select the desired auxiliary functions before starting the programme. Furthermore, you may also select or cancel auxiliary functions that are suitable for the running programme without pressing the Start/Pause button while the machine is operating. For this, the machine must be in a step before the auxiliary function you are going to select or cancel.

If the auxiliary function cannot be selected or canceled, the light of the relevant auxiliary function will blink 3 times to warn the user.

If a second auxiliary function conflicting with the first one is selected before starting the machine, the function selected first will be canceled and the second auxiliary function selection will remain active.

An auxiliary function that is not compatible with the programme cannot be selected. (See, "Programme and consumption table")

Auxiliary Function buttons may vary according to the model of the machine.

4.10.1 Auxiliary functions

- Prewash

A Prewash is only worthwhile for heavily soiled laundry. Not using the Prewash will save energy, water, detergent and time.

Prewash without detergent is recommended for tulle and curtains.

- Quick wash

When this function is selected, the durations of the relevant programmes get shorter by 50%.

Thanks to the optimised washing steps, high mechanic activity and optimum water consumption, high washing performance is achieved in spite of the reduced duration.

When you select this function, load your machine with half of the maximum laundry specified in the programme table.

- Extra Rinse

This function enables the product to make another rinsing in addition to the one already made after the main wash. Thus, the risk for sensitive skins (babies, allergic skins, etc.) to be effected by the minimal detergent remnants on the laundry can be reduced.

4.10.2 Functions/Programmes Selected by Pressing the Function Buttons for 3 Seconds

- Drum Clean 3^II

Press and hold the auxiliary function button 1 for 3 seconds to select the programme.

Use regularly (once every 1-2 months) to clean the drum and provide the required hygiene. Operate the programme while the machine is completely empty. To obtain better results, put powder lime-scale remover for washing machines into the detergent compartment no. "2". When the programme is over, leave the loading door ajar so that the inside of the machine gets dry.

This is not a washing programme. It is a maintenance programme.

Do not run the programme when there is something in the machine. If you try to do so, the machine detects that there is load inside and aborts the programme.

- Child lock "3"

Use Child Lock function to prevent children from tampering with the machine. Thus you can avoid any changes in a running programme.

If the Programme Selection knob is turned when the Child Lock is active, "Con" appears on the display. The Child Lock does not allow any change in the programmes and the selected temperature, speed and auxiliary functions.

Even if another programme is selected with the Programme Selection knob while the Child Lock is active, previously selected programme will continue running.

To activate the Child Lock:

1. Press and hold the Auxiliary Function button for 3 seconds. C03, C02, C01 will appear on the display respectively while you keep the button pressed for 3 seconds. Then, while the light of the Auxiliary Function button 2 is flashing, "Con" will appear on the display indicating that the child lock has been activated. If you press any button or turn the Programme Selection knob when the Child Lock is active, same phrase will appear on the display.

To deactivate the Child Lock:

Press and hold the Auxiliary Function button 2 for 3 seconds while a programme is running. C03, C02, C01 will appear on the display respectively while you keep the button pressed for 3 seconds. Then, while the light of the auxiliary function button 2 is flashing, "COF" will appear on the display indicating that the child lock has been deactivated.

In addition to the method above, to deactivate the Child Lock, switch the Programme Selection knob to On / Off position when no programme is running, and select another programme.

Child Lock is not deactivated after power failures or when the machine is unplugged.

4.11 Delayed Start

With the Delayed Start function, the startup of the programme may be delayed up to 19 hours. The delayed start time can be increased in increments of 1 hour.

Do not use liquid detergents when you set Delayed Start! There is a risk of staining the clothes.

1. Open the loading door, place the laundry, and put detergent, etc.
2. Select the washing programme, temperature, spin speed, and, if required, the auxiliary functions.
3. Set the desired time by pressing the Delayed Start button.
4. Press the Start/Pause button. The delayed start time you have set is displayed. The delayed start countdown starts. The "_" symbol next to the delayed start time moves up and down on the display.

Additional laundry may be loaded during the delayed start period.

1. At the end of the countdown, the duration of the selected programme will be displayed. The "_" will disappear and the selected programme will start.

Changing the delayed start period

If you want to change the time during countdown:

1. Press the Delayed Start button. The time will increase by 1 hour each time you press the button.
2. If you want to decrease the delayed start time, press the Delayed Start button repeatedly until the desired delayed start time appears on the display.

Canceling the Delayed Start function

If you want to cancel the delayed start countdown and start the programme immediately:

1. Set the Delayed Start period to zero or turn the Programme Selection knob to any programme. Thus, the Delayed Start function will be canceled. The End/Cancel light flashes continuously.
2. Then, select the programme you want to run again.
3. Press the Start / Pause button to start the programme. 4.12 Starting the programme
4. Press the Start / Pause button to start the programme.
5. The programme follow-up light showing the startup of the programme will turn on.

If no programme is started or no button is pressed within 1 minute during the programme selection process, the machine will switch to Pause mode and the illumination level of the temperature, speed, and loading door indicator lights will decrease. Other indicator lights and indicators will turn off. Once the Programme Selection knob is rotated or any button is pressed, indicator lights and indicators will turn on again.

4.13 Progress of programme

The progress of a running programme can be followed from the Programme Follow-up indicator. At the beginning of every programme step, the relevant indicator light will turn on and the light of the completed step will turn off.

You can change the auxiliary functions, speed, and temperature settings without stopping the programme flow while the programme is running. To do this, the change you are going to make must be in a step after the running programme step. If the change is not compatible, relevant lights will flash for 3 times.

If the machine does not pass to the spinning step, the Rinse Hold function might be active or the automatic unbalanced load detection system might be activated due to the unbalanced distribution of the laundry in the machine.

4.14 Loading door lock

There is a locking system on the loading door of the machine that prevents opening of the loading door in cases when the water level is unsuitable.

The loading door light will start flashing when the machine is switched to Pause mode. The machine checks the level of the water inside. If the level is suitable, the Loading Door light illuminates steadily within 1-2 minutes and the loading door can be opened.

If the level is unsuitable, the Loading Door light turns off and the loading door cannot be opened. If you are obliged to open the Loading Door while the Loading Door light is off, you must cancel the current programme. See "Cancelling the programme".

4.15 Changing the selections after the programme has started

Switching the machine to pause mode

Press the Start / Pause button to switch the machine to pause mode while a programme is running. The light of the step the machine is in starts flashing in the Programme Follow-up indicator to show that the machine has been switched to pause mode.

Also, when the loading door is ready to be opened, the Loading Door light will also illuminate continuously in addition to the programme step light.

Changing the auxiliary function, speed, and temperature

Depending on the step the programme has reached, you can cancel or select the auxiliary functions. See "Auxiliary function selection".

You can also change the speed and temperature settings. See "Spin speed selection" and "Temperature selection".

If no change is allowed, the relevant light will flash 3 times.

Adding or taking out laundry

1. Press the Start / Pause button to switch the machine to pause mode. The programme follow-up light of the relevant step during which the machine was switched into pause mode will flash.
2. Wait until the Loading Door can be opened.
3. Open the Loading Door and add or take out the laundry.
4. Close the Loading Door.
5. Make changes in auxiliary functions, temperature, and speed settings if necessary.
6. Press Start / Pause button to start the machine.

4.16 Cancelling the programme

To cancel the programme, turn the Programme Selection knob to select another programme. The previous programme will be cancelled. The End / Cancel light will flash continuously to notify that the programme has been cancelled.

Your machine will end the programme when you turn the Programme Selection knob; however, it does not drain the water inside. When you select and start a new programme, the newly selected programme will start depending on the step where the previous programme was cancelled. For example, it may take in additional water or continue to wash with the water inside.

Depending on the step where the programme was cancelled, you may have to put detergent and softener again for the programme you have selected anew.

4.17 End of programme

"End" appears on the display at the end of the programme.

1. Wait until the loading door light illuminates steadily.
2. Press On / Off button to switch off the machine.
3. Take out your laundry and close the loading door. Your machine is ready for the next washing cycle.

4.18 Your machine features "Standby Mode".

After you switch on your machine with the On/Off button, if no programme is started or no other procedure is performed at the selection step, or no action is taken within approximately 2 minutes after the selected programme ends, your machine will switch to energy saving mode automatically. The brightness of the indicator lights will decrease. Also, if your product has a display that shows programme time, this display will be completely turned off. If you turn the Programme Selection knob or touch any button, lights and display will switch back to the previous condition. The selections which you make when exiting from the energy efficiency mode may change. Please check the correctness of your selections before starting the programme. If necessary, please make your settings again. This is not an error.

5 Maintenance and cleaning

The service life of the product extends and frequently faced problems decrease if cleaned at regular intervals.

5.1 Cleaning the detergent drawer

Clean the detergent drawer at regular intervals (every 4-5 washing cycles) as shown below in order to prevent accumulation of powder detergent in time.

Lift the rear part of the siphon to remove it as illustrated.

If more than normal amount of water and softener mixture starts to gather in the softener compartment, clean the siphon.

2. Wash the detergent drawer and the siphon with plenty of lukewarm water in a washbasin. Wear protective gloves or use an appropriate brush to avoid touching the residues in the drawer with your skin when cleaning. 3. After cleaning, replace the siphon back to its seating and push its front section downwards to make sure that the locking tab engages.

5.2 Cleaning the loading door and the drum

Residues of softener, detergent and dirt may accumulate in your machine in time and may cause unpleasant odours and washing complaints. To avoid this, use the Drum Cleaning programme. If your machine is not featured with Drum Cleaning programme, use Cottons-90 programme and select Additional Water or Extra Rinse auxiliary functions as well. Run the programme without any laundry in the machine. Before starting the programme, put max. 100 g of powder detergents into the main wash detergent compartment (compartment nr. 2). If the detergent is in tablet form, put only one tablet into compartment nr. 2. Dry the inside of the bellow with a clean piece of cloth after the programme has come to an end.

Repeat Drum Cleaning process in every 2 months.

Use detergents suitable for the washing machines.

After every washing check that no foreign substance is left in the drum. If the holes on the bellow shown in the figure is blocked, open the holes using a toothpick.

Foreign metal substances will cause rust stains in the drum. Clean the stains on the drum surface by using cleaning agents for stainless steel. Never use steel wool or wire wool.

WARNING: Never use sponge or scrub materials. These will damage the painted and plastic surfaces.

5.3 Cleaning the body and control panel

Wipe the body of the machine with soapy water or non-corrosive mild gel detergents as necessary, and dry with a soft cloth.

Use only a soft and damp cloth to clean the control panel.

5.4 Cleaning the water intake filters

There is a filter at the end of each water intake valve at the rear of the machine and also at the end of each water intake hose where they are connected to the tap. These filters prevent foreign substances and dirt in the water from entering the washing machine. Filters should be cleaned as they do get dirty.

1 Close the taps. 2 Remove the nuts of the water intake hoses to access the filters on the water intake valves. Clean them with an appropriate brush. If the filters are too dirty, take them out by means of pliers and clean them. 3 Take out the filters on the flat ends of the water intake hoses together with the gaskets and clean thoroughly under running water. 4 Replace the gaskets and filters carefully in their places and tighten the hose nuts by hand.

5.5 Draining remaining water and cleaning the pump filter

The filter system in your machine prevents solid items such as buttons, coins and fabric fibers from clogging the pump impeller during discharge of washing water. Thus, the water will be discharged without any problem and the service life of the pump will extend.

If the machine fails to drain water, the pump filter is clogged. The filter must be cleaned whenever it is clogged or every 3 months. Water must be drained off first to clean the pump filter.

In addition, prior to transporting the machine (e.g., when moving to another house) and in case of freezing of the water, water may have to be drained completely.

WARNING: If the product is not in use, turn the tap off, detach the supply hose and drain the water inside the machine against any freezing possibility in the region of installation.

WARNING: After each use close the supply hose tap of the product.

WARNING: Foreign substances left in the pump filter may damage your machine or may cause noise problems. Please check and if necessary clean your pump filter.

In order to clean the dirty filter and discharge the water:

1 Unplug the machine to cut off the supply power.

WARNING: Temperature of the water inside the machine may rise up to 90 °C. To avoid burning risk, clean the filter after the water in the machine cools down.

2 Open the filter cap.

3 Some of our products have an emergency draining hose and some do not. Follow the steps below to discharge the water.

Discharging the water when the product has an emergency draining hose:

a Pull the emergency draining hose out from its seat.

b Place a large container at the end of the hose. Drain the water into the container by pulling out the plug at the end of the hose. When the

container is full, block the inlet of the hose by replacing the plug. After the container is emptied, repeat the above procedure to drain the water in the machine completely.

c When draining of water is finished, close the end by the plug again and fix the hose in its place.

d Turn the pump filter to take it out.

Discharging the water when the product does not have an emergency draining hose:

a Place a large container in front of the filter to catch water from the filter. b Loosen pump filter (anticlockwise) until water starts to flow. Fill the flowing water into the container you have placed in front of the filter. Always keep a piece of cloth handy to absorb any spilled water. c When the water inside the machine is finished, take out the filter completely by turning it.

4 Clean any residues inside the filter as well as fibers, if any, around the pump impeller region. 5 Install the filter. 6 If the filter cap is composed of two pieces, close the filter cap by pressing on the tab. If it is one piece, seat the tabs in the lower part into their places first, and then press the upper part to close.

6 Technical specifications

Models	WSRE6512PRS7322130001	WSRE6512PRW7322130002
Rated capacity (kg)	6	6
Height (cm)	84 84
Width (cm)	60 60
Depth (cm)	41.5	41.5
Net weight (±4 kg.)	62 62
Electrical input (V/Hz)	230 V / 50Hz 230 V / 50Hz
Total current (A)	10 10
Total power (W)	1550 1550
Maximum spin speed (rpm)	1000	1000
Stand-by mode power (W)	1.00 1.00
Off-mode power (W)	0.25 0.25
Energy efficiency class	A+++	A+++

Programme cannot be started or selected.

- Washing machine has switched to self protection mode due to a supply problem (line voltage, water pressure, etc.). >>> To cancel the programme, turn the Programme Selection knob to select another programme. Previous programme will be cancelled. (See "Canceling the programme")

Water in the machine.

- Some water might have remained in the product due to the quality control processes in the production. >>> This is not a failure; water is not harmful to the machine.

Machine vibrates or makes noise.

• Machine might be standing unbalanced. >>> Adjust the feet to level the machine.
• A hard substance might have entered into the pump filter. >>> Clean the pump filter.
• Transportation safety bolts are not removed. >>> Remove the transportation safety bolts.
• Laundry quantity in the machine might be too little. >>> Add more laundry to the machine.
• Machine might be overloaded with laundry. >>> Take out some of the laundry from the machine or distribute the load by hand to balance it homogenously in the machine.
• Machine might be leaning on a rigid item. >>> Make sure that the machine is not leaning on anything.

Machine stopped shortly after the programme started.

- Machine might have stopped temporarily due to low voltage. >>> It will resume running when the voltage restores to the normal level.

Programme time does not countdown. (On models with display)

• Timer may stop during water intake. >>> Timer indicator will not countdown until the machine takes in adequate amount of water. The machine will wait until there is sufficient amount of water to avoid poor washing results due to lack of water. Timer indicator will resume countdown after this.
• Timer may stop during heating step. >>> Timer indicator will not countdown until the machine reaches the selected temperature.
• Timer may stop during spinning step. >>> Automatic unbalanced load detection system might be activated due to the unbalanced distribution of the laundry in the drum.
• Machine does not switch to spinning step when the laundry is not evenly distributed in the drum to prevent any damage to the machine and to its surrounding environment. Laundry should be rearranged and re-spun.

Foam is overflowing from the detergent drawer.

• Too much detergent is used. >>> Mix 1 tablespoonful softener and 1/2 liter water and pour into the main wash compartment of the detergent drawer.
• Put detergent into the machine suitable for the programmes and maximum loads indicated in the "Programme and consumption table". When you use additional chemicals (stain removers, bleaches and etc), reduce the amount of detergent.

Laundry remains wet at the end of the programme

• Excessive foam might have occurred and automatic foam absorption system might have been activated due to too much detergent usage. >>> Use recommended amount of detergent.
• Machine does not switch to spinning step when the laundry is not evenly distributed in the drum to prevent any damage to the machine and to its surrounding environment. Laundry should be rearranged and re-spun.

WARNING: If you cannot eliminate the problem although you follow the instructions in this section, consult your dealer or the Authorized Service Agent. Never try to repair a nonfunctional product yourself.

Read this manual before use.

Dear customer,

1- Power cord 2- Drain hose 3- Transport safety bolts* 4- Water supply hose (one of the following types of filters is used for connecting the water supply hose).

a- Electronic water shut-off

b- Mechanical water shut-off

c- Standard

5- User manual

6- Plastic plug assembly

* Depending on your machine model, the number of transport safety bolts may vary.

2.3. Technical specifications

	WSRE6512PRS7322130001	WSRE6512PRW7322130002
Quruq kiyimlarning maksimal yuklanishi (kg) 6 6
Balandligi (sm) 84 84
Kengligi (sm) 60 60
Chuqurligi (sm) 41.5 41.5
Sof og’irligi (± 4 kg) 62 62
Elektr ta’minoti (V/Hz) 230 V / 50Hz 230 V / 50Hz
Tok (A) 10 10
Quvvat sarfi (V) 1550 1550
Maks. siqish tezligi (ayl./daq.)	1000 1000
Kutish rejimidagi energiya sarfi (V)	1.00 1.00
O‘chirilgan holatida energiya sarfi (V)	0.25	0.25
Energiya samaradorligi sinfi	A+++	A+++

Technical specifications may be changed without prior notice due to product improvements.

Pull the machine back and pull the strap to remove the packaging material.

Before using the washing machine, remove the safety transport bolts! Failure to do so will cause damage to the machine.

1. Before using the washing machine, remove the safety transport bolts! Failure to do so will cause damage to the machine.
2. Carefully unscrew and remove the safety transport bolts.
3. Seal the holes in the back panel with the plastic caps included in the package with the user manual. (R)

Keep the safety transport bolts, as you may need to move the washing machine.

The product must not be transported if the safety transport bolts are not installed.

STEP 4. Adjusting the feet

WARNING: The washing machine must be level and stable to operate quietly and

without vibration. Adjust the feet to level the machine. If this is not done, the machine may move, which can cause excessive vibration and damage.

1. Tighten all nuts by hand. Do not use a wrench to tighten the nuts.
2. After connecting the hoses, fully open the taps to check for water leaks at the connection points. If water leaks, close the tap and loosen the nuts. Check the gasket and carefully retighten the nut. To prevent possible leaks and related damage, close the taps when the machine is not in use.

STEP 6. Draining the water

- Connect the end of the drain hose directly to the sewer or sink.

WARNING: If the hose comes loose from its connection during draining, water can spread throughout the house. Additionally, there is a risk of burns because the water temperature can be very high! To prevent such situations and to ensure the normal operation of the water supply and drainage systems, securely fasten the end of the drain hose.

• The hose must be secured at a height of 40 cm to 100 cm.
• If the hose is laid at a height lower than 40 cm from the floor, draining large amounts of water will be difficult, and the laundry will remain wet. Therefore, the height indicators shown in the figure must be taken into account.
• To prevent dirty water from flowing back into the washing machine and to ensure water flows out of the hose without obstruction, the hose end must not be connected to a hole lower than 15 cm.

If the hose is too long, it should be cut.

The detergent dispenser has three compartments:

• (1) for pre-wash/soaking
• (2) for main wash – (3) for fabric softener
• (*) additionally, the fabric softener compartment has a siphon.

Detergent, fabric softener, and other agents for washing

• Before starting the wash program, add detergent (compartment "2") and fabric softener (if needed).
• Do not leave the dispenser open during the wash program!
• If using a program without pre-wash, do not put detergent in the pre-wash compartment ("1").
• Do not put liquid detergents in the prewash compartment (compartment "1") when using a prewash program.
• If you use detergents in special bags or with a dispensing ball, do not select the prewash program. Place the special bag or dispensing ball inside the drum among the laundry.
• When using liquid detergent, place it in the dosing container in the main wash compartment (compartment "2").

Choosing the detergent

The choice of detergent depends on the type and color of the fabric.

If the washing machine is equipped with a container designed for liquid detergents

Place the container designed for liquid detergents in compartment "2".

Do not exceed the maximum level (> max <) indicated in the dispenser when adding liquid detergent.

If the washing machine is equipped with a dosing cap designed for liquid detergents, and you intend to use liquid detergent

- Extra rinse

Regularly (after every 4-5 wash cycles) clean the detergent dispenser to prevent powder detergent from accumulating.

1. As shown in the figure, lift the back of the siphon to remove it.

Clean the siphon if the water and conditioner mixture starts to exceed the normal level in the conditioner compartment.

2 Rinse the detergent dispenser and siphon under plenty of warm water in the sink. Wear protective gloves or use a special brush to avoid touching detergent residues while cleaning the dispenser. 3 After cleaning, reinstall the siphon and push the front part down until the locking tab engages.

6.2. Cleaning the loading door and drum

Over time, detergent and dirt residue can accumulate in the machine, which can lead to unpleasant odors and poor washing results. To eliminate such problems, use the "Drum Clean" program. If this model does not have the "Drum Clean" program, run the "Cotton - 90" program with the "Extra Water" or "Extra Rinse" additional functions. Do not put any laundry in the machine when running this program. Before starting the program, add detergent (compartment 2). At the end of the program, wipe the door seal with a clean cloth.

After each wash, check that no foreign objects remain in the drum.

If the holes shown in the figure are blocked, clean them with a toothpick.

The presence of foreign metal objects in the drum can cause rust stains. Use a stainless steel cleaner to clean the drum surface. Never use metal or wire brushes.

WARNING. Never use hard sponges or abrasive materials. This can damage painted and plastic parts.

Maintenance and cleaning

1 Close the taps. 2 To access the inlet filters, unscrew the nuts on the inlet hose. Clean them with a suitable brush. If the filters are heavily soiled, remove them with pliers and clean them. 3 Remove the filters at the direct end of the inlet hose along with the gaskets and rinse them thoroughly with water. 4 Carefully reinstall the gaskets and filters in reverse order, tighten the nuts by hand, and connect the inlet hose.

6.5. Draining residual water and cleaning the filter

Maintenance and cleaning

6 Maintenance and cleaning

To drain the water and clean the dirty filter, proceed as follows:

1 Disconnect the appliance from the power supply (pull the plug out of the socket).

WARNING. The water in the machine can reach a temperature of 90°C. To prevent burns, the filter should only be cleaned after the water inside the machine has cooled down.

2 Open the filter cover.

3 Some models are equipped with an emergency drain hose. To drain the water from the machine, proceed as follows.

For models equipped with an emergency drain hose, draining the water:

a Remove the emergency drain hose from its compartment. b Place a large container at the end of the hose. Remove the cap from the end of the hose and drain the water. When the container is full, close the hose with the cap. Empty the container and repeat the above steps until the water is completely drained from the machine.

c After draining is complete, put the hose back in place. d Turn the pump filter and remove it.

For models not equipped with an emergency drain hose, draining the water:

a Open the filter cover.

b Place a large container in front of the filter. c Slowly turn the pump filter counterclockwise until water starts to flow. Let the water flow into the container placed in front of the filter. Always have a cloth nearby to wipe up any spilled water. d When the water stops flowing, fully remove the filter and take it out of the machine.

4 Clean the inside of the filter and the area around the pump impeller from debris and lint. 5 Reinstall the filter.

6 Service and cleaning
