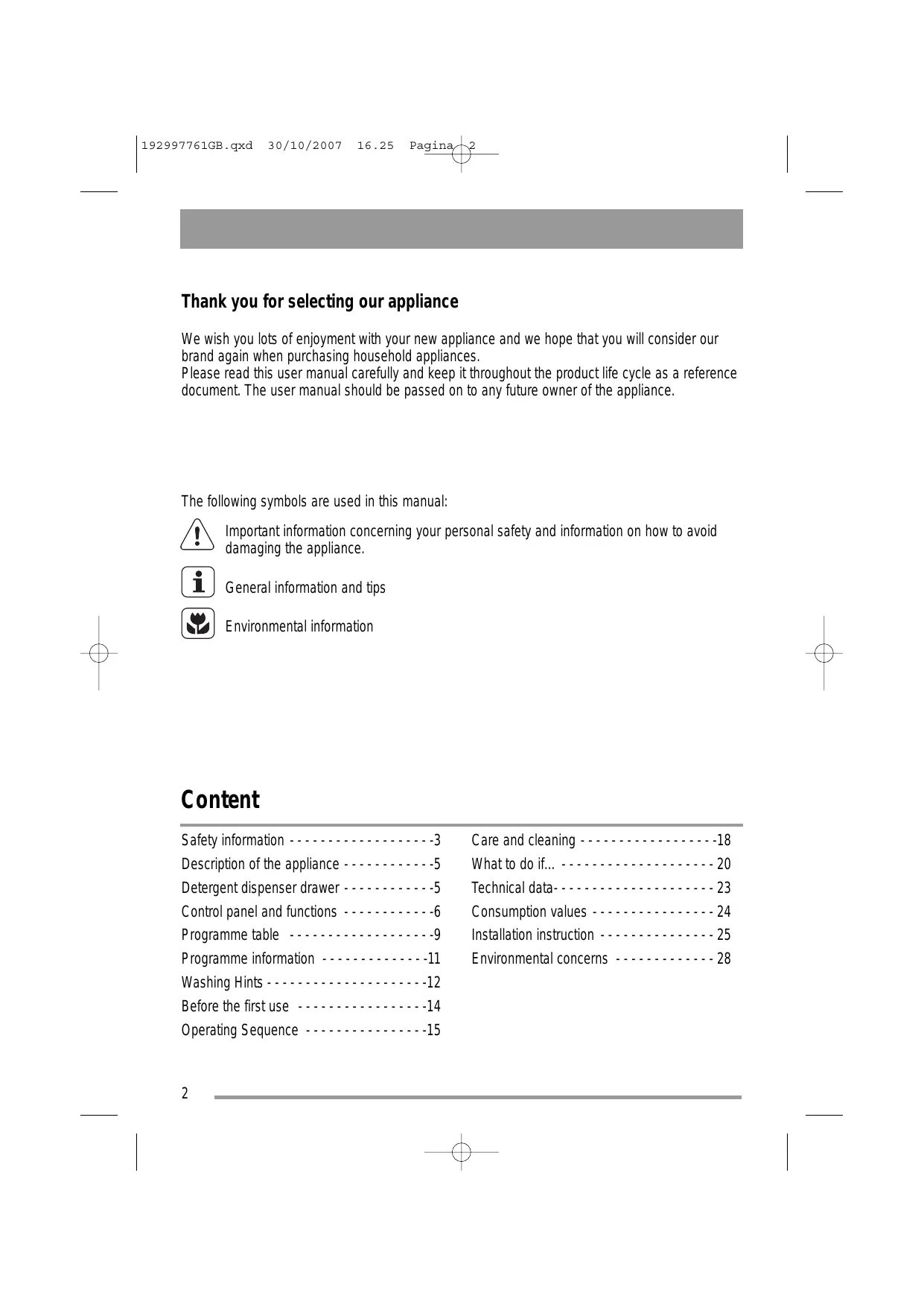

192997761GB.qxd 30/10/2007 16.25 Lo Thank you for selecting our appliance We wish you lots of enjoyment with your new appliance and we hope that you will consider our brand again when purchasing household appliances. Please read this user manual carefully and keep it throughout the product life cycle as a reference document. The user manual should be passed on to any future owner of the appliance. The following symbols are used in this manual: Important information concerning your personal safety and information on how to avoid damaging the appliance. (à) General information and tips (&) Environmental information Content Safety information - Care and cleaning Description of the appliance - What to do if... ---- Detergent dispenser drawer ------------ 5 Technical data-------------.--..... Control panel and functions - Consumption values ---- Programme table Installation instruction -- - Programme information -------------- 11 Environmental concerms ------------. Washing Hints Before the firstuse - Operating Sequence ---------------- 15

Safety information In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety. General safety < Itis dangerous to alter the specifications or attempt to modify this product in any way. e During high temperature wash programmes the door glass may get hot. Do not touch it! < Make sure that small pets do not climb into the drum. To avoid this, please check into the drum before using. e Any objects such as coins, safety pins, nails, screws, stones or any other hard, sharp material can cause extensive damage and must not be placed into the machine. e Only use the advised quantities of fabric softener and detergent. Damage to the fabric can ensue if you over-fill. Refer to the manufacturer's recommendations of quantities. e Wash small items such as socks, laces, washable belts etc in a washing bag or pillow case as it is possible for such items to slip down between the tub and the inner drum. e Do notuse your washing machine to wash articles with whalebones, material without hems or tom material. 192997761GB.qxd 30/10/2007 16.25 Pagina+3

ZANUSSI e Always unplug the appliance and tu off the water supply after use, clean and maintenance. e Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact our local Service Centre. Always insist on genuine spare parts. Installation e This appliance is heavy. Care should be taken when moving it. e When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service Centre. All packing and transit bolts must be removed before use. Serious damage can occur to the product and to property if this is not adhered to. See relevant section in the user manual. e After having installed the appliance, check thatitis not standing on the inlet and drain hose and the worktop is not pressing the electrical supply cable. e lfthe machine is situated on a carpeted floor, please adjust the feet in order to allow air to circulate freely e Always be sure, that there is no water leakage from hoses and their connections after the installation. e lfthe appliance is installed in a location subject to frost, please read the «dangers of freezing» chapter. e Any plumbing work required to install this appliance should be carried out by a qualified plumber or competent person. e Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. rent

192997761GB.qxd 30/10/2007 16.25 Lo Use < This appliance is designed for domestic use. It must not be used for purposes other than those for which it was designed. e Only wash fabrics which are designed to be machine washed. Follow the instructions on each garment label. Do not overload the appliance. See the relevant section in the user manual. Before washing, ensure that all pockets are empty and buttons and zips are fastened. Avoid washing frayed or tom articles and treat stains such as paint, ink, rust, and grass before washing. Underwired bras must NOT be machine washed. Garments which have been in contact with volatile petroleum products should not be machine washed. If volatile cleaning fluids are used, care should be taken to ensure that the fluid is removed from the garment before placing in the machine. Never pull the power supply cable to remove the plug from the socket, always take hold of the plug itself. Never use the washing machine if the power supply cable, the control panel, the working surface or the base are damaged so that the inside of the washing machine is accessible. Child safety < This washing machine is not intended for use by young children or infirm persons without supervision. e Young children should be supervised to ensure that they do not play with the appliance. < The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - danger of suffocation! Keep them out of children's reach e Keep all detergents in a safe place out of children's reach. e Make sure that children or pets do not climb into the drum. To avoid this the machine incorporates special feature. To activate this To disable this device, rotate the device and restore button (without the possibility of pressing it) inside the door clockwise until the groove is horizontal. If necessary use à Coin. closing the door, rotate the button anti- clockwise until the groove is vertical.

EL ZANUSSI Description of the appliance E Detergent dispenser drawer El A B Control panel E Door opening handle E Dai pump E Adjustable feet Detergent dispenser drawer LL I prewash LL] wash & Fabric Softener

(à) os Henceforth, the programme selector dial, the D different buttons and the programme progress display will be indicated in all the book with the relevant numbers given in this table. Programme selector dial and [il On/Off switch Spin reduction button HA rinse Hold EJ Option button E Economy (Eco) Quick (Rapide) The programme selector dial allows to select a programme and/or to switch the machine onjoff «O». lt can be turned either clockwise or anticlockwise. Press this button repeatedly to change the spin speed, if you want your laundry to be spun at a speed different from the one proposed by the washing machine or to select «Rinse Hold» option. The relevant light will light up. By means of this button, you can select only one ofthe following options: ECONOMY or QUICK. The relevant light will light up.

192997761GB.qxd 30/10/2007 16.25 ZANUSSI EX Prewast button (Prélavage) . near of this button, the machine performs a prewash < Selecting this option the laundry is gentiy washed and spun to avoid any creasing. In this way ironing is easier. Furthermore the machine will perform additional rinses. Easy Iron button (Repassage E Facile) By means of this button, the machine performs some Extra Rinse button (Rinçage plus) Lane ES, The display shows the following information: duration of the Display selected programme, delayed start, incorrect option selection, alarm codes and end of programme. < This button allows to start the selected programme; the corresponding green pilot light stops flashing. This button interrupts also à programme which is running, the corresponding green pilot light starts to flash. This light illuminates when the appliance is working (after E Light Door (Porte verrouillé) having pressed button 8) and indicates that the door is locked. EX strtPause button (Marche/Arret) By means of this buttons, the wash programme can be EX] Delay Start buttons (Départ différé) _ delayed from 30 min - 60 min - 90 min, 2 hours and then by 1 hour up to a maximum of 20 hours .

192997761GB.qxd 30/10/2007 16.25 Lo Functions Rinse hold By selecting this option the water of the last rinse is not emptied out to prevent the fabrics from creasing. When the programme has finished, the door is blocked to indicate that the water must be emptied out. To empty out the water, please read the chapter «At the end of the programme». Economy Only for cottons and synthetics items lightly or normally soiled at a temperature of 40°C or higher. The washing time will be prolonged and the washing temperature will be reduced. Quick Short cycle for lightly soiled items or for laundry which needs only freshening up. We recommend you to reduce the fabrics loading. Prewash Select this option if you wish your laundry to be prewashed at 30°C before the main wash. The prewash ends with a short spin in programmes for Cotton and Synthetic fabrics, whereas in the programmes for Delicate fabrics the water is only drained. Easy Iron Selecting this option the laundry is gently washed and spun to avoid any creasing. In this way ironing is easier. Furthermore the machine will perform some additional rinses depending on the fabrics. Extra Rinse The machine performs some additional rinses during the washing cycle. This option is recommended for people who are allergic to detergents, and in areas where the water is very Soft. Door pilot light O Leur vergrendeld After re pressed the button 8, this light illuminates and stays on. Porte verrouillée The light DOOR indicates when the door can be opened: e light on: the door is locked and cannot be opened. The appliance is working. e light off. the door can be opened. The washing programme has finished.

• This option is not active at a temperature lower than 40°C. #*° The spin speed cannot be reduced in models ZWG 6145 and ZWG 6165. rent

192997761GB.qxd 30/10/2007 16.25 rare Programme table - Special programmes Programme/ : Description of MINI 30 Quick wash for cotton and Main wash o synthetics lightly soiled Spin Red.#* Rinses ED items or womn once Short spin For emptying out the DRAIN water in programmes nl & which stop with water in Dre AE the tub (o) . To interrupt a running programme, to cancel an Cancelling / incorrect option selection or to switch the machine Switching off ofthe machine #*_ The spin speed cannot be reduced in models ZWG 6145 and ZWG 6165. MAX LOADS: Max load for Curtains Max load for Cottons … Max load for Soak .... Max load for Synthetics Max load for Mini30 Max load for Delicates Max load for Cottons + Quick Max load for Handwash and Woo! . Max load for Synthetics + Quick … Max load for Jeans .................

ZANUSSI Programme information JEANS SOAK MINI30 RINSES DRAIN SPIN CURTAINS With this programme it is possible to wash free time items as pants, shirts or jackets in Jeans and also jersey made of hi-tech materials. Some extra rinses will be carried out by the machine. Special programme for heavily soiled laundry. The machine performs a soak at 30°C. Atthe end of this time the machine will stop automatically with water left in the tub. Before starting a new washing phase, itis necessary to empty out the water by: e Draining only: tum the programme selector dial to Drain programme. (Depress the button 8). e Draining and spin: tum the programme selector dial to programme Spin, reduce the spin speed by means of button 2 , and then depress button 8. Important! This programme cannot be used for very delicate fabrics as silk or wool. Pour the detergent for the soak programme into the compartment marked LL. Atthe end of the soak (after having emptied out the water) you can select the washing programme. (First tum the programme selector dial to «O», then to the programme and depress the button 8.) This is a complete programme for cotton, synthetics and delicate items that can be combined with the «Delay start» option. To be used for laundry which is lightly soiled or which needs freshening up. With this separate programme it is possible to rinse and spin cotton garments which have been washed by hand. The machine performs 3 rinses, followed by a final spin at maximum speed. The spin speed can be reduced by depressing button 2. For emptying out the water of the last rinse in cotton programmes with the «Night Cycle», «Rinse hold» option and at the end of SOAK programme. Turn first the programme selector dial to «O», then select programme DRAIN and depress the button 8. Separate spin for cotton items washed by hand or at the end of a programme which stops with water left in the tub («Night Cycle», «Rinse hold» option and at the end of SOAK programme). According to the op of fabric, itis possible to choose a different speed by means of the relevant button from one proposed by the machine. Special washing cycle for curtains which add automatically a prewash phase in order to eliminate the dust from the curtains. Important: We recommend you NOT to put the detergent into the compartment LL of the detergent drawer to rinse curtains before the main wash with only water.

192997761GB.qxd 30/10/2007 16.25 Lo Washing hints Sorting the laundry Follow the wash code symbols on each garment label and the manufacturer's washing instructions. Sort the laundry as follows: whites, coloureds, synthetics, delicates, woollens. Temperatures for normally soiled white cottons and linen (e.g. tea cloths, towels, tablecloths, sheets..) for normally soiled, colour fast garments (e.g. shirts, night dresses, pyjamas...) in linen, coton or synthetic fibres and for lightiy soiled white cotton (e.g. underwear). 90° or 95° 50°/60° for delicate items (e.g. net curtains), mixed laundry including synthetic fibres and woollens bearing the label «pure new wool, machine washable, non-shrink». 30°-40° Before loading the laundry Never wash whites and coloureds together. Whites may lose their «whiteness» in the wash. New coloured items may run in the first wash; they should therefore be washed separately the first time. Make sure that no metal objects are left in the laundry (e.g. hair clips, safety pins, pins). Button up pillowcases, close zip fasteners, hooks and poppers. Tie any belts or long tapes. Remove persistent stains before washing. Rub particularly soiled areas with a special detergent or detergent paste. Treat curtains with special care. Remove hooks or tie them up in à bag or net.

Maximum loads Recommended loads are indicated in the programme charts. General rules: Cotton, linen: drum full but not too tightiy packed; Synthetics: drum no more than half full; Delicate fabrics and woollens: drum no more than one third full. Washing à maximum load makes the most efficient use of water and energy. For heavily soiled laundry, reduce the load size. Laundry weights The following weights are indicative: bathrobe 1200 g napkin 100g quilt cover 700 sheet 500 g pillow case 200g tablecloth 250g towelling towel 200g tea cloth 100g night dress 200g ladies’ briefs 100 g man's work shirt 600 g man's shirt 200 g man's pyjamas 500 g blouse 100g men's underpants 100g Removing stains Stubborn stains may not be removed by just water and detergent. It is therefore advisable to treat them prior to washing. Blood: treat fresh stains with cold water. For dried stains, soak overnight in water with a special detergent then rub in the soap and water.

Oil based paint: moisten with benzine stain remover, lay the garment on à soft cloth and dab the stain; treat several times. Dried grease stains: moisten with turpentine, lay the garment on a soft surface and dab the stain with the fingertips and a cotton cloth. Rust: oxalic acid dissolved in hot water or a rust removing product used cold. Be careful with rust stains which are not recent since the cellulose structure will already have been damaged and the fabric tends to hole. Mould stains: treat with bleach, rinse well {whites and fast coloureds only). Grass: soap lightly and treat with bleach {whites and fast coloureds only). Ball point pen and glue: moisten with acetone (*), lay the garment on a soft cloth and dab the stain. Lipstick: moisten with acetone as above, then treat stains with methylated spirits. Remove any residual marks from white fabrics with bleach. Red wine: soak in water and detergent, rinse and treat with acetic or citric acid, then rinse. Treat any residual marks with bleach. Ink: depending on the type of ink, moisten the fabric first with acetone (*), then with acetic acid; treat any residual marks on white fabrics with bleach and then rinse thoroughly. Tar stains: first treat with stain remover, methylated spirits or benzine, then rub with detergent paste. {*) do not use acetone on artificial silk. Detergents and additives Good washing results also depend on the choice of detergent and use of the correct quantities to avoid waste and protect the environment. Although biodegradable, detergents contain substances which, in large quantities, can upset the delicate balance of nature. The choice of detergent will depend on the type of fabric (delicates, woollens, cottons, 192997761GB.qxd 30/10/2007 16.25 Pagina-13

ZANUSSI etc.), the colour, washing temperature and degree of soiling. All commonly available washing machine detergents may be used in this appliance: e powder detergents for all types of fabric, e powder detergents for delicate fabrics (60°C max) and woollens, e liquid detergents, preferably for low temperature wash programmes (60°C max) for all types of fabric, or special for woollens only. The detergent and any additives must be placed in the appropriate compartments of the dispenser drawer before starting the wash programme. If using concentrated powder or liquid detergents, a programme without prewash must be selected. The washing machine incorporates à recirculation system which allows an optimal use of the concentrated detergent. Pour liquid detergent into the dispenser drawer compartment marked LI! just before starting the programme. Any fabric softener or starching additives must be poured into the compartment marked before starting the wash programme. Follow the product manufacturer's recommendations on quantities to use and do not exceed the «MAX» mark in the detergent dispenser drawer. Quantity of detergent to be used The type and quantity of detergent will depend on the type of fabric, load size, degree of soiling and hardness of the water used. Water hardness is classified in so-called «degrees» of hardness. Information on hardness of the water in your area can be obtained from the relevant water supply company, or from your local authority. Follow the product manufacturers’ instructions on quantities to use.

Degrees of water hardness Follow the product manufacturers’ instructions on quantities to use. Use less detergent if: you are washing a small load, © the laundry is lightly soiled, < large amounts of foam form during washing. 192997761GB.qxd 30/10/2007 16.25 oc Level | Characteristic 1 soft 2 medium 8-14 16-25 3 hard 15-21 26-37 4 very hard >21 >31 Before the first use A : By pressing these 2 buttons again, the the WARNING! acoustic signal is reactivated. Ensure that the electrical and water connections comply with the installation instructions. IMPORTANT! Remove the polystyrene block and any material from the drum. IMPORTANT! We recommend you to pour 2 litres of water into the main wash compartment LIL of the detergent drawer in order to activate the ECO valve. Than run a cotton cycle at 95°C, without any laundry in the machine, to remove any manufacturing residue from the drum and tub. Pour 1/2 a measure of detergent into the dispenser drawer and start the machine. Acoustic signals The machine is provided of an acoustic device, which sounds in the following cases: atthe end ofthe cycle © in the event of operating problems By pressing the buttons 3 and 4 simultaneously for about 6 seconds, the acoustic signal is deactivated (except for the events of operating problems).

Child safety lock Æ This device permits you to leave the appliance unattended during its functionning, so avoiding that children might accidentally start the machine or modify a running programme. This function remains able also when the washing machine is not working. To enable (disable) this option press simoultaneously for about 6 seconds buttons 5 and 6 buttons until the icon & appears (disappears) on (from) the display. There are two different ways to set this option: © before pressing the button 8: it will be impossible to start the machine. < after pressing the button 8: it will be impossible to change any other programme or option.

ZANUSSI 7 L Load the laundry Open the door by carefully pulling the door handle outwards. Place the laundry in the drum, one item at à time, shaking them out as much as possible. Close the door.

2. Measure out the detergent and the fabric

softener Pull out the dispenser drawer until it stops. Measure out the amount of detergent required, pour it into the main wash compartment Lil] and, if you wish to carry out a programme with the prewash phase or the soak programme, pour it into the compartment marked LL. If required, pour fabric softener into the compartment marked #& (the amount used must not exceed the «MAX» mark in the drawer). Close the drawer gently. LA ATTENTION! If you turn the programme selector dial to ano- ther programme when the machine is working, tthe red pilot light of button 8 will flash 3 times and the message Err is displayed on the dis- play to indicate a wrong selection. The machi- ne will not perform the new selected program- me. Select the spin speed, the Rinse Hold option by pressing button 2 When selecting a programme, the light corresponding to the maximum speed allowed for that programme will illuminate. The relevant light will light up. Select the desired option by means of buttons 3, 4, 5 and 6 Depending on the programme, different functions can be combined. These must be selected after choosing the desired programme and before depressing the button 8. For the compatibility of the options with the washing programmes, refer to the section «Programmes table». Start the programme by pressing button 8 To start the selected programme, press this button; the corresponding green pilot light Select the required programme by means of Stops flashing. the programme selector dial (1) Turn the programme selector dial to the required programme. The green light of button 8 starts to flash. It can be tumed either clockwise or anticlockwise. On position «O» the programme is reset and the machine is switched OFF. Atthe end of the programme the selector dial must be turned to position «O», to switch the machine off. On programme progress display the pilot light DOOR illuminates to indicate that the appliance starts operating and the door is locked. IMPORTANT! If an option which is not compatible with the set wash programme is selected, the message Err is displayed for few seconds and the red light of this button flashes for 3 times.

192997761GB.qxd 30/10/2007 16.25 ae Select the delayed start by pressing the button 10 Depress button this button to select the required delay. The selected delay time value will appear on the display for few seconds, then the duration of the programme will appear again. You must select this option after you have set the prgremme and before you press the button 5. You can cancel the delay time at any moment, before you press button 8. If you have already pressed it, and you wish to cancel the delay time, proceed as follows: *setthe washing machine to PAUSE by pressing button 8; + press the button 10 once. On the display will appear the symbol «D». + press button 8 again to start the programme. IMPORTANT! «The selected delay can be modified only after you have tumed the programme selector dial to the «O» position and after you have selected the programme again. + The door will be locked throughout the delay time. If you need to open the door, you must first set the washing machine to PAUSE by pressing button 8 and wait few minutes before opening the door. After you have closed the door, press the same again. Note! The Delay Start cannot be selected with «Drain» programme. Display The display shows the following information:

After selecting a programme the duration of the selected programme appears on the dis- play. During the program- me, the time remai- ning is updated every minute.

The Delayed start appears on the display for about 3 seconds, then the duration of the previously selected programme is displayed. The delay time value decreases by one unit every hour and then, when 1 hour remain, every minute. The incorrect option selection is indicated by the message Errdisplayed for few seconds and by flashing of the light button 8. In the event of operating problems, some alarm codes can be displayed, (see paragraph “Something not working"). Err ECU The End of programme is indicated by à flashing zero «O».

Altering an option or a running programme Itis possible to change any option before the programme caries it out. Before you make any change, you must pause the washing machine by pressing button 8. Changing à running programme is possible only by resetting it. Turn the programme selector dial to «O» and then to the new programme position. Start the new programme by depressing button 8 again. The washing water in the tub will not empty out. Interrupting a programme Depress thutton 8 to interrupt a programme which is running, the corresponding light starts to flash. Depress the button again to restart the programme. Cancelling a programme Turn the selector dial to «O» to cancel a programme which is running. Now you can select a new programme. Opening the door after the programme has started First set the machine to pause by pressing the button 8. Ifthe light DOOR goes off, the door can be opened. If it does not switch off, this means that the machine is already heating, that the water level is above the bottom edge of the door. In this cases the door cannot be opened. If you cannot open the door but you need to open it you have to switch the machine off by turning the selector dial to «O». After few minutes the door can be opened (Pay attention to the water level and temperature!). 192997761GB.qxd 30/10/2007 16.25 Pagina-17

ZANUSSI After this procedure, it will be necessary to set the programme and the options again and then to depress button 8. Atthe end of the programme The machine stops automatically. Some acustic signals sound and on the display will appear a flashing «£ >». The button 8 light and the light DOOR go off. The door can be opened. If at the end of a programme there is water in the tub, to empty out the water follow the following instructions:

1. turn the programme selector dial to «O»

3.reduce the spin speed, if needed, by means ofthe button 2

5.atthe end of programme, the display shows à flashing zero «£», the light DOOR goes off and it will be possible to open the door. Atthe end of the cycle, turn the programme selector dial to «O» to switch the machine off. Remove the laundry from the drum and carefully check that the drum is empty. If you do not intend to carry out another wash, close the water tap. Leave the door open to prevent the formation of mildew and unpleasant smells.

192997761GB.qxd 30/10/2007 16.25 ra Care and cleaning IMPORTANT! You must DISCONNECT the appliance from the electricity supply, before you can carry out any cleaning or maintenance work. Descaling The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the machine. Do this separately from any laundry washing, and according to the softening powder manufacturer's instructions. This will help to prevent the formation of lime deposits. Maintenance Wash With the use of low temperature washes it is possible to get a build up of residues inside the drum. We recommend that a maintenance wash be performed on à regular basis. To run à maintenance wash: < The drum should be empty of laundry. < Selectthe hottest cotton wash programme. < Use a normal measure of detergent, must be a powder with biological properties. External cleaning Clean the exterior cabinet of the appliance with soap and water only, and then dry thoroughly. Cleaning the dispenser drawer The washing powder and additive dispenser drawer should be cleaned regularly.

To aid cleaning, the top part of the additive compartment should be removed.

Remove the drawer by pressing the catch downwards and by pulling it out. Flush it out under à tap, to remove any traces of accumulated powder. Cleaning the drawer recess Having removed the drawer, use à small brush to clean the recess, ensuring that all washing powder residue is removed from the upper and lower part of the recess. Replace the drawer and run the rinse programme without any clothes in the drum. Cleaning the pump The pump should be inspected if < the machine does not empty and/or spin < the machine makes an unusual noise during draining due to objects such as safety pins, coins etc. blocking the pump. Proceed as follows: < Disconnect the appliance. < lfnecessary wait until the water has cooled down. e Open the pump door. e Place a container close to the pump to collect any spillage. e Pull out the emergency emptying hose, place it in the container and remove its cap. < When no more water comes out, unscrew the pump cover and remove it. Always keep a rag nearby to dry up spillage of water when removing the cover.

< Remove any objects from the pump impeller by rotating it. < Putthe cap back on the emergency emptying hose and place the latter back in its seat. L Screw the pump cover fully in. e Close the pump door. AN IMPORTANT! When the appliance is in use and depending on the programme selected there can be hot water in the pump. Never remove the pump cover during à wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the cover, ensure itis securely retightened so as to stop leaks and young children being able to remove it. Cleaning the water inlet filter If your water is very hard or contains traces of lime deposit, the water inlet filter may become clogged. Itis therefore a good idea to clean it from time to time. 7 Turn off the water tap. Unscrew the water inlet hose. Clean the filter using à hard bristle brush. &\, | Tighten up the inlet hose. 192997761GB.qxd 30/10/2007 16.25 Pagina-19

ZANUSSI The dangers of freezing Ifthe machine is exposed to temperatures below 0°C, certain precautions should be taken. < Turn offthe water tap. < Unscrew the inlet hose. < Place the end of the emergency emptying hose and that of the inlet hose in a bowl placed on the floor and let water drain out. < Screw the water inlet hose back on and reposition the emergency emptying hose after having put the cap on again. e When you intend to start the machine up again, make sure that the room temperature is above 0°C. IMPORTANT! Every time you drain the water through the emergency emptying hose you must pour 2 litres of water into the main wash compartment of the detergent drawer and then run the drain programme. This will activate the ECO VALVE device avoiding that part of the detergent remains unused at next washing. Emergency emptying out Ifthe water is not discharged, proceed as follows to empty out the machine: < pull out the plug from the power socket; < close the water tap; . if necessary, wait until the water has cooled down; < open the pump door; < place à bowl on the floor and place the end of the emergency emptying hose into the bowl. Remove its cap. The water should drain by gravity into the bowl. When the bowl is full, put the cap back on the hose. Empty the bowl. Repeat the procedure until water stops flowing out; < clean the pump if necessary as previously described; < replace the emergency emptying hose in its seat after having plugged it; < Screw the pump cover again and close the door.

192997761GB.qxd 30/10/2007 16.25 no What to do if... IMPORTANT! Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Centre, please carry out the checks listed below. During machine operation it is possible that the red pilot light of button 8 flashes, few acoustic signals sound and one of the following alarm codes appears on the display to indicate that the machine is not working: E10: problem with the water supply < E20: problem with water draining EU: door open. Once the problem has been eliminated, press the button 8 to restart the programme. If after all checks, the problem persists, contact your local Service Centre. The door has not been closed. £45 + Close firmly the door. The plug is not properly inserted in the power socket. + Insertthe plug into the power socket. There is no power atthe socket. + Please check your domestic electrical installation. ñ n The main fuse has blown. The washing machine does not start + Replace the fuse. The selector dial is not correctly positioned and the button 8 has not been depressed. + Please turn the selector dial and press the button 8 again. The button 10 has been selected. + Ifthe laundry are to be washed immediately, cancel the delay start The water tap is closed. F2 + Open the water tap. The inlet hose is squashed or kinked. ED + Check the inlet hose connection. The filter in the inlet hose is blocked. £72 + Clean the water inlet hose filter. The door is not properly closed. E42 + Close firmly the door. The machine does not fill:

The machine fills then empties immediately: The machine does not empty and/or does not spin: There is water on the floor: Unsatisfactory washing results: 192997761GB.qxd 30/10/2007 16.25 Pagina-+21

ZANUSSI Possible Cause / Solution The end of the drain hose is too low. + Refer to relevant paragraph in «water drainage» section. The drain hose is squashed or kinked. E28) + Check the drain hose connection. The drain pump is clogged. 20 + Clean the drain pump. The option Rinse hold or Soak programme has been selected. + Disable the option. + Selectthe Drain or Spin programmes The laundry is not evenly distributed in the drum. + Redistribute the laundry. Too much detergent or unsuitable detergent (creates too much foam) has been used. + Reduce the detergent quantity or use another one. Check whether there are any leaks from one of the inlet hose fittings. It is not always easy to see this as the water runs down the hose; check to see ifitis damp. + Check the water inlet hose connection. The inlet hose is damaged. + Change it with a new one. The cap on the emergency emptying hose has not been replaced after cleaning the pump. + Putthe cap back on the emergency emptying and place the latter back in its seat. LS detergent or unsuitable detergent has been used. + Increase the detergent quantity or use another one. Stubborn stains have not been treated prior to washing. + Use commercial products to treat the stubborn stains. The correct temperature was not selected. + Check if you have selected the correct temperature. Excessive laundry load. + Introduce into the drum less laundry.

192997761GB.qxd 30/10/2007 16.25 Lo The programme is still running. + Waitthe end of washing cycle. The door lock has not been released. + Wait until the pilot light 9 has gone out. There is water in the drum. + Select drain or spin programme to empty outthe water. The door will not open: The transit bolts and packing have not been removed. + Check the correct installation of the appliance. The support feet have not been adjusted. The machine vibrates or is noisy: + Check the correct levelling of the appliance. The laundry is not evenly distributed in the drum. + Redistribute the laundry. Maybe there is very little laundry in the drum. + Load more laundry. The electronic unbalance detection device has cutin 7 because the laundry is not evenly distributed in the drum. The laundry is redistributed by reverse rotation ofthe drum. This may happen several times before Spinning starts late orthe machine the unbalance disappears and normal spinning can does not spin: resume. [f, after 10 minutes, the laundry is still not evenly distributed in the drum, the machine will not spin. In this case, redistribute the load manually and selectthe spin programme. Redistribute the laundry. The machine is fitted with a type of motor which makes an unusual noise compared with other traditional motors. This new motor ensures a softer start and more even distribution of the laundry in the drum when spinning, as well as increased stability of the machine. Machines based on modern technology operate very No water is visible in the drum economically using very little water without affecting performance. The machine makes an unusual noise

192997761GB.qxd 30/10/2007 16.25 CL Consumption values Programme Programme Energ duration consumption RE kWh) Cotton 60° dspay Synthetics 60°C For the duration of the programmes, please refer to the onthe cortrol panel Handwash 40° Jeans 40° 0.55 55 Soak 30° 0.4 19 Rinses 0.1 42 Spin - Œ (*) The «Cotton» 60° +the option Economy Infos selected with a load of 6 kg is the The consumption data shown on this chart is to reference programme for the data entered be considered purely indicative, as it may vary in the energy label, in compliance with EEC depending on the quantity and type of laundry, 92/75 standards. on the inlet water temperature and on the ambient temperature. It refers to the highest temperature for each wash programme.

192997761GB.qxd 30/10/2007 16.25 Lo Installation instruction ZANUSSI Unpacking All transit bolts and packing must be removed before using the appliance. You are advised to keep all transit devices so that they can be refitted if the machine ever has to be transported again.

1. After removing all the packaging, carefully

lay machine on its back to remove the polystyrene base from the bottom.

2. Remove the power supply cable and the

draining hose from the hose holders on the rear of the appliance.

3. With a suitable spanner unscrew and

remove the central rear bolt A.

4. Unscrew and remove the two large rear

bolts B and the six smaller bolts C.

5. Remove the bracket D, refit the six smaller

bolts C and slide out the relevant plastic spacer E.

6. Open the porthole, take out the inlet hose

from the drum and remove the polystyrene block fitted with the adhesive tape on the door seal.Open the porthole, take out the inlet hose from the drum and remove the polystyrene block fitted with the adhesive tape on the door seal.

7. Fillthe smaller upper hole and the two large

ones with the corresponding plastic plug caps supplied in the bag containing the instruction booklet. Positioning Install the machine on a flat hard floor. Make sure that air circulation around the machine is not impeded by carpets, rugs etc. Check that the machine does not touch the wall or other kitchen units. Level the washing machine by raising or lowering the feet. The feet may be tight to adjust as they incorporate a self locking nut, butthe machine MUST be level and stable. Any necessary adjustment can be made with a spanner. Accurate leveling prevents vibration, noise and displacement of the machine during operation.Never place cardboard, wood or similar materials under the machine to compensate for any unevenness in the floor.

192997761GB.qxd 30/10/2007 16.25 Lo Ifnecessary, check the setting with a spirit level. Water inlet An inlet hose is supplied and can been found inside the machine drum. Do not use the hose from your previous machine to connect to the water supply.

1. Open the porthole and extract the inlet

hose. 2.Connect the hose with the angled connection to the machine. A Attenzione! Do not place the inlet hose downwards. Angle the hose to the left or right depending on the position of your water tap.

3. Setthe hose correctly by loosening the ring

nut. After positioning the inlet hose, be sure to tighten the ring nut again to prevent leaks.

4. Connect the hose to

à tap with a 3/4” thread. Always use the hose supplied with the appliance.

The inlet hose must not be lengthened. If it is too short and you do not wish to move the tap, you will have to purchase a new, longer hose specially designed for this type of use. Water drainage The end of the drain hose can be positioned in three ways: Hooked over the edge of a sink using 1 | the plastic hose guide supplied with = | the machine. In this case, make sure the end cannot come L unhooked when the machine is emptying. This could be done by tying it to the tap with a piece of string or attaching it to the wall. In a sink drain pipe branch. This branch must be above the trap so that the bend is at least 60 cm above the ground. Directly into a drain pipe at a height of not less than 60 cm and not more than 90 cm. The end of the drain hose must always be ventilated, ie. the inside diameter of the drain pipe must be larger than the outside diameter ofthe drain hose. The drain hose must not be kinked.

192997761GB.qxd 30/10/2007 16.25 CL Electrical connection This machine is designed to operate on à 230 V, single-phase, 50 Hz supply. Check that your domestic electrical installation can take the maximum load required (2.2 kW), also taking into account any other appliances in use. 2 Attention! Connect the machine to an earthed socket. The manufacturer declines any responsibility for damage or injury through failure to comply with the above safety precaution. Should the appliance power supply cable need to be replaced, this should be carried out by our Service Centre. NOTE Please ensure that when the appliance is installed it is easily accessible for the engineer in the event of a breakdown.

192997761GB.qxd 30/10/2007 16.26 rage Environmental concerns Packaging materials The materials marked with the symbol & are recyclable. >PE<=polyethylene >PS<=polystyrene >PP <=polypropylene This means that they can be recycled by disposing of them properly in appropriate collection containers. Old machine Use authorised disposal sites for your old appliance. Help to keep your country tidy! The symbol X on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Ecological hints To save water, energy and to help protect the environment, we recommend that you follow these tips: < Normally soiled laundry may be washed Without prewashing in order to save detergent, water and time (the environment is protected too!). < The machine works more economically if it is fully loaded. With adequate pre-treatment, stains and limited soiling can be removed; the laundry can then be washed at a lower temperature. < Measure out detergent according to the water hardness, the degree of soiling and the quantity of laundry being washed.
