DS8439TX - Tumble dryer BEKO - Free user manual and instructions

Product Type	Tumble Dryer
Brand	Beko
Model	DS8439TX
Installation Type	Freestanding
Drying System	Condenser
Capacity	8 kg
Energy Class	B
Annual Energy Consumption	504 kWh
Dimensions (H x W x D)	84.8 cm x 59.5 cm x 59.7 cm
Weight	46 kg
Noise Level	64 dB(A)
Drying Programs	Cotton, Synthetics, Mix, Delicates, Wool, Shirts, Jeans, Sport, Quick 30 min
Additional Features	Moisture sensor, Anti-crease, Delayed start, Child lock, Reverse drum action
Control Type	Rotary knob + LED display
Power Supply	220-240 V, 50 Hz
Rated Power Input	2500 W
Filter Type	Lint filter (two-level)
Water Tank	Removable, 4.5 L
Condenser Cleaning	Manual cleaning with warm water
Safety Features	Overheat protection, Auto off, Power failure memory
Spare Parts Availability	Filters, belts, electronic boards available via authorized service
Repairability Index	7.5/10

Frequently Asked Questions - DS8439TX BEKO

How do I clean the lint filter of my Beko DS8439TX dryer?

Open the door, locate the lint filter on the inner side of the door opening. Pull it up and remove the lint by hand. Rinse under warm water if needed, dry thoroughly, and reinsert.

What should I do if the drying cycle is not completing?

Check if the lint filter and condenser are clean. Ensure the water tank is not full. Also verify that the load size is within the 8 kg capacity and that the program selected matches the fabric type.

Can I stop the machine mid-cycle to add or remove clothes?

Yes, you can press the Start/Pause button to pause the cycle. Wait for the drum to stop, then open the door. Add or remove items, close the door, and press Start/Pause again to resume.

How do I enable the child lock feature?

Press and hold the Child Lock button (usually indicated by a padlock icon) for 3 seconds. A symbol will appear on the display. Repeat to disable.

Why is my dryer making unusual noises?

Noises may be due to loose objects in pockets or unbalanced load. Check for coins, buttons, etc. Also ensure the dryer is level and that the drum hasn't been overloaded.

How often should I clean the condenser unit?

Clean the condenser after approximately 30 drying cycles or when the 'Clean Condenser' indicator lights up. Remove the condenser assembly from the lower front panel and rinse it with warm water.

What does the 'Anti-crease' function do?

The Anti-crease function gently rotates the drum periodically after the drying cycle ends to prevent wrinkles. It can be selected for up to 2 hours.

Can I dry waterproof items like raincoats in this dryer?

No, do not dry items with waterproof coatings (e.g., PVC, polyurethane) as they may cause damage or fire hazard. Check garment care labels.

How do I reset the dryer after a power failure?

Simply press the On/Off button again. The dryer should resume from where it stopped if the power failure memory is active. Otherwise, select the program again.

What is the recommended way to install the dryer?

Place the dryer on a flat, dry surface. Ensure adequate ventilation around the appliance. Do not install in direct sunlight or high humidity. Connect to a properly grounded outlet.

USER MANUAL DS8439TX BEKO

DS8439TX

Please read this user manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that your product, which has been manufactured with high quality and technology, will give you the best results. We advise you to read through this manual and the other accompanying documentation carefully before using your product and keep it for future reference. If you transfer the product to someone else, give its manual as well. Pay attention to all details and warnings specified in the user manual and follow the instructions given therein.

Use this user manual for the model indicated on the cover page.

- Read the instructions.

Explanation of symbols

Throughout this user manual the following symbols are used:

DANGER!

- Warning against electric shock.

DANGER!

- Warning against fire hazard.

WARNING!

- Warning for hazardous situations with regard to life and property.

WARNING!

- Warning against hot surfaces.

WARNING!

- Warning against scalding hazard.

NOTE

- Important information or useful hints about usage.

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations.

Do not dispose of the packaging wastes with the domestic waste or other wastes, discard them to the dedicated collection points designated by the local authorities.

This product was manufactured using the latest technology in environmentally friendly conditions.

1 Important instructions for safety and environment

NOTE

- This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty.

1.1 General safety

WARNING!

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.

- Adjustable feet should not be removed. The gap between the dryer and the floor should not be reduced with materials such as carpet, wood and tape. This will cause problems with the dryer.

WARNING!

Always have installation and repair procedures carried out by the Authorized Service. The manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.

Never wash the dryer by spraying or pouring water onto it! There is a risk of electric shock!

For products with a steam function:

WARNING!

• Use only distilled water or water condensed in the water tank of the machine in steam programs. Do not use mains water or additives. When using condensed water in the water tank, it should be filtered and cleared of fibres.
• Do not open the door when steam programs are running. Hot water may be expelled.
• Before putting laundry in a steam program, stains on it should be removed.
• You may only put laundry that is not dirty or stained but permeated with unpleasant odour in the steam (odour removal) program.
• Do not use any dry cleaning sets or additional materials in a steam program or in any program.

1.1.1 Electrical safety

DANGER!

• Electrical safety instructions should be followed while electrical connection is made during installation.
• Connect the dryer to a grounded outlet protected by a fuse at the value specified on the type label. Have the grounding installation performed by a qualified electrician. Our company shall not be liable for any damages that will arise when the dryer is used without grounding in accordance with local regulations.
• The voltage and allowed fuse protection are stated on the type label plate.
• The voltage specified on the type label must be equal to your mains voltage.
• Unplug the dryer when it is not in use.
• Unplug the dryer from the mains during installation, maintenance, cleaning and repair works.
• Do not touch the plug with wet hands! Never unplug by pulling on the cable, always pull out by grabbing the plug.

WARNING!

- The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by utility.

DANGER!

• Do not use extension cords, multi-plugs or adaptors to connect the dryer to power supply in order to decrease the risk of fire and electric shock.
• Power cable plug must be easily accessible after installation.
• Damaged mains cable should be changed notifying the Authorized Service.
• If the dryer is faulty, it must not be operated unless it is repaired by an authorized service agent! There is the risk of electric shock!

1.1.2 Product safety

DANGER!

• Superheating of the clothes inside of the dryer can occur if you cancel the programme or in the event of a power failure whilst the dryer is running, this concentration of heat can cause self-combustion and fire so always activate the ventilation programme to cool down or quickly remove all laundry from the dryer in order to hang them up and dissipate the heat.

WARNING!

• Ensure that the air inlet of the dryer is open and it is well-ventilated.
• Product contains R290 refrigerant.
• R290 is an environment-friendly, but flammable refrigerant.
• Keep the product away from potential heat sources that may cause it to ignite.

DANGER!

Points to be taken into consideration for fire hazard:

Below specified laundry or items must not be dried in the dryer considering fire hazard.

• Unwashed laundry items
• Items soiled with oil, acetone, alcohol, fuel oil, kerosene, stain removers, turpentine, paraffin, paraffin removers, petrol, wax or wax removers must be washed in hot water with plenty of detergent before being dried in the dryer.

For this reason especially the items containing the above specified stains must be washed very well, to do this use adequate detergent and choose a high washing temperature.

Below specified laundry or items must not be dried in the dryer due to the fire hazard:

- Garments or pillows bolstered with rubber foam (latex foam), shower bonnets, water resistant textiles, materials with rubber reinforcement and rubber foam pads.

Clothing cleaned with industrial chemicals.

Items such as lighter, match, coins, metal parts, needle etc. may damage the drum set or may lead to functional problems. Therefore check all the laundry that you will load into your dryer.

WARNING!

Never stop your dryer before the programme completes. If you must do this, remove all laundry quickly and lay them out to dissipate the heat.

DANGER!

• Clothes that are washed inadequately may ignite on their own and even may ignite after drying ends. - You must provide enough ventilation in order to prevent gases exiting from devices operating with other types of fuels including the naked flame from accumulating in the room due to the back fire effect.

WARNING!

- Underwear that contains metal reinforcements should not be dried in the dryer. Dryer may be damaged if metal reinforcements come loose and break off during drying.

NOTE

- Use softeners and similar products in accordance with the instructions of their manufacturers.

Always clean the lint filter before or after each loading. Never operate the dryer without the lint filter installed.

WARNING!

• Never attempt to repair the dryer by yourself. Do not perform any repair or replacement procedures on the product even if you know or have the ability to perform the required procedure unless it is clearly suggested in the operating instructions or the published service manual. Otherwise, you will be putting your life and others' lives in danger.
• There must not be a lockable, sliding or hinged door that may block the opening of the loading door in the place where your dryer is to be installed. • Install your dryer at places suitable for home use. (Bathroom, closed balcony, garage etc.)
• Make sure that pets do not enter the dryer. Check the inside of the dryer before operating it.
• Do not lean on the loading door of your dryer when it is open, otherwise it may fall over.
• The lint must not be allowed to accumulate around the tumble dryer
• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
• Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.

1.2 Mounting over a washing machine

• A fixing device should be used between the two machines when installing the dryer above a washing machine. The fitting device must be installed by the authorized service agent.
• Total weight of the washing machine and the dryer -with full load- when they are placed on top of each other reaches to approx. 180 kilograms. Place the products on a solid floor that has sufficient load carrying capacity!

WARNING!

- Washing machine cannot be placed on the dryer. Pay attention to the above warnings during the installation on your washing machine.

Installation Table for Washing Machine and Dryer
Dryer Depth	Washing Machine Depth
	62 cm	60 cm	54 cm	< 50 cm
54 cm	Can be installed C			cannot be installed
60 cm	Can be installed Can		not be installed

1.3 Intended use

• Dryer has been designed for domestic use. It is not suitable for commercial use and it must not be used out of its intended use.
• Use the dryer only for drying laundry that are marked accordingly.
• The manufacturer waives any responsibility arisen from incorrect usage or transportation.
• The service life of the dryer that you purchased is 10 years. During this period, original spare parts will be available to operate the dryer properly.

1.4 Child safety

• Packaging materials are dangerous for the children. Keep packaging materials away from children.
• Electrical products are dangerous for the children. Keep children away from the product when it is operating. Do not let

Prevent children from tampering with the dryer. Use the child-proof lock to prevent children from tampering with the dryer.

NOTE

The child-proof lock is on the control panel. (See Child lock.)

Keep the loading door closed even when the dryer is not in use.

1.5 Compliance with the WEEE Directive and Disposal of Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed of with other household waste at the end of its service life. The used device must be returned to an official collection point for recycling of electrical and electronic devices.

To find these collection systems, please contact your local authorities or the retailer where the product was purchased. Each household plays an important role in recovering and recycling old appliances. Appropriate disposal of used appliances helps prevent potential negative consequences for the environment and human health.

DANGER!

• R290 is a flammable refrigerant. Therefore, ensure that the system and the pipes are not damaged during operation and handling.
• Keep the product away from potential heat sources that may cause it to ignite in case of damage.
• Do not dispose of the product by putting it in fire.

1.6 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.7 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

1.8 Technical Specifications

EN

Height (Min. / Max.)	84,6 cm / 86,6 cm*
Width 59,7 cm
Depth 58,9 cm
Capacity (max.) 8 kg**
Net weight (± %10)	44 kg
Voltage	See type label***Rated pow
Model code

* Min. height: Height with adjustable feet closed.

Max. height: Height with adjustable feet opened to maximum.

** Dry laundry weight before washing. *** Type label is located behind the loading door.

NOTE

• Technical specifications of the dryer are subject to change without notice to improve the quality of the product.
• Figures in this manual are schematic and may not match the product exactly.
• Values stated on markers on the dryer or in other published documentation accompanying the dryer are obtained in laboratory in accordance with the relevant standards. Depending on operational and environmental conditions of the dryer, these values may vary.

2 Your Dryer

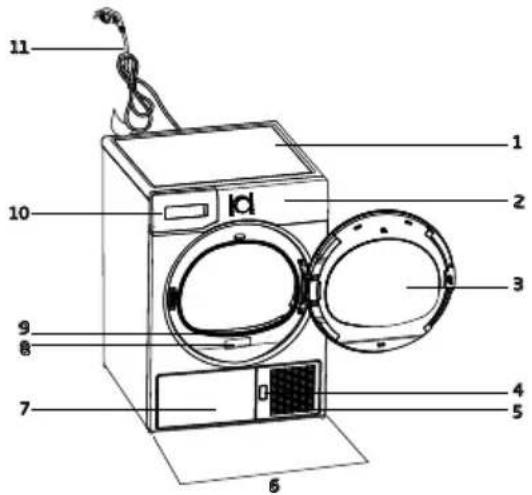

2.1 Overview

1. Top panel
2. Control panel
3. Loading door
4. Kick plate opening button
5. Ventilation grids
6. Adjustable legs
7. In models where the tank is placed below, the water tank is inside the toe board.
8. Type label
9. Lint filter
10. Water tank drawer (in models where the tank is placed above)
11. Power cord

2.2 Package Contents

	1. Water drain hose*		5. Drying basket user manual*
	2. Filter drawer spare sponge*		6. Water Filling Container*
	3. User Manual		7. Pure Water*
	4. Drying basket*		8. Fragrance Capsules Group*

*It can be supplied with your machine depending on its model.

3 Installation

Before installation, ensure that electrical installation and water drain is appropriate referring to the user's manual. If they are not suitable, contact a qualified electrician and technician to make necessary arrangements.

NOTE

- Preparation of the dryer's location as well as the electrical and waste water installations is under customer's responsibility.

WARNING!

- Prior to installation, visually check if the dryer has any defects on it. If the dryer is damaged, do not have it installed. Damaged products cause risks for your safety. - Let your dryer wait for 12 hours before starting to use it.

3.1 Appropriate installation location

Install the dryer on a stable and level surface. The dryer is heavy. Do not move it by yourself.

• Operate your dryer in a well-ventilated, dust-free environment.
• The gap between the dryer and the surface should not be reduced by materials such as carpet, wood, and tape.
• Do not cover the ventilation grills of the dryer.
• There must not be a lockable, sliding, or hinged door that may block the opening of the loading door in the place where your dryer is to be installed.
• Once the dryer is installed, it should stay at the same place where its connections have been made. When installing the dryer, make sure that its rear wall does not touch anywhere (tap, socket, etc.).
• Place the dryer at least 1 cm away from the edges of other furniture.
• Your dryer can be operated at temperatures between +5°C and +35°C. If the operating conditions fall outside of this range, operation of the dryer will be adversely affected and it can get damaged.

- The rear surface of the tumble dryer shall be placed against a wall.

DANGER!

Do not place the dryer on the power cable.

* Ignore the following warning if your product's system does not contain R290.

DANGER!

• Dryer contains R290 refrigerant.*
• R290 is an environment-friendly, but flammable refrigerant.*
• Ensure that the air inlet of the dryer is open and it is well-ventilated.*
• Keep potential flame sources away from the dryer.*

3.2 Removing the transportation safety assembly

WARNING!

• Remove the transportation safety assembly before using the dryer for the first time.
• If the door swing side of your appliance can be modified, see the reversible door mounting instructions.

3.3 Connecting to the drain

You can directly drain accumulated water through the water drain hose supplied with the product instead of periodically draining the water collected in the water tank.

Connecting the water drain hose

1-2 Pull hose at the behind of the dryer by hand in order to disconnect it from where it is connected. Do not use any tools to remove the hose.

3 Connect one end of the drain hose supplied with the dryer to the connection point from where you removed the hose of the product in previous step.

4 Connect the other end of the drain hose directly to the wastewater drain or to the washbasin.

NOTE

• The water drain hose should be attached at a maximum height of 80 cm. Make sure that the water drain hose is not stepped on and is not folded between the drain and the machine. If an accessories pack is supplied with your product, please see the detailed description.

3.4 Adjusting the feet

Turn the feet to the left or right until the dryer stands level and firmly.

3.5 Transportation of the dryer

Drain all water that has remained in the dryer. If direct water drain connection is made, then remove the hose connections.

WARNING!

• We recommend carrying the dryer in an upright position. If it is not possible to carry the machine in the upright position, we recommend carrying it by tilting it towards the right side when looked at from the front.

3.6 Warnings about sounds

NOTE
	It is normal to hear a metallic noise from the compressor sometimes during operation.
Water collected during operation is pumped to water tank. It is normal to hear pumping noise during this process.

3.7 Changing the illumination lamp

In case an illumination lamp is used in your laundry dryer. To change the bulb/LED used for illumination of your tumble dryer, call your Authorised Service Agent. The lamp(s) used in this appliance are not suitable for household room illumination. The intended purpose of this lamp is to assist the user in placing laundry in the tumble dryer in a comfortable way. The lamps used in this appliance have to withstand extreme physical conditions such as vibrations and temperatures above 50 °C.

4 Preparation

4.1 Laundry suitable for drying in the dryer

Always obey the instructions given on the garment tags. Dry only the laundry having a label stating that it is suitable for drying in a dryer.

4.2 Laundry not suitable for drying in the dryer

Items with this symbol should not be dried in the dryer.

NOTE

- Delicate embroidered fabrics, woollen, silk garments, delicate and valuable fabrics, airtight items and tulle curtains are not suitable for machine drying.

4.3 Preparing laundry for drying

• Laundry may be tangled with each other after washing. Separate the laundry items before placing them into the dryer.
• Dry garments having metal accessories such as zippers, inside out.
• Fasten the zippers, hooks and buckles and button sheets.

4.4 Things to be done for energy saving

• Spin your laundry at the highest speed possible when washing them. Thus, the drying time is shortened and energy consumption is reduced.
• Sort out the laundry depending on their type and thickness. Dry the same type of laundry together. For example thin kitchen towels and tableclothes dry quicker than thick bathroom towels.

- Follow the instructions in the user manual for programme selection.

- Do not open the loading door of the machine during drying unless necessary. If you must open the loading door, do not keep it open for a long time.

- Do not add wet laundry while the dryer is in operation

- For models with a condenser unit: clean

the condenser once in a month or after every 30 operations regularly.

• Clean the filter periodically. Read the Maintenance and cleaning of filters for detailed information.
• For models with flue unit: comply with the flue connection instructions and clean the flue.
• During the drying process, air the room well where your tumble dryer is operating.

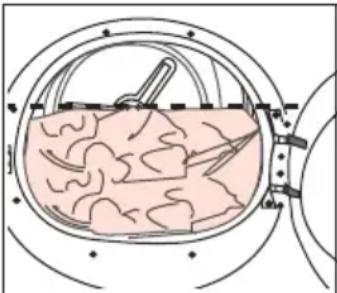

4.5 Correct load capacity

Follow the instructions in the “Programme selection and consumption table”. Do not load more than the capacity values stated in the table.

Following weights are given as examples.

Laundry	Approximate weights (g)*	Laundry	Approximate weights (g)*
Cotton quilt covers (double)	1500 Blouses	150
Cotton quilt covers (single)	1000 Cotton shirts	300
Bed sheets (double)	500 Shirts	250
Bed sheets (single)	350	Cotton dresses	500
Large tablecloths	700 Dresses	350
Small tablecloths	250 Jeans	700
Tea towels	100	Handkerchiefs (10 pieces)	100
Bath towels	700	T-Shirts	125
Hand towels	350

* Dry laundry weight before washing.

5 Running the product

5.1 Control Panel

1. On/Off/Program Selection button. 2.Start / Stand-by button. 3.Drum light button. 4.End time selection button. 5.Time program selection button.

6.Low temperature selection button. 7. Audible warning and child lock selection button. 8.Wrinkle prevention selection button. 9. Dryness level selection button.

5.2 Symbols

5.3. Preparation of drying machine

• Plug the drying machine.
• Open the loading door.
• Place the laundry in the drying machine without jamming them.
• Push and close the loading door.

Select the desired program by using the On/Off/Program Selection button; the machine will turn on.

NOTE!

Selecting the program with the On/Off/Program Selection button does not mean that the program has started. Press the Start/Stand-by button to start the program.

5.4 Program selection and consumption chart

EN
Programmes Programme	Description	Capacity (kg)	Spin speed in washing machine (rpm)	Drying Time (minutes)
Cottons	You can dry your heat-resistant cotton textiles with this programme. A drying setting suitable for the thickness of the products to be dried and the desired level of dryness should be selected.	8 1000	210
Cottons Eco	It dries single layer, casual cotton textiles in the most economical way.	8 1000	197
Synthetics	You can dry all your synthetic textiles with this programme. A drying setting suitable for the level of dryness you desire should be selected.	4 800	70
Mix	Use this programme to dry non-pigmenting synthetic and cotton laundry items together.Sports and fitness clothes may be dried with this program.	4 1000	115
Towels	Drying towels such as kitchen towel, bath towel and hand towel.	5 1000	175
GentleCare	You may dry your delicate laundry or laundry with hand wash symbol (silk blouses, thin underwear, etc.) at low temperature in this program.	1,5 1200	55
Daily	You can dry both cotton and synthetic laundry with this programme.Sports and fitness clothes may be dried with this program.	4 1000	110
Time Program	You may select from time programmes between 10 and 160 minutes to achieve the desired drying level at low temperature. In this programme, tumble drier's operation lasts for the set time independently from the dryness of laundry. This product is available to be used with a drying basket as option. For products that are sold without a basket, you can obtain a basket from an authorized service and use the drying programs specified above. For details of use, see the drying basket user guide.	---
Jeans	You may dry denim pants, skirts, shirts or jackets in this program.	4 1200	125
Outdoor/Sports	Use it to dry your clothes made of synthetics, cotton or mixed fabrics or waterproof products such as functional jacket, raincoat etc. Turn them inside out prior to drying.	2 1000	135
Duvet/Down Wear	You can dry your feather or fibre filled textile that bears can be dried in drier label as a single piece of laundry. You can dry double duvet, pillow or coats as single piece of laundry. Dry your cloths such as coats and jackets turned inside out.	- 800	165
Shirts	It dries the shirts in a more sensitive manner, and causes less creasing and easier ironing.	1,5 1200	50
Daily Express	Use this program to have 2 shirts ready for ironing.	0,5	1200	30
Hygienic Drying	It is the programme that you can dry your washed products you want to provide with extra hygiene (baby clothes, underwear, towels, etc.). It provides high hygiene for your textiles via heat effect.	5 800 200
Hygienic Refresh	You can use this programme for your dry clothes and laundry that you want to provide with hygiene without washing them. It provides high hygiene for your dry textiles via heat effect.	1,5 - 120
Energy consumption values
Programmes Capacity (kg)		Spin speed in washing machine (rpm)	Approximate amount of remaining humidity	Energy consumption value kWh
Cottons Eco *	8	1000	60%	1,97
Cottons Iron dry	8	1000	60%	1,50
Synthetics cupboard dry	4 800 40% 0,75
	"Cottons Eco programme" used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this programme is suitable for drying normal wet Cottons laundry and that it is the most efficient programme in terms of energy consumption for Cottons.

* : Energy Label standard program (EN 61121:2012). The values in the table are determined according to the EN 61121:2012 standard. Consumption values may vary from the values in the chart depending on laundry type, wringing speed, ambient conditions, and voltage levels.

Allergy UK is the trademark of the British Allergy Foundation. The Seal of Approval has been created to guide people requesting advice that the product significantly reduces

the amount of allergens in an environment where allergic people are present, or that the product restricts/reduces/eliminates the allergens. The purpose is to provide evidence that the products have been scientifically tested or analyzed to yield measurable results.

5.5 Auxiliary functions

Dryness level

The Dryness level button is used for adjusting to the desired dryness. Program time may change depending on the selection.

NOTE!

You can activate this function only prior to the start of the program.

Wrinkle prevention

You can turn the wrinkle prevention function on and off by pressing the wrinkle prevention selection button. If you will not take the laundry out immediately after the program has completed, you may use the wrinkle prevention function to prevent wrinkling of your laundry.

Audible warning

The drying machine makes an audible warning when the program is completed. Press the "Audible Warning" button if you do not want an audible warning. When you press the audible warning button, the light goes off and it does not sound when the program is completed.

NOTE!

- You can select this function before the program starts or after the program starts.

Low temperature

You can activate this function only prior to the start of a program. You can activate this function if you want to dry your laundry at a lower temperature. The program duration will be longer after it becomes activated.

End time

You can delay the end time of the program up to 24 hours with the end time function.

1. Open the loading door and place the laundry.
2. Select the drying program.
3. Press the End Time selection button and set the delay time you wish. The End Time LED turns on. (When the button is pressed and held, the End Time proceeds non-stop).
4. Press the Start / Stand-by button. The End Time countdown begins. The ":" sign in the middle of the displayed delay time flashes.

NOTE!

- You can add or remove laundry within the end time. The displayed time is the sum of normal drying time and end time. The End Time LED turns off at the end of the countdown, the drying starts, and the drying LED turns on.

Changing the end time

If you want to change the duration during the countdown:

Turn the On/Off/Program Selection button and cancel the program. Select the desired program and repeat the End Time selection. Cancelling the end time function If you want to cancel the end time countdown and start the program immediately: Turn the On/Off/Program Selection button and cancel the program. Select the desired program and press the "Start/Stand-by" button.

Drum Light

You can turn on and off the drum light by pressing this button. The light turns on when the button is pressed and turns off after certain time.

5.6 Warning indicators

NOTE!

- Warning indicators may vary depending on the model of your drying machine.

Filter cleaning

When the program is completed, the warning indicator for filter cleaning turns on.

Water tank

If the water tank fills up while the program continues, the warning indicator starts flashing and the machine goes into stand-by. In this case, empty the water tank and start the program by pressing the Start / Stand-by button. Warning indicator turns off and program resumes.

Cleaning of filter drawer/heat exchanger

Warning symbol flashes periodically to remind that filter drawer must be cleaned.

5.7 Starting the program

Press the Start/Stand-by button to start the program.

The Start/Stand-by and Drying indicators turn on to show that the program has started.

5.8 Child Lock

The drying machine has a child lock which prevents the program flow from being interrupted when the buttons are pressed during a program. When the Child Lock is activated, all buttons on the panel except the

On/Off/Program Selection button are deactivated.

Press the Audible Warning button for 3 seconds to activate the child lock. The child lock must be deactivated to start a new program after the current program is finished or to interfere with the program. To deactivate the child lock, keep the same buttons pressed for 3 seconds.

NOTE!

- When the child lock is activated, the child lock warning indicator on the screen turns on.

When the child lock is active:

The drying machine runs, or in stand-by state the indicator symbols will not change upon changing the position of the program selection button.

NOTE!

- When the drying machine is operating and the child lock is activated, a double beep sound is heard when the program selector switch is turned. If the child lock is cancelled without turning the program selector button back to its original position, the program is terminated since the program selector button is turned.

5.9 Changing the program after it is started

You can change the program you selected to dry your laundry with a different program after the drying machine starts running.

- For example, turn the On/Off/Program Selection button to select the Extra Dry program in order to select the Extra Dry program instead of Ironing Dryness.

- Press the Start/Stand-by button to start the program.

Adding and removing clothes during stand-by If you want to add or remove clothes to/from the drying machine after the drying program starts:

• Press the Start/Stand-by button to put the drying machine in Stand-by state. The drying operation stops.
• Open the loading door while in Stand-by state, and close the door after you remove or add laundry.
• Press the Start/Stand-by button to start the program.

NOTE!

• Adding laundry after the drying operation starts may cause the dried laundry inside the drying machine to mix with wet laundry and leave the laundry damp at the end of operation.
• Adding or removing laundry during drying may be repeated as many times as you wish. But this operation continuously interrupts the drying operation, and thus increases program duration and energy consumption. So, it is recommended to add laundry before the program starts.
• If a new program is selected by turning the program selection button while the drying machine is in stand-by, the running program terminates.

WARNING!

- Do not touch the inner surface of the drum while adding or removing clothes during a continuing program. The drum surface is hot.

5.10 Cancelling the program

If you want to cancel the program and terminate the drying operation for any reason after the drying machine starts running, turn the On/Off/Program Selection button; the program terminates.

WARNING!

- The inside of the drying machine shall be extremely hot when you cancel the program during machine operation, so run the refreshing program to allow it to cool down.

5.11 End of program

When the program ends, the LED's of End/Wrinkle Prevention and Fibre Filter Cleaning Warning on the program follow-up indicator turn on. Loading door can be opened and drying machine is ready for another operation. Turn the On/Off/Program Selection button to On/Off position in order to turn off the drying machine.

NOTE!

- If the Wrinkle Prevention mode is active and the laundry is not removed after the program is completed, the wrinkle prevention function activates for 2 hours to prevent the laundry inside the machine to get wrinkled. The program tumbles the laundry with 10-minute intervals to prevent them from wrinkling.

5.12 Odour feature

If your drying machine has odour feature, read the ProScent manual to use this feature.

6 Maintenance and cleaning

6.1 Loading Door Inner Surface

The hair and fibres that are separated from the laundry during drying process is collected by the Fibre Filter.

NOTE

• Fibres are formed during wearing and washing clothes.
• You can clean the filter slot with a vacuum cleaner.

WARNING!

- After each drying cycle, clean the fibre filter and the inner surface of the loading door.

To clean the fibre filter:

• Open the loading door.
• Hold the first part (inner filter) of the two-part fibre filter and remove it by pulling it upwards.
• Collect the hair, fibres, and cotton balls with your hand or with a soft cloth.
• Remove the second part (outer filter) by pulling it upwards.

NOTE

• Ensure that hair, fibre, and cotton balls do not fall into the slot where the filters are installed.
• Open both fibre filters (inner and outer filters) and remove the hair, fibre, and cotton balls with your damp hand, a vacuum cleaner, or a cloth.

Clean both filters under running water in the reverse direction of fibre accumulation, or with a soft brush. Dry the filter before placing it back.

Insert the fibre filters one on another and place them back in their place.

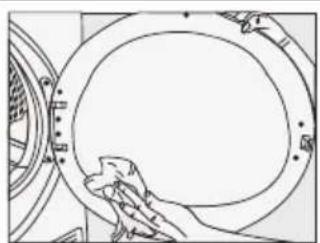

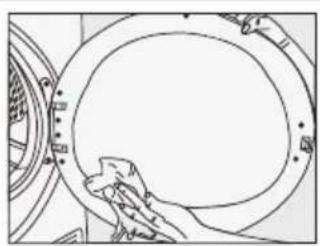

Clean the loading door interior and its washer with a soft damp cloth.

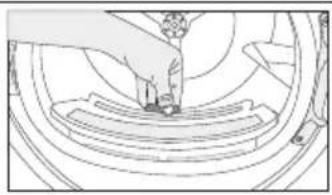

6.2 Cleaning the sensor

There are dampness sensors in the dryer that detect whether the laundry is dry or not.

To clean the sensors:

• Open the loading door of the dryer.
• Allow the machine to cool down if it is still hot due to the drying process.
• Wipe the metal surfaces of the sensor with a soft cloth dampened with vinegar, then dry them.

NOTE

• Clean the metal surfaces of the sensors 4 times a year.
• Do not use metal tools when cleaning the metal surfaces of the sensors.

WARNING!

- Never use solvents, cleaning agents, or similar substances for cleaning due to the risk of fire and explosion!

6.3 Draining the water tank

Dampness from the laundry is removed and condensed during the drying process, and the water that arises accumulates in the water tank. Drain the water tank after each drying cycle.

WARNING!

• Condensed water is not drinkable!
• Never remove the water tank when the program is running!

If you forget to drain the water tank, the machine will stop during subsequent drying cycles when the water tank is full, and the Water Tank warning symbol will flash. If this is the case, drain the water tank and press the Start/Pause button to resume the drying cycle. To drain the water tank:

1. Carefully remove the water tank from the drawer or container.

1. Drain the water in the tank.

• If there is lint accumulation in the funnel of the water tank, clean it under running water.
• Place the water tank into its seat.

NOTE

- If the direct water draining is used as an option, there is no need to empty the water tank.

6.4 Cleaning the evaporator

The hair and fibres that are not caught by the fibre filter go to the fins of the evaporator behind the toe board and accumulate here. If the evaporator icon is flashing or in 6 month periods, clean the evaporator.

- Open the toe board by pressing on it.

• To open the air routing door, move the release latch.

- Clean the fibres on the evaporator with a damp cloth / vacuum cleaner with a brush by moving upwards and downwards.

- After the cleaning process is completed, place the air router door to its place, move the latches to close it and close the toe board.

WARNING!

• You can clean by hand, provided you wear protective gloves. Do not try to clean with bare hands. Evaporator fins may damage your hands.
• Cleaning by left to right movements may damage the evaporator fins. This may lead to drying issues.

7 Troubleshooting

Drying operation takes too long.

Fibre filter (interior and exterior filter) pores may be clogged. >>> Wash the fibre filters with warm water and dry.

Evaporator front side may be clogged. >>> Clean the front side of the evaporator.

The ventilation grills in front of the machine may be closed. >>> Remove any object in front of the ventilation grills that blocks air.

Ventilation may be inadequate because the room where the machine is installed is too small. >>> Open the door or windows to prevent the room temperature from rising very high.

A lime layer may have accumulated on the humidity sensor. >>> Clean the humidity sensor.

Excessive amount of laundry might be loaded. >>> Do not load the drying machine excessively.

Laundry might not have been wrung adequately. >>> Perform a higher speed wringing on the washing machine.

Clothes come out damp after drying.

A program not suitable for the laundry type may have been used. >>> Check the maintenance labels on the clothes and select a program suitable for the clothes' type or use time programs as extra.

Fibre filter (interior and exterior filter) pores may be clogged. >>> Wash the filters with warm water and dry.

Evaporator front side may be clogged. >>> Clean the front side of the evaporator.

Excessive amount of laundry might be loaded. >>> Do not load the drying machine excessively.

Laundry might not have been wrung adequately. >>> Perform a higher speed wringing on the washing machine.

Drying machine does not turn on or program cannot be started. Drying machine does not run after it is configured.

Power plug might be unplugged. >>> Make sure the power cord is plugged in.

Loading door might be open. >>> Ensure that the loading door is properly closed.

A program might not be set or the Start / Pause / Cancel button might not be pressed. Check that the program is set and it is not in Pause position.

Child lock may be activated. Turn off the child lock.

Program terminated prematurely for no reason.

Loading door might not be closed completely. Ensure that the loading door is properly closed.

There might be a power outage. Press the Start / Pause / Cancel button to start the program.

Water tank may be full. Empty the water tank.

Clothes have shrunk, hardened or spoiled.

A program not suitable for the laundry type might have been used. Check the maintenance labels on the clothes and select a program suitable for the clothes.

Water drips from the loading door.

Fibres might have gathered on the inner sides of the loading door and the loading door gasket. Clean the inner surfaces of the loading door and the loading door gasket surfaces.

Loading door opens by itself.

Loading door might not be closed completely. Push the loading door until the closing sound is heard.

Water tank warning symbol is on/flashing.

Water tank may be full. Empty the water tank. Water discharge hose might have collapsed. If the product is connected directly to the water drain, check the water discharge hose.

The lighting inside the drying machine does not turn on. (In models with lamp)

The drying machine might not have been turned on using the On/Off button. >>> Check that the drying machine is turned on.

The lamp might be malfunctioning. >>> Contact Authorized Service to replace the lamp.

The Anti-crease icon is lit.

Anti-Crease mode that prevents the laundry in the drier from creasing may be activated. >>> Turn the drier off and remove the laundry.

The fibre filter cleaning icon is lit.

The fibre filter (interior and exterior filter) may be unclean. >>> Wash the filters with warm water and dry.

A layer may be formed on the fibre filter pores that leads to clogging. >>> Wash the filters with warm water and dry.

The fibre filters may not be inserted. >>> Insert the interior and exterior filters into their places.

An audible warning is heard from the machine.

The fibre filters may not be inserted. >>> Insert the interior and exterior filters into their places.

The evaporator warning icon is flashing.

The evaporator front side may be clogged with fibres. >>> Clean the front side of the evaporator.

The fibre filters may not be inserted. >>> Insert the interior and exterior filters into their places.

The lighting inside the drying machine turns on. (In models with lamp)

If the drying machine is plugged into the power outlet, the On/Off button is pressed, and the door is open, the light turns on. >>> Unplug the drying machine or set the On/Off button to the Off position.

WARNING!

- If the problem persists after following the instructions in this section, contact your vendor or an Authorized Service. Never try to repair your product yourself.

NOTE

• In an event that you encounter an issue on any part on your appliance, you can ask for a replacement by contacting the authorized service with the appliance model number.
• Operating the appliance with non-authentic parts may lead the appliance to malfunction.
• Manufacturer and distributor are not liable for malfunctions resulting from using non-authentic parts.

PRODUCT FICHE
Complying Commission Delegated Regulation (EU) No 392/2012
Supplier name or trademark		BEKO
Model name		DS8439TX7188235070
Rated capacity (kg)		8.0
Type of Tumble Dryer	Air Vented	-
	Condenser	●
Energy efficiency class(1)		A++
Annual Energy Consumption (kWh)(2)		234,6
Type of Control	Automatic	●
	Non-automatic	-
Energy consumption of the standard cotton programme at full load (kWh)		1,97
Energy consumption of the standard cotton programme at partial load (kWh)		1,05
Power consumption of the off-mode for the standart cotton programme at full load, Po (W)		0,50
Power consumption of the left-on mode for the standart cotton programme at full load, PL (W)		1,00
The duration of the left on mode (min)		30
Standard cotton programme(3)		●
Programme time of the standard cotton programme at full load, Tdry (min)		197
Programme time of the standard cotton programme at partial load, Tdry1/2 (min)		125
Weighted programme time of the standard cotton programme at full and partial load ( Tt )		156
Condensation efficiency class(4)		B
Average condensation efficiency of the standard cotton programme at full load, Cdry		81%
Average condensation efficiency of the standard cotton programme at partial load, Cdry1/2		81%
Weighted condensation efficiency of the standard cotton programme at full load and partial load, Ct		81%
Sound power level for the standard cotton programme at full load(5)		65
Built-in		-

: Yes - : No

(1) Scale from A+++ (most efficient) to D (least efficient)

(2) Energy consumption based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used.

(3) "Cotton cupboard dry programme" used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this programme is suitable for drying normal wet cotton laundry and that it is the most efficient programme in terms of energy consumption for cotton

(4) Scale from G (least efficient) to A (most efficient)

(5) Weighted average value — L_WA expressed in dB(A) re 1 pW

NOTE

NOTE

7 Troubleshooting
