Pump Air ANC - Headset BLUEANT - Free user manual and instructions

Product Type	Wireless Active Noise Cancelling Headphones
Brand	BlueAnt
Model	Pump Air ANC
Driver Size	40 mm
Frequency Response	20 Hz - 20 kHz
Impedance	32 ohms
Connectivity	Bluetooth 5.0
Active Noise Cancellation	Yes, hybrid ANC
Battery Life	Up to 30 hours (ANC off)
Charging Time	Approximately 2 hours
Battery Type	Rechargeable lithium-ion
Charging Port	USB-C
Weight	Approximately 250 g
Dimensions (folded)	7.5 x 6.3 x 2.8 inches
Microphone	Built-in, with noise suppression
Controls	Buttons for power, volume, ANC, playback
Compatible with	Smartphones, tablets, computers via Bluetooth or 3.5mm cable
Accessories Included	USB-C charging cable, 3.5mm audio cable, user manual
Maintenance	Clean with a soft, dry cloth. Do not use liquids.
Safety Warnings	Avoid exposure to extreme temperatures. Do not disassemble.
Spare Parts & Repairability	Contact BlueAnt support for replacement ear pads or batteries.
Warranty	1 year limited warranty

Frequently Asked Questions - Pump Air ANC BLUEANT

How do I pair the Pump Air ANC with my phone?

Ensure the headphones are off. Press and hold the power button for 5 seconds until the LED flashes blue and red. Enable Bluetooth on your phone and select 'Pump Air ANC' from the list.

How do I activate Active Noise Cancellation?

Press the ANC button on the left earcup. A voice prompt will confirm 'ANC On' or 'ANC Off'. You can cycle through modes: ANC On, Transparency, and Off.

What is the battery life with ANC on?

With ANC activated, the battery lasts up to 20 hours. Without ANC, it can last up to 30 hours.

Can I use the headphones while charging?

Yes, you can use the headphones in wired mode via the 3.5mm cable while charging, but wireless playback is not possible during charging.

How do I reset the Pump Air ANC?

To reset, press and hold the power button and ANC button simultaneously for 10 seconds until the LED flashes red twice. The headphones will turn off and then turn on.

Are the ear cushions replaceable?

Yes, the ear cushions are replaceable. You can purchase replacements from the BlueAnt website or authorized dealers.

How do I clean the headphones?

Use a soft, dry cloth to wipe the exterior. For ear pads, gently wipe with a slightly damp cloth and air dry. Do not use abrasive cleaners.

What is the warranty period?

The BlueAnt Pump Air ANC comes with a 1-year limited warranty against manufacturing defects.

Can I connect to multiple devices?

Yes, the headphones support multipoint Bluetooth connection, allowing you to connect to two devices simultaneously.

How do I update the firmware?

Firmware updates are available through the BlueAnt app. Download the app, connect your headphones, and follow the on-screen prompts to update.

USER MANUAL Pump Air ANC BLUEANT

Close-up of a black wireless earbuds with a black handle against a black background (no text or symbols visible)

AIR ANC

Close-up of a black wireless earbuds with a logo on the head (no visible text or symbols)

Active Noise Cancellation Earbuds

User Manual

Black wireless earbuds with open lid, no visible text or symbols

Black handheld gaming controller with a circular head and handle (no visible text or symbols)

Welcome

Thank you for purchasing the BlueAnt Pump Air ANC, Active Noise Cancellation Earbuds. Please read through this manual to get the most out of your earbuds.

Inside the box

Line drawing of a blue earbuds device with no visible text or symbols

1 x Pump Air ANC Earbuds

3 x Sizes of ComfortSeal Tips
User Manual Pack
1 x Charging Cable

Charging your Pump Air ANC

Line drawing of an open dental appliance case with a lid and internal compartments (no text or symbols)

1. Open the charging case

Diagram of two wireless earbuds with labeled buttons and directional arrows indicating rotation (no text or symbols)

1. Place earbuds in case

Line drawing of a rounded rectangular electronic device with a lid and buttons (no text or symbols)

1. Close the lid

Charging your Pump Air ANC cont'd

Simple line drawing of a device casing with a handle and rounded top (no text or symbols)

Use the supplied charging cable. Please use only 5V/1A chargers.

Two identical mechanical lock knobs with a handle, labeled 'a' (no text or symbols on the keys themselves)

The Pump Air ANC takes 2 hours for a full charge.

Line drawing of a closed electronic device with a lid and buttons (no text or symbols)

The Pump Air ANC charging case, takes 2 hours for a full charge. The charging case should charge the earbuds 4 times.

Charging your Pump Air ANC cont'd

Line drawing of a square electronic device with a lid and internal components (no text or symbols)

When charging the charging case LED will display the charging case's battery level.

Two identical hand tools with circular buttons and a small bow icon, labeled B and G (no text or symbols on the keys)

• The charging case has 1 light with 3 colors. These signify the charge level of the charging case.
• below 10% light will stay on red for 10s 10%-50% light will stay on yellow for 10s 50%-100% light will stay on green for 10s After a full charge the light will turn off. Please unplug the charging case.
• When the earbuds power on and connect with your device, they will announce High, Medium or Low battery level. When low, please recharge the earbuds by placing them in the case.
• To charge the earbuds, put the earbuds in the charging case. The LED on earbuds will turn blue. When fully charged the light will turn off.

Let's Get Started | Pairing

In order to get started using the Pump Air ANC, we need to pair it to your phone.

1. Please remove both earbuds from the charging case, and put them in your ears.
2. After a few seconds, they will play a sound in each ear, to let you know that both are connected.
3. When the ear buds power on for the first time, they will go into pairing mode.
4. Now search your phone for 'BlueAnt Pump Air ANC' and pair.
5. The earbuds will auto-reconnect to your phone whenever you take it out of the charging case, and power off when you put it back in.

If you need to pair with another phone, press and hold the right hand side command button, to power off the earbuds. Then let go of the button, then press and hold the button for 5 seconds until you hear the earbud saying, 'Bluetooth pairing'. Repeat the pairing process on the new phone.

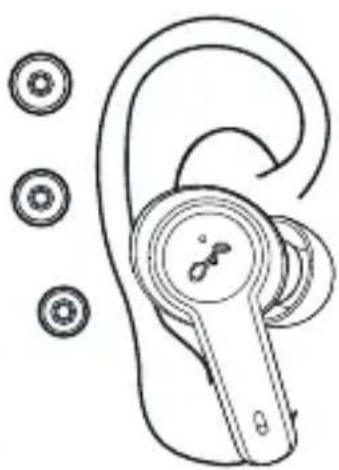

Let's Get Started | Fit

Line drawing of a handheld electronic device with a circular head and handle (no text or symbols)

To ensure the best sound, you need the best fit. Having the best fit creates a seal and enhances the bass performance.

The diagram on the right, is how the earbuds should sit in your ear. There are 3 sizes of ComfortSealTips - Small, Medium and Large.

Line drawing of a wireless ear with earbuds and circular buttons, no text or symbols present

To get the most out of the earbuds, it's best to try out each of the sizes to get the best fit.

Button Functions

Active Noise Cancellation (ANC)

ANC - Single tap on Left earbud (default)

Transparency - Single tap on Left earbud

ANC & Transparency Off - Single tap on Left earbud

Music

Tap Right earbud once to Play/Pause

▶▶| Double tap the Right earbud to Skip Forward

Double tap Left earbud to Skip Back

Call Control

Tap MFB once on either earbud to Answer/End Call

Press and hold MFB on either earbud to Reject Call

Siri/Google

Tap MFB on Right earbud three times to Activate/Cancel Siri/Google

Volume

When music is playing or on a call

Press and hold the MFB on the Right earbud to increase volume

Press and hold the MFB on the Left earbud to decrease volume

Power

Technical line drawings of three types of wireless earbuds (no text or symbols present)

1. When you take the ear buds from the charging case, they will automatically power on and try to reconnect to the last phone they were connected to.
2. When you replace the ear buds in the charging case they will automatically power off and disconnect from the connected phone.
3. To power on without the charging case, press and hold the MFB for 2 seconds. To power off without the charging case, press and hold the right earbud MFB for 6 seconds.

4. To pair without the charging case from off, press and hold the right earbud MFB for 5 seconds, and then pair with your phone. Then press and hold the left earbud MFB for 2 seconds to power it on.

5. The earbuds announces when the battery is low, when there is about 30 mins of play time left.
   • The earbuds features an iPhone battery meter.

6. Mono Operation: It is possible to use the earbuds as a mono headset. Simply remove one of the earbuds from the charging case.

Troubleshooting your Pump Air ANC

If you have purchased a new ear bud after losing one or find that your left and right ear buds have become disconnected please follow the instructions below to reconnect the left and right ear buds.

Please delete any pairing from your phone and turn bluetooth off on your phone. Place the Pump Air ANC ear buds into the charging case and close the lid. Leave the ear buds in the charging case with the lid closed for at least 15 seconds.

Now remove both ear buds from the charging case. Please place the ear buds next to each other and wait for 15 seconds. The ear buds will now pair to each other.

Once they are connected to each other the left ear buds led will turn solid blue and the right ear buds will flash signifying it is in pairing mode.

On your phone re-enable bluetooth and pair to the Pump Air ANC.

Legal

PLEASE PROTECT YOUR EARS. BlueAnt devices can reach volumes above 100 decibels. Prolonged use at high volumes may affect your hearing capacity and may result in noise induced hearing loss (NIHL). Please read the enclosed safety card for information about the safe use of BlueAnt products. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by BlueAnt Wireless is under license. Android is a trademark of Google Inc., Apple, iPhone and Siri are trademarks of Apple Inc., registered in the U.S. and other countries. BlueAnt and other trademarks are trademarks of BlueAnt and other organisations and may not be used without permission. The BlueAnt logo is registered in the U.S. Patent and Trademark Office and globally with the World Intellectual Property Organisation under the Madrid protocol.

Support

For help and support, visit: support.blueantwireless.com

Register your Pump Air ANC for updates: register.blueantwireless.com By using this product, you agree to the terms and conditions listed on the BlueAnt website: www.blueantwireless.com

Sweatproof

The Pump Air ANC earbuds are sweatproof, while the charging case is not. Please take care to avoid moisture and liquids, entering the charging case.

SAFETY INFORMATION AND WARRANTY TERMS

Important Safety Information

PLEASE READ THIS ENTIRE DOCUMENT CAREFULLY, BECAUSE IT CONTAINS IMPORTANT INFORMATION ABOUT THE SAFE USE OF BLUEANT DEVICES

WARNING - PROTECT YOUR HEARING

BLUEANT DEVICES CAN REACH VOLUMES ABOVE 100 DECIBELS.

ONLY CHARGE WHEN DEVICE IS CLEAN AND DRY

PROLONGED USE AT HIGH VOLUMES MAY AFFECT YOUR HEARING CAPACITY AND MAY RESULT IN NOISE INDUCED HEARING LOSS (NIHL). TURN OFF THE POWER TO YOUR DEVICE WHEN NOT IN USE.

Please ensure that the device and any associated components such as ear gels or chargers, are stored safely and that any packaging or unwanted contents are disposed of thoughtfully. Do not place the product on the floor or leave it in a place, where young children could access it, or someone could trip over it

Using Ear Gels

Your BlueAnt earbuds will come with eargels or foam tips that are designed to provide a secure fit in your ear, while providing high quality audio

- Ear gels and tips are designed to sit comfortably in your ear and should not be forced into your ear at any time. If you have

trouble fitting the ear gel or foam, please refer to the owner's manual for correct insertion and usage information.

Always make sure that the ear gel or foam is fitted securely to your device, before placing it in your ear.

WARNING

NOTE THAT NON COMPLIANCE, MISUSE OR FORCING THE EAR GEL OR FOAM MAY CAUSE DAMAGE TO YOUR EAR CANAL EARDRUM, OR MAY OTHERWISE CAUSE BODILY HARM

Care and Handling

Your BlueAnt Bluetooth device is a precision engineered instrument. To ensure its ongoing performance, you should look after it as you would any quality consumer electronic product, and use it in accordance with the instructions.

BlueAnt recommends that you take the following precautions.

• Avoid leaving your device in direct sunlight, such as on the dashboard or console of a car or truck. Do not leave your device unattended in your vehicle.
• Do not leave your device, or use your device, in any area where the temperature may exceed 60 degrees Centigrade (140 degrees Fahrenheit),

such as inside a closed car on a hot day. Remember that on a hot day, the temperature inside a closed car may be significantly higher than the outside air temperature.

• Do not leave your device, or use your device, in any area exposed to humidity, dust, soot, other foreign objects, smoke, or steam as this may cause your device to malfunction.
• Do not use any household or industrial grade detergents or cleaners to clean your device. If your device becomes dirty or smeared, in most instances, a wipe with a dry or slightly damp cloth should be sufficient to clean it.
• Do not leave your Bluetooth device, plugged into a wall or car charger for long periods after it is fully charged. BlueAnt does not recommend long periods of continued charging.
• Before charging your BlueAnt device, make sure that the AC outlet, adaptor and cable are not damaged. If you notice any abnormalities, seek advice from a

qualified professional.

• If travelling internationally, ensure that your BlueAnt wall or car power adapter is approved for use in the country where you plan to use it and that the adapter voltage is suited to the local power supply.
• Should a fault develop with your BlueAnt product, contact BlueAnt for advice on how to proceed. Do not attempt to repair or alter any BlueAnt product yourself.

Approved Accessories

The use of accessories not approved by BlueAnt, including but not limited to batteries, antennas, wall adapters, car chargers, ear gels, foam tips and convertible covers, may cause your BlueAnt device to malfunction, or in the case of non-approved electrical accessories, may cause the device to exceed RF energy exposure guidelines. Use only 5V/1A chargers.

Use of non approved accessories will void your device's warranty. For a list of approved BlueAnt accessories, visit our website www.blueantwireless.com

Electromagnetic Interference

Nearly every electronic device is susceptible to electromagnetic interference (EMI) if inadequately shielded, designed, or otherwise for electromagnetic compatibility.

Similar to a mobile phone, your BlueAnt device is a low power transmitter/receiver and is covered by regulations in any facility where posted notices instruct you to do so. These facilities may include hospitals or health care facilities that may be using equipment that is sensitive to external RF energy.

- When instructed to do so, turn off your BlueAnt device when you board an aircraft. Any use of a mobile device must be in accordance with applicable laws, regulations and airline crew instructions.

• Some Bluetooth devices may interfere with some hearing aids. In the event of such interference, you may want to consult your hearing aid manufacturer or physician to discuss alternatives.
• If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your doctor or physician may be able to assist you in obtaining this information.
• If you are in doubt whether your BlueAnt device or mobile phone can be safely turned on or used, please consult an authorised person in the location you want to use your BlueAnt device. If no authorised person is available, or you remain uncertain, BlueAnt recommends that you turn off your Bluetooth device and any mobile phones unless they are required in an emergency situation.

BlueAnt Limited Global Warranty

This product is covered by BlueAnt's limited global warranty for one (1) year from the date of purchase by the first consumer purchaser of the product.

Please refer to the warranty.blueantwireless.com for full terms and conditions.

Register your BlueAnt product for warranty and new product updates at register.blueantwireless.com

THANK YOU FOR CHOOSING A BLUEANT PRODUCT

AUSTRALIAN CONSUMER LAW

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if goods fail to be of acceptable quality and the failure does not amount to a major failure.

For warranty and technical support, please email [e-mail] visit: www.blueantwireless.com or call 1300 669 049

BlueAnt Wireless Suite 6, 861 Doncaster East, VIC 3109, Australia

Caring for the Environment by Recycling

Do not dispose of Bluetooth accessories, such as chargers or headsets, with your household waste. In some countries or regions, collection systems are set up to handle electrical and electronic waste items, and may prohibit or restrict how such items are disposed of. Check the laws and regulations for your areas to determine how to properly dispose of such items. Contact your regional authorities for more details.

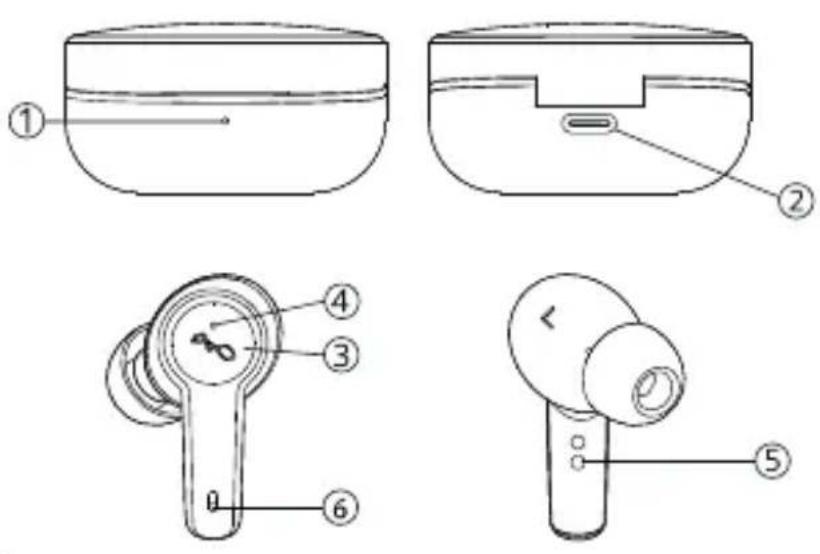

Get to know your Pump Air ANC

Item	Function
1	Charging Case LED Light
2	Charging Port
3	Multifunctional (MFB)/Command Button
4	Earbud LED
5	Magnetic Charging Pin
6	Earphone Mic
