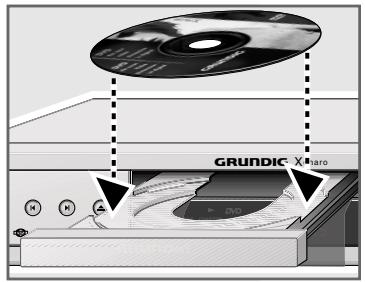

MP3 CD playback

31

AUDIO CD playback

Audio CD features

Before playback

Audio functions

34

Parental lock

Locking and releasing the disc tray of the DVD player

Authorising the contents of a DVD

36

Sound settings

Setting the (dynamic) volume range

Adapting the analogue output to the HiFi system

Surround sound settings

Bass settings for the loudspeakers

40

Picture settings

Selecting the picture format for your television

Selecting filter functions

43

Custom settings

Settings in the Player menu menu

Setting the screen menu and the display of the DVD player

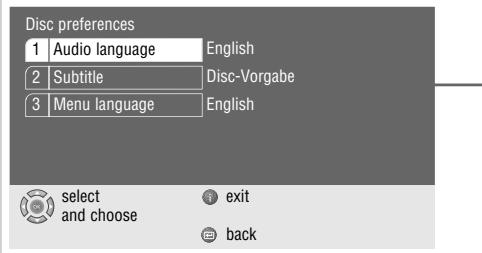

Language settings

CONTENTS

48

Using external devices

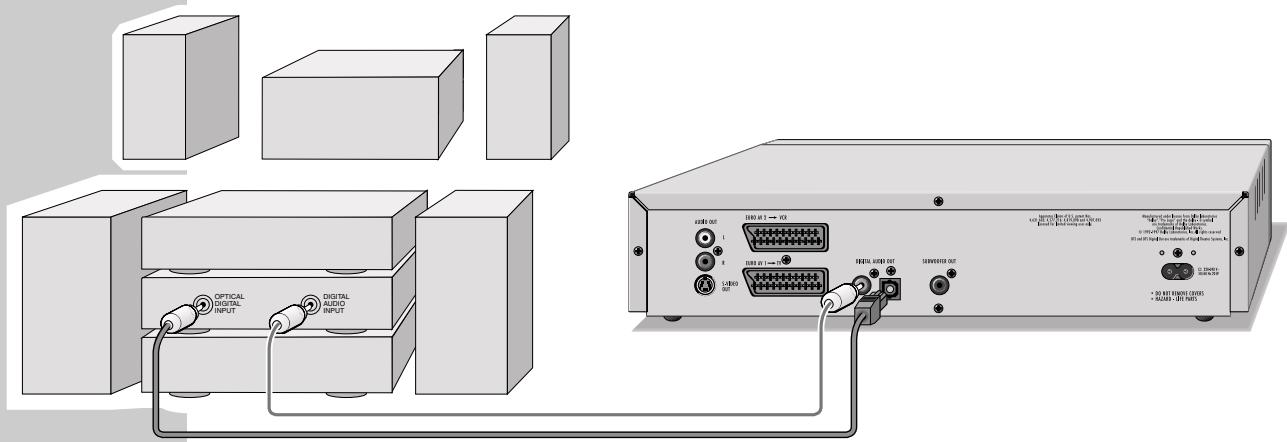

Connecting digital amplifiers

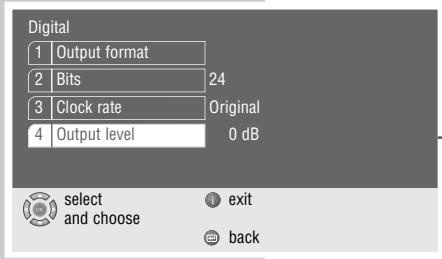

Adapting the digital output to a digital multi-channel amplifier

Connecting a video recorder

52

Television remote control

54

Video recorder remote control

55

Information

Technical data

General instructions for laser devices

Rectifying minor problems

Cleaning CDs and DVDs

GRUNDIG Service

GDP 5120 DVD PLAYER

Special features of your DVD player

Your DVD player gives you perfect digital video playback in studio quality.

It also provides superb cinema-quality audio playback – in stereo or with digital multi-channel sound – depending on the type of DVD and the HiFI system or stereo television.

Your DVD player is equipped with a multi-channel decoder for Dolby digital and DTS digital Surround Sound.

Other features of DVD video include the choice of audio channel and language, choice of subtitle language, and various camera recording angles.

In addition to DVDs, your DVD player can also play MP3, video and audio CDs. Your DVD player is suitable for DVDs with regional code 2.

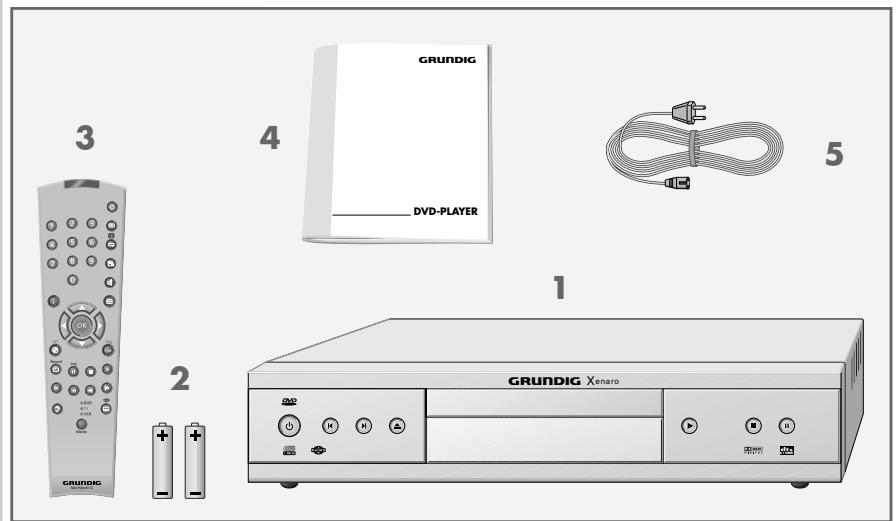

Packing contents

1 GDP 5120 DVD player
2 2 batteries, 1.5V , micro type
3 Remote control
4 Operating manual
5 Power cord
6 EURO-AV cable

SET-UP AND SAFETY

Please note the following points when setting up the DVD player:

This DVD player set is designed to play video and audio signals from compact discs (DVD and CD).

Any other use is expressly prohibited.

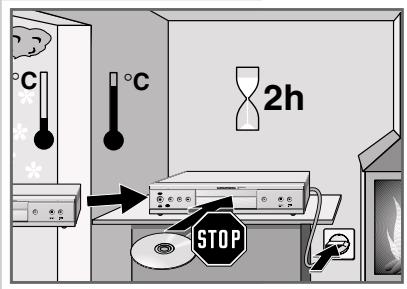

If the DVD player is subject to a sudden change in temperature, for example if brought in from the cold to a warm room, connect it to the mains supply and let it stand for at least two hours before you insert a DVD.

The DVD player is designed for use in dry rooms. If you do use it in the open, please ensure that it is protected from moisture, such as rain or water splashes.

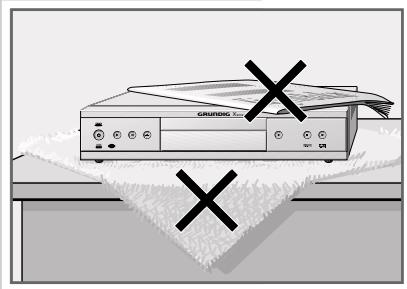

Place the DVD player on a hard, level surface. Do not place any objects such as newspapers on the DVD player or any cloth or similar articles underneath it.

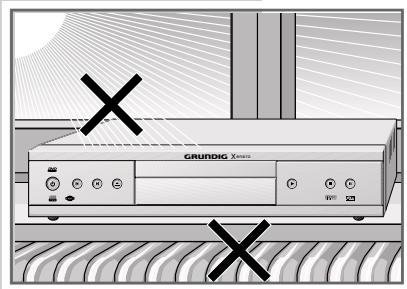

Do not place the DVD player close to heating units or in direct sunlight, as this will impair cooling.

Do not insert foreign objects in the air vents or the disc compartment.

Never open the DVD player casing under any circumstances. The manufacturer accepts no liability for damage resulting from improper handling.

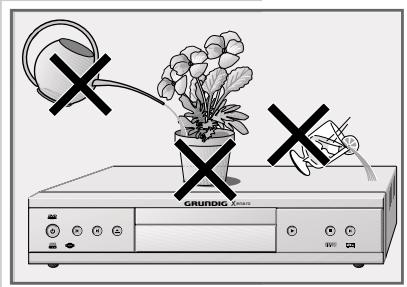

Do not place any vessels such as vases on the DVD player, as they may spill liquid, thus presenting a safety risk.

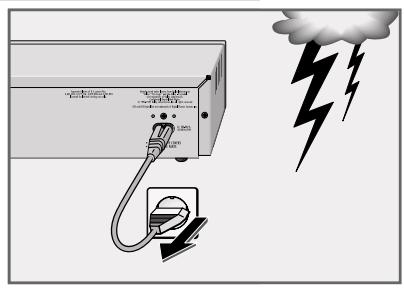

Thunderstorms are a danger to all electrical devices. Even if the DVD player is switched off, it can be damaged by a lightning strike to the mains. Always remove the mains plug during an electrical storm.

If the DVD player is unable to scan DVDs or CDs perfectly, use a standard commercial cleaning CD to clean the laser optics. Other cleaning methods may damage the laser optics.

Always keep the disc compartment closed to prevent dust from collecting on the laser optics.

This DVD player is designed to the highest technological and environmental standards. Only ecologically compatible, high quality materials have been used. The batteries included are free of mercury and cadmium.

The range of materials used has been deliberately restricted and all the larger plastic parts have been labelled. This DVD player is easily disassembled to make servicing easier and optimise recycling.

Guarantee:

We wish to point out explicitly that only operating software authorized by GRUNDIG is permissible for the DVD player. You can obtain this software from your dealer, or in the near future from the Grundig Websites www.grundig.com or www.grundig.de. Any instance of operating software from a dubious Internet source being loaded into the device will impair functioning and also, due to unauthorized intervention, invalidate any claims under the guarantee. As a rule, GRUNDIG declines to refund any costs resulting in such cases. Any repair costs thus due, even those occurring within the guarantee period, are to be paid by the customer.

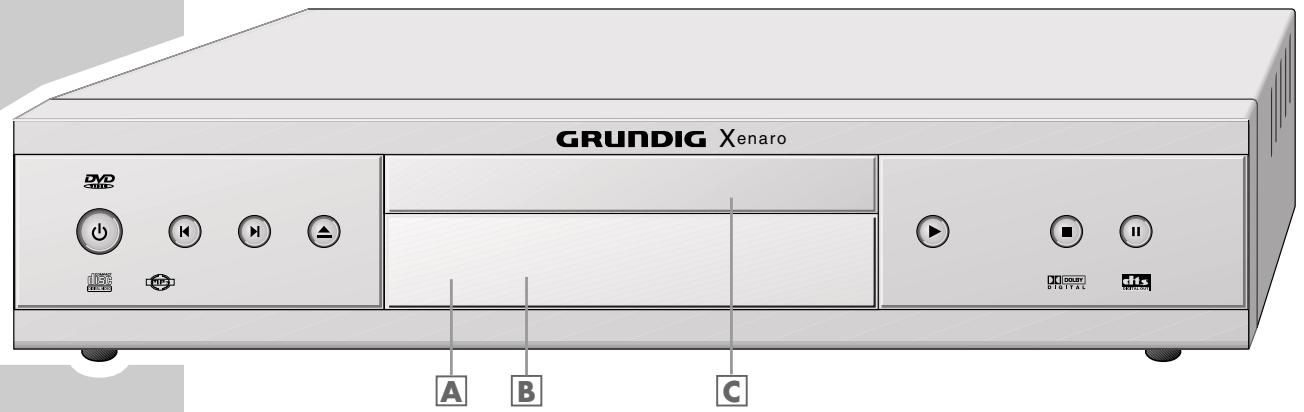

The front of the DVD player

Press once to switch the DVD player from Low-Power Stand-by to Stand-by. Press again to switch the DVD player on.
To switch to Stand-by, press once. To switch to Low-Power Stand-by, press longer.
Brief display: LP StbY.
Switching the DVD player off does not mean it is disconnected from the mains.
Selects the previous title or section during playback.
▶ Selects the next title or section during playback.
Opens and closes the disc compartment.
A Stand-by indicator.
B Display.
C Compartment for DVDs/CDs.
Starts playback.

Press and hold down to switch the video strobe function on.

Press once to activate the "RESUME" function.

Press twice to switch to "STOP" mode.

Press once to pause.

Press twice to advance the picture playback frame by frame.

Press and hold down to start the playback at half speed (slow motion).

The back of the DVD player

AUDIO OUT L R

Audio output jacks (left/right channel) for connection to a HiFi system.

S-VIDEO OUT

Video-output jack for connecting a television set with an S-VIDEO jack.

EURO AV VCR

Video音频 output jack for connecting a video recorder.

OVERVIEW

EURO AV TV

Video/ audio output jack for connecting a television set.

DIGITAL AUDIO OUT

Audio output jack (coaxial and optical) for PCM/MPEG2/AC3/DTS signals, for connecting a digital multi-channel audio-/video amplifier.

MULTI-CHANNEL 5.1 AUDIO OUT

Multi-channel/ audio output jacks.

FRONT LR

Audio output socket, for connecting an amplifier for front loudspeakers or active front loudspeakers.

CENTER

Audio output socket, for connecting an amplifier for a middle loudspeaker or an active middle loudspeaker.

SUBWOOFER

Audio output socket, for connecting an amplifier for a subwoofer or an active subwoofer.

REAR LR

Audio output socket, for connecting an amplifier for surround loudspeakers or active surround loudspeakers.

220-240V~50/60Hz 20W

Socket for power cord.

Caution:

Do not connect any devices while the DVD player is switched on.

Never touch the inside of the sockets and plugs of the connecting cables. An electrostatic discharge can damage the DVD player.

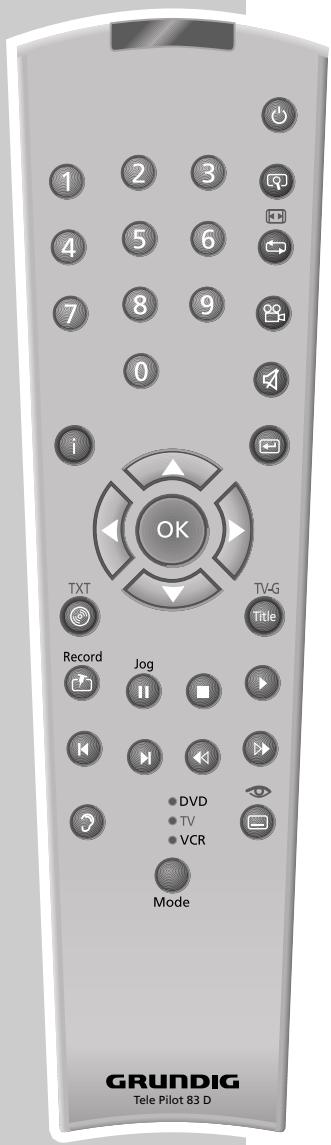

The remote control

Switches the DVD player on from stand-by mode (the red indicator on the DVD player is lit) and off again (stand-by).
1 ... 0 Numeric keys for various inputs.
Zooms in on scenes during playback.
For marking and repeating sections on DVDs and video CDs or tracks on audio CDs.
Selects various camera angles for certain scenes or passages on the DVD during playback.
i Calls up the DVD player menu.
Switches the sound of the television set off (mute).
Quts the menu or returns to the previous menu level.
Select various functions in the menus.
Select various functions in the menus.

« quits the menu or returns to the previous menu level.
OK Displays various information on the television screen during playback, such as the title or chapter number and playing time. Confirms selections made from the menus.
Calls up the disc menu of the DVD/video CD during playback; switches the content menu of a MP3 CD on and off.
Title Calls up the title menu of a DVD during playback; calls up the info menu of a MP3 CD.
Marks scenes on a DVD.
Freeze-frame for DVDs and video CDs. Pause for audio CDs Press and hold down for slow motion (DVD).
Interrupts the currently running function (STOP).
Starts playback from the point where it was interrupted (Resume).

Selects the previous/next title or section during playback.
Switches to reverse/forward frame search at various speeds during playback.
Switches between the original and the dubbed language during DVD playback.

MODE Switches the remote control from DVD player operation to television or video recorder operation.

The available options are described from page 52 onwards.

For selecting and displaying subtitles on the DVD during playback.

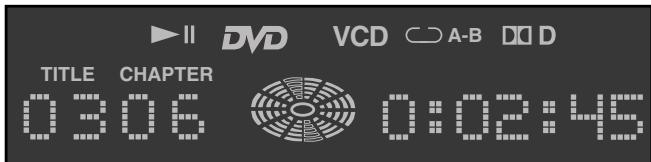

The display elements of the DVD player

Playback.
Pause/Freeze-Frame.
DVD DVD inserted.
VCD>> VCD inserted.
A - B One of the Repeat functions is activated.
» D D « The DVD provides a Dolby Digital audio signal.
/ TITLE> Number of the title on a DVD.
/ CHAPTER << Number of the section on a DVD or CD or the track on a music CD.
Function display for playback, pause, search etc., switched off on delivery.
0:00:00 Total or elapsed playing time in hours, minutes and seconds.

CONNECTION AND PREPARATION

Connecting the television ...

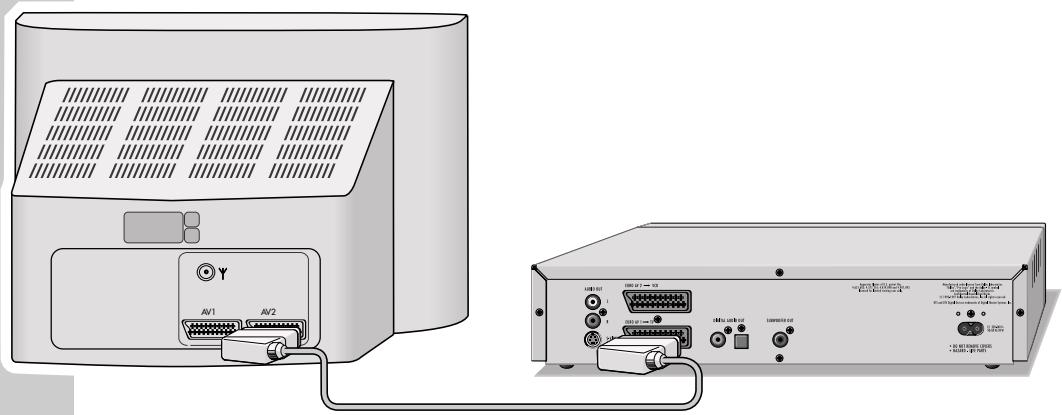

... using a EURO-AV cable

Plug the EURO-AV provided cable into the »EURO AV → TV« socket on the DVD player and into the appropriate socket (AV 2) on the television.

Note:

If the DVD player is connected via the «EURO AV → TV« socket, you must carry out the setting described in "Selecting the video output socket (RGB or S-Video)" on page 17.

... using a Y/C cable (S-VIDEO) and cinch cable

1 Plug a standard Y/C cable into the «S-VIDEO OUT« socket on the DVD player and into the appropriate socket (S-VIDEO IN) on the television.
2 Plug a standard cinch AV cable into the «AUDIO OUT L R« sockets on the DVD player and the appropriate sockets (AUDIO IN) on the television.

CONNECTION AND PREPARATION

Note:

If the DVD player is connected via the «S-VIDEO OUT« socket, you must carry out the setting described in "Selecting the video output socket (RGB or S-Video)" on page 17.

If the DVD player is connected to a television set with a 16:9 format, observe the settings described in the "Selecting the screen format of the television" section on page 16.

The colour norm of the DVD player's screen menus has to be adapted to the format of the television. Make sure to observe the settings described in the "Setting the TV system" section on page 43.

Connecting to a HiFi system with analogue two-channel stereo sound

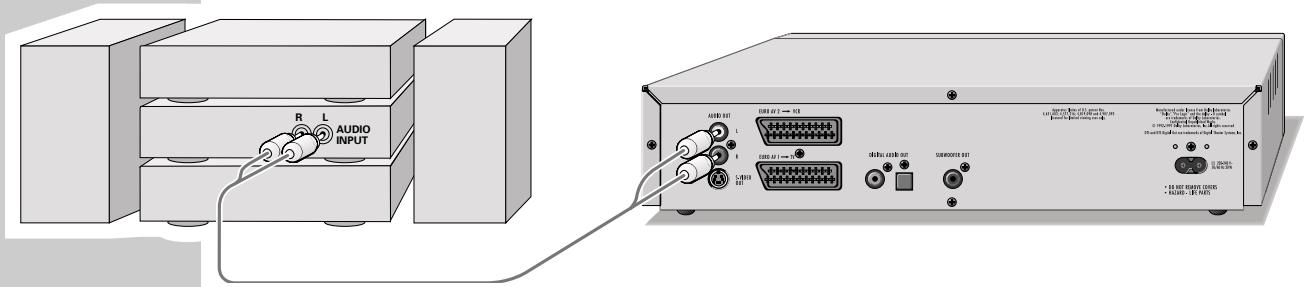

As an alternative to using the television's speakers, the sound can also be played back through a HiFi system.

Plug a standard cinch cable into the «AUDIO OUT L R« sockets on the DVD player and into the appropriate sockets on the HiFi system.

Caution:

Do not connect the DVD player's «AUDIO OUT L R« sockets to the PHONO sockets (record player input) on the HiFi system.

Connecting the power cord

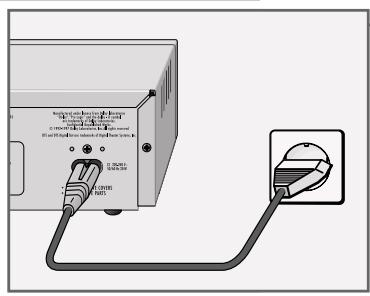

Plug the power cord supplied into the 220 - 240V socket on the back of the DVD player.
2 Insert the power cord plug into the socket.

Caution:

The only way to disconnect the DVD player from the mains supply is to pull the plug.

Inserting batteries in the remote control

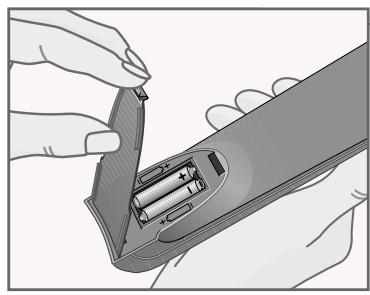

1 Open the battery compartment by pressing the snap-catch, and remove the lid.
2 When inserting the batteries (micro type, for example, LR03 or AAA 2 × 1.5V ), observe the polarity marked on the battery compartment.

Note:

If the DVD player no longer reacts properly to remote control commands, the batteries may be flat. Always remove flat batteries. No liability is accepted for damage resulting from leaking batteries.

Environmental note:

Batteries, including those which are heavy metal-free, may not be disposed of with household waste. Please dispose of used batteries in an environmentally sound manner. Find out about the legal regulations which apply in your area.

Other connection options ...

Connecting a digital amplifier is described on page 48.

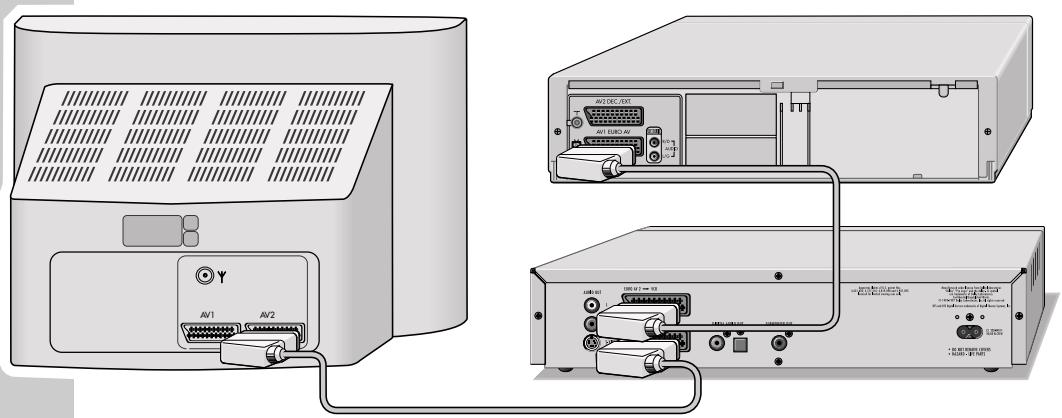

Connecting a video recorder is described on page 51.

Setting the language

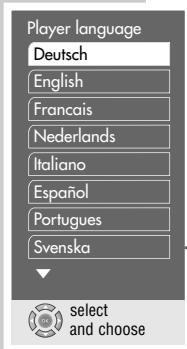

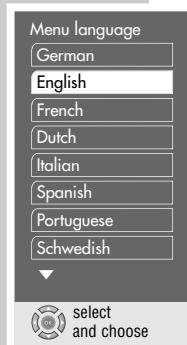

When the DVD player is first operated, the «Player language« menu appears automatically. You can now choose the language of the user guide. When this is selected, the language of the DVD menu and the dubbed language are automatically set in the same language.

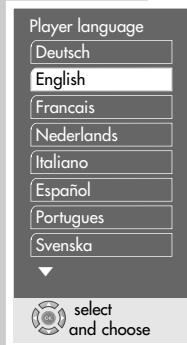

1 Select the desired language for the screen menus using or and press OK to confirm.

Note:

If this setting is not confirmed with «OK«, the «Player language« menu appears when the system is switched on again.

You can change these settings at any time after first operating the system, see the settings in the "Selecting the language of the screen menu" chapter on page 43 and in the "Language settings" chapter on page 46.

Adapting the DVD player to the television set

Selecting the screen format of your television set

If your television has a 16:9 screen format, then select the «16 : 9« setting. These default settings also have an influence on the settings in the «Picture« menu item.

On a conventional television set with a 4:3 screen format, select the «4 : 3« setting.

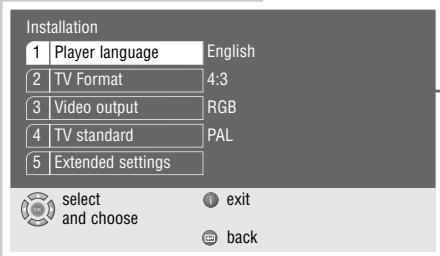

Press i to call up the main menu.

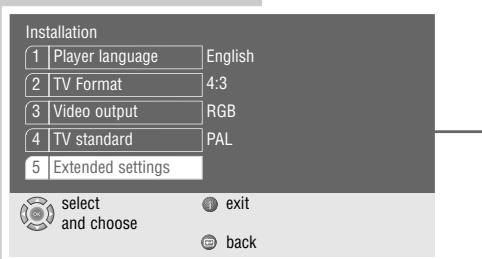

2 Select the «Installation« menu with «▼ « or « ▲ « activate with «OK «, or

select directly using 1 ... 0

3 Select the TV format line with or and activate with OK.
4 Select the screen format required (4:3 or 16:9 wide screen) with or and confirm with OK.

Selecting the video output socket (RGB or S-Video)

1 Select the Video output line with or and activate with OK.
2 Select the desired video output (»RGB« for »EURO AV → TV« socket or «S-Video« for «S-VIDEO OUT« socket) with «▼ « or « ▲ « and confirm with «OK«.
3 Press i\~ to quit the menu.

Video output

RGB

S-Video

select and choose

VIDEO

DIGITALVIDEO

DVD and video CD features

You can recognise DVDs, s-video CDs and video CDs by the logo on the label.

Depending on the contents of the DVD, s-video CD or video CD (films, video clips etc.), they may carry one or more titles.

Each title may contain one or more chapters. Titles and chapters can be selected easily and conveniently.

You can control and direct playback of a DVD, s-video CD or video CD using the menu of the DVD player on the television screen.

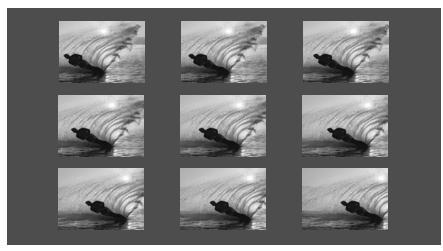

Some of the DVD player's functions, such as video strobe or slow motion, can not be selected when playing back a video CD. This depends on the video CD.

VIDEO

Special DVD features

DVDs have a title menu which provides an overview of the titles available and the passages they contain.

Some of the DVD player's functions, such as slow motion, freeze-frame and auto-play, can also be controlled by the DVD itself. It is therefore possible that the freeze-frame function, for example, cannot be selected during certain scenes.

Many DVDs have audio tracks recorded in up to eight languages.

This enables you to select the language you prefer.

Many DVDs are recorded by the manufacturer with subtitles in several languages. You can select subtitle superimposition from up to 32 different languages.

Since films are released in different parts of the world at different times, all DVD players world-wide are given a regional code. Your DVD player has been given region code 2.

DVDs can also be given a supplementary regional code. If you insert a DVD with different code to that of the DVD player, a reference to the regional code appears on the television screen. The DVD player will not be able to play back the DVD.

Before playback

Preparation

1 Switch on the television and select the channel for the DVD player.
2 If a HiFi system is connected to the DVD player, switch on the HiFi system and select the appropriate audio input for the DVD player.

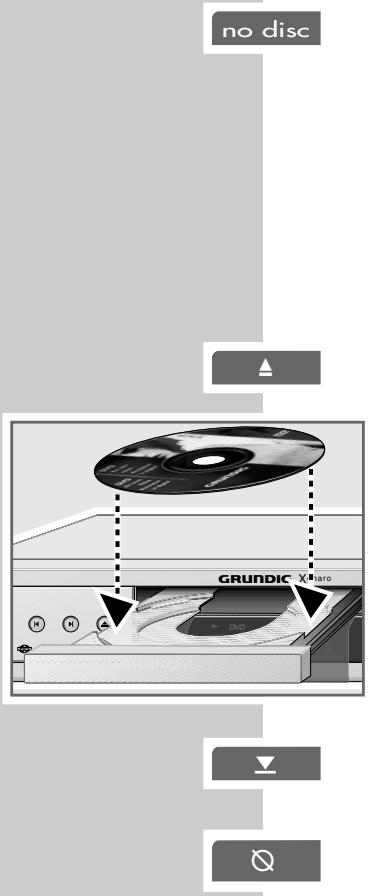

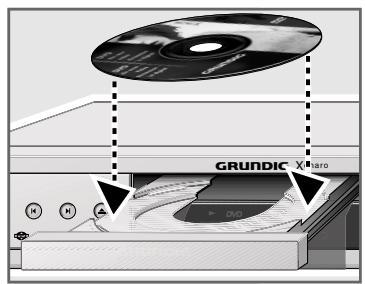

3 Press to switch on the DVD player. On-screen display: no disc.

Note:

When the parental lock is activated, the display appears.

You must deactivate this lock. See the chapters on locking and releasing the disc compartment of the DVD player on page 34.

Inserting a DVD/video CD

Press on the DVD player. - The disc tray opens.
2 Insert the desired DVD/video CD in the disc tray with the label facing upwards.
3 Press

DVD-player display: DVD , or VCD , the current chapter and the elapsed playing time of the DVD or Video-CD. Playback starts automatically.

Note:

If the DVD/video CD has not been authorised, the rating must be changed. (See the chapter on the parental lock on page 35).

If the symbol appears on the television screen, then the selected function is not possible with this DVD/video CD.

Playing back a title

After the disc compartment closes and the DVD is scanned, playback starts automatically.
2 To pause playback (freeze-frame), press II\ll.
3 Press again to resume playback.
4 End playback by pressing ■

Note:

Depending on the DVD/video CD you are using, you may have to select a title or chapter from the DVD's/video CD's table of contents.

Use the , , or buttons to select it and then press OK to confirm.

If the selection is numbered, use the 1 0 keys.

Calling up information

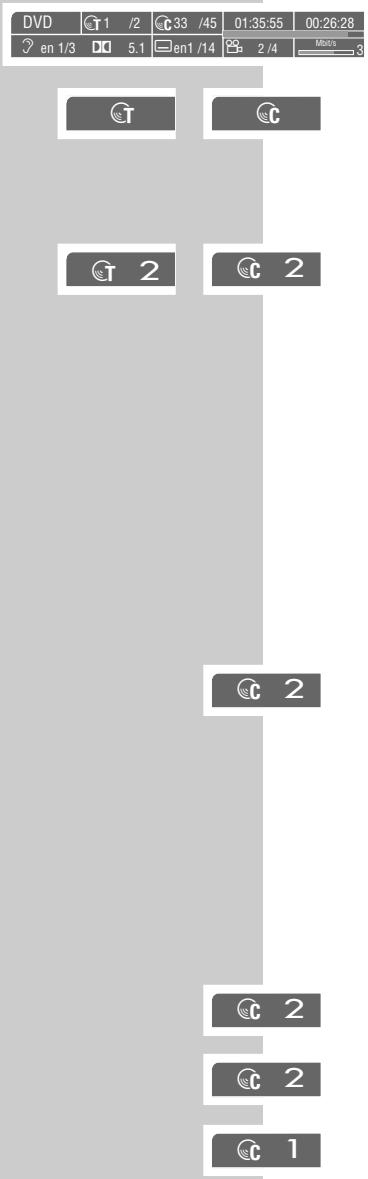

You can call up information on the title, chapter and playing time for display on the screen.

1 Press OK to see the Info line.

• This provides information on:
  The type of disc, current title number, current chapter number, playing time, remaining playing time, language options, audio system, subtitle language, camera position and bit rate.

2 Press OK to hide the Info line.

Selecting titles or chapters

If a DVD or video CD contains several titles and/or chapters, you can select from among them. The «T« and «C« boxes in the info line will tell you whether a DVD contains more than one title or chapter.

1 Call up the contents of the DVD/video CD by pressing 9
- If the DVD/video CD has a title menu, it will appear on the screen.
2 If the selection options are numbered, select the desired title and section using 1 0 .
3 If the options are not numbered, select titles and sections with , , or , and activate with OK .

• Playback begins with title/chapter selected.

Selecting chapters ...

... using the numerical buttons of the remote control

1 Select the desired during playback chapter using 1 ... 0 and confirm with OK<.

• Playback begins with the chapter selected.

Note:

Incorrect entries can be deleted by pressing «.

... step by step

1 To select the next chapter, press during playback.
2 Return to the beginning of the chapter by pressing once.
3 To select the previous chapter, press twice.

• Playback begins with the chapter selected.

Interrupting and resuming playback

The playback of a DVD/video CD can be interrupted at any point and then resumed from the same place.

Interrupt playback by pressing once only.
2Resume playback at the same point by pressing

Ending playback

Playback of a DVD or video CD automatically stops at the end of a title. You can stop playback at any point by pressing « twice.

Removing the DVD/video CD

Press on the DVD player to open the disc tray.

Additional playback functions

Note:

The sound is muted with the "frame-search", "slow-motion" and "freeze-frame" functions.

Some functions can not be selected. This depends on the DVD/video CD being used.

Video strobe

With this effect, individual video frames of the DVD are shown on the screen after each other in groups of nine. During this function, which can be used to analyse the pictures, all the picture movement functions can be selected.

During playback, press and hold down to switch on the function.
2Resume playback by pressing

Video search

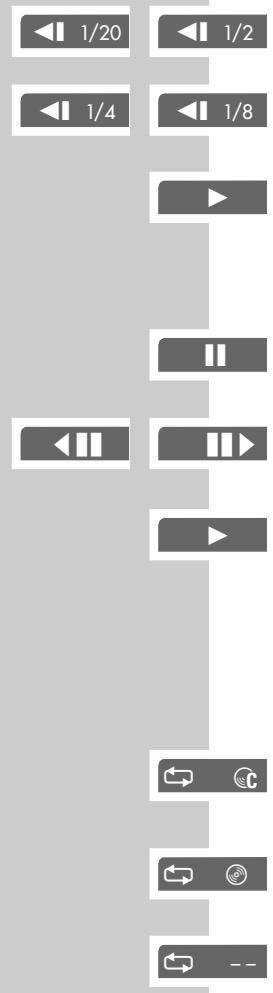

You can choose from among four different speeds (forwards or reverse).

1 During playback, select the desired playback speed with « or « on the remote control.
You can select a speed which is two, four, eight or twenty times faster than the normal speed, forwards or backwards.
2Resume playback by pressing

Slow motion

You can choose from among four different speeds (forwards or reverse).

During playback, press
2 Select the desired slow motion speed (1/20, 1/8, 1/4, 1/2) with or on the remote control.
3Resume playback by pressing

Frame-by-frame playback

During playback, press
2 Move the freeze-frame step-by-step backwards or forwards with or on the remote control or on the device.
3Resume playback by pressing

Repeating a chapter or a DVD

These functions repeat the currently running chapter or the entire DVD.

During playback, press and hold down «.
- « appears on the television screen, the chapter is repeated.
2 During playback, press and afterwards press it again.
- appears on the television screen, the DVD is repeated.
3 To quit this function, press again.

Repeating a selected scene (A-B Repeat)

You can use this function to select the beginning and end of a scene, and then play it over and over.

During playback, mark the beginning of the scene by briefly pressing « - A-« appears on the television screen.
2 To mark the end of the scene, press again briefly.
- A-B appears on the television screen, the marked scene is repeated continuously.
3 To quit this function, press again.

Selecting the camera angle for particular scenes or passages

Many DVDs contain scenes or passages which were filmed several times from different camera angles.
You can choose from among these different angles.

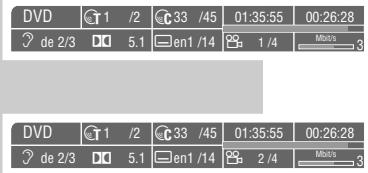

If the DVD offers this function, 1/4 appears on the television screen in the info line.

During playback press » « to select the camera angle function.
- The camera angle » 2/4« appears in the display, 2 of 4 in this example.
2 Select a different camera angle by pressing «.

Enlarging the picture (Zoom)

1 During playback or pause, press q.
- Display: X2 , X4 or X8 . The DVD player enlarges a screen section.
2 You can move the screen section by pressing , , or
3 To return to normal picture size, press again.

Changing the dubbed language

This setting switches out of the preset dubbed language, when the DVD offers alternatives.

1 During playback, press 3
- Display: for example » de 2/3 : 5.1« appears briefly, and the current dubbed language is displayed.
2 To set the desired language, press repeatedly.

Selecting and displaying subtitles

If the current DVD provides subtitles, they can be displayed on your TV screen. When subtitles in several languages are available, you can select your language of choice.

1 During playback, press
- Display: for example » de 2/14« appears briefly, and the current dubbed language is displayed.
2 To set the language for the subtitles, press repeatedly.

Note:

To switch off the subtitles, keep pressing until appears in the display, or press and hold down .

Selecting and playing scenes

You can mark a scene on the DVD, which you can then select directly during playback. The bookmark is retained when you remove the DVD. You can give up to 5 DVDs a bookmark.

Setting a mark

1 During playback, press .

Note:

This mark is deleted automatically when you set a new mark.

Playing selected scenes

1 During playback, press and hold down . - Playback starts at the point marked.

MP3 CD PLAYBACK

no disc

Type: MP3

Title: Mambo No.5

Artist: Lou Bega

Comment: come.to/mp3mtvhits

Album: Upped by Joll

Year:

Genre:

C

?

M

3 2.0

23

1

00:

03:2

3

00:

00:1

一

一

Preparation

Switch on the television and select the channel for the DVD player.
2 If a HiFi system is connected to the DVD player, switch on the HiFi system and select the appropriate audio input for the DVD player.
3 Press to switch on the DVD player. On-screen display no disc.

Inserting an MP3-CD

Press on the DVD player.
2 Insert the MP3 CD in the disc compartment, with the labelling facing upwards.
3 Press

• A menu appears on the screen showing the content of the MP3 CD.

Note:

In STOP mode you can navigate through all folders. During PLAYBACK you can choose from up to 30 tracks within the selected folder, which is the same as the number of tracks on an audio CD.

Playback

1 Select the folder or track required with or

Note:

A folder can contain tracks, which can be called up with OK\ll.

From each folder you can select up to 30 tracks using or

2 Start track playback with

• The number of the track and the playing time appears in the display on the DVD player.

Note:

For information about the MP3 CD, press TITLE<.

Press to see the contents menu (file browser) of the MP3 CD.

3 To pause playback, press
4 Press again to resume playback.

Selecting a different title

Press TITLE to call up the info menu of the MP3 CD.
2 Press » ▶ to select the next track.
3 Press » | « to select the previous track.
4 To select a track directly, enter the one-digit or two-digit track number with 1 ... 0 and press OK to confirm.
5 Press to delete any errors.
6 Press « to quit the info menu.

• You are now back in the contents menu (file browser).

Selecting a different folder and other tracks

This can be done if the MP3 CD contains several folders.

Press to call up the Contents menu (file browser).
2 Press to end playback.
3 If the Contents menu displays tracks, press to switch back one level.
4 Select the folder by pressing or

Note:

If you want to play all the tracks in a folder, press

5 Press to see the tracks in the folder.
6 Press ▲ or ▼ to select the track you want to hear and then ▲ to start playback.

Ending playback

1 End playback by pressing ■ «.

Removing an MP3-CD

Press on the DVD player to open the disc tray.

Audio CD features

An audio CD is identified by this logo.

Audio CDs contain only music recordings. They can be played in the normal manner on a HiFi system.

Before playback

Preparation

Switch on the television and select the channel for the DVD player. With this you can see the DVD player's displays.
2 If a HiFi system is connected to the DVD player, switch on the HiFi system and select the appropriate audio input for the DVD player.
3 Press to switch on the DVD player. -Display on the DVD player and television no disc

no disc

Inserting an audio CD

Press on the DVD player.

• The disc tray opens.

2 Insert the audio CD in the disc tray, with the labelling facing upwards.
3 Press

• The CD is loaded.

• The DVD player displays the number of tracks and the total playing time of the CD.

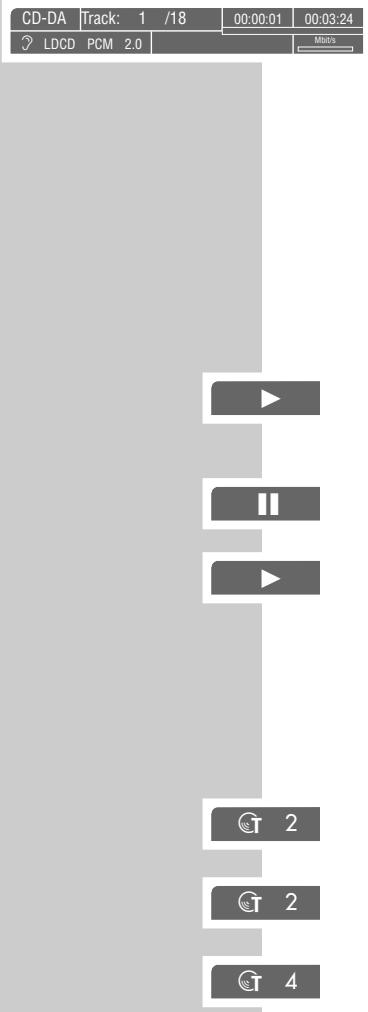

Calling up the info line

Press OK to call up the info line.

• The info line is displayed. Here you find information about the CD, including the number of tracks, the playing time of the tracks, the playing time remaining, the audio system and the data flow.

Audio functions

Playing back a track

1 Start playback with .. - Playback stops automatically at the end of the CD.
2 To pause playback, press II.
3 Press again to resume playback.
4 You can search for a passage of a track during playback with « « or « » «.

Selecting a different track

To select the next track, press during playback.
2 Return to the beginning of the track by pressing once.
3 To select previous track, press twice. - Playback begins with the track selected.
4 To select a track directly, enter the one or two-digit number of the track with 1 ... 0 and press OK to confirm.

Interrupting and resuming playback

The playback of a CD can be interrupted at any point and then resumed from the same place.

Interrupt playback by pressing once only.
2 Resume playback at the same point by pressing

Ending playback

Playback of the CD stops automatically at the end of the last track. You can stop playback at any point by pressing « twice.

Repeating a title or an audio CD

These functions repeat the track currently being played or the entire audio CD.

Press and hold down during playback.
- appears on the television screen, the track is repeated.
2 During playback, press and afterwards press again.
- appears on the television screen, the audio CD is repeated.
3 To quit this function, press again.

Removing the CD

Press on the DVD player to open the disc tray.

PARENTAL LOCK

With the parental lock you can:

• Lock the disc tray of the DVD player.
• Block scenes which are not appropriate for children from DVDs or video CDs, or select alternative scenes.

Locking and releasing the disc tray of the DVD player

Locking the disc tray of the DVD player

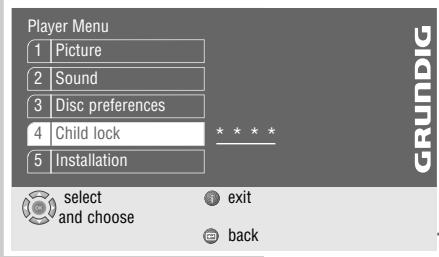

Press i< to call up the main menu.
2 Select the Child lock line with or and activate with OK , or select directly with 1 ... 0 .
3 Enter 1 9 9 9 with the number keys.

• The Child lock menu is displayed, the parental lock status ( On or Off ) is shown.

4 Select the «Player lock« line with «▼ « or « ▲ « and activate with «OK«.
5 Lock the DVD player with or ( On) and confirm with OK .
6 Press i\~ to quit the menu.

Note:

The button on the DVD player is locked and is displayed each time it is pushed. A disc in the DVD player can be played.

Releasing the disc tray of the DVD player

1 To release the disc tray, repeat steps 2 to 5 in the "Locking the disc tray on the DVD player" chapter, select the Off display with ▲ or ▼ and confirm with OK .

Authorising the contents of a DVD

Films on DVD may be wholly or partially unsuitable for children. Such DVDs contain information which identifies these scenes, providing them with ratings from 1 to 8. You can select one of the ratings and thereby authorise alternative scenes for playback.

Press i to call up the main menu.
2 Select the «Child lock« line with «▼ « or « ▲ « and activate with «OK«, or select directly using «1 … 0«.
3 Enter 1 9 9 9 with the number keys. -The Child lock menu is displayed, the parental lock status ( On or Off) is shown.
4 Activate the Content control line with OK .
5 Activate the Country line with OK .
6 Select the country with or and activate with OK
7 Select the Access level line with or and activate with OK.
8 Select the desired rating (from 1 to 8 ) using or , and activate with OK .
9 Press i\~ to quit the menu.

Setting the dynamic volume range

Dolby digital soundtracks have a very large dynamic volume range, hence there is a great difference in volume between quiet and loud tones. When played at full volume this can be a fascinating experience, which may however cause disturbance late at night.

Simply reducing the volume does not produce pleasing results, and the dialogue becomes difficult to understand. In order to achieve the desired results, you would have to reduce the volume only for the louder sounds, increase the volume during quieter scenes and maintain the volume of the dialogue. Adjustment is done with the following setting. You can change the volume relations in three steps.

Sound

Speaker setup

Dynamic range

Surround sound

Extended settings

select and choose

exit

back

Dynamic range

Maximum

Medium

Minimum

select and choose

Press i to call up the main menu.
2 Select the «Sound« menu with «▼ « or « ▲ « activate with «OK«, or select directly using «1 … 0«.
3 Select the »Dynamic range« line with »▼ « or »▲ « and activate with OK «.
4 Select the desired setting (»Maximum«, »Medium« or »Minimum«) with «▼ « or « ▲ « and press «OK « to confirm.
Press i to leave the menu.

Adapting the analogue output to the HiFi system

This feature allows you to set the output level of the audio signal and thereby also the volume and audio mode (stereo, surround sound or Dolby Pro Logic).

Press i to call up the main menu.
2 Select the «Sound« menu with «▼ « or « ▲ « activate with «OK« or select directly using «1 … 0«.

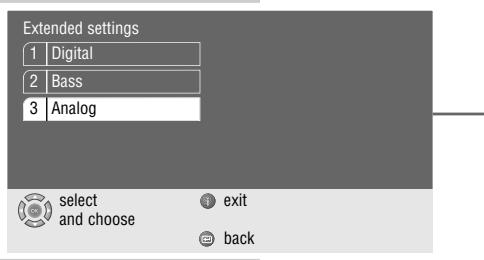

3 Select the Extended settings line with or and activate with OK.
4 Select the Analog line with or and activate with OK .

Note:

For further operation, see the following sections, each one starting from Step 1.

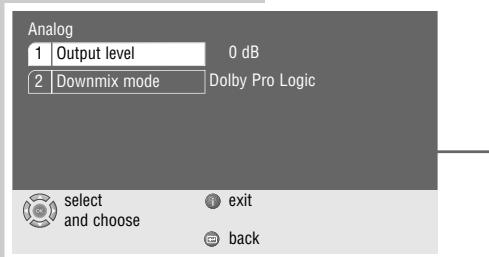

Setting the damping of the output level

1 Select the Output level line with or and activate with OK.
2 Change the output level set by step (from 0dB to 20dB ) with or , or with and in increments of 10, and press OK to confirm.

Selecting the audio mode

1 Select the »Downmix mode« line with «▼ « or «▲ « and activate with «OK«.
2 Select the desired mode (»Stereo«, »Surround Sound« or »Dolby Pro Logic«) with «▼ or « ▲ « and press «OK « to confirm.
3 Press i to leave the menu.

Surround sound settings

You can select different 3D surround sound effects including virtual Dolby surround sound. Dolby virtual surround is a process which appears to provide sound all around the listener via only two loudspeakers.

Note:

You can select these settings if you have connected analogue two-channel stereo sound to your HiFi system.

Selecting surround sound effects

Press i< to call up the main menu.
2 Select the «Sound« menu with «▼ « or « ▲ « and confirm with «OK«, or select directly with « 1 … 0 «.
3 Select the Surround Sound line with or and activate with OK.
4 Select the Effects line with or and activate with OK
5 Select the desired surround sound setting (»Action«, «Drama«, «Theatre«, «Dolby Virtual«) with «▼ « or « ▲ « and press «OK« to confirm.

Note:

When the No effect line is selected, the surround sound setting is switched off.

Effects

No effect

Action

Drama

Theatre

Dolby Virtual

select

and choose

Intensity

Low

Medium

High

select

and choose

Selecting the intensity of the surround sound effects

1 Select the Intensity line with or and activate with OK.
2 Select the desired intensity (»Low«, »Medium« or »High«) with «▼« or «▲« and press «OK« to confirm.
3 Press i\~ to quit the menu.

Bass settings for the loudspeakers

With this adjustment, you can assign the deep bass playback to those loudspeakers of your system which are best suited for playing back lower frequencies.

Press i to call up the main menu.
2 Select the «Sound« menu with «▼ « or « ▲ « and activate it by pressing «OK« or select it directly with «1 … 0«.
3 Select the Extended settings line with or and activate it with OK.
4 Select the Bass line with or and activate it with OK .

Note:

For further operation, see the following sections, each one starting from step 1.

Switching the subwoofer on/off

1 Select the Subwoofer line using or and activate by pressing OK.
2 Select ON or OFF by pressing or and press OK to confirm.

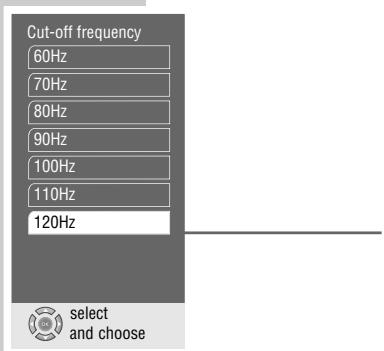

Limit frequency

This enables you set the limit frequency for the subwoofer.

1 Select the Cut-off frequency line with or and activate it by pressing OK.
2 Select the required frequency value (»60 Hz « to »120Hz «) with « ▼ « or « ▲ « and press « OK « to confirm.
3 Press i\~ to quit the menu.

Selecting the picture format for your television

This setting is dependent on the chosen TV format, see the "Selecting the screen format for your television" chapter on page 16.

If 4:3 format is selected, you can set:

»Pan&Scan« for wide-screen playback using the full height of the screen, but with the left and right edges of the picture cropped.

Letterbox for wide-screen playback with black bars on the top and bottom edges of the screen

If 16:9 format is selected, you can set:

»Use TV settings « for resetting the format by the television set.
»Automatic« for adapting the picture format automatically by the DVD player.
»Original« for 4:3 playback with black bars on the left and right edges of the screen.
»Cinema zoom«, where the picture is enlarged to the width of the screen, and the upper and lower edges of the picture are cropped.

Press i to call up the main menu.
2 Select the «Picture« menu with «▼ or « ▲ « activate with «OK«, or select directly with «1 … 0«.
3 Select the Format\ll line with or and activate with OK

4 Select the desired setting for 4:3 format (»Pan & Scan« or »Letterbox«) with «▼ « or « ▲ « and press «OK « to confirm.

or

Select the desired setting for 16:9 wide-screen format (»Use TV settings «, »Automatic «, »Original « or »Cinema zoom «) with «▼ « or « ▲ « and press «OK « to confirm.

5 Press i\~ to quit the menu.

Selecting filter functions

Press i< to call up the main menu.
2 Select the Picture menu with or activate with OK, or select directly with 1 0 .
3 Select the Extended settings line with or and activate with OK.

Note:

For further operation, see the following sections, each one starting from Step 1.

Adapting the colour bandwidth

Here you adapt the colour bandwidth in order to avoid disturbance or flickering in the colour reproduction. You can choose between «Off«, «CVBS« and «S- Video«. This depends on the video signal.

1 Select the Chroma filter line with or and activate with OK.
2 Select the desired setting (»CVBS« or »S-VIDEO«) with »▼ « or »▲ « and press »OK« to confirm.

Note:

When the Off line is selected, the colour filter is switched off.

PICTURE SETTINGS

Horizontal filter

Crisp

Medium

Soft

select

and choose

Vertical filter

Normal

Anti-flicker

select

and choose

Selecting the horizontal filter

This setting optimises the soft focus function, computer graphics and photos when playing back.

1 Select the Horizontal filter line with or and activate with OK.
2 Select the desired setting (»Crisp«, «Medium« or «Soft«) with «▼ « or « ▲ « and press «OK« to confirm.

Vertical filter

This setting optimises the flicker-reduced reproduction of computer graphics and photographs when playing back.

1 Select the Vertical filter line with or and activate with OK.
2 Select the desired setting (»Normal« or »Anti-flicker«) with «▼ « or «▲ « and press «OK « to confirm.
3 Press i to quit the menu.

Settings in the «Player menu« menu

Press i< to call up the main menu.
2 Select the «Installation« menu with «▼ « or « ▲ « and activate with «OK «, or

select directly using 1 ... 0

Note:

For further operation, see the following sections, each one starting from Step 1.

Selecting the language of the screen menu

With this you set the language of the DVD player's screen menu.

1 Select the «Player language« line with «▼« or «▲« and activate with «OK«.
2 Select the desired language with or and confirm with OK

Setting the TV system

The colour norm of the DVD player's screen menus has to be adapted to the format of the television.

Select NTSC for televisions with NTSC norm, PAL for televisions with PAL norm, and Auto for televisions with multi-norm.

1 Select the TV standard line with or and activate with OK.
2 Select the desired setting (»NTSC«, »PAL« or «Auto«) with «▼« or «▲« and press «OK« to confirm.
3 Press i\~ to quit the menu.

Setting the screen menu and display of the DVD player

Press i to call up the main menu.
2 Select the «Installation« menu with «▼ « or «▲ « activate with «OK«, or select directly with «1 ... 0«.
3 Select the Extended settings line with or and activate with OK.

Note:

For further operation, see the following sections, each one starting from Step 1.

Selecting the transparency of the screen menus

1 Select Onscreen display by pressing or and then press OK to activate it.
2 Activate the »Transparency« line with »OK«.
3 Select the desired setting (25%, 50% oder 75%) with «▼« or «▲« and press «OK« to confirm.

Note:

When the Off line is selected, the screen menus have a solid background.

4 Return to the «Extended settings« menu by pressing «.

Setting the DVD player display

With these settings you can expand the DVD player's display and adjust the brightness.

1 Select the «Console display« line with «▼« or «▲« and activate with «OK«.
2 Select the Extended display line with or and activate with OK.
3 Select the desired setting (»On« or »Off«) with «▼« or «▲« and press OK« to confirm.
4 Select the Brightness\ll line with or ▲ and activate with OK\ll.
5 Select the desired setting (»Bright«, «Medium« or «Dark«) with «▼« or «▲« and press «OK« to confirm.
6 Return to the Extended settings menu by pressing

Software status and dealer menu

Here you can get information about your DVD player's software version. The Dealer Service menu line is reserved for the authorised dealer.

1 Select the Dealer Service menu line by pressing or and then press OK to activate it.
2 Select the System information line by pressing or and then press OK to activate it.
3 Press i\~ to quit the menu.

Language settings

Press i to call up the main menu.
2 Select the Disc preferences menu with or and activate with OK, or select directly using 1 0

Note:

For further operation, see the following sections, each one starting from Step 1.

Selecting the dubbed language

If several languages are available on the current DVD, the sound is played back in the language you have selected.

If the language you select is not on the DVD, the first dubbed language available is automatically selected.

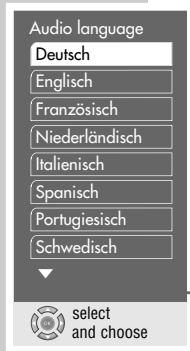

1 Select the »Audio language« line by pressing »▼ « or »▲ « and then press »OK« to activate it.
2 Select the desired dubbed language with or and confirm with OK .

Selecting the language for the subtitles

If subtitles are available on the current DVD, they are played back in the language you have selected.

If the language you have selected for the subtitles is not on the DVD, the first language available is automatically selected.

1 Select the Subtitle line with or and activate with OK

CUSTOM SETTINGS

2 Select the desired language with or and activate with OK

Note:

When the Off line is selected, the subtitles are not displayed.

Selecting the language of the DVD menus

If a DVD has menus in several languages, you can select the language of your choice.

1 Select the »Menu language« line with « or « and activate with OK.
2 Select the desired language for the DVD menus using or and press OK to confirm.
3 Press i\~ to switch off the menu.

USING EXTERNAL DEVICES

Connecting a digital amplifier

The digital multi-channel sound of a DVD can best be decoded and played with a multi-channel audio/video amplifier (Dolby* digital decoder or DTS).

1 Plug a standard cinch cable or optical cable into one of the «DIGITAL AUDIO OUT« sockets on the DVD player and into the appropriate socket on the digital multi-channel amplifier.

Note:

The correct digital output format must be set on the DVD player. To do this, you must observe the settings in the section entitled "Adapting digital output to a digital multi-channel amplifier", starting on page 49.

2 Plug a standard cinch cable into the «SUBWOOFER« socket on the DVD player and into the appropriate socket on the amplifier for the subwoofer or the active subwoofer.

• Manufactured under license from Dolby Laboratories Licensing Corporation. "Dolby", "Dolby Pro Logic", "AC 3" and the double-D symbol "D" are trademarks of the Dolby Laboratories Licensing Corporation. Copyright 1992 Dolby Laboratories, Inc. All rights reserved.

Adapting the digital output to a digital multi-channel amplifier

With this you choose whether the decoder signal is processed in the unit or fed unchanged to the digital output. With internal decoding, there is a stereo signal (PCM) at the digital output.

Press i to call up the main menu.
2 Select the «Sound« menu with «▼ « or « ▲ « activate with «OK«, or select directly with «1 … 0«.
3 Select the Extended settings line with or and activate with OK.
4 Select the Digital line with or and activate with OK .

Note:

For further operation, see the following sections, each one starting from Step 1.

Selecting audio signal types for the digital output

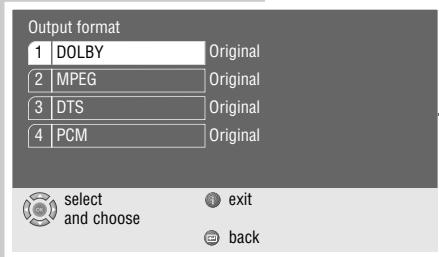

The audio signal type must be selected according to the connected decoder/amplifier.

1 Select the Output format line with or and activate with OK.
2 Select the required output format (»DOLBY«, «MPEG«, «DTS« or «PCM«) with «▼ « or «▲ « and confirm with «OK«.
3 Select the audio signal type (»Original« or «PCM«) with «▼ « or « ▲ « and then press «OK« to confirm.
4 Return to the «Digital« menu by pressing «

Setting the bit rate

Here you choose the possible digital resolution and the dynamic range possible of the output signal in order to adapt the signal to the decoder.

1 Select the Bits line with or ▲ and activate with OK .
2 Select the desired value (»16«, «20« or «24«) with «▼« or «▲« and press «OK« to confirm.

Setting the sampling rate.

This function is used to limit the sampling rate of the digital multi-channel amplifier.

1 Select the Abstraute line with or and press OK to activate the function.

• This has been set to 48kHz at the factory.

2 Select the desired value (»Original«, «96 kHz« or «48 kHz«) with «▼ « or « ▲ « and confirm with «OK «.

• Use Original for DVDs with a 96 kHz sound signal.
  The sound signal is output at the «AUDIO OUT L R« sockets and - if supported by the DVD - at the «DIGITAL AUDIO OUT« socket.
• Use 96kHz for DVDs with a 96kHz sound signal for optimum analogue sound output at the AUDIO OUT L R sockets. No sound signal at the DIGITAL AUDIO OUT socket.
• Use 48kHz for DVDs with a 48kHz sound signal.

The signal is output at the «AUDIO OUT L R« socket and at the «DIGITAL AUDIO OUT« socket. THE 96 kHz sound signal is converted into 48 kHz.

Setting the digital output level

With this setting, the output level can be adapted to the volume of other external sound sources.

1 Select the Output level line with or and activate with OK
2 Change the output level set by step (from 0dB to 20dB ) with or , or with and in 10 steps, and press OK to confirm.
3 Press i\~ to quit the menu.

Connecting a video recorder

Plug a standard EURO-AV cable into the »EURO AV → VCR« socket on the DVD player and into the appropriate socket on the video recorder.

Note:

If the signal of the video recorder reaches the television via the DVD player, the DVD layer may not be switched to Low-Power Stand-by or disconnected from the mains.

TELEVISION REMOTE CONTROL

You can also operate GRUNDIG televisions with this remote control. The functions available to you depend on the model of the GRUNDIG television.

Point the remote control directly at the TV.

Note:

Point the remote control at the television and keep pressing the Mode button until the TV indicator lights up. The remote control switches to television mode for 20 seconds.

Switches off the television set (stand-by).

1 ... 0 Switches the television off, stand-by on.

Selects the television channel directly. 0 selects the channel position R

In video text operation: for entering the three-figure page number.

In television operation: inset picture in main picture.

Switches the picture format.

Calls up the concise TV help menu.

Switches the sound on or off (mute).

Calls up the "DIALOG CENTER" or switches to menu operation.

Switches between the two most recently selected channels (zapping).

Volume setting, lower, higher.

In menu mode: «cursor left, «cursor right.

OK Activates functions, calls up data, confirms and saves data.

In menu mode: cursor up, cursor down.

TELEVISION REMOTE CONTROL

TXT Switches from TV operation to video text operation and back.
TV-G Switches the TV guide on and off again.
In teletext mode: returns to the previous page.
In teletext mode: advances to the next page.
In teletext mode: switches to the next theme.
In teletext mode: switches to the next chapter.
Calls up the sound menu.
Calls up the screen menu.

You can also operate GRUNDIG video recorders with this remote control. The functions available to you depend on which model of the GRUNDIG video recorder you are using.

Note:

Point the remote control at the video recorder and keep pressing the Mode button until the VCR indicator lights up. The remote control switches to video recorder mode for 20 seconds.

Switches off the video recorder (standby).

1 ... 0 Switch off the video recorder, standby activated; directly select the television channel. In ShowView and Timer mode: used for data entry.

Deletes data,activates settings, sets the playing time indicator to 0:00:00

Switches between the main menu and the TV image.

Activates ShowView recording.

In menu mode: «cursor left, «cursor right.

OK Activates functions, calls up data, confirms and saves data.

Title Activates and deactivates TIMER recording.

Record Starts recording.

Pause during recording, freeze-frame during playback.

Stop.

Reverse frame search during playback; Tape rewind in "Stop" mode.

Forward frame search during playback; Fast forward in "Stop" mode.

CE

Technical data

This product fulfils the European directives 89/336/EEC, 73/23/EEC and 93/68/EEC. This device conforms to the safety regulation DIN EN 60065 (VDE 0860) and therefore the international safety regulation IEC 60065. You may not open the DVD player. The manufacturer accepts no liability for damage resulting from improper handling.

Mains voltage:

220 - 240V\~,50/60Hz

Power consumption:

Operating: approx. 20 W

Stand-by: ≤ 0,2W

Ambient temperature:

+10°C to +35°C

Playback standard:

PAL, 50 Hz, 625 lines

NTSC, 60 Hz, 525 lines

Playback system:

DVD video, video CD, S-Video CD, MP3 CD,

Audio CD

CD-R, CD-RW, DVD-R

Laser:

Semiconductor laser

Wavelength 650 nm for DVD

Wavelength 780 nm for CD

Audio format:

Digital: MPEG2/Dolby Digital, PCM, DTS

Analogue: Stereo sound, Dolby Pro Logic

Audio:

Signal: Analogue

DVD: 48/96 kHz 4Hz-22/44 kHz

Video CD: 44.1 kHz 4Hz-20 kHz

Audio CD: 44.1 kHz 4Hz-20 kHz

Signal-to-noise ratio

(at 1 Hz): 95 dB

Sound volume

(at 1 Hz): 95 dB

Dimensions and weight:

Dimensions:

W×H×L360×73×24.6mm

Weight 2.4 kg

CLASS 1 LASER PRODUCT

General instructions for laser devices

Your system is a CLASS 1 LASER PRODUCT. This means that the laser is designed in such a way as to ensure that the maximum permissible emission value cannot be exceeded under any circumstances.

Caution:

If operating devices or methods other than those specified here are employed, it may lead to dangerous exposure to emissions.

This device emits laser radiation. Because of the danger of eye injuries, the unit may only be opened or serviced by trained personnel.

If settings other than those specified here are employed or OTHER PROCEDURES are carried out, this may lead to dangerous radiation exposure.

This product contains components which are covered by certain U.S. patents or for other reasons are considered intellectual property of the Macrovision Corporation and other proprietors. Use of this protected technology must be approved by the Macrovision Company and is only permissible for private presentation at home or for other limited applications, where no special permission has been granted by Macrovision. Reproduction or disassembly of the device is prohibited.

Manufactured with permission from Dolby Laboratories. The "Dolby" label and the double-D logo "DIO" are trademarks of Dolby Laboratories. Confidential unpublished material.

©1992-1997 Dolby Laboratories, Inc. All rights reserved.

DTS and DTS Digital Surround are trademarks of Digital Theater Systems, Inc. All rights reserved.

When playing DTS-encoded CD's & DVD's, excessive noise will be exhibited from the analog stereo outputs. To avoid possible damage to the audio system, the consumer should take proper precautions when the analog stereo outputs of the DVD player is connected to an amplification system. To enjoy DTS Digital Surround playback, an external 5.1 channel DTS Digital Surround decoder system must be connected to the digital output (S/PDIF) of the DVD player.

Rectifying minor problems

Not every picture or sound problem is caused by a defect in your DVD player. Impairment can also be caused by leads having been accidentally pulled out, damaged DVDs/CDs and worn-out batteries in the remote control.

If the following measures do not bring about satisfactory results, consult an authorised dealer.

Fault	Cause/Remedy
DVD player does not respond to remote control	Point the remote control directly at the DVD player.
	Remove all obstacles which may impair the path of the remote control signal.
	Check or replace the remote control batteries.
No picture	Check the video connection.
Distorted picture	Make sure that there are no fingerprints on the DVD/CD, follow the cleaning instructions on this page.
DVD/CD cannot be played	Check that the label on the DVD/CD is facing upwards.
	Clean the DVD/CD.
	Check if the DVD/CD is damaged by testing it with another DVD/CD.
No sound	Check the audio connections.
	Try another playback source.
Distorted sound from HiFi system	Ensure that the audio connections have not been connected at the phono input on the amplifier.

Cleaning DVDs and CDs

Wipe the dirty DVD/CD with a cloth from the centre outwards in a straight line.

Do not use any solvents such as petrol, thinners, conventional cleaner or anti-static spray for vinyl records.
