USER MANUAL GDR 4500 GRUNDIG

Special features of your DVD recorder

Disc formats

Packing contents

Set-up and safety

Overview

The front of the DVD recorder

The displays on the DVD recorder

The back of the DVD recorder

The remote control

Connection and preparation

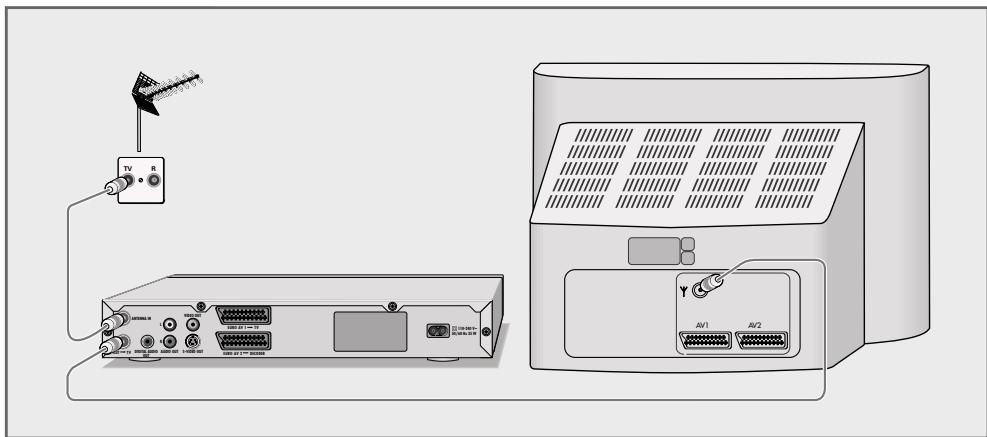

Connecting a rooftop antenna or cable feed

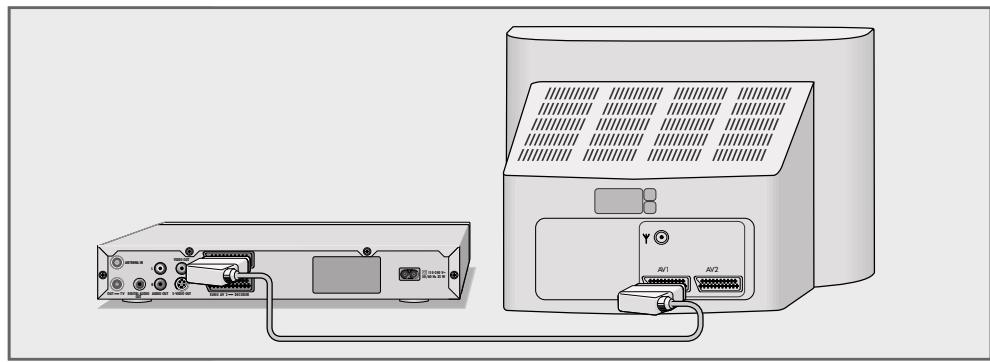

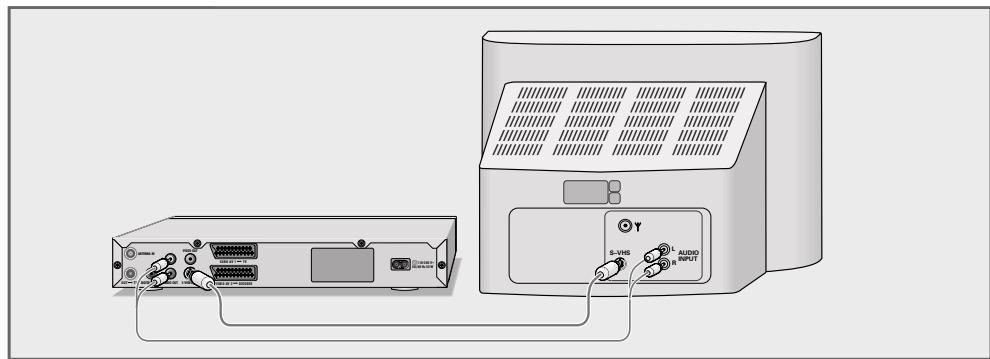

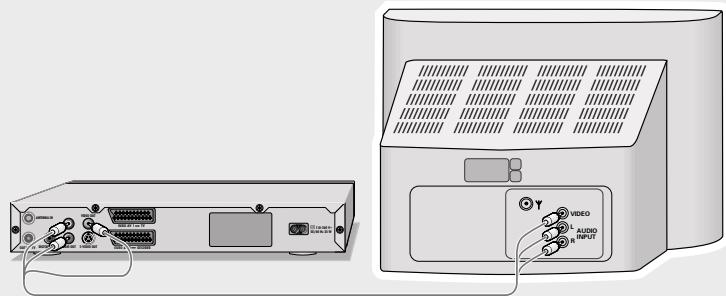

Connecting a television or flat screen

Connecting an audio system with analogue two-channel stereo sound

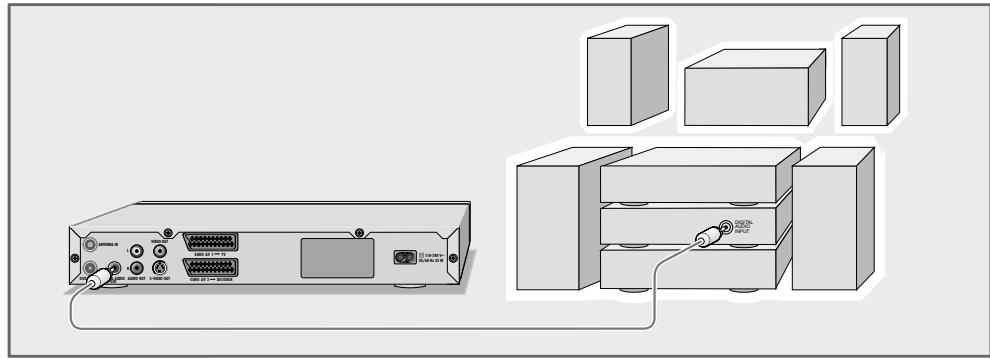

Connecting a digital multi-channel amplifier or digital two channel

audio system

Connecting the mains cable

Inserting batteries in the remote control

Initial setup

Switching on the DVD recorder

Initial setup

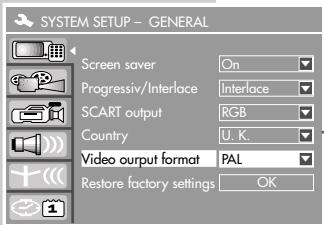

Setting the TV system (video output format)

Selecting the screen format of your television set

Menu and menu directions

Before playback

Preparation

Inserting a disc

Removing discs

Playback

DVD playback

DVD+RW/+R/-RW/-R playback

S-VCD/VCD playback

MP3 CD or WMA CD playback

Picture data CD playback

Audio CD playback

CONTENTS

33-36

33

33

33

33

33

34

34

34

35

35

35

36

36

37-38

37

37

37

37

38

39-40

39

39

40

40

40

41-44

41-42

43

44

45-53

45-47

47

48

48-49

49

50

51

51

52

52

53

53

Playback convenience functions

Selecting titles and chapters

Selecting functions in the playback menu

Pausing and resuming playback

Frame search

Slow motion

Frame-by-frame playback

Selecting camera angles for scenes

Enlarging and moving the screen section (zoom)

Switching the dubbed language or the audio format

Selecting and displaying subtitles

Creating and playing a playlist

Repeating a chapter, a title or a disc

Repeating a selected section (A-B Repeat)

Recording

Recording options

Suitable discs for recording

Unsuitable discs

Initialising discs

Recording quality and time

One touch recording

Preparing for recording

Manually recording television programs from the antenna or the cable feed

Manually recording television programs from the satellite receiver

Finalising a disc (DVD+R)

Error messages

Delayed recording

Programming recording by entering the data for the television programme

Messages during or after programming a recording

Checking, modifying or deleting recording information

Managing recording data

Edit title

Editing the names of recordings

Deleting titles (recordings) from the disc

Overwrite title

Overwrite disc

Entering the name of the disc

Deleting the content of the disc (DVD+RW)

Record title

Finalising title editing

Lock disc

Finalising a disc (DVD+R only)

Deleting the content of the disc (DVD+RW)

CONTENTS

54-55

54

55

56-57

56

57

58-59

58

58

59

60

60

60

61

61

61

62-64

62

63

63

64

65-68

65

65-66

66

67

67

68

69-71

69

69

70

71

71

71

72

Copying

Connection and preparation

Recording from external devices

Using a decoder

Connection and preparation

Recording pay TV programmes

USB operation

Connection and preparation

Playback of content from external data devices

Archiving contents from external data devices on the DVD recorder

Child lock

Authorising the contents of a DVD

Changing the access code (password)

Audio settings

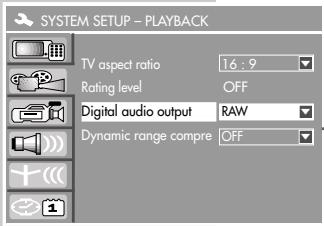

Selecting the digital output

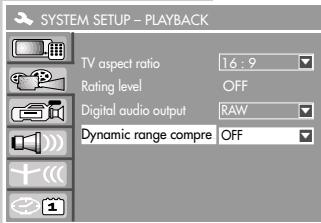

Switching the dynamic range (volume range) on/off

Personal settings

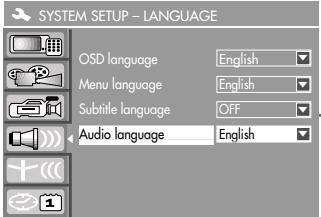

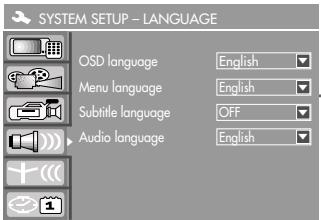

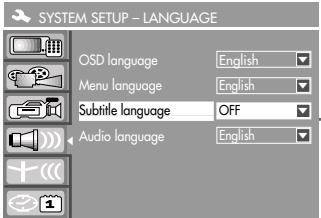

Language settings

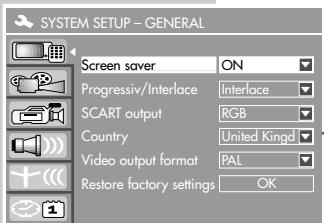

Switching the screen saver on/off

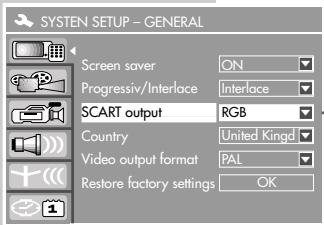

Setting the signal type for the video output socket

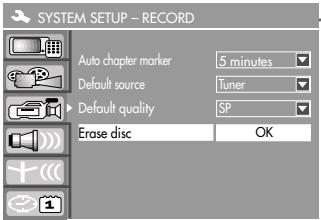

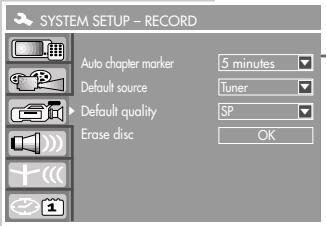

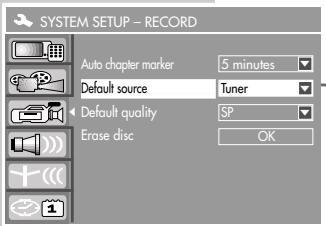

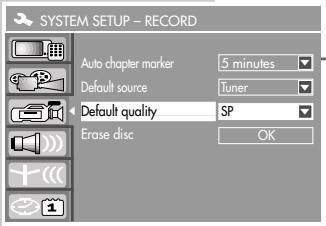

Recording settings

Special settings

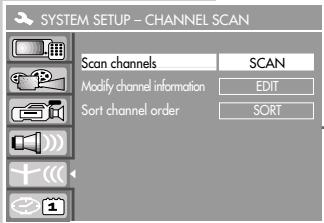

Tuning television channels automatically

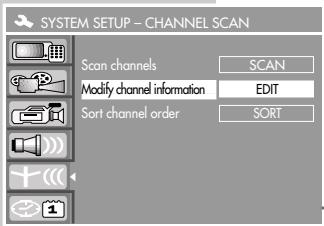

Assigning channel positions manually

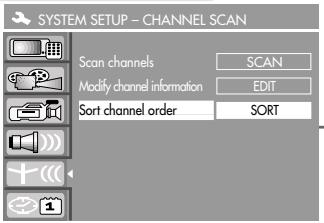

Sorting television stations

Setting the time and date

Switching the DVD recorder to another Grundig remote control

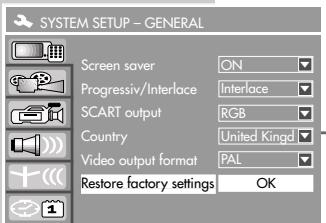

Resetting the DVD recorder to its original condition

Information

Technical data

General instructions on laser devices

Troubleshooting

Environmental note

Cleaning discs

Software information

Additional information for units sold in the UK.

Special features of your DVD recorder

Your DVD recorder provides you with perfect digital video recording and playback in studio quality.

It also provides superb cinema-quality audio playback - in stereo or with digital multi-channel sound - depending on the type of disc and audio system or stereo television.

Other features of DVD video include the choice of audio channel and language, choice of subtitle language, and various camera recording angles. Your DVD recorder is suitable for DVDs with regional code 2.

In addition to DVDs it can play MP3 CDs, video CDs, S Video CDs, JPEG encoded (photo) CDs, KODAK picture CDs, WMA CDs and audio CDs.

MP3, WMA and JPEG data can be played on both CD-ROM and DVD-ROM.

Disc formats

DVD+RWs and DVD+Rs are suitable for recording and playback.

Due to the difference in quality of the recording media and the quality of the recording itself, it can occasionally happen that some recorded DVDs or CDs cannot be read. This does not indicate a malfunction on the part of the DVD recorder.

You must finalise your own recordings on DVD+R so that you can play them on a DVD player.

When MP3 CDs are played back, individual tracks or pictures may be skipped or incorrectly played back. This can be due to the disc configuration, the encoder software or the hardware used for the recording.

Audio CDs (CDDA) meet the specification and bear the corresponding logo. Copy-protected CDs do not meet this specification and do not bear the corresponding logo. These CDs can cause playback errors.

GDR 4500 DVD REORDER

Packing contents

1 GDR 4500 DVD Recorder
2 Remote control
3 2 Batteries, 1.5V , Micro type
4 Operating manual
5 Mains cable

1

2

3
4

5

SET-UP AND SAFETY

Please note the following information when setting up your DVD recorder:

This DVD recorder is designed to record and play back video and audio signals.

Any other use is expressly prohibited.

If the DVD recorder is subjected to a sudden change in temperature, for example if it is brought in from the cold to a warm room, connect it to the mains supply and let it stand for at least two hours before you insert a disc.

The DVD recorder is designed for use in dry rooms. If you do use it in the open, please ensure that it is protected from moisture, such as rain or water splashes.

Place the DVD recorder on a hard, level surface. Do not place any objects such as newspapers on the DVD recorder, or any cloth or similar items underneath it.

Do not place the DVD recorder directly on top of an AV receiver or a subwoofer. The laser optics are sensitive to temperature and shocks.

Do not place the DVD recorder close to heating units or in direct sunlight, as this will impair cooling.

Do not insert foreign objects in the disc compartment of the DVD recorder.

Never open the DVD recorder casing under any circumstances. No warranty claims are accepted for damage resulting from improper handling.

Do not place any vessels filled with liquid, such as vases, on the DVD recorder, as they may spill liquid, thus presenting a safety risk.

Thunderstorms are a danger to all electrical devices. Even if the DVD recorder is switched off, it can be damaged by a lightning strike to the mains. Always disconnect the mains and antenna plugs during a storm.

If the DVD recorder fails to read a DVD or CD properly, clean the disc with a soft cloth. Wipe the disc from the centre outwards. Do not use cleaning CDs to clean the laser optics. This can damage the optics.

Always keep the disc compartment closed to prevent dust from collecting on the laser optics.

This DVD recorder successfully combines technology and environmental friendliness in its overall design. Only environmentally-friendly, high-quality materials have been used. The batteries included contain no mercury or cadmium.

Note:

Do not connect any other equipment while the device is switched on. Switch off the other equipment as well before connecting it.

Only plug the device into the mains socket after you have connected the external devices and the antenna.

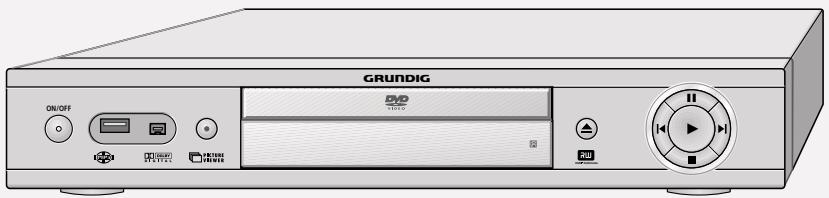

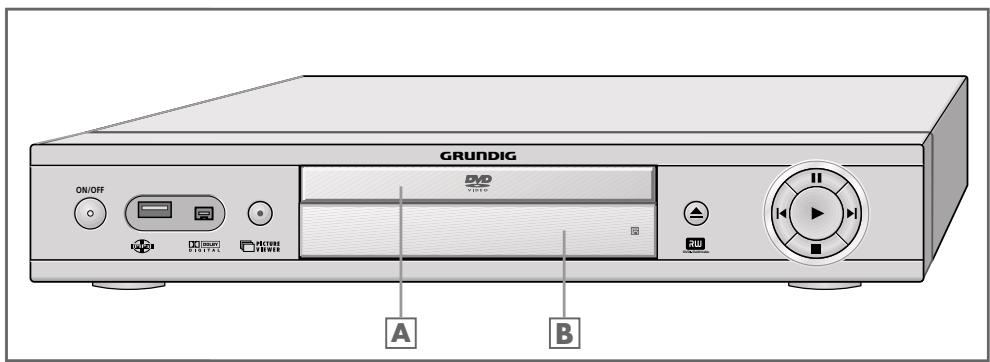

The front of the DVD recorder

ON/OFF

Mains switch: Switches off the DVD recorder;

Switches the deactivated DVD recorder into stand-by mode.

In stand-by mode, the current time and day of the week appear in the display.

IN

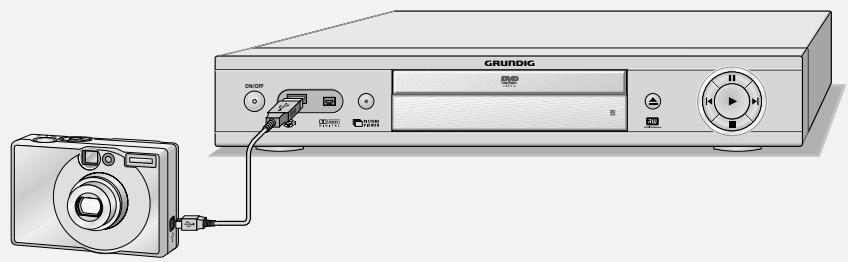

USB interface for connecting an external data carrier (under the cover panel).

i DV IN

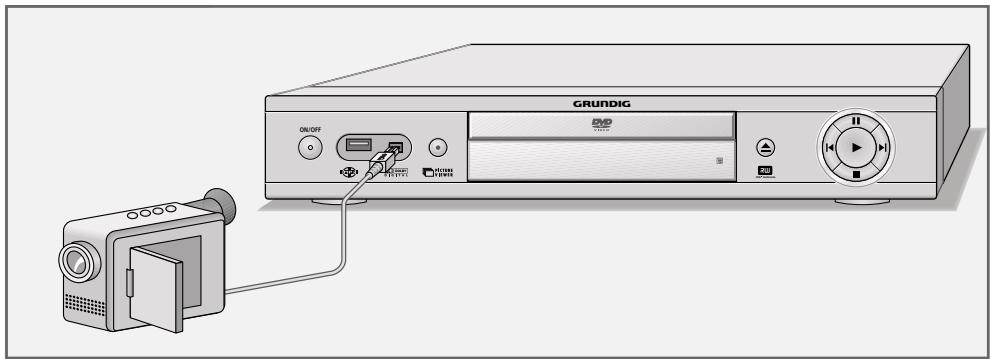

Video/audio input socket (Fire Wire IEEE 1394) for connecting a digital camcorder (under the cover panel).

#

Starts the recording and enters the switch-off time (in 30 minute steps).

A

Compartment for CD media.

B

Display.

#

Opens and closes the disc compartment

#

Starts playback.

Confirms the options selected in the menus.

1

Switches to playback and recording pause;

switches the freeze frame forward step by step.

Moves the cursor upward in the menus.

#

Interrupts playback and recording;

pressing twice switches to stop position.

Moves the cursor in the menus downward.

A

Select the previous/next title or section during playback (press briefly).

Move the cursor in the menus to the left or right.

| « pressing longer calls up the main menu;

Press to quit the selected menu.

Displays on the DVD recorder

REPEAT ALL A-B MP3 P N SVCD ▶Ⅲ DVD PBC	CHANNEL dis 1888:88:88	DⅡDIGITAL REC ANGLE L/R	PROGRAM RANDOM SuMoTuWe Th Fr Sa
	REPEAT ALL REPEAT A-B	Repeat functions activated
	MP3	MP3 CD inserted
	P N	PAL or NTSC standard is selected
	SVCD	S-Video CD, video CD or audio CD inserted
	▷	Playback
	Ⅱ	Pause/freeze-frame
	DVD	DVD inserted
	PBC	PBC function (playback control) for S-Video CD video CD is activated
	CHANNEL	Selected channel
	dts	Information on the type of audio signal
	□□DIGITAL
	REC	Recording
	□ REC	Timer recording
	ANGLE	The DVD provides various camera angles
	PROGRAM	Function is activated
	L/R	Stereo audio signal selected
	RANDOM	Random function is activated
	Su ... Sa	Current day of the week
	000000	Alphanumeric display for various information as the title, chapter, playing time

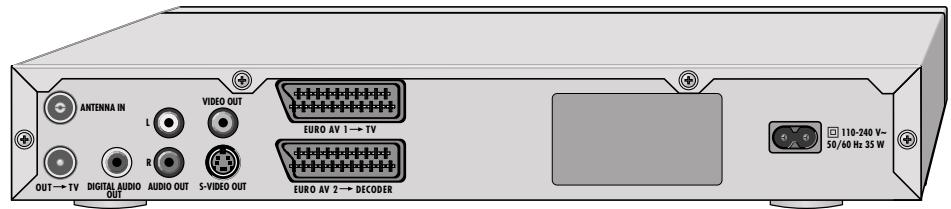

The back of the DVD recorder

ANTENNA

ANTENNA IN

Antenna input socket (for the rooftop antenna

OUT TV

Antenna output socket (to the television).

AUDIO OUT

L AUDIO OUT R

Audio output sockets (left/right analogue channel) for connecting an audio system.

DIGITAL AUDIO OUT

Audio output sockets (coaxial) for PCM/Dolby digital/DTS signals. For connecting to a digital multi-channel audio/video amplifier or AV receiver.

VIDEO OUT

VIDEO OUT

Video output socket for connecting a television or AV receiver with a cinch socket.

S-VIDEO OUT

Video output socket for connecting a television or AV receiver with an S-Video socket.

EURO AV1 TV

Euro/AV socket (output), for the television (CVBS, RGB, Y, Pb/Cb and Pr / Cr

EURO AV2 DECODER

Euro/AV (Scart) socket (input)

for an external device.

AC 110-240V~

50/60 Hz 35W max.

Power cord socket.

Caution:

Do not connect any other equipment while the device is switched on. Switch off the other equipment as well before connecting it.

Only plug the device into the mains socket after you have connected the external devices and the antenna.

Never touch the inside of the sockets and plugs of the connecting cables. Electrostatic discharge can damage the DVD recorder.

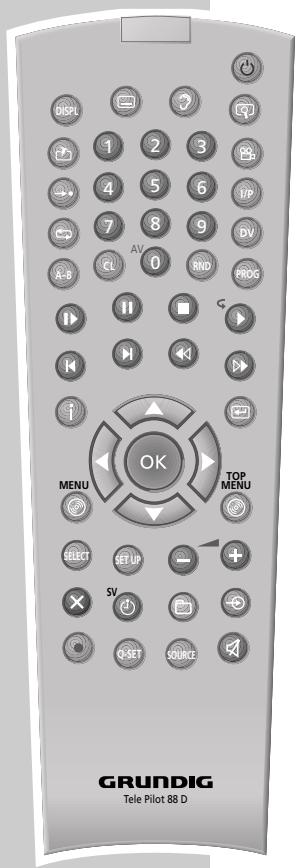

The remote control

Switches the DVD recorder out of and back into stand-by mode. In stand-by mode, the current time and day of the week appear in the display.

DISPL Selects the info menu.

For selecting and displaying subtitles* on the DVD during playback.

Switches between the original and dubbed language* during DVD playback Switches between the various sound formats.

Zooms in on scenes* during playback.

For setting bookmarks.

1 ... 0 Number buttons for entering various data. 0 Selects channels.

Selects a search by title, chapter or time.

念 Selects various repeat functions.

A-B For marking selected sections* for repeated playback.

CL Deletes a programmed timer position.
Adds titles to the favorites list, deletes titles from the favourites list

RND Selects the RANDOM PLAY* function.

PROG Selects the favourites list*.

DV Selects the DIGITAL CAMERA input source.

I/P When stopped: Switches the picture signal between "Progressive mode" and "Interlace mode". In the "Video output" menu, the video output must be set to "YCbCr".

Selects various camera angles* for certain scenes or passages on the DVD during playback.

Switches to forwards slow motion* at various speeds during playback.

Freeze frame for DVDs and video CDs.
Pause for WMA CDs, audio CDs and MP3 CDs.
Moves the picture forward frame by frame.

Interrupts and resumes playback; pressing twice switches to the stop position. Hold down to open the disc compartment.

Closes the disc compartment.
Starts playback.

Select the previous/next title or section during playback.

Switch to forwards/reverse picture search at various speeds during playback.

i Calls up the main menu for the DVD recorder.

▲▼▲▶ Selects various functions in the menus; select TV channels, up, down.

OK Pressing once displays various information on the television screen during playback (e.g. title-/chapter number); pressing twice displays the repeat menu. Confirms the options selected in the menus.

Switches up one menu level.

MENU Opens the disc menu* of a DVD during playback.

TOP Calls up the title menu* of the DVD during playback.

MENUE

SELECT Switches between external USB source and disc or TV mode.

SETUP Opens and closes the set-up menu of the DVD recorder.

• Adjust the volume.

X (red) Deletes files or the content of DVD+RW.

(green) Selects the Timer list menu.

(yellow) Calls up the file browser or the favourites list.

(blue) Opens and closes the Edit mode menu.

Starts the recording and enters the switch-off time (in 30 minute steps).

Q-SET Selects the recording quality.

SOURCE Selects input sources.

Switches the DVD recorder to and from mute during playback.

CONNECTION AND PREPARATION

Note:

Do not connect any other equipment while the device is switched on. Switch off the other equipment as well before connecting it.

Only plug the device into the mains socket after you have connected the external devices and the antenna.

Connecting a rooftop antenna or cable feed

1 Plug the cable of the rooftop antenna or cable feed into the antenna socket ANTENNA IN × on the DVD recorder.
2 Plug the antenna cable supplied into the OUT TV socket on the DVD recorder and the antenna socket on the television set or flat screen.

CONNECTION AND PREPARATION

Connecting a television or flat screen

You have four options, depending on the sockets you have on your television or flat screen:

• For the best picture quality, make the connection at the EURO-AV socket using a fully assigned EURO-AV cable. Here you have the option of setting the output formats Interlace or Progressive Scan (see page 63).
• The standard connection for many devices, and one which provides good quality, is via the S-VIDEO OUT socket and the AUDIO OUT cinch sockets.
• The simplest option which stills offers sufficient quality is to connect the VIDEO OUT socket and AUDIO OUT sockets using cinch cables.

Connect the DVD recorder directly to the television or flat screen. If you connect a video recorder in between, the DVD's copy protection may impair the picture quality.

Connect the television or flat screen - using a EURO-AV (Scart) cable and an adapter (Progressive Scan)

Caution:

This connection transmits video signals at a high frequency range. Before you first switch on the device, please check whether your television, flat screen or projector is suitable for this use.

GRUNDIG accepts no liability for damage resulting from negligent usage.

Notes:

If you connect the DVD recorder using the «EURO AV1 →, TV« sockets via an adapter, you must carry out the setting described in the "Selecting the video output socket" section on page 63.

Then you can use the «I/P« button to select whether the video signal is provided in progressive mode or interlace mode.

Depending on the model of television, flat screen or projector, you have to activate the relevant input sockets on the device.

CONNECTION AND PREPARATION

Connect the television or flat screen - using a EURO-AV (Scart) cable and an adapter (Progressive Scan)

1 Insert the EURO-AV plug of the standard adapter into the EURO AV1 TV socket of the DVD player.

2 Insert the cinch plug of the adapter into the corresponding sockets (VIDEO IN oder COMPONENT Y P_B / C_B P_R / C_R ) on the television, flat screen or projector.

• Green cable - Y signal - in socket Y0;
• blue cable - PB/CB signal - in socket P_B / C_B
• red cable - PR/CR signal - in socket P /

Note:

If the socket designations of the "external devices" differ from those indicated above, check the operating instructions of the "external device" to find out which socket you must connect the DVD recorder to.

3 Plug standard cinch cables into the «AUDIO OUT L R« sockets of the DVD recorder and into the appropriate sockets (AUDIO IN) on the television, flat screen or projector.

CONNECTION AND PREPARATION_

Connecting a television or flat screen using a EURO-AV (Scart) cable

1 Plug a standard EURO-AV cable into the »EURO AV1 → TV« socket of the DVD recorder and into the corresponding socket of the television or flat screen.

Connecting a television or flat screen using a Y/C (S-VIDEO) cable and cinch cables

1 Plug a standard Y/C cable into the «S-VIDEO OUT« socket on the DVD recorder and the corresponding socket (SVIDEO IN) on the television or flat screen.
2 Plug standard cinch cables into the «L AUDIO OUT R« sockets on the DVD recorder and the corresponding sockets (AUDIO IN) on the television or flat screen.

CONNECTION AND PREPARATION

Connecting a television or flat screen using cinch cables

1 Plug a standard cinch cable into the «VIDEO OUT« socket on the DVD recorder and the corresponding socket (VIDEO IN) on the television or flat screen.

2 Plug standard cinch cables into the «L AUDIO OUT R« sockets on the DVD recorder and the corresponding sockets (AUDIO IN) on the television or flat screen.

Connecting an audio system with analogue two-channel stereo sound

As an alternative to using the television's speakers, the sound can also be played back through an audio system. This can improve the sound quality.

1 Plug a standard cinch cable into the «L AUDIO OUT R« socket on the DVD recorder and the corresponding sockets on the audio system.

Caution:

Do not connect the «L AUDIO OUT R« sockets on the DVD recorder to the PHONO (record player) input socket on the audio system.

CONNECTION AND PREPARATION

Connecting a digital multi-channel amplifier or digital two-channel audio system

A multi-channel audio/video amplifier (Dolby digital decoder or DTS* - Digital Theatre System) decodes the digital multi-channel sound of the DVD to provide optimum sound quality.

1 Plug the cinch cable supplied into the «DIGITAL AUDIO OUT« socket on the DVD recorder and the corresponding socket on the digital multi-channel amplifier.

Note:

Even if you are using a digital connection, you should still make an analogue audio connection (see page 18) because depending on the disc type, the >DIGITAL AUDIO OUT « socket may not be able to transfer the signal.

• Manufactured under licence from Dolby Laboratories Licensing Corporation. "Dolby", "Dolby Pro Logic", "Dolby Digital" and the double-D symbol "D" are trademarks of the Dolby Laboratories Licensing Corporation. Copyright 1992 Dolby Laboratories, Inc. All rights reserved.

** DTS and DTS Digital Out are trademarks of Digital Theatre Systems, Inc. All rights reserved.

CONNECTION AND PREPARATION

Connecting the mains cable

1 Plug the mains cable supplied into the 110 - 240V socket on the back of the DVD recorder.

2 Plug the mains cable into the wall socket.

Caution:

The only way to disconnect the DVD recorder from the mains is to pull the plug.

Note:

Do not connect any other equipment while the device is switched on. Switch off the other equipment as well before connecting it.

Only plug the device into the mains socket after you have connected the external devices and the antenna.

Inserting batteries in the remote control

1 To open the battery compartment, press the catch and remove the lid.
2 When inserting the batteries (Micro type, e.g. R06 or AA, 2 × 1.5V ), observe the polarity marked on the battery compartment.
3 Close the battery compartment.

Note:

If the DVD recorder no longer reacts properly to remote control commands, the batteries may be flat. Always remove used batteries. The manufacturer accepts no liability for damage resulting from leaking batteries.

Environmental note:

Batteries, including those which contain no heavy metals, may not be disposed of with household waste. Please dispose of used batteries in an environmentally sound manner. Find out about the legal regulations which apply in your area.

Switching on the DVD recorder

1 Switch the DVD recorder to stand-by mode by pressing ON/OFF on the device and press to switch on the remote control from stand-by.

• Display: >HELLO< flashes.

Initial setup

When you first switch on the DVD recorder, the Initial Setup menu always appears.

This guides you step by step through each setting.

Selecting the screen menu language

With this you set the language of the DVD recorder's screen menu.

1 Select your language using or and press OK to confirm.

2 Select NEXTbypressing 0K

Selecting the country (location)

This setting determines the sort order of the TV stations.

1 Press «▼ or « ▲ « to select the country and press «OK« to confirm.

2 Select NEXTbypressing 0K

Tuning television stations

The DVD recorder has its own receiver unit. It can receive and record from television stations independently of the television. This means the TV channels have to be tuned on the DVD recorder.

During this setting, the clock is automatically updated. However, this is only possible if channel position 1 is occupied by a station with teletext.

1 Select SCAN with or and press OK to start the search.

• The DVD recorder searches all channels for television stations, then sorts and saves them. The automatic search may take several minutes.

2 Select NEXTbypressing OK.

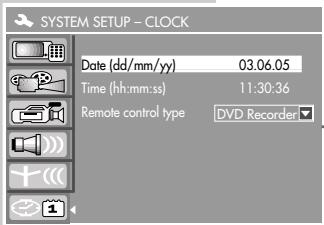

Setting the time and date

1 If the time and date are correct, select NEXT by pressing OK.

Entering a new time and date

1 Select the date line with or and press OK to activate it.
2 Enter the date as six digits using 1 0 and press OK to confirm the setting.
3 Select NEXTbypressing OK
4 Select the time line with or and press OK to activate it.
5 Enter the time as six digits using 1 0 and press OK to confirm the setting.
6 Select NEXTbypressing OK

Ending initial setup

1 Select >FINISHED<by pressing OK<.

• Initial setup is complete.

Notes:

Other settings such as sorting stations or adding new ones manually are described under "Special settings", starting on page 65.

The section on the next page shows how to set the TV system or picture format of your television.

Setting the TV system (video output format)

The colour norm of the DVD recorder's screen menus has to be adapted to the format of your television or flat screen.

Select NTSC for televisions with the NTSC standard, or PAL for those with the PAL standard.

1 Open the setup menu by pressing SETUP
2 Select with or and press OK to confirm.
3 Select «Video output format« using «▼ or « ▲ « and press OK« to activate it.
4 Select the setting (NTSC « or » PAL «) with «▼ « or « ▲ « and press «OK « top confirm.
5 Press SETUP to finish the setting.

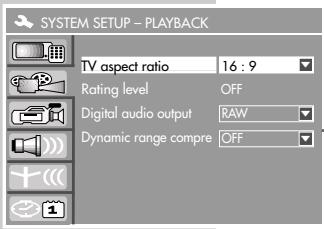

Selecting the screen format of your television set

This setting depends on your television or flat screen, and on the information on the DVD.

If you have a 4:3 format television or flat screen, the following settings are available:

»4:3 P&S« for wide-screen playback, with the left and right edges of the picture cropped (depending on the DVD used)

or 4:3 LB for wide-screen playback with black bars on the top and bottom edges of the screen.

If you have a 16:9 format television or flat screen, select the «16:9« setting.

1 Open the setup menu by pressing SETUP<.
2 Select with or and press OK to confirm.
3 Select TV aspect ratio with or press OK to activate it.
4 Select the picture format (»4:3 P&S«, «4:3 LB« or «16:9«) with «▼ « or «▲ « and press «OK« to confirm.
5 Press SETUP to finish the setting.

Menu and menu directions

The various menus of your DVD recorder are directly accessible through a main menu, but also through individual keys on the remote control.

1 Call up the »Select mode« main menu of the DVD recorder by pressing «i«.

2 Select the desired menu item with « or » «:

To playback menu: Here you can set the various disc playback functions.
To monitor mode and preparation for recording: You want to record a television program manually and are preparing for the recording.

Monitor mode can also be selected using SOURCE<.

To editing menu: In the editing menu you can process the contents of a home-made disc.

The menu can also be called up directly by pressing (blue).

»To disc menu «: Calls up the menu of a home-made DVD+RW or DVD+R, so that you can change the name of a disc, for example.

The menu can also be called up directly by pressing MENU

To set-up menu: In the set-up menu you can make various device settings.

The menu can also be called up directly by pressing SETUP

»To timer menu: In the timer menu, you can pre-program up to eight recordings.

The menu can also be called up directly by pressing (green).

Start USB playback: Calls up the file browser when an external data device is connected to the USB interface.

The file browser can also be called up directly by pressing (yellow).

3 Activate the menu item with OK.
4 Select individual menu options with , , or and activate with OK
5 Switch off Select mode with i.

Preparation

Switch on the television and select the preset channel for the DVD recorder.

2 If an audio system or an AV receiver is connected to the DVD recorder, switch it on and select the audio input for the DVD recorder.

• The display on the DVD recorder is 00 disc, and on the television No disc.

Inserting a disc

2 Insert the disc you want to play in the disc compartment with the label facing upwards.

• Display: 0 I LOAD, the disc tray retracts again.
• Display on the DVD recorder: The chapter and the elapsed playing time of the disc.

Notes:

If you insert a recorded DVD+RW/DVD+R, the index appears. Select the title with , , or and press or OK to start playback.

Playback of a DVD, VCD, SVCD, MP3 CD, WMA CD or audio CD (CDDA) starts automatically.

Does not start playback automatically, start playback with

If the « symbol appears on the television screen, the selected function is not possible with this disc.

Removing discs

• The disc compartment opens. Disc entnehmen

You can recognise a DVD by the logo on the label.

Depending on the content of the DVD, the discs contain one or more titles.

Each title may contain one or more chapters.

You can control and direct playback of a DVD using the menu of the DVD recorder on the television screen.

Special DVD features

DVDs have a title menu which provides an overview of the available titles and the passages they contain.

Some of the DVD recorder's functions, such as slow motion, freeze-frame and auto-play, can also be controlled by the DVD itself. It is therefore possible that the freeze-frame function, for example, can not be selected during certain scenes.

Many DVDs have audio tracks recorded in up to eight languages. This enables you to select the language you prefer.

Many DVDs are recorded by the manufacturer with subtitles in up to 32 languages. You can select the subtitles you prefer.

Playback

1 After the disc compartment closes and the DVD is scanned, playback starts automatically.

Does not start playback automatically, start playback with

• The display shows the chapter and elapsed playing time.

Notes:

Depending on the DVD you are using, you may have to select a title or chapter from its table of contents.

Press ▲ , , or to select the chapter or title and or OK to start playback.

You can open the playback menu by pressing DISPL ^次 twice. Under MODE ^次 you can select the repeat functions.

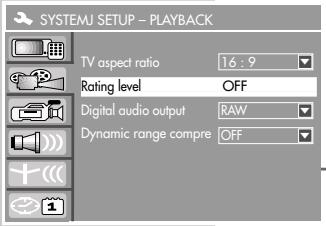

If a DVD is not authorised, you must change the access level (1 ... 8) (see the section on authorising the content of the DVD on page 60).

If the » « symbol appears on the television screen, then the selected function is not possible with this DVD.

2 To pause playback (freeze-frame), press » «.
3 Advance frame-by-frame by pressing
4 Press to resume playback.
5 To stop playback, press » « twice.

DVD+RW/+R/-RW/-R playback

DVD+RW/+R/-RW/-R features

You can recognise DVD+RWs, DVD+Rs, DVD-RWs and DVD-Rs by the logo on the label.

If programmes were recorded on the discs, your DVD recorder can play them back.

If you want to play a DVD+R on a DVD player, it must first be finalised.

Playback

After the compartment is closed and the disc is scanned, playback starts automatically if the disc is write-protected or finalised.

Does not start playback automatically, start playback with

Note:

If playback does not start automatically, press ▲ or ▼ to select the track you want from the index and OK to start playback.

2 To pause playback (freeze-frame), press
3 Advance frame-by-frame by pressing
4 Press to resume playback.
5 To stop playback, press » « twice.

S-VCD/VCD playback

S-VCD/VCD features

You can recognise S-VCD/VCDs (video CDs) by the logo on the label.

Depending on the contents of the S-VCD/VCD (films, music videos etc.), the discs may carry one or more tracks.

S-VCDs/VCDs can be created using the PBC (playback control) system for track navigation. This depends on the processing and burning software used.

You cannot select some of the functions on the DVD recorder (slow motion, camera angle, marking scenes) when you are playing an S-VCD/VCD. This depends on how the S-VCD/VCD was created.

Playback

1 After the disc compartment closes and the S-VCD/VCD is scanned, playback starts automatically.

Does not start playback automatically, start playback with

• The display shows the tracks and elapsed playing time.

Note:

Depending on the type of S-VCD/VCD used, you may have to press or to select the disc title from a list.

Press to return to the previous menu.

2 To pause playback (freeze-frame), press
3 Advance frame-by-frame by pressing
4 Press to resume playback.
5 To stop playback, press » « twice.

Note:

The playback menu can be called up with DISPL（(press twice).Repeat functions can be selected in the Mode line.

Frame search

1 Select the playback speed during playback by pressing or
2 Press to resume normal playback.

Switching PBC (playback control) on and off

1 During playback, press «DISPL« or «OK« twice.
2 Select PBC with or and press OK to confirm.
3 Press or to activate the PBC function (On).

Note:

To deactivate the PBC function, repeat the setting, but at step 3, select OFF.

MP3 CD or WMA CD playback

MP3 CD or WMA CD features

MP3 stands for MPEG-1 Audio Layer 3 and arises from the Motion Picture Expert Group (MPEG) Standard which was developed for compressing film data.

The MP3 format enables audio files to be saved on a computer with a sound quality similar to that of a CD. This only requires about 10% of the original data quantity. The standard encoding bit rate for MP3 files is 128 kbps. Generally, the higher the bit rate of an MP3 file, the better the sound quality.

Most MP3 files on the Internet are encoded at 128 or 160 kbps. 160 kbps is considered CD quality.

Your DVD recorder can read the ID3 tag from the file header, which contains information on the title and artist, and display it in the info menu.

MP3 CDs contain sound recordings. They can be played in the normal manner on an audio system. The digital signals transmitted during MP3 playback are PCM encoded, regardless of the audio output setting. The signals are output with the same data rate as the music source (possibilities are: 32 kbps - 320 kbps, ideally: 128 kbps).

MP3 files can be organised into folders and sub folders, similar to files on a PC.

Playback

After the disc compartment closes and the MP3 CD is scanned, the file browser (table of contents) appears.
2 Select the folder or track with ▲or
3 Press OK to open the folder.
- A list of subdirectories appears.

Note:

Press to go back one level.

4 Press or OK to start playback of the track. - The playing time appears in the display on the DVD recorder.
5 Press to pause playback.
6 Press to resume playback.

Note:

The playback menu can be called up with DISPL( press twice).Repeat functions can be selected in the Mode line.

7 Press to end playback.

Picture data CD playback

JPEG CD features

JPEG stands for Joint Picture Experts Group. This process was designed to compress picture files.

JPEG files can be burned onto a CD along with other file types. These CDs are known as file CDs or mixed-mode CDs. For example, the CD could contain MP3 files (audio) and JPEG files (for example to display album covers).

The files on a JPEG CD can be organised in directories. This structure is similar to that of an MP3 CD.

JPEG CDs only contain data in the compressed JPEG format. This is mostly data from digital cameras or from imaging programs. The data (images) can be displayed individually (press OK ) or in sequence in a slide show (press ).

Displaying pictures on a JPEG-CD

1 After the disc compartment has closed and the JPEG CD has been scanned, the file browser (contents menu) of the JPEG CD is displayed.

2 Press ▲or to select the folder (or pictures).

-A list of subdirectories appears.

3 Press OK to open the folder.

Note:

Press to go back one level.

4 Select the picture with or and press OK to confirm.

• The JPEG picture appears on the screen.

or

Press to start the slide show.

Notes:

To view the picture for longer, press Press to resume playback.

The playback menu can be called up with DISPL（(press twice).Repeat functions can be selected in the Mode line.

5 Press to end playback.

Random play (JPEG CD only)

1 Press RND during playback.

• All the pictures on the JPEG CD are shown in random order.

2 Press RND to end the function.

Playing back a KODAK picture CD

KODAK picture CD features

This method was developed for archiving analogue photographs. After they are developed, small photographs are scanned with a resolution of 1536 × 1024 pixels and burnt onto a CD in JPEG format.

A KODAK picture CD can contain up to 40 pictures. In addition to the picture files, a KODAK picture CD can also contain imaging software which enables the user to play the CD on a PC, edit the pictures or view a slide show.

Playing back a KODAK picture CD

After the disc compartment closes and the KODAK picture CD is scanned, the slide show starts automatically.

Does not start playback automatically, start playback with

Adjusting the picture display

The pictures can be rotated or reversed.

1 During playback, press « or » to rotate the pictures by 90^ .
2 During playback, press ▲ or ▼ to reverse the pictures.
3 Press to end playback.

Enlarging the picture (zoom)

This function allows you to enlarge or reduce pictures and move them on the screen.

Press during playback or pause.
2 To enlarge a picture section, press « or » repeatedly. - The zoom factor is displayed.
3 Press , , or to move the picture section on the screen.

Note:

You cannot move pictures which have been reduced in size.

4 Switch back to full picture with

Audio CD playback

Audio CD features

You can recognise audio CDs by this logo.

Audio CDs only contain sound recordings. They can be played in the normal manner on an audio system.

The individual tracks are stored in a sequence. There are no folders.

Playback

1 Playback starts automatically when a CD is inserted.
- Display: title and total running time.
- Playback stops at the end of the CD.

2 Press to pause playback.
3 Press to resume playback.

Note:

The playback menu can be called up with DisPL. Repeat functions can be selected in the Mode line.

4 Press to end playback.

Selecting titles directly with the number buttons

1 During playback, press 1 ... 0 to enter the one- or two-digit track number and press 0K to confirm.

• Playback begins with the selected track.

Selecting a track in steps (SKIP)

1 Select the next track by pressing during playback.
2 Press to select the previous track.
- Playback begins with the selected track.

Fast search

Two different speeds are available.

1 To select the playback speed, press « or » repeatedly during playback.
2 Press to resume normal playback.

PLAYBACK CONVENIENCE FUNCTIONS

The sound is muted during the frame search, slow motion and freeze-frame functions.

Depending on the disc, some functions cannot be selected.

Selecting titles and chapters

If there are several titles or chapters on a disc, you can select them.

Selecting titles and chapters step by step

1 During playback, select the title or chapter by pressing «» or « ».

Selecting titles and chapters directly

During playback, select the input option (title or chapter) by pressing
2 Enter the title or chapter using 1 ... 0 and press 0K to confirm.
- Playback of the selected title or chapter begins.

Selecting a section to the minute

During playback, press to open the time display.

2 Enter the playing time in five digits (hours, minutes and seconds) using 1 ... 0 and press OK to confirm.

• The DVD recorder locates the section and starts playback.

Selecting functions in the playback menu

1 During playback, press OK or DisPL twice.
- The playback menu appears.
2 Select the item you want with ▲ « or »▼ « and press »▶ « to confirm.
3 Select the function with or and press OK to confirm.
4 Switch off the repeat menu with or DISPL.

Pausing and resuming playback

The playback of a DVD can be interrupted at any point and then resumed from the same place.

Interrupt playback by pressing once only.
2 Press to resume playback at the point where it was interrupted.

PLAYBACK CONVENIENCE FUNCTIONS

Frame search

Several different speeds are available.

1 Select the required playback speed for rewind or fast forward during playback by repeatedly pressing « or »» «.
2 Press to resume normal playback.

Slow motion

Different (forward) playback speeds are available.

Press during playback.
2 Press to select the slow motion speed.
3 Press to resume normal playback.

Frame-by-frame playback

Press during playback.
2 Advance frame-by-frame by pressing
3 Press to resume normal playback.

Selecting camera angles for scenes

Some DVDs contain scenes or passages which were filmed several times from different camera angles. You can choose from among these different angles.

Press during playback to select the camera angle function.

• Display: Angle 2 / 4 , in this example 2 of 4.

2 Press to select a different camera angle.

Enlarging and moving the screen section (zoom)

Press during playback or pause.
2 Press to select the zoom factor. - The DVD recorder enlarges a screen section.
3 Press , , or to move the picture section around the screen.
4 Press to return to normal playback.

PLAYBACK CONVENIENCE FUNCTIONS

Switching the dubbed language or the audio format

These settings allow you to listen to a dubbed language other than the default one, if the DVD provides alternatives.

Press during playback.

• Display: for example «AUDIO: 02/03 ENG«, the current audio language is displayed.

2 Press to select the audio language you want.

Note:

The structure of the DVD itself may stop you from switching the audio language. In this case you can usually make the setting in the DVD menu.

Selecting and displaying subtitles

If the DVD provides subtitles, they can be displayed on your TV screen.

When subtitles are available in several languages, you can select your preferred language.

Press during playback.

• Display: For example »SUBTITLE: 02/10 ENG«.

2 Press to select the subtitle language.

Notes:

To switch off the subtitles, keep pressing until Off appears in the display.

The structure of the DVD itself may stop you from activating and deactivating subtitles. In this case you can usually make the setting in the DVD menu.

Creating and playing a playlist

You can compile titles or chapters into a playlist.

The titles in the playlist are played back in sequence.

1 Press PROG during playback.

2 In the «TITLE« list (or «FILES & DIRECTORY« - depending on the disc), press «▲« or «▼» to select the title, chapter or image and press «CL« to add it to the favourites playlist.

• Tracks can be added to the favourites playlist several times.

3 Press to select the favourites playlist and to start playback.

Note:

Individual titles can be deleted by pressing CL. The favourites list is deleted if you switch off the DVD recorder or take out the disc.

PLAYBACK CONVENIENCE FUNCTIONS

Repeating a chapter, a title or a disc

Depending on the type of disc, you can repeat chapters, titles, folders or the entire disc.

1 To repeat the chapter, press during playback until RPT appears in the display.

• The chapter currently playing is repeated.

or

To repeat the title, press during playback until T-RPT appears in the display.

• The current title is repeated.

or

To repeat the entire disc, press during playback until D-RPT appears in the display.

• The disc is repeated.

2 To quit the function, keep pressing until NORMAL appears in the display.

Repeating a selected section (A-B Repeat)

You can mark the beginning and end of a section and play it repeatedly.

1 Press A-B during playback.

• Display: A_, the start of the section is marked.

2 Press A-B again to mark the end of the scene.

• Display: AB-RPT , the marked section is constantly repeated.

3 Press A-B again to quit the function.

• Display: »NORMAL«.

Recording options

• One touch recording, in which you select the required channel on the DVD recorder and start recording immediately.
• Delayed recording - by entering data for the TV channel.

With option 2, you can enter the recording date for eight programmes in a time span of one year, or record programmes at the same time every week or every day.

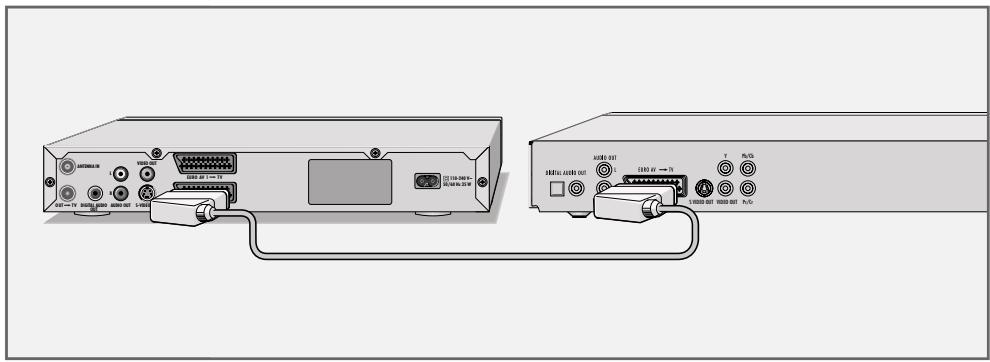

You can also record films from external devices - connected at the socket »DV IN« or the USB interface - with this DVD recorder.

Suitable discs for recording

You can use DVD+R and DVD+RW discs for recording.

DVD+Rs can only be recorded on once. If you want to play these discs on a DVD player, you first have to finalise them. Once they have been finalised, they can no longer be recorded on.

If you want to play them on your DVD recorder, you do not have to finalise them.

You can add more recordings and delete them as necessary.

Note that any playing time you delete is no longer available for recording.

DVD+RWs (rewritable) can be recorded on very often (up to a thousand times) and deleted.

You may have to delete recordings made by others on DVD+RWs before you can record on them.

Unsuitable discs

DVD-R/DVD-RW cannot be recorded on.
- Damaged discs cannot be recorded on.
- Finalised discs cannot be recorded on. This can only be done with unfinalised discs.
- Full discs cannot be recorded on.
- Very rarely, discs are defective and therefore cannot be recorded on. Try recording on another disc.

Initialising discs

The DVD+R/+RW is automatically initialised before recording, this can take a few minutes.

Only then is recording possible.

Recording quality and time

You can set the quality of the recording. The table below shows the relationship between quality and recording time:

Quality		Time
HQ - Very high quality		60 minutes on a 4.7 GB blank DVD
SP - High quality		120 minutes on a 4.7 GB blank DVD
SP+ - Good quality		150 minutes on a 4.7 GB blank DVD
LP - S-VHS picture quality		180 minutes on a 4.7 GB blank DVD
EP - Better than VHS picture quality		240 minutes on a 4.7 GB blank DVD
SLP - VHS picture quality		360 minutes on a 4.7 GB blank DVD
SEP - Longest recording time		480 minutes on a 4.7 GB blank DVD

The quality and recording time are interdependent. The better the quality, the more memory the recording requires. This means that the recording time is shorter in high quality mode than in standard quality mode.

Note:

The recording quality (HQ, SP, SP_+ , LP, EP, SLP or SEP) is selected automatically during playback.

Remaining recording time

You can obtain information about the remaining recording time in the EMPTY field in the index screen.

1 Select the index screen with
2 Select the EMPTY 飞 field with and activate with
3 Select the Characteristic line with and confirm with OK.
- The recording time still available - depending on recording quality - is displayed.

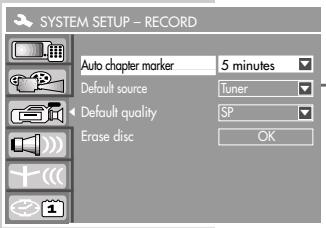

Recording settings

These settings, such as adding chapter markers, selecting the input source and the setting the recoding quality, can be made in the installation menu. The settings are described on page 64.

Preparing for recording

Switch on the television and select the preset channel for the DVD recorder.
2 Switch the DVD recorder to stand-by with ON/OFF and switch the remote control out of stand-by with U.

Inserting a disc

2 Insert the disc you want to play in the disc compartment with the label facing upwards.
3 Press « on the DVD player or » « on the remote control.

Manually recording television programmes from the antenna or the cable feed

1 Press SOURCE to select the input source (for example, TV).
- Display: for example Monitor P001 ARD , the current TV station is shown.
2 Press or or use the number buttons 1 0 to select the TV channel.
3 Press Q-SET until the recording quality you require appears in the display.
4 Press to start recording.

• The amount of recording time available is shown.

Notes:

During the recording, you can press to enter the switch-off time (30 minutes, 60 minutes, 90 minutes, none).

The switch-off time depends on the playing time left on the disc.

The DVD recorder automatically switches off the recording after this time.

The info line can be hidden by pressing

5 Press to pause recording.

6 Press to resume recording.

7 Press to end the recording.

• Display: »Processing. Please wait a moment«.

The DVD recorder actualises the index.

Manually recording television programmes from the satellite receiver

1 Switch on the satellite receiver.
2 Select the required satellite station on the satellite receiver.
3 Select the channel position for the satellite receiver on the DVD recorder by pressing SOURCE or by pressing O (AV).
4 Press Q-SET until the recording quality you require appears in the display.
5 Press to start recording.

Note:

When no signal is available from the satellite receiver, the DVD recorder automatically switches to recording pause.

During the recording, you can press to enter the switch-off time (30 minutes, 60 minutes, 90 minutes, off).

The switch-off time depends on the playing time left on the disc. The DVD recorder automatically switches off the recording after this time.

The info line can be hidden by pressing

6 Press to pause recording.
7 Press to resume recording.
Press to end the recording.
- Display: Processing. Please wait a moment. The DVD recorder actualises the index.

Finalising a disc (DVD+R)

If you want to play programmes recorded on your DVD recorder on a DVD player, you must first finalise the disc as described on page 53.

Error messages

The DVD recorder displays messages showing how to deal with any errors which might occur.

Programming recording by entering the data for the television programme

Notes:

The time and date on the DVD recorder must be accurate.

If all the timer positions are occupied you must delete one, as described in the section on deleting recording data on page 44.

Preparation

Switch on the television.

Select the AV^ channel on the television for the DVD recorder.

Put a DVD+R or DVD+RW in the disc compartment.

Example

Press (green) to open the Timer list menu and OK to confirm.

• The «Idem editor« menu appears.

2 Select «Source« with «▼ « or «▲ « and press «OK« to confirm.

Select the TV channel with or and press OK to confirm.

Note:

If you want to record the video and audio signal from an external device instead of the TV channel, select EURO-AV 2 or DV as the input source by pressing or

Recording from a satellite receiver:

If you want to record programmes from a connected satellite receiver, press or to select the EURO-AV 2 channel, and select the TV station on the satellite receiver. The satellite receiver must be switched on at the selected recording time and for the duration of the timer recording.

3 Select Quality with or and press OK to confirm.

Select the recording quality with or and press OK to confirm.

4 Select Mode with or and press OK to confirm.

• Once , the recording is only made once

• Daily, the recording is made at the same time every day

• Weekly, the recording is made at the same time every week

Select the recording mode with or and press OK to confirm.

DELAYED RECORDING

5 Select «Date« with «▼« or «▲« and press «OK« to confirm.

Use 1 0 to enter the six-digit date for the recording and press OK to confirm.

Enter the four-digit start time with 1 0 and press OK to confirm.

7 Select End with or and press OK to confirm.

Enter the four-digit stop time with 1 0 and press OK to confirm.

Press or to activate VPS control (On), if required.

9 Select OK with or and press OK to confirm the recording data.

• The «Timer list« menu appears on the screen again.

Note:

If you do not want to save the timer data, select Cancel with or and press OK to confirm.

10 Repeat from step 3 if you want to make more recordings, or press (green) to quit the timer recording menu.

11 Switch the DVD recorder to stand-by with on the remote control.

• REC« is displayed on the DVD recorder.

Note:

Remember that the DVD recorder can only record after you press on the remote control to switch it to standby.

Do not switch off the DVD recorder with the power switch ON/OFF on the device!

Messages during or after programming a recording

»A timer recording is about to start. Press OK to switch off and wait for it to execute. «

A programmed recording is due to start shortly.

Press on the remote control to switch off the DVD recorder to standby.

»Timer recording about to start, please place a recordable disk with enough space in loader.«

A programmed recording is due to start shortly. Press OK.

There is no disc in the compartment, or the disc is unsuitable for recording.

Put in another disc.

»Failed to start recording. Disc is not ready.«

The disc in the loader is write-protected or there is not enough playing time left on it.

Remove the write protection or put in another disc.

»Failed to start recording. Maximum cells reached.«

Check the recording parameters for the programme (date, start time and stop time) and change them if necessary.

Checking, modifying or deleting recording information

Preparation

Switch on the television.

Select the «AV« channel on the television for the DVD recorder.

Checking recording data

1 Open the Timer list menu by pressing (green).
- The Timer list menu appears, displaying the current data.
2 Press or to select the timer item.
3 Close the Timer list menu by pressing (green).

Editing recording data

1 Open the Timer list menu by pressing (green).
- The Timer list menu appears, displaying the current data.
2 Press or to select the timer item and OK to confirm.
- The »Item editor« menu appears.
3 Press or to select the recording data, press OK and then or or 1 0 to edit the data.
Press OK to confirm each change.
4 Select OK with or to save the recording data.
5 Close the Timer list menu by pressing (green).

Deleting recording data

1 Open the Timer list menu by pressing (green).
- The Timer list menu appears, displaying the current data.
2 Press or to select the timer item.
3 Press CL to delete the recording data.
4 Close the Timer list menu by pressing (green).

MANAGING RECORDING DATA

The index screen of the DVD+R and DVD+RW show the title (if provided by the broadcaster), length, quality and date of the recording. The first frame of the recording is also displayed.

If you activated the automatic chapter function, the DVD recorder sets a chapter mark every 5 minutes of the recording. You can edit and delete these, or add new ones later.

You can also edit the name of the recording, rename the disc, and delete individual recordings or all recordings.

Edit title

Opening the editing menu

Put a DVD+R or DVD+RW in the disc compartment. - The index screen appears.
2 Select the track by pressing or
3 Press (blue) to open the editing menu. - The EDIT MODE menu appears.

Notes:

You can also open the editing menu via the main menu or the title menu (select Edit title ).

The rest of the process is described in the following sections, starting from step 1.

Adding chapter markers

You can add chapter markers within a title to allow you to find scenes quickly during playback.

You can add up to 99 markers on each disc. After the 99th marker the message Too many chapters appears, and you must delete markers before you can add more.

You cannot add markers if the disc is write-protected or finalised.

1 During playback, open the editing menu and select Chapter marker with or and press to confirm.
2 To add your own markers, select Insert marker with or ▲ and press OK to insert the marker at the selected scene.
3 Press (blue) to quit the function.

MANAGING RECORDING DATA

Deleting chapter markers

You can delete individual chapter markers or all the chapter markers on the disc.

1 Select Chapter marker with or ▲ and press to confirm.
2 To delete the current chapter marker, select »Delete marker« with « or « and press OK to delete it
or
To delete all the chapter markers select »Delete all markers« with »▼ « or » ▲ « and press »OK « to delete them.
3 Press (blue) to quit the function.

Skip chapter

You can mark chapters to be skipped during playback.

1 Select Chapter with or and press 1 0 to select the chapter.

2 Select Skip chapter with or ▲ and press OK to confirm.

• The chapter is skipped during playback.

Note:

If you want to see the chapter again, select it with 1 0 select Show chapter with or and press OK to confirm.

3 Press (blue) to quit the function.

Creating a new title thumbnail

You can select and save any scene as a new thumbnail for the title.

1 Select »Index picture« with »▼ « or »▲ «.
2 Press OK at the scene you want to use as an index thumbnail.
3 Press (blue) to quit the function.

MANAGING RECORDING DATA

Splitting titles in two (Only DVD+RW)

You can split a title into two. You can then delete these two titles separately, so that you can use the memory space on the disc again.

1 Select Title with or ▲ and press 1...0 to select the title.

2 Select «Split title« with «▼ « or « ▲ « and press «OK« to confirm.

• The title is split.

Note:

Depending on the length of the title, this can take some time.

Editing the names of recordings

If you do not like the title name provided by the broadcaster, or none is provided at all, you can create your own title name for the recording.

Put a DVD+R or DVD+RW in the disc compartment.

• The index screen appears.

Note:

If the index screen does not appear, press «.

2 Select the title with or and press to open the title menu.
- The title menu appears.
3 Select Rename title with or ▲ and press OK to confirm.
4 Press « or »» to select the input position and to switch to the keyboard.
5 Press , , or to select letters and numbers, and OK to confirm.

Notes:

The keys at the bottom of the keyboard are function keys:

Press Caps to switch between uppercase and lowercase.

Press Clear or BkSp to delete a letter, number or word.

Press to quit the keyboard. Any changes are not saved.

6 When you have entered the new name, press or to switch to the function key OK and press OK to confirm.
- Display: »Updating disc... Please wait!.
7 Press to finish the setting.

MANAGING RECORDING DATA

Deleting titles (recordings) from the disc

Put a DVD+R or DVD+RW in the disc compartment. - The index screen appears.

Note:

If the index screen does not appear, press

2 Select the title to delete with or and press to open the title menu. The title menu appears.

3 Select Erase title with or and press OK to confirm.

4 Press OK to delete the titles.

• Display: Warning: this operation will irreversibly delete the current title on the disc. Do you want to continue?

5 Select Yes with or and press OK to confirm.

• Display: Erasing ...<. The title overview now shows a blank title.

Notes:

Deleted titles on a DVD+R are only marked as deleted. The playing time of these titles cannot be used for further recordings. The title is simply skipped during playback.

Once a DVD+R is finalised, deleting is no longer possible.

Overwrite title

This function allows you to use free recording space on the disc.

Note that only the playing time of the title to be overwritten is available for recording.

Put a DVD+R or DVD+RW in the disc compartment.

• The index screen appears.

Note:

If the index screen does not appear, press «.

2 Select the title to be overwritten with and press to open the title menu.
- The title menu appears.
3 Select Overwrite title with or ▲ and press OK to confirm.
4 Press «SOURCE« to select the input source (for example, TV).
- Display: for example «Monitor P001 ARD«, the current TV station is shown.

MANAGING RECORDING DATA

5 Press ▲or to select the station.
6 Press to start recording.
- The available recording time is displayed.
The recording stops automatically at the end of the title.

Overwrite disc

This function allows you to overwrite the disc from the start to the end of the recording.

If you no longer need any of the titles on the disc, use the «Erase disc« function in the disc menu.

Put a DVD+R or DVD+RW in the disc compartment. - The index screen appears.

Note:

If the index screen does not appear, press «.

2 Select any title with or and press to open the title menu.
- The title menu appears.
3 Select Overwrite disc with or and press OK to confirm.
4 Press SOURCE to select the input source (for example, TV).

• Display: for example Monitor P001 ARD , the current TV station is shown.

5 Press ▲or to select the station.
6 Press to start recording.
- The available recording time is displayed.
The recording stops automatically at the end of the disc.

1. TITLE 30/09/2004
2. TITLE 30/09/2004
3. SP1:05:100
2. TITLE 30/09/2004
12:30:00
SP0:45:00
3. TITLE 01/10/2004
SP1:05:100
SP0:30:00

Play title

Edit title

Rename title

Erase title

Overwrite title

Overwrite disc

Add title

Entering the name of the disc

You can enter a name for each disc; the name is shown on the index screen.

Put a DVD+R or DVD+RW in the disc compartment.

• The index screen appears.

Note:

If the index screen does not appear, press «.

2 Select the disc information with or and press to confirm.
- The disc menu appears.
3 Select Rename disc with or and press OK to confirm.
4 Press « or »» to select the input position and to switch to the keyboard.
5 Press , , or to select letters and numbers, and OK to confirm.

Notes:

The keys at the bottom of the keyboard are function keys:

Press Caps\~ to switch between uppercase and lowercase.

Press Clear or BkSp to delete a letter, number or word.

6 When you have entered the new name, press (\gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg \gg

• Display: »Updating disc... Please wait...«.

7 Press to finish the setting.

Deleting the content of the disc (DVD+RW)

Put a DVD+RW in the disc compartment.

• The index screen appears.

Note:

If the index screen does not appear, press «.

2 Select the disc information MY DVD with or and press to confirm.

• The disc menu appears.

3 Select Erase disc with or and press OK to confirm.

4 Press OK to delete the contents of the disc.

• Display: Warning: This operation will erase all data on the disc. Are you sure you want to continue?

Note:

To cancel the deletion, confirm No with OK.

5 Select Yes with or and press OK to confirm.

• Display: Erasing now ... «. You can no longer open the index screen.

Record title

This function allows you to record new titles. A new title is added to the disc.

Note:

Put a DVD+R or DVD+RW in the disc compartment. - The index screen appears.
If the index screen does not appear, press «.
2 Select the disc information MY DVD with or and press to confirm.
- The disc menu appears.
3 Select Record title with or ▲ and press OK to confirm.
4 Press SOURCE to select the input source (for example, TV). - Display: for example Monitor P001 ARD , the current TV station is shown.
5 Press ▲ or to select the station.
6 Press to start recording.
- The available recording time is displayed.
The recording stops automatically at the end of the disc.

Finalising title editing

If you have edited titles or chapters, a DVD player may not be able to display this properly.

This function allows you to eliminate this problem.

If Make compatible does not appear in the menu, the disc is already compatible and the setting is not necessary.

Play

Rename disc

Erase disc

Record title

Overwrite disc

Make compatible

Lock disc

Put a DVD+RW in the disc compartment.

• The index screen appears.

2 Select the disc information MY DVD with or and press to confirm.

• The disc menu appears.

3 Select Make compatible with or and press OK to confirm.

• Display: Working, followed by the index screen. The titles and chapters of the DVD+R or DVD+RW will now be correctly displayed on a DVD player.

Note:

Depending on the length of the title, this can take some time.

Lock disc

This protects the disc from being accidentally recorded over.

Put a DVD+R or DVD+RW in the disc compartment.

• The index screen appears.

Note:

If the index screen does not appear, press

2 Select the disc information MY DVD with or and press to confirm.

• The disc menu appears.

• Display: Working ... , followed by the index screen. You can no longer record on the disc.

Note:

To unlock the disc, select Unlock disc in the disc menu and press OK to confirm.

Play

Rename disc

Erase disc

Record title

Overwrite disc

Make compatible

Lock disc

Finalising a disc (DVD+R only)

If you want to play a DVD+R on a DVD player, you must first finalise it. The DVD recorder can play unfinalised discs.

Note that after a disc is finalised, no changes or any new recordings can be made on it.

If Finalising disc does not appear in the menu, the disc has already been finalised or it is a DVD+RW.

Put a DVD+R in the disc compartment.

• The index screen appears.

Note:

If the index screen does not appear, press

2 Select the disc information MY DVD with or and press to confirm.

• The disc menu appears.

3 Select Finalise disc with or and press OK to confirm.

• Display: Working ..., followed by the index screen.

Deleting the content of the disc (DVD+RW)

If you cannot switch to the disc menu on a DVD+RW to delete the disc (the disc is not compatible to the DVD recorder), you can delete the disc using the function in the System Setup menu.

Put a DVD+RW in the disc compartment.
2 Press SETUP to open the setup menu.
3 Select with or and press OK to confirm.
4 Select Erase disc with or and press OK to confirm.
5 Press OK to delete the contents of the disc.

• Display: Warning: This operation will erase all data on the disc. Are you sure you want to continue?

Note:

To cancel the deletion, confirm No with OK.

6 Select Yes with or and press OK to confirm.

Note:

Do not connect any other equipment while the device is switched on. Switch off the other equipment as well before connecting it.

Only plug the device into the mains socket after you have connected the external devices and the antenna.

Connection and preparation

Connecting a camcorder

1 Connect the DV IN socket on the front of the DVD recorder to the corresponding socket on the digital camcorder using a standard cable.

Connecting a video recorder, DVD player or set-top box

1 Connect the EURO AV2 DECODER socket on the DVD recorder to the corresponding socket on the video recorder, DVD player or set-top box using a standard EURO-AV (Scart) cable.

Recording from external devices

Preparation

Switch on the television.

Select the AV channel on the television for the DVD recorder.

Put a DVD+R or DVD+RW in the disc compartment.

Recording

1 Select the program source with SOURCE or DV on the DVD recorder.
- >EURO AV 2 « (for the video recorder, DVD player or set top box) or >DV « (for the digital camcorder).
2 Press Q-SET until the recording quality you require appears in the display.
3 Press to start recording.
4 Press to pause recording.
5 Press to end the recording.

Note:

You can operate a digital camcorder using the remote control of the DVD recorder.

USING A DECODER

Connection and preparation

A decoder is necessary when the DVD recorder receives encoded programs from a private broadcaster.

Ask your dealer about the decoder.

Connection

1 Connect the «EURO AV2 → DECODER« socket on the DVD recorder to a suitable socket on the decoder using a EURO-AV (Scart) cable.

Setting the channel position for a decoder

1 Press SETUP to open the setup menu.
2 Select « with « or « and press OK to confirm.
3 Select Modify channel information with or and press OK to confirm.
4 Select the «Name« line with «▼«or «▲ «. Enter the channel position for the television station which requires the decoder using the numerical buttons «1 ... 0 « and confirm with «OK «.
5 Select Decoder with or and press OK to confirm.

Press or to select ON and press OK to confirm.

• The channel is marked in the station list with a D in front of its name.

6 Press SETUP to finish the setting.

Recording PAY TV programs

Preparation

Switch on the television.

Select the AV channel on the television for the DVD recorder.

Put a DVD+R or DVD+RW in the disc compartment.

Recording

1 Press SOURCE to select the input source (for example, TV).

• Display: for example Monitor P001 ARD , the current TV station is shown.

2 Press or or the number buttons 1 0 to select the pay TV station.
3 Press Q-SET until the recording quality you require appears in the display.
4 Press to start recording.

• The amount of recording time available is shown.

5 Press to pause recording.
6 Press to resume recording.
7 Press to end the recording.

Connection and preparation

To connect a digital camera or an external storage medium, switch the DVD recorder into stand-by with and switch it on only after connecting. Even when you undo the USB connection, the DVD recorder must first be switched to stand-by, otherwise files can be damaged.

Connecting external data devices

1 Connect the USB interface IN on the DVD recorder with the corresponding socket on the data device (digital camera, card-reading device or MP3 player) using a USB cable;

or

Insert the USB plug of the USB memory stick in the USB interface IN on the DVD recorder.

Note:

It is possible to simultaneously connect several devices to the USB interface 一 N of the DVD recorder via a USB HUB.

Playback of content from external data devices

Preparation

Switch on the television.

Select the AV channel on the television for the DVD recorder.

Playback

Press on the remote control to switch on the DVD recorder from stand-by mode.
2 Press i to open the main menu.
3 Select Start USB playback with and press OK to activate.
- The file browser appears.

4 Select the desired folder using or and open with OK.
5 Press or to select the file you want and press OK or to start playback.

Archiving content from external data devices on the DVD recorder

This function allows you to copy files from an external data device onto a DVD+R or DVD+RW and thus to archive them.

Preparation

Switch on the television.

Select the AV channel on the television for the DVD recorder.

Put a DVD+R or DVD+RW in the disc compartment.

Note:

There may not be any "film data" on the DVD+R/+RW.

Read the section on page 53 to find out how to delete the data on the DVD+RW.

Recording

1 Press »SELECT«to select the USB input source.
-Display: ( (for the USB interface).
2 Open the Edit menu with
3 Select the desired folder using or and open with OK.
4 Select the desired file with or and confirm with (green).
- The file is copied into the »File selection list«.

Note:

To delete a file from the File selection list press select the file using or and delete with × (red).

5 Press to start recording.

Note:

If the file/folder is not to be copied, confirm Cancel with OK.

6 Confirm the security query by using « or » to select OK and confirm with OK.

Authorising the contents of a DVD

Films on DVD may be wholly or partially unsuitable for children. These DVDs contain information which marks the content or scenes. They are assigned access levels 1 to 8, which may differ from country to country. You can select one of the access levels and a certain country, and thus authorise alternative scenes for playback.

1 Place any disc in the tray.
2 Press SETUP to open the setup menu.
3 Select with or and press OK to confirm.
4 Select Rating level with or and press OK to confirm.
5 Enter the password 3 308 using the number buttons 1 ... 0 and press 0K to confirm.
6 Press OK to confirm.
7 Press or to select the rating level and OK to confirm.
8 Press SETUP to finish the setting.

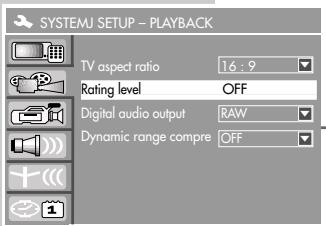

Changing the access code (password)

1 Press SETUP to open the setup menu.
2 Select with or and press OK to confirm.
3 Select Rating level with or ▲ and press OK to confirm.
4 Enter the code number 3 308 using the number buttons 1 ... 0 and press OK to confirm.
5 Select NEW with or OK to confirm.
6 Enter the new four-digit password using the number buttons 1 0 and press to switch to Confirm password.
7 Enter the same password using the number buttons 1 ... 0 and press OK to confirm.
8 Press SETUP to finish the setting.

Selecting the digital output

Here you select whether the audio signal is emitted from the >DIGITAL AUDIO OUT« sockets in the original data format (All) or in PCM format (Pulse Code Modulation).

1 Press SETUP to open the setup menu.
2 Select with or and press OK to confirm.
3 Select «Digital audio output« with «▼ « or « ▲ « and press «OK« to confirm.
4 Select the mode (»RAW « or »LPCM «) by pressing « ▼ « or « ▲ « and press « OK « to confirm.
5 Press SETUP to finish the setting.

Switching the dynamic range (volume range) on/off

Dolby digital soundtracks have a very large dynamic volume range, hence there is a great difference in volume between quiet and loud tones. The dynamic range compression function optimises this dynamic range at low volume.

1 Press SETUP to open the setup menu.
2 Select with or and press OK to confirm.
3 Select the Dynamic range compression line with or and press OK to activate.
4 Select ON or OFF with or and confirm with OK.
5 Press SETUP to finish the setting.

Language settings

You can choose between various languages.

1 Press SETUP to open the setup menu.

2 Select with or and press OK to confirm.

Note:

The rest of the process is described in the following sections, starting from step 1.

Selecting the language of the DVD menus

If the DVD has menus in several languages, you can select your language of choice.

1 Select »Menu language« with »▼ « or »▲ « and press »OK « to confirm.
2 Select the language for the DVD menus using or and press OK to confirm.

Selecting the language for the subtitles

If subtitles are available on the current DVD, they are shown in the language you have selected.

If the language you have selected for the subtitles is not on the DVD, the DVD recorder automatically selects the first language available.

1 Select Subtitle language by pressing or and press OK to confirm.
2 Select your language using or and press OK to confirm.

Selecting the dubbing language

If several languages are available on the current DVD, the sound is played back in the language you have selected.

If the language you select is not on the DVD, the DVD recorder automatically selects first audio language available.

1 Select »Audio language« with »▼ « or »▲ « and press »OK« to activate it.
2 Select your language using or and press OK to confirm.

Finishing the settings

1 Press SETUP to finish the setting.

Switching the screen saver on/off

When this function is activated, the screen saver starts when no function has been selected on the DVD recorder for some time.

1 Press SETUP to open the setup menu.
2 Select with or and press OK to confirm.
3 Select «Screen saver« with «▼ « or « ▲ « and press «OK« to confirm.
4 Select the function with ( ON) and press OK to confirm.

Note:

To deactivate the screen saver, repeat the setting and select OFF.

5 Press SETUP to finish the setting.

Setting the signal type for the video output socket

The video output of your DVD recorder was set at the factory to RGB .

1 Press SETUP to open the setup menu.
2 Select with or and press OK to confirm.
3 Select «SCART output« with «▼ « or « ▲ « and press «OK« to confirm.
4 Select the video output with or and press OK to confirm.

5 Press SETUP to finish the setting.

Notes:

The setting YUV is a precondition for "Interlace mode" and "Progressive mode". If it has been selected, I / P can be used to switch between the two output formats. Switching can also be done via the set-up menu.

In "Progressive mode" the sockets VIDEO OUT and S-VIDEO OUT are switched off.

PERSONAL SETTINGS

Recording settings

1 Press SETUP to open the setup menu.
2 Select with or and press OK to confirm.

Note:

The rest of the process is described in the following sections, starting from step 1.

Adding chapter markers

This function allows you to specify whether and how often chapter markers are automatically set during recording.

1 Select Auto chapter marker with or and press OK to confirm.
2 Press or to select the marker sequence and OK to confirm.

Note:

If you do not want to set markets, repeat the setting and select OFF.

Selecting the input source for recording

This function allows you to select the input source (e.g. Tuner for recording TV programmes).

1 Select Default source with or and press OK to confirm.
2 Select the input source with or and press OK to confirm.

Selecting the recording quality

The function allows you to select the recording quality (e.g. SP).

1 Select Default quality with or and press OK to confirm.
2 Select the recording quality using or and press OK to confirm.

Tuning television channels automatically

1 Press SETUP to open the setup menu.

3 Select Scan channels with or ▲ and press OK to confirm.

• The DVD recorder searches all channels for television stations, then sorts and saves them. The automatic search may take several minutes.

Note:

You can stop the search by pressing «.

Assigning channel positions manually

If you have information on a new TV station, you can tune to it manually in this menu.

1 Press SETUP to open the setup menu.
2 Select « with « or « and press OK to confirm.
3 Select Modify channel information with or and press OK to confirm.
4 Select the television channel (channel position) using 1 0
5 To change the name of the TV station, select »Name« with « or » ▲ and press OK to confirm.
Select the input position with or , enter letters or numbers with or and press OK to confirm.
6 If you want to search by channel, special channel or frequency, select «Scan mode« with «▼ « or « ▲ « and press «OK« to confirm.
Select search parameter with or and press OK to confirm.
7 If you want to change the colour system, select Sound mode with ▼ or ▲ and press OK to confirm.
Select the system with or and press OK to confirm.
8 To start the search, select «Channel« (or special channel or frequency, depending on the setting in step 6) with «▼« or « ▲« and press « « or « » to start the search.

SPECIAL SETTINGS

9 If you want to skip a channel when using the or buttons, select Skip with or and press OK to confirm.

Press or to select Yes and press OK to confirm.

• The channel is marked in the station list with a -in front of its number.

10 To fine-tune the picture, select «Fine tune« with «▼ « or « ▲ « and press «OK« to confirm.

Tune the picture with « or « and press OK to confirm.

Note:

To set other television stations, repeat steps 4 to 10.

11 Press SETUP to finish the setting.

Sorting television stations

You can sort the TV stations in any order you like.

1 Press SETUP to open the setup menu.
2 Select « with « or « and press OK to confirm.
3 Select «Sort channel order« with «▼ « or « ▲ « and press «OK« to confirm.
4 Press or to select the station to move.
5 Highlight the channel with OK.
6 Select a new station with or and then press OK to confirm.

Note:

To sort the other television channels, repeat steps 4 to 6.

7 Press SETUP to finish the setting.

Setting the time and date

If you do not want to use the date and time broadcast by a television station, you can set it manually.

1 Press SETUP to open the setup menu.
2 Select with or and press OK to confirm.
3 Select Date with or and press OK to confirm. Enter the date in six digits with 1 0 and press OK to confirm.
4 Select Time with or and press OK to confirm. Enter the time in six digits with 1 0 and press OK to confirm.
5 Press SETUP to finish the setting.

Switching the DVD recorder to another Grundig remote control

You can adjust the DVD recorder so that it can be operated with a remote control from another Grundig device.

1 Press SETUP to open the setup menu.
2 Select with or and press OK to confirm.
3 Select Remote control type with or and press OK to activate.
4 Select the remote control type with or and press OK to confirm.

• The DVD recorder can now be operated with another remote control. The DVD recorder no longer responds to its own remote control.

5 Press SETUP to complete the setting.

Note:

If you want to operate the DVD recorder with its own remote control again, you have to call up the main menu with (press and hold down) on the device.

Activate the set-up menu using menu keys (»|«, «»| «, «||«, «■ « and «» ▷ «) on the device and set the remote control type to »DVD-Recorder«.

SPECIAL SETTINGS

Resetting the DVD recorder to its original condition

All custom settings are restored to the original status.

1 Press SETUP to open the main menu.
2 Select with or and press OK to confirm.
3 Select Restore factory settings with or and press OK to confirm.
4 Select OK with or and press OK to confirm.
5 Press SETUP to finish the setting.

CE

Technical data

This product fulfils the European directives 89/336/EEC, 73/23/EEC and 93/68/EEC.

This device conforms to the safety regulation DIN EN 60065 (VDE 0860) and therefore the international safety regulation IEC 60065.

Never open up the DVD recorder. The manufacturer will not accept any liability for damage resulting from improper handling.

Mains voltage:

110-240V\~,50/60Hz

Power consumption:

Operation: approx. 35 W

Standby: ≤ 4W

Ambient temperature:

+10°C to +35°C

Playback standard:

PAL, 50 Hz, 625 lines

NTSC, 60 Hz, 525 lines

Disc formats:

DVD + DVD +RW CD-R,CD-RW

Media formats:

DVD video, audio CD,

video CD (VCD 1.0/1.1/2.0), S-Video CD,

CD ROM (MP3, WMA, JPEG, Kodak Picture CD)

DVD ROM (MP3, WMA, JPEG, Kodak Picture CD)

Laser:

Semiconductor laser

Wavelength 650 nm for DVD

Wavelength 780 nm for CD

Audio format:

Digital: MPEG2/Dolby Digital, PCM, DTS

Analogue: Stereo sound, Dolby Pro Logic

Audio:

Signal: Analogue

DVD: 48/96 kHz 4Hz-22/44 kHz

Video CD: 44.1 kHz 4Hz-20 kHz

Audio CD: 44.1 kHz 4Hz-20 kHz

Signal-to-noise ratio

(at 1 kHz): ≥ 90 dB

Sound volume

(at 1 kHz): ≥ 85 dB

Dimensions and weight:

Dimensions:

W×H×L360×53×265mm

Weight 2.7kg

CLASS 1 LASER PRODUCT

General information on laser devices

Your system is a CLASS 1 LASER PRODUCT. This means that the laser is designed in such a way as to ensure that the maximum permissible emission value cannot be exceeded under any circumstances.

Caution:

If operating devices or methods other than those specified here are employed, it may lead to dangerous exposure to emissions.

This device emits laser radiation. Because of the danger of eye injuries, the unit may only be opened or serviced by trained personnel.

If settings other than those specified here are employed or other procedures are carried out, this may lead to dangerous radiation exposure.

This product contains components which are covered by certain U.S. patents or for other reasons are considered intellectual property of the Macrovision Corporation and other proprietors. Use of this protected technology must be approved by the Macrovision Company and is only permissible for private presentation at home or for other limited applications, where no special permission has been granted by Macrovision. Reproduction or disassembly of the device is prohibited.

Manufactured with permission from Dolby Laboratories. The Dolby label and the double-D logo are trademarks of Dolby Laboratories. Confidential unpublished material.

©1992-1997 Dolby Laboratories, Inc. All rights reserved.

During playback of DTS-coded CDs and DVDs, a high noise level is produced at the analogue stereo outputs. In order to avoid damaging the audio system, always take appropriate preventive measures when connecting the stereo outputs of the DVD recorder to an amplification system. For DTS Digital Surround playback, an external 5.1-channel DTS Digital Surround decoder must be connected to the digital output (S/PDIF) of the DVD recorder.

DTS and DTS Digital Out are trademarks of Digital Theater Systems, Inc. All rights reserved.

Troubleshooting

Not every picture or sound problem is caused by a defect in your DVD recorder. Impairment can also be caused by leads having been accidentally pulled out, damaged DVDs/CDs and worn-out batteries in the remote control.

If the following measures do not do not rectify the problem, consult an authorised dealer.

Problem	Possible cause/remedy
DVD recorder does not respond to the remote control	Point the remote control directly at the DVD recorder.
	Remove all obstacles which may interfere with the path of the remote control signal.
	Check or replace the remote control batteries.
	Check whether the recorder has been set to operate with a different remote control.
The disc tray will not open, picture/sound problems	Using the mains switch, switch the DVD recorder ON/OFF « off and on again.
No picture	Check the video connection.
Distorted picture	Make sure that there are no fingerprints on the DVD/CD, follow the cleaning instructions on the next page.
The DVD/CD cannot be played	Check if the label on the DVD/CD is facing upwards.
	Clean the DVD/CD.
	Check if the DVD/CD is damaged by testing out another DVD/CD.
No sound	Check the volume setting.
	Check the audio connections.
	Try another playback source.
	Use an external decoder for DTS audio formats.
No sound at the digital output	Select the “RAW” operating mode, see Set-up on page 61.
Distorted sound from the hi-fi system	Make sure that the audio connections are not connected to the phono input on the amplifier.
Recording from TV stations not possible.	Antenna cable not connected, please connect it.
	The TV station is not tuned on the DVD recorder. Tune the television station.
	The selected TV channel has copy protection.
	Station not transmitting or antenna defective.
Timer recording was not executed.	The DVD recorder was not switched off after the timer was programmed.
	The VPS/PDC time was incorrectly entered for VPS/PDC-programmed recordings.
Copying from the USB port is not possible.	There is “film data” on the DVD+R/+RW, please delete it.

INFORMATION

Environmental note

This product has been made from high-quality parts and materials which can be re-used and recycled.

Therefore, do not throw the product away with normal household waste at the end of its life. Take it to a collection point for recycling electrical and electronic devices. This is indicated by this symbol on the product, in the operating manual and on the packaging.

Please find out about collection points operated by your local authority.

Help protect the environment by recycling used products.

Cleaning discs

Wipe the dirty disc with a cloth from the centre outwards in a straight line.

Do not use any solvents such as benzene, thinners, conventional cleaner or anti-static spray for vinyl records.

Do not use a cleaning CD, as it might damage the laser of your DVD recorder.

Software information

We wish to point out explicitly that only operating software authorised by GRUNDIG is permissible for the DVD recorder. This operating software is available from specialist dealers or will be available shortly on the Grundig web sites www.grundig.com and www.grundig.de. Any instance of operating software from a dubious Internet source being loaded to the device will impair functioning and also, since it is an unauthorised intervention, invalidate any claims under the guarantee.

GRUNDIG will refuse to refund any costs resulting in such cases. Any repair costs in such cases, even those occurring within the guarantee period, are to be paid by the customer.

Additional Information for units sold in the UK.

Units sold in the UK are suitable for operation from a 240V ac, 50Hz mains supply.

The range of multi-system receivers is built to work in most European countries. However, the mains plug and socket system for the UK differs from many European countries.

This appliance has been supplied with a fitted, non-removable, approved converter plug for use in the UK. This converter plug is fitted with a 5A rated fuse.

In case this appliance is supplied with a moulded 2-pin Euro plug only, which is unsuitable for UK operation, this must be cut off and immediately disposed of. An approved 13A, 3-pin UK plug should then be fitted by a qualified electrician.

Note:

The severed Euro plug must be destroyed to avoid a possible shock hazard should it be inserted into a socket elsewhere.

If a non-rewireable 3-pin plug or a rewireable 13A (BS1363) 3-pin plug is used, it must be fitted with a 5A ASTA or BSI approved BS1362 fuse. If any other type of plug is used it must be protected by a 5A fuse either in the plug, or at the distribution board. If this type of plug becomes defective, ensure that the fuse is removed before disposal, to eliminate potential shock hazard.

If it is necessary to change the fuse in the non-rewireable plug, the correct type and rating (5A ASTA or BSI approved BS1362) must be used and the fuse cover must be refitted. If the fuse cover is lost or damaged, the lead and plug must not be used until a replacement is obtained. Replacement fuse covers should be obtained from your dealer.

Important:

The wires in the mains lead are colour coded in accordance with the following code:

BLUE-NEUTRAL

BROWN-LIVE

As the colours of the wires in the mains lead of your appliance may not correspond with the coloured marking identifying terminals in your plug, proceed as follows:

Connect the BLUE coloured wire to plug terminal marked with the letter "N" or coloured black.

Connect the BROWN coloured wire to the plug terminal marked with the letter "L" or coloured red.

In no circumstance must any of the wires be connected to the terminal marked with the letter "E", earth symbol "H", coloured green, or green & yellow.
