SDRW-08D2S-U - DVD player ASUS - Free user manual and instructions

Product Type	External Slim DVD Writer
Model	ASUS SDRW-08D2S-U
Dimensions (L x W x H)	14.1 x 14.2 x 1.5 cm (5.55 x 5.59 x 0.59 in)
Weight	Approx. 200 g (0.44 lb)
Power Supply	USB bus-powered (5V, 1A via USB cable with two connectors for extra power)
Interface	USB 2.0 (compatible with USB 1.1)
Disc Loading Method	Tray
Supported Disc Formats	DVD-ROM, DVD±R, DVD±RW, DVD-RAM, CD-ROM, CD-R, CD-RW
Write Speeds	DVD±R: 8x; DVD±RW: 8x/6x; DVD-RAM: 5x; CD-R: 24x; CD-RW: 16x
Read Speeds	DVD-ROM: 8x; CD-ROM: 24x
M-DISC Support	Yes (M-DISC DVD and M-DISC DVD DL readable)
Buffer Size	2 MB
Operating System Compatibility	Windows 7/8/10/11, macOS 10.6 and later
Included Accessories	USB cable, software disc (Nero), quick start guide
Color	Black
Warranty	1 year limited
Maintenance & Cleaning	Use a lens cleaning disc occasionally; keep the tray clean; avoid dust and smoke
Safety Precautions	Do not expose to liquids; avoid dropping; do not disassemble; operate in well-ventilated area
Spare Parts & Repairability	No user-serviceable parts; contact ASUS support for issues

Frequently Asked Questions - SDRW-08D2S-U ASUS

How do I connect the ASUS SDRW-08D2S-U to my computer?

Connect the provided USB cable to the drive and then to a USB port on your computer. For stable power, use both USB connectors if your computer has two ports. The drive will be automatically detected.

What types of discs can this drive write?

It can write DVD±R (up to 8x), DVD±RW (up to 8x/6x), DVD-RAM (5x), CD-R (24x), and CD-RW (16x). It also supports M-DISC for archival quality.

Is the drive compatible with Mac computers?

Yes, it works with macOS 10.6 and later. No additional drivers are needed, but some software may require separate installation.

Can this drive read Blu-ray discs?

No, the SDRW-08D2S-U is a DVD/CD writer and does not support Blu-ray discs.

What software is included with the drive?

The drive comes with a software disc containing Nero applications for burning discs. You can also use third-party software like ImgBurn.

Do I need an external power adapter?

No, the drive is powered solely via USB. For some laptops with weak USB ports, using both USB connectors ensures proper power.

How do I clean the drive or lens?

Use a commercially available lens cleaning disc. Avoid using compressed air directly on the lens. Keep the tray closed when not in use to prevent dust.

Is the drive silent during operation?

The drive is designed to be quiet, but some noise is normal during spinning and reading. It may be audible during high-speed writing.

What should I do if the drive is not recognized?

Try connecting to a different USB port, especially a USB 2.0 port. Ensure the USB cable is fully inserted. If using a USB hub, connect directly to the computer. Restart your computer if needed.

Does the drive support dual-layer DVD?

Yes, it can write DVD+R DL (Double Layer) at 6x speed and read them.

USER MANUAL SDRW-08D2S-U ASUS

IN SEARCH OF INCREDIBLE

Quick Installation Guide

English	Español	Kazakwa	Português	Tiếng Viêt
繁體中文	Eesti	한국어	Română	Українська
简体中文	Suomi	Lietuvių	Русский	لاوي
былгарски	Français	Latviešu	Slovenčina	عربي
Čeština	Magyar	Bahasa Malayu	Slovenščina	فارسی
Dansk	Bahasa Indonesia	Nederlands	Svenska
Deutsch	Italiano	Norsk	ไทย
Ελληνικά	日本語	Polski	Türkçe(Kurulum Kilavuzu)

Model / Model: SDRW-08D2S-U / SDRW-08D2S-U LITE / SDRW-08U5S-U / SDRW-08U7M-U /

SDRW-08U7C-U / SDRW-08U8M-U / SDRW-08U9M-U / SBC-06D2X-U /

SBW-06D2X-U / SBW-06D5H-U / BW-16D1H-U / BW-16D1H-U PRO /

BW-16D1X-U

Q25842

Revised Edition V5

January 2025

Copyright © 2025 ASUSTeK Computer Inc. All Rights Reserved.

Contents

English ....3 Română....17

Installing the external Optical Drive

The installation and bundled cables of your optical drive may differ between models, please refer to the following installation methods and select the one that most suits your model.

Using the bundled USB Type-C cable

Models: SDRW-08U7C-U / SDRW-08U8M-U / SDRW-08U9M-U / SBW-06D5H-U

1. Connect the USB Type-C® connector on the bundled cable to a USB Type-C® port on your computer.
2. Connect the bundled cable to your optical drive.

NOTE: This connector and port may vary between models.

1. (For Windows only) Press the Eject button to open the optical drive tray.

English

Using the bundled Y-Cable

Models: SDRW-08D2S-U / SDRW-08D2S-U LITE / SDRW-08D6S-U / SDRW-08U5S-U / SDRW-08U7M-U / SDRW-08U9M-U / SBC-06D2X-U / SBW-06D2X-U / SBW-06D5H-U / SDR-08B1-U

1. Connect the USB connector on the Y-cable to a USB port on your computer.

(optional) Connect the USB connector to another USB port for additional power if your computer's USB port does not provide enough power through the USB connector resulting in the optical drive not functioning properly.

NOTE:

• USB connector is only used for additional power, and cannot be used for data transfer
• If you are using a Blu-ray optical disc drive, please ensure to connect both USB connectors (and) to USB ports on your computer.
• You may need to use a USB extension cable (purchased separately) to connect the additional USB connector if you do not have enough free USB ports on one side of the computer.
• Connect the Y-cable to your optical drive.

NOTE: This connector and port may vary between models.

1. (For Windows only) Press the Eject button to open the optical drive tray.

4

Using the bundled USB cable and power adapter

Models: BW-16D1H-U / BW-16D1H-U PRO / BW-16D1X-U

To connect the USB cable and power adapter please refer to the illustration below. After the cables and power have been connected, push the power switch to the ON position 8 power on your optical drive and press the Eject button 7 (For Windows only) to open the optical drive tray.

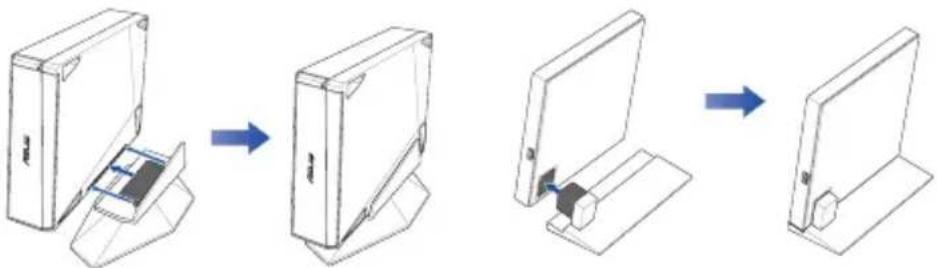

Setting up the optical drive stand (on selected models)

Models: BW-16D1H-U / BW-16D1H-U PRO

Models: SBC-06D2X-U / SBW-06D2X-U

Support

For more information on your external optical drive, please refer to https://www.asus.com/support.

https://www.asus.com/support

• Do not place damaged discs inside the device. A damaged disc may break while in use and damage the device.
• Use of any controls, adjustments, or procedures other than those specified in this manual may result in hazardous radiation exposure.
• Do not attempt to disassemble the drive.
• Do not move the device from a cold to a warm or hot environment. Drastic change in temperature is harmful to the device.
• Before moving or uninstalling the drive, remove any disc in it.
• Prevent liquids or any metal from getting into the device. If this situation occurs, contact your retailer for help.
• Do not use any evaporating solvents to clean the device. If you accidentally sprayed any solvent on the device, use a clean cloth to wipe it. You may also use a neutral cleaner to dilute the solvent to easily wipe it from the device.
• Do not turn off the computer while the device is in reading or writing mode.
• Do not place discs into the device immediately if they came from a cold environment, especially during cold seasons. Wait until the discs have reached room temperature.
• Use this product in environments with ambient temperatures between 0°C (32°F) and 40°C (104°F).

CD-ROM Drive Safety Warning

CLASS 1 LASER PRODUCT

CONSUMER LASER PRODUCT

EN 50689:2021

CLASS 1 LASER PRODUCT

Australia Statement Notice

From 1 January 2012 updated warranties apply to all ASUS products, consistent with the Australian Consumer Law. For the latest product warranty details please visit http://support.asus.com. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASUS Customer Service 1300 2787 88 or visit us at http://support.asus.com.

Declaration of compliance for product environmental regulation

ASUS follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASUS product is in line with global environmental regulations. In addition, ASUS disclose the relevant information based on regulation requirements.

Please refer to https://esg.asus.com/Compliance.htm for information disclosure based on regulation requirements ASUS is complied with:

EU REACH and Article 33

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at https://esg.asus.com/Compliance.htm.

This product complies with the EU RoHS Directive. For more details, see https://esg.asus.com/Compliance.htm.

India RoHS

This product complies with the "India E-Waste (Management) Rules, 2016" and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls (PBBs) and polybrominated diphenyl ethers (PBDEs) in concentrations exceeding 0.1% by weight in homogenous materials and 0.01% by weight in homogenous materials for cadmium, except for the exemptions listed in Schedule II of the Rule.

Vietnam RoHS

ASUS products sold in Vietnam, on or after September 23, 2011, meet the requirements of the Vietnam Circular 30/2011/TT-BCT.

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to https://esg.asus.com/en/Takeback.htm for detailed recycling information in different regions.

Product Name產品名稱	Model Name型號	Input rating輸入規格
External Slim Optical Drive外接式薄型光碟機	SDR-08B1-U A, SDRW-08D2S-U, SDRW-08U5S-U, SDRW-08U7M-U, SDRW-08U7C-U, SDRW-08U8M-U, SDRW-08U9M-U, SBC-06D2X-U, SBW-06D2X-U	5V, 2.0A
External Slim Blu-ray Drive華碩外接式薄型藍光燒錄機	SBW-06D5H-U 5V, 2.0A
External H/H Optical Drive外接式半高型光碟機	BW-16D1H-U, BW-16D1X-U 12V, 3.0A

China RoHS EFUP Labelling - 10 Years

Compliance Statement of Innovation, Science and Economic Development Canada (ISED)

This device complies with Innovation, Science and Economic Development Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

CAN ICES(B)/NMB(B)

France sorting and recycling information

KC: Korea Warning Statement

B급 기기 (가정용 방송통신기자재)

EAC Certification Logo

EAC

FCC COMPLIANCE INFORMATION

Per FCC Part 2 Section 2.1077

Responsible Party: Asus Computer International

Address: 48720 Kato Rd, Fremont, CA 94538

Phone/Fax No: [phone]/[phone]

hereby declares that the product

Product Name Model Name		Input rating
External Slim Optical Drive	SDRW-08D2S-U, SDRW-08U5S-U, SDRW-08U7M-U, SDRW-08U7C-U, SDRW-08U8M-U, SDRW-08U9M-U, SBC-06D2X-U, SBW-06D2X-U	5V, 2.0A
External Slim Blu-ray Drive SBW-06D5H-U 5V, 2.0A
External H/H Optical Drive BW-16D1H-U, BW-16D1X-U 12V, 3.0A

Compliance statement:

These devices comply with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) These devices may not cause harmful interference, and (2) these devices must accept any interference received, including interference that may cause undesired operation.

Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3., as described in Laser Notice No. 56, dated May 8, 2019.

Simplified UKCA Declaration of Conformity

ASUSTeK Computer Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of related UKCA Directives. Full text of UKCA declaration of conformity is available at: www.asus.com/support

Simplified EU Declaration of Conformity

English ASUSTeK Computer Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of related Directives. Full text of EU declaration of conformity is available at: www.asus.com/support

Address, City 1F., No. 15, Lide Rd., Beitou Dist., Taipei City 112

Authorized Representative in Europe ASUS COMPUTER GmbH

City Address Harkortstrasse 21-23, 40880 Ratingen

Country Germany

Authorized Representative in United Kingdom ASUSTEK (UK) LIMITED

City Address 1st Floor, Sackville House, 143-149 Fenchurch Street, London, EC3M

6BL, England

Country United Kingdom

30

ASUS

IN SEARCH OF INCREDIBLE

For a superior burning experience
