Product Type	Wireless Router
Model	Archer AX1800
Brand	TP-Link
Wireless Standard	Wi-Fi 6 (802.11ax)
Frequency Bands	2.4 GHz and 5 GHz
Maximum Speed	Up to 1.8 Gbps (574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz)
Number of LAN Ports	4 Gigabit Ethernet
WAN Port	1 Gigabit Ethernet
USB Port	1 USB 3.0
Antennas	4 External Fixed Antennas
Dimensions	10.7 x 6.7 x 2.1 inches (272 x 170 x 54 mm)
Weight	1.4 lbs (635 g)
Power Supply	12V DC, 1.5A
Power Consumption	12W (typical)
Main Functions	Wi-Fi 6, OFDMA, MU-MIMO, Beamforming, Parental Controls, Guest Network, VPN Server, IPv6 Support
Security Features	WPA/WPA2/WPA3, SPI Firewall, Access Control, DoS Protection
Maintenance	Firmware upgrade via web interface or Tether app
Spare Parts & Repairability	Contact TP-Link support for replacement parts; user-serviceable only for antenna and power adapter
General Information	Works with major ISPs; supports 802.3af PoE for power (optional)

Frequently Asked Questions - Archer AX1800 TP-LINK

What is the default IP address to access the router settings?

The default IP address is 192.168.0.1 or tplinkwifi.net.

How do I reset the Archer AX1800 to factory defaults?

Press and hold the Reset button on the back of the router for about 6 seconds until the power LED blinks.

What is the WiFi password by default?

The default WiFi password is printed on a sticker at the bottom of the router, or you can find it in the quick setup guide.

Can I set up a guest network?

Yes, the router supports Guest Network for both 2.4 GHz and 5 GHz bands, which can be configured via the web interface or Tether app.

What is the range of the Archer AX1800?

The range depends on environment, but typically up to 2,000 sq ft indoors with minimal interference.

Does this router support VPN?

Yes, it supports VPN Server (PPTP, L2TP, OpenVPN) and VPN Client functionality.

How can I update the firmware?

Go to the router's web interface at tplinkwifi.net, navigate to Advanced > System Tools > Firmware Upgrade, and upload the latest firmware from TP-Link's support page.

What is MU-MIMO?

MU-MIMO (Multi-User Multiple Input Multiple Output) allows the router to communicate with multiple devices simultaneously, improving network efficiency.

How do I manage parental controls?

Access the router's web interface and go to Advanced > Parental Controls. You can block specific websites, set time limits, and monitor activity.

What should I do if I forget the admin password?

Perform a factory reset by holding the Reset button for 6 seconds. Then log in using the default username and password (both 'admin').

USER MANUAL Archer AX1800 TP-LINK

Chapter 1. Get to Know About Your Router ....3

1. Product Overview....4 1.2. Appearance 4 1.2.1.Top Panel 4
2. Back Panel .... 5

Chapter 2. Connect the Hardware....7

2.1. Position Your Router 8 2.2. Connect Your Router....8

Chapter 3. Log In to Your Router.... 11

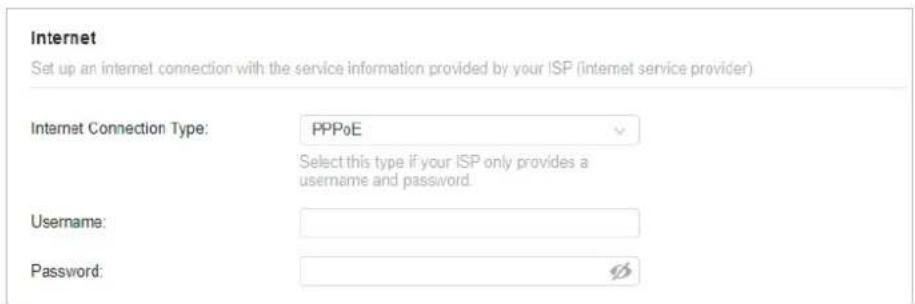

Chapter 4. Set Up Internet Connection .... 13

4.1. Use Quick Setup Wizard 14 4.2. Quick Setup Via TP-Link Tether App....14 4.3. Manually Set Up Your Internet Connection .... 15 4.4. Set Up the Router as an Access Point 17 4.5. Set Up an IPv6 Internet Connection 18

Chapter 5. TP-Link Cloud Service ...... 22

5.1. Register a TP-Link ID....23 5.2. Change Your TP-Link ID Information....23 5.3. Manage the User TP-Link IDs 24 5.3.1. Add TP-Link ID to Manage the Router....25 5. 3. 2. Remove TP-Link ID(s) from Managing the Router.... 25 5.4. Manage the Router via the TP-Link Tether App 26

Chapter 6. Wireless Settings ...... 27

6.1. Specify Wireless Settings 28 6.2. Schedule Your Wireless Function 30 6.3. Use WPS for Wireless Connection 31 6.3.1. Connect via the Client's PIN 31 6.3.2. Connect via the Router's PIN 31

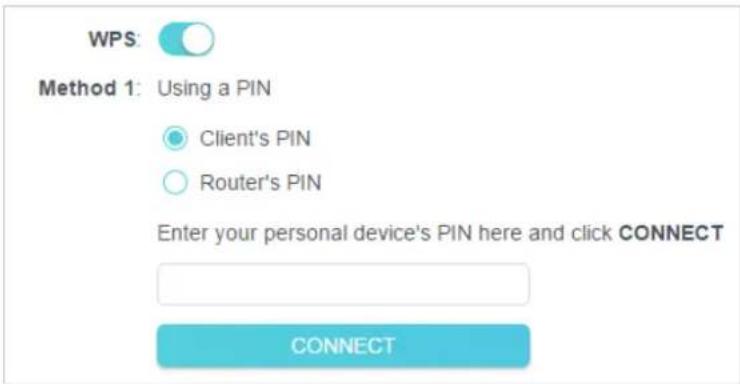

6.3.3. Push the WPS Button....32

6.4. Advanced Wireless Settings 32

Chapter 7. Guest Network.... 34

7.1. Create a Network for Guests 35

7.2. Customize Guest Network Options....36

Chapter 8. Parental Controls ...... 37

8.1. Setting Up Access Restrictions 38

8.2. Monitoring Internet Usage 42

Chapter 9. QoS.... 43

Chapter 10. EasyMesh with Seamless Roaming.... 45

1. Add a Router as a Satellite Device....46

10.2. Add a Range Extender as a Satellite Device 47

10.3. Manage Devices in the EasyMesh Network....47

Chapter 11. Network Security .... 51

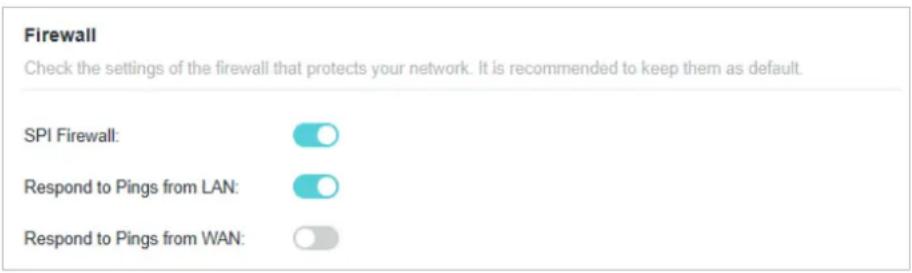

11.1. Protect the Network from Cyber Attacks....52

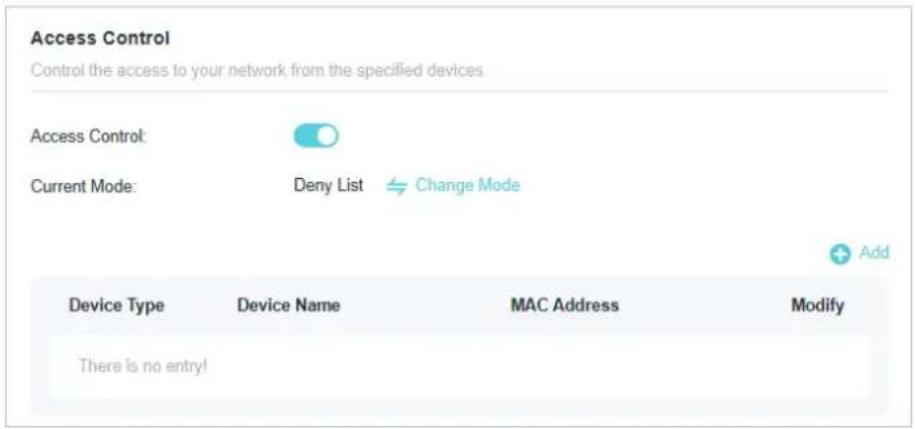

11.2. Access Control 52

11.3. IP & MAC Binding 55

11.4. ALG 57

Chapter 12. NAT Forwarding.... 58

1. Share Local Resources on the Internet by Port Forwarding ..... 59

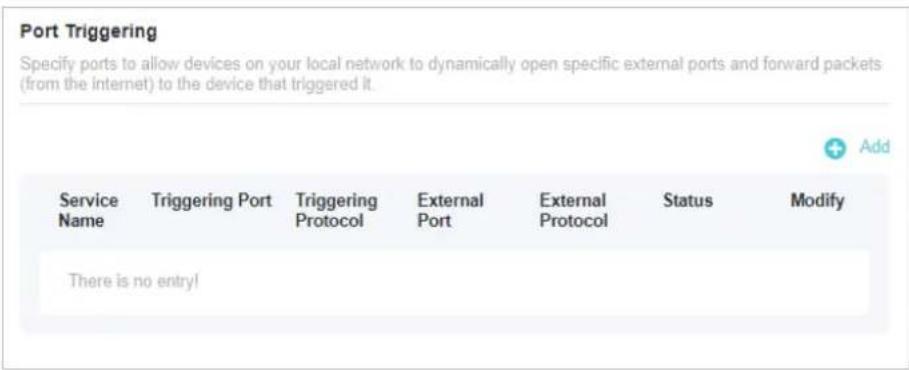

2. Open Ports Dynamically by Port Triggering ....61

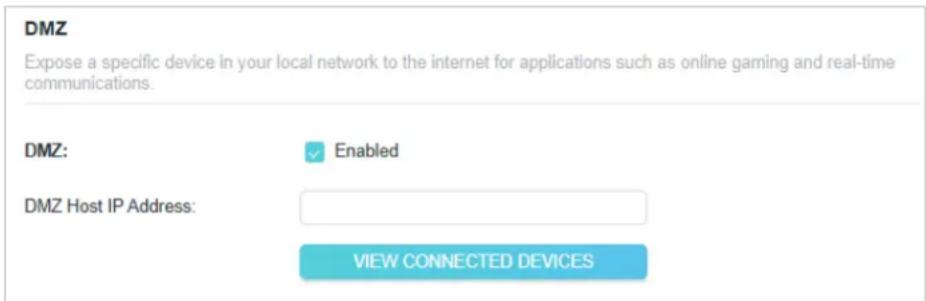

12.3. Make Applications Free from Port Restriction by DMZ 62

1. Make Xbox Online Games Run Smoothly by UPnP ....63

Chapter 13. VPN Server & Client.... 65

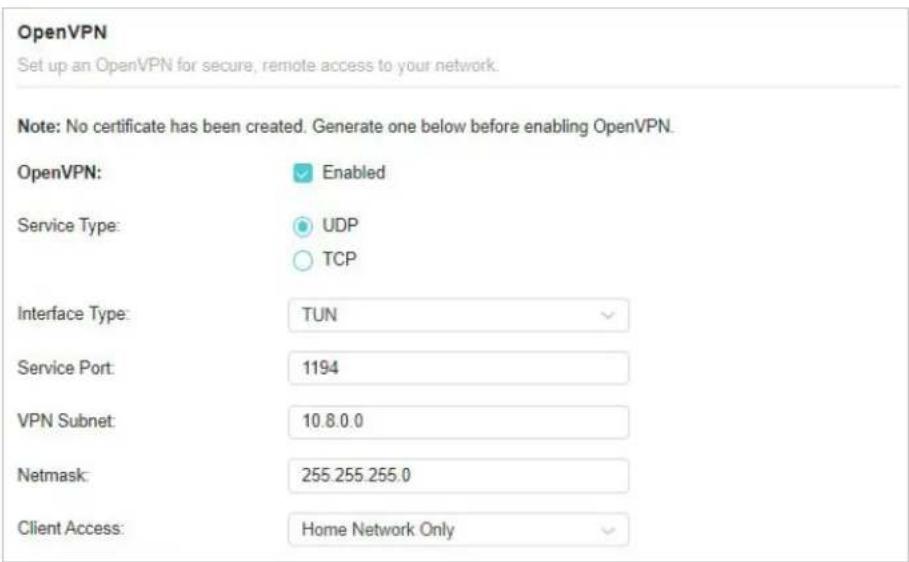

1. Use OpenVPN to Access Your Home Network....66

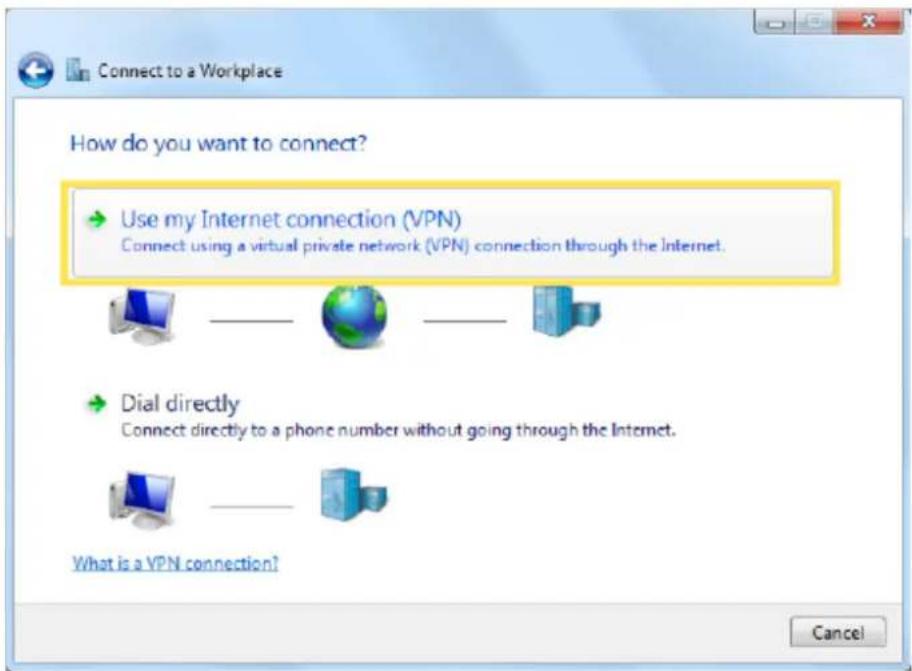

13.2. Use PPTP VPN to Access Your Home Network 67

1. Use L2TP/IPSec VPN to Access Your Home Network ..... 72

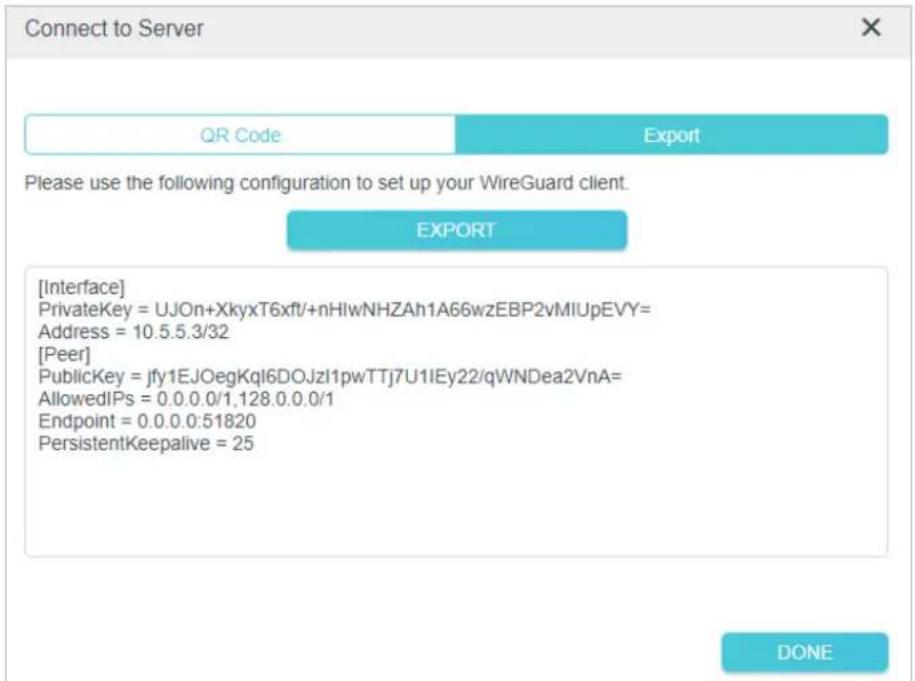

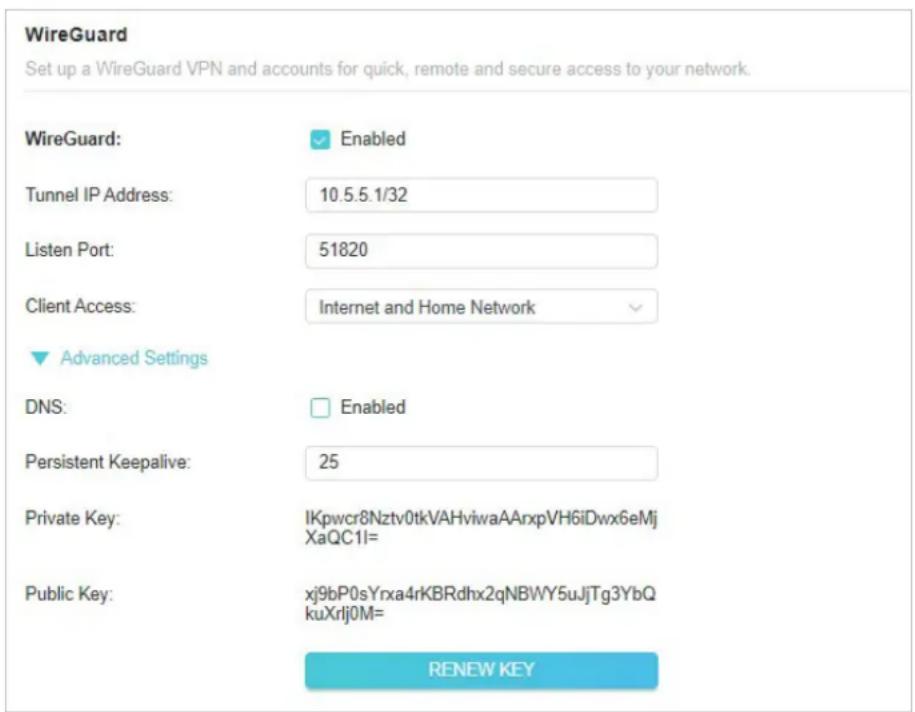

2. Use WireGuard VPN to Access Your Home Network ..... 80

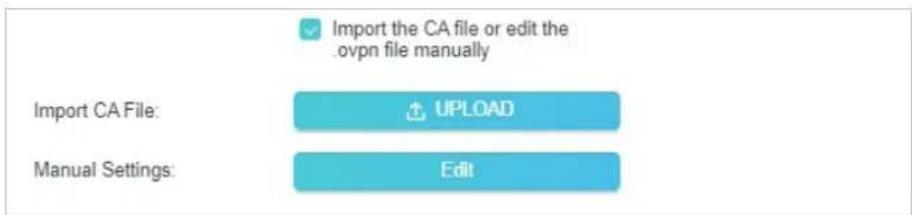

3. Use VPN Client to Access a Remote VPN Server ....83

Chapter 14. Customize Your Network Settings.... 89

1. Change the LAN Settings....90

14.2. Set Up Link Aggregation 90 14.3. Flow Controller 91 14.4. Configure to Support IPTV Service....91 14.5. Specify DHCP Server Settings....93 14.6. Set Up a Dynamic DNS Service Account 94 14.7. Create Static Routes....95

Chapter 15. Manage the Router 99

1. Update the Firmware....100
2. Online Update ....100
3. 2.Local Update ....101 15.2. Backup and Restore Configuration Settings....101 15.3. Change the Login Password ....102 15.4. Password Recovery....103 15.5. Local Management .... 104 15.6. Remote Management....105 15.7. System Log....107 15.8. Test the Network Connectivity ..... 109 15.9. Set System Time and Language .....111
4. Set the Router to Reboot Regularly.....113
5. Control the LED....114

FAQ 116

About This Guide

This guide is a complement of Quick Installation Guide. The Quick Installation Guide instructs you on quick internet setup, and this guide provides details of each function and shows you the way to configure these functions appropriate to your needs.

Note: Features available in the router may vary by model and software version. Router availability may also vary by region or ISP. All images, steps, and descriptions in this guide are only examples and may not reflect your actual Router experience.

Conventions

In this guide the following conventions are used:

Convention Description
Underlined	Underlined words or phrases are hyperlinks. You can click to redirect to a website or a specific section.
Teal	Contents to be emphasized and texts on the web page are in teal, including the menus, items, buttons, etc.
>	The menu structures to show the path to load the corresponding page. For example, Advanced > System > Firmware Update means the Firmware Update page is under the System menu that is located in the Advanced tab.
Note:	Ignoring this type of note might result in a malfunction or damage to the device.
Tips:	Indicates important information that helps you make better use of your device.
Symbols on the web page	Click to edit the corresponding entry.Click to delete the corresponding entry.click to enable or disable the corresponding entry.Click to view more information about items on the page.

More Info

The latest software, management app and utility can be found at Download Center at https://www.tp-link.com/support/download.

The Quick Installation Guide can be found where you find this guide or inside the package of the router.

Specifications can be found on the product page at https://www.tp-link.com.

TP-Link Community is provided for you to discuss our products and share knowledge at https://community.tp-link.com.

Our Technical Support contact information can be found at the Contact Technical Support page at https://www.tp-link.com/support.

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage and number of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

Use of 802.11ax (Wi-Fi 6), and features including OFDMA and 1024-QAM requires clients to also support corresponding features.

⁵ The 802.11ax white paper defines standardized modifications to both the IEEE 802.11 physical layers (PHY) and the IEEE 802.11 Medium Access Control (MAC) layer as enabling at least one mode of operation capable of supporting improvement of at least four times the average throughput per station (measured at the MAC data service access point) in a dense deployment scenario.

△1,000 Mbps internet speeds require compatible service plans and equipment.

*Use of WPA3 requires clients to also support WPA3.

**This router may not support all the mandatory features as ratified in the IEEE 802.11AX specification.

***Further software upgrades for feature availability may be required.

**** This product is compatible with standardized EasyMesh technology but has not obtained the Wi-Fi EasyMeshTM certification. TP-Link EasyMesh-compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The EasyMesh-Compatible function is still being developed on some models and will be supported in subsequent software updates.

Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.

Chapter 1

Get to Know About Your Router

This chapter introduces what the router can do and shows its appearance. It contains the following sections:

• Product Overview - Appearance

1.1 Product Overview

TP-Link AX router, with next-generation 802.11ax Wi-Fi technology, achieves Wi-Fi performance at its ultimate level. The revolutionary combination of OFDMA and 1024QAM improves throughput by 4 times and dramatically increases the whole network capacity and efficiency. It's also backwards compatible with 802.11a/b/g/n/ac.

Moreover, it is simple and convenient to set up and use the TP-Link router due to its intuitive web interface and the powerful Tether app.

1.2 Appearance

1.2.1 Top Panel

The router's LEDs (view from left to right) are located on the front. You can check the router's working status by following the LED Explanation table.

LED Explanation

Name Status Indication
[0x85](Power)	On The system has started up successfully.
	Flashing The system is starting up or the firmware is being upgraded. Do not disconnect or power off your router.
	Off Power is off.
(32GH)(2.4 GHz Wireless)	On The 2.4 GHz wireless band is enabled.
	Off The 2.4 GHz wireless band is disabled.
(5 GHz Wireless)	On The 5 GHz wireless band is enabled.
	Off The 5 GHz wireless band is disabled.
(Internet)	Green On Internet service is available.
	Orange On	The router's Internet port is connected, but the internet service is not available.
	Off The router's Internet port is unplugged.
(Ethernet)	On	At least one powered-on device is connected to the router's Ethernet port.
	Off No powered-on device is connected to the router's Ethernet port.
(WPS)	On/Off	This light remains on for 5 minutes when a WPS connection is established, then turns off.
	Blinking WPS connection is in progress. This may take up to 2 minutes.

1.2.2 Back Panel

The following parts (view from left to right) are located on the back panel.

Item Description
WPS/Wi-Fi Button	Press this button for 1 second, and immediately press the WPS button on your client device to start the WPS process.
	Press and hold this button for more than 2 seconds to turn on or off the wireless function of your router.
Reset Button	Press and hold the button for about 6 seconds until the Power LED blinks to reset the router to its factory default settings.

Item Description

WAN Port For connecting to a modem or an Ethernet outlet.

LAN Port (1-4) For connecting your PC or other wired devices to the router.

Power On/Off Button Press this button to power on or off the router.

Power Port For connecting the router to a power socket via the provided power adapter.

Antennas Used for wireless operation and data transmit.

Chapter 2

Connect the Hardware

This chapter contains the following sections:

• Position Your Router
• Connect Your Router

2.1. Position Your Router

• The product should not be located in a place where it will be exposed to moisture or excessive heat.
• Place the router in a location where it can be connected to multiple devices as well as to a power source.
• Make sure the cables and power cord are safely placed out of the way so they do not create a tripping hazard.
• The router can be placed on a shelf or desktop.
• Keep the router away from devices with strong electromagnetic interference, such as Bluetooth devices, cordless phones and microwaves.
• Generally, the router is placed on a horizontal surface, such as on a shelf or desktop. The device also can be mounted on the wall as shown in the following figure.

Note:

The diameter of the screw head, 4.5mm < D < 6.6mm, and the distance of two screws is 211mm. The screw that project from the wall need around 6.48 mm based, and the length of the screw need to be at least 9.5mm to withstand the weight of the product.

2.2. Connect Your Router

Before you start:

1) Turn off your modem, if any, and remove the backup battery if it has one. 2) Place the router horizontally and orient the antennas vertically.

If your internet comes from an Ethernet outlet instead of a DSL / Cable / Satellite modem, connect the router's WAN port to it, then follow steps 3 and 4 to complete the hardware connection.

1. Connect the powered-off modem to the router's WAN port with an Ethernet cable.
2. Turn on the modem, and then wait about 2 minutes for it to restart.
3. Connect the power adapter to the router and turn on the router.
4. Verify that the hardware connection is correct by checking the following LEDs.

Note:

If the 2.4GHz LED and 5GHz LED are off, press and hold the WPS/Wi-Fi button on the back for more than 2 seconds, then release the button. Both the LEDs should turn solid on.

1. Connect your computer to the router.

• Method 1: Wired

Turn off the Wi-Fi on your computer and connect the devices as shown below.

• Method 2: Wirelessly

1) Find the SSID (Network Name) and Wireless Password printed on the label at the bottom of the router. 2) Click the network icon of your computer or go to Wi-Fi Settings of your smart device, and then select the SSID to join the network.

OR

Smart DeviceComputer

• Method 3: Use the WPS button

Wireless devices that support WPS, including Android phones, tablets, and most USB network cards, can be connected to your router through this method.

Note:

• WPS is not supported by iOS devices. - The WPS function cannot be configured if the wireless function of the router is disabled. Also, the WPS function will be disabled if your wireless encryption is WEP. Please make sure the wireless function is enabled and is configured with the appropriate encryption before configuring the WPS.

1) Tap the WPS icon on the device's screen. Here we take an Android phone for instance. 2) Within two minutes, press the WPS/Wi-Fi button on your router for 1 second.

Chapter 3

Log In to Your Router

With a web-based utility, it is easy to configure and manage the router. The web-based utility can be used on any Windows, Mac OS or UNIX OS with a Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.

Follow the steps below to log in to your router.

1. Set up the TCP/IP Protocol in Obtain an IP address automatically mode on your computer.
2. Visit http://tplinkwifi.net, and create a login password for secure management purposes. Then click Let's Get Started to log in.

Note: If the login window does not appear, please refer to the FAQ Section.

Set Up Internet Connection

This chapter introduces how to connect your router to the internet. The router is equipped with a web-based Quick Setup wizard. It has necessary ISP information built in, automates many of the steps and verifies that those steps have been successfully completed. Furthermore, you can also set up an IPv6 connection if your ISP provides IPv6 service.

It contains the following sections:

• Use Quick Setup Wizard - Quick Setup Via TP-Link Tether App • Manually Set Up Your Internet Connection - Set Up the Router as an Access Point - Set Up an IPv6 Internet Connection

4. 1. Use Quick Setup Wizard

The Quick Setup Wizard will guide you to set up your router.

Tips:

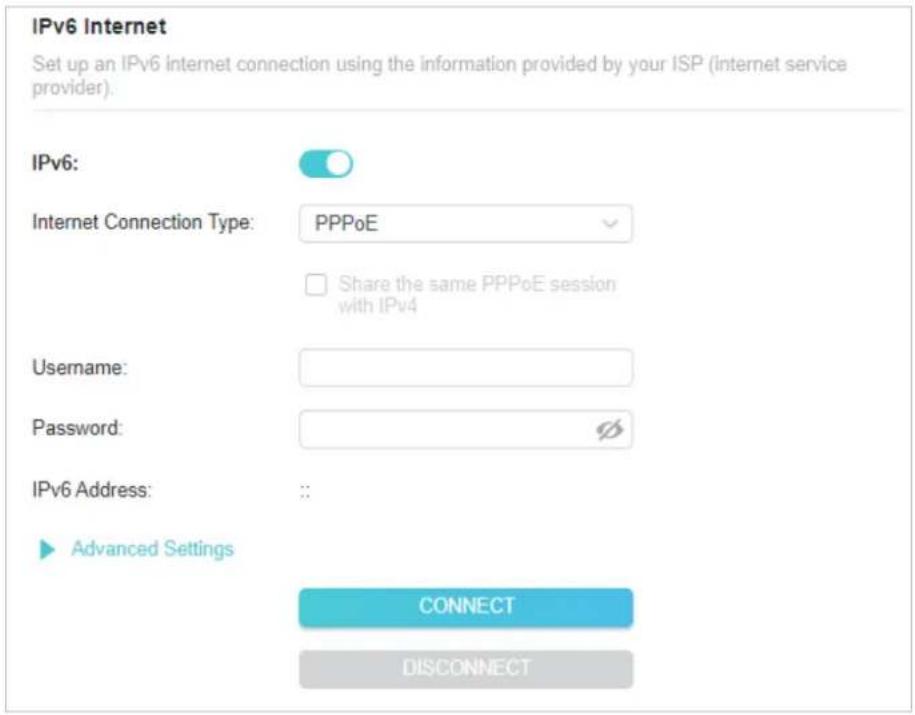

If you need the IPv6 internet connection, please refer to the section of Set Up an IPv6 Internet Connection.

Follow the steps below to set up your router.

1. Visit http://tplinkwifi.net, and log in with the password you set for the router.
2. Follow the step-by-step instructions to complete Quick Setup configuration or go to Advanced > Quick Setup for configuration to connect your router to the internet. Then follow the step-by-step instructions to connect your router to the internet.
3. To enjoy a more complete service from TP-Link (remote management, TP-Link DDNS, and more.), log in with your TP-Link ID or click Sign Up Now to get one. Then follow the instructions to bind the cloud router to your TP-Link ID.

Get TP-Link Cloud Service

Log in to bind the router to your TP-Link ID. You can manage your network remotely via the Tether app, get notified of the latest firmware updates and more

TP-Link ID (Email)

Password:

SKIP

Note:

• To learn more about the TP-Link Cloud service, please refer to the TP-Link Cloud Service section. - If you do not want to register a TP-Link ID now, you may click Skip to proceed. - If you have changed the preset wireless network name (SSID) and wireless password during the Quick Setup process, all your wireless devices must use the new SSID and password to connect to the router.

4.2. Quick Setup Via TP-Link Tether App

The Tether app runs on iOS and Android devices, such as smartphones and tablets.

1. Launch the Apple App Store or Google Play store and search "TP-Link Tether" or simply scan the QR code to download and install the app.

OR

1. Launch the Tether app and log in with your TP-Link ID.

Note: If you don't have a TP-Link ID, create one first.

1. Tap the + button, and select Add a Router. Follow the steps to complete the setup and connect to the internet.

Note: Due to Tether app updates, your actual user interface and pathway may differ from those described here.

1. Connect your devices to the newly configured wireless networks of the router and enjoy the internet!

4.3. Manually Set Up Your Internet Connection

In this part, you can check your current internet connection settings. You can also modify the settings according to the service information provided by your ISP.

Follow the steps below to check or modify your internet connection settings.

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Internet.
3. Select your internet connection type from the drop-down list.

1. Follow the instructions on the page to continue the configuration. Parameters on the figures are just used for demonstration.

1) If you choose Dynamic IP, you need to select whether to clone the MAC address. Dynamic IP users are usually equipped with a cable TV or fiber cable.

2) If you choose Static IP, enter the information provided by your ISP in the corresponding fields.

3) If you choose PPPoE, enter the username and password provided by your ISP. PPPoE users usually have DSL cable modems.

4) If you choose L2TP, enter the username and password and choose the Secondary Connection provided by your ISP. Different parameters are needed according to the Secondary Connection you have chosen.

5) If you choose PPTP, enter the username and password, and choose the Secondary Connection provided by your ISP. Different parameters are needed according to the Secondary Connection you have chosen.

5. Click SAVE.

Tips:

• If you use Dynamic IP and PPPoE and you are provided with any other parameters that are not required on the page, please go to Advanced > Network > Internet to complete the configuration.
• If you still cannot access the internet, refer to the FAQ section for further instructions.

4. Set Up the Router as an Access Point

The router can work as an access point, transforming your existing wired network to a wireless one.

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > System > Operation Mode, select Access Point Mode and click SAVE. The router will reboot and switch to Access Point mode.

Operation Mode

Select an operation mode according to your needs.

Wireless Router Mode (Current)

In this mode, the router can provide internet access for multiple wired and wireless devices. This mode is required most commonly.

Access Point Mode

In this mode, the router changes an existing wired (Ethernet) network into a wireless one.

1. After rebooting, connect the router to your existing wired router via an Ethernet cable.
2. Log in again to the web management page http://tplinkwifi.net, and go to Advanced > Quick Setup.
3. Configure your wireless settings and click NEXT.
4. Confirm the information and click SAVE. Now, you can enjoy Wi-Fi.

Tips:

• Functions, such as Parental Controls, QoS and NAT Forwarding, are not supported in the Access Point mode. • Functions, such as Guest Network, are the same as those in the Router mode.

4.5. Set Up an IPv6 Internet Connection

Your ISP provides information about one of the following IPv6 internet connection types: PPPoE, Dynamic IP(SLAAC/DHCPv6), Static IP, 6to4 tunnel, Pass-Through (Bridge). After setting up the IPv6 internet connection, you can add IPv6 firewall rules to protect your IPv6 network.

- Set up an IPv6 Internet Connection

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > IPv6.
3. Enable IPv6 and select the internet connection type provided by your ISP.

Tips:

If you do not know what your internet connection type is, contact your ISP or judge according to the already known information provided by your ISP.

1. Fill in information as required by different connection types.

1) Static IP: Fill in blanks and click SAVE.

2) Dynamic IP (SLAAC/DHCPv6): Click Advanced to input further information if your ISP requires. Click SAVE and then click RENEW.

3) PPPoE: By default, the router uses the IPv4 account to connect to the IPv6 server. Click Advanced Settings to input further information if your ISP requires. Click SAVE and then click CONNECT.

Note:

If your ISP provides two separate accounts for the IPv4 and IPv6 connections, manually enter the username and password for the IPv6 connection.

4) 6to4 Tunnel: An IPv4 internet connection type is a prerequisite for this connection type (Manually Set Up Your Internet Connection). Click Advanced Settings to input further information if your ISP requires. Click SAVE and then click CONNECT.

5) Pass-Through (Bridge): Click SAVE and skip to Step 6.

1. Configure LAN ports. Windows users are recommended to choose from DHCPv6 and SLAAC+Stateless DHCP. Fill in Address Prefix provided by your ISP, and click SAVE.

1. In MAC Clone section, set the MAC address of your router. Use the default address unless your ISP allows internet access from only a specific MAC address.

1. Click Status to check whether you have successfully set up an IPv6 connection.

Tips:

Visit the FAQ section if there is no internet connection.

TP-Link Cloud Service

TP-Link Cloud service provides a better way to manage your cloud devices. Log in to your router with a TP-Link ID, and you can easily monitor and manage your home network when you are out and about via the Tether app. To ensure that your router stays new and gets better over time, the TP-Link Cloud will notify you when an important firmware upgrade is available. Surely you can also manage multiple TP-Link Cloud devices with a single TP-Link ID.

This chapter introduces how to register a new TP-Link ID, bind or unbind TP-Link IDs to manage your router, and the Tether app with which you can manage your home network no matter where you may find yourself.

It contains the following sections:

• Register a TP-Link ID • Change Your TP-Link ID Information
• Manage the User TP-Link IDs
• Manage the Router via the TP-Link Tether App

5. 1. Register a TP-Link ID

If you have skipped the registration during the Quick Setup process, you can:

1. Visit http://tplinkwifi.net, and log in with the password you set for the router.
2. Go to Advanced > TP-Link ID or click TP-Link ID on the very top of the page.
3. Click Sign Up and follow the instructions to register a TP-Link ID.

1. After activating your TP-Link ID, come back to the TP-Link ID page to log in. The TP-Link ID used to log in to the router for the first time will be automatically bound as an Admin.

Note:

• To learn more about the Admin and User TP-Link IDs, refer to Manage the User TP-Link IDs. - Once you have registered a TP-Link ID on the web management page, you can only register another TP-Link ID via the Tether APP. Please refer to Manage the Router via the TP-Link Tether App to install the app. - If you want to unbind the admin TP-Link ID from your router, please go to Advanced > TP-Link ID, and click Unbind in the Device Information section.

5.2. Change Your TP-Link ID Information

Follow the steps below to change your email address and password of your TP-Link ID as needed.

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID.
2. Go to Advanced > TP-Link ID, and focus on the Account Information section.

• To change your email address:

1. Click behind the Email.
2. Enter the password of your TP-Link ID, then a new email address. And click SAVE.

• To change your password:

1. Click behind the Password.
2. Enter the current password, then a new password twice. And click SAVE.

5.3. Manage the User TP-Link IDs

The TP-Link ID used to log in to the router for the first time will be automatically bound as the Admin account. An admin account can add or remove other TP-Link IDs to or from the same router as Users. All accounts can monitor and manage the router locally or remotely, but user accounts cannot:

• Reset the router to its factory default settings either on the web management page or in the Tether app.
• Add/remove other TP-Link IDs to/from the router.

5.3.1. Add TP-Link ID to Manage the Router

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID.
2. Go to Advanced > TP-Link ID, and focus on the Bound Accounts section.
3. Click, enter another TP-Link ID as needed and click SAVE.

Note: If you need another TP-Link ID, please register a new one via the Tether app. Refer to Manage the Router via the TP-Link Tether App to install the app and register a new TP-Link ID.

1. The new TP-Link ID will be displayed in the Bound Accounts table as a User.

5.3.2. Remove TP-Link ID(s) from Managing the Router

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID.
2. Go to Advanced > TP-Link ID, and focus on the Bound Accounts section.

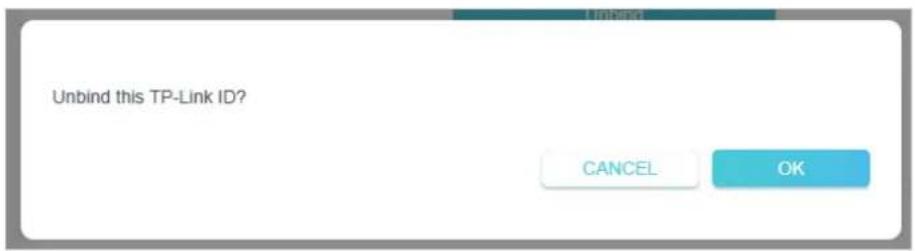

3. Tick the checkbox(es) of the TP-Link ID(s) you want to remove and click Unbind.

5.4. Manage the Router via the TP-Link Tether App

The Tether app runs on iOS and Android devices, such as smartphones and tablets.

1. Launch the Apple App Store or Google Play store and search "TP-Link Tether" or simply scan the QR code to download and install the app.

OR

1. Launch the Tether app and log in with your TP-Link ID.

Note: If you don't have a TP-Link ID, create one first. 3. Connect your device to the router's wireless network. 4. Go back to the Tether app, select the model of your router and log in with the password you set for the router. 5. Manage your router as needed.

Note: If you need to remotely access your router from your smart devices, you need to:

• Log in with your TP-Link ID. If you don't have one, refer to Register a TP-Link ID.
• Make sure your smartphone or tablet can access the internet with cellular data or a Wi-Fi network.

Chapter 6

Wireless Settings

This chapter guides you on how to configure the wireless settings.

It contains the following sections:

• Specify Wireless Settings
• Schedule Your Wireless Function • Use WPS for Wireless Connection • Advanced Wireless Settings

6.1. Specify Wireless Settings

The router's wireless network name (SSID) and password, and security option are preset in the factory. The preset SSID and password can be found on the label of the router. You can customize the wireless settings according to your needs.

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Wireless or Advanced > Wireless > Wireless Settings.

• To enable or disable TWT:

TWT (Target Wake Time) allows 802.11ax routers and clients to negotiate their periods to transmit and receive data packets. Clients only wake up at TWT sessions and remain in sleep mode for the rest of the time, which significantly extend their battery life. It is disabled by default.

1. Go to Advanced > Wireless > Wireless Settings. 1.2. Enable TWT. • To use the Smart Connect function:

The Smart Connect function lets you enjoy a more high-speed network by assigning your devices to best wireless bands based on actual conditions to balance network demands.

1. Go to Advanced > Wireless > Wireless Settings.
2. Enable Smart Connect.
3. Keep the default values or set a new SSID and password, and click SAVE. This SSID and password will be applied for the 2.4GHz and 5GHz wireless networks. If you want to configure the wireless settings separately for each band, untick the checkbox to disable this feature.

- To enable or disable the wireless function:

1. Go to Wireless or Advanced > Wireless > Wireless Settings.
2. The wireless function is enabled by default. If you want to disable the wireless function of the router, just untick the Enable checkbox of each wireless network. In this case, all the wireless settings will be invalid.
3. To change the wireless network name (SSID) and wireless password:
4. Go to Wireless or Advanced > Wireless > Wireless Settings.
5. Create a new SSID in Network Name (SSID) and customize the password for the network in Password. The value is case-sensitive.

Note: If you change the wireless settings with a wireless device, you will be disconnected when the settings are effective. Please write down the new SSID and password for future use.

- To hide SSID:

1. Go to Wireless or Advanced > Wireless > Wireless Settings.
2. Select Hide SSID, and your SSID won't display when you scan for local wireless networks on your wireless device and you need to manually join the network.

• To change the security option:

1. Go to Advanced > Wireless > Wireless Settings.
2. Select an option from the Security drop-down list: None, WPA/WPA2-Personal, WPA2/WPA3-Personal, WPA/WPA2-Enterprise. We recommend you don't change the default settings unless necessary.

- To change the transmit power and channel settings:

1. Go to Advanced > Wireless > Wireless Settings.
2. Select an option from the Transmit Power drop-down list: High, Middle or Low. The default and recommended setting is High.
3. If Smart Connect is disabled, you can also change the following settings:

- Channel Width - Select a channel width (bandwidth) for the wireless network.

• Channel - Select an operating channel for the wireless network. It is recommended to leave the channel to Auto, if you are not experiencing the intermittent wireless connection issue.
• Mode - Select a transmission mode according to your wireless client devices. It is recommended to just leave it as default.

6.2. Schedule Your Wireless Function

The wireless network can be automatically off at a specific time when you do not need the wireless connection.

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > Wireless > Wireless Schedule.
3. Enable the Wireless Schedule feature.

1. Click Add to add a schedule.

Wireless Off Time	Repeat	Modify
There is no entry!

1. Specify a wireless off period during which you need the wireless off automatically, and click SAVE.

Note:

• The Effective Time Schedule is based on the time of the router. You can go to Advanced > System > Time & Language to modify the time.
• The wireless network will be automatically turned on after the time period you set.

6.3. Use WPS for Wireless Connection

Wi-Fi Protected Setup (WPS) provides an easier approach to set up a security-protected Wi-Fi connection.

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Make sure the Wi-Fi of your router is on and go to Advanced > Wireless > WPS.

6.3.1. Connect via the Client's PIN

Enter the PIN of your device and click Connect. Then your device will get connected to the router.

6.3.2. Connect via the Router's PIN

Select Router's PIN in Method 1 to enable Router's PIN. You can use the default PIN or generate a new one.

Note:

PIN (Personal Identification Number) is an eight-character identification number preset to each router. WPS supported devices can connect to your router with the PIN. The default PIN is printed on the label of the router.

6.3.3. Push the WPS Button

Click Start on the screen or directly press the router's WPS button. Within two minutes, enable WPS on your personal device. Success will appear on the screen and the WPS LED of the router should change from flashing to solid on, indicating successful WPS connection.

Method 2: Using the button below

Click the button below, then enable WPS on your personal device within 2 minutes.

Method 3: Using the router's WPS button

Press the router's WPS button, then enable WPS on your personal device within 2 minutes.

6.4. Advanced Wireless Settings

Check advanced wireless settings for your device.

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > Wireless > Additional Settings.
3. Configure advanced wireless settings.

• WMM - WMM function can guarantee the packets with high-priority messages being transmitted preferentially.
• AP Isolation - This function isolates all connected wireless stations so that wireless stations cannot access each other through WLAN.
• Airtime Fairness - This function can improve the overall network performance by sacrificing a little bit of network time on your slow devices.
• Beacon Interval - Enter a value between 40 and 1000 in milliseconds to determine the duration between beacon packets that are broadcasted by the router to synchronize the wireless network. The default value is 100 milliseconds.
• RTS Threshold - Enter a value between 1 and 2346 to determine the packet size of data transmission through the router. By default, the RTS (Request to Send) Threshold size is 2346. If the packet size is greater than the preset threshold, the router will send RTS frames to a particular receiving station and negotiate the sending of a data frame.
• DTIM Interval - The value determines the interval of DTIM (Delivery Traffic Indication Message). Enter a value between 1 and 15 intervals. The default value is 1, which indicates the DTIM Interval is the same as Beacon Interval.
• Group Key Update Period - Enter a number of seconds (minimum 30) to control the time interval for the automatic renewal of the encryption key. The default value is 0, meaning no key renewal.

Guest Network

This function allows you to provide Wi-Fi access for guests without disclosing your main network. When you have guests in your house, apartment, or workplace, you can create a guest network for them. In addition, you can customize guest network options to ensure network security and privacy.

It contains the following sections:

• Create a Network for Guests - Customize Guest Network Options

7.1. Create a Network for Guests

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > Wireless > Guest Network or click Wireless on the top page. Locate the Guest Network section.
3. Create a guest network as needed.

1) Tick the Enable checkbox for the 2.4GHz or 5 GHz wireless network. 2) Customize the SSID. Don't select Hide SSID unless you want your guests to manually input the SSID for guest network access. 3) Enable Bandwidth Control if you want to limit the network speed of your guests. Then enter the limited bandwidth value. 4) Set the effective time to keep the guest network. 5) Select the Security type and customize your own password. If No security is selected, no password is needed to access your guest network.

1. Click SAVE. Now your guests can access your guest network using the SSID and password you set!
2. You can also click Share Network to share the SSID and password to your guests.

Tips: To view guest network information, go to Network Map and locate the Guest Network section. You can turn on or off the guest network function conveniently.

7.2. Customize Guest Network Options

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > Wireless > Guest Network. Locate the Guest Permissions section.
3. Customize guest network options according to your needs.

- Allow guests to see each other

Tick this checkbox if you want to allow the wireless clients on your guest network to communicate with each other via methods such as network neighbors and Ping.

- Allow guests to access your local network

Tick this checkbox if you want to allow the wireless clients on your guest network to communicate with the devices connected to your router's LAN ports or main network via methods such as network neighbors and Ping.

1. Click SAVE. Now you can ensure network security and privacy!

Parental Controls

Parental Controls allows you to set up unique restrictions on internet access for each member of your family. You can block inappropriate, explicit and malicious websites, and control access to specified websites at specified time.

It contains the following sections:

• Setting Up Access Restrictions • Monitoring Internet Usage

8.1. Setting Up Access Restrictions

I want to:

Block access to inappropriate online content for my kids' devices, limit when and how long they can access the internet.

How can I do that?

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > Parental Controls.
3. Click Add to create a profile for a family member.
4. Add basic profile information.

1) Enter a Name for the profile to make it easier to identify. 2) Under Devices, click Add Devices. 3) Select the devices that belong to this family member. Access restrictions will be applied to these devices. Click ADD when finished.

Note: Only devices that have previously been connected to your router's network are listed here. If you are unable to find the device you want to add, connect it to your network and then try again.

4) Click NEXT.

1. Customize the Content Filter for this profile according to your needs.

1) Select Deny List or Allow List as the Filter Rule, enter a keyword (for example, "Facebook") or a URL (for example, "www.facebook.com"), then click ADD.

- Deny List: All websites containing the specified keywords will be blocked.

- Allow List: Only websites that contain the specified keywords will be allowed.

2) Click NEXT.

1. Set time restrictions on internet access.

1) Click Edit Time to select the Internet Allowed Time, devices under this profile can only access internet during the specified period.

2) Enable Time Limits on Monday to Friday and Saturday & Sunday, and set the total time limit for the profile each day.

3) Save the settings.

Done!

The amount of time your child spends online is controlled and inappropriate content is blocked on their devices.

8.2. Monitoring Internet Usage

Parental Controls allows you to easily monitor the internet usage of your kids. You can pause the internet at any time, and check which websites your kids have visited and how much time they have spent online recently. Then you can configure parental control rules accordingly to protect your kids from malicious content.

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > Parental Controls, locate the Profiles area, and you can see how much time each profile has spent.

Note: If you have not set up a profile for your child yet, add a profile by referring to Setting Up Access Restrictions.

• Click / to pause/resume internet access for a profile at any time as you like.
• Click to edit the profile, like adding devices, filtering content, and changing time limits.
• Click to view the detailed reports of internet usage, like time spent online and most visited websites.

- Click the to delete this profile.

Chapter 9

QoS

QoS (Quality of Service) allows you to prioritize the internet traffic of specific devices to guarantee a faster connection when you need it the most. Devices set as high priority will be allocated more bandwidth even when there is heavy traffic on the network.

I want to:

Ensure a fast connection for a device when I need it the most.

How can I do that?

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > QoS.
3. Configure global QoS settings.

1) Enable QoS. 2) Enter the maximum upload and download bandwidth provided by your internet service provider. 3) Save the settings.

1. Set the device priority.

1) In the Device Priority section, find your desired device and toggle on Priority. 2) Set Timing according to your needs.

• To prioritize your device at any time, click the entry in the Timing column and choose Always.
• To prioritize your device for the next few hours, click the entry in the Timing column and choose the desired duration (like 2 hours).

Done! You can now enjoy using your device when you need it the most.

EasyMesh with Seamless Roaming

This product is compatible with EasyMesh. You can experience strong, stable, and seamless wireless connections throughout your home with EasyMesh. This chapter introduces the EasyMesh feature. It contains the following sections:

• Add a Router as a Satellite Device
• Add a Range Extender as a Satellite Device
• Manage Devices in the EasyMesh Network

10.1. Add a Router as a Satellite Device

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > EasyMesh, and enable EasyMesh.

1. Click ADD SATELLITE DEVICES, select TP-Link Router, then click NEXT.

1. Follow the page instructions to prepare your satellite router, then click DONE.

1. Click ADD. When prompted "This device has been added successfully", click OK, then click FINISH.

10.2. Add a Range Extender as a Satellite Device

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > EasyMesh. Locate the EasyMesh Network section.

EasyMesh

Connect EasyMesh and OneMesh devices to create a mesh network for seamless Wi-Fi coverage and centralized management.

EasyMesh:

What's EasyMesh?

EasyMesh Network

Set up and manage your EasyMesh network.

Current Mode:

Main Router

Change Mode

In this mode, you can add EasyMesh and OneMesh devices to boost Wi-Fi coverage.

ADD SATELLITE DEVICES

1. Plug in the extender next to the main router.
2. Within 2 minutes, press the WPS button on the main router and on the extender. Wait until the WPS process is complete.
3. Done! You can check the mesh device on the router's web page too.

10.3. Manage Devices in the EasyMesh Network

In an EasyMesh network, you can manage all mesh devices and connected clients on your main router's web page.

- To view mesh devices and connected clients in the network:

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Network Map.
3. Click to view all mesh devices, and click to view all connected clients.

• To manage an EasyMesh device in the network:

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > EasyMesh. Locate EasyMesh Network section.

1. Click the Modify button to view detailed information and change its settings.

- Change device information.

Network Security

This chapter guides you on how to protect your home network from cyber attacks and unauthorized users by implementing these three network security functions. You can protect your home network from cyber attacks, block or allow specific client devices to access your network using Access Control, or you can prevent ARP spoofing and ARP attacks using IP & MAC Binding.

It contains the following sections:

• Protect the Network from Cyber Attacks
• Access Control
• IP & MAC Binding

11. 1. Protect the Network from Cyber Attacks

The SPI (Stateful Packet Inspection) Firewall protects the router from cyber attacks and validates the traffic that is passing through the router based on the protocol. This function is enabled by default.

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > Security > Firewall. It's recommended to keep the default settings.

11.2. Access Control

Access Control is used to block or allow specific client devices to access your network (via wired or wireless) based on a list of blocked devices (Deny List) or a list of allowed devices (Allow List).

I want to:

Block or allow specific client devices to access my network (via wired or wireless).

How can I do that?

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > Security > Access Control.
3. Click Change Mode, and select the access mode to either block (recommended) or allow the device(s) in the list.

To block specific device(s):

1) Make sure your current Access Control mode is Deny List. If not, click Change Mode, select Deny List and, click CHANGE.

2) Click + Add and select devices you want to be blocked and Click ADD. 3) The Operation Succeeded message will appear on the screen, which means the selected devices have been successfully added to the Deny List.

To allow specific device(s):

1) Click Change Mode, select Allow List, and click CHANGE.

2) Your own device is in the allow list by default and cannot be deleted. Click to add other devices to the allow list.

Add

- Add connected devices

1) Click Select From Device List. 2) Select the devices you want to be allowed and click ADD.

3) The Operation Succeeded message will appear on the screen, which means the selected devices have been successfully added to the allow list.

- Add unconnected devices

1) Click Add Manually. 2) Enter the Device Name and MAC Address of the device you want to be allowed and click ADD.

3) The Operation Succeeded message will appear on the screen, which means the device has been successfully added to the allow list.

Done!

Now you can block or allow specific client devices to access your network (via wired or wireless) using the Deny List or Allow List.

11. 3. IP & MAC Binding

IP & MAC Binding, namely, ARP (Address Resolution Protocol) Binding, is used to bind network device's IP address to its MAC address. This will prevent ARP Spoofing and other ARP attacks by denying network access to a device with matching IP address in the Binding list, but unrecognized MAC address.

I want to:

Prevent ARP spoofing and ARP attacks.

How can I do that?

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > Security > IP & MAC Binding.
3. Enable IP & MAC Binding.

1. Bind your device(s) according to your need.

To bind the connected device(s):

1) Click in the Binding List section.

2) Click VIEW CONNECTED DEVICES and select the device you want to bind. The MAC Address and IP Address fields will be automatically filled in.

3) Click SAVE.

To bind the unconnected device:

1) Click in the Binding List section.

2) Enter the MAC Address and IP Address that you want to bind.

3) Click SAVE.

Done!

Now you don't need to worry about ARP spoofing and ARP attacks!

11.4. ALG

ALG allows customized NAT traversal filters to be plugged into the gateway to support address and port translation for certain application layer "control/data" protocols such as FTP, TFTP, H323 etc. It is recommended to keep the default settings.

You may need to disable SIP ALG when you are using voice and video applications to create and accept a call through the router, since some voice and video communication applications do not work well with SIP ALG.

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > Security > ALG.

ALG

Check the ALG (Application Layer Gateway) settings. It is recommended to keep them as default.

PPTP Passthrough:

L2TP Passthrough:

IPSec Passthrough:

FTP ALG:

TFTP ALG:

RTSP ALG:

H323 ALG:

SIP ALG:

NAT Forwarding

The router's NAT (Network Address Translation) feature makes devices on the LAN use the same public IP address to communicate with devices on the internet, which protects the local network by hiding IP addresses of the devices. However, it also brings about the problem that an external host cannot initiatively communicate with a specified device on the local network.

With the forwarding feature the router can penetrate the isolation of NAT and allows devices on the internet to initiatively communicate with devices on the local network, thus realizing some special functions.

The TP-Link router supports four forwarding rules. If two or more rules are set, the priority of implementation from high to low is Port Forwarding, Port Triggering, UPNP and DMZ.

It contains the following sections:

• Share Local Resources on the Internet by Port Forwarding
• Open Ports Dynamically by Port Triggering • Make Applications Free from Port Restriction by DMZ • Make Xbox Online Games Run Smoothly by UPnP

12. 1. Share Local Resources on the Internet by Port Forwarding

When you build up a server on the local network and want to share it on the internet, Port Forwarding can realize the service and provide it to internet users. At the same time Port Forwarding can keep the local network safe as other services are still invisible from the internet.

Port Forwarding can be used for setting up public services on your local network, such as HTTP, FTP, DNS, POP3/SMTP and Telnet. Different services use different service ports. Port 80 is used in HTTP service, port 21 in FTP service, port 25 in SMTP service and port 110 in POP3 service. Please verify the service port number before the configuration.

I want to:

Share my personal website I've built in local network with my friends through the internet.

For example, the personal website has been built on my home PC (192.168.0.100). I hope that my friends on the internet can visit my website in some way. The PC is connected to the router with the WAN IP address 218.18.232.154.

How can I do that?

1. Assign a static IP address to your PC, for example 192.168.0.100.
2. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
3. Go to Advanced > NAT Forwarding > Port Forwarding.
4. Click + Add.

1. Click VIEW COMMON SERVICES and select HTTP. The External Port, Internal Port and Protocol will be automatically filled in.
2. Click VIEW CONNECTED DEVICES and select your home PC. The Device IP Address will be automatically filled in. Or enter the PC's IP address 192.168.0.100 manually in the Device IP Address field.
3. Click SAVE.

Tips: - It is recommended to keep the default settings of Internal Port and Protocol if you are not clear about which port and protocol to use. - If the service you want to use is not in the common services list, you can enter the corresponding parameters manually. You should verify the port number that the service needs.

- You can add multiple port forwarding rules if you want to provide several services in a router. Please note that the External Port should not be overlapped.

Done!

Users on the internet can enter http:// WAN IP (in this example: http:// 218.18.232.154) to visit your personal website.

Tips:

• The WAN IP should be a public IP address. For the WAN IP is assigned dynamically by the ISP, it is recommended to apply and register a domain name for the WAN referring to Set Up a Dynamic DNS Service Account. Then users on the internet can use http://domain name to visit the website.
• If you have changed the default External Port, you should use http:// WAN IP: External Port or http:// domain name: External Port to visit the website.

12.2. Open Ports Dynamically by Port Triggering

Port Triggering can specify a triggering port and its corresponding external ports. When a host on the local network initiates a connection to the triggering port, all the external ports will be opened for subsequent connections. The router can record the IP address of the host. When the data from the internet return to the external ports, the router can forward them to the corresponding host. Port Triggering is mainly applied to online games, VoIPs, video players and common applications including MSN Gaming Zone, Dialpad and Quick Time 4 players, etc.

Follow the steps below to configure the Port Triggering rules:

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > NAT Forwarding > Port Triggering and click Add.

1. Click VIEW COMMON SERVICES, and select the desired application. The Triggering Port, Triggering Protocol and External Port will be automatically filled in. The following picture takes application MSN Gaming Zone as an example.

4. Click SAVE.

Tips:

• You can add multiple port triggering rules according to your network need. • The triggering ports can not be overlapped.
• If the application you need is not listed in the Existing Applications list, please enter the parameters manually. You should verify the external ports the application uses first and enter them into External Port field according to the format the page displays.

12.3. Make Applications Free from Port Restriction by DMZ

When a PC is set to be a DMZ (Demilitarized Zone) host on the local network, it is totally exposed to the internet, which can realize the unlimited bidirectional communication between internal hosts and external hosts. The DMZ host becomes a virtual server with all ports opened. When you are not clear about which ports to open in some special applications, such as IP camera and database software, you can set the PC to be a DMZ host.

Note:

When DMZ is enabled, the DMZ host is totally exposed to the internet, which may bring some potential safety hazards. If DMZ is not in use, please disable it in time.

I want to:

Make the home PC join the internet online game without port restriction.

For example, due to some port restriction, when playing the online games, you can log in normally but cannot join a team with other players. To solve this problem, set your PC as a DMZ host with all ports open.

How can I do that?

1. Assign a static IP address to your PC, for example 192.168.0.100.
2. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
3. Go to Advanced > NAT Forwarding > DMZ and tick to enable DMZ.
4. Click VIEW CONNECTED DEVICES and select your PC. The Device IP Address will be automatically filled in. Or enter the PC's IP address 192.168.0.100 manually in the DMZ Host IP Address field.

5. Click SAVE.

Done!

The configuration is completed. You've set your PC to a DMZ host and now you can make a team to game with other players.

12.4. Make Xbox Online Games Run Smoothly by UPnP

The UPnP (Universal Plug and Play) protocol allows applications or host devices to automatically find the front-end NAT device and send request to it to open the corresponding ports. With UPnP enabled, the applications or host devices on the local network and the internet can freely communicate with each other thus realizing the seamless connection of the network. You may need to enable the UPnP if you want to use applications for multiplayer gaming, peer-to-peer connections, real-time communication (such as VoIP or telephone conference) or remote assistance, etc.

Tips:

• UPnP is enabled by default in this router.
• Only the application supporting UPnP protocol can use this feature.
• UPnP feature needs the support of operating system (e.g. Windows Vista/ Windows 7/ Windows 8, etc. Some of operating system need to install the UPnP components).

For example, when you connect your Xbox to the router which has connected to the internet to play online games, UPnP will send request to the router to open the corresponding ports allowing the following data penetrating the NAT to transmit. Therefore, you can play Xbox online games without a hitch.

If necessary, you can follow the steps to change the status of UPnP.

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > NAT Forwarding > UPnP and toggle on or off according to your needs.

UPnP

Enable UPnP (Universal Plug and Play) to allow devices on your local network to dynamically open ports for applications such as multiplayer gaming and real-time communications.

UPnP:

VPN Server & Client

The router offers several ways to set up VPN connections:

VPN Server allows remote devices to access your home network in a secured way through the internet. The router supports three types of VPN Server:

OpenVPN is somewhat complex but with higher security and more stability, suitable for restricted environments such as campus network and company intranet.

PPTP VPN is easy to use with the built-in VPN software of computers and mobile devices, but it is vulnerable and may be blocked by some ISPs.

L2TP/IPSec VPN is more secure but slower than PPTP VPN, and may have trouble getting around firewalls.

WireGuard VPN is a secure, fast and modern VPN protocol. It is based on the UDP protocol and uses modern encryption algorithms to improve work efficiency.

VPN Client allows devices in your home network to access remote VPN servers, without the need to install VPN software on each device.

This chapter contains the following sections:

• Use OpenVPN to Access Your Home Network • Use PPTP VPN to Access Your Home Network • Use L2TP/IPSec VPN to Access Your Home Network • Use WireGuard VPN to Access Your Home Network - Use VPN Client to Access a Remote VPN Server

13. 1. Use OpenVPN to Access Your Home Network

In the OpenVPN connection, the home network can act as a server, and the remote device can access the server through the router which acts as an OpenVPN Server gateway. To use the VPN feature, you should enable OpenVPN Server on your router, and install and run VPN client software on the remote device. Please follow the steps below to set up an OpenVPN connection.

Home Network Router Remote Devices

Step1. Set up OpenVPN Server on Your Router

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > VPN Server > OpenVPN, and tick the Enable box of OpenVPN.

Note:

• Before you enable VPN Server, we recommend you configure Dynamic DNS Service (recommended) or assign a static IP address for router's WAN port and synchronize your System Time with internet.
• The first time you configure the OpenVPN Server, you may need to Generate a certificate before you enable the VPN Server.
• Select the Service Type (communication protocol) for OpenVPN Server: UDP, TCP.
• Enter a VPN Service Port to which a VPN device connects, and the port number should be between 1024 and 65535.
• In the VPN Subnet/Netmask fields, enter the range of IP addresses that can be leased to the device by the OpenVPN server.
• Select your Client Access type. Select Home Network Only if you only want the remote device to access your home network; select Internet and Home Network if you also want the remote device to access internet through the VPN Server.
• Click SAVE.
• Click GENERATE to get a new certificate.

Note: If you have already generated one, please skip this step, or click GENERATE to update the certificate.

1. Click EXPORT to save the OpenVPN configuration file which will be used by the remote device to access your router.

Step 2. Configure OpenVPN Connection on Your Remote Device

1. Visit http://openvpn.net/index.php/download/community-downloads.html to download the OpenVPN software, and install it on your device where you want to run the OpenVPN client utility. Note: You need to install the OpenVPN client utility on each device that you plan to apply the VPN function to access your router. Mobile devices should download a third-party app from Google Play or Apple App Store.
2. After the installation, copy the file exported from your router to the OpenVPN client utility's "config" folder (for example, C:\Program Files\OpenVPN\config on Windows). The path depends on where the OpenVPN client utility is installed.
3. Run the OpenVPN client utility and connect it to OpenVPN Server.

13.2. Use PPTP VPN to Access Your Home Network

PPTP VPN Server is used to create a VPN connection for remote device. To use the VPN feature, you should enable PPTP VPN Server on your router, and configure the PPTP connection on the remote device. Please follow the steps below to set up a PPTP VPN connection.

Step 1. Set up PPTP VPN Server on Your Router

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > VPN Server > PPTP, and tick the Enable box of PPTP.

Note: Before you enable VPN Server, we recommend you configure Dynamic DNS Service (recommended) or assign a static IP address for router's WAN port and synchronize your System Time with internet.

1. In the Client IP Address field, enter the range of IP addresses (up to 10) that can be leased to the devices by the PPTP VPN server.
2. Set the PPTP connection permission according to your needs.
3. Select Allow Samba (Network Place) access to allow your VPN device to access your local Samba server.
4. Select Allow NetBIOS passthrough to allow your VPN device to access your Samba server using NetBIOS name.
5. Select Allow Unencrypted connections to allow unencrypted connections to your VPN server.
6. Click SAVE.
7. Configure the PPTP VPN connection account for the remote device. You can create up to 16 accounts.

1) Click

2) Enter the Username and Password to authenticate devices to the PPTP VPN Server.

3) Click ADD.

Step 2. Configure PPTP VPN Connection on Your Remote Device

The remote device can use the Windows built-in PPTP software or a third-party PPTP software to connect to PPTP Server. Here we use the Windows built-in PPTP software as an example.

1. Go to Start > Control Panel > Network and Internet > Network and Sharing Center.
2. Select Set up a new connection or network.

1. Select Connect to a workplace and click Next.

1. Select Use my Internet connection (VPN).

1. Enter the internet IP address of the router (for example: 218.18.1.73) in the Internet address field. Click Next.

1. Enter the User name and Password you have set for the PPTP VPN server on your router, and click Connect.

1. The PPTP VPN connection is created and ready to use.

13.3. Use L2TP/IPSec VPN to Access Your Home Network

L2TP/IPSec VPN Server is used to create a L2TP/IPSec VPN connection for remote devices to access your home network.

To use the VPN feature, you need to set up L2TP/IPSec VPN Server on your router, and configure the L2TP/IPSec connection on remote devices. Please follow the steps below to set up the L2TP/IPSec VPN connection.

*Image may differ from your actual product.

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > VPN Server > L2TP/IPSec, and enable L2TP/IPSec.

Note:

• Firmware update may be required to support L2TP/IPSec VPN Server.
• Before you enable VPN Server, we recommend you configure Dynamic DNS Service (recommended) or assign a static IP address for router's WAN port and synchronize your System Time with internet.

1. In the Client IP Address field, enter the range of IP addresses (up to 10) that can be leased to the devices by the L2TP/IPSec VPN server.
2. Keep IPSec Encryption as Encrypted and create an IPSec Pre-Shared Key.

Note: Enable NetBIOS Passthrough function to allow NetBIOS packets to be broadcasted through VPN tunnel.

1. Click SAVE.
2. Configure the L2TP/IPSec VPN connection account for the remote device. You can create up to 16 accounts.

4) Click Add. 5) Enter the Username and Password to authenticate devices to the L2TP/IPSec VPN Server.

6) Click ADD.

Step 2. Configure L2TP/IPSec VPN Connection on Your Remote Device

The remote device can use the Windows or Mac OS built-in L2TP/IPSec software or a third-party L2TP/IPSec software to connect to L2TP/IPSec Server. Here we use the Windows built-in L2TP/IPSec software as an example.

1. Go to Start > Control Panel > Network and Internet > Network and Sharing Center.
2. Select Set up a new connection or network.

1. Select Connect to a workplace and click Next.

1. Select Use my Internet connection (VPN).

1. Enter the internet IP address of the router (for example: 218.18.1.73) in the Internet address field, and select the checkbox Don't connect now; just set it up so I can connect later. Click Next.

1. Enter the User name and Password you have set for the L2TP/IPSec VPN server on your router, and click Connect.

1. Click Close when the VPN connection is ready to use

1. Go to Network and Sharing Center and click Change adapter settings.

1. Find the VPN connection you created, then double-click it.

1. Enter the User name and Password you have set for the L2TP/IPSec VPN server on your router, and click Properties.

1. Switch to the Security tab, select Layer 2 Tunneling Protocol with IPsec (L2TP/IPSec) and click Advanced settings.

1. Select Use preshared key for authentication and enter the IPSec Pre-Shared Key you have set for the L2TP/IPSec VPN server on your router. Then click OK.

Done! Click Connect to start VPN connection.

13.4. Use WireGuard VPN to Access Your Home Network

WireGuard VPN Server is used to create a WireGuard VPN connection for remote devices to access your home network.

Step 1. Set up WireGuard VPN Server on Your Router

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > VPN Server > WireGuard, and tick the Enable box of WireGuard.

1. Set the Tunnel IP Address and Listen Port. Do NOT change it unless necessary.
2. Select your Client Access type. Select Home Network Only if you only want the remote device to access your home network; select Internet and Home Network if you also want the remote device to access internet through the VPN Server.
3. (Optional) Click Advanced Settings to display more settings. If DNS is turned on, the router will become the DNS server of the VPN client that establishes a connection with it. Change the Persistent Keepalive time (25 seconds by default) to send out heartbeat regularly, you can also click RENEW KEY to update the private key and public key.

Step 2. Create accounts that can be used by remote clients to connect to the VPN server.

1. Locate the Account List section. Click Add to create an account.

1. Give a Username to this account.
2. View the Address of the virtual interface assigned to this account. Do NOT change it unless necessary.
3. Traffic sent from the WireGuard VPN client to the allowed IPs (client) will be transmitted through the tunnel. By default, all network traffic from clients will be transmitted through the tunnel. Do NOT change it unless necessary.
4. Traffic sent from the WireGuard VPN server to the allowed IPs (server) will be transmitted through the tunnel. Do NOT change it unless necessary.
5. Enable or disable Pre-shared Key.
6. Click SAVE.

Note: One account can only be used by one WireGuard VPN client at the same time to connect to the WireGuard VPN server.

1. Connect to the WireGuard server.
2. For mobile phones, download WireGuard App from Google Play or Apple Store, then use the App to scan the QR Code to connect to this server.
3. For other devices (e.g. TP-Link WireGuard VPN client), Click EXPORT to save the WireGuard VPN configuration file which will be used by the remote device to access your router.

1. On the account list, you can click the button to modify the VPN server settings, connect to the server, or delete the account.

13. 5. Use VPN Client to Access a Remote VPN Server

VPN Client is used to create VPN connections for devices in your home network to access a remote VPN server.

To use the VPN feature, simply configure a VPN connection and choose your desired devices on your router, then these devices can access the remote VPN server. Please follow the steps below:

*Image may differ from your actual product.

Home Devices Router (VPN Client) VPN Servers

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > VPN Client. Note: Firmware update may be required to support VPN Client.
3. Enable VPN Client, then save the settings.

1. Add VPN servers, and enable the one you need.

1) In the Server List section, click Add. 2) Specify a Description for the VPN, and choose the VPN Type.

3) Enter the VPN information provided by your VPN provider.

- OpenVPN: Enter the VPN username and password if required by your VPN provider, otherwise simply leave them empty. Then import the configuration file provided by your VPN provider.

Note: You can also check the box of Import the CA file or edit the .ovpn file manually, then upload the CA file or manually configure the settings.

- PPTP: Enter the VPN server address (for example: 218.18.1.73) and the VPN username and password provided by your VPN provider.

- L2TP/IPSec VPN: Enter the VPN server address (for example: 218.18.1.73), VPN username and password, and IPSec pre-shared key provided by your VPN provider.

- WireGuard VPN: Give a description, and click BROWSE to import the WireGuard VPN server configuration. Then you will see the detailed parameters. Do NOT change the parameters unless necessary.

4) Save the settings. 5) In the server list, enable the VPN server you need.

1. Add and manage the devices that will use the VPN function.

1) In the Device List section, click Add. 2) Choose and add the devices that will access the VPN server you have configured.

1. Save the settings.

Done! Now the devices you specified can access the VPN server you enabled.

Customize Your Network Settings

This chapter guides you on how to configure advanced network features.

It contains the following sections:

• Change the LAN Settings
• Set Up Link Aggregation
• Flow Controller
• Configure to Support IPTV Service
• Specify DHCP Server Settings
• Set Up a Dynamic DNS Service Account
• Create Static Routes

14.1 Change the LAN Settings

The router is preset with a default LAN IP 192.168.0.1, which you can use to log in to its web management page. The LAN IP address together with the Subnet Mask also defines the subnet that the connected devices are on. If the IP address conflicts with another device on your local network or your network requires a specific IP subnet, you can change it.

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > Network > LAN.
3. Type in a new IP Address appropriate to your needs. And leave the Subnet Mask as the default settings.

4. Click SAVE.

Note: If you have set the Port Forwarding, DMZ or DHCP address reservation, and the new LAN IP address is not in the same subnet with the old one, then you should reconfigure these features.

14.2. Set Up Link Aggregation

The Link Aggregation feature combines two ports (LAN2 & LAN3) together to make a single high-bandwidth data path, thus sustaining a higher-speed and more stable wired network.

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > Network > LAN, and locate the Link Aggregation section.
3. Enable Link Aggregation.

Note: To avoid LAN port conflicts, Link Aggregation and IPTV/VLAN cannot be enabled at the same time.

14.3. Flow Controller

With Flow Controller enabled, when a device gets overloaded it will send a PAUSE frame to notify the peer device to stop sending data for a specified period of time, thus avoiding the packet loss caused by congestion.

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > Network > LAN, and locate the Flow Controller section.
3. Flow Controller is enabled by default. Please note that enabling Flow Controller may cause internet drop with some devices.

Flow Controller

With this option enabled, when a device gets overloaded it will send a PAUSE frame to notify the peer device to stop sending data for a specified period of time, thus avoiding the packet loss caused by congestion.

Flow Control:

RX Enabled TX Enabled

Note: Enabling this option may cause internet drops with some devices.

14. 4. Configure to Support IPTV Service

I want to:

Configure IPTV setup to enable Internet/IPTV/Phone service provided by my internet service provider (ISP).

How can I do that?

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > Network > IPTV/VLAN.
3. If your ISP provides the networking service based on IGMP technology, e.g., British Telecom (BT) and Talk Talk in UK:

1) Tick the IGMP Proxy and IGMP Snooping checkboxes, then select the IGMP Version, either V2 or V3, as required by your ISP.

2) Click SAVE. 3) After configuring IGMP proxy, IPTV can work behind your router now. You can connect your set-top box to any of the router's Ethernet ports.

If IGMP is not the technology your ISP applies to provide IPTV service:

1) Tick Enable IPTV/VLAN. 2) Select the appropriate Mode according to your ISP.

• Select Bridge if your ISP is not listed and no other parameters are required.
• Select Custom if your ISP is not listed but provides necessary parameters.

3) After you have selected a mode, the necessary parameters, including the LAN port for IPTV connection, are predetermined. If not, select the LAN type to determine which port is used to support IPTV service. 4) Click SAVE. 5) Connect the set-top box to the corresponding LAN port which is predetermined or you have specified in Step 3.

Done!

Your IPTV setup is done now! You may need to configure your set-top box before enjoying your TV.

14.5. Specify DHCP Server Settings

By default, the DHCP (Dynamic Host Configuration Protocol) Server is enabled and the router acts as a DHCP server; it dynamically assigns TCP/IP parameters to client devices from the IP Address Pool. You can change the settings of the DHCP Server if necessary, and you can reserve LAN IP addresses for specified client devices.

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > Network > DHCP Server.

• To specify the IP address that the router assigns:

1. Tick the Enable checkbox.
2. Enter the starting and ending IP addresses in the IP Address Pool.
3. Enter other parameters if the ISP offers. The Default Gateway is automatically filled in and is the same as the LAN IP address of the router.
4. Click SAVE.

• To reserve an IP address for a specified client device:

1. Click Add in the Address Reservation section.

1. Click VIEW CONNECTED DEVICES and select the device you want to reserve an IP for. Then the MAC Address will be automatically filled in. Or enter the MAC address of the client device manually.

1. Enter the IP address to reserve for the client device.
2. Click SAVE.

14.6 Set Up a Dynamic DNS Service Account

Most ISPs assign a dynamic IP address to the router and you can use this IP address to access your router remotely. However, the IP address can change from time to time and you don't know when it changes. In this case, you might apply the DDNS (Dynamic Domain Name Server) feature on the router to allow you and your friends to access your router and local servers (FTP, HTTP, etc.) using a domain name without checking and remembering the IP address.

Note: DDNS does not work if the ISP assigns a private WAN IP address (such as 192.168.1.x) to the router.

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > Network > Dynamic DNS.
3. Select the DDNS Service Provider: TP-Link, NO-IP or DynDNS. It is recommended to select TP-Link so that you can enjoy TP-Link's superior DDNS service. Otherwise, please select NO-IP or DynDNS. If you don't have a DDNS account, you have to register first by clicking Register Now.

Dynamic DNS

Assign a fixed host name (domain name) for remote access to your device, website, or server behind the router.

Service Provider:

TP-Link

Note: To enjoy TP-Link's DDNS service, you have to log in with a TP-Link ID. If you have not logged in with one, click log in.

1. Click Register in the Domain Name List if you have selected TP-Link, and enter the Domain Name as needed.

If you have selected NO-IP or DynDNS, enter the username, password and domain name of your account.

1. Click LOGIN AND SAVE.

Tips: If you want to use a new DDNS account, please click Logout first, and then log in with a new account.

14.7. Create Static Routes

Static routing is a form of routing that is configured manually by a network administrator or a user by adding entries into a routing table. The manually-configured routing information guides the router in forwarding data packets to the specific destination.

I want to:

Visit multiple networks and servers at the same time.

For example, in a small office, my PC can surf the internet through Router A, but I also want to visit my company's network. Now I have a switch and Router B. I connect the devices as shown in the following figure so that the physical connection between my PC and my company's server is established. To surf the internet and visit my company's network at the same time, I need to configure the static routing.

How can I do that?

1. Change the routers' LAN IP addresses to two different IP addresses on the same subnet. Disable Router B's DHCP function.
2. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for Router A.
3. Go to Advanced > Network > Routing.

1. Click Add and finish the settings according to the following explanations:

Network Destination: The destination IP address that you want to assign to a static route. This IP address cannot be on the same subnet with the WAN IP or LAN IP of Router A. In the example, the IP address of the company network is the destination IP address, so here enter 172.30.30.1.

Subnet Mask: Determines the destination network with the destination IP address. If the destination is a single IP address, enter 255.255.255.255; otherwise, enter the subnet mask of the corresponding network IP. In the example, the destination network is a single IP, so here enter 255.255.255.255.

Default Gateway: The IP address of the gateway device to which the data packets will be sent. This IP address must be on the same subnet with the router's IP which sends out data. In the example, the data packets will be sent to the LAN port of Router B and then to the Server, so the default gateway should be 192.168.0.2.

Interface: Determined by the port (WAN/LAN) that sends out data packets. In the example, the data are sent to the gateway through the LAN port of Router A, so LAN/WLAN should be selected.

Description: Enter a description for this static routing entry.

1. Click SAVE.
2. Check the Routing Table below. If you can find the entry you've set, the static routing is set successfully.

Routing Table

View all valid routing entries that are currently in use.

Active Route Number: 3

Refresh

Network Destination	Subnet Mask	Gateway	Interface
0.0.0.0	0.0.0.0	192.168.0.1	WAN
192.168.0.0	255.255.255.0	0.0.0.0	WAN
192.168.1.0	255.255.255.0	0.0.0.0	LAN

Done!

Open a web browser on your PC. Enter the company server's IP address to visit the company network.

Manage the Router

This chapter will show you the configuration for managing and maintaining your router. It contains the following sections:

• Update the Firmware
• Backup and Restore Configuration Settings
• Change the Login Password
• Password Recovery
• Local Management
• Remote Management
• System Log • Test the Network Connectivity
• Set System Time and Language
• Set the Router to Reboot Regularly
• Control the LED

15. 1. Update the Firmware

TP-Link aims at providing better network experience for users.

We will inform you through the web management page if there's any new firmware available for your router. Also, the latest firmware will be released at the TP-Link official website www.tp-link.com, and you can download it from the Support page for free.

Note:

• Back up your router's configurations before firmware update.
• Do NOT turn off the router during the firmware update.

15. 1. 1. Online Update

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. When the latest firmware is available for your router, the update icon will display in the top-right corner of the page. Click the icon to go to the Firmware Update page. Alternatively, you can go to Advanced > System > Firmware Update, and click CHECK FOR UPDATES to see whether the latest firmware is released.

1. Focus on the Online Update section, and click UPDATE if there is new firmware.

1. Wait a few minutes for the update and reboot to complete.

Tips: If there's a new and important firmware update for your router, you will see the prompt notification on your computer as long as a web browser is opened. Click to update, and log in to the web management page with the username and password you set for the router. You will see the Firmware Update page.

15.1.2 Local Update

1. Download the latest firmware file for the router from www.tp-link.com.
2. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
3. Go to Advanced > System > Firmware Update.
4. Focus on the Local Update section. Click BROWSE to locate the downloaded new firmware file, and click UPDATE.

1. Wait a few minutes for the update and reboot to complete.

Note: If you fail to update the firmware for the router, please contact our Technical Support.

15.2 Backup and Restore Configuration Settings

The configuration settings are stored as a configuration file in the router. You can backup the configuration file to your computer for future use and restore the router to a previous settings from the backup file when needed. Moreover, if necessary you can erase the current settings and reset the router to the default factory settings.

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > System Tools > Backup & Restore.

• To backup configuration settings:

Click BACK UP to save a copy of the current settings to your local computer. A '.bin' file of the current settings will be stored to your computer.

• To restore configuration settings:

1. Click BROWSE to locate the backup configuration file stored on your computer, and click RESTORE.

1. Wait a few minutes for the restoring and rebooting.

Note: During the restoring process, do not turn off or reset the router.

- To reset the router except your login password and TP-Link ID:

1. In the Factory Default Restore section, click RESTORE.

1. Wait a few minutes for the resetting and rebooting.

Note:

- During the resetting process, do not turn off the router.

• After reset, you can still use the current login password or the TP-Link ID to log in to the web management page.

- To reset the router to factory default settings:

1. Click FACTORY RESTORE to reset the router.

1. Wait a few minutes for the resetting and rebooting.

Note:

- During the resetting process, do not turn off or reset the router.

• We strongly recommend you backup the current configuration settings before resetting the router.

15.3. Change the Login Password

The account management feature allows you to change your login password of the web management page.

Note: If you are using a TP-Link ID to log in to the web management page, the account management feature will be disabled. To manage the TP-Link ID, go to Advanced > TP-Link ID.

1. Visit http://tplinkwifi.net, and log in with the password you set for the router.
2. Go to Advanced > System > Administration and focus on the Change Password section.

1. Enter the old password, then a new password twice (both case-sensitive). Click SAVE.
2. Use the new password for future logins.

15.4. Password Recovery

This feature allows you to recover the login password you set for you router in case you forget it.

Note: If you are using a TP-Link ID to log in to the web management page, the Password Recovery feature will be disabled. To manage the TP-Link ID, go to Advanced > TP-Link ID.

1. Visit http://tplinkwifi.net, and log in with the password you set for the router.
2. Go to Advanced > System > Administration and focus on the Password Recovery section.
3. Tick the Enable box of Password Recovery.

Password Recovery

Reset local management password via preset questions and answers.

Password Recovery:

Enabled

From:

To:

SMTP Server:

Authentication:

Enabled

1. Specify a mailbox (From) for sending the recovery letter and enter its SMTP Server address. Specify a mailbox (To) for receiving the recovery letter. If the mailbox (From) to send the recovery letter requires encryption, Tick the Enable box of Authentication and enter its username and password.

Tips:

• SMTP server is available for users in most webmail systems. For example, the SMTP server address of Gmail is smtp.gmail.com.
• Generally, Authentication should be enabled if the login of the mailbox requires username and password.

5. Click SAVE.

To recover the login password, please visit http://tplinkwifi.net, click Forgot Password? on the login page and follow the instructions to set a new password.

15.5. Local Management

This feature allows you to limit the number of client devices on your LAN from accessing the router by using the MAC address-based authentication.

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > System > Administration and complete the settings In Local Management section as needed.

- Access the router via HTTPS and HTTP:

Tick the Enable box of Local Management via HTTPS to access the router via HTTPS and HTTP, or keep it disabled to access the router only via HTTP.

- Allow all LAN connected devices to manage the router:

Select All Devices for Local Managers.

- Allow specific devices to manage the router:

1. Select All Devices for Local Managers and click SAVE.

1. Click Add Device.

1. Click VIEW CONNECTED DEVICES and select the device to manage the router from the Connected Devices list, or enter the MAC address of the device manually.
2. Specify a Description for this entry.
3. Click SAVE.

15.6. Remote Management

This feature allows you to control remote devices' authority to manage the router.

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > System > Administration and complete the settings in Remote Management section as needed.

- Forbid all devices to manage the router remotely:

Do not tick the Enable checkbox of Remote Management.

Remote Management

Access and manage the router over the internet.

Note: Remote Management is not supported when you are connected to the internet only via IPv6. If you want to use Remote Management, please make sure you have set up an IPv4 connection first.

Remote Management:

Enabled

- Allow all devices to manage the router remotely:

Remote Management

Access and manage the router over the internet.

Note: Remote Management is not supported when you are connected to the internet only via IPv6. If you want to use Remote Management, please make sure you have set up an IPv4 connection first.

Remote Management:

Enabled

HTTPS Port:

443

Web Address for Management:

https://192.168.0.101:443

Remote Managers:

All Devices

1. Tick the Enable checkbox of Remote Management.
2. Keep the HTTPS and HTTP port as default settings (recommended) or enter a value between 1024 and 65535.
3. Select All Devices for Remote Managers.
4. Click SAVE.

Devices on the internet can log in to http://Router's WAN IP address:port number (such as http://113.116.60.229:1024) to manage the router.

Tips:

• You can find the WAN IP address of the router on Network Map > Internet. - The router's WAN IP is usually a dynamic IP. Please refer to Set Up a Dynamic DNS Service Account if you want to log in to the router through a domain name. - Allow a specific device to manage the router remotely:

1. Tick the Enable checkbox of Remote Management.
2. Keep the HTTPS and HTTP port as default settings (recommended) or enter a value between 1024 and 65535.
3. Select Specified Device for Remote Managers.
4. In the Only this IP Address field, enter the IP address of the remote device to manage the router.
5. Click SAVE.

Devices using this WAN IP can manage the router by logging in to http://Router's WAN IP:port number (such as http://113.116.60.229:1024).

Tips: The router's WAN IP is usually a dynamic IP. Please refer to Set Up a Dynamic DNS Service Account if you want to log in to the router through a domain name.

15.7. System Log

When the router does not work normally, you can save the system log and send it to the technical support for troubleshooting.

• To save the system log locally:

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > System > System Log.
3. Choose the type and level of the system logs as needed.

1. In the Save Log section, click SAVE TO LOCAL to save the system logs to a local disk.

- To send the system log to a mailbox at a fixed time:

For example, I want to check my router's working status at a fixed time every day, however, it's too troublesome to log in to the web management page every time I want to go checking. It would be great if the system logs could be sent to my mailbox at 8 a.m. every day.

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > System Tools > System Log.
3. In the Save Log section, click MAIL LOG.
4. Enter the information required:

1) Email From: Enter the email address used for sending the system log. 2) Select Require Password.

Tips: Generally, Require Password should be selected if the login of the mailbox requires username and password.

3) Username: Enter the email address used for sending the system log. 4) Email Password: Enter the password to login to the sender's email address. 5) SMTP Server: Enter the SMTP server address.

Tips: SMTP server is available for users in most webmail systems. For example, the SMTP server address of Hotmail is smtp-mail.outlook.com. 6) Email To: Enter the recipient's email address, which can be the same as or different from the sender's email address. 7) Select Mail Log Automatically.

Tips: The router will send the system log to the designated email address if this option is enabled.

8) Frequency: This determines how often the recipient will receive the system log.

1. Click SAVE.

15.8. Test the Network Connectivity

Diagnostics is used to test the connectivity between the router and the host or other network devices.

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > System > Diagnostics.

Diagnostics

Troubleshoot network connectivity problems.

Diagnostics Tools:

Ping

IP Address/Domain Name:

Ping Count:

Ping Packet Size:

4

64

Bytes

START

3. Enter the information:

1) Choose Ping or Traceroute as the diagnostic tool to test the connectivity; - Ping is used to test the connectivity between the router and the tested host, and measure the round-trip time. - Traceroute is used to display the route (path) your router has passed to reach the tested host, and measure transit delays of packets across an Internet Protocol network. 2) Enter the IP Address or Domain Name of the tested host. 3) Modify the Ping Count number and the Ping Packet Size. It's recommended to keep the default value. 4) If you have chosen Traceroute, you can modify the Traceroute Max TTL. It's recommended to keep the default value.

4. Click START to begin the diagnostics.

The figure below indicates the proper connection between the router and the Yahoo server (www.Yahoo.com) tested through Ping.

PING 192.168.0.1 (192.168.0.1): 64 data bytes

Reply from 192.168.0.1: bytes=64 ttl=64 seq=1 time=0.322 ms

Reply from 192.168.0.1: bytes=64 ttl=64 seq=2 time=0.308 ms

Reply from 192.168.0.1: bytes=64 ttl=64 seq=3 time=0.286 ms

Reply from 192.168.0.1: bytes=64 ttl=64 seq=4 time=0.334 ms

--- Ping Statistic "192.168.0.1" ---

Packets: Sent=4, Received=4, Lost=0 (0.00% loss)

Round-trip min/avg/max = 0.286/0.312/0.334 ms

Ping is stopped.

The figure below indicates the proper connection between the router and the Yahoo server (www.Yahoo.com) tested through Traceroute.

traceroute to 192.168.0.1, 5 hops max, 38 byte packets
1 Archer (192.168.0.1) 0.045 ms 0.015 ms 0.008 ms
Trace Complete.
traceroute is stopped.

15.9. Set System Time and Language

System time is the time displayed while the router is running. The system time you configure here will be used for other time-based functions like Parental Controls. You can choose the way to obtain the system time as needed.

System language is the language displayed when you log into the router. You can change the system language as needed.

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > System > Time & Language.

• To get time from the internet:

1. Enable 24-Hour Time if you want the time to display in a 24-hour way.
2. In the Set Time field, select Get from Internet.

1. Select your local Time Zone from the drop-down list.
2. In the NTP Server I field, enter the IP address or domain name of your desired NTP Server.
3. (Optional) In the NTP Server II field, enter the IP address or domain name of the second NTP Server.
4. Click SAVE.

• To get time from your computer:

1. In the Set Time field, select Get from Managing Device.

1. The time of your computer will then be displayed and click SAVE.

• To manually set the date and time:

1. In the Set Time field, select Manually.

1. Set the current Date (In MM/DD/YYYY format).
2. Set the current Time (In HH/MM/SS format).
3. Click SAVE.

• To set Daylight Saving Time:

1. Tick the Enable box of Daylight Saving Time.

1. Select the correct Start date and time when daylight saving time starts at your local time zone.
2. Select the correct End date and time when daylight saving time ends at your local time zone.
3. Click SAVE.

• To set system language:

Select the language from the dropdown list, then click SAVE.

15. 10. Set the Router to Reboot Regularly

The Scheduled Reboot feature cleans the cache to enhance the running performance of the router.

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > System > Reboot.
3. Tick the Enable box of Reboot Schedule.

1. Specify the Reboot Time when the router reboots and Repeat to decide how often it reboots.
2. Click SAVE.

15. 11. Control the LED

The LED of the router indicates its activities and status. You can enable the Night Mode feature to specify a time period during which the LED is off.

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > System > LED Control.
3. Enable Night Mode.
4. Specify the LED off time, and the LED will be off during this period every day.
5. Click SAVE.

FAQ

Q1. What should I do if I forget my wireless password?

The default wireless password is printed on the label of the router. If the password has been altered:

1. Connect your computer to the router using an Ethernet cable.
2. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
3. Go to Wireless to retrieve or reset your wireless password.

Q2. What should I do if I forget my web management password?

• If you are using a TP-Link ID to log in, or you have enabled the Password Recovery feature of the router, click Forgot password on the login page and then follow the instructions to reset it.
• Alternatively, press and hold the Reset button of the router for about 6 seconds until the Power LED blinks to restore factory default settings, and then visit http://tplinkwifi.net to create a new login password.

Note:

• Please refer to Password Recovery to learn how to configure Password Recovery.
• You'll need to reconfigure the router to surf the internet once the router is reset, and please note down your new password for future use.

Q3. What should I do if I can't log in to the router's web management page?

This can happen for a variety of reasons. Please try the methods below to log in again.

• Make sure your computer is connected to the router correctly and the corresponding LED indicator(s) light up.
• Make sure the IP address of your computer is configured as Obtain an IP address automatically and Obtain DNS server address automatically.
• Make sure http://tplinkwifi.net or http://192.168.0.1 is correctly entered.
• Check your computer's settings:

1) Go to Start > Control Panel > Network and Internet, and click View network status and tasks. 2) Click Internet Options on the bottom left. 3) Click Connections and select Never dial a connection.

4) Click LAN settings and deselect the following three options and click OK.

5) Go to Advanced > Restore advanced settings, click OK to save the settings.

• Use another web browser or computer to log in again.
• Reset the router to factory default settings and try again. If login still fails, please contact the technical support.

Note: You'll need to reconfigure the router to surf the internet once the router is reset.

Q4. What should I do if I can't access the internet even though the configuration is finished?

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2. Go to Advanced > Network > Status to check internet status:

If IP Address is a valid one, please try the methods below and try again:

- Your computer might not recognize any DNS server addresses. Please manually configure the DNS server.

1) Go to Advanced > Network > DHCP Server. 2) Enter 8.8.8.8 as Primary DNS, click SAVE.

Tips: 8.8.8.8 is a safe and public DNS server operated by Google.

- Restart the modem and the router.

1) Power off your modem and router, and leave them off for 1 minute. 2) Power on your modem first, and wait about 2 minutes until it gets a solid cable or Internet light. 3) Power on the router. 4) Wait another 1 or 2 minutes and check the internet access.

• Reset the router to factory default settings and reconfigure the router.
• Upgrade the firmware of the router.
• Check the TCP/IP settings on the particular device if all other devices can get internet from the router.

As the picture below shows, if the IP Address is 0.0.0.0, please try the methods below and try again:

• Make sure the physical connection between the router and the modem is proper.
• Clone the MAC address of your computer.

1) Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2) Go to Internet or Advanced > Network > Internet and focus on the MAC Clone section. 3) Choose an option as needed (enter the MAC address if Use Custom MAC Address is selected), and click SAVE.

Tips:

• Some ISPs register the MAC address of your computer when you first access the internet through their cable modem. If you add a router to your network to share your internet connection, the ISP may not accept it because the MAC address has changed. Therefore, you need to clone your computer's MAC address to the router. Note that the MAC addresses for wired and wireless connections on a computer are different.

- Modify the LAN IP address of the router.

Note:

Most TP-Link routers use 192.168.0.1 or 192.168.1.1 as their default LAN IP address, which may conflict with the IP range of your existing ADSL modem/router. If so, the router cannot communicate with your modem, and you cannot access the internet. To resolve this issue, change the LAN IP address of the router to avoid the conflict, for example, to 192.168.2.1.

1) Visit http://tplinkwifi.net and log in with your TP-Link ID or the password you set for the router. 2) Go to Advanced > Network > LAN. 3) Modify the LAN IP address as shown in the following picture. Here we use 192.168.2.1 as an example. 4) Click SAVE.

- Restart the modem and the router.

1) Power off your modem and router, and leave them off for 1 minute. 2) Power on your modem first, and wait about 2 minutes until it gets a solid cable or Internet light. 3) Power on the router. 4) Wait another 1 or 2 minutes and check the internet access.

- Double-check the internet connection type.

1) Confirm your internet connection type, which can be learned from the ISP. 2) Visit http://tplinkwifi.net and log in with your TP-Link ID or the password you set for the router. 3) Go to Advanced > Network > Internet. 4) Select your Internet Connection Type and fill in other parameters. 5) Click SAVE.

6) Restart the modem and the router again.

- Please upgrade the firmware of the router.

If you have tried every method above but still cannot access the internet, please contact technical support.

Q5. What should I do if I can't find my wireless network or I cannot connect to the wireless network?

If you fail to find any wireless network, please follow the steps below:

- Make sure the wireless function of your device is enabled if you are using a laptop with a built-in wireless adapter. You can refer to the relevant documentation or contact the laptop manufacturer.

- Make sure the wireless adapter driver is installed successfully and the wireless adapter is enabled.

- On Windows 7

1) If you see the message "No connections are available", it is usually because the wireless function is disabled or blocked somehow. 2) Click "Troubleshoot" and Windows might be able to fix the problem by itself.

- On Windows XP

1) If you see the message "Windows cannot configure this wireless connection", this is usually because the Windows configuration utility is disabled or you are running another wireless configuration tool to connect to the wireless. 2) Exit the wireless configuration tool (the TP-Link Utility, for example). 3) Select and right-click on "My Computer" on the desktop, select "Manage" to open the Computer Management window. 4) Expand "Services and Applications" > "Services", find and locate "Wireless Zero Configuration" in the Services list on the right side. 5) Right-click "Wireless Zero Configuration", and then select "Properties". 6) Change "Startup type" to "Automatic", click on the "Start" button and make sure the "Service status" is "Started". And then click "OK".

If you can find other wireless networks except your own, please follow the steps below:

• Check the WLAN LED indicator on your wireless router/modem.
• Make sure your computer/device is still in the range of your router/modem. Move it closer if it is currently too far away.
• Go to "Wireless" or "Advanced" > "Wireless" > "Wireless Settings", and check the wireless settings. Double-check that your wireless Network Name and SSID are not hidden.

If you can find your wireless network but fail to connect, please follow the steps below:

- Authenticating problem/password mismatch:

1) Sometimes you will be asked to type in a PIN number when you connect to the wireless network for the first time. This PIN number is different from the Wireless Password/Network Security Key; usually you can only find it on the label of your router.

2) If you cannot find the PIN or PIN failed, you may choose "Connecting using a security key instead", and then type in the Wireless Password/Network Security Key. 3) If it continues to show a note of "Network Security Key Mismatch", it is suggested to confirm the wireless password of your wireless router.

Note: Wireless Password/Network Security Key is case sensitive.

- Windows unable to connect to XXXX / Cannot join this network / Taking longer than usual to connect to this network:

• Check the wireless signal strength of your network. If it is weak (1~3 bars), please move the router closer and try again.
• Change the wireless channel of the router to 1, 6, or 11 to reduce interference from other networks.
• Re-install or update the driver for your computer's wireless adapter.

FCC compliance information statement

Product Name: AX1800 Dual Band Wi-Fi 6 Router

Model Number: Archer AX20/ Archer AX23/ Archer AX1800

Component Name Model
I.T.E. Power Supply	T120150-2B1

Responsible party:

TP-Link Systems Inc.

Address: 10 Mauchly, Irvine, CA 92618

Website: http://www.tp-link.com/us/

Tel: [phone]

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.

FCC RF Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.

"To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 44 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter."

We, TP-Link Systems Inc., have determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change made in the equipment and the equipment is properly maintained and operated.

FCC compliance information statement

Product Name: I.T.E. Power Supply

Model Number: T120150-2B1

Responsible party:

TP-Link Systems Inc.

Address: 10 Mauchly, Irvine, CA 92618

Website: http://www.tp-link.com/us/

Tel: [phone]

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

We, TP-Link Systems Inc., has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.

Issue Date: 2025-03-05

CE Mark Warning

OPERATING FREQUENCY (the maximum transmitted power)

2400 MHz -2483.5 MHz (20dBm)

5150 MHz -5250 MHz (23dBm)

EU Declaration of Conformity

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.

The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ce/

RF Exposure Information

This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection.

The device complies with RF specifications when the device used at 20 cm from your body.

Frequency band: 5150 - 5250 MHz:

Indoor use: Inside buildings only. Installations and use inside road vehicles and train carriages are not permitted. Limited outdoor use: If used outdoors, equipment shall not be attached to a fixed installation or to the external body of road vehicles, a fixed infrastructure or a fixed outdoor antenna. Use by unmanned aircraft systems (UAS) is limited to within the 5170 - 5250 MHz band.

	AT	BE	BG	CH	CY	CZ	DE	DK
	EE	EL	ES	FI	FR	HR	HU	IE
	IS	IT		LI	LT	LU	LV	MT	NL
	NO	PL		PT	RO	SE	SI	SK	UK(NI)

UKCA Mark

UK Declaration of Conformity

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017.

The original UK Declaration of Conformity may be found at https://www.tp-link.com/support/ukca

National Restrictions

Attention: This device may only be used indoors in Great Britain.

Canadian Compliance Statement

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.

1. The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems.

Warning:

Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 27cm between the radiator & your body.

Industry Canada Statement

CAN ICES-3 (B)/NMB-3(B)

Korea Warning Statements:

設備名稱: AX1800 Dual Band Wi-Fi 6 Router Equipment name
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead(Pb)	汞Mercury(Hg)	鎘Cadmium(Cd)	六價鉻Hexavalent chromium( Cr+6 )	多溴聯苯Polybrominated biphenyls(PBB)	多溴二苯醚Polybrominated diphenyl ethers(PBDE)
PCB	○	○ ○	○ ○ ○
外殼	○	○ ○	○ ○ ○
電源供應器	-	○ ○	○ ○ ○	○
其他及其配件	-	○ ○	○ ○ ○	○
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值Note 1: “Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.備考3. “—”係指該項限用物質為排除項目。Note 3: The “—” indicates that the restricted substance corresponds to the exemption.

- Keep the device away from water, fire, humidity or hot environments.

• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Do not use damaged charger or USB cable to charge the device.
• Do not use any other chargers than those recommended
• Do not use the device where wireless devices are not allowed.
• Adapter shall be installed near the equipment and shall be easily accessible.
• Use only power supplies which are provided by manufacturer and in the original packing of this product. If you have any questions, please don't hesitate to contact us.
• Operating Temperature: 0°C 40°C (32°F \~ 104°F)
• Storage Temperature: -40°C 60°C ( -40°F 140°F )

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

Explanations of the symbols on the product label

Note: The product label can be found at the bottom of the product and its I.T.E. power supply. Symbols may vary from products.

Symbol Explanation

	Class II equipment
	Class II equipment with functional earthing
~	Alternating current
---	Direct current
	Polarity of d.c. power connector
	For indoor use only
	Dangerous voltage
	Caution, risk of electric shock
	Energy efficiency Marking
	Protective earth
Symbol Explanation
	Earth
	Frame or chassis
	Functional earthing
	Caution, hot surface
	Caution
	Operator's manual
	Stand-by
	"ON"/"OFF" (push-push)
-	Fuse
[67XW]	Fuse is used in neutral N
	RECYCLINGThis product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment.
	Caution, avoid listening at high volume levels for long periods
	Disconnection, all power plugs
m	Switch of mini-gap construction
μ	Switch of micro-gap construction (for US version)Switch of micro-gap / micro-disconnection construction (for other versions except US)
ε	Switch without contact gap (Semiconductor switching device)

Appendix I

Locating your router
