USER MANUAL SRBX 2200 B2 SILVERCREST

RECHARGEABLE CLEANING BRUSH SRBX 2200 B2

GB

Operation and safety notes

LT

AKUMULIATORINIS ŠEPETYS

GB Operation and safety notes Page 5

LT Naudojimo ir saugos pastabos Psl 16
EE Kasutamis- ja ohutusjuhised Lehekülg 27
LV Ekspluatācijas un drošības norādījumi Lpp. 38
SI Navodila za upravljanje in varnostna opozorila Stran	49
DE/AT/CH Bedienungs- und Sicherheitshinweise		Seite	60

Warnings and symbols used Page 6

Introduction Page 7

Intended use....Page 7

Scope of delivery....Page 7

Description of parts ...... Page 7

Technical data Page 8

Safety instructions....Page 8

Safety instructions for batteries / rechargeable batteries .... Page 11

Before use Page 11

Charging Page 11

Assembly Page 12

Extension handle Page 12

Brush heads Page 12

Operation....Page 12

Changing the angle....Page 13

Cleaning and care Page 13

Storage Page 13

Disposal Page 14

Warranty Page 14

Warnings and symbols usedThe following warnings are used in this user manual and on the packaging:
	DANGER! This symbol in combination with the signal word “Danger” marks a high-risk hazard that if not prevented could result in death or serious injury.		Direct current / voltage
			Alternating current / voltage
			Hertz (supply frequency)
	WARNING! This symbol in combination with the signal word “Warning” marks a medium-risk hazard that if not prevented could result in death or serious injury.		Watt
			Polarity of the output terminal
	CAUTION! This symbol in combination with the signal word “Caution” marks a low-risk hazard that if not prevented could result in minor or moderate injury.		Symbol for a Protection Class II product
	ATTENTION! This symbol with the signal word “Attention” indicates a possible property damage.		Short-circuit proof safety transformer
	NOTE: This symbol in combination with “Note” provides additional useful information.		SMPS (Switch mode power supply unit)(switching power supply)
	CAUTION! EXPLOSION HAZARD! A warning with this symbol and word “CAUTION! EXPLOSION HAZARD” indicates the potential threat of explosion. Failure to observe this warning may result in serious or fatal injuries and potential property damage. Follow the instructions in this warning to prevent serious injuries, a danger to life or property damage!		Use the product in dry indoor spaces only.
			Wear suitable protective gloves.
			Wear eye protection.
			CE mark indicates conformity with relevant EU directives applicable for this product.

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product intended exclusively for removing dirt indoors and outdoors in domestic households. Do not use it for any other purpose.

This product is only intended for private household use, not for commercial purposes.

The manufacturer accepts no liability for damages caused by improper use.

- Scope of delivery

(see fig. A)

After unpacking the product, check if the delivery is complete and if all parts are in good condition.

Remove all packing materials before use.

1 x Rechargeable cleaning brush
1 x Extension handle
1 x Flat brush head
1 x Domed brush head
1 x Conical brush head
1x Power adaptor
1 x Instruction manual

● Description of parts

(see fig. A)

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the product.

1 Extension handle
2 Release button
3 Extension handle grip
4 Brush axle
5 Swivel lock
6 ① On/off switch
7 Charging LED (not illustrated)
8 Lid
9 Charging socket
10 Power adaptor
11 Dome brush head
12 Flat brush head
13 Conical brush head

Technical data

Product

Input voltage, current: 5 V 70.5 A
Protection type: IPX4: Protection against water splashes from any direction.
Polarity:
Operating time with full battery charge:	approx. 90 minutes
Battery: 2200 mAh, 3.7 V (Lithium-lon battery)

Power adaptor

Manufacturer's name or trade mark, commercial registration number and address:

Xiamen Xunheng Electronics Tech Co., Ltd 91350200MA34779Q3L No.28, Xiangyue Road, Xiangan District, Xiamen, China

Model identifier: XH0500-0500WG(Model: HG06522B)

Input voltage: 100–240 V~

Input AC frequency: 50/60 Hz

Output voltage: 5.0 V

——

Output current: 0.5 A

Output power: 2.5 W

Average active efficiency: 73.2 %

No-load power consumption: 0.10 W

Protection class:

II

Polarity:

SMPS - switched-mode power supply:

Safety transformer, short-circuit proof:

Safety instructions

BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO INCLUDE ALL THE DOCUMENTS!

In the case of damage resulting from non-compliance with these operating instructions the warranty claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

Children and persons with limitations

⚠ WARNING! DANGER OF DEATH AND ACCIDENTS FOR TODDLERS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

■ Children shall not play with the product.
■ Cleaning and user maintenance shall not be made by children without supervision.

Electrical safety

⚠️ DANGER! Risk of electric shock! Never attempt to repair the product yourself. In case of malfunction, repairs are to be conducted by qualified personnel only.
⚠ WARNING! Risk of electric shock! Do not immerse the product's electrical components in water or other liquids. Never hold the product under running water.
⚠ WARNING! Risk of electric shock! Never use a damaged product. Disconnect the product from the socket outlet and contact your retailer if it is damaged.
⚠ WARNING! Risk of electric shock! Do not operate the product with wet hands or while standing on a wet floor.

Do not touch the power adaptor with wet hands.

WARNING! Risk of injury!

Turn off the product and disconnect it from the power supply before cleaning and when the product is not in use.

• Do not use the product anymore if it has been dropped.
  Before connecting the power adaptor to the power supply: Check that the voltage and the current rating correspond with the power supply details shown on the adaptor's rating label.
  ■ Only use the product with the provided power adaptor.
  ■ Disconnect the power adaptor from the socket outlet

- when a malfunction occurs,

– before attaching/changing accessories,

– before cleaning the product,

- if you will not used the product for a long time,

– during a thunderstorm and
-after each use.

■ Disconnect the product from the socket outlet by pulling the power adaptor, but not by pulling on the supply cord.
■ Defective components must always be replaced by original spare parts.
No action is needed from users to shift the product between 50 and 60 Hz. The product adapts itself for both 50 and 60 Hz.

Cleaning and storage

■ Protect the product, its power cord and power adaptor against dust, direct sunlight, dripping and splashing water.
■ Store the product in a cool, dry place, protected from moisture and out of the reach of children.
■ Protect the product against heat. Do not place the product close to open flames or heat sources such as stoves or heating appliances.

Safety instructions for batteries / rechargeable batteries

Risk of leakage of batteries / rechargeable batteries

• Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.
  If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!

WEAR PROTECTIVE

GLOVES! Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.

This product has a built-in rechargeable battery which cannot be replaced by the user. The removal or replacement of the rechargeable battery may only be carried out by the manufacturer or his customer service or by a similarly qualified person in order to avoid hazards. When disposing of the product, it should be noted that this product contains a rechargeable battery.

DANGER OF EXPLOSION!

- Do not throw the product into fire.

Before use

i NOTES:

■ Remove all packaging materials.
- Check if all parts are complete.

Before first use: Charge the built-in battery for at least 90 minutes.

● Charging

⚠️ ATTENTION! Before charging, switch off the product.

i NOTES:

■ While charging, the product cannot be switched on.
- Only recharge the battery when the power of the product becomes noticeably weaker.

■ Open the lid 8 at the bottom.
Connect the cable of the power adaptor 10 to the charging socket 9.
Connect the power adaptor 10 to a suitable socket outlet.
■ The charging LED 7 shows the status:

Status LED

Charging Flashing

Fully charged Static

• When fully charged: Disconnect the power adaptor 10 from the charging socket 9 and from the socket outlet.
  ■ Close the lid 8.

i NOTES:

• Charging time: 4 to 5 hours.
• When fully charged: The product automatically switches to a trickle charge (maintenance function).
  To avoid possible a damage to the battery, do not leave the product permanently connected to the socket outlet.

Assembly

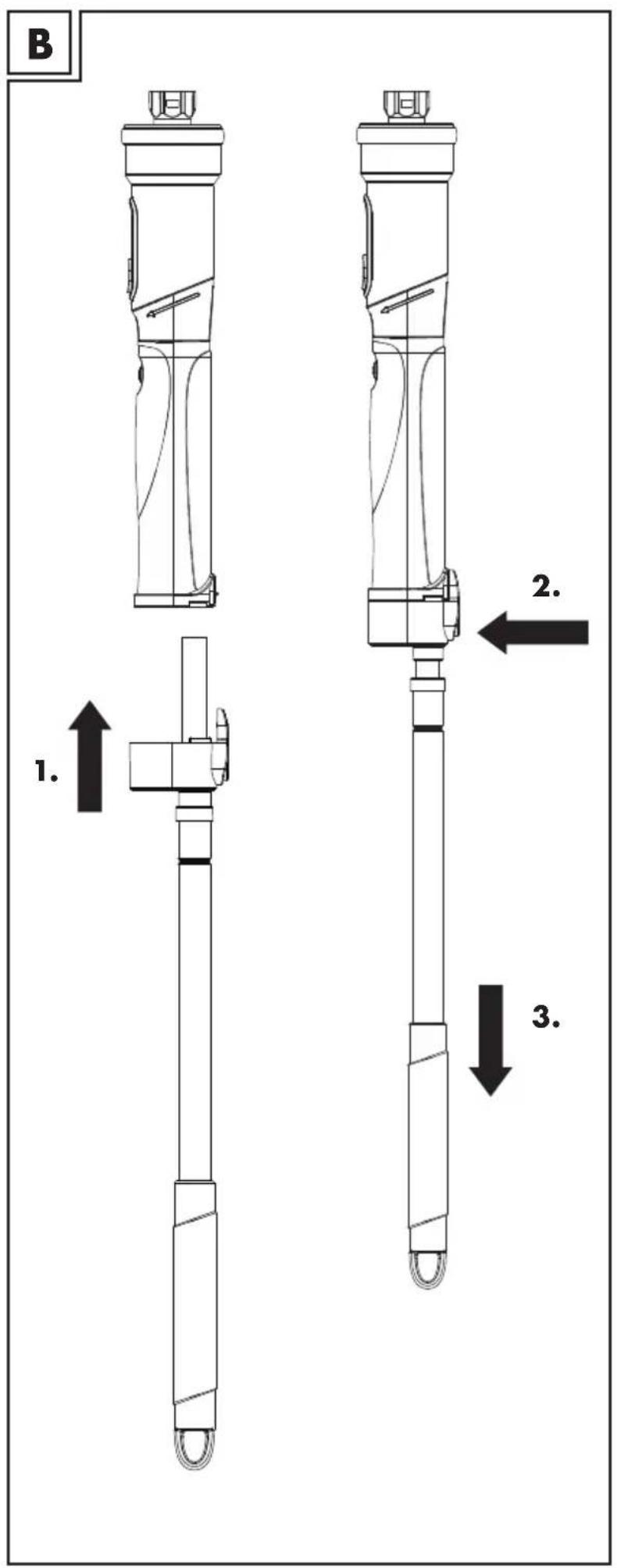

- Extension handle

■ Mounting the extension handle 1:
Push the extension handle 1 on the product until the release button 2 locks into place (see fig. B).
■ Dismounting the extension handle 1: Push and hold the release button 2. Pull the extension handle from the product (see fig. B).

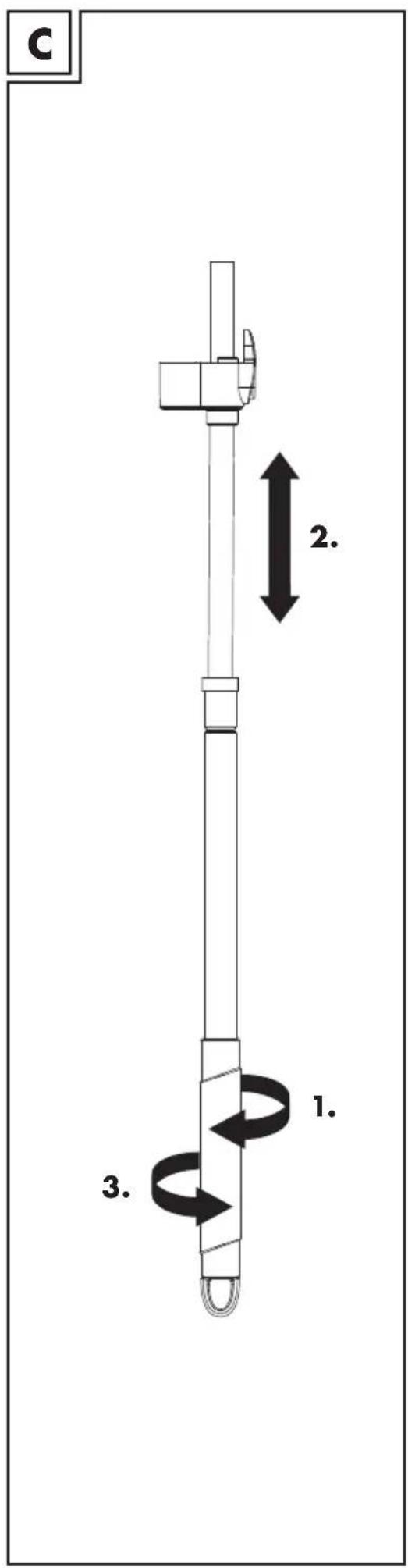

■ Extending the extension handle 1: Turn the handle grip 3 slightly in an anti-clockwise direction. Adjust the length. Fasten it by turning it in a clockwise direction (see fig. C). Do not overtighten!

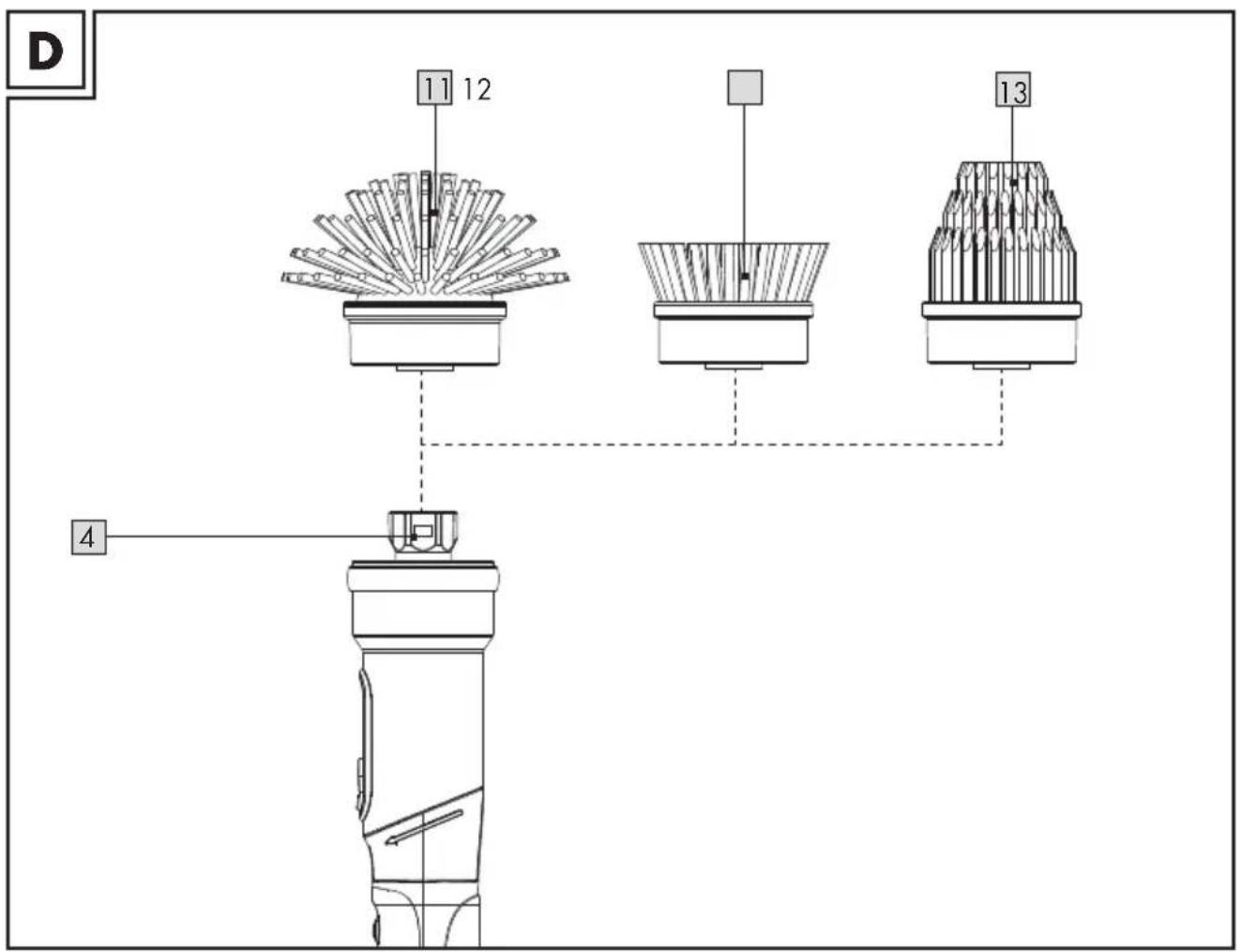

Brush heads

(see fig. D)

■ Switch off the product.
■ Select a brush head:

Domed brush head 11

Suitable for: Cleaning uneven surfaces

Use example: Sinks and fittings

Flat brush head 12

Suitable for: Cleaning large, even surfaces

Use example: Floors and walls

Conical brush head 13

Suitable for: Cleaning spots that are difficult to access

Use example: Corners and joints

Turn the brush head until it fits on the brush axle 4 and push it.
■ Remove the brush head: Pull the brush head from the brush axle 4.

Operation

ATTENTION! Do not use abrasive cleaning agents. They could irreparably damage the surface you are cleaning.

- Hold the product close to the surface.

- Switching on: Press ① 6. - Guide the brush head 11 / 12 / 13 over the surface in circular motions, applying gentle pressure.

NOTE: If the brush head 11 / 12 / 13 is locked, the product will be switched off automatically or the rotation speed may be affected. Let the product cool before using it again.

■ Switching off: Press ① 6.

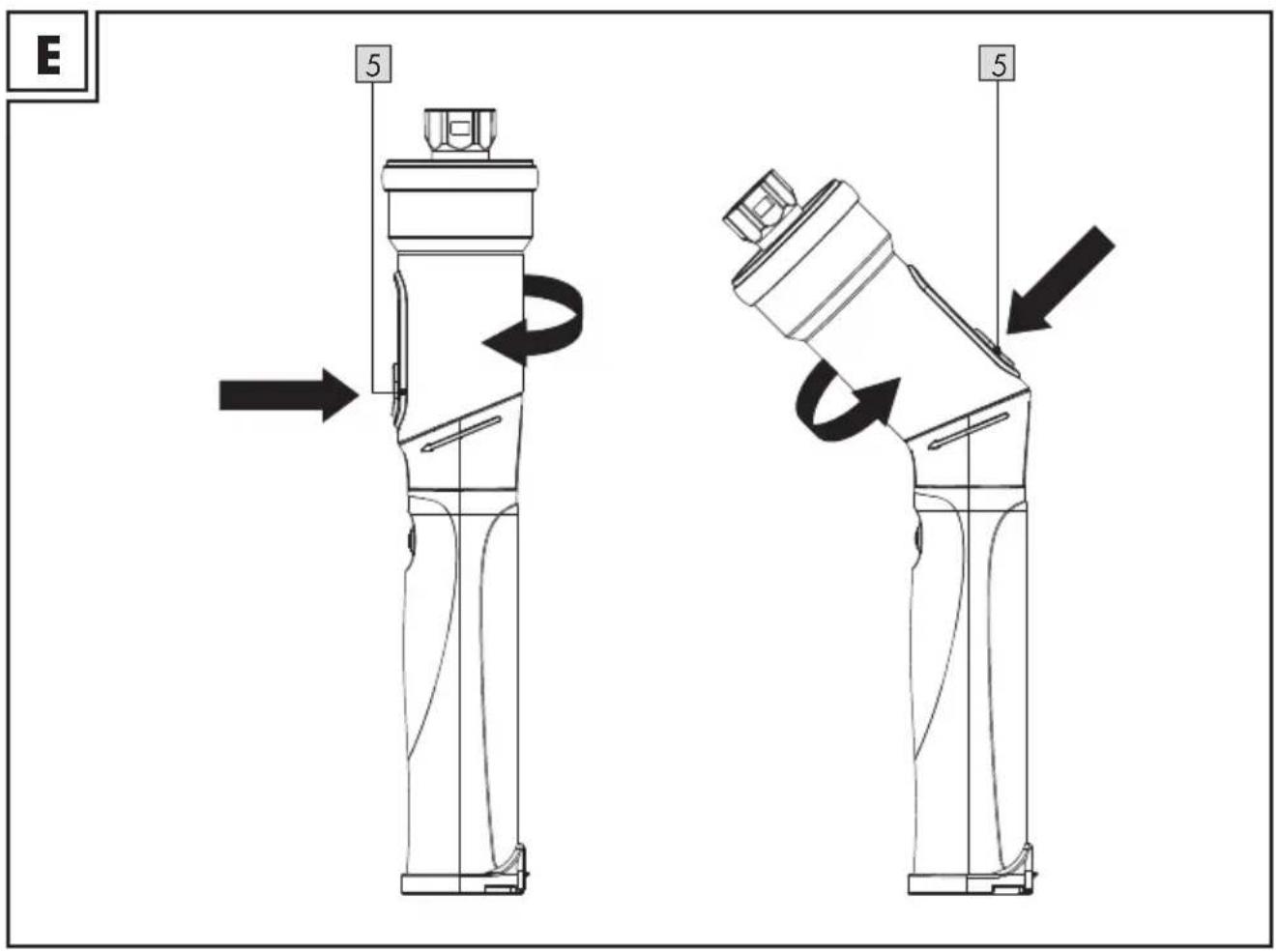

● Changing the angle

(see fig. E)

Bend: Press and hold 🔒 5. Turn the upper part of the product in a clockwise direction until 🔒 5 locks into place.

■ Straighten: Press and hold 🔒 5. Turn the upper part of the product in an anti-clockwise direction until 🔒 5 locks into place.

● Cleaning and care

⚠ WARNING! Risk of injury! Switch off the product and disconnect it from the power supply before cleaning.
⚠ WARNING! Risk of electric shock!

Do not immerse the product's electrical components in water or other liquids. Never hold the product under running water.

ATTENTION! Always keep the lid 8 closed when the product is not charging.

■ Clean product with a damp cloth. For stubborn dirt, add a little mild detergent to the cloth.

The brush heads 11 / 12 / 13 can be cleaned in water with a mild detergent.
- Allow all components to dry before reusing or storing them.

Storage

• Store the product in the original packaging when it is not in use.
• Store the product at a dry location out of the reach of children.
  The rechargeable battery in the product should be charged for at least 90 minutes every 3 months.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibreboard / 80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

Service Great Britain

Tel.: [phone]

E-Mail:[e-mail]

Electronics Tech Co., Ltd

91350200MA34779Q3L

No.28, Xiangyue Road,

Xiangan District, Xiamen,

China

Modelio žymuo: XH0500-0500WG

(modelis: HG06522B)

E-postiaadress:[e-mail]

CE

Akumulators: 2200 mAh, 3,7 V (litija

jonu akumulators)

Strāvas adapteris

Ražotāja nosaukums

vai preču zīme,

komercreğistra numurs

un adrese:

Xiamen Xunheng

Electronics Tech Co., Ltd

91350200MA34779Q3L

No.28, Xiangyue Road,

Xiangan District, Xiamen,

China

Modela identifikators: XH0500-0500WG

(Modelis: HG06522B)

leejas spriegums: 100-240 V\~

leejas mainstrāvas

frekvence: 50/60 Hz

Izejas spriegums: 5,0 V

Electronics Tech Co., Ltd

91350200MA34779Q3L

No.28, Xiangyue Road,

Xiangan District, Xiamen,

China

Identifikacijska oznaka

modela:

XH0500-0500WG

(Model: HG06522B)

Vhodna napetost: 100-240 V\~

Frekvenca vhodne izme-

Pooblaščeni serviser:

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

NEMČIJA

Electronics Tech Co., Ltd

des Herstellers,

91350200MA34779Q3L

Handelsregisternummer

No.28, Xiangyue Road,

und Anschrift:

Xiangan District, Xiamen,

China
