Product Type	Built-in Dishwasher
Model	WDFD09JFCWD
Brand	White-Westinghouse
Place Settings	9
Energy Class	A+
Annual Energy Consumption	220 kWh
Water Consumption per Cycle	10 L
Noise Level	49 dB(A)
Dimensions (H x W x D)	85 x 60 x 60 cm
Weight	45 kg
Power Supply	220-240 V / 50 Hz
Total Power	2000 W
Programs	Normal, Intensive, Eco, Quick, Rinse
Drying System	Condensation
Control Type	Electronic with LED Display
Delay Start	Up to 24 hours
Safety Features	Child Lock, Anti-Flood System
Filter Type	Self-Cleaning Microfilter
Interior Material	Stainless Steel
Adjustable Racks	Upper Rack Height Adjustable
Third Rack	Cutlery Tray
Spare Parts Availability	7 Years Minimum
Certification	CE, RoHS

Frequently Asked Questions - WDFD09JFCWD White-Westinghouse

What does error code E2 mean on my White-Westinghouse dishwasher?

Error code E2 typically indicates a water drainage issue. Check if the drain hose is kinked or the filter is clogged. Ensure the drain pump is not blocked and restart the cycle.

How do I properly load the dishwasher for best cleaning?

Place plates face down in the lower rack, glasses and cups on the upper rack, and utensils in the cutlery basket. Avoid blocking the spray arms. Do not overload to allow water circulation.

Can I use regular dish soap instead of dishwasher detergent?

No, regular dish soap creates excessive foam and can damage the dishwasher. Always use dishwasher-specific detergent (powder, gel, or tablets).

Why does my dishwasher leave white spots on dishes?

White spots are usually caused by hard water or insufficient rinse aid. Adjust the rinse aid dosage and ensure the water softener is set correctly for your water hardness.

How often should I clean the dishwasher filter?

Clean the filter at least once a month to prevent odors and maintain performance. Rinse it under running water and remove any debris.

What is the recommended detergent dosage?

For standard soil, use about 20g of powder or one tablet. For heavily soiled loads, use the intensive cycle and increase dosage slightly. Follow the detergent manufacturer's instructions.

How do I start a delayed wash?

Press the Delay Start button and select the number of hours (up to 24) you want to delay the start. Close the door and the machine will begin after the set time. Confirm by checking the display.

Why is my dishwasher not draining?

Check if the drain hose is clogged or kinked, and if the sink drain is clear. Also inspect the filter and drain pump for obstructions. Clean the filter and restart the drain cycle.

How do I add dishwasher salt?

Open the salt reservoir cap, use a funnel to fill with dishwasher salt until it is full (the water inside will overflow). Wipe up any salt residue and close the cap tightly.

What should I do if the dishwasher is noisy?

Check if dishes are rattling against each other or if any objects (like cutlery) have fallen to the bottom. Ensure the dishwasher is level. Inspect the spray arms for blockages and remove any debris.

USER MANUAL WDFD09JFCWD White-Westinghouse

WDFD09JFCWD WDFD09JFCSD

9 placesettings
□ 10placesettings
√ half-loadfunction
□ Altfunction

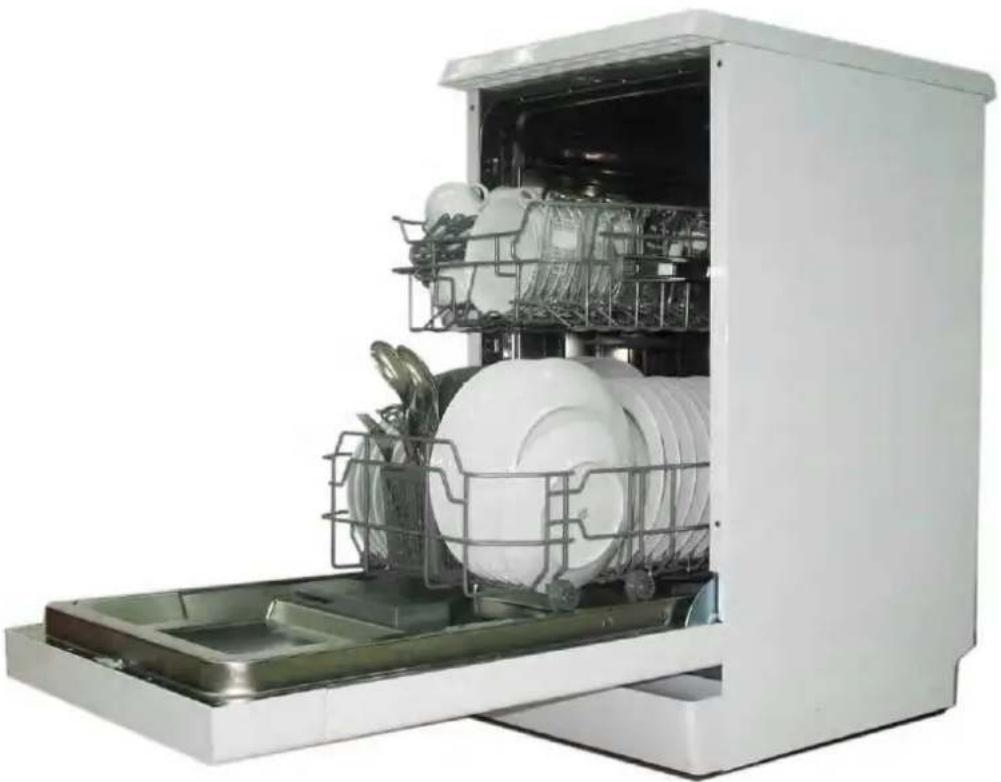

Interior view of a white kitchen appliance with multiple kitchen utensils and a rack-mounted dish (no visible text or labels)

MADE IN CHINA

Quick operation guide

Fordetailedoperatingmethodreadthecorrespondingcontentontheinstructionmanual.

Switch on the appliance

Press the On/Off button to switch on the appliance, Open the door.

With each wash cycle.

Compartment B:

Forprogrammeswithpre-washonly.

(Followtheuserinstructions!)

Checktherinseaidlevel

Mechanical indicator C.

Electricindicatoroncontrolpanel(ifprovided).

Checktheregeneration saltlevel

(Onmodelswithwatersoftenersystemonly.)

Electricindicatoroncontrolpanel(ifprovided).

Ifthereisnosaltwarninglightinthecontrolpanel

(forsomemodels),youcanestimatewhentofillthesaltinto

thesoftenerbythenumberofcyclesthedishwasherhasrun.

Loadthebaskets

Scrapeoffanylargeamountofleftoverfood. Softenremnantsofburntfoodinpans,

then load the baskets. Refer to the dishwasher loading instructions.

Selectaprogramme

Close the door, press the Programme button until the selected programme lights up.

( See the section entitled "Operationg instruction" )

Runningthedishwasher

TurnonthewatertapandpresstheStart/Pausebutton. Themachinewillstartworking

afterabout10seconds.

- Changingtheprogramme

- 1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent may have already been released and the water already drained. If this is the case, the detergent dispensermustberefilled.

1. Press the Start/Pause button(with the door closed), then press the program button for more than 3 secondstocanceltherunningprogramme.

3.Selectanewprogramme.

4.Restartthedishwasher.

- Addforgottendishesinthe dishwasher.

1. Pressthestart/pausebuttontostopthemachine.

2.Openthedoor.

3.Addtheforgottendishes.

1. Closethedoor, thenpressthestart/pausebutton, thedishwasherwill startrunningagainafter 10 seconds.

WARNING!

Openthedoorcarefully. Hotsteammayescape when the door is opened!

- If the appliance is switched off during a wash cycle.

- If the appliance is switched off during a wash cycle, when switched on again, please re-select the washing cycle and operate the dishwasher according to the original Power-on-state).

Switchofftheappliance

Whentheworkingcyclehasfinished,thebuzzerof the

dishwasherwillsound8times,thenstop

TurnofftheapplianceusingtheOn/Offbutton.

Turnoffthewatertap, unloadthebaskets

Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and moresusceptibletobreak.

They will also dry better. Unload the appliance, starting from the lower basket.

Read this Manual

DearCustomer,

This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-farmhouses;

-by clients in hotels, motels and other residential type environments;

-bed and breakfast type environments.

Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly.
- Keep it as a refer in the later days.
Passitonto any subsequent owner of the appliance.

This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips, etc.

Before Calling for Service

To review the section on troubleshooting Tips will help you to solve some common problems by yourself.
If you can not solve the problems by yourself, please ask for the help of professional technicians.

NOTE:

The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.

1) Safety Information....1
2) Disposal....2
3) Operating Instructions....3 Control Panel....3 Dishwasher Features....3
4) Prior using for the first time....4

A、Water Softener....4
B、Loading the Salt into the Softener....5
C、Fill the Rinse Aid Dispenser....5
D、Function of Detergent 6

5) Loading the Dishwasher Basket....9 Attention before or after loading the Dishwasher Baskets....9 The Method Loading Normal Dishware....10
6) Starting a washing programme....11

Wash Cycle Table....11
Turning on the Appliance....12
Change the Programme....12
Atthe Eneofthe Wash Cycle....12

7) Maintenance and cleaning....13 Filtering System....13 Caring for the Dishwasher....14

8) Installation instruction....15 Positioning the Appliance....15 About Power Connection....15 Water Connection....16 Start of dishwasher....17
9) Troubleshooting Tips....18 Before calling for service....18 Error codes....19 Technical information....20

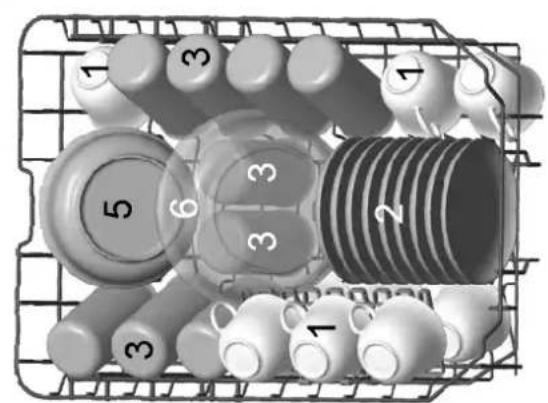

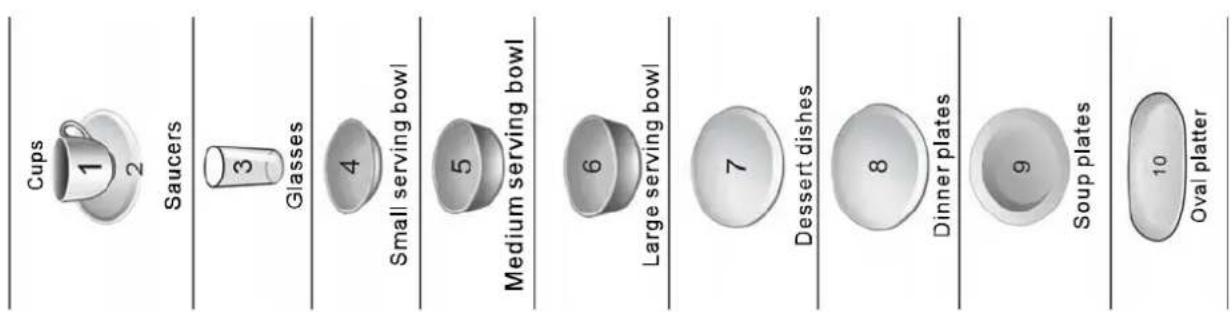

Loading the baskets according to En50242

1. IMPORTANT SAFETY INFORMATION READ ALL OF THE INSTRUCTIONS BEFORE USING

WARNING! When using your dishwasher, follow the precautions listed below:

GROUNDING INSTRUCTIONS

Thisappliancemustbegrounded. Intheeventofa malfunctionorbreakdown, groundingwillreduce theriskofanelectricshockbyprovidingapathof leastresistanceofelectriccurrent. Thisappliance isequippedwithacordhavinganequipment-groundingconductorandagroundingplug.
Theplugmustbepluggedintoanappropriateoutlet thatisinstalledandgroundedinaccordancewith alllocalcodesandordinances.

▲ WARNING!

■ Improperconnection of the equipment-grounding conductor can result in the risk of an electric shock.
Check with a qualified electrician or service representative if you are indoubt whether the appliance is properly grounded. Donot modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician.

WARNING! PROPER USE

■ Donotabuse, siton, orstandonthedo rackofthedishwasher.
■ Donottouchtheheatingelementduringor immediatelyafteruse. (Thisinstructionisonlyapplicabletomachines withavisualheating element.)
Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of watersquirting out.
■ Do notplaceanyheavyobjects on or stand the door when it is open. The appliance could tip forward.
■ When loading items to be washed: 1) Locate sharp items so that they are not likely to damage the door seal;
2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.
■ When using your dishwasher, you should prevent plastic items from coming into contact with the heating element.(This instruction is only applicable to machines with a visual heating element.)
- Check that the detergent compartment is empty after completion of the wash cycle.
Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.
■ Use only detergent and rinse additives designed for an automatic dishwasher.
■ Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Keep these products out of the reach of children.

Keep children away from detergent and reinseaid, keep child away from the open door of the dishwasher, there could still be some detergent left inside.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
■ Children should be supervised to ensure that they do not playwiththeappliance.
■ Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.
■ The door should not be left open, since this could increase the risk of tripping.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
■ Removethe doortothewashingcompartment when removing an old dishwasher from service or discarding it.
■ Please dispose of packing materials properly.
■ Use the dishwasher only for its intended function
■ During installation, the power supply must not be excessively or dangerously bent or flattened. Donottamperwithcontrols.
■ The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not be reused.
■ The maximum number of place settings to be washed is 9.
■ The maximum permissible inlet water pressure is 1MPa.
■ The minimum permissible inlet water pressure is 0.04MPa.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY KEEP THESE INSTRUCTIONS

2.Disposal

Dispose of the dishwasher packaging material correctly.

All packaging materials can be recycled.

Plastic parts are marked with the standard international abbreviations:

■ PE——for polyethylene, e.g. sheet wrapping material

■ PSforpolystyrene, e.g. padding material

■ POM — polyoxymethylene, e.g. plastic clips

■ PP — polypropylene, e.g. Salt filler

■ ABS — Acrylonitrile Butadiene Styrene, e.g. Control Panel.

WARNING!

■ Packaging material could be dangerous for children!

For disposing of package and the appliance please go to a recycling centre. Therefore cut off the powersupplycable and makethedoorclosing device unusable.

■ Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service.

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

3. Operation Instruction

IMPORTANT Togetthebestperformancefromyourdishwasher,readalloperatinginstructions beforeusingitforthefirsttime.

Control Panel

1. On/Off Button: to switch On/Off the appliance.
2. Program Button: To Press the button to select appropriate Program.
3. Powerindicator: To show when the power on.
4. Program indicators: To show which program you have chose.
5. Half load indicators: To show Half load functions startingupornot.

6. Salt and rinse aid warning indicators: To show when the salt container or dispenser need to be refilled.

7. Halfloadfunctions Button: To select Halfload functions. (With this Halfload function you can only use it when you have only about or less than 6 place setting dish wave, and you will see less water and energy consumption, can only be used with Intensive, Normal, E CO, Glass and 60 min.)

8. Start /Pause button: To start the selected washing program or pause the washing program when the machine is working.

Dishwasher Features

4. Prior using for the first time

Before using your dishwasher for the first time:

A. Setthewatersoftener

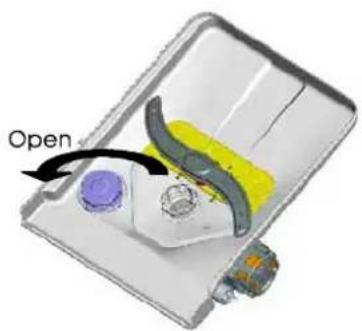

B. Add 1.5Kg dishwasher salt and then full fill the salt container with water

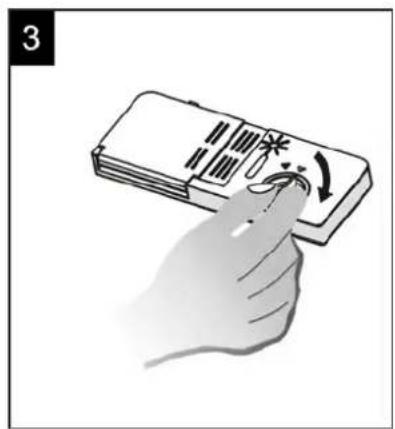

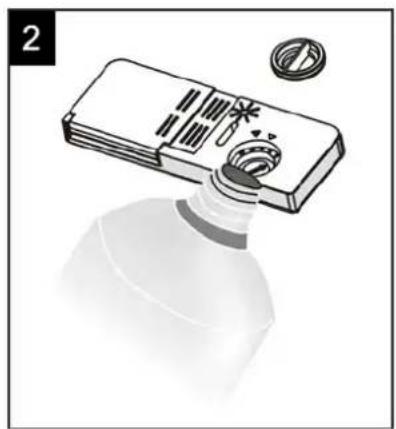

C. Fill the rinse aid dispenser
D. Fillindetergent

A. Water Softener

The water softener must be set manually, using the water hardness dial.

The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance.

The higher the content of these minerals and salts, the harder your water is.

The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

Adjusting Salt Consumption

The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption.

Please follow the steps below for adjustment in salt consumption.

1. Switch on the appliance (with the door closed);
2. Press the Start/Pause button for more than 5 seconds to start the water softener set model within 60 seconds after the appliance was switched on; (The Salt and Rinse aid warninglights will be on periodically when it get in the set model)
3. Press the Start/Pausebutton to select the proper set according to your local environment, the sets will change in the following sequence: H1->H2->H3->H4->H5->H6;
4. Press the On/Off button or no operation for 5 seconds to end the setup model.

WATERHARDNESS				Selector Position	Salt consumption (gram/cycle)
dH	fH	Clarke	mmol/l
0~5	0~9	0~6	0~0.94	H1-Soak light bright	0
6-11	10-20	7-14	1.0-2.0	H2-1 Hourlightbright	9
12-17	21-30	15-21	2.1-3.0	H3-1 Hour、Soak light bright	12
18-22	31-40	22-28	3.1-4.0	H4-ECOLightbright	20
23-34	41-60	29-42	4.1-6.0	H5-ECO、Soak Light bright	30
35-55	61-98	43-69	6.1-9.8	H6-ECO、1 Hour light bright	60

Note:1

1 dH=1.25Clarke=1.78fH=0.178mmol/l

DH: German degree

fH:Frenchdegree

Clark: British degree

Note:2

Themanufactory setting: H4(EN50242)

Contact your local water board for information on the hardness of your water supply.

NOTE: If your model does not have any water softener, you may skip this section.

WATERSOFTENER

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils.

The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water.

B. Loading the Salt Into the Softener

Always use the salt intended for use with dishwasher.

The salt container is located beneath the lower basket and should be filled as explained in the following:

Attention!

■ Only use salt specifically designed for the use in dishwashers! Every other type of salt not specifically designed for the use in a dishwasher, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused.
■ Only fill with salt just before starting one of the complete washing programs. This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

1

2

Illustration of a hand pouring granular material into a tray with a yellow tool and a small container (no text or symbols)

A After the lower basket has been removed, unscrew and remove the cap from the salt container.
B Place the end of the funnel (supplied) into the hole and introduce about 1.5kg of dishwasher salt.
C Full fill the salt container with water, It is normal for a small amount of water to come out of the saltcontainer.
D After filling the container, screw the cap tightly back clockwise.
EThe salt warning light will stop being after the salt container has been filled with salt.
F Immediately after filling the salt into the salt container, a washing program should be started (Wesuggesttouseashort program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is outofwarranty.

NOTE:

1. The salt container must only be refilled when the salt warning light in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be on even though the saltcontainerisfilled.
   If there is no salt warning light in the control panel (for some Models), you can estimate when to fill the salt into the softener by the cycles that the dishwasher has run.
2. If there are spills of the salt, a soak or a rapid program should be run to remove the excessive salt.

C. Fill the Rinse Aid Dispenser

RinseAidDispenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed touseliquidrinseaids. The rinseaid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml.

FunctionofRinseAid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

Attention!

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to Refill the Rinse Aid Dispenser

If there is no rinse-aid warning light in the control panel, you can estimate the amount from the colour of the optical level indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid level fall 1 / 4 full.

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

Full
3/4full
1/2full
⊕ 1/4 full-Should refill to eliminate spotting
Empty

Illustration of a light bulb with a magnified inset showing internal components (no text or symbols)

1 To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
2 Pour the rinse aid into the dispenser, being careful not to overfill.
3 Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

NOTE: Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming during thenextwash. Don't forget to replace the cap before you close dishwasher door.

Adjusting Rinse Aid Dispenser

The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are show spots, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is "4". (Factoryvalue is "4".)

NOTE:

Increase the dose if there are drops of water or limespots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knifeblades.

D. Function of Detergent

Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

Attention!

ProperUseofDetergent

Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry.

Don't put powdered detergent into the dispenser until you're ready to wash dishes.

Detergents

There are 3 sorts of detergents

1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine

Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6 °dH. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature.

Concentrated Detergent

Based on their chemical composition, detergents can be split into two basic types:

■ conventional, alkaline detergents with caustic components
■ low alkaline concentrated detergents with natural enzymes

DetergentTablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals.

Detergent Dispenser

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than Conventional dishwasher. Generally, only one tablespoon of detergent is needed for anormal wash load. Moreheavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

AmountofDetergenttoUse

NOTE:

■ If the lid is closed: press release button. The lid will spring open.
■ Always add the detergent just before starting each wash cycle.
■ Only use branded detergent aid for dishwasher.

WARNING!

Dishwasher detergent is corrosive! Take care to keep it out of reach of children.

FillinDetergent

Fill the detergent dispenser with detergent. The marking indicates the dosing levels, as illustrated on the right:

A The place of main wash cycle detergent placed.

B The place of pre-wash cycle detergent placed.

Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging.

Closethe lid and press until it locks in place.

If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

NOTE:

■ You find information about the amount of detergent for the single programme on the last page.
■ Please aware, that according to the level soiling and the specific hardness of water differences are possible.
■ Please observe the manufacturer's recommendations on the detergent packaging.

5. Loading the Dishwasher Baskets

Recommendation

■ Consider buying utensils which are identified as dishwasher-proof.
■ Useamild detergentthat is described as 'kindtodishes'. If necessary, seek further information from the detergent manufacturers.
■ Forparticularitems, select a program with as low atemperature as possible.
■ To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended.

For washing in the dishwasher the following cutlery/dishes

Arenotsuitable

■ Cutlery with wooden, hornchina or mother-of-pearlhandles

■ Plastic items that are not heat resistant

■ Oldercutlerywithgluedpartsthatarenot temperatureresistant

■ Bonded cutlery items or dishes

■ Pewterorcooperitems

■ Crystalglass

■ Steel items subject to rusting

■ Woodenplatters

■ Items made from synthetic fibres

Are of limited suitability

■ Some types of glasses can become dull after alargenumberofwashes
■ Silver and aluminum parts have a tendency to discolour during washing
■ Glazed patterns may fade if machine washed frequently

Attention before or after loading the Dishwasher Baskets

(For best performance of the dishwasher, follow these loading guidelines.

Features and appearance of baskets and cutlery baskets may vary from your model.)

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans.

It is not necessary to rinse the dishes under running water.

Place objects in the dishwasher in following way:

1. Items such as cups, glasses, pots/pans, etc. are faced downwards.
2. Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3. All utensils are stacked securely and can not tip over.
4. All utensils are placed in the way that the spray arms can rotate freely during washing.

NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

• Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base.
  ■ Dishes and itemsof cutlery mustnot lie inside one another, or cover each other.
  ■ To avoid damage to glasses, they must not touch.
  ■ Load large items which are most difficult to clean into the lower basket.
  ■ The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and teacups
  ■ Long bladed knives stored in an upright position are a potential hazard!
  ■ Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
  ■ Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

Removing the Dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first and then the upper basket.

The Method Loading Normal Dishware

Loading the Upper Basket

The upper basket is designed to hold more delicate and lighter dishwares such as glasses, coffee and teacups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.

Cross-sectional illustration of a mechanical component with threaded base and surrounding parts (no text or symbols)

Loading the Lower Basket

We suggest that you place large items and the most difficult to clean items are to be placed into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

Illustration of kitchen utensils including a pan, lid, and pot (no text or symbols)

Pleaseberemindedthat:

Pots, serving bowls, etc, must always be placed top down.
■ Deeppots should beslanted to allow water to flow out.
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.

Adjusting the Upper Basket

The height of the upper basket can be adjusted in order to create morespace for large utensils both for the upper /lower basket. The height of the upper basket can be adjusted by placing the wheels on different height of the rails. Long items, serving cutlery, salad servers and knives should be placed on the shelf so that they do not obstruct therotation of the spray arms..

Lower position Upper position

Industrial machine with circular components and metal frame, no visible text or symbols

Industrial machinery setup with metal framework and circular components (no visible text or symbols)

Wheels

Folding back the cup shelves

For better stacking of pots and pans, the spikes can be folded down as showinthepictureright.

Architectural or engineering diagram showing scaffolding and structural elements (no visible text or symbols)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

FoldingSpikesofLowerBasket

For better stacking of pots and pans, the spikes can be folded down as show in the picture right.

Hand holding a hand holding a grid-like structure with diagonal hatching (no text or symbols visible)

Cutlery Basket

Cutlery should be placed in the cutlery rack separately from each other in the appropriate positions, and do make sure the utensils do not nest together, this may cause bad performance.

▲ WARNING!

Do not let any item extend through the bottom.
Always load sharp utensils with the sharp point down!

For personal safety and a top quality cleaning, place the silverware in the basket making sure that:

■ They do not nest together.
■ Silverware is placed with the handles-down.
■ But place knives and other potentially dangerous utensils are placed handles-up.

6. Starting a washing program

Wash Cycle Table

NOTE: (★) Means:needtofillrinseintotheRinse-AidDispenser.

Program	Cycle Selection Information	Description of Cycle	Detergent pre/main	Running time(min)	Energy (Kwh)	Water (L)	Rinse Aid
Normal	Fornormallysoiledloads, suchas pots,plates,glasses and lightly soiledpans.	Pre-wash(45 °C)Wash(55 °CRinseRinse(60 °CDrying	5/22g(Or) 3in1	155	1.0	12.5
Intensive[G8CS]	For heaviest soiled crockery, and normally soiledpots , pans, dishesetcwithdried onsoiling.	Pre-wash(50°C)wash(65 °CRinseRinseRinse(55°CDrying	5/22g(or) 3in1	130	1.15	15.5
Glass	For lightly soiled loads, suchas glasses, crystalandfinechina.	Pre-wash wash(40°C)RinseRinse(60°C Drying	5/22g(or)3in1	110	0.7	12.5
ECO(*EN50242)	This isStandardprogramme, itissuitableocleannormally soiledtablewareanditisthe mostefficientprogrammein termsofitscombinedenergy andwaterconsumptionfor thattypeoftableware.	Pre-wash Wash(50 °CRinse(60°C)Drying	5/22g(Or)3in1	165	0.78	9.0
60 min	For lightly soiled loads that do not need excellent drying efficiency.	Pre-wash(50°C)Wash(62°C)Rinse(55°C)Drying	5/22g	60	0.85	8.5
Soak	To rinse dishes that you plan to wash laterthatday	Rinse		8	0.01	3.5

NOTE:

*EN50242: This programme is the test cycle. The information for comparability test in accordance with EN 50242, as follows:

■ Capacity:9setting
■ Position Upper basket: upper wheels on rails
■ Rinseaidsetting:6
■ PI:0.49w; Po:0.45w.

Turning On the Appliance

Starting acyclewash

Draw out the lower and upper basket, load the dishes and push them back.
It is commended to load the lower basket first, then the upper one (see the section entitled "Loadingthe Dishwasher").
Pour in the detergent (see the section entitled "Salt, Detergent and Rinse Aid").
3 Insert the plug into the socket. The power supply is 220-240 VAC /50 Hz, the specification of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
4 Close the door, press the On/OffButton, and the On/Off light will turn on.
5 Turn the program Selector clockwise, the wash program will be changed as follows direction: Normal->Intensive->Glass->ECO->60 min ->Soak If a program is selected, the response light will light. Then press the Start/Pause button, the dishwasherbeginstostart.

When you press the Start/Pause button to pause during washing, the running indicator will stop blinking and the dishwasher will mooing every minute unless you press the Start/Pause button to start.

Change the Program...

Premise:

1 A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "Loading the Detergent").
2 Press the Start/Pause button(with the door closed), the machine will be in standby state, press the program button more than 3s then you can change the program to the desired cycle setting (see the section entitled "Startingawashcycle...").

NOTE:

If you open the door, there will be a bit to close the door. The program light will stop blinking and the buzzer will mooing every minute unless you close the door. After you close the door, the machine will keep on working after 10 seconds.

Forgot to Add a Dish?

Aforgottendishcanbeaddedanytimebeforethedetergentcupopens.

1 PresstheStart/Pausebutton

4 Addforgottendishes.

2 Openthedoor alittletostopthewashing.

5 Closethe door

3 Afterthesprayarms stopworking, you canopenthedoor completely.

6 Pressthe Start/Pausebutton,thedishwasherwillrun after10seconds.

At the End of the Wash Cycle

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the Power switch button, shut off the water supply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

■ Switch Off the Dishwasher

The program light is on but is not blinking, only in this case the programme has ended.
1. Switch off the dishwasher by pressing the On/Off button.
2. Turnoffthewatertap!

■ Openthedoorcarefully.

Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance. Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

■ Unloadingthedishwasher

It is normal that the dishwasher is wet inside. Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one.

WARNING!

It is dangerous to open the door when washing, because the hot water may scald you.

7. Maintenance and Cleaning

Filtering System

The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed.

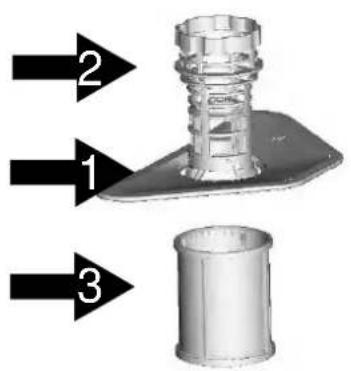

The filter system consists of a coarse filter, a flat (Main filter) And a microfilter(Fine filter).

Mainfilter 1

Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain.

Coarsefilter 2

Larger items, such as pieces of bones or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and liftout.

Finefilter 3

Thisfilterholds soil and food residues in the sumparea and prevents it from being redeposit on the dishes during wash cycle.

Filterassembly

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter device, pull the cup handle in the upward direction.

WARNING!

■ The dishwasher must never be used without the filters.
■ Improper replacement of the filter may reduce the performance level of the appliance and damaged dishes and utensils.

1

Step 1: Turn the filter in anti-clockwise direction,
2

Close-up of a mechanical component with a transparent housing and internal structure, no visible text or symbols

Step2 lift the filter assyup

NOTE: When following this procedure from step1 to step 2, the filter system will be removed; when following it from Step 2 to Step 1, the filter system will be installed.

Remarks:

• Inspect the filters for blocking after every time the dishwasher has been used.
• By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters underrunning water.

NOTE: The entire filter assembly should be cleaned once a week.

Cleaning the Filter

To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures on the last page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.

WARNING!

When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of the dishwasher could be decreased.

Caring for the Dishwasher

The control panel can be cleaned by using a lightly dampened cloth.

After cleaning, make sure to dry it thoroughly.

For the exterior, use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Cleaning The Door

Interior view of a plastic tray with internal compartments and a black arrow pointing to a section (no text or symbols visible)

To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use aspraycleanerofanykind.

WARNING!

■ Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
■ Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

ProtectAgainstFreezing

please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows :

1. Cutoff the electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

NOTE: If your dishwasher cannot work because of the ice, please contact professional service persons.

CleaningtheSprayArms

It is necessary to clean the spray arms regularly for hard waterchemicalswillclogthesprayarmjetsandbearings.

To remove the upper spray arm, hold the nut, rotate the arm clockwise to remove it.

Toremovethelowerspray arm, pull out the spray arm upward.

Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

How to Keep Your Dishwasher in Shape

■ After Every Wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.

■ Remove the Plug

Before cleaning or performing maintenance, always remove the plug from the socket.

■ No Solvents or Abrasive Cleaning

Toclean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water and a little vinegar, or a cleaning product made specifically for dishwashers.

■ When not in Use for a LongTime

It is recommend that your run a washcycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seal to last longer and prevent odours from forming within the appliance.

■ Moving the Appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factor that cause odoursto for min the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

8. Installation instruction

Positioning the Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

Levelling the Appliance

Once the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet. In any case, the appliance should not be inclined more than 2°.

About Power Connection

WARNING!

For personal safety:

■ DONOTUSEAN EXTENSIONCORDORANADAPTERPLUGWITHTHISAPPLIANCE.
■ DONOT, UNDERANYCIRCUMSTANCES, CUTORREMOVETHEEARTHING CONNECTION FROM THE POWER CORD.

Electrical Requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

⚠ Insure proper ground exists before use

Electrical Connection

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

GROUNDING INSTRUCTIONS

This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of electric shock by providing a path of least resistance for the electric current. This appliance is equipped with a cord having an equipment-earthing conductor and an earthing plug. The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local standards and requirements.

WARNING!

■ Improperconnectionoftheequipmentearthingconductorcanresultintheriskofan electricshock.
■ Checkwithaqualifiedelectricianorservicerepresentativeifyouareindoubtwhetherthe applianceisproperlyearthed.
■ Donotmodifytheplugprovidedwiththeappliance.Iftheplugdoesnotfitproperlytothe outlet,pleasehaveaqualifiedelectriciantoinstallaproperoutlet.

Water Connection

Cold Water Connection

Line drawing of a hand holding a faucet with a handle (no text or symbols)

Connect the cold water supply hose to a threaded 3/4 (inch) connector and make sure thatitisfastenedtightlyinplace.

If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance.

WARNING!

Pleaseclosethe hydrantafterusing.

Drain hose Connection

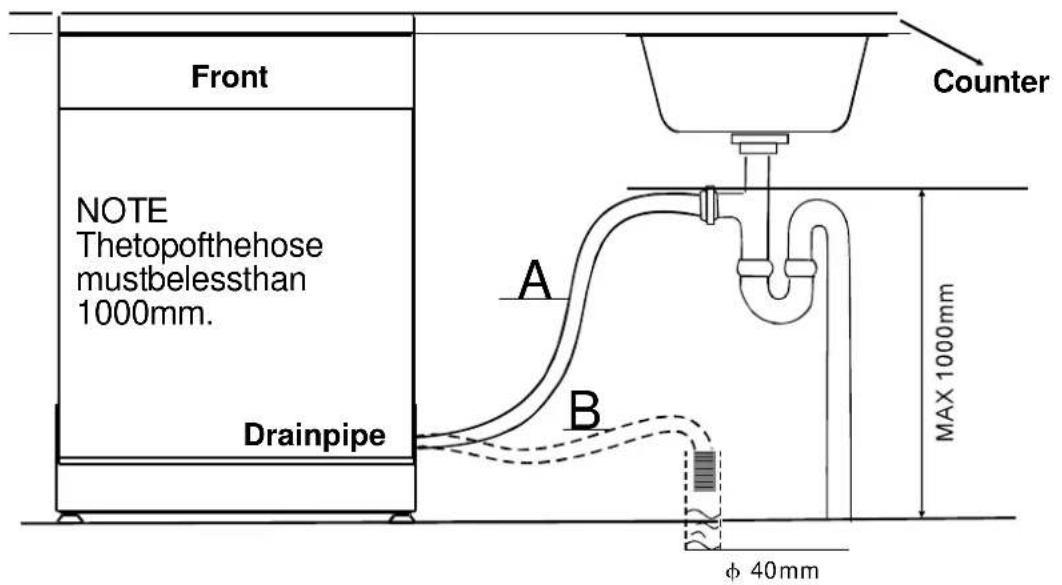

Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000mm.

PLEASE HANG UP THE DRAIN HOSE EITHER WAY OF A, B

How to Drain Excess Water From Hoses

If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excesswater from hoses into a bowl or suitable container that is held outside and lower than the sink.

Water Outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.

ExtensionHose

If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

SyphonConnection

The waste connection must be at a height less than 1000 mm (maximum) from the bottom of the dish. The water drain hose should be fixed.

Start of Dishwasher

The following things should be checked before starting the dishwasher.

1 The dishwasher is level and fixed properly
2 The inlet valve is open
3 There is a leakage at the connections of the conducts
4 The wires are tightly connected
5 Thepowerisswitchedon
6 The inlet and drain hoses are knotted
7 All packing materials and printings should be taken out from the dishwasher

Attention: After installation, please make sure to keep this manual.

The content of this manual is very helpful to the users.

9. Troubleshooting Tips

Before Calling for Service

Review the charts on the following pages may save you from calling for service.

Problem	Possible Causes What To Do
Dishwasher doesn't start	Fuseblown,orthe circuitbreakeracted	Replacefuseorresetcircuitbreaker.Removeanyother appliancessharingthesamecircuitwiththedishwasher
	Powersupplyisnot turnedon	Makesurethedishwasheristurnedonandthedooris closedsecurely.Makesurethepowercordisproperlypluggedintothe wallsocket.
	Waterpressureislow	Checkthatthewatersupplyisconnectedproperlyand thewateristurnedon.
	Doorofdishwasher notproperlyclosed.	Makesuretoclosethedoorproperlyandlatchit.
water not pumped form dishwasher	Kinkindrainhose	Checkdrainhose.
	Filterclogged	Checkcoarsethefilter"Clean(seg)seffortified
	Kitchensinkclogged	Checkthekitchensinktomakesureitisdrainingwell.Iftheproblemisthekitchensinknotdraining,youmay needaplumberratherthanaservicemanfordishwashers.
Suds in the tub	Improperdetergent	Useonlythespecialdishwasherdetergenttoavoidsuds.Ifthisoccurs,openthedishwasherandletsudsevaporate.Add1gallonofcoldwatertothetub.Closeandlatchthe dishwasher,thenselectanycycle.Dishwasherwilldrain outthewateratthefirststep.Openthedoorafterdraining isstopandcheckifthesudsisdisappeared.Repeatifnecessary.
	Spilledrinse-aid	Alwayswipeuprinse-aidspillsimmediately.
Stained tub interior	Detergentwith colourantwasused	Makesurethatthedetergentistheonewithout colourant.
White film on inside surface	Hardwaterminerals	Tocleantheinterior,useadampspongewith dishwasherdetergentandwearrubbergloves.Neveruseanyothercleanerthandishwasher detergentfortheriskoffoamingorsuds.
There are rust stains on cutlery	Theaffecteditemsare notcorrosionresistant.
	Aprogrammewasnot runafterdishwasher saltwasadded.Tracesofsalthave gottenintothewashcycle.	Alwaysrunthequickwashprogramme.withoutanycrockeryinthedishwasherand withoutselectingtheTurbofunction(ifpresent), afteraddingdishwashersalt.
	Thelidofthesofter isloose	Checkthelip.Ensurethefixisfine.
Knocking noise in the wash cabinet	As p ay a r m i s knockingagainst aniteminabasket	Interrupttheprogramme,andrearrangetheitems whichareobstructingthespayarm.r
Rattling noise in the wash cabinet	Itemsofcrockery arelooseinthe washcabinet	Interrupttheprogramme,andrearrangetheitemsofcrockery.
Knocking noise in the water pipes	Thismaybecaused byon-siteinstallation orthecross-sectionof thepiping.	Thishasnoinfluenceonthedishwasherfunction.ifindoubt,contactasuitablyqualifiedplumber.

	Problem	Possible Causes	What To Do
Unsatis-factory washing result	The dishes are not clean	Thedisheswerenot loadedcorrectly.	Seenotesin"LoadingtheDishwasherBaskets".
		Theprogrammewas notpowerfulenough.	Selectamoreintensiveprogramme.See"WashCycleTable."
		Notenoughdetergent wasdispensed.	Usemoredetergent,orchangeyourdetergent.
		Itemsareblocking thepathofspayarms.r	Rearrangetheitemssothatthespaycanrotatefreely.r
		Thefiltercombination in the base of wash cabinetisnotcleanor isnotcorrectlyfitted. Thismaycause thespayarmjets togetblocked.	Cleanand/orfitthefiltercombinationcorrectly.Cleanthespayarmjets.See"CleaningtheSpray Arms".
	Cloudiness on glassware	Combinationofsoft waterandtoomuch detergent.	Uselessdetergentifyouhavesoftwaterandselect ashortestcycletowashtheglasswareandtoget themclean.
	Black or gray marks on dishes	Aluminumutensils haverubbedagainst dishes.	Useamildabrasivecleanertoeliminateethosemarks.
	Detergent left in dispenser cups	Dishesblock detergentcups.	Re-loadingthedishesproperly.
Unsatis-factory drying result	The dishes are not drying	Improperloading	Loadthedishwasherassuggestedinthedirections.
		Toolittlerinse-aid	Increasetheamountofrinse-aid/refilltherinse-aid dispenser.
		Dishesareremoved toosoon	Donotemptyyourdishwasherimmediatelyafter washing.Openthedoorslightlysothatthesteamcan escape.Beginunloadingthedishwasheronlyoncet hedishesarebarelywarmtothetouch.Emptythelow basketfirst.Thispreventswaterformdroppingoff dishesintheupperbasket.
		Wrongprogram hasbeenselected	Inshortprogramthewashingtemperatureislower. Thisalsolowerscleaningperformance.Choose aprogramwithalongwashingtime.
		Useofcutlerywith alow-qualitycoating	Waterdrainageismoredifficultwiththeseitems.Cutleryordishesofthistypearenotsuitablefor washinginthedishwasher.

Error Codes

When some malfunctions come on, the appliance will display error codes to warn you:

Codes	Meanings	Possible Causes
The Soak light flicker fleetly	Longerinlettime.	Faucetsisnotopened,orwaterintakeis restricted,orwaterpressureistoolow.
The ECO light flicker fleetly	Overflow.	Someelementofdishwasherleaks.

WARNING!

■ If overflow occurs, turn off the main water supply before calling a service.

■ If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

Height:845mm
Width:448mm
Depth:600mm	(with the door closed)
Water pressure:	0.04-1.0MPa
Power supply:	see rating label
Capacity:9placesettings$

Technical Data Sheet

Sheet of household dishwasher according to EU Directive 1059/2010:

Manufacturer	WHITE-WESTINGHOUSE
Type/Description	WDFD09JFCWD.WDFD09JFCSD
Standardplacesettings	9
Energy efficiency class 1	A+
Annualenergy consumption 2	222kWh
Energy consumption of the standard cleaning cycle	0.78kWh
Power consumption of off-mode	0.45W
Power consumption of left-on mode	0.49W
Annualwaterconsumption 3	2520liter
Drying efficiency class 4	A
Standardcleaningcycle 5	ECO50 °C
Program duration of the standard cleaning cycle	165min
Noise level	52dB(A)re1pW
Mounting	Freestanding
Couldbebuilt-in	Yes
Height	84.5cm
Width	44.8cm
Depth (with connectors)	60cm
Power consumption	1760-2100W
Rated voltage/frequency	220-240V~50Hz
Waterpressure (flowpressure)	0.4-10bar=0.04-1MPa

NOTE:

① A + + + (highest efficiency) to D (lowest efficiency)
② Energy consumption “222” kWh per year, based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption will depend on how the appliance is used.
3 Water consumption “2520” litres per year, based on 280 standard cleaning cycles. Actual water consumption will depend on how the appliance is used.
4 A (highest efficiency) to G (lowest efficiency)
5 This program is suitable for cleaning soiled normally soiled tableware and that it is the most efficient programme in terms of its combined energy and water consumption for that type of tableware.

The device meets the European standards and the directives in the current version at delivery:

-LVD2006/95/EC

-EMC2004/108/EC

-ErP2009/125/EC

-LVD2006/95/EC -EMC2004/108/EC -ErP2009/125/EC

The above values have been measured in accordance with standards under specified operating conditions. Results may vary greatly according to quantity and pollution of the dishes, water hardness, amountofdetergent, etc.

The manual is based on the European Union's standards and rules.

Loading the baskets according to En50242:

1. Upper basket:


1. Lower basket:

2. Cutterly basket:


Information for comparability tests in accordance
with EN 50242
Capacity: 9 place settings
Position of the upper basket: lower position
Programme: ECO
Rinse aid setting: 6
Softener setting: H4
