Product Type	Tumble Dryer
Brand	White-Westinghouse
Model	MKR62GWTWB
Capacity	7 kg
Drying Type	Condenser
Energy Class	C
Annual Energy Consumption	560 kWh
Dimensions (H x W x D)	85 x 60 x 60 cm
Weight	38 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	2000 W
Drying Programs	Cotton, Synthetics, Delicates, Wool, Timed Drying, Refresh
Features	Reverse Tumbling, Anti-Crease, Child Lock, End-of-Cycle Signal
Lint Filter	Removable, clean after each cycle
Water Tank	Empty after each cycle (condenser models)
Heat Pump	No
Door Reversibility	Not reversible
Noise Level	65 dB
Safety Features	Overheating Protection, Child Lock
Warranty	2 years

Frequently Asked Questions - MKR62GWTWB White-Westinghouse

How do I install the MKR62GWTWB tumble dryer?

Place the dryer on a level surface with at least 10 cm clearance on all sides. Connect the power cord to a grounded 220-240 V outlet. For condenser models, ensure the water tank is properly inserted. Refer to the installation manual for detailed steps.

How do I clean the lint filter?

Open the door and pull out the lint filter. Remove lint by hand or with a soft brush. Rinse under running water if needed, then dry thoroughly. Replace filter before each cycle to ensure efficient drying.

Why is the dryer not heating?

Check if the power supply is connected and the circuit breaker is on. Ensure the lint filter and condenser (if applicable) are clean. The heating element may need replacement if the problem persists.

How often should I clean the condenser unit?

Clean the condenser unit every 6 months or when performance reduces. Remove the lower front panel, pull out the condenser, rinse with water, and dry. Reinsert and secure the panel.

What do the error codes mean?

Common codes: E1 (door open), E2 (overheating), E3 (water tank full), E4 (drain issue). Refer to the manual for full list. Press Reset or power cycle after fixing.

Can I dry wool or delicate items?

Yes, use the Wool or Delicates program. Place items in a mesh bag and select low heat. Remove immediately after cycle to prevent shrinkage.

How do I prevent overdrying?

Use the Auto Dry function or select a shorter timed program. Clean lint filter regularly. For smaller loads, reduce drying time. Overdrying can damage fabrics.

Why is the dryer making unusual noise?

Lint buildup or a foreign object (e.g., coin) in the drum can cause noise. Check the drum for items, clean the lint filter, and ensure the dryer is leveled. If noise persists, contact service.

How do I empty the water tank?

Pull out the water tank from the front panel, empty it into a sink, and reinsert. Ensure it clicks into place. The tank should be emptied after every cycle to avoid overfilling.

Is the dryer safe to leave unattended?

Yes, it has overheating protection and a child lock. However, always clean the lint filter before each use and avoid drying items with combustible residues. Follow safety guidelines in the manual.

USER MANUAL MKR62GWTWB White-Westinghouse

MKR62GWTWB | MKR62FWTWB

XKR72GWTWB | XKR72FWTWB

important safety information! read all instructions before use

⚠ warning: for your own safety, we recommend you read all of the information in this manual and follow the safety measures included herein in order to minimize the risk of fire or explosion, electric shock, or misuse of the product.

• Do not store flammable substances such as gasoline or other solvents in or near this appliance.
  • This product must be installed by a qualified technician. Poor installation can cause risks to your safety and that of your material goods.

Do not allow anyone, especially children, use this appliance as a toy, to climb on, hang on, stand on, play on, in or on the appliance. When the appliance is used near children, adult supervision is required.

This appliance is not designed for use by persons (including children) with different or reduced physical, sensory, or mental capacities or those who lack experience or knowledge of how to use it, unless said persons are supervised or taught by someone responsible for their safety.

recommendation: for proper functioning of the product, the lint trap filter must be cleaned before and after every dry cycle. doing so will allow the clothes to dry faster and you will save in energy.

benefits of keeping your lint trap filter clean:

• The clothes come out dryer.
• The clothes dry faster.
• Less energy use.

Tumble dryer must not be used if chemicals have been used for cleaning.

When operating the tumble dryer, there has to be adequate ventilation to avoid the back flow of gases into the room from appliances burning other fuels, including open fires.

Do not dry Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at temperature that ensures that the item will not be damaged.

Remove all objects from pockets such as lighters and matches.

A warning: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.

Theappliancemustnotbeinstalledbehindalockabledoor,aslidingdoorora doorwithahingeontheoppositesidetothatofthetumbledryer,insuchaway that a full opening of the tumble dryer door is restricted.

Disconnect the electric power supply before servicing. Certain internal parts are intentionally not grounded and may present a risk of electric shock during servicing.

Service personnel - do not contact the following part while the appliance is energized. Outletthermistor(somemodels) and outletthermostat installed in the blower housing. Front shield deflector (some models).

Aclothesdryerproducescombustiblelint,thedryermustbeconnectedtoan exhaustducttototheoutdoors.Regularlyinspecttheoutdoorexhaustopening andremoveanyaccumulationoflintaroundtheoutdoorexhaustopeningand in the surrounding area.

Means for disconnection must be incorporated in the fixed wiring in accordance with the local wiring rules.

safety recommendations when using the dryer

• Neverinsertyourhandsorloadorunloadclothingwhenyourdryerisin operationorwhenthedrumisturning.
• Cleanthedryer'slinttrap filter after each cycle in order for the dryer to perform better and avoid lintaround the area where the dryer is installed. Never operatethedryer without the linttrap filter.
• Donotdryclothingorarticlesthatarestainedwithcombustibleorexplosive substances(suchaswax,oil,paint,gasoline,degreasers,drycleaning solvents,kerosene,etc.)appliedoncleaningcloths,sackcloth,towelsusedin beautysalons,restaurants,barbershops,etc.,becausetheycouldcatchon fire orcauseanexplosion.
• Thewashinganddryingprocesscanreducetheretardantcapacityofthe fabrics.Toavoidthisresult,carefullyfollowtheinstructionsfoundonthe manufacturer'stagontheclothingitem.Forexample,paddedbras,tennis shoes,rubbershoes,bathmats,rugs,bibs,rubberunderpantsforbabies, plasticballs,pillows,etc.)whichcouldmeltorburn.Somerubbermaterials, whenheated,undercertaincircumstancescancause fire.
• Do not dry articles marked with the phrases "Dry away from heat" or "Do not tumble dry" such as life jackets, sleeping bags, etc. madewith Kapok.

• Donotdryarticlesorobjectsthathave fiberglass asitcouldrub off onto other articlesandcauseirritation.

• To minimize the possibility of electric shock during maintenance or cleaning, disconnect the appliance from the power source. note: moving the dial or cycle to the off positiondoesnotdisconnecttheappliancefromthepower.

• Nevertrytousethisapplianceifitispartiallydisassembledorifithasbrokenor missingpieces,includingadamagedpowercordorplug.
• If you want to soften washed fabrics or reduce the first static using an antistatic liquid for fabric in the wash cycle, follow the manufacturer's instructions for this kind of product. These products are the responsibility of their manufacturer and are not covered by this appliance's warranty.

safety recommendations when not using your dryer for an extended period of time

Disconnectthedryerfromthepowerwhenyourdryerwillnotbeusedfor an extended period,forinstance Duringvacationorthehotseason.Todoso, we recommend that you disconnect the plug using both hands and never by pulling on the cord.

characteristics table

model	electrical characteristics	energy type	maximum dry load (kg)
MKR62FWTWB220V	/240V/60HzELEC.10
XKR72FWTWB220V	/240V/60HzELEC.11
XKR72GWTWB220V	/240V/50HzELEC.11
MKR62GWTWB	220V/240V/50HzELEC.10

operating instructions

about the control panel of the dryer

You can locate the model number on the label located in front of the left side of the door opening

important: clean the lint filter every time you use the dryer.

a. temperature (Not all of the models have all of these characteristics)

high (cottons) Recommended for heavy cotton items such as jeans or comforters

medium (permanent press garments) Recommended for synthetic fabrics, items marked with "permanent press".

delicates In some models. For delicate articles of synthetic fabric and labeled as tumble dry low.

just air (no heat) To fluff articles without using heat. Use the timed dry cycle.

The automatic cycles automatically detect the dryness level of the fabrics. Select Less Dry if you want your garments to remain slightly damp at the end of the dry cycle. Select More Dry if you want them to feel dryer. The timed cycles run for a specified period of time.

b. drying cycles (Not all of the models have all of these characteristics)

cottons For cotton fabrics and the majority of woven fabrics. For the majority of loads, select Optimum. (in some models).

permanent press For articles that do not wrinkle, permanent press and delicates, as well as some knit articles.

delicates For delicate articles, special care fabrics, and knit items.

timed dry This option allows you to select the time based on the moisture or water content of the clothing.

dewrinkle This option helps to reduce wrinkles to a minimum in garments that have very little moisture.

air fluff fluff or refresh gements, woven fabrics and pillows that are already dry. This option adds 10 minutes of drying without heat.

c. start button

Close the dryer door and press the Start button. If you open the door during operation, the drum will stop rotating and the dryer will stop. To restart the dryer, close the door and select Start to complete the cycle.

note: Drying times vary according to load size, type of fabric of each garment, clothing moisture level, and cleanliness of the exhaust ducts and filter.

d. option for prolonged anti-wrinkle dry (in some models)

Use this option to minimize wrinkles in clothing. It provides approximately 15 minutes of tumbling without heat after the clothing is dry. This option can only be used with the “cottons” and “permanent press” cycles.

If you are using the end of cycle alarm knob and select the option for prolonged anti-wrinkle dry, you will hear a sound at the end of the cycle and various times during the prolonged anti-wrinkle dry cycle. This will remind you that it is time to remove the garments.

If the prolonged anti-wrinkle dry option is not lit, the dryer will stop when the timer gets to the prolonged anti-wrinkle dry mark on the cycle dial.

e. end of cycle alarm (in some models)

This signal will sound just before the end of the cycle to remind you to remove the garments. In some models, you cannot regulate the sound level of the signal.

note:

- Remove the garments in a timely manner once the signal sounds.

- Use this option when drying knitted fabrics, polyester, and permanent press items. These fabrics must be removed to avoid wrinkles.

automatic cycle signal (in some models)

At the end of each cycle, there are approximately 15 min. of tumbling without heat after the clothing is dry. A reminder signal will sound periodically during this lapse of time to remind you to remove the garments.

loading and using the dryer

Always follow the manufacturer care tag for the fabric when you wash and dry clothing.

advice for sorting and loading clothing

• As a general rule, if the clothing is appropriately sorted for the washer, it is appropriately sorted for the dryer as well. Do not add fabric softener sheets once the load of clothing has begun to warm. They can cause stains.
• Do not overload the dryer. This will waste energy and cause wrinkles. Do not dry the following articles: Articles made of fiberglass, wool, those covered in rubber, plastics, with plastic trims or parts, or those filled with foam.

models with sensor dry

This function is activated only in the automatic cycles (COTTONS, PERMANENT PRESS and DELICATES).

The Dryness Sensor provides greater accuracy in the drying process than in standard machines, resulting in shorter dry times and better care of the garments.

While the clothing spins in the drum, it touches the Dryness Sensor.

The sensor stops the heat cycle as soon as the clothing has reached the dryness level; it will stop regardless of the cycle and/or time selected, thereby saving energy.

models with led lights

The drum light is LED.

It must be replaced by a qualified technician.

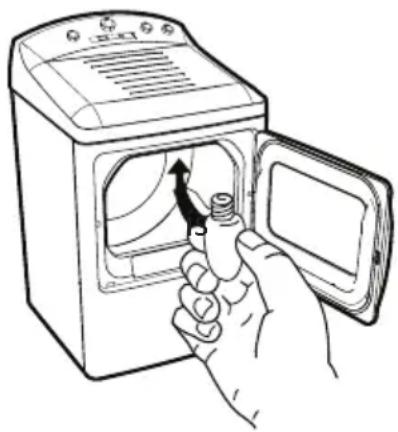

models with light bulb

Before replacing the bulb of the rotating drum, make sure to disconnect the dryer from the power outlet or to disconnect the dryer from your house's power distribution panel, removing the fuse or breaking the electrical circuit.

Place your hand on the top of the dryer opening from inside the drum. Remove the bulb and replace it with another of the same size.

dryer care and cleaning

- the exterior. Clean or dust off splatters or cleaning compounds using a damp cloth. The dryer control panel and the finishing can be damaged by some stain removers and grime treatments. Apply these products to the cloth away from the dryer. The cleaning cloth can then be washed and dried normally.

• Damage to your dryer caused by these products is not covered by warranty.

- the lint trap filter

Clean the lint trap filter after every use. Remove it by pulling it in a straight line upward. Run your fingers across the filter. You can get a waxy buildup on the lint trap filter from using fabric softener sheets for the dryer. To remove this buildup, clean the filter screen in warm soapy water.

- Let it dry completely and return it to its place. Do not operate the dryer without the lint trap filter in its place. Have a qualified technician vacuum the lint from the dryer once a year.

- the exhaust duct. Inspect and clean the exhaust duct at least once a year to prevent obstruction. A partially obstructed exhaust duct can lengthen dry time.

1. Turn off the power supply, disconnecting the plug from the wall outlet.
2. Disconnect the duct from the dryer.
3. Vacuum the duct with the vacuum hose and reconnect the duct.

• the exhaust vent hood

Check with a mirror that the interior flaps of the hood move freely during operation.

• stainless steel surfaces

To clean the stainless steel surfaces, use a damp cloth with a gentle, non-abrasive cleanser appropriate for stainless steel surfaces. Remove the cleaner residue and then dry with a clean cloth.

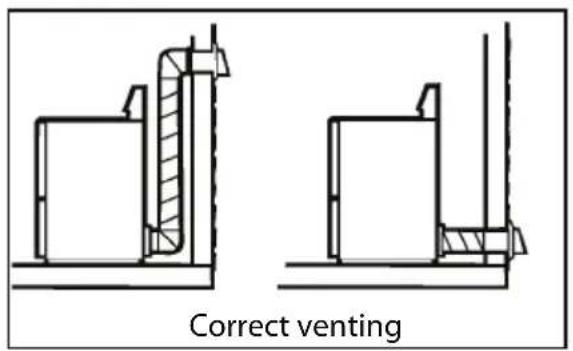

dryer ventilation

For better performance of your dryer, it must be properly ventilated. The dryer will waste more energy and operate for longer amounts of time if it is not ventilated according to the following specifications:

• Only use a metallic, rigid, or flexible duct.
• Do not use a plastic duct or a duct made of any other flammable material.
  • Install the duct along the shortest possible path to the outside.
• Do not smash or fold the duct.
• Avoid leaning the duct against sharp objects.

drying labels

tumble dry cycle

Dry

Normal

Permanent press

Delicates

Do not tumble dry

Do not dry

heat

High Medium Low No Heat

special instructions

Hang dry Drip dry Dry flat Dry in the shade

troubleshooting

Save time and money! First review this troubleshooting pages and maybe you you won't need to call for service.

problem	possible causes	what to do
The dryer won't turn on	The dryer is disconnected	Make sure the dryer plug is completely in the outlet.
	Blown fuse / circuit breaker tripped	Check the fuse box or circuit breaker of the house and replace the fuse or restart the breakers. note: Most of the electric dryers use two fuses or breakers.
The dryer does not generate heat	Blown fuse / circuit breaker tripped	Check the fuse box or circuit breaker of the house and replace the fuse or restart the breakers.
The dryer shakes or makes noise	Some shaking and noise is normal. The dryer may be seated unevenly	Move the dryer to an even surface, or adjust the leveling feet as necessary until even
Greasy stains on the clothing	Inappropriate use of fabric softener	Follow the instructions on the fabric softener packaging
	You are drying dirty articles together with clean ones	Only use your dryer to dry clean articles. Dirty articles can stain your clean ones or the dryer itself
	The clothing was not completely clean	Sometimes stains that you cannot see when the clothes are wet show up after drying. Use the appropriate wash procedures before drying

before calling for service

problem	possible causes	what to do
Lint on the clothing	The lint trap filter is full	Clean the filter screen before each load
	Inappropriate sorting	Separate items that shed (like chenille) from those that collect lint (like corduroy)
	Static electricity can attract lint	See the suggestions in this section under the subtitle Static
	Overloading	Divide large loads into small ones
	Paper tissues, etc. in the pockets of clothing	Empty all pockets, before washing and drying clothers
There's static electricity	You didn't use fabric softener	Try a fabric softener
	The clothing came out too dry	Try a fabric softenerAdjust the controls to dry less
	Synthetics, permanent press and mixtures can cause static	Try a fabric softener
Inconsistent dry times	Type of load, dampness and venting	The automatic dry times vary according to the type of the load, type of fabrics, the dampness of the clothing and the state of the exhaust ducts
The clothing takes too long to dry	Incorrect sorting	Separate heavy articles from light ones (generally a load that is well sorted for the washing machine is also well sorted for the dryer)
	Large loads of heavy fabrics (such as beach towels)	Large and heavy fabrics retain more moisture and require a longer time to dry. Divide large and heavy fabrics into smaller loads to shorten the dry time
	Controls put in the wrong positions	Adjust the controls to the right settings for the load to be dried
	The lint trap filter is full	Clean the lint trap filter before every load
	Wrong or obstructed duct	Review the installation instructions to achieve appropriate ventilationMake sure that the duct is clean and free on kinks and obstructionsCheck to make sure that the vent damper is working freelyReview installation instructions to make sure that dryer's ventilation is correct
	Blown fuses or tripped circuit breaker	Replace the fuses or restart the circuit breakers. Since the majority of dryers use two fuses or breakers, make sure that both are working.

before calling for service

problem	possible causes	what to do
Clothing takes too long to dry	You are loading less clothing than you should	If you are only going to dry one or two garments, add a few more items to make sure that it tumble dries properly
Clothing is wrinkled	You are over drying	Select a shorter dry timeRemove garments when they are still slightly damp
	You are leaving the garments in the dryer after the end of the cycle	Remove garments when the cycle ends and fold or hang them immediately
Clothing shrinks	Some fabrics naturally shrink when washed. Others can be washed safely but will shrink in the dryer	To avoid shrinking, follow care instructions on the garment to the letterSome garments should me ironed so they return to their correct shape after dryingIf you are worried about one item in particular shrinking, do not wash it in the washing machine or dry it on the dryer
Clothing is always damp.Clothing takes a long time to dry	Filter full of lint	Clean the filter after every cycle for:- better performance- less energy consumption- better care of the clothing

your dryer's technical specifications

	electric dryer	MKR62FWTWB / XKR72FWTWB
Supply voltage or nominal voltage	220 V~
Operating frequency or nominal frequency	60 Hz
Nominal current	24,0 A
	electric dryer	MKR62GWTWB / XKR72GWTWB
Supply voltage or nominal voltage	220 V~
Operating frequency or nominal frequency	50 Hz
Nominal current	24,0 A

• فتحة تصريف العادم

THIS WARRANTY APPLIES OUTSIDE OF NORTH AMERICA.

For your protection as the original purchaser, for home use, this appliance is warranted as set forth below.

IMPORTANT:

This Warranty shall not apply if the appliance has been subject to any accident, abuse or misuse, or damage by fire, flood or other acts of God.

2 YEAR MANUFACTURE & MATERIAL:

Through the 2nd year from the date of purchase, we will, through our Authorized Service Agency, repair or replace (at our option) FOB factory any part that becomes inoperable due to defects in manufacture or material under normal domestic use and service.

CUSTOMER'S RESPONSIBILITES:

1. Record the model and serial number on this Warranty and keep it with your sales slip or invoice as a record of your installation date.
2. Provide proper connection to utilities, installation, setting of controls, and maintenance in accordance with instructions in the user's manual for the appliance.
3. Pay charges for pick-up and delivery of the appliance, labor, transportation, local duties or taxes associated with warranty service including any charge to analyze the condition of the appliance. During the 2 Year Warranty, such charges are the responsibility of the dealer from whom the appliance was purchased, or as specified at the time of the purchase of the appliance.
4. Replacement of glass and light bulbs.

HOW TO OBTAIN SERVICE:

Contact the dealer where the appliance was purchased. The dealer will make the necessary arrangements or refer you to our Authorized Service Agency if available.

THERE ARE NO OTHER WARRANTIES EXPRESSED OR IMPLIED COVERING THIS APPLIANCE, EXCEPT THIS WARRANTY, WHICH IS IN LIEU OF ALL OTHER WARRANTIES, INCLUDING, TO THE EXTENT PERMITTED BY LAW, ANY IMPLIED WARRANTY OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL WE BE LIABLE FOR SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR FOR ANY DELAY IN THE PERFORMANCE OF THIS WARRANTY DUE TO CAUSES BEYOND OUR CONTROL. THE SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY SHALL BE LIMITED TO THE REPLACEMENT OF PARTS AS HEREINBEFORE PROVIDED.

LAVE-LINGE - SÉCHOIRS AUTOMATIQUES - BROYEURS DE DÉCHETS TABLES DE CUISSON - HOTTES DE CUISINE - FOURS - CUISINIÈRES LAVE-VAISSELLE - FOURS À MICRO-ONDES

À APPLIQUER POUR TOUS LES PRODUITS FABRIQUÉS APRÈS LE 1ER JANVIER 2015

CETTE GARANTIE S'APPLIQUE EN DEHORS DE L'AMÉRIQUE DU NORD.

Electrolux Major Appliances International

10200 David Taylor Drive

Charlotte, North Carolina 28262 | USA

234D2556P008
