USER MANUAL RPI342MM ROSIERES

INSTRUCTIONS FOR USE AND INSTALLATION

GB

TABLES DE CUISSON

NOTICE D'EMPLOI ET D'INSTALLATION

FR

IHCTPyKzIa3 EKCnIyATAciT A PIIkIIOUeHHe

BБУДОВАНОП IИДУКЦИНОП NOBEРXHI

UK

Model:RPI430 / RPIF430 / RPI430MM

Model: RPI342 / RPIF342 / RPI342MM / RPI346

READ THE INSTRUCTIONS BOOKLET CAREFULLY TO MAKE THE MOST OF YOUR HOB.

We recommend you keep the instructions for installation and use for later reference, and before installing the hob, note its serial number below in case you need to get help from the after sales service.

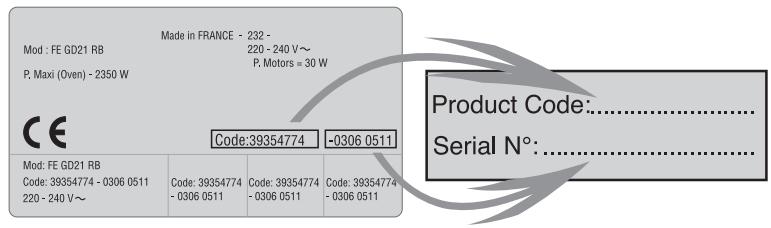

Identification plate

(located under the hob's bottom casing)

• It is strongly recommended to keep children away from the cooking zones while they are in operation or when they are switched off, so long as the residual heat indicator is on, in order to prevent the risks of serious burns.
• When cooking with fats or oils, take care always to watch the cooking process as heated fats and oils can catch fire rapidly.
• The hob's control area is sensitive, do not place hot containers on it.
• Aluminium foil and plastic pans must not be placed on heating zones.
• After every use, some cleaning of the hob is necessary to prevent the build up of dirt and grease. If left, this is recooked when the hob is used and burns giving off smoke and unpleasant smells, not to mention the risks of fire propagation.
• Do not left metallic objects such as knives, forks, spoons or lids on the induction zone, because if they are too large or too heavy, they could become hot.
• Never cook food directly on the glass ceramic hob. Always use the appropriate cookware.
• Always place the pan in the centre of the unit that you are cooking on.
• Do not use the surface as a cutting board.
• Do not slide cookware across the hob.
• Do not store heavy items above the hob. If they drop onto the hob, they may cause damage.
• Do not use the hob as a working surface.
• Do not use the hob for storage of any items.
• In the unlikely event of a surface crack appearing, do not use the hob. Immediately disconnect the hob from the electrical power supply and call the After Sales Service.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

Warning: this appliance complies with current safety regulations and electromagnetic compatibility regulations. Nevertheless, people with a pacemaker should not use this appliance. It is impossible to guarantee that all such devices found on the market comply with current safety regulations and electromagnetic compatibility regulations, and that dangerous interference will not occur. It is also possible that people with other types of device, such as a hearing aid, could experience some discomfort.

COOKING HOB	RPI430/RPIF430/RPI430MM	RPI342/RPIF342/RPI342MM/RPI346
Cooking zones	4 INDUCTION	3 INDUCTION
Supply voltage	220-240V~ 50/60 Hz400 V 50/60Hz
Installed electric power (W)	7000	7200
Product size( d X w X h ) mm	590 X 520 X 55
Building-in dimensions(AXB)	560 X 490
	A B

We are constantly striving to improve product quality and as such may modify appliances to incorporate the latest technical improvements.

Induction hobs conform to European Directives 73/23/CEE and 89/336/CEE, replaced by 2006/95/EC and 2004/108/EC, and subsequent amendments.

INSTALLATION

Installing a domestic appliance can be a complicated operation which if not carried out correctly, can seriously affect consumer safety. It is for this reason that the task should be undertaken by a professionally qualified person who will carry it out in accordance with the technical regulations in force. In the event that this advice is ignored and the installation is carried out by an unqualified person, the manufacturer declines all responsibility for any technical failure of the product whether or not it results in damage to goods or injury to individuals.

BUILT-IN

The furniture in which your hob will be installed and all adjacent furniture, should be made from materials that can withstand high temperatures. In addition, all decorative laminates should be fixed with heat-resistant glue.

Installation:

• A watertight seal is supplied with the hob.

Before fitting:

• turn the hob upside down, with the glass surface facing downwards.
  Make sure the glass is protected.

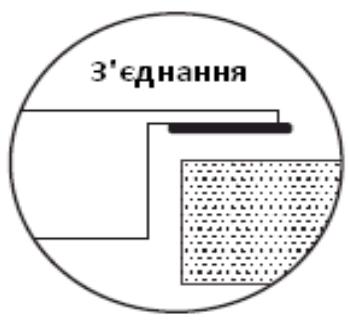

• fit the seal round the hob.
• make sure that it is correctly fitted to avoid any leakage into the supporting cabinet.
• It it important to fit the hob on a level supporting surface.
• Deformations caused by incorrect fitting can alter the specifications of the worktop and the performance of the hob.
• Leave a gap of at least 5cm between the appliance and any neighbouring vertical surfaces.
• It is absolutely essential that the recess conforms with the dimensions indicated.

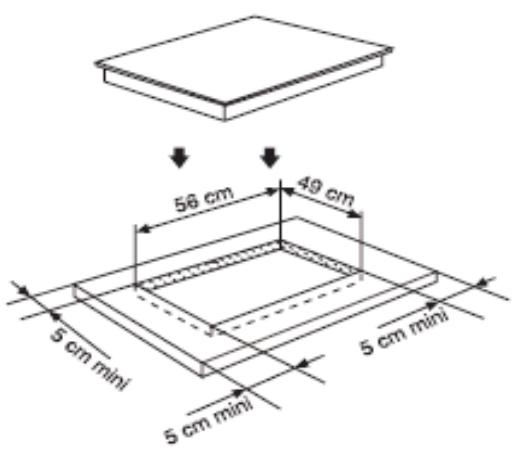

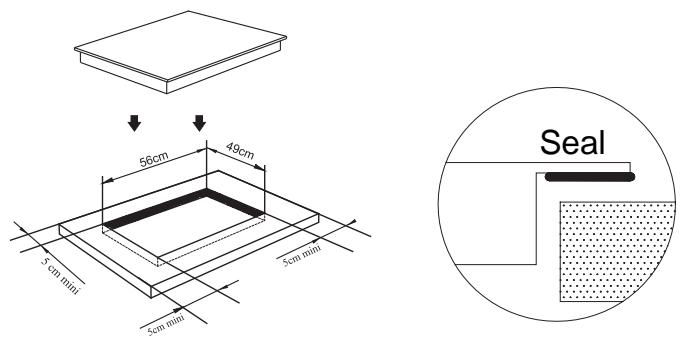

• Cut a hole in the worktop of the dimension shown in the diagram below. A minimum of 50 mm space should be left around the hole.
• The worktop should be at least 30 ~mm thick and made of heat-resistant material. As shown in the Figure(1)

• You can not build the hob in above an oven with no fan, a dishwasher, fridge, freezer or washing machine.

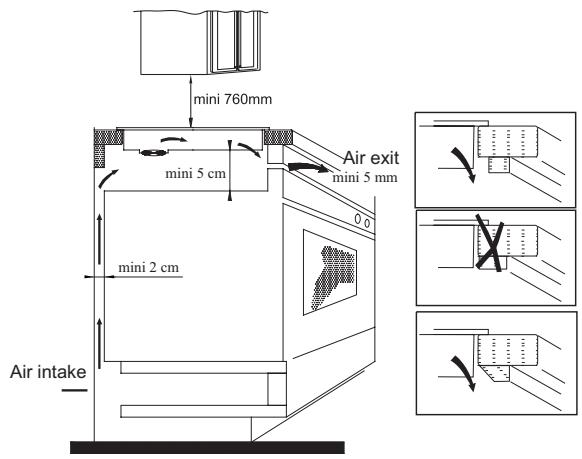

• It is essential that the induction hob is well ventilated and that the air intake and exit are not blocked.

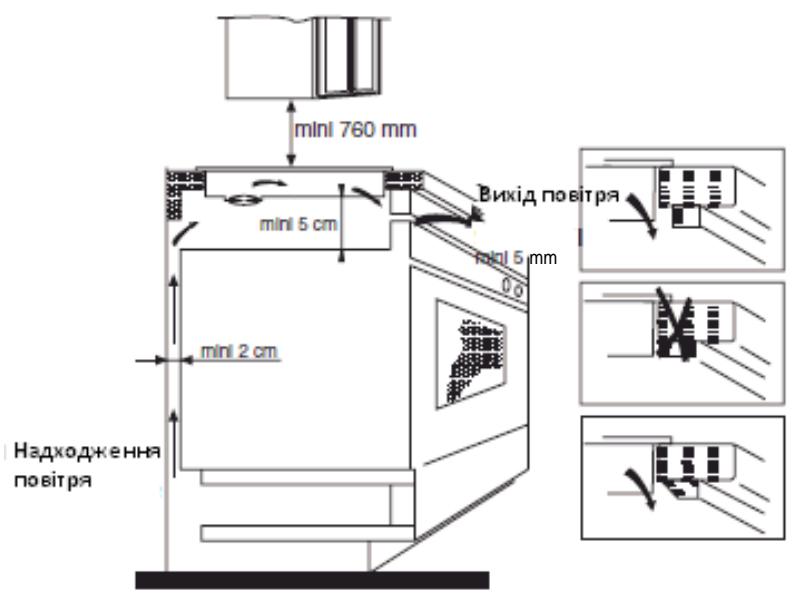

Make sure the hob is correctly installed as shown in Figure(2)

NB: For safety, the gap between the hob and any cupboard above it should be at least 760mm.

ELECTRICAL CONNECTION

"The installation must conform to the standard directives." The manufacturer declines all responsibility for any damage that may be caused by unsuitable or unreasonable use.

Warning :

• Always check before any electrical operation, the supply tension shown on the electricity meter, the adjustment of the circuit-breaker, the continuity of the connection to earth to the installation and that the fuse is suitable.
• The electrical connection to the installation should be made via a socket with a plug with earth, or via an omnipole cut-out switch with an opening gap of at least 3mm .

If the appliance has a socket outlet, it must be installed so that the socket outlet is accessible.

• The yellow/green wire of the power supply cable must be connected to the earth of both power supply and appliance terminals.
• The manufacturer cannot be held responsible for any accidents resulting from the use of an appliance which is not connected to earth, or with a faulty earth connection continuity.
• Any queries regarding the power supply cord should be referred to After Sales Service or a qualified technician.
• If the cable is damaged or to be replaced, the operation must be carried out by sale agent with dedicated tools to avoid any accident.

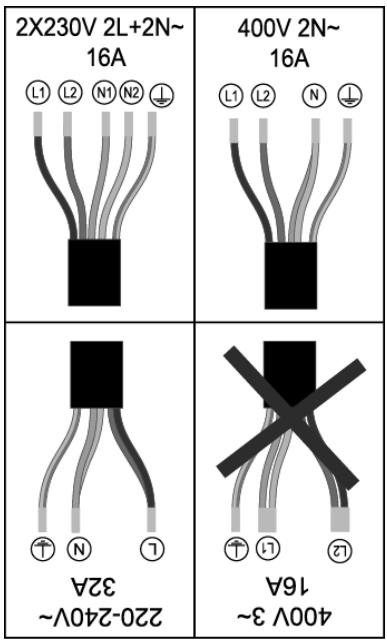

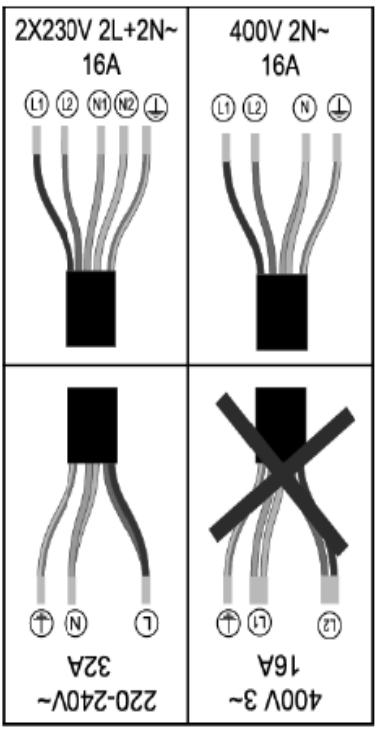

Connection to power supply

The socket shall be connected in compliance with the relevant standard, to a single-pole circuit breaker. The method of connection is shown in Figure(3):

The cable must not be bent or compressed.

INDUCTION

USE PROCEDURE

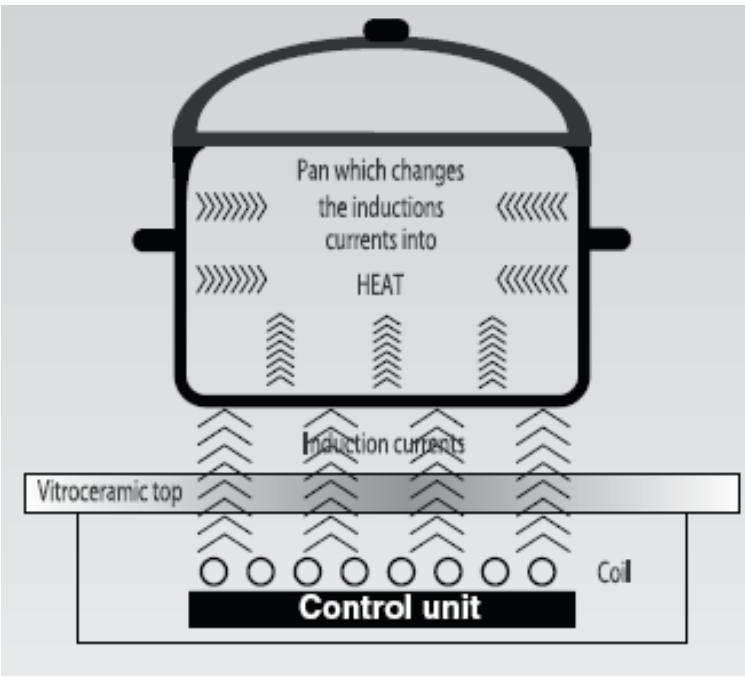

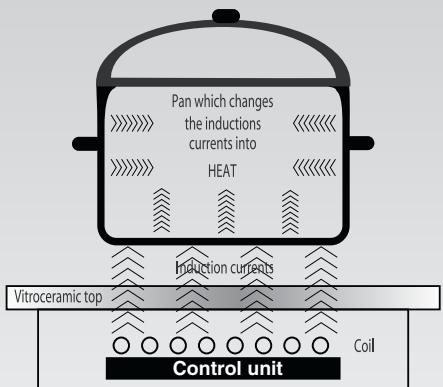

An electronic generator powers a coil located inside the appliance.

This coil creates a magnetic field, so that when the pan is placed on the hob, it is permeated by the induction currents.

These currents make the pan into a real heat transmitter, while the glass ceramic hob remains cold.

This system is designed for use with magnetic-bottomed pans.

Put simply, induction technology has two main advantages :

• as heat is emitted only by the pan, heat is maintained at its maximum level and cooking takes place without any heat loss.
• There is no thermal inertia, as cooking automatically starts when the pan is placed on the hob and stops when it is removed.

A HIGH SAFETY APPLIANCE

- Protection from over-Temperature

A sensor monitors the temperature in the cooking zones. When the temperature exceeds a safe level, the cooking zone is automatically switched off.

- Residual heat warning

When the hob has been operating for some time, there will be some residual heat. The letter "H" appears to warn you to keep away from it.

- Auto shutdown

Another safety feature of the induction hob is auto shutdown. This occurs whenever you forget to switch off a cooking zone. The default shutdown times are shown in the table below.

Power level	The heating zone shut down automatically after
1~5	8 hours
6~10	4 hours
11~14	2 hours
15	1hours

When the pan is removed from the cooking zone, it stops heating immediately and switches itself off after the buzzer sounded for one minute.

REMIND:

The patient with a heart pacemaker shall use this product under the guidance of the doctor.

HOB COOKWARE ADVICE

Using good quality cookware is critical for setting the best performance from your hob.

• Always use good quality cookware with perfectly flat and thick bases : using this type of cookware will prevent hot spots that cause food to stick. Thick metal pots and pans will provide an even distribution of heat.
• Ensure that the base of the pot or pan is dry : when filling pans with liquid or using one that has been stored in the refrigerator, ensure that the base of the pan is completely dry before placing it on the hob. This will help to avoid staining the hob.
• Use pans whose diameter is as large as the graphic of the zone selected. Using a pot a slightly wider energy will be used at its maximum efficiency. If you use smaller pot efficiency could be less than expected. Pot less than 140mm could be undetected by the hob.

The following information will help you select the pans best adapted to obtain good results.

	Induction zone
Mark on kitchen utensils	On the label, check the mark which shows if the pan is compatible with induction.
	Use magnetic pans (enamelled iron sheet, cast-iron ferritic stainless steel) apply a magnet on the bottom of the pan (it must stick).
Stainless steel	Non detectable
	Excepted stainless steel ferromagnetic.
Aluminium	Non detectable
Cast-iron	Good performance
Enamelled steel	Good performance
Glass	Non detectable
Porcelain	Non detectable
Copper bottom	Non detectable

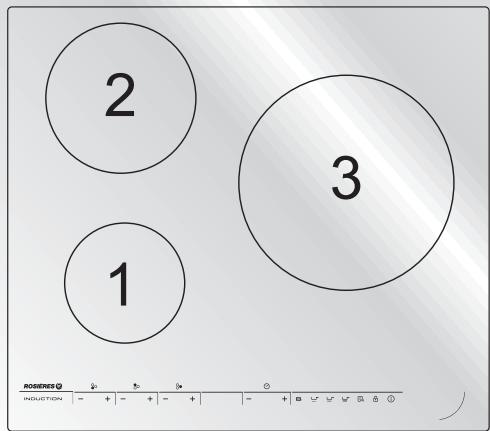

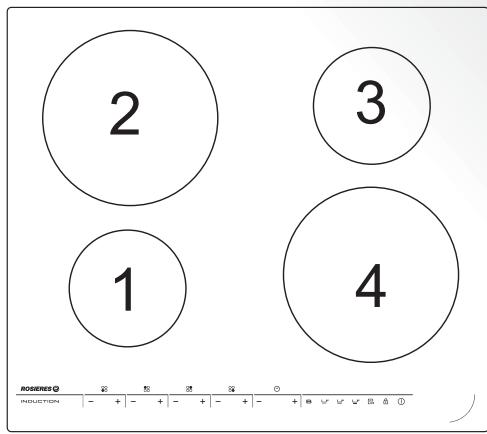

Schematic diagram of the control panel

RPI342/RPIF342/RPI342MM/RPI346

1. Power regular key
2. Timer regular key
3. Booster
4. Special function
5. Memory
6. Lock
7. On/Off

When the power is switched on, the buzzer will sound once and all the indicators will come on for one second and then go out. The hob is now in standby mode. Place the pan in the centre of the cooking zone.

Operating instructions

1. Press the "①" key, all the indicators show "--".

Select the power level by pressing the "+" or "-" key for the relevant hotplate. To begin with the indicator shows "B" or "I" by pressing the "+" or "-" key. Adjust up or down by pressing the "+" or "-" key.

If you press the "+" and "-" keys simultaneously, the power setting returns to "0" and the cooking zone switches off.

NB: When the "①" key is pressed, the induction hob returns to standby mode if no other operation is carried out within two minutes.

Boost function

Press the "B" key, the power level indicator showing "b"

Warning:

1. The boost function only operates for 5 minutes, after which the cooking zone will revert to its original setting.
2. The boost function works on the all cooking zone.
3. As the boost function of the 1st cooking zone is activated, the 2nd cooking zone is limited under level 2 automatically, vice versa. As the boost function of the 3rd cooking zone is activated, the 4th cooking zone is limited under level 2 automatically, vice versa.

Cancelling the "BOOST" mode

Cancel the "Boost" mode by pressing the "+" or "-" key of the corresponding zone.

Timer function

If more than 1 zone is switch on :

activate the selected zone by pushing "+" or "-" key of that zone, the corresponding digits will be flashing.

then press the " + " or " - " timer key power level indicator flashing and showing " 七 ^ and the timer indicator flashes

To begin with the indicator shows"0:10",set the time by pressing the "+" or "-" key. After setting the time, you can select the power level of the cooking zone.
Then set the time for between 1 minute and 9 hours 59 minutes by pressing the "+" or "-" key.
Press the "+" key once increases the time by one minute; hold down the "+" key increases the time by 10 minutes; When the time exceeds 1 hour, hold down the "+" key increases the time by 30 minutes.
Press the "-" key once decreases the time by one minute; hold down the "-" key decreases the time by 10 minutes; When the time exceeds 2 hours, hold down the "-" key decreases the time by 30 minutes.
- You can set the power level during the timer mode.

If the timer is set on more than 1 zone:

• Timer can be set on all 4 cooking zones. When you set the time for several cooking zones simultaneously, decimal dots of the relevant cooking zones are on.

on the timer display will be shown the timer than will expire first. The dot of the corresponding zone will be on but flashing.Once the countdown timer expires the corresponding zone will be switch off. Then it will be shown the new first expiring timer and the corresponding zone will have the dot flashing.

If the timer is set but not active on any zone, it will work simply as timer countdown.

Note:

1. When the timer is 0 minute, the timer is cancelled.
2. When time elapses, the relevant cooking zone is switched off.

3. After setting the timer, the timing indicator has been flashing for 5 seconds, the set time will be automatically confirmed.

4. In timer mode, pressing the "+" or "-" key of the timer simultaneously, timer setting returns to "0", time is cancelled.

Safety mode

To ensure the safety of children, the induction hob is fitted with an interlock device.

O Lock:

In working mode, press the " l " key, the hob then goes into the lock mode, timer will display "Loc" and the rest of the keys are disabled except the " ① " key.

In standby mode, press the "lock" key, the hob then goes into the lock mode, the timer shows LOC and the rest of the keys are disabled. The timer shows LOC for a while and then goes out.

If you press the ① key, "I_oc" will be displayed for a while.

Unlock:

Hold down the"Lock" key for 3 second, and the lock function will be deactivate.

Keep warm mode

This function will allow to keep the food warm for up to 2 hours.

Activate the selected zone by pushing the "-" or "+" button

Press the "-" till when you reach the level between 0 and 1, you will see the keep warm level. "I" will appear under the area selected.

Cancelling the Keep warm mode

To exit for the keep warm function, set any other power level

Special function

SIMMERING key (level 1)

MEDIUM key (level 8)

HIGH key (level 15)

Ativate the selected zone by pushing "+" or "-"

press the SIMMERING key, the indicator will be show "I I"

press the MEDIUM key, the indicator will be show “111 ”

press the HIGH key, the indicator will be show "I I I I"

Memory function

You can use the memory function to store the power level settings and duration for one zone.

Recording

• Select the desired cooking zone by pressing the "+" or "-" key, with the power level indicator of that zone flashing,

press the" key, with the timer indicator showing "r 0 ", "r 0 "means "no cooking cycle in memory". hold down the memory key for 3 seconds, with the timer indicator show "r EC", recording is started.

the power level indicator showing "0" and power level alternately.

The maximum number of operations is 10 power level variations in 8 hours. Any power level variation lasting less than 15 seconds will not be recorded.

Stop recording

Press again the memory key, "rE C" will be no more display on the timer display and the cooking cycle will be stored

OR

Switch off the corresponding cooking zone by pressing "+" and "-" simultaneously or by setting the power level to , "r-EC" will be no more display on the timer display and the cooking cycle will be stored.

OR

Remove the pan from the corresponding cooking zone. When the zone detects missing pan, then "rE C" will be no more display on the timer display and the cooking cycle will be stored

OR

Do more than 10 power level setting variations, "rE C" will be no more display on

OR

switch off the hob,in that case the recording of the cooking cycle is automatically aborted.

OR

switch off the a recorded cooking zone before 15 second since the starting of the recording in that case the recording of the cooking cycle is automatically aborted.

Execute a recorded cooking cycle

Press the memory key, the timer indicator displays "r I",key for 5 seconds, then displays"PL S". The zone corresponding at the recorded cooking cycle will switch on and starts performing the cycle.

If the corresponding zone was already on, the recorded cooking cycle will take the priority and be performed.
If during the execution of a recorded cooking cycle on the corresponding zone “+” or “-” key, the recorded cooking cycle is aborted and normal managing is restored.anyway the stored cooking cycle is kept in memory.

How to record one new cooking cycle if we have already recorded one:

○ Activate the cooking zone we want to record by pressing" ^+ " or "-"

Hold down the" " key for a while, and the "r I" will appear. "r I" means "cooking zone stored in memory".
Then the" r C " will be displayed, the recording of the cycle on the selected zone starts.

The maximum power of cooking zones is as follows:

Heating zone	RPI430 / RPIF430 / RPI430MM
	Normal	Boost
1	1200	1500
2	2300	3000
3	1200	1500
4	2300	3000

Heating zone	RPI342 / RPIF342 / RPI342MM
	Normal	Boost
1	1200	1500
2	2300	2600
3	3000	4200

Heating zone	RPI346
	Normal	Boost
1	1200	1500
2	2300	2600
3	3000	4600

The above may vary according to the size of the pan and the material it is made from

CLEANING AND MAINTENANCE

• Before carrying out any maintenance work on the hob, allow it to cool down.
• Only products, (creams and scrapers) specifically designed for glass ceramic surfaces should be used. They are obtainable from hardware stores.
• Avoid spillages, as anything which falls on to the hob surface will quickly burn and will make cleaning more difficult.
• It is advisable to keep away from the hob all substances which are liable to melt, such as plastic items, sugar, or sugar-based products.

MAINTENANCE:

• Place a few drops of the specialised cleaning product on the hob surface.
• Rub any stubborn stains with a soft cloth or with slightly damp kitchen paper.
• Wipe with a soft cloth or dry kitchen paper until the surface is clean.

If there are still some stubborn stains:

• Place a few more drops of specialised cleaning fluid on the surface.

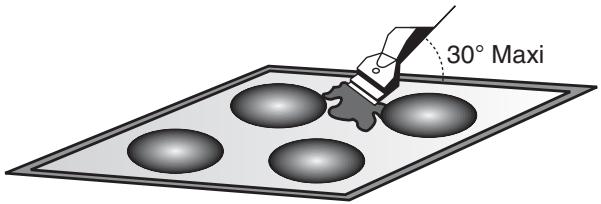

• Scrape with a scraper, holding it at an angle of 30^ to the hob, until the stains disappear.
• Wipe with a soft cloth or dry kitchen paper until the surface is clean.
• Repeat the operation if necessary.

A FEW HINTS:

Frequent cleaning leaves a protective layer which is essential to prevent scratches and wear. Make sure that the surface is clean before using the hob again. To remove marks left by water, use a few drops of white vinegar or lemon juice. Then wipe with absorbent paper and a few drops of specialised cleaning fluid. The glass ceramic surface will withstand scraping from flat-bottomed cooking vessels, however, it is always better to lift them when moving them from one zone to another.

NB:

Do not use a sponge which is too wet.

Never use a knife or a screwdriver.

A scraper with a razor blade will not damage the surface, as long as it is kept at an angle of 30^ .

Never leave a scraper with a razor blade within the reach of children.

Never use abrasive products or scouring powders.

AFTERCARE

Before calling out a Service Engineer please check the following:

that the plug is correctly inserted and fused; If the fault cannot be identified:

switch off the appliance — do not tamper with it — call the Aftercare Service Centre. The appliance is supplied with a guarantee certificate that ensures that it will be repaired free of charge at the Service Centre.

PROBLEM SOLVING

The induction hob gives shorings out.

• Normal. The cooking fan of the electronic components is on.
  The induction hob gives a light whistling out.
• Normal. According to the working frequency of the inductors, a light whistling can occur when using several cooking zones on maximum power.

Cooking zones that do not maintain a rolling boil or a fast enough frying rate.

• You must use pans which are absolutely flat.
• Pan bottoms should closely match the diameter of the heat zone selected.

Foods cook slowly.

• Improper cookware being used. Pan bases should be flat, fairly heavy-weight and the same diameter as the heat zone selected.

Tiny scratches (may appear as cracks or abrasions) on the glass surface of the hob.

• Incorrect cleaning methods, cookware with rough bases, or coarse particles (salt or sand) trapped between the cookware and the surface of the hob.

Use recommended cleaning procedures, be sure cookware bases are clean before use and use cookware with smooth bases.

Metal markings (may appear as scratches).

• Do not slide aluminium cookware across the surface. Use recommended cleaning procedure to remove marks.
• Incorrect cleaning materials have been used, spillage or grease stains remain on the surface, use a razor scraper and recommended cleaning product.

Dark streaks or specks.

• Use a razor scraper and recommended cleaning product.

Areas of discoloration on cooktop.

• Marks from aluminium and copper pans as well as mineral deposits from water or food can be removed with the cleaning cream.

Hot sugar mixtures / plastic melted to the surface.

See the Glass Hob Cleaning section.
The hob is out of order, or some heat zones do not work.
- The shunt bars are not properly fitted on the terminal block. Check the connection is made in conformity with the instructions page 2.

The hob does not operate.

• The control panel is locked. Press the "Locking" button to release.

The hob does not cut off

• The control panel is locked. Press the "Locking" button to release. Refer to the section, page 5.

The hob stops automatically

• The cooking zones stop automatically if they are left on for too long. Refer to the section, page 3.

Frequency of on/off operations for cooking zones

• The on-off cycles vary according to the required heat level:
• low level: short operating time,
• high level: long operating time.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste.

Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

1. Power regular key
2. Timer regular key
3. Booster
4. Special function
5. Memory
6. Lock
7. On/Off

He BnKOpncToBMyTe naHEnb JaK o6pO6Hy doWky.

He TaHHTb KxOHHn NocyD nO nobepxHi.

HeckadaTBe BaxKi npEdMeTn Ha naneHJIIO, kAIO BOHN BnaJyTB, TO MOxytb II NOXKOHTN.

He BnKOpncTObyIe BapInbHy naHJIb B JAKoCTi po6Ooi nobepxHi.

He BnKOpncToBvIte noJIuCi IJr 36epirAHn6yDb-ynx npedmetiB.

Ha naheI He noBHHo 6ytn TpiuH, kAIO BOHN 3'ABNtcbc, BiEaHaiTe eJeKtpOxNBHeHn i 3BepHITbcr do cepBicHO rceHTpy.

TEXHIUHIXAPAKTEPNCTUKN

Hikoli He po3miuye Te npoKhi nocyHa KOHOpkax.

IpekeohaTecb, 0e TaJI KOHΦoPK yCTAHOBJIeHi npaBnJbHO.

IHykuiHbI BapnIbHI NOBepxHi He MoKHa BnKOpNCTOBvBaTu KpOboOi NOBepxHi. FocTpI npEmdTe MOnyTb 3aJIuShTu Na Hi NIOpaHInN.

DanHn npuHaBnroToBHe BIDnoBIDHO Do BmOr CTAndaptIB 63neKn. Tm He MeHs, Mn HanoJIeRBO peKOMeHyEMO OC6aM, 10 MaHtB fi3NHi BaHn, nCxHni pO3NaHn, a6o TaKIM, 10 He MaHtB DOCTaTHbO DOCBiDy, He KopNCtBuTncra npuHaOM 63 donomorn doCBiDuHeoi oc6b n abo Ni d II nnlbHm HarnlAOM. Taki JnpaDi CTocyUToBc i HenOBHOnlithix diteN.

Бу DOBYAHNЯ

• UctahOBky npnlaLy y pOboCy NOBepXHTo Ta II niKlUoyHnNo eJeKTpOmepeKi NOBHeN npOBOuNTn LmIe KBaIiΦiKOBaHn φaxIBEc.

• OdoJIbAbHm MaTeiAn KxOHNHX Me6IIB, KydN 6yDe yCTaHOBNeHa BapINbHa nobEpxH, Mae 6yTu CTiKIM DO BVIIBy BvCOkNX Tempeatyp 100^) ,y

iHoumy pa3i 03O6JIeHHa pO6oOIO nobepxHIMOKe BtpaHTn KOIp a6o DeOpMyBaTncr.

• FepMeTnHi IJIOM6N NOCTaBIAJIOTBcpa3OM 3 naHeJIHO.

Ipeed yctaHOBkoIO:

IpepeBepHITb naHeJIb, cKJIaHOIO NOBepxHeIO Do Hn3y;

IpekehaiTecayoCKNo3axuueHe;

3aφikcyte nIOM6n DOBko nahei;

IpekoHaTecra, 0o BOHn 3aikcoBaHINpaBnIbHO, 0o6 HiOro He 3aIkaNo B afo;BaxInBo, 0o6 naHeB 6yna 3aikcoBaHa HoNDHompyiBHI 3 onOpHoIO nobepxHeIO.

PoiokoJxehnnaHeli niJvac yctaHOBKn, MoKyTB BnInHyTn Ha npOdyKTnBHiCTb ii p60tN.

3aIiWTe BiDCTaHb, npHnMHi, 5cm mIX naHeJIIO Ta CyciDhbO BoBepTnKaIbHOIO nobepxHEIo;

B KpaB aKJIbO, 0o6 BiIcTaH bIiNobiJaIa3a3HaueHm npaMeTpam;

Bupixitb OTbip y CTIbHnci,Яk NOKa3aHo Ha MaJIIOHky HnJxue. He MeHspe 50 MM, HABKoLo OTBOPy Ma6 ByTN npocTip;

CtijbHncaMae6yTuNkHaHMeHse30MM TOBUnHO, Ta TepMoCTiKoIO. Ra Noka3aHo Ha MaJIOnHy 1.

Bn He MojkeTe B6yOBOvBaTn nAHeJIb HaI nIInTOIO 6e3 BeHTINLAuII,HaN nOCyDOnMnHOIO MaunHOIO, XoIoDnIbHnKOM a60 npaJIbHOIO MaunHOIO.

Дужke Вжлно 3a6e3neuHTn HalekHy BeHTnlaIciH.

IpekoHaTecra, 0o naHelb BCTaHOBHeHa npabuHbHO, kU ce NOKa3aHo Ha MaJIOnHy 2:

ПИДКIOУECHHA DO ELEKTPOMEPEXI

CnHnn npncptpi BIDnoBidae DnpeKTHBaM 89/336/EEC,73/23/EEC i HacTynHM donOBHeHHaM do Hnx.

1 2 L1 L2

YopHn KOpHneBn

3 4 N1 N2

CnHn CipN

Kobto-3eHennii

INdukciIa

3anam'raTae: BiDcTaHb mix naneJIIO ta wafoHO naI HeIO MaE 6yTN He MeHwe 760MM.

EeKeTpnuHne nID'EDHaHHa

«UcTaHOBKaMaE BiIDNoBIdaTn CTaHdapTHm DInpeKTHBaM». BInpo6HHKe He Hece BiIDNoBIdaIbHOCTi 3a He npabINbHy UcTaHOBky, HHe HaJIeXKe BInKOpNCTAHn NaHeJI.

YBARA: Ipepei BnKOpIaTHHm eIeKtpuHOro npIaMy 3aBKnI nepeBipraTe Happyr Ha IiUHbHkU, HAcTpoKy eIeKtpuHOrO BmNkaa, 3a3emLeHHa;

JXOBTO-3eJIeHn npoBiD ka6eIIO JxNbIeHH NOBHeH 6ytn 3a3emJIeHn IAK BiD dJxepela JxNbIeHH, TAK i BiD TePmIHalIB pIncTPOIO. BInpO6Hn K He MoKe HecTn BiID NObIaIaNbHiCTb 3a 6yNb-aki HeuacHI BnnaIaKn B pe3yIbTaTI BnKOpNCtAHH npiJa, yKn He 3a3eMJIeHO. 3 6yNb-RAHMn PNTaHHMa, 5ODo dJxepela JxNbIeHH 3BeptaITecrdo CepBicHnx ceHTpB.

Ka6eJIb noKoJKeHO i NOrO cIiD 3aMInHTN, 3BepTaITeC8 30 KbaJIΦIKOBaHnx CneUiaJIcTIB.

PiEeHaHHnDo DxHepeLa XnBLeHn

Pozetka NOBHHa 6byt NiikJIOueHa 3riIDHO 3BIDNOiHNMI cTahapTaMn, B OJHONOIOCHNBIIMKauch. Cnoci6 NiikJIOUeHHa NOKa3aHO Ha MaJIIOHKy :

Ka6eIb He NOBInHeN MaTu 3rHnHb a6o yTnCKiB.

CnOciB BnKOpNCTAHH

EeKtponnHrhepaTOp KINBHeHn 3NaXoNtbc BcepeDnHIpuIaNy.

LcaKotyka CTbOpIOe MarHITHe NOIe, TAK 0o, KOLn KAcTpynla

3NaXoDnTbCa Ha BOrHi, BOHa npOnH3aHa iNdyKuieIc TcPymiB.

Lc tpymnpeepaotb TeIIO TaKIM YHOM, 0o CtpBaHarpibaetbcra, a KactpyJ3aJIiHaεTbCRA XOJIoNDHOIO.

Lc nCTema npn3HaueHa IJy kactpyb 3 MarHITHM dHOM.

Ipoctiue KaKyu, iNdykuiHni TexHoJIrMaHObI dBi OCHOBn IpeBaHn:

Tak kTeIIO BnBilbHaeTcra TlIbKn KAcTpyeO,TO BnKOpNCOTByETbcN Ioro MaKcImaJIbHa KiIbKiCTb.

Hemae termaalbho ihepui, taek tenlo BvBilbnaeTbcra Tlbkn Kojn KaCTpyJla 3axOuNTbcra Ha HarpiBaIbHi 3OHi, i 3yUnHaTeBCaKoJI KAcTpyLIIO npniHrAtn.

PnCTPIIINDBNUEHOJE3NEKNI

3axucm bio nepenhaepiibannn

Cencop peryIIOTo TempeaTpy HarpBaIbHnx 3OH. Koln TempeaTpa nepeBnUe DOnyCTmMy HopMy, HarpBaIbHa 3OHa aBTOMaTHO BIMNkaETbcra.

PonepeoJHnHa 3aIuKo8o20 menla.

KoI NaHeIb BnKOpNcTOBcYeTbcra npToTROM DeKaKOrO yAcy, 3'ABtbcra 3aIIuKOBe TepNo. 3'ABtbcra Iitepa «H», 106 nonpeDntu Bac npo ue.

AzmomamuueHe 6umKHeHHa

Ie oDnBnD 63neKn BapnlbHoi nHaHJI -aT0 BmKHeHHa.BoHO cnpaCbOBy KOnn Bn 3abYBaTe BmKHyTH HarpiBaIbHy 3OHy.

3a 3amOBuyBaHHm nepiOduHictb BUMKHeHH HaBeDeHO HnXue B Ta6nui:

Ровеньnotужностi	Конфорka ВимпкастбаяавTomатчно пістя
1-5	8 roД.
6-10	4 roД.
11-14	2 roД.
15	1 roД.

JaKIO KaCTpyIIO npi6paTI 30Hn HarpIBy BOHa aBTOMaTHUHO BmNkaETbcHarpIB, i nICJIa XBNIHHORO 3BOHnKa aBTOMaTHUHO BmNkaETbc

KJIO OJHOUcHOr HAITCKaTn, HAIaHTyBaHHa Yacy BCTaHOBJIIOJTbCra Ha Hylb, Yac CKACOByETbCra.

CnoaTy iHdkaTOp "0:10" nokae, hanaWtuYte TaMep, HATNCyBn «+» a6o «-».PiCJHaNAwTuBaHHa TaMepy, Bn MoKeTe o6paTn pBeHb NOTyXHOCTi Ta 3OHy npiroTOyBaHHra.
-NotIM BnCTaBiTb yac, BiD 1xB. Do 9 roD. 59 XB., HATNCKaHOUY «+» a60 «-».
Ⅲo636ilbwnTn qac Ha OndHy XB. HATNCHITb + ；IIO6 36ilbwnTn qac Ha 10XB. HATNCHITb + i3atpmaite. KOni BCTaHOBJIeHm qac DocarHe 1 roJ, npOobKnyTe TpMaTu + i ac 6yde 36ilbwyBatncb Ha 30 XB.
Bn MoXeTe BCTaHOBHTPiBHe NOTyKHOCTi NiJ cac HalaWtYBaHH TaMepa.

JaKuTo TaIMeP BCTaHOBIOEtbcra 6iIbH HIX Ha OndHy 3OHy:

Taimep MOKHa BCTaHOBbOaTN Ia BCix QOTnPbOx HarpBaIbHnx 3OH. RaKIO BV OJHOuCaHO HaJaTuTOByeTe DekeIbKa HarpBaIbHnx 3OH, B KOXHi 3OHi 3aOpraTbcr DecaTKoBI dpO6n.

KaTTo TaMep BCTaHOBNeH, a Hja 3OHa He AKTNBOBaHa, To nide npocTo BiDlik yacy.

PEKIM B3NEKN

Дязбe3ne�еньбe3neкидядiteн,паньобlaаднаВытpiшим 3amkom.

-БлOKуВання

Ypo6oymypexmiHaTnCHiBKnabiy ，BapnIbHa naHeIb nepeJe BpexM 6JokyBaHHa,Ha TaHMepi BnCBiITbcra Loc a iHwi KnaBiWi 3a6JokyIObCra, Kpim ①

PO36JIOKYBAHH

HaTnCHiB Ha knaBiwY CNEUJIaNbHI FyHKU

npotram Tpbox cekyHa, i naheBpo3noKcyTbca

Пдирь

ДанФункцяdo3BOJNTb 36epeRt cTpaBy TeNIOU do Do DBOX rOINH.

Aктувий ообару зону harpiBy habичын Кнорky «-» aбо «+»

HaTnCKaIe «-» DoKn He DoCraHHeTe pIBH MaX 0 Ta 1, NiD o6paHOo 3OHOo 3arOpNTbCra 3NaOc K niDiirpiBy

Bidmina fynkii nirdripby

ДляТOrO,ибВiДМiHHTnФункciUpiDiRpiBy,BvIMKHiTb6yIb-ЯКИ nIHmPiBHeNnotyxHocTi.

Kun'atinHa nobinbHomy borhi.(pigeh1)

CepedHr TemnepaTpa (pibenb 8)

Bncoke harpiaa (piEh 15)

HaTnCHiB《BnCokeHarpiBaHnHa》，iHnKaTOp

BIDO6pa3nTb

ФУHKUII NAM'ЯТI

Bn MoKeTe BnKOpNCTOByBaTn FynKcIio nam'Ia I na 36epirAHn npaMeTpib pIBH notyKHOci 0paHOi 3OH.

3A\PNC

Bn6epiIb Heo6xiny KOHΦOpky, HATNCyBUn KHOKNy "+" a6o "-"

HaTnchItb iHnKatop TaMepy nokaxe

O3nauac, 0B nam'rTI He 3a#ikcoBaHO HiaKnx uKJIb npuroTyBaHHa,HaTnckaIe Ha zu KnaBiWy npotraom 3 cek, KOJI

iHdkatop taImepy nokaxe rEC , 3Haunb 3anC po3noaBCa.

IHKaTOp noka3ve pBeHb notyKHOCTi 0 i pBeHb notyKHOCTi nonepeMiHHO.

MakumalbHa KInbKicb onepaui - 10 pIBHei noTyXHocTi B Bapiaqix B 8 roDn. Byb-ka 3MiHa pIBHa noTyXHocTi TpBaiicTIO MeHwe 15 cekyHd He 6yde 3anicaHa.

3YTNHKA 3ANUCY

HaTnchItb ige pa3 KhoNky naM'atI, 3 ducnnpe 3HukHe rE C i uKn 6yde 36epexeHo.

AEO

Bumkhitb BIDnoBiyHy 30hy npuroTyBaHHiXi,HaTnchyBmKnaBiyu+"i"-"OHOaCHO,a6o WJnxOM BCTaHOJIeHHA

piBn noTyXHocti Ha 6iNbwe He 6yde Bio6paKatncnHa ducnnneiT aMepa i uKn npuroTyBaHHia 6yde 36epexeHo.

AEO

Pn6epitb kactpyIIO 3 BIDNOBIDHOI 30Hn npiroTyBaHH. Pn BnABNeHHi BiCyTHocTi KactpyI, -E C 6inbwe He 6yde BIDobpaKataHa dncnneiTaiMepa i uKn npiroTyBaHH iKi 6yde 36epeXeHo. ABO

BcTaHOBIb pIBeHb notyXHocTi 6InbW HIX Ha 10, i -E C 6InbWe He 6yde BIO6paXaTncb Ha dncnnei. ABO

Bumkhitb naheI toi Bci hanaWtyBaHHA ABTomaTuHNo nepeByTbcra.

AEO

BIMKhitb 30ny npurotybaHHa cepe3 15 cek. Nicn noaatky 3anucy, i ToDi Bci hanaWrybaHHa ABOMaTHUHO nepepybcBAKOHAHHc LUKKNYPNFOYBAHHA IXI

HaTnchitb KhoNky na'm'rti npotraom 5 cek., Ha iHdkatopi TaMepy 3'ABITbcr rI , notim 3'ABITbcr PLy BKnIOuHTbcra BiIDNOBIdHa 3anporpamOBaHa 30Ha npiroTyBaHHr i po3noOHTcB RAKOHHRAUKNly.

$$ \text {国} \times \frac {\odot}{- r l + 1} \rightarrow \frac {\odot}{- P L Y + 1} $$

Kaio BIDNOBIDA 3OHa BKe BBIMKHeHa, 3aNcAHn cIKJ 6ynde npOpitETHM.

Ku npn BnKohHni Kny HATNCHyT N +> a6o -, To 3anporpamOBaHH uKn npnnHcBc i p03noHaeTbcra 3Buayne npnroTyBaHH. Tm He MeHs 3anporpamOBaHH uKn 36epiraTbCBA nAm'rti.

JHK 3anucaTu HOBn UMKn npuroTyBaHHa, KUo Mm Bxke OAnH 3anporpaMyBaH:

Aknbynte 3ohy npurotybaHHra ky Bn 6aKaTe 3anporpamyBaTN, HATNCHyBUN «+» a6o «-

$$ \begin{array}{c} \text {品} \ - 1 2 + \end{array} $$

HaTnCHiB yTPmMyOuN KhONKy iHa dncnnei 3'ABNTbCra rI
H0 O3Hauee 0o 30Ha npuroTyBaHHa 36epexeHa B nam'ATi.

TOMHa dncnnei 3'ABNTbcra rE i po3nouHcBcra 3aNNC HOBOrO uKny.

$$ \text {国} \Rightarrow \frac {\circ}{- r 1 + 1} \Rightarrow \frac {\circ}{- r E [ + ]} $$

MaKcMaJbHa notyXhIcTh 3OH npHrOryBaHHa:

Зона нагривannahа	RPI430 / RPIF430 / RPI430MM
	Зецаяна	Бустор(пiodв肤色ни поождом)
1	1200	1500
2	2300	3000
3	1200	1500
4	2300	3000

Зона нагривannahа	RPI342 / RPIF342 / RPI342MM
	Звача��а	Бусmerc(пiodвцени по ужescmi)
1	1200	1500
2	2300	2600
3	3000	4200

Зона нагривannahа	RPI346
	Зч<a>ha	Бусмер(пiodвушени посточи)
1	1200	1500
2	2300	2600
3	3000	4600

He BnKOpncToBvIe ry6Ky, Ya Ka HAdTO BOJORA.

HikonHe BnKOpncToBMyTe Hix a6o BnKpyTky.

Ckpe6ok 3 lezom He npuzBede do nooKoJKeHb noBepxHi, kUso Ioro TpMaTn Ni d Kytom 30 rpaIyciB.

Hikoli He 3aIIshaTe ckpe6ok 3 ne3OM B MeJax doCsaKHOCTi iTeI.

Hikoln He BnkopncTOByTe a6pa3nBHi MaTepiAni a6o YCTaI npOouKn.

UCYHEHHH HECPABHOCTE

PEMOHT

Ipeed BnKlKOM MaNcTpa nepeBipTe HaCTynHe:

Yn npabNbHO BCTaBHeA BnIKA B pO3eTKy. JkIoo HeCnpabHicTb He MoKHa Bn3HaunTH, TO BmKHiTp npila 3 pO3eTKn i 3BepHITbcy y cepBicn HcHTp. Pnpala npdaetbca 3 rapaHTiINHM cepTnphiKatom, IIO O3HaauE, IIO Bam Noro BiDpemOHTuOTb 6eKoWTOBHO.

PIUeHHIPIOBJIEMN

IHykuiHa BapnIbHa nobepxHa dae IerKm CBnCT: HopMaJIbHO. BiIDnoBIdHO 3 po6oOu qactoTOIO IHyKTopa, IerKm CBnCT MOKe BUNHKnHTn npn BnKOpNCtAHHI DeiklboX 3OH npriToYBaHHa iKi Ha MaKcImaJIbHi nOTyJHocTi.

CtapBn nobilho roToyIbce: BnkopncTObYeIbce Hne iDxOJaunn Iocyd. DHO kactpyIi MaE 6ytu IIoCKM, He dyXe BaKKM, a diAMTp MaE BiNobiDaTu diametpy HarpBaJIbHOI 3OHn.

3'Яьлгютсmaileнki noррainn（TpiuHn）: He npabInbHi MeToOn YuIeHnH, nocyd i3 rpy6m dHom, a60 BeJIki cactkn cykpy a6o nicky notpapanm mik nocydom i naheJIIO. BnKOpncTOByte peKOMeHNDoBaHI mIoOci 3ac6n, uNCTNI nocyd i3 rlaekm dHom.

MetaJIeBI mApKyBaHn (MOxytb 3'ABNTCS NOpPAnHH). He TaIrhIt aIOMiHiEbn NoocyD no naHeni.

BnKOpNCTOByIte peKoMeHIOBaHI 3acO6n, Iio6 BnJaIInTm MapkyBaHHa.

Temhi cmyn a6o nIyMn: BnkopncTOByITE pekomeHDObAHi 3acobn dnyuueHHN.

3ne6apBlenHnHa nahei: CiiDn BiD aIIOmiHIEbNx abo MiDNx KaCTpyIb, TaK cAmO JaK i BaIIHN HAIIT, MOJHa BiUcHNTN 3a DOnOMORIO cneiaJIbHorO Kpemy.

Ha panenl po3nlaBvBCa ykop a6o nlaTmaca: DnBItbcB Po3di «YuSeHnra

Panaelb BnIshla 3 lay a6o deaKe HarpBaIbHi 30Hn He npaIooTb.: He npaBnIbHO nIeHaHn TepMaHaBn 6Jok.

BapnIbHa nobepxHHe npaioe:BapnIbHa naheIb 3a6IOkOBaHa. HATNCHTb KONky Iya po036IoKyBaHHa.

Panaelb aBtOMaTHNO BmMkaETbcra: 30Ha nprirotyBaHHa bTOMaTHNO BmMkaETbcra, kAIO BOHa NaTO DOBRO ppaioE.

3actepexheny:Yci 3a3haeHbNlue yuKOxgeHHCTOcyTOBc eTeTNUHO BnIyBaPnIbHOIOBepXHI i He BnINBaOTb Ha II yHKUHOyBAHH. Taki ykoJKeHH He niJaIraIb rapaHTiHOMy o6ClyROByBaHHIO.

YMOBNI TAPAHTIHORO OBCLYROBYAHNRA

TepmiH iii rapaHTiI cknadae 12 micaizb 3 datn npodaxy.

Iiuc rapahtriHoro nepioody 6ydb-aykn pemOH TMOKe 6yTN BIKOHaHH TjBkN KBaJIiFIOBAHm faxibcem cepBicHOrO cHTpy.

Ipeed noaTkom pemonty npnlaad tpe6a BiKJIIOUHTN BiE ekeTpomepeXi, 3HABs 3anobixHHNK abo BNTryBwH uHyp KINBLHNA 3 po3etkn. HenpofoeciHe Btpuahnn Ta peomht anapaty Hebe3neuHi, BOHN MOKYb BnKlnKaTH BpaKeHHeEeKTPuHNM CTpyMOM TA KOPOTke 3AMKcAHN; OTke, He HamaraTece yCyHyTu HecnpabHocti camotyKn. 3aInuTe cpo6OBy CneuaIcTam abo PpeDCTabHKam cepBicHoro ceHTpy. Raoo y poboti anapaty BnHKn Iacbc He3NaHuPi6blemn, nepeBiTe 3a DonOMorIO HAcTyNHx IHCTpyKzui, nn 3daTHi Bu npopatncra 3 HmN cami. BiIT CneiaJIcTa i3 ABTopu3OBaHOrO cepBichoro CEHTpy NobHEn 6yTu ONLauEHN Bamn, JkIo 6yDe BCTaHOblHo, 0o npnila, He npaioe chep3 HehaleKHe n He6BaNe BnKOpNCtAHN. 36epiraTe IHCTpyKzIO TAKIM YHOM, 0o6 BOHa 3aBKnDu 6yLa Ni, pyKOIO y paai Notpe6n; KaIO npedeBaTAmme npnlad Insi oco6i, nepeaTe taokj i INCTpyKzio.

YMOBN:

Ceptnuikat

TapaHTia diiina Ta iBkpiu HaABHOCTi DChORO TapaTiiHoro CeptnphiKATy.

TapaHTiHn CepTuKAt He DiChn npu HauBHOCTi B HbOMy NOMIOK, BInpapBaJIeNb Yn HeBIDNOBIDHOCTe.

B Ceptniikati MaIb6 itn 3anobHeni npHKnTn:Ha3Ba Bnpo6y,MoJeJIb,cepHmHomep Bnpo6y,daTa npOdaJy,piHnc npOdaBc4,neaTb toproBoi oprahiauii. PnBicTyHOCTi DaTI npOdaJx TepMIn rapaHTi ABTomatUHO BVNCIOETcb 3 DaTI BINOTOBHeHH npICrpoI.

TpaHcnoptyBaHHn i 36epirAHn

Будь-якideфеки Виpo6у, српчнени Heббайлвим ТраHCnOpTyBaHHam i 3берганнам Виpo6у, He пдяагытб 6e3KoшТOBHOMy rapaHTiHOMy peMOHTy;

YctahOBKa Ta ekcnlyataqia

Be3koTobHn rapaHTiHHn peMOHT He npoBOnTbC, kIIO deΦeKT BmPo6y BnKlnKaHH:

• Henpabnblhm niiKluohnHbM Bnpo6y do dkepea eektro-, BOo-i razonoctaaHHa, a taKx HebiNobHicb npametpiB BnueBk3aHnx dkepe npameTpam, 0npE'ABJIObTc oOB'zKOBm DepKAbHM cTahdaptMa TlHctpykuieo 3 ekcnnyataui.
• Eκπλγataúri Bνροβίν, πιδκλιουενης Μό Meρεχι 220B 6e3 3aεΜληνη, a τακοχ πιδκλιουενης Μό Δχερελα BODONOCATAUHNA 6e3 OKPεmoro Kραγή ποδαύτι BODι Μνροβγ-ε Κυτένμιν Nορυψενημι Λκτρυκις 3 εκπλγataúclι Αομε Μγτι πιδισαθού Σλγθητην Bνροβγ 3 rapaŋtiHORO σόclηγονBavHη.
  BnKOpncTaHnny npnlaNy He B BiNObiDnOcTi do IHcTpykci, a TAKoX HnnpaBnIbHOIO eKcnIyatauieIO, 0o BnKlnkaIO nOBy MexaHnIX Ta iHnIX BnID IB deΦeKTIB;
  BnKOpncTaanHbVbO6y He b BiNobiHocti 3 Ioro npaMM npn3HaueHHa m a6o He b Domaunix Notpe6ax.
• Пи поушени пломбуньта з inushnx рпун，在а He 3ailekaTb BiD 3aBoDA-Binpo6Hnka.
  He6banocti np36epirahHH,ekcnlyataa ta TpaHcnpTyBaHH bnaChNKOM,ToproBOO a6o TpaHcnpTHOIO oprahi3aueio.
• Y BnnaKy BtpaTn rapaTtiHoro TaIOna 6a YeKa, BlaacNH K036abLaTeBcra npaba Ha 6e3KoUToBHe cepBiche o6ClyroBvBaHn.
• Y pa3i πιδκλίουενην ἡχεικην έν Ερετιαύφικονανημ Κερβικήμ Κεθήρον, Bπριδ 3ΗΜαεΤβς 3 rapaHTI.

PemOHr

Be3koTobHnI rapaHTiHn peMOHT He npoBOuNbC8, kUO Bnip6:

Maé cIiDi CTOpOHbOrO BtpuHaHH a6o peMoHTy He yNOBHOBaXeHmN oc6aMn;
Maé He cahkioHOBaHí fipMoHO 3mHi KOHCTpyKüi a6o HnpiHrTHI KOMJIeKToYUci;
Ma noiokdojehn, Bnklnkahi Hepe6aayBaHmЯBnamn i diam CTnxi;
Ma nokjenn, BnKnnKaH, BnKOpNCTaHHm HeTaNapTHnx MaTepiab i npctpoib;
Maé nooshkojeHH, BnKlnkaHi nonaHaHHB CpeDHy BInpo6y CTOpOHHX npedMeTIB, TBapHn abo KOMax;
He mae cepiHoro Homepy a6o Horo HEMOXJINBO BCTAHOBHTn;
Maé HekomπeKTHictb niçla Nioro npodaxy;
Maé mexaHi nioKoJxHn (ckIaHnTa nlaactNKOBi BnO6n);

Tapahtia He po3noBcIouKyetybca Ha po3xIiHi MaTepiAln i akcecyapn.

BidnoibdaIbHicTb

ΦipMa He Hece BiIDNoIaIbHocI 3a 36ntKN pnpuHHei Bam nn OTOUYOUM B 3B'3Ky 3 HeBiIOBnHM BVKOpNCaHNR m npIaNy.

BVeIeHnBvBIO6bByEcknIyatauioN DOpO6ky Mepex eJeKtpo-, BDO-i rAzOnocTauHHaYdIa CymiChocTi 3 BInpo6om He e 30HOo BiDnOBdaJIbHcOti FipMn HIpMOH He onlauCyTbcra.

B BnnaKky BnHnKHeHHa 6yNb-ynx npo6Ie 3 Baunm npuJaDOM, nepeTm NK BnKlnKaTu MaIcTa, nepeBiTe npaBnIbHicTh yctaHOBKn i fHyNcoIOhyBaHnB B BiIOBIDHoCTi do IHcTpkyii. Onilaty BnKInKy MaIcTaP Bu 6yde Te npoBOJNTu 3a Cbi paxyHok, kio Bnpi6 6yB B po6Oohmy cTahi a6o 6yB HnPaBnIbHO BCTaHOBLeHni, a6o HnpaBnIbHO BnKOpNCTOByBaBCra.

3a kicrbapaHTiHoro pemOHry BiIDnOBiIaNbHicTB Hece o6cnyroByoHa opraH3aia(cnyk6a cepBicy).

IODATKOBY IHΦOPMAUIO UOIO IPODyUKUII MAPKN ROSIERES BN MOXETE OTPMATN HA CAI TI

WWW.ROSIERES.IN.UA, WWW.ROSIERES.FR

YI 3A TEJIFOHOM TAPQOI LIHIIII

0443834425
0800501509
