Product Type	DLP Projector
Model	HP VP6121
Resolution (Native)	XGA (1024 x 768)
Brightness (ANSI Lumens)	2500
Contrast Ratio	2000:1
Lamp Type	P-VIP 200W
Lamp Life (Normal Mode)	3000 hours
Projection Distance	1.2 – 12 m
Screen Size (Diagonal)	0.76 – 7.62 m (30 – 300 in)
Keystone Correction	Vertical ±30°
Zoom Ratio	1.2x Manual
Inputs	1x VGA, 1x Composite, 1x S-Video, 1x Audio
Dimensions (W x D x H)	286 x 216 x 89 mm
Weight	2.5 kg
Power Consumption	250 W (Standby < 5 W)
Power Supply	AC 100-240V, 50/60Hz
Safety Features	Overheat protection, auto-off
Maintenance	Clean air filter monthly; replace lamp after 3000 hours
Included Accessories	Remote control, power cable, VGA cable, manual
Repairability	Lamp door for easy replacement; user-serviceable air filter

Frequently Asked Questions - Vp6121 HP

How do I replace the lamp in my HP VP6121 projector?

Turn off and unplug the projector. Wait 30 minutes for the lamp to cool. Open the lamp compartment door on the rear panel. Loosen the two screws securing the lamp module, then gently pull it out. Insert the new lamp module, tighten screws, close the door. Reset the lamp usage time in the on-screen menu.

What should I do if the projector displays no image?

Check all cable connections. Ensure the projector is powered on and the lens cap is removed. Verify that the correct input source is selected using the Source button. Try a different cable or source device. If the indicator lights show an error, consult the manual for troubleshooting.

How often should I clean the air filter?

Clean the air filter monthly to prevent overheating. Remove the filter cover, pull out the foam filter, and wash it with mild soap and water. Let it dry completely before reinstalling. Replace the filter if it is damaged.

Can I connect my laptop to the projector?

Yes, use a VGA cable to connect your laptop to the projector's VGA input. You may need to switch your laptop's display mode (e.g., Win+P or Fn+F4) to extend or duplicate the screen. For audio, use a 3.5mm audio cable.

What is the native resolution of the HP VP6121?

The native resolution is XGA (1024 x 768 pixels). It can accept signals up to 1920 x 1080 but will scale them to fit.

Why does the projector turn off after a few minutes?

This may indicate overheating. Check that the air filter is clean and the ventilation grilles are not blocked. Ensure the projector is placed on a hard, level surface with at least 30 cm clearance around it. If the problem persists, the lamp may need replacement.

How do I reset the lamp timer?

Go to the on-screen menu, select 'Settings' > 'Lamp Hours Reset'. Confirm the reset. This option is only available after replacing the lamp.

Does the projector support 3D?

No, the HP VP6121 does not support 3D content. It is a standard 2D DLP projector.

What is the maximum projection size?

The maximum diagonal image size is up to 300 inches (7.62 m) when the projector is placed approximately 12 m away from the screen. Actual size depends on zoom and placement.

Where can I find a replacement remote?

You can order a replacement remote from HP or third-party sellers. Search for 'HP VP6121 remote control'. Alternatively, use a universal remote with projector codes.

USER MANUAL Vp6121 HP

HP VP6100 Series Digital Projector

User's Guide

Copyright © 2004 by Hewlett-Packard. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of HP.

HP makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Furthermore, HP reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of HP to notify any person of such revision or changes.

Table of Contents

Introduction 5

Safety Instructions ....5

Shipping Contents 6

Projector Description ....7

Projector 7

External Control Panel 8

Adjuster....9

Projector Features 9

Remote Control Description 10

Remote Control Effective Range 10

Removing the Battery Protector 10

Replacing the Battery .... 11

Installation....12

Screen Size....12

Connecting to Various Equipment 13

Operation 16

Start Up 16

Digital Keystone Correction .....17

Auto Adjustment....17

Source Selection 18

Video and Audio Adjustments -- the Menu System .....18

Quick Tab 19

Adjust Tab 20

Audio Tab 21

Setup Tab 22

PIP Tab. 23

Shutdown 24

Maintenance 25

Lamp Information 25

Lamp LED Indicator 25

Lamp Replacement 25

Temperature Warning Indicator 27

Accessories 27

Troubleshooting 28

Common Problems & Solutions .....28

Status Messages 29

Specifications 30

Projector Specifications 30

Timing Chart 31

Dimensions 32

INTRODUCTION

Warning

TO PREVENT SHOCK, DO NOT OPEN THE CABINET. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. PLEASE READ THIS USER'S GUIDE BEFORE YOU OPERATE YOUR PROJECTOR. SAVE THIS USER'S GUIDE FOR FUTURE REFERENCE.

Safety Instructions

1. Read this user's guide before you operate your projector and save it for future reference. 2. The lamp becomes extremely hot during operation. Allow the projector to cool for approximately 45 minutes prior to removing the lamp assembly for replacement. Do not operate lamps beyond the rated lamp life. Excessive operation of lamps beyond the rated life could cause them to explode on rare occasions. 3. Never replace the lamp assembly or any electronic components unless the projector is unplugged. 4. To reduce the risk of electric shock, do not disassemble this appliance. Take it to a qualified technician when service or repair is required. Incorrect reassembly can cause electric shock when the appliance is subsequently used. 5. Do not place this product on an unstable cart, stand, or table. The product may fall, sustaining serious damage. 6. This product is capable of displaying inverted images for ceiling mount installation. Please use suitable equipment for mounting the unit and ensure it is securely installed.

Caution

• Always remove the lens cap when the projector lamp is on. - Do not look straight at the projector lens during operation. The intense light beam may damage your eyes. - In some countries, the line voltage is NOT stable. This projector is designed to operate safely within a bandwidth of 110 to 230 volts, but could fail if power cuts or surges of more than 10 volts occur. In these high-risk areas, it is recommended that a power stabilizer unit be used in conjunction with this projector.

Save this user's guide: The information contained in this manual will assist you in operating and maintaining your personal projector.

Shipping Contents

The projector is shipped with the cables required for connection to standard PC or laptop computers. Carefully unpack and verify that you have all the items shown below. If any of these items are missing, please contact personnel at the place of purchase.

Projector

Warranty and Support

Quick Setup Guide

Audio Cable, Audio/Video Cable, Remote Control

Power Cord

VGA Cable

User's Guide CD

Projector Description

Projector

1 External control panel (see next page) 11 Audio/Video connector 2 Projection lens 12 Audio jack 3 Front adjuster 13 USB mouse connector 4 IR remote sensor 14 S-Video jack 5 Ventilation grill 15 RS 232 control port 6 Speaker 16 Rear adjuster feet 7 Focus and zoom adjusters 17 Kensington lock slot 8 VGA signal input (PC) 18 AC power cord inlet 9 VGA signal output 19 Main power switch 10 YPBPR connector 20 Lamp door

External Control Panel

1 Power

Turns the projector on or off.

② Auto Sync

Automatically determines the best picture settings for current received signals.

③ < ④ > ⑤ ∧ ⑥ v

⑦ Menu

Menu displays the menu system and closes the menu system. < and > navigate among menus and change settings. ^ and v select individual parameters for making changes.

⑧ Lamp Indicator

The Lamp Indicator will light up when the lamp needs service, cooling or replacement. See “Lamp Information” on page 25 for more detailed information.

9 Temp indicator

The Temp indicator will light up when the system temperature is too high, which may occur if the projector is operated improperly. See "Temperature Warning Indicator" on page 27 for more detailed information.

Adjuster

The projector is equipped with 2 quick-release adjuster feet. Push the buttons to adjust its tilt angle.

I. Lift the projector up and press the adjuster button to release the adjuster. 2. The adjuster will drop into position and be locked.

Projector Features

The projector integrates high-performance optical engine projection and a user-friendly design to deliver high reliability and ease of use.

The projector offers the following features:

• Small and light for portability
• Compact remote control • High quality manual zoom lens • One-key auto-adjustment to display the best picture quality • Digital keystone correction to correct distorted images
• Adjustable color balance control for data/video display • Ultra-high brightness projection lamp
• Ability to display 16.7 million colors • On-screen menus in 11 languages
• Switchable Presentation/ Video mode for data/ video display
• Powerful AV function to provide high quality AV picture • HDTV compatibility (YP BPR)

Note: The brightness of the projected image will vary depending on the ambient lighting conditions and contrast/brightness settings.

Remote Control Description

Remote Control Effective Range

The remote sensors are located on the front and the back of the projector. It can function in a range of 30 degrees horizontally and 30 degrees vertically relative to a line that is a right angle to the remote sensors. The distance between the remote control and the remote sensors must be shorter than 6 meters (19.5 feet).

Removing the Battery Protector

The remote control will not operate until you remove the battery protector. Pull the plastic tab until it comes out of the remote control.

Replacing the Battery

① Pull out the battery holder.

② Insert the new battery in the holder.

③ Push the holder into the remote control.

Caution

Avoid excessive heat and humidity. There may be danger of an explosion if batteries are incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

INSTALLATION

Screen Size

Place the projector at the required distance from the screen according to the desired picture size (see the table below).

• VP6120, VP6121 (XGA) screen size chart

Distance from screen		Diagonal measurement
		Minimum zoom		Maximum zoom
feet	inches	feet	inches	feet	inches
4	48	2.49	29.9	3.05	36.6
6	72	3.73	44.8	4.57	54.9
8	96	4.98	59.7	6.10	73.2
10	120	6.22	74.7	7.62	91.4
12	144	7.47	89.6	9.14	109.7
14	168	8.71	104.5	10.67	128.0
16	192	9.96	119.5	12.19	146.3
18	216	11.20	134.4	13.72	164.6
20	240	12.45	149.4	15.24	182.9
22	264	13.69	164.3	16.76	201.2
24	288	14.94	179.2	18.29	219.5
26	312	16.18	194.2	19.81	237.7
28	336	17.42	209.1	21.34	256.0
30	360	18.67	224.0	22.86	274.3
32	384	19.91	239.0	24.38	292.6

Distance from screen		Diagonal measurement
		Minimum zoom		Maximum zoom
meters	cm	meters	cm	meters	cm
1	100	0.62	62.2	0.76	76.2
1.5	150	0.93	93.3	1.14	114.3
2	200	1.24	124.5	1.52	152.4
2.5	250	1.56	155.6	1.91	190.5
3	300	1.87	186.7	2.29	228.6
3.5	350	2.18	217.8	2.67	266.7
4	400	2.49	248.9	3.05	304.8
4.5	450	2.80	280.0	3.43	342.9
5	500	3.11	311.2	3.81	381.0
5.5	550	3.42	342.3	4.19	419.1
6	600	3.73	373.4	4.57	457.2
6.5	650	4.04	404.5	4.95	495.3
7	700	4.36	435.6	5.33	533.4
7.5	750	4.67	466.7	5.72	571.5
8	800	4.98	497.8	6.10	609.6

• VP6110, VP6111 (SVGA) screen size chart

Distance from screen		Diagonal measurement
		Minimum zoom		Maximum zoom
feet	inches	feet	inches	feet	inches
4	48	1.96	23.5	2.40	28.7
6	72	2.93	35.2	3.59	43.1
8	96	3.91	47.0	4.79	57.5
10	120	4.89	58.7	5.99	71.9
12	144	5.87	70.4	7.19	86.2
14	168	6.85	82.2	8.39	100.6
16	192	7.83	93.9	9.58	115.0
18	216	8.80	105.7	10.78	129.4
20	240	9.78	117.4	11.98	143.7
22	264	10.76	129.1	13.18	158.1
24	288	11.74	140.9	14.37	172.5
26	312	12.72	152.6	15.57	186.9
28	336	13.70	164.3	16.77	201.2
30	360	14.67	176.1	17.97	215.6
32	384	15.65	187.8	19.17	230.0

Distance from screen		Diagonal measurement
		Minimum zoom		Maximum zoom
meters	cm	meters	cm	meters	cm
1	100	0.49	48.9	0.60	59.9
1.5	150	0.73	73.4	0.90	89.8
2	200	0.98	97.8	1.20	119.8
2.5	250	1.22	122.3	1.50	149.7
3	300	1.47	146.7	1.80	179.7
3.5	350	1.71	171.2	2.10	209.6
4	400	1.96	195.7	2.40	239.6
4.5	450	2.20	220.1	2.70	269.5
5	500	2.45	244.6	2.99	299.5
5.5	550	2.69	269.0	3.29	329.4
6	600	2.93	293.5	3.59	359.4
6.5	650	3.18	317.9	3.89	389.3
7	700	3.42	342.4	4.19	419.3
7.5	750	3.67	366.8	4.49	449.2
8	800	3.91	391.3	4.79	479.1

Connecting to Various Equipment

The internal speaker is good for a small audience. If you have a larger audience, you may want to connect the audio source directly to a separate sound system instead of the projector.

HDTV Equipment

The projector is capable of displaying various High Definition TV display modes. Some of these sources are:

• Digital-VHS (D-VHS) player - DVD player - Satellite Dish HDTV receiver - DTV tuners

Most of these sources will provide an analog component video output, a standard VGA output, or a YPBPR (default) format.

The projector is capable of accepting HDTV data through a YPBPR connector. Use a standard HDTV cable to display HDTV images.

The following standards are supported in the HDTV function:

• 480i • 480p • 720p • 1080i

Please refer to "Video and Audio Adjustments -- the Menu System" on page 18 for information on the HDTV OSD selections.

Connecting to Various Equipment

It only takes a few seconds to connect your projector to your desktop or notebook computer, VCR, or other systems. However, a Mac adapter is needed for connection to Macintosh computers.

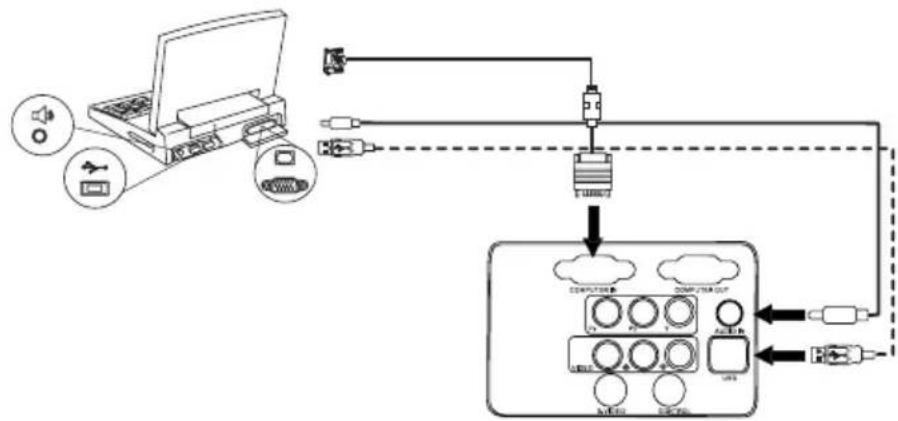

I. Computer

The USB cable is not needed unless you have a remote control with mouse functions.

1. DVD player or HDTV

1. S-video device

1. Video device or VCR

1. Output monitor

OPERATION

Start Up

I. Plug the power cord into the projector and into a wall socket.

1. Turn on the main power switch.

1. Press and hold POWER to start the unit. The back-lit POWER key flashes blue and stays blue when the power is turned on.

Projector

Remote Control

(When the power is turned off, there is a 120-second cooling period before the projector can be re-started.)

1. Switch on all connected equipment.

Digital Keystone Correction

Keystoning refers to the situation where the projected image is noticeably wider at either the top or bottom. To correct this, press KEYSTONE ▲ (hotkey) on the control panel of the projector or on the remote control, and then adjust the sliding bar labeled Keystone, as needed. Press ▲ if the top of the image is too wide. Press ▼ if the bottom of the image is too wide.

Auto Adjustment

In some cases, you may need to optimize the picture quality. To do this, press the AUTO key on the control panel of the projector or on the remote control. Within 3 seconds, the built-in Intelligent Auto Adjustment function will re-adjust settings to provide the best picture quality.

Source Selection

When several input sources are available, press the SOURCE key to make a selection from the remote control or from the menu system.

Video and Audio Adjustments -- the Menu System

1. On the projector or remote control, press the Menu button.
2. Press < or > to select the desired menu.
3. Press v or ^ to select the desired parameter.
4. Press < or > to change the setting or open a sub-menu.
5. To change another parameter, press v or ^ to select the parameter.
6. To go to another menu, press the Menu button, then press < or > to select the menu.
7. To close the menu system, press the Menu button one or more times.

Quick Tab

FUNCTION DESCRIPTION
Source	Selects picture source.*The operation of this function depends on the Source Scan setting.
Keystone	Corrects slanted edges of the image.
Picture mode	Adjusts picture for type of input.
Auto-sync	Synchronizes with input signal.
Aspect ratio	Selects proportions of the image.

Adjust Tab

FUNCTION DESCRIPTION
Brightness	Brightens or darkens the image.
Contrast	Sets difference between light and dark areas.
Frequency	Adjusts timing relative to input signal.*This function is available only when the input source is PC.
Trading	Adjusts synchronization to input signal.*This function is available only when the input source is PC.
V position	Shifts image up or down.
	*This function is available only when the input source is PC.
Saturation	Adjusts intensity of colors.*This function is available only when the input source is Video.
Tint	Shifts colors toward red or toward green.*This function is available only when the input source is Video.
Sharpness	Sharpens or softens the image.*This function is available only when the input source is Video.
Color temp	Shifts colors toward red or toward blue.

Audio Tab

FUNCTION DESCRIPTION
Mute	Stops audio output.
Volume	Changes loudness of audio
Treble	Changes loudness of higher frequencies.
Bass	Changes loudness of lower frequencies.

Setup Tab

FUNCTION DESCRIPTION
Language	Selects language for menus. Use < / > key to select the desired language.
Position	Adjusts the image to match the projector placement.1. Default 2. Ceiling mounted projection 3. Rear screen projection 4. Ceiling mounted and rear-screen projection
Source scan	Sets whether projector searches for input signal.
OSD position	Selects position of on-screen menu.
OSD timeout	Sets how quickly on-screen menu closes.
Advanced...	Auto-offSets shutdown delay for no input signal.
	Lamp saverSets lower light output for longer life.
	Lamp resetFor new lamp, resets hours of use.
	Reset menuReturns all settings to factory preset values.

PIP Tab

These functions are available only when the input source is PC and a video or S-video source is also connected.

FUNCTION DESCRIPTION
Source	Selects an input source for the picture-in-picture.
Size	Selects the size of the picture-in-picture. Use < / >key to select small, medium or large PIP size.
Position	Selects a desired position for the PIP.
PIP Adjust...	BrightnessBrightens or darkens the image.
	ContrastSets difference between light and dark areas.
	SaturationAdjusts intensity of colors.
	TintShifts colors toward red or toward green.
	SharpnessSharpens or softens the image.

Shutdown

I. Press and hold POWER and a warning message will appear. To turn off the projector, press POWER again.

1. The fan will continue to run for approximately two minutes.
2. Turn off the main power switch.

1. Disconnect the power cord from the wall socket.

Caution

Do not unplug the power cord before the projector is shut down or during the two-minute cooling process.

If the projector is not properly shut down, the system will detect this and cool the lamp for two minutes automatically before turning on again, to protect the lamp.

MAINTENANCE

Lamp Information

Lamp LED Indicator

Lamp LED is off Lamp is operating normally.

Lamp LED is on Lamp is burned out or not properly installed. Repace the lamp.

Lamp Replacement

When the Lamp Indicator lights up red or a message appears suggesting the time for lamp replacement, please install a new lamp or consult your dealer. An old lamp could cause a malfunction in the projector and in rare instances may even break.

Warning

To reduce the risk of electrical shock, always turn off the projector and disconnect the power cord before changing the lamp.

To reduce the risk of severe burns, allow the projector to cool for at least 45 minutes before replacing the lamp.

To reduce the risk of injuries to fingers and damage to internal components, use caution when removing lamp glass that has shattered into sharp pieces.

To reduce the risk of injuries to fingers and/or compromising image quality by touching the lens, do not touch the empty lamp compartment when the lamp is removed.

This lamp contains mercury. Consult your local hazardous waste regulations to dispose of this lamp in a proper manner.

1. Turn off the projector. Disconnect the power cord from the outlet and the projector.
2. Loosen the screw and remove the lamp cover. If the lamp is hot, avoid burns by waiting 45 minutes until the lamp has cooled.
3. Loosen the 3 screws. (It is strongly recommended that you use a magnetic-head screwdriver.) Pull the handle to remove the lamp housing. If the screws are not loosened completely, they could injure your fingers. Do not insert your hand into the box after the lamp is removed. If you touch the optical components inside, this could cause color unevenness in projected images.
4. Replace the lamp with a new one. Insert it into the projector, and tighten the screws firmly. Loose screws may cause a bad connection, which may result in malfunction.
5. Re-install the lamp cover and tighten the screw. Do not turn on the power with the lamp cover removed.
6. After the lamp is replaced, turn on the projector and reset the total lamp operation time. To do this, use the on-screen menu system and go to Setup > Advanced > Lamp Reset. Do not reset if the lamp is not replaced as this could cause damage.

Step I

Step 2

Step 3

Step 4

Temperature Warning Indicator

Status Description
Temperature LED is off	Temperature is normal.
Temperature LED is blinking	Internal fan is not working properly. Turn off the projector and contact HP for assistance.
Temperature LED is on	Internal temperature is too high. Turn off the projector and check the vents for blockage. If this continues to occur, contact HP for assistance.

Accessories

You can buy HP accessories for your projector, such as the following:

• Carrying case
• Premium remote control (plus USB cable)
• Ceiling mount
• 60-inch mobile screen
• Replacement lamp module • Video and power cables

TROUBLESHOOTING

Common Problems & Solutions

PROBLEMS TRY THESE SOLUTIONS
NO POWER	Make sure the power cord is inserted fully into the power cord socket.Make sure the power cord is inserted fully into the power outlet.Toggle the power switch to the position “I”.Wait two minutes after the projector is turned off before turning the projector back on.
NO PICTURE	Check for the proper input source.Ensure all cables are connected properly.Adjust the brightness and contrast.Remove the lens cap.
TRAPEZOID IMAGE ON THE SCREEN	Reposition the unit to improve its angle on the screen.Use the Keystone correction key on the control panel of the projector or the remote control unit.
POOR COLOR	In the menu system, set the picture mode according to the type of image you are displaying: computer data presentation or video image.Adjust brightness, contrast, or saturation.
BLURRED IMAGE	Press Auto Sync on the control panel of the projector or the remote control unit to get better picture quality.Adjust the focus.Reposition the unit to improve its projection angle.Ensure the distance between the unit and screen is within the adjustment range of the lens.
REMOTE CONTROL DOES NOT WORK	Replace the batteries with new ones.Make sure there is no obstacle between the remote control and the projector.Stand within 6 meters (19.5 feet) of the projector.Make sure nothing is blocking the front and rear receivers.If you are using a remote control with mouse and page up/ down functions, make sure you have a USB connection between the projector and computer. Certain computer models may not be compatible with the mouse and page up/ down functions of the projector -- try using a different computer.
USB CONNECTION DOES NOT WORK	The remote control shipped with the projector does not include any features that use a USB connection.A USB connection supports only certain remote control features.See the remote control section of this table.

Status Messages

On-Screen Messages	Description
SEARCHING	Projector is searching for input.
ACQUIRING SIGNAL	Projector has identified the input signal and is running the auto image adjustment function.
OUT OF RANGE	Input signal frequency exceeds the projector's range.
LAMP WARNING - CHANGE LAMP AND RESET LAMP TIMER!	The lamp has been in operation for 1900 hours. Install a new lamp for optimal performance.
END OF LAMP LIFE. YOU MUST CHANGE THE LAMP SOON.	The lamp has been in operation for 1980 hours.
END OF LAMP LIFE. YOU MUST CHANGE THE LAMP NOW.	The lamp has been in operation for over 2000 hours. The warning message will display for 15 seconds every time you turn on the projector.

SPECIFICATIONS

Projector Specifications

Technical Specifications

Note: All specifications are subject to change without notice.

General

Model name VP6120, VP6121 (XGA)

VP6110, VP6111 (SVGA)

Optical

Display system I-CHIP DMD

Lens F/Number F/2.6

Lamp 200W \~ 250W lamp

Electrical

Power supply AC100 \~ 240V, 4.0A, 50/60 Hz (Automatic)

Power consumption 330W (Max)

Mechanical

Dimensions 308 mm (W) × 95 mm (H) × 238 mm (D)

Operating temperature 10°C to 35°C

range

Weight 6.9 lbs (3.1 Kg)

Input terminal

Computer input

VGA input D-sub 15-pin (female)

Video signal input

S-VIDEO Mini DIN 4-pin port x1

VIDEO RCA jack x1

HDTV signal input YPBPR RCA jack x3

Audio signal input

Audio I Mini jack stereo port

Audio 2 RCA jack L, R x2

Output

USB mouse connector A/B series x1

Speaker 2 watt x 1

Control

RS-232C 9-pin x1

Timing Chart

Resolution H Sync (kHz) V Sync (Hz) Remark
640x350 31.5 70.1
640x400 37.9 85.1	VESA
720x400 31.5 70.0
720x400 37.9 85.1	VESA
640x480 31.5 60.0	VESA
640x480 37.9 72.8	VESA
640x480 35 66.7 Macintosh
640x480 43.3 85.0	VESA
800x600 35.2 56.3	VESA
800x600 37.9 60.3	VESA
800x600 46.9 75.0	VESA
800x600 48.1 72.2	VESA
800x600 53.7 85.1	VESA
832x624 49.7 74.5	Macintosh
1024x768 48.4 60.0	VESA
1024x768 56.5 70.1	VESA
1024x768 60.0 75.0	VESA
1024x768 68.7 85.0	VESA
1280x1024 64.0 60.0	VESA

DIMENSIONS

Unit: mm

REGULATORY AND SAFETY

This section presents information that shows how your digital projector complies with regulations in certain regions. Any modifications to your digital projector not expressly approved by Hewlett-Packard could void the authority to operate the digital projector in these regions.

LED Safety

The infrared ports located on the digital projector are classified as Class I LED (light-emitting diode) devices according to International Standard IEC 825-1 (En 60825-1). This device is not considered harmful, but the following precautions are recommended:

• If the unit requires service, contact an authorized HP service center.
• Do not attempt to make any adjustment to the unit.
• Avoid direct eye exposure to the infrared LED beam. Be aware that the beam is invisible light and cannot be seen.
• Do not attempt to view the infrared LED beam with any type of optical device.

Mercury Safety

Warning: This digital projector lamp contains a small amount of mercury. If the lamp breaks, adequately ventilate the area where the breakage occurred. Disposal of this lamp may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance (www.eiae.org)

U.S.A.

This digital projector has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This digital projector generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this digital projector does cause harmful interference to radio or television reception (which can be determined by unplugging the unit), try the following:

• Reorienting or relocating the receiving antenna.
• Relocating the digital projector with respect to the receiver.
• Connecting the digital projector's power cord to another power outlet.

Connections to Peripheral Devices. To maintain compliance with FCC Rules and Regulations, use properly shielded cables with this device.

For more information, consult your dealer, an experienced radio/television technician, or the following booklet, prepared by the Federal Communications Commission: How

to Identify and Resolve Radio-TV Interference Problems. This booklet is available from the U.S. Government Printing Office, Washington, DC 20402, Stock Number 004-000-00345-4. At the first printing of this manual, the telephone number was [phone].

Canada

This Class B digital apparatus complies with Canadian ICES-003.

Japan

NOTE: For regulatory identification purposes, your product is assigned a Regulatory Model Number. The Regulatory Model Number for your product is listed in the declaration below. This regulatory number is different from the marketing name and product number.

DECLARATION OF CONFORMITY

According to ISO/IEC Guide 22 and EN 45014

Manufacturer's Name:

Hewlett Packard Company

Manufacturer's Address:

Hewlett Packard Company

Digital Projection & Imaging

1000 NE Circle Blvd.

Corvallis, OR 97330-4239

Declares, that the product(s):

Product Name: HP Digital Projector

Model Number(s): VP6120, VP6121, VP6110, VP6111

Regulatory Model Number(s): CRVSB-03HE

Conforms to the following product specifications:

Safety: IEC 60950:1991 +A1,A2,A3,A4 / EN 60950:1992+A1,A2,A3,A4,A11

IEC 60825-1:1993 +A1 / EN 60825-1:1994 +A11 Class 1 LED

GB4943-1995

EMC: EN 55022: 1998 Class B [1]

CISPR 24:1997 / EN 55024: 1998

IEC 61000-3-2:1995 / EN 61000-3-2:1995 +A1:1998 +A2:1998 +A14:2000

IEC 61000-3-3:1994 / EN 61000-3-3:1995

GB9254-1998

FCC Title 47 CFR, Part 15 Class B/ANSI C63.4:1992

AS/NZS 3548:1995 Rules and Regulations of Class B

Supplementary information:

The product herewith complies with the requirements of the following Directives and carries the CE marking accordingly:

-Low Voltage Directive: 73/23/EEC

-EMC Directive: 89/336/EEC

[1] The product was tested in a typical configuration with Hewlett Packard Personal Computer peripherals.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Corvallis, Oregon, March 7, 2004

European Contact for regulatory topics only: Hewlett Packard GmbH, HQ-TRE, Herrenberger Straße 140, 71034 Boeblingen, Germany. (FAX:[phone]).

USA Contact: Hewlett Packard Co., Corporate Product Regulations Manager, 3000 Hanover

Street, Palo Alto, CA 94304. Phone: [phone].
