Product type	Motherboard
Brand	ASUS
Model	H81-GAMER
Form factor	micro-ATX (9.6 x 9.6 in)
Chipset	Intel H81
CPU socket	LGA1150
Supported CPUs	Intel Core i7/i5/i3, Pentium, Celeron (4th Gen)
Memory type	DDR3 1600/1333 MHz
Max memory	16 GB (2x DIMM)
Memory channels	Dual-channel
Expansion slots	1x PCIe 3.0 x16, 2x PCIe 2.0 x1, 1x PCI
Storage	2x SATA 6 Gb/s, 2x SATA 3 Gb/s
USB ports (rear)	2x USB 3.0, 4x USB 2.0
USB headers	2x USB 3.0, 4x USB 2.0
Video outputs	HDMI, DVI-D, VGA
Audio codec	Realtek ALC887 8-channel HD Audio
LAN	Realtek 8111G Gigabit Ethernet
Power connectors	24-pin ATX, 4-pin ATX12V
Dimensions (W x H)	244 x 244 mm
Weight	Approx. 0.5 kg
Operating temperature	0°C to 50°C
Non-operating temperature	-40°C to 70°C
Safety	ESD protection, grounded installation
Cleaning	Use compressed air; avoid liquids
Repairability	Replaceable CMOS battery; no user-serviceable parts

Frequently Asked Questions - H81-GAMER ASUS

Which CPUs are compatible with the H81-GAMER?

The H81-GAMER supports Intel 4th Generation Core i7/i5/i3, Pentium, and Celeron processors with LGA1150 socket. Check the CPU support list on ASUS website for exact models.

What is the maximum RAM capacity?

It supports up to 16 GB of DDR3 RAM across two slots, with speeds of 1333/1600 MHz. Use matched pairs for dual-channel mode.

Does the H81-GAMER support M.2 SSDs?

No, the H81-GAMER does not have an M.2 slot. It uses SATA 6 Gb/s (2 ports) and SATA 3 Gb/s (2 ports) for storage.

How can I update the BIOS?

Use ASUS EZ Flash 2 utility in the BIOS setup. Download the latest BIOS file from ASUS support, save it to a USB drive, and run EZ Flash.

Does it support dual graphics cards (CrossFire/SLI)?

No. The H81-GAMER has only one PCIe x16 slot and does not support multi-GPU configurations.

What audio jacks are on the rear panel?

The rear panel includes: 3 audio jacks (Line-in, Line-out, Mic) driven by the Realtek ALC887 codec, supporting 8-channel audio.

Can I use USB 3.0 front panel ports?

Yes, the motherboard has two internal USB 3.0 headers (providing 4 additional USB 3.0 ports) and two USB 2.0 headers (4 more ports).

Is overclocking possible on the H81-GAMER?

The H81 chipset does not support CPU overclocking. However, you can overclock the integrated GPU via BIOS settings if using a 'K' series CPU.

Does this motherboard support Windows 10?

Yes, ASUS provides drivers for Windows 10 (64-bit). However, some legacy features may require compatibility mode.

How do I clear the CMOS?

Turn off the PC, unplug power, remove the CMOS battery for 30 seconds, then reinstall. Alternatively, use the CLRTC jumper on the board.

User questions about H81-GAMER ASUS

1 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

What are the error codes and diagnostic codes for the ASUS H81-GAMER motherboard?

Frequently Asked Questions - 4 d

Response Notice-Facile

The ASUS H81-GAMER motherboard features a status LED diagnostic system and beep codes to identify issues during startup (POST - Power-On Self-Test).

Diagnostic LEDs

Most ASUS H81 motherboards have diagnostic LEDs located near the CPU connector. They indicate the status of key components:

CPU LED - lights up if the processor is not detected or improperly inserted
DRAM LED - lights up if the RAM is not installed or is faulty
VGA LED - lights up if the graphics card is not installed or is improperly connected
BOOT LED - lights up in case of a boot error

If a LED remains lit after startup, it indicates a problem with the corresponding component.

Beep Codes

If the system emits a series of beeps, here are the common codes:

1 beep - Normal startup (no issues)
1 long beep + 2 short beeps - RAM error
Continuous beeping - RAM or CPU failure
1 long beep + 1 short beep - VGA error

For more details on specific error codes for your configuration, refer to the diagnostic or troubleshooting section of the installation manual provided with your motherboard.

Respond (be the first)

Download the instructions for your Motherboard in PDF format for free! Find your manual H81-GAMER - ASUS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. H81-GAMER by ASUS.

USER MANUAL H81-GAMER ASUS

Copyright © 2014 ASUSTeK COMPUTER INC. All Rights Reserved.

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. ("ASUS").

Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

ASUS PROVIDES THIS MANUAL "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

Offer to Provide Source Code of Certain Software

This product contains copyrighted software that is licensed under the General Public License ("GPL"), under the Lesser General Public License Version ("LGPL") and/or other Free Open Source Software Licenses. Such software in this product is distributed without any warranty to the extent permitted by the applicable law. Copies of these licenses are included in this product.

Where the applicable license entitles you to the source code of such software and/or other additional data, you may obtain it for a period of three years after our last shipment of the product, either

(1) for free by downloading it from http://support.asus.com/download or

(2) for the cost of reproduction and shipment, which is dependent on the preferred carrier and the location where you want to have it shipped to, by sending a request to:

ASUSTeK Computer Inc.

Legal Compliance Dept.

15 Li Te Rd.,

Beitou, Taipei 112

Taiwan

In your request please provide the name, model number and version, as stated in the About Box of the product for which you wish to obtain the corresponding source code and your contact details so that we can coordinate the terms and cost of shipment with you.

The source code will be distributed WITHOUT ANY WARRANTY and licensed under the same license as the corresponding binary/object code.

This offer is valid to anyone in receipt of this information.

ASUSTeK is eager to duly provide complete source code as required under various Free Open Source Software licenses. If however you encounter any problems in obtaining the full corresponding source code we would be much obliged if you give us a notification to the email address gpl@asus.com, stating the product and describing the problem (please DO NOT send large attachments such as source code archives, etc. to this email address).

Safety information iv

About this guide iv

Package contents ...... vi

H81-GAMER specifications summary...... vi

Chapter 1: Product introduction

1.1 Before you proceed 1-1

1.2 Motherboard overview....1-1

1.3 Central Processing Unit (CPU) 1-3

1.4 System memory 1-7

1.5 Expansion slots.... 1-10

1.6 Jumpers 1-11

1.7 Connectors....1-12

1.8 Onboard LED 1-21

1.9 Software support.... 1-22

Chapter 2: BIOS information

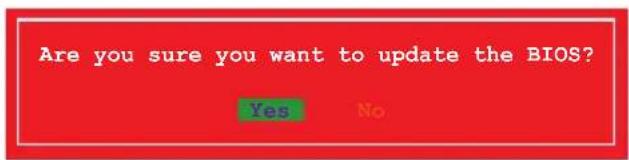

2.1 Managing and updating your BIOS 2-1

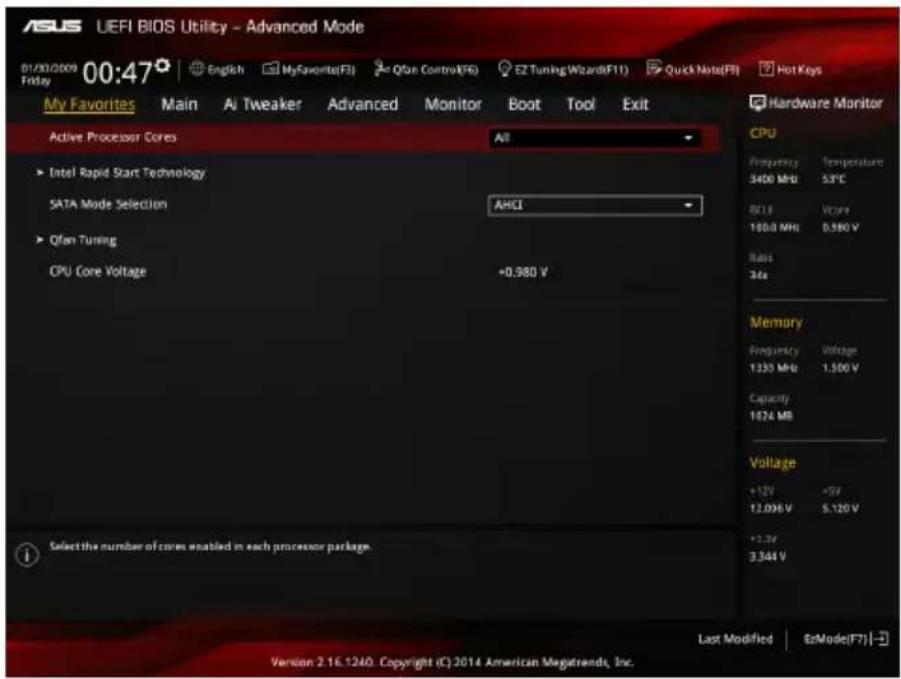

2.2 BIOS setup program 2-6

2.3 My Favorites 2-10

2.4 Main menu 2-11

2.5 Ai Tweaker menu.... 2-13

2.6 Advanced menu 2-26

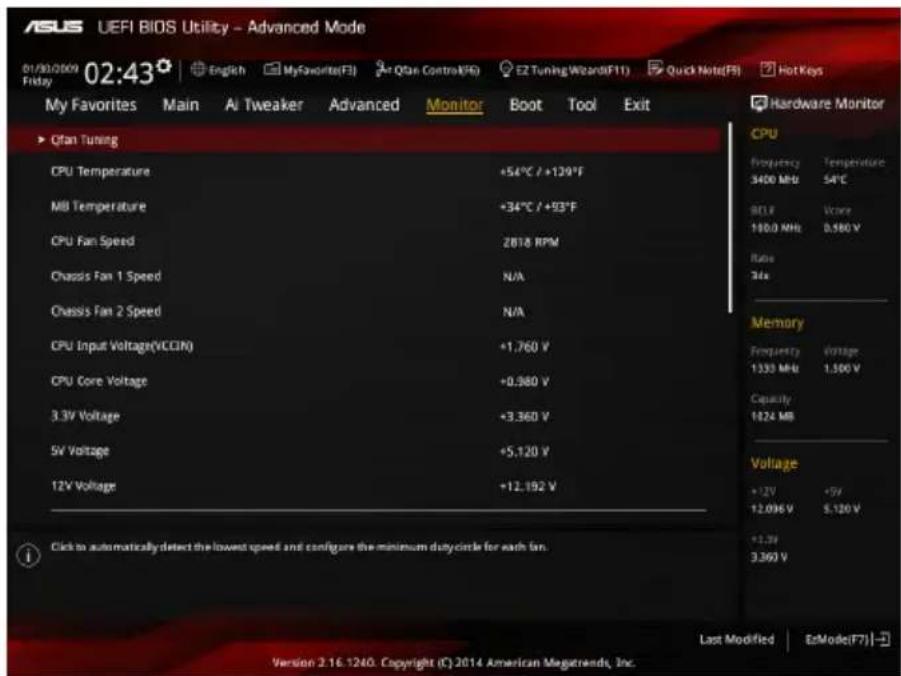

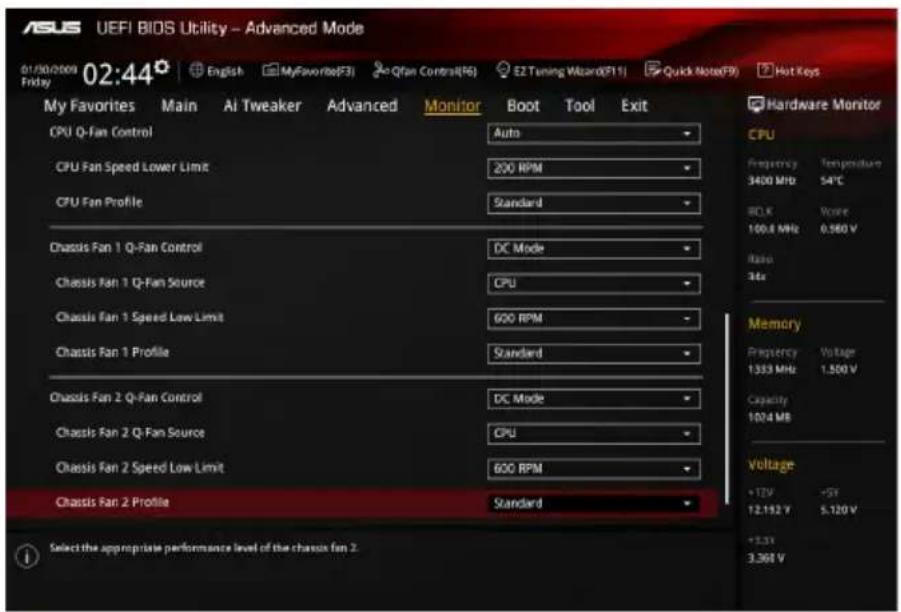

2.7 Monitor menu 2-35

2.8 Boot menu 2-39

2.9 Tool menu 2-45

2.10 Exit menu.... 2-46

Appendices

Notices....A-1

Safety information

Electrical safety

To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.
When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.
Before connecting or removing signal cables from the motherboard, ensure that all power cables are unplugged.
Seek professional assistance before using an adapter or extension cord. These devices could interrupt the grounding circuit.
Ensure that your power supply is set to the correct voltage in your area. If you are not sure about the voltage of the electrical outlet you are using, contact your local power company.
If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.

Operation safety

Before installing the motherboard and adding components, carefully read all the manuals that came with the package.
Before using the product, ensure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.
To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.
Avoid dust, humidity, and temperature extremes. Do not place the product in any area where it may be exposed to moisture.
Place the product on a stable surface.
If you encounter technical problems with the product, contact a qualified service technician or your retailer.

About this guide

This user guide contains the information you need when installing and configuring the motherboard.

How this guide is organized

This guide contains the following parts:

• Chapter 1: Product introduction

This chapter describes the features of the motherboard and the new technology it supports. It includes descriptions of the switches, jumpers, and connectors on the motherboard.

• Chapter 2: BIOS information

This chapter discusses changing system settings through the BIOS Setup menus. Detailed descriptions for the BIOS parameters are also provided.

Where to find more information

Refer to the following sources for additional information and for product and software updates.

1. ASUS websites

The ASUS website provides updated information on ASUS hardware and software products. Refer to the ASUS contact information.

2. Optional documentation

Your product package may include optional documentation, such as warranty flyers, that may have been added by your dealer. These documents are not part of the standard package.

Conventions used in this guide

To ensure that you perform certain tasks properly, take note of the following symbols used throughout this manual.

ASUS H81-GAMER - Conventions used in this guide - 1

DANGER/WARNING: Information to prevent injury to yourself when completing a task.

CAUTION: Information to prevent damage to the components when completing a task.

IMPORTANT: Instructions that you MUST follow to complete a task.

NOTE: Tips and additional information to help you complete a task.

Typography

Bold text Indicates a menu or an item to select.

Italics Used to emphasize a word or a phrase.

<Key> Keys enclosed in the less-than and greater-than sign means that you must press the enclosed key. Example: <Enter> means that you must press the Enter or Return key.

+ + If you must press two or more keys simultaneously, the key names are linked with a plus sign (+).

Package contents

Check your motherboard package for the following items.

Motherboard	ASUS Gaming Motherboard – H81-GAMER
Cables 2 x Serial ATA 6.0 Gb/s cables
Accessories 1 x I/O Shield
Application DVD Support DVD
Documentation User Guide

ASUS H81-GAMER - Package contents - 1

If any of the above items is damaged or missing, contact your retailer.

H81-GAMER specifications summary

CPU	LGA1150 socket for Intel® 4th, New 4th & 5th Generation CoreTM i7 / i5 / i3,Pentium®, and Celeron® processorsSupports Intel® 22nm CPUSupports Intel® Turbo Boost Technology 2.0 The Intel ® Turbo Boost Technology 2.0 support depends on the type of CPU installedin your system. Refer towww.asus.comfor Intel ®CPU support list.
Chipset Intel	® H81 Express Chipset
Memory	4 x DIMM, maximum 32 GB, DDR3 1600 / 1333 / 1066 MHz, non-ECC, un-bufferedmemoryDual-channel memory architectureSupports Intel® Extreme Memory Profile (XMP) Hyper DIMM support is subject to the physical characteristics of individual CPUs.Please refer to Memory QVL (Qualified Vendors List) for details. Refer towww.asus.comfor the latest Memory QVL (Qualified Vendors List).* Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMPmode will run at the maximum transfer rate of DDR3 1600 MHz.**** Due to Intel® chipset limitation, this motherboard can only support single-sidedmemories when four modules are installed and they will run at the maximum transferrate of DDR3 1066MHz.
Graphics	Multi-VGA output support: DVI / RGB ports- Supports DVI with maximum resolution of 1920 x 1200 @ 60 Hz- Supports RGB with maximum resolution of 1920 x 1200 @ 60 HzSupports Intel® InTruTM 3D, Quick Sync Video, Intel® Clear Video HD Technology,and Intel® InsiderTMMaximum shared memory of 512 MB
Expansion slots	1 x PCI Express 2.0 x16 slot3 x PCI Express 2.0 x1 slots3 x PCI slots
LAN Intel	® Gigabit LAN

(continued on the next page)

H81-GAMER specifications summary

Storage	Intel®H81 Express Chipset:- 2 x Serial ATA 6.0 Gb/s connectors (gray)- 2 x Serial ATA 3.0 Gb/s connectors (black)- Supports Intel® Rapid Start Technology* and Intel® Smart Connect Technology* Due to the limitation of the Intel ® H81 chipset, Intel® Rapid Start Technology can be configured only from the BIOS Setup program. These functions work depending on the CPU installed.
Audio	SupremeFX 8-channel High Definition Audio CODEC- Supports jack-detection, multi-streaming and front panel MIC jack-retasking- High quality 115dB SNR stereo playback outputAudio Features:- SupremeFX ShieldingTM Technology- ELNA premium audio capacitors- Headphone AMP- Optical S/PDIF out port at back panel
USB	Intel®H81 Express Chipset - support ASUS USB 3.0 Boost- 2 x USB 3.0/2.0 ports at back panel (blue)Intel®H81 Express Chipset- 8 x USB 2.0/1.1 ports (4 ports at mid-board, 4 ports at rear panel)ASMedia ASM1042 USB 3.0 Controller- 2 x USB 3.0 ports at mid-board
ASUS Gaming Features	Gamer's Guardian- ESD Guards on D-Sub, LAN, Audio, KBMS and USB3.0/2.0 ports- DRAM Overcurrent Protection- 10K Black Metallic Capacitors- Stainless Steel Back I/O- ASUS DIGI+ VRMPerformance Optimization- ASUS DIGI+ VRM: Digital Power Design for the CPU- ASUS EPU- ASUS GPU Boost- ASUS Fan Xpert 2- USB 3.0 BoostEZ DIY- Push Notice- UEFI BIOS with EZ Mode / CrashFree BIOS 3 / EZ Flash 2- Q-Design with ASUS Q-Shield / Q-DIMM / Q-slotASUS Exclusive Features- AI Suite 3- Disk Unlocker- AI Charger+

(continued on the next page)

H81-GAMER specifications summary

Rear Panel I/O ports	1 x PS/2 keyboard port1 x PS/2 mouse port1 x Optical S/PDIF out port1 x DVI port1 x D-Sub port2 x USB 3.0 ports4 x USB 2.0 ports1 x LAN (RJ45) port8-channel audio I/O ports
Internal I/O connectors	1 x 19-pin USB 3.0/2.0 connector supports additional 2 USB 3.0/2.0 ports2 x USB 2.0/1.1 connectors support additional 4 USB 2.0/1.1 ports2 x SATA 6.0 Gb/s connectors (gray)2 x SATA 3.0 Gb/s connectors (black)1 x CPU Fan connector (4-pin)2 x Chassis Fan connectors (4-pin)1 x COM connector1 x TPM connector1 x 24-pin EATX Power connector1 x 8-pin ATX 12V Power connector1 x Front panel audio connector (AAFP)1 x System panel1 x Clear CMOS jumper
BIOS features	64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Q-Fan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen Function, F3 Shortcut function and ASUS DRAM SPD(Serial Presence Detect)
Manageability Wfm	2.0, DMI 2.7, WOL by PME, PXE
Support DVD	DriversASUS utilitiesEZ UpdateAnti-virus software (OEM version)
Form factor ATX form factor: 12.0 in. x 8.4 in. (30.5 cm x 21.4 cm)

ASUS H81-GAMER - H81-GAMER specifications summary - 1

Specifications are subject to change without notice.

Product introduction

1.1 Before you proceed

Take note of the following precautions before you install motherboard components or change any motherboard settings.

ASUS H81-GAMER - Before you proceed - 1

Unplug the power cord from the wall socket before touching any component.
Before handling components, use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, to avoid damaging them due to static electricity.
Hold components by the edges to avoid touching the ICs on them.
Whenever you uninstall any component, place it on a grounded antistatic pad or in the bag that came with the component.
Before you install or remove any component, ensure that the ATX power supply is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, or components.

1.2 Motherboard overview

Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits.

ASUS H81-GAMER - Motherboard overview - 1

Unplug the power cord before installing or removing the motherboard. Failure to do so can cause you physical injury and damage to motherboard components.

1.2.1 Placement direction

When installing the motherboard, place it into the chassis in the correct orientation. The edge with external ports goes to the rear part of the chassis as indicated in the image.

1.2.2 Screw holes

Place six screws into the holes indicated by circles to secure the motherboard to the chassis.

ASUS H81-GAMER - Screw holes - 1

Do not overtighten the screws! Doing so can damage the motherboard.

Place this side towards the rear of the chassis. ASUS H81-GAMER

1.2.3 Motherboard layout 21.4cm (8.4in). KBMS, DV1, VGA, USB56, USB3_12, LAN_USB94, AUDIO, CHA_FAN1, LGA1150, PCIEX1_1, PCIEX16, PCIEX1_2, ASIM 1083, PCIEX1_3, PCI1, PCI2, PCI3, AAPF, COM, TPM, USB910, USB1112, CPU_FAN, DDR3 DIMM_A1 (64bit, 240-pin module), DDR3 DIMM_A2 (64bit, 240-pin module), DDR3 DIMM_B1 (64bit, 240-pin…

1.2.4 Layout contents

Connectors/Jumpers/Slots/LED Page

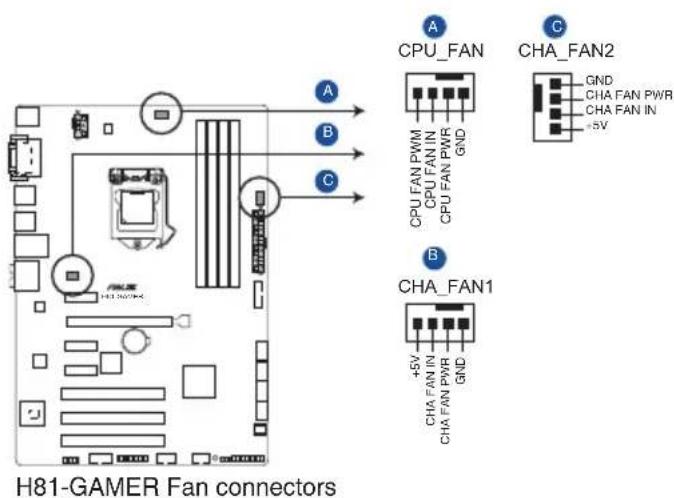

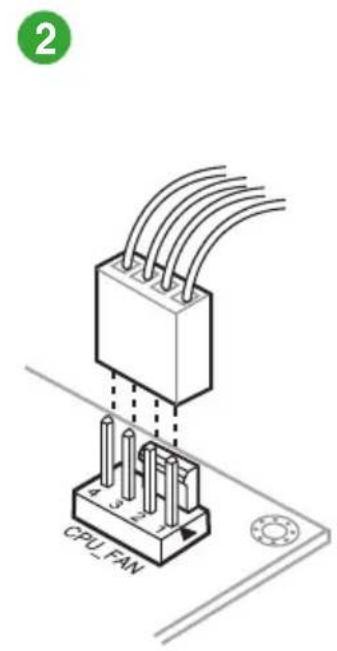

1. CPU and chassis fan connectors (4-pin CPU_FAN, CHA_FAN1, CHA_FAN2)	1-14

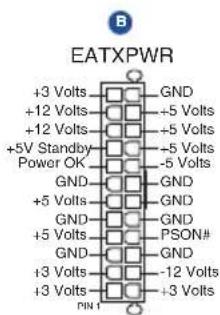

2. EATX power connectors (24-pin EATXPWR, 8-pin EATX12V) 1-15
3. Intel ® LGA1150 CPU socket 1-3

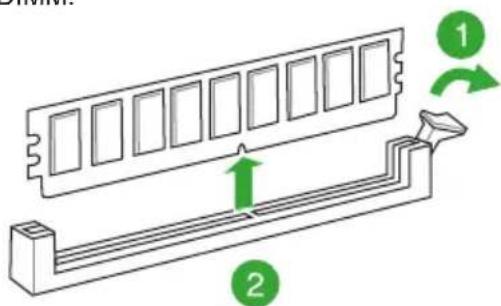

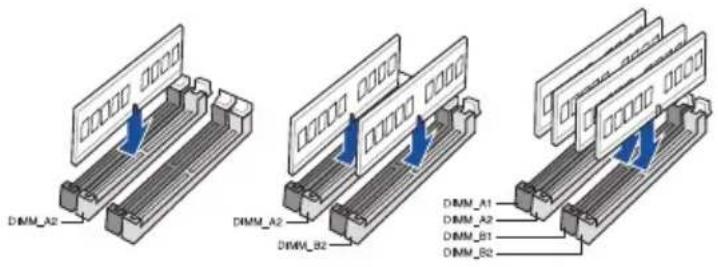

4. DDR3 DIMM slots 1-7
5. USB 3.0 connector (20-1 pin USB3_E12) 1-17
6. Intel ® H81 Serial ATA 6.0 Gb/s connector (7-pin SATA6G_1, SATA6G_2 [gray])	1-18
7. Intel ® H81 Serial ATA 3.0 Gb/s connectors (7-pin SATA3G_1, SATA3G_2 [black])	1-19
8. Standby Power LED (SB_PWR) 1-21

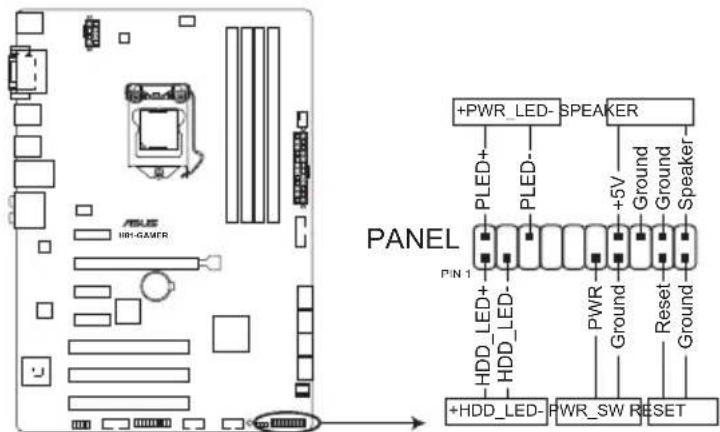

9. System panel connector (20-8 pin PANEL) 1-20
10. Clear RTC RAM (3-pin CLRTC) 1-11
11. USB 2.0 connectors (10-1 pin USB910, USB1112)	1-17
12. TPM connector (20-1 pin TPM) 1-6
13. Serial port connectors (10-1 pin COM) 1-15
14. Front panel audio connector (10-1 pin AAFP) 1-16

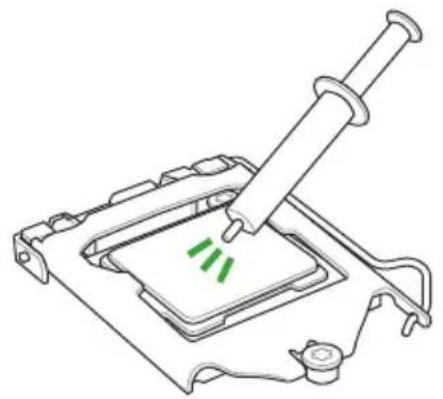

1.3 Central Processing Unit (CPU)

This motherboard comes with a surface mount LGA1150 socket designed for the Intel® 4th, New 4th & 5th Generation Core™ i7 / Core™ i5 / Core™ i3, Pentium®, Celeron® processors.

ASUS H81-GAMER

H81-GAMER CPU socket LGA1150

ASUS H81-GAMER - Central Processing Unit (CPU) - 2

Unplug all power cables before installing the CPU.

ASUS H81-GAMER - Central Processing Unit (CPU) - 3

Ensure that you install the correct CPU designed for the LGA1150 socket only. DO NOT install a CPU designed for LGA1155 and LGA1156 sockets on the LGA1150 socket.
Upon purchase of the motherboard, ensure that the PnP cap is on the socket and the socket contacts are not bent. Contact your retailer immediately if the PnP cap is missing, or if you see any damage to the PnP cap/socket contacts/motherboard components. ASUS will shoulder the cost of repair only if the damage is shipment/transit-related.
Keep the cap after installing the motherboard. ASUS will process Return Merchandise Authorization (RMA) requests only if the motherboard comes with the cap on the LGA1150 socket.
The product warranty does not cover damage to the socket contacts resulting from incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP cap.

1.3.1 Installing the CPU

ASUS H81-GAMER - Installing the CPU - 1

4 A C B

Diagram of a computer processor internal structure showing a slot and casing with green arrows indicating motion (no text or symbols)

1.3.2 CPU heatsink and fan assembly installation

Technical line drawing of a mechanical assembly with a lever and green indicator lights (no text or symbols)

ASUS H81-GAMER - CPU heatsink and fan assembly installation - 2

Apply the Thermal Interface Material to the CPU heatsink and CPU before you install the heatsink and fan if necessary.

To install the CPU heatsink and fan assembly

1 A B A B

2 CPU_FAN

Illustration of a CPU fan with cooling fins and heatsink, showing a green circular arrow indicating refresh or rotation (no text or symbols present)

4 X O

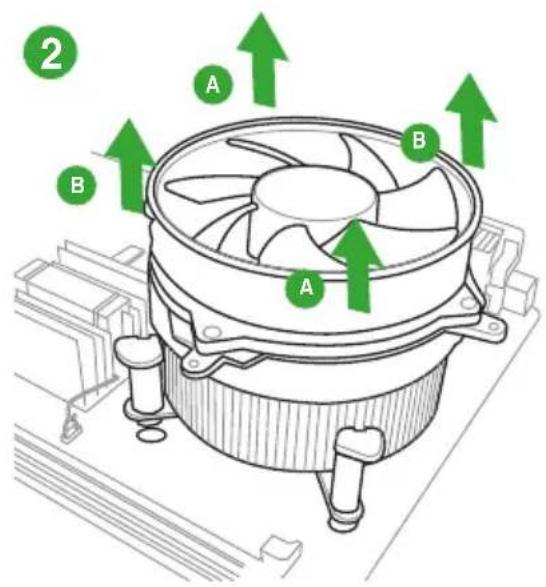

To uninstall the CPU heatsink and fan assembly

Diagram of a CPU fan with green circular arrows indicating rotation or cycle (no text or symbols)

2 A B A B

1.4 System memory

1.4.1 Overview

This motherboard comes with four Double Data Rate 3 (DDR3) Dual Inline Memory Module (DIMM) sockets. A DDR3 module is notched differently from a DDR or DDR2 module. DO NOT install a DDR or DDR2 memory module to the DDR3 slot.

ASUS H81-GAMER - Overview - 1

According to Intel® CPU spec, DIMM voltage below 1.65 V is recommended to protect the CPU.

H81-GAMER 240-pin DDR3 DIMM sockets

1.4.2 Memory configurations

You may install 1 GB, 2 GB, 4 GB, and 8 GB unbuffered non-ECC DDR3 DIMMs into the DIMM sockets. You can refer to the recommended memory population below.

DIMM_A2, DIMM_A2, DIMW_B2, DIMM_A1, DIMM_A2, DIMM_B1, DIMM_B2

Combination Recommended	DIMM_A1 DIMM_A2 DIMM_B1 DIMM_B2
1 SS
2 SS
3 SS SS
4 DS
5		DS
6 DS DS
7 SS SS	SS SS
	SS: Single-sided memory DS: Double-sided memory

ASUS H81-GAMER - Memory configurations - 2

You may install varying memory sizes in Channel A and Channel B. The system maps the total size of the lower-sized channel for the dual-channel configuration. Any excess memory from the higher-sized channel is then mapped for single-channel operation.
Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 MHz.
Due to Intel® chipset limitation, this motherboard can only support single-sided memories when four modules are installed and they will run at the maximum transfer rate of DDR3 1066MHz.
Always install DIMMs with the same CAS latency. For optimal compatibility, we recommend that you install memory modules of the same version or date code (D/C) from the same vendor. Check with the retailer to get the correct memory modules.
Due to the memory address limitation on 32-bit Windows® OS, when you install 4GB or more memory on the motherboard, the actual usable memory for the OS can be about 3GB or less. For effective use of memory, we recommend that you do any of the following:
Use a maximum of 3 GB system memory if you are using a 32-bit Windows OS.
Install a 64-bit Windows® OS if you want to install 4GB or more on the motherboard.
For more details, refer to the Microsoft® support site at http://support.microsoft.com/kb/929605/en-us.
This motherboard does not support DIMMs made up of 512 Mb (64 MB) chips or less.

ASUS H81-GAMER - Memory configurations - 3

The default memory operation frequency is dependent on its Serial Presence Detect (SPD), which is the standard way of accessing information from a memory module.
For system stability, use a more efficient memory cooling system to support a full memory load (4 DIMMs).
Visit the ASUS website at www.asus.com for the latest QVL.

1.4.3 Installing a DIMM

ASUS H81-GAMER - Installing a DIMM - 1

Unplug the power supply before adding or removing DIMMs or other system components. Failure to do so can cause severe damage to both the motherboard and the components.

Press the retaining clip outward to unlock a DIMM socket.
Align a DIMM on the socket such that the notch on the DIMM matches the DIMM slot key on the socket.

DIMM notch 2, DIMM slot key 1

ASUS H81-GAMER - Installing a DIMM - 3

A DIMM is keyed with a notch so that it fits in only one direction. DO NOT force a DIMM into a socket in the wrong direction to avoid damaging the DIMM.

Firmly insert the DIMM into the socket until the retaining clip clicks back in place and the DIMM is properly seated.

Technical line drawing of a mechanical component with a green circular arrow indicating rotation (no text or symbols)

1.4.4 Removing a DIMM

To remove a DIMM:

Press the retaining clips outward to unlock the DIMM.

ASUS H81-GAMER - To remove a DIMM: - 1

Support the DIMM lightly with your fingers when pressing the retaining clip. The DIMM might get damaged when it flips out with extra force.

Technical diagram of a mechanical component with labeled parts and directional arrows indicating motion or assembly.

Remove the DIMM from the socket.

1.5 Expansion slots

In the future, you may need to install expansion cards. The following sub-sections describe the slots and the expansion cards that they support.

ASUS H81-GAMER - Expansion slots - 1

Unplug the power cord before adding or removing expansion cards. Failure to do so may cause you physical injury and damage motherboard components.

1.5.1 Installing an expansion card

To install an expansion card:

Before installing the expansion card, read the documentation that came with it and make the necessary hardware settings for the card.
Remove the system unit cover (if your motherboard is already installed in a chassis).
Remove the bracket opposite the slot that you intend to use. Keep the screw for later use.
Align the card connector with the slot and press firmly until the card is completely seated in the slot.
Secure the card to the chassis with the screw you removed earlier.
Replace the system cover.

1.5.2 Configuring an expansion card

After installing the expansion card, configure it by adjusting the software settings.

Turn on the system and change the necessary BIOS settings, if any. See Chapter 2 for information on BIOS setup.
Assign an IRQ to the card.
Install the software drivers for the expansion card.

ASUS H81-GAMER - Configuring an expansion card - 1

When using PCI cards on shared slots, ensure that the drivers support “Share IRQ” or that the cards do not need IRQ assignments. Otherwise, conflicts will arise between the two PCI groups, making the system unstable and the card inoperable.

1.5.3 PCI slots

The PCI slot supports cards such as a LAN card, SCSI card, USB card, and other cards that comply with PCI specifications.

1.5.4 PCI Express 2.0 x1 slots

This motherboard supports PCI Express x1 network cards, SCSI cards, and other cards that comply with the PCI Express specifications.

1.5.5 PCI Express 2.0 x16 slot

This motherboard supports PCI Express x16 graphic cards complying with the PCI Express specifications.

IRQ assignments for this motherboard

A B C D E F G H
I.G.D. Shared	----
PCIe x16 Shared ----
PCIe x1_1 Shared ----
PCIe x1_2 - Shared ----
PCIe x1_3 Shared ----
PCI 1 --- Shared ----
PCI 2 Shared ----
PCI 3 - Shared ----
Intel SATA Controller --- Shared ----
Intel LAN ---- Shared ---
Intel xHCI ---- Shared --
Intel EHCl 1 ---- Shared
Intel EHCl 2 Shared ----
ASM USB3.0 Shared
HD Audio	- - ---- Shared -

1.6 Jumpers

1. Clear RTC RAM (3-pin CLRTC)

This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS memory of date, time, and system setup parameters by erasing the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in CMOS, which include system setup information such as system passwords.

H81-GAMER Clear RTC RAM CLRTC Normal (Default) 2 3 Clear RTC

To erase the RTC RAM:

Turn OFF the computer and unplug the power cord.
Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3 for about 5-10 seconds, then move the cap back to pins 1-2.
Plug the power cord and turn ON the computer.
Hold down the key during the boot process and enter BIOS setup to re-enter data.

ASUS H81-GAMER - To erase the RTC RAM: - 1

Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default position. Removing the cap will cause system boot failure!

ASUS H81-GAMER - To erase the RTC RAM: - 2

If the steps above do not help, remove the onboard battery and move the jumper again to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the battery.
You do not need to clear the RTC when the system hangs due to overclocking. For system failure due to overclocking, use the CPU Parameter Recall (C.P.R.) feature. Shut down and reboot the system, then the BIOS automatically resets parameter settings to default values.

1.7 Connectors

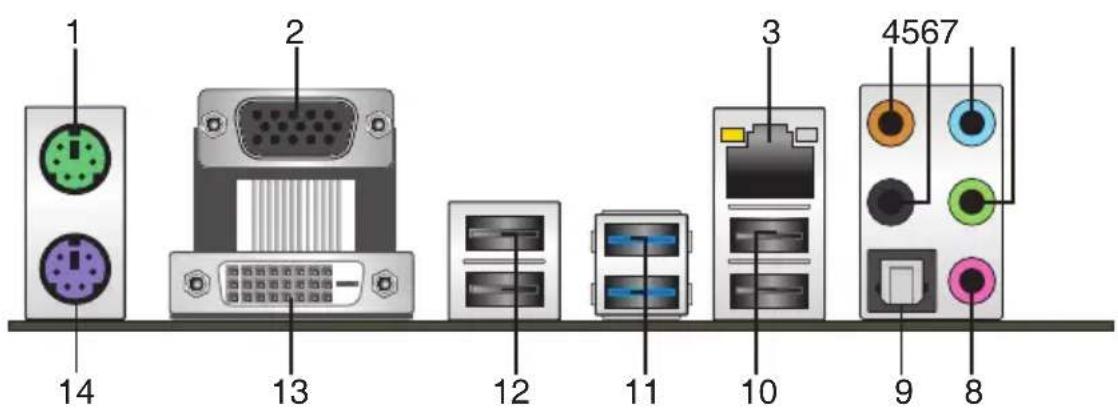

1.7.1 Rear panel connectors

1 2 3 4567 14 13 12 11 10 9 8

PS/2 mouse port (green). This port is for a PS/2 mouse.
Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other VGA-compatible devices.
LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN) through a network hub.

LAN port LED indications

Activity/Link LED Speed LED
Status Description Status		Description
Off No link OFF		10 Mbps connection
Orange Linked ORANGE		100 Mbps connection
Orange (Blinking)	Data activity GREEN	1 Gbps connection
Orange (Blinking then steady)	Ready to wake up from S5 mode

Activity Link LED Speed LED LAN port

Center / Subwoofer port (orange). This port connects the center/subwoofer speakers.
Rear Speaker Out port (black). This port connects the rear speakers in a 4.1 channel, 5.1 channel, or 7.1 channel audio configuration.
Line In port (light blue). This port connects to the tape, CD, DVD player, or other audio sources.
Line Out port (lime). This port connects to a headphone or a speaker. In the 4.1, 5.1, and 7.1-channel configurations, the function of this port becomes Front Speaker Out.
Microphone port (pink). This port connects to a microphone.
Optical S/PDIF Out port. This port connects to an external audio output device via an optical S/PDIF cable.

ASUS H81-GAMER - LAN port LED indications - 2

Refer to the audio configuration table for the function of the audio ports in 2.1, 4.1, 5.1, or 7.1-channel configuration. For 8-channel speakers, you may refer to the 7.1-channel configuration.

Audio 2.1, 4.1, 5.1, or 7.1-channel configuration

Port	Headset2.1-channel	4.1-channel 5.1-channel 7.1-channel
Light Blue	Line In Line In	Line In	Side Speaker Out
Lime Line	Out Front Speaker	Out Front Speaker Out	Front Speaker Out
Pink	Mic In	Mic In	Mic In
Orange	-	- Center/Subwoofer	Center/Subwoofer
Black	-	Rear Speaker Out	Rear Speaker Out

USB 2.0 ports 3 and 4. These 4-pin Universal Serial Bus (USB) ports are for USB 2.0/1.1 devices.
USB 3.0 ports 1 and 2. These two 9-pin Universal Serial Bus (USB) ports are for USB 3.0/2.0 devices.

ASUS H81-GAMER - Audio 2.1, 4.1, 5.1, or 7.1-channel configuration - 1

DO NOT connect a keyboard or mouse to any USB 3.0 port when installing the Windows operating system.
Due to USB 3.0 controller limitations, USB 3.0 devices can only be used under Windows® OS environment and after the USB 3.0 driver installation. USB 3.0 devices can only be used as data storage only.
We strongly recommend that you connect USB 3.0 devices to USB 3.0 ports for faster and better performance for your USB 3.0 devices.
USB 2.0 ports 5 and 6. These 4-pin Universal Serial Bus (USB) ports are for USB 2.0/1.1 devices.
DVI-D port. This port is for any DVI-D compatible device. DVI-D cannot be converted to output RGB signal to CRT and is not compatible with DVI-I.
PS/2 keyboard port (purple). This port is for a PS/2 keyboard.

1.7.2 Internal connectors

CPU and chassis fan connectors (4-pin CPU_FAN, CHA_FAN1, CHA_FAN2)

Connect the fan cables to the fan connectors on the motherboard, ensuring that the black wire of each cable matches the ground pin of the connector.

H81-GAMER Fan connectors CPU_FAN CHA_FAN2 GND CHA FAN PWR CHA FAN IN -5V A B C B CHA_FAN1 +5V CHA FAN IN CHA FAN PWR GND

ASUS H81-GAMER - Internal connectors - 2

Do not forget to connect the fan cables to the fan connectors. Insufficient air flow inside the system may damage the motherboard components. These are not jumpers! Do not place jumper caps on the fan connectors! The CPU_FAN connector supports a CPU fan of maximum 1 A (12 W) fan power.

2. Serial port connector (10-1 pin COM)

This connector is for a serial (COM) port. Connect the serial port module cable to this connector, then install the module to a slot opening at the back of the system chassis.

COM RCKD DTB DXA CTS PIN 1 DCDD TXD GND PTS TR

H81-GAMER Serial port (COM) connector

3. EATX power connectors (24-pin EATXPWR, 8-pin EATX12V)

These connectors are for ATX power supply plugs. The power supply plugs are designed to fit these connectors in only one orientation. Find the proper orientation and push down firmly until the connectors completely fit.

EATX12V +12V DC +12V DC +12V DC +12V DC PIN 1 GND GND GND GND

B EATXPWR +3 Volts GND +12 Volts +5 Volts +12 Volts +5 Volts +5V Standby +5 Volts Power OK -5 Volts GND GND +5 Volts GND GND GND +5 Volts PSON# GND GND +3 Volts -12 Volts +3 Volts +3 Volts PIN 1

H81-GAMER ATX power connectors ASUS H81-GAMER - EATX power connectors (24-pin EATXPWR, 8-pin EATX12V) - 3

- For a fully configured system, we recommend that you use a power supply unit (PSU) that complies with ATX 12 V Specification 2.0 (or later version) and provides a minimum power of 350 W.

- DO NOT forget to connect the 4-pin/8-pin ATX +12V power plug. Otherwise, the system will not boot up.

- We recommend that you use a PSU with higher power output when configuring a system with more power-consuming devices or when you intend to install additional devices. The system may become unstable or may not boot up if the power is inadequate.

4. TPM connector (20-1 pin TPM)

This connector supports a Trusted Platform Module (TPM) system, which securely store keys, digital certificates, passwords and data. A TPM system also helps enhance the network security, protects digital identities, and ensures platform integrity.

H81-GAMER TPM Connector TPM LPCPD# GND +3VSB NC LAD0 +3V LAD3 LREST# LFRAME# LCLK PIN-1 NC CLKRUN# SERIRQ NC GND LAD1 LAD2 NC GND

5. Front panel audio connector (10-1 pin AAFP)

This connector is for a chassis-mounted front panel audio I/O module that supports either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel audio I/O module cable to this connector.

H81-GAMER Front panel audio connector AAFP HD-audio-compliant pin definition Legacy AC'97 compliant definition

ASUS H81-GAMER - Front panel audio connector (10-1 pin AAFP) - 2

- We recommend that you connect a high-definition front panel audio module to this connector to avail of the motherboard's high-definition audio capability.

- If you want to connect a high-definition front panel audio module to this connector, set the Front Panel Type item in the BIOS setup to [HD]. If you want to connect an AC'97 front panel audio module to this connector, set the item to [AC97]. By default, this connector is set to [HD]. See section 2.6.7 Onboard Devices Configuration for details.

6. USB 3.0 connector (20-1 pin USB3_E12)

This connector allows you to connect a USB 3.0 module for additional USB 3.0 front or rear panel ports. With an installed USB 3.0 module, you can enjoy all the benefits of USB 3.0 including faster data transfer speeds of up to 5 Gbps, faster charging time for USB-chargeable devices, optimized power efficiency, and backward compatibility with USB 2.0.

USB3_E12 USB3+5V IntA_P1_SSRX- IntA_P2_SSRX+ GND IntA_P1_SSTX- IntA_P2_SSTX- GND IntA_P1_D- IntA_P2_D- GND USB3+5V IntA_P1_SSRX- IntA_P1_SSRX+ GND IntA_P1_SSTX- IntA_P1_SSTX+ GND IntA_P1_D- IntA_P1_D+ GND

H81-GAMER USB3.0 Front panel connector

ASUS H81-GAMER - USB 3.0 connector (20-1 pin USB3_E12) - 2

The USB 3.0 module is purchased separately.

7. USB 2.0 connectors (10-1 pin USB910, USB1112)

These connectors are for USB 2.0 ports. Connect the USB module cable to any of these connectors, then install the module to a slot opening at the back of the system chassis. These USB connectors comply with USB 2.0 specifications and support up to 480Mbps connection speed.

USB910 USB1112 USB-5V USB-P9- USB-P9+ GND NC PIN 1 USB-5V USB-P10- USB-P10+ GND PIN 1 USB-5V USB-P12- USB-P12+ GND NC

H81-GAMER USB2.0 connectors

ASUS H81-GAMER - USB 2.0 connectors (10-1 pin USB910, USB1112) - 2

Never connect a 1394 cable to the USB connectors. Doing so will damage the motherboard!

ASUS H81-GAMER - USB 2.0 connectors (10-1 pin USB910, USB1112) - 3

The USB 2.0 module is purchased separately.

8. Intel® H81 Serial ATA 6.0Gb/s connector (7-pin SATA6G_1, SATA6G_2 [gray])

This connector connects to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0 Gb/s signal cables.

SATA6G_1 SATA6G_2 HISATIA 13X2 HISATIA 13X2 HISATIA 13X2 HISATIA 13X2 HISATIA 13X2 HISATIA 13X2 HISATIA 13X2 HISATIA 13X2 HISATIA 13X2 HISATIA 13X2 HISATIA 13x2 HISATIA 13x2 HISATIA 13x2 HISATIA 13x2 HISATIA 13x2 HISATIA 13x2 HISATIA 13x2 HISATIA 13x2 HISATIA 13x2 HISATIA 13x2 HISATIA 13x2 HISATIA 1…

H81-GAMER Intel® SATA 6.0Gb/s connectors

right-angle side NO SA You sid po hu

NOTE: Connect the right-angle side of SATA signal cable to SATA device. You may also connect the right-angle side of SATA cable to the onboard SATA port to avoid mechanical conflict with huge graphics cards.

ASUS H81-GAMER - Intel® H81 Serial ATA 6.0Gb/s connector (7-pin SATA6G_1, SATA6G_2 [gray]) - 3

When using hot-plug and NCQ, set the SATA Mode Selection item in the BIOS to [AHCI]. See section PCH Storage Configuration for details.

9. Intel® H81 Serial ATA 3.0 Gb/s connectors (7-pin SATA3G_1, SATA3G_2 [black])

These connectors connect to Serial ATA 3.0 Gb/s hard disk drives and optical drives via Serial ATA 3.0 Gb/s signal cables.

SATA3G 1 R5A7A_TF1 R5A7A_TF2 R5A7A_JF1 R5A7A_RF1 R5A7A_RF2 SATA3G 2 R5A7A_TF3 R5A7A_TF4 R5A7A_JF3 R5A7A_RF4 R5A7A_JF5 R5A7A_JF6 R5A7A_JF7 R5A7A_JF8 R5A7A_JF9 R5A7A_JF10 R5A7A_JF11 R5A7A_JF12 R5A7A_JF13 R5A7A_JF14 R5A7A_JF15 R5A7A_JF16 R5A7A_JF17 R5A7A_JF18 R5A7A_JF19 R5A7A_JF20 R5A7A_JF21 R5A7A_JF22…

H81-GAMER Intel® SATA 6.0Gb/s connectors

right-angle side NO SA You side po hu

ASUS H81-GAMER - Intel® H81 Serial ATA 3.0 Gb/s connectors (7-pin SATA3G_1, SATA3G_2 [black]) - 3

When using hot-plug and NCQ, set the SATA Mode Selection item in the BIOS to [AHCI]. See section PCH Storage Configuration for details.

10. System panel connector (20-8 pin PANEL)

This connector supports several chassis-mounted functions.

ASUS H81-GAMER +PWR_LED- SPEAKER +5V Ground Ground Speaker PANEL PIN 1 +HDD_LED- PWR_SW RESET

H81-GAMER System panel connector

• System power LED (2-pin PWR_LED)

This 2-pin connector is for the system power LED. Connect the chassis power LED cable to this connector. The system power LED lights up when you turn on the system power, and blinks when the system is in sleep mode.

• Hard disk drive activity LED (2-pin HDD_LED)

This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable to this connector. The HDD LED lights up or flashes when data is read from or written to the HDD.

• System warning speaker (4-pin SPEAKER)

This 4-pin connector is for the chassis-mounted system warning speaker. The speaker allows you to hear system beeps and warnings.

• ATX power button/soft-off button (2-pin PWR_SW)

This connector is for the system power button. Pressing the power button turns the system on or puts the system in sleep or soft-off mode depending on the operating system settings. Pressing the power switch for more than four seconds while the system is ON turns the system OFF.

- Reset button (2-pin RESET)

This 2-pin connector is for the chassis-mounted reset button for system reboot without turning off the system power.

1.8 Onboard LED

1. Standby Power LED (SB_PWR)

The motherboard comes with a standby power LED that lights up to indicate that the system is ON, in sleep mode, or in soft-off mode. This is a reminder that you should shut down the system and unplug the power cable before removing or plugging in any motherboard component. The illustration below shows the location of the onboard LED.

ASUS H81-GAMER SB_PWR ON Standby Power OFF Powered Off H81-GAMER Onboard LED

1.9 Software support

1.9.1 Installing an operating system

This motherboard supports Windows 7 (32-bit / 64-bit) and Windows 8 / 8.1 (32-bit / 64-bit) Operating Systems (OS). Always install the latest OS version and corresponding updates to maximize the features of your hardware.

ASUS H81-GAMER - Installing an operating system - 1

Motherboard settings and hardware options vary. Refer to your OS documentation for detailed information.

1.9.2 Support DVD information

The Support DVD that comes with the motherboard package contains the drivers, software applications, and utilities that you can install to avail all motherboard features.

ASUS H81-GAMER - Support DVD information - 1

The contents of the Support DVD are subject to change at any time without notice. Visit the ASUS website at www.asus.com for updates.

To run the Support DVD

Place the Support DVD into the optical drive. If Autorun is enabled in your computer, the DVD automatically displays the lists of the unique features of your ASUS motherboard. Click the Drivers, Utilities, AHCI Driver, Manual, Contact, or Specials tabs to display their respective menus.

ASUS H81-GAMER - To run the Support DVD - 1

The following screen is for reference only.

ASUS H81-GAMER motherboard support CD Drivers Utilities APC Driver Manual Connect Spreads ASUS Install MB Please select items to install. Click an icon to display Support DVD/motherboard information ASUS Probe II Sense Driver Intel Chipset Driver Realtek Audio Driver Intel Graphics Accelerator Drive…

Click an item to install

ASUS H81-GAMER - To run the Support DVD - 3

If Autorun is NOT enabled in your computer, browse the contents of the Support DVD to locate the file ASSETUP.EXE from the BIN folder. Double-click the ASSETUP.EXE to run the DVD.

BIOS information

2 2.1 Managing and updating your BIOS

The ASUS website publishes the latest BIOS versions to provide enhancements on system stability, compatibility, and performance. However, BIOS updating is potentially risky. If there is no problem using the current version of BIOS, DO NOT manually update the BIOS. Inappropriate BIOS updating may result in system's failure to boot. Carefully follow the instructions in this chapter to update your BIOS when necessary.

ASUS H81-GAMER - Managing and updating your BIOS - 1

Visit http://www.asus.com to download the latest BIOS file for this motherboard.

The following utilities allow you to manage and update the motherboard BIOS setup program.

EZ Update: Updates the BIOS in Windows environment.
ASUS EZ Flash 2: Updates the BIOS using a USB flash drive.
ASUS CrashFree BIOS 3: Restores the BIOS using the motherboard support DVD or a USB flash drive when the BIOS file fails or gets corrupted.
ASUS BIOS Updater: Updates the BIOS in DOS environment using the motherboard support DVD and a USB flash disk drive.

ASUS H81-GAMER - Managing and updating your BIOS - 2

Save a copy of the original motherboard BIOS file to a USB flash disk in case you need to restore the BIOS in the future. Copy the original motherboard BIOS using the ASUS Update utility.

2.1.1 EZ Update

EZ Update is a utility that allows you to automatically update your motherboard's software, drivers, and BIOS version easily. With this utility, you can also manually update the saved BIOS and select a boot logo when the system enters POST.

E2 Update Click to automatically update your motherboard's driver, software and firmware E2 Update allows you to manage and update the latest ASUS motherboard drivers, software and BIOS from the internet. With this utility, you can also manually update the second BIOS and select a boot logo when the…

ASUS H81-GAMER - EZ Update - 2

EZ Update requires an Internet connection either through a network or an ISP (Internet Service Provider).

2.1.2 ASUS EZ Flash 2

The ASUS EZ Flash 2 feature allows you to update the BIOS without using an OS-based utility.

ASUS H81-GAMER - ASUS EZ Flash 2 - 1

Before you start using this utility, download the latest BIOS file from the ASUS website at www.asus.com.

To update the BIOS using EZ Flash 2:

Insert the USB flash disk that contains the latest BIOS file into the USB port.
Enter the Advanced Mode of the BIOS setup program. Go to the Tool menu to select ASUS EZ Flash Utility and press <Enter>.
Press <Tab> to switch to the Drive field.
Press the Up/Down arrow keys to find the USB flash disk that contains the latest BIOS, then press <Enter>.
Press <Tab> to switch to the Folder Info field.
Press the Up/Down arrow keys to find the BIOS file, then press <Enter> to perform the BIOS update process.
Reboot the system when the update process is done.

ASUS H81-GAMER - To update the BIOS using EZ Flash 2: - 1

This function supports USB flash disks formatted using FAT32 or FAT16 on a single partition only.
Ensure to load the BIOS default settings to ensure system compatibility and stability. Select the Load Optimized Defaults item under the Exit menu.
DO NOT shut down or reset the system while updating the BIOS to prevent system boot failure!

$ASUS E2 Flash 2 Utility v02.01 Flash Model: H81-GAMER Version: 0207 Date: 07/09/2014 File Path: fs0\/ Drive Folder fs0.5 [3418. V8] 01/15/2013 14:13 .Trashes 01/15/2013 14:13 .Spotlight-V100 04/09/2014 10:15 lug9019_M32AD_M51AD_K31AD_K30AD_manual F# Ider 04/09/2014 10:39 tr9019_M32AD_M51AD_M51AD_K30…$

2.1.3 ASUS CrashFree BIOS 3 utility

The ASUS CrashFree BIOS 3 is an auto recovery tool that allows you to restore the BIOS file when it fails or gets corrupted during the updating process. You can restore a corrupted BIOS file using the motherboard support DVD or a USB flash drive that contains the updated BIOS file.

ASUS H81-GAMER - ASUS CrashFree BIOS 3 utility - 1

Before using this utility, rename the BIOS file in the removable device into H81GAMER.CAP.
Download the latest BIOS file from the ASUS website at www.asus.com.

Recovering the BIOS

To recover the BIOS:

Turn on the system.
Insert the support DVD into the optical drive or the USB flash drive that contains the BIOS file to the USB port.

ASUS H81-GAMER - To recover the BIOS: - 1

The utility automatically checks the devices for the BIOS file. When found, the utility reads the BIOS file and automatically enters ASUS EZ Flash 2 utility. The system requires you to enter BIOS Setup to recover BIOS settings.

ASUS H81-GAMER - To recover the BIOS: - 2

DO NOT shut down or reset the system while updating the BIOS! Doing so can cause system boot failure!

Press to load default BIOS values (Highly recommended).

2.1.4 ASUS BIOS Updater

ASUS BIOS Updater allows you to update the BIOS in DOS environment.

ASUS H81-GAMER - ASUS BIOS Updater - 1

The screen captures used in this section are for reference only and may not be exactly the same as actually shown on your computer screen.

Before updating BIOS

Prepare the motherboard support DVD and a USB flash drive.
Download the latest BIOS file and BIOS Updater from http://support.asus.com and save them in your USB flash drive.

ASUS H81-GAMER - Before updating BIOS - 1

NTFS is not supported under FreeDOS environment. Ensure that your USB flash drive is in single partition and in FAT32 / FAT16 format.

Turn off the computer.
Ensure that your computer has a DVD optical drive.

Booting the system in DOS environment

To boot the system in DOS:

Insert the USB flash drive with the latest BIOS file and BIOS Updater to the USB port.
Boot your computer then press to launch the BIOS Boot Device Select menu.
When the BIOS Boot Device Select Menu appears, insert the Support DVD into the optical drive then select the optical drive as the boot device.

Please select boot device:

E1: ASUS DVD-E818A6T (4069MB)
USB DISK 2.0 (3824MB)
UEFI: (FAT) USB DISK 2.0 (3824MB)
Enter Setup
↑ and ↓ to move selection
ENTER to select boot device
ESC to boot using defaults

When the Boot Loader appears, press within five (5) seconds to enter FreeDOS prompt.

ISOLINUX 3.20 2006-08-26 Copyright (C) 1994-2005 H. Peter Anvin A Bootable DVD/CD is detected. Press ENTER to boot from the DVD/CD. If no key is pressed within 5 seconds, the system will boot next priority device automatically. boot:

On the FreeDOS prompt, type d: then press to switch the disk from Drive C (optical drive) to Drive D (USB flash drive).

Welcome to FreeDOS (http://www.freedos.org)!
C:/> d:
D:/>

Updating the BIOS file

To update the BIOS file:

On the FreeDOS prompt, type bupdater /pc /g and press .

D:/> bupdater /pc /g

On the BIOS Updater screen, press to switch from Files panel to Drives panel then select D:.

$ASUSTeK BIOS Updater for DOS V1.30 [2014/01/01] Current ROM BOARD: H81-GAMER VER: 0212 (B :00 B :00) DATE: 02/12/2014 Update ROM BOARD: Unknown VER: Unknown DATE: Unknown PATH: C:\ C: D: Formula-1 H81GAMERS.CAP 8390626 2014-02-10 21:14:34 Files panel Note [Enter] Select or Load [Tab] Switch [V] Driv…$

Press to switch from Drives panel to Files panel then press keys to select the BIOS file and press .
After the BIOS Updater checks the selected BIOS file, select Yes to confirm the BIOS update.

Are you sure you want to update the BIOS? Yes No

ASUS H81-GAMER - Updating the BIOS file - 3

The BIOS Backup feature is not supported due to security regulations.

Select Yes then press . When BIOS update is done, press to exit BIOS Updater.
Restart your computer.

ASUS H81-GAMER - Updating the BIOS file - 4

DO NOT shut down or reset the system while updating the BIOS to prevent system boot failure.

ASUS H81-GAMER - Updating the BIOS file - 5

Ensure to load the BIOS default settings to ensure system compatibility and stability. Select the Load Optimized Defaults item under the Exit menu for more information.

2.2 BIOS setup program

Use the BIOS Setup program to update the BIOS or configure its parameters. The BIOS screens include navigation keys and brief online help to guide you in using the BIOS Setup program.

Entering BIOS Setup at startup

To enter BIOS Setup at startup:

- Press during the Power-On Self Test (POST). If you do not press , POST continues with its routines.

Entering BIOS Setup after POST

To enter BIOS Setup after POST:

Press + + simultaneously.
Press the reset button on the system chassis.
Press the power button to turn the system off then back on. Do this option only if you failed to enter BIOS Setup using the first two options.

ASUS H81-GAMER - Entering BIOS Setup after POST - 1

Using the power button, reset button, or the + + keys to force reset from a running operating system can cause damage to your data or system. We recommend you always shut down the system properly from the operating system.

ASUS H81-GAMER - Entering BIOS Setup after POST - 2

The BIOS setup screens shown in this section are for reference only. Some screen displays may not be the same as what you see on your screen.
Visit the ASUS website at www.asus.com to download the latest BIOS file for this motherboard.
Ensure that a USB mouse is connected to your motherboard if you want to use the mouse to control the BIOS setup program.
If the system becomes unstable after changing any BIOS setting, load the default settings to ensure system compatibility and stability. Select the Load Optimized Defaults item under the Exit menu or press hotkey F5. See section Exit Menu for details.
If the system fails to boot after changing any BIOS setting, try to clear the CMOS and reset the motherboard to the default value. See section Jumpers for information on how to erase the RTC RAM.

The BIOS setup program can be used under two modes: EZ Mode and Advanced Mode. You can change modes by pressing F7 or from the Advanced/EZ Mode button in the EZ Mode/Advanced Mode screen.

EZ Mode

By default, the EZ Mode screen appears when you enter the BIOS setup program. The EZ Mode provides you an overview of the basic system information, and allows you to select the display language, system performance mode, and boot device priority. To access the Advanced Mode, click Advanced Mode or press F7.

ASUS H81-GAMER - EZ Mode - 1

Refer to the item Setup Mode in section Boot menu for more details on how to change the default screen when entering the BIOS setup program.

Displays the CPU/motherboard temperature, CPU voltage output, CPU/chassis/power fan speed, and SATA information. Displays the system properties of the selected mode. Click < or > to switch EZ System Tuning modes. Selects the display language of the BIOS setup program. ASUS UEFI BIOS Utility - EZ Mod…

ASUS H81-GAMER - EZ Mode - 3

The boot device options vary depending on the devices you installed to the system.
The Boot Menu(F8) button is available only when the boot device is installed to the system.

Advanced Mode

The Advanced Mode provides advanced options for experienced end-users to configure the BIOS settings. Refer to the following sections for the detailed configurations.

ASUS H81-GAMER - Advanced Mode - 1

To access the EZ Mode, click EZ Mode or press F7.

Configuration fields Pop-up Menu Menu bar Language Hot Key Rate Control(F6) Quick Note (F9) EZ Tuning Wizard(F11) Scroll bar ASUS UEFI BIOS Utility - Advanced Mode 01/30/2009 00:40 English MyFavorite(F3) Qfan Control(F6) EZ Tuning Wizard(F11) Quick Note(F9) Friday My Favorites Main Ai Tweaker Advanc…

The menu bar on top of the screen has the following main items:

My Favorites	For saving the frequently-used system settings and configuration
Main For changing the basic system configuration
Ai Tweaker For changing the overclocking settings
Advanced For changing the advanced system settings
Monitor	For displaying the system temperature, power status, and changing the fan settings
Boot For changing the system boot configuration
Tool For configuring options for special functions
Exit For selecting the exit options and loading default settings

The highlighted item on the menu bar displays the specific items for that menu. For example, selecting Main shows the Main menu items.

The other items (My Favorites, Ai Tweaker, Advanced, Monitor, Boot, Tool, and Exit) on the menu bar have their respective menu items.

Submenu items

A greater than sign (>) before each item on any menu screen means that the item has a submenu. To display the submenu, select the item and press .

Language

This button above the menu bar contains the languages that you can select for your BIOS. Click this button to select the language that you want to display in your BIOS screen.

MyFavorite(F3)

This button above the menu bar shows all BIOS items in a Tree Map setup. Select frequently-used BIOS settings and save them to the MyFavorite menu.

ASUS H81-GAMER - MyFavorite(F3) - 1

Refer to section My Favorites for more information.

Q-Fan Control(F6)

This button above the menu bar displays the current settings of your fans. Use this button to manually tweak the fans to your desired settings.

EZ Tuning Wizard(F11)

This button above the menu bar allows you to view and tweak the overclocking settings of your system. It also allows you to change the motherboard's SATA mode from AHCI to RAID mode.

Quick Note (F9)

This button above the menu bar allows you to key in notes of the activities that you have done in BIOS.

ASUS H81-GAMER - Quick Note (F9) - 1

- The Quick Note function does not support the following keyboard functions: delete, cut, copy, and paste.

- You can only use alphanumeric characters to enter your notes.

Hot keys

This button above the menu bar contains the navigation keys for the BIOS setup program. Use the navigation keys to select items in the menu and change the settings.

Scroll bar

A scroll bar appears on the right side of a menu screen when there are items that do not fit on the screen. Press the Up/Down arrow keys or / keys to display the other items on the screen.

General help

At the top right corner of the menu screen is a brief description of the selected item. Use the key to capture the BIOS screen and save it to the removable storage device.

Configuration fields

These fields show the values for the menu items. If an item is user-configurable, you can change the value of the field opposite the item. You cannot select an item that is not user-configurable.

A configurable field is highlighted when selected. To change the value of a field, select it and press to display a list of options.

Last Modified button

This button shows the items that you last modified and saved in BIOS Setup.

2.3 My Favorites

MyFavorites is your personal space where you can easily save and access your favorite BIOS items.

ASUS UEFI BIOS Utility - Advanced Mode 01/30/2009 00:47 English MyFavorite(FI) Qtan Control(FS) EZ Tuning Wizard(FI) Quick Note(FI) Hot Keys My Favorites Main AI Tweaker Advanced Monitor Boot Tool Exit Active Processor Cores All Intel Rapid Start Technology SATA Mode Selection AHCI Qtan Tuning CPU C…

Adding items to My Favorites

To add frequently-used BIOS items to My Favorites:

Press on your keyboard or click to open the Setup Free Map screen.
On the Setup Tree Map screen, select the BIOS items that you want to save in the My Favorites screen, then click the plus sign ("+") to save them in the My Favorites screen.

ASUS H81-GAMER - Adding items to My Favorites - 1

You cannot add the following items to My Favorite items:

Items with submenu options
User-managed items such as language and boot order
Configuration items such as Memory SPD Information

The Main menu screen appears when you enter the Advanced Mode of the BIOS Setup program. The Main menu provides an overview of the basic system information and allows you to set the system date, time, language, and security settings.

ASUS UEFI BIOS Utility - Advanced Mode 01/30/2009 00:47 Friday My Favorites Main Ai Tweaker Advanced Monitor Boot Tool Exit BIOS Version 0267 x64 Build Date 07/09/2014 ME Version 9.1.1.1000 PCH Stepping 05/02 CPU Information 3400 MHz Intel(R) Core(TM) IS-4670K CPU @ 3.40GHz Speed 1024 MB (DDR3) Memo…

2.4.1 Language [English]

Allows you to choose the BIOS language version from the options. Configuration options: [English] [Français] [Deutsch] [简体中文] [繁體中文] [日本語] [한국어]

2.4.2 System Date [Day xx/xx/xxxx]

Allows you to set the system date.

2.4.3 System Time [xx:xx:xx]

Allows you to set the system time.

2.4.4 Security

The Security menu items allow you to change the system security settings.

ASUS H81-GAMER - Security - 1

If you have forgotten your BIOS password, erase the CMOS Real Time Clock (RTC) RAM to clear the BIOS password. See section Jumpers for information on how to erase the RTC RAM.
The Administrator or User Password items at the top of the screen show the default Not Installed. After you set a password, these items show Installed.

Administrator Password

If you have set an administrator password, we recommend that you enter the administrator password for accessing the system. Otherwise, you might be able to see or change only selected fields in the BIOS setup program.

To set an administrator password:

Select the Administrator Password item and press Enter.
From the Create New Password box, key in a password, then press Enter.
Confirm the password when prompted.

To change an administrator password:

Select the Administrator Password item and press Enter.
From the Enter Current Password box, key in the current password, then press Enter.
From the Create New Password box, key in a new password, then press Enter.
Confirm the password when prompted.

To clear the administrator password, follow the same steps as in changing an administrator password, but press Enter when prompted to create/confirm the password. After you clear the password, the Administrator Password item at the top of the screen shows Not Installed.

User Password

If you have set a user password, you must enter the user password for accessing the system. The User Password item at the top of the screen shows the default Not Installed. After you set a password, this item shows Installed.

To set a user password:

Select the User Password item and press .
From the Create New Password box, key in a password, then press .
Confirm the password when prompted.

To change a user password:

Select the User Password item and press .
From the Enter Current Password box, key in the current password, then press .
From the Create New Password box, key in a new password, then press .
Confirm the password when prompted.

To clear the user password, follow the same steps as in changing a user password, but press when prompted to create/confirm the password. After you clear the password, the User Password item on top of the screen shows Not Installed.

The Ai Tweaker menu items allow you to configure overclocking-related items.

ASUS H81-GAMER - Ai Tweaker menu - 1

Be cautious when changing the settings of the Ai Tweaker menu items. Incorrect field values can cause the system to malfunction.

ASUS H81-GAMER - Ai Tweaker menu - 2

The configuration options for this section vary depending on the CPU and DIMM model you installed on the motherboard.

ASUS UEFI BIOS Utility - Advanced Mode. Date: 01/30/2009 00:49. Language: English. MyFavorites (F5), Qfan Control (F6), EZ Tuning Wizard (F1), Quick Note (F1), Hot Keys. Friday. My Favorites, Main, AI Tweaker, Advanced, Monitor, Boot, Tool, Exit. Hardware Monitor. CPU: Frequency 3400 MHz, Temperatur…

Scroll down to display the following items:

ASUS UEFI BIOS Utility - Advanced Mode. Date: 01/30/2009 00:52. Language: English. MyFavorite (F3), Qfan Control (F6), EZ Tuning Wizard (F11), Quick Note (FI), Hot Keys. My Favorites, Main, AI Tweaker, Advanced, Monitor, Boot, Tool, Exit. EPU Power Saving Mode: Disabled. DRAM Timing Control. DIGI+ V…

Scroll down to display the following items:

ASUS UEFI BIOS Utility - Advanced Mode. Date: 01/30/2009 00:53. Language: English. MyFavorite (F), Qfan Control (F6), EZ Tuning Wizard (F11), Quick Note (F8), Hot Keys. My Favorites, Main, AI Tweaker, Advanced, Monitor, Boot, Tool, Exit. CPU Digital I/O Voltage Offset Mode Sign. CPU Digital I/O Volt…

Target CPU Turbo-Mode Frequency : xxxxMHz

Displays the target CPU Turbo-Mode frequency.

Target DRAM Frequency : xxxxMHz

Displays the target DRAM speed.

Target Cache Frequency : xxxxMHz

Displays the target Cache speed.

Target DMI/PEG Frequency : xxxxMHz

Displays the target DMI/PEG clock.

Target CPU Graphics Frequency : xxxxMHz

Displays the target CPU Graphics speed.

2.5.1 CPU Ratio Unlock [Disabled]

Allows you to unlock the overclocking capability of K series CPUs. This motherboard supports unlocked CPU depending on Intel chipset, CPU and firmware.

2.5.2 CPU Core Ratio [Auto]

Allows you to set the CPU core ratio automatically or manually.

[Auto] Sets all CPU Core Ratio to Intel

® CPU default settings automatically.

[Sync All Cores] Allows you to set CPU Core Ratio settings for all cores.

[Per Core] Allows you to set CPU Core Ratio individually.

1-Core Ratio Limit [Auto]

Allows you to set the 1-Core Ratio Limit. Select [Auto] to apply the CPU default Turbo Ratio setting or manually assign a 1-Core Ratio Limit value that is higher than or equal to the 2-Core Ratio Limit.

2-Core/3-Core/4-Core Ratio Limit [Auto]

These items become configurable only when you set the CPU Core Ratio item to [Per Core].

2.5.3 Min. / Max. CPU Cache Ratio [Auto]

Allows you to set the uncore ratio of the processor to its possible minimum or maximum value depending on the type of CPU installed. Configuration options: [Auto] [x] \~ [xx].

2.5.4 BCLK Frequency : DRAM Frequency Ratio [Auto]

Allows you to set the ratio of the BCLK and DRAM frequency.

[Auto] The Ratio will be set to the optimized settings.

[100:133] The Ratio will be set to 100:133.

[100:100] The Ratio will be set to 100:100.

2.5.5 DRAM Frequency [Auto]

Allows you to set the memory operating frequency. The configuration options vary with the BCLK Frequency item settings.

ASUS H81-GAMER - DRAM Frequency [Auto] - 1

Selecting a very high frequency may cause the system to become unstable! If this happens, revert to the default settings.

2.5.6 Max. CPU Graphics Ratio [Auto]

[Auto] The CPU Graphics Maximum ratio is set to its optimized setting depending on the system loading. Use the <+> or <-> keys to adjust the optimal Max. CPU Graphics ratio. The value may vary depending on the system loading.

2.5.7 GPU Boost [Keep Current Settings]

Allows you to enable the GPU Boost to accelerate the integrated GPU for extreme graphics performance. Configuration options: [Keep Current Settings] [Enabled]

2.5.8 EPU Power Saving Mode [Disabled]

Allows you to enable or disable the EPU power saving function. Configuration options: [Disabled] [Enabled]

2.8.9 DRAM Timing Control

The subitems in this menu allow you to set the DRAM timing control features. Use the <+> and <-> keys to adjust the value. To restore the default setting, type [auto] using the keyboard and press the key.

ASUS H81-GAMER - DRAM Timing Control - 1

Changing the values in this menu may cause the system to become unstable! If this happens, revert to the default settings.

Primary Timings

DRAM CAS# Latency [Auto]

Configuration options: [Auto] [1 DRAM Clock] - [31 DRAM Clock]

DRAM RAS# to CAS# Delay [Auto]

Configuration options: [Auto] [1 DRAM Clock] – [31 DRAM Clock]

DRAM RAS# PRE Time [Auto]

Configuration options: [Auto] [1 DRAM Clock] - [31 DRAM Clock]

DRAM RAS# ACT Time [Auto]

Configuration options: [Auto] [1 DRAM Clock] - [63 DRAM Clock]

DRAM Command Rate [Auto]

Configuration options: [Auto] [1 DRAM Clock] [2 DRAM Clock]

Secondary Timings

DRAM RAS# to RAS# Delay [Auto]

Configuration options: [Auto] [1 DRAM Clock] - [15 DRAM Clock]

DRAM REF Cycle Time [Auto]

Configuration options: [Auto] [1 DRAM Clock] – [511 DRAM Clock]

DRAM Refresh Interval [Auto]

Configuration options: [Auto] [1 DRAM Clock] – [65535 DRAM Clock]

DRAM WRITE Recovery Time [Auto]

Configuration options: [Auto] [1 DRAM Clock] – [16 DRAM Clock]

DRAM READ to PRE Time [Auto]

Configuration options: [Auto] [1 DRAM Clock] - [15 DRAM Clock]

DRAM FOUR ACT WIN Time [Auto]

Configuration options: [Auto] [1 DRAM Clock] – [255 DRAM Clock]

DRAM WRITE to READ Delay [Auto]

Configuration options: [Auto] [1 DRAM Clock] – [15 DRAM Clock]

DRAM CKE Minimum pulse width [Auto]

Configuration options: [Auto] [1 DRAM Clock] - [15 DRAM Clock]

DRAM CAS# Write Latency [Auto]

Configuration options: [Auto] [1 DRAM Clock] – [31 DRAM Clock]

RTL IOL control

DRAM RTL Intial Value [Auto]
