Operating Instructions (Household) Foot Care Model No. ES-WE22

GB D F I E PL CZ SK H RO Operating Instructions

(Household) Foot Care Model No. ES-WE22

Thank you for purchasing this Panasonic product.

Before operating this unit, please read these instructions completely and save them for future use.

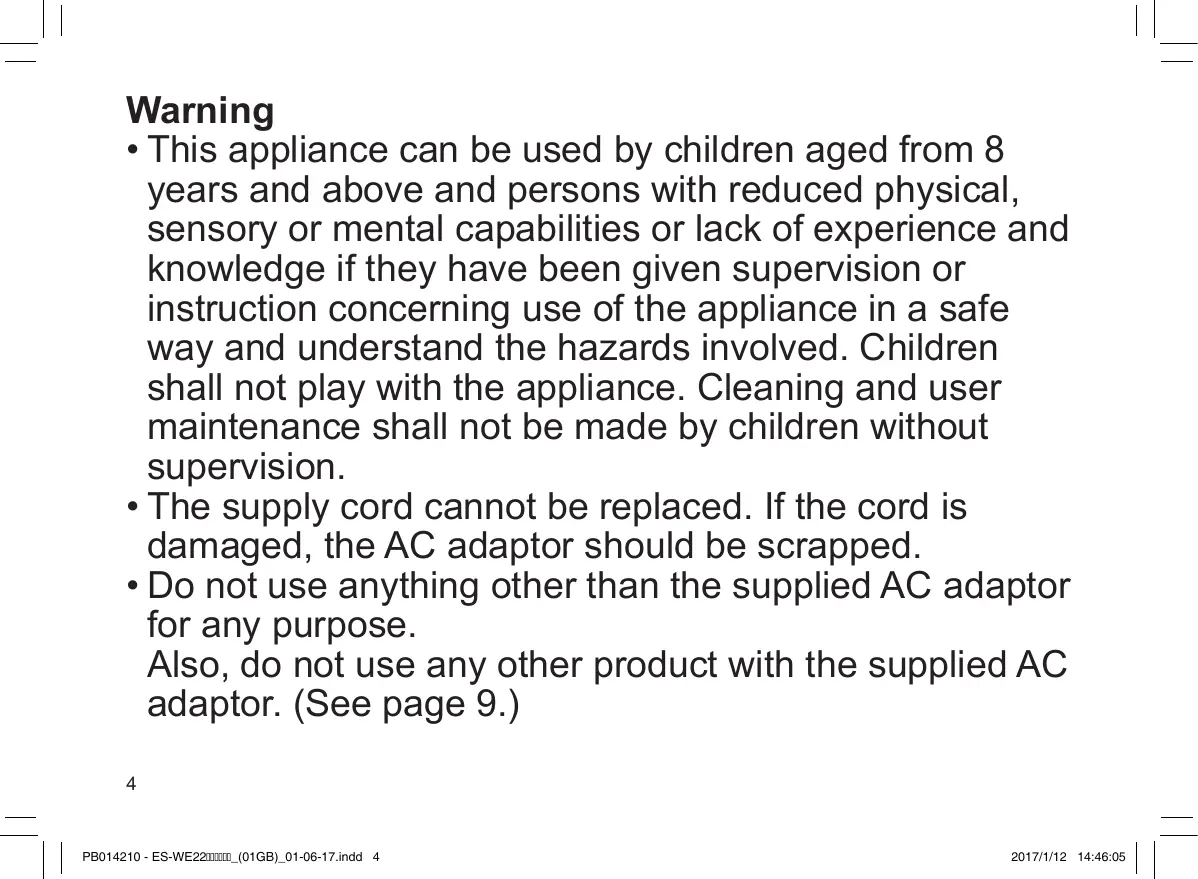

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. • The supply cord cannot be replaced. If the cord is damaged, the AC adaptor should be scrapped. • Do not use anything other than the supplied AC adaptor for any purpose. Also, do not use any other product with the supplied AC adaptor. (See page 9.) 4

• This appliance is washable.

The following symbol means that this appliance can be cleaned under the water.

• The following symbol indicates that a specific detachable power supply unit is required for connecting the electrical appliance to the supply mains. The type reference of power supply unit is marked near the symbol.

• Detach the main body from the AC adaptor before cleaning it in water.

To reduce the risk of injury, loss of life, electric shock, fire, and damage to property, always observe the following safety precautions.

Explanation of symbols

The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

WARNING Denotes a potential hazard that could result in serious injury or death.

CAUTION Denotes a hazard that could result in minor injury or property damage.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed. This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

WARNING This product

Never modify, disassemble or repair.

- Doing so may cause ignition or injury due to abnormal operation. Contact an authorized service centre for repair.

In case of an abnormality or malfunction

Immediately stop using and remove the adaptor if there is an abnormality or malfunction.

- Failure to do so may cause fire, electric shock, or injury. <Abnormality or malfunction cases> • The main unit, adaptor or cord is deformed or abnormally hot. • The main unit, adaptor or cord smells of burning. • There is abnormal sound during use of the main unit, adaptor or cord. - Immediately request inspection or repair at an authorized service centre.

Preventing accidents

Do not place within reach of children or infants.

Do not let them use it. - Doing so may cause an accident or injury due to accidental ingestion of the file.

Do not connect or disconnect the adaptor to a household outlet with a wet hand.

- Doing so may cause electric shock or injury.

The following persons should not use this appliance:

• Persons suffering from atopic dermatitis or rashes and other skin diseases • Persons with allergic diathesis or persons who are easily irritated by cosmetics, clothing, metals, etc. • Persons who are easily suppurated • Persons suffering from varicose veins, diabetes, hemophilia, etc. • Persons who have trouble stopping bleeding - Use in such cases may cause the skin to become sensitive or cause inflammation, bleeding, or increased pain. Do not use in the following cases: • During menstruation, pregnancy, or about one month after giving birth • When you are not well or when you feel an abnormality in your skin or body • After drinking alcohol or taking medicine, or when you are very tired - Use in such cases may cause the skin to become sensitive or cause inflammation, bleeding, or increased pain. Do not use in the following body area: • Injury, rash, moles, bruises, warts, pimples, etc. • On suntanned skin - Doing so may cause injury, inflammation of the skin, or bleeding. Do not use with the frame removed. - Doing so may cause finger injury or cause hair or clothing entanglement and damage.

D To protect the skin

RO WARNING Do not immerse the AC adaptor in water or wash it with water.

Do not place the AC adaptor over or near water filled sink or bathtub. Never use the appliance if the AC adaptor is damaged or if the power plug fits loosely in a household outlet. Do not damage or modify, or forcefully bend, pull, or twist the cord. Also, do not place anything heavy on or pinch the cord. - Doing so may cause electric shock or fire due to a short circuit. Do not use in a way exceeding the rating of the household outlet or the wiring. - Exceeding the rating by connecting too many plugs to one household outlet may cause fire due to overheating. Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the AC adaptor. Fully insert the adaptor or appliance plug. - Failure to do so may cause fire or electric shock. Always unplug the adaptor from a household outlet when cleaning. - Failure to do so may cause electric shock or injury. Regularly clean the power plug and the appliance plug to prevent dust from accumulating. - Failure to do so may cause fire due to insulation failure caused by humidity. Disconnect the adaptor and wipe with a dry cloth.

CAUTION Do not use on blisters and corns.

- Doing so may cause injury, inflammation of the skin, or bleeding. Do not use appliance in the following ways: • Filing too deeply • Letting the file touch soft skin • Using the appliance in the bath - Doing so may cause injury to the skin, infection, inflammation, bleeding or other trouble, or worsening of such symptoms. Before using, check that the file is free from deformities, cracks, and damage. - Failure to do so may cause injury to the skin. When using the appliance for filing, be careful of the direction in which the main body moves. - Rotation of the file may cause the main body to move in an unexpected direction and cause injury to the skin. • People suffering from poor circulation in the feet; or swelling, itchiness, pain, or excessive warmth in the feet should consult their doctor before using the appliance. • If skin appears abnormal after filing, stop using the appliance and consult a dermatologist. • File the hardened skin little by little over a few days. • File only calluses or hardened skin on your feet. - Failure to follow the above instruction may cause injury to the skin, infection, inflammation, bleeding or other trouble, or worsening of such symptoms.

Note the following precautions

Do not share with your family or others.

- Doing so may cause infection or inflammation. Do not allow metal objects or trash to adhere to the power plug or the appliance plug. - Doing so may cause electric shock or fire due to a short circuit. Do not wrap the cord around the adaptor when storing. - Doing so may cause the wire in the cord to break with the load, and may cause fire due to a short circuit. Do not drop or subject to shock. - Doing so may cause injury. Store the appliance with the protection cap attached. - Failure to do so may cause damage to surrounding items. Disconnect the adaptor from the household outlet when not using. - Failure to do so may cause electric shock or fire due to electrical leakage resulting from insulation deterioration. Disconnect the adaptor or the appliance plug by holding onto the adaptor or the appliance plug instead of the cord. - Disconnecting by holding onto the cord may cause electric shock or injury.

• Do not use alcohol, nail polish remover, etc. to clean the appliance. Doing so may cause failure, cracking or discoloration of the main body.

• Keep the appliance away from sinks, bathrooms or other high‑humidity areas where it could be exposed to water and moisture. • Keep the appliance away from where it will be exposed to high temperatures or direct sunlight.

Parts identification

PL CZ B AC adaptor (RE7‑87)

(The shape of the AC adaptor differs depending on the area.) 7 Adaptor 8 Power plug 9 Cord  Appliance plug

1 Cap 2 File 3 Frame 4 Frame release buttons 5 Power switch (0/1) 6 Socket

Remove and insert frame

Bring the file into contact with the skin, and begin filing.

Slide the switch to the 0 position.

Moisturize the skin with lotion etc.

1 Push the frame release buttons 2 Remove the frame Insert Push the head until it clicks.

Plug the AC adaptor into the appliance

( ) and a household outlet ( ).

Do not use the product for filing anything other than calluses and hardened skin on the feet.

• Wipe any water on the socket.

Slide the switch to the 1 position.

Remove the AC adaptor from the household outlet, and remove the appliance plug from the main body.

The basics of foot care

• This appliance is not rechargeable. It must be plugged into a household outlet when in use.

• The appliance cannot be used in a bath or shower. • We recommend using the product within 30 minutes after bathing or showering. With the feet clean, wipe off any water on the skin. (Each use should be approximately 10 minutes (5 minutes on each foot, 10 minutes total for both feet))

• Filing a single location for a long time can cause it to become hot with friction. To avoid this, be sure to make small changes in the filing position while filing.

• Filing should be performed about once every two weeks.

A callus is a hardened layer that forms through repeated pressure or abrasion.

Hardened layer Epidermis Derma

• Cleaning and maintenance is necessary after use. 1. Switch off and unplug the appliance before cleaning. 2. Apply liquid hand soap to the central part of the file. 3. Pour a small amount of water on the file. 4. Rinse any debris thoroughly with water or lukewarm water. 5. Remove the frame and rinse inside. 6. Wipe with a dry cloth and dry in a well-ventilated location. 7. Store the appliance with the protection cap attached.

Epidermis ץ Derma Portion to be removed ף Leave some of the hardened layer • Filing an area too deeply can cause it to become sore or inflamed. • Filing too large an area can result in even larger calluses forming. Therefore, be sure to leave some of the hardened layer.

I Things to be careful of when filing

E Tips for moving the appliance

PL Move in the direction indicated by the arrows.

CZ SK Use your free hand to support filing.

The file lifetime is approximately 1 year (assuming a single use every 2 weeks with approximately 10 minutes per use).

We recommend replacing the file about once a year. (Replacement file: WES 2W31) 1. Press down with your finger and release the file. 2. Align the shaped part with the mark side and press down.

The frame is not securely attached.

The appliance does not operate.

The main body is not connected to the household outlet with the AC adaptor.

Use the main body connected to the household outlet with the AC adaptor.

The appliance stops during operation.

The appliance is pressed against skin too hard.

Contact to skin with gentle force.

The file is worn out.

Guidelines for replacement: Approximately 1 year

Cannot get rid of odor.

Soak the file in water for approximately

24 hours before washing.

If the problems still cannot be solved, contact the store where you purchased the unit or a service centre authorized by Panasonic for repair.

59 (dB (A) re 1 pW) Acoustical Noise This product is intended for household use only.

I See the name plate on the AC adaptor.

(Automatic voltage conversion)

Disposal of Old Equipment

Only for European Union and countries with recycling systems This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products must not be mixed with general household waste. For proper treatment, recovery and recycling of old products, please take them to applicable collection points in accordance with your national legislation. By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment. For more information about collection and recycling, please contact your local municipality. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
