CDX-GT32W - Car radio SONY - Free user manual and instructions

Product Type	Car Stereo (CD Receiver)
Brand	Sony
Model	CDX-GT32W
Dimensions (W x H x D)	Approx. 178 x 50 x 150 mm
Weight	Approx. 1.2 kg
Power Supply	12V DC (negative ground)
Maximum Power Output	52 W x 4 (at 4 ohms)
RMS Power Output	17 W x 4 (at 4 ohms, 1% THD)
Compatible Disc Media	CD, CD-R, CD-RW (MP3/WMA)
Tuner Frequencies	FM: 87.5 - 108 MHz, AM: 531 - 1602 kHz
RDS	Yes
Preamp Outputs	1 pair (2V)
AUX Input	Front 3.5 mm stereo mini jack
Equalizer	7-band graphic equalizer
Display	LCD with white illumination
Detachable Face	Yes
Remote Control	Not included (optional)
Maintenance	Clean with soft, dry cloth; avoid solvents
Safety	Disconnect battery negative terminal before installation; use correct fuse (10A)
Spare Parts / Reparability	Laser pickup assembly, fuse, knobs; contact Sony service for repairs
General Information	Designed for 12V negative ground vehicles; compatible with most vehicle dashboards (single DIN slot)

Frequently Asked Questions - CDX-GT32W SONY

How do I set the clock on my Sony CDX-GT32W?

Press and hold the Source button until the clock appears. Then press Menu, rotate the control dial to set hour, press to confirm, then set minutes. Press Menu to exit.

How can I reset the unit?

Press the Reset button located behind the detachable face panel using a pointed object, such as a ballpoint pen. This restores factory defaults.

Does this stereo support Bluetooth?

No, the CDX-GT32W does not have built-in Bluetooth. It supports CD playback and AUX input for external devices.

What audio formats can I play from CDs?

It can play standard audio CDs as well as CD-R/RW discs containing MP3 or WMA files. Ensure files are saved with .mp3 or .wma extension.

How do I adjust the sound settings?

Press the Menu button, then rotate the control dial to select EQ (equalizer) or other sound options. You can choose presets or customize the 7-band graphic EQ.

Can I connect my phone via the AUX input?

Yes, use a 3.5mm stereo cable to connect your phone to the AUX jack on the front panel. Select AUX as the source by pressing Source repeatedly.

Why is there no sound?

Check that the volume is turned up, the speakers are properly connected, and the correct source is selected. If using an external amplifier, ensure it is powered. Also verify the fader/balance settings.

How do I detach the faceplate?

Press the Release button (usually on the left side of the faceplate) and pull the faceplate towards you. Store it in the provided case when not in use.

What fuse rating does this unit require?

Use a 10A fuse (standard ATO type) connected in line with the power wire. Do not exceed this rating.

Can I replace the laser pickup myself?

Replacing the laser pickup requires disassembly and is not recommended for non-professionals. Contact Sony service or a qualified technician for repair.

USER MANUAL CDX-GT32W SONY

FM/AM Compact Disc Player

Operating Instructions

US

The model and serial numbers are located on the bottom of the unit.

Record these numbers in the spaces provided below.

Refer to these numbers whenever you call upon your Sony dealer regarding this product.

Model No. ____ Serial No. ____

To cancel the demonstration (DEMO) display, see page 9.

For installation and connections, see the supplied installation/connections manual.

Warning

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

CAUTION

The use of optical instruments with this product will increase eye hazard.

For the state of California, USA only

Perchlorate Material – special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate. Perchlorate Material: Lithium battery contains perchlorate.

CDX-GT32W only

The “HD Radio Ready” logo indicates that this product will control a Sony HD Radio™ tuner (sold separately).

For HD Radio™ tuner operation, please refer to the HD Radio™ tuner Operating Instructions.

The HD Radio Ready logo is a registered trademark of iBiquity.

HD Radio™ is a trademark of iBiquity Digital Corp.

The “SAT Radio Ready” logo indicates that this product will control a satellite radio tuner module (sold separately).

Please see your nearest authorized Sony dealer for details on the satellite radio tuner module.

“SAT Radio,” “SAT Radio Ready,” the SAT Radio and SAT Radio Ready logos and all related marks are trademarks of Sirius Satellite Radio Inc. and XM Satellite Radio Inc.

Microsoft, Windows Media, and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

Corporation in the United States and/or other countries.

Warning: If your car's ignition has no ACC position

Be sure to set the Auto Off function (page 9). The unit will shut off completely and automatically in the set time after the unit is turned off, which prevents battery drain. If you do not set the Auto Off function, press and hold OFF until the display disappears each time you turn the ignition off.

Table of Contents

About this manual 4

Welcome! 4

Getting Started

Resetting the unit (CDX-GT32W only) ..... 5

Preparing the card remote commander (CDX-

GT32W only). 5

Setting the clock 5

Detaching the front panel 5

Attaching the front panel 5

Location of controls and basic operations

Main unit. 6

Card remote commander RM-X151 (CDX-GT32W only)....6

CD

Display items 8

Repeat and shuffle play....8

Radio

Storing and receiving stations 8

Storing automatically — BTM ..... 8

Storing manually....8

Receiving the stored stations 8

Tuning automatically 8

Other functions

Changing the sound settings ..... 9

Adjusting the sound characteristics — BAL/FAD/SUB ..... 9

Customizing the equalizer curve — EQ3 ....9

Adjusting setup items — SET ..... 9

Using optional equipment ..... 10

Auxiliary audio equipment ..... 10

CD/MD changer (CDX-GT32W only) .... 11

Card remote commander RM-X114 (for CDX-GT22W)....11

Additional Information

Precautions 12

Notes on discs 12

Playback order of MP3/WMA files ..... 13

About MP3 files 13

About WMA files.... 13

Maintenance 13

Removing the unit. 14

Specifications 14

Troubleshooting 15

Error displays/Messages.... 16

About this manual

This manual contains instructions for the CDX-GT32W and GT22W. The following chart shows the main differences between these models.

Check your model name, and refer to the difference indications in each section of this manual.

	GT32W GT22W
Reset button	●
MP3/WMA playback	●	●
CD/MD changer control	●
Card remote commander available	●(supplied)	●(option)

Welcome!

Thank you for purchasing this Sony Compact Disc Player. You can enjoy your drive with the following functions.

- CD playback

You can play CD-DA (also containing CD TEXT) and CD-R/CD-RW (MP3/WMA files (page 13)).

Type of discs Label on the disc
CD-DA
MP3WMA

- Radio reception

• You can store up to 6 stations per band (FM1, FM2, FM3, AM1 and AM2).
• BTM (Best Tuning Memory): The unit selects strong signal stations and stores them.

- Sound adjustment

- EQ3 stage2: You can choose any one of 7 preset equalizer curves.

- Optional device operation *

You can also control optional device, such as CD/MD changers, etc.

• Auxiliary equipment connection

An AUX input jack on the front of the unit allows connection of a portable audio device.

* CDX-GT32W only

Getting Started

Resetting the unit (CDX-GT32W only)

Before operating the unit for the first time, or after replacing the car battery or changing the connections, you must reset the unit.

Detach the front panel and press the RESET button with a pointed object, such as a ball-point pen.

Note

Pressing the RESET button will erase the clock setting and some stored contents.

Preparing the card remote commander (CDX-GT32W only)

Before using the card remote commander for the first time, remove the insulation film.

Tip

For how to replace the battery, see "Replacing the lithium battery of the card remote commander" on page 13.

Setting the clock

The clock uses a 12-hour digital indication.

1 Press and hold the select button. The setup display appears.

2 Press the select button repeatedly until "CLOCK-ADJ" appears.

3 Press SEEK +. The hour indication flashes.

4 Rotate the volume control dial to set the hour and minute. To move the digital indication, press SEEK -/+

5 Press the select button. The setup is complete and the clock starts.

To display the clock, press DSPL. Press DSPL again to return to the previous display.

Detaching the front panel

You can detach the front panel of this unit to prevent theft.

Caution alarm

If you turn the ignition switch to the OFF position without detaching the front panel, the caution alarm will sound for a few seconds. The alarm will only sound if the built-in amplifier is used.

1 Press OFF.

The unit is turned off.

2 Press then pull it off towards you.

Notes

• Do not drop or put excessive pressure on the front panel and display window.
• Do not subject the front panel to heat/high temperature or moisture. Avoid leaving it in a parked car or on a dashboard/rear tray.

Attaching the front panel

Engage part Ⓐ of the front panel with part Ⓑ of the unit, as illustrated, and push the left side into position until it clicks.

Note

Do not put anything on the inner surface of the front panel.

Location of controls and basic operations

Main unit

Card remote commander RM-X151 (CDX-GT32W only)

This section contains instructions on the location of controls and basic operations.

For details, see the respective pages.

For optional device (CD/MD changer, etc.) operation, see “Using optional equipment” on page 10. The corresponding buttons on the card remote commander control the same functions as those on the unit.

1 OFF button

To power off; stop the source.

2 EQ3 (equalizer) button page 9

To select an equalizer type (XPLOD, VOCAL, EDGE, CRUISE, SPACE, GRAVITY, CUSTOM or OFF).

3 Volume control dial/select button

page 9

To adjust volume (rotate); select setup items (press and rotate).

4 SOURCE button

To power on; change the source* (Radio/CD/AUX).

5 Disc slot

Insert the disc (label side up), playback starts.

6 Display window

7 AUX input jack page 10

To connect a portable audio device.

8▲ (eject) button

To eject the disc.

9 (front panel release) button page 5

10 DSPL (display)/SCRL (scroll) button page 8

To change display items (press); scroll the display item (press and hold).

11 SEEK -/+ buttons

CD:

To skip tracks (press); skip tracks continuously (press, then press again within about 1 second and hold); reverse/fast-forward a track (press and hold).

Radio:

To tune in stations automatically (press); find a station manually (press and hold).

12 MODE button page 8

To select the radio band (FM/AM) *.

13 BTM/CAT button (CDX-GT32W)

page 8

To start the BTM function (press and hold).

BTM button (CDX-GT22W) page 8

To start the BTM function (press and hold).

14 RESET button (located behind the front panel) (CDX-GT32W only) page 5

15 Number buttons

CD:

1/2: ALBUM -/+ (during MP3/WMA playback)

To skip albums (press); skip albums continuously (press and hold).

3: REP page 8

4: SHUF page 8

6: PAUSE

To pause playback of a CD on this unit. To cancel, press again.

Radio:

To receive stored stations (press); store stations (press and hold).

16 Receptor for the card remote commander

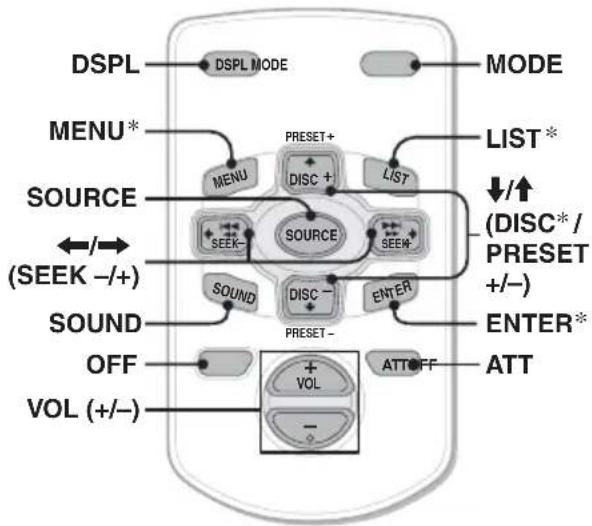

The following buttons on the card remote commander have also different buttons/functions from the unit. Remove the insulation film before use (page 5) (CDX-GT32W only).

17 ← (I◄◄) / → (►►I) buttons

To control CD/radio, the same as SEEK -/+ on the unit.

Setup, sound setting, etc., can be operated by ↔.

18 DSPL (display) button

To change display items.

19 VOL (volume) +/- button

To adjust volume.

20 ATT (attenuate) button

To attenuate the sound. To cancel, press again.

21 SEL (select) button

The same as the select button on the unit.

22 ↑ (+)/↓ (-) buttons

To control CD, the same as ①/② (ALBUM -/+ ) on the unit.

Setup, sound setting, etc., can be operated by ↑↓.

23 SCRL (scroll) button

To scroll the display item.

24 Number buttons

To receive stored stations (press); store stations (press and hold).

* In the case of a CD/MD changer, HD radio tuner or SAT tuner being connected; when SOURCE is pressed, the connected device ("MD," "HD," "XM" or "SR") will appear in the display, depending on which device is connected. Furthermore, if MODE is pressed, you can switch the changer, HD radio tuner band or SAT tuner band (CDX-GT32W only).

Note

If the unit is turned off and the display disappears, it cannot be operated with the card remote commander unless SOURCE on the unit is pressed, or a disc is inserted to activate the unit first.

CD

For details on selecting a CD/MD changer, see page 11 (CDX-GT32W only).

Display items

Example: CDX-GT32W

A Source (CDX-GT32W only) B Track number/Elapsed playing time, Disc/artist name, Album number¹, Album name, Track name, Text information², Clock

*1 Album number is displayed only when the album is changed. *2 When playing an MP3, ID3 tag is displayed, and when playing a WMA, WMA tag is displayed.

To change display items B, press DSPL.

Tip

Displayed items may differ depending on model, disc type, recording format and settings. For details on MP3/WMA, see page 13.

Repeat and shuffle play

1 During playback, press ③ (REP) or ④ (SHUF) repeatedly until the desired setting appears.

Select To play

← TRACK track repeatedly.

⊂ ALBUM* album repeatedly.

SHUF ALBUM* album in random order.

SHUF DISC disc in random order.

* When an MP3/WMA is played.

To return to normal play mode, select “OFF” or “SHUF OFF.”

Radio

Storing and receiving stations

Caution

When tuning in stations while driving, use Best Tuning Memory (BTM) to prevent an accident.

Storing automatically — BTM

1 Press SOURCE repeatedly until "TUNER" appears.

To change the band, press MODE repeatedly. You can select from FM1, FM2, FM3, AM1 or AM2.

2 Press and hold BTM until "BTM" flashes.

The unit stores stations in order of frequency on the number buttons.

A beep sounds when the setting is stored.

Storing manually

1 While receiving the station that you want to store, press and hold a number button (① to ⑥) until "MEM" or "MEMORY" appears.

Note

If you try to store another station on the same number button, the previously stored station will be replaced.

Receiving the stored stations

1 Select the band, then press a number button (① to ⑥).

Tuning automatically

1 Select the band, then press SEEK -/+ to search for the station.

Scanning stops when the unit receives a station. Repeat this procedure until the desired station is received.

Tip

If you know the frequency of the station you want to listen to, press and hold (SEEK) -/+ to locate the approximate frequency, then press (SEEK) -/+ repeatedly to fine adjust to the desired frequency (manual tuning).

Other functions

Changing the sound settings

Adjusting the sound characteristics — BAL/FAD/SUB

You can adjust the balance, fader, and subwoofer volume.

1 Press the select button repeatedly until "BAL," "FAD" or "SUB" appears.

The item changes as follows:

LOW*1 → MID*1 → HI*1 →

BAL (left-right) → FAD (front-rear) →

*1 When EQ3 is activated (page 9). *2 When the audio output is set to "SUB" (page 9). "ATT" is displayed at the lowest setting, and can be adjusted up to 21 steps. *3 When AUX source is activated (page 10).

2 Rotate the volume control dial to adjust the selected item.

After 3 seconds, the setting is complete and the display returns to normal play/reception mode.

Customizing the equalizer curve — EQ3

“CUSTOM” of EQ3 allows you to make your own equalizer settings.

1 Select a source, then press EQ3 repeatedly to select "CUSTOM." 2 Press the select button repeatedly until "LOW," "MID" or "HI" appears. 3 Rotate the volume control dial to adjust the selected item.

The volume level is adjustable in 1 dB steps, from -10 dB to +10 dB.

Example: CDX-GT32W

Repeat steps 2 and 3 to adjust the equalizer curve.

To restore the factory-set equalizer curve, press and hold the select button before the setting is complete.

After 3 seconds, the setting is complete and the display returns to normal play/reception mode.

Tip

Other equalizer types are also adjustable.

Adjusting setup items — SET

1 Press and hold the select button. The setup display appears. 2 Press the select button repeatedly until the desired item appears. 3 Rotate the volume control dial to select the setting (example "ON" or "OFF"). 4 Press and hold the select button.

The setup is complete and the display returns to normal play/reception mode.

Note

Displayed items will differ, depending on the source and setting.

The following items can be set (follow the page reference for details):

“●” indicates the default settings.

CLOCK-ADJ (Clock Adjust) (page 5)

BEEP

To set "BEEP-ON" (●) or "BEEP-OFF."

AUX-A*1 (AUX Audio)

To turn the AUX source display “AUX-A-ON” (●) or “AUX-A-OFF” (page 10).

A.OFF (Auto Off)

To shut off automatically after a desired time when the unit is turned off,

- “A.OFF-NO” (●), “A.OFF-30S (Seconds),” “A.OFF-30M (Minutes)” or “A.OFF-60M (Minutes).”

SUB/REAR*1

To switch the audio output.

• “SUB-OUT” (●): to output to a subwoofer.
• “REAR-OUT”: to output to a power amplifier.

DEMO (Demonstration)

To set "DEMO-ON" (●) or "DEMO-OFF."

DIM (Dimmer)

To change the brightness of the display.

• “DIM-ON”: to dim the display.
• “DIM-OFF” (●): to deactivate the dimmer.

M.DSPL (Motion Display)

To select the Motion Display mode.

CDX-GT32W

• “M.DSPL-ON” (●): to show moving patterns and spectrum analyzer.
• “M.DSPL-OFF”: to deactivate the Motion Display.

CDX-GT22W

• “M.DSPL-ON” (●): to show moving patterns.
• “M.DSPL-OFF”: to deactivate Motion Display.

continue to next page →

A.SCRL (Auto Scroll)

To scroll long displayed item automatically when the disc/album/track is changed.

- “A.SCRL-ON” (●): to scroll.

- "A.SCRL-OFF": to not scroll.

- “LOCAL-ON”: to only tune into stations with stronger signals.

- “LOCAL-OFF” (●): to tune normal reception.

MONO*2 (Monaural Mode)

To improve poor FM reception, select monaural reception mode.

- “MONO-ON”: to hear stereo broadcast in monaural.

- “MONO-OFF” (●): to hear stereo broadcast in stereo.

LPF*3 (Low Pass Filter)

To select the subwoofer cut-off frequency: "LPF OFF" (●), "LPF125Hz" or "LPF 78Hz."

LOUD (Loudness)

To allow you to listen clearly at low volume levels.

- “LOUD-ON”: to reinforce bass and treble.

- “LOUD-OFF” (●): to not reinforce bass and treble.

BTM (page 8)

*1 When the unit is turned off.

*2 When FM is received.

*3 When the audio output is set to "SUB."

Using optional equipment

Auxiliary audio equipment

By connecting an optional portable audio device to the AUX input jack (stereo mini jack) on the unit and then simply selecting the source, you can listen on your car speakers. The volume level is adjustable for any difference between the unit and the portable audio device. Follow the procedure below:

Connecting the portable audio device

1 Turn off the portable audio device. 2 Turn down the volume on the unit. 3 Connect to the unit.

* Be sure to use a straight type plug.

Adjust the volume level

Be sure to adjust the volume for each connected audio device before playback.

1 Turn down the volume on the unit. 2 Press SOURCE repeatedly until "FRONT IN" appears. 3 Start playback of the portable audio device at a moderate volume. 4 Set your usual listening volume on the unit. 5 Press the select button repeatedly until "AUX" appears, and rotate the volume control dial to adjust the input level (-8 dB to +18 dB).

CD/MD changer (CDX-GT32W only)

Selecting the changer

1 Press SOURCE repeatedly until "CD" or "MD" appears. 2 Press MODE repeatedly until the desired changer appears.

Playback starts.

Skipping albums and discs

1 During playback, press ①/② (ALBUM -/+).

To skip	Press 1/2 (ALBUM)
album and release (hold for a moment).
album continuously	within 2 seconds of first releasing.
discs repeatedly.
discs continuously	then, press again within 2 seconds and hold.

Repeat and shuffle play

1 During playback, press ③ (REP) or ④ (SHUF) repeatedly until the desired setting appears.

Select To play

DISC disc repeatedly.

SHUF CHANGER tracks in the changer in random order.

SHUF ALL* tracks in all units in random order.

* When one or more CD changers, or two or more MD changers are connected.

To return to normal play mode, select "OFF" or "SHUF OFF."

Tip

"SHUF ALL" will not shuffle tracks between CD units and MD changers.

Card remote commander RM-X114 (for CDX-GT22W)

The corresponding buttons on the card remote commander control the same functions as those on this unit.

The following buttons on the card remote commander have different buttons/functions from the unit.

• DSPL (display) button

To change display items.

• ←/→ (SEEK -/+) buttons

To control CD/radio, the same as ⒽSEEK -/+ on the unit.

- SOUND button

The same as the select button on the unit.

• ↑/↓ (DISC*/PRESET +/-) buttons

To control CD, the same as ①/② (ALBUM -/+) buttons on the unit.

- ATT (attenuate) button

To attenuate the sound. To cancel, press again.

* Not available for this unit.

Note

If the unit is turned off and the display disappears, it cannot be operated with the card remote commander unless SOURCE on the unit is pressed, or a disc is inserted to activate the unit first.

Additional Information

Precautions

• If your car has been parked in direct sunlight, allow the unit to cool off before operating it.
• Power antenna (aerial) will extend automatically while the unit is operating.

Moisture condensation

On a rainy day or in a very damp area, moisture condensation may occur inside the lenses and display of the unit. Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for about an hour until the moisture has evaporated.

To maintain high sound quality

Be careful not to splash juice or other soft drinks onto the unit or discs.

Notes on discs

• To keep a disc clean, do not touch its surface. Handle the disc by its edge. - Keep your discs in their cases or disc magazines when not in use. - Do not subject discs to heat/high temperature. Avoid leaving them in a parked car or on a dashboard/rear tray. - Do not attach labels, or use discs with sticky ink/residue. Such discs may stop spinning when used, causing a malfunction, or may ruin the disc.

- Do not use any discs with labels or stickers attached. The following malfunctions may result from using such discs:

• Inability to eject a disc (due to a label or sticker peeling off and jamming the eject mechanism).
• Inability to read audio data correctly (e.g., playback skipping, or no playback) due to heat shrinking of a sticker or label causing a disc to warp. • Discs with non-standard shapes (e.g., heart, square, star) cannot be played on this unit. Attempting to do so may damage the unit. Do not use such discs.
• You cannot play 8 cm (3 1/4 in) CDs.

Before playing, clean the discs with a commercially available cleaning cloth. Wipe each disc from the center out. Do not use solvents such as benzine, thinner, commercially available cleaners, or antistatic spray intended for analog discs.

Notes on CD-R/CD-RW discs

• Some CD-Rs/CD-RWs (depending on the equipment used for its recording or the condition of the disc) may not play on this unit.
• You cannot play a CD-R/a CD-RW that is not finalized.
• The unit is compatible with the ISO 9660 level 1/level 2 format, Joliet/Romeo in the expansion format, and Multi Session. • The maximum number of:

– folders (albums): 150 (including root and empty folders). – files (tracks) and folders contained in a disc: 300 (if a folder/file names contain many characters, this number may become less than 300). – displayable characters for a folder/file name is 32 (Joliet), or 64 (Romeo).

- When the disc is recorded in Multi Session, only the first track of the first session format is recognized and played (any other format is skipped). The priority of the format is CD-DA and MP3/WMA.

• When the first track is a CD-DA, only CD-DA of the first session is played.
• When the first track is not a CD-DA, the MP3/WMA session is played. If the disc has no data in any of these formats, "NO MUSIC" is displayed.

Music discs encoded with copyright protection technologies

This product is designed to play back discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection technologies are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product.

Note on DualDiscs

A DualDisc is a two sided disc product which mates DVD recorded material on one side with digital audio material on the other side. However, since the audio material side does not conform to the Compact Disc (CD) standard, playback on this product is not guaranteed.

Playback order of MP3/WMA files

About MP3 files

• MP3, which stands for MPEG-1 Audio Layer-3, is a music file compression format standard. It compresses audio CD data to approximately 1/10 of its original size.
• ID3 tag versions 1.0, 1.1, 2.2, 2.3 and 2.4 apply to MP3 only. ID3 tag is 15/30 characters (1.0 and 1.1), or 63/126 characters (2.2, 2.3 and 2.4).
• When naming an MP3 file, be sure to add the file extension ".mp3" to the file name.
• During playback or fast-forward/reverse of a VBR (variable bit rate) MP3 file, elapsed playing time may not display accurately.

Note

If you play a high-bit-rate MP3, such as 320 kbps, sound may be intermittent.

About WMA files

• WMA, which stands for Windows Media Audio, is a music file compression format standard. It compresses audio CD data to approximately 1/22* of its original size. • WMA tag is 63 characters.
• When naming a WMA file, be sure to add the file extension ".wma" to the file name.
• During playback or fast-forward/reverse of a VBR (variable bit rate) WMA file, elapsed playing time may not display accurately.

* only for 64 kbps

Note

Playback of the following WMA files is not supported. - lossless compression – copyright-protected

If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer.

Maintenance

Replacing the lithium battery of the card remote commander

Under normal conditions, the battery will last approximately 1 year. (The service life may be shorter, depending on the conditions of use.) When the battery becomes weak, the range of the card remote commander becomes shorter. Replace the battery with a new CR2025 lithium battery. Use of any other battery may present a risk of fire or explosion.

RM-X151 (CDX-GT32W only)

RM-X114 (for CDX-GT22W)

Notes on the lithium battery

• Keep the lithium battery out of the reach of children. Should the battery be swallowed, immediately consult a doctor.
• Wipe the battery with a dry cloth to assure a good contact.
• Be sure to observe the correct polarity when installing the battery.
• Do not hold the battery with metallic tweezers, otherwise a short-circuit may occur.

WARNING

Battery may explode if mistreated. Do not recharge, disassemble, or dispose of in fire.

Fuse replacement

When replacing the fuse, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer.

Cleaning the connectors

The unit may not function properly if the connectors between the unit and the front panel are not clean. To prevent this, detach the front panel (page 5) and clean the connectors with a cotton swab. Do not apply too much force, as this may damage the connectors.

Main unit Back of the front panel

Notes

• For safety, turn off the ignition before cleaning the connectors, and remove the key from the ignition switch.
• Never touch the connectors directly with your fingers or with any metal device.

Removing the unit

1. Remove the protection collar.

① Detach the front panel (page 5). ② Engage the release keys together with the protection collar.

Orient the release keys as shown.

③ Pull out the release keys to remove the protection collar.

2. Remove the unit.

① Insert both release keys simultaneously until they click.

② Pull the release keys to unseat the unit.

③ Slide the unit out of the mounting.

Specifications

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC DISTORTION

23.2 watts per channel minimum continuous average power into 4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more than 5% total harmonic distortion.

CEA2006 Standard Power Output: 17 Watts RMS × 4 at

4 Ohms < 1% THD+N

SN Ratio: 82 dBA

(reference: 1 Watt into 4 Ohms)

CD Player section

Signal-to-noise ratio: 120 dB

Frequency response: 10 - 20,000 Hz

Wow and flutter: Below measurable limit

Tuner section

FM

Tuning range: 87.5 - 107.9 MHz

Antenna (aerial) terminal:

External antenna (aerial) connector

Intermediate frequency: 10.7 MHz/450 kHz

Usable sensitivity: 9 dBf

Selectivity: 75 dB at 400 kHz

Signal-to-noise ratio: 67 dB (stereo), 69 dB (mono)

Harmonic distortion at 1 kHz: 0.5 % (stereo), 0.3 % (mono)

Separation: 35 dB at 1 kHz

Frequency response: 30 - 15,000 Hz

AM

Tuning range: 530 - 1,710 kHz

Antenna (aerial) terminal:

External antenna (aerial) connector

Intermediate frequency: 10.7 MHz/450 kHz

Sensitivity: 30 μV

Power amplifier section

Outputs: Speaker outputs (sure seal connectors)

Speaker impedance: 4 - 8 ohms

Maximum power output: 52 W × 4 (at 4 ohms)

General

Output:

Audio outputs terminal

Front (CDX-GT32W only)

Sub/Rear switchable

Power antenna (aerial) relay control terminal

Power amplifier control terminal

Inputs:

BUS control input terminal (CDX-GT32W only)

BUS audio input terminal (CDX-GT32W only)

Antenna (aerial) input terminal

Low: ±10 dB at 60 Hz (XPLOD)

Mid: ±10 dB at 1 kHz (XPLOD)

High: ±10 dB at 10 kHz (XPLOD)

Loudness:

+4 dB at 100 Hz

+2 dB at 10 kHz

Power requirements: 12 V DC car battery (negative ground (earth))

Dimensions: Approx. 178 × 50 × 179 mm

(7 1/8 × 2 × 7 1/8 in) (w/h/d)

Mounting dimensions: Approx. 182 × 53 × 162 mm (7 1/4 × 2 1/8 × 6 1/2 in) (w/h/d)

Mass: Approx. 1.2 kg (2 lb 11 oz)

Supplied accessories:

Card remote commander: RM-X151

(CDX-GT32W only)

Parts for installation and connections (1 set)

Optional accessories/equipment:

for CDX-GT22W

Card remote commander: RM-X114

for CDX-GT32W

BUS cable (supplied with an RCA pin cord):

CD changer (10 discs): CDX-757MX

CD changer (6 discs): CDX-T69

Source selector: XA-C40

AUX-IN selector: XA-300

Interface adaptor for iPod: XA-120IP

HD Radio™ tuner: XT-100HD

Your dealer may not handle some of the above listed accessories. Please ask the dealer for detailed information.

MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.

Design and specifications are subject to change without notice.

• Halogenated flame retardants are not used in the certain printed wiring boards.
• Halogenated flame retardants are not used in cabinets.
• Packaging cushions are made from paper.

Troubleshooting

The following checklist will help you remedy problems you may encounter with your unit. Before going through the checklist below, check the connection and operating procedures.

General

No power is being supplied to the unit.

• Check the connection. If everything is in order, check the fuse.
• If the unit is turned off and the display disappears, it cannot be operated with the remote commander.

→ Turn on the unit.

The power antenna (aerial) does not extend.

The power antenna (aerial) does not have a relay box.

No sound.

• The volume is too low. • The ATT function is activated. - The position of the fader control “FAD” is not set for a 2-speaker system. - The CD changer is incompatible with the disc format (MP3/WMA).*1 → Play back with a Sony MP3 compatible CD changer, or this unit.

No beep sound.

• The beep sound is canceled (page 9).
• An optional power amplifier is connected and you are not using the built-in amplifier.

The contents of the memory have been erased.

• The RESET button has been pressed. → Store again into the memory.
• The power supply lead or battery has been disconnected.
• The power supply lead is not connected properly.

continue to next page →

Stored stations and correct time are erased. The fuse has blown.

Makes noise when the position of the ignition is switched.

The leads are not matched correctly with the car's accessory power connector.

During playback or reception, demonstration mode starts.

If no operation is performed for 5 minutes with

“DEMO-ON” set, demonstration mode starts.

→ Set “DEMO-OFF” (page 9).

The display disappears from/does not appear in the display window.

• The dimmer is set "DIM-ON" (page 9).
• The display disappears if you press and hold OFF. →Press and hold OFF on the unit until the display appears.
• The connectors are dirty (page 14).

The Auto Off function does not operate.

The unit is turned on. The Auto Off function activates after turning off the unit.

→ Turn off the unit.

Card remote commander operation is not possible.*1

Make sure the insulation film has been removed (page 5).

CD/MD playback

The disc cannot be loaded.

• Another disc is already loaded.
• The disc has been forcibly inserted upside down or in the wrong way.

The disc does not playback.

• Defective or dirty disc. - The CD-Rs/CD-RWs are not for audio use (page 12).

MP3/WMA files cannot be played back.

The disc is incompatible with the MP3/WMA format and version (page 13).

MP3/WMA files take longer to play back than others.

The following discs take a longer time to start playback.

• A disc recorded with a complicated tree structure.
• A disc recorded in Multi Session.
• A disc to which data can be added.

The display items do not scroll.

For discs with very many characters, those may not scroll.

• “A.SCRL” is set to “OFF”. →Set “A.SCRL-ON” (page 10). →Press and hold DSPL (SCRL).

The sound skips.

• Installation is not correct. →Install the unit at an angle of less than 45° in a sturdy part of the car.

• Defective or dirty disc.

The operation buttons do not function.*1 The disc will not eject.

Press the RESET button (page 5).*1

Press (eject) (page 6).*2

Radio reception

The stations cannot be received.

The sound is hampered by noises.

• Connect a power antenna (aerial) control lead (blue) or accessory power supply lead (red) to the power supply lead of a car's antenna (aerial) booster (only when your car has built-in FM/AM antenna (aerial) in the rear/side glass).
• Check the connection of the car antenna (aerial).
• The auto antenna (aerial) will not go up. → Check the connection of the power antenna (aerial) control lead.
• Check the frequency.

Preset tuning is not possible.

• Store the correct frequency in the memory. • The broadcast signal is too weak.

Automatic tuning is not possible.

• Setting of the local seek mode is not correct. → Tuning stops too frequently: Set “LOCAL-ON” (page 10). → Tuning does not stop at a station: Set “MONO-ON” (page 10). • The broadcast signal is too weak. → Perform manual tuning.

During FM reception, the "ST" indication flashes.

• Tune in the frequency accurately. • The broadcast signal is too weak. → Set “MONO-ON” (page 10).

An FM program broadcast in stereo is heard in monaural.

The unit is in monaural reception mode.

→ Set “MONO-OFF” (page 10).

*1 CDX-GT32W only *2 CDX-GT22W only

Error displays/Messages

BLANK (CDX-GT32W only)

Tracks have not been recorded on the MD. *1

→ Play an MD with recorded tracks.

ERROR*2

• The disc is dirty or inserted upside down. *1 → Clean or insert the disc correctly.
• A blank disc has been inserted.
• The disc cannot play due to a problem. → Insert another disc.

FAILURE (Illuminates until any button is pressed.)

The connection of speakers/amplifiers is incorrect.

→ See the installation/connections manual of this model to check the connection.

FAILURE (Illuminates for about 1 second.) (CDX-GT32W only)

When the SAT tuner is connected, storing an SAT radio channel into a preset failed.

→ Be sure to receive the channel that you want to store, then try it again.

LOAD (CDX-GT32W only)

The unit/changer is loading the disc.

Wait until loading is complete.

L. SEEK +/-

The local seek mode is on during automatic tuning.

NO DISC (CDX-GT32W only)

The disc is not inserted in the CD/MD changer.

Insert discs in the changer.

NO INFO

Text information is not written in the MP3/WMA file.

NO MAG (CDX-GT32W only)

The disc magazine is not inserted in the CD changer.

Insert the magazine in the changer.

NO MUSIC

The disc does not contain a music file.

Insert a music CD in this unit or MP3 playable changer.

NO NAME

A disc/track name is not written in the track.

NOTREADY (CDX-GT32W only)

The lid of the MD changer is open or the MDs are not inserted properly.

→Close the lid or insert the MDs properly.

OFFSET

There may be an internal malfunction.

→Check the connection. If the error indication remains on in the display, consult your nearest Sony dealer.

PUSH EJT (CDX-GT22W only)

The disc cannot be ejected.

→Press ▲ (eject) (page 6).

READ

The unit is reading all track and album information on the disc.

→Wait until reading is complete and playback starts automatically. Depending on the disc structure, it may take more than a minute.

RESET (CDX-GT32W only)

The CD unit and CD/MD changer cannot be operated due to a problem.

→Press the RESET button (page 5).

“LLLL”

77707

During reverse or fast-forward, you have reached the beginning or the end of the disc and you cannot go any further.

“—”

The character cannot be displayed with the unit.

*1 The disc number of the disc causing the error appears in the display. *2 If an error occurs during playback of a CD or MD, the disc number of the CD or MD does not appear in the display.

If these solutions do not help improve the situation, consult your nearest Sony dealer.

If you take the unit to be repaired because of CD playback trouble, bring the disc that was used at the time the problem began.

“ ”

Sugerencia

Nota

FAD (frontal-posterior) →

Lado + hacia arriba

Fuse (10 A)

Main unit

Specifications

If you have any questions/problems regarding this product, try the following:

1 Read Troubleshooting in these Operating Instructions.

2 Reset the unit. (Only for models with a RESET button.) Note: Stored data may be erased.

3 Please contact (U.S.A. only); Call 1-800-222-7669 URL: http://www.SONY.com
