Product Type	Front-loading washing machine
Brand	Sharp
Model	ES-GFB7123W3
Rated Capacity	7 kg
Maximum Spin Speed	1200 rpm
Energy Efficiency Class	A+++
Annual Energy Consumption	137 kWh
Annual Water Consumption	9900 L
Noise Level (Spin)	76 dB(A)
Noise Level (Wash)	51 dB(A)
Dimensions (H x W x D)	85 x 60 x 52 cm
Weight	62 kg
Number of Programs	15
Programs	Cotton, Synthetics, Delicates, Wool, Quick 15, Rinse & Spin, Drum Clean, etc.
Additional Features	Child Lock, Delay Start (up to 24h), Display, Sound Signal
Water Connection	Cold fill only
Door Opening	Hinged left
Drum Material	Stainless steel
Warranty	2 years

Frequently Asked Questions - ES-GFB7123W3 SHARP

What is the maximum spin speed of the Sharp ES-GFB7123W3?

The maximum spin speed is 1200 rpm.

What is the rated capacity of this washing machine?

The rated capacity is 7 kg for cotton and synthetics.

How do I clean the drum on the Sharp ES-GFB7123W3?

Run the Drum Clean program periodically with a drum cleaner or vinegar. Also clean the door seal regularly.

How do I clean the filter?

The filter is located at the bottom front. Open the cover, unscrew the filter, clean it under water, and reinsert.

What should I do if the machine does not drain?

Check the drain hose for kinks, clean the filter, and ensure the hose is not blocked. If problem persists, call service.

Can I use a delay start?

Yes, you can set a delay start up to 24 hours using the button on the control panel.

Is there a child lock feature?

Yes, activate the child lock by pressing a combination of buttons (see manual) to prevent accidental operation.

What is the energy efficiency class?

The energy efficiency class is A+++, one of the most efficient.

How much water does it use?

Annual water consumption is approximately 9900 liters, based on standard use.

Where can I find spare parts?

Spare parts such as drum, motor, pump are available through Sharp authorized service centers or online spare parts dealers.

USER MANUAL ES-GFB7123W3 SHARP

Laundry

Washing Machine

ES-GFB7123W3-EE

CONTENTS

CHAPTER-1: BEFORE USING THE APPLIANCE ..... 4

SAFETY WARNINGS

GENERAL WARNINGS 6

CHAPTER-2: OVERVIEW OF YOUR DEVICE 8

Technical Specifications 8

General Appearance

CHAPTER-3: INSTALLATION 9

Removing transportation safety screws

Adjusting Adjustable Stays

Electrical connection.

Water inlet hose connection.

Water discharge connection

CHAPTER-4: INTRODUCTION OF CONTROL PANEL....11

Detergent drawer

Programme knob 11

Electronic display

CHAPTER-5: PRELIMINARY PREPARATION FOR LAUNDERING....12

Separating laundries 12

Adding detergent into machine

Auxiliary functions.

Start / Pause

Child lock

Cancelling programme

Finishing programme 14

CHAPTER-7: PROGRAM TABLE

CHAPTER-8: MAINTENANCE AND CLEANING OF YOUR MACHINE 16

Warning 16

Water inlet filters 16

Pump filter 16

Detergent drawer 16

Liquid Detergent Apparatus

CHAPTER -9: FLUSH STOPPER / BODY / DRUM 17

Flush stopper

Body 17

Drum 17

CHAPTER-10: TROUBLESHOOTING 18

CHAPTER-11: AUTOMATIC FAULT WARNINGS AND WHAT TO BE DONE ..... 20

Disposal of your old machine 20

Dear Customer,

Our goal is to offer you high quality products that exceed your expectations. Your appliance is produced in modern facilities and is carefully, particularly tested for quality.

This manual is prepared in order to help you use your appliance, which has been manufactured using the most recent technology with confidence and maximum efficiency.

Before using your appliance, carefully read this guide, which includes basic information for safe installation, maintenance, and use. Please contact your nearest Authorized Service center for the installation of your product.

The operating instructions apply to several models. Differences may therefore occur.

CHAPTER -1: BEFORE USING THE APPLIANCE

SAFETY WARNINGS

Operating voltage / frequency:

(V/Hz) (220-240) V~/50Hz;

Total current (A): 10

Water pressure (Mpa)

Maximum: 1 Mpa / Minimum : 0.1 Mpa

Total power (W) : 2100

Maximum dry laundry capacity (kg): 7

Do not install your machine on a carpet or such grounds that would prevent the ventilation of its base.

The appliance is not intended for use by people (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Call the nearest authorized service for a replacement if the power cord malfunctions.

Use only the new water inlet hose coming with your machine while making water inlet connections of your machine. Never use old, used, or damaged water inlet hoses.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

Note: For a softcopy of this user manual, please contact the following address: "[e-mail]". In your e-mail, please provide the model name and serial number (20 digits) which you can find on the appliance door.

You must read these warnings. You can thus protect yourself and your loved ones against fatal injuries and risks.

CHAPTER -1: BEFORE USING THE APPLIANCE

Danger of getting burnt!

Do not touch the discharge hose and water during discharging, as the appliance may reach high temperatures when running.

DEATH RISK DUE TO ELECTRICAL CURRENT!

• Do not use multiple receptacles or extension cords.
• Do not plug in damaged plug sockets.
• Never pull the cable when unplugging – always grip the plug itself.
• Do not plug in or unplug the plug from the receptacle with wet hands to prevent electrocution!
• Never touch the machine with wet hands or feet.
• Call the nearest authorized service for a replacement if the power cord malfunctions.

Flooding risk!

• Check whether the water runs fast or not before placing the discharge hose on the sink. • Take necessary measures to prevent the slipping of your hose.
• The backfiring force of a hose that is not placed appropriately can displace the hose. Prevent the stopper inside your sink from blocking the sink hole.

Danger of Fire!

• Do not keep inflammable liquids near your machine.
• The sulphure content of paint removers might cause corrosion. For this reason, never use paint-removing materials in your machine.
• Never use products that contain solvent material (like washing gas) in your machine.
• Remove all objects from the pockets of your laundry (needles, paperclips, lighters, matches, etc.) before placing them in your machine.

Fire and explosion risk may occur.

Fall and injury hazard!

• Do not climb on your machine. The upper table of your machine may break and you might get injured.
• Tidy the hose, cable, and packaging of your machine during installation. You might trip over and fall.
• Do not turn your machine upside down or on its side.
• Do not lift your machine by holding it from protruding parts (detergent

CHAPTER -1: BEFORE USING THE APPLIANCE

drawer, door). These parts might break and cause you to get injured.

There is a risk of tripping and injury if materials like hoses and cables are not properly stored after your machine is installed.

The machine must be carried by 2 or more people.

Child safety!

• Do not leave children unattended near the machine. Children might lock themselves inside the machine, and death risk might occur.
• Door glass and surface might be extremely hot while your machine operates. Thus, especially touching the machine might damage children's skin.
• Keep packaging material away from children.
• Poisoning might occur if the detergent and maintenance materials are consumed, and eyes or the skin might be irritated if they come into contact with the skin. Keep the cleaning materials away from the reach of children.

GENERAL WARNINGS

• The necessary ambient temperature for your machine's ideal operation is 15 - 25°C.
• Frozen hoses can tear and explode. In regions where temperature is below zero, ambient temperature might endanger the safe operation of electronic card.
• Please ensure that the clothes you will place in your machine do not contain any foreign substances (nail, needle, coins, lighter, matches, clip etc.) in their pockets. These foreign substances can damage your machine.
• Before starting to use your machine, you may call the nearest authorized service and request free-of-charge help for installation, operation and use of your machine.
• It is recommended to perform the first washing operation in 90°C Cotton programme and without laundry by inserting 1/2 scale of detergent in 2nd compartment of the detergent drawer.
• As detergent or softener exposed to air for a long time may cause residues, put your detergent or softener in the detergent drawer at the beginning of every washing.
• It is advised that you unplug your machine and close the water inlet tap if you will not use your machine for a long time. Also, leaving the door of your machine will prevent the formation of bad odors due to humidity.
• Some water might be left in your machine after the trials and tests

CHAPTER -1: BEFORE USING THE APPLIANCE

conducted due to Quality Control procedures. This will not damage your machine.

• Remember that packaging materials of your machine may be dangerous for children.
• Keep the packaging materials in a place where children cannot reach or dispose of them appropriately.
• Use pre-wash programs only for very dirty laundry.
• Never open the detergent drawer when the appliance is running.
• In case of any breakdown, unplug the appliance first and then turn off the tap. Do not attempt to repair it yourself; always contact authorized service for advice.
• The amount of laundry you put in your washing machine should not exceed the maximum amount indicated.
• Never force the door open when the machine is running.
• Washing floury clothes in your machine damages the machine. Do not wash floury clothes in your machine.
• Please adhere to the detergent/fabric conditioner manufacturers' instructions for the use of fabric conditioner or similar products in your machine.
• Set up your machine in a place where its door can be completely opened. (Do not set up your machine in places where its door cannot be fully opened.)
• Set up your machine in locations that are well-ventilated and have constant air circulation.
• Definitely read the user's manual.
• Your machine is designed for domestic use. Commercial use will cause your warranty to be cancelled.
• Keep your pets away from your machine.
• Please check the packaging of your machine before installation, and the outer surface after the package is opened. Do not operate damaged machines or machines with opened packaging.
• Have your machine installed only by authorized service. Any interference with your machine by anyone other than authorized services shall cause your warranty to be void.
• The appliance is not intended for use by people (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

CHAPTER 1: BEFORE USING THE APPLIANCE

• Use your machine only for laundries that have been specified as suitable for washing by the manufacturer.
• Before operating the washing machine, remove the 4 transportation screws and rubber spacers from the back of the machine. If the screws are not removed, it may cause heavy vibration, noise and product malfunction, (voiding the guarantee).
• Your machine is not covered under warranty for faults caused by any kind of external factors (pesticides, fire, etc.).
• Please do not throw away this user manual; keep it for future reference. You or somebody else might need it in the future.

Note: Machinery specifications may vary depending on the product purchased.

REMOVAL OF PACKAGING MATERIALS

Packaging materials protect your machine from any damage that might occur during transportation. Packaging materials are environment friendly as they are recyclable.

Recycling material provides both raw material savings and decreases waste production.

CHAPTER 2: OVERVIEW OF YOUR DEVICE - TECHNICAL SPECIFICATIONS

Operating voltage / frequency (V/Hz) (220-240) V~/50Hz
Total current (A) 10
Water pressure (Mpa) Maximum: 1 Mpa /	Minimum : 0.1 Mpa
Total power (W) 2100
Maximum dry laundry capacity (kg) 7
Spinning revolution (rev / min) 1200
Programme number 15
Dimensions (Height x Width x Depth) (mm) 845 x 597 x 527

CHAPTER 2: OVERVIEW OF YOUR DEVICE - GENERAL APPEARANCE

CHAPTER 3: INSTALLATION

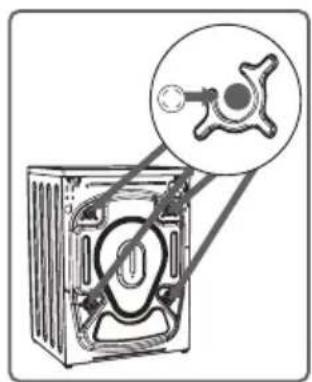

REMOVING TRANSPORTATION SAFETY SCREWS

Before operating the washing machine, remove the 4 transportation screws and rubber spacers from the back of the machine. If the screws are not removed, it may cause heavy vibration, noise and product malfunction, (voiding the guarantee). For this reason, transportation safety screws shall be loosened by being rotated in counterclockwise using an appropriate wrench.

Before operating the washing machine, remove the 4 transportation screws and rubber spacers from the back of the machine. If the screws are not removed, it may cause heavy vibration, noise and product malfunction, (voiding the guarantee). For this reason, transportation safety screws shall be loosened by being rotated in counterclockwise using an appropriate wrench. Transportation screws shall be removed by pulling out. Fit the plastic transportation screw taps delivered in accessories bag to the places where transportation screws have been removed. The transportation safety screws should be stored to be used in case of transportation.

NOTE: You should absolutely remove the transportation screws of your machine before the first usage. Faults occurring in the machines operated with transportation screw fitted shall be out of scope of warranty.

• Do not install your machine on a carpet or such grounds that would prevent the ventilation of its base.
• To ensure silent and vibration-free operation of your machine, it should be deployed on a non-sliding and firm ground. • You can adjust the balance of your machine through the stays.
• Loosen the plastic adjustment nut.

CHAPTER -3: INSTALLATION

• Adjust the stays upward and downward by rotating them. • After maintaining the balance, compress the plastic adjustment nut upward again.
• Never put cardboard, wood or suchlike materials under your machine if you are intending to stabilize the distortions on the ground.
• When cleaning the ground, on which your machine rests, be careful not to disorder stays stabilization.

ELECTRICAL CONNECTION

• Your washing machine is set to 220-240V and 50Hz.
• The mains cord of your washing machine is equipped with a specific earthed plug. This plug should always be inserted to a earthed socket of 10 amps. The current value of the fuse should be 10 amps. Fuse current value of the power line connected to this plug should also be 10 amperes. If you don't have such a receptacle and fuse confirming with this, please have it done by a qualified electrician.
• We do not take the responsibility of the damages that occur due to ungrounded usage. NOTE: Operating your machine under low voltage will cause the life cycle of your machine to be reduced and its performance to be restricted.

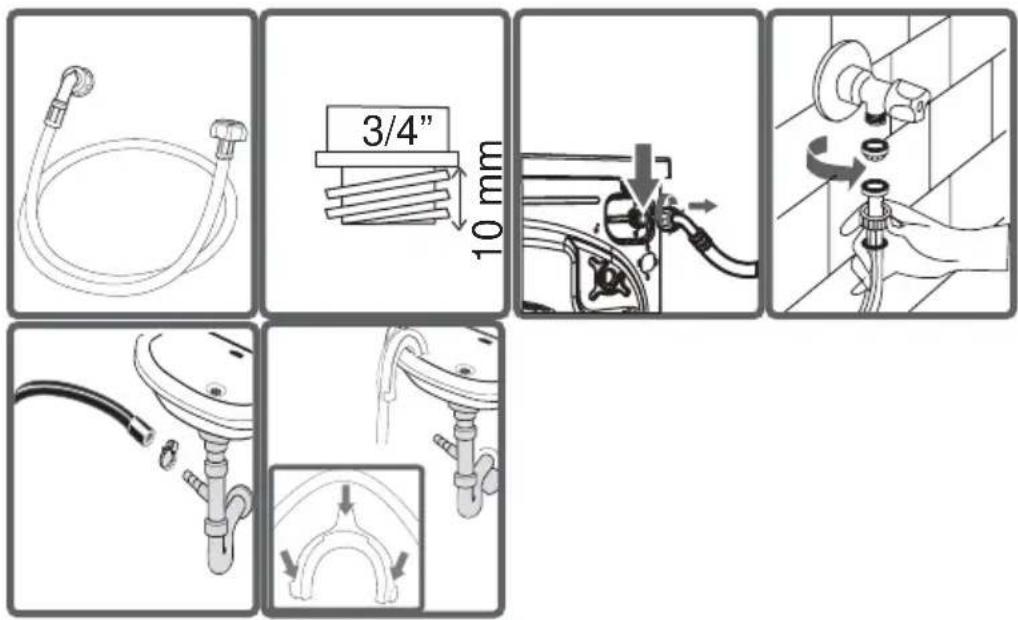

WATER INLET HOSE / WATER DISCHARGE CONNECTION

• Your machine may have either a single inlet (cold) or double water inlets (cold/hot) based on its specifications. White-capped hose should be connected to cold water inlet and red-capped hose to hot water inlet (applicable for machines with double water inlets). To eliminate water leakages in points of contact, 1 or 2 nuts are provided in the hose package (applicable for machines with double water inlets). Fit these nuts to the ends of new water inlet hoses on the side of faucet.
• Mount new water inlet hoses to a 3/4" , threaded faucet.
• Connect the white-elbow end of the water inlet hoses to the white-filtered water inlet valve on the rear side of the machine and the red-elbow end to the red-filtered one (applicable for machines with double water inlets).
• Tighten the plastic parts of the junctions using your hand. In uncertain conditions, have the connection works be done by a qualified plumber.
• Water flow with a pressure of 0.1-1 MPa will allow your machine to operate more efficiently. (0.1 MPa pressure means that more than 8 litres of water will flow through a fully-tapped faucet per one minute.)
• Ensure that points of contact do not leak by tapping the faucet completely after making the connections.
• Ensure that the new water inlet hoses are not bent, broken, crushed, or resized.
• If your machine has double hot water inlets, the temperature of the hot water inlet should be maximum 70°C. Note: Use only the new water inlet hose coming with your machine while making water inlet hose connections. Never use old, used, or damaged water inlet hoses.
• The end of the water discharge hose can be fitted to a specific apparatus directly attached to the dirty water discharge hole or outlet joint of the basin elbow.
• Never attempt to extend the water discharge hose by jointing.
• Do not put the discharging hose of your machine in a vessel, bucket, or sink. Make sure that the water discharge hose does not bend, buckle, get crushed, or be extended. Please note:
• The water drain hose should be mounted at a height of minimum 60 cm, maximum 100 cm from the ground.

CHAPTER 4: INTRODUCTION OF CONTROL PANEL SECTIONS

1 - Detergent drawer

2 - Programme knob

3 - Electronic Display and Additional

Functions

DETERGENT DRAWER

You can use the liquid level determination plate when you want to wash your laundry with liquid detergent. You can use your liquid detergents in all programs without prewashing. Place the liquid detergent apparatus in the second compartment (which is available inside the machine) of the detergent drawer (*) and set the detergent amount. (Use the recommended amount of liquid detergent by detergent producers). Do not exceed the MAX level, use only for liquid detergent, do not use this apparatus for powder detergent and take it out.)

Powder detergent level stages

Powder detergent spade (*)

Main wash detergent compartment: "In this compartment, only materials like detergent (liquid or powder), lime preventer and such can be used. You can find the liquid detergent apparatus inside your machine at first installation. (*)

Fabric conditioner, starch, detergent compartment: You can use softener for your laundry recommended amount and type by the producer is recommended). Sometimes the fabric conditioners you use for your laundry mar remain in this compartment. The reason for this is that the conditioner is not viscous. To prevent this situation, more viscous liquid softeners are recommended to be used or the softener could be thinned and then used.

Pre-wash detergent compartment: This compartment must only be used when the pre-wash feature is selected. Pre-wash feature is recommended for very dirty laundry. (*) Machinery specifications may vary depending on the product purchased.

PROGRAM KNOB

• You can select the programme you want to wash your laundry in through programme knob.
• You may set the programme selection operation by rotating the programme knob in both directions.
• Ensure that the programme knob is exactly on the programme you want to select.

ELECTRONIC DISPLAY

1. Digital Display
2. Wash level display
3. Auxiliary function symbol
4. Water Temperature Adjustment Button
5. RPM Speed Adjustment Button
6. Delayed Start Auxiliary Function
7. Auxiliary Function Button
8. Start/Pause Button

On the electronic display, you may view the washing water temperature, spinning revolution speed of your machine, when your machine will finish washing, the auxiliary functions you have selected, and at what stage the programme you have chosen is (→ prewash/wash, → rinsing, → spinning). Furthermore, the electronic display will warn you by means of fault symbols on the display when a fault occurs on your machine and notify you of the completion of the washing programme by revealing the expression "END" on the display as soon as the washing programme you have selected has finished as well.

CHAPTER -5: PRELIMINARY PREPARATION FOR LAUNDERING

SEPARATING LAUNDRIES

- Your laundry has product labels on them that specify their specifications. Wash or dry your laundry according to the specifications on the product label.

• Separate your laundries according to their types (cotton, synthetic, sensitive, wool, etc.), their temperatures (cold, 30°C, 40°C, 60°C, 90°C), and degree of contamination (slightly stained, stained, highly stained).
• Never wash your coloured and white laundry together.
• Wash your coloured laundries separately in the first washing as they may bleed.
• Ensure that there are no metallic materials on your laundries or in the pockets; if so, take them up.

WARNING: Faults that will emerge in case of penetration of foreign substances into your machine are not included within the scope of warranty.

• Zip up and button up your laundries.
• Remove the metallic or plastic hooks of tulle curtains or place them in a washing net or bag, then tie them closed.
• Turn items such as pants, knitwear, t-shirts, and sweatsuits inside out.
• Wash socks, handkerchiefs, and similar small items in a washing net.
• Open the door of your machine.
• Load your laundry into the machine.

NOTE: Maximum loading capacity may vary depending on the type of laundry, degree of soiling, and the selected programme. Do not exceed the maximum dry load capacity indicated in the programme table for washing programmes. Use the following weight table as a guide. Place each item of laundry separately.

• Ensure that no laundry is caught between the door and the bellow seal when closing the door. Push the door until you hear a locking sound to close it.
• Close the door of your machine properly; otherwise, the machine will not start the washing cycle.

LAUNDRY TYPE WEIGHT (gr)
Towel	200
Linen	500
Bathrobe	1200
Quilt cover	700
Pillow slip	200
Underwear	100
Tablecloth	250

ADDING DETERGENT TO THE MACHINE

The amount of detergent you use will depend on the following criteria:

• Your detergent usage will depend on the degree of soiling of your laundry. Do not prewash lightly soiled items, and put a small amount of detergent in the second compartment of the detergent drawer.
• For heavily soiled laundry, select a programme that includes prewashing, and put 1/4 of the detergent in the first compartment of the detergent drawer, while putting the remaining 3/4 in the second compartment.
• Use detergents designed for automatic washing machines. The recommended amount of detergent for your laundry is printed on the detergent package.
• The harder the water, the more detergent you will need. The amount of detergent will also increase as the load size increases.
• Put fabric softener in the softener compartment of the detergent drawer. Do not exceed the MAX level; otherwise, the softener will be flushed into the wash water.
• Softeners with high density are required to be thinned to a degree before being put in the drawer. Because high-density softener will clog the flush and avoid the flow of the softener.
• You can use your liquid detergents in all programs without prewashing. For this, fit liquid detergent level plate in the accessories bag or the liquid detergent apparatus (*) into 2nd compartment of the detergent drawer and set

the amount of liquid detergent according to the levels on this plate. Remember to detach the liquid detergent plate. (*) Machinery specifications may vary depending on the product purchased.

• Plug your machine in.
• Open the water faucet.
• Open the machine door.
• Spread your laundries in your machine.
• Push the door of your machine until hearing the locking sound to close it.
• Selecting programme
• Select the convenient programme for your laundries on the programme table.

AUXILIARY FUNCTIONS

Before starting the programme, you can optionally select an auxiliary function.

• Press on the button of auxiliary function you would like to select.
• If auxiliary function symbol on electronic display flashes continuously, the auxiliary function you have selected will be activated.
• If auxiliary function symbol on electronic display blinks, the auxiliary function you have selected will not be activated. Reason for non-activation:
• The auxiliary function you want to use in the washing programme you have selected is not applicable.
• Your machine has passed the stage during which the auxiliary function you would like to select would be implemented.
• It is not compatible with an auxiliary function you have selected previously.

1- Temperature selection

You can select the washing water temperature with the washing water temperature adjustment button. To use the auxiliary function of delayed start:

- Whenever you select a new programme, the maximum washing water temperature is shown on the washing water temperature display.

- You can gradually decrease the washing water temperature between the maximum temperature and cold washing (--) by pressing the washing water temperature adjustment button.

If you have missed the washing water temperature you wanted, you can return to the intended temperature by continuously pressing the washing water temperature adjustment button.

2- Spin speed selection

You can set the spin revolution for your laundry via the revolution speed setting button. When you select a new programme, the maximum spin revolution speed of the programme you have selected will be shown on the revolution speed display. You can gradually reduce the revolution speed between the cancel spinning (--) options and the maximum spin revolution of the selected programme by pressing the revolution speed setting button. If you have skipped the spinning revolution you want to set, you can return to the desired revolution by keeping the revolution setting button pressed.

3- Delay timer

By using this auxiliary function, you can set the time when your machine will start washing. This time can vary from one hour to 23 hours. To use the auxiliary function of delay timer:

- Press the time delay button once.

- The expression "1 h" will appear on the display. - The symbol Ⓗ will flash on the electronic display.

- Press the time delay button until the time at which you want the washing operation to start.

To activate the time delay you have selected in the programme, you may press any auxiliary function button except the "Start/Standby" button. If you have skipped the time delay you want to set, you can go back to the desired time by keeping the time delay button pressed.

If you want to cancel the time delay, press the time delay button once. The symbol will no longer flash on the electronic display.

To run the time delay function, your machine must be operated by pressing the Start/Pause button.

4 - Easy ironing

You can enable your laundries to be taken out less wrinkled when the washing operation is completed by employing this auxiliary function. When you press the easy ironing auxiliary function, the symbol on the electronic display will flash.

Start/Pause button

By pressing the Start/Pause button, you may start the programme you have selected or suspend a running programme. If you switch your machine to the standby mode, the Start/Standby LED on the electronic display will blink.

Child Lock

To avoid the programme flow being affected if programme buttons are pressed or the programme knob is turned during a washing operation in your machine, a child lock is available.

Child lock will be activated if both auxiliary functions 3 and 4 are pressed at the same time for more than 3 seconds. The "CL" symbol will flash on the electronic display when activated.

If any button is pressed while child lock is active, the "CL" symbol will blink on the electronic display.

If, while the child lock is engaged and any programme is running, the programme knob is switched to "O" and another programme is selected, the programme previously selected continues from where it left off.

To deactivate it, it will be sufficient to press the same buttons for more than 3 seconds. When the child lock is deactivated, the "CL" symbol on the electronic display will go off.

If, while the child lock is engaged and any programme is running, the programme knob is switched to the CANCEL position and another programme is selected, the programme previously selected continues from where it left off.

To deactivate it, it will be sufficient to press the same buttons for more than 3 seconds. When the child lock is deactivated, the Additional Function LEDs will blink on the display.

Cancelling programme

If you want to cancel any programme running:

1- Switch the programme knob to position "O".

2- Your machine will stop the washing operation and the programme will be cancelled.

3- To get rid of the water accumulated in the machine switch the programme knob to any programme.

4- Your machine will perform the necessary discharge operation and cancel the programme.

5- You can run your machine by selecting a new programme.

Finishing programme

Your machine will stop by itself as soon as the programme you have selected finishes.

• The expression of "END" will flash on the electronic display.
• You can open the machine's door and remove the laundry.
• Leave the door of your machine open to allow the inner part of your machine to dry after removing your laundries.
• Switch the programme knob to position "O".
• Unplug your machine.
• Turn the water faucet off.

CHAPTER 7: PROGRAM TABLE

Program name	Washing temperature (°C)	Maximum dry laundry amount (kg)	Detergent compartment	Prog. duration (Min.)	Laundry type / Descriptions
COTTON 90° 90° 7,0 2 180					Very dirty, cotton and flax textiles. (Underwears, linen, tablecloth, towel (maximum 3,5 kg), bedclothes, etc.
Pre-Wash Cotton	60° 7,0 1+2 171				Dirty cotton and flax textiles. (Underwears, linen, tablecloth, towel (maximum 3,5 kg), bedclothes, etc.
COTTON ECO	60° 7,0 2 230				Dirty cotton and flax textiles. (Underwears, linen, tablecloth, towel (maximum 3,5 kg), bedclothes, etc.
ECO 20°	20° 3,5 2 96				Less dirty, cotton and linen textiles. (Underwear, bedsheet, tablecloth, towel (max. 2 kg) bedcloth, etc.
EASY CARE 40° 3,5 2 89					Very dirty or synthetic-mixed textiles. (Nylon socks, shirts, blouses, synthetic-including trousers etc.)
WOOL	30° 2,5 2 42				Woollen laundries with machine wash labels.
RINSING - 7 ,0 2 36					If you want to additionally rinse your laundries upon completion of washing operation, you may use this programme for any kind of laundries.
ALLERGY SAFE	60° 3,5 2 182				Baby laundry.

CHAPTER 7: PROGRAM TABLE

SPINNING - 7,0 - 15				If you want to additionally wring your laundries upon completion of washing operation, you may use this programme for any kind of laundries.
SENSITIVE/HAND WASH	30° 2,5 2 90			Laundry recommended for hand wash or sensitive laundry.
SPORTS WEAR	30° 3,5 2 80			Sportswear.
MIXED 30° 3,5 2 80				Dirty cotton, synthetics, colour and flax textiles can be washed together.
BLOUSES / SHIRTS	60° 3,5 2 112			Dirty cotton, synthetic and synthetic-mixed shirts and blouses can be washed together.
DAILY 60 min.	60° 3,0 2 60			You can wash your dirty cotton, colour and flax textiles at 60°C in 60 minutes.
RAPID 15 min. 30° 2,0 2 15				You can wash your slightly stained, cotton, coloured and flax textile within only 15 minutes.

NOTE: As the washing period is short, less amount of detergent is required to be used compared to other programmes. The programme period will increase if your machine detects instable loading. You can open the door of your machine 2 minutes after the completion of washing operation. (The duration of 2 minutes required to open the door of your machine is not included in the washing period.) NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

CHAPTER 8: MAINTENANCE AND CLEANING OF YOUR MACHINE

Unplug your machine before starting the maintenance and cleaning of your machine.

Turn the tap water off before starting the maintenance and cleaning of your machine.

CAUTION: Your machine's parts might be damaged if cleaners with solvent agents are used. Do not use cleaning materials with solvent agents.

WATER INLET FILTERS

Filters to avoid dirt and foreign substances in the water from penetrating into the machine are available both on the side of faucet and on the ends of water valves along the water inlet hose of your machine. If your machine cannot intake sufficient amount of water despite water faucet being open, these filters should be cleaned. (It is recommended that you clean your pump filter once in 2 months.)

- Detach the water inlet hoses.

• Remove the filters on water inlet valves using pliers and then clean it with a brush in water.
• Disassemble the filters on the side of faucet side of water inlet hoses manually and clean it.
• Having the filters cleaned, you can fit them in the same way reversely.

CAUTION:

Filters of water inlet valves may be clogged due to contaminated water faucet or lack of necessary maintenance or valves may be broken down, causing water leaking into your machine continuously. The breakdowns that may arise due to these reasons are out of the scope of warranty.

PUMP FILTER

A filter system is available that prevents threads from your laundry and tiny materials from entering the pump during the water discharge operation carried out by your machine after completing washing, thereby prolonging the lifecycle of your pump. It is recommended that you clean your pump filter once every 2 months. To clean the pump filter:

- To open the pump cover, you can use the powder detergent spade (*) or the liquid detergent level plate that comes with your machine.

- Fit the end of the plastic part into the gap of the pump cover and push it back. This will open the cover.

- Before opening the filter cover, place a vessel in front of the filter cover to prevent the water remaining in the machine from flowing onto the ground.

- Loosen the filter cover counter-clockwise and then empty the water.

Note: You may need to empty the water collection vessel several times depending on the amount of water in the machine.

• Clean the foreign materials in the filter with a brush. After cleaning the filter, refit the filter cover and tighten it by rotating it clockwise.
• While closing the pump cover, ensure that the parts on the inner side of the cover match the holes on the front panel side.
• You can reattach the pump cover in the reverse order of removal.

WARNING!

As the water in the pump may be hot, wait until it cools down.

(*) Machinery specifications may vary depending on the product purchased.

DETERGENT DRAWER

Your detergents may deposit residue in the detergent drawer and its housing over time. To clean the residue, disassemble the detergent drawer periodically. It is recommended that you clean your detergent drawer every 2 months. To eject the detergent drawer:

Pull the detergent drawer up to the end

CHAPTER -9: FLUSH STOPPER / BODY / DRUM

Keep on pulling by depressing on the section shown below in the detergent drawer and keep pulling and then

unsettle the detergent drawer.

- Flush it using a brush.

- Collect residues in the housing of the detergent drawer without dropping them inside the machine. Assemble the detergent drawer after drying it using a towel or dry cloth.

- Do not wash your detergent drawer in dishwasher.

Liquid Detergent Apparatus (*)

Take out the liquid detergent level apparatus for cleaning and maintenance purposes as shown in the picture and clean well detergent residues. Put the apparatus back into its place. Make sure no residues are left inside.

(*) Machinery specifications may vary depending on the product purchased.

FLUSH STOPPER

Flush stopper

Disassemble the detergent drawer. Disassemble the flush stopper and clean the softener residues completely. Refit the flush stopper after cleaning it. Check whether it has settled properly.

Body

Clean the outer body of your machine with warm water and a non-inflammable cleaning agent that will not abrade the body of your machine. After rinsing with some water, dry it using a soft and dry cloth.

Drum

Do not leave metallic objects such as needles, paper clips, coins etc. in your machine. These objects lead to formation of rust stains in the drum. To clean such rust stains, use a non-chlorine cleaning agent and follow the instructions of manufacturers of the cleaning agent. Never use wire wool or similar hard objects for cleaning rust stains.

CHAPTER -10: TROUBLESHOOTING

All repairing operations required for your machine should be carried out by our authorised service. If your machine requires a repair or if you cannot remove the fault by the help of the information provided as follows:

•Unplug your machine. - Turn the water faucet off.

FAULT POSSIBLE CAUSE TROUBLESHOOTING
Your machine does not start.	It is not plugged. Plug it.
	Fuse blown. Replace the fuses.
	Electricity cut-off. Check mains power.
	Start/pause button not pressed. Press on Start/Pause button
	Programme dial ‘stop’ position. Switch the programme button to the desired position.
	The machine door is not completely closed.	Close the machine door.
Your machine does not intake water.	Water tap is turned off. Turn your faucet on.
	Turn your faucet Check water inlet hose and untwist.
	Water inlet hose clogged. Clean water inlet hose filters. (*)
	Valve inlet filter clogged. Clean the valve inlet filters. (*)
	The machine door not completely closed.	Close the machine door.

(*) See the chapter regarding maintenance and cleaning of your machine.

FAULT POSSIBLE CAUSE TROUBLESHOOTING
Your machine does not discharge water.	Discharging hose clogged or twisted.	Check the discharging hose, then either clean or untwist.
	Pump filter clogged. Clean the pump filter. (*)	filter. (*)
	Laundry settled in the machine unevenly.	Spread your laundry in the machine evenly.
Your machine vibrates.	The feet of your machine have not been adjusted.	Adjust the feet on your machine. (**)
	Safety stays fitted for transportation not disassembled.	Disassemble the safety stays of your machine. (**)
	Less amount of laundry in the appliance.	This will not block operation of your machine.
	Your machine is overloaded with laundry or laundry settled unevenly.	Do not put in laundry more than the amount recommended and settle the laundry in the machine evenly.
	Your machine rests on a hard surface.	Prevent your machine from resting on hard surfaces.

(*) See the chapter regarding maintenance and cleaning of your machine. (**) See the chapter regarding installation of your machine.

CHAPTER -10: TROUBLESHOOTING

FAULT POSSIBLE CAUSE TROUBLESHOOTING
Excessive foam is formed in the detergent drawer.	Excessive amount of detergent used.	Press on Start/Pause button To eliminate foam formation, mix a spoon of softener with half litres of water, and pour the mixture in the detergent drawer. After 5-10 minutes, press on Start/Pause button again. In your next washing operation, Adjust the detergent dose accordingly.
	Wrong detergent used.	Use detergents produced only for automatic washing machines in your machine.
Unsatisfactory washing result.	The contamination degree of your laundries does not match the programme you have chosen.	Select the programme appropriate for the contamination degree of your laundries. (See programme table)
	Amount of detergent used insufficient.	Adjust the amount of detergent based on the amount and contamination degree of your laundries.
	Laundries in excess of maximum capacity put in your machine.	Load your machine with laundries, amount of which will not exceed maximum laundry capacity.
	Water being hard. (Contaminated, lime water etc.)	Adjust the amount of detergent based on the instruction of detergent manufacturer.
	Laundries distributed in your machine non-homogenously.	Spread your laundries in the machine properly and homogeneously.
As soon as the machine is loaded with water, water discharges.	The end of water discharging hose is too low for the machine.	Set the water discharging hose on appropriate height. (**)
No water appears in the drum during washing.	No fault. Water is in the unseen part of the drum.	-
Laundries have detergent residues on them.	Non-dissolving particles of some detergents may stick to your laundries as white spots.	Perform an extra rinsing by setting your machine to “Rinsing” programme, or clean the spots using a brush after your laundries dry.
Grey spots appear on the laundries.	The reason for such spots may be oil, cream or ointment.	Apply the maximum amount of detergent instructed by the detergent manufacturer in the next washing operation.
Spinning operation is not performed or runs late.	No fault. Unbalanced load control system has been activated.	Unbalanced load control system will try to spread your laundries homogeneously. Wringling operation will begin after your laundry is spread. Place the laundry in the machine in a balanced fashion the next time.

(**) See the chapter regarding installation of your machine.

CHAPTER -11: AUTOMATIC FAULT WARNINGS AND WHAT TO BE DONE

TROUBLE CODE POSSIBLE FAULT WHAT TO DO
E01	The door of your machine is left open.	Close the machine door. If your machine persists to indicate fault, turn off your machine, unplug it and contact the nearest authorised service immediately.
E02	The water pressure or the water level inside the machine is low.	Turn on the faucet. Mains water may be cut-off. If the problem still continues, your machine will stop after a while automatically. Unplug the machine, turn off your faucet and contact the nearest authorised service.
E03	The pump is faulty or pump filter is clogged or electrical connection of the pump is faulty.	Clean the pump filter. If the problem persists, contact the nearest authorised service. (*)
E04	Your machine has excessive amount of water.	Your machine will discharge water by itself. Pursuant to discharging operation, turn off your machine and unplug it. Turn off your faucet and contact the nearest authorised service.

DISPOSAL OF YOUR OLD MACHINE

This symbol on the product or package implies that the product should not be treated as domestic waste. Instead, it should be delivered to applicable waste collection places recycling electrical and electronic equipment. You will contribute to avoid potential negative results regarding environment and human health, which will arise due to wrong waste procedure for the product by ensuring that this product is annihilated properly. Recycling materials will help natural resources be preserved. For more detailed information regarding recycling of this product, please contact local municipality, domestic waste annihilation service or the shop you have purchased the product.

TABLE OF CONTENTS

1. CHAPTER: BEFORE USING THE APPLIANCE ..... 21

SAFETY WARNINGS 21

CONNECTING THE WATER INLET HOSE

CHAPTER 4: DESCRIPTION OF THE CONTROL PANEL

(**) See the chapter regarding installation of your machine.

CHAPTER 3: INSTALLATION

REMOVING THE TRANSPORT BOLTS

CHAPTER 3: INSTALLATION

• Adjust the feet by turning them. - Once the balance is achieved, retighten the plastic adjustment nut upward. - Never place cardboard, wood, or similar materials under the washing machine to compensate for unevenness. - When cleaning the floor under your washing machine, be careful to maintain the balance of the feet.

ELECTRICAL CONNECTIONS

• Your washing machine operates at 220-240 V and 50 Hz.

CHAPTER 4: DESCRIPTION OF THE CONTROL PANEL

NOTE: The maximum laundry capacity depends on the type of laundry, the degree of soiling, and the selected program. The dry laundry capacity must not exceed the value specified in the program table for the washing programs.

ADDITIONAL FUNCTIONS

Chapter 3 - Installation

Chapter 3 - Installation

• Adjust the stays upward and downward by rotating them. After maintaining the balance, compress the plastic adjustment nut upward again.
• Never put cardboard, wood or suchlike materials under your machine if you are intending to stabilize the distortions on the ground.

When cleaning the ground on which your machine rests, be careful not to disorder stays stabilization.

Water connection / Water connection

(*) Machinery specifications may vary depending on the product purchased.

CHAPTER -3: INSTALLATION

REMOVING THE TRANSPORT BOLTS

Before operating the washing machine, remove the 4 transport bolts and rubber spacers from the rear of the washing machine. If the bolts are not removed, it may cause strong vibrations, noise, and product malfunction (which voids the warranty for the washing machine). The transport bolts are removed by turning them counterclockwise with an appropriate wrench.

CHAPTER -3: INSTALLATION

• Adjust the foot by turning it.
• After balancing the washing machine, tighten the plastic adjustment nut again.
• Do not place cardboard, wooden boards, or similar materials under the feet to level the washing machine.
• When cleaning the surface on which your washing machine is placed, be careful not to disturb its balance.

ELECTRICAL CONNECTION

Your washing machine is set to operate at 220-240V and 50Hz.

- The washing machine is connected to the electrical installation via a plug and a properly installed wall socket with grounding and a 10 A fuse. The electrical installation must be designed to withstand the required current.

- If you do not have such an outlet and a fuse that matches this description, have a qualified electrician install it.

- The manufacturer disclaims all liability for injuries and damages caused by using the appliance without grounding or by not following these instructions for use.

NOTE: Operating your washing machine at a lower voltage may reduce the performance of the machine and shorten its service life.

WATER INLET HOSE CONNECTION / WATER DRAIN CONNECTION

1-Detergent drawer

2-Program selector knob 3-Electronic display and additional

functions

DETERGENT DRAWER

You can use liquid detergent in all programs without prewash. To use liquid detergent, place the divider plate in the second compartment of the detergent drawer and pour the detergent up to the level indicated on the plate. Do not exceed MAX and use the insert only for liquid detergent; when using powder detergent, remove the plate.

CHAPTER -9: DETERGENT DRAWER / HOUSING / DRUM

• Rinse the drawer with plenty of water and clean it with a brush.
• Carefully clean detergent residues, being careful not to let them fall into the interior of the appliance.
• Wipe the drawer dry with a cloth and put it back in its place.
• Do not wash the detergent drawer in a dishwasher.

CHAPTER 3: INSTALLING THE APPLIANCE

1-Detergent dispenser

(*) See the chapter regarding maintenance and cleaning of your machine.

Visit our website: www.sharphomeappliances.com

Or contact us: f f You Tube
